HP NC340T User Manual

HP NC340T PCI-X Quad-Port Gigabit Server Adapter
User Guide
Part Number 397582-00C
une 2007 (Second Edition)
© Copyright 2006, 2007 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express
warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
Audience assumptions
This document is for the person who installs, administers, and troubleshoots servers and storage systems. HP assumes you are qualified in the servicing of computer equipment and trained in recognizing hazards in products with hazardous energy levels.

Contents

Technician notes........................................................................................................................... 4
Where to go for additional help.................................................................................................................. 5
HP contact information..................................................................................................................... 5
Introduction.................................................................................................................................. 6
Overview ................................................................................................................................................. 6
UTP CAT5 cable ....................................................................................................................................... 6
LED indicators........................................................................................................................................... 7
Installing an adapter ..................................................................................................................... 8
Installation overview .................................................................................................................................. 8
Preventing electrostatic discharge................................................................................................................8
Installing an adapter in a server .................................................................................................................. 9
Connecting the network cable..................................................................................................................... 9
Specifications............................................................................................................................. 10
HP NC340T PCI-X Quad-Port Gigabit Server Adapter specifications .............................................................. 10
UTP cable specifications........................................................................................................................... 11
RJ-45 pinouts and crossover function.......................................................................................................... 11
10/100 pinouts using internal, straight-through crossover................................................................... 11
10/100 pinouts using external crossover through twisted-pair media ................................................... 12
Gigabit over copper pinouts using internal crossover for RJ-45 ............................................................ 13
Gigabit over copper pinouts using external crossover through twisted pair media .................................. 14
Regulatory compliance notices ..................................................................................................... 16
Regulatory compliance identification numbers............................................................................................. 16
Federal Communications Commission notice............................................................................................... 16
Class A equipment ..................................................................................................................................16
Class B equipment................................................................................................................................... 17
Declaration of conformity for products marked with the FCC logo, United States only....................................... 17
Modifications.......................................................................................................................................... 17
Cables................................................................................................................................................... 18
Canadian notice (Avis Canadien).............................................................................................................. 18
European Union regulatory notice .............................................................................................................18
Japanese notice ...................................................................................................................................... 19

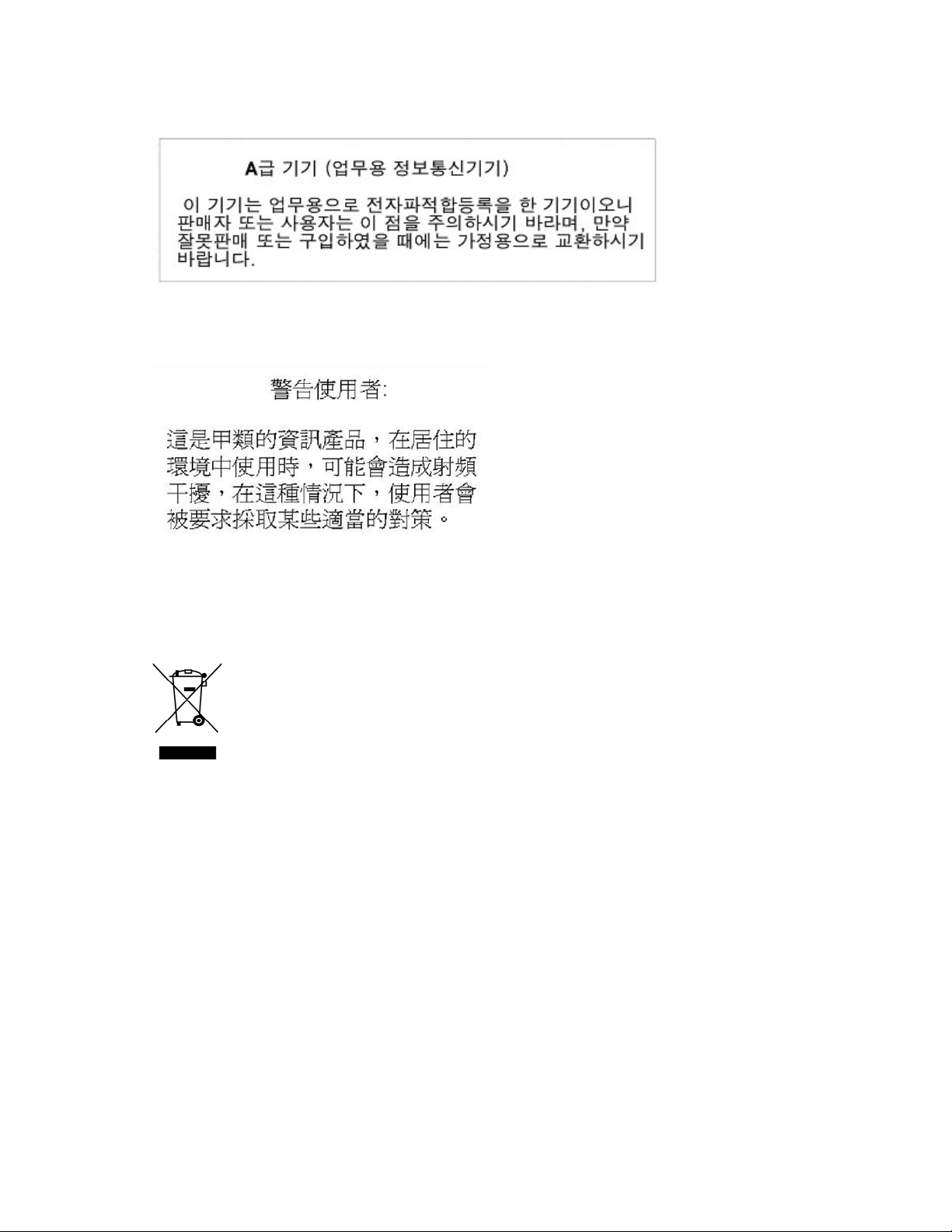

Korean class A notice .............................................................................................................................. 20
BSMI notice............................................................................................................................................ 20
Disposal of waste equipment by users in private households in the European Union......................................... 20
Electrostatic discharge................................................................................................................. 21
Overview ............................................................................................................................................... 21
Grounding methods to prevent electrostatic discharge.................................................................................. 21
Acronyms and abbreviations........................................................................................................ 22
Index......................................................................................................................................... 23
Contents 3

Technician notes

In this section
Where to go for additional help ................................................................................................................ 5
WARNING: Only authorized technicians trained by HP should attempt to repair this
equipment. All troubleshooting and repair procedures are detailed to allow only subassembly/module-level repair. Because of the complexity of the individual boards and subassemblies, no one should attempt to make repairs at the component level or to make modifications to any printed wiring board. Improper repairs can create a safety hazard.
WARNING: To reduce the risk of electric shock, personal injury, and damage to the
equipment:
Do not attempt to service any parts of the equipment other than those specified in the
following procedure. Any other activities may require that you shut down the server and remove the power cord.
Installation and maintenance of this product must be performed by individuals who are
knowledgeable about the procedures, precautions and hazards associated with the product.
WARNING: To reduce the risk of electric shock or damage to the equipment:
Do not disable the power cord grounding plug. The grounding plug is an important safety
feature.
Plug the power cord into a grounded (earthed) electrical outlet that is easily accessible at all
times.
Unplug the power cord from the power supply to disconnect power to the equipment.
Do not route the power cord where it can be walked on or pinched by items placed against
it. Pay particular attention to the plug, electrical outlet, and the point where the cord extends from the server.
CAUTION: To properly ventilate the system, you must provide at least 7.6 cm (3.0 in) of
clearance at the front and back of the server.
CAUTION: The server is designed to be electrically grounded (earthed). To ensure proper
operation, plug the AC power cord into a properly grounded AC outlet only.
NOTE: Any indications of component replacement or printed wiring board modifications may
void any warranty.
Technician notes 4

Where to go for additional help

1. Go to the HP website (http://www.hp.com).
2. Click Software & Driver Downloads from the left menu bar.
3. Type the product name in the For product box and press Enter. For example, type NC370T.
4. Download the drivers, firmware, or documentation as needed.

HP contact information

For the name of the nearest HP authorized reseller:
In the United States, see the HP US service locator webpage (http://www.hp.com/service_locator).
In other locations, see the Contact HP worldwide (in English) webpage
(http://welcome.hp.com/country/us/en/wwcontact.html
For HP technical support:
In the United States, for contact options see the Contact HP United States webpage
(http://welcome.hp.com/country/us/en/contact_us.html
o Call 1-800-HP-INVENT (1-800-474-6836). This service is available 24 hours a day, 7 days a
week. For continuous quality improvement, calls may be recorded or monitored.
o If you have purchased a Care Pack (service upgrade), call 1-800-633-3600. For more
information about Care Packs, refer to the HP website (http://www.hp.com
In other locations, see the Contact HP worldwide (in English) webpage
(http://welcome.hp.com/country/us/en/wwcontact.html
).
). To contact HP by phone:
).
).
Technician notes 5

Introduction

In this section
Overview ................................................................................................................................................ 6
UTP CAT5 cable ...................................................................................................................................... 6
LED indicators.......................................................................................................................................... 7

Overview

The HP NC340T PCI-X Quad-Port Gigabit Server Adapter is a high-performance, stand-alone Ethernet adapter with two integrated, dual-port controller chips. This configuration enables four Gigabit connections in a single adapter, delivering increased bandwidth for slot-constrained servers, and high performance and reliability with up to 1000 Mb/s Ethernet over twisted-pair (copper) cabling on each port. For best performance, install the adapter in a 64-bit/133 MHz PCI-X slot.
The NC340T adapter has four auto-negotiating 10/100/1000 RJ-45 ports. LED indicators show activity/link and port speed. See LED indicators (on page 7) for details.
The adapter is a supported option for selected HP ProLiant servers and supports current standards for system manageability and power management, such as ACPI and APM.
For the latest functionality, features, and operating system support for this adapter, see the HP website (http://h18004.www1.hp.com/products/servers/networking/index-nic.html

UTP CAT5 cable

The NC340T adapter can use existing UTP CAT5 (or better) cable to deliver Gigabit Ethernet over copper, according to the IEEE 802.3ab specifications. For new installations, CAT5e (enhanced CAT5) cable is recommended. For troubleshooting and other information about cabling, see UTP Cable Specifications (on page 11).
).
Introduction 6

LED indicators

The NC340T adapter has four auto-negotiating 10/100/1000 RJ-45 ports. LED indicators show activity/link and port speed.
LED indicator Status Description
Activity/Link On This mono-color green LED indicates that the
link to the adapter is established. The adapter is receiving power and the cable connection is working.
Speed Off The adapter is sending or receiving network
Off No link to the adapter is established. The
adapter is not receiving power or the cable connection is faulty.
Flashing The adapter is sending or receiving network
data at 10/100/1000 Mb/s, as indicated by the 10/100/1000 (speed) LED. The adapter is receiving power, and the cable connection is working.
data at 10 Mb/s.
Green The adapter is sending or receiving network
data at 100 Mb/s.
Orange The adapter is sending or receiving network
data at 1000 Mb/s.
Introduction 7

Installing an adapter

In this section
Installation overview ................................................................................................................................. 8
Preventing electrostatic discharge............................................................................................................... 8
Installing an adapter in a server................................................................................................................. 9
Connecting the network cable.................................................................................................................... 9

Installation overview

This chapter describes installation precautions, how to install the adapter, and how to connect the network cable.
WARNING: To reduce the risk of personal injury or damage to the equipment, consult the
safety information and user documentation provided with the server before attempting the installation.
Many servers are capable of providing energy levels that are considered hazardous and are intended to be serviced only by qualified personnel who have been trained to deal with these hazards. Do not remove enclosures or attempt to bypass any interlocks that may be provided for the purpose of removing these hazardous conditions.
WARNING: Installation of this adapter should be performed by individuals who are both
qualified in the servicing of computer equipment, and trained in the hazards associated with products capable of producing hazardous energy levels.
This adapter is intended to be installed in Certified (UL or CSA) ITE equipment having instructions for adding and removing user installed components such as PCI, PCI-X, and PCI Express devices. Refer to the equipment instructions to verify that it is suitable for user installed components and that it has the power capacity to support all of the installed components.
NOTE: Before removing the cover of your server, refer to the HP documentation for the proper
methods for installing a PCI card and avoiding electric shock hazards.

Preventing electrostatic discharge

To prevent damaging the system, be aware of the precautions you need to follow when setting up the system or handling parts. A discharge of static electricity from a finger or other conductor may damage system boards or other static-sensitive devices. This type of damage may reduce the life expectancy of the device.
To prevent electrostatic damage:
Avoid hand contact by transporting and storing products in static-safe containers.
Keep electrostatic-sensitive parts in their containers until they arrive at static-free workstations.
Place parts on a grounded surface before removing them from their containers.
Installing an adapter 8
Avoid touching pins, leads, or circuitry.
Always be properly grounded when touching a static-sensitive component or assembly.

Installing an adapter in a server

See the HP ProLiant server documentation for additional information on how to safely install a PCI card in the server.
CAUTION: If the server is not PCI Hot Plug compliant, power it down and unplug the power
cord from the power outlet before removing the server access panel. Failure to do so may damage the adapter or server.
1. Power down the server.
2. Remove the power cord and server access panel. Then remove the expansion slot cover from a
PCI/PCI-X slot.
WARNING: To reduce the risk of personal injury from hot surfaces, allow the drives and the
internal system components to cool before touching them.
3. Firmly seat the adapter in a PCI/PCI-X slot and secure the adapter bracket.
4. Replace the access panel and plug in the power cord.

Connecting the network cable

Network connections for the NC340T adapter can employ existing UTP CAT5 (or better) cable for Gigabit over copper transmissions. For new installations, CATe (enhanced CAT5) or better cable is recommended.
To secure the cable, plug the cable connector into the RJ-45 port. Ensure that the tab on the plug clicks into position indicating that it is properly seated.
For more information, see UTP cable specifications (on page 11).
Installing an adapter 9

Specifications

In this section
HP NC340T PCI-X Quad-Port Gigabit Server Adapter specifications ............................................................ 10
UTP cable specifications.......................................................................................................................... 11
RJ-45 pinouts and crossover function ........................................................................................................ 11

HP NC340T PCI-X Quad-Port Gigabit Server Adapter specifications

Specification Value
Network Controller Chipsets Intel® 82546GB Dual MAC/PHY Bridge Chipset Pericom 2-Port PCI-X Bridge Bus Type PCI-X or PCI Bus Width 64 bits Bus Speed 64-bit/133-MHz PCI-X bus-master On-board Memory 256Kb Data Transfer Method Bus Master DMA Boot ROM Support Yes Management Capabilities WOL (Port A only), PXE 2.2 (port A only), ACPI 1.0 Power Requirement 1850 mA@5V max Data Transmission Rate 10 Full/10 Half, 100 Full/100 Half, 1000 Full Standards Supported IEEE 802.3ab, 802.3u, 802.3 Dimensions 16.23 cm x 10.66 cm (without bracket) [6.40 x 4.2 in (L x W)] Connector and Distances 10BASE-T: Category 3, 4, or 5 UTP 100 M (328 ft)
100BASE-TX: CAT5 UTP 100 M (328 ft)
1000BASE-TX: CAT5 UTP 100 M (328 ft) Interrupts Supported Automatically configured Temperature Range Operating: 0°C to 55°C (32°F to 131°F)
Storage: -30°C to 60°C (-22°F to 140°F) Relative Humidity (non-
condensing)
Emissions Classifications Class B
Operating: 20% to 75%
Storage: 20% to 80%
Specifications 10
Specification Value
Agency Approvals USA: FCC (CFR 47 part 15) and UL 60950
Canada: ICES-003 and CSA 60950
Japan: VCCI
Korea: MIC (RRL), EMC Registration
Australia: ACA, AS/NZS3548/EN55022:1998 (CISPR 22), EN55024:1998
European Union: EN 55022:1998 (CISPR 22), EN 55024:1998, and IEC
60950:1999 (EN 60950:2000) Safety Compliance UL Mark (US and Canada)
CE Mark
EN 60590

UTP cable specifications

To connect to the network, the NC340T uses the following cable for 1000Base-T transmission:
CAT5 UTP or better twisted-pair
22-26 AWG, 100 @ 1 MHz
EIA/TIA 568a or EIA/TIA 568b
NOTE: For Gigabit over copper installations, CAT5 UTP or better 1000Base-T cable must
comply with the IEEE 802.3ab 1000Base-T standard. For new installations, CAT5e (enhanced CAT5) or better cable is recommended. Maximum distances for Gigabit over copper cable are 100 meters (328 feet).

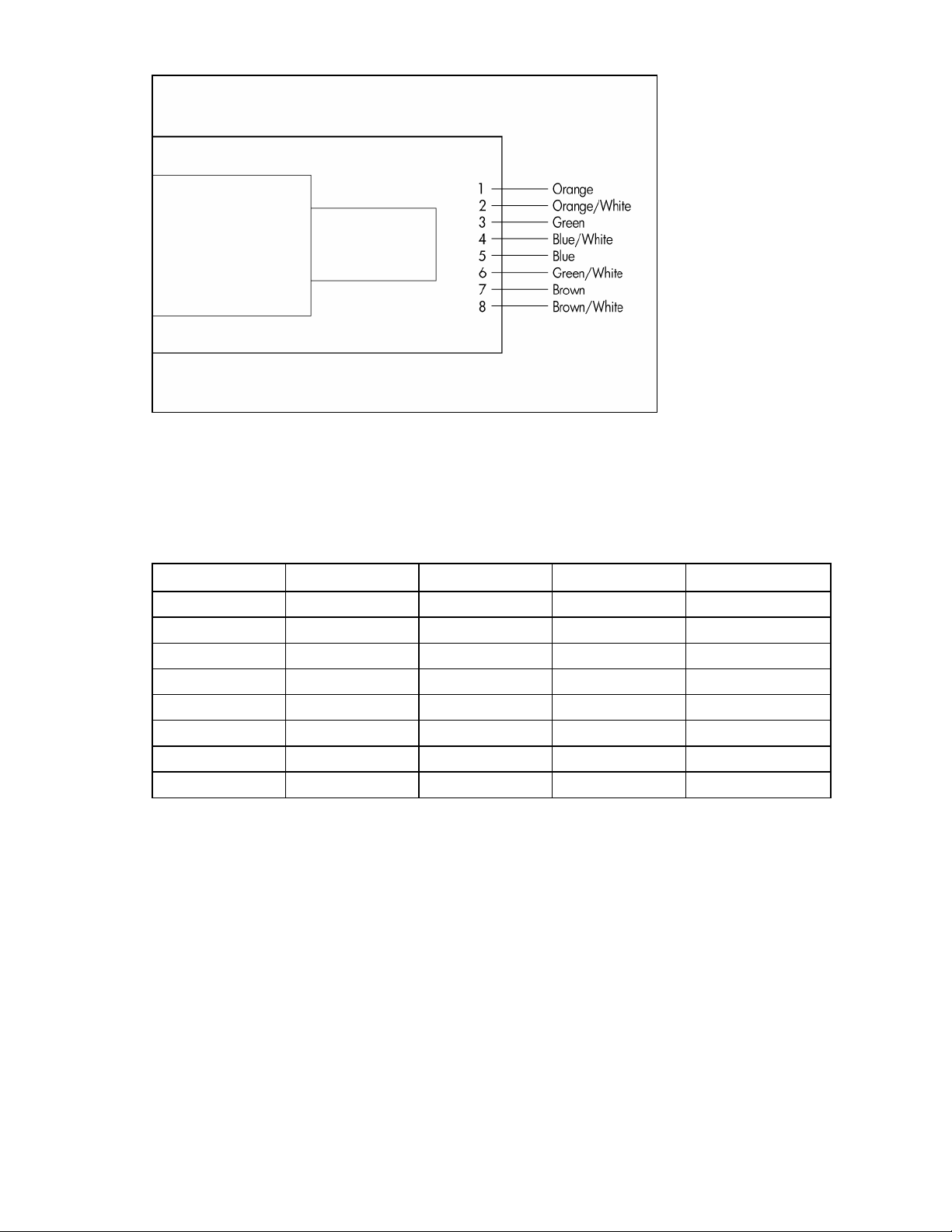

RJ-45 pinouts and crossover function

The Ethernet standard also specifies that each segment implement a crossover function to connect the transmitter of one device to the receiver of a device at the other end, and vice-versa. The crossover

10/100 pinouts using internal, straight-through crossover

function may be implemented internally at the hub or switch or externally through the twisted-pair media.
If the crossover function is implemented internally, the port is labeled MDI-X (Medium Dependent Interface­Crossover). When an MDI-X port is connected to an MDI port, the twisted pair media should be wired straight-through using the physical pinouts indicated.
Pin Function Color match Function Pin
1 TD+ Orange TD+ 1 2 TD- Orange/White TD- 2 3 RD+ Green RD+ 3 4
Blue/White
4 5 6 RD- Green/White RD- 6
Blue
5
Specifications 11
Pin Function Color match Function Pin
7
Brown
7 8
Brown/White
8

10/100 pinouts using external crossover through twisted-pair media

When the crossover function is not provided within the hub or switch, you must implement the crossover through the twisted-pair media using the physical pinouts indicated.
Pin Function Color match Function Pin
1 TD+ Orange RD+ 3 2 TD- Orange/White RD- 6 3 RD+ Green TD+ 1 4
5 6 RD- Green/White TD- 2
7 8
Blue/White Blue
Brown Brown/White
Specifications 12

Gigabit over copper pinouts using internal crossover for RJ-45

Unlike connections in which the crossover function is implemented internally at the hub or switch, the NC340T provides its own automatic crossover function. This means you can wire twisted-pair media straight-through for adapter-to-hub, adapter-to-switch, or adapter-to-adapter connections using the pinouts indicated.
NOTE: To operate at Gigabit speeds, all four pairs of wires must be terminated within the RJ-
Pin Function Color match Function Pin
1 BI_DA+ Orange BI_DA+ 1 2 BI_DA- Orange/White BI_DA- 2 3 BI_DB+ Green BI_DB+ 3 4 BI_DC+ Blue/White BI_DC+ 4 5 BI_DC- Blue BI_DC- 5 6 BI_DB- Green/White BI_DB- 6 7 BI_DD+ Brown BI_DD+ 7 8 BI_DD- Brown/White BI_DD- 8
45 connector.
Specifications 13

Gigabit over copper pinouts using external crossover through twisted pair media

When a crossover function is not provided by the adapter, hub or switch, you must implement it through the twisted-pair media using the physical pinouts indicated.
Pin Function Color match Function Pin
1 BI_DA+ Orange BI_DB+ 3 2 BI_DA- Orange/White BI_DB- 6 3 BI_DB+ Green BI_DA+ 1 4 BI_DC+ Blue/White BI_DD+ 7 5 BI_DC- Blue BI_DD- 8 6 BI_DB- Green/White BI_DA- 2 7 BI_DD+ Brown BI_DC+ 4 8 BI_DD- Brown/White BI_DC- 5
Specifications 14
Specifications 15

Regulatory compliance notices

In this section
Regulatory compliance identification numbers ........................................................................................... 16
Federal Communications Commission notice ............................................................................................. 16
Class A equipment ................................................................................................................................. 16
Class B equipment.................................................................................................................................. 17
Declaration of conformity for products marked with the FCC logo, United States only..................................... 17
Modifications......................................................................................................................................... 17
Cables.................................................................................................................................................. 18
Canadian notice (Avis Canadien) ............................................................................................................ 18
European Union regulatory notice ............................................................................................................ 18
Japanese notice ..................................................................................................................................... 19
Korean class A notice ............................................................................................................................. 20
BSMI notice........................................................................................................................................... 20
Disposal of waste equipment by users in private households in the European Union....................................... 20

Regulatory compliance identification numbers

For the purpose of regulatory compliance certifications and identification, this product has been assigned a unique regulatory model number. The regulatory model number can be found on the product nameplate label, along with all required approval markings and information. When requesting compliance information for this product, always refer to this regulatory model number. The regulatory model number is not the marketing name or model number of the product.

Federal Communications Commission notice

Part 15 of the Federal Communications Commission (FCC) Rules and Regulations has established Radio Frequency (RF) emission limits to provide an interference-free radio frequency spectrum. Many electronic devices, including computers, generate RF energy incidental to their intended function and are, therefore, covered by these rules. These rules place computers and related peripheral devices into two classes, A and B, depending upon their intended installation. Class A devices are those that may reasonably be expected to be installed in a business or commercial environment. Class B devices are those that may reasonably be expected to be installed in a residential environment (for example, personal computers). The FCC requires devices in both classes to bear a label indicating the interference potential of the device as well as additional operating instructions for the user.

Class A equipment

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a
Regulatory compliance notices 16
residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at personal expense.

Class B equipment

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit that is different from that to which the receiver is
connected.
Consult the dealer or an experienced radio or television technician for help.

Declaration of conformity for products marked with the FCC logo, United States only

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
For questions regarding this product, contact us by mail or telephone:
Hewlett-Packard Company
P. O. Box 692000, Mail Stop 530113 Houston, Texas 77269-2000
1-800-HP-INVENT (1-800-474-6836). (For continuous quality improvement, calls may be recorded
or monitored.)
For questions regarding this FCC declaration, contact us by mail or telephone:
Hewlett-Packard Company
P. O. Box 692000, Mail Stop 510101 Houston, Texas 77269-2000
1281-514-3333
To identify this product, refer to the part, series, or model number found on the product.

Modifications

The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by Hewlett-Packard Company may void the user’s authority to operate the equipment.
Regulatory compliance notices 17

Cables

Connections to this device must be made with shielded cables with metallic RFI/EMI connector hoods in order to maintain compliance with FCC Rules and Regulations.

Canadian notice (Avis Canadien)

Class A equipment This Class A digital apparatus meets all requirements of the Canadian Interference-Causing Equipment
Regulations. Cet appareil numérique de la classe A respecte toutes les exigences du Règlement sur le matériel
brouilleur du Canada. Class B equipment This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment
Regulations. Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel
brouilleur du Canada.

European Union regulatory notice

This product complies with the following EU Directives:
Low Voltage Directive 2006/95/EC
EMC Directive 2004/108/EC
CE Compliance of this product is valid only if powered with the correct HP-provided and CE marked AC adapter.
If this product has telecommunication functionality, it also complies with the essential requirements of:
R&TTE Directive 1999/5/EC
*For a notified body number refer to the product regulatory label. Compliance with these directives implies conformity to harmonized European standards (European
Norms) which are listed on the EU Declaration of Conformity issued by Hewlett-Packard for this product or product family.
The telecommunications functionality of this product may be used in the following EU and EFTA countries:
Regulatory compliance notices 18
Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Liechtenstein, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovak Republic, Slovenia, Spain, Sweden, Switzerland, and United Kingdom.
Notice for use in France and Italy Italy:
Per l'uso del prodotto, è necessaria una concessione ministeriale. Si consiglia di verificare con il distributore di fiducia o direttamente presso la Direzione Generale Pianificazione e Gestione Frequenze.
License required for use. Verify with your dealer or directly with General Direction for Frequency Planning and Management (Direzione Generale Pianificazione e Gestione Frequenze).
France: L'utilisation de cet equipement (2.4GHz Wireless LAN) est soumise a certaines restrictions: Cet
equipement peut etre utilise a l'interieur d'un batiment en utilisant toutes les frequences de 2400 a
2483.5MHz (Chaine 1-13). Pour une utilisation en environement exterieur, vous devez utiliser les frequences comprises entre 2454-2483.5MHz (Chaine 10-13). Pour les dernieres restrictions, voir http://www.art-telecom.fr.
For 2.4 GHz Wireless LAN operation of this product certain restrictions apply: This product may be used indoor for the entire 2400-2483.5 MHz frequency band (channels 1-13). For outdoor use, only 2454-
2483.5 MHz frequency band (channels 10-13) may be used. For the latest requirements, see http://www.art-telecom.fr.
Notice for products incorporating 5GHz Wireless LAN devices Frequency availability for 802.11a or 802.11h Wireless LAN is not currently harmonized throughout the
European Union. For compliance requirements, users should verify with their supplier, local HP office or Telecommunications authority.
Hewlett-Packard GmbH, HQ-TRE, Herrenberger Strasse 140, 71034 Boeblingen, Germany

Japanese notice

Regulatory compliance notices 19

Korean class A notice

BSMI notice

Disposal of waste equipment by users in private households in the European Union

This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
Regulatory compliance notices 20

Electrostatic discharge

In this section
Overview .............................................................................................................................................. 21
Grounding methods to prevent electrostatic discharge ................................................................................ 21

Overview

To prevent damaging the system, be aware of the precautions you need to follow when setting up the system or handling parts. A discharge of static electricity from a finger or other conductor may damage system boards or other static-sensitive devices. This type of damage may reduce the life expectancy of the device.
To prevent electrostatic damage:
Avoid hand contact by transporting and storing products in static-safe containers.
Keep electrostatic-sensitive parts in their containers until they arrive at static-free workstations.
Place parts on a grounded surface before removing them from their containers.
Avoid touching pins, leads, or circuitry.
Always be properly grounded when touching a static-sensitive component or assembly.

Grounding methods to prevent electrostatic discharge

Several methods are used for grounding. Use one or more of the following methods when handling or installing electrostatic-sensitive parts:
Use a wrist strap connected by a ground cord to a grounded workstation or computer chassis. Wrist
straps are flexible straps with a minimum of 1 megohm ±10 percent resistance in the ground cords. To provide proper ground, wear the strap snug against the skin.
Use heel straps, toe straps, or boot straps at standing workstations. Wear the straps on both feet
when standing on conductive floors or dissipating floor mats.
Use conductive field service tools.
Use a portable field service kit with a folding static-dissipating work mat.
If you do not have any of the suggested equipment for proper grounding, have an authorized reseller install the part.
For more information on static electricity or assistance with product installation, contact an authorized reseller.
Electrostatic discharge 21

Acronyms and abbreviations

ACPI
Advanced Configuration and Power Interface
APM
advanced power management
CSA
Canadian Standards Association
DMA
direct memory access
IEEE
Institute of Electrical and Electronics Engineers
MDI-X
medium dependent interface-crossover
PCI
peripheral component interface
PCI-X
peripheral component interconnect extended
UTP
unshielded twisted pair
Acronyms and abbreviations 22

Index

C
cable configuration 10 cable connectors 10 cable, Ethernet crossover 10 cables, networking 8 cautions 3
E
electrostatic discharge 7, 20
F
features 5
G
grounding methods 20
I
installation overview 7 installing adapters 8
N
NIC LEDs 6
R
regulatory compliance notices 15 RJ-45 connectors 10, 11, 12, 13
S
specifications 9
U
UTP CAT5 cable 10
Index 23
Loading...
