HP (Hewlett-Packard) mx705, FS7600, MV7540, S7540, v7650 User Manual
...

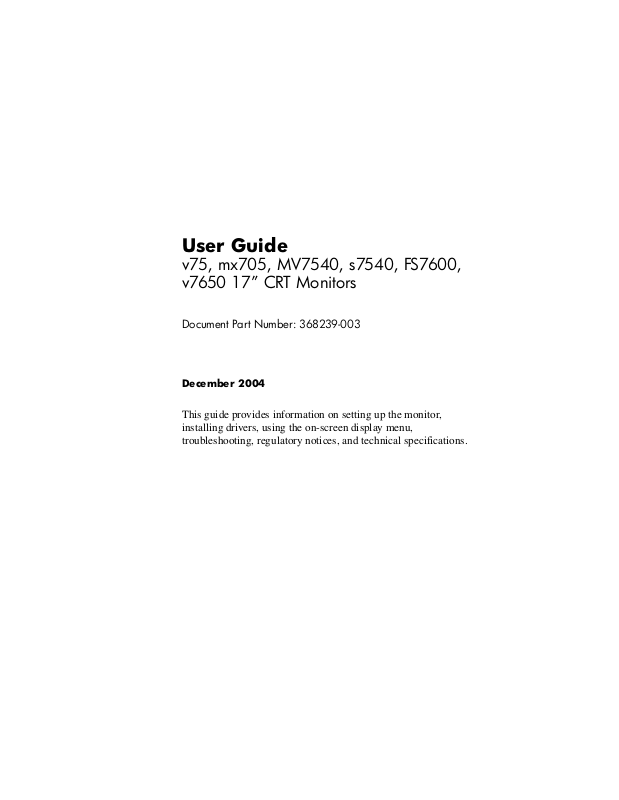

User Guide
v75, mx705, MV7540, s7540, FS7600,
v7650 17” CRT Monitors
Document Part Number: 368239-003
December 2004
This guide provides information on setting up the monitor,
installing drivers, using the on-screen display menu,
troubleshooting, regulatory notices, and technical specifications.
© Copyright 2004 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
Microsoft, MS-DOS, Windows, and Windows NT are trademarks of
Microsoft Corporation in the U.S. and other countries.
Intel, Pentium, Intel Inside, and Celeron are trademarks of Intel
Corporation in the U.S. and other countries.
Adobe, Acrobat, and Acrobat Reader are trademarks or registered
trademarks of Adobe Systems Incorporated.
The only warranties for HP products and services are set forth in the
express warranty statements accompanying such products and services.
Nothing herein should be construed as constituting an additional warranty.
HP shall not be liable for technical or editorial errors or omissions
contained herein.
This document contains proprietary information that is protected by
copyright. No part of this document may be photocopied, reproduced, or
translated to another language without the prior written consent of
Hewlett-Packard Company.
WARNING: Text set off in this manner indicates that failure to
Å
follow directions could result in bodily harm or loss of life.
CAUTION: Text set off in this manner indicates that failure to follow
Ä
directions could result in damage to equipment or loss of information.
User Guide
v75, mx705, MV7540, s7540, FS7600, v7650 17” CRT Monitors
Third Edition (December 2004)
Document Part Number: 368239-003
Contents
1 Product Features
2 Safety and Maintenance Guidelines
Safety Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–1
Power Requirements . . . . . . . . . . . . . . . . . . . . . . . . . 2–1
Important Safety Information . . . . . . . . . . . . . . . . . . 2–1
Maintenance Guidelines. . . . . . . . . . . . . . . . . . . . . . . . . . 2–2
3 Setting Up the Monitor
Attaching the Monitor Base . . . . . . . . . . . . . . . . . . . . . . . 3–1
Removing the Monitor Base . . . . . . . . . . . . . . . . . . . 3–2
Connecting the Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–2
Connecting the Speakers (Available with Select Models) 3–4
Tall Speakers with Base . . . . . . . . . . . . . . . . . . . . . . 3–4
Short Speakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–6
USB Speakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–7
Plugging Headphones into the Computer . . . . . . . . . . . . 3–8
4 Operating the Monitor
Software and Utilities. . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–1
The Information File . . . . . . . . . . . . . . . . . . . . . . . . . 4–1
The Image Color Matching File . . . . . . . . . . . . . . . . 4–2
Installing the .INF and .ICM Files . . . . . . . . . . . . . . . . . . 4–2
Installing from the CD. . . . . . . . . . . . . . . . . . . . . . . . 4–2
Downloading from the Worldwide Web . . . . . . . . . . 4–3
Front Panel Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–4
User Guide iii
Contents
On-Screen Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–5
On-Screen Display Functions . . . . . . . . . . . . . . . . . . 4–6
Monitor Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–8
No Signal Message . . . . . . . . . . . . . . . . . . . . . . . . . . 4–8
Out of Frequency Range Message. . . . . . . . . . . . . . . 4–9
Using the Energy Saver Mode . . . . . . . . . . . . . . . . . . . . 4–10
A Troubleshooting
Solving Common Problems . . . . . . . . . . . . . . . . . . . . . . . A–1
Using the Worldwide Web. . . . . . . . . . . . . . . . . . . . . . . . A–4
Preparing to Call Technical Support . . . . . . . . . . . . . . . . A–4
B Technical Specifications
v75, MV7540, s7540 17” curved CRT monitors . . . . . . . B–1
mx705 and FS7600 17” flat CRT monitors . . . . . . . . . . . B–4
v7650 17” flat CRT monitor . . . . . . . . . . . . . . . . . . . . . . B–6
C Agency Regulatory Notices
Federal Communications Commission Notice. . . . . . . . . C–1
Modifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C–2
Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C–2
Declaration of Conformity for Products Marked with FCC
Logo, United States Only. . . . . . . . . . . . . . . . . . . . . . . . . C–2
Canadian Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C–3
Avis Canadien . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C–3
European Notice. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C–3
Japanese Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C–4
Korean Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C–4
EPA Energy Star Compliance . . . . . . . . . . . . . . . . . . . . . C–4
Power Cord Set Requirements . . . . . . . . . . . . . . . . . . . . . C–4
iv User Guide
1
Product Features
This color monitor is digitally controlled by the
microprocessor-based computer. It provides an easy to use
on-screen display menu technology that allows you to adjust the
monitor to your specific viewing needs.
The 17-inch/43-centimeter CRT monitor features include:
■ 16” (41 cm) viewable area display.
■ 1024 x 768 @85 Hz recommended resolution.
■ Tilt and swivel base.
■ Monitor AC power cord (available with select models).
■ VGA analog signal cable included.
■ Speakers and power adapter (available with select models).
User Guide 1–1
Product Features
■ Plug and play capability if supported by your system.
■ On-screen display (OSD) adjustments for ease of setup and
screen optimization; allows you to adjust all elements of the
screen image.
■ Energy Saver feature for Energy Star Compliance
■ Compliant with the following regulated specifications:
❏ EPA ENERGY STAR
❏ European Union CE Directive
❏ Swedish MPR II (available with select models)
❏ Swedish TCO ‘03 (available with select models)
■ User documentation
1–2 User Guide
Safety and Maintenance
Safety Guidelines
Power Requirements
A power cord is included with your monitor. If another cord is
used, use only a power source and connection appropriate for this
monitor. For information on the correct power cord set to use with
your monitor, refer to the “Power Cord Set Requirements” section
in Appendix C.
Important Safety Information
WARNING: To reduce the risk of electric shock or damage to your
Å
equipment, do not disable the power cord grounding feature. This
equipment is designed to be connected to a grounded (earthed)
power outlet that is easily accessible to the operator. The grounding
plug is an important safety feature.
2
Guidelines
WARNING: For your safety, be sure that the power outlet you plug
Å
the power cord into is easily accessible and located as close to the
equipment as possible. When you need to disconnect the power to
the equipment, unplug the power cord from the power outlet by
grasping the plug firmly. Never pull on the cord.
User Guide 2–1
Safety and Maintenance Guidelines
CAUTION: For the protection of your monitor, as well as your
Ä
computer, connect all power cords for your computer and its
peripheral devices (such as a monitor, printer, scanner) to some form
of surge protection device such as a power strip or Uninterruptible
Power Supply (UPS). Not all power strips provide surge protection;
the power strips must be specifically labeled as having this ability.
Use a power strip whose manufacturer offers a Damage Replacement
Policy so you can replace your equipment if surge protection fails.
Maintenance Guidelines
To enhance the performance and extend the life of your monitor,
follow these guidelines:
■ Do not open your monitor cabinet or attempt to service this
product yourself. If your monitor is not operating properly, or
has been dropped or damaged, first unplug from power outlet,
then contact your Hewlett-Packard authorized dealer, reseller,
or service provider.
■ Adjust only those controls that are discussed in the operating
instructions.
■ Place your monitor at least 3 inches (76 mm) away from
walls or other enclosures.
■ Use only a power source and connection appropriate for this
monitor, as indicated on the label/back plate of the monitor.
■ Be sure the total ampere rating of the products connected to
the outlet does not exceed the current rating of the electrical
outlet, and the total ampere rating of the products connected
to the cord does not exceed the rating of the cord. Look on the
power label to determine the ampere rating (AMPS or A) for
each device.
2–2 User Guide
Safety and Maintenance Guidelines
■ Install your monitor near an outlet that you can easily reach.
Disconnect the monitor by grasping the plug firmly and
pulling it from the outlet. Never disconnect the monitor by
pulling the cord.
■ Turn your monitor off when not in use. You can substantially
increase the life of your monitor by using a screen saver
program and turning off the monitor when not in use.
■ Unplug your monitor from the wall outlet before cleaning.
Do not use liquid cleaners or aerosol cleaners. Use a damp
cloth for cleaning. If the screen requires additional cleaning,
use an antistatic CRT screen cleaner.
CAUTION: Do not use benzene, thinner, ammonia, or any other
Ä
volatile substances to clean your monitor or the screen. These
chemicals may damage the cabinet finish as well as the screen.
■ Slots and openings in the cabinet are provided for ventilation.
These openings must not be blocked or covered. Never push
objects of any kind into cabinet slots or other openings.
■ Do not place plants on top of your monitor. Water or dirt from
the plant may get into the vents.
■ Do not drop your monitor or place it on an unstable surface.
■ Do not allow anything to rest on the power cord. Do not walk
on the cord.
■ Keep your monitor in a well-ventilated area, away from
excessive light, heat or moisture. Keep your monitor away
from high-capacity transformers, electric motors, and other
devices with strong magnetic fields.
■ In a two-monitor system, place your monitors as far apart
from one another as possible to lessen interference between
them.
User Guide 2–3
■ Do not place the monitor face down. Damage could result to
the front panel controls or the monitor screen.
2–4 User Guide
Setting Up the Monitor
Attaching the Monitor Base
1. Carefully position the monitor bottom side up.
2. Align the hooks on the base with the sockets on the bottom of
the monitor and attach the base.
3. Push the base toward the front of the monitor until it stops.
3
User Guide 3–1
Setting Up the Monitor
Removing the Monitor Base
In the event that you need to disassemble the base from the
monitor, position the monitor bottom side up and follow these
instructions:
1. If you must remove the base attachment, release the catch and
slide the base toward the back of the monitor.
2. Lift the base up and away from the monitor.
Connecting the Cables
Before setting up the monitor, place it in a convenient,
well-ventilated location near the computer.
1. Turn off the power to the computer and other peripheral
devices.
2. Connect the power cord 1 to the back of the monitor, then
connect the power cord to a power outlet.
3. Connect the video cable (blue connector) 2 from the back of
the monitor to the blue 15-pin connector on the back of the
computer. Tighten the cable screws to secure the cable to the
connector.
CAUTION: To avoid damaging the video cable, ensure that the
Ä
cable aligns with the 15-pin connector. Do not force the cable onto
the connector.
3–2 User Guide
Setting Up the Monitor
4. Power on the computer and monitor.
If the monitor fails to function properly, refer to Appendix A,
✎
“Troubleshooting.”
5. If necessary, adjust the front panel monitor controls
according to your personal preference. See Chapter 4, “Front
Panel Controls” for detailed information.
The monitor installation is now complete.
User Guide 3–3
Setting Up the Monitor
Connecting the Speakers (Available with Select Models)
Several speaker models are available with select monitors. Refer
to the steps below for the speaker model included with your
monitor.
Tall Speakers with Base
1. If the speakers and bases are not assembled, attach them by
turning each speaker bottom side up. With the opening in the
base toward the rear of the speaker, align the key slot on the
base with the center tab on the speaker, and then lower the
base onto the speaker.
2. Place the speaker set near the monitor so that the speaker with
the controls is on the right side when you view the monitor
from the front.
3–4 User Guide
Loading...
