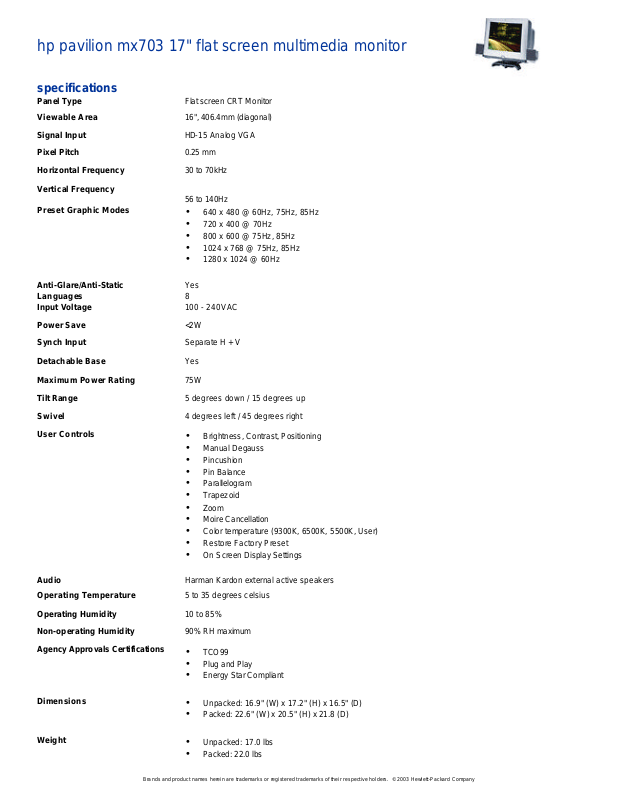

hp pavilion mx703 17" flat screen multimedia monitor

specifications

Panel Type Flat screen CRT Monitor Viewable Area 16", 406.4mm (diagonal)

Signal Input HD-15 Analog VGA Pixel Pitch 0.25 mm Horizontal Frequency 30 to 70kHz

Vertical Frequency Preset Graphic Modes

56 to 140Hz

• 640 x 480 @ 60Hz, 75Hz, 85Hz

• 720 x 400 @ 70Hz

• 800 x 600 @ 75Hz, 85Hz

• 1024 x 768 @ 75Hz, 85Hz

• 1280 x 1024 @ 60Hz

Anti-Glare/Anti-Static Yes Languages 8 Input Voltage 100 - 240VAC

Power Save <2W Synch Input Separate H + V

Detachable Base Yes Maximum Power Rating 75W Tilt Range 5 degrees down / 15 degrees up Swivel 4 degrees left / 45 degrees right User Controls

• Brightness, Contrast, Positioning

• Manual Degauss

• Pincushion

• Pin Balance

• Parallelogram

• Trapezoid

• Zoom

• Moire Cancellation

• Color temperature (9300K, 6500K, 5500K, User)

• Restore Factory Preset

• On Screen Display Settings

Audio Harman Kardon external active speakers Operating Temperature 5 to 35 degrees celsius

Operating Humidity 10 to 85% Non-operating Humidity 90% RH maximum Agency Approvals Certifications

• TCO99

• Plug and Play

• Energy Star Compliant

Dimensions

• Unpacked: 16.9" (W) x 17.2" (H) x 16.5" (D)

• Packed: 22.6" (W) x 20.5" (H) x 21.8 (D)

Weight

• Unpacked: 17.0 lbs

• Packed: 22.0 lbs
