Hardware Reference Guide
HP MultiSeat Thin Client t100
© Copyright 2009 Hewlett-Packard
Development Company, L.P. The
information contained herein is subject to
change without notice.
Microsoft and Windows are trademarks of
Microsoft Corporation in the U.S. and other
countries.
The only warranties for HP products and
services are set forth in the express warranty
statements accompanying such products
and services. Nothing herein should be
construed as constituting an additional
warranty. HP shall not be liable for technical
or editorial errors or omissions contained
herein.
This document contains proprietary
information that is protected by copyright. No
part of this document may be photocopied,
reproduced, or translated to another
language without the prior written consent of
Hewlett-Packard Company.
Hardware Reference Guide
HP MultiSeat Thin Client t100
First Edition (November 2009)
Document Part Number: 592001-001
About This Book
WARNING! Text set off in this manner indicates that failure to follow directions could result in bodily
harm or loss of life.
CAUTION: Text set off in this manner indicates that failure to follow directions could result in damage
to equipment or loss of information.
NOTE: Text set off in this manner provides important supplemental information.
ENWW iii
iv About This Book ENWW
Table of contents
1 Front Panel Components
2 Rear Panel Components
3 Serial Number Location
Appendix A Specifications
Appendix B Security Provisions
HP MultiSeat Thin Client t100 Security Clip ......................................................................................... 6
Securing the HP MultiSeat Thin Client t100 ........................................................................ 6
Securing the HP MultiSeat Thin Client t100 in the Mounting Bracket .................................. 7
Cable Lock ........................................................................................................................................... 8
Appendix C Mounting the HP MultiSeat Thin Client t100
Mounting Bracket ................................................................................................................................. 9
Attaching the HP MultiSeat Thin Client t100 to the Mounting Bracket ................................. 9
Releasing the HP MultiSeat Thin Client t100 from the Mounting Bracket ......................... 10
Supported Mounting Options .............................................................................................................. 11
Non-supported Mounting Option ........................................................................................................ 13
Appendix D HP MultiSeat Thin Client t100 Operation
Routine HP MultiSeat Thin Client t100 Care ...................................................................................... 14
Supported Orientations ...................................................................................................................... 14
Non-supported Orientation ................................................................................................................. 16
Appendix E Electrostatic Discharge
Preventing Electrostatic Damage ....................................................................................................... 17
Grounding Methods ............................................................................................................................ 17
Appendix F Shipping Information
Shipping Preparation .......................................................................................................................... 18
ENWW v
Important Service Repair Information ................................................................................................. 18
Index ................................................................................................................................................................... 19
vi ENWW
1 Front Panel Components
For more information, http://www.hp.com and search for your specific HP MultiSeat Thin Client t100
model to find the model-specific QuickSpecs.
Figure 1-1 Front panel components
(1) Power LED (3) Line-in (microphone) connector
(2) Line-out (headphone) audio connector (4) PS/2 connectors (2)
ENWW 1
2 Rear Panel Components
For more information, http://www.hp.com and search for your specific HP MultiSeat Thin Client t100
model to find the model-specific QuickSpecs.
Figure 2-1 Rear panel components
(1) Cable lock slot (3) USB PC power connector to host PC (USB Type A/B
cable included)
(2) VGA connector (4) Security clip slot
2 Chapter 2 Rear Panel Components ENWW
3 Serial Number Location

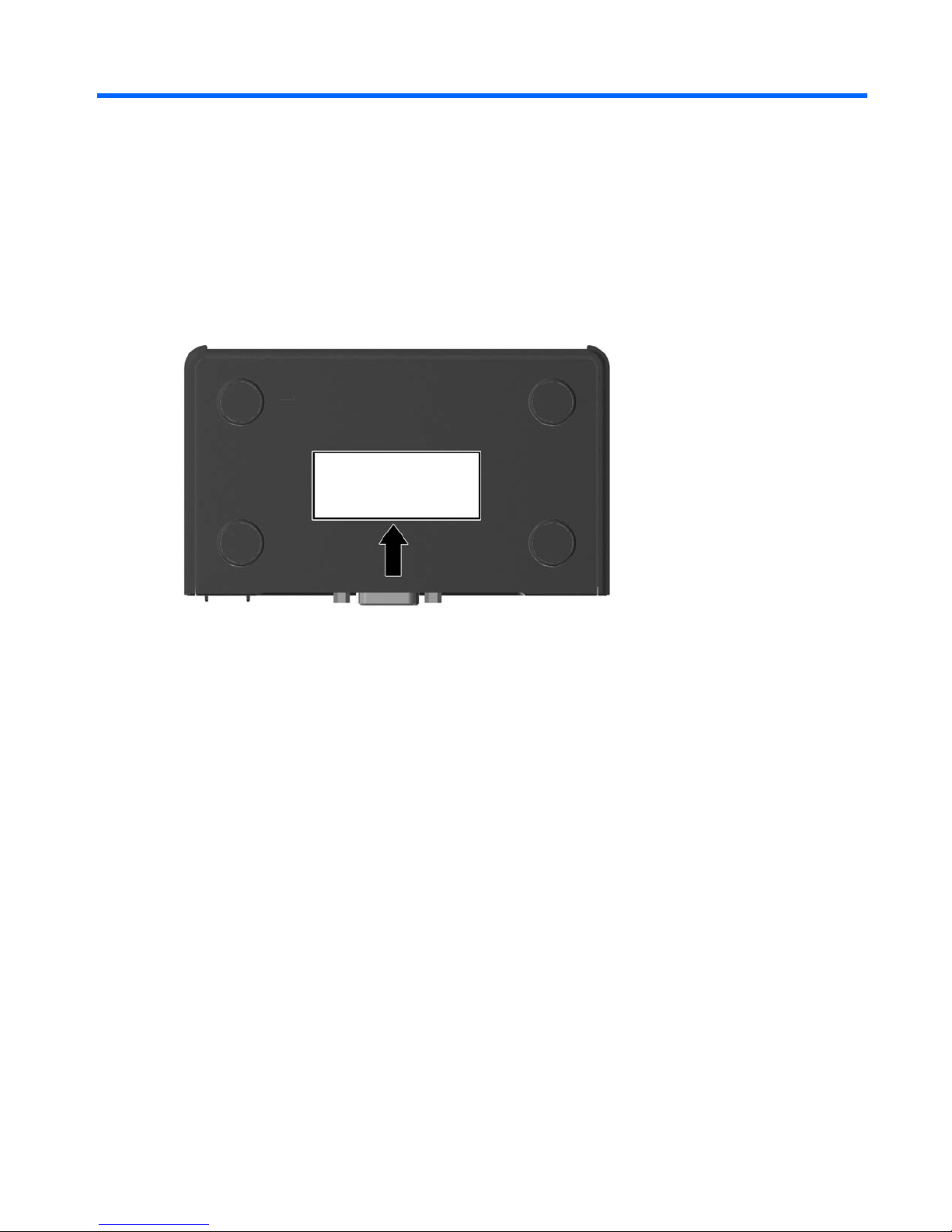

Figure 3-1 Serial number location
Every HP MultiSeat Thin Client t100 includes a unique serial number located as shown in the following
illustration. Have this number available when contacting HP customer service for assistance.
ENWW 3
A Specifications
Table A-1 HP MultiSeat Thin Client t100
Dimensions
Width (side to side)
Height (without mounting bracket)
Height (with mounting bracket)
Depth (front to back)
111.7 mm
28.2 mm
34.8 mm
65.0 mm
4.40 in.
1.11 in
1.38 in
2.56 in.
Approximate Weight
Without mounting bracket
With mounting bracket
135.7 g
162.0 g
4.78 oz
5.71 oz
Temperature Range *
Operating**
(max. rate of change is 10° C per hour or 18° F per hour)
Nonoperating
(max. rate of change is 20° C per hour or 36° F per hour)
10° to 40° C
-30° to 60° C
50° to 104° F
-22° to 140° F
*Specifications are at sea level with altitude derating of 1° C/
300m (1.8° F/1000ft) to a maximum of 3Km (10,000ft), with
no direct, sustained sunlight. Upper limit may be limited by
the type and number of options installed.
** The operating temperature range when the HP
MultiSeat Thin Client t100 is attached to a flat panel
using the mounting bracket is 50° to 95° F (10° to 35°
C).
4 Appendix A Specifications ENWW
Relative Humidity (non-condensing)
Operating
(max. wet bulb temperature is 28° C or 84.2° F)
Nonoperating
(max. wet bulb temperature is 38.7° C or 101.6° F)
10–90%
5–95%
10–90%
5–95%
Maximum Altitude (unpressurized)
Operating
(max. allowed rate of change is 457 m per minute or 1500 ft
per minute)
Nonoperating
(max. allowed rate of change is 457 m per minute or 1500 ft
per minute)
3,048 m
9,144 m
10,000 ft
30,000 ft
Table A-1 HP MultiSeat Thin Client t100 (continued)
ENWW 5
B Security Provisions
HP MultiSeat Thin Client t100 Security Clip
The HP MultiSeat Thin Client t100 ships with a security clip which can be fastened to the rear panel of
the HP MultiSeat Thin Client t100. To prevent unauthorized removal of the HP MultiSeat Thin Client
t100, fasten a padlock through the clip and a cable.
Securing the HP MultiSeat Thin Client t100

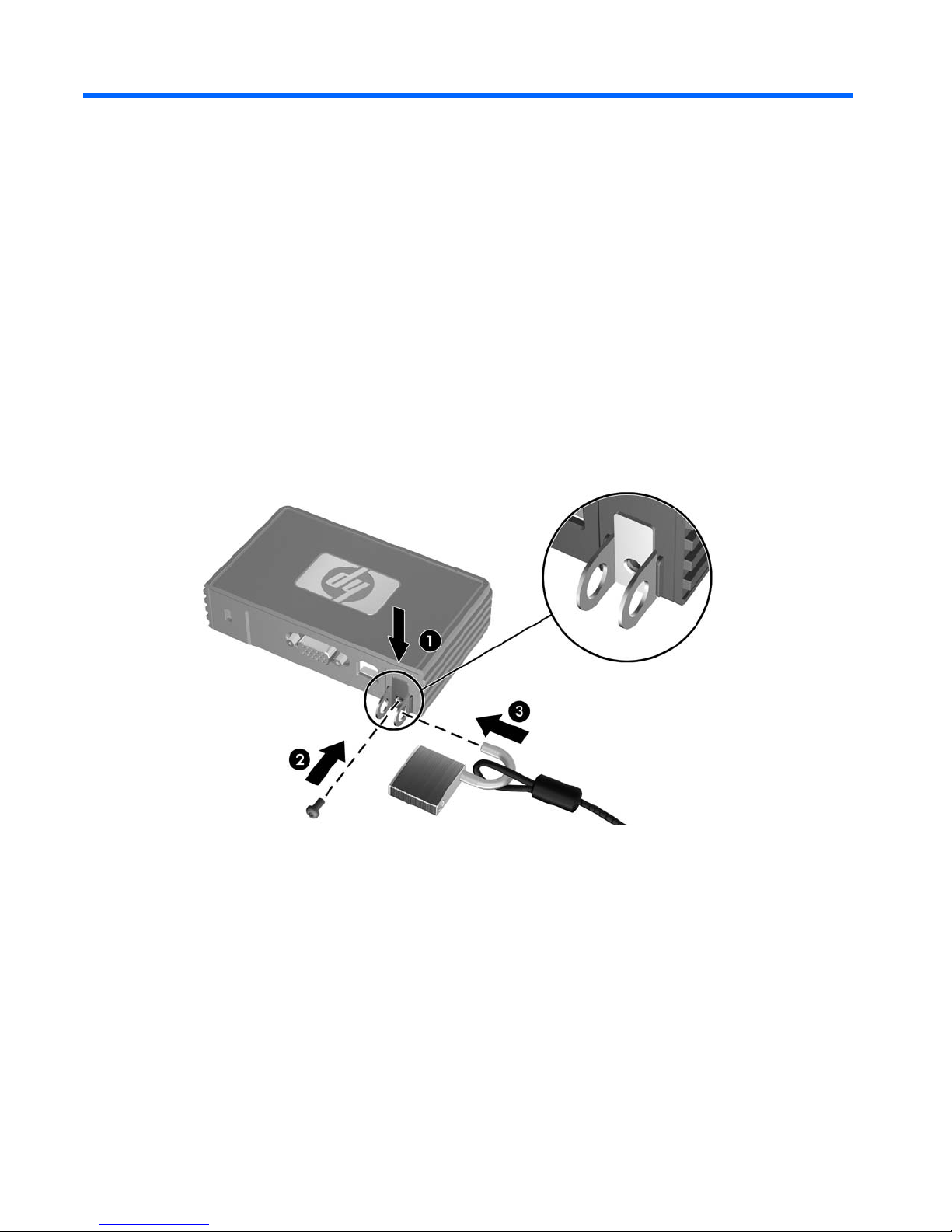

Figure B-1 Securing the HP MultiSeat Thin Client t100
1. With the tab of the HP MultiSeat Thin Client t100 security clip pointing up, insert the HP MultiSeat
Thin Client t100 security clip between the guides on the back of the HP MultiSeat Thin Client t100
(1). Use the provided screw to fasten the security clip to the HP MultiSeat Thin Client t100 (2).
2. Insert a padlock through the loops of the security clip (3) and a cable.
6 Appendix B Security Provisions ENWW
Securing the HP MultiSeat Thin Client t100 in the Mounting Bracket

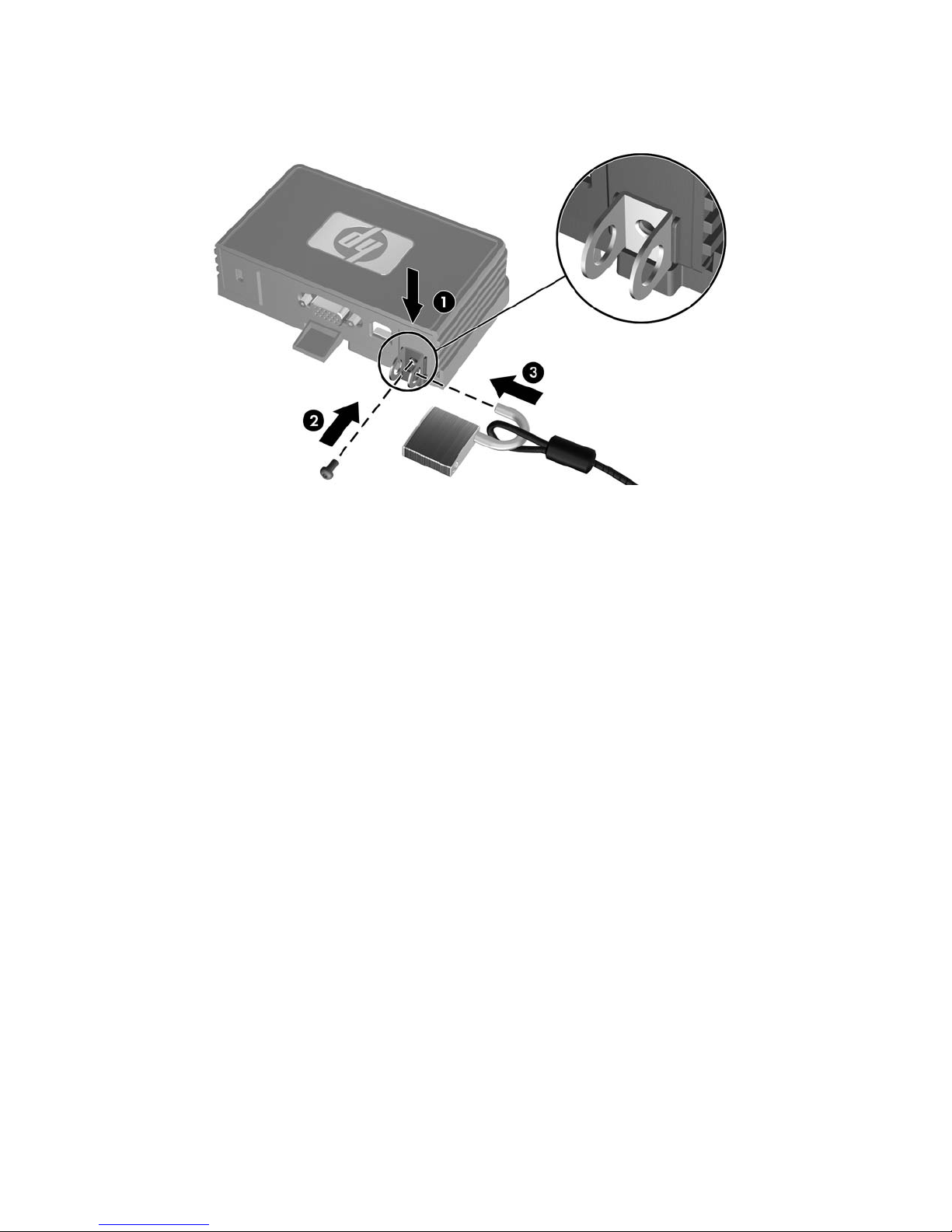

Figure B-2 Securing the HP MultiSeat Thin Client t100 in the mounting bracket
1. With the tab of the HP MultiSeat Thin Client t100 security clip pointing down, insert the HP MultiSeat
Thin Client t100 security clip between the guides on the back of the HP MultiSeat Thin Client t100
into the slot on the back of the mounting bracket (1). Use the provided screw to fasten the security
clip to the HP MultiSeat Thin Client t100 (2).
2. Insert a padlock through the loops of the security clip (3) and lock it to prevent access to the security
clip screw.
ENWW HP MultiSeat Thin Client t100 Security Clip 7
Cable Lock
The HP MultiSeat Thin Client t100 is designed to accept a security cable lock. This cable lock prevents
unauthorized removal of the HP MultiSeat Thin Client t100. To order this option, visit the HP Web site
at
http://www.hp.com and search for your specific HP MultiSeat Thin Client t100 model.

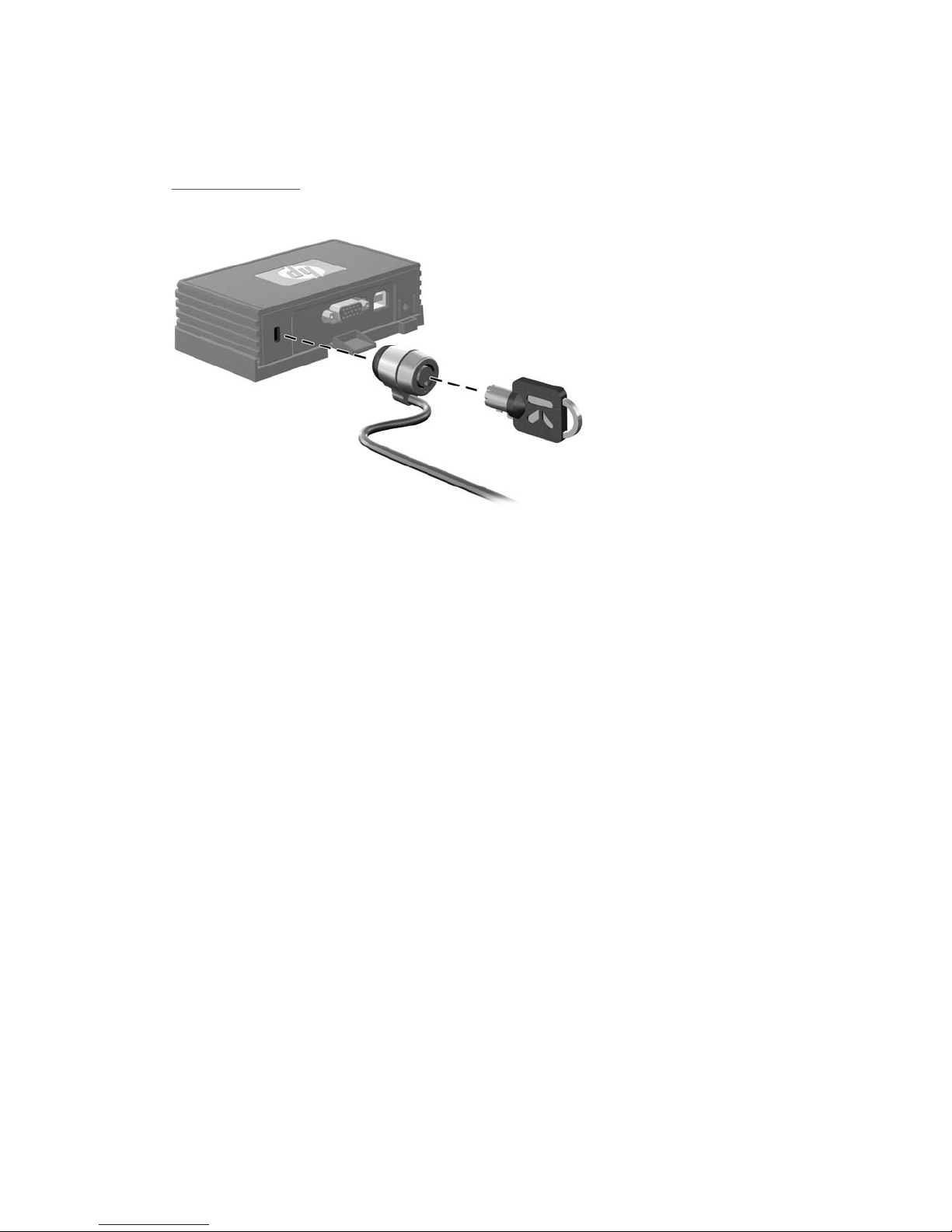

Figure B-3 Securing the HP MultiSeat Thin Client t100
1. Locate the cable lock slot on the back panel.
2. Insert the cable lock into the slot, and then use the key to lock it.
8 Appendix B Security Provisions ENWW
C Mounting the HP MultiSeat Thin Client
t100
Before mounting the HP MultiSeat Thin Client t100, be sure to attach the mounting bracket. See
Mounting Bracket on page 9 for more information.
Mounting Bracket
The HP MultiSeat Thin Client t100 ships with a mounting bracket which should be used to secure the
HP MultiSeat Thin Client t100 to various mounting solutions. The bracket incorporates four mounting
points on one side of the unit. These mounting points follow the VESA (Video Electronics Standards
Association) standard, which provides industry-standard mounting interfaces for Flat Displays (FDs),
such as flat panel monitors, flat displays, and flat TVs.
Attaching the HP MultiSeat Thin Client t100 to the Mounting Bracket
1. Attach the mounting bracket to a supported mounting solution. See Supported Mounting Options
on page 11 for more information.

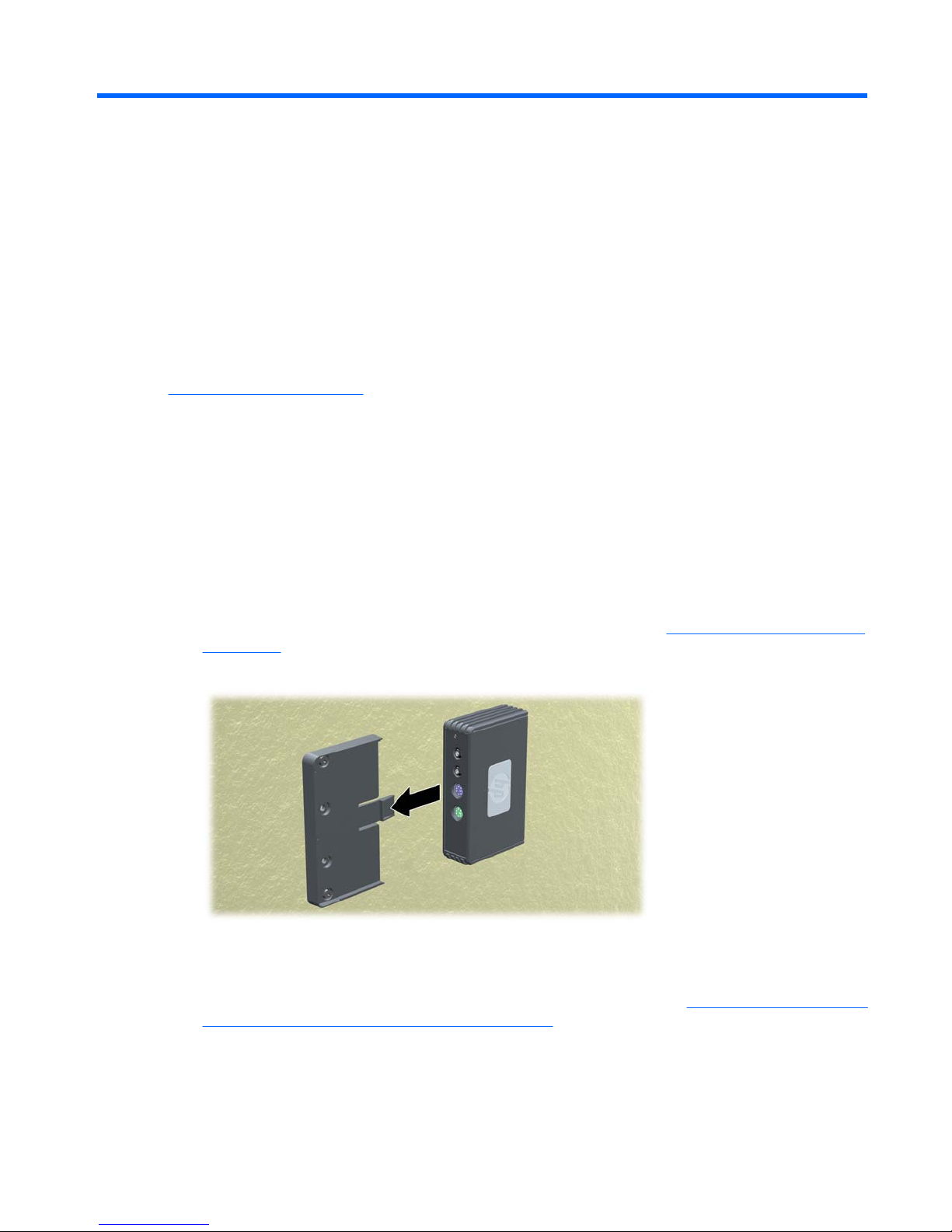

Figure C-1 Inserting the HP MultiSeat Thin Client t100 into the mounting bracket
2. Hold the HP MultiSeat Thin Client t100 so that the bottom of the unit will be next to the Mounting
Bracket and slide the HP MultiSeat Thin Client t100 front-first into the bracket.
3. Secure the HP MultiSeat Thin Client t100 to the mounting bracket. See
Securing the HP MultiSeat
Thin Client t100 in the Mounting Bracket on page 7
ENWW Mounting Bracket 9
Releasing the HP MultiSeat Thin Client t100 from the Mounting Bracket

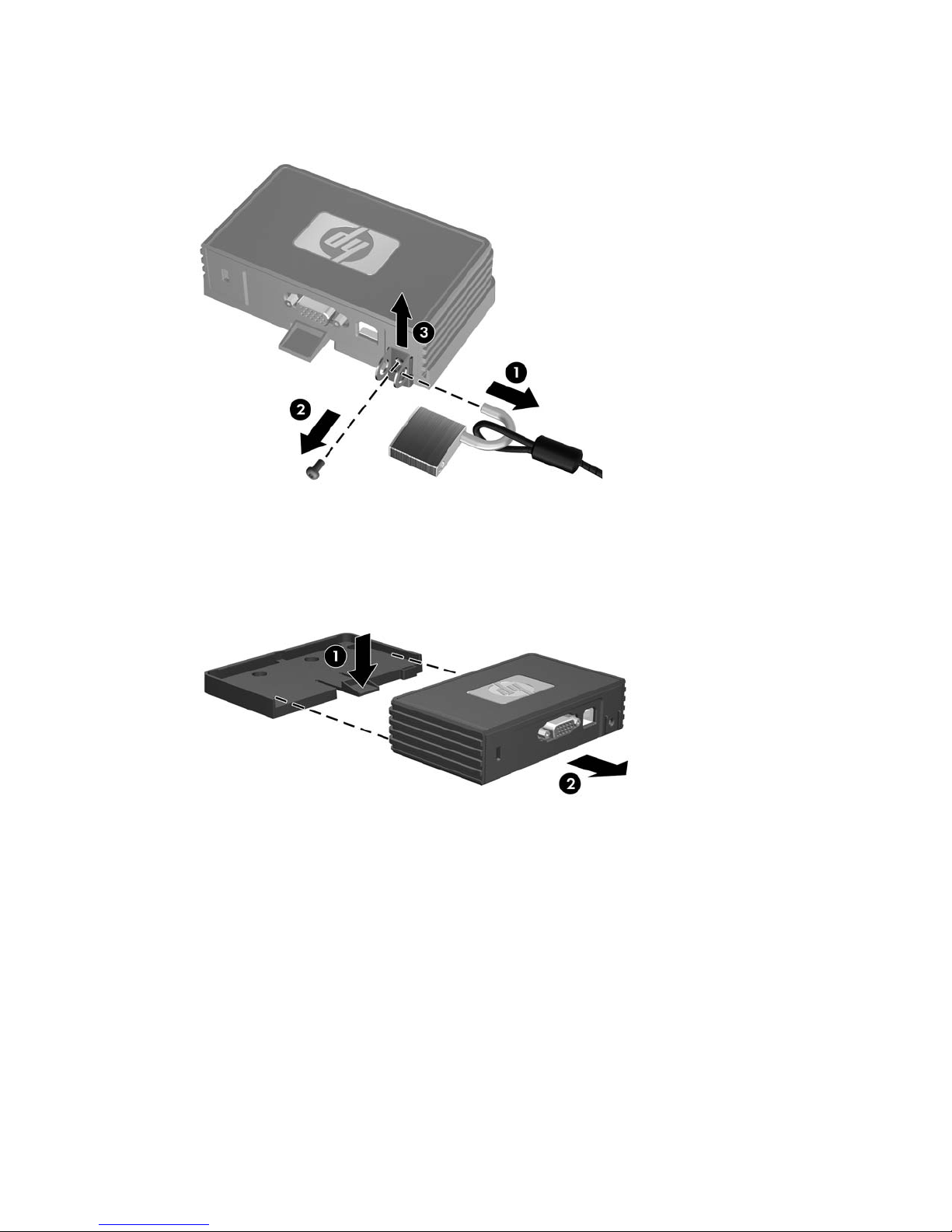

Figure C-2 Removing the security clip
1. If there is a lock through the HP MultiSeat Thin Client t100 security clip on the back of the HP
MultiSeat Thin Client t100 , unlock and remove it (1).
2. Remove the screw holding the HP MultiSeat Thin Client t100 security clip (2) and remove the
security clip from the back of the mounting bracket (3).
Figure C-3 Removing the mounting bracket
3. Press the bracket lever away from the HP MultiSeat Thin Client t100 (1) and slide the unit out of
the mounting bracket (2).
10 Appendix C Mounting the HP MultiSeat Thin Client t100 ENWW
Supported Mounting Options
The following illustrations demonstrate some of the supported and not supported mounting options for
the mounting bracket.
●
You can mount the HP MultiSeat Thin Client t100 in the mounting bracket on the back of a flat
panel monitor stand.

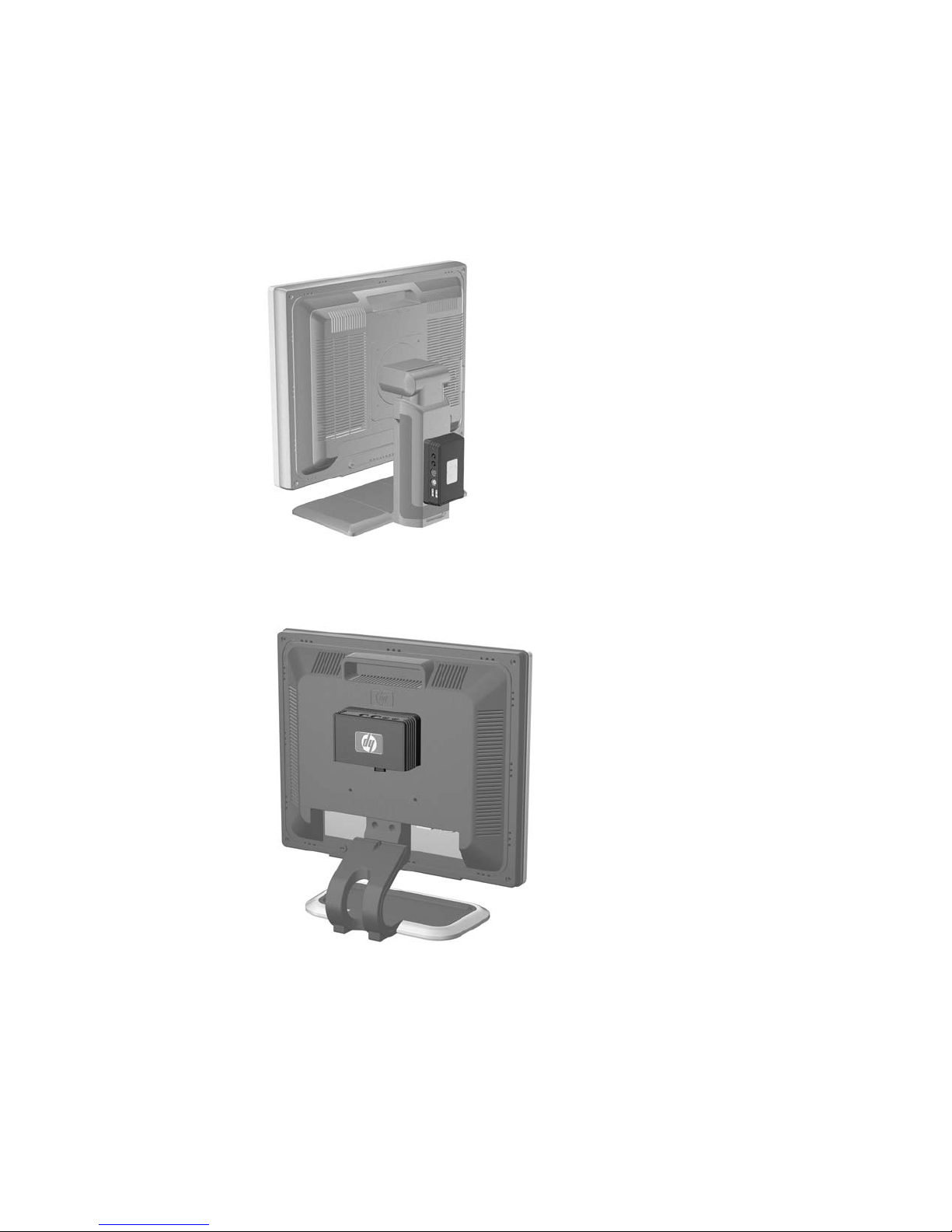

Figure C-4 HP MultiSeat Thin Client t100 mounted on back of monitor stand
●
You can mount the HP MultiSeat Thin Client t100 in the mounting bracket on the back of a flat
panel monitor, if you have VESA holes available.
Figure C-5 HP MultiSeat Thin Client t100 mounted on back of monitor
●
You can mount the HP MultiSeat Thin Client t100 in the mounting bracket on a wall.
ENWW Supported Mounting Options 11

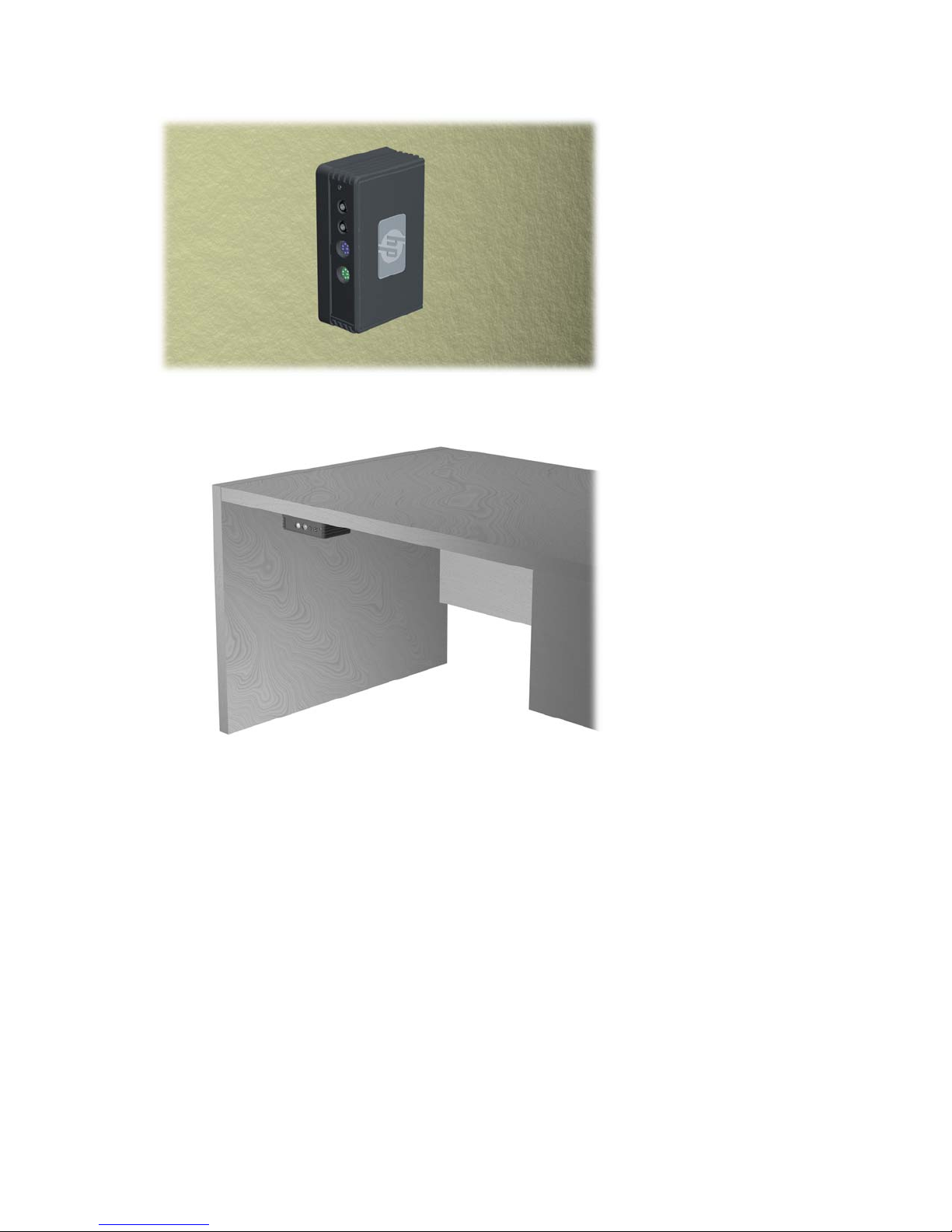

Figure C-6 HP MultiSeat Thin Client t100 mounted on wall
●
You can mount the HP MultiSeat Thin Client t100 in the mounting bracket under a desk.
Figure C-7 HP MultiSeat Thin Client t100 mounted under desk
12 Appendix C Mounting the HP MultiSeat Thin Client t100 ENWW

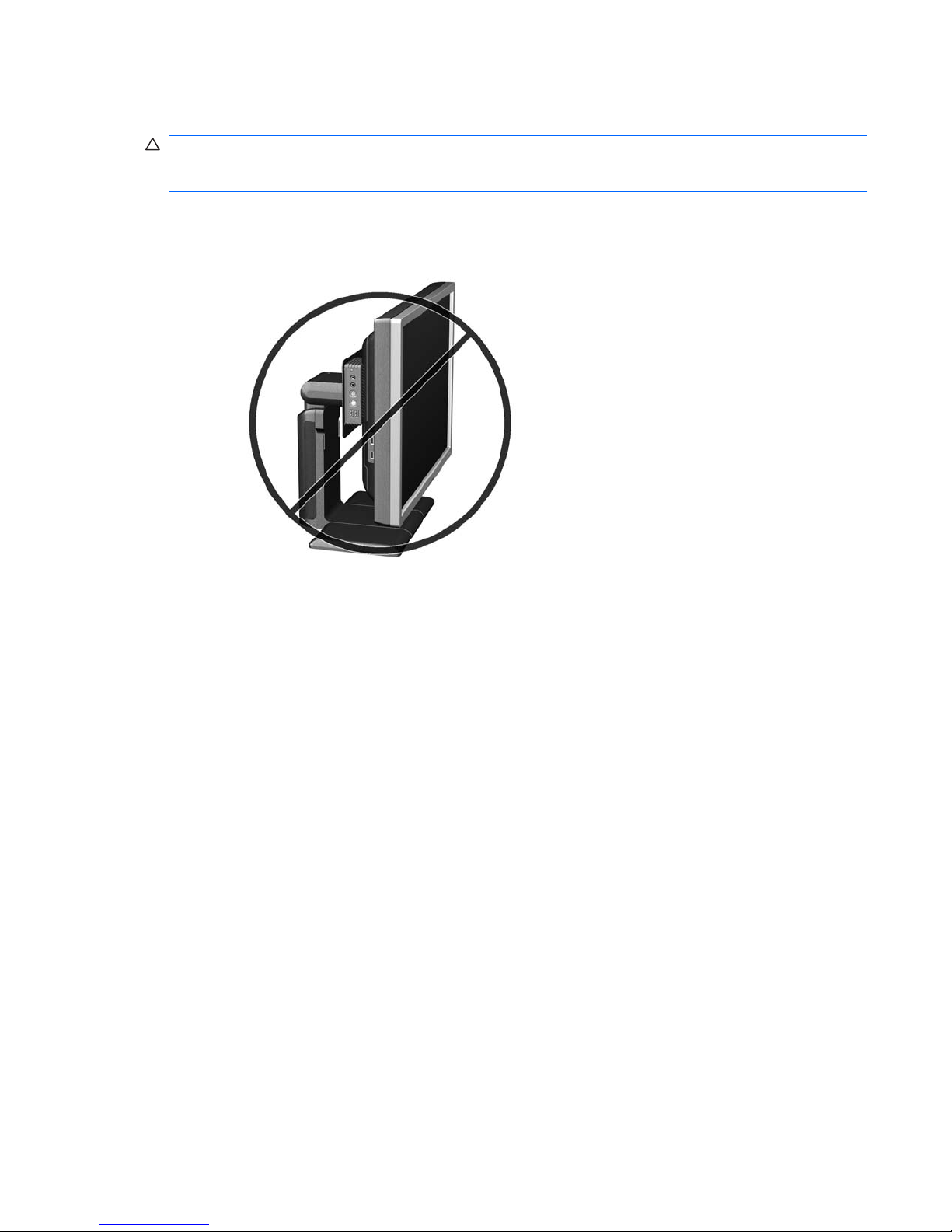

Non-supported Mounting Option
CAUTION: Mounting the HP MultiSeat Thin Client t100 in an non-supported manner could result in
failure of the mounting bracket and damage to the HP MultiSeat Thin Client t100 and/or other
equipment.
Do not mount the HP MultiSeat Thin Client t100 on a flat panel monitor stand, between the panel and
the stand.
Figure C-8 Unsupported mounting position—HP MultiSeat Thin Client t100 between stand and monitor
ENWW Non-supported Mounting Option 13
D HP MultiSeat Thin Client t100 Operation
Routine HP MultiSeat Thin Client t100 Care
Use the following information to properly care for the HP MultiSeat Thin Client t100:
●
Never operate the HP MultiSeat Thin Client t100 with the outside panel removed.
●
Keep the HP MultiSeat Thin Client t100 away from excessive moisture, direct sunlight, and extreme
heat and cold. For information about the recommended temperature and humidity ranges for the
HP MultiSeat Thin Client t100, see
Specifications on page 4.
●
Keep liquids away from the HP MultiSeat Thin Client t100.
●
Turn off the HP MultiSeat Thin Client t100 and wipe the exterior with a soft, damp cloth as needed.
Using cleaning products may discolor or damage the finish.
Supported Orientations
HP supports the following orientations for the HP MultiSeat Thin Client t100.
CAUTION: You must adhere to HP-supported orientations to ensure your HP MultiSeat Thin Client
t100 functions properly.
●
If the HP MultiSeat Thin Client t100 is not to be mounted, only the horizontal orientation is
supported. Be sure to set the HP MultiSeat Thin Client t100 on its rubber feet.

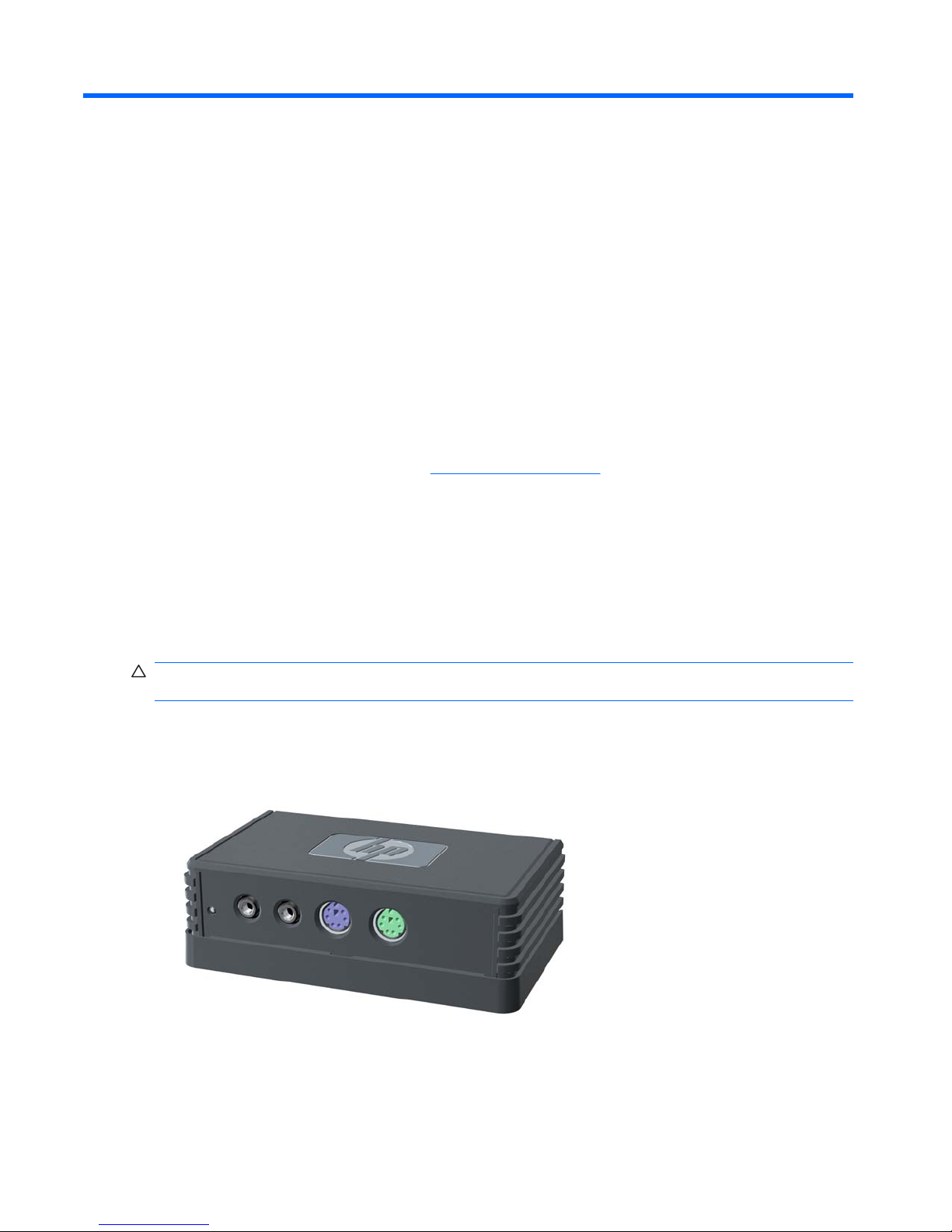

Figure D-1 Horizontal orientation
●
You can lay the HP MultiSeat Thin Client t100 under a monitor stand with at least one inch of
clearance.
14 Appendix D HP MultiSeat Thin Client t100 Operation ENWW

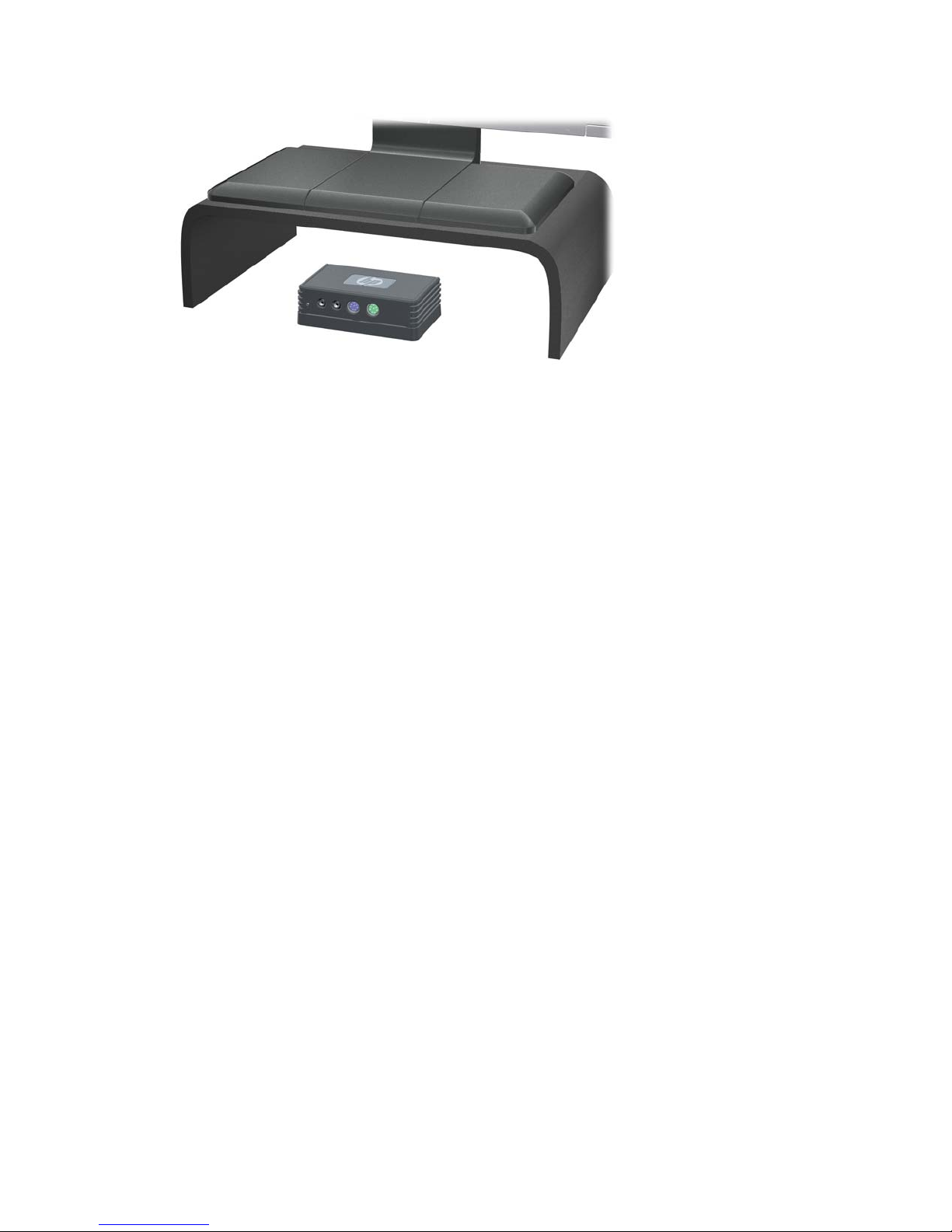

Figure D-2 Under monitor stand
ENWW Supported Orientations 15

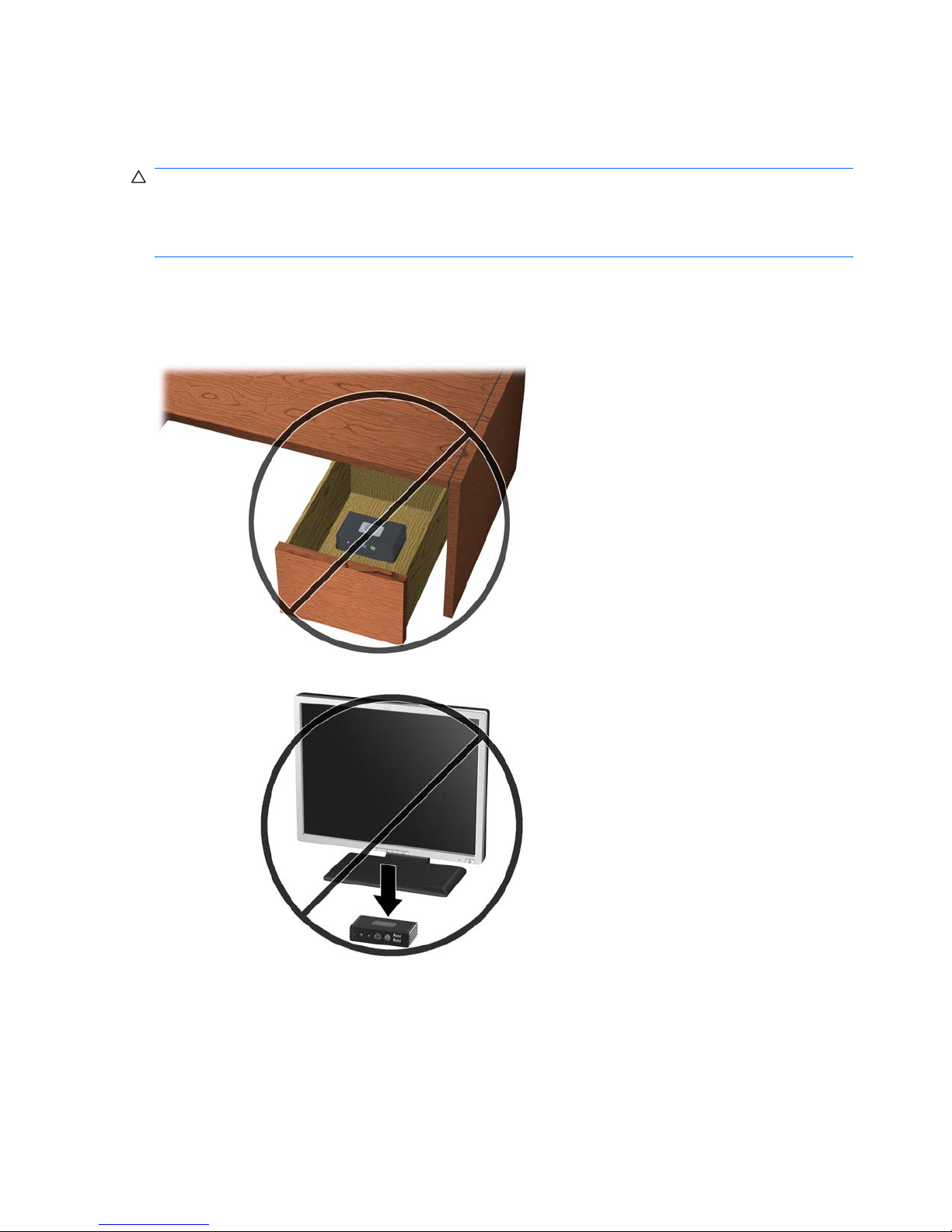

Non-supported Orientation
HP does not support the following orientation for the HP MultiSeat Thin Client t100.
CAUTION: Non-supported placement of the HP MultiSeat Thin Client t100 could result in operation
failure and/or damage to the devices.
CAUTION: The HP MultiSeat Thin Client t100 requires proper ventilation to maintain operating
temperature. Do not block the vents.
Do not put the HP MultiSeat Thin Client t100 in a drawer or other sealed enclosure. Do not place a
monitor or other object on top of the HP MultiSeat Thin Client t100. The HP MultiSeat Thin Client t100
requires proper ventilation to maintain operating temperatures.
Figure D-3 Do not put the HP MultiSeat Thin Client t100 in a drawer or other sealed enclosure
Figure D-4 Do not place a monitor on the HP MultiSeat Thin Client t100
16 Appendix D HP MultiSeat Thin Client t100 Operation ENWW
E Electrostatic Discharge
A discharge of static electricity from a finger or other conductor may damage system boards or other
static-sensitive devices. This type of damage may reduce the life expectancy of the device.
Preventing Electrostatic Damage
To prevent electrostatic damage, observe the following precautions:
●
Avoid hand contact by transporting and storing products in static-safe containers.
●
Keep electrostatic-sensitive parts in their containers until they arrive at static-free workstations.
●
Place parts on a grounded surface before removing them from their containers.
●
Avoid touching pins, leads, or circuitry.
●
Always be properly grounded when touching a static-sensitive component or assembly.
Grounding Methods
There are several methods for grounding. Use one or more of the following methods when handling or
installing electrostatic-sensitive parts:
●
Use a wrist strap connected by a ground cord to a grounded HP MultiSeat Thin Client t100. Wrist
straps are flexible straps of 1 megohm +/- 10 percent resistance in the ground cords. To provide
proper grounding, wear the strap snug against the skin.
●
Use heelstraps, toestraps, or bootstraps at standing workstations. Wear the straps on both feet
when standing on conductive floors or dissipating floor mats.
●
Use conductive field service tools.
●
Use a portable field service kit with a folding static-dissipating work mat.
If you do not have any of the suggested equipment for proper grounding, contact an HP authorized
dealer, reseller, or service provider.
NOTE: For more information about static electricity, contact an HP authorized dealer, reseller, or
service provider.
ENWW Preventing Electrostatic Damage 17
F Shipping Information
Shipping Preparation
Follow these suggestions when preparing to ship the HP MultiSeat Thin Client t100:
1. Turn off external devices connected to the HP MultiSeat Thin Client t100.
2. Disconnect the system components and external devices from their power sources, then from the
HP MultiSeat Thin Client t100.
3. Pack the system components and external devices in their original packing boxes or similar
packaging with sufficient packing material to protect them.
NOTE: For environmental nonoperating ranges, see Specificationson page 4.
Important Service Repair Information
In all cases, remove and safeguard all external options before returning the HP MultiSeat Thin Client
t100 to HP for repair or exchange.
18 Appendix F Shipping Information ENWW
Index
A
altitude specifications 5
B
bracket, mounting 9
C
cable lock, installing 8
cable routing slot 2
cautions
HP MultiSeat Thin Client t100
orientation 14, 16
mounting HP MultiSeat Thin
Client t100 13
ventilation 16
components
front panel 1
rear panel 2
D
dimensions 4
DVI-D connector location 2
E
electrostatic discharge 17
F
front panel components 1
G
grounding methods 17
H
hardware specifications 4
headphone connector location 1
horizontal orientation 14
humidity specifications 5
I
installing
cable lock 8
M
microphone connector location 1
mounting bracket
attaching 9
removing 10
mounting HP MultiSeat Thin Client
t100 9
mounting options
on back of monitor stand 9
on wall 9
under desk 9
with flat panel on wall 9
N
non-supported orientations
in a drawer 16
under a monitor 16
O
options 8
P
power LED location 1
preventing electrostatic
damage 17
PS/2 connectors location 1
R
rear panel components 2
relative humidity specifications 5
routine care 14
S
security 6
security clip
attaching 6
attaching to mounting
bracket 7
security clip slot 2
serial connector location 2
serial number location 3
service repair 18
shipping preparation 18
specifications
altitude 5
dimensions 4
hardware 4
HP MultiSeat Thin Client
t100 4
humidity 5
relative humidity 5
temperature 4
weight 4
supported mounting options 9
supported orientations
horizontal 14
under monitor stand 14
vertical 14
T
temperature specifications 4
U
unsupported mounting option 13
USB PC power connector
location 2
V
vertical orientation 14
VGA connector location 2
W
weight 4
ENWW Index 19
Loading...
