QuickSpecs
HP mt45 Mobile Thin Client
Overview
c06347327 — DA – 16508 Worldwide — Version 5 — January 14, 2021
Page 1

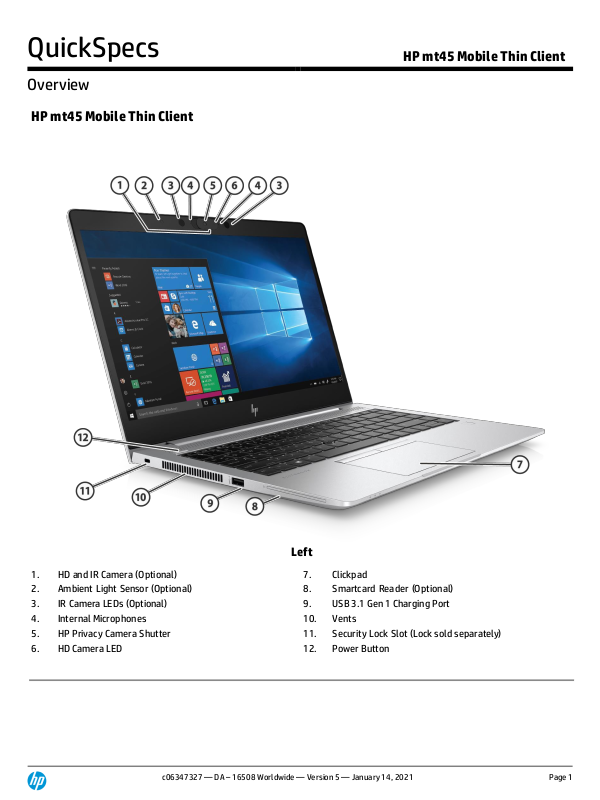

HP mt45 Mobile Thin Client
Left
1.
HD and IR Camera (Optional)
7.
Clickpad
2.
Ambient Light Sensor (Optional)
8.
Smartcard Reader (Optional)
3.
IR Camera LEDs (Optional)
9.
USB 3.1 Gen 1 Charging Port
4.
Internal Microphones
10.
Vents
5.
HP Privacy Camera Shutter
11.
Security Lock Slot (Lock sold separately)
6.
HD Camera LED
12.
Power Button
QuickSpecs
HP mt45 Mobile Thin Client
Overview
c06347327 — DA – 16508 Worldwide — Version 5 — January 14, 2021
Page 2
Right
1.
Power Connector
6.
USB 3.1 Gen 1 Port
2.
USB Type-C™
7.
Audio Combo Jack
3.
Docking Connector
8.
SIM Card Slot1
4.
Ethernet Port
9.
Touch Fingerprint Sensor (Optional)2
5.
HDMI Port (Cable not included)
10.
Pointstick
1
All units have a SIM card slot and icon but units that do not support WWAN are shipped with a non-removable SIM slot plug
2
To verify you have a fingerprint reader and not a plug, press the Windows key on your keyboard, select Settings, select Accounts,
and then select Sign-in options and follow the on-screen instructions.
QuickSpecs
HP mt45 Mobile Thin Client
Overview
c06347327 — DA – 16508 Worldwide — Version 5 — January 14, 2021
Page 3
AT A GLANCE
• Eye-catching Ultraslim design, premium precision-crafted machined aluminum (CNC), seamless formed aluminum chassis
for clean, crisp, premium look and feel
• Preinstalled with Windows 10 IoT Enterprise 2019 or HP ThinPro/Smart Zero Core
• 2
nd
Generation AMD Ryzen™ 3 PRO 3300U Mobile processor with Radeon™ Vega Graphics
• 128 GB Flash storage and optional 4GB (HP ThinPro OS only) or 8 GB memory
•
Choice of 35.6cm (14”) diagonal FHD IPS anti-glare LED-backlit, slim narrow border or ultra-slim display:
o (1920 x 1080) UWVA, 250-nit, 45% CG, eDP, narrow border, slim
o (1920 x 1080) UWVA, 250-nit, 45% CG, eDP, narrow border, slim, Touch-enabled
o (1920 x 1080) UWVA, 1000-nit, 72% CG, eDP+PSR, ultra-slim, HP Sure View
• Designed to support multiple HP docking options including HP’s traditional Ultraslim mechanical dock and all-new
Thunderbolt™ dock1
• Featuring HP Collaboration Keyboard with Clickpad to manage most commonly used conferencing functions with a
single keystroke
• Innovative world-facing third mic improves inbound ambient noise cancellation while 360-degree mic pick-up allows
everyone to clearly hear and be heard
• Optional anti-glare touch displays with ambient light sensor
• Enterprise grade security with HP SureStart, HP Privacy Camera
1
, HP Sure View5, HP Write Manager, SmartCard Reader1
and Touch Fingerprint reader1
• Optional HD camera or Infra-Red camera with multi-array microphone
•
Supports fast charging (50% in 30 minutes) with no impact on battery recharge cycles3
•
Flexible wireless connectivity options
•
Pending MIL-STD 810G tests4
1. Sold separately or as an optional feature.
2. Not all options compatible with HP ThinPro OS.
3. HP Elite notebooks up to 50% within 30 minutes when the system is off or in standby mode. Power adapter with a minimum
capacity of 65 watts is required. After charging has reached 50% capacity, charging will return to normal. Charging time may vary
+/-10% due to System tolerance.
4. MIL STD 810G testing is pending and is not intended to demonstrate fitness for U.S. Department of Defense contract
requirements or for military use. Test results are not a guarantee of future performance under these test conditions.
Accidental damage requires an optional HP Accidental Damage Protection Care Pack.
5. HP Sure View G3 integrated privacy screen is an optional feature that must be configured at purchase and is designed to
function in landscape. Available in Q3’ 19.
NOTE: See important legal disclosures for all listed specs in their respective features’ sections
QuickSpecs
HP mt45 Mobile Thin Client
Features
c06347327 — DA – 16508 Worldwide — Version 5 — January 14, 2021
Page 4
PRODUCT NAME
HP mt45 Mobile Thin Client
OPERATING SYSTEM
Preinstalled
Windows 10 IoT Enterprise 2019 for Thin Clients1
HP ThinPro/HP Smart Zero
2
1Not all features are available in all editions or versions of Windows. Systems may require upgraded and/or separately
purchased hardware, drivers, software or BIOS update to take full advantage of Windows functionality. Windows 10 IoT
Enterprise automatic updates are always disabled. ISP fees may apply, and additional requirements may apply over time for
updates. See http://www.windows.com/.
2
Some features are not supported on HP ThinPro. See the respective Features sections for details.
PROCESSOR
AMD Ryzen™ 3 PRO 3300U APU with Radeon™ Vega 6 Graphics (2.1 GHz base clock, up to 3.5 GHz max boost clock, 4 MB L3
cache, 4 cores)
2,3,4,5
Processor Family
2nd Generation AMD® Ryzen™ PRO APU processor6
3
Processor speed denotes maximum performance mode; processors will run at lower speeds in battery optimization mode.
4
Multicore is designed to improve performance of certain software products. Not all customers or software applications
will necessarily benefit from use of this technology. Performance and clock frequency will vary depending on
application workload and your hardware and software configurations. AMD’s numbering is not a measurement of clock
speed.
5
Max Boost clock frequency performance varies depending on hardware, software and overall system configuration.
6
In accordance with Microsoft’s support policy, HP does not support the Windows 8 or Windows 7 operating system on
products configured with Intel and AMD 7th generation and forward processors or provide any Windows 8 or Windows 7
drivers on http://www.support.hp.com.
CHIPSET
Chipset is integrated with processor
GRAPHICS
Integrated
AMD Radeon™ Vega Graphics
7
Supports
Support HD decode, DX12, and HDMI 2.0
7HD content required to view HD images.
DISPLAY
QuickSpecs
HP mt45 Mobile Thin Client
Features
c06347327 — DA – 16508 Worldwide — Version 5 — January 14, 2021
Page 5
Non-Touch
35.6 cm (14") diagonal FHD IPS eDP anti-glare WLED-backlit slim, 250 nits, 45% NTSC (1920 x 1080)
7, 9,10
35.6 cm (14") diagonal FHD IPS eDP anti-glare WLED-backlit slim, 250 nits, 45% NTSC with HD camera (1920 x 1080)
7, 9,10
35.6 cm (14") diagonal FHD IPS eDP anti-glare WLED-backlit slim, 250 nits, 45% NTSC with HD + IR19 camera (1920 x 1080)
7, 9,10
35.6 cm (14") diagonal FHD IPS eDP anti-glare WLED-backlit slim, 250 nits, 45% NTSC for WWAN (1920 x 1080)
7, 9,10
35.6 cm (14") diagonal FHD IPS eDP anti-glare WLED-backlit slim, 250 nits, 45% NTSC with HD camera for WWAN (1920 x
1080)
7,
9,10
35.6 cm (14") diagonal FHD IPS eDP anti-glare WLED-backlit slim, 250 nits, 45% NTSC with HD + IR19 camera for WWAN (1920
x
1080)
7, 9,10,11
35.6 cm (14") diagonal FHD IPS eDP + PSR anti-glare WLED-backlit ultraslim, 1000 nits with HP Sure View G3 Integrated Privacy
Screen, 72% NTSC, with Ambient Light Sensor and HD+IR19 camera for WWAN (1920 x 1080)
7, 8, 9,10
Touch
35.56 cm (14") diagonal FHD IPS eDP anti-glare On-Cell WLED-backlit slim touch screen, 250 nits, 45% NTSC with HD+IR camera
for WWAN (1920 x 1080)
7, 9,10,11
HDMI 2.0
Supports resolution up to 4k @ 60Hz
7
HD content required to view HD images.
8
HP Sure View G3 integrated privacy screen is an optional feature that must be configured at purchase and is designed to
function in landscape orientation. Available in Q3’ 19.
9
Resolutions are dependent upon monitor capability, and resolution and color depth settings.
10
Sold separately or as an optional feature.
11
Touch display gesture support is limited on HP ThinPro/HP Smart Zero.
QuickSpecs
HP mt45 Mobile Thin Client
Features
c06347327 — DA – 16508 Worldwide — Version 5 — January 14, 2021
Page 6
STORAGE AND DRIVES
Primary M.2 Storage
128 GB SATA-3 SS TLC12
12
For storage drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 30 GB (for Windows 10)
is reserved for system recovery software.
MEMORY
Memory
8 GB DDR4-2400 SDRAM (2 x 4 GB)
13
4 GB DDR4-2400 SDRAM (1 x 4 GB)
13,14
Memory Slots
2 SODIMM
Both slots are customer accessible/upgradeable
DDR4 SODIMMS, system runs at 2400
Supports Dual Channel Memory
13
Due to the non-industry standard nature of some third-party memory modules, we recommend HP branded memory to
ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed.
14
4GB option only available on HP ThinPro/HP Smart Zero.
NETWORKING/COMMUNICATIONS
WLAN
Intel® Dual Band Wireless-AC 9260 802.11a/b/g/n/ac (2x2) Wi-Fi® and Bluetooth® 5 Combo, non-vPro™
15
WWAN
Intel® XMM™ 7360 LTE-Advanced Cat 9
16,19
NFC
NXP NPC300 Near Field Communication Module19
Miracast
Native Miracast Support
17,19
Ethernet
Realtek PCIe GbE Family Controller 10/100/1000
18
15
Wireless access point and Internet service required and sold separately. Avail ability of public wireless access points
limited.
16
WWAN module requires separately purchased service contract. Check with service provider for coverage and availability
in your area. Connection speeds will vary due to location, environment, network conditions, and other factors. 4G LTE not
available on all products, in all regions. eSIM is not supported.
17
Miracast is a wireless technology your PC can use to project your screen to TVs, projectors, and streaming.
QuickSpecs
HP mt45 Mobile Thin Client
Features
c06347327 — DA – 16508 Worldwide — Version 5 — January 14, 2021
Page 7
18
The term "10/100/1000" or "Gigabit" Ethernet indicates compatibility with IEEE standard 802.3ab for Gigabit Ethernet, and
does not connote actual operating speed of 1 Gb/s. For high-speed transmission, connection to a Gigabit Ethernet server and
network infrastructure is required.
19
Feature is not compatible with HP ThinPro/HP Smart Zero.
AUDIO/MULTIMEDIA
Audio
Audio by Bang & Olufsen
Integrated 3 Multi-Array Microphone
2 Integrated Stereo Speakers
Camera
720p HD camera
7,10
720p HD+IR camera
7, 10, 18
Sensors
Ambient light sensor (Select models only)
Hall Sensor
7
HD content required to view HD images.
10
Sold separately or as an optional feature.
18
Internet access required.
KEYBOARDS/POINTING DEVICES/BUTTONS & FUNCTION KEYS
Keyboard
HP Premium Collaboration Keyboard spill resistant with drain
19
Backlit keyboard available as an option
Pointing Devices
Clickpad with multi-touch gestures enabled, taps enabled as default
Microsoft Precision Touchpad Default Gestures Support
Function Keys
F1 - Display Switching
F2 - Blank or Privacy
F3 - Brightness Down
F4 - Brightness Up
F5 - Audio Mute
F6 - Volume Down
F7 - Volume Up
F8 - Mic Mute
F9 - Blank or Backlit Toggle
F10 - Numlk
F11 - Wireless
F12 – Calendar19
QuickSpecs
HP mt45 Mobile Thin Client
Features
c06347327 — DA – 16508 Worldwide — Version 5 — January 14, 2021
Page 8
Share/Present19
Call Answer19
Call End19
Hidden Function Keys
Fn+R - Break
Fn+S - Sys Rq
Fn+C - Scroll Lock
Fn+E - Insert
Fn+W – Pause
19
Feature is not compatible with HP ThinPro/HP Smart Zero.
QuickSpecs
HP mt45 Mobile Thin Client
Features
c06347327 — DA – 16508 Worldwide — Version 5 — January 14, 2021
Page 9
SOFTWARE AND SECURITY
Preinstalled Software
BIOS
HP BIOSphere Gen5
20
BIOS Update via Network
Master Boot Record Security
Power On Authentication
Secure Erase
21
Absolute Persistence Module22
Pre-boot Authentication
Software
HP Native Miracast Support
23,19
HP Connection Optimizer
HP Hotkey Support
HP Noise Cancellation Software19
Supported protocols: Microsoft RDP; HP RGS; VMware® Horizon RDP/PCoIP, Blast Extreme; Citrix® ICA/HDX*
*Protocols are dependent on operating system installed
Manageability Features
HP Thin Update
HP Device Manager
HP BIOS Config Utility (BCU)
Client Security Software
HP Fingerprint Sensor
24,19
HP Power On Authentication
Windows Defender
25,19
Security Management
Pre-boot Authentication
TPM 2.0 Embedded Security Chip shipped with Windows 10 (Common Criteria EAL4+ Certified)
26,19
SATA 0,1 port disablement (via BIOS)
USB enable/disable (via BIOS)
Power-on password (via BIOS)
Setup password (via BIOS)
Support for chassis padlocks and cable lock devices
HP Sure Start For AMD
27
19
Feature is not compatible with HP ThinPro/HP Smart Zero.
20
HP BIOSphere Gen5 is available on select HP Pro and Elite PCs. See product specifications for details. Features may vary
depending on the platform and configurations.
21
For the methods outlined in the National Institute of Standards and Technology Special Publication 800-88 "Clear"
sanitation method. HP Secure Erase does not support platforms with Intel® Optane™.
22
Absolute agent is shipped turned off, and will be activated when customers activate a purchased subscription.
Subscriptions can be purchased for terms ranging multiple years. Service is limited, check with Absolute for availability
outside the U.S. The Absolute Recovery Guarantee is a limited warranty. Certain conditions apply. For full details visit:
http://www.absolute.com/company/legal/agreements/ computrace-agreement. Data Delete is an optional service
provided by Absolute Software. If utilized, the Recovery Guarantee is null and void. In order to use the Data Delete
service, customers must first sign a Pre-Authorization Agreement and either obtain a PIN or purchase one or more RSA
SecurID tokens from Absolute Software.
23
Miracast is a wireless technology your PC can use to project your screen to TVs, projectors, and streaming.
24
HP Fingerprint Sensor sold separately or as an optional feature.
25
Windows Defender Opt in and internet connection required for updates.
QuickSpecs
HP mt45 Mobile Thin Client
Features
c06347327 — DA – 16508 Worldwide — Version 5 — January 14, 2021
Page 10
26
Firmware TPM is version 2.0. Hardware TPM is v1.2, which is a subset of the TPM 2.0 specification version v0.89 as
implemented by Intel Platform Trust Technology (PTT).re TPM is version 2.0. Hardware TPM is v1.2, which is a subset of
the TPM 2.0 specification version v0.89 as implemented by Intel Platform Trust Technology (PTT).
27
HP Sure Start for AMD is available on select HP PCs with AMD processors. See product specifications for availability.
Recommended TC config for Microsoft Teams media optimization
TC CPU
VMware Teams Optimization
Citrix Teams Optimization
t430
1.10 GHz 2 Core
-
-
t530
1.50 GHz 2 Core
-
-
t540
1.50 GHz 2 Core
-
-
t630
2.00 GHz 4 Core
✓
✓
t628
1.99 GHz 4 Core
-
✓
t638
2.00 GHz 4 Core
✓
✓
t640
2.40 GHz 2 Core
✓
✓
t730
2.70 GHz 4 Core
✓
✓
t740
3.25 GHz 4 Core
✓
✓
mt21
1.80 GHz 2 Core
-
✓
mt22
1.90 GHz 2 Core
-
✓
mt31
1.80 GHz 2 Core
-
✓
mt32
2.70 GHz 4 Core
✓
✓
mt45
2.10 GHz 4 Core
✓
✓
mt46
2.50 GHz 4 Core
✓
✓
- Not recommended, ✓ recommended
QuickSpecs
HP mt45 Mobile Thin Client
Features
c06347327 — DA – 16508 Worldwide — Version 5 — January 14, 2021
Page 11
POWER
Power Supply
HP Smart 45 W External AC power adapter
28
HP Smart 45 W External AC power adapter, 2-prong (Japan only)
28
HP Smart 65 W External AC power adapter
28
HP Smart 65 W EM External AC power adapter
28
45 W USB Type-C™ adapter
28
65 W USB Type-C™ adapter
28
Primary Battery
HP Long Life 3-cell, 50 Wh Li-ion
29,30
Support HP Fast Charge (Up to 50% in 30 minutes with 65W AC Adapter)
29,30
Power Cord
2-wire plug - 1.0m
28
3-wire plug - 1.0m
28
3-wire plug - 1.8m
28
Duckhead power cord - 1.0m
28
Duckhead power cord - 1.8m
28
28
Availability may vary by country.
29
Battery is internal and not replaceable by customer. Serviceable by warranty.
30
Recharges the battery up to 50% within 30 minutes when the system is off or in standby mode. Power adapter with a minimum
capacity of 65 watts is required. After charging has reached 50% capacity, charging will return to normal. Charging time may
vary +/-10% due to System tolerance.
WEIGHTS & DIMENSIONS
Weight
Starting at 3.37 lbs (non-touch); Starting at 3.48 lbs (touch)
31
Starting at 1.53 kg (non-touch); Starting at 1.58 kg (touch)
31
Product Dimensions (w x d x h)
Non- Touch
12.84 x 9.22 x 0.7 in
32.6 x 23.43 x 1.79 cm
Touch
12.84 x 9.22 x 0.71 in
32.6 x 23.43 x 1.81 cm
31
Weight will vary by configuration.
QuickSpecs
HP mt45 Mobile Thin Client
Features
c06347327 — DA – 16508 Worldwide — Version 5 — January 14, 2021
Page 12
PORTS/SLOTS
Ports
1 USB Type-C™ (Alt Mode)
1 USB 3.1 Gen 1 (Charging)
1 HDMI 2.032
1 RJ-45 / Ethernet
1 Docking connector
1 Headphone/microphone Combo
1 AC power
1 SIM card slot
16
1 Smartcard reader16
16
Sold as an optional feature.
32
HDMI cable sold separately.
SERVICE AND SUPPORT
HP Services offers 1-year or 3- year limited warranties and 90-day software limited warranty options depending on country.
Batteries have a default one-year limited warranty except for Long Life batteries which will have same 1-year or 3-year
limited warranty as the platform. Refer to http://www.hp.com/support/batterywarranty/ for additional battery information.
On-site service and extended coverage is also available. HP Care Pack Services are optional extended service contracts that
go beyond the standard limited warranties. To choose the right level of service for your HP product, use the HP Care Pack
Services Lookup Tool at: http://www.hp.com/go/cpc.33
33
HP Care Services are optional. Service levels and response times for HP Care Packs may vary depending on your geographic
location. Service starts on date of hardware purchase. Restrictions and limitations apply. For details, visit
http://www.hp.com/go/cpc. HP services are governed by the applicable HP terms and conditions of service provided or
indicated to Customer at the time of purchase. Customer may have additional statutory rights according to applicable local
laws, and such rights are not in any way affected by the HP terms and conditions of service or the HP Limited Warranty
provided with your HP Product.
QuickSpecs
HP mt45 Mobile Thin Client
Technical Specifications
c06347327 — DA – 16508 Worldwide — Version 5 — January 14, 2021
Page 13
SYSTEM UNIT
Stand-Alone Power
Requirements (AC Power)
Nominal Operating Voltage
19 V
Average Operating Power
Windows 10
Integrated graphics
15W
Max Operating Power
UMA < 45W
Temperature
Operating
32° to 95° F (0° to 35° C)
Non-operating
-4° to 140° F (-20° to 60° C)
Relative Humidity
Operating
10% to 90%, non-condensing
Non-operating
5% to 95%, 101.6° F (38.7° C) maximum wet bulb
temperature
Shock
Operating
40 G, 2 ms, half-sine
Non-operating
200 G, 2 ms, half-sine
Random Vibration
Operating
0.75 grms
Non-operating
1.50 grms
Altitude (unpressurized)
Operating
-50 to 10,000 ft (-15.24 to 3,048 m)
Non-operating
-50 to 40,000 ft (-15.24 to 12,192 m)
Planned Industry Standard
Certifications
UL
Yes
CSA
Yes
FCC Compliance
Yes
ENERGY STAR®
Yes, Select models 42
EPEAT® 2019
Yes, Registered Silver in United States43
Australia / NZ RCM Compliance
Yes
CCC
Yes
Japan VCCI Compliance
Yes
KC
Yes
BSMI
Yes
CE Marking Compliance
Yes
GOST
Yes
Saudi Arabian Compliance (ICCP)
Yes
UKRSERTCOMPUTER
Yes
34
Configurations of the HP mt45 Mobile Thin Client that are ENERGY STAR® certified are identified as HP mt45 Mobile Thin Client
ENERGY STAR on HP websites and on http://www.energystar.gov.
35
EPEAT® 2019 registered where applicable. EPEAT® registration varies by country. See http://www.epeat.net for registration
status by country. According to IEEE 1680.1-2018.
QuickSpecs
HP mt45 Mobile Thin Client
Technical Specifications
c06347327 — DA – 16508 Worldwide — Version 5 — January 14, 2021
Page 14
DISPLAYS
Panel LCD 14 inch diagonal
FHD (1920 x 1080) Anti-Glare
WLED UWVA 45 percent cg
250 nits eDP slim NB
Outline Dimensions
(W x H)
316.17 x 197.98mm (max.)
Active Area
309.37 x 174.02mm (typ.)
Weight
280 g max
Diagonal Size
14”
Thickness
3.0mm max.
Interface
eDP 1.2 (2 lane)
Surface Treatment
Anti-Glare
Touch Enabled
No
Contrast Ratio
600:1 (typical)
Refresh Rate
60Hz
Brightness
250 nits
Pixel Resolution
1920 x 1080 (FHD)
Format
RGB
Backlight
LED
Color Gamut Coverage
45%
Color Depth
6 bits
Viewing Angle
UWVA 85/85/85/85
Panel LCD 14 inch diagonal
FHD (1920 x 1080) Anti-Glare
WLED UWVA 45 percent cg
250 nits eDP slim Touch on
Panel Narrow Bezel
Outline Dimensions
(W x H)
316.112 x 197.98 mm (max)
Active Area
309.37 x 174.02 mm (typ.)
Weight
290 g max
Diagonal Size
14”
Thickness
3.0 mm (panel side) / 3.2 mm (PCBA Side) (max)
Interface
eDP 1.2
Surface Treatment
Anti-Glare On-cell
Touch Enabled
Yes
Contrast Ratio
600:1 (typ.)
Refresh Rate
60Hz
Brightness
250 nits
Pixel Resolution
1920 x 1080 (FHD)
Format
RGB
Backlight
LED
Color Gamut Coverage
45%
Color Depth
6 bits
Viewing Angle
UWVA 85/85/85/85
QuickSpecs
HP mt45 Mobile Thin Client
Technical Specifications
c06347327 — DA – 16508 Worldwide — Version 5 — January 14, 2021
Page 15
Privacy mode, CR>2, L/R/U/D, 50/50/85/85 (typical)
NOTE: All specifications represent the typical specifications provided by HP's component manufacturers; actual performance may
vary either higher or lower.
STORAGE
SSD 128 GB 2280 M2 SATA-3
TLC
Form Factor
M.2 2280
Capacity
128 GB
NAND Type
TLC
Height
0.09 in (2.3 mm)
Width
0.87 in (22 mm)
Weight
0.02 lb (10 g)
Interface
ATA-8, SATA 3.0
Performance
Maximum Sequential Read
Performance
Around 540 ~ 560 MB/s
Around 380 ~ 530 MB/s
Logical Blocks
250,069,680
Operating Temperature
32° to 158°F (0° to 70°C) [ambient temp]
Features
ATA Security; DIPM; TRIM; DEVSLP
*For storage drives, GB = 1 billion bytes. Actual formatted capacity is less. Up to 30GB is reserved
for system recovery software.
NETWORKING/COMMUNICATIONS
Intel® 9260
802.11a/b/g/n/ac (2 x 2)
Wi-Fi® and Bluetooth®
5.1 Combo1 Non-vPro™
Wireless LAN Standards
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
IEEE 802.11ac
IEEE 802.11d
IEEE 802.11e
IEEE 802.11h
IEEE 802.11i
IEEE 802.11k
IEEE 802.11r
IEEE 802.11v
Interoperability
Wi-Fi certified
Frequency Band
802.11b/g/n
• 2.402 – 2.482 GHz
802.11a/n/ac
• 4.9 – 4.95 GHz (Japan)
• 5.15 – 5.25 GHz
• 5.25 – 5.35 GHz
• 5.47 – 5.725 GHz
• 5.825 – 5.850 GHz
Data Rates
•802.11b: 1, 2, 5.5, 11 Mbps
•802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
QuickSpecs
HP mt45 Mobile Thin Client
Technical Specifications
c06347327 — DA – 16508 Worldwide — Version 5 — January 14, 2021
Page 16
•802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
•802.11n: MCS 0 ~ MCS 15, (20MHz, and 40MHz)
•802.11ac: MCS0 ~ MCS9, (1SS, and 2SS) (20MHz, 40MHz, 80MHz &
160MHz)
Modulation
Direct Sequence Spread Spectrum
BPSK, QPSK, CCK, 16-QAM, 64-QAM, 256-QAM
Security3
•IEEE and WiFi compliant 64 / 128-bit WEP encryption for a/b/g
mode only
•AES-CCMP: 128 bits in hardware
•802.1x authentication
•WPA, WPA2: 802.1x. WPA-PSK, WPA2-PSK, TKIP, and AES.
•WPA2 certification
•IEEE 802.11i
•WAPI
Network Architecture
Models
Ad-hoc (Peer to Peer)
Infrastructure (Access Point Required)
Roaming
IEEE 802.11 compliant roaming between access points
Output Power2
• 802.11b: +18.5dBm minimum
• 802.11g: +17.5dBm minimum
• 802.11a: +18.5dBm minimum
• 802.11n HT20(2.4GHz): +15.5dBm minimum
• 802.11n HT40(2.4GHz): +14.5dBm minimum
• 802.11n HT20(5GHz): +15.5dBm minimum
• 802.11n HT40(5GHz): +14.5dBm minimum
• 802.11ac VHT80(5GHz): +11.5dBm minimum
• 802.11ac VHT160(5GHz): +11.5dBm minimum
Power Consumption
•Transmit mode: 2.0 W
•Receive mode: 1.6 W
•Idle mode (PSP) 180 mW (WLAN Associated)
•Idle mode: 50 mW (WLAN unassociated)
•Connected Standby/Modern Standby: 10mW
•Radio disabled: 8 mW
Power Management
ACPI compliant power management
802.11 compliant power saving mode
Receiver Sensitivity4
802.11b, 1Mbps: -93.5dBm maximum
802.11b, 11Mbps: -84dBm maximum
802.11a/g, 6Mbps: -86dBm maximum
802.11a/g, 54Mbps: -72dBm maximum
802.11n, MCS07: -67dBm maximum
802.11n, MCS15: -64dBm maximum
802.11ac, MCS0: -84dBm maximum
802.11ac, MCS9: -59dBm maximum
Antenna Type
High efficiency antenna with spatial diversity, mounted in the
display enclosure
Two embedded dual band 2.4/5 GHz antennas are provided to the
card to support WLAN MIMO communications and Bluetooth
communications
Form Factor
PCI-Express M.2 MiniCard
Dimensions
1. Type 2230: 2.3 x 22.0 x 30.0 mm
2. Type 1216: 1.67 x 12.0 x 16.0 mm
Weight
1. Type 2230: 2.8g
QuickSpecs
HP mt45 Mobile Thin Client
Technical Specifications
c06347327 — DA – 16508 Worldwide — Version 5 — January 14, 2021
Page 17
2. Type 126: 1.3g
Operating Voltage
3.3v +/- 9%
Temperature
Operating
Non-operating
14° to 158° F (-10° to 70° C)
-40° to 176° F (-40° to 80° C)
Humidity
Operating
Non-operating
10% to 90% (non-condensing)
5% to 95% (non-condensing)
Altitude
Operating Nonoperating
0 to 10,000 ft (3,048 m)
0 to 50,000 ft (15,240 m)
LED Activity
LED Amber – Radio OFF
LED OFF – Radio ON
HP Integrated Module with Bluetooth 4.0/4.1/4.2/5.0 Wireless Technology
Bluetooth Specification
4.0/4.1/4.2/5.0 Compliant
Frequency Band
2402 to 2480 MHz
Number of Available Channels
Legacy : 0~79 (1 MHz/CH)
BLE : 0~39 (2 MHz/CH)
Signaling Data Rate
Legacy: 3 Mbps signaling data rate1 2.17 Mbps
BLE: 1 Mbps signaling data rate1 0.2 Mbps
1. Actual throughput may vary.
Legacy: Synchronous Connection Oriented links up to 3, 64 kbps,
voice channels
Legacy: Asynchronous Connection Less links 2178.1 kbps/177.1
kbps asymmetric (3-DH5) or 864 kbps symmetric (3-EV5)
Transmit Power
The Bluetooth component shall operate as a Class II Bluetooth
device with a maximum transmit power of + 4 dBm for BR and EDR.
Power Consumption
Peak (Tx) 330 mW
Peak (Rx) 230 mW
Selective Suspend 17 mW
Electrical Interface
USB 2.0 compliant
Bluetooth Software Supported
Link Topology
Microsoft Windows Bluetooth Software
Power Management
Microsoft Windows ACPI, and USB Bus Support
Certifications
FCC (47 CFR) Part 15C, Section 15.247 & 15.249
Power Management
Certifications
ETS 300 328, ETS 300 826
Low Voltage Directive IEC950
UL, CSA, and CE Mark
Bluetooth Profiles Supported
BT4.1-ESR 5/6/7 Compliance
LE Link Layer Ping
LE Dual Mode
LE Link Layer
LE Low Duty Cycle Directed Advertising
LE L2CAP Connection Oriented Channels
Train Nudging & Interlaced Scan
BT4.2 ESR08 Compliance
LE Secure Connection- Basic/Full
LE Privacy 1.2 –Link Layer Privacy
QuickSpecs
HP mt45 Mobile Thin Client
Technical Specifications
c06347327 — DA – 16508 Worldwide — Version 5 — January 14, 2021
Page 18
LE Privacy 1.2 –Extended Scanner Filter Policies
LE Data Packet Length Extension
FAX Profile (FAX)
Basic Imaging Profile (BIP)2
Headset Profile (HSP)
Hands Free Profile (HFP)
Advanced Audio Distribution Profile (A2DP)
1
Wireless access point and Internet service is required. Availability of public wireless access point is limited.
2
The FCC has declared as of September 1, 2014 products that utilize passive scanning on channel 12/13 and are capable of
transmitting must fully comply with requirements of 15.247 or otherwise disable those channels.
3
Check latest software/driver release for updates on supported security features.
4
Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation) and a packet error rate of 10% for
802.11a/g (OFDM modulation).
802.11a/b/g/n/ac (2 x 2)
Wi-Fi® and Bluetooth®
4.2 Combo1
Wireless LAN Standards
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
IEEE 802.11ac
Interoperability
Wi-Fi® certified
Frequency Band
802.11b/g/n
• 2.402 – 2.482 GHz
802.11a/n
• 4.9 – 4.95 GHz (Japan)
• 5.15 – 5.25 GHz
• 5.25 – 5.35 GHz
• 5.47 – 5.725 GHz
• 5.825 – 5.850 GHz
Data Rates
• 802.11b: 1, 2, 5.5, 11 Mbps
• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11n: MCS 0 ~ MCS 15, (20MHz, and 40MHz)
• 802.11ac: MCS0 ~ MCS9, (1SS, and 2SS) (20MHz, 40MHz, and
80MHz)
Modulation
Direct Sequence Spread Spectrum
BPSK, QPSK, CCK, 16-QAM, 64-QAM, 256-QAM
Security3
•IEEE and WiFi compliant 64 / 128-bit WEP encryption for a/b/g
mode only
•AES-CCMP: 128 bits in hardware
•802.1x authentication
•WPA, WPA2: 802.1x. WPA-PSK, WPA2-PSK, TKIP, and AES.
•WPA2 certification
•IEEE 802.11i
•WAPI
Network Architecture
Models
Ad-hoc (Peer to Peer)
Infrastructure (Access Point Required)
Roaming
IEEE 802.11 compliant roaming between access points
Output Power2
• 802.11b: +14dBm minimum
• 802.11g: +12dBm minimum
• 802.11a: +12dBm minimum
QuickSpecs
HP mt45 Mobile Thin Client
Technical Specifications
c06347327 — DA – 16508 Worldwide — Version 5 — January 14, 2021
Page 19
• 802.11n HT20(2.4GHz): +12dBm minimum
• 802.11n HT40(2.4GHz): +12dBm minimum
• 802.11n HT20(5GHz): +10dBm minimum
• 802.11n HT40(5GHz): +10dBm minimum
• 802.11ac VHT80(5GHz): +10dBm minimum
Power Consumption
• Transmit mode 2.0 W
• Receive mode 1.6 W
• Idle mode (PSP) 180 mW (WLAN Associated)
• Idle mode 50 mW (WLAN unassociated)
• Connected Standby 10mW
• Radio disabled 8 mW
Power Management
ACPI and PCI Express compliant power management 802.11
compliant power saving mode
Receiver Sensitivity4
802.11b, 1Mbps : -93.5dBm maximum
802.11b, 11Mbps : -84dBm maximum
802.11a/g, 6Mbps : -86dBm maximum
802.11a/g, 54Mbps : -72dBm maximum
802.11n, MCS07 : -67dBm maximum
802.11n, MCS15 : -64dBm maximum
802.11ac, MCS0 : -84dBm maximum
802.11ac, MCS9 : -59dBm maximum
Antenna Type
High efficiency antenna with spatial diversity, mounted in the
display enclosure
Two embedded dual band 2.4/5 GHz antennas are provided to the
card to support WLAN MIMO communications and Bluetooth
communications
Form Factor
PCI-Express M.2 MiniCard
Dimensions
Type 2230 : 2.3 x 22.0 x 30.0 mm
Weight
Type 2230: 2.8 g
Operating Voltage
3.3v +/- 9%
Temperature
Operating
Non-operating
14° to 158° F (-10° to 70° C)
-40° to 176° F (-40° to 80° C)
Humidity
Operating
Non-operating
10% to 90% (non-condensing)
5% to 95% (non-condensing)
Altitude
Operating Nonoperating
0 to 10,000 ft (3,048 m)
0 to 50,000 ft (15,240 m)
LED Activity
LED Amber – Radio OFF
LED White – Radio ON
HP Integrated Module with Bluetooth 4.0/4.1/4.2 Wireless Technology
Bluetooth Specification
4.0/4.1/4.2 Compliant
Frequency Band
2402 to 2480 MHz
Number of Available Channels
Legacy : 0~79 (1 MHz/CH)
BLE : 0~39 (2 MHz/CH)
Signaling Data Rate
Legacy: 3 Mbps signaling data rate1 2.17 Mbps
BLE: 1 Mbps signaling data rate1 0.2 Mbps
1. Actual throughput may vary.
Legacy: Synchronous Connection Oriented links up to 3, 64 kbps,
voice channels
QuickSpecs
HP mt45 Mobile Thin Client
Technical Specifications
c06347327 — DA – 16508 Worldwide — Version 5 — January 14, 2021
Page 20
Legacy: Asynchronous Connection Less links 2178.1 kbps/177.1
kbps asymmetric (3-DH5) or 864 kbps symmetric (3-EV5)
Transmit Power
The Bluetooth component shall operate as a Class II Bluetooth
device with a maximum transmit power of + 4 dBm for BR and EDR.
Power Consumption
Peak (Tx) 330 mW
Peak (Rx) 230 mW
Selective Suspend 17 mW
Electrical Interface
USB 2.0 compliant
Bluetooth Software Supported
Link Topology
Microsoft Windows Bluetooth Software
Power Management
Microsoft Windows ACPI, and USB Bus Support
Certifications
FCC (47 CFR) Part 15C, Section 15.247 & 15.249
Power Management
Certifications
ETS 300 328, ETS 300 826
Low Voltage Directive IEC950
UL, CSA, and CE Mark
Bluetooth Profiles Supported
BT4.1-ESR 5/6/7 Compliance
LE Link Layer Ping
LE Dual Mode
LE Link Layer
LE Low Duty Cycle Directed Advertising
LE L2CAP Connection Oriented Channels
Train Nudging & Interlaced Scan
BT4.2 ESR08 Compliance
LE Secure Connection- Basic/Full
LE Privacy 1.2 –Link Layer Privacy
LE Privacy 1.2 –Extended Scanner Filter Policies
LE Data Packet Length Extension
FAX Profile (FAX)
Basic Imaging Profile (BIP)2
Headset Profile (HSP)
Hands Free Profile (HFP)
Advanced Audio Distribution Profile (A2DP)
1
Wireless access point and Internet service is required. Availability of public wireless access point is limited.
2
The FCC has declared as of September 1, 2014 products that utilize passive scanning on channel 12/13 and are capable of
transmitting must fully comply with requirements of 15.247 or otherwise disable those channels.
3
Check latest software/driver release for updates on supported security features.
4
Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation) and a packet error rate of 10% for
802.11a/g (OFDM modulation).
Intel® XMM™ 7360 LTE-Advanced (CAT9)1
Technology/Operating bands
FDD LTE: 2100 (Band 1), 1900 (Band 2), 1800 (Band 3),
1700/2100 (Band 4), 850 (Band 5), 2600 (Band 7), 900 (Band 8), 1400
(Band 11), 700 (Band 12 lower), 700 (Band 13 upper), 700 (Band 17 lower),
850 (Band 18 lower), 850 (Band 19 upper), 800 (Band 20), 1400 (Band 21), 850 (Band 26), 700
(Band 28), 700 (Band 29 RX only), 2300 (Band 30), 2100 (Band 66).
QuickSpecs
HP mt45 Mobile Thin Client
Technical Specifications
c06347327 — DA – 16508 Worldwide — Version 5 — January 14, 2021
Page 21
TDD LTE: 2600 (Band 38), 1900 (Band 39), 2400 (Band 40), 2500 (Band 41).
HSPA+: 2100 (Band 1), 1900 (Band 2), 1700/2100 (Band 4), 850 (Band 5), 900 (Band 8) MHz
Wireless protocol standards
3GPP Release 11 LTE Specification CAT.9, DL 60MHz BW throughput up to
450Mbps; UL 20MHz throughput up to 50Mbps
WCDMA R99, 3GPP Release 5, 6, 7 and 8 UMTS Specification
GPS
Standalone, A-GPS (MS-A, MS-B and XTRA)
GPS bands
1575.42 MHz ± 1.023 MHz, GLONASS 1596-1607MHz, Beidou 1561.098 MHz
Maximum data rates
LTE: 450 Mbps (Download), 50 Mbps (Upload)
DC-HSPA+: 42 Mbps (Download), 5.76 Mbps (Upload)
HSPA+: 21Mbps (Download), 5.76 Mbps (Upload)
Maximum output power
LTE: 23 dBm
HSPA+: 23.5 dBm
Maximum power consumption
LTE: 1,200 mA (peak); 900 mA (average)
HSPA+: 1,100 mA (peak); 800 mA (average)
Form Factor
M.2, 3042-S3 Key B
Weight
5.8 g
Dimensions
(Length x Width x Thickness)
42 x 30 x 2.3 mm
Mobile Broadband is an optional feature. Connection requires wireless data service contract, network support, and is not
available in all areas. Contact service provider to determine the coverage area and availability. Connection speeds will vary due
to location, environment, network conditions, and other factors. WWAN is an optional feature, requires factory configuration
and separately purchased service contract. Check with service provider for coverage and availability in your area. 4G LTE not
available on all products, in all regions.
Near Field
Communications
Controller (optional)
Dimensions (L x W x H)
Module 25 mm by 10 mm by 2.0 mm
Chipset
NPC300
System interface
I2C
NFC RF standards
ISO/IEC 14443 A ISO/IEC 14443 B
ISO/IEC 15693
ISO/IEC 18092
ECMA-340 NFCIP-1 Target and Initiator ECMA-320 NFCIP-2
NFC Forum Support
Tag Type 1, Type 2, Type3 and Type 4, NFCIP-1 and NFCIP-2
Reader (PCD-VCD) Mode(1)
ISO/IEC 14443 A
ISO/IEC 14443 B
ISO/IEC 15693 MIFARE 1K MIFARE 4K MIFARE DESFire
FeliCa
Jewel and Topaz cards
Card Emulation (PICC-VICC)
Mode(1)
ISO/IEC 14443 A
ISO/IEC 14443 B and B’
MIFARE
FeliCa
Frequency
13.56 MHz
NFC Modes Supported
Reader/Writer, Peer-to-Peer
Raw RF Data Rates
106, 212, 424, 848 kbps
Operating temperature
0°C to 70°C
Storage temperature
-20°C to 125°C
QuickSpecs
HP mt45 Mobile Thin Client
Technical Specifications
c06347327 — DA – 16508 Worldwide — Version 5 — January 14, 2021
Page 22
Humidity
10-90% operating
5-95% non-operating
Supply Operating voltage
4.35 to 5.25 Volts
I/O Voltage
1.8V or 3.3V
Power Consumption (Booster
enable, VBAT= 3.3V, VCC_BOOST
= 5V)
Mode
Power Consumption, Typical
Polling
710.93 mW
Detected Test Tag Type 1
152.09 mW
Detected Test Tag Type 2
341.26 mW
Detected Test Tag Type 3
383.76 mW
Detected Test Tag Type 4
312.26 mW
Antenna
Antenna connector, 0.5mm pitch, 7
connector FPC. Antenna matching is
external to module.
QuickSpecs
HP mt45 Mobile Thin Client
Technical Specifications
c06347327 — DA – 16508 Worldwide — Version 5 — January 14, 2021
Page 23
POWER
AC Adapter 45 Watt nPFC
Wall Mount USB type C
Straight 1.8m C6NS
Dimensions (H x W x D)
62.0x62.0x28.5mm
Weight
unit: 220g +/- 10g
Input
Input Efficiency
Average Efficiency of 25%, 50%, 75%, 100%
load condition with 115Vac/230Vac Spec:
5V : 81.5%
9V : 86.7%
10V : 87.5%
12V : 87.8%
15V :87.8%
20V : 87.8%
Input frequency range
47 to 63 Hz
Input AC current
Max. 1.4 A at 90 Vac
Output
Output power
Average Efficiency of 25%, 50%, 75%, 100%
load condition with 115Vac/230Vac Spec:
DC output
5V: 81.5%
Hold-up time
9V: 86.7%
Output current limit
10V: 87.5%
Connector
Non-Standard C6
Environmental Design
Operating
temperature
32° to 95° F (0° to 35° C)
Non-operating (storage)
temperature
-4° to 185° F (-20° to 85° C)
Altitude
0 to 16,400 ft (0 to 5,000 m)
Humidity
20% to 95%
Storage Humidity
10% to 95%
EMI and Safety
Certifications
*CE Mark - full compliance with LVD and EMC directives
* Worldwide safety standards - IEC60950, EN60950, UL60950, Class1,
SELV; Agency approvals - C-UL-US, NORDICS, DENAN, EN55022 Class B, FCC
Class B, CISPR22 Class B, CCC, NOM-1 NYCE.
* MTBF - over 200,000 hours at 25°C ambient condition.
AC Adapter 45 Watt
Smart nPFC Standard
Barrel 4.5 mm Right
Angle 1.8 m
Dimensions (H x W x D)
95.0x40.0x26.5mm
Weight
unit: 200g +/- 10g
Input
Input Efficiency
87.74% at 115Vac and 88.4% at 230Vac
Input frequency range
47 to 63 Hz
Input AC current
Max. 1.4 A at 90 Vac
Output
Output power
45W
DC output
19.5V
Hold-up time
5 ms at 115Vac input
Output current limit
<8.0A
Connector
C6
QuickSpecs
HP mt45 Mobile Thin Client
Technical Specifications
c06347327 — DA – 16508 Worldwide — Version 5 — January 14, 2021
Page 24
Environmental Design
Operating
temperature
32° to 95° F (0° to 35° C)
Non-operating (storage)
temperature
-4° to 185° F (-20° to 85° C)
Altitude
0 to 16,400 ft (0 to 5,000 m)
Humidity
20% to 95%
Storage Humidity
10% to 95%
EMI and Safety
Certifications
*CE Mark - full compliance with LVD and EMC directives
* Worldwide safety standards - IEC60950, EN60950, UL60950, Class1,
SELV; Agency approvals - C-UL-US, NORDICS, DENAN, EN55022 Class B, FCC
Class B, CISPR22 Class B, CCC, NOM-1 NYCE.
* MTBF - over 200,000 hours at 25°C ambient condition.
AC Adapter 45 Watt
Smart nPFC Standard
Barrel 4.5 mm Right
Angle 1.8 m 2prong
Dimensions (H x W x D)
95.0x40.0x26.5mm
Weight
unit: 200g +/- 10g
Input
Input Efficiency
87.74% at 115Vac and 88.4% at 230Vac
Input frequency range
47 to 63 Hz
Input AC current
Max. 1.4 A at 90 Vac
Output
Output power
45W
DC output
19.5V
Hold-up time
5 ms at 115Vac input
Output current limit
<8.0A
Connector
C6
Environmental Design
Operating
temperature
32° to 95° F (0° to 35° C)
Non-operating (storage)
temperature
-4° to 185° F (-20° to 85° C)
Altitude
0 to 16,400 ft (0 to 5,000 m)
Humidity
20% to 95%
Storage Humidity
10% to 95%
EMI and Safety
Certifications
*CE Mark - full compliance with LVD and EMC directives
* Worldwide safety standards - IEC60950, EN60950, UL60950, Class1,
SELV; Agency approvals - C-UL-US, NORDICS, DENAN, EN55022 Class B, FCC
Class B, CISPR22 Class B, CCC, NOM-1 NYCE.
* MTBF - over 200,000 hours at 25°C ambient condition.
AC Adapter 65 Watt nPFC
USB type C™ Straight 1.8
m C6NS
Dimensions (H x W x D)
74x74x28.5mm
Weight
unit: 245g +/- 10g
Input
Input Efficiency
81.5% min at 115 Vac/ 230Vac @ 5V/3A
86.7% min at 115 Vac/ 230Vac @ 9V/3A
88% min at 115 Vac/ 230Vac @ 10V/5A
88% min at 115 Vac/ 230Vac @ 12V/5A
QuickSpecs
HP mt45 Mobile Thin Client
Technical Specifications
c06347327 — DA – 16508 Worldwide — Version 5 — January 14, 2021
Page 25
89% min at 115 Vac/ 230Vac @ 15V/4.33A
89% min at 115 Vac/ 230Vac @ 20V/3.25A
Input frequency range
47 ~ 63 Hz
Input AC current
1.7 A at 90 VAC and maximum load
Output
Output power
65W
DC output
5V/9V/10V/12V/15V/20V
Hold-up time
5 ms at 115 Vac input
Output current limit
<8.0A
Connector
Non-Standard C6
Environmental Design
Operating
temperature
32° to 95° F (0° to 35° C)
Non-operating (storage)
temperature
-4° to 185° F (-20° to 85° C)
Altitude
0 to 16,400 ft (0 to 5,000 m)
Humidity
5% to 95%
Storage Humidity
5% to 95%
EMI and Safety
Certifications
*CE Mark - full compliance with LVD and EMC directives
* Worldwide safety standards - IEC60950, EN60950, UL60950, Class1,
SELV; Agency approvals - C-UL-US, NORDICS, DENAN, EN55022 Class B, FCC
Class B, CISPR22 Class B, CCC, NOM-1 NYCE.
* MTBF - over 200,000 hours at 25°C ambient condition.
QuickSpecs
HP mt45 Mobile Thin Client
Technical Specifications
c06347327 — DA – 16508 Worldwide — Version 5 — January 14, 2021
Page 26
AC Adapter 65 Watt
Smart nPFC EM Barrel
4.5 mm New EM
Dimensions
102x55x30mm
Weight
unit: 250g +/- 10g
Input
Input Efficiency
88.0 % at 115 Vac and 89.0 % at 230 Vac
Input frequency range
47 to 63 Hz
Input AC current
Max 1.7 A at 90 Vac
Output
Output power
65W
DC output
19.5V
Hold-up time
5 ms at 115 Vac input
Output current limit
<11.0A
Connector
C6
Environmental Design
Operating
temperature
32° to 95° F (0° to 35° C)
Non-operating (storage)
temperature
-4° to 185° F (-20° to 85° C)
Altitude
0 to 5,000 m
Humidity
20% to 95%
Storage Humidity
10% to 95%
EMI and Safety
Certifications
*CE Mark - full compliance with LVD and EMC directives
* Worldwide safety standards - IEC60950, EN60950, UL60950, Class1,
SELV; Agency approvals - C-UL-US, NORDICS, DENAN, EN55022 Class B, FCC
Class B, CISPR22 Class B, CCC, NOM-1 NYCE.
* MTBF - over 200,000 hours at 25°C ambient condition.
AC Adapter 65 Watt
Smart nPFC Standard
Barrel 4.5 mm Right
Angle 1.8 m
Dimensions
90.0 x 51 x 28.5 mm
Weight
unit: 230 g +/- 10 g
Input
Input Efficiency
88.0 % at 115 Vac and 89.0 % at 230Vac
Input frequency range
47 ~ 63 Hz
Input AC current
Max 1.7 A at 90 VAC
Output
Output power
65W
DC output
19.5V
Hold-up time
5 msec at 115 VAC input
Output current limit
<11.0A
Connector
C6
Environmental Design
4.5mm Barrel Type
Operating
temperature
32° to 95° F (0° to 35° C)
Non-operating (storage)
temperature
-4° to 185° F (-20° to 85° C)
Altitude
0 to 16,400 ft (0 to 5,000 m)
Humidity
20% to 95%
Storage Humidity
10% to 95%
QuickSpecs
HP mt45 Mobile Thin Client
Technical Specifications
c06347327 — DA – 16508 Worldwide — Version 5 — January 14, 2021
Page 27
EMI and Safety
Certifications
*CE Mark - full compliance with LVD and EMC directives
* Worldwide safety standards - IEC60950, EN60950, UL60950, Class1,
SELV; Agency approvals - C-UL-US, NORDICS, DENAN, EN55022 Class B, FCC
Class B, CISPR22 Class B, CCC, NOM-1 NYCE.
* MTBF - over 200,000 hours at 25°C ambient condition.
QuickSpecs
HP mt45 Mobile Thin Client
Technical Specifications
c06347327 — DA – 16508 Worldwide — Version 5 — January 14, 2021
Page 28
Battery SS 3 Cell 50 WHr
Long Life -PL
Dimensions (L x W x H)
L 278.7 mm x W 76.3 mm x H 7.1 mm
Weight
193 +/- 10g
Cells/Type
3cell Lithium-Ion Polymer cell / P604883A1
Energy
Voltage
11.55V
Amp-hour capacity
4.113Ah/ 4.330Ah
Watt-hour capacity
50wh
Temperature
Operating (Charging)
0˚ to 50˚ C
Operating
(Discharging)
-10˚ to 60˚ C
Warranty
Based on system offering, refer to
http://www.hp.com/support/batterywarranty/ for battery information
Optional Travel
Battery Available
No
COUNTRY OF ORIGIN
China
QuickSpecs
HP mt45 Mobile Thin Client
Options and Accessories (Sold separately and availability may vary by country.)
c06347327 — DA – 16508 Worldwide — Version 5 — January 14, 2021
Page 29
Type
Description
Part Number
Cases
HP Essential Top Load Case
H2W17AA
HP Essential Backpack
H1D24AA
HP 17.3 Business Backpack
2SC67AA
HP 15.6 Business Top Load
2SC66AA
Input/Output
HP Slim Wireless Keyboard and Mouse
T6L04AA
HP Slim USB Keyboard and Mouse
T6T83AA
HP Wireless (Link-5) Keyboard
T6U20AA
HP USB Essential Keyboard and Mouse
H6L29AA
HP Conferencing Keyboard
K8P74AA
HP USB Collaboration Keyboard
Z9N38AA
HP Wireless Collaboration Keyboard
Z9N39AA
HP Comfort Grip Wireless Mouse
H2L63AA
HP X4000b Bluetooth Mouse
H3T50AA
HP 3-Button USB Laser Mouse
H4B81AA
HP USB Travel Mouse
G1K28AA
HP Ultra Mobile Wireless Mouse
H6F25AA
HP Slim Bluetooth Mouse to AMO
F3J92AA
HP Wireless Premium Mouse
1JR31AA
HP USB Premium Mouse
1JR32AA
HP Essential USB Mouse
2TX37AA
HP Elite Presenter Mouse
2CE30AA
HP Stereo 3.5mm Headset
T1A66AA
HP Stereo USB Headset
T1A67AA
HP UC Wireless Mono Headset
W3K08AA
HP UC Wireless Duo Headset
W3K09AA
HP USB-C™ to USB-A Hub
Z6A00AA
HP USB-C™ to DP
N9K78AA
HP USB-C™ to VGA
N9K76AA
HP HDMI to DVI
F5A28AA
HP HDMI to VGA
H4F02AA
Power
HP 65W Slim AC Adapter
H6Y82AA
HP 45W Smart AC Adapter
H6Y88AA
HP 65W Smart AC Adapter
H6Y89AA
HP 45W 2-prong 4.5 mm DC jack AC Adapter
L6F60AA
HP 45W USB-C Power Adapter
1HE07AA
HP 65W USB-C Power Adapter
1HE08AA
QuickSpecs
HP mt45 Mobile Thin Client
Options and Accessories (Sold separately and availability may vary by country.)
c06347327 — DA – 16508 Worldwide — Version 5 — January 14, 2021
Page 30
65W USB-C Slim Power Adapter
3PN48AA
HP Notebook Power Bank
N9F71AA
Storage
HP USB External DVDRW Drive
F2B56AA
Security
HP Docking Station Cable Lock
AU656AA
HP Keyed Cable Lock
T0Y14AA
HP Combination Lock
T0Y15AA
HP Essential Combination Lock
T0Y16AA
HP Keyed Cable Lock 10mm
T1A62AA
HP Dual Head Keyed Cable Lock
T1A64AA
QuickSpecs
HP mt45 Mobile Thin Client
Summary of Changes
c06347327 — DA – 16508 Worldwide — Version 5 — January 14, 2021
Page 31
Date of change:
Version History:
Type of change
Description of change:
July 26, 2019
From v1 to v2
Changed
Docking Section
August 21, 2019
From v2 to v3
Changed
Format page 2
March 27, 2020
From v3 to v4
Changed
Displays support section
January 14, 2021
From v4 to v5
Removed
Docking information
Changed
SOFTWARE AND SECURITY section
QuickSpecs
HP mt45 Mobile Thin Client
c06347327 — DA – 16508 Worldwide — Version 5 — January 14, 2021
Page 32
© Copyright 2021 HP Development Company, L.P. The information contained herein is subject to change without notice. The only
warranties are contained in the limited warranty statements accompanying such products and services. Nothing herein should be
construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained
herein.
Bluetooth is a trademark of its proprietor used by HP Inc. under license. ENERGY STAR is a registered trademark of the U.S.
Environmental Protection Agency. AMD and Radeon are trademarks of Advanced Micro Devices, Inc. Microsoft and Windows are
either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. USB Type-C™ and
USB-C™ are trademarks of USB Implementers Forum.
Loading...
