HP mt43 Maintenance and Service Guide

HP mt43 Mobile Thin Client
Maintenance and Service Guide
© Copyright 2017 HP Development Company, L.P.
AMD and AMD Radeon are trademarks of Advanced Micro Devices, Inc. Bluetooth is a trademark owned by its proprietor and used by HP Inc. under license. Intel and Core are trademarks of Intel Corporation in the U.S. and other countries. Linux® is the registered trademark of Linus Torvalds in the U.S. and other countries. Microsoft and Windows are trademarks of the Microsoft group of companies.
The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
First Edition: January 2017
Document Part Number: 925414-001
Product notice
This user guide describes features that are common to most models. Some features may not be available on your computer.
Not all features are available in all editions of Windows. This computer may require upgraded and/or separately purchased hardware, drivers and/or software to take full advantage of Windows functionality. Go to
http://www.microsoft.com for details.
Your product does not support Windows 8 or Windows 7
In accordance with Microsoft’s support policy, HP does not support the Windows 8 or Windows 7 operating system on this product or provide any Windows 8 or Windows 7 drivers on http://support.hp.com.
Software terms
By installing, copying, downloading, or otherwise using any software product preinstalled on this computer, you agree to be bound by the terms of the HP End User License Agreement (EULA). If you do not accept these license terms, your sole remedy is to return the entire unused product (hardware and software) within 14 days for a full refund subject to the refund policy of your seller.
For any further information or to request a full refund of the price of the computer, please contact your seller.
Important Notice about Customer Self-Repair Parts
CAUTION: Your computer includes Customer Self-Repair parts and parts that should only be accessed by an
authorized service provider. See Chapter 5, "Removal and replacement procedures for Customer Self-Repair parts," for details. Accessing parts described in Chapter 6, "Removal and replacement procedures for Authorized Service Provider only parts," can damage the computer or void your warranty.
iii
iv Important Notice about Customer Self-Repair Parts
Safety warning notice
WARNING! To reduce the possibility of heat-related injuries or of overheating the device, do not place the
device directly on your lap or obstruct the device air vents. Use the device only on a hard, at surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft surface, such as pillows or rugs or clothing, to block airow. Also, do not allow the AC adapter to contact the skin or a soft surface, such as pillows or rugs or clothing, during operation. The device and the AC adapter comply with the user-accessible surface temperature limits dened by the International Standard for Safety of Information Technology Equipment (IEC 60950-1).
v
vi Safety warning notice
Table of contents
1 Product description ....................................................................................................................................... 1
2 External component identication .................................................................................................................. 4
Right ....................................................................................................................................................................... 4
Left ......................................................................................................................................................................... 5
Display .................................................................................................................................................................... 6
Top .......................................................................................................................................................................... 7
TouchPad ............................................................................................................................................. 7
Lights ................................................................................................................................................... 8
Buttons and speakers .......................................................................................................................... 9
Keys ................................................................................................................................................... 10
Using the hot keys ............................................................................................................................. 11
Bottom ................................................................................................................................................................. 12
Front ..................................................................................................................................................................... 13
Labels ................................................................................................................................................................... 14
3 Illustrated parts catalog .............................................................................................................................. 15
Computer major components .............................................................................................................................. 15
Display assembly subcomponents ...................................................................................................................... 17
Plastics Kit ........................................................................................................................................................... 18
Cable Kit ............................................................................................................................................................... 19
Miscellaneous parts ............................................................................................................................................. 19
4 Removal and replacement procedures preliminary requirements .................................................................... 21
Tools required ...................................................................................................................................................... 21
Service considerations ......................................................................................................................................... 21
Plastic parts ....................................................................................................................................... 21
Cables and connectors ...................................................................................................................... 21
Grounding guidelines ........................................................................................................................................... 22
Electrostatic discharge damage ........................................................................................................ 22
Packaging and transporting guidelines .......................................................................... 23
Workstation guidelines ................................................................................................... 23
Equipment guidelines ..................................................................................................... 24
5 Removal and replacement procedures for Customer Self-Repair parts ............................................................. 25
Component replacement procedures .................................................................................................................. 25
vii
Bottom cover ..................................................................................................................................... 25
Battery ............................................................................................................................................... 30
Solid-state drive (SSD) ...................................................................................................................... 31
Memory modules ............................................................................................................................... 32
WLAN/Bluetooth combo card ............................................................................................................ 34
WWAN module ................................................................................................................................... 36
RTC battery ........................................................................................................................................ 38
Keyboard ........................................................................................................................................... 39
6 Removal and replacement procedures for Authorized Service Provider parts ................................................... 42
Component replacement procedures .................................................................................................................. 42
Internal base plate ............................................................................................................................ 42
Heat sink/fan assembly .................................................................................................................... 45
Touchpad board ................................................................................................................................. 47
Smart card reader board ................................................................................................................... 48
USB/audio board ................................................................................................................................ 49
System board .................................................................................................................................... 50
Speaker assembly ............................................................................................................................. 52
Display assembly ............................................................................................................................... 53
Power button board .......................................................................................................................... 59
Top cover ........................................................................................................................................... 60
7 Interpreting system validation diagnostic front panel LEDs and audible codes ................................................. 61
8 Computer Setup (BIOS), TPM, and HP Sure Start ............................................................................................. 63
Using Computer Setup ......................................................................................................................................... 63
Starting Computer Setup .................................................................................................................. 63
Navigating and selecting in Computer Setup ................................................................................... 63
Restoring factory settings in Computer Setup ................................................................................. 63
Updating the BIOS ............................................................................................................................. 64
Determining the BIOS version ......................................................................................... 64
Downloading a BIOS update ........................................................................................... 65
Changing the boot order using the f9 prompt .................................................................................. 65
TPM BIOS settings (select products only) ........................................................................................................... 66
Using HP Sure Start (select products only) ......................................................................................................... 66
9 Using HP PC Hardware Diagnostics (UEFI) ....................................................................................................... 67
Downloading HP PC Hardware Diagnostics (UEFI) to a USB device .................................................................... 67
viii
10 Diagnostics and troubleshooting ................................................................................................................ 69
LEDs ..................................................................................................................................................................... 69
Wake-on LAN ....................................................................................................................................................... 70
Power-On Sequence ............................................................................................................................................ 70
Resetting the Setup and Power-on passwords ................................................................................................... 71
Power-on diagnostic tests ................................................................................................................................... 71
Interpreting POST diagnostic front panel LEDs and audible codes .................................................................... 72
POST numeric codes and text messages ............................................................................................................. 74
Troubleshooting ................................................................................................................................................... 76
Basic troubleshooting ....................................................................................................................... 76
Diskless (No-Flash) unit troubleshooting ......................................................................................... 77
Conguring a PXE server ..................................................................................................................................... 78
11 Using HP ThinUpdate to restore the image ................................................................................................... 79
12 Device management ................................................................................................................................... 80
13 Specications ............................................................................................................................................ 81
Computer specications ...................................................................................................................................... 81
35.6-cm (14.0-in) display specications ............................................................................................................. 82
Solid-state drive specications ........................................................................................................................... 82
14 Power cord set requirements ...................................................................................................................... 83
Requirements for all countries ............................................................................................................................ 83
Requirements for specic countries and regions ................................................................................................ 83
15 Statement of memory volatility .................................................................................................................. 85
Nonvolatile memory usage ................................................................................................................................. 88
Questions and answers ....................................................................................................................................... 90
Using HP Sure Start (select models only) ............................................................................................................ 91
16 Recycling .................................................................................................................................................. 92
Index ............................................................................................................................................................. 93
ix
x

1 Product description

Category Description
Product Name HP mt43 Mobile Thin Client
Processors AMD PRO A8-9600B with Radeon R5 Graphics
Graphics AMD Radeon R5 UMA graphics with shared video memory
Supports dual-display ports through the dock
Supports 3 independent displays through the 2013 Ultraslim Docking Station
Panel 35.6-cm (14.0-in), eDP, slim, high-denition (HD), AntiGlare (AG), SVA (1920 x 1080), 300 nits display with
orwithout webcam
Memory Two memory module slots
Memory is customer accessible/upgradeable
DDR4-1866 dual channel support
Supports up to 8 GB of system RAM in the following congurations:
8192 MB (4096 MB×2)
4096 MB (4096 MB×1)
Primary storage M.2 solid-state drive, 128 GB (2280, NGFF, SATA-3)
Audio and video HP Bang & Olufsen Audio with HP Clear Sound Amp & HP Noise Reduction software
Dual-array microphone
Premium stereo speakers (2)
Webcam (720p)
Supports “no camera” option
Ethernet Broadcom NetXtreme GbE LOM BCM5762 10/100/1000 Ethernet NIC with DASH
S3/S4/S5 Wake-on-LAN support
Wireless networking WPAN Bluetooth:
Integrated wireless personal area network (PAN) supported by Bluetooth® 4.2 combo card
WLAN:
Integrated wireless local area network (WLAN) options by way of wireless module
Supports the following WLAN format:
Intel 7265 802.11ac 2x2 DualBand Combo PCIe x1 Card
Two WLAN antennas built into display assembly
Compatible with Miracast-certied devices
Bluetooth Disabled IOPT
WWAN:
Integrated wireless wide area network (WWAN) options by way of wireless module
1
Category Description
SIM Module (3FF/micro SIM) (user accessible on side of computer)
Two WWAN antennas (world wide 5 band, congured at top of panel on all units)
Supports the following WWAN formats:
Foxconn HP It4120 LTE/EVDO/HSPA+ with GPS M.2
Fibocom HP hs3210 WW HSPA+ without GPS
Supports no WWAN option
External media cards Memory card reader (SD, SDHC, SDXC)
Ports VGA (Dsub 15 pin) supporting 1920 x 1200 external resolution @ 60Hz; hot plug/unplug and auto detect
USB 3.1 Gen 1 charging port
USB 3.1 Gen 1 port
USB Type-C (basic)
DisplayPort
RJ-45
Docking connector
Audio-out (headphone)/audio-in (microphone) combo jack
AC port
Docking 2013 Ultraslim Docking Station
Keyboard/pointing devices
Power requirements Battery:
Keyboard:
Dual point, Dura keys, backlit, spill resistant with drain
Dual point, spill resistant with drain
TouchPad:
Gestures enabled by default: two-nger scrolling, two-nger pinch-zoom
Taps enabled by default
On/o button
Glass
3 cell HP Long Life, 51 WHr, li-ion
AC adapter:
65 W HP Smart AC adapter (supports HP Fast Charging)
45 W HP Smart AC adapter
45 W, 2-prong AC adapter
Power cord:
2 wire plug, 1 m
3 wire plug, 1.8 m
3 wire plug, 1 m
Security Security lock
2 Chapter 1 Product description
Category Description
Supports Trusted Platform Module (TPM) 2.0 (1.2 downgradeable after purchase) (Inneon, soldered down)
Integrated Smart Card reader (active)
Preboot authentication (password, smart card)
Operating system Operating system version:
Windows 10 IoT Enterprise 2015 LTSB for Retail and Thin Clients
Preinstalled:
Windows 10 IoT Enterprise 2015 LTSB for Retail and Thin Clients
Serviceability End user replaceable parts:
AC adapter
Battery
Solid-state drive
Memory module
WLAN module
WWAN module
Keyboard
3
2 External component identication

Right

Component Description
(1) USB Type-C basic When the computer is on, connects and charges a USB device
that has a Type-C connector, such as a cell phone, camera, activity tracker, or smartwatch, and provides data transfer.
(2) Dual-Mode DisplayPort Connects an optional digital display device, such as a high-
performance monitor or projector.
(3) Memory card reader Reads optional memory cards that enable you to store, manage,
share, or access information.
To insert a card:
1. Hold the card label-side up, with connectors facing the
computer.
2. Insert the card into the memory card reader, and then
press in on the card until it is rmly seated.
To remove a card:
Press in on the card, and then remove it from the memory
card reader.
(4) Audio-out (headphone)/Audio-in (microphone)
combo jack
(5) USB 3.x port Connects a USB device, such as a cell phone, camera, activity
Connects optional powered stereo speakers, headphones, earbuds, a headset, or a television audio cable. Also connects an optional headset microphone. This jack does not support optional microphone-only devices.
WARNING! To reduce the risk of personal injury, adjust the
volume before putting on headphones, earbuds, or a headset. For additional safety information, refer to the Regulatory, Safety, and Environmental Notices.
NOTE: When a device is connected to the jack, the computer
speakers are disabled.
tracker, or smartwatch, and provides data transfer.
(6) RJ-45 (network) jack/status lights Connects a network cable.
4 Chapter 2 External component identication
Green (left): The network is connected.

Left

Component Description
Amber (right): Activity is occurring on the network.
(7) Docking connector Connects an optional docking device.
(8) SIM card slot Supports a wireless subscriber identity module (SIM) card.
(9) Power connector Connects an AC adapter.
Component Description
(1) Security cable slot Attaches an optional security cable to the computer.
NOTE: The security cable is designed to act as a deterrent, but
it may not prevent the computer from being mishandled or stolen.
(2) Vents (2) Enable airow to cool internal components.
NOTE: The computer fan starts up automatically to cool
internal components and prevent overheating. It is normal for the internal fan to cycle on and o during routine operation.
(3) External monitor port Connects an external VGA monitor or projector.
(4) USB 3.x charging port When the computer is on, connects and charges a USB device,
such as a cell phone, camera, activity tracker, or smartwatch, and provides high-speed data transfer.
(5) Smart card reader Supports optional smart cards.
Left 5

Display

Component Description
(1) WLAN antennas* (2) Send and receive wireless signals to communicate with wireless local
area networks (WLANs).
(2) WWAN antennas* (2) Send and receive wireless signals to communicate with wireless wide
area networks (WWANs).
(3) Internal microphones (2) Record sound.
(4) Webcam light (select products only) On: The webcam is in use.
(5) Webcam (select products only) Records video and captures photographs. Some models allow you to
video conference and chat online using streaming video.
*The antennas are not visible from the outside of the computer. For optimal transmission, keep the areas immediately around the antennas free from obstructions.
For wireless regulatory notices, see the section of the Regulatory, Safety, and Environmental Notices that applies to your country or region.
6 Chapter 2 External component identication
Top

TouchPad

Component Description
(1) Pointing stick Moves the pointer on the screen.
(2) Left pointing stick button Functions like the left button on an external mouse.
(3) TouchPad on/o button/TouchPad light Turns the TouchPad on and o.
On: The TouchPad is o.
O: The TouchPad is on.
(4) TouchPad zone Reads your nger gestures to move the pointer or activate
items on the screen.
(5) Left TouchPad button Functions like the left button on an external mouse.
(6) Right pointing stick button Functions like the right button on an external mouse.
(7) Right TouchPad button Functions like the right button on an external mouse.
Top 7

Lights

Component Description
(1) Power light
(2) Microphone mute light
(3) Num lk light On: Num lock is on.
(4) Wireless light On: An integrated wireless device, such as a wireless local area
(5) Mute light
(6) Caps lock light On: Caps lock is on, which switches the key input to all capital
(7) TouchPad light
On: The computer is on.
Blinking: The computer is in the Sleep state, a power-saving state. The computer shuts o power to the display and other unneeded components.
O: The computer is o.
Amber: microphone sound is o.
O: microphone sound is on.
network (WLAN) device and/or a Bluetooth® device, is on.
NOTE: On some models, the wireless light is amber when all
wireless devices are o.
Amber: Computer sound is o.
O: Computer sound is on.
letters.
On: The TouchPad is o.
O: The TouchPad is on.
8 Chapter 2 External component identication

Buttons and speakers

Component Description
(1) Power button
(2) Speakers (2) Produce sound.
(3) Wireless button Turns the wireless feature on or o but does not establish a wireless
(4) Volume mute button Mutes and restores speaker sound.
When the computer is o, press the button to turn on the computer.
When the computer is on, press the button briey to initiate Sleep.
When the computer is in the Sleep state, press the button briey to exit Sleep.
CAUTION: Pressing and holding down the power button results in the loss
of unsaved information.
If the computer has stopped responding and shutdown procedures are ineective, press and hold the power button for at least 5 seconds to turn o the computer.
To learn more about your power settings, see your power options.
Type power options in the taskbar search box, and then select
Power Options.
or –
Right-click the Power meter icon, and then select Power Options.
connection.
A wireless network must be set up before a wireless connection is possible.
Top 9

Keys

Component Description
(1) esc key Displays system information when pressed in combination with
the fn key.
(2) fn key Executes frequently used system functions when pressed in
combination with a function key, the num lk key, the esc key, or other key.
See Using the hot keys on page 11
(3) Windows key Opens the Start menu.
NOTE: Pressing the Windows key again will close the Start
menu.
(4) Function keys Executes frequently used system functions when pressed in
combination with the fn key.
See Using the hot keys on page 11
(5) Embedded numeric keypad A numeric keypad superimposed over the keyboard alphabet
keys that enables you to add, subtract, and perform other numeric tasks. When num lk is on, the keypad can be used like an external numeric keypad.
NOTE: If the keypad function is active when the computer is
turned o, that function is reinstated when the computer is turned back on.
(6) Windows application key Displays options for a selected object.
(7) num lk key Turns the embedded numeric keypad on and o when pressed in
combination with the fn key.
10 Chapter 2 External component identication

Using the hot keys

To use a hot key:
Press the fn key, and then press one of the keys listed in the following table.
Press fn+function key Description
Initiates Sleep, which saves your information in system memory. The display and other system components turn o and power is conserved.
To exit Sleep, briey press the power button.
CAUTION: To reduce the risk of information loss, save your work before initiating Sleep.
Turns the backlight keyboard o or on.
NOTE: To conserve battery power, turn o this feature.
Switches the screen image among display devices connected to the system. For example, if a monitor is connected to the computer, repeatedly pressing fn+f4 alternates the screen image from computer display to monitor display to simultaneous display on both the computer and the monitor.
Most external monitors receive video information on the computer using the external VGA video standard. The fn+f4 hot key can also alternate images among other devices that are receiving video information on the computer.
Decreases the screen brightness incrementally as long as you hold down the key.
Increases the screen brightness incrementally as long as you hold down the key.
Decreases speaker volume incrementally while you hold down the key.
Increases speaker volume incrementally while you hold down the key.
Mutes the microphone.
R Pauses or breaks an operation. This replaces the break key.
C Locks cell. This replaces the scroll lock key.
S Sends a programming query. This replaces the sys rq key.
Top 11

Bottom

Component Description
(1) Docking connectors (2) Connect an optional docking device.
(2) Vents (2) Enable airow to cool internal components.
NOTE: The computer fan starts up automatically to cool
internal components and prevent overheating. It is normal for the internal fan to cycle on and o during routine operation.
12 Chapter 2 External component identication

Front

Component Description
(1) Wireless light On: An integrated wireless device, such as a wireless local
area network (WLAN) device and/or a Bluetooth® device, is on.
NOTE: On some models, the wireless light is amber when
all wireless devices are o.
(2) Power light
(3) Battery light When AC power is connected:
(4) Drive light Blinking white: The solid-state drive is being accessed.
On: The computer is on.
Blinking: The computer is in the Sleep state, a power­saving state. The computer shuts o power to the display and other unneeded components.
O: The computer is o.
White: The battery charge is greater than 90 percent.
Amber: The battery charge is from 0 to 90 percent.
O: The battery is not charging.
When AC power is disconnected (battery not charging):
Blinking amber: The battery has reached a low battery level. When the battery has reached a critical battery level, the battery light begins blinking rapidly.
O: The battery is not charging.
Front 13

Labels

The labels laser etched on the computer provide information you may need when you troubleshoot system problems or travel internationally with the computer.
IMPORTANT: Check the following locations for the labels described in this section: the bottom of the
computer, inside the battery bay, under the service door, or on the back of the display.
Service label—Provides important information to identify your computer. When contacting support, you will probably be asked for the serial number, and possibly for the product number or the model number. Locate these numbers before you contact support.
Component
(1) Model name (select products only)
(2) Product number
(3) Serial number
(4) Warranty period
Regulatory label(s)—Provide(s) regulatory information about the computer.
Wireless certication label(s)—Provide(s) information about optional wireless devices and the approval markings for the countries or regions in which the devices have been approved for use.
14 Chapter 2 External component identication

3 Illustrated parts catalog

Computer major components

NOTE: HP continually improves and changes product parts. For complete and current information on
supported parts for your computer, go to http://partsurfer.hp.com, select your country or region, and then follow the on-screen instructions.
NOTE: Details about your computer, including model, serial number, product key, and length of warranty,
are on the service tag at the bottom of your computer. See Labels on page 14 for details.
Computer major components 15
Item Component Spare part number
(1) Display assembly
Display assemblies are spared at the subcomponent level only. For more spare part information, see Display assembly subcomponents on page 17.
(2) Keyboard (see Keyboard on page 39)
For a list of keyboard country codes, see Keyboard on page 39.
Without a backlight 836307-xx1
With a backlight 836308-xx1
(3) Top cover 821173-001
(4) Power button board 914382-001
(5) Smart card reader board (includes cable) 914380-001
(6) TouchPad 821171-001
(7) Speakers (includes cable) 821170-001
(8) System board with AMD PRO A8-9600U processor (includes replacement thermal
material)
(9) USB/audio board (includes cable) 914383-001
(10) Heat sink/fan assembly 821163-001
(11) RTC battery 914384-001
917765-301
(12) Internal base plate 821164-001
(13) Memory module (DDR-2400)
4-GB 862397-850
(14) WWAN module
HP lt4120 LTE/EVDO/HSPA+ SnapdragonT X5 LTE Mobile Broadband Module 800870-001
Fibocom HP hs3210 WW HSPA+ w/o GPS 860726-001
(15) WLAN/Bluetooth combo card
Intel 7265 802.11ac 2x2 DualBand Combo PCIe x1 Card 860883-001
(16) Solid-state drive (SSD)
128 GB, SATA-3, SS 914923-001
(17) Battery (3 cell, 51 WHr, 4.42 Ah) 854108-850
(18) Bottom cover (includes RJ-45 door, feet, sponge) 821162-001
16 Chapter 3 Illustrated parts catalog

Display assembly subcomponents

Item Component Spare part number
(1) Bezel 821160-001
(2) Webcam module (includes microphone) 800575-020
Microphone module (not shown) 920485-001
(3) Raw panel 818272-002
(4) Display/webcam cable (HD/FHD and QHD) 914381-001 (Cable Kit)
(5) Hinge covers (left and right) 821166-001 (Hinge Kit)
(6) Hinge Kit (includes left and right hinges) 821166-001
(7) WLAN antenna (spared with display enclosure)
(8) WWAN antenna (spared with display enclosure)
(9) Display enclosure (includes antennas) 821161-001
Display assembly subcomponents 17

Plastics Kit

Item Component Spare part number
Plastics kit 821175-001
(1) Fingerprint reader blank
(2) Fingerprint reader bracket (not used on this platform)
(3) SD card blank
(4) Solid-state drive insert
(5) RJ-45 door
(6) Rubber feet
18 Chapter 3 Illustrated parts catalog

Cable Kit

Item Description Spare part number
Cable Kit 914381-001
(1) Display/webcam cable (HD/FHD and QHD)
(2) Card reader cable

Miscellaneous parts

Component Spare part number
AC adapter _non-PFC, 4.5 mm
65 W HP Smart AC adapter, 3 prong 710412-001
65 W HP Smart AC adapter, 3 prong, EM 714635-850
65 W HP Smart AC Adapter for use in Argentina 710340-850
45 W HP Smart AC adapter, 3 prong 741727-001
45 W HP Smart AC adapter, 2 prong 742436-001
45 W HP Smart AC Adapter for use in Argentina 741553-852
HP DisplayPort to HDMI cable 749288-001
Power cord (3-pin, black, 1.83 m):
Argentina 401300-001
Australia 213356-001
Brazil 438722-001
Denmark 213353-001
Europe (Austria, Belgium, Finland, France, Germany, the Netherlands, Norway and Sweden) 213350-001
India 404827-001
Israel 398063-001
Italy 213352-001
Japan 349756-001
North America 213349-001
Cable Kit 19
Component Spare part number
People’s Republic of China 286497-001
South Africa 361240-001
South Korea 267836-001
Switzerland 213354-001
Taiwan 393313-001
Thailand 285096-001
United Kingdom and Singapore 213351-001
Power cord (3-pin, black, 1.0 m):
Argentina 401300-007
Australia 213356-008
Brazil 438722-004
Denmark 213353-008
Europe (Austria, Belgium, Finland, France, Germany, the Netherlands, Norway and Sweden) 213350-009
India 404827-003
Israel 398063-003
Italy 213352-008
Japan 349756-002
North America 213349-009
People’s Republic of China 286497-008
South Africa 361240-002
South Korea 267836-008
Switzerland 213354-008
Taiwan 393313-003
Thailand 285096-006
United Kingdom and Singapore 213351-008
Power cord (2-pin, black, 1.0 m)
Japan 190548-003
Screw kit 840070-001
Pointing stick covers (20 count) 828884-001
RJ-45 door (20 count) 917396-001
20 Chapter 3 Illustrated parts catalog
4 Removal and replacement procedures
preliminary requirements

Tools required

You will need the following tools to complete the removal and replacement procedures:
Phillips P0 screwdriver

Service considerations

The following sections include some of the considerations that you must keep in mind during disassembly and assembly procedures.
NOTE: As you remove each subassembly from the computer, place the subassembly (and all accompanying
screws) away from the work area to prevent damage.

Plastic parts

CAUTION: Using excessive force during disassembly and reassembly can damage plastic parts. Use care
when handling the plastic

Cables and connectors

CAUTION: When servicing the computer, be sure that cables are placed in their proper locations during the
reassembly process. Improper cable placement can damage the computer.
Cables must be handled with extreme care to avoid damage. Apply only the tension required to unseat or seat the cables during removal and insertion. Handle cables by the connector whenever possible. In all cases, avoid bending, twisting, or tearing cables. Be sure that cables are routed in such a way that they cannot be caught or snagged by parts being removed or replaced. Handle ex cables with extreme care; these cables tear easily.
Tools required 21

Grounding guidelines

Electrostatic discharge damage

Electronic components are sensitive to electrostatic discharge (ESD). Circuitry design and structure determine the degree of sensitivity. Networks built into many integrated circuits provide some protection, but in many cases, ESD contains enough power to alter device parameters or melt silicon junctions.
A discharge of static electricity from a nger or other conductor can destroy static-sensitive devices or microcircuitry. Even if the spark is neither felt nor heard, damage may have occurred.
An electronic device exposed to ESD may not be aected at all and can work perfectly throughout a normal cycle. Or the device may function normally for a while, then degrade in the internal layers, reducing its life expectancy.
CAUTION: To prevent damage to the computer when you are removing or installing internal components,
observe these precautions:
Keep components in their electrostatic-safe containers until you are ready to install them.
Before touching an electronic component, discharge static electricity by using the guidelines described in this section.
Avoid touching pins, leads, and circuitry. Handle electronic components as little as possible.
If you remove a component, place it in an electrostatic-safe container.
The following table shows how humidity aects the electrostatic voltage levels generated by dierent activities.
CAUTION: A product can be degraded by as little as 700 V.
Typical electrostatic voltage levels
Relative humidity
Event 10% 40% 55%
Walking across carpet 35,000 V 15,000 V 7,500 V
Walking across vinyl oor 12,000 V 5,000 V 3,000 V
Motions of bench worker 6,000 V 800 V 400 V
Removing DIPS from plastic tube 2,000 V 700 V 400 V
Removing DIPS from vinyl tray 11,500 V 4,000 V 2,000 V
Removing DIPS from Styrofoam 14,500 V 5,000 V 3,500 V
Removing bubble pack from PCB 26,500 V 20,000 V 7,000 V
Packing PCBs in foam-lined box 21,000 V 11,000 V 5,000 V
22 Chapter 4 Removal and replacement procedures preliminary requirements
Packaging and transporting guidelines
Follow these grounding guidelines when packaging and transporting equipment:
To avoid hand contact, transport products in static-safe tubes, bags, or boxes.
Protect ESD-sensitive parts and assemblies with conductive or approved containers or packaging.
Keep ESD-sensitive parts in their containers until the parts arrive at static-free workstations.
Place items on a grounded surface before removing items from their containers.
Always be properly grounded when touching a component or assembly.
Store reusable ESD-sensitive parts from assemblies in protective packaging or nonconductive foam.
Use transporters and conveyors made of antistatic belts and roller bushings. Be sure that mechanized equipment used for moving materials is wired to ground and that proper materials are selected to avoid static charging. When grounding is not possible, use an ionizer to dissipate electric charges.
Workstation guidelines
Follow these grounding workstation guidelines:
Cover the workstation with approved static-shielding material.
Use a wrist strap connected to a properly grounded work surface and use properly grounded tools and equipment.
Use conductive eld service tools, such as cutters, screwdrivers, and vacuums.
When xtures must directly contact dissipative surfaces, use xtures made only of static safe materials.
Keep the work area free of nonconductive materials, such as ordinary plastic assembly aids and Styrofoam.
Handle ESD-sensitive components, parts, and assemblies by the case or PCM laminate. Handle these items only at static-free workstations.
Avoid contact with pins, leads, or circuitry.
Turn o power and input signals before inserting or removing connectors or test equipment.
Grounding guidelines 23
Equipment guidelines
Grounding equipment must include either a wrist strap or a foot strap at a grounded workstation.
When seated, wear a wrist strap connected to a grounded system. Wrist straps are exible straps with a minimum of one megohm ±10% resistance in the ground cords. To provide proper ground, wear a strap snugly against the skin at all times. On grounded mats with banana-plug connectors, use alligator clips to connect a wrist strap.
When standing, use foot straps and a grounded oor mat. Foot straps (heel, toe, or boot straps) can be used at standing workstations and are compatible with most types of shoes or boots. On conductive oors or dissipative oor mats, use foot straps on both feet with a minimum of one megohm resistance between the operator and ground. To be eective, the conductive must be worn in contact with the skin.
The following grounding equipment is recommended to prevent electrostatic damage:
Antistatic tape
Antistatic smocks, aprons, and sleeve protectors
Conductive bins and other assembly or soldering aids
Nonconductive foam
Conductive tabletop workstations with ground cords of one megohm resistance
Static-dissipative tables or oor mats with hard ties to the ground
Field service kits
Static awareness labels
Material-handling packages
Nonconductive plastic bags, tubes, or boxes
Metal tote boxes
Electrostatic voltage levels and protective materials
The following table lists the shielding protection provided by antistatic bags and oor mats.
Material Use Voltage protection level
Antistatic plastics Bags 1,500 V
Carbon-loaded plastic Floor mats 7,500 V
Metallized laminate Floor mats 5,000 V
24 Chapter 4 Removal and replacement procedures preliminary requirements
5 Removal and replacement procedures for
Customer Self-Repair parts
This chapter provides removal and replacement procedures for Customer Self-Repair parts.
NOTE: The Customer Self-Repair program is not available in all locations. Installing a part not supported by
the Customer Self-Repair program may void your warranty. Check your warranty to determine if Customer Self-Repair is supported in your location.

Component replacement procedures

NOTE: Details about your computer, including model, serial number, product key, and length of warranty,
are on the service tag at the bottom of your computer. See Labels on page 14 for details.
NOTE: HP continually improves and changes product parts. For complete and current information on
supported parts for your computer, go to http://partsurfer.hp.com, select your country or region, and then follow the on-screen instructions.
There are as many as 26 screws that must be removed, replaced, and/or loosened when servicing Customer Self-Repair parts. Make special note of each screw size and location during removal and replacement.

Bottom cover

Description Spare part number
Bottom cover (includes RJ-45 door, feet, sponge) 821162-001
Before removing the bottom cover, follow these steps:
1. Turn o the computer.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
Remove the bottom cover:
1. Turn the computer upside down on a at surface.
Component replacement procedures 25
2. Remove the 10 rubber screw covers and the SD card reader blank from the bottom cover.
NOTE: The RJ-45 door and the SD card reader insert is available in the Plastics Kit using spare part
number 821175-001.
NOTE: Multiple RJ-45 doors are available using spare part number 917396-001. The kit contains 20
doors.

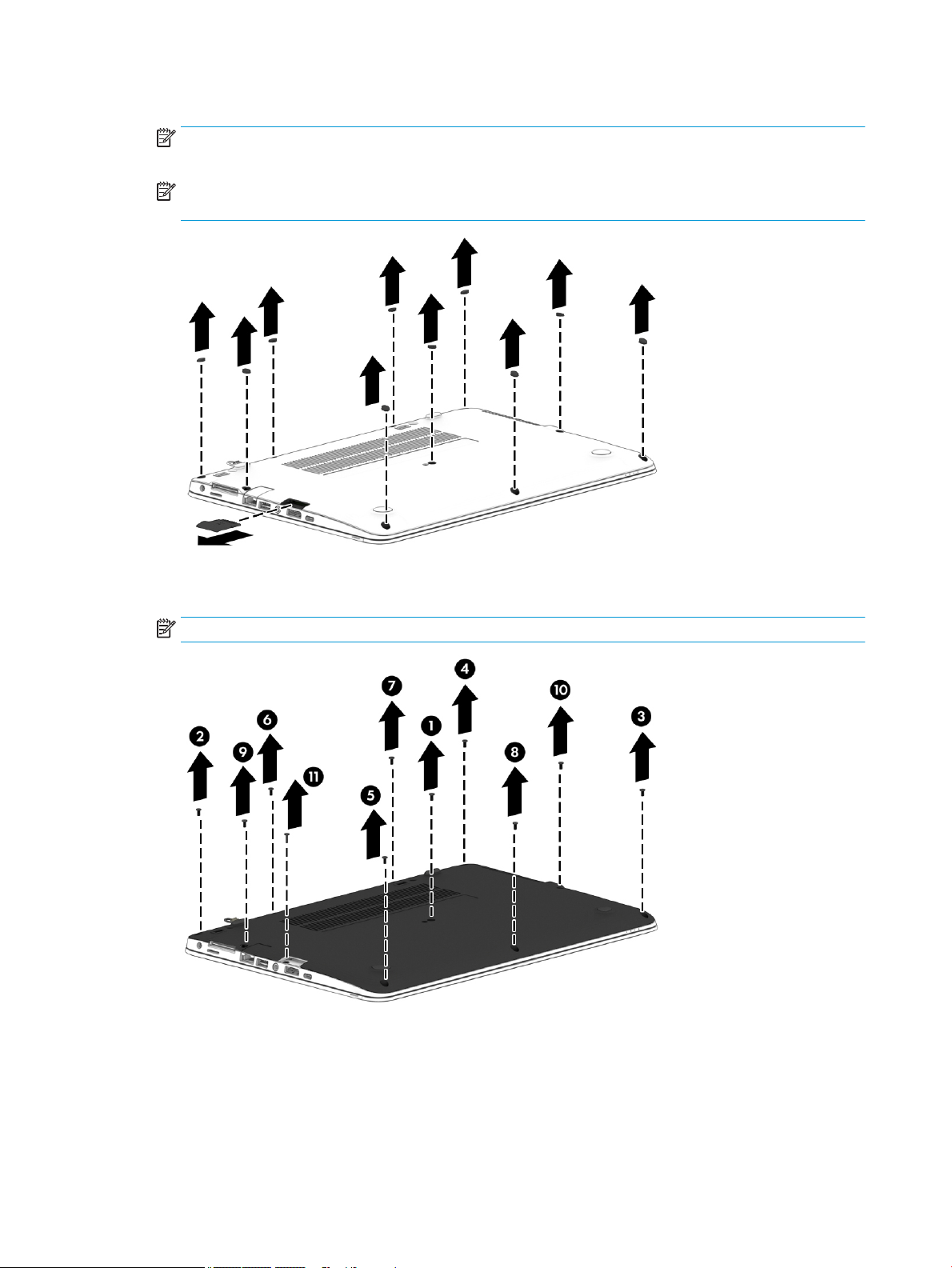

3. Remove the 10 Phillips M2.5x5.0 screws (1) - (10) and the Phillips M2.0x7.0 screw (11) in the order
shown in the following image.
NOTE: The longer (Phillips M2.0x7.0) screw is located under the SD card reader.
26 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts
4. Lift the bottom cover o the computer.
Reverse the removal procedures to install the bottom cover.
Replacing the bottom cover
When replacing the bottom cover screws, be sure to install the screws in the order indicated in the following image.
IMPORTANT: Failure to install the screws in the correct order can result in uneven bottom cover installation.
NOTE: There are ve dierent sizes of rubber screw covers. Be sure that you reinstall them over the correct
screws, as shown in the following images.
The rubber-screw cover sizes are shown in the following image.
Component replacement procedures 27

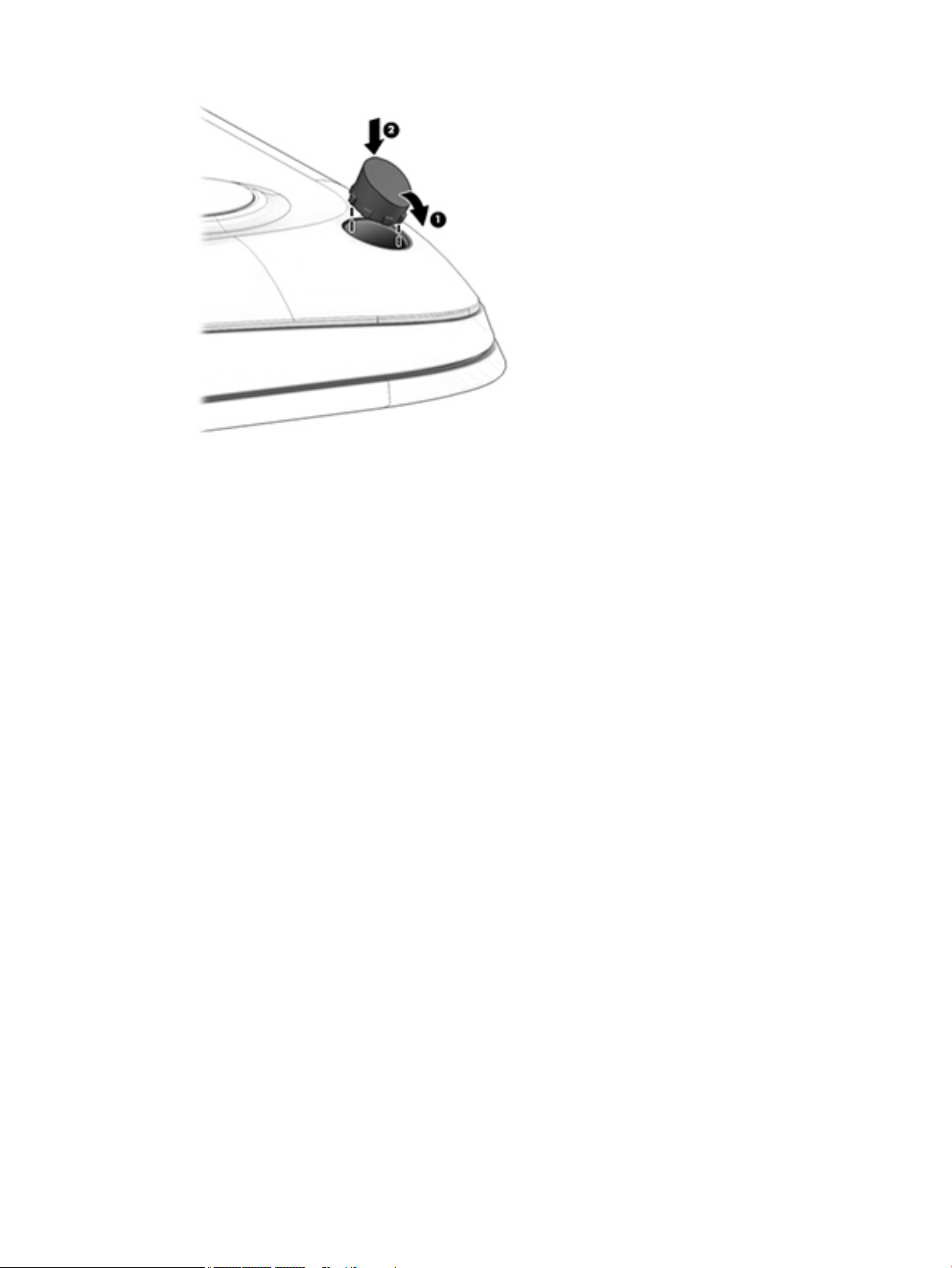

The rubber-screw cover locations are shown in the following image.
NOTE: If installing new rubber screw covers, carefully inspect for adhesive tape liner inside the cap and
remove if present.
To properly insert the rubber covers, be sure to orient the covers in the correct direction:
1. Place the lower edge into the recess (1), followed by the higher edge (2).
28 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts
2. Use a small plastic rod or the soft part of your nger (not a ngernail) to ensure compaction into the
recess.
3. Visually inspect all rubber caps to be sure that they installed in the correct locations. Run a nger over
the tops of the rubber caps to ensure they are properly seated.
Component replacement procedures 29

Battery

Description Spare part number
Battery, 3-cell, 51 WHr, 4.42 Ah 854108-850
Before removing the battery, follow these steps:
1. Shut down the computer.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and
then unplugging the AC adapter from the computer.
4. Remove the bottom cover (see Bottom cover on page 25).
To remove the battery:
CAUTION: Removing a battery that is the sole power source for the computer can cause loss of information.
To prevent loss of information, save your work and shut down the computer through Windows before removing the battery.
Loosen the two captive screws (1) and use the pull tab (2) to remove the battery from the computer (3).
Reverse the removal procedures to install the battery.
30 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts

Solid-state drive (SSD)

Description Spare part number
128 GB, SATA-3, SS 914923-001
Before removing the solid-state drive, follow these steps:
1. Turn o the computer.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the bottom cover (see Bottom cover on page 25).
5. Disconnect the battery (see Battery on page 30).
Remove the solid-state drive:

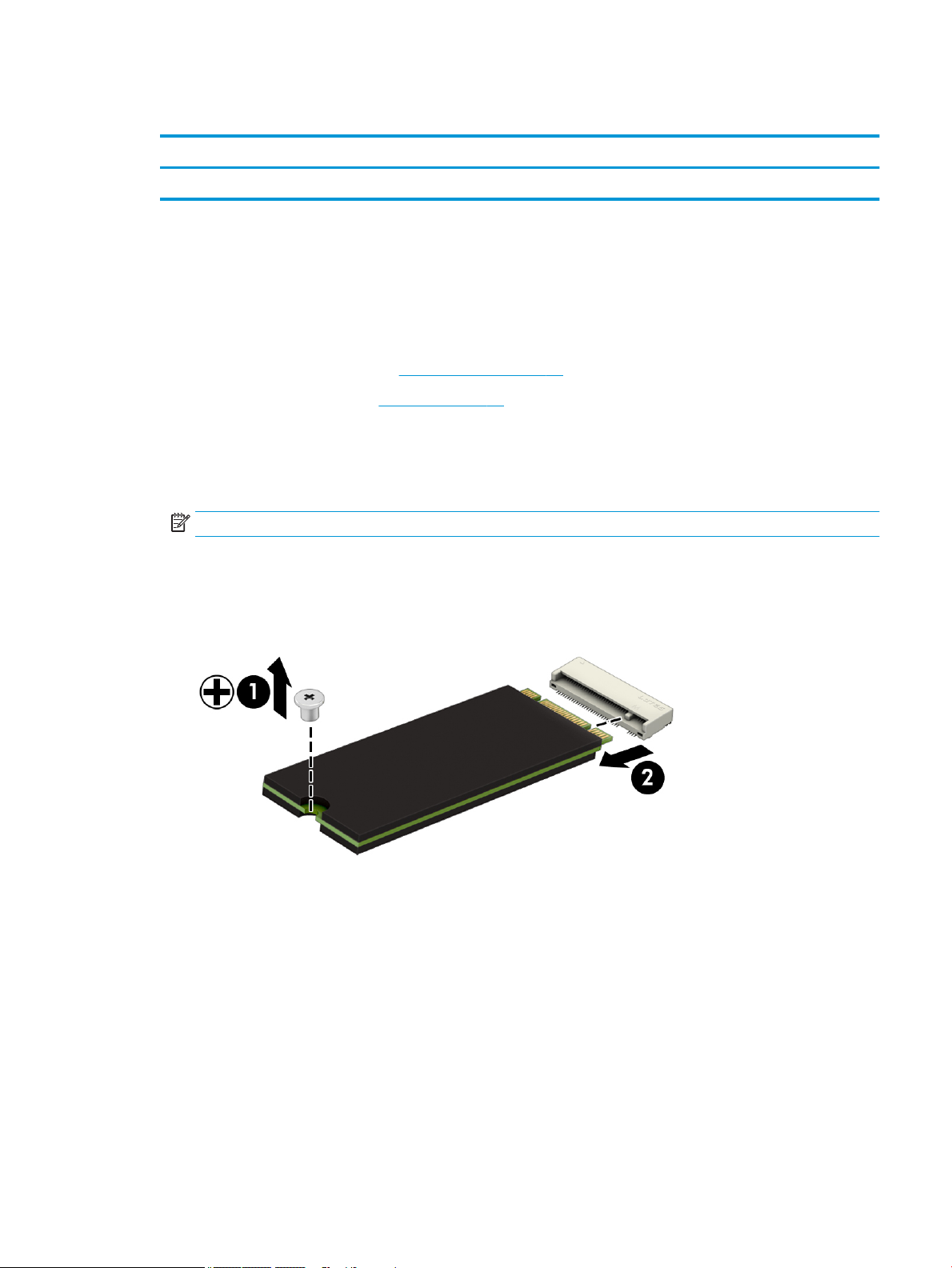

1. Remove the Phillips M2.0×3.0 screw (1) that secures the drive to the system board.
2. Remove the drive (2) by pulling it away from the connector.
NOTE: M.2 solid-state drives are designed with notches to prevent incorrect insertion.
Reverse this procedure to install the solid–state drive.
Component replacement procedures 31

Memory modules

NOTE: Primary and expansion memory is installed in a side-by-side conguration in the bottom of the
computer.
If only one memory module is installed, it must be installed in the socket labeled ‘1’.
Description Spare part number
4-GB (DDR-2400) 862397-850
Update BIOS before adding memory modules
Before adding new memory, make sure you update the computer to the latest BIOS.
CAUTION: Failure to update the computer to the latest BIOS prior to installing new memory may result in
various system problems.
To update BIOS:
1. Navigate to www.hp.com.
2. Click Support & Drivers > click Drivers & Software.
3. In the Enter a product name/number box, type the computer model information, and then click Search.
4. Click the link for the computer model.
5. Select the operating system, and then click Next.
6. Under Step 2: Select a Download, click the BIOS link.
7. Click the link for the most recent BIOS.
8. Click the Download button, and then follow the on-screen instructions.
Before removing the memory module, follow these steps:
1. Shut down the computer.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and
then unplugging the AC adapter from the computer.
4. Remove the bottom cover (see Bottom cover on page 25).
5. Remove the battery (see Battery on page 30).
Remove the memory module:

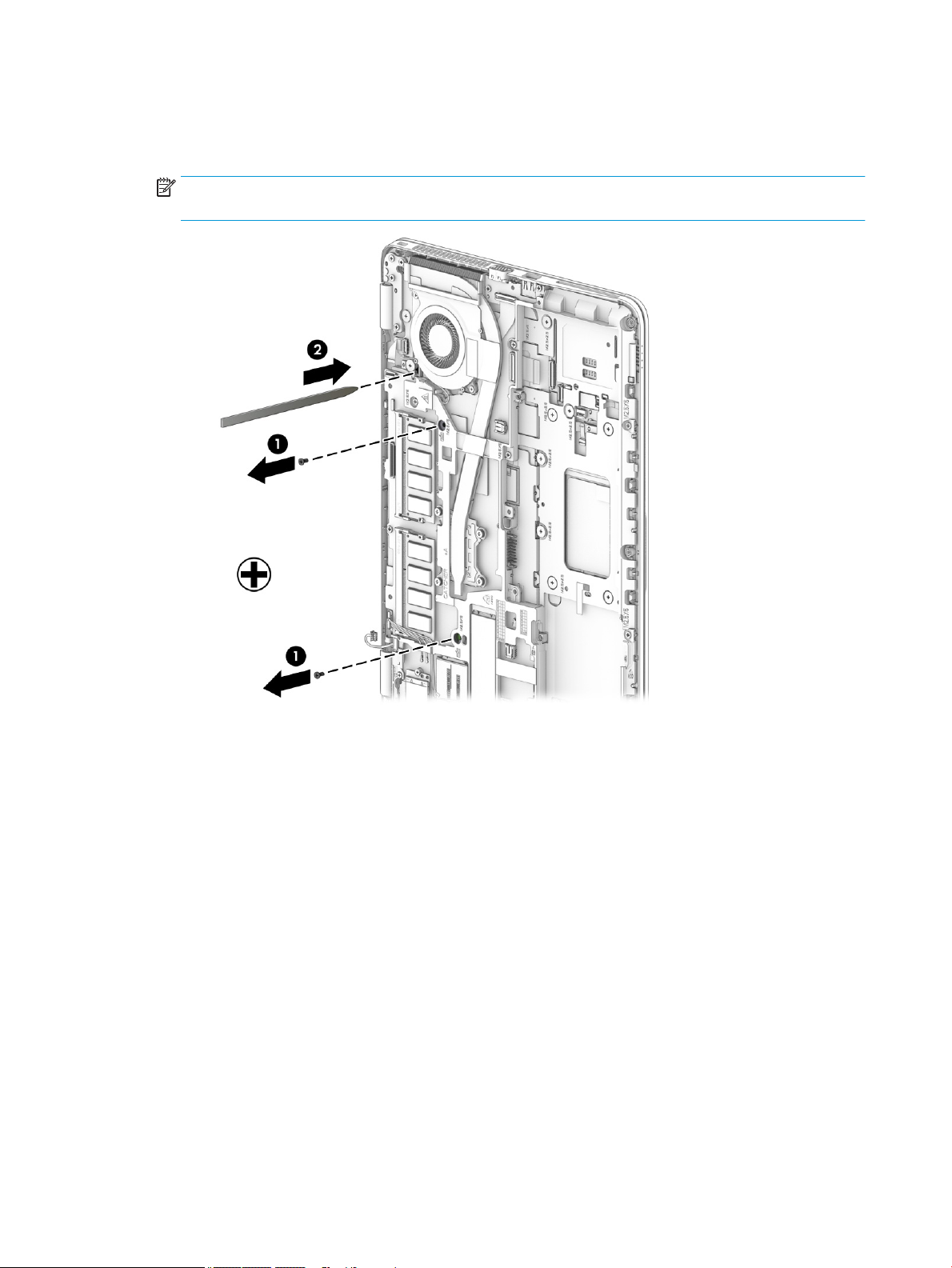

1. Spread the retaining tabs (1) on each side of the memory module slot to release the memory module.
(The edge of the module opposite the slot rises away from the computer.)
32 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts
2. Remove the memory module (2) by pulling the module away from the slot at an angle.
NOTE: Memory modules are designed with a notch to prevent incorrect insertion into the memory
module slot.
NOTE: The computer uses two memory sockets. The socket labeled ‘2’ houses the expansion memory
module and the socket labeled ‘1’ houses the primary memory module. The removal procedure is the same for both memory sockets.
Reverse this procedure to install a memory module.
Component replacement procedures 33

WLAN/Bluetooth combo card

The computer uses a card that provides both WLAN and Bluetooth functionality.
The WLAN module and WWAN module are not interchangeable.
Description Spare part number
Intel 7265 802.11ac 2x2 DualBand Combo PCIe x1 Card 860883-001
Before removing the WLAN module, follow these steps:
1. Shut down the computer.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and
then unplugging the AC adapter from the computer.
4. Remove the bottom cover (see Bottom cover on page 25).
5. Remove the battery (see Battery on page 30).
Remove the WLAN module:

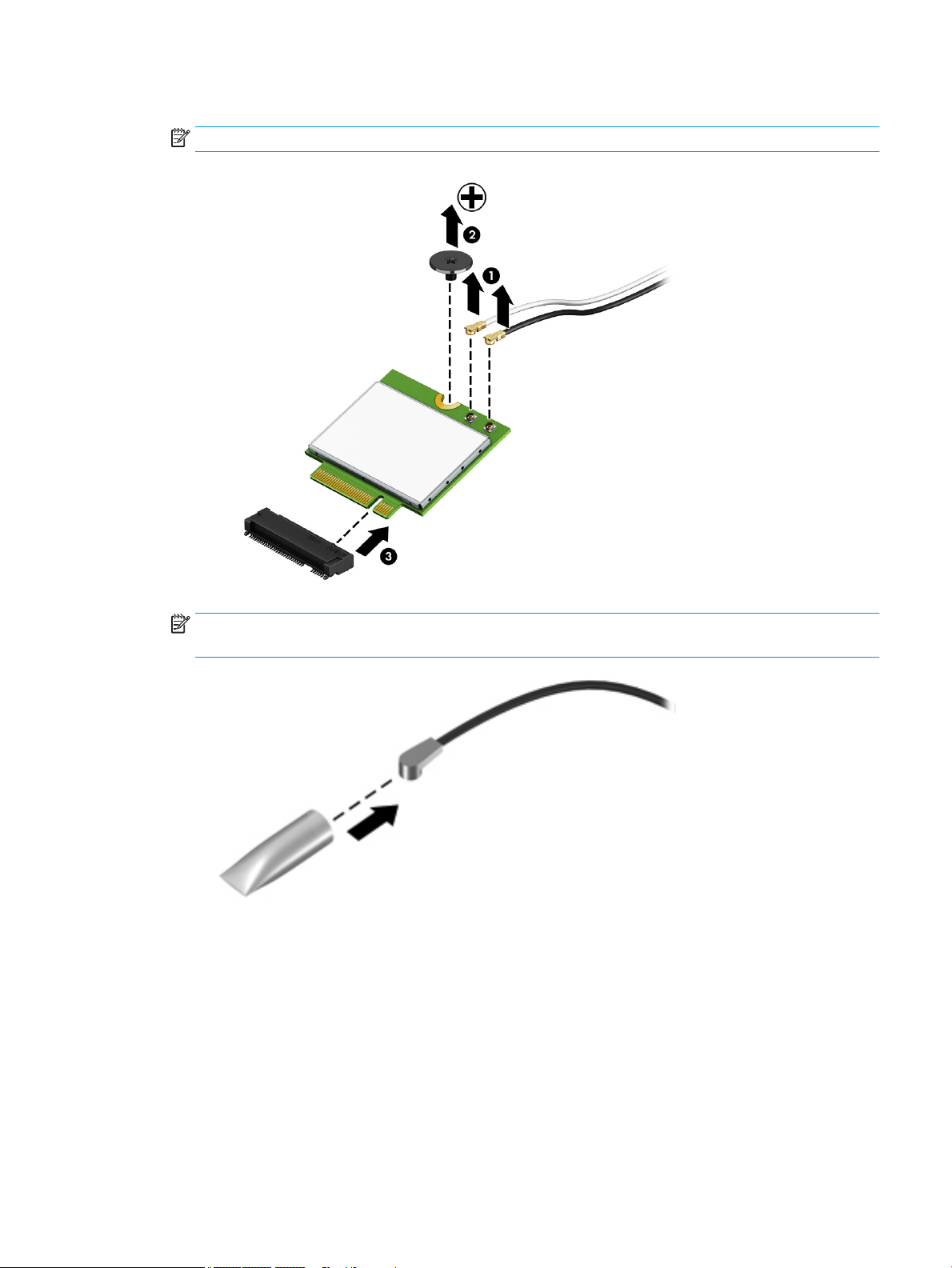

1. Disconnect the WLAN antenna cables (1) from the terminals on the WLAN module.
NOTE: The WLAN antenna cable labeled ‘1’ connects to the WLAN module “Main” terminal labeled ‘1’.
The WLAN antenna cable labeled ‘2’ connects to the WLAN module ‘Aux’ terminal labeled ‘2’. If the computer is equipped with an 802.11a/b/g/n WLAN module, the yellow WLAN antenna cable connects to the middle terminal on the WLAN module.
2. Remove the one Phillips M2.5×3.0 screw (2) that secures the WLAN module to the computer. (The edge
of the module opposite the slot rises away from the computer.)
34 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts
3. Remove the WLAN module by pulling the module away from the slot at an angle (3).
NOTE: WLAN modules are designed with a notch to prevent incorrect insertion.
NOTE: If the WLAN antennas are not connected to the terminals on the WLAN module, the protective
sleeves must be installed on the antenna connectors, as shown in the following illustration.
Reverse this procedure to install the WLAN module.
Component replacement procedures 35

WWAN module

The WLAN module and WWAN module are not interchangeable.
The WWAN module is available on select models only.
Description Spare part number
HP lt4120 LTE/EVDO/HSPA+ SnapdragonT X5 LTE Mobile Broadband Module 800870-001
Fibocom HP hs3210 WW HSPA+ without GPS 860726-001
Before removing the WWAN module, follow these steps:
1. Shut down the computer.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and
then unplugging the AC adapter from the computer.
4. Remove the bottom cover (see Bottom cover on page 25).
5. Remove the battery (see Battery on page 30).
Remove the WWAN module:
1. Position the computer upside-down.
2. Disconnect the WWAN antenna cables (1) from the terminals on the WWAN module.
NOTE: The red WWAN antenna cable is connected to the WWAN module ‘Main’ terminal. The blue
WWAN antenna cable is connected to the WWAN module ‘Aux’ terminal.
3. Remove the one Phillips M2.5×3.0 screws (2) that secure the WWAN module to the computer. (The edge
of the module opposite the slot rises away from the computer.)
36 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts
4. Remove the WWAN module (3) by pulling the module away from the slot at an angle.
NOTE: WWAN modules are designed with a notch to prevent incorrect insertion.
NOTE: If the WWAN antennas are not connected to the terminals on the WWAN module, the protective
sleeves must be installed on the antenna connectors, as shown in the following illustration.
Reverse this procedure to install the WWAN module.
Component replacement procedures 37

RTC battery

Description Spare part number
RTC battery 914384-001
Before removing the RTC battery, follow these steps:
1. Shut down the computer.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and
4. Remove the bottom cover (see Bottom cover on page 25).
5. Remove the battery (see Battery on page 30).
Remove the RTC battery:
1. Disconnect the battery cable from the system board (1).
2. Lift the Mylar from atop the battery (2).
3. Using a at tool, pry the battery out of the computer (3).
then unplugging the AC adapter from the computer.
Reverse this procedure to install the RTC battery.
38 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts

Keyboard

In this section, the rst table provides the main spare part number for the keyboards. The second table provides the country codes.
Description Spare part number
Keyboard, no backlight 836307-xx1
Keyboard, backlit 836308-xx1
Pointing stick covers (20 count) 828884-001
For use in country or region
Belgium -A41 India -D61 Slovenia -BA1
Brazil -201 Israel -BB1 South Korea -AD1
Bulgaria -261 Italy -061 Spain -071
Canada -DB1 Japan -291 Sweden and Finland -B71
Czech Republic and Slovakia
Denmark -081 The Netherlands -B31 Taiwan -AB1
Denmark, Finland, and Norway
France -051 Norway -091 Turkey -141
Germany -041 Portugal -131 Turkey F -541
Greece -151 Romania -271 United Kingdom -031
Hungary -211 Russia -251 United States -001
Iceland -DD1 Saudi Arabia -171
Spare part number
-FL1 Latin America -161 Switzerland -BG1
-DH1 Northern Africa -FP1 Thailand -281
For use in country or region
Spare part number
For use in country or region
Spare part number
Before removing the keyboard, follow these steps:
1. Shut down the computer.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and
then unplugging the AC adapter from the computer.
4. Remove the bottom cover (see Bottom cover on page 25).
5. Remove the battery (see Battery on page 30).
Remove the keyboard:
1. Position the computer upside down.
2. Remove the 2 Phillips M2.5×5.0 screws that secure the keyboard to the computer (1).
NOTE: The screws are labeled with a keyboard symbol.
Component replacement procedures 39
3. Position the computer on its side and partially open.
4. Insert a screwdriver or similar thin tool into the hole beside the heat sink/fan assembly, and then press
on the back of the keyboard until it disengages from the computer (2).
NOTE: Cables connect the bottom of the keyboard to the system board. Make sure not to prematurely
pull the keyboard cables out of the system board connectors.
5. Position the computer upright with the front toward you, and then open the computer as far as possible.
6. Slide the keyboard slightly downward, and then lift and rotate the keyboard over onto the palm rest (1).
7. Lift the ZIF connector (2) for the pointing stick cable connector, then and remove the cable from the
connector (3).
8. Lift the ZIF connector (4) for the keyboard backlight cable connector, and then remove the cable from
the connector (5).
9. Lift the ZIF connector (6) for the keyboard cable connector, and then remove the cable from the
connector (7).
40 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts
10. Remove the keyboard (8).
Reverse this procedure to install the keyboard.
Component replacement procedures 41
6 Removal and replacement procedures for
Authorized Service Provider parts
This chapter provides removal and replacement procedures for Authorized Service Provider only parts.
CAUTION: Components described in this chapter should only be accessed by an authorized service provider.
Accessing these parts can damage the computer or void the warranty.
CAUTION: This computer does not have user-replaceable parts. Only HP authorized service providers should
perform the removal and replacement procedures described here. Accessing the internal part could damage the computer or void the warranty.

Component replacement procedures

NOTE: Details about your computer, including model, serial number, product key, and length of warranty,
are on the service tag at the bottom of your computer. See Labels on page 14 for details.
NOTE: HP continually improves and changes product parts. For complete and current information on
supported parts for your computer, go to http://partsurfer.hp.com, select your country or region, and then follow the on-screen instructions.
There are as many as 45 screws that must be removed, replaced, and/or loosened when servicing Authorized Service Provider only parts. Make special note of each screw size and location during removal and replacement.

Internal base plate

Description Spare part number
Internal base plate 821164-001
Before removing the internal base plate, follow these steps:
1. Shut down the computer.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and
then unplugging the AC adapter from the computer.
4. Remove the bottom cover (see Bottom cover on page 25).
5. Remove the battery (see Battery on page 30).
6. Remove the keyboard (see Keyboard on page 39).
7. If equipped, disconnect the antenna cables from the WLAN module (see WLAN/Bluetooth combo card
on page 34).
8. If equipped, disconnect the antenna cables from the WWAN module (see WWAN module on page 36).

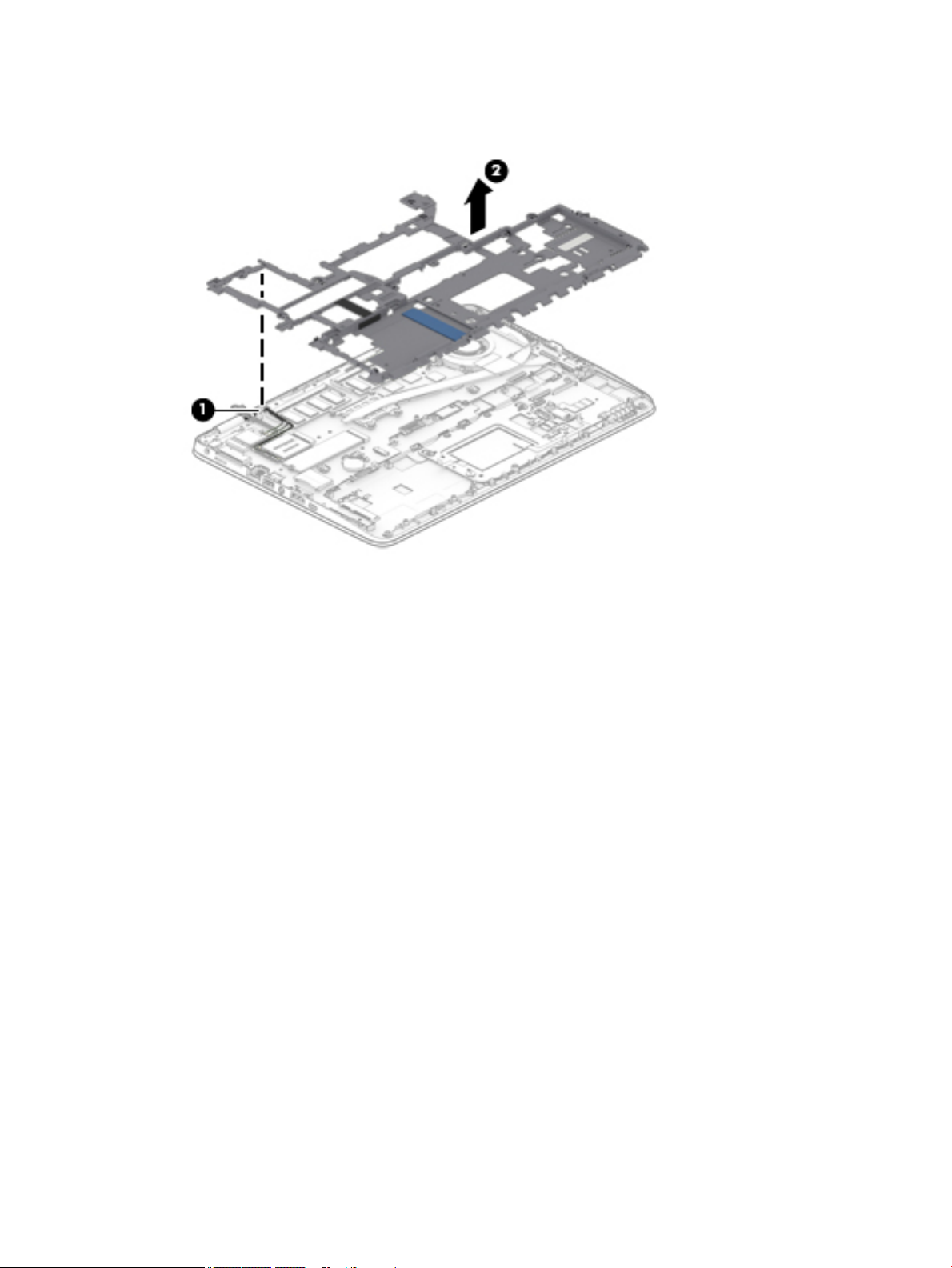

Remove the internal base plate:
42 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
1. Remove the 4 Phillips M2.0x7.0 screws (1) and the 4 broadhead Phillips M2.5x2.5 screws (2) that secure
the internal base plate to the computer.
2. Remove the 9 Phillips M2.5x5.0 screws that secure the internal base plate to the computer.
Component replacement procedures 43
3. Lift the tape and remove the antenna cables from the base plate (1), and then remove the base plate
from the computer (2).
Reverse this procedure to install the internal base plate.
44 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

Heat sink/fan assembly

NOTE: The heat sink/fan assembly spare part kit includes replacement thermal material.
Description Spare part number
Heat sink/thermal module 821163-001
Before removing the heat sink/fan assembly, follow these steps:
1. Turn o the computer.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the bottom cover (see Bottom cover on page 25).
5. Remove the battery (see Battery on page 30).
6. Remove the keyboard (see Keyboard on page 39).
7. Remove the internal base plate (see Internal base plate on page 42).
Remove the heat sink/fan assembly:

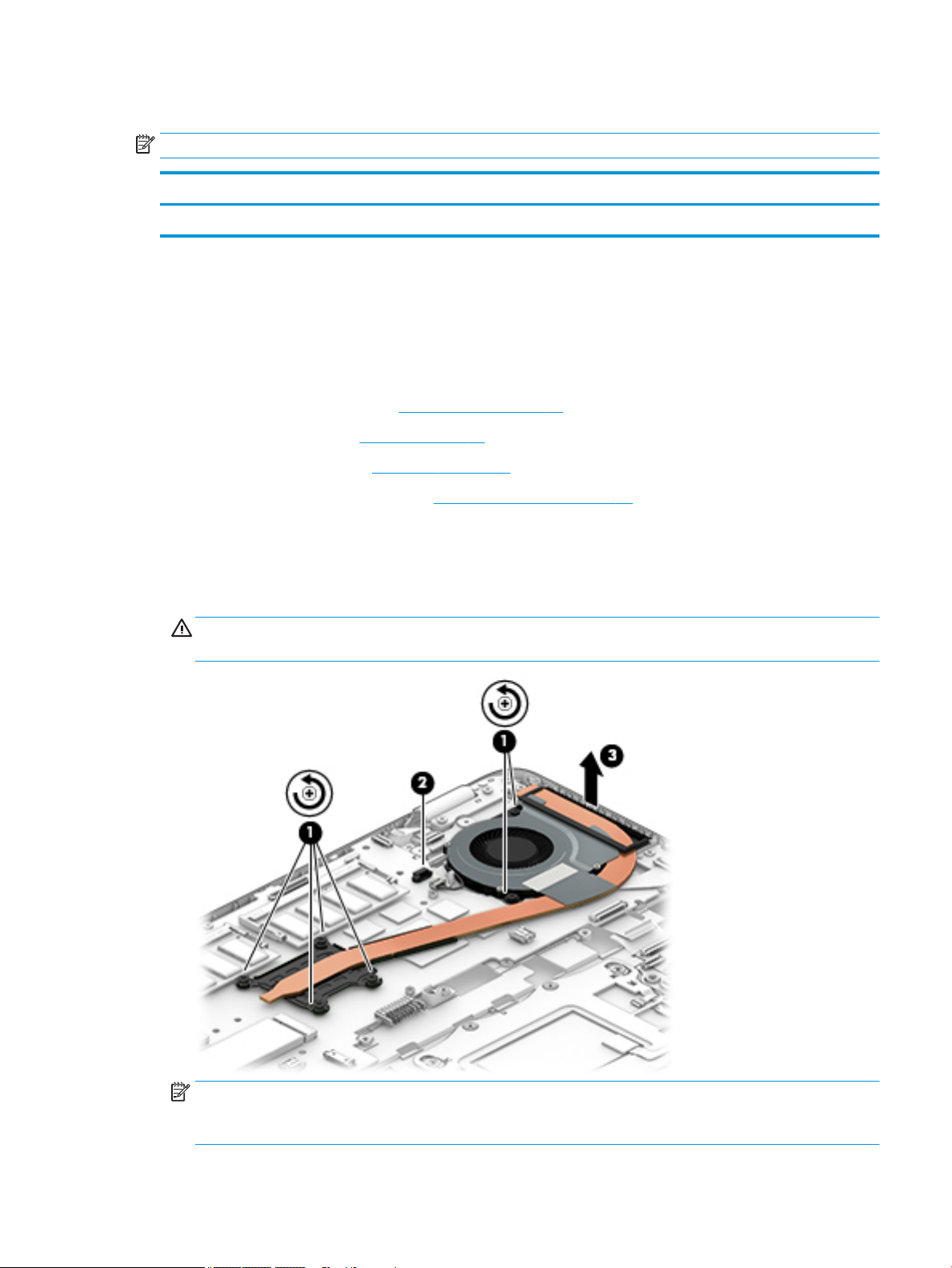

Loosen the six captive screws on the fan and heat sink following the sequence stamped on the fan and heat sink (1), disconnect the fan cable from the system board (2), and then remove the heat sink/fan assembly from the system board (3).
CAUTION: Take extreme care when removing the heat sink and fan assembly. The heatpipe is very
fragile and can be easily damaged and bent during removal.
NOTE: The thermal material must be thoroughly cleaned from the surfaces of the heat sink and the
system board components each time the heat sink is removed. Replacement thermal material is included with the heat sink, processor, and system board spare part kits.
Component replacement procedures 45
Reverse this procedure to install the heat sink/fan assembly.
46 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

Touchpad board

Description Spare part number
Touchpad board 821171-001
Before removing the touchpad board, follow these steps:
1. Shut down the computer.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and
then unplugging the AC adapter from the computer.
4. Remove the bottom cover (see Bottom cover on page 25).
5. Remove the battery (see Battery on page 30).
6. Remove the keyboard (see Keyboard on page 39).
7. Remove the internal base plate (see Internal base plate on page 42
Remove the touchpad board:
1. Disconnect the cable from the touchpad to the smart card reader board (1).
2. Lift the tape (2), and then remove the 2 Phillips M2.5x2.5 screws (3) that secure the touchpad button
board to the computer.
3. Lift the top of the touchpad board up, and then pull it forward to remove it from the computer (4).
Reverse this procedure to install the touchpad board.
Component replacement procedures 47

Smart card reader board

Description Spare part number
Smart card reader board 914380-001
Smart card reader cable (available in Cable Kit) 914381-001 (Cable Kit)
Before removing the card reader board, follow these steps:
1. Shut down the computer.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and
then unplugging the AC adapter from the computer.
4. Remove the bottom cover (see Bottom cover on page 25).
5. Remove the battery (see Battery on page 30).
6. Remove the keyboard (see Keyboard on page 39).
7. Remove the internal base plate (see Internal base plate on page 42
Remove the smart card reader board:
NOTE: Before you remove the smart card reader, make sure nothing (memory card or plastic insert) in
inserted in the reader.
1. Disconnect the main system board cable from the card reader board (1).
2. Disconnect the touchpad cable from the side of the card reader board (2).
3. Pull the plastic tab on the side of the card reader board to disengage the board (3), use a thin tool to pry
up the side of board (near touchpad) (4), and then pull the board away from the side of the computer to remove it from the clips built into the computer.
Reverse this procedure to install the card reader board.
48 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

USB/audio board

Description Spare part number
USB/audio board 914383-001
Before removing the USB/audio board, follow these steps:
1. Shut down the computer.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and
then unplugging the AC adapter from the computer.
4. Remove the bottom cover (see Bottom cover on page 25).
5. Remove the battery (see Battery on page 30).
6. Remove the keyboard (see Keyboard on page 39).
7. Remove the internal base plate (see Internal base plate on page 42
Remove the USB/audio board:
1. Disconnect the cable from the system board (1).
2. Remove the 2 Phillips M2.5×5.0 screws (2) that secure the USB/audio board to the computer.
3. Lift up rear side of the board, and then pull it away from the side of computer to remove it (3).
Reverse this procedure to install the USB/audio board.
Component replacement procedures 49

System board

NOTE: All system board spare part kits include replacement thermal material.
All system boards use the following part numbers:
xxxxxx-001: Non-Windows operating systems
xxxxxx-601: Windows operating system
Description Spare part number
System board with AMD PRO A8-9600U processor 917765-301
Before removing the system board, follow these steps:
1. Shut down the computer.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and
then unplugging the AC adapter from the computer.
4. Remove the bottom cover (see Bottom cover on page 25).
5. Remove the battery (see Battery on page 30).
6. Remove the keyboard (see Keyboard on page 39).
7. Remove the internal base plate (see Internal base plate on page 42
When replacing the system board, be sure to remove the following components (as needed) from the defective system board and install on the replacement system board:
Solid-state drive (see Solid-state drive (SSD) on page 31)
Memory modules (see Memory modules on page 32)
WLAN/Bluetooth module (see WLAN/Bluetooth combo card on page 34)
WWAN module (see WWAN module on page 36)
Heat sink/fan assembly (see Heat sink/fan assembly on page 45)
Remove the system board:

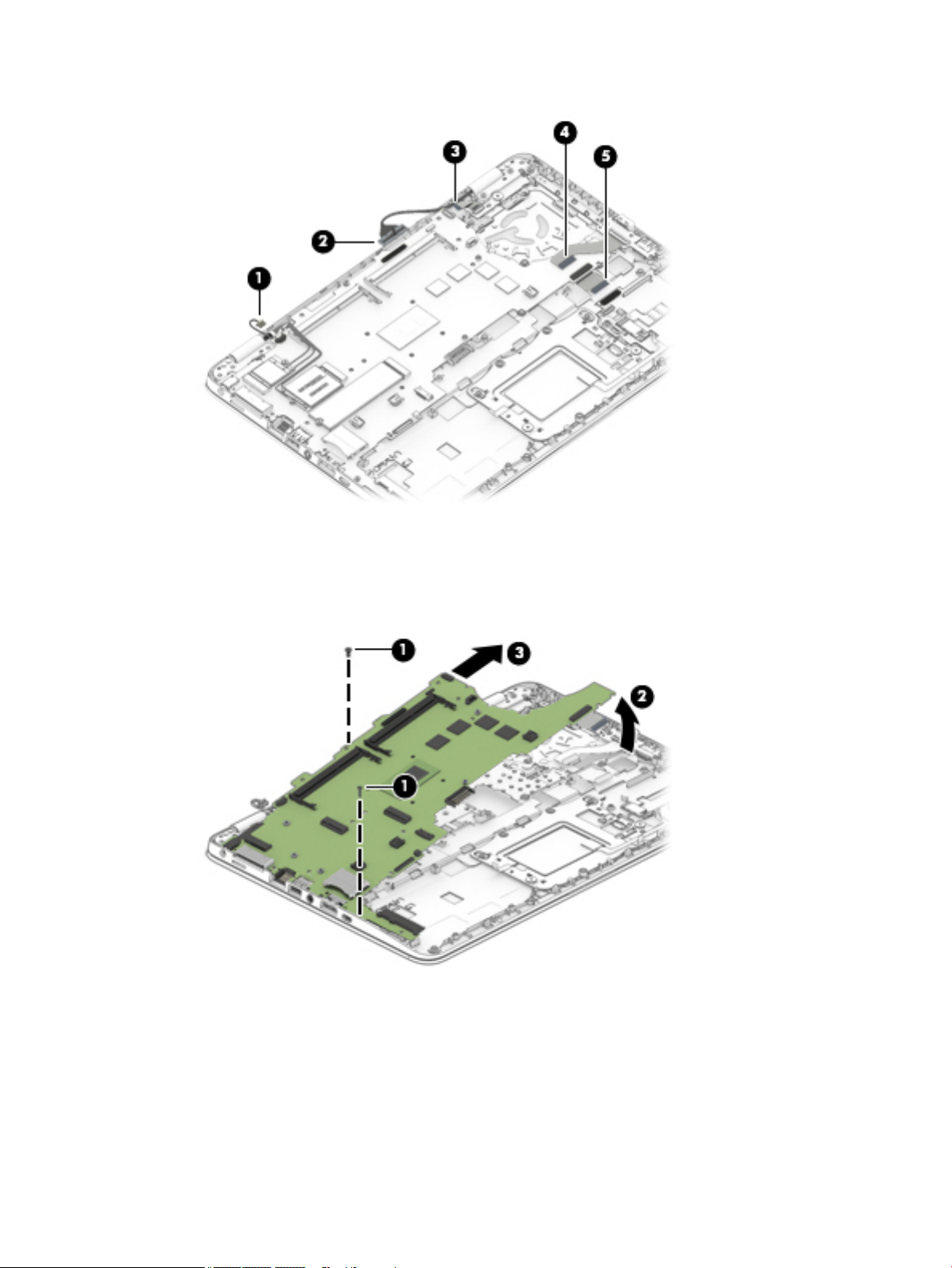

1. Disconnect the following cables from the system board:
(1) Speaker cable
(2) Display cable
(3) Power button board cable
(4) USB/audio board cable
(5) Card reader cable
50 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
2. Remove the 2 Phillips M2.5×5.0 screws (1) that secure the system board to the computer.
3. Lift the right side of the system board up at an angle (2).
4. Pull the system board up and toward the right to disengage the connectors from the left side of the
computer and remove the system board (3).
Reverse this procedure to install the system board.
Component replacement procedures 51

Speaker assembly

Description Spare part number
Speaker assembly (includes cable) 821170-001
Before removing the speaker assembly, follow these steps:
1. Turn o the computer.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the bottom cover (see Bottom cover on page 25).
5. Remove the battery (see Battery on page 30).
6. Remove the keyboard (see Keyboard on page 39).
7. Remove the internal base plate (see Internal base plate on page 42)
8. Remove the system board (see System board on page 50).
Remove the speaker assembly:
1. Remove the antennas from the clip in the speaker assembly (1).
2. Use a thin tool to pry the middle of the speaker assembly up to disengage the adhesive that secures it to
the computer (2), and then remove the speaker assembly (3) from the computer.
Reverse this procedure to install the speakers.
52 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

Display assembly

Description Spare part number
Display panel assembly
NOTE: Display assemblies are spared at the subcomponent level only. For spare part information, see
Display assembly subcomponents on page 17.
not spared
Before removing the display assembly, follow these steps:
1. Shut down the computer.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and
then unplugging the AC adapter from the computer.
4. Remove the bottom cover (see Bottom cover on page 25).
5. Remove the battery (see Battery on page 30).
6. Remove the internal base plate (see Internal base plate on page 42)
Remove the display assembly:
1. Disconnect the display cable from the system board.
2. Remove the 3 Phillips M2.5×5.0 screws (1) from the display hinges.
Component replacement procedures 53

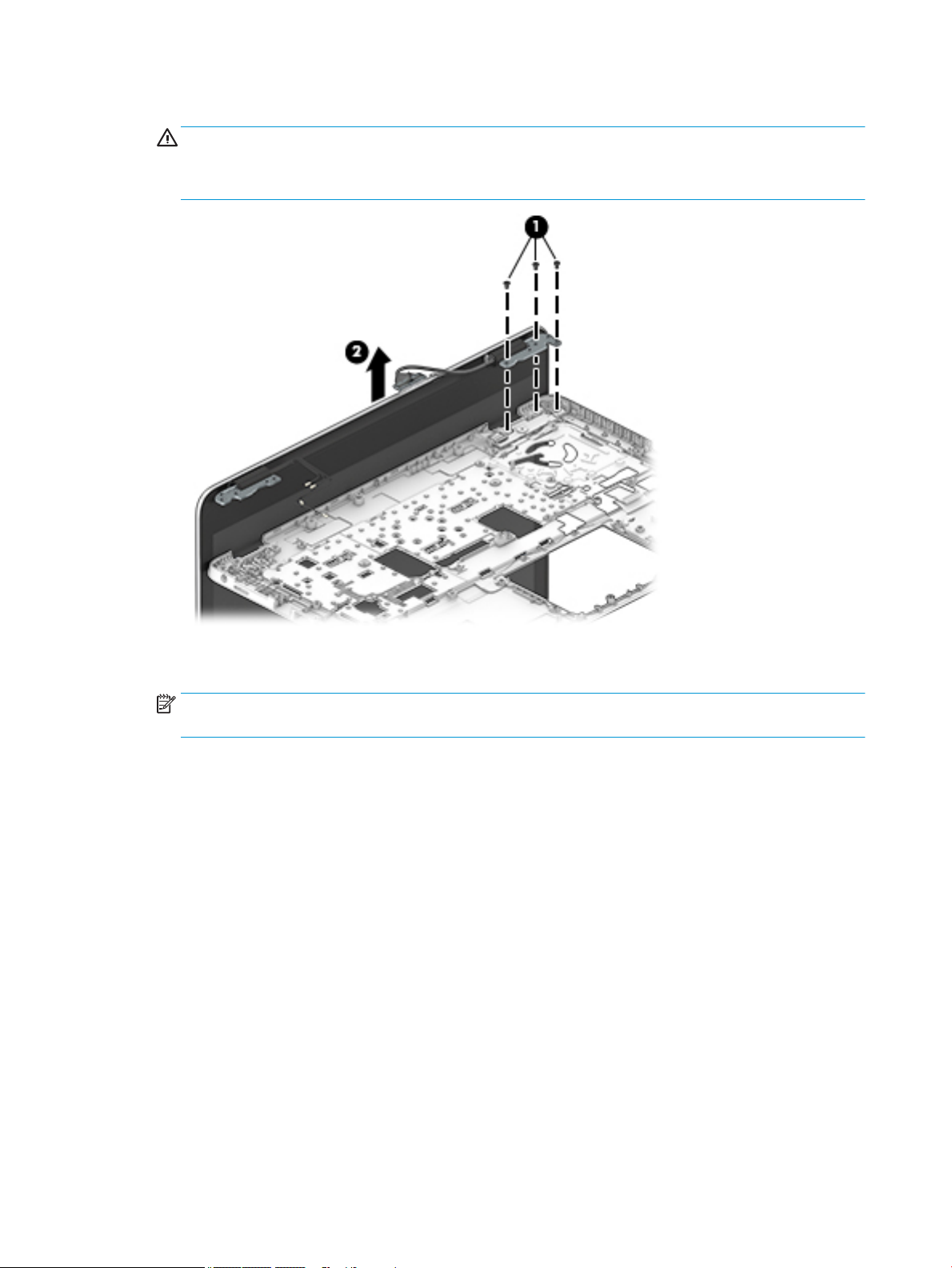

3. Lift the display assembly straight up and remove it (2).
CAUTION: When installing the display assembly, be sure that the wireless antenna cables are routed
and arranged properly.
Failure to properly route the antennas can result in degradation of the computer's wireless performance.
4. If you need to remove the display bezel, ex the top (1) of the bezel, the inside edges of the left and
right sides (2), and then the bottom (3) of the bezel until it disengages from the display enclosure..
NOTE: Make sure the hinges are not bent (see hinge position in following image) when you remove the
bezel.
54 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
5. Remove the display bezel (4).
The display bezel is available using spare part number 821160-001.
6. If it is necessary to replace the webcam or microphone module, use a thin tool to pry the module away
from the double-sided tape on the display enclosure (1), lift the module up enough to access the cable connector (2), and then disconnect the cable from the module (3).
The webcam module is available using spare part number 800575-020. The microphone module is available using spare part number 920485-001.
Component replacement procedures 55

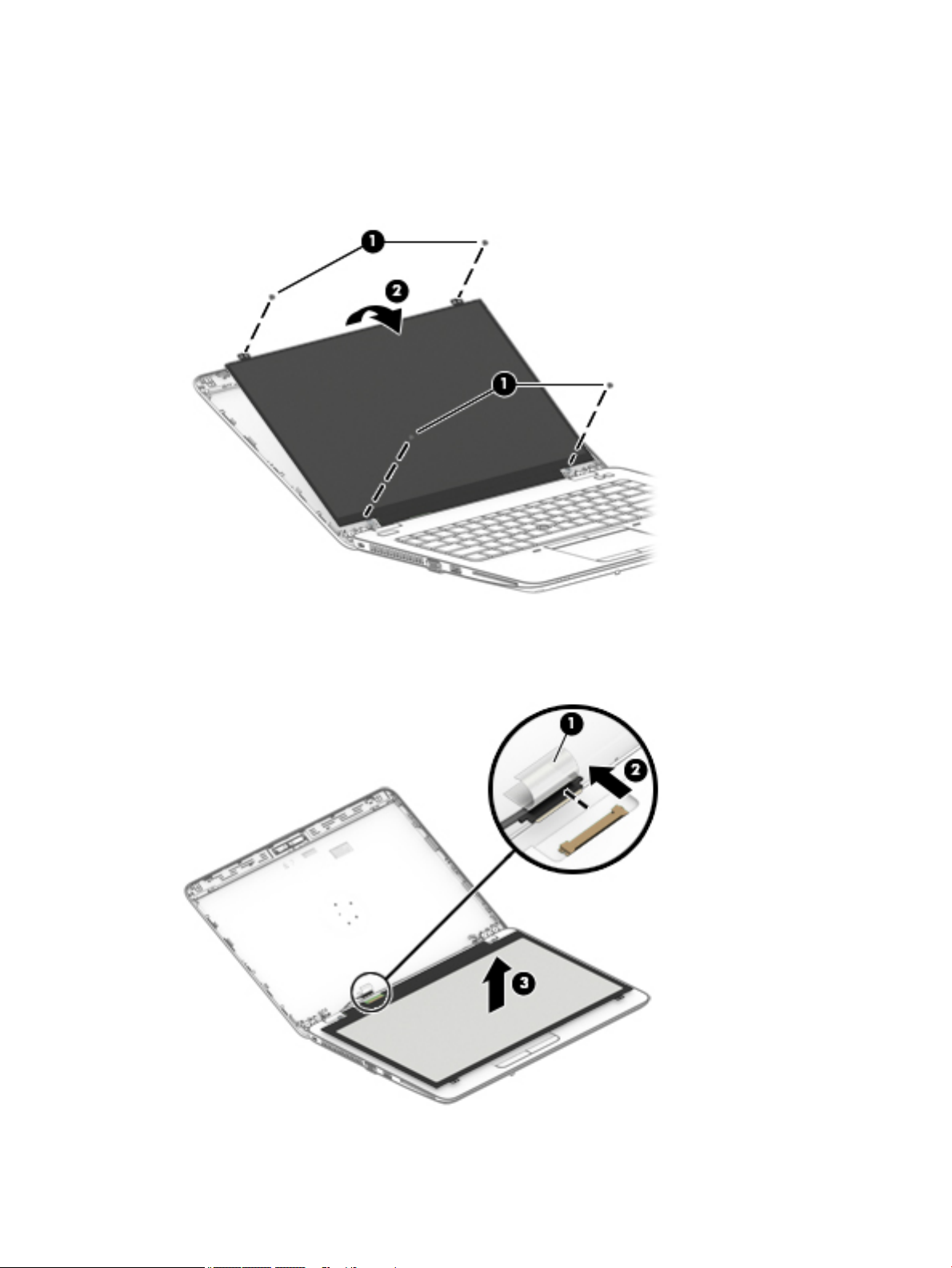

7. If it is necessary to remove the display panel from the enclosure, remove the 4 Phillips M2.0×2.0 screws
that secure the panel to the display enclosure, and then rotate the display panel over onto the keyboard (2).
The raw display panel is available using spare part number 818272-002.
8. On the back of the display panel, lift the tape from atop the connector (1), and then disconnect the
display cable from the rear of the panel (2).
9. Remove the display panel from the enclosure (3).
56 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

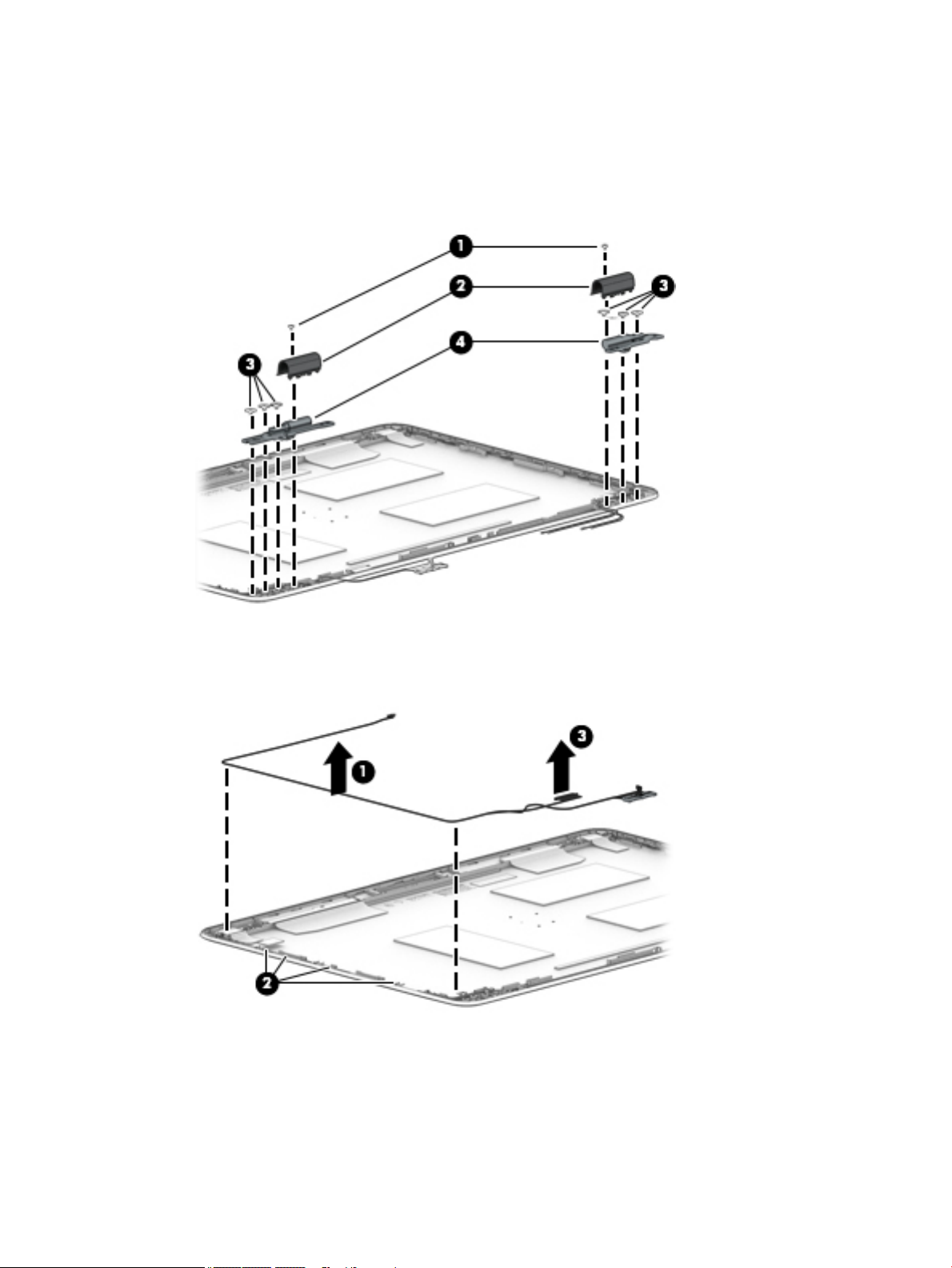

10. If it is necessary to replace the display covers or hinges, remove the Phillips M2.0×3.0 screw (1) that
secures the hinge covers to the display enclosure, and then remove the hinge covers (2).
11. Remove the 6 Phillips M2.0x2.0 screws that secure the hinges to the display enclosure (3), and then
remove the display hinges from the display enclosure (4).
Display hinge covers and hinges are available in the Hinge Kit using spare part number 821166-001.
12. If it is necessary to replace the display/webcam cable, lift the display/webcam cable assembly (1) from
the routing path on the side of the display enclosure (2), and then remove the cable (3).
The display cable is available in the Cable Kit using spare part number 914381-001.
Component replacement procedures 57
13. If it is necessary to replace the WLAN antenna cables, peel the transceivers from the top of the display
enclosure (1), remove the antenna cables from the routing path on the sides of the display enclosure (2), and then remove the antenna cables (3).
NOTE: The WLAN antennas are spared with the display enclosure.
14. If it is necessary to replace the WWAN antenna cables, peel the transceivers from the top of the display
enclosure (1), remove the antenna cables from the on the sides of the display enclosure (2), and then remove the antenna cables (3).
NOTE: The WWAN antennas are spared with the display enclosure.
The display enclosure is available using spare part number 821161-001.
Reverse this procedure to reassemble and install the display assembly.
58 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

Power button board

Description Spare part number
Power button board assembly 914382-001
Before removing the power button board, follow these steps:
1. Shut down the computer.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and
then unplugging the AC adapter from the computer.
4. Remove the bottom cover (see Bottom cover on page 25).
5. Remove the battery (see Battery on page 30).
6. Remove the internal base plate (see Internal base plate on page 42).
7. Rotate the right display hinge upward (see Display assembly on page 53).
NOTE: The power button board sits under the right display hinge. You do not have to remove the
display to remove the board, but you do have to rotate the right display hinge upward to gain access.
Remove the power button board:
1. Disconnect the cable from the system board (1).
2. Remove the Phillips broadhead M2.0×2.0 screw (2) that secures the power button board to the
computer.
3. Push the retention clip so it disengages the board (3).
4. Rotate the connector side of board upward (4), and then remove it from the computer (5).
Reverse this procedure to install the power button board.
Component replacement procedures 59

Top cover

The top cover remains after removing all other spared parts from the computer.
Description Spare part number
Top cover 821173-001
60 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
7 Interpreting system validation diagnostic
front panel LEDs and audible codes
During the system validation phase that occurs at system startup, the BIOS validates the functionality of the following subsystems and conditions:
AC adapter
System board power
Processor failure
BIOS corruption
Memory failure
Graphics failure
System board failure
BIOS authentication failure
If an error is detected, specic patterns of long and short blinks, accompanied by long and short beeps (where applicable) are used to identify the error. These patterns will make up a two part code:
Major – the category of the error
Minor – the specic error within the category
NOTE: Single beep/blink codes are not used.
Number of long beeps/blinks Error category
1 Not used
2 BIOS
3 Hardware
4 Thermal
5 System board
Patterns of blink/beep codes are determined by using the following parameters:
1 second pause occurs after the last major blink.
2 second pause occurs after the last minor blink.
Beep error code sequences occur for the rst 5 iterations of the pattern and then stop.
Blink error code sequences continue until the computer is unplugged or the power button is pressed.
NOTE: Not all diagnostic lights and audible codes are available on all models.
61
The red LED blinks to represent the major error category (long blinks). The white LED blinks to represent the minor error category (short blinks). For example, ‘3.5’ indicates 3 long red blinks and 5 short white blinks to communicate the processor is not detected.
Notebook
Component tested
Major/
minor
code Error condition
Caps
Lock/Num
Lock LED Desktop Action
BIOS 2.2 The main area (DXE) of BIOS has
become corrupted and there is
no recovery binary image
available
2.3 The embedded controller policy requires the user to enter a key
sequence (SureStart 2.0)
2.4 The embedded controller is
recovering the boot block or
DXE. Since it takes 10 sec. or so
to load the DXE image and get
video in the DXE case, this blink
code is necessary. (SureStart)
Hardware 3.2 The embedded controller has
timed out waiting for BIOS to
return from memory
initialization
3.3 The embedded controller has
timed out waiting for BIOS to
return from graphics
initialization ( 4/13- Graphics
adaptor not found)
CAP/NUM
Blink = 2
CAP/NUM
Blink = 8
Battery LED
White and
Amber
blinking
CAP/NUM
Blink = 3
CAP/NUM
Blink = 4
2.2 - Power LED
(red.white)
2.3 - Power LED
(red.white)
2.4 - Power LED
(red.white)
3.2 - Power LED
(red.white)
3.3 - Power LED
(red.white)
Follow the Crisis Recovery instructions at
http://support.hp.com/us-en/document/ c02693833/.
If analysis of the event that caused Sure Start recovery is desired, replace the board and send the bad board back. Otherwise, press this key combination to restore BIOS and boot: Up Arrow+ Down Arrow+ Esc.
Wait for DXE recovery to complete.
System board replacement.
If the system has an MXM module, try a dierent MXM module. Otherwise, the board most likely needs to be replaced.
3.4 The system board displays a power failure (crowbar) *
System board
5.3 The embedded controller has
5.2 The embedded controller cannot nd valid rmware
timed out waiting for the BIOS
CAP/NUM
Blink = 5
CAP/NUM
Blink = 7 (2
BB failure) Battery LED Blinking = 1
Hz (3 B
failure)
CAP/NUM
Blink = 1
3.4 - Power LED
(red.white)
5.2 - Power LED
(red.white)
Not
implemented
System board replacement.
System board replacement.
System board replacement.
62 Chapter 7 Interpreting system validation diagnostic front panel LEDs and audible codes
8 Computer Setup (BIOS), TPM, and HP Sure
Start

Using Computer Setup

Computer Setup, or Basic Input/Output System (BIOS), controls communication between all the input and output devices on the system (such as disk drives, display, keyboard, mouse, and printer). Computer Setup includes settings for the types of devices installed, the startup sequence of the computer, and the amount of system and extended memory.
NOTE: Use extreme care when making changes in Computer Setup. Errors can prevent the computer from
operating properly.

Starting Computer Setup

NOTE: An external keyboard or mouse connected to a USB port can be used with Computer Setup only if USB
legacy support is enabled.
Turn on or restart the computer, and when the HP logo appears, press f10 to enter Computer Setup.

Navigating and selecting in Computer Setup

To select a menu or a menu item, use the tab key and the keyboard arrow keys and then press enter, or use a pointing device to select the item.
To scroll up and down, select the up arrow or the down arrow in the upper-right corner of the screen, or use the up arrow key or the down arrow key on the keyboard.
To close open dialog boxes and return to the main Computer Setup screen, press esc, and then follow the on-screen instructions.
To exit Computer Setup menus, choose one of the following methods:
To exit Computer Setup menus without saving your changes:
Select the Exit icon in the lower-right corner of the screen, and then follow the on-screen instructions.
– or –
Select Main, select Ignore Changes and Exit, and then press enter.
To save your changes and exit Computer Setup menus:
Select the Save icon in the lower-right corner of the screen, and then follow the on-screen instructions.
– or –
Select Main, select Save Changes and Exit, and then press enter.
Your changes go into eect when the computer restarts.

Restoring factory settings in Computer Setup

NOTE: Restoring defaults will not change the hard drive mode.
Using Computer Setup 63
To return all settings in Computer Setup to the values that were set at the factory, follow these steps:
1. Start Computer Setup. See Starting Computer Setup on page 63.
2. Select Main, and then select Apply Factory Defaults and Exit.
NOTE: On select products, the selections may display Restore Defaults instead of Apply Factory
Defaults and Exit.
3. Follow the on-screen instructions.
4. To save your changes and exit, select the Save icon in the lower-right corner of the screen, and then
follow the on-screen instructions.
– or –
Select Main, select Save Changes and Exit, and then press enter.
Your changes go into eect when the computer restarts.
NOTE: Your password settings and security settings are not changed when you restore the factory settings.

Updating the BIOS

Updated versions of the BIOS may be available on the HP website.
Most BIOS updates on the HP website are packaged in compressed les called SoftPaqs.
Some download packages contain a le named Readme.txt, which contains information regarding installing and troubleshooting the le.
Determining the BIOS version
To decide whether you need to update Computer Setup (BIOS), rst determine the BIOS version on your computer.
BIOS version information (also known as ROM date and System BIOS) can be accessed by pressing fn+esc (if you are already in Windows) or by using Computer Setup.
1. Start Computer Setup. See Starting Computer Setup on page 63.
2. Select Main, and then select System Information.
3. To exit Computer Setup without saving your changes, select the Exit icon in the lower-right corner of the
screen, and then follow the on-screen instructions.
– or –
Select Main, select Ignore Changes and Exit, and then press enter.
To check for later BIOS versions, see Downloading a BIOS update on page 65.
64 Chapter 8 Computer Setup (BIOS), TPM, and HP Sure Start
Downloading a BIOS update
CAUTION: To reduce the risk of damage to the computer or an unsuccessful installation, download and
install a BIOS update only when the computer is connected to reliable external power using the AC adapter. Do not download or install a BIOS update while the computer is running on battery power, docked in an optional docking device, or connected to an optional power source. During the download and installation, follow these instructions:
Do not disconnect power on the computer by unplugging the power cord from the AC outlet.
Do not shut down the computer or initiate Sleep.
Do not insert, remove, connect, or disconnect any device, cable, or cord.
1. To access HP Support, go to http://www.hp.com/support, and select your country. Select Drivers &
Downloads, and then follow the on-screen instructions to access BIOS downloads.
2. At the BIOS download area, follow these steps:
a. Identify the most recent BIOS update and compare it to the BIOS version currently installed on your
computer. Make a note of the date, name, or other identier. You may need this information to locate the update later, after it has been downloaded to your hard drive.
b. Follow the on-screen instructions to download your selection to the hard drive.
Make a note of the path to the location on your hard drive where the BIOS update is downloaded. You will need to access this path when you are ready to install the update.
NOTE: If you connect your computer to a network, consult the network administrator before installing
any software updates, especially system BIOS updates.
BIOS installation procedures vary. Follow any instructions that are revealed on the screen after the download is complete. If no instructions are revealed, follow these steps:
1. Type file in the taskbar search box, and then select File Explorer.
2. Select your hard drive designation. The hard drive designation is typically Local Disk (C:).
3. Using the hard drive path you recorded earlier, open the folder that contains the update.
4. Double-click the le that has an .exe extension (for example, lename.exe).
The BIOS installation begins.
5. Complete the installation by following the on-screen instructions.
NOTE: After a message on the screen reports a successful installation, you can delete the downloaded le
from your hard drive.

Changing the boot order using the f9 prompt

To dynamically choose a boot device for the current startup sequence, follow these steps:
1. Access the Boot Device Options menu:
Turn on or restart the computer, and when the HP logo appears, press f9 to enter the Boot Device Options menu.
2. Select a boot device, then press enter.
Using Computer Setup 65

TPM BIOS settings (select products only)

IMPORTANT: Before enabling Trusted Platform Module (TPM) functionality on this system, you must ensure
that your intended use of TPM complies with relevant local laws, regulations and policies, and approvals or licenses must be obtained if applicable. For any compliance issues arising from your operation/usage of TPM which violates the above mentioned requirement, you shall bear all the liabilities wholly and solely. HP will not be responsible for any related liabilities.
TPM provides additional security for your computer. You can modify the TPM settings in Computer Setup (BIOS).
NOTE: If you change the TPM setting to Hidden, TPM is not visible in the operating system.
To access TPM settings in Computer Setup:
1. Start Computer Setup. See Starting Computer Setup on page 63.
2. Select Security, select TPM Embedded Security, and then follow the on-screen instructions.

Using HP Sure Start (select products only)

Select computer models are congured with HP Sure Start, a technology that monitors the computer's BIOS for attacks or corruption. If the BIOS becomes corrupted or is attacked, HP Sure Start automatically restores the BIOS to its previously safe state, without user intervention.
HP Sure Start is congured and already enabled so that most users can use the HP Sure Start default conguration. The default conguration can be customized by advanced users.
To access the latest documentation on HP Sure Start, go to http://www.hp.com/support. Select Find your product, and then follow the on-screen instructions.
66 Chapter 8 Computer Setup (BIOS), TPM, and HP Sure Start

9 Using HP PC Hardware Diagnostics (UEFI)

HP PC Hardware Diagnostics is a Unied Extensible Firmware Interface (UEFI) that allows you to run diagnostic tests to determine whether the computer hardware is functioning properly. The tool runs outside the operating system so that it can isolate hardware failures from issues that are caused by the operating system or other software components.
When HP PC Hardware Diagnostics (UEFI) detects a failure that requires hardware replacement, a 24-digit Failure ID code is generated. This ID code can then be provided to support to help determine how to correct the problem.
NOTE: To start diagnostics on a convertible computer, your computer must be in notebook mode and you
must use the keyboard attached.
To start HP PC Hardware Diagnostics (UEFI), follow these steps:
1. Turn on or restart the computer, and quickly press esc.
2. Press f2.
The BIOS searches three places for the diagnostic tools, in the following order:
a. Connected USB drive
NOTE: To download the HP PC Hardware Diagnostics (UEFI) tool to a USB drive, see Downloading
HP PC Hardware Diagnostics (UEFI) to a USB device on page 67.
b. Solid-state drive
c. BIOS
3. When the diagnostic tool opens, select the type of diagnostic test you want to run, and then follow the
on-screen instructions.
NOTE: If you need to stop a diagnostic test, press esc.

Downloading HP PC Hardware Diagnostics (UEFI) to a USB device

NOTE: The HP PC Hardware Diagnostics (UEFI) download instructions are provided in English only, and you
must use a Windows computer to download and create the HP UEFI support environment because only .exe les are oered.
There are two options to download HP PC Hardware Diagnostics to a USB device.
Download the latest UEFI version
1. Go to http://www.hp.com/go/techcenter/pcdiags. The HP PC Diagnostics home page is displayed.
2. In the HP PC Hardware Diagnostics section, select the Download link, and then select Run.
Download any version of UEFI for a specic product
1. Go to http://www.hp.com/support.
2. Select Get software and drivers.
Downloading HP PC Hardware Diagnostics (UEFI) to a USB device 67
3. Enter the product name or number.
– or –
Select Identify now to let HP automatically detect your product.
4. Select your computer, and then select your operating system.
5. In the Diagnostic section, follow the on-screen instructions to select and download the UEFI version
you want.
68 Chapter 9 Using HP PC Hardware Diagnostics (UEFI)

10 Diagnostics and troubleshooting

LEDs

Table 10-1 Power and IDE Flash Activity LEDs
LED Status
Power LED O When the unit is plugged into the wall socket and the Power LED is o, the unit is powered o.
However, the network can trigger a Wake On LAN event in order to perform management functions.
Power LED On Displays during boot sequence and while the unit is on. During boot sequence, hardware initialization is
processed and startup tests are performed on the following:
Processor initialization
Memory detection and initialization
Video detection and initialization
NOTE: If one of the tests fails, the unit will simply stop, but the LED will stay on. If the video test fails,
the unit beeps. There are no messages sent to video for any of these failed tests.
NOTE: After the video subsystem is initialized, anything that fails will have an error message.
NOTE: RJ-45 LEDs are located inside the RJ-45 connector on the top, rear panel of the thin client. The LEDs are visible when the
connector is installed. Blinking green indicates network activity, and amber indicates a 100MB speed connection.
IDE LED is O When the unit is powered on and the ash activity light is o, then there is no access to the system
ash.
IDE LED blinks white Indicates the system is accessing the internal IDE ash.
LEDs 69

Wake-on LAN

Wake-on LAN (WOL) allows a computer to be turned on or resumed from sleep state by a network message. You can enable or disable WOL in Computer Setup using the S5 Maximum Power Savings setting.
To enable or disable WOL:
1. Turn on or restart the computer.
2. Press either esc or F10 while the “Press the ESC key for Startup Menu” message is displayed at the
bottom of the screen.
NOTE: If you do not press esc or F10 at the appropriate time, you must restart the computer and again
press esc or F10 when the monitor light turns green to access the utility.
3. If you pressed esc, press F10 to enter Computer Setup.
4. Navigate to Power > Hardware Power Management.
5. Set S5 Maximum Power Savings as follows:
Disable WOL = Enabled
Enable WOL = Disabled
6. Press F10 to accept any changes.
7. Select File > Save Changes and Exit.

Power-On Sequence

At power-on, the ash boot block code initializes the hardware to a known state, then performs basic power­on diagnostic tests to determine the integrity of the hardware. Initialization performs the following functions:
1. Initializes CPU and memory controller.
2. Initializes and congures all PCI devices.
3. Initializes video software.
4. Initializes the video to a known state.
5. Initializes USB devices to a known state.
6. Performs power-on diagnostics. For more information, see “Power-On Diagnostic Tests”.
7. The unit boots the operating system.
70 Chapter 10 Diagnostics and troubleshooting

Resetting the Setup and Power-on passwords

You can reset the Setup and Power-on passwords as follows:
1. Turn o the computer and disconnect the power cord from the power outlet.
2. Remove the side access panel and the metal side cover.
3. Remove the password jumper from the system board header labeled PSWD/E49.
4. Replace the metal side cover and the side access panel.
5. Connect the computer to AC power, and then turn on the computer.
6. Turn o the computer and disconnect the power cord from the power outlet.
7. Remove the side access panel and the metal side cover.
8. Replace the password jumper.
9. Replace the metal side cover and the side access panel.

Power-on diagnostic tests

The Power-on diagnostics performs basic integrity tests of the hardware to determine its functionality and conguration. If a diagnostic test fails during hardware initialization the unit simply stops. There are no messages sent to video.
NOTE: You may try to restart the unit and run through the diagnostic tests a second time to conrm the rst
shutdown.
The following table lists the tests that are performed on the unit.
Table
10-2 Power-on diagnostic test
Test Description
Boot Block Checksum Tests boot block code for proper checksum value
DRAM Simple write/read pattern test of the rst 640k of memory
Serial Port Tests the serial port using simple port verication test to determine if ports are present
Timer Tests timer interrupt by using polling method
RTC CMOS battery Tests integrity of RTC CMOS battery
NAND ash device Tests for proper NAND ash device ID present
Resetting the Setup and Power-on passwords 71

Interpreting POST diagnostic front panel LEDs and audible codes

This section covers the front panel LED codes as well as the audible codes that may occur before or during POST that do not necessarily have an error code or text message associated with them.
WARNING! When the computer is plugged into an AC power source, voltage is always applied to the system
board. To reduce the risk of personal injury from electrical shock and/or hot surfaces, be sure to disconnect the power cord from the wall outlet and allow the internal system components to cool before touching.
NOTE: Recommended actions in the following table are listed in the order in which they should be
performed.
Not all diagnostic lights and audible codes are available on all models.
Table 10-3 Diagnostic front panel LEDs and audible codes
Activity Beeps Possible Cause Recommended Action
White Power LED On. None Computer on. None
White Power LED ashes every two seconds.
Red Power LED ashes two times, once every second, followed by a two second pause. Beeps stop after fth iteration but LEDs continue until problem is solved.
Red Power LED ashes four times, once every second, followed by a two second pause. Beeps stop after fth iteration but LEDs continue until problem is solved.
None Computer in Suspend to
RAM mode (some models only) or normal Suspend mode.
2 Processor thermal
protection activated:
A fan may be blocked or not turning.
OR
The heat sink/fan assembly is not properly attached to the processor.
OR
The unit has vents blocked or is in a location where the ambient temperature is too high.
4 Power failure (power supply
is overloaded).
OR
The incorrect external power supply adapter is being used on the unit.
No action required. Press any key or move the mouse to wake the computer.
1. Ensure that the computer air vents are not
blocked and the processor cooling fan is plugged in and running, if equipped.
2. Contact an authorized reseller or service
provider.
1. Check if a device is causing the problem by
removing ALL attached devices. Power on the system. If the system enters the POST, then power o and replace one device at a time and repeat this procedure until failure occurs. Replace the device that is causing the failure. Continue adding devices one at a time to ensure all devices are functioning properly.
2. Replace the power supply.
3. Replace the system board.
Red Power LED ashes ve times, once every second, followed by a two second pause. Beeps stop after fth iteration but LEDs continue until problem is solved.
5 Pre-video memory error. CAUTION: To avoid damage to the memory
72 Chapter 10 Diagnostics and troubleshooting
modules or the system board, you must unplug the computer power cord before attempting to reseat, install, or remove a memory module.
1. Reseat memory modules.
2. Replace memory modules one at a time to
isolate the faulty module.
Table 10-3 Diagnostic front panel LEDs and audible codes (continued)
Activity Beeps Possible Cause Recommended Action
3. Replace third-party memory with HP memory.
4. Replace the system board.
Red Power LED ashes six times, once every second, followed by a two second pause. Beeps stop after fth iteration but LEDs continue until problem is solved.
Red Power LED ashes eight times, once every second, followed by a two second pause. Beeps stop after fth iteration but LEDs continue until problem is solved.
System does not power on and LEDs are not ashing.
6 Pre-video graphics error. For systems with a graphics card:
1. Reseat the graphics card.
2. Replace the graphics card.
3. Replace the system board.
For systems with integrated graphics, replace the system board.
8 Invalid ROM based on bad
checksum.
None System unable to power on. Press and hold the power button for less than four
1. Reash the system ROM with the latest BIOS
image using the BIOS Recovery procedure.
2. Replace the system board.
seconds. If the solid-state drive LED turns white, the power button is working correctly. Try the following:
1. Remove the power cord from the computer.
2. Open the computer and press the yellow CMOS
button on the system board for four seconds (located near the front USB ports).
3. Verify that the AC cord is plugged into the
power supply.
4. Close the unit and reattach the power cord.
5. Try to power on the computer.
6. Replace the unit.
Interpreting POST diagnostic front panel LEDs and audible codes 73

POST numeric codes and text messages

This section covers those POST errors that have numeric codes associated with them. The section also includes some text messages that may be encountered during POST.
NOTE: The computer will beep once after a POST text message is displayed on the screen.
Table 10-4 Numeric Codes and Text Messages
Control panel message Description Recommended action
103-System Board Failure DMA or timers. 1. Clear CMOS.
2. Remove expansion boards.
3. Replace the system board.
110-Out of Memory Space for Option ROMs Recently added PCI expansion card contains an
option ROM too large to download during POST.
161-Real-Time Clock Power Loss Invalid time or date in conguration memory.
RTC (real-time clock) battery may need to be replaced.
164-MemorySize Error Memory amount has changed since the last
boot (memory added or removed).
201-Memory Error RAM failure. 1. Ensure memory modules are correctly
1. If a PCI expansion card was recently
added, remove it to see if the problem remains.
2. In Computer Setup, set Advanced >
Device Options > NIC PXE Option ROM Download to DISABLE to prevent PXE
option ROM for the internal NIC from being downloaded during POST to free more memory for an expansion card's option ROM. Internal PXE option ROM is used for booting from the NIC to a PXE server.
Reset the date and time under Control Panel (Computer Setup can also be used). If the problem persists, replace the RTC battery. See the Removal and Replacement section for instructions on installing a new battery, or contact an authorized dealer or reseller for RTC battery replacement.
Press the F1 key to save the memory changes.
installed.
2. Verify proper memory module type.
3. Remove and replace the identied faulty
memory module(s).
4. If the error persists after replacing
memory modules, replace the system board.
214-DIMM Conguration Warning Populated DIMM Conguration is not optimized. Rearrange the DIMMs so that each channel has
the same amount of memory.
301-Keyboard Error Keyboard failure. 1. Reconnect keyboard with computer
turned o.
2. Check connector for bent or missing pins.
3. Ensure that none of the keys are
depressed.
4. Replace keyboard.
510-Flash Screen Image Corrupted Flash Screen image has errors. Reash the system ROM with the latest BIOS
image.
74 Chapter 10 Diagnostics and troubleshooting
Table 10-4 Numeric Codes and Text Messages (continued)
Control panel message Description Recommended action
512-Chassis, Rear Chassis, or Front Chassis Fan not Detected
513-Front Chassis fan not detected Front chassis fan is not connected or may have
912-Computer Cover Has Been Removed Since Last System Startup
921-Device in PCI Express slot failed to initialize There is an incompatibility/problem with this
1720-SMART Hard Drive Detects Imminent Failure
Invalid Electronic Serial Number Electronic serial number is missing. Enter the correct serial number in Computer
Chassis, rear chassis, or front chassis fan is not connected or may have malfunctioned.
malfunctioned.
Computer cover was removed since last system startup.
device and the system or PCI Express Link could not be retrained to an x1.
Hard drive is about to fail. (Some hard drives have a hard drive rmware patch that will x an erroneous error message.)
1. Reseat chassis, rear chassis, or front
chassis fan.
2. Reseat fan cable.
3. Replace chassis, rear chassis, or front
chassis fan.
1. Reseat front chassis fan.
2. Reseat fan cable.
3. Replace front chassis fan.
No action required.
Try rebooting the system. If the error reoccurs, the device may not work with this system
1. Determine if hard drive is giving correct
error message. Run the Drive Protection System test using F2 Diagnostics.
2. Apply hard drive rmware patch
if applicable. (Available at
http://www.hp.com/support.)
3. Back up contents and replace hard drive.
Setup.
Network Server Mode Active and No Keyboard Attached
Parity Check 2 Parity RAM failure. Run Computer Setup and Diagnostic utilities.
Keyboard failure while Network Server Mode enabled.
1. Reconnect keyboard with computer
turned o.
2. Check connector for bent or missing pins.
3. Ensure that none of the keys are
depressed.
4. Replace keyboard.
POST numeric codes and text messages 75

Troubleshooting

Basic troubleshooting

If the thin client is experiencing operating problems or will not power on, review the following items.
Table 10-5 Power-on troubleshooting
Issue Procedures
The thin client unit is experiencing operating problems.
The thin client unit does not power on. 1. Verify that the power supply is good by installing it on a known working unit and
The thin client unit powers on and displays a splash screen, but does not connect to the server.
No link or activity on the network RJ-45 LEDs or the LEDs do not illuminate blinking green after powering on the thin client unit. (The network LEDs are located inside the RJ-45 connector on the top, rear panel of the thin client. Indicator lights are visible when the connector is installed.)
Ensure that the following connectors are securely plugged into the thin client unit:
Power connector, keyboard, mouse, network RJ-45 connector, display
testing it. If the power supply does not work on the test unit, replace the power supply.
2. If the unit does not work properly with the replaced power supply, have the unit
serviced.
1. Verify that the network is operating and the network cable is working properly.
2. Verify that the unit is communicating with the server by having the System
Administrator ping the unit from the server:
If the thin client pings back, then the signal was accepted and the unit is working. This indicates a conguration issue.
If the thin client does not ping back and the thin client does not connect to the server, re-image the unit.
1. Verify that the network is not down.
2. Make sure the RJ-45 cable is good by installing the RJ-45 cable onto a known
working device—if a network signal is detected then the cable is good.
3. Verify the power supply is good by replacing the power cable to the unit with a
known working power supply cable and testing it.
4. If network LEDs still do not light and you know the power supply is good, then
re-image the unit.
5. If network LEDs still do not light, run the IP conguration procedure.
6. If network LEDs still do not light, have the unit serviced.
A newly connected unknown USB peripheral does not respond or USB peripherals connected prior to the newly connected USB peripheral will not complete their device actions.
Video does not display. 1. Verify that the monitor brightness is set to a readable level.
76 Chapter 10 Diagnostics and troubleshooting
An unknown USB peripheral may be connected and disconnected to a running platform as long as you do not reboot the system. If problems occur, disconnect the unknown USB peripheral and reboot the platform.
2. Verify the monitor is good by connecting it to a known working computer and
ensure its front LED turns green (assuming the monitor is Energy Star compliant). If the monitor is defective, replace it with a working monitor and repeat testing.
3. Re-image the thin client unit and power on the monitor again.
4. Test the thin client unit on a known working monitor. If the monitor does not
display video, replace the thin client unit.

Diskless (No-Flash) unit troubleshooting

This section is only for those units that do not have ATA Flash capability. Because there is no ATA Flash in this model the boot priority sequence is:
USB device
PXE
1. When the unit boots, the monitor should display the following information:
Table 10-6 Diskless unit troubleshooting
Item Information Action
MAC Address NIC portion of the system board is OK If no MAC Address, the system board is at fault. Contact the
GUID General system board information If no GUID information, the system board is at fault and
Client ID Information from server If no Client ID information there is no network connection.
MASK Information from server If no MASK information there is no network connection. This
Call Center for service.
should be replaced.
This may be caused by a bad cable, the server is down, or a bad system board. Contact the Call Center for service for the bad system board.
may be caused by a bad cable, the server is down, or a bad system board. Contact the Call Center for service for the bad system board.
DHCP IP Information from server If no DHCP IP information there is no network connection.
This may be caused by a bad cable, the server is down, or a bad system board. Contact the Call Center for service for the bad system board.
If you are running in a Microsoft RIS PXE environment, go to step 2.
If you are running in a Linux environment, go to step 3.
2. If you are running in a Microsoft RIS PXE environment, press the F12 key to activate the network service
boot as soon as the DHCP IP information appears on the screen.
If the unit does not boot to the network, the server is not congured to PXE.
If you missed the F12 cue, the system will try to boot to the ATA ash that is not present. The message on the screen will read: ERROR: Non-system disk or disk error. Replace and press any key when ready.
Pressing any key will restart the boot cycle.
3. If you are running in a Linux environment, an error message will appear on the screen if there is no Client
IP. ERROR: Non-system disk or disk error. Replace and press any key when ready.
Troubleshooting 77
Conguring a PXE server
NOTE: All PXE software is supported by authorized service providers on a warranty or service contract basis.
Customers who call the HP Customer Service Center with PXE issues and questions should be referred to their PXE provider for assistance.
Additionally, refer to the following:
– For Windows Server 2008 R2: http://technet.microsoft.com/en-us/library/7d837d88-6d8e-420c-b68f-
a5b4baeb5248.aspx
– For Windows Server 2012: http://technet.microsoft.com/en-us/library/jj648426.aspx
The services listed below must be running, and they may be running on dierent servers:
1. Domain Name Service (DNS)
2. Remote Installation Services (RIS)
NOTE: Active Directory DHCP is not required, but is recommended.
78 Chapter 10 Diagnostics and troubleshooting

11 Using HP ThinUpdate to restore the image

HP ThinUpdate software is installed on Thin Client computers (select products only) to provide backup and recovery. If it is not installed on your computer, you can download it from http://www.hp.com/support (search for the Thin Client model and click on the Drivers & software section of the support page for that model. For information on using this software, refer to the Manuals section).
NOTE: HP recommends periodically going to the website to check for application updates.
Use HP ThinUpdate software for the following processes:
Creating recovery media and backups
Restoring and recovering your system
Installing and updating software
HP ThinUpdate allows you to download images and add-ons from HP, capture an HP thin client image, and create bootable USB ash drives for image deployment.
The Image Downloads feature lets you download an image from HP to either local storage or a USB ash drive. The USB ash drive option creates a bootable USB ash drive that can be used to deploy the image to other thin clients.
The Image Capture feature lets you capture an image from an HP thin client and save it to a USB ash drive, which can be used to deploy the image to other thin clients.
The Add-on Downloads feature lets you download add-ons from HP to either local storage or a USB ash drive.
The USB Drive Management feature lets you do the following:
Create a bootable USB ash drive from an image le on local storage
Copy an .ibr image le from a USB ash drive to local storage
Restore a USB ash drive layout
You can use a bootable USB ash drive created with HP ThinUpdate to deploy an HP thin client image to another HP thin client of the same model with the same operating system.
System requirements
To create a recovery device for the purpose of reashing or restoring the software image on the ash, you will need the following:
One or more HP thin clients.
USB ash device in the following size or larger:
Windows 10 IoT (if using the USB format): 32 GB
NOTE: Optionally, you can use the tool on a Windows computer.
This restore method will not work with all USB ash devices. USB ash devices that do not show up as
removable drive in Windows do not support this restore method. USB ash devices with multiple partitions generally do not support this restore method. The range of USB ash devices available on the market is constantly changing. Not all USB ash devices have been tested with the HP Thin Client Imaging Tool.
79

12 Device management

The thin client includes a license for HP Device Manager and has a Device Manager agent pre-installed. HP Device Manager is a thin client optimized management tool used to manage the full life cycle of HP thin clients to include Discover, Asset Management, Deployment and Conguration. For more information on HP Device Manager, please visit www.hp.com/go/hpdm.
If you wish to manage the thin client with other management tools such as Microsoft SCCM or LANDesk, go to
www.hp.com/go/clientmanagement for more information.
80 Chapter 12 Device management
13 Specications
Computer specications
Metric U.S.
Dimensions
Length 237.0 mm 9.3 in
Width 338.0 mm 13.3 in
Height (front to rear) 18.9 - 20.2 mm 0.74 - 0.80 in
Weight
3-cell battery (51WHr), no FPR, 1 SODIMM, WLAN, M.2 SSD, no camera, no WWAN, QHD panel
3-cell battery (51WHr), no FPR, 1 SODIMM, WLAN, M.2 SSD, no camera, no WWAN, FHD touch panel
Input power
Operating voltage 19.0 V dc @ 4.74 A – 90 W or 18.5 V dc @ 3.5 A - 65 W or 45 W
Operating current 4.74 A or 3.5 A
Temperature
Operating (not writing to optical disc) 0°C to 35°C 32°F to 95°F
Operating (writing to optical disc) 5°C to 35°C 41°F to 95°F
Nonoperating -20°C to 60°C -4°F to 140°F
Relative humidity
Operating 10% to 90%
Nonoperating 5% to 95%
Maximum altitude (unpressurized)
Operating (14.7 to 10.1 psia) -15 m to 3,048 m 50 ft to 10,000 ft
Nonoperating (14.7 to 4.4 psia) -15 m to 12,192 m -50 ft to 40,000 ft
1.58 kg 3.48 lbs
1.74 kg 3.83 lbs
Shock
Operating 125 g, 2 ms, half-sine
Nonoperating 200 g, 2 ms, half-sine
Random vibration
Operating 0.75 g zero-to-peak, 10 Hz to 500 Hz, 0.25 oct/min sweep rate
Nonoperating 1.50 g zero-to-peak, 10 Hz to 500 Hz, 0.5 oct/min sweep rate
NOTE: Applicable product safety standards specify thermal limits for plastic surfaces. The computer operates well within this range
of temperatures.
Computer specications 81
35.6-cm (14.0-in) display specications
Metric U.S.
Active diagonal size 35.6-cm 14.0-in
Resolution HD: 1366x768
FHD: 1920x1080
QHD: 2560x1440
Surface treatment Anti-glare (except touch screen)
Brightness HD: 220 nits
FHD: 300 nits
QHD: 340 nits
Viewing angle SVA
Backlight LED
Aspect ratio 16:9
Display panel interface eDP 1.2
Solid-state drive specications
128-GB*
Height 1.35 mm
Weight < 10 g
Form factor M.2 2280-D2-B-M
Transfer rate up to 540 MB/sec
Interface type SATA-3
Ready time, maximum (to not busy) 1.0 ms
Access times, logical 0.1 ms
Total logical sectors 234,441,648
Operating temperature 0°C to 70°C (32°F to 158°F)
*1 GB = 1 billion bytes when referring to drive storage capacity. Actual accessible capacity is less. Actual drive specications may dier slightly.
NOTE: Certain restrictions and exclusions apply. Contact technical support for details.
82 Chapter 13 Specications

14 Power cord set requirements

The wide-range input feature of the computer permits it to operate from any line voltage from 100 to 120 volts AC, or from 220 to 240 volts AC.
The 3-conductor power cord set included with the computer meets the requirements for use in the country or region where the equipment is purchased.
Power cord sets for use in other countries and regions must meet the requirements of the country or region where the computer is used.

Requirements for all countries

The following requirements are applicable to all countries and regions:
The length of the power cord set must be at least 1.0 m (3.3 ft) and no more than 2.0 m (6.5 ft).
All power cord sets must be approved by an acceptable accredited agency responsible for evaluation in the country or region where the power cord set will be used.
The power cord sets must have a minimum current capacity of 10 amps and a nominal voltage rating of 125 or 250 V AC, as required by the power system of each country or region.
The appliance coupler must meet the mechanical conguration of an EN 60 320/IEC 320 Standard Sheet C13 connector for mating with the appliance inlet on the back of the computer.
Requirements for specic countries and regions
Country/region Accredited agency Applicable note number
Australia EANSW 1
Austria OVE 1
Belgium CEBC 1
Canada CSA 2
Denmark DEMKO 1
Finland FIMKO 1
France UTE 1
Germany VDE 1
Italy IMQ 1
Japan METI 3
The Netherlands KEMA 1
Norway NEMKO 1
The People's Republic of China COC 5
South Korea EK 4
Requirements for all countries 83
Country/region Accredited agency Applicable note number
Sweden SEMKO 1
Switzerland SEV 1
Taiwan BSMI 4
The United Kingdom BSI 1
The United States UL 2
1. The exible cord must be Type HO5VV-F, 3-conductor, 1.0-mm² conductor size. Power cord set ttings (appliance coupler
and wall plug) must bear the certication mark of the agency responsible for evaluation in the country or region where it will be used.
2. The exible cord must be Type SPT-3 or equivalent, No. 18 AWG, 3-conductor. The wall plug must be a two-pole grounding type
with a NEMA 5-15P (15 A, 125 V) or NEMA 6-15P (15 A, 250 V) conguration.
3. The appliance coupler, exible cord, and wall plug must bear a “T” mark and registration number in accordance with the Japanese
Dentori Law. The exible cord must be Type VCT or VCTF, 3-conductor, 1.00-mm² conductor size. The wall plug must be a two­pole grounding type with a Japanese Industrial Standard C8303 (7 A, 125 V) conguration.
4. The exible cord must be Type RVV, 3-conductor, 0.75-mm² conductor size. Power cord set ttings (appliance coupler and wall
plug) must bear the certication mark of the agency responsible for evaluation in the country or region where it will be used.
5. The exible cord must be Type VCTF, 3-conductor, 0.75-mm² conductor size. Power cord set ttings (appliance coupler and wall
plug) must bear the certication mark of the agency responsible for evaluation in the country or region where it will be used.
84 Chapter 14 Power cord set requirements

15 Statement of memory volatility

The purpose of this chapter is to provide general information regarding nonvolatile memory in HP Business PCs. This chapter also provides general instructions for restoring nonvolatile memory that can contain personal data after the system has been powered o and the hard drive has been removed.
HP Business PC products that use Intel®-based or AMD®-based system boards contain volatile DDR memory. The amount of nonvolatile memory present in the system depends upon the system based and AMD-based system boards contain nonvolatile memory subcomponents as originally shipped from HP, assuming that no subsequent modications have been made to the system and assuming that no applications, features, or functionality have been added to or installed on the system.
Following system shutdown and removal of all power sources from an HP Business PC system, personal data can remain on volatile system memory (DIMMs) for a nite period of time and will also remain in nonvolatile memory. Use the steps below to remove personal data from the PC, including the nonvolatile memory found in Intel-based and AMD-based system boards.
NOTE: If your tablet has a keyboard base, connect to the keyboard base before beginning steps in this
chapter.
Current BIOS steps
1. Follow steps (a) through (l) below to restore the nonvolatile memory that can contain personal data.
Restoring or reprogramming nonvolatile memory that does not store personal data is neither necessary nor recommended.
conguration. Intel-
a. Turn on or restart the computer, and then press esc while the “Press the ESC key for Startup Menu”
message is displayed at the bottom of the screen.
IMPORTANT: If the Main menu displays Restore Defaults instead of Apply Factory Defaults and
Exit, go to Legacy BIOS Steps on page 86.
NOTE: If the system has a BIOS administrator password, enter the password at the prompt.
b. Select Main, select Apply Factory Defaults and Exit, and then select Yes to load defaults.
The computer will reboot.
c. During the reboot, press esc while the “Press the ESC key for Startup Menu” message is displayed
at the bottom of the screen.
NOTE: If the system has a BIOS administrator password, enter the password at the prompt.
d. Select the Security menu, select Restore Security Settings to Factory Defaults, and then select
Yes to restore security level defaults.
The computer will reboot.
e. During the reboot, press esc while the “Press the ESC key for Startup Menu” message is displayed
at the bottom of the screen.
NOTE: If the system has a BIOS administrator password, enter the password at the prompt.
f. If an asset or ownership tag is set, select the Security menu and scroll down to the Utilities menu.
Select System IDs, and then select Asset Tracking Number. Clear the tag, and then make the selection to return to the prior menu.
85
g. If a DriveLock password is set, select the Security menu, and scroll down to Hard Drive Utilities
under the Utilities menu. Select Hard Drive Utilities, select DriveLock, then uncheck the checkbox for DriveLock password on restart. Select OK to proceed.
h. Select the Main menu, and then select Reset BIOS Security to factory default. Click Yes at the
warning message.
The computer will reboot.
i. During the reboot, press esc while the “Press the ESC key for Startup Menu” message is displayed
at the bottom of the screen.
NOTE: If the system has a BIOS administrator password, enter the password at the prompt.
j. Select the Main menu, select Apply Factory Defaults and Exit, select Yes to save changes and exit,
and then select Shutdown.
k. Reboot the system. If the system has a Trusted Platform Module (TPM) and/or ngerprint reader,
one or two prompts will appear—one to clear the TPM and the other to Reset Fingerprint Sensor; press or tap F1 to accept or F2 to reject.
l. Remove all power and system batteries for at least 24 hours.
2. Complete one of the following:
Remove and retain the storage drive.
– or –
– or –
IMPORTANT: If you clear data using Secure Erase, it cannot be recovered.
a. Turn on or restart the computer, and then press esc while the “Press the ESC key for Startup Menu”
b. Select the Security menu and scroll down to the Utilities menu.
c. Select Hard Drive Tools.
d. Under Utilities, select Secure Erase, select the hard drive storing the data you want to clear, and
Legacy BIOS Steps
Use the steps for older versions of BIOS.
NOTE: If you already completed the steps in Current BIOS steps on page 85, skip this section.
1. Follow steps (a) through (i) below to restore the nonvolatile memory that can contain personal data.
Restoring or reprogramming nonvolatile memory that does not store personal data is neither necessary nor recommended.
Clear the drive contents by using a third party utility designed to erase data from an SSD.
Clear the contents of the drive by using the following BIOS Setup Secure Erase command option steps:
message is displayed at the bottom of the screen.
then follow the on-screen instructions to continue.
NOTE: If you have not already done so, access the BIOS menu.
Turn on or restart the computer, and then press esc while the “Press the ESC key for Startup Menu” message is displayed at the bottom of the screen.
86 Chapter 15 Statement of memory volatility
NOTE: If the system has a BIOS administrator password, enter the password at the prompt.
a. Select Main, select Restore Defaults, and then select Yes to load defaults.
b. Select the Security menu, select Restore Security Level Defaults, and then select Yes to restore
security level defaults.
c. If an asset or ownership tag is set, select the Security menu and scroll down to the Utilities menu.
Select System IDs, and then select Asset Tracking Number. Clear the tag, and then make the selection to return to the prior menu.
d. If a DriveLock password is set, select the Security menu, and scroll down to Hard Drive Tools
under the Utilities menu. Select Hard Drive Tools, select DriveLock, then uncheck the checkbox for DriveLock password on restart. Select OK to proceed.
e. If an Automatic DriveLock password is set, select the Security menu, scroll down to Hard Drive
Tools under the Utilities menu. Select Hard Drive Tools, scroll down to Automatic DriveLock, then
select the desired hard drive and disable protection. At the automatic drive lock warning screen, select Yes to continue. Repeat this procedure if more than one hard drive has an Automatic DriveLock password.
f. Select the Main menu, and then select Reset BIOS Security to factory default. Click Yes at the
warning message.
g. Select the Main menu, select Save Changes and Exit, select Yes to save changes and exit, and then
select Shutdown.
h. Reboot the system. If the system has a Trusted Platform Module (TPM) and/or ngerprint reader,
one or two prompts will appear—one to clear the TPM and the other to Reset Fingerprint Sensor; press or tap F1 to accept or F2 to reject.
i. Remove all power and system batteries for at least 24 hours.
2. Complete one of the following:
Remove and retain the storage drive.
– or –
Clear the drive contents by using a third party utility designed to erase data from an SSD.
– or –
Clear the contents of the drive by using the following BIOS Setup Secure Erase command option steps:
IMPORTANT: If you clear data using Secure Erase, it cannot be recovered.
a. Turn on or restart the computer, and then press esc while the “Press the ESC key for Startup Menu”
message is displayed at the bottom of the screen.
b. Select the Security menu and scroll down to the Utilities menu.
c. Select Hard Drive Tools.
d. Under Utilities, select Secure Erase, select the hard drive storing the data you want to clear, and
then follow the on-screen instructions to continue.
– or –
Clear the contents of the drive by using the following Disk Sanitizer command steps:
IMPORTANT: If you clear data using Disk Sanitizer, it cannot be recovered.
87
NOTE: The amount of time it takes for Disk Sanitizer to run can take several hours. Plug the computer
into an AC outlet before starting.
a. Turn on or restart the computer, and then press esc while the “Press the ESC key for Startup Menu”
message is displayed at the bottom of the screen.
b. Select the Security menu and scroll down to the Utilities menu.
c. Select Hard Drive Tools.
d. Under Utilities, select Disk Sanitizer, select the hard drive storing the data you want to clear, and
then follow the on-screen instructions to continue.

Nonvolatile memory usage

Nonvolatile Memory Type Amount (Size)
HP Sure Start ash (select models only)
Real Time Clock (RTC) battery backed-up CMOS conguration memory
2 MBytes No Yes Provides
256 Bytes No Yes Stores system
Does this memory store customer data?
Does this memory retain data when power is removed?
What is the purpose of this memory?
protected backup of critical System BIOS code, EC rmware, and critical PC conguration data for select platforms that support HP Sure Start.
For more information, see Using HP
Sure Start (select models only) on page 91.
date and time and noncritical data.
How is data input into this memory?
Data cannot be written to this device via the host processor. The content is managed solely by the HP Sure Start Embedded Controller.
RTC battery backed-up CMOS is programmed using the Computer Setup (BIOS), or changing the Microsoft Windows date & time.
How is this memory write-protected?
This memory is protected by the HP Sure Start Embedded Controller.
This memory is not write­protected.
Controller (NIC) EEPROM
DIMM Serial Presence Detect (SPD) conguration data
64 KBytes (not customer accessible)
256 Bytes per memory module, 128 Bytes programmable
No Yes Stores NIC
No Yes Stores memory
88 Chapter 15 Statement of memory volatility
conguration and NIC
rmware.
module information.
NIC EEPROM is programmed using a utility from the NIC vendor that can be run from DOS.
DIMM SPD is programmed by the memory vendor.
A utility is required to write data to this memory and is available from the NIC vendor. Writing data to this ROM in an inappropriate manner will render the NIC non­functional.
Data cannot be written to this memory when the module is installed in a PC. The specic write­protection method varies by memory vendor.
Nonvolatile Memory Type Amount (Size)
(not customer accessible)
Does this memory store customer data?
Does this memory retain data when power is removed?
What is the purpose of this memory?
How is data input into this memory?
How is this memory write-protected?
System BIOS 4 MBytes to 5
MBytes
Intel Management Engine Firmware (present in only specic ZBook and EliteBook models. For more information, go to
http://www.hp.com/ support. Select
Find your product, and then
follow the on­screen instructions.)
1.5 MBytes or 5 MBytes
Yes Yes Stores system
BIOS code and PC conguration data.
Yes Yes Stores
Management Engine Code, Settings, Provisioning Data and iAMT third-party data store.
System BIOS code is programmed at the factory. Code is updated when the system BIOS is updated. Conguration data and settings are input using the Computer Setup (BIOS) or a custom utility.
Management Engine Code is programmed at the factory. Code is updated via Intel secure rmware update utility. Unique Provisioning Data can be entered at the factory or by an administrator using the Management Engine (MEBx) setup utility. The third party data store contents can be populated by a remote management console or local applications that have been registered by an administrator to have access to the space.
NOTE: Writing data to
this ROM in an inappropriate manner can render the PC non­functional.
A utility is required for writing data to this memory and is available on the HP website; go to
http://www.hp.com/ support. Select Find your
product, and then follow the on-screen instructions.
The Intel chipset is congured to enforce hardware protection to block all direct read/write access to this area. An Intel utility is required for updating the rmware. Only rmware updates digitally signed by Intel can be applied using this utility.
Bluetooth ash 2 Mbit No Yes Stores
Bluetooth conguration and rmware.
802.11 WLAN EEPROM
Web camera 64 Kbit No Yes Stores webcam
4 Kbit to 8 Kbit No Yes Stores
conguration and calibration data.
conguration and rmware.
Bluetooth ash is programmed at the factory. Tools for writing data to this memory are not publicly available but can be obtained from the silicon vendor.
802.11 WLAN EEPROM is programmed at the factory. Tools for writing data to this memory are not made public.
Webcam memory is programmed using a utility from the device manufacturer that can be run from Windows.
Nonvolatile memory usage 89
A utility is required for writing data to this memory and is made available through newer versions of the driver whenever the ash requires an upgrade.
A utility is required for writing data to this memory and is typically not made available to the public unless a rmware upgrade is necessary to address a unique issue.
A utility is required for writing data to this memory and is typically not made available to the public unless a rmware
Nonvolatile Memory Type Amount (Size)
Does this memory store customer data?
Does this memory retain data when power is removed?
What is the purpose of this memory?
How is data input into this memory?
How is this memory write-protected?
upgrade is necessary to address a unique issue.
Fingerprint reader 512 KByte ash Yes Yes Stores
ngerprint templates.

Questions and answers

1. How can the BIOS settings be restored (returned to factory settings)?
IMPORTANT: Restore defaults does not securely erase any data on your hard drive. See question and
answer 6 for steps to securely erase data.
Restore defaults does not reset the Custom Secure Boot keys. See question and answer 7 for information about resetting the keys.
a. Turn on or restart the computer, and then press esc while the “Press the ESC key for Startup Menu”
message is displayed at the bottom of the screen.
b. Select Main, and then select Restore defaults.
c. Follow the on-screen instructions.
d. Select Main, select Save Changes and Exit, and then follow the on-screen instructions.
2. What is a UEFI BIOS, and how is it dierent from a legacy BIOS?
Fingerprint reader memory is programmed by user enrollment in HP ProtectTools Security Manager.
Only a digitally signed application can make the call to write to the ash.
The Unied Extensible Firmware Interface (UEFI) BIOS is an industry-standard software interface between the platform rmware and an operating system (OS). It is a replacement for the older BIOS architecture, but supports much of the legacy BIOS functionality.
Like the legacy BIOS, the UEFI BIOS provides an interface to display the system information and conguration settings and to change the conguration of your computer before an OS is loaded. BIOS provides a secure run-time environment that supports a Graphic User Interface (GUI). In this environment, you can use either a pointing device (Touchscreen, TouchPad, pointing stick, or USB mouse) or the keyboard to navigate and make menu and conguration selections. The UEFI BIOS also contains basic system diagnostics.
The UEFI BIOS provides functionality beyond that of the legacy BIOS. In addition, the UEFI BIOS works to initialize the computer’s hardware before loading and executing the OS; the run-time environment allows the loading and execution of software programs from storage devices to provide more functionality, such as advanced hardware diagnostics (with the ability to display more detailed system information) and advanced rmware management and recovery software.
HP has provided options in Computer Setup (BIOS) to allow you to run in legacy BIOS, if required by the operating system. Examples of this requirement would be if you upgrade or downgrade the OS.
3. Where does the UEFI BIOS reside?
The UEFI BIOS resides on a ash memory chip. A utility is required to write to the chip.
90 Chapter 15 Statement of memory volatility
Loading...
