HP mt41 User Manual

User Guide

© Copyright 2013 Hewlett-Packard
Development Company, L.P.

Windows is a U.S. registered trademark of
Microsoft Corporation.

The information contained herein is subject
to change without notice. The only
warranties for HP products and services are
set forth in the express warranty statements
accompanying such products and services.
Nothing herein should be construed as
constituting an additional warranty. HP shall
not be liable for technical or editorial errors
or omissions contained herein.

First Edition: November 2013

Document Part Number: 730504-001

Product notice

This user guide describes features that are
common to most models. Some features
may not be available on your computer.

To obtain the latest information in this
guide, contact support. For U.S. support, go
to

http://www.hp.com/go/contactHP. For

worldwide support, go to

http://welcome.hp.com/country/us/en/
wwcontact_us.html.

Software terms

By installing, copying, downloading, or
otherwise using any software product
preinstalled on this computer, you agree to
be bound by the terms of the HP End User
License Agreement (EULA). If you do not
accept these license terms, your sole
remedy is to return the entire unused
product (hardware and software) within 14
days for a refund subject to the refund
policy of your place of purchase.

For any further information or to request a
full refund of the computer, please contact
your local point of sale (the seller).

Safety warning notice

WARNING! To reduce the possibility of heat-related injuries or of overheating the computer, do not

place the computer directly on your lap or obstruct the computer air vents. Use the computer only on
a hard, flat surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft
surface, such as pillows or rugs or clothing, to block airflow. Also, do not allow the AC adapter to
contact the skin or a soft surface, such as pillows or rugs or clothing, during operation. The computer
and the AC adapter comply with the user-accessible surface temperature limits defined by the
International Standard for Safety of Information Technology Equipment (IEC 60950).

iii

iv Safety warning notice

Table of contents

1 Welcome .......................................................................................................................................................... 1

Finding information ............................................................................................................................... 2

2 Getting to know your computer ..................................................................................................................... 4

Top ....................................................................................................................................................... 4

TouchPad ............................................................................................................................ 4

Lights ................................................................................................................................... 5

Buttons and speakers .......................................................................................................... 6

Keys ..................................................................................................................................... 7

Front ..................................................................................................................................................... 8

Right ..................................................................................................................................................... 9

Left ..................................................................................................................................................... 10

Display ................................................................................................................................................ 11

Bottom ................................................................................................................................................ 12

3 Connecting to a network .............................................................................................................................. 14

Connecting to a wireless network ....................................................................................................... 14

Using the wireless controls ................................................................................................ 14

Turning wireless devices on or off ..................................................................... 14

Using HP Connection Manager (select models only) ........................................ 15

Using the wireless button .................................................................................. 15

Using operating system controls ....................................................................... 15

Using a WLAN ................................................................................................................... 15

Using an Internet service provider .................................................................... 16

Setting up a WLAN ............................................................................................ 16

Configuring a wireless router ............................................................................ 16

Protecting your WLAN ....................................................................................... 17

Connecting to a WLAN ...................................................................................... 17

Using HP Mobile Broadband (select models only) ............................................................ 17

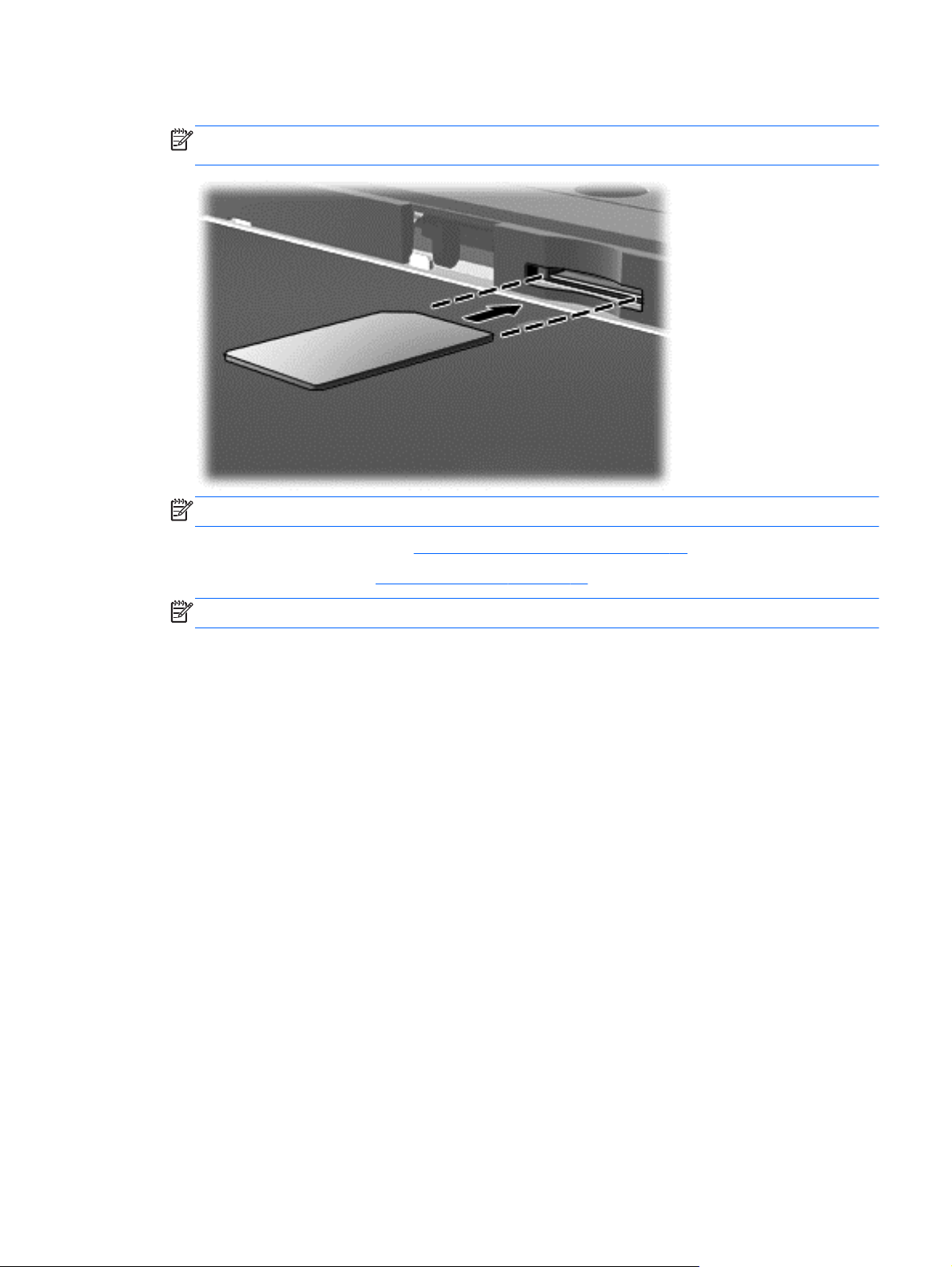

Inserting and removing a SIM ........................................................................... 18

Using GPS (select models only) ........................................................................................ 19

Connecting to a wired network ........................................................................................................... 19

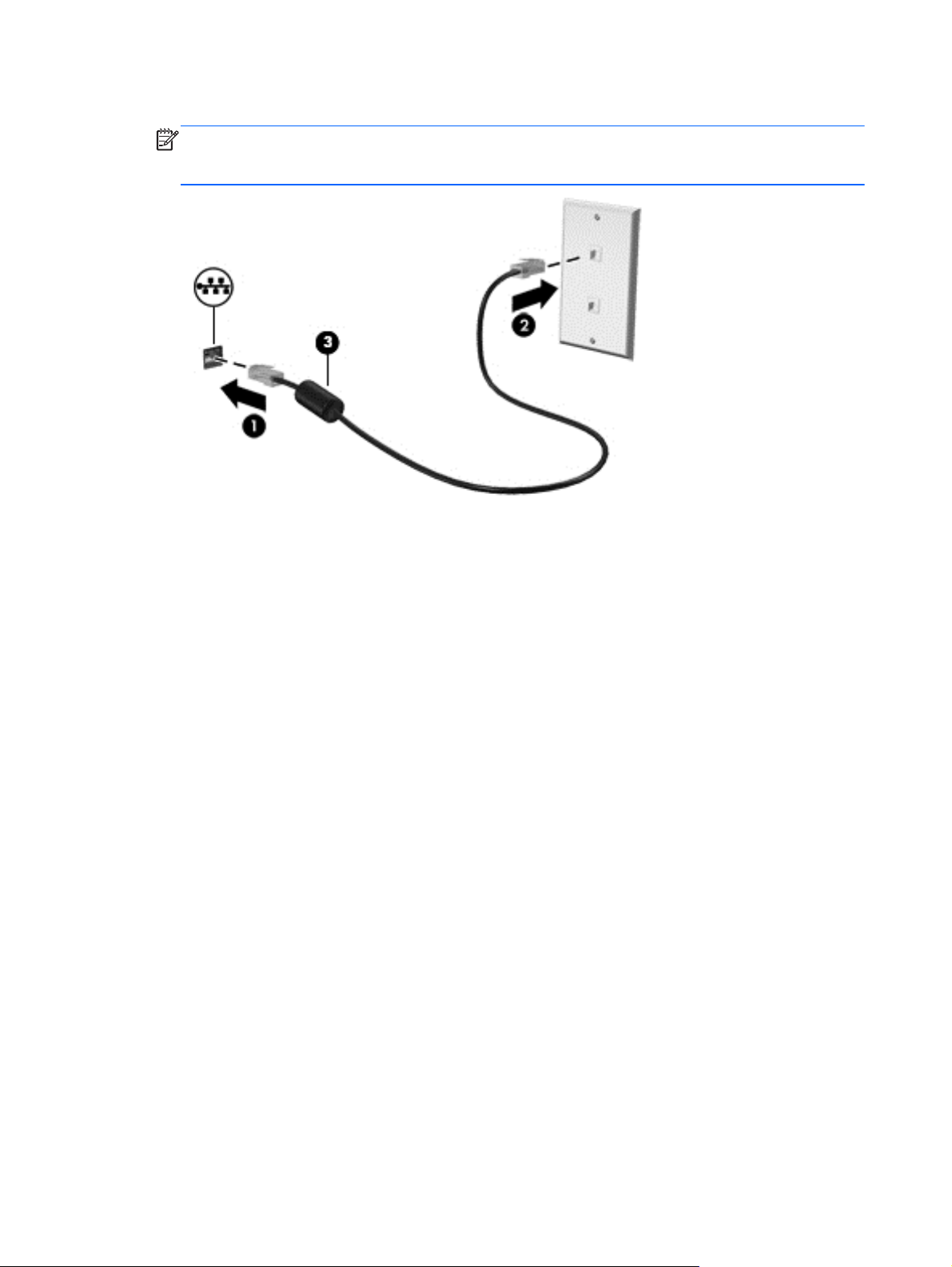

Connecting to a local area network (LAN) ......................................................................... 19

4 Navigating using the keyboard, touch gestures and pointing devices ................................................... 21

Using pointing devices ....................................................................................................................... 21

v

Setting pointing device preferences ................................................................................... 21

Using the TouchPad .......................................................................................................... 21

Turning the TouchPad off and on ...................................................................... 22

Using TouchPad Gestures ................................................................................ 22

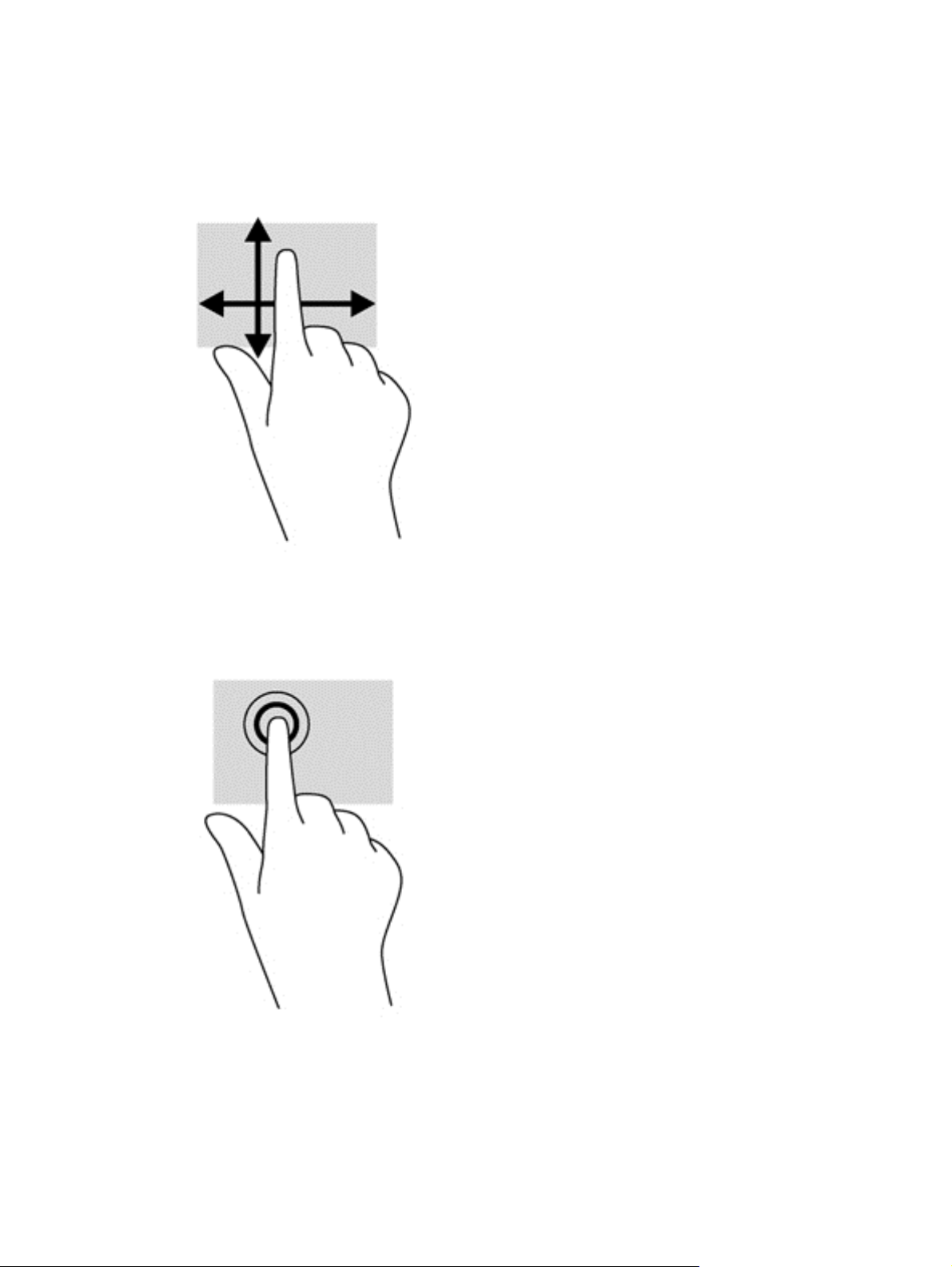

One-finger slide ................................................................................ 23

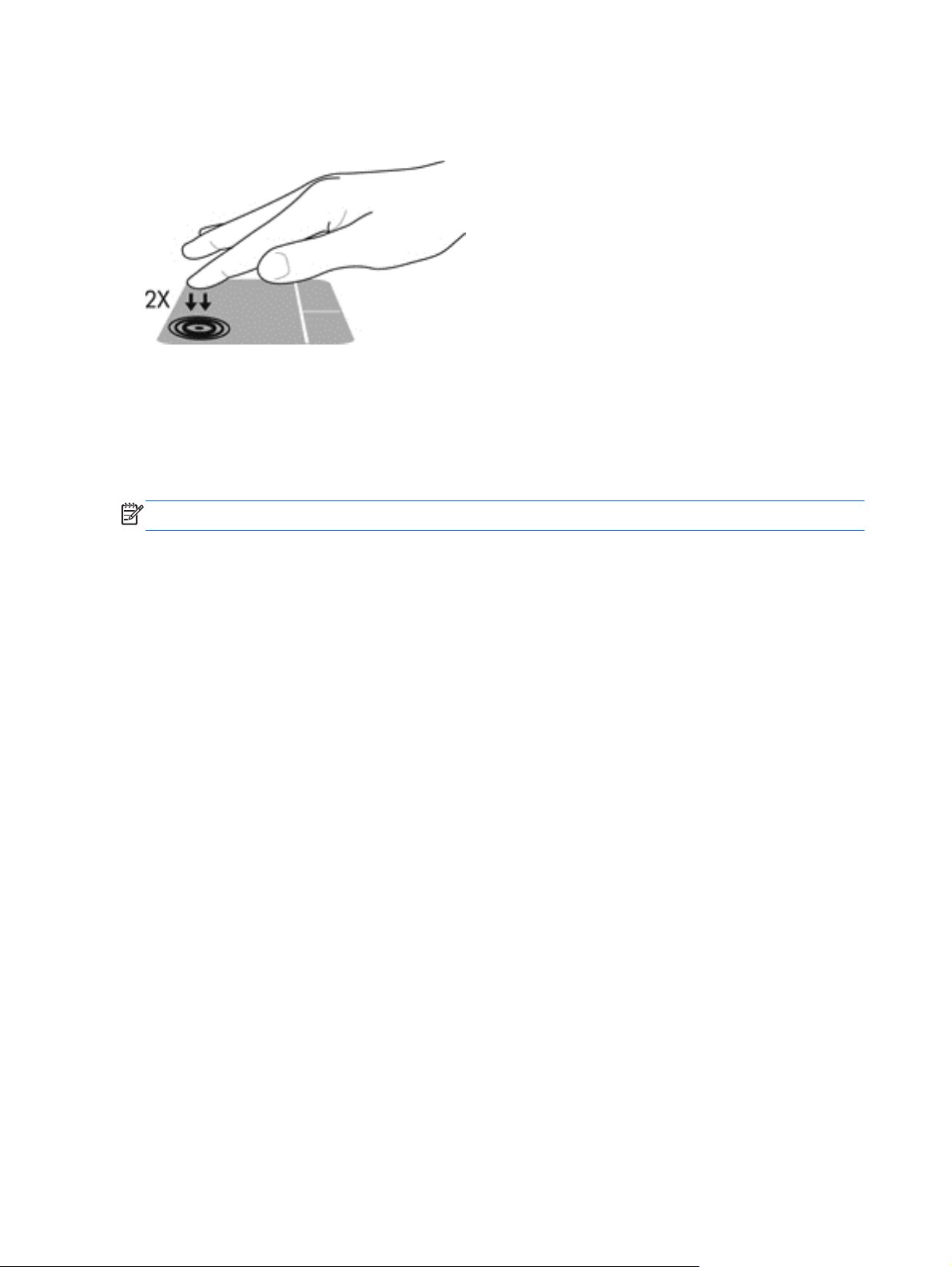

Tapping ............................................................................................. 23

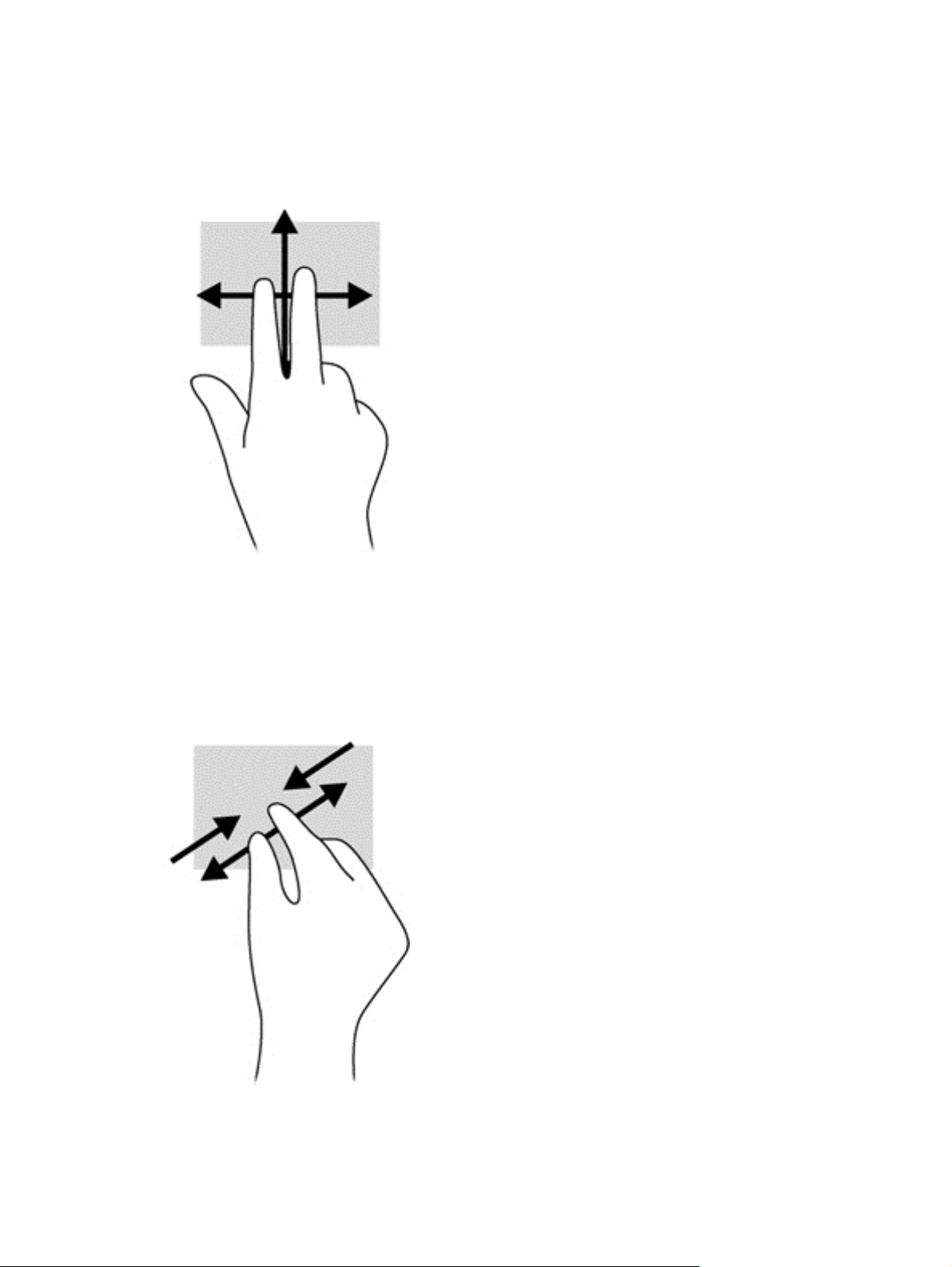

Scrolling ............................................................................................ 24

Pinching/zooming ............................................................................. 24

Using the keyboard ............................................................................................................................ 25

Identifying the hot keys ...................................................................................................... 25

Using keypads ................................................................................................................... 26

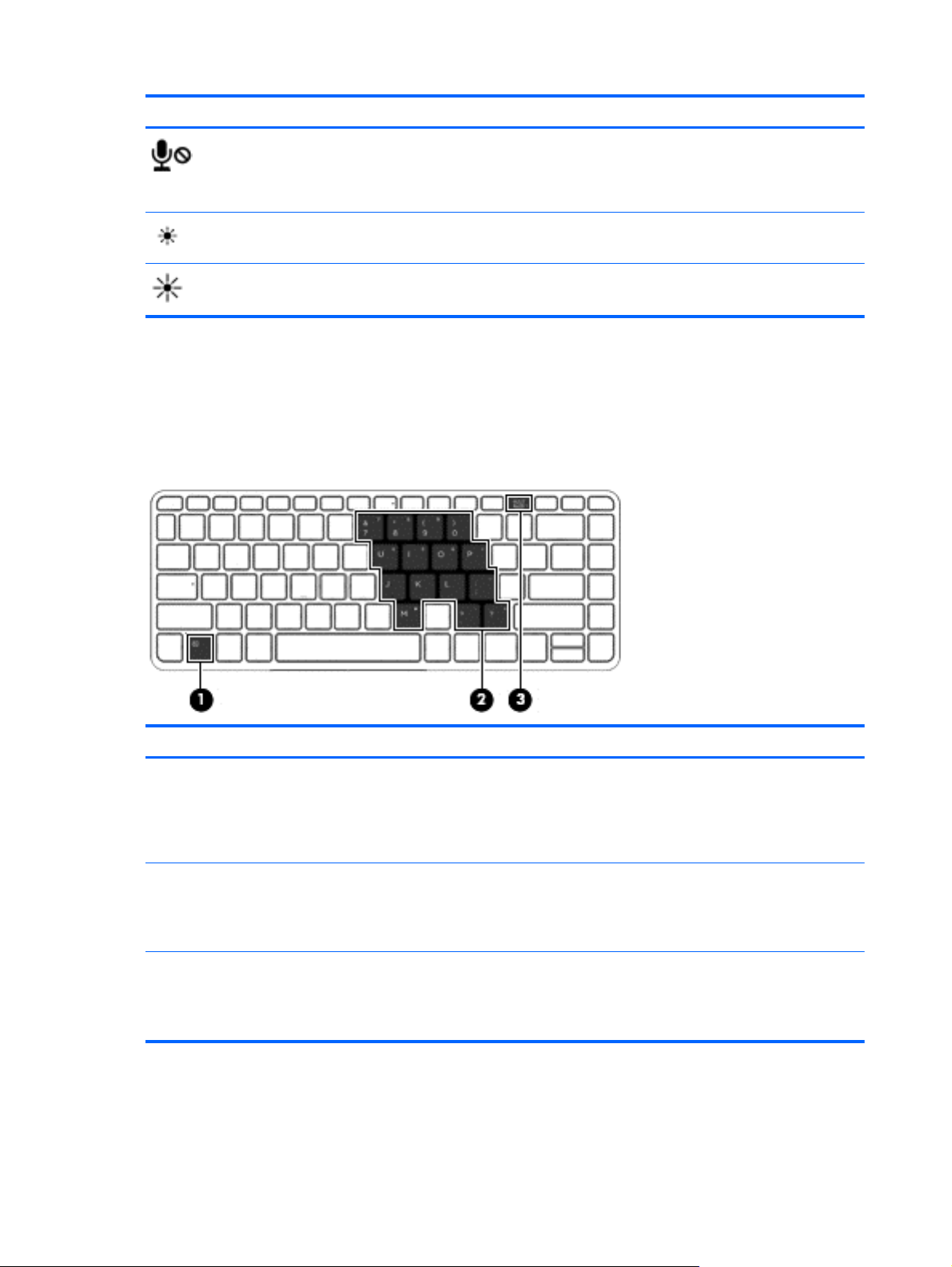

Using the embedded numeric keypad ............................................................... 26

Turning the embedded numeric keypad on and off .......................... 27

Switching key functions on the embedded numeric keypad ............. 27

Using an optional external numeric keypad ...................................................... 27

5 Multimedia ..................................................................................................................................................... 28

Audio .................................................................................................................................................. 28

Connecting speakers ......................................................................................................... 28

Adjusting the volume ......................................................................................................... 28

Connecting headphones and microphones ....................................................................... 28

Checking audio functions on the computer ........................................................................ 29

Webcam (select models only) ............................................................................................................ 29

Video .................................................................................................................................................. 29

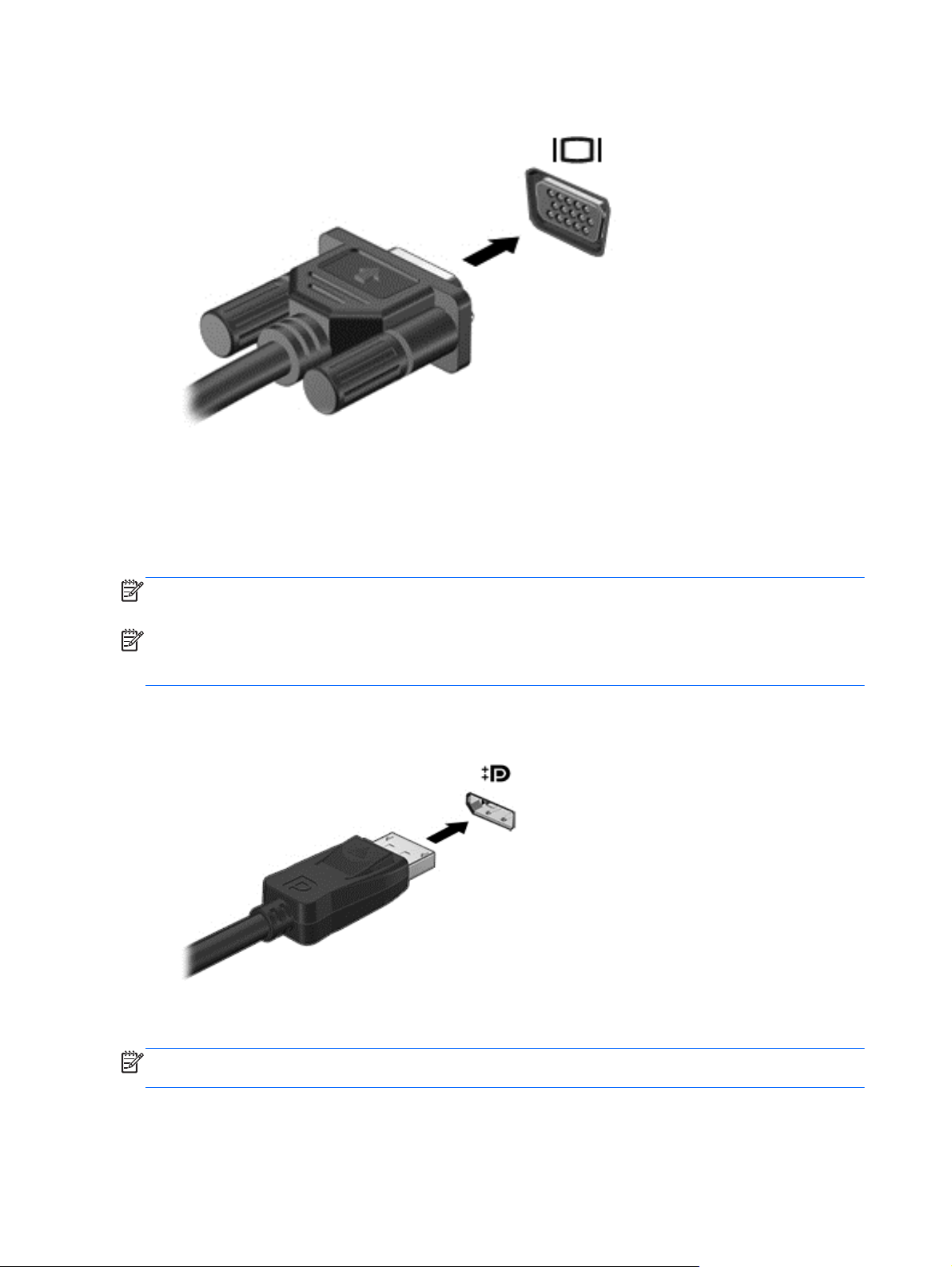

VGA ................................................................................................................................... 29

Dual-Mode DisplayPort ...................................................................................................... 30

6 Power management ...................................................................................................................................... 31

Shutting down the computer ............................................................................................................... 31

Setting power options ......................................................................................................................... 31

Using power-saving states ................................................................................................. 31

Initiating and exiting Sleep ................................................................................ 32

Using the power meter and power settings ....................................................... 32

Setting password protection on wakeup ........................................................... 32

Using battery power ........................................................................................................... 32

Finding additional battery information ............................................................... 33

Using Battery Check ......................................................................................... 33

Displaying the remaining battery charge ........................................................... 33

Maximizing battery discharge time .................................................................... 33

Managing low battery levels .............................................................................. 34

Identifying low battery levels ............................................................. 34

vi

Resolving a low battery level ............................................................ 34

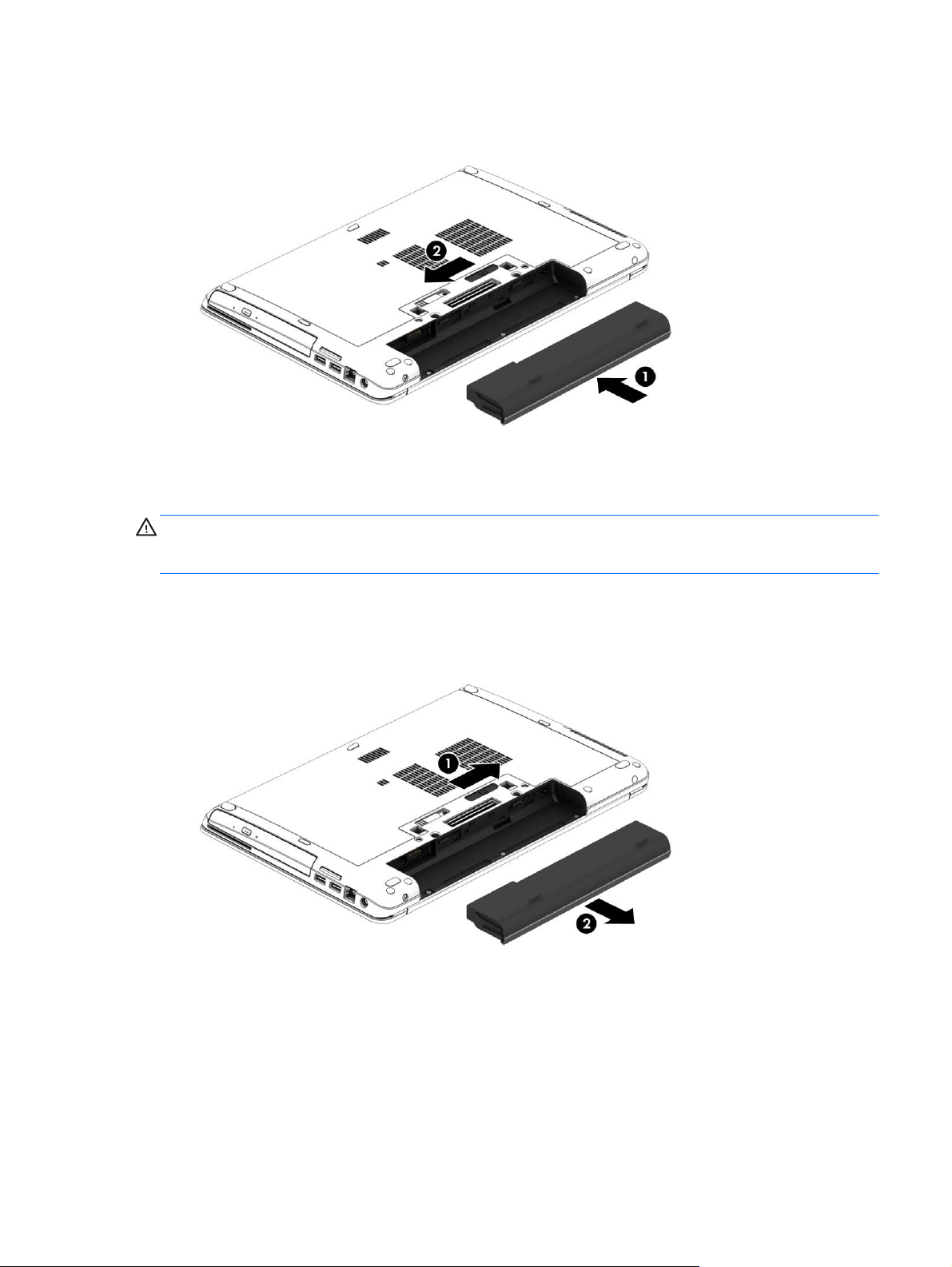

Inserting or removing the battery ...................................................................... 34

Inserting a battery ............................................................................. 34

Removing a battery .......................................................................... 35

Conserving battery power ................................................................................. 35

Storing a user-replaceable battery .................................................................... 36

Disposing of a user-replaceable battery ............................................................ 36

Replacing a user-replaceable battery ............................................................... 36

Using external AC power ................................................................................................... 36

Testing an AC adapter ...................................................................................... 37

7 External cards and devices .......................................................................................................................... 38

Using memory card readers ............................................................................................................... 38

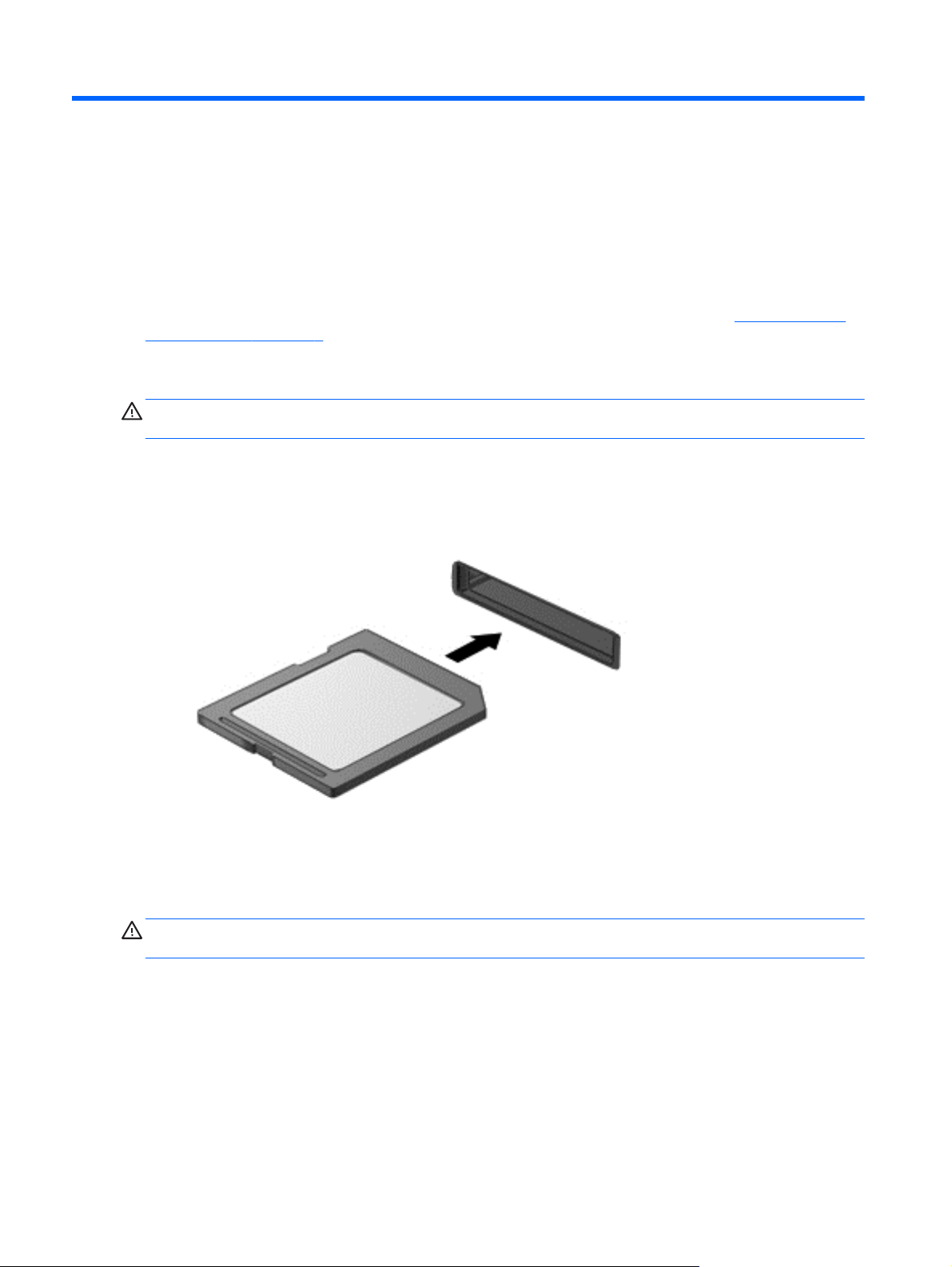

Inserting a memory card .................................................................................................... 38

Removing a memory card .................................................................................................. 38

Using smart cards .............................................................................................................................. 39

Configuring a smart card ................................................................................................... 39

Inserting a smart card ........................................................................................................ 40

Removing a smart card ...................................................................................................... 41

Using a USB device ........................................................................................................................... 41

Activating the USB 3.0 port functionality ............................................................................ 41

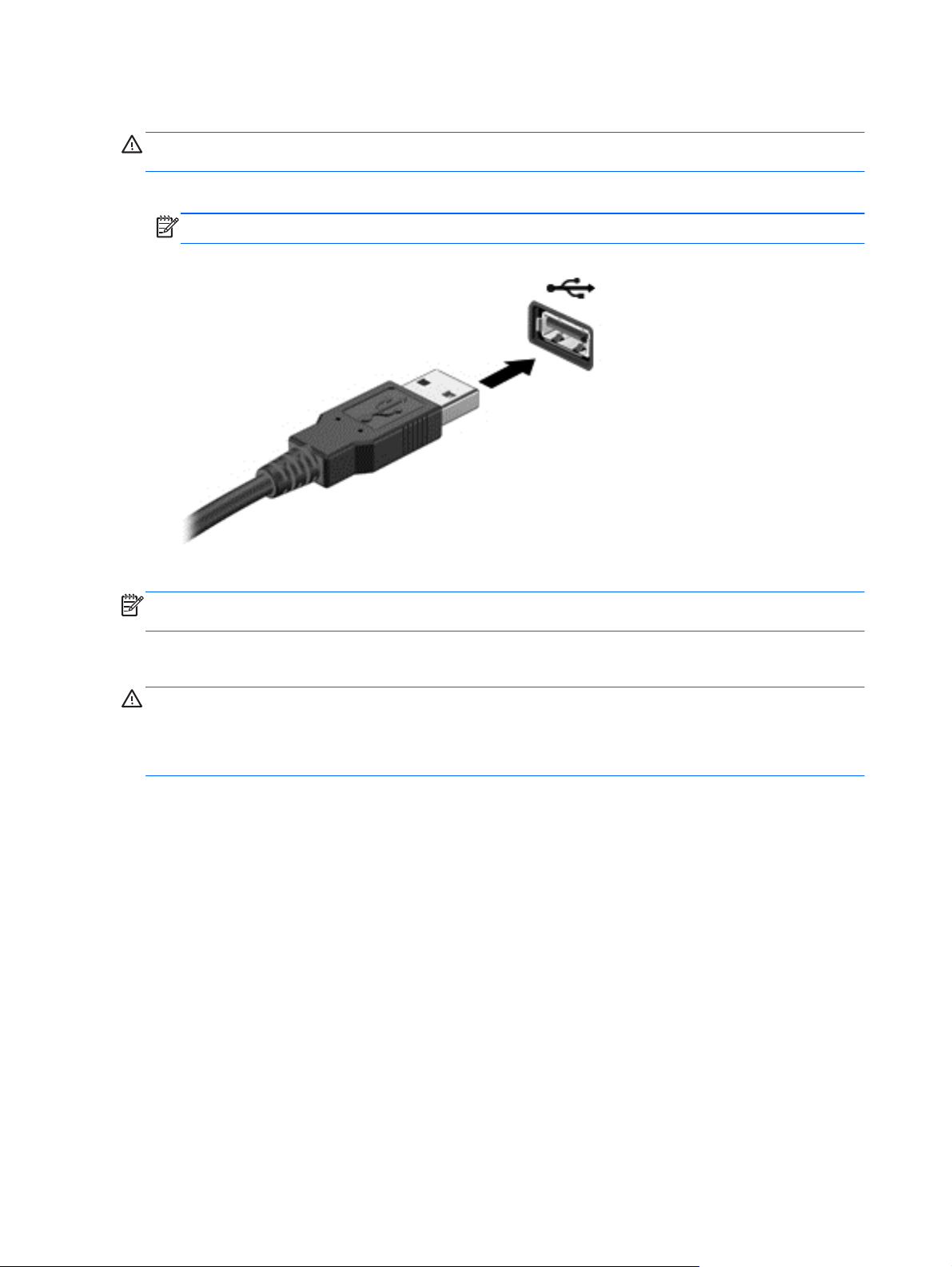

Connecting a USB device .................................................................................................. 42

Removing a USB device .................................................................................................... 42

Using optional external devices .......................................................................................................... 43

Using optional external drives ............................................................................................ 43

8 Drives ............................................................................................................................................................. 44

Handling drives ................................................................................................................................... 44

Using hard drives ............................................................................................................................... 44

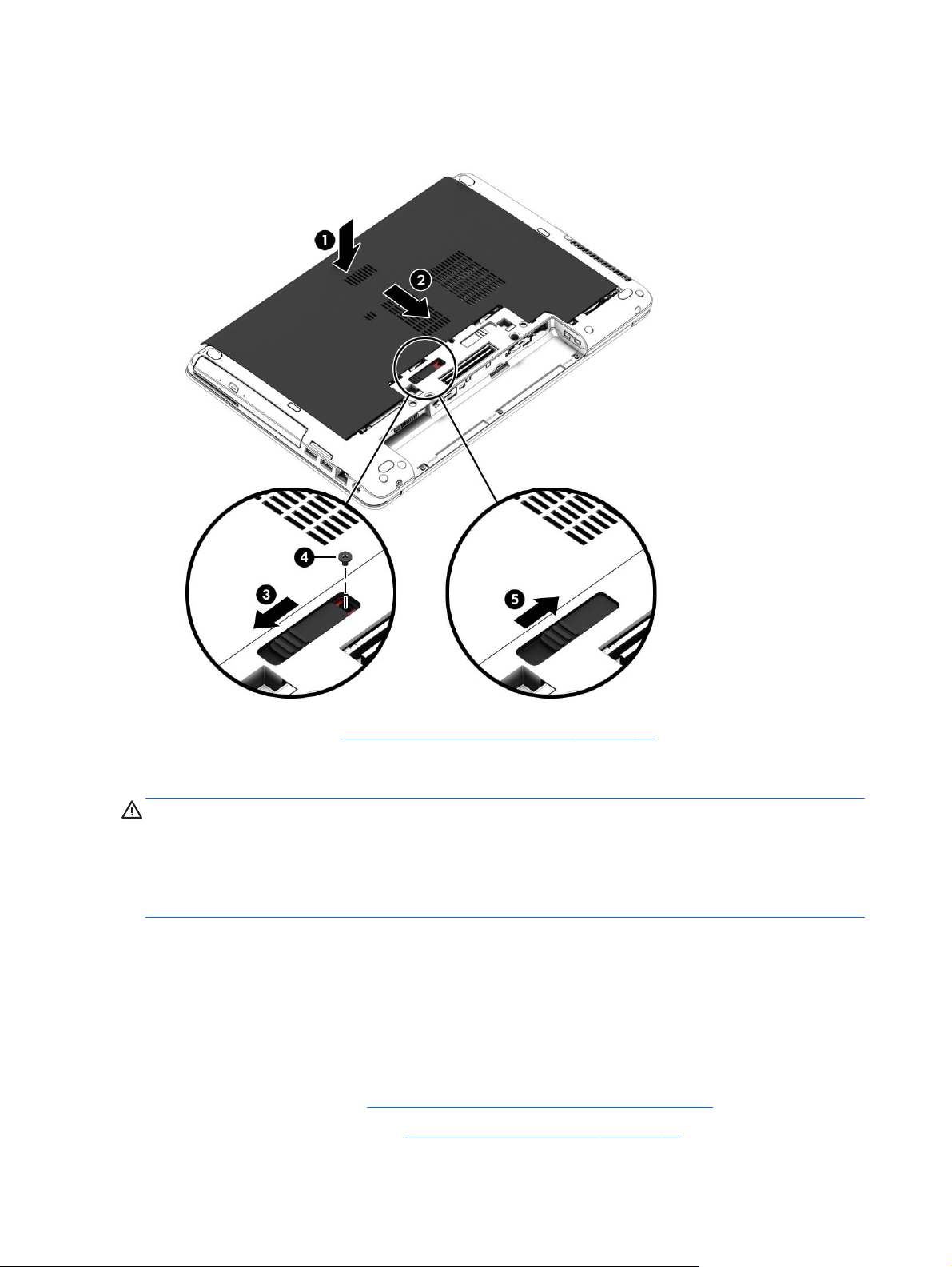

Removing or replacing the service door ............................................................................ 45

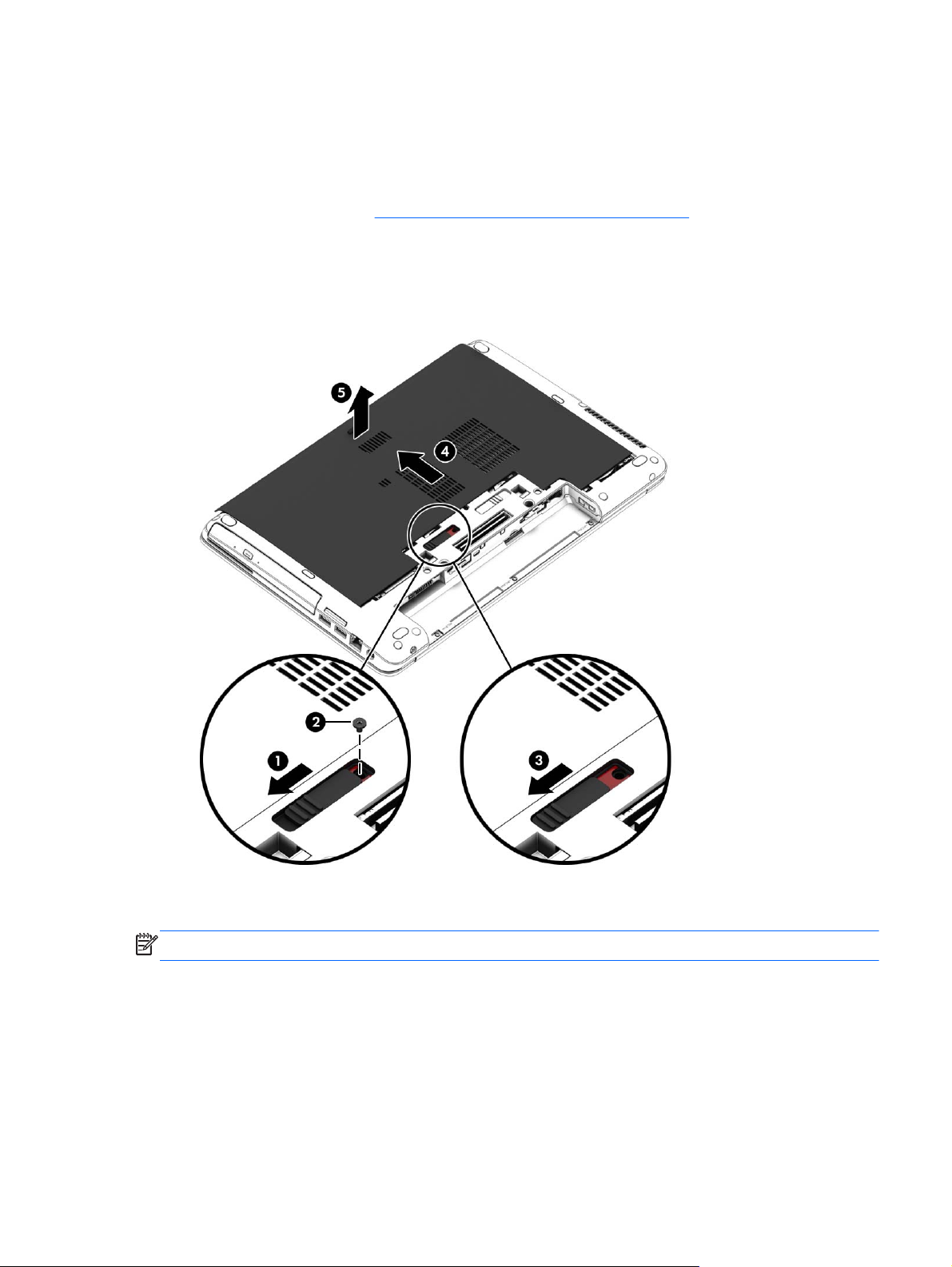

Removing the service door ............................................................................... 45

Replacing the service door ................................................................................ 45

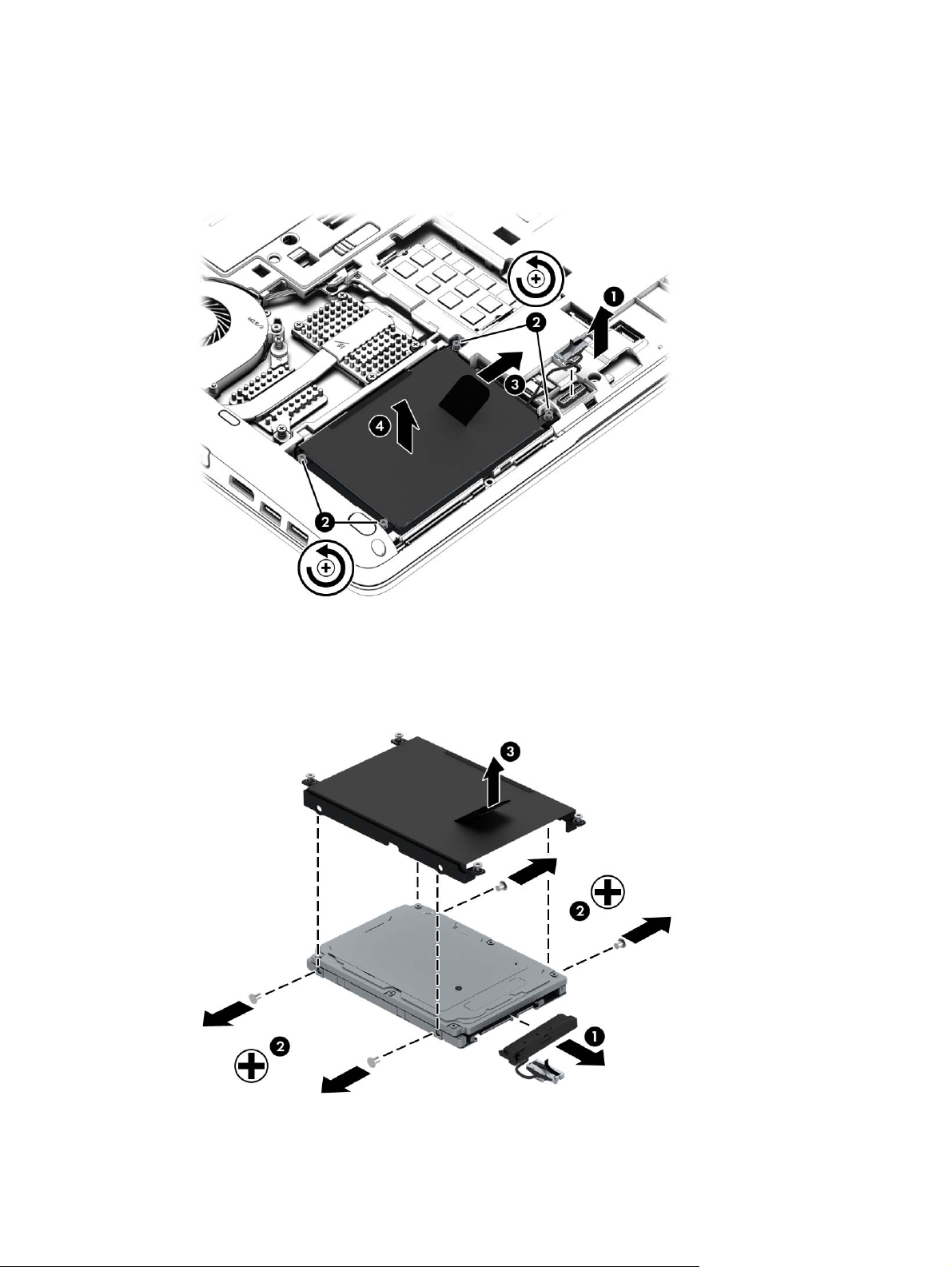

Replacing or upgrading the hard drive ............................................................................... 46

Removing the hard drive ................................................................................... 46

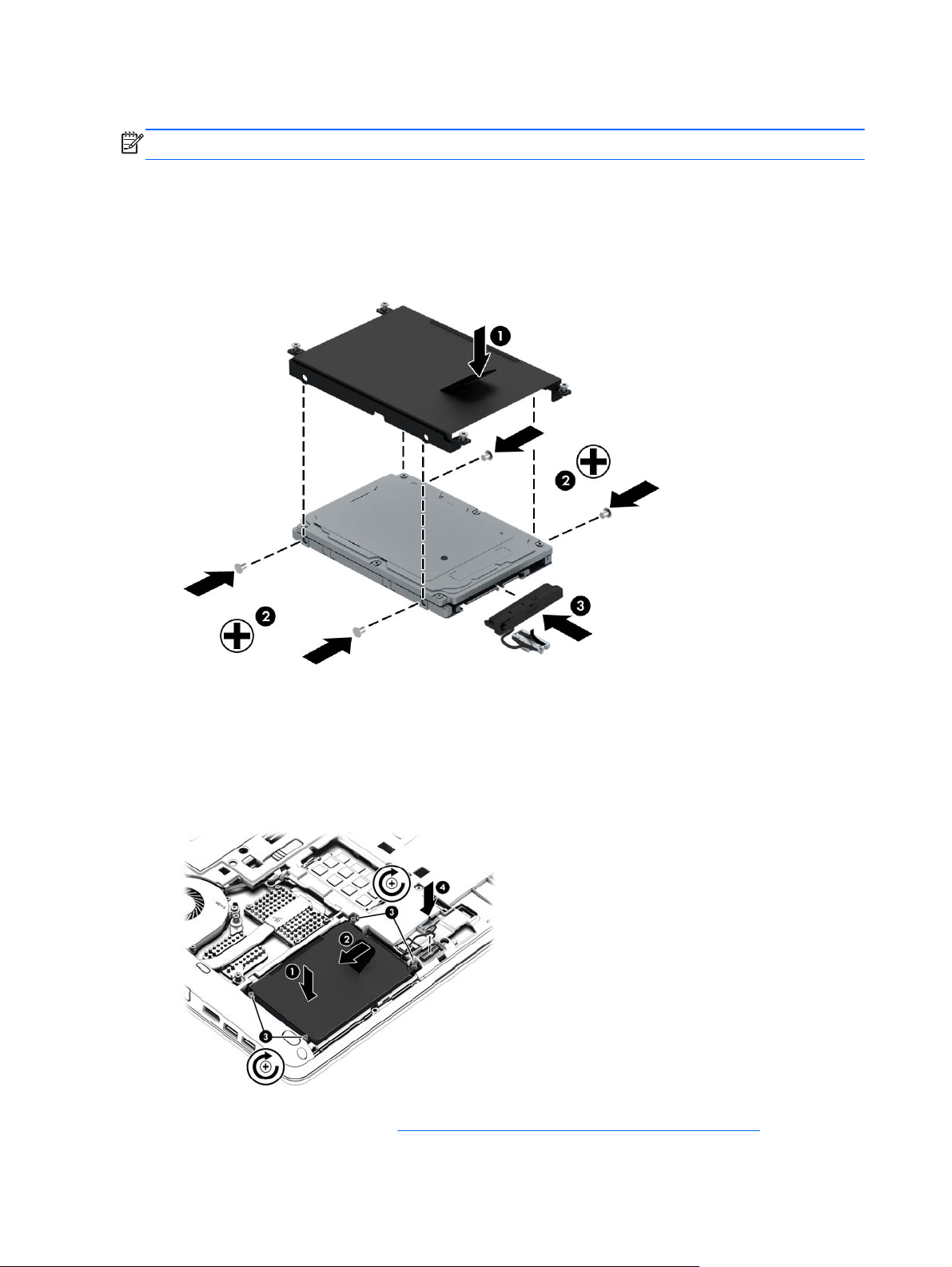

Installing a hard drive ........................................................................................ 48

Adding or replacing a drive in the upgrade bay ................................................................. 49

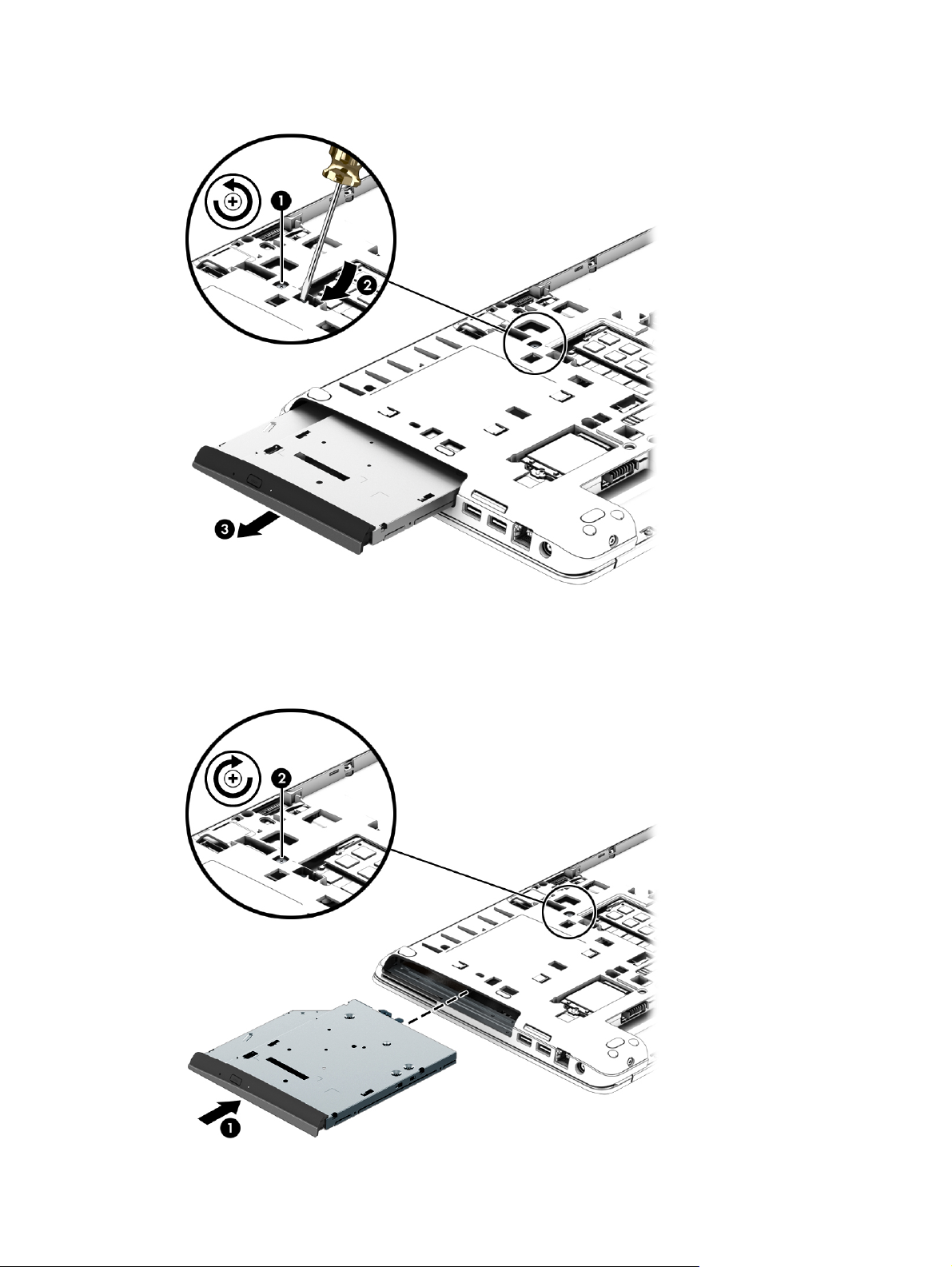

Adding or replacing an optical drive .................................................................. 49

9 Security .......................................................................................................................................................... 52

Protecting the computer ..................................................................................................................... 52

vii

Using passwords ................................................................................................................................ 52

Setting passwords in Windows .......................................................................................... 53

Setting passwords in Computer Setup .............................................................................. 53

Managing a BIOS administrator password ........................................................................ 53

Entering a BIOS administrator password .......................................................... 54

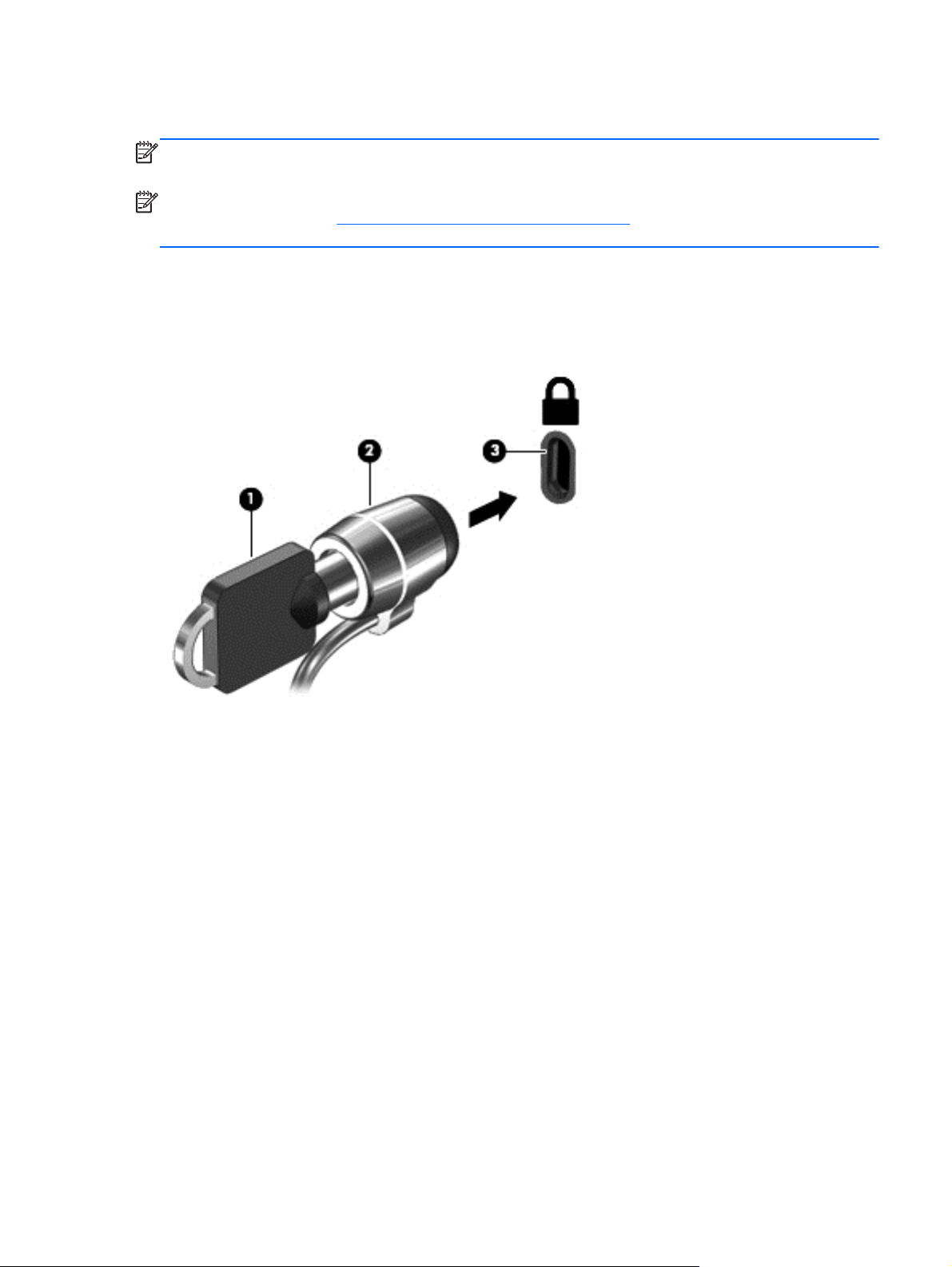

Installing an optional security cable .................................................................................................... 55

10 Maintenance ................................................................................................................................................ 56

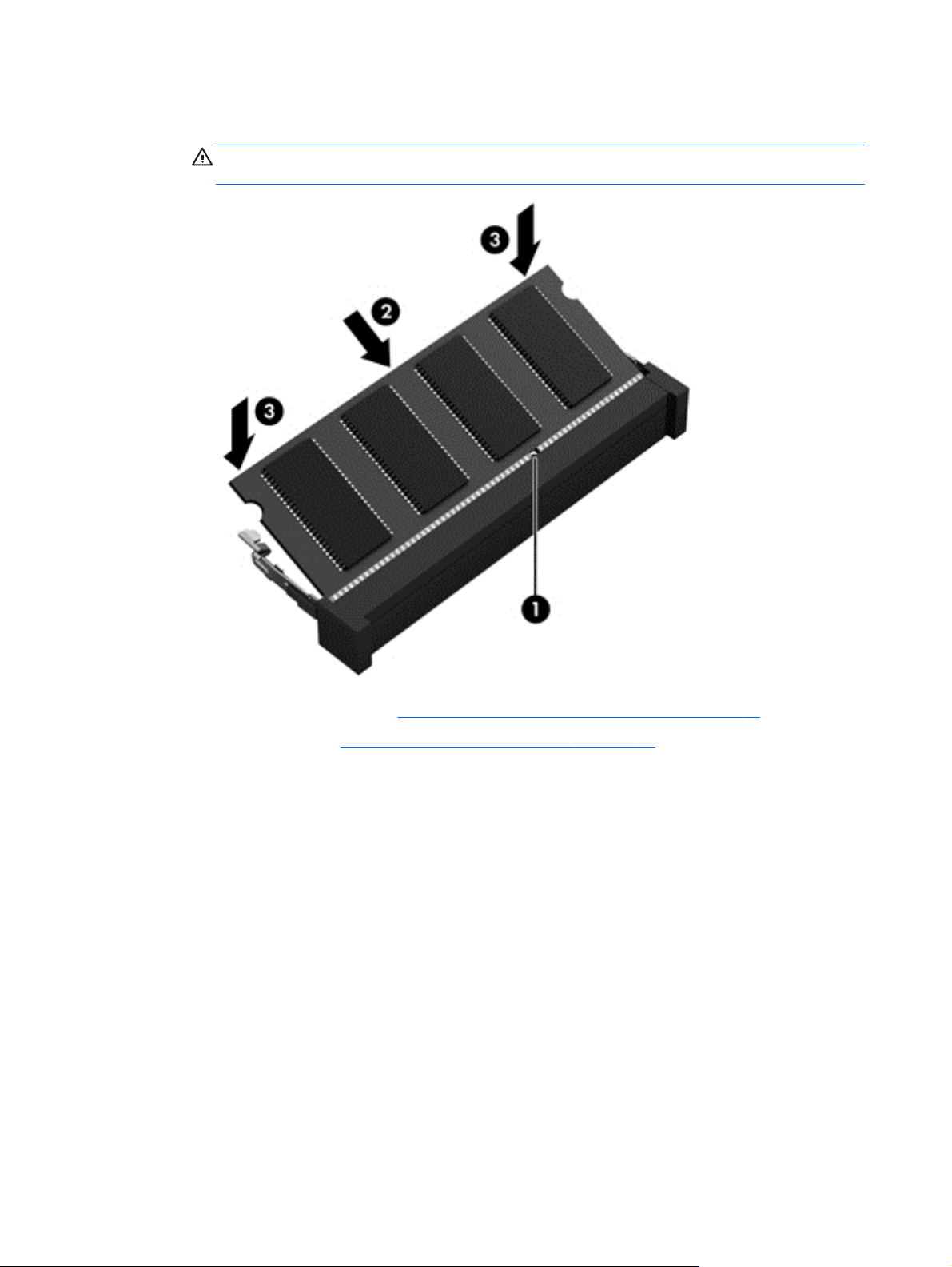

Adding or replacing memory modules ................................................................................................ 56

Cleaning your computer ..................................................................................................................... 58

Cleaning procedures .......................................................................................................... 59

Cleaning the display (All-in-Ones or Notebooks) .............................................. 59

Cleaning the sides or cover ............................................................................... 59

Cleaning the TouchPad, keyboard, or mouse ................................................... 59

Updating programs and drivers .......................................................................................................... 60

11 Computer Setup (BIOS), MultiBoot, and HP PC Hardware Diagnostics (UEFI) .................................... 61

Using Computer Setup ....................................................................................................................... 61

Starting Computer Setup ................................................................................................... 61

Navigating and selecting in Computer Setup ..................................................................... 61

Restoring factory settings in Computer Setup ................................................................... 62

Updating the BIOS ............................................................................................................. 63

Determining the BIOS version ........................................................................... 63

Downloading a BIOS update ............................................................................. 63

Using MultiBoot .................................................................................................................................. 64

About the boot device order ............................................................................................... 64

Choosing MultiBoot preferences ........................................................................................ 64

Setting a new boot order in Computer Setup .................................................... 65

Dynamically choosing a boot device using the f9 prompt ................................. 65

Setting a MultiBoot Express prompt .................................................................. 65

Entering MultiBoot Express preferences ........................................................... 66

Using HP PC Hardware Diagnostics (UEFI) (select models only) ..................................................... 66

Downloading HP PC Hardware Diagnostics (UEFI) to a USB device ............................... 67

12 Support ........................................................................................................................................................ 68

Contacting support ............................................................................................................................. 68

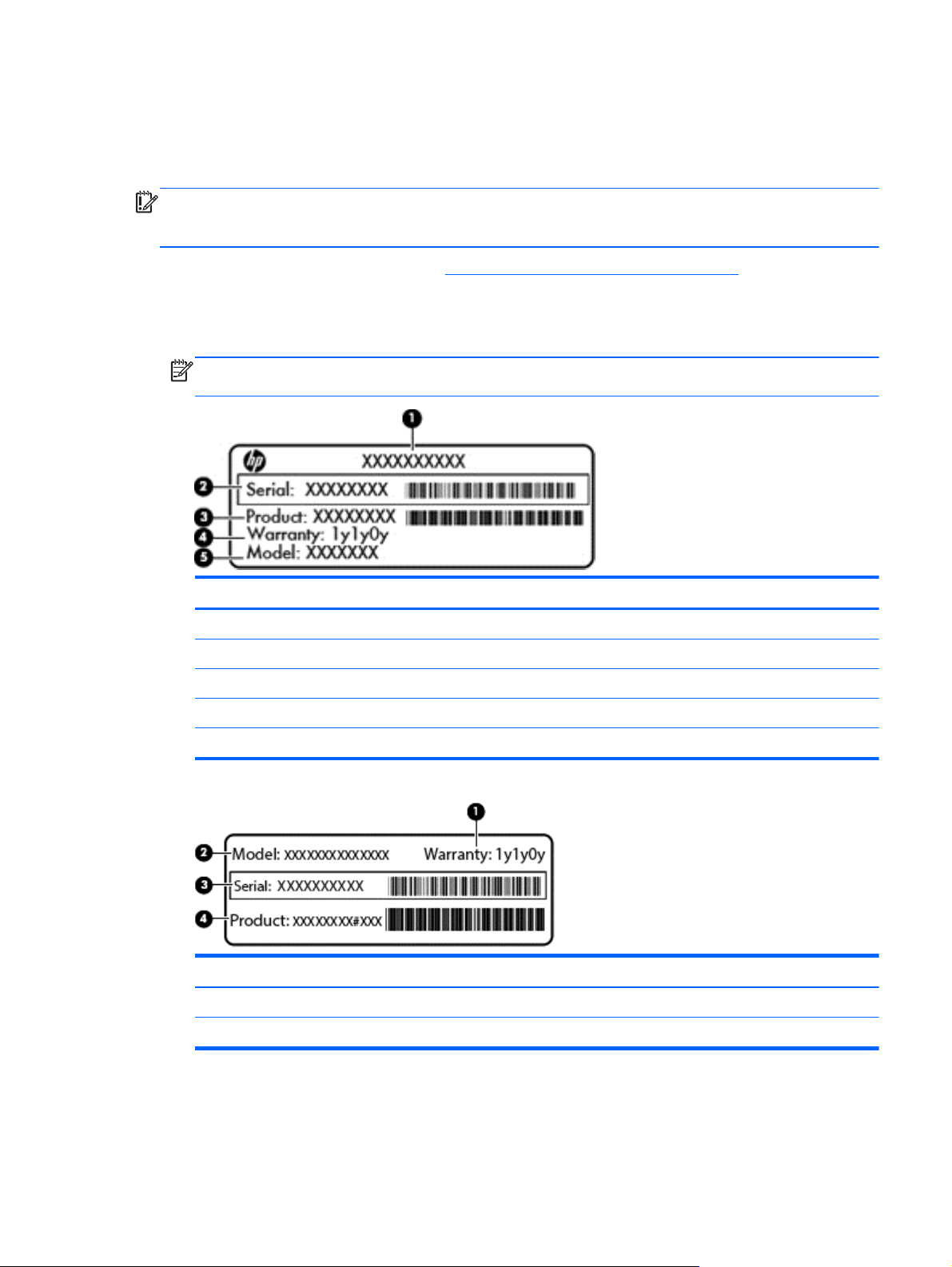

Labels ................................................................................................................................................. 69

13 Specifications .............................................................................................................................................. 71

Input power ......................................................................................................................................... 71

viii

Operating environment ....................................................................................................................... 71

Appendix A Traveling with or shipping your computer ............................................................................... 72

Appendix B Troubleshooting .......................................................................................................................... 73

Troubleshooting resources ................................................................................................................. 73

Resolving issues ................................................................................................................................ 73

The computer is unable to start up .................................................................................... 73

The computer screen is blank ............................................................................................ 74

Software is functioning abnormally .................................................................................... 74

The computer is on but not responding ............................................................................. 74

The computer is unusually warm ....................................................................................... 74

An external device is not working ...................................................................................... 75

The wireless network connection is not working ................................................................ 75

A disc does not play ........................................................................................................... 75

A movie is not visible on an external display ..................................................................... 76

The process of burning a disc does not begin, or it stops before completion .................... 76

Appendix C Electrostatic discharge .............................................................................................................. 77

Index ................................................................................................................................................................... 78

ix

x

1Welcome

After you set up and register the computer, it is important to take the following steps:

Connect to the Internet—Set up your wired or wireless network so that you can connect to the

●

Internet. For more information, see

Connecting to a network on page 14.

Get to know your computer—Learn about your computer features. Refer to

●

your computer on page 4 and Navigating using the keyboard, touch gestures and pointing
devices on page 21 for additional information.

● Find installed software—Access a list of the software preinstalled on the computer:

Select Start > All Programs. For details about using the software included with the computer,
see the software manufacturer's instructions, which may be provided with the software or on the
manufacturer's website.

Getting to know

1

Finding information

The computer comes with several resources to help you perform various tasks.

Resources For information about

Setup Instructions poster

Help and Support

To access Help and Support, select Start > Help and
Support.

To obtain the latest information in this guide, contact
support. For U.S. support, go to

contactHP. For worldwide support, go to
http://welcome.hp.com/country/us/en/
wwcontact_us.html.

Windows Embedded Standard 7 for HP Thin Clients
Quick Reference Guide

To access the user guides, select Start > Help and
Support > User guides.

Regulatory, Safety and Environmental Notices

To access the user guides, select Start > Help and
Support > User guides.

Safety & Comfort Guide

To access the user guides, select Start > Help and
Support > User guides.

– or –

Go to

http://www.hp.com/ergo.

http://www.hp.com/go/

How to set up the computer

●

Help to identify computer components

●

● Operating system information

Software, driver, and BIOS updates

●

Troubleshooting tools

●

● How to access support

Features of HP thin client models that use the Windows®

●

Embedded Standard (WES) 7 operating system.

Regulatory and safety information

●

Battery disposal information

●

Proper workstation setup, posture, health, and work habits

●

Electrical and mechanical safety information

●

Worldwide Telephone Numbers booklet

This booklet is provided with your computer.

HP website

To obtain the latest information in this guide, contact
support. For U.S. support, go to

contactHP. For worldwide support, go to
http://welcome.hp.com/country/us/en/
wwcontact_us.html.

http://www.hp.com/go/

HP support telephone numbers

Support information

●

Ordering parts and finding additional help

●

Accessories available for the device

●

2 Chapter 1 Welcome

Resources For information about

Limited Warranty*

To access this guide, select Start > Help and

Support > User guides > View Warranty
Information.

– or –

Go to

http://www.hp.com/go/orderdocuments.

*You can find the expressly provided HP Limited Warranty applicable to your product located with the user guides on your
computer and/or on the CD/DVD provided in the box. In some countries/regions, HP may provide a printed HP Limited
Warranty in the box. For some countries/regions where the warranty is not provided in printed format, you may request a
printed copy from

North America: Hewlett-Packard, MS POD, 11311 Chinden Blvd., Boise, ID 83714, USA

●

Europe, Middle East, Africa: Hewlett-Packard, POD, Via G. Di Vittorio, 9, 20063, Cernusco s/Naviglio (MI), Italy

●

Asia Pacific: Hewlett-Packard, POD, P.O. Box 200, Alexandra Post Office, Singapore 911507

●

When you request a printed copy of your warranty, please include your product number, warranty period (found on your
service label), name, and postal address.

IMPORTANT: Do NOT return your HP product to the addresses above. For U.S. support, go to

contactHP. For worldwide support, go to http://welcome.hp.com/country/us/en/wwcontact_us.html.

http://www.hp.com/go/orderdocuments or write to:

Warranty information

http://www.hp.com/go/

Finding information 3

2 Getting to know your computer

Top

TouchPad

Component Description

(1) TouchPad on/off button Turns the TouchPad on and off.

(2) TouchPad zone Moves the pointer and selects or activates items on the

screen.

(3) Left TouchPad button Functions like the left button on an external mouse.

(4) Right TouchPad button Functions like the right button on an external mouse.

4 Chapter 2 Getting to know your computer

Lights

Component Description

(1)

(2) Caps lock light On: Caps lock is on.

(3) TouchPad light

(4)

(5) Num lock light On: Num lock is on.

(6)

(7)

Power light ● On: The computer is on.

Blinking: The computer is in the Sleep state.

●

Off: The computer is off.

●

Amber: The TouchPad is off.

●

Off: The TouchPad is on.

●

Microphone mute light ● Amber: The microphone is muted.

Off: The microphone is on.

●

Wireless light

Mute light

White: An integrated wireless device, such as a

●

wireless local area network (WLAN) device is on.

Amber: All wireless devices are off.

●

Amber: Computer sound is off.

●

Off: Computer sound is on.

●

Top 5

Buttons and speakers

Component Description

(1)

(2) Speakers (2) Produce sound.

(3)

(4)

Power button ● When the computer is off, press the button to turn on

Wireless button Turns the wireless feature on or off but does not establish a

Volume mute button Mutes and restores speaker sound.

the computer.

When the computer is on, press the button briefly to

●

initiate Sleep.

● When the computer is in the Sleep state, press the

button briefly to exit Sleep.

CAUTION: Pressing and holding down the power button

will result in the loss of unsaved information.

If the computer has stopped responding and Windows®
shutdown procedures are ineffective, press and hold the
power button for at least 5 seconds to turn off the computer.

To learn more about your power settings: Select Start >
Control Panel > System and Security > Power Options.

wireless connection.

6 Chapter 2 Getting to know your computer

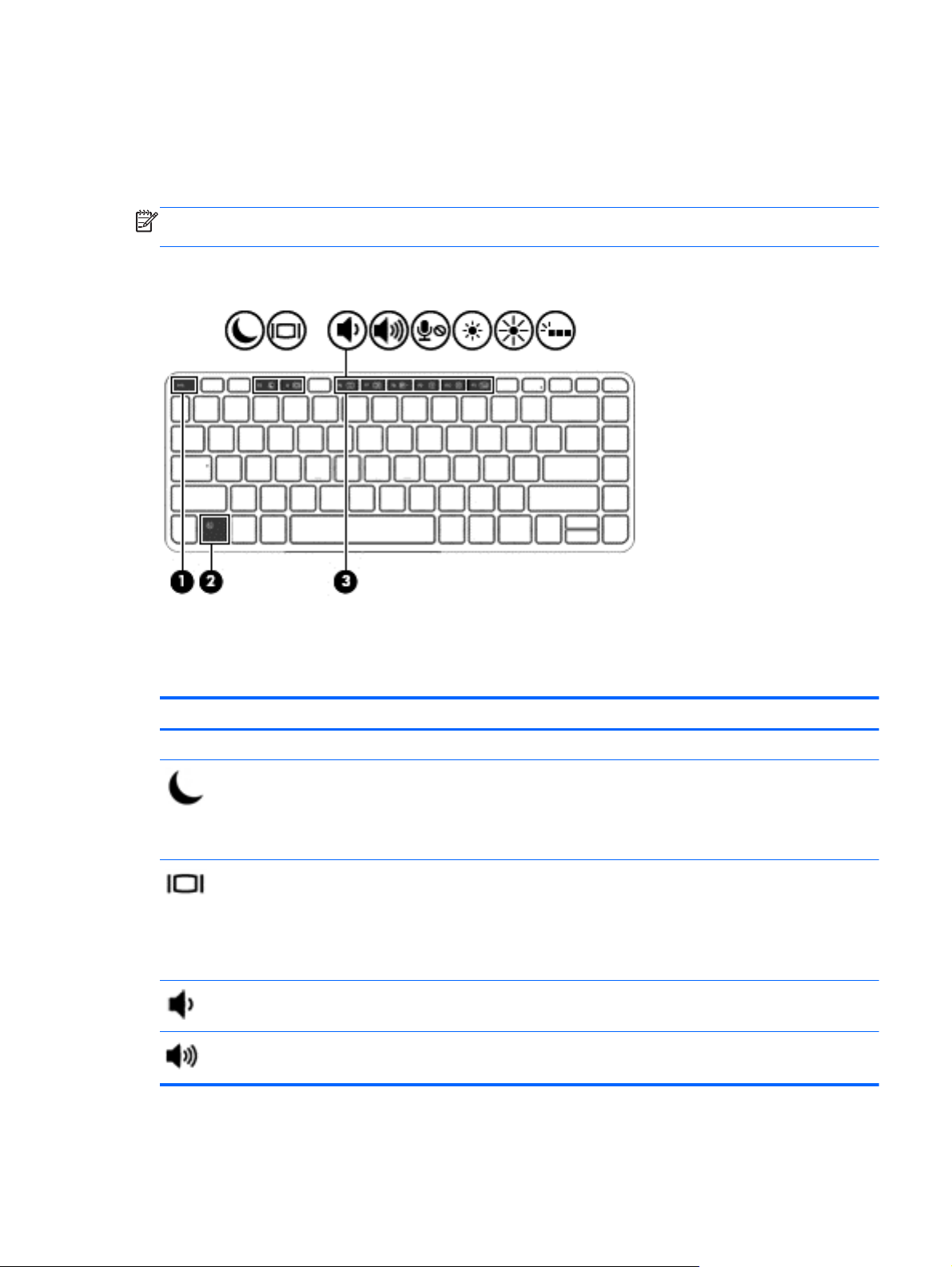

Keys

Component Description

(1) esc key Displays system information when pressed in combination

(2) fn key Executes frequently used system functions when pressed in

(3)

(4) Function keys Execute frequently used system functions when pressed in

(5)

(6) Embedded numeric keypad When the keypad is turned on, it can be used like an

(7) num lk key Turns the embedded numeric keypad on and off when

Windows button Displays the Windows Start menu.

Windows applications key Displays a shortcut menu for items beneath the cursor.

with the fn key.

combination with a function key, the num lk key, or the esc
key.

combination with the fn key.

external numeric keypad.

Each key on the keypad performs the function indicated by
the icon in the upper-right corner of the key.

pressed in combination with the fn key.

Top 7

Front

Component Description

(1)

(2)

(3)

(4)

Wireless light

Power light ● On: The computer is on.

AC adapter/Battery light ● White: The computer is connected to external

Drive light

White: An integrated wireless device, such as a

●

wireless local area network (WLAN) device is on.

Amber: All wireless devices are off.

●

Blinking: The computer is in the Sleep state.

●

Off: The computer is off.

●

power and the battery is charged from 90 to 99
percent.

Amber: The computer is connected to external

●

power and the battery is charged from 0 to 90
percent.

Blinking amber: A battery that is the only

●

available power source has reached a low
battery level. When the battery reaches a critical
battery level, the battery light begins blinking
rapidly.

Off: The battery is fully charged.

●

Blinking white: The hard drive or optical disk

●

drive is being accessed.

8 Chapter 2 Getting to know your computer

Right

Component Description

(1)

(2)

(3)

(4)

Audio-out (headphone) jack/Audio-in
(microphone) jack

USB ports (2) Connect optional USB devices and provide enhanced USB

Dual-Mode DisplayPort Connects an optional digital display device, such as a high-

External monitor port Connects an external VGA monitor or projector.

Produces sound when connected to optional powered
stereo speakers, headphones, earbuds, a headset, or
television audio. Also connects an optional headset
microphone. This jack does not support optional
microphone-only devices.

WARNING! To reduce the risk of personal injury, adjust

the volume before putting on headphones, earbuds, or a
headset. For additional safety information, see the
Regulatory, Safety and Environmental Notices. To access
the user guides, select Start > Help and Support > User

Guides.

NOTE: When a device is connected to the jack, the

computer speakers are disabled.

NOTE: Be sure that the device cable has a 4-conductor

connector that supports both audio-out (headphone) and
audio-in (microphone).

power performance.

NOTE: These ports support USB 2.0 by default. For

details about activating the USB 3.0 port functionality, see

Using a USB device on page 41.

performance monitor or projector.

(5) Vents (2) Enable airflow to cool internal components.

NOTE: The computer fan starts up automatically to cool

internal components and prevent overheating. It is normal
for the internal fan to cycle on and off during routine
operation.

(6)

Security cable slot Attaches an optional security cable to the computer.

NOTE: The security cable is designed to act as a

deterrent, but it may not prevent the computer from being
mishandled or stolen.

Right 9

Left

Component Description

(1)

(2)

(3)

(4) Memory card reader Reads data from and writes data to memory cards such as

(5)

(6) Upgrade bay (optical drive shown) The upgrade bay can hold an optical drive that reads and

Power connector Connects an AC adapter.

RJ-45 (network) jack

RJ-45 (network) lights (2)

USB charging port Connects an optional USB device. The USB charging port

USB port Connects optional USB devices and provide enhanced

Connects a network cable.

Green (left): The network is connected.

●

Amber (right): The network is showing activity.

●

can also charge select models of cell phones and MP3
players, even when the computer is off.

NOTE: These ports support USB 2.0 by default. For

details about activating the USB 3.0 port functionality, see

Using a USB device on page 41.

Secure Digital (SD).

USB power performance.

NOTE: These ports support USB 2.0 by default. For

details about activating the USB 3.0 port functionality, see

Using a USB device on page 41.

writes (select models only) to an optical disc. It can also
hold a weight saver option.

(7) Optical drive light (select models only)

(8) Optical drive eject button (select models

(9)

only)

Smart card Supports optional smart cards.

10 Chapter 2 Getting to know your computer

Green: The optical drive is being accessed.

●

Off: The optical drive is idle.

●

Releases the optical drive disc tray.

Display

Component Description

(1) WLAN antennas (2)* Send and receive wireless signals to communicate with wireless

(2) WWAN antennas (2)* (select models only) Send and receive wireless signals to communicate with wireless

(3) Internal microphones (2) Record sound.

(4) Webcam light (select models only) On: The webcam is in use.

(5) Webcam (select models only) Records video and captures still photographs.

(6) Internal display switch Turns off the display if the display is closed while the power is

*The antennas are not visible on the outside of the computer. For optimal transmission, keep the areas immediately around
the antennas free from obstructions. To see wireless regulatory notices, see the section of the Regulatory, Safety and

Environmental Notices that applies to your country or region. To access the user guides, select Start > Help and Support >
User Guides.

local area networks (WLAN).

wide area networks (WWAN).

on.

NOTE: The display switch is not visible on the outside of the

computer.

Display 11

Bottom

Component Description

(1) Service door Provides access to the hard drive bay, the WLAN

module slot, the WWAN module slot, and the memory
module slots.

Steps for removing the service door are provided in

Removing or replacing the service door on page 45.

CAUTION: To prevent an unresponsive system,

replace the wireless module only with a wireless
module authorized for use in the computer by the
governmental agency that regulates wireless devices
in your country or region. If you replace the module
and then receive a warning message, remove the
module to restore computer functionality, and then
contact support. To access Help and Support, select

Start > Help and Support.

(2)

(3)

(4)

Battery release latch open position Releases the battery.

Battery release latch locked position Holds the battery.

Docking connector Connects an optional docking device.

12 Chapter 2 Getting to know your computer

Component Description

(5)

(6)

(7)

(8) Battery bay Holds the battery.

(9) Vents (4) Enable airflow to cool internal components.

Service door release latch locked
position

Optional security screw Locks the service door release latch in place.

Service door release latch Releases the service door on the computer.

Holds the service door.

NOTE: The computer fan starts up automatically to

cool internal components and prevent overheating. It
is normal for the internal fan to cycle on and off during
routine operation.

Bottom 13

3 Connecting to a network

Your computer can travel with you wherever you go. But even at home, you can explore the globe
and access information from millions of websites using your computer and a wired or wireless
network connection. This chapter will help you get connected to that world.

Connecting to a wireless network

Wireless technology transfers data across radio waves instead of wires. Your computer may be
equipped with one or more of the following wireless devices:

Wireless local area network (WLAN) device—Connects the computer to wireless local area

●

networks (commonly referred to as Wi-Fi networks, wireless LANs, or WLANs) in corporate
offices, your home, and public places such as airports, restaurants, coffee shops, hotels, and
universities. In a WLAN, the mobile wireless device in your computer communicates with a
wireless router or a wireless access point.

HP Mobile Broadband Module (select models only)—A wireless wide area network (WWAN)

●

device that gives you wireless connectivity over a much larger area. Mobile network operators
install base stations (similar to cell phone towers) throughout large geographic areas, effectively
providing coverage across entire states, regions, or even countries.

For more information about wireless technology, see the information and website links provided in
Help and Support. To access Help and Support, select Start > Help and Support.

Using the wireless controls

You can control the wireless devices in your computer using these features:

● Wireless button, wireless switch, or wireless key (referred to in this chapter as the wireless

button)

Operating system controls

●

Turning wireless devices on or off

You can use the wireless button or HP Connection Manager (select models only) to turn on and turn
off wireless devices.

To turn off wireless devices using HP Connection Manager:

▲ Right-click the HP Connection Manager icon in the notification area, at the far right of the

taskbar, and then click the power button next to the desired device.

-or-

Select Start > All Programs > Productivity and Tools > HP Connection Manager, and then
click the power button next to the desired device.

14 Chapter 3 Connecting to a network

Using HP Connection Manager (select models only)

HP Connection Manager provides a central location for managing your wireless devices, an interface
for connecting to the Internet using HP Mobile Broadband, and an interface for sending and receiving
SMS (text) messages. HP Connection Manager allows you to manage the following devices:

Wireless local area network (WLAN)/Wi-Fi

●

Wireless wide area network (WWAN)/HP Mobile Broadband

●

HP Connection Manager provides information and notifications on connection status, power status,
SIM details, and SMS messages. Status information and notifications are provided in the notification
area, at the far right of the taskbar.

To open HP Connection Manager:

Click the HP Connection Manager icon in the taskbar.

▲

-or-

Select Start > All Programs > Productivity and Tools > HP Connection Manager.

For more information, see the HP Connection Manager software Help.

Using the wireless button

The computer has a wireless button, one or more wireless devices, and one or two wireless lights,
depending on the model. All of the wireless devices on your computer are enabled at the factory, so
the wireless light is on (white) when you turn on the computer.

The wireless light indicates the overall power state of your wireless devices, not the status of
individual devices. If the wireless light is white, at least one wireless device is on. If the wireless light
is amber, all wireless devices are off.

Because the wireless devices are enabled at the factory, you can use the wireless button to turn on or
turn off the wireless devices simultaneously.

Using operating system controls

The Network and Sharing Center allows you to set up a connection or network, connect to a network,
manage wireless networks, and diagnose and repair network problems.

To use operating system controls:

Select Start > Control Panel > Network and Internet > Network and Sharing Center.

▲

For more information, access Help and Support by selecting Start > Help and Support.

Using a WLAN

With a WLAN device, you can access a wireless local area network (WLAN), which is composed of
other computers and accessories that are linked by a wireless router or a wireless access point.

Connecting to a wireless network 15

NOTE: The terms wireless router and wireless access point are often used interchangeably.

● A large-scale WLAN, such as a corporate or public WLAN, typically uses wireless access points

that can accommodate a large number of computers and accessories and can separate critical
network functions.

A home or small office WLAN typically uses a wireless router, which allows several wireless and

●

wired computers to share an Internet connection, a printer, and files without requiring additional
pieces of hardware or software.

To use the WLAN device in your computer, you must connect to a WLAN infrastructure (provided
through a service provider or a public or corporate network).

Using an Internet service provider

When you are setting up Internet access in your home, you must establish an account with an
Internet service provider (ISP). To purchase Internet service and a modem, contact a local ISP. The
ISP will help set up the modem, install a network cable to connect your wireless computer to the
modem, and test the Internet service.

NOTE: Your ISP will give you a user ID and a password to use for Internet access. Record this

information and store it in a safe place.

Setting up a WLAN

To set up a WLAN and connect to the Internet, you need the following equipment:

A broadband modem (either DSL or cable) (1) and high-speed Internet service purchased from

●

an Internet service provider

A wireless router (2) (purchased separately)

●

A wireless computer (3)

●

NOTE: Some modems have a built-in wireless router. Check with your ISP to determine what type

of modem you have.

The illustration below shows an example of a wireless network installation that is connected to the
Internet.

As your network grows, additional wireless and wired computers can be connected to the network to
access the Internet.

For help in setting up your WLAN, see the information provided by your router manufacturer or your
ISP.

Configuring a wireless router

For help in configuring a wireless router, see the information provided by your router manufacturer or
your ISP.

16 Chapter 3 Connecting to a network

NOTE: It is recommended that you initially connect your new wireless computer to the router by

using the network cable provided with the router. When the computer successfully connects to the
Internet, disconnect the cable, and access the Internet through your wireless network.

Protecting your WLAN

When you set up a WLAN or access an existing WLAN, always enable security features to protect
your network from unauthorized access. WLANs in public areas (hotspots) like coffee shops and
airports may not provide any security. If you are concerned about the security of your computer in a
hotspot, limit your network activities to email that is not confidential and basic Internet surfing.

Wireless radio signals travel outside the network, so other WLAN devices can pick up unprotected
signals. To protect your WLAN, use wireless encryption.

Wireless encryption uses security settings to encrypt and decrypt data that is transmitted over the
network. For more information, access Help and Support by selecting Start > Help and Support.

Connecting to a WLAN

To connect to the WLAN, follow these steps:

1. Turn on the computer. Be sure that the WLAN device is on. If the device is on, the wireless light

is on. If the wireless light is off, press the wireless button.

NOTE: On some models, the wireless light is amber when all wireless devices are off.

2. Click the network status icon in the notification area, at the far right of the taskbar.

3. Select a WLAN to connect to.

4. Click Connect.

If the WLAN is a security-enabled WLAN, you are prompted to enter a security code. Type the
code, and then click OK to complete the connection.

NOTE: If no WLANs are listed, you may be out of range of a wireless router or access point.

NOTE: If you do not see the WLAN you want to connect to, click Open Network and Sharing

Center. and then click Set up a new connection or network. A list of options is displayed,

allowing you to manually search for and connect to a network or to create a new network
connection.

5. Follow the on-screen instructions to complete the connection.

After the connection is made, place the mouse pointer over the network status icon in the notification
area, at the far right of the taskbar, to verify the name and status of the connection.

NOTE: The functional range (how far your wireless signals travel) depends on WLAN

implementation, router manufacturer, and interference from other electronic devices or structural
barriers such as walls and floors.

Using HP Mobile Broadband (select models only)

HP Mobile Broadband enables your computer to use WWANs to access the Internet from more
places and over larger areas than it can by using WLANs. Using HP Mobile Broadband requires a
network service provider (called a mobile network operator), which in most cases is a cellular phone
network operator. Coverage for HP Mobile Broadband is similar to cellular phone voice coverage.

Connecting to a wireless network 17

When used with mobile network operator service, HP Mobile Broadband gives you the freedom to
stay connected to the Internet, send email, or connect to your corporate network whether you are on
the road or outside the range of Wi-Fi hotspots.

HP supports the following technologies:

● HSPA (High Speed Packet Access), which provides access to networks based on the Global

System for Mobile Communications (GSM) telecommunications standard.

EV-DO (Evolution Data Optimized), which provides access to networks based on the code

●

division multiple access (CDMA) telecommunications standard.

You may need the HP Mobile Broadband Module serial number to activate mobile broadband service.
The serial number is printed on the service label.

Some mobile network operators require the use of a SIM. A SIM contains basic information about
you, such as a personal identification number (PIN), as well as network information. Some computers
include a SIM that is preinstalled in the battery bay. If the SIM is not preinstalled, it may be provided
in the HP Mobile Broadband information provided with your computer or the mobile network operator
may provide it separately from the computer.

For information about inserting and removing the SIM, see the

on page 18 section in this chapter.

For information about HP Mobile Broadband and how to activate service with a preferred mobile
network operator, see the HP Mobile Broadband information included with your computer. For
additional information, see the HP website at
countries only).

Inserting and removing a SIM

CAUTION: To prevent damage to the connectors, use minimal force when inserting a SIM.

To insert a SIM, follow these steps:

1. Shut down the computer.

2. Close the display.

3. Disconnect all external devices connected to the computer.

4. Unplug the power cord from the AC outlet.

5. Turn the computer upside down on a flat surface, with the battery bay toward you.

6. Remove the battery. See

7. Remove the service door. See

Inserting and removing a SIM

http://www.hp.com/go/mobilebroadband (select regions/

Removing a battery on page 35.

Removing the service door on page 45.

18 Chapter 3 Connecting to a network

8. Insert the SIM into the SIM slot, and gently push the SIM into the slot until it is firmly seated.

NOTE: See the image on the battery bay to determine which way the SIM should be inserted

into your computer.

NOTE: To remove a SIM, press in on the SIM, and then remove it from the slot.

9. Replace the service door. See Replacing the service door on page 45.

10. Replace the battery. See

NOTE: HP Mobile Broadband will be disabled if the battery is not replaced.

11. Reconnect external power.

12. Reconnect external devices.

13. Turn on the computer.

Inserting a battery on page 34.

Using GPS (select models only)

Your computer may be equipped with a Global Positioning System (GPS) device. GPS satellites
deliver location, speed, and direction information to GPS-equipped systems.

For more information, see the HP GPS and Location software Help.

Connecting to a wired network

Connecting to a local area network (LAN)

Use a LAN connection if you want to connect the computer directly to a router in your home (instead
of working wirelessly), or if you want to connect to an existing network at your office.

Connecting to a LAN requires an 8-pin, RJ-45 network cable.

To connect the network cable, follow these steps:

1. Plug the network cable into the network jack (1) on the computer.

Connecting to a wired network 19

2. Plug the other end of the network cable into a network wall jack (2) or router.

NOTE: If the network cable contains noise suppression circuitry (3), which prevents

interference from TV and radio reception, orient the circuitry end of the cable toward the
computer.

20 Chapter 3 Connecting to a network

4 Navigating using the keyboard, touch

gestures and pointing devices

Your computer allows navigation using touch gestures in addition to the keyboard and mouse. Touch
gestures can be used on your computer TouchPad.

Your computer also has special action keys or hot key functions on the keyboard to perform routine
tasks.

Using pointing devices

NOTE: In addition to the pointing devices included with your computer, you can use an external

USB mouse (purchased separately) by connecting it to one of the USB ports on the computer.

Setting pointing device preferences

Use Mouse Properties in Windows to customize settings for pointing devices, such as button
configuration, click speed, and pointer options.

To access Mouse Properties:

Select Start > Devices and Printers. Then right-click the device representing your computer,

●

and select Mouse settings.

Using the TouchPad

To move the pointer, slide one finger across the TouchPad in the direction you want the pointer to go.
Use the left and right TouchPad buttons like the buttons on an external mouse.

Using pointing devices 21

Turning the TouchPad off and on

To turn the TouchPad off and on, quickly double-tap the TouchPad on/off button.

Using TouchPad Gestures

Your TouchPad allows you to navigate the pointing device on the screen by using your fingers to
control the pointer action.

The TouchPad supports a variety of gestures. To use TouchPad gestures, place two fingers on the
TouchPad at the same time.

NOTE: TouchPad gestures are not supported in all programs.

To view the demonstration of a gesture:

1. Click the Synaptics Pointing Device icon in the notification area, at the far right of the taskbar,

and then click Pointing Device Properties.

2. Click the Device Settings tab, select the device in the window that is displayed, and then click

Settings.

3. Select the gesture to activate the demonstration.

To turn the gestures off or on:

1. Click the Synaptics Pointing Device icon in the notification area, at the far right of the taskbar,

and then click Pointing Device Properties.

2. Click the Device Settings tab, select the device in the window that is displayed, and then click

Settings.

3. Select the check box next to the gesture that you want to turn on or off.

4. Click Apply, and then click OK.

22 Chapter 4 Navigating using the keyboard, touch gestures and pointing devices

One-finger slide

The one-finger slide lets you navigate around the screen.

Place your finger on the TouchPad zone and slide your finger to move the on-screen pointer in

●

the direction you want the pointer to go.

Tapping

To make an on-screen selection, use the Tap function on the TouchPad.

Tap one finger on the TouchPad zone to make a selection. Double-tap an item to open it.

●

Using pointing devices 23

Scrolling

Scrolling is useful for moving up, down, or sideways on a page or image.

Place two fingers slightly apart on the TouchPad zone and then drag them up, down, left, or

●

right.

Pinching/zooming

Pinching and zooming allow you to zoom out or in on images or text.

Zoom in by placing two fingers together on the TouchPad zone and then moving your fingers

●

apart.

● Zoom out by placing two fingers apart on the TouchPad zone and then moving your fingers

together.

24 Chapter 4 Navigating using the keyboard, touch gestures and pointing devices

Using the keyboard

The keyboard and mouse allow you to type select items, scroll and to perform the same functions as
using touch gestures. The keyboard also allows you to use action keys and hot keys to perform
specific functions.

NOTE: Depending on the country or region, your keyboard may have different keys and keyboard

functions than those discussed in this section.

Identifying the hot keys

A hot key is a combination of the fn key (2) and either the esc key (1), or one of the function keys (3).

To use a hot key:

Briefly press the fn key, and then briefly press the second key of the hot key combination.

▲

Hot key combination Description

fn+esc Displays system information.

fn+f3 Initiates Sleep, which saves your information in system memory. The display and other system

components turn off and power is conserved.

To exit Sleep, briefly press the power button.

CAUTION: To reduce the risk of information loss, save your work before initiating Sleep.

fn+f4 Switches the screen image among display devices connected to the system. For example, if a

fn+f6 Decreases speaker volume.

fn+f7 Increases speaker volume.

monitor is connected to the computer, fn+f4 alternates the screen image from computer display to
monitor display to simultaneous display on both the computer and the monitor.

Most external monitors receive video information on the computer using the external VGA video
standard. The fn+f4 hot key can also alternate images among other devices that are receiving video
information on the computer.

Using the keyboard 25

Hot key combination Description

fn+f8 Turns the microphone mute on or off.

Amber: The microphone is muted.

●

Off: The microphone is on.

●

fn+f9 Decreases the screen brightness level.

fn+f10 Increases the screen brightness level.

Using keypads

The computer includes an embedded numeric keypad. The computer also supports an optional
external numeric keypad, or an optional external keyboard that includes a numeric keypad.

Using the embedded numeric keypad

Component Description

(1) fn key Turns the embedded numeric keypad on and off when pressed

(2) Embedded numeric keypad When the keypad is turned on, it can be used like an external

(3) num lk key Turns the embedded numeric keypad on and off when pressed

in combination with the num lk key.

NOTE: The embedded numeric keypad will not function while

an external keyboard or numeric keypad is connected to the
computer.

numeric keypad.

Each key on the keypad performs the function indicated by the
icon in the upper-right corner of the key.

in combination with the fn key.

NOTE: The keypad function that is active when the computer is

turned off is reinstated when the computer is turned back on.

26 Chapter 4 Navigating using the keyboard, touch gestures and pointing devices

Turning the embedded numeric keypad on and off

Press fn+num lk to turn on the embedded numeric keypad. Press fn+num lk again to turn off the
keypad.

NOTE: The embedded numeric keypad is turned off while an external keyboard or numeric keypad

is connected to the computer.

Switching key functions on the embedded numeric keypad

You can temporarily alternate the functions of keys on the embedded numeric keypad between their
standard keyboard functions and their keypad functions:

To use the navigational function of a keypad key while the keypad is off, press and hold the fn

●

key while pressing the keypad key.

To use the standard function of a keypad key while the keypad is on:

●

◦ Press and hold the fn key to type in lowercase.

Press and hold fn+shift to type in uppercase.

◦

Using an optional external numeric keypad

Keys on most external numeric keypads function differently according to whether num lock is on or
off. (Num lock is turned off at the factory.) For example:

When num lock is on, most keypad keys type numbers.

●

When num lock is off, most keypad keys function like the arrow, page up, or page down keys.

●

When num lock on an external keypad is turned on, the num lock light on the computer is turned on.
When num lock on an external keypad is turned off, the num lock light on the computer is turned off.

To turn num lock on or off on an external keypad as you work:

Press the num lk key on the external keypad, not on the computer.

▲

Using the keyboard 27

5 Multimedia

Your computer may include the following:

Integrated speaker(s)

●

Integrated microphone(s)

●

● Integrated webcam

● Preinstalled multimedia software

Multimedia buttons or keys

●

Audio

On your HP computer, you can play music CDs (select models only), stream audio content from the
web (including radio), record audio, or mix audio and video to create multimedia. To enhance your
listening enjoyment, attach external audio devices such as speakers or headphones.

Connecting speakers

You can attach wired speakers to your computer by connecting them to a USB port (or the audio-out
jack) on your computer or on a docking station.

To connect wireless speakers to your computer, follow the device manufacturer's instructions. Before
connecting audio devices, be sure to adjust the volume.

Adjusting the volume

You can adjust the volume using the following:

Volume buttons

●

Volume hot keys (specific keys pressed in combination with the fn key)

●

WARNING! To reduce the risk of personal injury, adjust the volume before putting on headphones,

earbuds, or a headset. For additional safety information, see the Regulatory, Safety and
Environmental Notices. To access the user guides, select Start > Help and Support > User guides.

NOTE: Volume can also be controlled through the operating system and some programs.

NOTE: Refer to the Getting to know your computer on page 4 section for information on what type

of volume controls your computer has.

Connecting headphones and microphones

You can connect wired headphones or headsets to the audio-out (headphone)/audio-in (microphone)
jack on your computer. Many headsets with integrated microphones are commercially available. For
best results when recording, speak directly into the microphone and record sound in a setting free of
background noise.

WARNING! To reduce the risk of personal injury, lower the volume before putting on headphones,

earbuds, or a headset. For additional safety information, see the Regulatory, Safety and
Environmental Notices.

28 Chapter 5 Multimedia

Checking audio functions on the computer

NOTE: For best results when recording, speak directly into the microphone and record sound in a

setting free of background noise.

To check the audio functions on your computer, follow these steps:

1. Select Start > Control Panel > Hardware and Sound > Sound.

2. When the Sound window opens, click the Sounds tab. Under Program Events, select any

sound event, such as a beep or alarm, and click the Test button.

You should hear sound through the speakers or through connected headphones.

To check the recording functions on your computer, follow these steps:

1. Select Start > All Programs > Accessories > Sound Recorder.

2. Click Start Recording and speak into the microphone. Save the file to your desktop.

3. Open a multimedia program and play back the sound.

To confirm or change the audio settings on your computer:

Select Start > Control Panel > Hardware and Sound> Sound.

▲

Webcam (select models only)

Some computers include an integrated webcam for video sharing.

Video

VGA

Your HP computer is a powerful video device that enables you to watch streaming video from your
favorite websites.

To enhance your viewing enjoyment, use one of the video ports on the computer to connect an
external monitor, projector, or TV.

Your computer has the following external video ports:

VGA

●

Dual-Mode DisplayPort

●

IMPORTANT: Be sure that the external device is connected to the correct port on the computer,

using the correct cable. Check the device manufacturer's instructions if you have questions.

NOTE: Refer to the Getting to know your computer on page 4 section for information about your

computer's video ports.

The external monitor port, or VGA port, is an analog display interface that connects an external VGA
display device such as an external VGA monitor or a VGA projector to the computer.

Webcam (select models only) 29

To connect a VGA display device, connect the device cable to the external monitor port.

▲

Dual-Mode DisplayPort

The Dual-Mode DisplayPort connects the computer to an optional video or audio device, such as a
high-definition television, or to any compatible digital or audio component. The Dual-Mode
DisplayPort delivers higher performance than the VGA external monitor port and improves digital
connectivity.

NOTE: To transmit video and/or audio signals through the Dual-Mode DisplayPort, you need a

DisplayPort cable (purchased separately) that supports Dual-Mode functionality.

NOTE: One DisplayPort device can be connected to the Dual-Mode DisplayPort port on the

computer. The information displayed on the computer screen can be simultaneously displayed on the
DisplayPort device.

To connect a video or audio device to the Dual-Mode DisplayPort:

1. Connect one end of the DisplayPort cable to the Dual-Mode DisplayPort port on the computer.

2. Connect the other end of the cable to the video or audio device. For additional information, see

the device manufacturer’s instructions.

NOTE: To remove the device cable, press down on connector release button to disconnect it on the

computer.

30 Chapter 5 Multimedia

6 Power management

NOTE: A computer may have a power button or a power switch. The term power button is used

throughout this guide to mean both types of power controls.

Shutting down the computer

CAUTION: Unsaved information is lost when the computer shuts down.

The shutdown command closes all open programs, including the operating system, and then turns off
the display and computer.

Shut down the computer under any of the following conditions:

When you need to replace the battery or access components inside the computer

●

When you are connecting an external hardware device that does not connect to a Universal

●

Serial Bus (USB) port

When the computer will be unused and disconnected from external power for an extended

●

period

Although you can turn off the computer with the power button, the recommended procedure is to use
the Windows shutdown command:

NOTE: If the computer is in the Sleep state, you must first exit Sleep before shutdown is possible by

briefly pressing the power button.

1. Save your work and close all open programs.

2. Select Start > Shut Down.

If the computer is unresponsive and you are unable to use the preceding shutdown procedure, try the
following emergency procedures in the sequence provided:

Press ctrl+alt+delete. Click the Power icon, and then click Shut Down.

●

Press and hold the power button for at least 5 seconds.

●

Disconnect the computer from external power.

●

Remove the battery.

●

Setting power options

Using power-saving states

Sleep is enabled at the factory.

When Sleep is initiated, the power lights blink and the screen clears. Your work is saved to memory.

CAUTION: To reduce the risk of possible audio and video degradation, loss of audio or video

playback functionality, or loss of information, do not initiate Sleep while reading from or writing to a
disc or an external memory card.

Shutting down the computer 31

NOTE: You cannot initiate any type of networking connection or perform any computer functions

while the computer is in the Sleep state.

Initiating and exiting Sleep

With the computer on, you can initiate Sleep in any of the following ways:

Briefly press the power button.

●

● Press fn+f3.

Select Start, click the arrow next to the Shut down button, and then click Sleep.

●

To exit Sleep, briefly press the power button.

When the computer exits Sleep, the power lights turn on and the computer returns to the screen
where you stopped working.

NOTE: If you have set a password to be required on wakeup, you must enter your Windows

password before the computer will return to the screen.

Using the power meter and power settings

The power meter is located in the notification area, at the far right of the taskbar. The power meter
allows you to quickly access power settings and view the remaining battery charge.

To display the percentage of remaining battery charge and the current power plan, point over the

●

power meter icon.

To use Power Options, or to change the power plan, click the power meter icon and select an

●

item from the list.

Different power meter icons indicate whether the computer is running on battery or external power.
The icon also displays a message if the battery has reached a low or critical battery level.

Setting password protection on wakeup

To set the computer to prompt for a password when the computer exits Sleep, follow these steps:

1. Select Start > Control Panel > System and Security > Power Options.

2. In the left pane, click Require a password on wakeup.

3. Click Require a password (recommended).

NOTE: If you need to create a user account password or change your current user account

password, click Create or change your user account password, and then follow the on-
screen instructions. If you do not need to create or change a user account password, go to step

4.

4. Click Save changes.

Using battery power

WARNING! To reduce potential safety issues, use only the battery provided with the computer, a

replacement battery provided by HP, or a compatible battery purchased from HP.

The computer runs on battery power whenever it is not plugged into external AC power. Computer
battery life varies, depending on power management settings, running programs, display brightness,
external devices connected to the computer, and other factors. Keeping the battery in the computer
whenever the computer is plugged into AC power charges the battery and also protects your work in

32 Chapter 6 Power management

case of a power outage. If the computer contains a charged battery and is running on external AC
power, the computer automatically switches to battery power if the AC adapter is disconnected on the
computer or an AC power loss occurs.

NOTE: When you disconnect AC power, the display brightness is automatically decreased to save

battery life.

Finding additional battery information

Help and Support provides the following tools and information about the battery:

Battery Check tool to test battery performance

●

Information on calibration, power management, and proper care and storage to maximize battery

●

life

Information on battery types, specifications, life cycles, and capacity

●

To access battery information:

Select Start > Help and Support > Learn > Power Plans: Frequently Asked Questions.

▲

Using Battery Check

Help and Support provides information on the status of the battery installed in the computer.

To run Battery Check:

1. Connect the AC adapter to the computer.

NOTE: The computer must be connected to external power for Battery Check to work properly.

2. Select Start > Help and Support > Troubleshoot > Power, Thermal, and Mechanical.

3. Click the Power tab, and then click Battery Check.

Battery Check examines the battery and its cells to see if they are functioning properly, and then
reports the results of the examination.

Displaying the remaining battery charge

Move the pointer over the power meter icon on the Windows desktop in the notification area, at

▲

the far right of the taskbar.

Maximizing battery discharge time

Battery discharge time varies depending on features you use while on battery power. Maximum
discharge time gradually decreases as the battery storage capacity naturally degrades.

Tips for maximizing battery discharge time:

Lower the brightness on the display.

●

Remove the battery on the computer when it is not being used or charged, if the computer

●

contains a user-replaceable battery

Store the user-replaceable battery in a cool, dry location.

●

Select the Power saver setting in Power Options.

●

Setting power options 33

Managing low battery levels

The information in this section describes the alerts and system responses set at the factory. Some
low-battery alerts and system responses can be changed using Power Options. Preferences set
using Power Options do not affect lights.

Identifying low battery levels

When a battery that is the sole power source for the computer reaches a low or critical battery level,
the following behavior occurs:

The battery light indicates a low or critical battery level.

●

– or –

The power meter icon in the notification area shows a low or critical battery notification.

●

NOTE: For additional information about the power meter, see Using the power meter and

power settings on page 32.

If the computer is on or in the Sleep state, the computer remains briefly in the Sleep state, and then
shuts down and loses any unsaved information.

Resolving a low battery level

Resolving a low battery level when external power is available

Connect one of the following devices:

▲

AC adapter

●

Optional docking or expansion device

●

Optional power adapter purchased as an accessory from HP

●

Resolving a low battery level when no power source is available

To resolve a low battery level when no power source is available, save your work and shut down the
computer.

Inserting or removing the battery

Inserting a battery

To insert the battery:

1. Turn the computer upside down on a flat surface, with the battery bay toward you.

34 Chapter 6 Power management

2. Insert the battery (1) into the battery bay until it is seated.

The battery release latch (2) automatically locks the battery into place.

Removing a battery

To remove the battery:

CAUTION: Removing a battery that is the sole power source for the computer can cause loss of

information. To prevent loss of information, save your work and shut down the computer through
Windows before removing the battery.

1. Turn the computer upside down on a flat surface, with the battery bay toward you.

2. Slide the battery release latch (1) to release the battery.

3. Remove the battery from the computer (2).

Conserving battery power

Select low power-use settings through Power Options in Windows Control Panel.

●

Turn off wireless and LAN connections and exit modem applications when you are not using

●

them.

Disconnect unused external devices that are not plugged into an external power source.

●

Stop, disable, or remove any external memory cards that you are not using.

●

Setting power options 35

Decrease screen brightness.

●

● Before you leave your work, initiate Sleep, or shut down the computer.

Storing a user-replaceable battery

CAUTION: To reduce the risk of damage to a battery, do not expose it to high temperatures for

extended periods of time.

If a computer will be unused and unplugged from external power for more than 2 weeks, remove the
user-replaceable battery and store it separately.

To prolong the charge of a stored battery, place it in a cool, dry place.

NOTE: A stored battery should be checked every 6 months. If the capacity is less than 50 percent,

recharge the battery before returning it to storage.

Calibrate a battery before using it if it has been stored for one month or more.

Disposing of a user-replaceable battery

WARNING! To reduce the risk of fire or burns, do not disassemble, crush, or puncture; do not short

external contacts; do not dispose of in fire or water.

See the Regulatory, Safety and Environmental Notices for proper battery disposal. To access the
user guides, select the Start > Help and Support > User Guides. To access battery information,
select Start > Help and Support > Learn > Power Plans: Frequently Asked Questions.

Replacing a user-replaceable battery

Battery Check notifies you to replace the battery when an internal cell is not charging properly or
when the battery storage capacity has reached a weak condition. If the battery is possibly covered by
an HP warranty, instructions include a warranty ID. A message refers you to the HP website for more
information about ordering a replacement battery.

Using external AC power

WARNING! Do not charge the computer battery while you are onboard aircraft.

WARNING! To reduce potential safety issues, use only the AC adapter provided with the computer,

a replacement AC adapter provided by HP, or a compatible AC adapter purchased from HP.

NOTE: For information on connecting to AC power, see the Setup Instructions poster provided in

the computer box.

External AC power is supplied through an approved AC adapter or an optional docking or expansion
device.

Connect the computer to external AC power under any of the following conditions:

When charging or calibrating a battery

●

When installing or modifying system software

●

When writing information to a CD, a DVD, or a BD (select models only)

●

When you connect the computer to external AC power, the following events occur:

The battery begins to charge.

●

If the computer is turned on, the power meter icon in the notification area changes appearance.

●

36 Chapter 6 Power management

When you disconnect external AC power, the following events occur:

● The computer switches to battery power.

The display brightness is automatically decreased to save battery life.

●

Testing an AC adapter

Test the AC adapter if the computer exhibits any of the following symptoms when it is connected to
AC power:

The computer does not turn on.

●

The display does not turn on.

●

● The power lights are off.

To test the AC adapter:

1. Shut down the computer.

2. Remove the battery on the computer.

3. Connect the AC adapter to the computer, and then plug it into an AC outlet.

4. Turn on the computer.

If the power lights turn on, the AC adapter is working properly.

●

If the power lights remain off, the AC adapter is not functioning and should be replaced.

●

Contact support for information on obtaining a replacement AC power adapter.

Setting power options 37

7 External cards and devices

Using memory card readers

Optional memory cards provide secure data storage and convenient data sharing. These cards are
often used with digital media–equipped cameras and PDAs as well as with other computers.

To determine the digital card formats that are supported on your computer, see the

your computer on page 4 section.

Inserting a memory card

CAUTION: To reduce the risk of damage to the memory card connectors, use minimal force to

insert a memory card.

1. Hold the card label-side up, with the connectors facing the computer.

2. Insert the card into the memory card reader, and then press in on the card until it is firmly

seated.

Getting to know

You will hear a sound when the device has been detected, and a menu of options may be
displayed.

Removing a memory card

CAUTION: To reduce the risk of loss of data or an unresponsive system, use the following

procedure to safely remove the memory card.

1. Save your information and close all programs associated with the memory card.

2. Click the remove hardware icon on the Windows desktop in the notification area, at the far right

of the taskbar. Then follow the on-screen instructions.

38 Chapter 7 External cards and devices

3. Press in on the card (1), and then remove it from the slot (2).

NOTE: If the card does not eject, pull the card out of the slot.

Using smart cards

A smart card is a high-performance PC Card that is inserted into the smart card slot.

Smart cards are designed to conform to the standard specifications of the Personal Computer
Memory Card International Association (PCMCIA).

Configuring a smart card

Install only the software required for the card. If you are instructed by the smart card manufacturer to
install device drivers:

Install only the device drivers for your operating system.

●

Do not install additional software, such as card services, socket services, or enablers, that are

●

supplied by the smart card manufacturer.

Using smart cards 39

Inserting a smart card

CAUTION: To prevent damage to the computer and external memory cards, do not insert a PC

Card into a smart card slot.

CAUTION: To reduce the risk of damage to the connectors:

Use minimal force when inserting a smart card.

Do not move or transport the computer when a smart card is in use.

NOTE: The following illustration may look slightly different from your device.

To insert a smart card:

1. Hold the card label-side up, with the connectors facing the computer.

2. Insert the card into the smart card slot, and then press in on the card until it is firmly seated.

You will hear a sound when the card has been detected, and a menu of options may be
displayed.

NOTE: The first time you connect a smart card, a message in the notification area lets you

know that the card is recognized by the computer.

NOTE: To conserve power, stop or remove a smart card when it is not in use.

40 Chapter 7 External cards and devices

Removing a smart card

CAUTION: To reduce the risk of loss of data or an unresponsive system, use the following

procedure to safely remove the smart card.

1. Save your information and close all programs associated with the smart card.

2. Click the remove hardware icon on the Windows desktop in the notification area, at the far right

of the taskbar, and then follow the on-screen instructions.

3. Pull the smart card out of the slot.

Using a USB device

Universal Serial Bus (USB) is a hardware interface that can be used to connect an optional external
device, such as a USB keyboard, mouse, drive, printer, scanner, or hub.

Some USB devices may require additional support software, which is usually included with the
device. For more information about device-specific software, see the manufacturer's instructions.
These instructions may be provided with the software, on disc, or on the manufacturer’s website.

The computer has 3 USB ports that support USB 1.0, 1.1, 2.0, or 3.0 devices. Your computer also
has a USB charging port that provides power to an external device. An optional docking device or
USB hub provides additional USB ports that can be used with the computer.

NOTE: These ports support USB 2.0 by default. For details about activating the USB 3.0 port

functionality, see the next section.

Activating the USB 3.0 port functionality

Follow these steps to turn on the USB 3.0 port functionality:

1. Start Computer Setup. See

2. Select the option for USB ports and follow the on-screen instructions.

3. After you have saved the Computer Setup changes, install the USB 3.0 drivers:

a. Go to

b. Click Support & Drivers, and then click the Drivers & Downloads tab.

c. Enter the product name in the text box, and then click Search.

d. Select your computer model, and then select your operating system.

e. Select the link for the USB 3.0 drivers, and follow the on-screen instructions.

http://www.hp.com.

Starting Computer Setup on page 61.

Using a USB device 41

Connecting a USB device

CAUTION: To reduce the risk of damage to a USB connector, use minimal force to connect the

device.

Connect the USB cable for the device to the USB port.

▲

NOTE: The following illustration may look slightly different from your computer.

You will hear a sound when the device has been detected.

NOTE: The first time you connect a USB device, a message in the notification area lets you know

that the device is recognized by the computer.

Removing a USB device

CAUTION: To reduce the risk of damage to a USB connector, do not pull on the cable to remove

the USB device.

CAUTION: To reduce the risk of loss of information or an unresponsive system, use the following

procedure to safely remove the USB device.

1. To remove a USB device, save your information and close all programs associated with the

device.

2. Click the remove hardware icon on the Windows desktop in the notification area, at the far right

of the taskbar, and then follow the on-screen instructions.

3. Remove the device.

42 Chapter 7 External cards and devices

Using optional external devices

NOTE: For more information about required software and drivers, or to learn which computer port to

use, see the manufacturer's instructions.

To connect an external device to the computer:

CAUTION: To reduce the risk of damage to the equipment when connecting a powered device, be

sure that the device is turned off and the AC power cord is unplugged.

1. Connect the device to the computer.

2. If you are connecting a powered device, plug the device power cord into a grounded AC outlet.

3. Turn on the device.

To disconnect an unpowered external device, turn off the device, and then disconnect it from the
computer. To disconnect a powered external device, turn off the device, disconnect it from the
computer, and then unplug the AC power cord.

Using optional external drives

Removable external drives expand your options for storing and accessing information. A USB drive
can be added by connecting the drive to a USB port to the computer.

NOTE: HP external USB optical drives should be connected to the powered USB port to the

computer.

USB drives include the following types:

1.44-megabyte diskette drive

●

Hard drive module

●

External optical drive (CD, DVD, and Blu-ray)

●

MultiBay device

●

Using optional external devices 43

8Drives

Handling drives

CAUTION: Drives are fragile computer components that must be handled with care. Refer to the

following cautions before handling drives. Do not drop a drive, place items on it, or expose it to
liquids, or temperature or humidity extremes.

Observe these precautions when handling drives:

Before removing or installing a drive, shut down the computer. If you are unsure whether the

●

computer is off or in the Sleep state, turn the computer on, and then shut it down through the
operating system.

Before handling a drive, discharge static electricity by touching the unpainted metal surface of

●

the drive.

Do not touch the connector pins on a removable drive or on the computer.

●

Do not use excessive force when inserting a drive into a drive bay.

●

When the battery is the only source of power, be sure that the battery is sufficiently charged

●

before writing to media.

If a drive must be mailed, place the drive in a bubble-pack mailer or other suitable protective

●

packaging and label the package “FRAGILE.”

Avoid exposing a drive to magnetic fields. Security devices with magnetic fields include airport

●

walk-through devices and security wands. Airport conveyer belts and similar security devices
that check carry-on baggage use X-rays instead of magnetism and do not damage drives.

Remove media from a drive before removing the drive from the drive bay, or traveling with,

●

shipping, or storing a drive.

Do not type on the keyboard or move the computer while an optical drive is writing to a disc. The

●

write process is sensitive to vibration.

Before you move a computer that is connected to an external hard drive, initiate Sleep and allow

●

the screen to clear, or properly disconnect the external hard drive.

Using hard drives

CAUTION: To prevent information loss or an unresponsive system:

Save your work and shut down the computer before adding or replacing a memory module or hard
drive.

If you are not sure whether the computer is off, turn the computer on by pressing the power button.
Then shut down the computer through the operating system.

44 Chapter 8 Drives

Removing or replacing the service door

Removing the service door

Remove the service door to access the memory module slots, hard drive, and other components.

1. Remove the battery (see

2. With the battery bay toward you, slide the service door release latch (1) to the left, remove the

screw (if the optional screw is being used) (2), and then slide the release latch again (3) to
release the service door.

3. Slide the service door toward the front of the computer (4) and lift to remove the service door (5).

Inserting or removing the battery on page 34).

Replacing the service door

NOTE: If you do not want to use the optional screw, you can store it inside the service door.

Replace the service door after accessing the memory module slots, hard drive, and other
components.

1. Tilt down the service door (1) to align the front edge of the service door near the front edge of

the computer.

2. Insert the alignment tabs on the rear edge of the service door with the notches on the computer.

3. Slide the service door (2) toward the battery bay until the service door snaps into place.

Using hard drives 45

4. With the battery bay toward you, slide the service door release latch (3) to the left, and if you

choose to, insert and tighten the optional screw (4) to hold the service door in place. Slide the
service door release latch (5) to the right to lock the service door.

5. Insert the battery (see Inserting or removing the battery on page 34).

Replacing or upgrading the hard drive

CAUTION: To prevent information loss or an unresponsive system:

Shut down the computer before removing the hard drive from the hard drive bay. Do not remove the
hard drive while the computer is on or in the Sleep state.

If you are not sure whether the computer is off, turn the computer on by pressing the power button.
Then shut down the computer through the operating system.

Removing the hard drive

To remove a hard drive:

1. Save your work and shut down the computer.

2. Disconnect AC power and external devices connected to the computer.

3. Turn the computer upside down on a flat surface.

4. Remove the battery. (See

5. Remove the service door. (See

Replacing a user-replaceable battery on page 36.)

Removing the service door on page 45.)

46 Chapter 8 Drives

6. Disconnect the hard drive cable (1).

7. Loosen the 4 hard drive screws (2).

8. Using the plastic tab (3), pull and lift the hard drive, and then pull the hard drive (4) out of the

hard drive bay.

9. Disconnect the hard drive cable (1) from the drive.

10. Remove the 4 screws (2) from the hard drive and remove the bracket (3) from the hard drive.

Using hard drives 47

Installing a hard drive

NOTE: Your computer may look slightly different from the illustration in this section.

To install the hard drive:

1. Press the hard drive bracket (1) onto the hard drive and tighten the 4 hard drive screws (2).

2. Connect the hard drive cable (3) to the drive.

3. Insert the hard drive into the hard drive bay at an angle, and then lay the hard drive (1) flat in the

hard drive bay.

4. Pull the plastic tab (2) to make sure the hard drive is securely installed.

5. Tighten the hard drive screws (3).

6. Reconnect the hard drive cable (4).

7. Replace the service door (see Removing or replacing the service door on page 45).

48 Chapter 8 Drives

8. Insert the battery (see Inserting or removing the battery on page 34).

9. Connect AC power and external devices to the computer.

10. Turn on the computer.

Adding or replacing a drive in the upgrade bay

The upgrade bay can hold an optical drive.

Adding or replacing an optical drive

CAUTION: To prevent information loss or an unresponsive system:

Shut down the computer before removing the optical drive from the upgrade bay. Do not remove the
optical drive while the computer is on or in the Sleep state.

If you are not sure whether the computer is off, turn the computer on by pressing the power button.
Then shut down the computer through the operating system.

To remove an optical drive or the weight saver from the upgrade bay:

1. Save your work.

2. Shut down the computer and close the display.

3. Disconnect all external hardware devices connected to the computer.

4. Unplug the power cord from the AC outlet.

5. Turn the computer upside down on a flat surface, with the upgrade bay toward you.

6. Remove the battery (see

7. Remove the service door (see

8. Loosen the upgrade bay screw (1).

9. Using a flat-bladed screwdriver, gently push the tab (2) to release the optical drive or weight

saver.

Inserting or removing the battery on page 34).

Removing or replacing the service door on page 45).

Using hard drives 49

10. Remove the optical drive or weight saver from the upgrade bay (3).

To install an optical drive in the upgrade bay:

1. Insert the optical drive into the upgrade bay (1).

2. Tighten the upgrade bay screw (2).

50 Chapter 8 Drives

3. Replace the service door (see Removing or replacing the service door on page 45).

4. Insert the battery (see

Inserting or removing the battery on page 34).

5. Turn the computer right-side up, and then reconnect AC power and external devices to the

computer.

6. Turn on the computer.

Using hard drives 51

9Security

Protecting the computer

Standard security features provided by the Windows operating system and the non-Windows
Computer Setup utility (BIOS) can protect your personal settings and data from a variety of risks.

NOTE: Security solutions are designed to act as deterrents. These deterrents may not prevent a

product from being mishandled or stolen.

NOTE: Before you send your computer for service, back up and delete confidential files, and

remove all password settings.

NOTE: Some features listed in this chapter may not be available on your computer.

Computer risk Security feature

Unauthorized access to Computer Setup (f10) BIOS administrator password in Computer Setup*

Unauthorized startup from an optional external optical drive
(select models only), optional external hard drive (select
models only), or internal network adapter

Unauthorized access to a Windows user account Windows user password

Unauthorized access to Computer Setup settings and other
system identification information

Unauthorized removal of the computer Security cable slot (used with an optional security cable)

*Computer Setup is a preinstalled, ROM-based utility that can be used even when the operating system is not working or will
not load. You can use either a pointing device (TouchPad or USB mouse) or the keyboard to navigate and make selections
in Computer Setup.

Using passwords

A password is a group of characters that you choose to secure your computer information. Several
types of passwords can be set, depending on how you want to control access to your information.
Passwords can be set in Windows or in the non-Windows Computer Setup utility that is preinstalled
on the computer.

BIOS administrator is set in Computer Setup and is managed by the system BIOS.

●

Windows passwords are set only in the Windows operating system.

●

You can use the same password for a Computer Setup feature and for a Windows security feature.
You can also use the same password for more than one Computer Setup feature.

Boot options feature in Computer Setup*

BIOS administrator password in Computer Setup*

Use the following tips for creating and saving passwords:

When creating passwords, follow requirements set by the program.

●

Do not use the same password for multiple applications or websites, and do not reuse your

●

Windows password for any other application or website.

Do not store passwords in a file on the computer.

●

52 Chapter 9 Security

The following tables list commonly used Windows and BIOS administrator passwords and describe
their functions.

Setting passwords in Windows

Password Function

Administrator password* Protects access to a Windows administrator-level account.

User password* Protects access to a Windows user account.

*For information about setting a Windows administrator password or a Windows user password, access Help and Support by
selecting Start > Help and Support.

Setting passwords in Computer Setup

Password Function

BIOS administrator password* Protects access to Computer Setup.

NOTE: Setting the Windows Administrator password does

not set the BIOS Administrator password.

NOTE: If features have been enabled to prevent removing

the BIOS administrator password, you may not be able to
remove it until those features have been disabled.

*For details about this password, see the following topic

Managing a BIOS administrator password

To set, change, or delete this password, follow these steps:

Setting a new BIOS administrator password

1. Turn on or restart the computer, and then press esc while the “Press the ESC key for Startup

Menu” message is displayed at the bottom of the screen.

2. Press f10 to enter Computer Setup.

3. Use a pointing device or the arrow keys to select Security > Setup BIOS Administrator

Password, and then press enter.

4. When prompted, type a password.

5. When prompted, type the new password again to confirm.

6. To save your changes and exit Computer Setup, click the Save icon and then follow the on-

screen instructions.

– or –

Use the arrow keys to select File > Save Changes and Exit, and then press enter.

Your changes go into effect when the computer restarts.

Using passwords 53

Changing a BIOS administrator password

1. Turn on or restart the computer, and then press esc while the “Press the ESC key for Startup

Menu” message is displayed at the bottom of the screen.

2. Press f10 to enter Computer Setup.

3. Use a pointing device or the arrow keys to select Security > Change Password, and then press

enter.

4. When prompted, type your current password.

5. When prompted, type your new password again to confirm.

6. To save your changes and exit Computer Setup, click the Save icon in the lower-left corner of

the screen, and then follow the on-screen instructions.

– or –

Use the arrow keys to select File > Save Changes and Exit, and then press enter.

Your changes go into effect when the computer restarts.

Deleting a BIOS administrator password

1. Turn on or restart the computer, and then press esc while the “Press the ESC key for Startup

Menu” message is displayed at the bottom of the screen.

2. Press f10 to enter Computer Setup.

3. Use a pointing device or the arrow keys to select Security > Change Password, and then press

enter.

4. When prompted, type your current password.

5. When prompted for the new password, leave the field empty, and then press enter.

6. Read the warning. To continue, select YES.

7. When prompted to type your new password again, leave the field empty, and then press enter.

8. To save your changes and exit Computer Setup, click the Save icon in the lower-left corner of

the screen, and then follow the on-screen instructions.

– or –

Use the arrow keys to select File > Save Changes and Exit, and then press enter.

Your changes go into effect when the computer restarts.

Entering a BIOS administrator password

At the BIOS administrator password prompt, type your password (using the same kind of keys you
used to set the password), and then press enter. After 3 unsuccessful attempts to enter the BIOS
administrator password, you must restart the computer and try again.

54 Chapter 9 Security

Installing an optional security cable

NOTE: A security cable is designed to act as a deterrent, but it may not prevent the computer from

being mishandled or stolen.

NOTE: The security cable slot on your computer may look slightly different from the illustration in

this section. Refer to the
security cable slot on your computer.

1. Loop the security cable around a secured object.

2. Insert the key (1) into the cable lock (2).

3. Insert the cable lock into the security cable slot on the computer (3), and then lock the cable lock

with the key.

Getting to know your computer on page 4 section for the location of the

Installing an optional security cable 55

10 Maintenance

Adding or replacing memory modules

The computer has two memory module slots. The memory capacity of the computer can be upgraded
by adding a memory module or replacing the existing memory module in one of the memory module
slots.

WARNING! To reduce the risk of electric shock and damage to the equipment, unplug the power

cord and remove all batteries before installing a memory module.

CAUTION: Electrostatic discharge (ESD) can damage electronic components. Before beginning

any procedure, ensure that you are discharged of static electricity by touching a grounded metal
object.

CAUTION: To prevent information loss or an unresponsive system:

Shut down the computer before adding or replacing memory modules. Do not remove a memory
module while the computer is on or in the Sleep state.

If you are not sure whether the computer is off, turn the computer on by pressing the power button.
Then shut down the computer through the operating system.

NOTE: To use a dual-channel configuration when adding a second memory module, be sure that

both memory modules are identical.

NOTE: The primary memory is located in the bottom memory slot and the expansion memory is

located in the top memory slot.

To add or replace a memory module:

1. Save your work and shut down the computer.

2. Disconnect AC power and external devices connected to the computer.

3. Remove the battery (see

4. Remove the service door (see

5. If you are replacing a memory module, remove the existing memory module:

a. Pull away the retention clips (1) on each side of the memory module.

The memory module tilts up.

Inserting or removing the battery on page 34).

Removing or replacing the service door on page 45).

56 Chapter 10 Maintenance

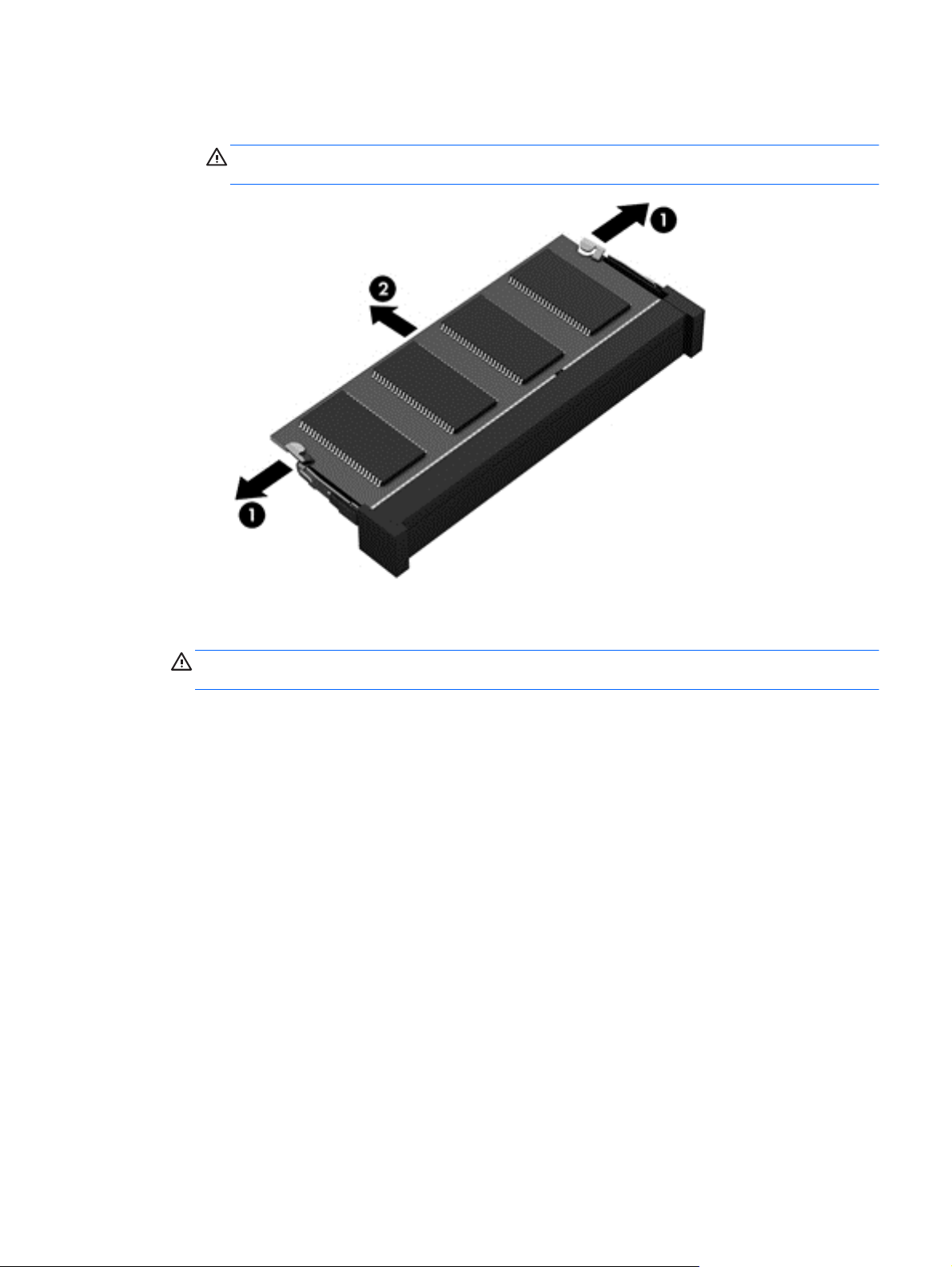

b. Grasp the edge of the memory module (2), and then gently pull the memory module out of

the memory module slot.

CAUTION: To prevent damage to the memory module, hold the memory module by the

edges only. Do not touch the components on the memory module.

To protect a memory module after removal, place it in an electrostatic-safe container.

6. Insert a new memory module:

CAUTION: To prevent damage to the memory module, hold the memory module by the edges

only. Do not touch the components on the memory module.

a. Align the notched edge (1) of the memory module with the tab in the memory module slot.

b. With the memory module at a 45-degree angle from the surface of the memory module

compartment, press the module (2) into the memory module slot until it is seated.

Adding or replacing memory modules 57

c. Gently press the memory module (3) down, applying pressure to both the left and right

edges of the memory module, until the retention clips snap into place.

CAUTION: To prevent damage to the memory module, be sure that you do not bend the

memory module.

7. Replace the service door (see Removing or replacing the service door on page 45).

8. Insert the battery (see

9. Connect AC power and external devices to the computer.

10. Turn on the computer.

Inserting or removing the battery on page 34).

Cleaning your computer

Use the following products to safely clean your computer:

Dimethyl benzyl ammonium chloride 0.3 percent maximum concentration (For example:

●

Disposable wipes, which come in a variety of brand names.)

Alcohol-free glass cleaning fluid

●

Water with mild soap solution

●

Dry microfiber cleaning cloth or a chamois (static-free cloth without oil)

●

Static-free cloth wipes

●

58 Chapter 10 Maintenance

CAUTION: Avoid strong cleaning solvents that can permanently damage your computer. If you are

not sure that a cleaning product is safe for your computer, check the product contents to make sure
that ingredients such as alcohol, acetone, ammonium chloride, methylene chloride, and hydrocarbons
are not included in the product.

Fibrous materials, such as paper towels, can scratch the computer. Over time, dirt particles and
cleaning agents can get trapped in the scratches.

Cleaning procedures

Follow the procedures in this section to safely clean your computer.

WARNING! To prevent electric shock or damage to components, do not attempt to clean your

computer while it is turned on.

Turn off the computer.

Disconnect external power.

Disconnect all powered external devices.

CAUTION: To prevent damage to internal components, do not spray cleaning agents or liquids

directly on any computer surface. Liquids dripped on the surface can permanently damage internal
components.

Cleaning the display (All-in-Ones or Notebooks)

Gently wipe the display using a soft, lint-free cloth moistened with an alcohol-free glass cleaner. Be
sure that the display is dry before closing the display.

Cleaning the sides or cover

To clean the sides or cover, use a soft microfiber cloth or chamois moistened with one of the cleaning
solutions listed previously or use an acceptable disposable wipe.

NOTE: When cleaning the cover of the computer, use a circular motion to aid in removing dirt and

debris.

Cleaning the TouchPad, keyboard, or mouse

WARNING! To reduce the risk of electric shock or damage to internal components, do not use a

vacuum cleaner attachment to clean the keyboard. A vacuum cleaner can deposit household debris
on the keyboard surface.

CAUTION: To prevent damage to internal components, do not allow liquids to drip between the

keys.

To clean the TouchPad, keyboard, or mouse, use a soft microfiber cloth or a chamois moistened

●

with one of the cleaning solutions listed previously or use an acceptable disposable wipe.

To prevent keys from sticking and to remove dust, lint, and particles from the keyboard, use a

●

can of compressed air with a straw extension.

Cleaning your computer 59

Updating programs and drivers
