QuickSpecs
HP mt31 Mobile Thin Client
Overview
Not all configuration components are available in all regions/countries.
This product is only available for Japan
c06159406 — 16342 — Japan — Version 3 — January 14, 2021
Page 1
__

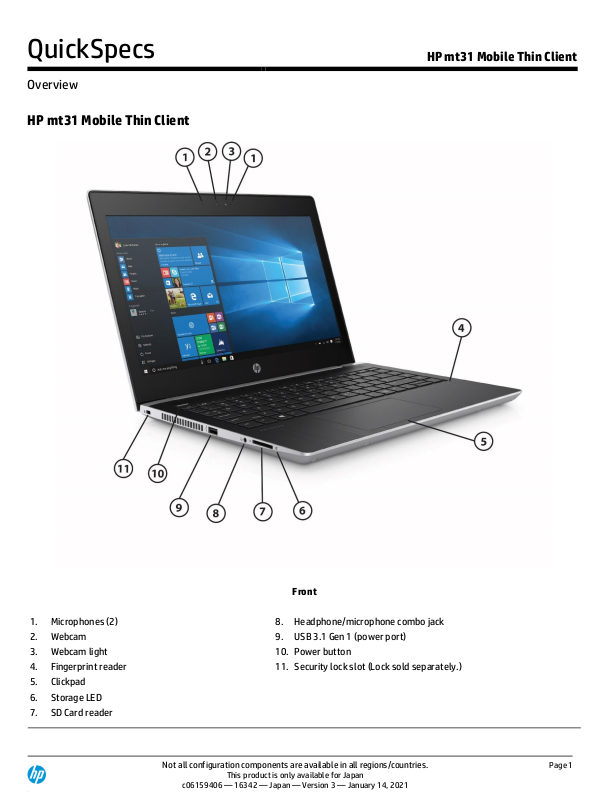

HP mt31 Mobile Thin Client
Front
1.
Microphones (2)
8.
Headphone/microphone combo jack
2.
Webcam
9.
USB 3.1 Gen 1 (power port)
3.
Webcam light
10.
Power button
4.
Fingerprint reader
11.
Security lock slot (Lock sold separately.)
5.
Clickpad
6.
Storage LED
7.
SD Card reader
QuickSpecs
HP mt31 Mobile Thin Client
Overview
Not all configuration components are available in all regions/countries.
This product is only available for Japan
c06159406 — 16342 — Japan — Version 3 — January 14, 2021
Page 2
__
Rear
1.
Power connector
4.
HDMI port (Cable not included.)
2.
Ethernet port (RJ-R45)
5.
USB 3.1 Gen 1
3.
External VGA monitor port
6.
USB Type-C™ port
QuickSpecs
HP mt31 Mobile Thin Client
Overview
Not all configuration components are available in all regions/countries.
This product is only available for Japan
c06159406 — 16342 — Japan — Version 3 — January 14, 2021
Page 3
__
At a Glance
• Preinstalled with Windows 10 IoT Enterprise
• Intel® Celeron® 3867U with Intel® HD Graphics (1.8 GHz, 2 MB cache, 2 cores)
3,4
• Full size HP Premium Keyboard, spill-resistant keyboard with a thin layer of mylar film to prevent minor spills
• Function keys provide control of features, including: standby mode, display brightness, external display, microphone
mute, volume down, volume up, and backlight toggle for backlit keyboard (Select models only)
• Large Clickpad with gestures support
• Enhanced security features with preinstalled software and hardware options
• Optional HD webcam with dual-microphone array for video conferencing
1
• HDMI port for connecting to high-resolution displays
• 33.7 cm (13.3") diagonal HD SVA anti-glare LED-backlit non-touch; 220 cd/m
2
; 45% sRGB (1366 x 768)
• Battery life up to 15 hours
• HP 3-cell, 48 WHr Li-ion battery
• Passed MIL-STD testing
2
1. Sold separately or as an optional feature.
2. MIL-STD-810G testing is not intended to demonstrate fitness of U.S. Department of Defense (DoD) contract requirements
or for military use. Test results are not a guarantee of future performance under these test conditions. Accidental
damage requires an optional HP Accidental Damage Protection Care Pack.
NOTE: See important legal disclosures for all listed specs in their respective features sections.
NOTE: This product is available currently only in Japan.
QuickSpecs
HP mt31 Mobile Thin Client
Features
Not all configuration components are available in all regions/countries.
This product is only available for Japan
c06159406 — 16342 — Japan — Version 3 — January 14, 2021
Page 4
__
PRODUCT NAMES
HP mt31 Mobile Thin Client
OPERATING SYSTEMS
Preinstalled
Windows 10 IoT Enterprise
1. Not all features are available in all editions or versions of Windows. Systems may require upgraded and/or separately
purchased hardware, drivers, software or BIOS update to take full advantage of Windows functionality. See
http://www.windows.com/.
PROCESSORS
Intel® Celeron® 3867U with Intel® HD Graphics (1.8 GHz, 2 MB cache, 2 cores)
3,4
Processors Family
Intel® Celeron® processor (3867U. Please refer to Microsoft support disclaimer)
3. Multicore is designed to improve performance of certain software products. Not all customers or software
applications will necessarily benefit from use of this technology. Performance and clock frequency will vary
depending on application workload and your hardware and software configurations. Intel’s numbering is not a
measurement of higher performance.
4. Processor speed denotes maximum performance mode; processors will run at lower speeds in battery optimization
mode.
5. NOTE: In accordance with Microsoft’s support policy, HP does not support the Windows 8 or Windows 7 operating
system on products configured with Intel® and AMD 7th generation and forward processors or provide any Windows
8 or Windows 7 drivers on http://www.support.hp.com.
CHIPSET
Integrated with processor
GRAPHICS
Integrated
Intel® HD graphics
6
6. HD content required to view HD images.
QuickSpecs
HP mt31 Mobile Thin Client
Features
Not all configuration components are available in all regions/countries.
This product is only available for Japan
c06159406 — 16342 — Japan — Version 3 — January 14, 2021
Page 5
__
DISPLAYS
33.7 cm (13.3") diagonal HD SVA anti-glare LED-backlit non-touch, 220 cd/m2, 45% sRGB (1366 x 768)
6,7
Multiple Display Video Output
HDMI (3840 x 2160)
USB-C (3840 x 2160)
VGA (2048 x 1536)
Display Size
13.3"
33.7 cm (13.3”)
6. HD content required to view HD images.
7. Resolutions are dependent upon monitor capability, and resolution and color depth settings.
STORAGE AND DRIVES
Primary M.2 Storage
128 GB M.2 2280 SATA TLC SSD8
8. For storage drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less.
MEMORY
8 GB DDR4-2400 SDRAM (2 x 4 GB)9
4 GB DDR4-2400 SDRAM (1 x 4 GB)9
Maximum
8 GB DDR4-2400 SDRAM9
Memory Slots
2 SODIMM
Both slots are customer accessible / upgradeable
DDR4 PC4 SODIMMS, system runs at 2133
Supports Dual Channel Memory
9. Due to the non-industry standard nature of some third-party memory modules, we recommend HP branded memory
to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed.
NETWORKING/COMMUNICATIONS
Wireless LAN (WLAN)
Intel® Dual Band Wireless-AC 8265 802.11a/b/g/n/ac (2x2) WiFi® and Bluetooth® 4.2 Combo (non-vPro™) 10
Ethernet
Realtek RTL8111HSH Gigabit Ethernet
QuickSpecs
HP mt31 Mobile Thin Client
Features
Not all configuration components are available in all regions/countries.
This product is only available for Japan
c06159406 — 16342 — Japan — Version 3 — January 14, 2021
Page 6
__
10. Wireless access point and Internet service required and sold separately. Availability of public wireless access points
limited.
AUDIO/MULTIMEDIA
Audio
2 Integrated stereo speakers
Integrated dual array microphone
Webcam
HD webcam
6,7
6. HD content required to view HD images.
7. Internet access required.
KEYBOARDS/POINTING DEVICES/BUTTONS & FUNCTION KEYS
Keyboard
HP Premium Keyboard (optional backlit)
Full-sized island-style, spill resistant
Pointing Device
Clickpad with multi-touch gesture support image sensor, taps enabled as default
Buttons and Function Keys
Separate launch buttons provide easy access to wireless on/off and speaker mute. Function keys provide control of features
including: standby mode, display brightness, external display, microphone mute, volume down, volume up, and backlight
toggle for backlit keyboard (select models only).
Function Keys
Start Menu: HP System Information
Fn + ESC: System Information
F1 - Display Switching
F2 - Blank
F3 - Brightness Down
F4 - Brightness Up
F5 - Speaker Mute
F6 - Volume Down
F7 – Volume Up
F8 - Mic Mute
F9 - Backlight Toggle (for backlit keyboard) or Blank
F10 - NumLock
F11 - Wifi Toggle
F12 – Sleep
Hidden Functions
Fn+R = Break
Fn+S = Sys Rq
QuickSpecs
HP mt31 Mobile Thin Client
Features
Not all configuration components are available in all regions/countries.
This product is only available for Japan
c06159406 — 16342 — Japan — Version 3 — January 14, 2021
Page 7
__
Fn+C = Scroll Lock
Pointing Devices
Clickpad with multi-touch gesture support image sensor, taps enabled as default
Gestures
Enabled by default Win 10 IoT E
2 Finger Scrolling
2 Finger Zoom (Pinch)
OSD (enable/disable)
3 finger flick = App switch
4 finger tap = Action Center
Disabled by default Win 10 IoT E
3 Finger Flick
2 Finger Rotate
Momentum Motion
1 Finger Vertical Scroll
SOFTWARE AND SECURITY
BIOS
HP BIOSphere Gen413
HP DriveLock & Automatic DriveLock
BIOS Update via Network
Power On Authentication
Secure Erase14
Absolute Persistence Module15
Pre-boot Authentication
Software
HP Native Miracast Support16
HP Easy Shell
HP USB Port Manager
HP Noise Cancellation Software
Manageability Features
HP BIOS Config Utility (BCU)
HP Device Manager
HP ThinUpdate
Microsoft System Center Configuration Manager
20
Client Security Software
HP Fingerprint Sensor
QuickSpecs
HP mt31 Mobile Thin Client
Features
Not all configuration components are available in all regions/countries.
This product is only available for Japan
c06159406 — 16342 — Japan — Version 3 — January 14, 2021
Page 8
__
HP Write Manager
Microsoft Defender24
TPM 2.0
13. HP BIOSphere Gen4 requires Intel® or AMD 8th Gen processors. Features may vary depending on the
platform and configurations.
14. For the methods outlined in the National Institute of Standards and Technology Special Publication 800-
88 "Clear" sanitation method.
15. Absolute agent is shipped turned off, and will be activated when customers activate a purchased
subscription. Subscriptions can be purchased for terms ranging multiple years. Service is limited, check
with Absolute for availability outside the U.S. The Absolute Recovery Guarantee is a limited warranty.
Certain conditions apply. For full details visit: http://www.absolute.com/company/legal/agreements/
computrace-agreement. Data Delete is an optional service provided by Absolute Software. If utilized, the
Recovery Guarantee is null and void. In order to use the Data Delete service, customers must first sign a
Pre-Authorization Agreement and either obtain a PIN or purchase one or more RSA SecurID tokens from
Absolute Software.
16. Miracast via Wireless Display adapter is a wireless technology your PC can use to project your screen to
TVs, projectors, and streaming media players that also support Miracast. You can use Miracast to share what
you’re doing on your PC and present a slide show. For more information: http://windows.microsoft.com/en-
us/windows-8/project-wireless-screen-miracast
24. Microsoft Defender Opt in and internet connection required for updates.
Recommended TC config for Microsoft Teams media optimization
TC CPU
VMware Teams Optimization
Citrix Teams Optimization
t430
1.10 GHz 2 Core
-
-
t530
1.50 GHz 2 Core
-
-
t540
1.50 GHz 2 Core
-
-
t630
2.00 GHz 4 Core
✓
✓
t628
1.99 GHz 4 Core
-
✓
t638
2.00 GHz 4 Core
✓
✓
t640
2.40 GHz 2 Core
✓
✓
t730
2.70 GHz 4 Core
✓
✓
t740
3.25 GHz 4 Core
✓
✓
mt21
1.80 GHz 2 Core
-
✓
mt22
1.90 GHz 2 Core
-
✓
mt31
1.80 GHz 2 Core
-
✓
mt32
2.70 GHz 4 Core
✓
✓
mt45
2.10 GHz 4 Core
✓
✓
QuickSpecs
HP mt31 Mobile Thin Client
Features
Not all configuration components are available in all regions/countries.
This product is only available for Japan
c06159406 — 16342 — Japan — Version 3 — January 14, 2021
Page 9
__
mt46
2.50 GHz 4 Core
✓
✓
- Not recommended, ✓ recommended
POWER
Power Supply
45 W HP Smart right angle 4.5mm AC adapter 2-prong (Japan only)25
Battery
3-cell, 48 Wh Long Life Li-ion26
Power Cord
2-wire plug - 1m (2-prong Japan only)25
Battery life
Up to 15 hours27
25. Availability may vary by country.
26. Battery is internal and not replaceable by customer. Serviceable by warranty.
27. Windows 10 MM14 battery life will vary depending on various factors including product model, configuration, loaded
applications, features, use, wireless functionality, and power management settings. The maximum capacity of the battery
will naturally decrease with time and usage. See www.bapco.com for additional details.
WEIGHTS & DIMENSIONS
Weight
Starting at 3.28 lb28
Starting at 1.49 kg
28
Dimensions (w x d x h)
12.83 x 9.21 x 0.78 in
32.6 x 23.4 x 1.98 cm
28. Weight will vary by configuration.
PORTS/SLOTS
Ports
1 USB 3.1 Type-C™ Gen 1 (Power delivery, DisplayPort™)
2 USB 3.1 Gen 1 (1 powered port)
1 HDMI 1.4b29
1 VGA
1 RJ-45
QuickSpecs
HP mt31 Mobile Thin Client
Features
Not all configuration components are available in all regions/countries.
This product is only available for Japan
c06159406 — 16342 — Japan — Version 3 — January 14, 2021
Page 10
__
1 AC power
1 headphone/microphone combo jack
Expansion Slots
1 multi-format digital media reader
Supports SD, SDHC, SDXC.
29. HDMI cable sold separately.
30. USB 3.1 type-C Gen1 port supports HP ALT mode.
QuickSpecs
HP mt31 Mobile Thin Client
Features
Not all configuration components are available in all regions/countries.
This product is only available for Japan
c06159406 — 16342 — Japan — Version 3 — January 14, 2021
Page 11
__
SERVICE AND SUPPORT
Warranty
HP Services offers 3-year and 1-year limited warranties and 90-day software limited warranty options depending on country.
Batteries have a default one year limited warranty except for Long Life batteries which will have same 1-year or 3-year limited
warranty as the platform. Refer to http://www.hp.com/support/batterywarranty/ for additional battery information. On-site
service and extended coverage is also available. HP Care Pack Services are optional extended service contracts that go beyond
the standard limited warranties. To choose the right level of service for your HP product, use the HP Care Pack Services Lookup
Tool at http://www.hp.com/go/cpc 30
30. HP Care Packs are sold separately. Service levels and response times for HP Care Packs may vary depending on your
geographic location. Service starts on date of hardware purchase. Restrictions and limitations apply. For details, visit
www.hp.com/go/cpc. HP services are governed by the applicable HP terms and conditions of service provided or indicated to
Customer at the time of purchase. Customer may have additional statutory rights according to applicable local laws, and such
rights are not in any way affected by the HP terms and conditions of service or the HP Limited Warranty provided with your HP
Product.
CERTIFICATION AND COMPLIANCE
ENERGY STAR® certified
EPEAT® Gold
31
Low halogen 32
31. EPEAT® registered where applicable. EPEAT® registration varies by country. See http://www.epeat.net for registration
status by country. Search keyword generator on HP’s 3rd party option store for solar generator accessories at
http://www.hp.com/go/options
32. External power supplies, power cords, cables and peripherals are not Low Halogen. Service parts obtained after
purchase may not be Low Halogen.
QuickSpecs
HP mt31 Mobile Thin Client
Technical Specifications
Not all configuration components are available in all regions/countries.
This product is only available for Japan
c06159406 — 16342 — Japan — Version 3 — January 14, 2021
Page 12
__
SYSTEM UNIT
Stand-Alone Power Requirements
(AC Power)
Nominal Operating Voltage
19V
Average Operating Power
Win 10
Integrated graphics
4.49W
Discrete Graphics
N/A
Max Operating Power
UMA < 45W
Temperature
Operating
32° to 95° F (0° to 35° C)
Non-operating
-4° to 140° F (-20° to 60° C)
Relative Humidity
Operating
10% to 90%, non-condensing
Non-operating
5% to 95%, 101.6° F (38.7° C) maximum wet bulb
temperature
Shock
Operating
40 G, 2 ms, half-sine
Non-operating
200 G, 2 ms, half-sine
Random Vibration
Operating
0.75 grms
Non-operating
1.50 grms
Altitude (unpressurized)
Operating
-50 to 10,000 ft (-15.24 to 3,048 m)
Non-operating
-50 to 40,000 ft (-15.24 to 12,192 m)
Planned Industry Standard
Certifications
UL
Yes
CSA
Yes FCC Compliance
Yes ENERGY STAR 7.0®
Selected models33
EPEAT
Registered Gold in United States31
ICES
Yes
Australia /
Yes NZ A-Tick Compliance
Yes CCC
Yes Japan VCCI Compliance
Yes KC
Yes
BSMI
Yes
CE Marking Compliance
Yes BNCI or BELUS
Yes CIT
Yes
GOST
Yes
Saudi Arabian Compliance
(ICCP)
Yes
SABS
Yes
UKRSERTCOMPUTER
Yes
QuickSpecs
HP mt31 Mobile Thin Client
Technical Specifications
Not all configuration components are available in all regions/countries.
This product is only available for Japan
c06159406 — 16342 — Japan — Version 3 — January 14, 2021
Page 13
__
31. EPEAT® registered where applicable. EPEAT registration varies by country. See http://www.epeat.net for registration status
by country. Search keyword generator on HP’s 3rd party option store for solar generator accessories at
www.hp.com/go/options.
33. Configurations of the HP ProBook 430 G4 is ENERGY STAR® qualified are identified as HP ProBook 430 G4 ENERGY STAR on
HP websites and on http://www.energystar.gov.
DISPLAYS
13.3" diagonal HD SVA
anti-glare LED-backlit
non-touch; 220 cd/m2;
45% sRGB (1366 x 768)
Outline Dimensions
(W x H)
314.6 x 189.2 (mm) max
Active Area
293.42 x 164.97 (mm)
Weight
260 g max
Diagonal Size
13.3 (inch)
Thickness
3.0 (mm) max
Interface
eDP 1.2
LCD Mode
TN
PPI
Surface Treatment
Anti-Glare (AG)
Touch Enabled
None
Contrast Ratio
300:1 (typical)
Refresh Rate
60 Hz
Brightness
220 nits
Pixel Resolution
1366 x 768 (HD)
Format
RGB
Backlight
LED
Color Gamut
Coverage
45%
Color Depth
6 bits + Hi FRC
Viewing Angle
SVA 45/45/25/35
Note: All specifications represent the typical specifications provided by HP's component manufacturers; actual performance may
vary either higher or lower.
QuickSpecs
HP mt31 Mobile Thin Client
Technical Specifications
Not all configuration components are available in all regions/countries.
This product is only available for Japan
c06159406 — 16342 — Japan — Version 3 — January 14, 2021
Page 14
__
STORAGE AND DRIVES
SOLID STATE DRIVES
128GB 2280 M2 SATA-3 TLC
Solid State Drive
Form Factor
M.2 2280
Capacity
128 GB
NAND Type
TLC
Height
0.09 in (2.3 mm)
Width
0.87 in (22 mm)
Weight
0.02 lb (10 g)
Interface
ATA-8, SATA 3.0
Maximum Sequential Read
Up To 520 MB/s
Maximum Sequential Write
Up To 450 MB/s
Logical Blocks
250,069,680
Operating Temperature
32° to 158°F (0° to 70°C) [ambient temp]
Features
DIPM; TRIM; DEVSLP
QuickSpecs
HP mt31 Mobile Thin Client
Technical Specifications
Not all configuration components are available in all regions/countries.
This product is only available for Japan
c06159406 — 16342 — Japan — Version 3 — January 14, 2021
Page 15
__
NETWORKING/COMMUNICATIONS
WLAN
Intel® 802.11 a/b/g/n/AC
(2x2) WiFi and Bluetooth®
Combo
Wireless LAN Standards
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
IEEE 802.11ac
Interoperability
Wi-Fi certified
Frequency Band
802.11b/g/n
• 2.402 – 2.482 GHz
802.11a/n
• 4.9 – 4.95 GHz (Japan)
• 5.15 – 5.25 GHz
• 5.25 – 5.35 GHz
• 5.47 – 5.725 GHz
• 5.825 – 5.850 GHz
Data Rates
• 802.11b: 1, 2, 5.5, 11 Mbps
• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11n: MCS 0 ~ MCS 15, (20MHz, and 40MHz)
• 802.11ac : MCS0 ~ MCS7, (1SS) (20MHz, 40MHz, and 80MHz)
Modulation
Direct Sequence Spread Spectrum
BPSK, QPSK, CCK, 16-QAM, 64-QAM, 256-QAM
Security1
• IEEE and WiFi compliant 64 / 128 bit WEP encryption for a/b/g
mode only
• AES-CCMP: 128 bit in hardware
• 802.1x authentication
• WPA, WPA2: 802.1x. WPA-PSK, WPA2-PSK, TKIP, and AES.
• WPA2 certification
• IEEE 802.11i
• Cisco Certified Extensions, all versions through CCX4 and CCX Lite
• WAPI
Network Architecture
Models
Ad-hoc (Peer to Peer)
Infrastructure (Access Point Required)
Roaming
IEEE 802.11 compliant roaming between access points
Output Power[2]
• 802.11b : +16dBm minimum
• 802.11g : +14dBm minimum
• 802.11a : +14dBm minimum
• 802.11n HT20(2.4GHz) : +14dBm minimum
• 802.11n HT40(2.4GHz) : +12dBm minimum
• 802.11n HT20(5GHz) : +14dBm minimum
• 802.11n HT40(5GHz) : +12dBm minimum
• 802.11ac 80MHz(5GHz) : +11dBm minimum
QuickSpecs
HP mt31 Mobile Thin Client
Technical Specifications
Not all configuration components are available in all regions/countries.
This product is only available for Japan
c06159406 — 16342 — Japan — Version 3 — January 14, 2021
Page 16
__
Power Consumption
Transmit: 2.0 W (max)
Receive: 1.6 W (max)
Idle mode (PSP): 180 mW (WLAN Associated)
Idle mode: 50 mW (WLAN unassociated)
Connect Standby: 10 mW (WLAN+BT)
Radio disabled: 5 mW
Power Management
ACPI and PCI Express compliant power management
802.11 compliant power saving mode
Receiver Sensitivity[3]
802.11b, 1Mbps : -93.5dBm maximum
802.11b, 11Mbps : -84dBm maximum
802.11a/g, 6Mbps : -86dBm maximum
802.11a/g, 54Mbps : -72dBm maximum
802.11n, MCS07 : -67dBm maximum
802.11n, MCS15 : -64dBm maximum
802.11ac, MCS0 : -84dBm maximum
802.11ac, MCS9 : -59dBm maximum
Antenna type
High efficiency antenna with spatial diversity, mounted in the display
enclosure
Two embedded dual band 2.4/5 GHz antennas are provided to the card to
support WLAN MIMO communications and Bluetooth® communications
Form Factor
PCI-Express M.2 MiniCard
Dimensions
Type 2230 : 2.3 x 22.0 x 30.0 mm
Weight
Type 2230 : 2.8g
Operating Voltage
3.3v +/- 9%
Temperature
Operating
Non-operating
14° to 158° F (–10° to 70° C)
–40° to 176° F (–40° to 80° C)
Humidity
Operating
Non-operating
10% to 90% (non-condensing)
5% to 95% (non-condensing)
Altitude
Operating
Non-operating
0 to 10,000 ft (3,048 m)
0 to 50,000 ft (15,240 m)
LED Activity
LED Amber – Radio OFF; LED White – Radio ON
1. Check latest software/driver release for updates on supported security features.
2. Maximum output power may vary by country according to local regulations.
3. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation)
and a packet error rate of 10% for 802.11a/g (OFDM modulation).
HP Integrated Module with Bluetooth® 4.0/4.1/4.2 Wireless Technology
Bluetooth® Specification
4.0/4.1/4.2 Compliant
Frequency Band
2402 to 2480 MHz
Number of Available
Channels
Legacy : 0~79 (1 MHz/CH)
BLE : 0~39 (2 MHz/CH)
Data Rates and
Throughput
Legacy : 3 Mbps data rate; throughput up to 2.17 Mbps
BLE : 1 Mbps data rate; throughput up to 0.2 Mbps
Legacy : Synchronous Connection Oriented links up to 3, 64 kbps, voice
channels
Legacy : Asynchronous Connection Less links 2178.1 kbps/177.1 kbps
asymmetric (3-DH5) or 864 kbps symmetric (3-EV5)
QuickSpecs
HP mt31 Mobile Thin Client
Technical Specifications
Not all configuration components are available in all regions/countries.
This product is only available for Japan
c06159406 — 16342 — Japan — Version 3 — January 14, 2021
Page 17
__
Transmit Power
The Bluetooth® component shall operate as a Class II Bluetooth® device
with a maximum transmit power of + 4 dBm for BR and EDR.
Power Consumption
Peak (Tx) 330 mW
Peak (Rx) 230 mW
Selective Suspend 17 mW
Electrical Interface
USB 2.0 compliant
Bluetooth® Software
Supported
Link Topology
Microsoft Windows Bluetooth® Software
Power Management
Microsoft Windows ACPI, and USB Bus Support
Certifications
FCC (47 CFR) Part 15C, Section 15.247 & 15.249
Power Management
Certifications
ETS 300 328, ETS 300 826
Low Voltage Directive IEC950
UL, CSA, and CE Mark
Bluetooth® Profiles
Supported
BT4.1-ESR 5/6/7 Compliance
LE Link Layer Ping
LE Dual Mode
LE Link Layer
LE Low Duty Cycle Directed Advertising
LE L2CAP Connection Oriented Channels
Train Nudging & Interlaced Scan
BT4.2 ESR08 Compliance
LE Secure Connection- Basic/Full
LE Privacy 1.2 –Link Layer Privacy
LE Privacy 1.2 –Extended Scanner Filter Policies
LE Data Packet Length Extension
FAX Profile (FAX)
Basic Imaging Profile (BIP)2
Headset Profile (HSP)
Hands Free Profile (HFP)
Advanced Audio Distribution Profile (A2DP)
QuickSpecs
HP mt31 Mobile Thin Client
Technical Specifications
Not all configuration components are available in all regions/countries.
This product is only available for Japan
c06159406 — 16342 — Japan — Version 3 — January 14, 2021
Page 18
__
POWER
HP 45W Smart
AC Adapter
Dimensions (H x W x D)
3.74 x 1.57 x 1.04 in (9.5 x 4.0 x 2.65 cm)
Weight
0.386 lb (175g) max
Input
90 to 265 VAC
Input Efficiency
87.74% at 115Vac and 88.4% at 230Vac
Input frequency range
47 to 63 Hz
Input AC current
1.4 A at 90 VAC
Output
Output power
45W
DC output
19.5V
Hold-up time
5 msec at 115 VAC input
Output current limit
<8.0A
Connector
4.5mm Barrel Type, 3 pin/grounded, mates with interchangeable cords
Environmental Design
Operating
32° to 95° F (0° to 35° C)
temperature
Non-operating (storage)
temperature
-4° to 185° F (-20° to 85° C)
Altitude
0 to 16,400 ft (0 to 5,000 m)
Humidity
20% to 95%
Storage Humidity
10% to 95%
EMI and Safety
Certifications
*CE Mark - full compliance with LVD and EMC directives
* Worldwide safety standards - IEC60950, EN60950, UL60950, Class1,
SELV; Agency approvals - C-UL-US, NORDICS, DENAN, EN55022 Class B,
FCC Class B, CISPR22 Class B, CCC, NOM-1 NYCE.
* MTBF - over 200,000 hours at 25°C ambient condition.
HP 3-cell, Long Life 48
WHr Li-ion
Dimensions (H x W x L)
7.0. x180.48x88.95 mm
(0.273 x 7.09 x 3.49 inch)
Weight
0.22 kg (0.48lb)
Cells/Type
3cell Lithium-Ion
Energy
Voltage
11.4V/ 10.95V
Amp-hour capacity
4.212Ah /4.385Ah
Watt-hour capacity
48Wh
Temperature
Operating (Charging)
32˚ to 113˚ F (0˚ to 45˚ C)
Operating (Discharging)
14˚ to 122˚ F (-10˚ to 60˚ C)
Non-operating
-4˚ to 122˚ F (-20˚ to 60˚ C)
QuickSpecs
HP mt31 Mobile Thin Client
Technical Specifications
Not all configuration components are available in all regions/countries.
This product is only available for Japan
c06159406 — 16342 — Japan — Version 3 — January 14, 2021
Page 19
__
Battery Re-Charge Time
System in OFF or Standby
Mode
<3 hours
Fuel Gauge LED
No
Warranty
Refer to http://www.hp.com/support/batterywarranty/
Optional Travel Battery
Available
No
EVIRONMENTAL & INDUSTRY
Environmental
Data
Eco-Label Certifications
& declarations
This product has received or is in the process of being certified to the following
approvals and may be labeled with one or more of these marks:
• IT ECO declaration
• US ENERGY STAR®
• EPEAT® Gold registered in the United States. See http://www.epeat.net
for registration status in your country. Search keyword generator on
HP’s 3rd party option store for solar energy accessory at
http://www.hp.com/go/options
System Configuration
The configuration used for the Energy Consumption and Declared Noise
Emissions data for the Notebook model is based on a “Typically Configured
Notebook”.
Energy Consumption
(in accordance with US
ENERGY STAR® test
method)
115VAC, 60Hz
230VAC, 50Hz
100VAC, 60Hz
Normal Operation
(Short idle)
7.34 W
7.40 W
7.34 W
Normal Operation
(Long idle)
3.72 W
3.76 W
3.69 W
Sleep
0.64 W
0.69 W
0.64 W
Off
0.40 W
0.45 W
0.42 W
Note: Energy efficiency data listed is for an ENERGY STAR® compliant product if
offered within the model family. HP computers marked with the ENERGY STAR®
Logo are compliant with the applicable U.S. Environmental Protection Agency
(EPA) ENERGY STAR® specifications for computers. If a model family does not
offer ENERGY STAR® compliant configurations, then energy efficiency data listed
is for a typically configured PC featuring a hard disk drive, a high efficiency power
supply, and a Microsoft Windows® operating system.
Heat Dissipation*
115VAC, 60Hz
230VAC, 50Hz
100VAC, 60Hz
Normal Operation
(Short idle)
25 BTU/hr
25 BTU/hr
25 BTU/hr
Normal Operation
(Long idle)
13 BTU/hr
13 BTU/hr
13 BTU/hr
Sleep
2 BTU/hr
2 BTU/hr
2 BTU/hr
Off
1 BTU/hr
2 BTU/hr
1 BTU/hr
QuickSpecs
HP mt31 Mobile Thin Client
Technical Specifications
Not all configuration components are available in all regions/countries.
This product is only available for Japan
c06159406 — 16342 — Japan — Version 3 — January 14, 2021
Page 20
__
*Note: Heat dissipation is calculated based on the measured watts, assuming the
service level is attained for one hour.
Declared Noise
Emissions
(in accordance with
ISO 7779 and ISO 9296)
Sound Power
(L
WAd
, bels)
Sound Pressure
(L
pAm
, decibels)
Typically Configured –
Idle
2.8
19
Fixed Disk – Random
writes
2.9
19
Longevity and Upgrading
This product can be upgraded, possibly extending its useful life by several years.
Upgradeable features and/or components contained in the product may include:
• 3 USB ports
Batteries
This battery(s) in this product comply with EU Directive 2006/66/EC
Batteries used in the product do not contain:
Mercury greater the1ppm by weight
Cadmium greater than 20ppm by weight
Battery size: CR2032 (coin cell)
Battery type: Lithium
Additional Information
• This product is in compliance with the Restrictions of Hazardous
Substances (RoHS) directive - 2011/65/EC.
• This HP product is designed to comply with the Waste Electrical and
Electronic Equipment (WEEE) Directive – 2002/96/EC.
• This product is in compliance with California Proposition 65 (State of
California; Safe Drinking Water and Toxic Enforcement Act of 1986).
• This product is in compliance with the IEEE 1680 (EPEAT) standard at the
Gold level, see www.epeat.net
• Plastics parts weighing over 25 grams used in the product are marked
per ISO11469 and ISO1043.
• This product contains 0% post-consumer recycled plastic (by wt.)
• This product is 94.4% recycle-able when properly disposed of at end of
life.
Packaging Materials
External:
PAPER/Corrugated
320 g
Internal:
PLASTIC/EPE (Expanded Polyethylene)
49 g
PLASTIC/Polyethylene low density
8 g
The plastic packaging material contains at least 50% recycled content.
The corrugated paper packaging materials contains at least 75% recycled
content.
Material Usage
This product does not contain any of the following substances in excess of
regulatory limits (refer to the HP General Specification for the Environment at
http://www.hp.com/hpinfo/globalcitizenship/environment/pdf/gse.pdf):
• Asbestos
• Certain Azo Colorants
• Certain Brominated Flame Retardants – may not be used as flame
retardants in plastics
• Cadmium
QuickSpecs
HP mt31 Mobile Thin Client
Technical Specifications
Not all configuration components are available in all regions/countries.
This product is only available for Japan
c06159406 — 16342 — Japan — Version 3 — January 14, 2021
Page 21
__
• Chlorinated Hydrocarbons
• Chlorinated Paraffins
• Formaldehyde
• Halogenated Diphenyl Methanes
• Lead carbonates and sulfates
• Lead and Lead compounds
• Mercuric Oxide Batteries
• Nickel – finishes must not be used on the external surface designed to
be frequently handled or carried by the user.
• Ozone Depleting Substances
• Polybrominated Biphenyls (PBBs)
• Polybrominated Biphenyl Ethers (PBBEs)
• Polybrominated Biphenyl Oxides (PBBOs)
• Polychlorinated Biphenyl (PCB)
• Polychlorinated Terphenyls (PCT)
• Polyvinyl Chloride (PVC) – except for wires and cables, has been
voluntarily removed from most applications.
• Radioactive Substances
• Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide (TBTO)
Packaging Usage
HP follows these guidelines to decrease the environmental impact of product
packaging:
• Eliminate the use of heavy metals such as lead, chromium, mercury and
cadmium in packaging materials.
• Eliminate the use of ozone-depleting substances (ODS) in packaging
materials.
• Design packaging materials for ease of disassembly.
• Maximize the use of post-consumer recycled content materials in
packaging materials.
• Use readily recyclable packaging materials such as paper and corrugated
materials.
• Reduce size and weight of packages to improve transportation fuel
efficiency.
• Plastic packaging materials are marked according to ISO 11469 and DIN
6120 standards.
End-of-life Management
and Recycling
Hewlett-Packard offers end-of-life HP product return and recycling programs in
many geographic areas. To recycle your product, please go to:
http://www.hp.com/go/reuse-recycle or contact your nearest HP sales office.
Products returned to HP will be recycled, recovered or disposed of in a
responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide
treatment information for each product type for use by treatment facilities. This
information (product disassembly instructions) is posted on the Hewlett Packard
web site at: http://www.hp.com/go/recyclers. These instructions may be used
by recyclers and other WEEE treatment facilities as well as HP OEM customers
who integrate and re-sell HP equipment.
QuickSpecs
HP mt31 Mobile Thin Client
Technical Specifications
Not all configuration components are available in all regions/countries.
This product is only available for Japan
c06159406 — 16342 — Japan — Version 3 — January 14, 2021
Page 22
__
HP, Inc. Corporate
Environmental
Information
For more information about HP’s commitment to the environment:
Global Citizenship Report
http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html
Eco-label certifications
http://www8.hp.com/us/en/hp-
information/environment/ecolabels.html
ISO 14001 certificates:
http://h20195.www2.hp.com/V2/GetDocument.aspx?docname=c04755842
http://www.hp.com/hpinfo/globalcitizenship/environment/pdf/cert.pdf
Country of Origin
China
QuickSpecs
HP mt31 Mobile Thin Client
Options and Accessories (sold separately and availability may vary by country)
Not all configuration components are available in all regions/countries.
This product is only available for Japan
c06159406 — 16342 — Japan — Version 3 — January 14, 2021
Page 23
__
Type
Description
Part Number
Cases
HP Essential Top Load Case
H2W17AA
HP Essential Backpack
H1D24AA
HP Essential Messenger Case
H1D25AA
Docking
HP USB-C Dock G4
3FF69AA
HP USB-C Mini Dock
1PM64AA
HP 3005pr USB3 Port Replicator
Y4H06AA
HP Thunderbolt Dock 120W G2
2UK37AA
HP Thunderbolt Dock 120W G2 w/ Audio
3YE87AA
HP Thunderbolt Dock G2 w/ Combo Cable
3TR87AA
HP USB-C Travel Dock
T0K29AA
HP USB-C Universal Dock
1MK33AA
HP USB-C Universal Dock NF
3DV65AA
HP Adjustable Display Stand
AW663AA
HP Thunderbolt Dock Audio Module
3AQ21AA
HP Thunderbolt Dock 120 W
3XB94AA
HP Thunderbolt Dock G2 combo cable
3XB96AA
Input/Output
HP Slim Wireless Keyboard and Mouse
T6T83AA
HP Ultra Mobile Wireless Mouse
T6L04AA
HP USB Collaboration Keyboard
Z9N38AA
HP Wireless Collaboration Keyboard
Z9N39AA
HP USB Essential Keyboard and Mouse
H6L29AA
HP Comfort Grip Wireless Mouse
H2L63AA
HP 3-Button USB Laser Mouse
H4B81AA
HP USB Travel Mouse
G1K28AA
HP Ultrathin Wireless Mouse
L9V77AA
HP Slim Bluetooth Mouse
F3J92AA
HP Essential USB Mouse
2TX37AA
HP HDMI to DVI Adapter
F5A28AA
HP USB-C to DP
N9K78AA
HP USB-C to USB-A Hub
Z6A00AA
HP Stereo 3.5mm Headset
T1A66AA
HP Stereo USB Headset
T1A67AA
Power
HP 45W Smart AC Adapter 4.5mm
H6Y88AA
HP 45W USB-C Power Adapter
1HE07AA
HP 65W USB-C Power Adapter
1HE08AA
HP 65W USB-C Slim Power Adapter
3PN48AA
HP Power Bank
N9F71AA
HP USB-C Notebook Power Bank
1TZ86AA
Storage
HP External USB Optical Drive
F2B56AA
Security
HP Essential Combination Lock
T0Y16AA
HP Combination Lock
T0Y15AA
QuickSpecs
HP mt31 Mobile Thin Client
Options and Accessories (sold separately and availability may vary by country)
Not all configuration components are available in all regions/countries.
This product is only available for Japan
c06159406 — 16342 — Japan — Version 3 — January 14, 2021
Page 24
__
HP Keyed Cable lock
T0Y14AA
HP Keyed Cable Lock 10mm
T1A62AA
UCC
HP Conferencing Keyboard
K8P74AA
HP UC Wireless Mono Headset
W3K08AA
HP UC Wireless Duo Headset
W3K09AA
HP UC Speaker Phone
K7V16AA
HP UC Wired Headset
K7V17AA
QuickSpecs
HP mt31 Mobile Thin Client
Summary of Changes
Not all configuration components are available in all regions/countries.
This product is only available for Japan
c06159406 — 16342 — Japan — Version 3 — January 14, 2021
Page 25
__
Date of change:
Version History:
Description of change:
April 30, 2019
From v1 to v2
Changed
Intel Celeron 3865U to Intel Celeron 3867U
January 14, 2021
From v2 to v3
Changed
SOFTWARE AND SECURITY section
Copyright © 2021 HP Development Company, L.P. The only warranties for HP products are set forth in the express limited
warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. HP
shall not be liable for technical or editorial errors or omissions contained herein.
Bluetooth is a trademark of its proprietor and used by HP Inc. under license. Intel, Core, Celeron and Intel vPro are trademarks of
Intel Corporation or its subsidiaries in the U.S. and/or other countries. NVIDIA, the NVIDIA logo, and GeForce are trademarks and/or
registered trademarks of NVIDIA Corporation in the U.S. and other countries. USB Type-C™ and USB-C™ are trademarks of USB
Implementers Forum. ENERGY STAR is a registered trademark of the U.S. Environmental Protection Agency. All other trademarks
are the property of their respective owners.
Loading...
