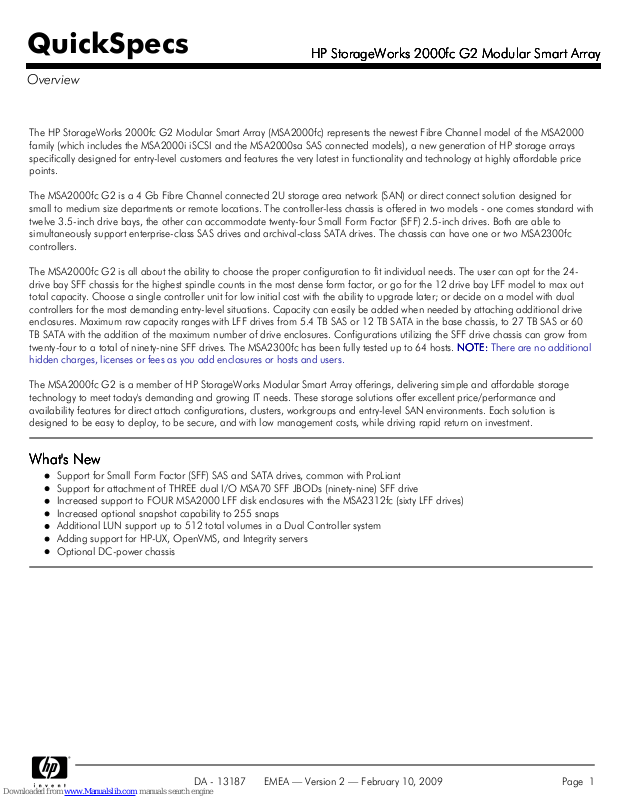

The HP StorageWorks 2000fc G2 Modular Smart Array (MSA2000fc) represents the newest Fibre Channel model of the MSA2000
family (which includes the MSA2000i iSCSI and the MSA2000sa SAS connected models), a new generation of HP storage arrays
specifically designed for entry-level customers and features the very latest in functionality and technology at highly affordable price
points.
The MSA2000fc G2 is a 4 Gb Fibre Channel connected 2U storage area network (SAN) or direct connect solution designed for
small to medium size departments or remote locations. The controller-less chassis is offered in two models - one comes standard with
twelve 3.5-inch drive bays, the other can accommodate twenty-four Small Form Factor (SFF) 2.5-inch drives. Both are able to
simultaneously support enterprise-class SAS drives and archival-class SATA drives. The chassis can have one or two MSA2300fc
controllers.
The MSA2000fc G2 is all about the ability to choose the proper configuration to fit individual needs. The user can opt for the 24drive bay SFF chassis for the highest spindle counts in the most dense form factor, or go for the 12 drive bay LFF model to max out
total capacity. Choose a single controller unit for low initial cost with the ability to upgrade later; or decide on a model with dual
controllers for the most demanding entry-level situations. Capacity can easily be added when needed by attaching additional drive
enclosures. Maximum raw capacity ranges with LFF drives from 5.4 TB SAS or 12 TB SATA in the base chassis, to 27 TB SAS or 60
TB SATA with the addition of the maximum number of drive enclosures. Configurations utilizing the SFF drive chassis can grow from
twenty-four to a total of ninety-nine SFF drives. The MSA2300fc has been fully tested up to 64 hosts.
NOTE:
NOTE:NOTE:
NOTE:
There are no additional
hidden charges, licenses or fees as you add enclosures or hosts and users.
The MSA2000fc G2 is a member of HP StorageWorks Modular Smart Array offerings, delivering simple and affordable storage
technology to meet today's demanding and growing IT needs. These storage solutions offer excellent price/performance and
availability features for direct attach configurations, clusters, workgroups and entry-level SAN environments. Each solution is
designed to be easy to deploy, to be secure, and with low management costs, while driving rapid return on investment.
What's New
What's NewWhat's New
What's New
Support for Small Form Factor (SFF) SAS and SATA drives, common with ProLiant
Support for attachment of THREE dual I/O MSA70 SFF JBODs (ninety-nine) SFF drive
Increased support to FOUR MSA2000 LFF disk enclosures with the MSA2312fc (sixty LFF drives)
Increased optional snapshot capability to 255 snaps
Additional LUN support up to 512 total volumes in a Dual Controller system
Adding support for HP-UX, OpenVMS, and Integrity servers
Optional DC-power chassis
QuickSpecs
HP StorageWorks 2000fc G2 Modular Smart Array
HP StorageWorks 2000fc G2 Modular Smart ArrayHP StorageWorks 2000fc G2 Modular Smart Array
HP StorageWorks 2000fc G2 Modular Smart Array
Overview
DA - 13187 EMEA — Version 2 — February 10, 2009
Page 1
HP StorageWorks 2324fc Modular Smart Array
HP StorageWorks 2324fc Modular Smart ArrayHP StorageWorks 2324fc Modular Smart Array
HP StorageWorks 2324fc Modular Smart Array
StoraageWorks 2312fc Modular Smart Array
StoraageWorks 2312fc Modular Smart ArrayStoraageWorks 2312fc Modular Smart Array
StoraageWorks 2312fc Modular Smart Array
Models
ModelsModels
Models
StorageWorks 2000fc G2
StorageWorks 2000fc G2StorageWorks 2000fc G2
StorageWorks 2000fc G2
Modular Smart Array
Modular Smart ArrayModular Smart Array
Modular Smart Array
Controller-less CHASSIS & MSA2300fc G2 FC Controller
Controller-less CHASSIS & MSA2300fc G2 FC ControllerController-less CHASSIS & MSA2300fc G2 FC Controller
Controller-less CHASSIS & MSA2300fc G2 FC Controller
HP StorageWorks 2012 Modular Smart Array 3.5-in Drive Bay Chassis (LFF)
(Will accept one or two controllers or Disk Enclosure I/O modules)
AJ948A
HP StorageWorks 2024 Modular Smart Array 2.5-in Drive Bay Chassis (SFF)
(Will accept one or two controllers)
AJ949A
HP StorageWorks 2300fc G2 Modular Smart Array Controller
AJ798A
Configured Units
Configured UnitsConfigured Units
Configured Units
HP StorageWorks 2312fc G2 Dual Controller Modular Smart Array (LFF)
(Pre-configured with two array controllers)
AJ795A
HP StorageWorks 2324fc G2 Dual Controller Modular Smart Array (SFF)
(Pre-configured with two array controllers)
AJ797A
MSA2300fc SAN Starter Kits
MSA2300fc SAN Starter KitsMSA2300fc SAN Starter Kits
MSA2300fc SAN Starter Kits
HP StorageWorks 2312fc G2 Single Controller Modular Smart Array SAN Starter Kit
(includes single controller, 12-drive bay LFF array head, 8-port 8Gb switch, two 8Gb
HBAs, SFPs and cables)
AJ954A
HP StorageWorks 2324fc G2 Single Controller Modular Smart Array SAN Starter Kit
(includes single controller, 24-drive bay SFF array head, 8-port 8Gb switch, two 8Gb
HBAs, SFPs and cables)
AJ955A
HP StorageWorks 2300fc G2 Modular Smart Array SAN Starter HA Upgrade Kit
(includes additional single controller, 8-port 8Gb switch, two more 8Gb HBAs, SFPs
and cables) For upgrading AJ954A or AJ955A to dual controller, high availability
configurations
AJ956A
Controller-less Chassis: DC-powered units
Controller-less Chassis: DC-powered unitsController-less Chassis: DC-powered units
Controller-less Chassis: DC-powered units
HP StorageWorks 2012 Modular Smart Array 3.5-in Drive Bay DC-power Chassis
(LFF) (can add one or two MSA2300fc G2 controllers or MSA2000 JBOD I/O
modules)
AJ950A
HP StorageWorks 2024 Modular Smart Array 2.5-in Drive Bay DC-power Chassis
(SFF) (can add one or two MSA2300fc G2 controllers. No MSA2000 JBOD I/O
module support)
AJ951A
Disk Enclosures
Disk EnclosuresDisk Enclosures
Disk Enclosures
QuickSpecs
HP StorageWorks 2000fc G2 Modular Smart Array
HP StorageWorks 2000fc G2 Modular Smart ArrayHP StorageWorks 2000fc G2 Modular Smart Array
HP StorageWorks 2000fc G2 Modular Smart Array
Overview
DA - 13187 EMEA — Version 2 — February 10, 2009
Page 2
HP StorageWorks MSA2000 Single I/O 3.5-inch 12 LFF Drive Enclosure
(w/ two .6m SAS to SAS cables) Used with single controller array head
AJ749A
HP StorageWorks MSA2000 Dual I/O 3.5-inch inch 12 LFF Drive Enclosure
(w/ two .6m SAS to SAS cables) Used with dual controller array head
AJ750A
HP StorageWorks MSA2000 Drive Enclosure I/O Module
(no cable included)
AJ751A
HP StorageWorks MSA70 2.5-inch 25 SFF Drive Enclosure 2.5 in Drive Enclosure
(single I/O, single domain) (w/one .5m miniSAS to miniSAS cable)
418800-B21
HP StorageWorks Dual Domain I/O Module for MSA70 enclosure
(upgrades MSA70 to dual domain) (w/ one .5m miniSAS to miniSAS cable)
AG779A
Related Option
Related OptionRelated Option
Related Option
HP StorageWorks 2000fc Modular Smart Array Controller (restricted use)
(for use only with an AJ948A LFF chassis to configure an older MSA2012fc. Only
supports older features, functionalities. No SFF support, max 48 LFF drives, max 64
snaps; no HP-UX, OpenVMS, or Integrity server support)
AJ744A
QuickSpecs
HP StorageWorks 2000fc G2 Modular Smart Array
HP StorageWorks 2000fc G2 Modular Smart ArrayHP StorageWorks 2000fc G2 Modular Smart Array
HP StorageWorks 2000fc G2 Modular Smart Array
Overview
DA - 13187 EMEA — Version 2 — February 10, 2009
Page 3
Key Hardware Features
Key Hardware FeaturesKey Hardware Features
Key Hardware Features
Highly efficient consolidation and sharing of storage geared to departmental and small to medium business requirements
Cost efficient plus high-availability choices
Flexibility in drives: LFF MSA2 3.5-inch or HP ProLiant SFF 2.5-inch drives
Enterprise-class SAS or archival-class SATA drives as the need and budget dictates
Dual-ported SAS drives for enterprise needs
Large capacity SATA drives for inexpensive archival storage
Able to mix SAS and SATA drives within the same drive enclosure
Choose either single or dual controller array models to fit the budget
Choice of low cost single I/O or high-availability dual I/O drive enclosure models
Customer Benefits
Customer BenefitsCustomer Benefits
Customer Benefits
The HP StorageWorks 2000 Modular Smart Array family manages growing storage requirements across multiple HP ProLiant,
Integrity, and a selection of PA-RISC servers for customers who need a centralized dedicated storage solution for applications.
SANs allow for controlled, cost-effective growth and increased protection of data.
Its ease of management allows a department or small company to effectively handle growing storage requirements with a
minimum of complexity.
The MSA2000fc extends the benefits of shared storage resources (e.g. SAN) to first time implementers on a limited budget
This new Fibre Channel G2 model introduces support for Integrity servers and the HP-UX and OpenVMS operating systems
The modular design allows the user to start relatively small but supports future growth to hundreds of users and up to 27TB of
LFF SAS or 60TB of LFF SATA storage, or 14.4TB of SFF SAS or 24TB SFF SATA storage.
The optional controller-based snapshot and clone capability of the MSA2000 family allows the smaller departmental user or
company to implement functionality once only available to much larger firms with expensive arrays. The MSA2300fc G2
controller supports up to 255 snaps.
HP MSA2300fc Models At a Glance:
HP MSA2300fc Models At a Glance:HP MSA2300fc Models At a Glance:
HP MSA2300fc Models At a Glance:
High performance Modular Smart Array controller(s), each with two 4Gb Fibre Channel ports
Single or dual controller capability
1 GB transportable cache per controller - battery-free cache backup with super capacitors and compact flash
512 LUNs with 16TB LUNs supported
2U rack mount chassis combining both the controller and disk shelf
Twelve 3.5-inch or twenty-four 2.5-inch dual-ported SAS or SATA drive bays (supports mixing of drive types in a single shelf)
Supports expansion to 4 additional LFF enclosures for a total of 60 LFF disks
Supports expansion to 3 additional SFF enclosures (MSA70) for a maximum total of 99 SFF disks
Redundant power supplies and fans are standard
RAID levels 0, 1, 3, 5, 6, 10, 50
Non-disruptive on-line controller code upgrade (requires dual controllers w/ multi-pathing software)
Heterogeneous support for 32-bit and 64-bit Windows, Red Hat and SuSE Linux, HP-UX and OpenVMS
Windows Server 2008 x64 Hyper-V, VMware, RedHat Enterprise Linux Virtualization, and Citrix XenServer
Qualified and certified for Windows, Linux, HP-UX and OpenVMS clustering
Optional controller-based snapshot and clone functionality
QuickSpecs
HP StorageWorks 2000fc G2 Modular Smart Array
HP StorageWorks 2000fc G2 Modular Smart ArrayHP StorageWorks 2000fc G2 Modular Smart Array
HP StorageWorks 2000fc G2 Modular Smart Array
Features and Benefits
DA - 13187 EMEA — Version 2 — February 10, 2009
Page 4
MSA2000fc G2
MSA2000fc G2MSA2000fc G2
MSA2000fc G2
MSA2000i
MSA2000iMSA2000i
MSA2000i
MSA2000sa
MSA2000saMSA2000sa
MSA2000sa
Comparison w/
Comparison w/Comparison w/
Comparison w/
EVA4400
EVA4400EVA4400
EVA4400
Capacity
CapacityCapacity
Capacity
(raw)
Minimum / with maximum
additional drive
enclosures
LFF
LFFLFF
LFF
: 5.4 TB SAS
or 12 TB SATA
w/ 4 drive enclosures:
27 TB SAS
or 60 TB SATA
SFF
SFFSFF
SFF
: 3.5 TB SAS
or 2.8 SATA
w/ 3 MSA70 JBODs:
14.4 TB SAS
or 11.8 TB SATA
5.4 TB SAS
or 12 TB SATA
w/ 3 drive enclosures:
21.6 TB SAS
or 48 TB SATA
(LFF only)
5.4 TB SAS
or 12 TB SATA
w/ 3 drive enclosures
21.6 TB SAS
or 48 TB SATA
(LFF only)
5.4 TB FC
or 12 TB FATA
w/ 8 drive enclosures
43 TB FC
or 96 TB FATA
(LFF only)
Controller Cache
Controller CacheController Cache
Controller Cache
1 GB per controller 1 GB per controller 1 GB per controller 2 GB per controller
Total LUNs
Total LUNsTotal LUNs
Total LUNs
512 256 256
1024
Host connect
Host connectHost connect
Host connect
MSA2000 have 1 or 2
controllers, EVA has 2
controllers standard
Two 4 Gb
Fibre Channel ports
per controller
Two 1 GbE
iSCSI ports
per controller
Two 3 Gb
SAS ports
per controller
Two 4 Gb
Fibre Channel ports
per controller
(Ten w/switch)
Maximum Drives
Maximum DrivesMaximum Drives
Maximum Drives
w/ expansion
60 LFF/99 SFF
48 48 96
Maximum host supported
Maximum host supportedMaximum host supported
Maximum host supported
64 16
4
512
Snapshot, clone
Snapshot, cloneSnapshot, clone
Snapshot, clone
Snapshot (max 255)
clone
Snapshot (max 64)
clone
Snapshot (max 64)
clone
Snapshot, clone,
remote data replication
Use for Storage
Use for StorageUse for Storage
Use for Storage
Primary Storage
with SAS.
Secondary with SATA
Primary Storage
with SAS.
Secondary with SATA
Primary Storage
with SAS.
Secondary with SATA
Primary Storage
with FC
Secondary with FATA
NOTE:
NOTE:NOTE:
NOTE:
maximum available storage capacity depends on the RAID level being implemented, and is based on maximum number of
LUNs and LUN size.
Product Technology
Product TechnologyProduct Technology
Product Technology
4 Gb Fibre Channel
4 Gb Fibre Channel4 Gb Fibre Channel
4 Gb Fibre Channel
technology
technologytechnology
technology
Two host ports per controller, shipped with SFPs. the MSA2000fc G2 controller
can run in either point-to-point or FCAL (loop). The default is FCAL which is
used in Direct Connect, particularly with two controllers. The PtP (fabric) mode
is used with almost all switches.
Modular Chassis
Modular ChassisModular Chassis
Modular Chassis
2U rack height. 12 Large Form Factor or 24 Small Form Factor drive bays,
accommodating SAS and SATA. Comes with space for one or two controllers,
or MSA2000 3.5-inch disk Enclosure I/O modules (LFF chassis only)
Drives available
Drives availableDrives available
Drives available
The new MSA2000fc G2 controller supports either the MSA2 3.5-inch Large
Form Factor (LFF) drives, or the HP ProLiant 2.5-inch Small Form Factor (SFF)
drive
Serial Attached SCSI (SAS) enterprise-class drives designed for high volume,
24x7 usage. Serial-ATA (SATA) are usually reserved for archival of data as
they are both relatively inexpensive and are available in very large capacities.
The MSA2000 family of arrays can accommodate both SAS and SATA drives
within the same enclosure making it ideal to have both business-critical, high
activity files on SAS drives while using Snapshot or clone capability to keep
back-up or archival data on the less expensive drives.
For investment protection, the MSA2300fc G2 controller will support single
QuickSpecs
HP StorageWorks 2000fc G2 Modular Smart Array
HP StorageWorks 2000fc G2 Modular Smart ArrayHP StorageWorks 2000fc G2 Modular Smart Array
HP StorageWorks 2000fc G2 Modular Smart Array
Family Information
DA - 13187 EMEA — Version 2 — February 10, 2009
Page 5
port SAS & SATA drives in a single-domain MSA70. This support allows current
owners of MSA70s to migrate their single port drives (in their MSA70 only) to
be attached to an MSA2300fc. They can only cascade to another single I/O
MSA70. This is not a data-in-place transition.
SAS drive performance can be approximately 30% greater than SATA
performance on sequential host I/O. SAS performance excels in sequential
lower latency response time and random I/O per second transaction
performance due to higher rpm disk speeds yielding lower seek times. SAS
drive random performance is generally twice that of SATA drives.
NOTE:
NOTE:NOTE:
NOTE:
MSA2 3.5-inch Large Form Factor (LFF) drives are for use only in the
MSA2000 family. The 2.5-inch Small Form Factor (SFF) drives are supported
only with the MSA2300fc G2 controller and are common with and are the
same part numbers as the ProLiant optional 2.5-inch drives.
Optional Disk enclosures
Optional Disk enclosuresOptional Disk enclosures
Optional Disk enclosures
Just as the user has a choice of chassis for the array head (LFF and SFF drive
bays), so also do they have a choice of expansion disk enclosures
accommodating either drive size.
MSA2000 3.5-inch drive enclosure
MSA2000 3.5-inch drive enclosureMSA2000 3.5-inch drive enclosure
MSA2000 3.5-inch drive enclosure
. This 2U unit has twelve LFF (3.5-inch)
drive bays and accepts for MSA2 dual-ported SAS and SATA drives. One
model (AJ749A) has a single I/O module that matches with a single controller
array head, giving a single path to the drives. The second model (AJ750A)
comes standard with two I/O modules installed, required when paired with a
dual controller array head, giving two paths to the drives for higher
availability.
This 3.5-inch drive enclosure can be attached to either the MSA2312fc
or MSA2324fc array head. In addition it continues to support the
MSA2000i and MSA2000sa.
Each model ships standard with two .6m SAS to SAS cables for
cascading to other MSA2000 drive enclosures
For connection to either form-factor MSA2300fc array head, miniSAS to
SAS cable(s) must be purchased.
The single I/O model can be upgraded to a dual model with the
purchase of an additional MSA2000 Drive Enclosure I/O module
(AJ751A). No cable is included with this upgrade.
Up to four MSA2000 3.5-inch enclosures can be attached to an
MSA2300fc G2 controller in the array head.
MSA70 2.5-inch drive enclosure
MSA70 2.5-inch drive enclosureMSA70 2.5-inch drive enclosure
MSA70 2.5-inch drive enclosure
. This 2U storage enclosure (418800-B21) is
designed to support twenty five ProLiant 2.5-inch Universal form factor (SFF)
SAS or SATA hard drives. It ships standard with a single I/O module installed.
This 2.5-inch drive enclosure can only be attached to an MSA2324fc
G2 controller (SFF)array head. It cannot be attached to the MSA2312fc
(LFF) or the MSA2000i or MSA2000sa models.
The MSA70 enclosure ships with a single .5m miniSAS to miniSAS
cable.
To support a dual controller MSA2124fc array head, the user needs to
purchase and install an MSA70 Dual Domain I/O Module (AG779A).
This option ships standard with an additional .5m miniSAS to miniSAS
cable.
Up to three MSA70s may be attached to the array head, given total
support for 99 SFF drives.
QuickSpecs
HP StorageWorks 2000fc G2 Modular Smart Array
HP StorageWorks 2000fc G2 Modular Smart ArrayHP StorageWorks 2000fc G2 Modular Smart Array
HP StorageWorks 2000fc G2 Modular Smart Array
Family Information
DA - 13187 EMEA — Version 2 — February 10, 2009
Page 6
Scalability
ScalabilityScalability
Scalability
The MSA2300fc G2 controller is designed to allow an installation to begin
with smaller capacity and be able to grow gradually as needed. The flexibility
of SAS or SATA drive technology, form factors, sizes, speeds, and costs per GB
allows a system to easily fit in almost any budget.
Large Form Factor configurations can scale up to 5.4 TB SAS or 12 TB
SATA, expandable to 27 TB SAS or 60 TB SATA with the addition of a
maximum of four MSA2000 3.5-inch Drive Enclosures.
Small Form Factor configurations can scale from 3.5 TB SAS or 6 TB
SATA. With the addition of three MSA70 JBODs, the MSA2324fc G2
can support 14.4 TB SAS or 24.7 TB SATA.
Users may configure a 24-drive MSA2324fc G2 SFF array head with up
to three 12-drive LFF MSA2000 3.5-inch disk enclosures. This is an
excellent method for a configuration that support fast SFF enterpriseclass SAS drives in the array head, combined with economical LFF drives
staged for archival purposes, all in the same array.
Qualification of larger capacity drives is ongoing.
LUNs
LUNsLUNs
LUNs
The MSA2000 family of arrays supports 512 LUNs (total volumes in a dual
controller system) and LUN sizes up to 16 TB. The array supports expansion
and deletion of any LUN.
RAID 0, 1, 3, 5, 6, 10,
RAID 0, 1, 3, 5, 6, 10,RAID 0, 1, 3, 5, 6, 10,
RAID 0, 1, 3, 5, 6, 10,
50
5050
50
In addition to the usual RAID levels, the MSA2000 family features several
important additional levels. RAID 6 is the highest level of RAID protection. It
allocates two sets of parity data across drives and allows simultaneous write
operations. It can withstand two simultaneous drive failures without downtime
or data loss. RAID 10 is mirroring and striping without parity. It is the most
popular of the multiple RAID levels, allowing large arrays with high
performance in most cases and superior fault tolerance. RAID 50 combines
the block striping and parity of RAID 5 with the straight block striping of RAID
0, yielding higher performance than RAID 5 through the addition of RAID 0,
particularly during writes.
Performance
PerformancePerformance
Performance
Performance numbers are a guideline as established by tests in a lab
environment. 96 72 GB 15K SAS drives were used in dual controller
configurations of eight 12 Disk vdisks, eight 806 GB volumes, and two
volumes per host.
Number and type of applications along with the number of hosts will affect
overall performance.
QuickSpecs
HP StorageWorks 2000fc G2 Modular Smart Array
HP StorageWorks 2000fc G2 Modular Smart ArrayHP StorageWorks 2000fc G2 Modular Smart Array
HP StorageWorks 2000fc G2 Modular Smart Array
Family Information
DA - 13187 EMEA — Version 2 — February 10, 2009
Page 7
Workload
MSA2300fc
MSA2000sa
MSA2000i
Host Connect
4 Gb Fibre
Channel
3 Gb SAS
1GbE Ethernet
MSA2000 RAID 10 Performance Results (rounded)
MSA2000 RAID 10 Performance Results (rounded)MSA2000 RAID 10 Performance Results (rounded)
MSA2000 RAID 10 Performance Results (rounded)
Random Reads IOPs
21,400 10,600
8,200
Random Writes IOPs
8,800 4,900 4,500
Random Mix IOPs 60/40
read/write
13,500
6,800 6,100
Sequential Reads MB
1,300
700 300
Sequential Writes MBs
560 350 260
MSA2000 RAID 5 Performance Results (rounded)
MSA2000 RAID 5 Performance Results (rounded)MSA2000 RAID 5 Performance Results (rounded)
MSA2000 RAID 5 Performance Results (rounded)
Random Reads IOPs
20,500 10,200
7,800
Random Writes IOPs
2,400 2,000 1,600
Sequential Reads MBs
1,300
700 300
Sequential Writes MBs
780 380 270
Random Mix IOPs
60/40 read/write
5,900 3,300 3,200
MSA2000 RAID 6 Performance Results (rounded)
MSA2000 RAID 6 Performance Results (rounded)MSA2000 RAID 6 Performance Results (rounded)
MSA2000 RAID 6 Performance Results (rounded)
Random Reads IOPs
20,500 10,100
7,800
Random Writes IOPs
1,600 1,400 1,200
Sequential Reads MBs
1,300
700 300
Sequential Writes MBs
820 380 270
Random Mix IOPs 60/40
read/write
4,500 2,750 2,560
DC-power chassis
DC-power chassisDC-power chassis
DC-power chassis
HP is making the two models of controller-less chassis available with direct
current (DC) power supplies. They each have the two empty bays where users
can insert one or two MSA2300fc G2 controller(s). In addition, the MSA2012
LFF drive bay can have MSA2000 3.5-inch I/O modules inserted to create a
LFF DC-power JBOD.
The 500 watt power supply is designed to operate over the input range of 40VDC to -75VDC. This is specifically intended to conform to Telco
requirements. Certification is in process but no claims are made at this time.
HP StorageWorks 2012 Modular Smart Array 3.5-in
Drive Bay DC-power Chassis (LFF)
AJ950A
HP StorageWorks 2024 Modular Smart Array 2.5-in
Drive Bay DC-power Chassis (SFF)
AJ951A
Configuration and
Configuration andConfiguration and
Configuration and
Management Tools
Management ToolsManagement Tools
Management Tools
HP StorageWorks MSA Storage Management Utility (SMU). Management
access, out-of-band: WEB GUI, CLI. Interface Types: Mini DB9 RS232,
10/100 Ethernet Protocols Supported SNMP, SSL, SSH, SMTP, HTTP, Telnet
Hot Plug Expansion and
Hot Plug Expansion andHot Plug Expansion and
Hot Plug Expansion and
Replacement Support
Replacement SupportReplacement Support
Replacement Support
All MSA2000 models support hot plug expansion and replacement of
redundant controllers, enclosures, fans, power supplies, and I/O modules for
simple, fast installation and maintenance.
Snapshot and Clone
Snapshot and CloneSnapshot and Clone
Snapshot and Clone
Optional controller based functionality. Offers higher levels of data protection,
enabling an almost instant recovery from data failure or corruption. Offers
alternative development testing of 'offline' production data and the ability to
backup snapped/cloned data.
QuickSpecs
HP StorageWorks 2000fc G2 Modular Smart Array
HP StorageWorks 2000fc G2 Modular Smart ArrayHP StorageWorks 2000fc G2 Modular Smart Array
HP StorageWorks 2000fc G2 Modular Smart Array
Family Information
DA - 13187 EMEA — Version 2 — February 10, 2009
Page 8
Overview
OverviewOverview
Overview
The MSA2000fc G2 comes integrated with web browser based software for storage and RAID
management, setup, configuration and troubleshooting. This reduces the cost of ownership by reducing
the training and technical expertise necessary to install and maintain your HP storage solution.
Server Compatibility
Server CompatibilityServer Compatibility
Server Compatibility
Supports most HP ProLiant and Integrity servers including
HP ProLiant DL, ML
HP ProLiant c-Class Blade Servers
Integrity servers, IA64 & PA Risc
Industry Standard X86
Industry Standard X86Industry Standard X86
Industry Standard X86
servers support
servers supportservers support
servers support
Supports most multi-vendor industry standard 32-bit Intel and AMD based (x86) servers. HP
requires the Third-Party Server to be logo'd and listed on the Microsoft Windows Server Catalog.
Refer to the Microsoft website:
http://www.microsoft.com/windows/catalog/server/
HP StorageWorks Division recommends that the Third-Party Server Vendor is an active member of
TSANet. Refer to the TSANet website for details:
www.tsanet.com
OS Support (x86)
OS Support (x86)OS Support (x86)
OS Support (x86)
Microsoft Windows Server 2008 IA32 (Standard, Enterprise, Datacenter)
Microsoft Windows Server 2008 x64 (Standard, Enterprise, Datacenter)
Microsoft Windows 2003 and 2003 R2
Microsoft Windows 2003 X64
Red Hat Linux 4 & 5 (32/64)
SuSE SLES 9 & 10 (32/64)
Microsoft Windows Server 2008 x64 Hyper-V
VMware ESX 3.0.1, 3.0.2, 3.5
Integrated Citrix XenServer HP Enterprise. Citrix Xen Enterprise 4.1.0-7846 (AMD64, EMT64)
OS Support
OS SupportOS Support
OS Support
(Integrity, HP9000)
(Integrity, HP9000)(Integrity, HP9000)
(Integrity, HP9000)
HP-UX V3 Integrity, HP9000
HP-UX V2 Integrity, HP9000
OpenVMS 8.3. OpenVMS 8.3-1H1
Web Browser support
Web Browser supportWeb Browser support
Web Browser support
MSA2000 support target based management, and includes a Web interface and a telnet
interface, and requires a web browser for management. Only Microsoft Internet Explorer V6.X and
above, and Mozilla Firefox 1.0.7 or later are supported
QuickSpecs
HP StorageWorks 2000fc G2 Modular Smart Array
HP StorageWorks 2000fc G2 Modular Smart ArrayHP StorageWorks 2000fc G2 Modular Smart Array
HP StorageWorks 2000fc G2 Modular Smart Array
Family Information
DA - 13187 EMEA — Version 2 — February 10, 2009
Page 9
MSA2300 Snapshot and
MSA2300 Snapshot andMSA2300 Snapshot and
MSA2300 Snapshot and
Volume Copy Software
Volume Copy SoftwareVolume Copy Software
Volume Copy Software
Product Features
Product FeaturesProduct Features
Product Features
Data Protection
Data ProtectionData Protection
Data Protection
Snapshots create up to 255 point-in-time pictures of data
Volume Copies create up to 128 point-in-time copies of data
Recovery is instant - revert data from any previous Snapshot or Volume Copy
Backup 'snapped' data to disk, virtual tape, or physical tape without a backup window
Data Testing
Data TestingData Testing
Data Testing
Snap or clone data to test the performance of a software application on 'offline' production data
Snap or clone data to test how a software patch or enhancement will function on 'offline;
production data
HP StorageWorks 2000 Modular Smart Array Snapshot 255 Software LTU
1
T5539A
HP StorageWorks 2000 Modular Smart Array Snapshot 64 Software LTU
T5512A
HP StorageWorks 2000 Modular Smart Array Snapshot 8 Software LTU
T5513A
HP StorageWorks 2000 Modular Smart Array Snapshot 8/255 Upgrade Software
LTU
1
T5540A
HP StorageWorks 2000 Modular Smart Array Snapshot 64/255 Upgrade Software
LTU
1
T5541A
HP StorageWorks 2000 Modular Smart Array Snapshot 8 to 64 Upgrade Software
LTU
T5515A
HP StorageWorks 2000 Modular Smart Array Volume Copy Software LTU
T5514A
1
The snapshot software is supported on the MSA2324 and MSA2312 (G2) models
only
Path failover (MPIO)
Path failover (MPIO)Path failover (MPIO)
Path failover (MPIO)
MPIO Basic Failover for Windows provides a single multi-path solution for HP StorageWorks
MSA2000fc Modular Smart Array on HP ProLiant servers by providing basic path failover. Supports
Windows 2003, Windows 2003 R2, and Windows 2003 X64 operating systems.
HP MPIO Full Featured DSM for MSA2000fc v2.2.0.22
Microsoft Windows 2008: Microsoft MPIO is bundled with Windows Server 2008 and must be
installed as an operating system feature.
Failover support for Linux is with Device Mapper 4.0.
HP-UX PV-Links
Xen: Inbox Device Mapper
HP StorageWorks Storage
HP StorageWorks StorageHP StorageWorks Storage
HP StorageWorks Storage
Mirroring
MirroringMirroring
Mirroring
HP StorageWorks Storage Mirroring Software provides host-based, continuous replication for customers
seeking a low-cost alternative to fabric or array-based replication. Patented replication and failover
technology continuously captures byte-level data changes as they happen and replicates those changes
to one or more target servers at any location without geographic limitations. By replicating only the bytes
that change, Storage Mirroring Software uses the absolute minimum bandwidth on your existing LAN or
WAN to replicate your data. Storage Mirroring also provides server failover where a production server
can automatically be 'replaced' by the storage mirroring server in the event of failure. Couple Storage
Mirroring with MSA2000 Snapshots and/or Volume Copy to achieve an Enterprise class data protection
strategy creating different data recovery points using continuous data protection with Storage Mirroring
and point-in-time data protection with Snapshots and/or Volume Copy.
Storage Mirroring Software supports:
QuickSpecs
HP StorageWorks 2000fc G2 Modular Smart Array
HP StorageWorks 2000fc G2 Modular Smart ArrayHP StorageWorks 2000fc G2 Modular Smart Array
HP StorageWorks 2000fc G2 Modular Smart Array
Optional Software
DA - 13187 EMEA — Version 2 — February 10, 2009
Page 10
Any DAS, NAS, and SAN storage device.
Any Windows or Linux ProLiant server including all ML, DL, and BL platforms
Many Windows platforms including Windows Server 2000, Windows Server 2003, Windows
Server 2003 R2, Windows Storage Server 2003, Windows Storage Server 2003 R2, 64bit
Windows, and Windows on Itanium
Some Linux platforms including Red Hat Linux Enterprise 4.4-4.6, 5.x
For more information visit
http://h18006.www1.hp.com/products/storage/software/sm/index.html
HP StorageWorks Storage Mirroring Software Windows Server Edition 1 LTU
T5438A
HP StorageWorks Storage Mirroring Software Windows Enterprise Server Edition 1
LTU
T5440A
HP StorageWorks Storage Mirroring Software Windows NAS Edition 1 LTU
T5442A
HP StorageWorks Storage Mirroring Software for AiO Edition 1 LTU
T5446A
HP StorageWorks Storage Mirroring Software for 5 Virtual Machines 1 LTU
T5444A
HP StorageWorks Storage Mirroring SW Linux 1 LTU
T5448A
HP StorageWorks Storage Mirroring Virtual Infrastructure 1 LTU
T5450A
NOTE:
NOTE:NOTE:
NOTE:
For more information visit
http://h18006.www1.hp.com/products/storage/software/sm/index.html
HP ProLiant Storage
HP ProLiant StorageHP ProLiant Storage
HP ProLiant Storage
Server gateways:
Server gateways:Server gateways:
Server gateways:
Add more value to your
Add more value to yourAdd more value to your
Add more value to your
MSA array
MSA arrayMSA array
MSA array
Stretch your MSA2000 array investment by adding file & print services, iSCSI connectivity, and
management hosting with a ProLiant Storage Server gateway platform. HP ProLiant Storage Servers are
optimized file and print server solutions that are built on industry-standard HP ProLiant servers and come
with either Microsoft Windows Storage Server 2003 R2 or Windows Unified Data Storage Server 2003
operating system pre-installed. Since they're Windows-based, network integration is easy, your tools and
data protection applications run right on the box, and management has a familiar look and feel. Like
many Network Attached Storage (NAS) devices, they support heterogeneous file serving environments
and are pre-configured to install in minutes.
A DL380 G5 x64 SAN Storage Server is a file/iSCSI gateway that adds IP-based services to your Fibre
Channel array or SAN. So it not only enhances your MSA investment with file and print services, but it
helps you save even more by enabling tiered (Fibre Channel and iSCSI) block access for application
servers. All of your important client and server data can be managed, scaled, and protected on a single
MSA2000 array.
NOTE:
NOTE:NOTE:
NOTE:
For more information visit:
http://www.hp.com/go/storageservers
HP ProLiant DL380 G5 Base Storage Server
NOTE:
NOTE:NOTE:
NOTE:
Microsoft Windows Storage Server 2003 R2 Standard x64 Edition O/S with
file/print services on a 2U rack form factor platform. For more information, go to:
http://h18006.www1.hp.com/products/quickspecs/12559_div/12559_div.html
AG815B
HP ProLiant DL380 G5 SAN Gateway Storage Server
NOTE:
NOTE:NOTE:
NOTE:
Microsoft Windows Unified Data Storage Server 2003 Enterprise x64 Edition
O/S with file/print, iSCSI, and cluster services on a 2U rack form factor platform. For
more information, go to:
http://h18006.www1.hp.com/products/quickspecs/12559_div/12559_div.html
AG771B
HP ProLiant SB460c SAN Gateway Storage Server
NOTE:
NOTE:NOTE:
NOTE:
Microsoft Windows Unified Data Storage Server 2003 Enterprise x64 Edition
O/S with file/print, iSCSI, and cluster services on a blade form factor platform. For
more information, go to:
http://h18006.www1.hp.com/products/quickspecs/13114_div/13114_div.html
AN583A
Fibre Channel HBA options for DL380 G5 Storage Servers
Fibre Channel HBA options for DL380 G5 Storage ServersFibre Channel HBA options for DL380 G5 Storage Servers
Fibre Channel HBA options for DL380 G5 Storage Servers
QuickSpecs
HP StorageWorks 2000fc G2 Modular Smart Array
HP StorageWorks 2000fc G2 Modular Smart ArrayHP StorageWorks 2000fc G2 Modular Smart Array
HP StorageWorks 2000fc G2 Modular Smart Array
Optional Software
DA - 13187 EMEA — Version 2 — February 10, 2009
Page 11
HP StorageWorks FC2142SR 4Gb PCIe HBA
A8002A
HP StorageWorks FC2242SR Dual Channel 4 Gb PCIe HBA
A8003A
HP StorageWorks FC1142SR 4Gb PCIe HBA
AE311A
HP StorageWorks FC1242SR Dual Channel 4 Gb PCIe HBA
AE312A
HP StorageWorks 81Q PCI-e FC HBA
AK344A
HP 82Q 8Gb Dual Port PCI-e FC HBA
AJ764A
HP StorageWorks 81E 8Gb SP PCI-e FC HBA
AJ762A
HP 82E 8Gb Dual-port PCI-e FC HBA
AJ763A
Fibre Channel HBA options for the SB460c SAN Gateway Storage Server
Fibre Channel HBA options for the SB460c SAN Gateway Storage ServerFibre Channel HBA options for the SB460c SAN Gateway Storage Server
Fibre Channel HBA options for the SB460c SAN Gateway Storage Server
Emulex LPe1105 FC Dual Channel 4Gb, PCI-E-to-Fibre Channel Host Bus Adapter
403621-B21
QLogic QMH2462 4Gb FC HBA for HP c-Class BladeSystem
403619-B21
QuickSpecs
HP StorageWorks 2000fc G2 Modular Smart Array
HP StorageWorks 2000fc G2 Modular Smart ArrayHP StorageWorks 2000fc G2 Modular Smart Array
HP StorageWorks 2000fc G2 Modular Smart Array
Optional Software
DA - 13187 EMEA — Version 2 — February 10, 2009
Page 12
Warranty
WarrantyWarranty
Warranty
Three-year limited warranty
Three years parts exchange
Next Business day delivery
Enclosures, Hard drives, and Options for the MSA2000fc carry their own warranty. Refer to HP's Limited
Warranty Statement for more information.
The MSA2000fc has been designed with customer self repairable parts to minimize repair time and
provide greater flexibility in performing defective parts replacement. Please refer to HP's limited warranty
Statement and parts replacement instructions for further details.
http://h18006.www1.hp.com/products/storageworks/warranty.html
Products included in various Kits carry their own individual warranties.
NOTE:
NOTE:NOTE:
NOTE:
The warranty of the hard drive options purchased with the MSA2000fc product is different for
SAS hard drives versus SATA hard drives. SAS hard drive options have a three year warranty and SATA
hard drives options have a one year warranty.
HP Care Pack Services. Scalable, Flexible, Dependable. Like your storage.
HP Care Pack Services. Scalable, Flexible, Dependable. Like your storage.HP Care Pack Services. Scalable, Flexible, Dependable. Like your storage.
HP Care Pack Services. Scalable, Flexible, Dependable. Like your storage.
Your storage is evolving. Get scalable support that evolves with it. HP Care Pack Services is an easy-to-buy, easy-to-use portfolio of
packaged services covering your lifecycle needs. You can rely on our highly skilled, HP certified professionals to offer a breadth of
expertise across leading storage technologies, and work side by side with you for optimal results. Push services beyond expectations
and choose support that meets the changing needs of your business with the same reliability, scalability and flexibility you demand of
your storage.
Protect your business beyond the warranty
Protect your business beyond the warrantyProtect your business beyond the warranty
Protect your business beyond the warranty
Standard warranty protects against product defects and some causes of downtime. HP Care Pack Services helps you proactively
guard against unplanned downtime which can reduce your productivity and profitability. By using a standard approach to warranty
uplifts, such as HP Care Pack Services, customers can be more sure of consistency of operations for both mission-critical and
standard business computing.
Extending warranties with HP Care Pack Services
The key to normalizing the warranty of combined solutions-is making service uplift simple: HP Care Pack Services. This portfolio of
predefined packages, extending across the entire IT lifecycle, offering consulting, education, technical support, optimization, risk
assessment, and more. It's entirely flexible allowing customers to extend the cover to the precise level of support required. Customer's
standard hardware warranty, for example, can be upgraded to next-business-day response, to same-day coverage, or even to a
committed six-hour call-to-repair service available 24 hours every day of the week.
Provide consistent, predictable levels of support across your entire department or business
Give you direct access to proven technical and problem-solving expertise
Offer a choice of response-time and repair-time commitments
Are available whenever and wherever you do business
For many products, post-warranty HP Care Pack Services are available when your original warranty has expired. Choose the support
levels that meet your business requirements, from basic to mission-critical.
http://www.hp.com/hps/storage
NOTE:
NOTE:NOTE:
NOTE:
Care Pack Services availability may vary by product and country.
QuickSpecs
HP StorageWorks 2000fc G2 Modular Smart Array
HP StorageWorks 2000fc G2 Modular Smart ArrayHP StorageWorks 2000fc G2 Modular Smart Array
HP StorageWorks 2000fc G2 Modular Smart Array
Service and Support, HP Care Pack, and Warranty Information
DA - 13187 EMEA — Version 2 — February 10, 2009
Page 13
Related Services
Related ServicesRelated Services
Related Services
Services that will enhance the user experience in many product deployments
Services that will enhance the user experience in many product deploymentsServices that will enhance the user experience in many product deployments
Services that will enhance the user experience in many product deployments
HP SAN Solution Service
Get your SAN implementation right - right from the start.
Storage has become essential to the growth and agility of your business.
That's why choosing an HP SAN as your data management solution is a
smart business decision. But your SAN can deliver the results you need only if
it is implemented correctly and integrated with your business.
SAN installation, startup, and integration call for specialized expertise in
planning and design, hardware configuration, network software installation,
and operability verification. Your SAN needs to be configured for high
performance and availability. And it needs to be integrated with your
applications, management environment, and business processes.
HP Data Migration Service
Minimize the risks involved in transferring data to your HP StorageWorks
SAN.
You need to move your critical enterprise data to your new HP StorageWorks
SAN platform. And you need to accomplish that without losing data. And
without interrupting your ongoing business operations.
HP Data Migration Service helps you lessen the risk of data loss, minimize
threats to data integrity, and avoid productivity-sapping performance
slowdowns during data transport. A highly experienced HP Services storage
specialist works with you to rapidly and securely migrate mission-critical
business information across your data center or around the globe regardless of the complexity of your environment.
HP Backup & Recovery
Solution Service - ISV
This service consists of installation of the ISV backup software for the
supported SAN environment per HP's and the ISV's quality standards by a
trained service specialist. HP Backup and Recovery Solution Service for ISV
Backup Software provides for the implementation of the supported ISV
backup software in a SAN environment. The two levels of service described
here are based on the size and complexity of the backup environment.
This service is available for VERITAS NetBackup, VERITAS Backup Exec,
CommVault Galaxy, and Legato NetWorker. Implementation of CommVault
Galaxy is only available as a Level 3 service.
QuickSpecs
HP StorageWorks 2000fc G2 Modular Smart Array
HP StorageWorks 2000fc G2 Modular Smart ArrayHP StorageWorks 2000fc G2 Modular Smart Array
HP StorageWorks 2000fc G2 Modular Smart Array
Service and Support, HP Care Pack, and Warranty Information
DA - 13187 EMEA — Version 2 — February 10, 2009
Page 14
eSupport
eSupporteSupport
eSupport
HP eSupport is a portfolio of technology-based services that assist you with managing your business
environment - from the desktop to the data center.
Support Portal
Support PortalSupport Portal
Support Portal
The HP support portal provides one-stop access to the information, tools and services you need to
manage the daily operations of your IT environment.
Features include:
Access to self-solve tools (including search technical knowledge base)
Efficient logging and tracking of support cases
Collaboration with other business and IT professionals
Download of patches and drivers
Access to diagnostic tools
Proactive notification of relevant information
Access to certain features of the support portal requires an HP service agreement. To access the support
portal, visit:
http://www.hp.com/support
Remote Support Technology (RST)-HP Remote Support Pack
Taking a more proactive approach to IT support, the HP Remote Support pack plug-in module easily
integrates with HP Systems Insight Manager to provide a powerful, unified "single pane of glass" solution
for onsite and remote management.
HP Remote Support Pack enhances HP Systems Insight Manager with intelligent event diagnosis plus the
automatic submission of hardware event notifications securely to HP support, including acknowledgment
and status returns. It adds remote configuration collections to allow the delivery of assessment and
proactive services for your SAN storage and HP-UX environments.
Customer Technical
Customer TechnicalCustomer Technical
Customer Technical
Training
TrainingTraining
Training
Consider education as an integral part of your strategy to get the best return on investment for your HP
storage solution. HP offers a variety of training courses on storage software, networking, archiving and
disk storage systems. Our classes are available in many delivery modalities from traditional instructor-led
courses at one of our 80 training centers worldwide to on-site training customized to your needs or
online.
www.hp.com/learn/storage
HP Services Awards
HP Services AwardsHP Services Awards
HP Services Awards
HP Services continues to be recognized for service and support excellence by customers, partners,
industry organizations and publications around the world. Recent honors and award reflect our services
team's dedications, technical expertise, professionalism and uncompromising commitment to customer
satisfaction. For a list of all our awards, please visit
http://h20129.ww2.hp.com/services/cache/77318-
0-0-225-121.html
.
Additional Services
Additional ServicesAdditional Services
Additional Services
Information
InformationInformation
Information
For more information about HP Care Pack Services for Storage, please visit:
http://www.hp.com/hps/storage
If you have specific questions, contact your local HP representative. Contact information for a
representative in your area can be found at "Contact HP"
http://www.hp.com
QuickSpecs
HP StorageWorks 2000fc G2 Modular Smart Array
HP StorageWorks 2000fc G2 Modular Smart ArrayHP StorageWorks 2000fc G2 Modular Smart Array
HP StorageWorks 2000fc G2 Modular Smart Array
Service and Support, HP Care Pack, and Warranty Information
DA - 13187 EMEA — Version 2 — February 10, 2009
Page 15
Warranty Upgrade
Warranty UpgradeWarranty Upgrade
Warranty Upgrade
Options
OptionsOptions
Options
Response - Upgrade on-site response from next business day to same day 4-hour response or 6
Hour Call To Repair
Coverage - Extend hours of coverage from next business day to 9 hours x 5 days to 24 hours x 7
days
Duration Select duration of coverage for a period of 1, 3, 4 or 5 years
Software Product Services
Software Product ServicesSoftware Product Services
Software Product Services
Product support provides the customer access to HP's experienced technical support
resources, as well as access to HP's Information Services database for support on a variety of multivendor/multiplatform software products. Product support includes escalation and problem coordination
with the appropriate engineering group. HP Services offer a variety of options to allow you to tailor your
product service to meet the needs of your organization. Basic warranty on products can be uplifted from
day one to ensure you receive the service you need when you need it.
QuickSpecs
HP StorageWorks 2000fc G2 Modular Smart Array
HP StorageWorks 2000fc G2 Modular Smart ArrayHP StorageWorks 2000fc G2 Modular Smart Array
HP StorageWorks 2000fc G2 Modular Smart Array
Service and Support, HP Care Pack, and Warranty Information
DA - 13187 EMEA — Version 2 — February 10, 2009
Page 16
Dual Controller MSA2300fc
Dual Controller MSA2300fcDual Controller MSA2300fc
Dual Controller MSA2300fc
1.
Power Switch
3.
CLI Port
5.
Service Port
2.
Fibre Channel Ports
4.
Ethernet Port
6.
Expansion Port
MSA70 Dual I/O 2.5-inch 25 Drive Enclosure
MSA70 Dual I/O 2.5-inch 25 Drive EnclosureMSA70 Dual I/O 2.5-inch 25 Drive Enclosure
MSA70 Dual I/O 2.5-inch 25 Drive Enclosure
Rear Panel components
Rear Panel componentsRear Panel components
Rear Panel components
1.
Power Supply 1
4.
SAS in connector
7.
I/O module bay
2.
System fan 1
5.
SAS out connector
8.
System fan 2
3.
Dual 7 segment display board (for
future use)
6.
I/O module bay
9.
Power supply 2
MSA2000 Dual I/O 3.5-inch 12 Drive Enclosure
MSA2000 Dual I/O 3.5-inch 12 Drive EnclosureMSA2000 Dual I/O 3.5-inch 12 Drive Enclosure
MSA2000 Dual I/O 3.5-inch 12 Drive Enclosure
Rear Panel components
Rear Panel componentsRear Panel components
Rear Panel components
1.
Service Port
4.
DC Voltage / Fan Fault
6.
SAS In Port
2.
Unit Locator
5.
AC Power Good
7.
SAS Out Port
3.
Power Switch
QuickSpecs
HP StorageWorks 2000fc G2 Modular Smart Array
HP StorageWorks 2000fc G2 Modular Smart ArrayHP StorageWorks 2000fc G2 Modular Smart Array
HP StorageWorks 2000fc G2 Modular Smart Array
Configuration Information
DA - 13187 EMEA — Version 2 — February 10, 2009
Page 17
Configure to Order Program Information
Configure to Order Program InformationConfigure to Order Program Information
Configure to Order Program Information
HP introduces the new Configure to Order program for the MSA2000 family The MSA2000 models and options may or may not be
factory installed in a rack with add-on controllers, switches, hubs, MSA2000 disk enclosures and hard drives. The MSA2000 arrays
may be integrated with ProLiant servers or as standalone storage.
Orders to be shipped through the CTO process must have a minimum of two drives ordered per controller. SAN Starter Kits are not
eligible for CTO.
Description
DescriptionDescription
Description
Product #
Product #Product #
Product #
HP StorageWorks 2012 Modular Smart Array 3.5-in Drive Bay Chassis (LFF)
AJ948A#0D1
HP StorageWorks 2024 Modular Smart Array 2.5-in Drive Bay Chassis (SFF)
AJ949A#0D1
HP StorageWorks 2300fc G2 Modular Smart Array Controller
AJ798A#0D1
HP StorageWorks 2312fc G2 Dual Controller Modular Smart Array (LFF)
AJ795A#0D1
HP StorageWorks 2324fc G2 Dual Controller Modular Smart Array (SFF)
AJ797A#0D1
HP 2000fc Modular Smart Array Controller (ONLY for use by those wishing to build an older model MSA2012fc))
AJ744A#0D1
HP MSA2000 3.5in Single I/O 12 Drive Encl
AJ749A#0D1
HP MSA2000 3.5in Dual I/O 12 Drive Encl
AJ750A#0D1
HP MSA2000 Drive Enclosure I/O Module
AJ751A#0D1
HP MSA2 146GB 3G 15K 3.5-inch SAS HDD
AJ735A#0D1
HP MSA2 300GB 3G 15K 3.5 inch SAS HDD
AJ736A#0D1
HP MSA2 450GB 3G 15K 3.5 inch SAS HDD
AJ737A#0D1
HP MSA2 500GB 7.2K 3.5 inch SATA HDD
AJ738A#0D1
HP MSA2 750GB 7.2K 3.5 inch SATA HDD
AJ739A#0D1
HP MSA2 1TB 7.2K 3.5 inch SATA HDD
AJ740A#0D1
MSA70
MSA70MSA70
MSA70
Single I/O, single domain
Single I/O, single domainSingle I/O, single domain
Single I/O, single domain
25 Small Form Factor
25 Small Form Factor25 Small Form Factor
25 Small Form Factor
(SFF) drive bays
(SFF) drive bays(SFF) drive bays
(SFF) drive bays
35.25 x 23.5 x 15.75 in (89.5 x 59.7 x 40.0 cm)
418800-B21
MSA70 I/O Module
MSA70 I/O ModuleMSA70 I/O Module
MSA70 I/O Module
Makes the standard
Makes the standardMakes the standard
Makes the standard
MSA70 (above) into a
MSA70 (above) into aMSA70 (above) into a
MSA70 (above) into a
dual I/O, dual domain
dual I/O, dual domaindual I/O, dual domain
dual I/O, dual domain
JBOD
JBODJBOD
JBOD
HP StorageWorks Dual Domain I/O Module
AG779A
NOTE:
NOTE:NOTE:
NOTE:
The I/O Module is a field upgradeable Option Kit the addition of which in the
MSA70 will allow dual domain capability providing higher level of redundancy and
reliability
SAS Drives (SFF 2.5-inch)
SAS Drives (SFF 2.5-inch)SAS Drives (SFF 2.5-inch)
SAS Drives (SFF 2.5-inch)
HP 72GB 3G 10K SAS 2.5-inch SFF DP HDD
384842-B21
HP 146GB 3G 10K SAS 2.5-inch SFF DP HDD
418367-B21
HP 36GB 3G 15K SAS 2.5-inch SFF DP HDD
418369-B21
HP 72GB 3G 15K SAS 2.5-inch SFF DP HDD
418371-B21
NOTE:
NOTE:NOTE:
NOTE:
Only Dual Port (DP) drives will work in the Dual Domain environment. Dual
Domain environment requires the HP StorageWorks Dual Domain I/O Module
Option (# AG779A).
SATA Drives (SFF 2.5-
SATA Drives (SFF 2.5-SATA Drives (SFF 2.5-
SATA Drives (SFF 2.5inch)
inch)inch)
inch)
HP 60 GB 1.5 G SATA 5.4K 2.5-inch SFF HDD
379306-B21
HP 120 GB 1.5G SATA 5.4K 2.5-inch SFF HDD
458924-B21
HP 250 GB 3G 5.4K 2.5-inch SATA SFF ETY HDD
460355-B21
QuickSpecs
HP StorageWorks 2000fc G2 Modular Smart Array
HP StorageWorks 2000fc G2 Modular Smart ArrayHP StorageWorks 2000fc G2 Modular Smart Array
HP StorageWorks 2000fc G2 Modular Smart Array
Configuration Information
DA - 13187 EMEA — Version 2 — February 10, 2009
Page 18
NOTE:
NOTE:NOTE:
NOTE:
SATA drives are not dual port (DP) drives.
NOTE:
NOTE:NOTE:
NOTE:
Go to the HP Hard Drive Compatibility table for complete drive compatibility
information (
http://www.hp.com/products/harddiskdrives
). Using hard drives in
unsupported configurations will result in voiding the warranty and could result in
damage to the drive and/or loss of data
Step 1 - MSA2000fc G2 - Base Configuration
Step 1 - MSA2000fc G2 - Base ConfigurationStep 1 - MSA2000fc G2 - Base Configuration
Step 1 - MSA2000fc G2 - Base Configuration
Select one:
Select one:Select one:
Select one:
Model Name
Model NameModel Name
Model Name
Model Description:
Model Description:Model Description:
Model Description:
Part Number
Part NumberPart Number
Part Number
HP StorageWorks 2012
Modular Smart Array 3.5inch Drive Bay Chassis
Controller-less chassis with twelve Large Form Factor (LFF) MSA2 drive bays. Space
for two controllers.
AJ948A
HP StorageWorks 2024
Modular Smart Array 2.5inch Drive Bay Chassis
Controller-less chassis with twenty-four Small Form Factor (SFF) ProLiant drives bays.
Space for two controllers. (SFF)
AJ949A
There are two array-head chassis - one with twelve 3.5-inch large form factor bays, the other with twenty-four 2.5-inch small form
factor drive bays. For additional twelve additional drive bays purchase an MSA2000 3.5-inch Disk Enclosure. You may attach a
total of four MSA2000 Drive Enclosures for a total of sixty LFF drive bays. For 25 additional SFF drive bays purchase an MSA70
JBOD with the 2nd I/O module. You may attach a total of three MSA70 JBODs for a total of ninety-nine LFF drive bays. Single
controller arrays support Single I/O Disk Enclosures; dual controller arrays support Dual I/O Disk Enclosures.
Step 2 - Options
Step 2 - OptionsStep 2 - Options
Step 2 - Options
Select each option with quantities specified.
Step 2a - Options
Step 2a - OptionsStep 2a - Options
Step 2a - Options
Description with Parts Shipped:
Description with Parts Shipped:Description with Parts Shipped:
Description with Parts Shipped:
Quantity
QuantityQuantity
Quantity
Part Number
Part NumberPart Number
Part Number
HP StorageWorks 2300fc G2 Modular Smart Array Controller
(for either the LFF MSA2012, SFF MSA2024, or the two DC-powered chassis)
1 or 2
AJ798A
Step 2b - SAS and SATA Drive Options
Step 2b - SAS and SATA Drive OptionsStep 2b - SAS and SATA Drive Options
Step 2b - SAS and SATA Drive Options
NOTE:
NOTE:NOTE:
NOTE:
SATA drives are designed for archival or reference data. They should not be used in a heavy or intense I/O environment.
Those situations require the use of enterprise-class SAS drives. MSA2 3.5-inch drives are for use only with MSA2000 products.
MSA2 Large Form Factor (LFF) SAS drives for MSA2312fc and MSA2000 3.5-inch Disk Enclosure
MSA2 Large Form Factor (LFF) SAS drives for MSA2312fc and MSA2000 3.5-inch Disk EnclosureMSA2 Large Form Factor (LFF) SAS drives for MSA2312fc and MSA2000 3.5-inch Disk Enclosure
MSA2 Large Form Factor (LFF) SAS drives for MSA2312fc and MSA2000 3.5-inch Disk Enclosure
HP StorageWorks MSA2 146GB 3G 15K 3.5-inch Dual-port SAS LFF HDD
AJ735A
HP StorageWorks MSA2 300GB 3G 15K 3.5-inch Dual-port SAS LFF HDD
AJ736A
HP StorageWorks MSA2 450GB 3G 15K 3.5-inch Dual-port SAS LFF HDD
AJ737A
MSA2 Large Form Factor (LFF) SATA drives for MSA2312fc and MSA2000 3.5-inch Disk Enclosure
MSA2 Large Form Factor (LFF) SATA drives for MSA2312fc and MSA2000 3.5-inch Disk EnclosureMSA2 Large Form Factor (LFF) SATA drives for MSA2312fc and MSA2000 3.5-inch Disk Enclosure
MSA2 Large Form Factor (LFF) SATA drives for MSA2312fc and MSA2000 3.5-inch Disk Enclosure
HP StorageWorks MSA2 500GB 7.2K 3.5-inch SATA LFF HDD
AJ738A
HP StorageWorks MSA2 750GB 7.2K 3.5-inch SATA LFF HDD
AJ739A
HP StorageWorks MSA2 1TB 7.2K 3.5-inch SATA LFF HDD
AJ740A
ProLiant Small Form Factor (SFF) SAS drives for MSA2324fc and MSA70 JBOD
ProLiant Small Form Factor (SFF) SAS drives for MSA2324fc and MSA70 JBODProLiant Small Form Factor (SFF) SAS drives for MSA2324fc and MSA70 JBOD
ProLiant Small Form Factor (SFF) SAS drives for MSA2324fc and MSA70 JBOD
HP 72GB 3G 10K 2.5-inch SAS SFF SP HDD (MSA70 only)
375861-B21
HP 146GB 3G 10K 2.5-inch SAS SFF SP HDD (MSA70 only)
431958-B21
QuickSpecs
HP StorageWorks 2000fc G2 Modular Smart Array
HP StorageWorks 2000fc G2 Modular Smart ArrayHP StorageWorks 2000fc G2 Modular Smart Array
HP StorageWorks 2000fc G2 Modular Smart Array
Configuration Information
DA - 13187 EMEA — Version 2 — February 10, 2009
Page 19
HP 36GB 3G 15K 2.5-inch SAS SFF SP HDD (MSA70 only)
431933-B21
HP 72GB 3G 15K 2.5-inch SAS SFF SP HDD (MSA70 only)
431935-B21
HP 72GB 3G 10K 2.5-inch SAS SFF DP HDD
384842-B21
HP 146GB 3G 10K 2.5-inch SAS SFF DP HDD
418367-B21
HP 36GB 3G 15K 2.5-inch SAS SFF DP HDD
418369-B21
HP 72GB 3G 15K 2.5-inch SAS SFF DP HDD
418371-B21
ProLiant Small Form Factor (SFF) SATA drives for MSA2324fc and MSA70 JBOD
ProLiant Small Form Factor (SFF) SATA drives for MSA2324fc and MSA70 JBODProLiant Small Form Factor (SFF) SATA drives for MSA2324fc and MSA70 JBOD
ProLiant Small Form Factor (SFF) SATA drives for MSA2324fc and MSA70 JBOD
HP 60 GB 1.5 G 5.4K 2.5-inch SATA SFF HDD
379306-B21
HP 120 GB 1.5G 5.4K 2.5-inch SATA SFF HDD
458924-B21
Step 2c - Drive Enclosure Options
Step 2c - Drive Enclosure OptionsStep 2c - Drive Enclosure Options
Step 2c - Drive Enclosure Options
Should you want a drive enclosure, the model you choose depends on which array model it attaches to. If it is a single controller
array, then choose the JBOD designated as "Single I/O". If it is attaching to a dual controller array then choose the "Dual I/O" JBOD
HP StorageWorks MSA2000 Single I/O 3.5-inch 12 Drive Enclosure
(use with single controller array heads. Ships with two .6m SAS to SAS cables)
AJ749A
HP StorageWorks MSA2000 Drive Enclosure I/O Module
(Use to upgrade the Single I/O model to dual I/O. No cable included)
AJ751A
HP StorageWorks MSA2000 Dual I/O 3.5-inch 12 Drive Enclosure
(use with dual controller array heads. Ships with two .6m SAS to SAS cables)
AJ750A
HP StorageWorks 70 Modular Smart Array (MSA70) SFF 2.5-inch drive Single I/O JBOD
Single I/O, single domain. 25 Small Form Factor (SFF) drive bays
(use only with MSA2324fc array head. Includes one miniSAS to miniSAS cable)
418800-B21
HP StorageWorks Dual Domain I/O Module for MSA70
Makes the standard MSA70 (above) into a dual I/O, dual domain JBOD
(Includes one miniSAS to miniSAS cable)
AG779A
MSA70 NOTE:
MSA70 NOTE:MSA70 NOTE:
MSA70 NOTE:
Only Dual Port (DP) drives will work in the Dual Domain environment. Dual Domain environment requires the HP
StorageWorks Dual Domain I/O Module Option (# AG779A).
For more information on the MSA70, go to the MSA70 Home Page:
http://h18006.www1.hp.com/storage/disk_storage/msa_diskarrays/drive_enclosures/msa70/index.html
Step 2c - SAS Cable Options
Step 2c - SAS Cable OptionsStep 2c - SAS Cable Options
Step 2c - SAS Cable Options
miniSAS to miniSAS Cables:
miniSAS to miniSAS Cables:miniSAS to miniSAS Cables:
miniSAS to miniSAS Cables:
Connecting MSA2300fc controller to MSA70 JBOD if a longer cable is desired.
HP Ext miniSAS to miniSAS 1m Cable
407337-B21
HP Ext miniSAS to miniSAS 2m Cable
407339-B21
SAS to miniSAS Cables:
SAS to miniSAS Cables:SAS to miniSAS Cables:
SAS to miniSAS Cables:
Connecting MSA2300fc controller to MSA2000 3.5-inch Disk Enclosure
HP SAS to miniSAS .5m Cable
419569-B21
HP SAS to miniSAS 1m Cable
419570-B21
HP SAS to miniSAS 2m Cable
419571-B21
SAS Cables (SAS to SAS)
SAS Cables (SAS to SAS)SAS Cables (SAS to SAS)
SAS Cables (SAS to SAS)
Older MSA2000fc controller to MSA2000 3.5-inch Disk Enclosure or cascading two
MSA2000 3.5-inch Disk Enclosures if included .6m cables is not of sufficient length
HP Ext SAS to SAS 1m Cable
389665-B21
QuickSpecs
HP StorageWorks 2000fc G2 Modular Smart Array
HP StorageWorks 2000fc G2 Modular Smart ArrayHP StorageWorks 2000fc G2 Modular Smart Array
HP StorageWorks 2000fc G2 Modular Smart Array
Configuration Information
DA - 13187 EMEA — Version 2 — February 10, 2009
Page 20
HP Ext SAS to SAS 2m Cable
389668-B21
Step 3 - Other MSA2300fc Options
Step 3 - Other MSA2300fc OptionsStep 3 - Other MSA2300fc Options
Step 3 - Other MSA2300fc Options
Description
DescriptionDescription
Description
Quantity
QuantityQuantity
Quantity
Part Number
Part NumberPart Number
Part Number
1st generation HP StorageWorks 2000fc Modular Smart Array Controller (older version)
1 or 2
AJ744A
(ONLY for those desiring to configure an older MSA2012fc by using the MSA2012 chassis and installing either one or two of this
model controller. The resulting array head will have the attributes of the first generation MSA2012fc with no support for SFF drives,
no HP-UX, limited total drive count, limited snaps, etc.)
Choose optional Power Cord for Non-U.S. Configurations
Choose optional Power Cord for Non-U.S. ConfigurationsChoose optional Power Cord for Non-U.S. Configurations
Choose optional Power Cord for Non-U.S. Configurations
NOTE:
NOTE:NOTE:
NOTE:
Shipped standard with all units.
2 ea. Power Cord, 110/220 VAC, US/Canada/Mexico 227099-001
Power Cord, 220/240 VAC, (US/Canada/Mexico)
2
227099-001
Power Cord, (Australia/China/New Zealand)
2
227098-001
Power Cord, (Central Europe)
2
157215-001
Power Cord, (United Kingdom/Hong Kong)
2
157216-001
Power Cord, (Switzerland)
2
157219-001
Power Cord, (Italy)
2
157217-001
Power Cord, (Denmark)
2
157218-001
Power Cord, (Japan)
2
139867-001
Power Cord, (South East Asia/India)
2
157220-001
Step 4 - Choose Supported Options For Fibre Channel Infrastructure
Step 4 - Choose Supported Options For Fibre Channel InfrastructureStep 4 - Choose Supported Options For Fibre Channel Infrastructure
Step 4 - Choose Supported Options For Fibre Channel Infrastructure
Fibre Channel
Fibre ChannelFibre Channel
Fibre Channel
Host Bus Adapters -
Host Bus Adapters -Host Bus Adapters -
Host Bus Adapters X86 servers
X86 serversX86 servers
X86 servers
Model
ModelModel
Model
Description
DescriptionDescription
Description
Part Number
Part NumberPart Number
Part Number
FC2242SR
4Gb PCI-E Dual Channel HBA for Windows and Linux
A8003A
FC2142SR
4Gb PCI-E for Windows and Linux
A8002A
FC2243
4Gb PCI-X Dual Channel for Windows and Linux
AD168A
FC2143
4Gb PCI-X 2.0 for Windows and Linux
AD167A
FC1242SR
4Gb PCI-E Dual Channel HBA for Windows and Linux
AE312A
FC1142SR
4Gb PCI Express HBA for Windows and Linux
AE311A
FC1243
4Gb PCI-X 2.0 Dual Channel for Windows and Linux
AE369A
FC1143
4Gb PCI-X 2.0 for Windows and Linux
AB429A
Bladeserver HBA
Lpe1105-HP 4Gb FC HBA for HP c-Class BladeSystem
403621-B21
Bladeserver HBA
QMH2462 4Gb FC HBA for HP c-Class BladeSystem
Windows and Linux
403619-B21
81E
StorageWorks 8Gb, PCIe to Fibre Channel Host Bus
Adapter for Windows, Windows Server, and Linux
AJ762A
82E
StorageWorks 8Gb, PCIe to Fibre Channel Host Bus
Adapter for Windows, Windows Server, and Linux
AJ763A
81Q
StorageWorks 8Gb, PCIe to Fibre Channel Host Bus
Adapter for Windows, Windows Server, and Linux
AK344A
QuickSpecs
HP StorageWorks 2000fc G2 Modular Smart Array
HP StorageWorks 2000fc G2 Modular Smart ArrayHP StorageWorks 2000fc G2 Modular Smart Array
HP StorageWorks 2000fc G2 Modular Smart Array
Configuration Information
DA - 13187 EMEA — Version 2 — February 10, 2009
Page 21
82Q
StorageWorks 8Gb, Dual Channel PCIe to Fibre Channel
Host Bus Adapter for Windows, Windows Server, and
Linux
AJ764A
Fibre Channel
Fibre ChannelFibre Channel
Fibre Channel
Host Bus Adapters -
Host Bus Adapters -Host Bus Adapters -
Host Bus Adapters Integrity, PA-Risc servers
Integrity, PA-Risc serversIntegrity, PA-Risc servers
Integrity, PA-Risc servers
Integrity and HP9000
HP-UX v3, and v2
HP PCI-X 2.0 1Port 4Gb
AB378B
Integrity
HP-UX v3 and v2
HP PCI-X 2.0 2Port 4Gb Fibre Channel HBA
AB379B
Integrity
HP-UX v3 and v2
HP PCIe 2Port 4Gb Fibre Channel HBA
AD300A
Integrity server blades
BL860c and BL870c
HP-UX v3 and v2
HP BLc QLogic QMH2462 FC HBA Opt Kit
403619-B21
Integrity
HP-UX v3 and v2
HP PCIe 1Port 4Gb Fibre Channel HBA
AD299A
Integrity
HP-UX v3 and v2
HP PCIe 2-Port 4Gb Fibre Channel HBA
AD335A
Integrity server blades
BL860c and BL870c
HP-UX v3
HP BLc Emulex LPe1105 FC HBA Opt Kit
403621-B21
Integrity
HP-UX v3
HP PCIe 1p 4Gb FC and 1p 1000BT Adapter
AD221A
Integrity
HP-UX v3
HP PCIe 2p 4Gb FC and 2p 1000BT Adapter
AD222A
Integrity
HP-UX v3
HP PCIe 2p 4Gb FC and 2p 1000BSX Adapter
AD393A
Integrity and HP9000
HP-UX v3 and v2
PCI-X 2Gb Fibre Channel/1000Base-SX HBA
A9782A
Integrity and HP9000
HP-UX v3 and v2
HP PCI-x 1p 4Gb FC and 1p 1000BT Adapter
AD193A
Integrity and HP9000
HP-UX v3 and v2
HP PCI-x 2p 4Gb FC and 2p 1000BT Adapter
AD194A
Fibre Channel Switches
Fibre Channel SwitchesFibre Channel Switches
Fibre Channel Switches
Brocade 4/12 SAN Switch for HP c-Class Blade System, Base
AE370A
Brocade 4/24 SAN Switch for HP c-Class Blade System, Full Fabric
AE372A
Brocade 4/24 SAN Switch for HP c-Class Blade System, Power Pack
AE371A
HP StorageWorks 4/8 Base SAN Switch
A7984A
HP StorageWorks 4/16 SAN Switch
A7985A
HP StorageWorks 4/16 SAN Switch Power Pack
A7987A
HP StorageWorks 4/8 SAN Switch
A8000A
HP StorageWorks 4/32B Base SAN Switch
AG756A
HP StorageWorks 4/32B Full SAN Switch
AG757A
HP StorageWorks 4/32B Power Pack SAN Switch
AG758A
HP StorageWorks 8/8 Base SAN Switch
AM866A
HP StorageWorks 8/8 SAN Switch
AM867A
QuickSpecs
HP StorageWorks 2000fc G2 Modular Smart Array
HP StorageWorks 2000fc G2 Modular Smart ArrayHP StorageWorks 2000fc G2 Modular Smart Array
HP StorageWorks 2000fc G2 Modular Smart Array
Configuration Information
DA - 13187 EMEA — Version 2 — February 10, 2009
Page 22
HP StorageWorks 8/24 Base SAN Switch
AM868A
HP StorageWorks 8/40 Base SAN Switch
AM869A
HP StorageWorks 8/40 Power Pack+ SAN Switch
AM870A
HP StorageWorks 8/80 Power Pack+ SAN Switch
AM872A
HP StorageWorks 8/80 Base SAN Switch
AM871A
HP StorageWorks 4/256 SAN Director
A7988A
HP StorageWorks 4/256 Power Pack SAN Director
A7989A
HP StorageWorks DC SAN Backbone Director
AK857A
Brocade 8/12c SAN Switch for HP BladeSystem c-Class
AJ820A
Brocade 8/24c SAN Switch for HP BladeSystem c-Class
AJ821A
Brocade 8/24c SAN Switch for HP BladeSystem c-Class Power Pack+
AJ822A
8 Gb Simple SAN Connection
HP StorageWorks 8/20q Fibre Channel Switch (8 switch ports active)
AQ233A
HP StorageWorks 8Gb Simple SAN Connection Kit (8 switch ports active)
AK241A
HP StorageWorks 8/20q Fibre Channel Switch (16 switch ports active)
AK242A
Cisco MDS 9124 8-ports Active Fabric Switch
AG646A
Cisco MDS 9124 16-ports Active Fabric Switch
AG647A
Cisco MDS 9124 24-ports Active Fabric Switch
AG648A
Cisco MDS 9124e 12-port Fabric Switch for HP c-Class BladeSystem
AG641A
Cisco MDS 9124e 24-port Fabric Switch for HP c-Class BladeSystem
AG642A
Cisco MDS 9134 24-ports Active Fabric Switch
AG874A
Cisco MDS 9134 32-ports Active Fabric Switch
AG875A
Cisco MDS 9134 26-ports Active w/kit for 48 port solution
AJ732A
Cisco MDS 9134 34-ports Active w/kit for 64 port solution
AJ733A
MDS 9222i Multiservice Modular Switch w/0 SFPs
AG851A
Cisco MDS 9216i w/o Ethernet SFP switch
AE390A
Cisco MDS 9216i
AE390A
MDS 9506 Director with Supervisor 2
AE388A
MDS 9509 Director with Supervisor 2
AE389A
MDS 9513 Director with Supervisor 2
AE376A
MDS 9513 Director with Fabric 2 Module
AJ905A
Fibre Channel Cables
Fibre Channel CablesFibre Channel Cables
Fibre Channel Cables
2 m LC-LC Multi-Mode Fibre Channel Cable
221692-B21
5 m LC-LC Multi-Mode Fibre Channel Cable
221692-B22
15 m LC-LC Multi-Mode Fibre Channel Cable
221692-B23
30 m LC-LC Multi-Mode Fibre Channel Cable
221692-B26
50 m LC-LC Multi-Mode Fibre Channel Cable
221692-B27
2 m LC-SC Multi-Mode Fibre Channel Cable
221691-B21
5 m LC-SC Multi-Mode Fibre Channel Cable
221691-B22
15 m LC-SC Multi-Mode Fibre Channel Cable
221691-B23
30 m LC-SC Multi-Mode Fibre Channel Cable
221691-B26
50 m LC-SC Multi-Mode Fibre Channel Cable
221691-B27
QuickSpecs
HP StorageWorks 2000fc G2 Modular Smart Array
HP StorageWorks 2000fc G2 Modular Smart ArrayHP StorageWorks 2000fc G2 Modular Smart Array
HP StorageWorks 2000fc G2 Modular Smart Array
Configuration Information
DA - 13187 EMEA — Version 2 — February 10, 2009
Page 23
Step 5 - Choose Rack Options
Step 5 - Choose Rack OptionsStep 5 - Choose Rack Options
Step 5 - Choose Rack Options
Select each required option with quantities specified.
Rack Cabinet, Customer Assembled
Rack Cabinet, Customer AssembledRack Cabinet, Customer Assembled
Rack Cabinet, Customer Assembled
5642 - 5000 Series rack
358254-B21
14U rack
14U rack14U rack
14U rack
HP S10614 Rack with Shock Pallet
292302-B22
Rack Cabinets 10622 G2
Rack Cabinets 10622 G2Rack Cabinets 10622 G2
Rack Cabinets 10622 G2
10622 G2 Universal Rack w/Shock Pallet
AF022A
10622 G2 Universal Rack w/Standard Pallet
AF021A
Rack Cabinets under 10636 G2
Rack Cabinets under 10636 G2Rack Cabinets under 10636 G2
Rack Cabinets under 10636 G2
10636 G2 (36U) Rack Cabinet - Pallet
AF011A
10636 G2 (36U) Rack Cabinet - Shock Pallet
AF012A
10636 G2 (36U) Rack Cabinet - Crated
AF013A
10636 G2 (36U) Rack Cabinet, with Extension - Shock Pallet
AF014A
Rack Cabinets 10642 G2
Rack Cabinets 10642 G2Rack Cabinets 10642 G2
Rack Cabinets 10642 G2
10642 G2 (42U) Rack Cabinet - Pallet
AF001A
10642 G2 (42U) Rack Cabinet - Shock Pallet
AF002A
10642 G2 (42U) Rack Cabinet - Crated
AF003A
10642 G2 (42U) Rack Cabinet, with Extension - Shock Pallet
AF004A
Modular Cooling System G2 (MCS G2)
AF025A
MCS G2 10642 G2 Expansion Rack
AF026A
Rack Cabinets 10842 G2
Rack Cabinets 10842 G2Rack Cabinets 10842 G2
Rack Cabinets 10842 G2
10842 G2 Universal Rack w/Shock Pallet
AF042A
10842 G2 Universal Rack w/Standard Pallet
AF041A
Rack Cabinets 10647 G2
Rack Cabinets 10647 G2Rack Cabinets 10647 G2
Rack Cabinets 10647 G2
10647 Rack G2 Pallet
AF031A
QuickSpecs
HP StorageWorks 2000fc G2 Modular Smart Array
HP StorageWorks 2000fc G2 Modular Smart ArrayHP StorageWorks 2000fc G2 Modular Smart Array
HP StorageWorks 2000fc G2 Modular Smart Array
Configuration Information
DA - 13187 EMEA — Version 2 — February 10, 2009
Page 24
MSA2000fc G2
MSA2000fc G2MSA2000fc G2
MSA2000fc G2
POWER REQUIREMENTS
POWER REQUIREMENTSPOWER REQUIREMENTS
POWER REQUIREMENTS
Input Power Requirements
(typ)
110 VAC 3.6A/394W; 220VAC 1.9/385W
Max Input Power
100-240 VAC, 50/60 Hz., 4.5-1.9A; 48-60 VDC 10.4A/8.3A
Heat Dissipation
1622 BTU/hr
TEMPERATURE AND HUMIDITY RANGES
TEMPERATURE AND HUMIDITY RANGESTEMPERATURE AND HUMIDITY RANGES
TEMPERATURE AND HUMIDITY RANGES
Operating Temperature
41°F to 104°F (5oC to 40°C)
Shipping Temperature
-40°F to 158°F (-40°C to 70°C)
Operating Humidity
10% to 90% RH @ 104°F (40°C) non-condensing
Non-Operating Humidity
Up to 93% RH @ 104°F (40°C)
DECLARED ACOUSTIC NOISE LEVELS
DECLARED ACOUSTIC NOISE LEVELSDECLARED ACOUSTIC NOISE LEVELS
DECLARED ACOUSTIC NOISE LEVELS
Sound Power
< 6.5 Bels
Sound Pressure
< 57 dBA
SHOCK AND VIBRATION
SHOCK AND VIBRATIONSHOCK AND VIBRATION
SHOCK AND VIBRATION
Shock, Operational
5G's for 11 milliseconds, half sine
Shock, Non-Operational
15G 11ms half sine
Vibration, Operational
5-500Hz, 0.21Grms flat spectrum0.000089g2/HZ Random Vibration
Vibration, NonOperational
5-500-5Hz, 0.5 G peak to peak, sinusoidal
PHYSICAL
PHYSICALPHYSICAL
PHYSICAL
Height
3.436 in/ 8.727 cm
Depth (excluding cables)
(back of ear to back of
controller handle)
MSA2024: 20.28 in / 51.510 cm
MSA2012: 21.8 in. / 55.372 cm
Width (body only)
17.55 in / 44.58 cm (w/ ears 19 in / 48.26 cm)
Chassis Weight
(no controllers)
MSA2012 chassis: 44 lbs. MSA2024 chassis: 43 lbs
Modular SAN Array
Modular SAN ArrayModular SAN Array
Modular SAN Array
2300fc G2 Controller
2300fc G2 Controller2300fc G2 Controller
2300fc G2 Controller
User Interface
User InterfaceUser Interface
User Interface
- Status and activity provided via management interfaces Status Indicators on
front of Controller
RAID Support
RAID SupportRAID Support
RAID Support
0, 1, 3, 5, 6, 10, 50
Cache Memory
Cache MemoryCache Memory
Cache Memory
1GB Read/Write. ECC protection with backup to Flash memory (indefinite
backup)
Cache Backup
Cache BackupCache Backup
Cache Backup
ECC protection with back up to flash memory (indefinite backup)
Upgradeable Firmware
Upgradeable FirmwareUpgradeable Firmware
Upgradeable Firmware
yes
Disk Drive and Enclosure
Disk Drive and EnclosureDisk Drive and Enclosure
Disk Drive and Enclosure
Protocol Support
Protocol SupportProtocol Support
Protocol Support
3 Gb SAS - Serial Attached SCSI / 3 Gb SATA II
Expansion Port
Expansion PortExpansion Port
Expansion Port
MSA2000fc SAS (SFF8470) 4x lane 3 Gb SAS
MSA2300fc SAS (SFF8088) 4x lane 3 Gb SAS
QuickSpecs
HP StorageWorks 2000fc G2 Modular Smart Array
HP StorageWorks 2000fc G2 Modular Smart ArrayHP StorageWorks 2000fc G2 Modular Smart Array
HP StorageWorks 2000fc G2 Modular Smart Array
Technical Specifications
DA - 13187 EMEA — Version 2 — February 10, 2009
Page 25
Regulatory
RegulatoryRegulatory
Regulatory
Safety
SafetySafety
Safety
UL 60950-1 (USA)
CAN/CSA-C22.2 No.60950-1-03 (Canada)
EN 60950-1 (European Union)
IEC 60950-1 ( International )
Electromagnetic
ElectromagneticElectromagnetic
Electromagnetic
Compatibility
CompatibilityCompatibility
Compatibility
VCCI:2008-04 Class A
ICES-003 Issue 4 Class A (Canada)
EN55022 : (European Union Class A); CISPR 22 (International)
EN61000-3-2 : (Harmonics)
EN61000-3-3 : (Flicker)
EN 55024 (European Union, Immunity);CISPR 24 (International Immunity)
CNS 13438 Taiwan
KN22 Class A (Emissions); KN24 (Immunity)
RoHS and WEEE
RoHS and WEEERoHS and WEEE
RoHS and WEEE
RoHS-5 Compliance, China RoHS, WEEE
Country Approvals
Country ApprovalsCountry Approvals
Country Approvals
Australia/New Zealand, Canada, China (PRC), European Union, Germany
(GS Mark), Japan, South Korea, Taiwan, United States
© Copyright 2009 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
Microsoft and Windows NT are US registered trademarks of Microsoft Corporation. Intel is a US registered trademark of Intel
Corporation. Unix is a registered trademark of The Open Group.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.
QuickSpecs
HP StorageWorks 2000fc G2 Modular Smart Array
HP StorageWorks 2000fc G2 Modular Smart ArrayHP StorageWorks 2000fc G2 Modular Smart Array
HP StorageWorks 2000fc G2 Modular Smart Array
Technical Specifications
DA - 13187 EMEA — Version 2 — February 10, 2009
Page 26
Loading...
