Compaq iPAQ Microportable
Projector MP4800

User’s Guide

Document Part Number: 261794-001

March 2002

© 2002 Compaq Information Technologies Group, L.P.
Compaq, the Compaq logo, and iPAQ are trademarks of Compaq

Information Technologies Group, L.P. in the United States and/or other
countries.

Microsoft, MS-DOS, Windows, Windows NT are trademarks of Microsoft
Corporation in the United States and other countries.

All other product names mentioned herein may be trademarks of their
respective companies.

Compaq shall not be liable for technical or editorial errors or omissions
contained herein. The information in this document is provided “as is”
without warranty of any kind and is subject to change without notice. The
warranties for Compaq products are set forth in the express limited
warranty statements accompanying such products.

be construed as constituting an additional warranty.

Compaq service tool software, including associated documentation, is the
property of and contains confidential technology of Compaq Computer
Corporation. Service customer is hereby licensed to use the software only
for activities directly relating to the delivery of, and only during the term
of, the applicable services delivered by Compaq or its authorized service
provider. Customer may not modify or reverse engineer, remov e, or transfer
the software or make the software or any resultant diagnosis or system
management data available to other parties without Compaq’s or its
authorized service provider’s consent. Upon termination of the services,
customer will, at Compaq’s or its service provider’s option, destroy or
return the software and associated documentation in its possession.

Nothing herein should

Å

Ä

WARNING: Text set off in this manner indicates that failure to follow

directions could result in bodily harm or loss of life.

CAUTION: Text set off in this manner indicates that failure to follow

directions could result in damage to equipment or loss of information.

Compaq iPAQ Microportable Projector MP4800 User’s Guide
First Edition March 2002
Document Part Number: 261794-001

Product Features

The Compaq iPAQ Microportable Projector MP4800 generates
crisp, clear images onto a projection screen by using Digital Light
Processing (DLP) technology. The microportable projector offers
the latest in portable projection technology, including:

1024 x 768 native XGA resolution

■

Maximum resolution: 1280 x 1024 (SXGA)

■

Lumen output: 2000 lumens (1600 in lamp saver mode)

■

1

Getting Started

High Definition Television (HDTV) capable 720p, 1080i,

■

480p, and 480i via VGA port
User replaceable 200 watt high-efficiency, long-life lamp

■

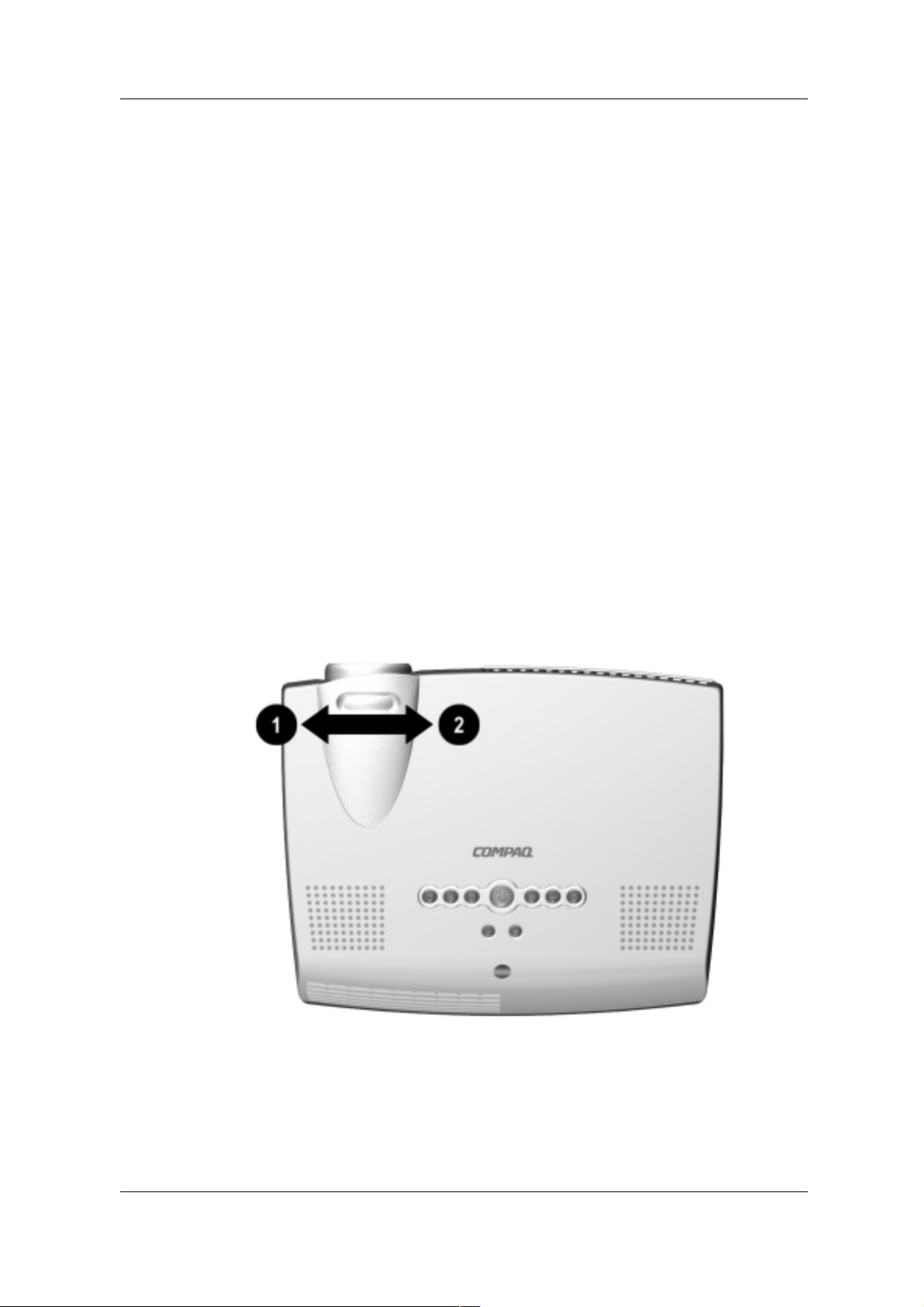

Zoom lens

■

Lamp saver mode for longer lamp life

■

3.5 watt stereo speakers

■

Tripod and ceiling mount capabilities

■

Electronic scaling to 32X

■

Weight of 5.8 pounds (2.6 kg)

■

Convenient resync capability

■

16.7 million displayable colors

■

Compaq iPAQ Microportable Projector MP4800 User’s Guide 1–1

Getting Started

Connector options:

■
❏
❏
❏
❏
❏

Full-featured remote control with remote mouse capabilities

■

and laser pointer via USB port
Home Theater Kit [optional use]

■
❏

Standard analog VGA
DVI
S-video/composite video
Component/HDTV
Audio

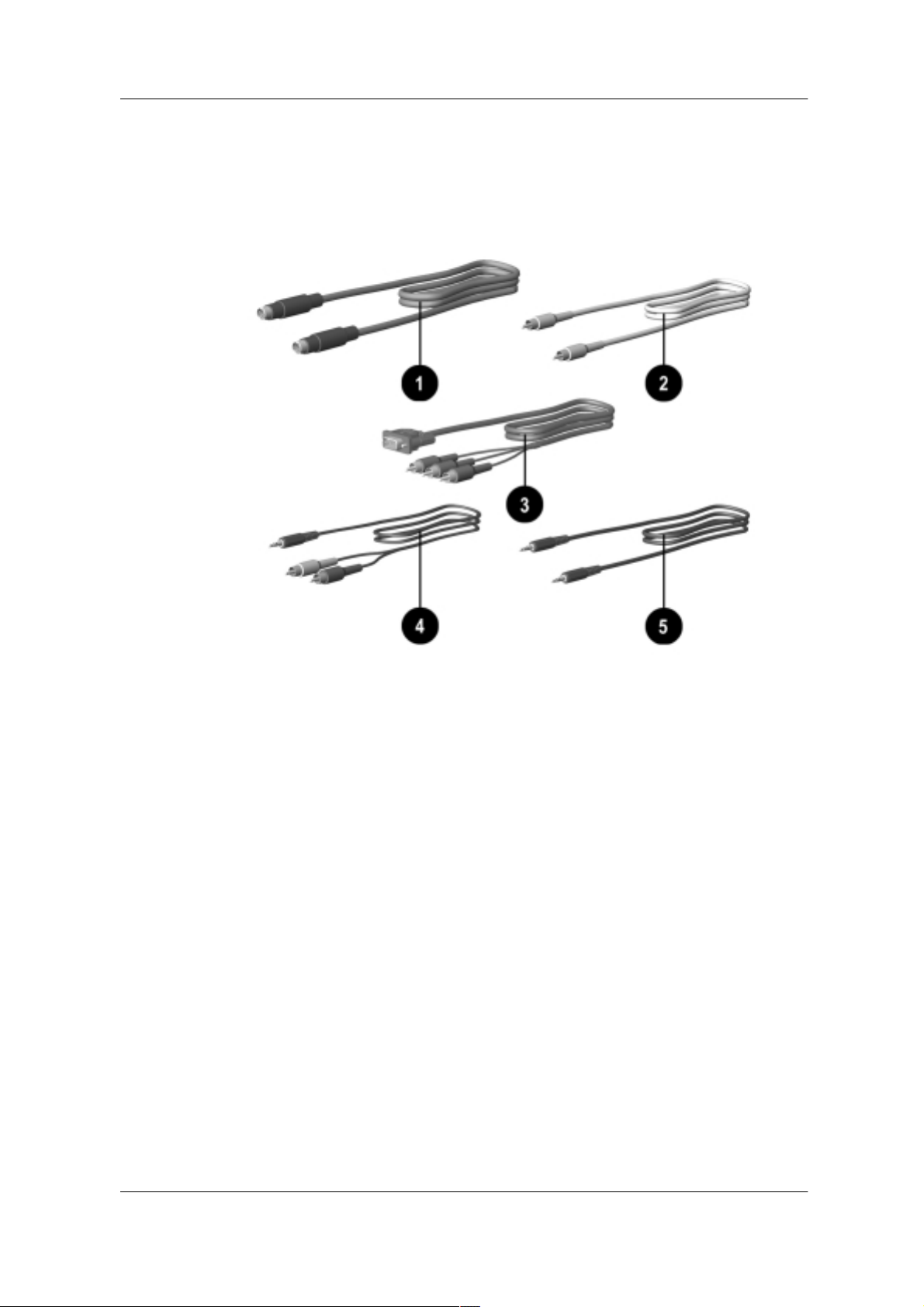

S-video cable
Composite video cable

❏

VGA-to-HDTV/Component video cable

❏

Home Theater stereo audio cable

❏

PC stereo audio cable

❏

Multilingual on-screen adjustment menu

■

Plug and Play capability

■

Security lock slot

■

1–2 Compaq iPAQ Microportable Projector MP4800 User’s Guide

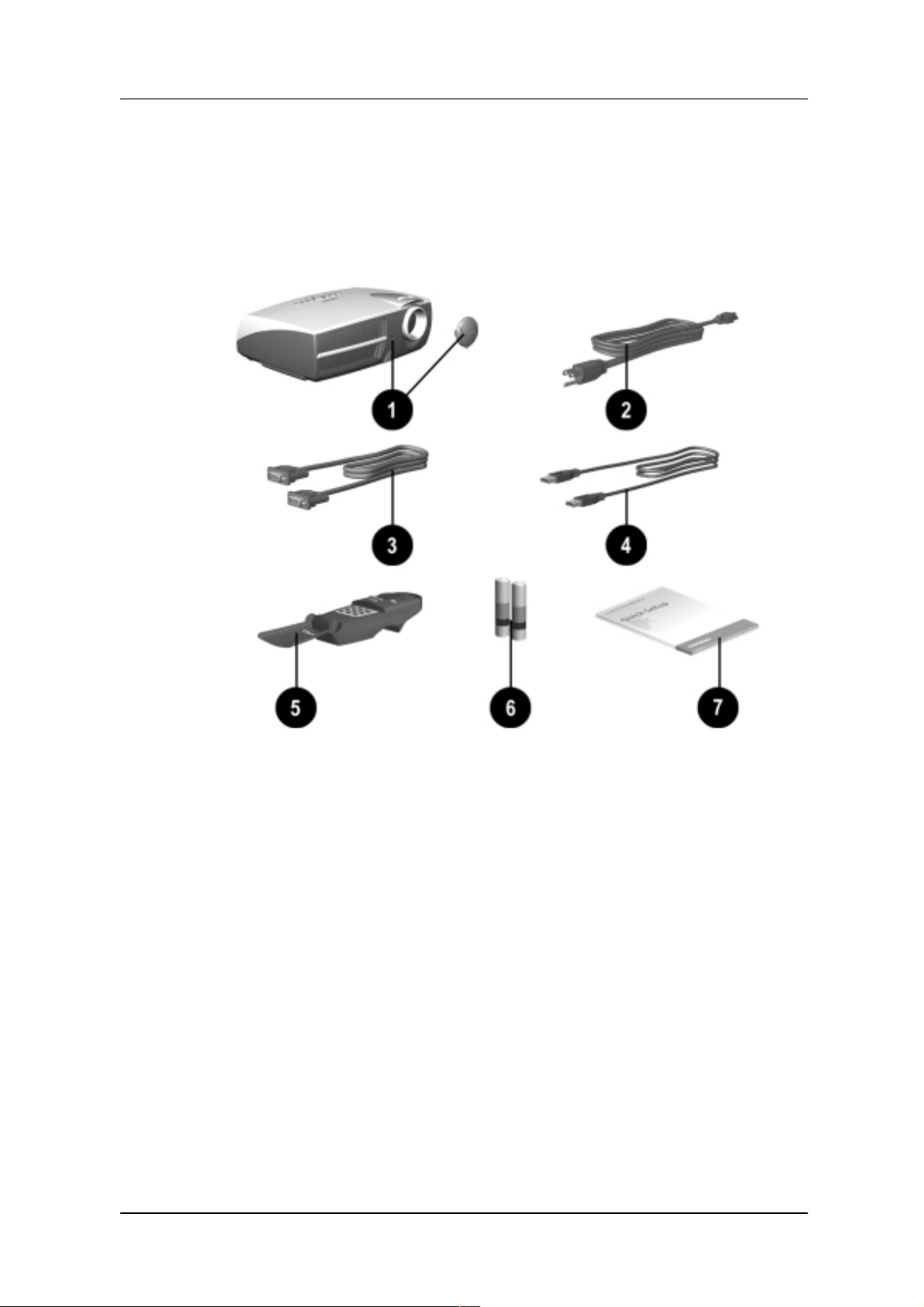

Introduction

Before setting up your Compaq Microportable Projector, be sure
your shipping box includes the following items:

Getting Started

1

2

3

4

5

6

Compaq iPAQ Microportable Projector MP4800 User’s Guide 1–3

Projector and lens cap
10-foot power cable
VGA signal cable for use with computers,

notebooks, and some handheld products
USB cable
Remote control
Two AAA batteries for use in the remote control

(Continued)

Getting Started

7

Documentation kit:

Quick Setup card

■

CD-ROM containing the User’s Guide in eight

■

languages
Important Safety Information booklet

■

Worldwide Limited Warranty and Technical

■

Support booklet
Worldwide Telephone Numbers booklet

■

Program License Agreement

■

If your shipping box does not contain all of the listed items,
please contact your Compaq authorized dealer, reseller, or service
provider.

1–4 Compaq iPAQ Microportable Projector MP4800 User’s Guide

Identifying the Projector Buttons

Getting Started

Identifying the Projector Buttons

Symbol Control Function

1

2

3

Lamp Saver

Mute button Mutes or silences the speakers on

Resync

button Turns the Lamp Saver feature on and

off. If the LED is not lit (default), lamp
saver is off. If the LED is green, lamp
saver is on. Turn lamp saver off for
maximum brightness. Turn lamp
saver on to extend lamp life at a
reduced brightness level.

the projector.

button Automatically synchronizes the

projector to track the input source.

Compaq iPAQ Microportable Projector MP4800 User’s Guide 1–5

Getting Started

Identifying the Projector Buttons

(Continued)

Symbol Control Function

4

5

Standby

Menu

button Powers the projector lamp on and off.

The Standby LED changes color
modes to indicate the following
operating modes:

1. Flashing green indicates the
projector is going into standby
mode and cannot be restarted
until the LED glows green
steadily.

2. The LED button rapidly flashing
green indicates the lamp has
automatically shut down.

button Press this button once to start the

on-screen display menu. Press it
again to save any changes and exit
the menu.

6

Enter/Accept

button

When the on-screen display menu is
open, performs the following
functions:

1. Displays any sub-menus below
the main menu.

2. If pressed after selecting “yes” or
“no” to a question, the request
will be processed and the menu
will go one lev el higher.

3. If pressed after changing an
adjustment scale, the new
information will be save d and the
menu will go one level higher.

1–6 Compaq iPAQ Microportable Projector MP4800 User’s Guide

Getting Started

Identifying the Projector Buttons

Symbol Control Function

7

8

9

Source

Minus

Plus

button Selects the input source.

button Selects and adjusts the on-screen

button Selects and adjusts the on-screen

To use standby mode, press the

(Continued)

scroll-down menu functions.

scroll-up menu functions.

Standby

ten second delay, the unit enters Standby mode and the projector
lamp turns off. A “Going to Standby” message appears on the
screen for the duration of the six to ten second delay. When the
message disappears from the screen, there is a 45 second delay
before the lamp can be turned back on. Wait 45 seconds to allow
the lamp to cool before pressing the
avoid going to Standby, press the

Standby

first five seconds.

button and, after a six to

Standby

button again. To

button again within the

Compaq iPAQ Microportable Projector MP4800 User’s Guide 1–7

Getting Started

Identifying the Input/Output Panel
Components

A variety of cables can be connected to the Input/Output Panel on
the projector, allowing the projector to use various audio and
video sources.

Identifying the Input/Output Panel Components

Item Component Function

1

2

3

4

USB connector Connects back to the computer

allowing remote mouse functionality

Audio-in connector Connects audio equipment,

videocassette recorders, DVD players,
personal computers, etc., allowing
sound to be played through the
projector stereo speakers

S-Video connector Connects camcorders or DVDs
Composite Video

connector

Connects VCRs

1–8 Compaq iPAQ Microportable Projector MP4800 User’s Guide

Getting Started

Identifying the Input/Output Panel Components

Item Component Function

5

6

7

DVI connector Connects digital equipment
VGA Connector Connects HDV devices, desktop or

notebook computers, or pocket PCs

Power connector Connects the power cable

(Continued)

Compaq iPAQ Microportable Projector MP4800 User’s Guide 1–9

Using the Projector

Setting Up the Projector

Follow the instructions below and on the following pages to set
up the projector. Separate setup instructions are described for the
following products:

Notebook computers

■

Desktop computers

■

Compaq iPAQ Pocket PC with VGA capability

■

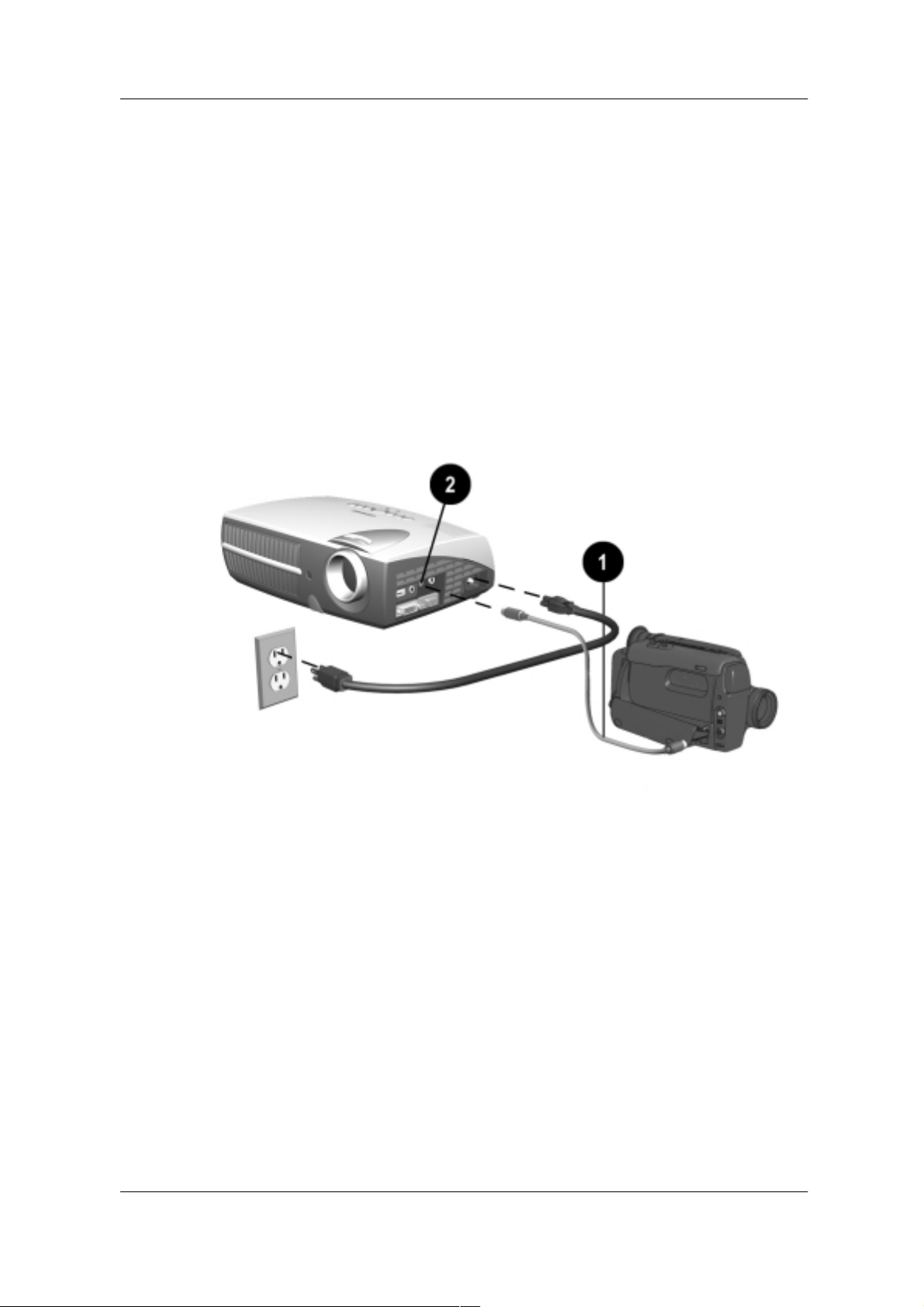

DVD or camcorder (requires optional Home Theater Kit)

■

2

✎

Videocassette Recorder (VCR) (requires optional Home

■

Theater Kit)

The projector is hot pluggable and can be connected to any input
source while the source is in use.

Compaq iPAQ Microportable Projector MP4800 User’s Guide 2–1

Using the Projector

Place the projector on a stable desk, table, tripod, or ceiling
mount at a distance not less than 3.7 feet (1.1 meter) and not
greater than 40.7 feet (12.4 meters) from the projection screen.

WARNING: To reduce the risk of electric shock or damage to your equipment:

Å

■ Do not disable the power cord grounding plug. The grounding plug is

an important safety feature.

■ Plug the power cord into a grounded (earthed) electrical outlet that is

easily accessible at all times.

■ Disconnect power from the projector by unplugging the power cord

from the electrical outlet.

■ Do not place anything on power cords or cables. Arrange them so

that no one may accidentally step on or trip over them. Do not pull
on a cord or cable. When unplugging from the electrical outlet, grasp
the cord by the plug.

2–2 Compaq iPAQ Microportable Projector MP4800 User’s Guide

Using the Projector

Connecting the Projector to a Notebook
Computer

1. Connect one end of the projector signal cable into the side of

✎

the projector and the other end to the DVI connector
the VGA connector
tighten the screws.

Be sure the signal cable aligns with the connector. Do not force
the cable onto the connector or you may damage the signal cable
or the projector.

2. Connect one end of the power cord
projector, and the other end to an electrical outlet that is
easily accessible and close to the projector.

B on the notebook computer and

1

into the side of the

2

1

A or

Compaq iPAQ Microportable Projector MP4800 User’s Guide 2–3

Using the Projector

Connecting the Projector to a Desktop Computer

1. Connect one end of the projector signal cable into the side of

✎

the projector and the other end to the DVI connector
the VGA connector
the screws.

Be sure the signal cable aligns with the connector. Do not force
the cable onto the connector or you may damage the signal cable
or the projector.

2. Connect one end of the power cord
projector, and the other end to an electrical outlet that is
easily accessible and close to the projector.

B on the desktop computer and tighten

1

into the side of the

2

1

A or

2–4 Compaq iPAQ Microportable Projector MP4800 User’s Guide

Using the Projector

Connecting the Projector to a Compaq iPAQ
Pocket PC

To connect the projector to a Compaq iPAQ Pocket PC, the
Pocket PC must have a male connector adapter and a VGA-out
PC Card with a 15-pin connector.

The VGA-out PC Card with the 15-pin connector is not included

✎

with the Compaq iPAQ Pocket PC. For information on purchasing
the optional VGA-out PC Card, contact your Compaq authorized
dealer or reseller. To locate a reseller near you, refer to the
Worldwide Telephone Numbers booklet that came with your
projector or, to purchase directly from Compaq, refer to the
Compaq website at

http://www.compaq.com/products/iPAQ.

Compaq iPAQ Microportable Projector MP4800 User’s Guide 2–5

Using the Projector

1. Connect one end of the signal cable 1 into the side of the
projector and connect the other end to the VGA-out PC Card.
The VGA-out PC Card may be inserted into the PC slot on
the Compaq Pocket PC before or after connecting the signal
cable.

Be sure the signal cable aligns with the connector. Do not force

✎

the cable onto the connector or you may damage the signal cable
or the projector.

2. Connect one end of the power cord
projector, and the other end to an electrical outlet that is
easily accessible and close to the projector.

into the side of the

2

2–6 Compaq iPAQ Microportable Projector MP4800 User’s Guide

Powering On the Projector

1. Make sure the power cord and signal cable are securely
connected.

Make sure the projector is perpendicular to the projection screen.

✎

Using the Projector

2. Remove the lens cap
on the tabs on either side of the lens cap and pulling it
straight out.

3. Press the main power switch
and allow the projector to warm up for one to two minutes.

When the projector has warmed up, the Compaq startup
screen displays and the LED on the
green.

from the projector by pressing in

1

on the side of the projector

2

Standby

button 3 turns

Compaq iPAQ Microportable Projector MP4800 User’s Guide 2–7

Using the Projector

4. Power on your source (computer, Pocket PC, VCR, etc.) and
launch the software application being used to display images
on the projection screen. If applicable, press the Function key
on the computer designated for external display.

If there is a long delay between the time the startup screen

✎

✎

displays and the time the software application is launched, the
lamp may shut off and the projector will automatically go into
standby mode. If this happens, press the
power on the lamp.

When the startup screen disappears, the video from the attached
computer displays. If there is no incoming video, the “No Source
Found. Please Check Signal Cable” message will display on the
projection screen.

Standby

button 3 to

2–8 Compaq iPAQ Microportable Projector MP4800 User’s Guide

Powering Off the Projector

Using the Projector

✎

Ä

1. Press the
The message “Going to Standby” displays and the LED on

Standby

the

Allow the projector to cool down for about five to ten minutes
before turning it off.

2. Turn off the main power switch

CAUTION: After the projector is turned off, wait at least 45 seconds

before turning the projector back on. Failure to follow this caution can
result in damage to the projector.

3. Disconnect the power cord from the electrical outlet and the
projector

Standby

button blinks amber.

.

3

button 1 to turn off the projector lamp.

on the side of the projector.

2

Compaq iPAQ Microportable Projector MP4800 User’s Guide 2–9

Using the Projector

Adjusting the Projected Image

There are three ways to adjust the projected image:

Adjusting the projector height

■

Adjusting the image size

■

Adjusting the projector focus

■

Adjusting the Projector Height

The projector has a built-in elevator foot that can raise the
projector approximately 1 inch (2.54 cm).

CAUTION: If the projector is mounted to a tripod, do not use the

Ä

elevator foot.

To adjust the height:

1. Raise the projector to the desired display angle, then press the
elevator button

2. To lower the display angle, press the elevator button again
and press down on the projector to lower it.

to release the elevator foot 2.

1

CAUTION: Failure to press the elevator button before adjusting the

Ä

2–10 Compaq iPAQ Microportable Projector MP4800 User’s Guide

elevator foot can result in damage to the elevator mechanism.

The projector is capable of correcting for keystone (trapezoidal)
distortion caused when the projector is tilted upward or
downward from its normal horizontal position. This feature
corrects keystoning by making the width of the top and bottom
of the screen the same. Access this feature using the Image
Control selection of the on-screen display (OSD) menu. Refer
to Chapter 3, “Using the On-Screen Display Menu” for more
information. The keystone effect can be corrected when the
projector is tilted upward up to 30 degrees or downward up to
40 degrees.

Adjusting the Image Size

The projector zoom feature is capable of increasing the image
size up to 20%. To increase the image size, turn the projector
zoom ring toward the left
projector zoom ring toward the right

. To decrease the image size, turn the

1

2

Using the Projector

.

Compaq iPAQ Microportable Projector MP4800 User’s Guide 2–11

Using the Projector

Adjusting the Projector Focus

To focus the projected image, rotate the focus ring 1 until the
image is clear. The projector will focus at distances from 3.7 feet
(1.1 meters) to 40.7 feet (12.4 meters).

If vertical bars appear on the display after adjusting the focus,
press the
track the display. If the button does not correct the display, use
the Digital Conversion feature in the on-screen display menu to
manually adjust the synchronization and tracking. Refer to
Chapter 3, “Using the On-Screen Display Menu” for more
information.

Resync

button 2 to automatically synchronize and

2–12 Compaq iPAQ Microportable Projector MP4800 User’s Guide

Image Size Adjustment

Using the Projector

Projected Image Sizes at Minimum Zoom 1

Screen
Diagonal

Screen
Width

Screen
Height

Projection
Distance

1.9’

0.6 m

1.5’

0.5 m

1.1’

0.3 m

3.74’

1.1 m

3.3’

1.0 m

2.6’

0.8 m

2.0’

0.6 m

6.6’

2.0 m

6.5’

2.0 m

5.3’

1.6 m

3.9’

1.2 m

13.1’

4.0 m

9.8’

3.0 m

7.9’

2.4 m

5.9’

1.8m

19.7’

6.0 m

13.1’

4.0 m

10.5’

3.2 m

7.9’

2.4 m

26.3’

8.0 m

Projected Image Sizes at Maximum Zoom 2

Screen
Diagonal

Screen
Width

Screen
Height

2.3’

0.7 m

1.9’

0.6 m

1.4’

0.4 m

4.1’

1.3 m

3.3’

1.0 m

2.5’

0.8m

8.2’

2.5 m

6.6’

2.0 m

4.9’

1.5 m

12.3’

3.8 m

9.8’

3.0 m

7.4’

2.6 m

16.4’

6.0 m

13.1’

4.0 m

9.8’

3.0 m

16.4’

5.0 m

13.1’

4.0 m

9.8’

3.0 m

32.8’

10.0 m

20.5’

6.3 m

16.4’

5.0 m

12.3’

3.8 m

20.3’

6.2 m

16.3’

5.0 m

12.2’

3.7 m

40.7’

12.4 m

25.4’

7.8 m

20.3’

6.2 m

15.3’

4.7 m

Projection
Distance

3.74’

1.1 m

6.6’

2.0 m

13.1’

4.0 m

19.7’

6.0 m

26.3’

8.0 m

32.8’

10.0 m

40.7’

12.4 m

If the projector is used at the maximum distance in this chart, the

✎

Compaq iPAQ Microportable Projector MP4800 User’s Guide 2–13

display may appear to be dimmer than usual.

Using the On-Screen

Display Menu

Introducing the On-Screen Display Menu

The adjustments for screen settings are located in the on-screen
display (OSD) menu and can be viewed in one of the available
languages.

Adjusting the On-Screen Display Menu

To launch and make adjustments to the OSD menu:

3

1. Press the
control. The Main menu will display on the projection screen.

2. To select a function, press the
down the OSD menu. To reverse the scroll direction, press the

Plus

(+) button 3.

Menu

button 1 on the projector or the remote

Minus

(-) button 2 to scroll

Compaq iPAQ Microportable Projector MP4800 User’s Guide 3–1

Using the On-Screen Display Menu

3. Highlight the function to be adjusted and press the

Enter/Accept

button 4.

There is no

✎

✎

3–2 Compaq iPAQ Microportable Projector MP4800 User’s Guide

using the remote control to operate the on-screen display menu,
press the

The bar on the bottom of the on-screen display menu shows the
current operating resolution as well as horizontal and vertical
frequency.

Enter/Accept

Menu

button again to accept changes.

button on the remote control. If you are

Using the On-Screen Display Menu

Sample On-Screen Display Menu Adjustment

Below is an example of how to operate the on-screen
display menu.

✎

1. To select the Image Control function, press the Minus
button until Image Control is highlighted, then press the

Enter/Accept

menu for Image Control. The level 2 menu displays
expanded menu items.

2. To make a selection from the level 2 menu, press the
button to scroll down the level 2 menu, or press the
button to reverse the scroll direction.

3. Highlight the selection and press the
confirm the selection. The level 3 menu displays.

There is no
using the remote control to operate the on-screen display menu,
press the

4. Level 3 for Image Control functions display the adjustment

Menu

button on the projector to display the level 2

Enter/Accept

Enter/Accept

button again to accept changes.

button on the remote control. If you are

button to

(-)

Minus

Plus

(-)

(+)

✎

scales. Use the
button to increase the screen Horizontal and Vertical
positions.

Some menu functions display adjustment scales in the level
2 menu, while others display adjustment scales in the level 3
or level 4 menus.

5. After making the adjustment, select Save and Return. To
void any changes made, select Cancel instead of Save and

Return.

Minus

(-) button to decrease and the

Plus

(+)

Compaq iPAQ Microportable Projector MP4800 User’s Guide 3–3

Using the On-Screen Display Menu

6. To save all current settings and immediately exit, press the

Menu

button on top of the projector.

or
To make changes before exiting, select Exit from the Main

menu. If the display is a second-, third-, or fourth-level menu,
select Save and Return or Cancel, then select Exit from the
Main menu.

If the buttons remain untouched for 5 seconds, all current settings

✎

will be displayed and the on-screen display menu will exit.

On-Screen Display Menu Adjustments

Main Menu Menu Level 2 Menu Level 3

Brightness Adjustment Scale
Contrast Adjustment Scale
Image Control Horizontal Position

Vertical Position
Clock
Clock Phase
Zoom

Vertical Keystone
Flip Image

Save and Return
Cancel

Adjustment Scale
Adjustment Scale
Adjustment Scale
Adjustment Scale
Zoom
Panning Left-Right
Panning Up-Down
Save and Return
Cancel
Adjustment Scale
Horizontal
Vertical
Both
Save and Return
Cancel

3–4 Compaq iPAQ Microportable Projector MP4800 User’s Guide

Using the On-Screen Display Menu

On-Screen Display Menu Adjustments

(Continued)

Main Menu Menu Level 2 Menu Level 3

Color 7100 K (default)

Custom Color

Video Adjustments

Save and Return
Cancel

Red
Green
Blue
Sharpness
Save and Return
Cancel
Saturation
Sharpness
Tint
Save and Return
Cancel

Language Deutsche

English
Español
Français
Italiano
Nederlands
Japanese
Chinese
Save and Return
Cancel

Compaq iPAQ Microportable Projector MP4800 User’s Guide 3–5

Using the On-Screen Display Menu

On-Screen Display Menu Adjustments

(Continued)

Main Menu Menu Level 2 Menu Level 3

Management Lamp Saver

Lamp Hours
Horizontal OSD Position
Vertical OSD Position
OSD Timeout
OSD Transparency
Save and Return
Cancel

A/V & HDTV Control HDTV/Video

Color Space

On-Off
Display lamp hours
Adjustment Scale
Adjustment Scale
Adjustment Scale
Adjustment Scale

Fill to Screen
Fill to Aspect Ratio
Center Image
RGB
Y Pb Pr

Audio

Gamma
Save and Return
Cancel

Input Source Select Analog RGB (VGA)

Composite Video
Super Video
Component Video 480i
HDTV 480p 720p 1080i
Digital RGB (DVI)

Y Cb Cr
Mute
Volume
Bass
Treble
Save and Return
Cancel
Adjustment Scale

3–6 Compaq iPAQ Microportable Projector MP4800 User’s Guide

Using the On-Screen Display Menu

On-Screen Display Menu Adjustments

Main Menu Menu Level 2 Menu Level 3

Factory Reset Yes

No

Exit

(Continued)

Explaining Functions in the On-Screen
Display Menu

Brightness—Adjusts the displayed image brightness. The

■

default brightness value is 50%, and the settings range from
0 to 100. Press the

Plus

the
Contrast—Adjusts the displayed image contrast by changing

■

(+) button to lighten the image.

the amount of black and white in the image. The default
contrast value is 50%, and the settings range from 0 to 100.
Press the

Plus

(+) button to increase the contrast.

Minus

Minus

(-) button to darken the image. Press

(-) button to decrease the contrast. Press the

Image Control—Improves picture stability of user modes by

■

adjusting:

Horizontal and Vertical Position—Fine-tunes the

❏

horizontal and vertical positions of the display.
Clock—Increases/decreases the value to stretch or shrink

❏

the image on the screen. This selection is not available
when a source is connected to the DVI connector.

Compaq iPAQ Microportable Projector MP4800 User’s Guide 3–7

Using the On-Screen Display Menu

Clock Phase—Increases/decreases the value to minimize

❏

video distortion or video jitter. This selection is not
available when a source is connected to the DVI
connector.

If theprojectorimagebecomesdistortedwhenadjustingthe

✎

ClockandClockPhasevalues,continueadjustingthevaluesuntil
thedistortiondisappears.Torestorethefactorysettings,select
FactoryResetintheon-screendisplaymenu,orpressthe
button.

Zoom—Magnifies an image up to a factor of 32 on the

❏

projection screen (zooms in to a specific area on the
screen, and pans left, right, up, and down).

Resync



✎

Vertical Keystone—Adjusts image distortion at the top

❏

and bottom widths of the screen caused by tilting the
projector.

Flip Image—Allows the projected image to be rotated.

❏

Color—Adjusts color balance to compensate for ambient

■

conditions using three submenus:

7100 K—Factory default

❏

Custom Color—Modifies the color temperature balance.

❏

Displayed only when VGA sources are displayed. You
can independently adjust the red, green, and blue colors
using this selection.

If Custom Color is modified and saved, this selection will not be
reset if the Factory Reset selection is later used. To restore factory
color settings, select 7100 K.

Video Adjustments—Modifies the color intensity.

❏

Displayed only when video sources are displayed.

3–8 Compaq iPAQ Microportable Projector MP4800 User’s Guide

✎

Using the On-Screen Display Menu

Language—Allows you to change the on-screen display to

■

one of the languages in their native spelling. The current
language is highlighted. Select another language to display
all menu functions in that language.

Management—Allows you to control lamp saver

■

characteristics of the display, view the cumulative lamp
hours, or set the OSD horizontal and vertical position,
timeout, and transparency.

By default, the OSD menu is on top of the displayed image.
Selecting OSD Transparency from the Management menu
allows you to adjust this setting so the displayed image can be
seen behind the OSD menu. Changes can be seen as they are
being made.

A/V & HDTV Control—Allows you to stretch the format to

■

fill the screen or to use the original aspect ratio and fill the
screen, using HDTV (High Definition Television) format.
Refer to the “HDTV Modes” section of Chapter 6 for more
information. Also allows color space selection, audio
preference selection, and Gamma adjustment.

Input Source Select—Allows you to select which source to

■

display. If the selected source is not available, the original
source will be displayed again. You may also cycle through
available sources by pressing the
projector or the remote control.

Factory Reset—Resets all previously saved user settings to

■

the original factory settings.

Special On-Screen Messages

Special on-screen messages will appear on the projection display
to identify the following conditions:

Source

button on the

No Source Found. Please Check Signal Cable—Indicates

■

the video cable may not be plugged into the projector or the
selected video input is not accurate.

Compaq iPAQ Microportable Projector MP4800 User’s Guide 3–9

Using the On-Screen Display Menu

Input Signal Out of Range. Please Change Display

■

Mode—Indicates the projector is unable to access the
appropriate input signal.

Going to Standby—Indicates the projector is entering a

■

sleep mode or is powering off the lamp.
Adjusting—Indicates the

■

the Factory Reset option has been selected from the OSD
menu. The message will disappear when the appropriate
mode is detected and displayed by the projector.

Multiple inputs are active. Use the OSD to select the

■

alternate sources—The projector has detected multiple
inputs. This message may appear when powering up,
returning from Standby, or when the
on the projector or remote control. If no selection is made
within 10 seconds, the currently displayed source will remain
as the active source. Press the
projector or on the remote control to review and select from
the active video sources.

Lamp May Fail Soon. Replacement Suggested—Indicates

■

the lamp is approaching failure. The message will remain on
the screen for 10 seconds or until the on-screen menu

Enter/Accept

when powering up or returning from Standby until the lamp
is replaced. After the lamp is changed, access the Service
menu to reset the lamp hours counter. Refer to the “Replacing
the Lamp Module” section of Chapter 7 for information on
resetting the lamp hours counter.

button is pressed. This message appears once

Resync

Source

button has been pressed or

Source

button on top of the

button is pressed

The 10-second timeout is the default value. To change the timeout

✎

3–10 Compaq iPAQ Microportable Projector MP4800 User’s Guide

value, select the Management menu, select the OSD Timeout
menu, and change the timeout from 1 to 40 seconds.

Using the Tripod Mount and

Using the Tripod Mount

The Compaq Microportable Projector includes standard tripod
mount capability on the bottom of the projector. This allows the
projector to be mounted on tripods readily available at camera
and other electronic stores.

WARNING: The tripod should be capable of supporting a weight of at

Å

least seven pounds. Refer to the owner’s manual that came with your
tripod for more information.

4

Ceiling Mount

Ä

CAUTION: Do not overtighten the tripod mount screw. Doing so could

strip the screw and cause the projector to fall off the tripod.

To connect the projector to the tripod:

1. If necessary, remove the tripod mounting block from the
tripod.

Compaq iPAQ Microportable Projector MP4800 User’s Guide 4–1

Using the Tripod Mount and Ceiling Mount

2. If there is a guide pin on the tripod mounting block, align it
with the guide pin hole

on the bottom of the projector.

1

3. Attach the tripod mounting block to the tripod mount hole
on the bottom of the projector.

2

4–2 Compaq iPAQ Microportable Projector MP4800 User’s Guide

Using the Tripod Mount and Ceiling Mount

4. Attach the projector and tripod mounting block to the tripod
according to the tripod manufacturer’s instructions.

Compaq iPAQ Microportable Projector MP4800 User’s Guide 4–3

Using the Tripod Mount and Ceiling Mount

Using the Ceiling Mount

The projector also includes ceiling mount capability on the
bottom of the projector. This allows the projector to be mounted
from the ceiling using any ceiling mount bracket that matches the
screw hole configuration on the projector.

An optional ceiling mount bracket with the correct screw hole

✎

configuration is available from Compaq. The kit also includes
20 foot cables. For information on purchasing the optional ceiling
mount bracket kit, call your Compaq authorized dealer or reseller.
To locate a reseller near you, refer to the Worldwide Telephone
Numbers booklet that came with your projector or, to purchase
directly from Compaq, refer to the Compaq website at

http://www.compaq.com/products/projectors.

Å

Ä

WARNING: The ceiling mount bracket should be capable of supporting

a weight of at least seven pounds. Refer to the owner’s manual that
came with your ceiling mount bracket for more information.

CAUTION: Do not overtighten the ceiling mount screws. Doing so could

strip the screws and cause the projector to fall off the ceiling mount
bracket.

4–4 Compaq iPAQ Microportable Projector MP4800 User’s Guide

Using the Tripod Mount and Ceiling Mount

To use the projector with a ceiling mount bracket:

1. Carefully turn the projector upside down.

2. Line up the screw holes on the projector
holes on the ceiling mount bracket.

with the screw

1

3. Tighten the screws.

4. Connect any necessary cables.

5. Access the on-screen display menu and select Image
Control. Then select Flip Image.

Refer to Chapter 3, “Using the On-Screen Display Menu” for

✎

Compaq iPAQ Microportable Projector MP4800 User’s Guide 4–5

more information.

6. Select Save and Return.

Using the Tripod Mount and Ceiling Mount

4–6 Compaq iPAQ Microportable Projector MP4800 User’s Guide

5

Using the Remote Control

The optional remote control has many convenient features. It
combines the functions of the projector buttons with some of the
most widely used functions of the computer mouse.

Before using the remote control, be sure steps 1 through 3 have
been completed under “Powering On the Projector” in Chapter 2.

WARNING: To reduce the risk of injury to the eyes, do not look directly

into the remote control laser light and do not point the laser light into
anyone’s eyes. The remote control is equipped with a Class II laser that
emits radiation.

Compaq iPAQ Microportable Projector MP4800 User’s Guide 5–1

Using the Remote Control

Identifying the Remote Control
Components

Identifying the Remote Control Components

Item Component Function

1

2

3

4

5–2 Compaq iPAQ Microportable Projector MP4800 User’s Guide

LED Glows green when the remote control is

operating

Mouse Ball Controls the on-screen cursor and

alternate left-mouse functions

System on/
button

Source

Standby

button Selects the input source

Turns the projector on and off OR
powers the projector into and out of
Standby mode

Using the Remote Control

Identifying the Remote Control Components

Item Component Function

5

6

7

8

9

:

;

w

Page up

Laser pointer Allows laser pointer functionality

Zoom in

Zoom out

On-screen

Right mouse

Page down

Mute

button Scrolls projected image up

button Zooms in to a specific area on the

screen

button Zooms out to include a larger

screen area

Menu

button Scrolls projected image down

button Mutes or silences the speaker on the

button Launches the on-screen display menu

button Controls right mouse functions

projector

(Continued)

e

r

t

y

u

i

o

Volume + Increases speaker volume
Volume - Decreases speaker volume

Resync

On-screen menu
adjustments +

On-screen menu
adjustments -

Left mouse trigger Controls left mouse functions
Battery compartment Holds batteries needed for remote

button Re-synchronizes the projector with the

input source
Adjusts the on-screen display menu up

Adjusts the on-screen display
menu down

control operation

Compaq iPAQ Microportable Projector MP4800 User’s Guide 5–3

Using the Remote Control

The Mouse ball, Page Up, Page Down, Right Mouse, and Left

✎

✎

Mouse functions of the remote control will not work unless a
desktop or notebook computer is connected to the projector with
the USB cable. These functions are not available when a Compaq
iPAQ Pocket PC is connected to the projector.

Follow the instructions in the “Adjusting the On-Screen Display
Menu” section of Chapter 3 to make adjustments to the on-screen
display menu.

Remote Control Functions

The remote control performs the following functions:

Duplicates the functions of the projector buttons including

■

adjusting the on-screen buttons.
Controls the computer connected to the projector by

■

navigating through the computer directories and opening
and closing files.

The remote control will work up to 21.0 feet (6.4 meters) from
the projector when pointed at the sensor.

5–4 Compaq iPAQ Microportable Projector MP4800 User’s Guide

Using the Remote Control

To operate a computer using the remote control, the USB cable
(included with the projector) must be used. Connect one end of
the USB cable to the USB connector on the projector and the
other end to the USB connector on the computer.

Microsoft Windows XP, Windows ME, Windows 2000, and

✎

Compaq iPAQ Microportable Projector MP4800 User’s Guide 5–5

Windows 98 support USB connection. Microsoft Windows NT
does not support USB connection.

6

Using the Home Theater Kit

The Compaq Microportable Projector has been designed to
integrate the video decoding functionality into the projector
itself. The optional Home Theater kit uses this video decoding
functionality to offer a complete home theater solution.

The optional Home Theater Kit is not included with the Compaq
Microportable Projector. For information on purchasing the
optional Home Theater Kit, call your Compaq authorized dealer
or reseller. To locate a dealer or reseller near you, refer to the
Worldwide Telephone Numbers booklet that came with your
projector or, to purchase directly from Compaq, refer to the
Compaq website at

http://www.compaq.com/products/projectors.

Compaq iPAQ Microportable Projector MP4800 User’s Guide 6–1

Using the Home Theater Kit

Contents of the Home Theater Kit

The home theater kit contains five cables:

1

2

3

4

5

S-video cable—connects the projector to a video source with
super video capabilities (e.g., DVD player, video cassette
recorder, laser disc player, camcorder, satellite
dish receiv er, etc.) using an S-video connector.

Composite video cable—connects the projector to a video
source without super video capabilities (e.g., videocassette
recorder) using a composite video connector.

VGA-to-HDTV/Component video cable—connects the projector
to a video source for high quality video playback. The
component video cable connects directly to a standard VGA
connector. In addition, this cable can be used to connect the
projector to a High Definition TV (HDTV) source. For details on
HDTV support, refer to “HDTV Modes” later in this chapter.

Home Theater audio cable—connects a home theater device
with stereo speakers to the projector.

PC audio cable—connects a personal computer with a single
audio input connector to the projector.

6–2 Compaq iPAQ Microportable Projector MP4800 User’s Guide

Connecting a DVD Player

1. Connect one end of the S-video cable 1 to the DVD player.

2. Connect the other end of the S-video cable to the S-video

Using the Home Theater Kit

connector on the Input/Output Panel on the projector

2

.

3. Connect one end of the power cord into the side of the
projector and the other end to an electrical outlet that is easily
accessible and close to the projector.

Compaq iPAQ Microportable Projector MP4800 User’s Guide 6–3

Using the Home Theater Kit

Connecting a Videocassette
Recorder (VCR)

1. Connect one end of the composite video cable 1 to the VCR.

2. Connect the other end of the composite video cable to the
composite video connector on the Input/Output Panel on the
projector

2

.

3. Connect one end of the power cord into the side of the
projector and the other end to an electrical outlet that is easily
accessible and close to the projector.

6–4 Compaq iPAQ Microportable Projector MP4800 User’s Guide

Connecting a Camcorder

1. Connect one end of the S-video cable 1 to the camcorder.

2. Connect the other end of the S-video cable to the

Using the Home Theater Kit

Input/Output Panel on the projector

2

.

3. Connect one end of the power cord into the side of the
projector and the other end to an electrical outlet that is easily
accessible and close to the projector.

Compaq iPAQ Microportable Projector MP4800 User’s Guide 6–5

Using the Home Theater Kit

Connecting an HDTV Device

1. Connect one end of the VGA-to-HDTV/component video
cable

2. Connect the other end of the VGA-to-HDTV/component
video cable to the VGA connector
Panel on the projector.

3. Connect the dual end of the Home Theater audio cable to the
HDTV device

4. Connect the single end of the Home Theater audio cable to
the audio connector on the Input/Output Panel on the
projector

to the HDTV device.

1

.

3

.

4

on the Input/Output

2

5. Connect one end of the power cord into the side of the
projector and the other end to an electrical outlet that is easily
accessible and close to the projector.

6–6 Compaq iPAQ Microportable Projector MP4800 User’s Guide

Using the Home Theater Kit

Connecting a Personal Computer (PC)

1. Connect one end of the VGA cable that came with the
projector to the VGA connector
on the projector.

2. Connect the other end of the VGA cable to the PC

3. Connect one end of the PC audio cable to the PC

4. Connect the other end of the PC audio cable to the audio
connector on the Input/Output Panel on the projector

on the Input/Output Panel

1

.

2

.

3

.

4

5. Connect one end of the power cord into the side of the
projector and the other end to an electrical outlet that is easily
accessible and close to the projector.

Compaq iPAQ Microportable Projector MP4800 User’s Guide 6–7

Using the Home Theater Kit

HDTV Modes

The Compaq Microportable Projector is capable of displaying
various High Definition TV (HDTV) display modes. A variety of
sources can be used to provide HDTV data to the projector for
display. Some of these sources are:

Digital-VHS (D-VHS) player

■

HDTV-DVD player

■

Satellite Dish HDTV receiver

■

A variety of DTV tuners (to receive programming over the

■

airwaves)
Game stations

■

Most of these sources will provide an analog component video
output, a standard VGA output, or a standard digital DVI output.
The color information can be either in YPrPb (default) format or
RGB format. The user can switch between these using the
on-screen display menu adjustments by selecting “A/V & HDTV
Control.” Refer to “Introducing the On-Screen Display Menu” in
Chapter 3 for more information.

The projector is capable of processing HDTV data provided
either on the standard VGA connector or the DVI interface. Use
the VGA-to-HDTV/Component video cable that comes with the
optional Home Theater Kit to feed the component outputs to the
VGA input connector.

6–8 Compaq iPAQ Microportable Projector MP4800 User’s Guide

Using the Home Theater Kit

The following modes are supported on the DVI interface:

HD0

■

640 x 480p

❏

1280 x 720p

❏

HD1—1920 x 1080i

■

When displaying HDTV content, it is recommended that you
display it in its native 16:9 widescreen mode. For this, you may
need to select the HDTV Fill to Aspect Ratio mode on the
projector to preserve the height-to-width relationship of the
material. Note that in this mode, you will have black stripes on
top and bottom of the projected image, just as you see on a
standard TV set when viewing widescreen content.

A desktop or notebook computer can also be used to generate a
HDTV video stream. Capable computers should be able to
read/acquire the HDTV data and blend it into the desktop
graphics. The composite image is then sent to the projector for
display. In this case, the projector displays the image at the
standard 4:3 aspect ratio, just as it would any other computer
graphics mode. The projector processes the data as it comes from
the computer.

When displaying HDTV content in a window as part of your
desktop environment, it is recommended to project it in the
computer’s native 4:3 mode since the computer has already
embedded the HDTV video stream in widescreen format within
the window. To do so, you may need to select the Fill to Screen
mode on your projector to preserve the height-to-width
relationship of the material.

Regardless of the source, the HDTV formats are generally of
higher resolution than that of the projector (XGA, or 1024 x 768).
Therefore, the projector will normally downscale the HDTV data
to fit the complete image within the displayable 1024 x 768
resolution.

Compaq iPAQ Microportable Projector MP4800 User’s Guide 6–9

Care and Maintenance

This section explains how to care for and maintain your Compaq
projector during normal everyday use.

Protecting the Projector

To protect your projector from overheating and other types of
damage, follow these suggestions:

Use only a power source and connection appropriate for this

■

projector as indicated on the product label located on the
bottom of the projector on the elevator foot.

7

Do not overload an electrical outlet, power strip, or

■

convenience receptacle. The overall system load must not
exceed 80 percent of the branch circuit rating. If an extension
cord or power strip is used, make sure that the cord or strip is
rated for the product and that the total ampere ratings of all
products plugged into the extension cord or power strip do
not exceed 80 percent of the extension cord or strip ampere
ratings limit. Refer to the product label located on the bottom
of the projector on the elevator foot.

Install the projector near an outlet that you can easily reach.

■

Disconnect the power cord by grasping the plug firmly and
pulling it from the electrical outlet.

Unplug the projector from the wall outlet before cleaning.

■

Do not use liquid cleaners or aerosol cleaners.
Slots and openings in the cabinet are provided for ventilation.

■

These openings must not be blocked or covered. Never push
objects of any kind into cabinet slots or other openings.

Compaq iPAQ Microportable Projector MP4800 User’s Guide 7–1

Care and Maintenance

Do not drop the projector or place it on an unstable surface.

■

Do not expose the projector to rain or moisture.

■

Do not allow anything to rest on the power cord. Do not walk

■

on the cord.
Do not allow the projector to be exposed to high

■

temperatures.
Do not open the projector or attempt to service this product

■

for any reason other than to replace the lamp module. Adjust
only those controls that are covered by the operating
instructions. If the projector is not operating properly or has
been dropped or damaged, contact your Compaq authorized
dealer, reseller, or service provider.

Cleaning the Lens

To minimize the risk of damaging or scratching the lens surface,
follow this cleaning procedure. First, remove any dust particles
from the lens by blowing them off with clean, dry, deionized air.
However, this may not be a convenient method, and an alternate
method is described below.

To clean the lens, use only a clean cloth and follow these steps:

CAUTION: Do not spray any type of fluid or cleaner directly on the lens

Ä

surface. Do not use liquid cleaners.

1. Wipe the lens in a single direction with a clean, dry cloth.
Do not wipe back and forth across the lens surface.

7–2 Compaq iPAQ Microportable Projector MP4800 User’s Guide

Care and Maintenance

2. If the cloth is dirty or smears the lens, wash the cloth. If the
cloth is still dirty after washing it or the fabric is damaged,
replace it.

Do not use fabric softener when washing a cleaning cloth or

✎

Ä

softener sheets when drying the cloth.

CAUTION: Do not store a cleaning cloth in contact with the lens for a

long time as doing so may contaminate the lens with dye from the cloth.
The cloth can be contaminated if left in the open air.

Replacing the Projector Lamp Module

Å

WARNING: When the lamp reaches its end of life, it may pop or

rupture. To reduce the risk of personal injury, be careful when removing
the lamp cover as broken glass may be present. Never open the lamp
cover while the projector is operating or when the lamp is hot.

The projector will alert you when the lamp approaches its failure
mode or end of life. When the message “Lamp May Fail Soon.
Replacement Suggested” displays on the projection screen, you
should change the lamp as soon as possible. Contact your local
Compaq authorized dealer, seller, or reseller to purchase a spare
lamp or have the lamp changed. To locate a reseller near you,
refer to the Worldwide Telephone Numbers booklet that came
with your projector. You can also purchase a lamp directly
through

http://www.compaq.com/products/projectors.

Compaq iPAQ Microportable Projector MP4800 User’s Guide 7–3

Care and Maintenance

Follow these steps to replace the projector lamp module:

1. Turn off the main power switch on the side of the projector.

2. Allow the projector to cool down for at least 30 minutes.

WARNING: The lamp assembly operates at a very high temperature. To

Å

reduce the risk of personal injury, allow the projector to cool down for at
least 30 minutes before opening the lamp cover. Never open the lamp
cover while the projector is operating or when the lamp is hot.

3. Disconnect the power cord.

4. Turn the projector upside down.

5. Use a Phillips screwdriver to remove the two screws
the lamp cover.

6. Remove the cover

2

.

from

1

7–4 Compaq iPAQ Microportable Projector MP4800 User’s Guide

Care and Maintenance

7. Remove the three screws from the lamp module 3.

8. Pull the lever up
the projector

5

.

and pull the lamp module straight out of

4

Å

Å

WARNING: To reduce the risk of personal injury, do not drop the lamp

module or touch the glass bulb. The glass may shatter and cause an
injury if it is dropped.

Reverse the previous steps to replace the lamp module.

WARNING: The lamp contains < 0.125 percent mercury by weight. If

the projection lamp breaks, the mercury may be released into the
atmosphere. Please follow applicable federal, state, and local
regulations for disposal and/or recycling.

Compaq iPAQ Microportable Projector MP4800 User’s Guide 7–5

Care and Maintenance

After the lamp module has been replaced, reset the lamp hours in
the on-screen display menu to prevent the “Lamp May Fail Soon.
Replacement Suggested” message from appearing again. To reset
the lamp hours:

1. Be sure the projector is turned off.

2. Make sure all connections except the power cable are
disconnected.

3. Press and hold the

Menu

button on top of the projector while

turning the projector on. “Service” will now be displayed as
an option in the Main menu.

4. Select Service and press the

Enter/Acce

pt

button on the top of

the projector.

5. Select Reset Lamp Hours from the Service menu and press

Enter/Accept

the

button.

6. Select Yes from the Confirm Reset menu and press the

Enter/Accept

button.

7. Select Save and Return.

7–6 Compaq iPAQ Microportable Projector MP4800 User’s Guide

Troubleshooting

Problem Solutions

8

Troubleshooting

Image does not appear on the
projection screen

1. Make sure the projector is
powered on.

2. Ensure the lens cap has been
removed.

3. Press the

4. Ensure that the power cable is
securely connected.

5. Ensure the pins on the connectors
are not crooked or broken.

6. Turn off or disable the notebook or
desktop computer screen saver
function.

7. Ensure the projector lamp has been
securely installed.

8. Ensure your notebook computer's
external video port is turned on.
Toggle the

Standby

Fn + F4

button again.

function keys.

Activate CR T/LCD “ON” at the
same time. To identify any alternate
function keys to be used, refer to
your notebook computer’s user
manual.

Compaq iPAQ Microportable Projector MP4800 User’s Guide 8–1

Troubleshooting

Troubleshooting

Problem Solutions

Scrolling, cut-off, or incorrect
image displayed

Image is flickering or unstable Press the

(Continued)

1. Press the

2. Turn everything off, then power on
the projector first and power on the
notebook or desktop computer
second.

3. If the above steps do not correct the
display image, adjust the resolution
of the notebook or desktop
computer to 1024 x 768.

4. Access the OSD and ensure the
Zoom mode is set to 1. For more
information on using the OSD, refer
to Chapter 3, “Using the On-Screen
Display Menu.”

projector panel to adjust the tracking. If
that does not stop the flickering, adjust
the Clock Phase function in the Image
Control menu.

Resync

Resync

button.

button on the

8–2 Compaq iPAQ Microportable Projector MP4800 User’s Guide

Troubleshooting

Troubleshooting

Problem Solutions

Notebook computer or iPAQ
Pocket PC screen is not displaying
the presentation

(Continued)

Notebook computer:
Most notebook computers have a

monitor loop-through or simultaneous
viewing function. Press the
function k eys on the notebook computer
to switch the image from the notebook
screen to the projection screen or to
toggle through the following three
options:

1. LCD: Output displays only on the
notebook screen.

2. CRT: Output displays only on the
projection screen.

3. CRT/LCD: Output displays on the
notebook screen and the projection
screen.

Fn + F4

Activate CRT/LCD “ON” at the same
time. To identify any alternate function
keys to be used, refer to your notebook
computer’s user manual.

Mac PowerBooks:

1. To control video mirroring, click
Control Panel > Display, then set
Video Mirroring to ON for both
internal and external viewing.

2. Set Video Mirroring OFF for image
on external monitor only or internal
only, depending on monitor
selection in Monitors.

Compaq iPAQ Microportable Projector MP4800 User’s Guide 8–3

Troubleshooting

Troubleshooting

Problem Solutions

Image is out of focus 1. Adjust the Focus Ring on the

Projected colors do not match
computer or camcorder color

(Continued)

projection lens.

2. Make sure the projection screen is
within the required distance (3.7 to

40.7 feet, 1.1 to 12.4 meters) from
the projector.

3. Check the projection lens to see if it
needs cleaning. Follow the
“Cleaning the Lens” procedures in
Chapter 7 to clean the lens.

1. Adjust the Brightness, Contrast, or
Color functions in the on-screen
display menu. Refer to Chapter 3,
“Using the On-Screen Display
Menu” for more information.

Black or gray border visible outside
the usable area of the projection
screen

When the projector is in HDTV
mode, the colors are incorrect

2. Make sure the pins on the cable
connectors are not bent or broken.

The black border surrounding the active
area of the projection screen is part of
the total projected image; however, it is
an inactive area and cannot displa y any
part of the image. This black border
reduces the amount of extraneous light,
producing a cleaner, sharper image.

Access the on-screen display menu,
select A/V & HDTV Control, select Color
Space, then change to the correct color
space. Refer to Chapter 3, “Using the
On-Screen Display Menu” for more
information.

8–4 Compaq iPAQ Microportable Projector MP4800 User’s Guide

Troubleshooting

Troubleshooting

Problem Solutions

Only the Compaq startup screen
displays

A blue screen displays on the
projection screen when a
videocassette recorder, DVD
player, or other video source is
connected to the projector

Screen is dimmer than normal The projector is in lamp saver mode.

(Continued)

1. Check that the cables are
connected securely.

2. Verify that the proper input source
is connected.

3. Make sure your notebook
computer’s external video port is
activated.

1. Check the Play or TV/Video buttons
on the video source.

2. If that does not work, refer to the
owner’s manual that came with the
video source.

Press the lamp saver button on the top
of the projector to turn lamp saver on or
off. If the LED is green, lamp saver is on.
If the LED is not lit, lamp saver is off.

Lamp shuts off 1. If the Standby LED flashes green,

the projector has overheated and
will automatically shut down. Wait
five to ten minutes until the LED
stops flashing and the
button turns amber before
restarting the projector again.

2. A minor power surge may cause
the lamp to shut off. Wait a few
minutes, then turn it back on.

3. When the lamp has reached the
end of its life, the system will
automatically turn off to prevent
possible lamp rupture. Replace the
lamp as described in the
“Replacing the Lamp Module”
section of Chapter 7.

Standby

Compaq iPAQ Microportable Projector MP4800 User’s Guide 8–5

Troubleshooting

Troubleshooting

Problem Solutions

Lamp burns out or makes a
popping sound

Projector suddenly shuts down and
the power button LED blinks rapidly

(Continued)

When the lamp reaches its end of life, it
will burn out and may make a loud
popping sound. If this happens, the
projector will not turn back on until the
lamp module has been replaced.
Contact your local Compaq authorized
dealer, seller, or reseller to purchase a
replacement lamp module. To replace
the lamp, follow the procedures in the
“Replacing the Projector Lamp Module”
section of Chapter 7.

An over-temperature event has been
detected. This usually occurs when
either the airflow to the unit has been
obstructed or a fan has failed. If airflow
is obstructed, remove the obstruction,
unplug the projector, re-plug the
projector, and restart. If a fan has failed
or an over-temperature event occurs a
second time, have the projector
serviced or repaired.

Speaker does not operate 1. Make sure the audio cable is

correctly connected to the projector
and the audio source.

2. Make sure the audio source is
operating properly.

3. Make sure the
the remote control and the audio
source is off.

Mute

button on both

8–6 Compaq iPAQ Microportable Projector MP4800 User’s Guide

Troubleshooting

Troubleshooting

Problem Solutions

Remote control does not operate 1. Ensure the remote control is

Remote mouse does not operate
computer

Compatibility issues with
equipment attached to the
projector

(Continued)

pointed at the sensor and is within

21.0 feet (6.4 meters) of the
projector.

2. The two AAA batteries may need to
be replaced.

3. Verify that the batteries are
installed properly.

Make sure the USB cable is connected
to both the computer and the projector.

Contact your Compaq authorized
service provider or call Compaq
Customer Support for help. Refer to the

Worldwide Telephone Numbers

included in the projector documentation
kit for a complete list of customer
support numbers to call.

booklet

Image size is too small or too large 1. Adjust the digital zoom or move

the camera until the image is the
desired size.

2. The projector may be set to display
in the center of the display area
without any expansion. To change
the setting, access the on-screen
display menu, select A/V & HDTV
Control, select HDTV/Video, then
select how the image should be
shown in the display area. Refer to
Chapter 3, “Using the On-Screen
Display Menu” for more information.

Compaq iPAQ Microportable Projector MP4800 User’s Guide 8–7

Troubleshooting

Troubleshooting

Problem Solutions

The image is upside down or a
mirror image is displayed

The desired source is not displayed Press the

(Continued)

The projector has been set for operation
in rear screen mode or ceiling mount
mode. To display the image properly,
access the on-screen display menu,
select Image Control, select Flip Image,
then restore the displayed image to the
correct setting. Refer to Chapter 3,
“Using the On-Screen Display Menu” for
more information.

projector to revie w and select from the
active video sources.

Source

button on top of the

8–8 Compaq iPAQ Microportable Projector MP4800 User’s Guide

Agency Regulatory Notices

Federal Communications Commission
Notice

This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of
the following measures:

A

Reorient or relocate the receiving antenna.

■

Increase the separation between the equipment and the

■

receiver.
Connect the equipment into an outlet on a circuit different

■

from the circuit that the receiver is connected.
Consult the dealer or an experienced radio or television

■

technician for help.

Compaq iPAQ Microportable Projector MP4800 User’s Guide A–1

Agency Regulatory Notices

Modifications

The FCC requires the user to be notified that if any changes or
modifications are made to this device, not expressly approved by
Compaq Computer Corporation, this may void the user’s
authority to operate the equipment.

Cables

Connections to this device must be made with shielded cables
with metallic RFI/EMI connector hoods to maintain compliance
with FCC Rules and Regulations.

Declaration of Conformity for Products Marked
with the FCC Logo-United States Only

This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.

For questions regarding your product, contact:

Compaq Computer Corporation
P.O. Box 692000, Mail Stop 530113

Houston, Texas 77269-2000
Or, call 1-800-652-6672 (1-800-OK COMPAQ)
For questions regarding this FCC declaration, contact:

Compaq Computer Corporation

P.O. Box 692000, Mail Stop 510101

Houston, Texas 77269-2000
Or, call [phone]
To identify this product, refer to the Part, Series, or Model

number found on the product.

A–2 Compaq iPAQ Microportable Projector MP4800 User’s Guide

Canadian Notice

This Class B digital apparatus meets all requirements of the
Canadian Interference-Causing Equipment Regulations.

Avis Canadien

Cet appareil numérique de la classe B respecte toutes les
exigences du Règlement sur le matériel brouilleur du Canada.

European Union Notice

Agency Regulatory Notices

Products bearing the CE Marking comply with the
EMC Directive (89/336/EEC) and the Low Voltage Directive
(73/23/EEC) issued by the Commission of the European
Community and if this product has telecommunication
functionality, the R&TTE Directive (1999/5/EC).

Compliance with these directives implies conformity to the
following European norms (in parentheses are the equivalent
international standards and regulations):

EN 55022 (CISPR 22)—Electromagnetic Interference

■

EN55024 (IEC6100-4-2, 3, 4, 5, 6, 8, 11)—Electromagnetic

■

Immunity

EN61000-3-2 (IEC6100-3-2)—Power Line Harmonics

■

EN61000-3-3 (IEC61000-3-3)—Power Line Flicker

■

EN 60950 (IEC 60950)—Product Safety

■

Compaq iPAQ Microportable Projector MP4800 User’s Guide A–3

Agency Regulatory Notices

Japanese Notice

Power Cords

The projector power supply is provided with Automatic Line
Switching (ALS). This feature allows the projector to operate on
input voltages between 100–120V or 200–240V.

The power cord set (flexible cord or wall plug) received with the
projector meets the requirements for use in the country where you
purchased the equipment.

If you need to obtain a power cord for a different country, you
should purchase a power cord that is approved for use in that
country.

The power cord must be rated for the product and for the voltage
and current marked on the product electrical ratings label. The
voltage and current rating of the cord should be greater than
the voltage and current rating marked on the product. In addition,
the diameter of the wire must be a minimum of 0.75 mm
18AWG, and the length of the cord must be between 6 feet (1.8m)
and 12 feet (3.6m). If you have questions about the type of power
cord to use, contact your Compaq authorized service provider.

A power cord should be routed so that it is not likely to be walked
on or pinched by items placed upon it or against it. Particular
attention should be paid to the plug, electrical outlet, and the
point where the cord exits from the product.

2

or

A–4 Compaq iPAQ Microportable Projector MP4800 User’s Guide

B

Specifications

Compaq iPAQ Microportable Projector

Projection Resolution XGA 1024 x 768 x 1
Maximum Graphics Resolution SXGA 1280 x 1024 at 75 Hz
Lumen Output 2,000 lumens (1,600 in lamp saver mode)
Lamp Type 200 watt High Brightness Lamp
Image Size See the Image Size Adjustment table in

Chapter 2.

Avg. Lamp Life in Hours 1,000 hours (maximum brightness)

1,500 hours (lamp saver mode)

Projection Distance 3.7 to 40.7 feet (1.1 to 12.4 meters)
Maximum Weight (unpacked) 5.8 lb. (2.6 kg) (without cables)
Maximum Dimensions 10.9 in (w) x 8.9 in (h) x 3.3 in (d)

277 mm (w) x 225 mm (h) x 85 mm (d)

Noise Level 36 dB (34 dB in lamp saver mode)
Displayable Colors 16.7 million colors
Horizontal Frequencies 15–100 kHz
Vertical Frequencies 30–100 Hz

Power Source 90-265 VAC, 50-60 Hz
Power Consumption < 250 watts
Input Terminal One 15-pin D-type VGA connector with

one cable included
One DVI connector

Compaq iPAQ Microportable Projector MP4800 User’s Guide B–1

Specifications

Compaq iPAQ Microportable Projector

Humidity (Non-Condensing)

Operating

Non-Operating
Required Environmental Temperatures for the Following Altitudes:
Sea Level

Operating Temperature

Storage Temperature
2,500–5,000 Feet

Operating Temperature

Storage Temperature
5,000–10,000 Feet

Operating Temperature

Storage Temperature

20 to 80%
20 to 80%

32 to 104
14 to 140

50 to 95

-22 to 149

50 to 82

-22 to 149

°

°

°
°

F

°

F

°

F
F

F

F

5 to 95%
5 to 95%

0 to 40

-10 to 60

10 to 35

-40 to 65

10 to 28

-40 to 65

°

°

°

C

°

°

°

C

C

C

C

C

B–2 Compaq iPAQ Microportable Projector MP4800 User’s Guide

Preset Display Resolutions Table

The projector automatically recognizes the preset display
resolutions listed in the following table.

Display Resolutions

Preset Modes Resolutions

1. Industry Standard 640 x 350 at 31.5 kHz/70 Hz

2. VESA Standard 640 x 350 at 37.8 kHz/85 Hz

3. Industry Standard 640 x 480 at 37.8 kHz/72 Hz

4. VESA Standard 640 x 480 at 37.5 kHz/75 Hz

5. VESA Standard 640 x 480 at 43.3 kHz/85 Hz

Specifications

6. Industry Standard 720 x 400 at 31.5 kHz/70 Hz

7. VESA Standard 720 x 400 at 37.9 kHz/85 Hz

8. VESA Standard 800 x 600 at 35.1 kHz/56 Hz

9. VESA Standard 800 x 600 at 37.8 kHz/60 Hz

10. VESA Standard 800 x 600 at 48 kHz/72 Hz

11. VESA Standard 800 x 600 at 46.9 kHz/75 Hz

12. VESA Standard 800 x 600 at 53.7 kHz/85 Hz

13. Macintosh-compatible 832 x 624 at 49.7 kHz/75 Hz

14. Macintosh-compatible 1152 x 870 at 68.7 kHz/75 Hz

15. VESA Standard 1024 x 768 at 35.5 kHz/43.4 Hz

16. VESA Standard 1024 x 768 at 48.4 kHz/60 Hz

17. VESA Standard 1024 x 768 at 56.4 kHz/70 Hz

18. VESA Standard 1024 x 768 at 60 kHz/75 Hz

Compaq iPAQ Microportable Projector MP4800 User’s Guide B–3

Specifications

Display Resolutions

Preset Modes Resolutions

19. VESA Standard 1024 x 768 at 68.7 kHz/85 Hz

20. VESA Standard 1280 x 1024 at 64 kHz/60 Hz

21. VGA Compatibility 640 x 480 at 31.5 kHz/60 Hz

22. HDTV 720P
(Progressive)

23. HDTV 1080I (Interlaced) 1920 x 1080 at 33.8 kHz/30 Hz

(Continued)

1280 x 720 at 45 kHz/60 Hz

B–4 Compaq iPAQ Microportable Projector MP4800 User’s Guide
