Page 1

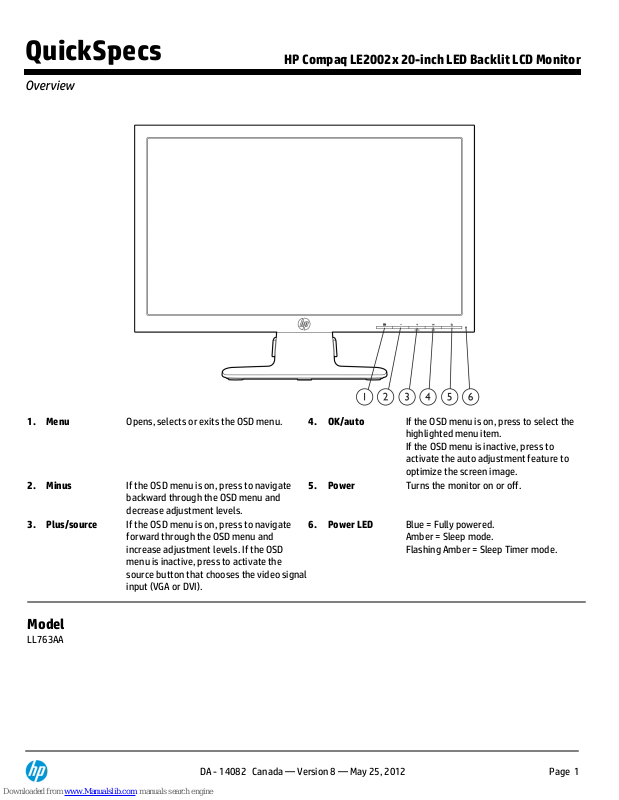

1.
Menu
Opens, selects or exits the OSD menu.
4.
OK/auto
If the OSD menu is on, press to select the
highlighted menu item.
If the OSD menu is inactive, press to
activate the auto adjustment feature to
optimize the screen image.
2.
Minus
If the OSD menu is on, press to navigate
backward through the OSD menu and
decrease adjustment levels.
5.
Power
Turns the monitor on or off.
3.
Plus/source
If the OSD menu is on, press to navigate
forward through the OSD menu and
increase adjustment levels. If the OSD
menu is inactive, press to activate the
source button that chooses the video signal
input (VGA or DVI).
6.
Power LED
Blue = Fully powered.
Amber = Sleep mode.
Flashing Amber = Sleep Timer mode.
Model
LL763AA
QuickSpecs
HP Compaq LE2002x 20-inch LED Backlit LCD Monitor
Overview
DA - 14082 Canada — Version 8 — May 25, 2012
Page 1
Page 2
Panel
Type
TN (Twisted Nematic) LED Backlit LCD
Viewable Image Area
(diagonal)
50,8 cm
(20 in.) widescreen; diagonally measured
Screen Opening
(W x H)
44,28 x 24,91 cm
(17.43 x 9.81 in.)
Aspect Ratio
16:9
Viewing Angle
(typical)
Up to 170° horizontal/160° vertical (10:1 minimum contrast ratio)
Brightness
(typical)
*
250 nits (cd/m2)
Contrast Ratio
(typical)*1000:1
Dynamic Contrast Ratio
(typical)
*
3,000,000:1
Response Time
(typical)*5 ms (on/off)
Pixel Pitch
0.2768 mm
Backlight Lamp Life
(to half brightness)
30,000 hours (min)
Colour Gamut
(typical)
72%
Colour Support
**
Can display up to 16.7 million colours
*All performance specifications represent the typical specifications provided by HP's component
manufacturers; actual performance may vary either higher or lower.
** With the use of FRC technology.
On Screen Display
(OSD)
Controls
Buttons or Switches
Menu, Minus ("-"), Plus/Source ("+"), "OK/Auto" and Power
Languages
German, Simplified Chinese, Traditional Chinese, Japanese, English, Spanish,
French, Italian, Netherlands, Brazilian Portuguese
User Controls
Brightness, Contrast, Colour(Standard/Warm/Cool/Custom), Image
Control(Clock/Clock Phase/Horizontal Position/Vertical Position/Custom
Scaling/Sharpness/Dynamic Contrast Ratio),OSD Control(Horizontal OSD
Position/Vertical OSD Position/OSD Transparency/OSD Timeout), monitor
Management, Language, Information, Factory Reset, Source Control
Signal Interface/
Performance
Horizontal Frequency
24 to 83 kHz
Vertical Frequency
50 to 76 Hz
Native Resolution
1600 x 900 @ 60 Hz
Preset VESA Graphic
Modes
(non-interlaced)
640 x 480 @ 60 Hz
720 x 400 @ 70 Hz
800 x 600 @ 60 Hz
1024 x 768 @ 60 Hz
1280 x 720 @ 60 Hz
1280 x 1024 @ 60 Hz
1440 x 900 @ 60 Hz
1600 x 900 @ 60Hz
Text Mode
720 x 400 @ 70 Hz
QuickSpecs
HP Compaq LE2002x 20-inch LED Backlit LCD Monitor
Technical Specifications
DA - 14082 Canada — Version 8 — May 25, 2012
Page 2
Page 3
Maximum Pixel Clock
Speed
170 MHz
User Programmable
Modes
Yes (10 user modes)
Anti-Glare
Yes
Default Colour
Temperature
6500 K
Video/Other Inputs
Plug and Play
Yes
Input Connectors
VGA (analog), DVI-D w/ HDCP
Input Impedance
75 Ohms
Sync Input
TTL separate synch
Video Cable
(1) VGA; (1) DVI-D
Video Cable Lengths
1,8 m
(5.9 ft.)
Audio
No
Audio Cable Length
N/A
Power
Power Supply
Internal power adapter
Input Power
100 -240 VAC, 50 or 60 Hz
Typical Power
Consumption
22 W
Maximum
26 W
Power Saving
< 0.5 W
Power Cable Length
1,9 m
(6.2 ft.)
Mechanical
Dimensions
(W x D x H)
Unpacked w/stand
48,20 x 15,11 x 35,92 cm
(18.98 x 5.95 x 14.14 in.)
Unpacked w/o stand
(head only)
48,20 x 4,75 x 29,41 cm
(18.98 x 1.87 x 11.58 in.)
Packaged
55,2 x 12,8 x 42,2 cm
(21.73 x 5.04 x 16.61 in.)
Base area
(footprint)
23,63 x 15,11cm
(9.30 x 5.95 in.)
Weight
Head Only
2,7 kg
(5.95 lb.)
Unpacked
3,5 kg
(7.71 lb.)
Packaged
5,0 kg
(11.02 lb.)
Tilt Range
-5° to +25°
Swivel Range
No
Height Adjustable
No
Pivot Rotation
No
Base
Attachable, ships detached
Environmental
Temperature – Operating
5° to 35° C
(41° to 95° F)
Temperature – Nonoperating
-20° to 60° C
(-4° to 140° F)
QuickSpecs
HP Compaq LE2002x 20-inch LED Backlit LCD Monitor
Technical Specifications
DA - 14082 Canada — Version 8 — May 25, 2012
Page 3
Page 4
Humidity – Operating
20% to 80% non-condensing
Humidity – Nonoperating
5% to 95%, 38.7° C max wet-bulb
Altitude – Operating
0 to 5,000 m
(16,404 ft)
Altitude – Non-operating
0 to 12,192 m
(0 to 40,000 ft)
White LED Backlights
Yes
CCFL Panel
No
Arsenic-Free Glass
*
Yes
* Arsenic and its compounds were not detected using US EPA Test Methods 3052 & 3052/6010b by ICP or
ICP-AES.
BFR/PVC Free
Yes (everything except external cables)
Mercury Free
Yes
Environmental Data
Eco-Label Certifications
& declarations
This product has received or is in the process of being certified to the following
approvals and may be labeled with one or more of these marks:
US ENERGY STAR®
IT ECO declaration
EPEAT Silver where HP registers commercial desktop products. See
http://www.epeat.net
for registration status in your country.
Energy Consumption
(in accordance with US
ENERGY STAR® test
method)
115VAC, 60Hz 230VAC, 50Hz 100VAC, 60Hz
Normal Operation
18.5 W 18.6 W 18.5 W
Sleep
0.2 W 0.2 W 0.2 W
Off
0.1 W 0.1 W 0.1 W
Heat Dissipation
*
115VAC, 60Hz 230VAC, 50Hz 100VAC, 60Hz
Normal Operation
63 BTU/hr 64 BTU/hr 63 BTU/hr
Sleep
1 BTU/hr 1 BTU/hr 1 BTU/hr
Off
0.3 BTU/hr 0.3 BTU/hr 0.3 BTU/hr
* Heat dissipation is calculated based on the measured watts, assuming the service level is attained for one
hour.
Additional Information
This product is in compliance with the Restrictions of Hazardous
Substances (RoHS) directive - 2002/95/EC.
This HP product is designed to comply with the Waste Electrical and
Electronic Equipment (WEEE) Directive - 2002/96/EC.
This product is in compliance with California Proposition 65 (State of
California; Safe Drinking Water and Toxic Enforcement Act of 1986).
This product is in compliance with the IEEE 1680 (EPEAT) standard at the
Silver level, see
www.epeat.net
Plastics parts weighing over 25 grams used in the product are marked
per ISO 11469 and ISO1043.
This product contains 0% post-consumer recycled plastic (by wt.)
This product is 96.6% recycle-able when properly disposed of at end of
QuickSpecs
HP Compaq LE2002x 20-inch LED Backlit LCD Monitor
Technical Specifications
DA - 14082 Canada — Version 8 — May 25, 2012
Page 4
Page 5
life.
Packaging Materials
External:
Corrugated carton
480 g
Internal:
Polyethylene low density
35 g
RoHS Compliance
Hewlett-Packard is committed to compliance with all applicable environmental
laws and regulations, including the European Union Restriction of Hazardous
Substances (RoHS) Directive. HP's goal is to exceed compliance obligations by
meeting the requirements of the RoHS Directive on a worldwide basis. By July
1, 2006, RoHS substances will be virtually eliminated (virtually = to levels
below legal limits) for all HP electronic products subject to the RoHS Directive,
except where it is widely recognized that there is no technically feasible
alternative (as indicated by an exemption under the EU RoHS Directive).
Material Usage
This product does not contain any of the following substances in excess of
regulatory limits (refer to the HP General Specification for the Environment at:
http://www.hp.com/hpinfo/globalcitizenship/environment/supplychain/
gen_specifications.html
):
Asbestos
Certain Azo Colorants
Certain Brominated Flame Retardants - may not be used as flame
retardants in plastics
Cadmium
Chlorinated Hydrocarbons
Chlorinated Paraffins
Formaldehyde
Halogenated Diphenyl Methanes
Lead carbonates and sulfates
Lead and Lead compounds
Mercuric Oxide Batteries
Nickel - finishes must not be used on the external surface designed to be
frequently handled or carried by the user.
Ozone Depleting Substances
Polybrominated Biphenyls (PBBs)
Polybrominated Biphenyl Ethers (PBBEs)
Polybrominated Biphenyl Oxides (PBBOs)
Polychlorinated Biphenyl (PCB)
Polychlorinated Terphenyls (PCT)
Polyvinyl Chloride (PVC) - except for wires and cables, and certain retail
packaging has been voluntarily removed from most applications.
Radioactive Substances
Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide (TBTO)
Packaging
HP follows these guidelines to decrease the environmental impact of product
packaging:
Eliminate the use of heavy metals such as lead, chromium, mercury and
cadmium in packaging materials.
Eliminate the use of ozone-depleting substances (ODS) in packaging
materials.
Design packaging materials for ease of disassembly.
Maximize the use of post-consumer recycled content materials in
packaging materials.
QuickSpecs
HP Compaq LE2002x 20-inch LED Backlit LCD Monitor
Technical Specifications
DA - 14082 Canada — Version 8 — May 25, 2012
Page 5
Page 6
Use readily recyclable packaging materials such as paper and corrugated
materials.
Reduce size and weight of packages to improve transportation fuel
efficiency.
Plastic packaging materials are marked according to ISO 11469 and DIN
6120 standards.
End-of-life Management
and Recycling
Hewlett-Packard offers end-of-life HP product return and recycling programs
in many geographic areas. To recycle your product, please go to:
http://www.hp.com/go/reuse-recycle
or contact your nearest HP sales office.
Products returned to HP will be recycled, recovered or disposed of in a
responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide
treatment information for each product type for use by treatment facilities.
This information (product disassembly instructions) is posted on the Hewlett
Packard web site at:
http://www.hp.com/go/recyclers
. These instructions may
be used by recyclers and other WEEE treatment facilities as well as HP OEM
customers who integrate and re-sell HP equipment.
Hewlett-Packard
Corporate Environmental
Information
For more information about HP's commitment to the environment:
Global Citizenship Report
http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html
Eco-label certifications
http://www.hp.com/hpinfo/globalcitizenship/environment/productdesign/
ecolabels.html
ISO 14001 certificates:
http://www.hp.com/hpinfo/globalcitizenship/environment/operations/
envmanagement.html
Options
(sold separately)
HP LCD Monitor Quick
Release-Part number
EM870AA
*
An easy-to-use, VESA-compliant, LCD monitor mounting solution that allows
you to quickly and securely attach an LCD monitor to a variety of stands,
brackets, arms or wall mounts. For more information, refer to this product's
QuickSpecs document.
* The HP Quick Release has been designed to support a maximum of up to 24 lbs (10.9 kg) for all devices
mounted. Because mounting surfaces vary widely and the final mounting method and configuration may
vary, mounting fasteners are not supplied (other than the VESA-compliant screws). HP recommends that
you consult with a qualified engineering, architectural or construction professional to determine the
appropriate type and quantity of mounting fasteners required for your application and to ensure that your
mounting solution is properly installed to support applied loads.
HP USB Graphics AdapterPart number NL571AA
Enables connection of up to six simultaneous displays to help you boost
productivity and multi-task across several open applications. Use one Adapter
to bridge between a notebook or desktop PC and second monitor or use
multiple Adapters to connect several displays to each other.
HP Business PC Security
Lock Kit-Part number
PV606AA
Attaches to the rear of the PC with a six-foot steel cable that can be used to
secure a PC or peripherals such as mice, keyboards, monitors or USB security
devices to protect them against unauthorized removal by physically connecting
the system to an anchor point.
QuickSpecs
HP Compaq LE2002x 20-inch LED Backlit LCD Monitor
Technical Specifications
DA - 14082 Canada — Version 8 — May 25, 2012
Page 6
Page 7
HP LCD Speaker Bar-Part
number NQ576AA
Powered directly by the connected PC, the Speaker Bar seamlessly attaches to
the monitor's lower bezel to bring full audio support to select HP flat panel
monitors. Features include dual speakers with full sound range and dual
external headphone jacks. Sold separately. For more information, refer to the
product's QuickSpecs.
Other
Accessories Included
VGA cable and AC Power cable
Software
Yes - HP Display Assistant
User Guide Languages
English, French, Spanish (Int'l), Brazilian Portuguese, Danish, Dutch, Finnish,
French, German, Italian, Norwegian, Spanish, Swedish, Czech, Hungarian,
Polish, Russian, Greek, Slovenian, Turkish, Arabic, Bahasa Indonesian, S.
Chinese, T. Chinese, Korean and Japanese.
Warranty Languages
English, LA Spanish, Brazilian Portuguese, German, French, Italian, Turkish,
Greek, Arabic, Russian, Hungarian, Czech, Polish, Japanese, Dutch, Danish,
Finnish, Norwegian, Swedish, S. Chinese, T. Chinese, Korean, Slovenain, Bahasa
Indonesia, Serbian
Colour
Black
VESA External Mounting
Yes (one set of standard 4-hole pattern, 100 mm).
Security Lock-Ready
Yes
Certification and
Compliance
TCO 5.0, VCCI, KC, CECP, FCC, CE, BSMI, ISC, C-Tick, Gost, E-Standy, RoHS, WEEE, ETL, CCC, Energy Star® 5.0,
NOM, KCC, BSMI, TUV, Microsoft WHQL, China Energy Label Grade 1, EPEAT® Silver
*
* EPEAT® Silver where HP registers commercial display products. See
www.epeat.net
for registration
status in your country.
Compatibility
Compatible with platforms using the VESA standard video modes. Recommended for use with HP products.
Service and Warranty
Protected by HP, including a 3 years parts, 3 years labour, and 3 years onsite service (3/3/3) standard
limited warranty. Certain restrictions and exclusions apply.
**
** HP Care Pack Services extend service contracts beyond the standard warranties. Service levels and
response times for HP Care Packs may vary depending on your geographic location. Service starts from
date of hardware purchase. To choose the right level of service for your HP product, use the HP Care Pack
Services Lookup Tool at:
http://www.hp.com/go/lookuptool
. Additional HP Care Pack Services information
by product is available at:
http://www.hp.com/hps/carepack
.
© Copyright 2012 Hewlett-Packard Development Company, L.P.
ENERGY STAR® is a US registered mark of the United States Environmental Protection Agency.
All specifications represent the typical specifications provided by HP's component manufacturers; actual performance may vary either
higher or lower. The only warranties for HP products and services are set forth in the express warranty statements accompanying such
products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or
editorial errors or omissions contained herein.
QuickSpecs
HP Compaq LE2002x 20-inch LED Backlit LCD Monitor
Technical Specifications
DA - 14082 Canada — Version 8 — May 25, 2012
Page 7
Loading...
