HP LC3260N User Guide

sa6ldtv.book Page i Tuesday, February 21, 2006 12:35 PM

HP LC3260N 32-Inch (81-Centimeter) LCD High-Definition Television

HP LCD HDTV

User’s Guide

sa6ldtv.book Page ii Tuesday, February 21, 2006 12:35 PM

The only warranties for HP products and services are set forth in the
express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an
additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.

HP assumes no responsibility for the use or reliability of its software
on equipment that is not furnished by HP.

This document contains proprietary information that is protected by
copyright. No part of this document may be photocopied,
reproduced, or translated to another language without the prior
written consent of HP.

Hewlett-Packard Company
P.O. Box 4010
Cupertino, CA 95015-4010
USA

Copyright © 2006 Hewlett-Packard Development Company, L.P.
May be licensed in the United States by one or both of U.S. Patents

Nos. 4,930,158 and 4,930,160 until August 28, 2008.
Manufactured under license from Dolby Laboratories. Dolby, Pro

Logic, and the double-D symbol are trademarks of Dolby
Laboratories.

WOW, SRS and the symbol are trademarks of SRS Labs, Inc.
SRS WOW technology is incorporated under license from SRS Labs,
Inc.

HDMI, the HDMI logo and High-Definition Multimedia Interface are
trademarks or registered trademarks of HDMI Licensing LLC.

ENERGY STAR is a registered trademark owned by the U.S.
government.

HP supports lawful use of technology and does not endorse or
encourage the use of our products for purposes other than those
permitted by copyright law.

The information in this document is subject to change without notice.

.

n

Text set off in this manner indicates
information you need.

!

Text set off in this manner indicates
important information you need.

c

CAUTION: Text set off in this manner
indicates that failure to follow directions
could result in damage to equipment or
loss of information.

w

WARNING: This symbol is intended to alert
the user to the presence of important
operating and maintenance (servicing)
instructions in the literature accompanying
the appliance.

e

DANGEROUS VOLTAGE: Text set off in this
manner indicates the presence of
uninsulated voltages within the product
enclosure that may be of sufficient
magnitude to constitute a risk of electrical
shock to persons.

sa6ldtv.book Page iii Tuesday, February 21, 2006 12:35 PM

Important Safeguards

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRICAL SHOCK, DO NOT EXPOSE THIS APPLIANCE

TO RAIN OR MOISTURE.

e CAUTION: RISK OF ELECTRICAL SHOCK w

CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

THIS SYMBOL IS INTENDED TO ALERT THE USER TO THE PRESENCE OF UNINSULATED

e

“DANGEROUS VOLTAGES” WITHIN THE PRODUCT’S ENCLOSURE THAT MAY BE OF
SUFFICIENT MAGNITUDE TO CONSTITUTE A RISK OF ELECTRICAL SHOCK TO PERSONS.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

DO NOT OPEN

w

THIS SYMBOL IS INTENDED TO ALERT THE USER TO THE PRESENCE OF IMPORTANT

OPERATING AND MAINTENANCE (SERVICING) INSTRUCTIONS IN THE LITERATURE
ACCOMPANYING THE APPLIANCE.

CAUTION: TO PREVENT ELECTRICAL SHOCK, DO NOT USE THIS POLARIZED AC PLUG WITH AN

EXTENSION CORD, RECEPTACLE, OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY
INSERTED TO PREVENT BLADE EXPOSURE.

CAUTION: TO PREVENT ELECTRICAL SHOCK, MATCH WIDE BLADE OR PLUG TO WIDE SLOT, AND

FULLY INSERT.

CAUTION: DO NOT PLACE THIS PRODUCT ON AN UNSTABLE CART, STAND, TRIPOD,

BRACKET, OR TABLE. THE PRODUCT MAY FALL CAUSING SERIOUS
PERSONAL INJURY AND SERIOUS DAMAGE TO THE PRODUCT. USE ONLY
WITH A CART, STAND, TRIPOD, BRACKET, OR TABLE RECOMMENDED BY
THE MANUFACTURER OR SOLD WITH THE PRODUCT. FOLLOW THE
MANUFACTURER’S INSTRUCTIONS WHEN INSTALLING THE PRODUCT
AND USE MOUNTING ACCESSORIES RECOMMENDED BY THE
MANUFACTURER. A PRODUCT AND CART COMBINATION SHOULD BE
MOVED WITH CARE. QUICK STOPS, EXCESSIVE FORCE, AND UNEVEN
SURFACES MAY CAUSE THE PRODUCT AND CART COMBINATION TO
OVERTURN.

iii

sa6ldtv.book Page iv Tuesday, February 21, 2006 12:35 PM

INFORMATION:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures:

■ Reorient or relocate the receiving antenna.

■ Increase the separation between the equipment and receiver.

■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

■ Consult the dealer or an experienced radio/TV technician for help.

Closed caption notice

This television receiver provides display of television closed captioning in accordance with § 15.119 of the FCC Rules.

FCC Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment
should be installed and operated with a minimum distance of 20 cm between the radiator and your body.

Modifications

The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly
approved by Hewlett-Packard Company may void the authority to operate the equipment.

Cables

Connections to this device must be made with shielded cables with metallic RFI/EMI connector hoods in order to
maintain compliance with FCC Rules and Regulations.

RESPONSIBLE PARTY:
Hewlett-Packard Company

Attn: Product Regulations Manager
10955 Tantau Avenue
Building 45NL
Cupertino, CA 95014 USA

iv HP LCD HDTV User’s Guide

sa6ldtv.book Page v Tuesday, February 21, 2006 12:35 PM

Important Safety Instructions

Electricity is used to perform many useful functions, but it can also cause personal injuries and property damage if
improperly handled. This product has been engineered and manufactured with the highest priority on safety. However,
improper use can result in electric shock and/or fire. In order to prevent potential danger, please observe the following
instructions when installing, operating, and cleaning the product. To ensure your safety and prolong the service life of
your television, please read the following precautions carefully before using the product.

1 Read these instructions.
2 Keep these instructions.
3 Heed all warnings.
4 Follow all instructions.
5 Do not use this apparatus near water.
6 Clean only with dry cloth.
7 Do not block any ventilation openings. Install in

accordance with the manufacturer’s instructions.

8 Do not install near any heat sources such as

radiators, heat registers, stoves, or other
apparatus (including amplifiers) that
produce heat.

9 Do not defeat the safety purpose of the polarized

or grounding-type plug. A polarized plug has two
blades with one wider than the other. A
grounding-type plug has two blades and a third
grounding prong. The wide blade or the third
prong are provided for your safety. If the provided
plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.

10 Protect the power cord from being walked on or

pinched particularly at plugs, convenience
receptacles, and the point where they exit from
the apparatus.

11 Only use attachments/accessories specified by

the manufacturer.

12 Use only with the cart, stand, tripod,

bracket, or table specified by the
manufacturer, or sold with the
apparatus. When a cart is used,
use caution when moving the cart/
apparatus combination to avoid
injury from tip-over.

13 Unplug this apparatus during lightning storms or

when unused for long periods of time.

14 Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has
been damaged in any way, the power-supply cord
or plug is damaged, liquid has been spilled or
objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.

15 Power sources — This product should be operated

only from the type of power source indicated on
the marking label. If you are not sure of the type of
power supply to your home, consult your product
dealer or local power company. For products
intended to operate from battery power, or other
sources, refer to the operating instructions.

16 Overloading — Do not overload wall outlets,

extension cords, or integral convenience
receptacles as this can result in a risk of fire or
electric shock.

17 Replacement parts — When replacement parts

are required, be sure the service technician has
used replacement parts specified by the
manufacturer or have the same characteristics as
the original part. Unauthorized substitutions may
result in fire, electric shock, or other hazards.

18 Safety check — Upon completion of any service

or repairs to this product, ask the service
technician to perform safety checks to determine
that the product is in proper operating condition.

19 The apparatus shall not be exposed to dripping or

splashing and that no objects filled with liquids,
such as vases, shall be placed on apparatus.

v

sa6ldtv.book Page vi Tuesday, February 21, 2006 12:35 PM

20 WARNING: Plug the power cord into a power

outlet where access to the power cord connector is
readily accessible in case power disconnection is
required.

■ Water and moisture — Do not use this product near water; for example, near a bath tub, wash bowl, kitchen sink,

21 Servicing: The user should not attempt to service

the appliance beyond that described in the
operating instructions. All other servicing should
be referred to qualified service personnel.

or laundry tub; in a wet basement; or near a swimming pool; and the like.

■ Stand — Do not place the product on an unstable cart, stand, tripod, or table. Placing the product on an unstable

base can cause the product to fall, resulting in serious personal injuries as well as damage to the product. Use
only a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with the product.

■ Selecting the location — Select a place with no direct sunlight and good ventilation.

■ Ventilation — The vents and other openings in the cabinet are designed for ventilation. Do not cover or block

these vents and openings since insufficient ventilation can cause overheating and/or shorten the life of the
product. Do not place the product on a bed, sofa, rug, or other similar surface, since they can block ventilation
openings. This product is not designed for built-in installation; do not place the product in an enclosed place such
as a bookcase or rack, unless proper ventilation is provided or the manufacturer’s instructions are followed.

■ The display panel used in this product is made of glass. Therefore, it can break when the product is dropped or

applied with impact. Be careful not to be injured by broken glass pieces in case the panel breaks.

■ Heat — The product should be situated away from heat sources such as fireplaces, chimneys, radiators, heat

registers, stoves, or other products (including amplifiers) that produce heat.

■ Occasionally, a few non-active pixels may appear on the screen as a fixed point of blue, green, or red. Please

note that this does not affect the performance of your product.

■ Cautions regarding use in high and low temperature environments:

When the unit is used in low-temperature space (e.g., room, office), the picture may leave trails or appear slightly
delayed. This is not a malfunction, and the unit will recover when the temperature returns to normal.

Do not leave the unit in a hot or cold location. Also, do not leave the unit in a location exposed to direct sunlight
or near a heater, as this may cause the cabinet to deform and the display panel to malfunction. Storage

temperature: –4

■ Precautions when transporting the TV — When transporting the TV, be sure to always carry the TV by two people

o

F to +140o F (–20o C to +60o C).

holding it with two hands — one hand on each side of the Display.

■ Lightning — For added protection for this television equipment during a lightning storm, or when it is left

unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna. This
will prevent damage to the equipment due to lightning and power-line surges.

■ Power lines — An outside antenna system should not be located in the vicinity of overhead power lines or other

electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside
antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with
them might be fatal.

vi HP LCD HDTV User’s Guide

sa6ldtv.book Page vii Tuesday, February 21, 2006 12:35 PM

■ Outdoor Antenna Grounding — If an outside

antenna is connected to the television equipment,
be sure the antenna system is grounded so as to
provide some protection against voltage surges
and built-up static charges. Article 810 of the
National Electrical Code, ANSI/NFPA 70,
provides information with regard to proper
grounding of the mast and supporting structure,
grounding of the lead-in wire to an antenna
discharge unit, size of grounding conductors,
location of antenna-discharge unit, connection to
grounding electrodes, and requirements for the
grounding electrode.

Antenna Grounding

Reference

1

2

3

4

5

6

7

7

6

5

4

3

1

Antenna Grounding

Grounding Component

Electric Service Equipment

Power Service Grounding Electrode System
(NEC Art 250, Part H)

Ground Clamps

Grounding Conductors (NEC Section 810-21)

Antenna Discharge Unit (NEC Section 810-20)

Ground Clamp

Antenna Lead in Wire

2

■ To prevent fire, never place any type of candle or flames on the top or near the TV set.

■ To prevent fire or shock hazard, do not expose this product to dripping or splashing. No objects filled with liquids,

such as vases, should be placed on the product.

■ To prevent fire or shock hazard, do not place the AC power cord under the TV set or other heavy items.

■ Turn off the main power and unplug the AC cord from the wall outlet before handling.

■ Use a soft cloth and gently wipe the surface of the TV panel. Using a hard cloth may scratch the panel surface.

■ Use a soft damp cloth to gently wipe the panel when it is really dirty. (It may scratch the panel surface when

wiped strongly.)

■ If the panel is dusty, use an anti-static brush, which is commercially available, to clean it.

■ To protect the panel, do not use a dirty cloth, liquid cleaners, or chemical cloth to clean it; such materials may

damage the panel surface.

vii

sa6ldtv.book Page viii Tuesday, February 21, 2006 12:35 PM

Important Information

The TV must be serviced by an authorized service
technician. The TV is not user serviceable.

Changes can damage your TV and void your
warranty. Changes or modifications not expressly
approved by the manufacturer could void the user’s
authority to operate the equipment.

Recycling Information

For information about how to recycle this product
through HP, see:

http://www.hp.com/recycle

Other recycling options may also be available in your
area. If located within the U.S. and Canada, you may
also call (1) [phone].

Materials disposal

This HP product contains the following materials that
might require special handling at end-of-life:

■ Mercury in the fluorescent lamp in the LCD.

Disposal of mercury may be regulated because of
environmental considerations. For disposal or
recycling information, please contact your local
authorities or the Electronic Industries Alliance (EIA)
(http://www.eia.org).

Cleaning precautions

Unplug the TV before cleaning the screen.
Using solvents, such as alcohol, or abrasive material,

such as a premoistened or chemically treated towel,
may affect the TV or bezel paint.

Do not expose the product to volatile gas or fluid such
as a pesticide.

Do not put the TV in contact with vinyl or rubber
products for a long period of time. Extended contact
may result in the removal of or degradation of the
surface.

Lifting precautions

The TV is heavy; be sure to use ergonomically correct
lifting procedures when moving the TV.

Due to the size and weight of the TV, it is
recommended that a minimum of two people move it.

For transport, grasp the display in the area under and
above the screen.

Never place the display with the glass screen facing
downward, unless it is protected with pads.

ENERGY STAR Compliance

Products marked with the ENERGY STAR logo on the
packaging box qualify with the U.S. Environmental
Protection Agency’s ENERGY STAR guidelines for
energy efficiency.

Products with the ENERGY STAR label are designed to
use less energy, help you save money on utility bills,
and help protect the environment.

ENERGY STAR is a registered trademark owned by the
U.S. government.

viii HP LCD HDTV User’s Guide

sa6ldtv.book Page ix Tuesday, February 21, 2006 12:35 PM

Table of Contents

Important Safeguards ..................................... iii

Modifications .................................................iv

Cables ..........................................................iv

Important Safety Instructions ..............................v

Important Information ....................................viii

Getting to Know Your TV................. 1

Identifying Items in the Box .................................... 2

Locating TV Buttons and Connectors........................3

Cleaning ............................................................. 6

Cleaning precautions ......................................6

Cleaning the TV.............................................. 6

Setting Up....................................... 7

Selecting a Good Location.....................................7

Lifting the TV .................................................. 8

Attaching or removing the stand ....................... 8

Setting Up the TV.................................................. 9

Connecting the TV signal sources......................9

Connecting the cable TV or the air

broadcast antenna........................................ 10

Connecting cable or satellite with a

set-top box................................................... 10

Connecting a DVD player, VCR, DVR,

game console, or camcorder..........................12

Connecting a VCR for recording..................... 14

Connecting an external sound system.............. 15

Connecting power to the TV........................... 15

Turning On the TV..........................17

Turning the TV On and Off (Standby) ....................17

Using the First-Time Setup..............19

Initial Setup........................................................19

Using the Remote Control ..............21

Operating the TV................................................21

Using universal remote controls.......................21

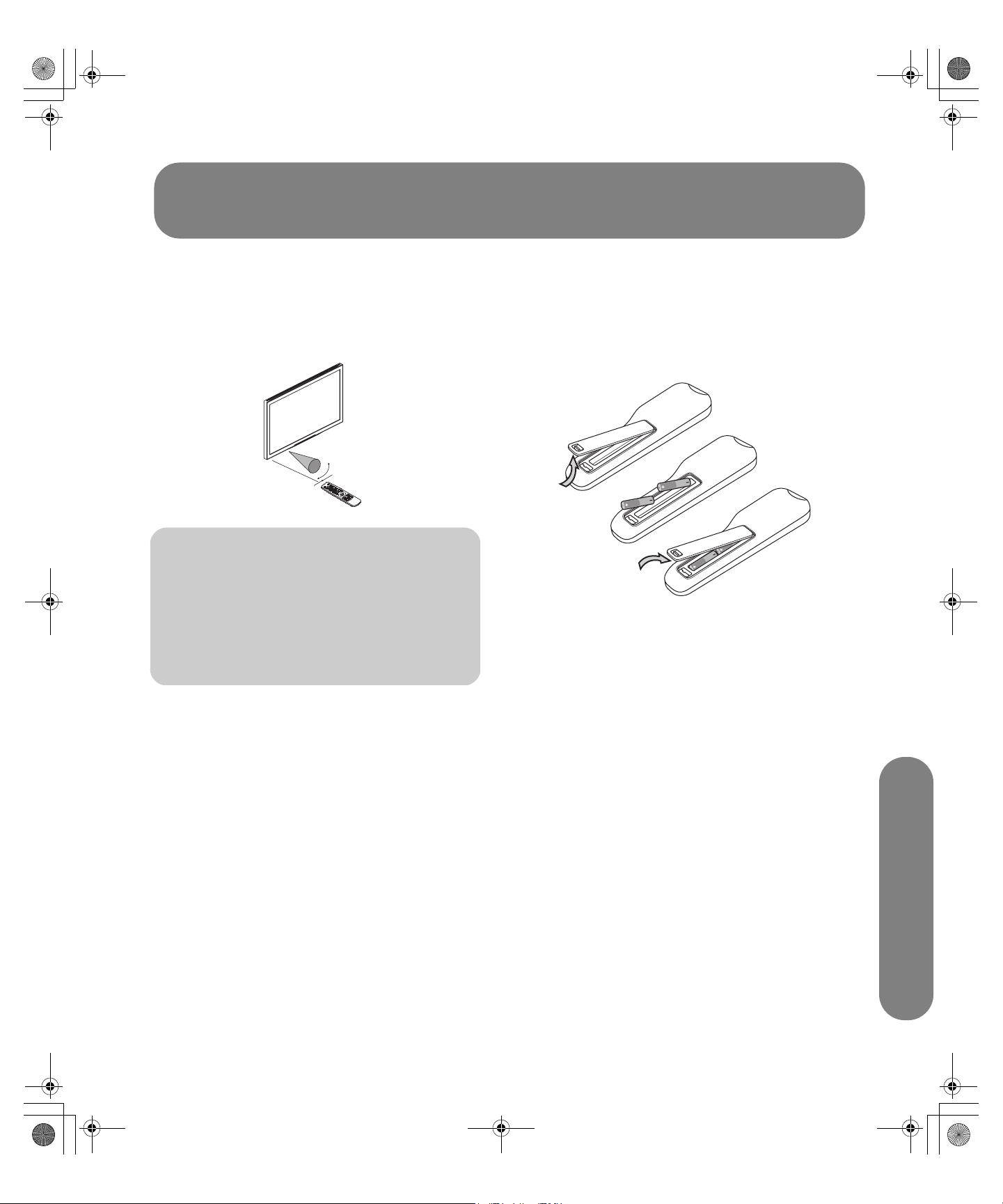

Installing or replacing remote control

batteries.......................................................21

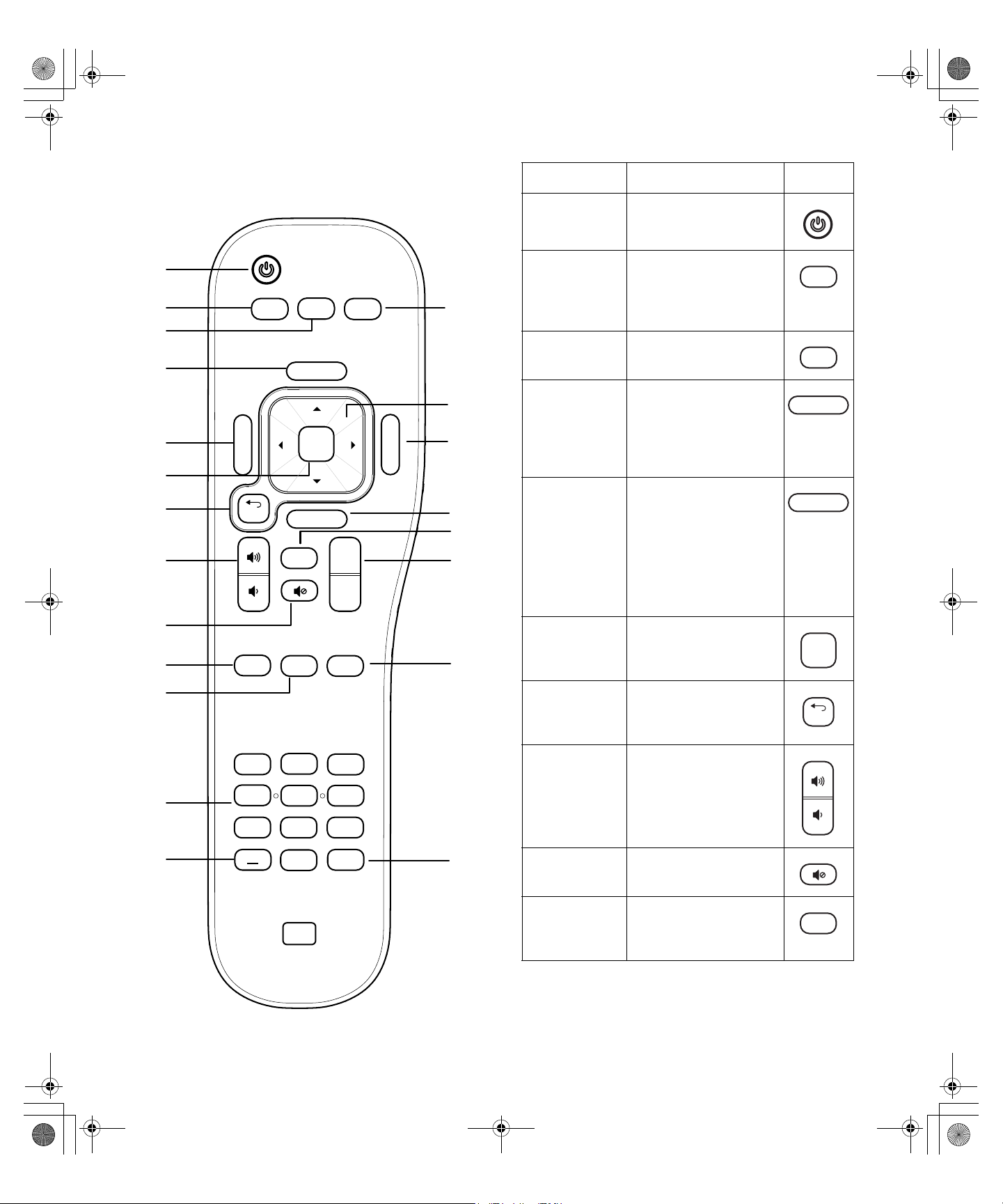

Identifying the remote control buttons...............22

Adjusting the Volume ..........................................24

Muting the sound ..........................................24

Changing the Picture Mode..................................24

Changing Channels ............................................24

Selecting the last channel...............................24

Displaying program information......................24

Selecting the Input Source....................................25

Changing the View with the Aspect Button .............25

Turning On Captions...........................................25

Setting SAP/MTS stereo mode..............................25

Changing Audio Mode........................................26

Setting the Sleep Timer ........................................26

Adjusting TV Settings...........................................26

Opening and exiting the OSD ........................26

Table of Contents

Table of Contents ix

sa6ldtv.book Page x Tuesday, February 21, 2006 12:35 PM

Changing the TV Settings...............27

Using the OSD Menus......................................... 27

Using the Picture Menu........................................ 28

Adjusting the picture settings .......................... 28

Using the Audio Menu ........................................ 29

Adjusting the audio....................................... 29

Using the Setup Menu ......................................... 30

Searching for channels.................................. 30

Selecting Closed Caption .............................. 31

Setting View Mode and Aspect ......................32

Setting Picture Scroll...................................... 32

Setting Cinema Mode ................................... 32

Using Signal Meter .......................................32

Setting Back Lighting..................................... 32

Using the Option Menu ....................................... 32

Changing a channel or video label................. 33

Using the Locks Menu ......................................... 33

Using the Password....................................... 34

Setting Parental Controls................................34

How to temporarily release a blocked

program...................................................... 38

Reactivating parental controls after a

temporary release......................................... 38

Finding Answers to Questions ....... 39

Understanding TV Terms......................................39

What are analog TV, digital TV, and

high-definition (HDTV)?..................................39

What is the difference between progressive
and interlaced signal formats for digital TVs? ...39

What is variable aspect ratio?........................39

What is HDMI?.............................................40

Identifying Cable Usage ......................................40

Specifications................................ 43

Troubleshooting ............................ 45

x HP LCD HDTV User’s Guide

sa6ldtv.book Page 1 Tuesday, February 21, 2006 12:35 PM

Getting to Know Your TV

Thank you for purchasing an HP LCD High-Definition
Television. HP’s array of high-definition televisions
delivers a world-class picture in a design that is sleek
and stylish.

Features:

■ Premium LCD panel technology delivers contrast

ratio of up to 1,200:1 for rich detail, and as fast
as 6 ms response time for no-smear motion video
and ultra wide viewing angles with a minimum of
color shift. HP LCD TVs deliver the detail and color
that HP is known for.

■ Fantastic sound emanates from the integrated

speaker design that provides 20 watts of power.
HP’s high-fidelity speaker system is complemented
by SRS WOW audio processing technology,
which enhances vocal clarity and bass
performance for an immersive sound experience.

■ A comprehensive array of digital and analog

inputs, including an integrated HDTV tuner, two
HDMI, and two component video ports. Analog
and digital audio output connectors enable
seamless connectivity to external audio speakers
or an audio receiver.

■ Dolby Digital 5.1 channel digital audio output

enables a full home theater sound experience
when attached to an external Dolby Digital
decoder and a multi-channel amplifier.

■ A classic black-finish panel that blends with any

décor. The tabletop stand is sleek and stylish, and
is detachable.

■ 3D Color Enrichment System reproduces vibrant

colors and natural skin tones.

■ Photorealistic Sharpness Enhancement yields

crystal-clear and sharp pictures.

■ Dynamic contrast adaptation, which enables

picture quality adjustment on a scene-by-scene
basis.

■ Advanced scaling and film-processing technology,

which enables enjoyment of DVDs and standard­definition TV on a big screen.

■ Integrated digital HDTV/analog tuner — for HD

shows from cable or off-the-air sources.

■ HDMI port that provides digital video and audio

through a single cable.

■ Ultra-long-life panel provides up to 60,000 hours

of operation.

All specifications represent the typical specifications provided by
HP’s component manufacturers; actual performance may vary either
higher or lower.

The panel life is determined as the time at which luminance is 50%
compared to that of initial value at the typical lamp current on

condition of continuous operation at 25 +/–
equates to more than twenty-three years at seven hours a day
viewing.

o

C. 60,000 hours

Getting to Know Your TV

Getting to Know Your TV 1

sa6ldtv.book Page 2 Tuesday, February 21, 2006 12:35 PM

Identifying Items in the Box

Television (with stand
detached)

TV stand (two pieces)
with mounting
hardware and tool

Basic Se

Connect your system to the bac

Your connector locations and system components may var

tup

Remote control unit

Menu

back

CC Sleep Ant

1

4

7

SAP

Sound


MTS

Source

OK

Aspect

Info

Ch+

Last

Ch-

3

2

6

5

89

Enter

0

AC cord

Cable clamp

Documentation

k panel.

y.

2 HP LCD HDTV User’s Guide

sa6ldtv.book Page 3 Tuesday, February 21, 2006 12:35 PM

Locating TV Buttons and Connectors

The TV contains controls, indicators, and connectors.
The TV indicators are located on the front of the TV, and

the controls are located on the top.

TV Front

TV front Description

Top TV controls

A: Remote

control sensor

B: Power

A

B

indicator

Remote control sensor is the
location where to point the
remote control unit.

Power indicator light is
green when TV is on, and is red
when TV is in off/standby mode.

Getting to Know Your TV

TV top control Description

VOL Volume lowers or raises the sound level.

CH Channel selects the next lower or higher channel.

Input Input selects the TV input source.

Power Power turns on the TV or places it in standby mode.

Getting to Know Your TV 3

sa6ldtv.book Page 4 Tuesday, February 21, 2006 12:35 PM

Rear TV connectors

The connectors are located on the rear of the TV.

OUT IN

COAXIAL

AV2-AUDIO

MONO

AUDIO

AV2-VIDEO AV2-S/VIDEO

MONO

AV1-AUDIO AV1-VIDEO AV1-S/VIDEO

COMPONENT-2

COMPONENT-1

COMPONENT2-AUDIO

COMPONENT1-AUDIO

ANT 75

MONO

AUDIO IN L(MONO)

AUDIO IN R HDMI IN 2

HDMI IN 1

4 HP LCD HDTV User’s Guide

sa6ldtv.book Page 5 Tuesday, February 21, 2006 12:35 PM

TV (rear)
connector Item name Description

■ Audio Output ■ Audio

output,
analog

■ Coaxial ■ Audio

output,
digital

■ AV1-Audio

AV1-Video
AV1-S/Video

■ AV2-Audio

■ Input 1

■ Input 2

AV2-Video
AV2-S/Video

■ Component-1,

Component1­Audio

■ Component-2,

■ Input 3

■ Input 4

Component2­Audio

■ ANT ■ Ant/

Cable

Audio output, analog: Connect left and right audio cables for analog
stereo sound out to an optional external audio system. Use the left (white)
connector for mono sound (single cable).

Coaxial audio output, digital: Connect a coaxial cable for digital
sound out to an optional external digital audio system.

Audiovisual in:

■ Connect a composite video cable and left-right audio cables from

optional equipment.

Or

■ Connect an S-video cable and left-right audio cables from optional

equipment.

(Audio connectors are shared.)

Component in: Connect a component video cables and left-right audio
cables from optional equipment. Supports standard inputs 480i, 480p,
720p, and 1080i. Some set-top boxes must be set for a specific
resolution out.

Antenna or cable in: Connect a coaxial cable from an air antenna or
a cable signal source as the TV input signal.

■ Audio R

Audio L

■ HDMI In 2

■ HDMI In 1

■ Input 5

Audio

■ Input 5

HDMI

■ Input 6

HDMI

■ AC Input ■ AC power

Audio in: Connect left and right audio cables from audio out of optional
DVI equipment that is connected using an DVI-to-HDMI adapter at HDMI
In 2 (Input 5). Use the left (white) connector for mono sound (single cable).

HDMI in: Connect an HDMI cable from optional digital, high-definition
equipment.

Use Audio R/L when using an DVI-to-HDMI adapter at Input 5 HDMI
(only).

AC power: Connect the included power cord. Note: Use only the
provided power cord.

Getting to Know Your TV 5

Getting to Know Your TV

sa6ldtv.book Page 6 Tuesday, February 21, 2006 12:35 PM

Cleaning

Cleaning precautions

Unplug the TV before cleaning the screen.
A special antiglare coating is applied to the screen of

your TV. Using solvents, such as alcohol, or abrasive
material, such as a premoistened or chemically treated
towel, may affect the screen coating or bezel paint.

Do not expose the product to volatile gas or fluid such
as a pesticide.

Do not put the TV in contact with vinyl or rubber
products for a long period of time. Extended contact
may result in the removal of the coating or degradation
of the surface.

Cleaning the TV

Clean the screen by spraying a soft lint-free cloth with
water to lightly moisten it. Gently wipe the screen, and
avoid pressing on the screen.

To clean the outer cabinet, use the same method.
Do not use liquid or aerosol cleaners.

6 HP LCD HDTV User’s Guide

sa6ldtv.book Page 7 Tuesday, February 21, 2006 12:35 PM

8

Setting Up

HP recommends professional installation from an authorized installer to ensure maximum enjoyment of your HP LCD
HDTV. Be sure to read all the safety information and precautions before starting installation. See these topics:

■ “Important Safeguards” on page iii

■ “Important Safety Instructions” on page v

Selecting a Good Location

Select the location for your HP LCD HDTV. Consider the
following situations when positioning the TV:

■ Power cord length: Choose a location with easy

access to an AC power outlet.

■ Cable lengths and distances to attached units:

Check that cables can reach the TV.

■ Do not install the TV on an unstable cart or stand;

the unit may fall over and cause injury.

■ Do not install the TV where it has a protruding

edge, such as on a small table where the display
overhangs the table surface.

■ Do not hang the TV from the ceiling; the unit may

fall and cause injury.

■ Avoid direct sunlight that may damage the display

or interfere with the operation of the remote
control.

■ Avoid areas of high humidity or damp conditions

that may cause fire or electrical shock.

■ Do not install TV near appliances, such as a

microwave, or near a heat source, such as a
fireplace or radiator.

■ Provide adequate ventilation clearance around

the TV.

■ “Important Information” on page viii

A

B

B

C

A 1.4 in. (3.5 cm) minimum above TV
B 1.4 in. (3.5 cm) minimum at sides
C 1.4 in. (3.5 cm) minimum behind TV

Setting Up 7

Setting Up

sa6ldtv.book Page 8 Tuesday, February 21, 2006 12:35 PM

Lifting the TV

The TV is heavy; be sure to use ergonomically correct
lifting procedures when moving the TV.

Due to the size and weight of the TV, it is
recommended that a minimum of two people move it.

To transport the TV, grasp the display in the area under
and above the screen.

Move the product gently. Never place the TV with the
glass screen facing downward, unless it is protected
with pads.

2 Place the base onto the pedestal, insert four short

screws, and tighten using the provided tool.

3 Carefully place the TV panel with the glass screen

facing downward on a padded, stable table.
Position the bottom of the TV near the edge of the
table.

w

WARNING: Do not drop the stand onto
the TV.

Attaching or removing the stand

Your TV comes with a stand that must be attached to
the display. Reverse these steps to remove the stand.

c

CAUTION: Use two people to assemble
the TV.

Before attaching the stand, unplug the AC cord from
the AC input.

1 Locate the TV stand (two pieces), eight screws of

mounting hardware, and tool from the box.

8 HP LCD HDTV User’s Guide

4 Insert the assembled stand into the opening on the

bottom of the TV.

sa6ldtv.book Page 9 Tuesday, February 21, 2006 12:35 PM

Insert four long screws into the holes on the back

5

of the TV and tighten using the provided tool.

6 Carefully lift the TV and set it upright.

Setting Up the TV

Set up the TV by connecting cables, and connecting
the power cord.

■ A 75-ohm system is generally a round cable with

an F-type connector that can easily be attached to
a connector without tools (sold separately).

■ A 300-ohm system is a flat, twin-lead cable that

can be attached to a 75-ohm connector through a
300/75-ohm adapter (sold separately).

n

An F-type connector should be finger­tightened only. When connecting the RF
cable to the TV set, do not use tools to
tighten the F-type connector, as it may
cause damage to your TV set.

C

A

B

A: 75-ohm coaxial cable, round
B: 300-ohm twin-lead cable, flat

Connecting the TV signal sources

w

WARNING: Before connecting the TV to any
other electronic device, unplug the TV and
electronic device AC cords from the AC
input.

The following is an explanation of the types of
connections that are used for a coaxial cable. If your
outdoor antenna uses a 75-ohm coaxial cable with an
F-type connector, screw it onto the Ant/Cable
connector at the rear of the TV set.

C: F-type connector

Connect the input sources to the TV according to the
type of connection:

■ Antenna or basic cable (TV cable or satellite)

without using a set-top box: See “Connecting the
cable TV or the air broadcast antenna” on
page 10.

■ Cable or satellite with a separate set-top box: See

“Connecting cable or satellite with a set-top box”
on page 10.

n

■ To connect an external sound system, see

“Connecting an external sound system”
on page 15.

■ To connect a device that records TV, see

“Connecting a VCR for recording” on
page 14.

Setting Up

Setting Up 9

sa6ldtv.book Page 10 Tuesday, February 21, 2006 12:35 PM

About the Emergency Alert System (EAS)

■ In the case of a national emergency, natural

disaster, or other emergency situation, an EAS
message broadcasts. When this unit receives an
EAS message, if the level of emergency is
comparatively low, an alert text message displays
on screen. If the level of emergency is high, the
receiver is forced-tuned to a details channel.

■ Alert text messages display, and forced tuning

occurs, even during paid programming. Even
when forced tuning is active, the user can still
change the channel.

■ If the unit is forced-tuned to a channel that has

been blocked by Parental Control, the Parental
Control setting is given priority, and the EAS
message is not broadcast.

■ EAS messages may be broadcast not only through

digital cable, but also through analog cable or
over-the-air analog transmission.

Connecting the cable TV or the
air broadcast antenna

Use standard 75-ohm coaxial cable to connect a
ground antenna or cable TV input source to the TV. Use
shielded coaxial cable to reduce radio frequency (RF)
interference.

Optional equipment, cable TV service, and all cables
are sold separately.

c

CAUTION: Unplug power for the TV and all
connected components before connecting
the antenna or cable.

1 Connect the input source coaxial cable to the

Ant/Cable connector on the back of the TV.

2 Connect power to the TV; see “Connecting power

to the TV” on page 15.

3 Turn on the TV; see “Turning the TV On and Off

(Standby)” on page 17.

Connecting cable or satellite
with a set-top box

Connecting your TV directly to the audio and video
output of your set-top box assures a more vivid picture
and enhances your viewing enjoyment.

Optional equipment and all cables are sold separately.
You can connect a digital TV set-top box (air or cable)

and other audiovisual equipment by using:

■ Component video and audio cables connected to

Component-1 (Input 3) or Component-2 (Input 4)
connectors and Component-Audio connectors on
the TV.

■ S-video and audio cables connected to

AV1-S/Video (Input 1) or AV2-S/Video (Input 2)
connectors and AV-Audio connectors on the TV.

■ Video (composite) and audio cables connected to

AV1-Video (Input 1) or AV2-Video (Input 2) and
AV-Audio connectors on the TV.

■ HDMI cable connected to the HDMI In 1 (Input 6)

or HDMI In 2 (Input 5) connectors on the TV.

■ DVI video cable with a DVI-to-HDMI adapter and

audio cables connected to the HDMI In 2 (Input 5)
connector and Audio In connectors on the TV.

10 HP LCD HDTV User’s Guide

c

CAUTION: Unplug power for the TV and all
connected components before connecting
the set-top box.

sa6ldtv.book Page 11 Tuesday, February 21, 2006 12:35 PM

Connect the set-top box input source cable(s) to

1

the back of the TV using one of the connector sets:

■ Component video and audio cables

connected to Component-1 (Input 3) or
Component-2 (Input 4) connectors and
Component-Audio connectors on the TV.

■ S-video and audio cables connected to

AV1-S/Video (Input 1) or AV2-S/Video
(Input 2) connectors and AV-Audio connectors
on the TV.

.

.

n

The AV-S/Video and AV-Video connectors
share the audio connectors in the input
connector set. If cables are connected to
both video connectors in a set, the S/Video
connector has priority over the Video
connector.

■ HDMI cable connected to the HDMI In 1

(Input 6) or HDMI In 2 (Input 5) connectors on
the TV.

■ DVI video cable with a DVI-to-HDMI adapter

and audio cables connected to the HDMI In 2
(Input 5) connector and Audio In connectors
on the TV.

n

The AV-S/Video and AV-Video connectors
share the audio connectors in the input
connector set. If cables are connected to
both video connectors in a set, the S/Video
connector has priority over the Video
connector.

■ Video (composite) and audio cables

connected to AV1-Video (Input 1) or AV2­Video (Input 2) and AV-Audio connectors on
the TV.

2 Connect the cables to the set-top box.
3 Turn on the set-top box.
4 Connect power to the TV; see “Connecting power

to the TV” on page 15.

5 Turn on the TV; see “Turning the TV On and Off

(Standby)” on page 17.

6 Open the OSD and set the HDMI audio option in

the Audio menu to DVI when using the HDMI 2
connector with DVI equipment. See “Selecting
HDMI audio mode” on page 29.

n

The HDMI connector does not support PC
timing. If you connect a PC using the HDMI
connector on the TV, the PC may not
function properly.

Setting Up

Setting Up 11

sa6ldtv.book Page 12 Tuesday, February 21, 2006 12:35 PM

Connecting a DVD player, VCR,
DVR, game console, or
camcorder

You can connect optional equipment (sold separately),
such as a DVD player, VCR, DVR, and so on, to the TV
by using the AV input connectors.

Optional equipment, including an external sound
system, and all cables are sold separately.

You can connect a DVD by using:

■ Component video and audio cables connected to

Component-1 (Input 3) or Component-2 (Input 4)
connectors and Component-Audio connectors on
the TV.

■ S-video and audio cables connected to AV1-S/

Video (Input 1) or AV2-S/Video (Input 2)
connectors and AV-Audio connectors on the TV.

■ Video (composite) and audio cables connected to

AV1-Video (Input 1) or AV2-Video (Input 2) and
AV-Audio connectors on the TV.

■ HDMI cable connected to the HDMI In 1 (Input 6)

or HDMI In 2 (Input 5) connectors on the TV.

■ DVI video cable with a DVI-to-HDMI adapter and

audio cables connected to the HDMI In 2 (Input 5)
connector and Audio In connectors on the TV.

You can connect a VCR for playback by using either
S-video or Video (composite) connections (Input 1 or
Input 2). To connect a VCR or other device for
recording TV (input to the VCR), see “Connecting a
VCR for recording” on page 14.

You can connect a game console, camcorder, and
some other AV equipment by using either S-video or
Video (composite) connections (Input 1 or Input 2).

You can connect HDMI equipment by using the HDMI
connector (Input 5 or Input 6).

You can connect DVI equipment by using a DVI video
cable with a DVI-to-HDMI adapter and audio cables
connected to the HDMI In 2 (Input 5) connector and
Audio In connectors.

Choosing the AV connection to use

When connecting optional equipment as signal
sources, the connectors on the equipment may limit the
type of connection you can use.

When your optional equipment has more than one
type of output connector, choose the connection that
provides the best-quality play-back image.

For best results, choose the best-quality connection type
that is supported by your optional equipment.

The following table lists the available optional AV
equipment connections on the TV.

AV connection to use, listed from best to good video playback

Connection description TV connector Cable plug

HDMI transmits an all digital signal and is the recommended

choice for playback from a digital DVD or DVR.

Component video (Y, Pb, Pr) transmits video as separate red,
green, and blue signals. Use this connection for high-definition
video signals in 480i, 480p, 720p, or 1080i format from a
progressive scan DVD or other equipment.

12 HP LCD HDTV User’s Guide

sa6ldtv.book Page 13 Tuesday, February 21, 2006 12:35 PM

AV connection to use, listed from best to good video playback (Continued)

Connection description TV connector Cable plug

S-video transmits video in separate color and black-and-white

image signals and delivers a sharper image than a composite
video connection.

Video In (composite video) transmits video as a single signal.

The procedures that follow, presented in the order
listed in the table, describe connecting optional
equipment including the audio connections when
applicable.

c

CAUTION: Unplug power for the TV and all
connected components before connecting
optional equipment. Ensure that the
optional equipment is powered off.

Connecting an HDMI device

This is the recommended connection for video and
audio. The HDMI cable is sold separately.

1 Connect the HDMI cable to HDMI In 1 (Input 6) or

HDMI In 2 (Input 5) on the back of the TV. (There
are no separate audio inputs for HDMI.)

Connecting a DVI device

The DVI cable, DVI-to-HDMI adapter, and the audio
cables are sold separately.

1 Connect the DVI-I cable to the DVI device and

attach the DVI-to-HDMI adapter to the cable and
then to the TV HDMI In 2 (Input 5) connector.

2 Connect the audio cable to the DVI device and to

the TV Audio In (Input 5) connectors.

3 Turn on the device, and start play.
4 Connect power to the TV; see “Connecting power

to the TV” on page 15.

5 Turn on the TV; see “Turning the TV On and Off

(Standby)” on page 17.

6 Open the OSD and set the HDMI audio option in

the Audio menu to DVI. See “Selecting HDMI
audio mode” on page 29.

2 Connect the cable to the HDMI device.
3 Turn on the device, and start play.
4 Connect power to the TV; see “Connecting power

to the TV” on page 15.

5 Turn on the TV; see “Turning the TV On and Off

(Standby)” on page 17.

Setting Up

Setting Up 13

sa6ldtv.book Page 14 Tuesday, February 21, 2006 12:35 PM

Connecting a component device

Cables are sold separately.

1 Connect the component cable (Y, Pb, Pr) to the

Component-1 (Input 3) or Component-2 (Input 4)
connectors (G, BL, R) on the TV.

2 Connect the component audio cable to the left

and right Component1-Audio (Input 3) or
Component2-Audio (Input 4) connectors on
the TV.

3 Connect the cables to the device.
4 Turn on the device, and start play.
5 Connect power to the TV; see “Connecting power

to the TV” on page 15.

6 Turn on the TV; see “Turning the TV On and Off

(Standby)” on page 17.

Connecting an S-video or Video device

1 Connect the video equipment to the TV (Input 1 or

Input 2) connectors:

■ For a VCR, DVR, or other device that has an

S-video connector, use an S-video cable with
the AV-S/Video connector set.

Or

■ For a VCR, DVR, or other device that has a

composite connector, use a composite cable
with the AV-Video connector set.

2 Connect the audio cable connectors to the left and

right audio connectors for the connector set.

3 Connect the cables to the device.
4 Turn on the device, and start play.
5 Connect power to the TV; see “Connecting power

to the TV” on page 15.

6 Turn on the TV; see “Turning the TV On and Off

(Standby)” on page 17.

A VCR, game console, camcorder, or some other
audiovisual equipment can be connected using S-video
or Video (composite) (Input 1 or Input 2) connectors.

Cables are sold separately.

!

Both AV-S/Video and AV-Video connectors
share the audio connectors in the input
connector set. If cables are connected to
both video connectors in a set, the S/Video
connector has priority over the Video
connector. Connect only one video input.

Connecting a VCR for recording

The TV does not output a signal for recording.
Connect a VCR or other device for recording to the

signal source (antenna or cable) and then connect
the device to the Ant/Cable connector on the TV.
(See “Connecting the cable TV or the air broadcast
antenna” on page 10.) Use the recording device to
tune to the channel you want to record.

14 HP LCD HDTV User’s Guide

sa6ldsu.fm Page 15 Friday, March 10, 2006 4:32 PM

Connecting an external sound
system

You can connect an external sound system to the TV
using a digital audio or an analog audio signal.

■ Use the Coaxial (digital audio out) connector on

the back of the TV to provide a digital audio
signal to an optional external sound system, such
as a digital receiver or a surround sound system.
To hear analog sound from an analog source on
your digital audio system, you must connect the
Audio Out left and right connectors on the TV to
your sound system.

■ Use the Audio Out (analog audio out) left and

right connectors on the back of the TV to provide
an analog audio signal to an optional external
sound system, such as an analog amplifier or
stereo system.

Cables are sold separately.

2 Connect power to the TV; see “Connecting power

to the TV” on page 15.

3 Turn on the TV; see “Turning the TV On and Off

(Standby)” on page 17.

4 Connect power and turn on the external sound

system.

5 To turn off the display speakers, select Off for the

Speakers option in the onscreen display Audio
menu; refer to “Turning speakers off” on page 29.

6 For a digital connection, select the digital audio

format in the onscreen display Audio menu; refer
to “Choosing the Digital Output mode” on
page 30.

Connecting power to the TV

1 Connect the power cord to the connector on the

back of the TV.

2 Place the AC cord into the clamp, as shown in the

figure below.

CAUTION: Unplug power for the TV and all
connected components before connecting
an external sound system. Ensure that the
external sound system is powered off.

1 Connect the external sound system to the TV:

■ For a digital audio connection, connect a

coaxial cable to the Coaxial audio connector
(Digital Audio Output) on the back of the TV
and to an external sound system.

Or

■ For an analog connection, connect audio

cables to the Audio Out left and right
connectors on the back of the TV and to an
external sound system.

3 Insert the cable clamp from the box into the hole

on the back of the TV.

4 Route the cords through the cable clamp and

bundle the cords properly.

5 Connect the power cord to the AC power outlet.

Setting Up

Setting Up 15

sa6ldtv.book Page 16 Tuesday, February 21, 2006 12:35 PM

16 HP LCD HDTV User’s Guide

sa6ldtv.book Page 17 Tuesday, February 21, 2006 12:35 PM

Turning On the TV

Turning the TV On and Off (Standby)

The TV has a Power button on the top of the display.
You can also use the remote control Power button to
turn on the TV.

Pressing the Power button either turns the TV on or
places it into standby, which is a reduced power state.

The Power indicator light on the front of the TV shows
the power status of the TV.

If the TV is not used for an extended period of time,
press the Power button to place the TV into standby,
and then unplug the power cord.

Using the TV buttons

1 Press the Power button on the top of the TV.

The TV is on or in standby.

Turning On the TV

2 Press the Input button as needed to select the TV

input source to view.

Using the remote control buttons

1 Point the remote control at the remote control

sensor on the display, and press the remote
control Power button.

The TV is on or in standby.

A

B

2 Press the Source button as needed to select the TV

input source to view.

A: Remote control sensor
B: Power indicator

Power indicator Power status

Red Standby (off)

Lights green Ready (on)

n

The initial setup starts when the TV powers
on for the first time. If the TV has been
turned on before, the initial setup does not
start. See “Using the First-Time Setup” on
page 19.

Turning On the TV 17

sa6ldtv.book Page 18 Tuesday, February 21, 2006 12:35 PM

18 HP LCD HDTV User’s Guide

sa6ldtv.book Page 19 Tuesday, February 21, 2006 12:35 PM

Using the First-Time Setup

Initial Setup

When turning on the TV for the first time, an initial
setup walks you through the following:

■ Setting the onscreen display language.

■ Setting the clock time.

■ Selecting the signal source (antenna or cable)

■ Automatically searching for and memorizing the

available channels.

If the TV has been turned on before, the initial setup
does not start. In this case, use the onscreen display
(OSD) menus to set the language and scan for
channels; refer to “Changing the TV Settings” on
page 27.

Preparing

Perform the following steps before you press TV Power
on the remote control unit.

1 Insert the batteries into the remote control unit.
2 Connect the antenna cable to the TV.
3 Plug in the AC cord to the AC outlet.

Turning on the TV

Clock setting

1 Press the arrow buttons on the remote control to

select Clock Set, and then press the right arrow
button. The Clock Set menu screen appears.

2 Press the left or right arrow buttons to set the

Month entry, and then press the down arrow
button to move to the next item.

3 Repeat step 2 to set each of the Day, Year, and

Time (hour and minutes) entries.

4 Press OK.

Antenna setting

Select the type of TV input source you connected to the
Ant/Cable connector.

1 Press the arrow buttons to select Air/Cable, and

then press the right arrow button.

2 Press the left arrow or right arrow buttons to select

Air (antenna) or Cable.

Using the First-Time Setup

Press the power button on the TV or on the remote
control; refer to “Turning On the TV” on page 17.

Language setting

Press the arrow buttons on the remote control to select
the desired screen language. Select from among three
languages: English, French, and Spanish.

Using the First-Time Setup 19

sa6ldtv.book Page 20 Tuesday, February 21, 2006 12:35 PM

Channel scanning

The Auto Ch (channel) Memory option automatically
searches for a signal from all available channels.

1 Press the down arrow button to select Auto Ch

Memory.

2 Press the right arrow button to begin the scan for

channels.
Wait for the search to complete. It may take

several minutes to find all the channels.

n

If no channel is found, check the input
connection to your TV, and start the scan
for channels again from the onscreen
display menu; see “Searching for
channels” on page 30.

20 HP LCD HDTV User’s Guide

sa6ldtv.book Page 21 Tuesday, February 21, 2006 12:35 PM

Using the Remote Control

Operating the TV

The remote control operates the TV. To use the remote
control, point the remote control at the remote control
sensor on the display.

30º

E
T
U
M

V
CT
I
H
P
A
R

R

G

E

H

W

C

O

P

P

M

3

O

C
P
U
T

6

2

E
S

L

O

5m

V

9

5

1

E

N

I

D
T
R

W
H
C

8

4

P
A
W

SA

S

T
M

R
E

0

T

7

N

10

E

P

/
I

B

P
I
P

0

J

P

D

I

A

P

U
N

E

P

M

E
E
L

S

L
A
E

E

V

Z

E

E

R

E

J

FR

D

C

LE

A

T
I
T

P

Y

I

A

H

UB

L

C

S

P

­S

V

I

Y

D
D
L
O

D

H

R

C
C

XE

MI

G
T
T

X
E

D
N
I

R

T
I
X
E

n

Use the remote control within a distance of

16.4 feet (5 meters) from the front of the
TV remote control sensor window and at
the maximum horizontal and vertical
angles of 30 degrees.

Using universal remote controls

When you want to program a universal remote control
to operate your HP TV, if HP is not listed in the
supported brand codes, use a Philips TV code. The HP
remote control transmits Philips-licensed remote control
codes.

After programming your universal remote control with
a Philips TV code, it can operate your HP TV functions
for: Volume, mute, power, and input source.

Installing or replacing remote
control batteries

Insert two AAA non-rechargeable batteries into the
remote control, ensuring that you place them with the
proper polarity.

1 Press and open the cover on the back of the

remote control.

2 Insert the batteries into the remote control, and

make sure that you match polarities.

3 Close the cover.

Do not mix different types of batteries together (for
example, alkaline and carbon-zinc) or old batteries
with fresh ones.

Be sure to follow the correct polarity when installing
the batteries as indicated in the battery compartment.
Reversed batteries may cause damage to the device.

When not using the remote for a long period of time,
remove the batteries to prevent damage or injury from
possible battery leakage.

Do not try to recharge batteries that are not intended to
be recharged; they can overheat and rupture. Follow
the battery manufacturer’s directions for the batteries
you are using.

Always remove batteries as soon as they become
weak. Weak batteries can leak and severely damage
the unit. The battery life depends on how much the
remote control is used. Replace batteries when remote
control operation becomes erratic.

Do not take apart the batteries, heat them, or throw
them into a fire.

Using the Remote Control

Using the Remote Control 21

Q

sa6ldtv.book Page 22 Tuesday, February 21, 2006 12:35 PM

Identifying the remote control
buttons

A

B

C

D

E

F

G

H

I

J

SAP

Sound

MTS

Source

Last

OK

Info

Ch+

Ch-

Menu

back

CC Sleep Ant


Aspect

Name Description Icon

APower

Press Power to turn
the TV on or off.

BSAP/MTS

N

CSound

DSource

O

Press SAP/MTS to
select an available
secondary audio
program.

Press Sound to select
an audio mode.

Press Source to open
the input source list.

SAP
MTS

Sound

Source

Press Source as

P

needed to select the
desired input source.

EMenu

R

S

Press Menu to open
the onscreen display
(OSD).

Press Menu again to
exit the menu and

Menu

return to your TV
display.

FOK

T

Press OK to choose
the current menu
option.

OK

K

1

L

M

4

7

2

5

89

Enter

0

22 HP LCD HDTV User’s Guide

GBack

Press Back to go
back one level within

back

a menu.

3

HVol

Press a Volume button
to raise (or lower) the

6

U

IMute

sound.

Press Mute to turn
sound off or on.

JCC

Press CC to select the
closed caption mode,

CC

and then press OK.

sa6ldtv.book Page 23 Tuesday, February 21, 2006 12:35 PM

Name Description Icon

KSleep

Press Sleep to open
the timer; press Sleep
again as needed to
set the time before
sleep in 10 minute
increments.

LNumber

Press number buttons
(0–9) to directly select
the channel, and then
press Enter.

M– (Dash)

Press – (dash) to enter
a dash for a
subchannel number of
a digital channel. For
example, channel
14–2.

NPicture

Press Picture to select
the AV Mode: Sports,
Standard, Movie, or
Memory.

OUp/

down/
left/right

Press the arrow keys
to move the cursor in
the menu screens.

arrows

Sleep

1


Name Description Icon

QInfo

Press Info to view a
channel banner
containing
information on your
current program.
Press Info again to
see more information.

RLast

Press Last to recall the
previous channel you
were viewing.

SCh+

Ch–

Press Ch+ (or Ch–) to
select the next higher
(or lower) channel.

TAnt

Press Ant to view TV if
currently viewing
DVD or other input
source.

UEnter

Press Enter after
entering a channel
number.

Info

Last

Ch+

Ch-

Ant

Enter

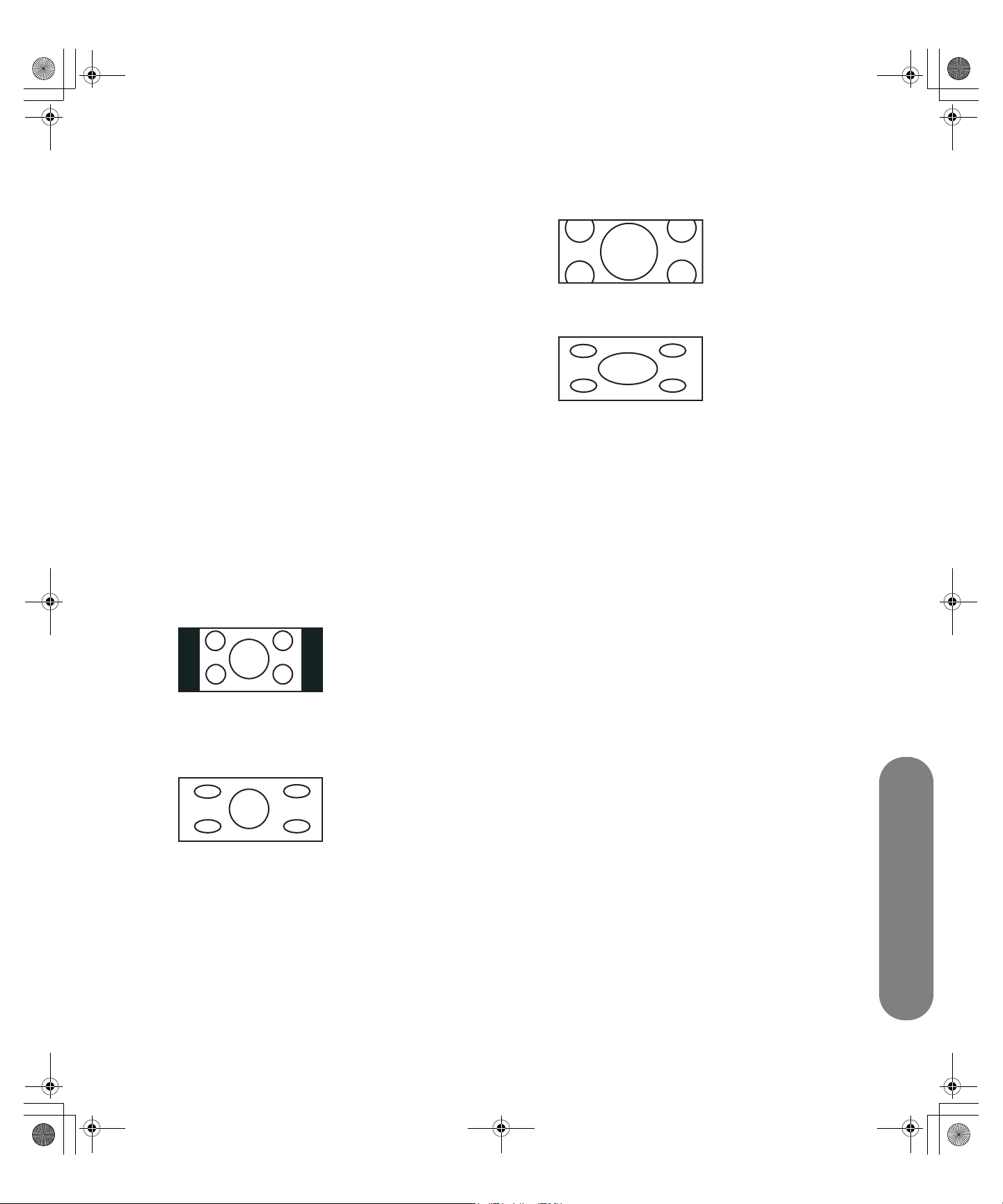

PAspect

Press Aspect to
change the
dimensions of your
picture image. The
options depend on
the current input
source.

Aspect

Using the Remote Control

Using the Remote Control 23

sa6ldtv.book Page 24 Tuesday, February 21, 2006 12:35 PM

Adjusting the Volume

Press the volume buttons on the remote control to
increase or decrease the sound. The indicator bar on
the TV shows the increase or decrease.

Muting the sound

1 Press the Mute button to temporarily turn off the

sound.

2 Press the Mute button again to restore the sound

back to the previous level.

Changing the Picture
Mode

Pressing the Picture button displays the AV Mode
currently selected. Keep pressing the Picture button or
right arrow to change the video mode until you reach
a desired picture.

■ Sports: Enhances contrast and sharpness for a

clear image in a well-lit room, useful for viewing
sports.

■ Standard: Good for normal viewing conditions

with normal room lighting.

■ Movie: Good for watching movies in a darkened

room.

■ Memory: Displays the custom settings you

configured in the OSD. For more information on
defining the picture settings, see “Using the Picture
Menu” on page 28.

Changing Channels

Press the Ch+ or Ch– buttons on the remote control to
change the channel up or down. The TV allows you to
select up to 125 channels (1 to 125). To select a
channel, enter a one-digit, two-digit, or three-digit
number, or use the channel up or down buttons.

To select a channel number (for example, channel 25):
Complete the following procedure within 4 seconds.

1 Press the 2 button on the remote control.
2 Press the 5 button.
3 Press Enter.

To select a subchannel number, such as 14–2,
complete the following procedure within 4 seconds:

1 Press the 1 button on the remote control.
2 Press the 4 button.
3 Press the – (dash) button.
4 Press the 2 button.
5 Press Enter.

Selecting the last channel

Press the Last button on your remote control to view the
previous channel you were viewing.

Displaying program information

Pressing the Info button displays a banner with
information about the current program you are
viewing.

24 HP LCD HDTV User’s Guide

n

Sometimes the name of the program is not
included in the broadcast. In that case, the
program name is not displayed.

sa6ldtv.book Page 25 Tuesday, February 21, 2006 12:35 PM

Selecting the Input
Source

1 Pressing the Source button displays a list of input

sources.

2 Choose the source:

■ Press the Source button as needed to highlight

the desired input on the list.

Or

■ Press the number listed for the source.

3 Press OK.

Changing the View with
the Aspect Button

Pressing the Aspect button scrolls through the Aspect
modes. The options depend on the current input
source.

■ Zoom: Proportionally stretches the TV picture, but

clips the top and bottom of the image to fit the
screen. Eliminates black bars.

■ Stretch: Shows high-definition TV in its normal

format.

Turning On Captions

Press the CC button to select the caption mode. With
the desired option selected press OK, and then
press Menu.

To assign your preferences for captions, see “Using the
Setup Menu” on page 30.

■ Side Bar: Shows the standard 4:3 ratio picture

image in the center of the TV with dark bars on the
left and right.

■ Smart Stretch (S.Stretch): Horizontally

stretches the TV picture to fill the screen. Suitable
for stretching normal 4:3 programs to fill the
screen.

Setting SAP/MTS
stereo mode

Pressing the SAP/MTS button scrolls through the
available Secondary Audio Programs (SAP)/
Multi-channel Television Sound (MTS) features:
STR (stereo), SAP, or Mono.

MTS receives mono sound, stereo sound, and
Secondary Audio Programs. The SAP feature allows
a TV station to broadcast other information, such as
another language or weather information.

Using the Remote Control

Using the Remote Control 25

sa6ldtv.book Page 26 Tuesday, February 21, 2006 12:35 PM

You can enjoy hi-fi stereo sound or SAP broadcasts
where available.

■ Stereo broadcasts

Hear programs such as live sporting events,
shows, and concerts in dynamic stereo sound.

■ SAP broadcasts

Select to hear either Main or SAP sound.
Main sound: The normal program soundtrack

(either in mono or stereo).
SAP sound: Listen to second language,

supplementary commentary, and other
information. (SAP is mono sound.)

If stereo sound is difficult to hear, obtain a clearer
sound by manually switching to fixed mono­sound mode.

n

MTS operates only while in TV mode.

Changing Audio Mode

Pressing the Sound button displays the Audio menu.
For more information, see “Adjusting the audio” on
page 29.

Setting the Sleep Timer

Press the Sleep button to start a timer for the TV to
automatically turn off. Press Sleep again as needed to
set the time before sleep in 10-minute increments up to
120 minutes. Setting the Sleep Timer to 30 means your
TV automatically turns off in 30 minutes.

To clear the timer, set the time to zero minutes.

Adjusting TV Settings

Use the onscreen display to adjust your picture, audio,
and other settings. For more information, see “Using
the OSD Menus” on page 27.

Opening and exiting the OSD

Pressing Menu displays the OSD menu. Pressing the
Menu button again, leaves the current menu and
returns you to the TV display. Pressing Back within a
submenu takes you back one menu level.

26 HP LCD HDTV User’s Guide

sa6ldtv.book Page 27 Tuesday, February 21, 2006 12:35 PM

Changing the TV Settings

Change the TV settings by using the onscreen display
(OSD) menus.

Using the OSD Menus

Operate the OSD menus using the buttons on the
remote control to highlight, adjust, and enter items as
described here.

Source

Menu

back

OK

Aspect

Info

Remote
control Description

Menu Menu (Exit) displays (or closes)

the OSD.

OK OK selects highlighted item in

the OSD.

Arrow
buttons

Source Source selects the input source.

Back Back moves up (back) one item or

The Arrow buttons move right,
left, up, or down in the menu or
adjusts an item.

Choose the input before
displaying the OSD.

menu level.

1 Press the Source button as needed to select the

Input signal source for the TV. The OSD menus
and options you see depend on the type of input
selected.

Changing the TV Settings

Last

Ch+

Ch-

2 Open the OSD by pressing the Menu button. The

available menus appear as a list.

3 Press the direction buttons to highlight the menu

you want, and then press the OK button to move
to it.

4 Press the direction buttons to move within the

menu and highlight an option, and then press the
OK button to move into the option.

5 Continue using the direction buttons to highlight

and adjust an item and the OK button to enter the
change. You can press the Source button to move
out of an option or to move up one menu level.

6 When you are finished, press the Menu button to

close the menu.

Changing the TV Settings 27

sa6ldtv.book Page 28 Tuesday, February 21, 2006 12:35 PM

The following table show the Picture menu.

!

IMPORTANT:
settings to the defaults values, including the
password. To reset the TV:

■ Press and hold down the –VOL (Volume

down) button on top of the TV, point the
remote control at the TV, and press the
Zero button for one second.

Pressing this combination of buttons clears
the password and all other settings to the
default values.

The OSD menus are:

■ Picture

■ Audio

■ Setup

■ Option

■ Locks (Parental Control)

In the following topics, a table lists each menu and the
available options.

Using the Picture Menu

The Picture menu controls the look of the image on the
screen for the selected input source. For example,
when you adjust Brightness, the screen image changes
as you adjust the scale.

Because the Picture menu maintains settings for each
input, select (view) the input source, and then make
Picture menu changes.

Reset the TV to return all

Picture menu Options

AV Mode Sports/Standard/

Movie/Memory

Brightness [scale]

Contrast [scale]

Color [scale]

Tint [scale]

Sharpness [scale]

Color Temperature Cool/Medium/Warm

Reset Reset (returns all Picture

options to default)

Adjusting the picture settings

These settings adjust the image you are watching, so
select the correct AV input source before adjusting
values.

■ AV Mode sets the picture adjustments to a preset

value (Sports, Standard, Movie) or to
Memory for individual adjustment of Contrast,
Brightness, and so on. Standard is the default
value.

■ Brightness sets the image brightness.

■ Contrast sets the image contrast.

■ Color sets the image color intensity.

■ Tint sets tones; decrease to make tones more

purple, or increase to make tones more green.

■ Sharpness sets the image sharpness.

■ Color Temperature selects different color

temperature settings: Cool (blueish), Medium
(neutral), and Warm (reddish).

■ Reset option resets all Picture options to default

values. To reset, highlight Reset and press OK.

28 HP LCD HDTV User’s Guide

sa6ldtv.book Page 29 Tuesday, February 21, 2006 12:35 PM

Using the Audio Menu

The Audio menu sets the audio mode, the sound levels,
the mode for the digital audio out signal, the audio
mode for the HDMI 2 connector (Input 5), and the
mode and values for the SRS WOW settings for the
display speakers. The Speakers option can turn the
display speakers off when using an external sound
system.

Audio menu Options

MTS STR (Stereo)/SAP/Mono

Bass [scale]

Treble [scale]

Balance [scale]

Speakers On/Off

WOW

HDMI HDMI/DVI

Audio Language (selection)

Digital Output PCM/Digital Dolby

Reset Reset (returns all Audio

■ SRS 3D [On/Off]

■ Focus [On/Off]

■ TruBass [On/Off]

options to default)

Turning speakers off

Use the Speakers option to turn off the display
speakers when using an external sound system. Refer
to “Connecting an external sound system” on
page 15.

Selecting surround sound

You can enjoy emulated surround sound from the
display speakers. To do so, in the Audio/WOW menu
choose the On option for SRS 3D, or press the Sound
button on the remote control and choose SRS WOW.

In the Audio/SRS WOW menu you can make the
following selections:

■ SRS 3D Stereo provides 3D elements to the

audio.

■ Focus provides clarity improvement and elevation

to the audio.

■ TruBass provides bass enhancement to the

audio.

n

■ You can also choose SRS WOW by

pressing the Sound button on the remote
control.

■ For some discs, setup may be required on

your DVD player; refer to the operation
manual of your DVD player.

Changing the TV Settings

Adjusting the audio

In the Audio menu, select the MTS (Multi-channel
Television Sound) mode: Stereo, SAP (second audio
program) or Mono.

MTS receives mono sound, stereo sound, and
Secondary Audio Programs. The SAP feature allows a
TV station to broadcast other information, such as
another language or weather information. You can
also press the SAP/MTS button on the remote control
to select an available secondary audio program.

Adjust the audio by selecting Bass, Treble, or

Balance and making adjustments.

Selecting HDMI audio mode

The HDMI option selects the audio signal type at the
HDMI 2 (Input 5) connector. When connected to DVI
equipment, set this option to DVI so that the TV uses
the audio from the Audio In connectors.

Selecting Audio Language

This option is for digital channels only. Use Audio
Language to select the audio language for digital
signals that include two or more audio languages.

Changing the TV Settings 29

sa6ldos.fm Page 30 Friday, March 10, 2006 4:33 PM

Choosing the Digital Output mode

You must be watching a digital TV channel to access
the Audio/Digital Output menu.

In the Audio/Digital Output menu, select the mode for
the signal provided on the Coaxial digital audio output
connector: PCM or Digital Dolby. Digital Dolby is a
digital signal. Choose the PCM option when your
external digital audio system does not support
surround sound.

To hear analog sound from an analog source on your
digital audio system, you must connect the Audio Out
left and right connectors on the TV to your sound
system.

Reseting the Audio options

Selecting the Reset option resets all Audio options to
default values. To reset, highlight Reset and press OK.

Using the Setup Menu

The Setup menu options define the language for the
OSD menus, and time, channel setup (scan), closed
caption, aspect, and other values. The first-time setup
initially sets many of these values, but you can define
them by using the Setup menu.

Setup menu Options

Language English/Francais/Espanol

Setup menu Options (Continued)

CC Advanced (Digital) CC Advanced:

■ Text Size: Auto/Small/

Standard/Large

■ Text Type

■ Text Edge

■ Text Color

■ Background Color

View Mode Side bar/Stretch/Zoom/

S.Stretch

Picture Scroll [scale]

Cinema Mode Film/Video

Aspect On/Off

Signal Meter Signal level (digital)

Back Lighting Brighter/Darker

Searching for channels

If you skipped the channel scanning during initial
setup, or if the initial setup does not find all the
channels, use the Setup menu to scan and find the
channels. The scan continues until the channel is found
or confirmed no signal.

Clock Set 12-00 AM

Air/Cable Air/Cable

Auto Ch Memory (scan for channels)

Add/Delete

■ Channel

■ Signal: Analog/Digital

■ Delete/Add

■ Return

Closed Caption C1/C2/T1/T2/Off

30 HP LCD HDTV User’s Guide

1 In the Air/Cable option, select Air or Cable.
2 Select Auto Ch Memory, and press the right

arrow to begin the scan for channels.

The scan continues until each channel is found or
confirmed as no signal. Wait for the search to
complete. It may take several minutes to find all
the channels.

sa6ldtv.book Page 31 Tuesday, February 21, 2006 12:35 PM

Editing the channel listing

In the Add/Delete option, you can add or delete
channels from the channel listing. When you delete a
channel, the channel is removed from the list and does
not display when using the Channel buttons. When
you add a channel to the list, it displays when using
the Channel buttons.

1 Select Add/Delete in the Setup menu, and press

the right arrow button.

■ To remove all channels from the channel

memory, select Clear All and press the right
arrow button.

2 Select Add/Delete, and press the right arrow

button. The channel list is now selectable.

3 Press the arrow buttons to select the channel you

want to skip.

4 Press the arrow buttons to select Delete for the

channel.

■ To include a channel in the list, select Add for

the channel.

5 Press Menu to close the menu.

Selecting Closed Caption

Use the Closed Caption option to select options or turn
off caption display. You can also use the remote control
button CC to turn caption display on or off. Use the CC
Advanced option to define setting for digital closed
caption.

Your TV is equipped with an internal closed caption
decoder. It allows you to view conversations, narration
and sound effects as subtitles on your TV. Closed
captions are available on some TV programs, and on
some VHS home video tapes, at the election of the
program provider.

Digital Closed Caption service is a caption service
available only on digital TV programs (also at the
election of the service provider). It is a more flexible
system than the original closed caption system,
because it allows a variety of caption sizes and font
styles. When the Digital Closed Caption service is in
use, it is indicated by a three-letter abbreviation that
also indicates the language of the Digital Closed
Captions: ENG (English) or SPA (Spanish) or FRA
(French), or other language codes.

Not all programs and VHS videotapes offer closed
captioning. Look for the symbol to ensure that captions
appear.

n

When you have the signal source
equipment connected using an HDMI or a
component video connection, closed
caption information may not always be
available because the source equipment
may not pass the information to the TV
across these connectors.

In the closed caption system, there can be more than
one caption service provided. Each is identified by its
own number. CC1 through CC4 services display
subtitles of TV programs superimposed over the
program picture.

In the closed caption system, the T1 through T4
services display text that is unrelated to the program
being viewed, such as weather or news. These
services are also superimposed over the program
currently being viewed.

■ Depending on the number of caption services

in the signal being received, you will see
information such as 1/2 or 1/4 displayed.
1/2 means “the first of two services.”

■ Example: If a program has three services

(Digital CC (ENG), CC1, and Text1), the
closed caption display toggles in sequence.

■ The CC button keeps a record of the last

service selected in its memory. If the last
closed caption mode you selected is not
available for the next program, or on another
channel, the closed caption service that is
available is automatically selected, and this
service appears in parentheses. Closed
caption services that appear in parentheses is
not retained in the CC button memory as your
last selected service. Only services that you
have selected with the CC button are retained.

Changing the TV Settings

Changing the TV Settings 31

sa6ldtv.book Page 32 Tuesday, February 21, 2006 12:35 PM

Setting Picture Scroll

n

When the program contains no closed
caption, “--” displays in the closed caption
information.

If the language code, such as ENG, is not
found on digital TV programs, “--” is
shown.

All types of closed caption service (CC1, T1,
and so on) are potentially available, but a
broadcast may contain none or only some
of these services, at the election of the
program provider.

The defaults for CC may be specified by broadcasting
station.

Setting View Mode and Aspect

In the Aspect option, you select to turn Aspect on or
off. With Aspect set to On, when the TV receives a
480i signal, the View Mode automatically selects the
picture size, as described in the following table

.

Picture Scroll adjusts the vertical position of the image
on the screen when the selected Aspect is S.Stretch
or Zoom modes. Picture Scroll does not work when
the Aspect mode is Side Bar or Stretch.

See “Changing the View with the Aspect Button” on
page 25 for descriptions of the Aspect options.

Setting Cinema Mode

In the Cinema Mode option, select Film or Video.
The Film mode smooths motion; choose Film when you
view a DVD from a DVD player connected through a
component connection (Input 3 or 4).

Using Signal Meter

The Signal Meter option displays the strength of the air
digital channel you are viewing, so that you can adjust
your antenna to obtain the maximum signal strength.

Setting Back Lighting

The Back Lighting option selects the amount of back
lighting for the screen.

Aspect ratio of
the input signal
source

4:3 Normal Side bar

16:9 Full Stretch

4:3 Letter box Stretch

You can select any of the aspect modes for View
Mode. See “Changing the View with the Aspect
Button” on page 25 for descriptions of the Aspect
picture sizes.

View Mode used
(with Aspect On)

32 HP LCD HDTV User’s Guide

Using the Option Menu

Use the Option menu to change labels for channels
and video source names

Option menu Options

Ch Label [list]

Video Label [list]

.

sa6ldtv.book Page 33 Tuesday, February 21, 2006 12:35 PM

Changing a channel or video
label

In the CH Label or the Video Label option, you can
select the label that displays for the channel or the
video source.

■ For CH Label, you enter the characters of the

label.

■ For Video Label, you select from a list of terms.

You cannot change the Ant label.

To change the label for a channel:

1 In the Option menu, select CH Label and press

the right arrow button. The CH Label menu
appears.

2 Press the arrow buttons to select Set/Clear. Press

the right arrow button to select Set, and then
press OK.

3 Press the arrow buttons to enter the first character

space.

4 Press the arrow button again as needed until you

see the character you want on the screen, and
then press OK. The character sequence is:
– (dash), 0–9, A–Z.

5 Repeat step 4 for the other characters, and then

press OK.

6 Press Menu to close the menu.

Using the Locks Menu

The Locks menu enables and defines parental controls
for TV and movies. Use it to turn on the V-chip feature,
select a password, and set the values for parental
controls by rating.

Locks menu Options

V-Chip Set On/Off

TV Rating
(TV Guidelines)

Movie Rating (MPAA,
movie ratings by
Motion Picture
Association of
America)

CE rating
(Canadian English)

■ TV-Y

■ TV-Y7

■ TV-G

■ TV-PG

■ TV-14

■ TV-MA

■ OFF

■ G

■ PG

■ PG-13

■ R

■ NC-17

■ X

■ Off

■ C

■ C8+

■ G

■ PG

■ 14+

■ 18+

Changing the TV Settings

CF rating
(Canadian French)

Password

■ G

■ 8ans +

■ 13ans +

■ 16ans +

■ 18ans +

■ New Password

■ Confirm Password

■ Clear Password

(button)

Changing the TV Settings 33

sa6ldtv.book Page 34 Tuesday, February 21, 2006 12:35 PM

Using the Password

The Locks menu allows you to use a password to
protect certain settings from being accidentally
changed.

!

IMPORTANT: These conditions must be met
to enable parental controls:

■ V-chip option is set to On.

■ Password is set.

■ Rating settings have been made.

Enter the password when prompted.

Setting a password

In the Lock/Password menu, select New Password,
and then enter the new 4-digit password number by
using the 0–9 buttons on the remote control. Enter the
same digits for Confirm Password, and then press OK.

n

As a precautionary measure, write down
your password and keep it in a familiar
place.

Changing the password

New Password in the Locks/Password menu allows
you to change the password.

Clearing the password

The Clear Password button in the Locks/Password
menu allows you to clear the password.

!

IMPORTANT:
password, you must reset the TV returning
all settings to the defaults values, including
the password. To reset the TV:

■ Press and hold down the –VOL (Volume

down) button on top of the TV, point the
remote control at the TV, and press the
Zero button for one second.

Pressing this combination of buttons clears
the password and all other settings to the
default values.

Setting Parental Controls

The parental controls use a V-Chip, which is an
electronic filtering device built into your TV. This tool
gives parents a great degree of control over
broadcasts accessed by their children. It allows
parents to select programs judged suitable for child
viewing while blocking ones judged not suitable. It
does so automatically once you select
set the values for parental controls.

The U.S. has two rating systems for viewing content:
TV Parental Guidelines and movie ratings.

■ The TV Parental Guidelines help parents screen

out inappropriate television shows from their
children.

■ Movie ratings are used for original movies rated

by the Motion Picture Association of America
(MPAA) as watched on cable TV and not edited
for television. Options can also be set to block
MPAA-rated movies.

If you lose or forget your

a password and

34 HP LCD HDTV User’s Guide

sa6ldtv.book Page 35 Tuesday, February 21, 2006 12:35 PM

Voluntary movie rating system (MPAA)

The setting automatically enters Block for any ratings
below your selection.

MPAA rating Description

Age G General audiences. All ages admitted.

PG Parental guidance suggested. Some material may not be suitable for children.

PG-13 Parents strongly cautioned. Some material may be inappropriate for children under 13.

R Restricted. Under 17 requires accompanying parent or adult guardian (age varies in some

jurisdictions).

NC-17 No one 17 and under admitted.

X X is an older rating that is unified with NC-17 but may be encoded in the data of older

movies.

Example:
If you select PG-13, this automatically blocks the higher

ratings R, NC-17, and X.

n

Voluntary movie rating system uses only
an age-based rating.

Changing the TV Settings

Changing the TV Settings 35

sa6ldtv.book Page 36 Tuesday, February 21, 2006 12:35 PM

TV ratings (TV Guidelines)

The setting automatically enters Block for any ratings
below your selection.

You can set an individual content-based rating item.

Content

TV Guidelines rating

Suggested
age

TV-Y

(All children)

TV-Y7

(Directed to
older children)

TV-G
(General
audience)

TV-PG

(Parental
guidance
suggested)

TV-14
(Parents
strongly
cautioned)

FV

(Fantasy

violence)V(Violence)

Rating can
be set

Rating can
be set

Rating can
be set

S

(Sexual

situation)

Rating can
be set

Rating can
be set

L

(Adult

language)

Rating can
be set

Rating can
be set

D

(Sexually

suggestive

dialogue)

Rating can
be set

Rating can
be set

TV-MA
(Mature
audience only)

36 HP LCD HDTV User’s Guide

Rating can
be set

Rating can
be set

Rating can
be set

sa6ldtv.book Page 37 Tuesday, February 21, 2006 12:35 PM

Canadian Rating Systems

The TV rating systems in Canada are based on the
Canadian Radio-Television and Telecommunications
Commission (CRTC) policy on violence in television
programming.

While violence is the most important content element to
be rated, the structure developed takes into
consideration other program content like language,
nudity, sexuality, and mature themes.

When setting controls on the Canadian system you can
choose either the Canadian English ratings or the
Canadian French ratings.

Canadian English ratings

CE rating Description

Age E Exempt: Includes news, sports, documentaries, and other information programming.

C Children: Intended for younger children under the age of 8 years. Pays careful attention to

themes that could threaten their sense of security and well-being.

C8+ Children over 8 years old: Contains no portrayal of violence as the preferred, acceptable, or

only way to resolve conflict; does not encourage children to imitate dangerous acts that they
may see on the screen.

G General: Considered acceptable for all age groups. Appropriate viewing for the entire family;

contains very little violence—physical, verbal, or emotional.

PG Parental guidance: Intended for a general audience, but may not be suitable for younger

children (under the age of 8) because it could contain controversial themes or issues.

14+ Over 14 years: Could contain themes where violence is one of the dominant elements of the

storyline, but it must be integral to the development of plot or character. Language usage could
be profane and nudity present within the context of the theme.

18+ Adults: Intended for viewers 18 years and older and might contain depictions of violence, which

while related to the development of plot, character, or themes, are intended for adult viewing.
Could contain graphic language and portrayals of sex and nudity.

Changing the TV Settings

Changing the TV Settings 37

sa6ldtv.book Page 38 Tuesday, February 21, 2006 12:35 PM

Canadian French ratings

CF rating Description

Age E Exempt programming.

G General: All ages and children; contains minimal direct violence, but may be integrated

into the plot in a humorous or unrealistic manner.

8ans + General but inadvisable for young children: May be viewed by a wide public audience,

but could contain scenes disturbing to children under 8 who cannot distinguish between
imaginary and real situations. Recommended for viewing with parent.

13ans + Over 13 years: Could contain frequent violent scenes and therefore recommended for

viewing with parent.

16ans + Over 16 years: Could contain frequent violent scenes and intense violence.

18ans + Over 18 years: Only for adult viewing. Could contain frequent violent scenes and

extreme violence.

How to temporarily release a
blocked program

When the Parental Controls rating censors a
broadcast, a message displays.

1 Press OK, and then the password setting menu

displays.

2 Enter your 4-digit password, and then press OK to

temporarily releases the program lock.

Reactivating parental controls
after a temporary release

You can reactivate parental controls for a temporarily
released program:

■ Change the channel.

■ Turn off the TV power.

38 HP LCD HDTV User’s Guide

sa6ldtv.book Page 39 Tuesday, February 21, 2006 12:35 PM

Finding Answers to Questions

Understanding TV Terms

What are analog TV, digital TV,
and high-definition (HDTV)?

Devices such as monitors, tuners, and integrated
monitor/tuner combinations are designed to handle
any of the 18 formats officially sanctioned by the
industry-led standard setting, Advanced Television
Systems Committee (ATSC), for the digital transmission
of video signals. There are three subgroups of digital
televisions depending on their capabilities: High­definition (HDTV), enhanced-definition (EDTV), and
standard-definition (SDTV).

In contrast, US analog television has been available
for over 50 years in the single National Television
Standards Committee (NTSC) format. This is the signal
that has been broadcast over the air and through
cable systems. NTSC television offers slightly more
than 480 interlaced lines of resolution.

What is the difference between
progressive and interlaced
signal formats for digital TVs?

There are 18 standard digital TV signal formats. Each
one provides a different picture quality. Digital TV
formats are named using a number followed by either
progressive (p) or interlaced (i). The letter refers to the
way the TV uses the signals to create the picture:

■ Progressive (p) scanning presents all the

horizontal lines of the picture in one frame. This
provides a sharper picture to the eye and looks
much better than an interlaced image of the same
resolution.

■ Interlaced (i) means that the picture appears in

two segments: Every other horizontal line of the
picture is displayed in one frame, and the other
half of the horizontal lines are drawn in the next
frame of the picture. This works because it
happens so fast that the eye is deceived into
believing that only one picture is being shown.

The number refers to the number of lines of resolution,
and generally the higher the number, the better the
picture. For example, with digital TV (DTV) there are
two progressive formats for broadcasters to choose
from: 480p and 720p. A 480p image is much sharper
than a regular TV broadcast, although it is only
considered a DTV signal and not a true high-definition
signal. 720p has 720 horizontal scan lines and is
considered to be true HDTV. 720p can rival a 1080i
picture, which is 1080 horizontal scan lines displayed
as an interlaced image. This is because of the sharper
and more accurate (progressive) 720p picture, even
though a 1080i picture has many more scan lines and
a much higher resolution.

What is variable aspect ratio?

The aspect ratio describes the relationship of screen
width to screen height. Standard TV signals are based
on the aspect ratio of 4:3 (four units wide by three
units high). HDTV signals are based on the aspect ratio
of 16:9, making the image 33 percent wider than a
normal TV and allowing viewing TV and movies as if
you were watching them in a theater.

In addition, many DVDs look better on the widescreen
display because most movies made in the last 50 years
were filmed in an aspect ratio of either 1.85:1 (very
close to 16:9, which is equal to 1.78:1) or 2.35:1
(even wider than 16:9).

Variable aspect ratio support enables scaling of 4:3
and anamorphic video to fill the screen.

Finding Answers to Questions

Finding Answers to Questions 39

sa6ldtv.book Page 40 Tuesday, February 21, 2006 12:35 PM

What is HDMI?

High-Definition Multimedia Interface (HDMI) is the first
industry-supported, uncompressed, all-digital audio/
video interface. HDMI components can transmit both
digital audio and video over a single cable with
improved quality over traditional analog connections
due to an all-digital transmission. Transferring digital
sources to display such as DVDs and HDTV
programming can now be done without analog
conversions that can degrade the original signal.

Identifying Cable Usage

The following section lists all of the cable types
available for the TV. It shows a side view of each with
its respective connector.

Cable type/
connection Description

RCA Red and white audio connectors connect to the red and white (L & R) audio inputs.

HDMI HDMI is capable of transmitting both uncompressed digital audio and digital video

signals because it has video, audio, and control signals.

Coaxial antenna RF or coaxial used mainly for antennas, or for digital audio. Often used with cable

TV, or a cable or satellite decoder set-top box. May be used with set-top boxes if no
other choice is available.

40 HP LCD HDTV User’s Guide

sa6ldtv.book Page 41 Tuesday, February 21, 2006 12:35 PM

Cable type/
connection Description (Continued)

S-video Used with equipment such as DVD players, VCRs, cable or satellite tuner/decoders,

Power cord Connects the TV to the power outlet.

camcorders, and digital cable boxes. Cable plugs into S-video output.

Composite Used with equipment such as a VCR or DVD. Cable plugs into AV input or output.

Component Three- or five-headed cable: One red for Pr signal, one green for Y signal, and one

blue for Pb signal. Some component cables also come with red and white audio
cables attached. Used for HDTV receivers, DVD players, and other devices
equipped with a YPbPr component output connector.

Finding Answers to Questions

Finding Answers to Questions 41

sa6ldtv.book Page 42 Tuesday, February 21, 2006 12:35 PM

42 HP LCD HDTV User’s Guide

sa6ldtv.book Page 43 Tuesday, February 21, 2006 12:35 PM

Specifications

HP LC3260N 32-Inch (81-Centimeter) LCD High-Definition Television

Display

LCD panel 32 in. Advanced Super View & Black TFT LCD
Dimensions with stand (h x w x d) 26.3 in. (66.9 cm) x 32.4 in. (82.3 cm) x 11.0 in. (28.0 cm)
Dimensions without stand (h x w x d) 23.3 in. (59.2 cm) x 32.4 in. (82.3 cm) x 4.6 in. (11.6 cm)
Number of pixels Up to 3,147,264
Picture resolution 1366 x 768
Brightness Up to 450 cd/m

2

Backlight life Up to 60,000 hours (at backlight standard position)

o

Viewing angles H: 176
Audio out 20 W
OSD language English/French/Spanish
Power requirement AC 120 V , 60 Hz
Power consumption 170 W
Ventilation clearance requirements 1.4 in. (3.5 cm)

TV standard (CCIR) American TV Standard ATSC/NTSC system
Receiving channel VHF: 2–13

UHF: 14–69
CATV: 1–125
Digital Terrestrial Broadcast (8VSB): 2–69
Digital cable (64/256 QAM): 1–135

Audio multiplex BTSC system

V: 176

o

TV function

Rear connectors

Component-1 (Input 3) Component input
Component-2 (Input 4) Component input

Specifications

Specifications 43

sa6ldtv.book Page 44 Tuesday, February 21, 2006 12:35 PM

Component 1-Audio (Input 3) Audio input (use with Component-1)
Component 2-Audio (Input 4) Audio input (use with Component-2)
AV1-Video (Input 1) Composite input
AV1-S/Video (Input 1) S-video input
AV1-Audio (L/R) (Input 1) Audio input (use with AV1-Video or AV1-S/Video)
AV2-Video (Input 2) Composite input
AV2-S/Video (Input 2) S-video input
AV2-Audio (L/R) (Input 2) Audio input (use with AV2-Video or AV2-S/Video)
Audio (L/R) Analog audio output
Digital Audio Output (Coaxial) Digital audio output (PCM/Dolby Digital)
ANT (Ant/Cable) 75-ohm unbalance, F-type for antenna or cable VHF/UHF/CATV input

Rear connectors (Continued)

signals
HDMI In 1 (Input 6) HDMI input (Type A) with HDCP
HDMI In 2 (Input 5) HDMI input (Type A) with HDCP
Audio In (L/R) (Input 5) Audio input for use with HDMI In 2 when it has an DVI-to-HDMI adapter

connected for video

Weight

TV (no stand) 37.5 lb. (17.0 kg)
TV with stand 43.0 lb. (19.5 kg)

Accessories

In the box Documentation, remote control unit, AC cord, cable clamp
Recommended solution additions HP Digital Entertainment Center

HP Media Center PC

HP Media Center Extender
Certification and compliance UL, C-UL, FCC, BETS-7, ENERGY STAR qualified TV
Warranty 1 year, parts and labor

All specifications represent the typical specifications provided by
HP’s component manufacturers; actual performance may vary either
higher or lower.

44 HP LCD User’s Guide

The panel life is determined as the time at which luminance is 50%
compared to that of initial value at the typical lamp current on

condition of continuous operation at 25 +/–
equates to more than twenty-three years at seven hours a day
viewing.

o

C. 60,000 hours

sa6ldtv.book Page 45 Tuesday, February 21, 2006 12:35 PM

Troubleshooting

Refer to this section if you have viewing, picture, sound,
remote, or startup problems with your TV.

Startup questions

Symptom Remedy

I do not hear sound at power-on even
though there is an image.

I do not see an image at power-on.

There is no power.

■ Is the volume too low? Press the Volume Up button.

■ Is mute turned on? Press the Mute button, or the Vol+ button.

■ Is an external sound system connected and turned on? Are the

speakers turned off in the OSD Audio menu?

■ Are the connections to the input signal source component correct?

Double-check that the cables are properly inserted in the color-coded
connectors.

■ Is the input source powered on? Turn on the set-top box, DVD player,

or other component you are trying to view.

■ Is the correct input signal source selected? Press the source button on

the remote control to display the source list. Use the up and down
arrow buttons to highlight a source and press OK.

■ Press the Menu button on the remote control.

■ If the OSD appears, check the cables to the input source and

press the source button on the remote control to choose the input
source.

■ If the OSD does not display, see the next symptom, “There is no

power.”

■ Press the Power button on the remote control unit.

■ If the indicator on the TV is red, press the Power button on the TV.

■ Is the AC cord disconnected? Make sure both ends of the power

cord are plugged in.

■ Is there power coming from the outlet? Plug in a functional lamp or

other electrical device into the same outlet as the TV to make sure
there is power coming from the outlet.

■ If using a power strip, make sure it is turned on.

Troubleshooting

Troubleshooting 45

sa6ldtv.book Page 46 Tuesday, February 21, 2006 12:35 PM

Symptom (Continued) Remedy

The unit cannot be operated.

■ External influences such as lightning and static electricity may cause

improper operation. In this case, operate the unit after first turning
on the power of the TV or unplugging the AC cord and replugging it
in after 1 or 2 minutes.

The color is strange, faded, or
misaligned.

■ Adjust the picture tone.

■ Is the room too bright? The picture may look dark in a room that is

too bright.

■ Check the input signal setting.

■ If watching a component device, make sure the red, blue, and green

cables are fully inserted into the proper connectors on both ends.

The power suddenly turned off.

■ Is the sleep timer set?

■ Check the power control settings.

■ The unit’s internal temperature has increased. Remove any objects

blocking the vent, or clean the vent.

Viewing questions

Symptom Remedy

I get a poor picture with video signal
input.

Check the following: Improper control setting. Local interference. Cable
interconnections. Adjust picture control as needed. Try another location
for the TV. Be sure that all connections are secure.

There is no picture or a black screen,
and I have an external device
controlling the TV.

The picture, with a component input
source connected, is too red, blue, or
green.

46 HP LCD HDTV User’s Guide

■ Press the Source button on the remote control and confirm the source

is selected.

■ Verify that the external device power is turned on.

■ Check to see whether the source component is connected.

■ Check the power management function. Is it in standby mode?

■ Connect the source to the TV. Operate the external device.

■ Check to make sure each cable is plugged into the correct color-

coded connector on the TV connectors and input source connectors.

■ Make sure the cables are plugged in all the way.

sa6ldtv.book Page 47 Tuesday, February 21, 2006 12:35 PM

Picture quality questions

Symptom Remedy

Part of my picture is cut off, or the
picture is not centered.

My picture image is too large or

Check the position adjustment settings, and adjust the screen settings
accordingly.

Press the Aspect button on the remote control, and adjust properly.

too small.

My picture is unstable. Verify that the external device resolution setting is correct. Adjust to the

appropriate resolution.

There are bright spots on my screen. In some cases, an LCD panel may have pixels that do not operate

properly. This is common to all LCD displays used in products supplied
by all vendors and is not specific to this product.

Remote control questions

Symptom Remedy

The remote control does not work. Check the following, and try the proposed solution:

■ Batteries are inserted with polarity aligned.

■ Make sure the remote control batteries are fresh. If they are worn

out, replace the batteries with new batteries.

■ Make sure the remote control is within correct operating range.

■ Make sure the remote sensor window is not under too much light,

direct sunlight, or strong artificial light.

■ Make sure there are no obstacles; check that there is nothing

between the remote control and the sensor window on the display.

■ Make sure the remote control is aimed at your TV and is not farther

than 16.4 feet (5 meters) away.

Troubleshooting

The remote control does not control
other home entertainment equipment.

My universal remote control does not
find an HP TV code.

This is not a universal remote control. It only works with your HP
television.

When you want to program a universal remote control to operate your
HP TV, if HP is not listed in the supported brand codes, use a Philips TV
code. The HP remote control transmits Philips-licensed remote control
codes.

After programming your universal remote control with a Philips TV code,
it can operate your HP TV functions for: Volume, mute, power, and input
source.

Troubleshooting 47
