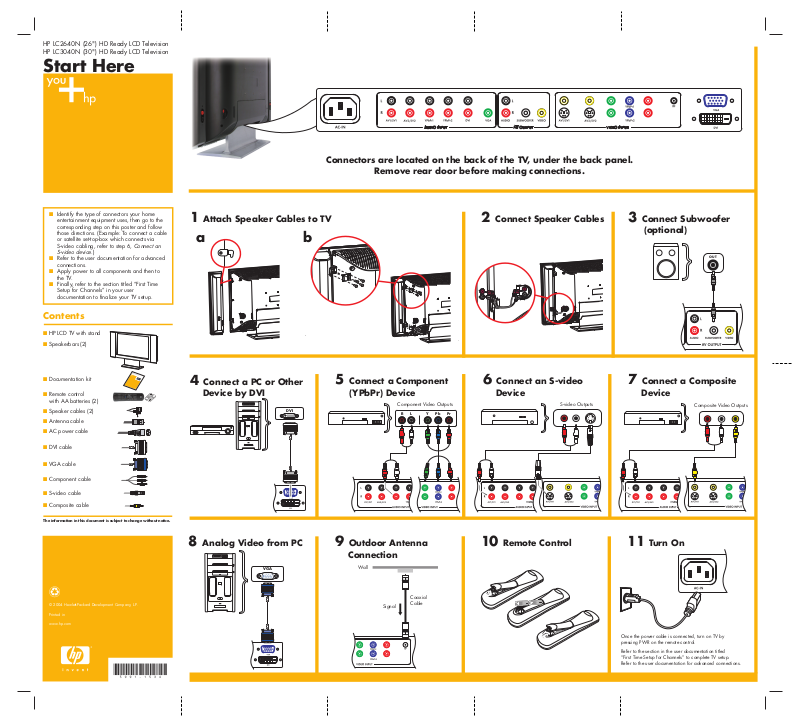

HP (Hewlett-Packard) LC2640N, LC3040N User Manual

6 Connect an S-video

Device

7 Connect a Composite

Device

5 Connect a Component

(YPbPr) Device

2 Connect Speaker Cables 3 Connect Subwoofer

(optional)

1 Attach Speaker Cables to TV

10 Remote Control

11 Turn On

8 Analog Video from PC

HP LC2640N (26") HD Ready LCD Television HP LC3040N (30") HD Ready LCD Television

Start Here

■ Identify the type of connectors your home

entertainment equipment uses, then go to the corresponding step on this poster and follow those directions. (Example: To connect a cable or satellite set-top-box which connects via S-video cabling, refer to step 6, Connect an S-video device.)

■ Refer to the user documentation for advanced

connections.

■ Apply power to all components and then to

the TV.

■ Finally, refer to the section titled “First Time

Setup for Channels” in your user documentation to finalize your TV setup.

Contents

■ HP LCD TV with stand

■ Speakerbars (2)

■ Documentation kit

■ Remote control

with AA batteries (2)

■ Speaker cables (2)

■ Antenna cable

■ AC power cable

■ DVI cable

■ VGA cable

■ Component cable

■ S-video cable

■ Composite cable

The information in this document is subject to change without notice.

4 Connect a PC or Other

Device by DVI

9 Outdoor Antenna

Connection

Connectors are located on the back of the TV, under the back panel.

Remove rear door before making connections.

DVI

VGA

Once the power cable is connected, turn on TV by pressing PWR on the remote control.

Refer to the section in the user documentation titled “First Time Setup for Channels” to complete TV setup. Refer to the user documentation for advanced connections.

OUT

R PbYPrL

Component Video Outputs

S-video Outputs

Composite Video Outputs

Wall

Coaxial Cable

Signal
