HP L1740 17-INCH User Manual
User Guide
Enhanced for Accessibility
HP L1740 17” and L1940 19”
Flat Panel Monitors
Document Part Number: 372837-001
January 2005
This guide provides information on setting up the monitor,
installing drivers, using the on-screen display menu,
troubleshooting and technical specifications.
© Copyright 2005 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
Microsoft, MS-DOS, Windows, and Windows NT are trademarks of
Microsoft Corporation in the U.S. and other countries.
Intel, Pentium, Intel Inside, and Celeron are trademarks of Intel
Corporation in the U.S. and other countries.
Adobe, Acrobat, and Acrobat Reader are trademarks or registered
trademarks of Adobe Systems Incorporated.
The only warranties for HP products and services are set forth in the
express warranty statements accompanying such products and services.
Nothing herein should be construed as constituting an additional warranty.
HP shall not be liable for technical or editorial errors or omissions
contained herein.
This document contains proprietary information that is protected by
copyright. No part of this document may be photocopied, reproduced, or
translated to another language without the prior written consent of
Hewlett-Packard Company.
WARNING: Text set off in this manner indicates that failure to
Å
follow directions could result in bodily harm or loss of life.
CAUTION: Text set off in this manner indicates that failure to follow
Ä
directions could result in damage to equipment or loss of information.
User Guide
HP L1740 17" and L1940 19" Flat Panel Monitors
First Edition (January 2005)
Document Part Number: 372837-001
Contents
1 Product Features
2 Safety and Maintenance Guidelines
Important Safety Information. . . . . . . . . . . . . . . . . . . . . . 2–1
Maintenance Guidelines. . . . . . . . . . . . . . . . . . . . . . . . . . 2–2
Cleaning the Monitor. . . . . . . . . . . . . . . . . . . . . . . . . 2–3
Shipping the Monitor. . . . . . . . . . . . . . . . . . . . . . . . . 2–3
3 Setting Up the Monitor
Unfolding the Monitor Base. . . . . . . . . . . . . . . . . . . . . . . 3–1
Identifying Rear Panel Components . . . . . . . . . . . . . . . . 3–2
Selecting the Signal Connectors and Cables . . . . . . . 3–3
Connecting the Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . 3–3
Removing the Monitor Base . . . . . . . . . . . . . . . . . . 3–10
Mounting the Monitor . . . . . . . . . . . . . . . . . . . . . . . 3–11
Locating the Rating Label . . . . . . . . . . . . . . . . . . . . 3–13
4 Operating the Monitor
Software and Utilities. . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–1
The Information File . . . . . . . . . . . . . . . . . . . . . . . . . 4–1
The Image Color Matching File . . . . . . . . . . . . . . . . 4–2
Installing the .INF and .ICM Files . . . . . . . . . . . . . . . . . . 4–2
Installing from the CD. . . . . . . . . . . . . . . . . . . . . . . . 4–2
Downloading from the Worldwide Web . . . . . . . . . . 4–3

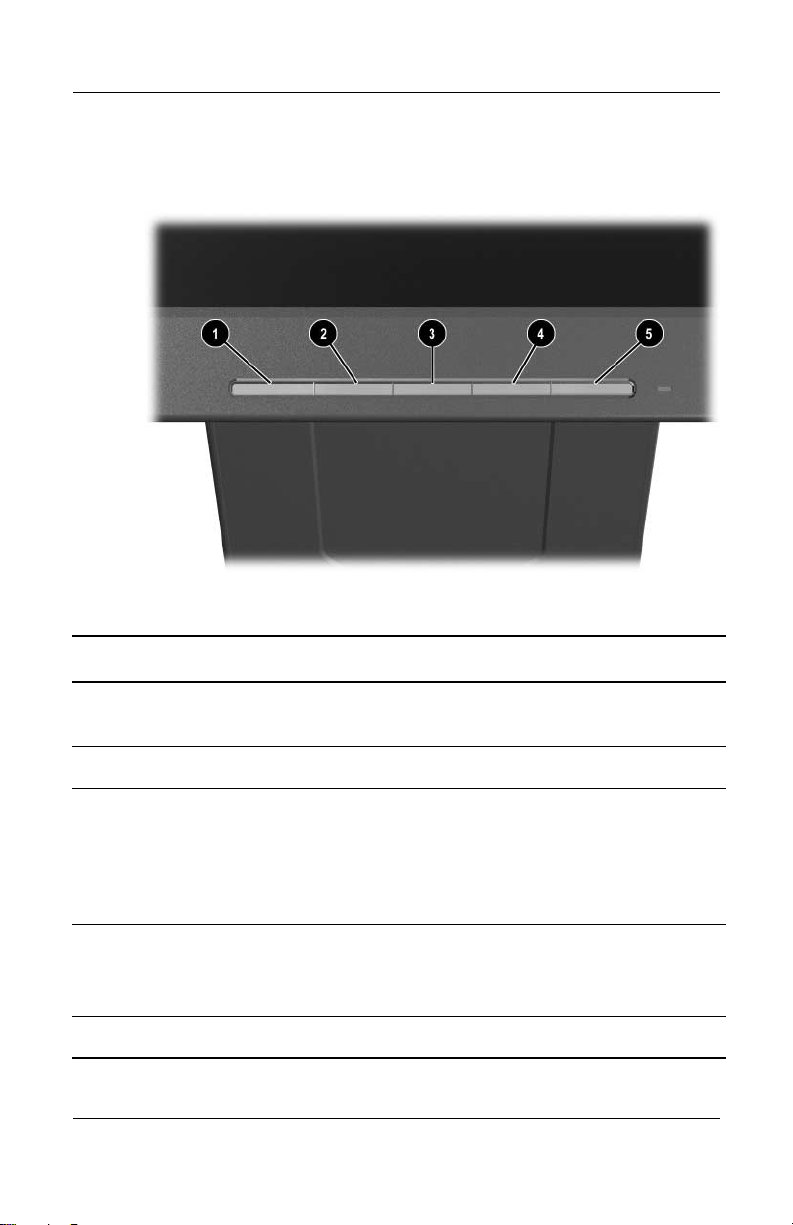

Front Panel Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–4
Adjusting Monitor Settings . . . . . . . . . . . . . . . . . . . . . . . 4–5
User Guide i
Contents
Using the On-Screen Display . . . . . . . . . . . . . . . . . . 4–6
Adjusting Screen Quality. . . . . . . . . . . . . . . . . . . . . . 4–9
Optimizing Analog Video . . . . . . . . . . . . . . . . . . . . . 4–9
Identifying Monitor Conditions . . . . . . . . . . . . . . . . . . . 4–10
Sleep Timer Mode . . . . . . . . . . . . . . . . . . . . . . . . . . 4–11
sRGB Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–12
Changing the Color Temperature . . . . . . . . . . . . . . 4–13
Installing the sRGB ICM File for Microsoft Windows
2000 and Windows XP . . . . . . . . . . . . . . . . . . . . . . 4–13
A Troubleshooting
Solving Common Problems . . . . . . . . . . . . . . . . . . . . . . . A–1
Using the Worldwide Web. . . . . . . . . . . . . . . . . . . . . . . . A–3
Preparing to call Technical Support. . . . . . . . . . . . . . . . . A–3
B Technical Specifications
L1740 Flat Panel Monitor . . . . . . . . . . . . . . . . . . . . . . . . B–1
L1940 Flat Panel Monitor . . . . . . . . . . . . . . . . . . . . . . . . B–3
Recognizing Preset Display Resolutions . . . . . . . . . . . . . B–4
Entering User Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . B–5
Energy Saver Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . B–6
C Agency Regulatory Notices
Federal Communications Commission Notice. . . . . . . . . C–1
Modifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C–1
Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C–2
Declaration of Conformity for Products Marked with FCC
Logo, United States Only. . . . . . . . . . . . . . . . . . . . . . . . . C–2
Canadian Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C–3
Avis Canadien . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C–3
European Notice. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C–3
Japanese Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C–4
Korean Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C–4
User Guide ii
EPA Energy Star Compliance . . . . . . . . . . . . . . . . . . . . . C–4
Power Cord Set Requirements . . . . . . . . . . . . . . . . . . . . . C–5
D LCD Monitor Quality
and Pixel Policy
Contents
User Guide iii
1
Product Features
The Flat Panel Display has an active matrix, thin-film transistor
(TFT), liquid crystal display (LCD). The monitor features
include:
■ HP L1740 model, 17-inch (43.2 cm) viewable area display,
with narrow bezels.
■ HP L1940 model, 19-inch (48.3 cm) viewable area display,
with narrow bezels.
■ 1280 × 1024 native resolution, plus full-screen support for
lower resolutions.
■ Wide viewing angle to allow viewing from a sitting or
standing position, or moving side-to-side.

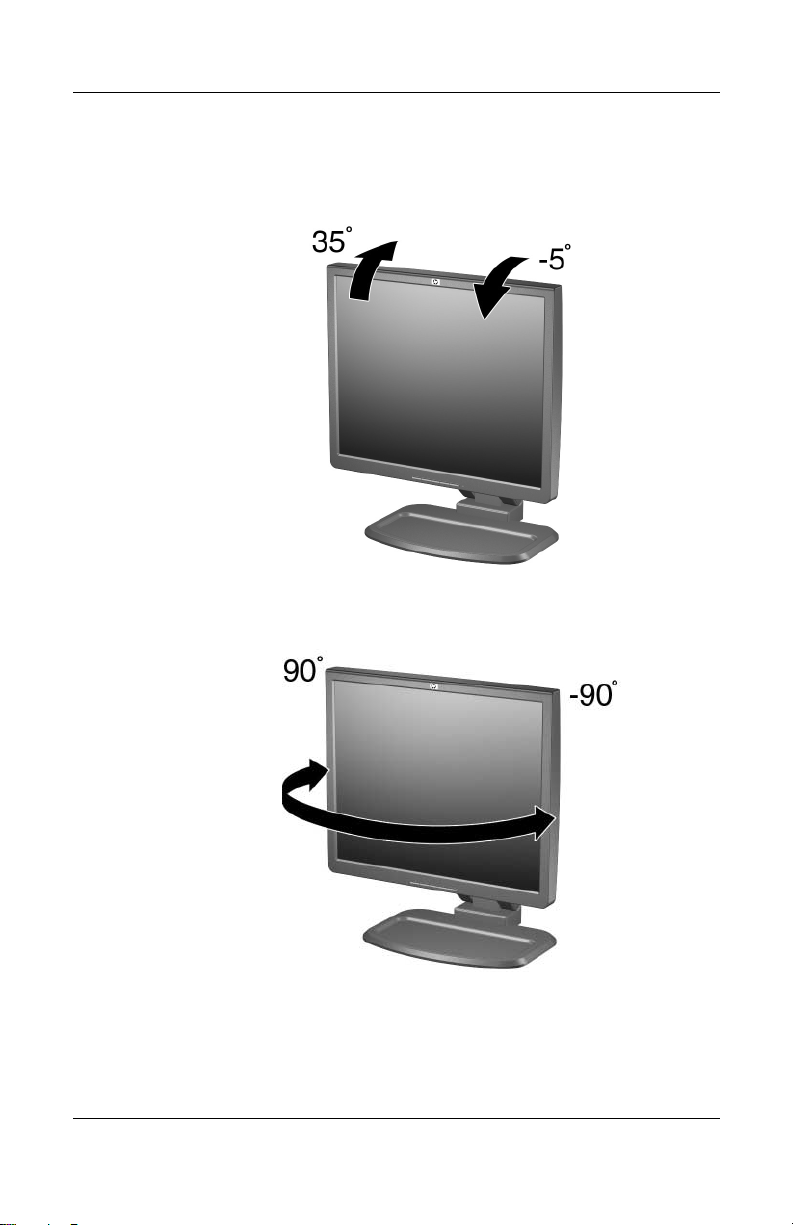

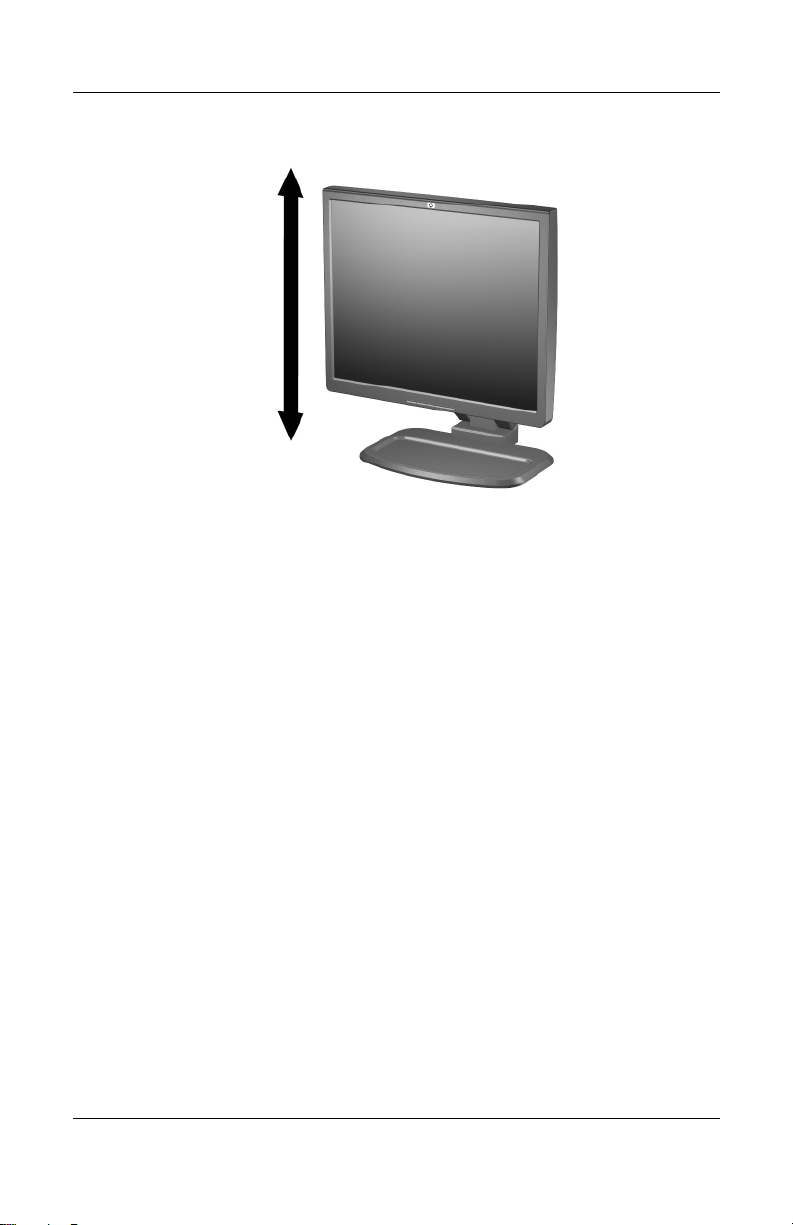

■ Tilt, swivel, and height adjustment capabilities.
■ Easily removable base for flexible mounting solutions.
■ Multiple video inputs supported:
❏ VGA Analog
❏ DVI signal input (available on select models)
■ VGA analog signal cable included.
■ USB 2.0 hub with one upstream (connects to the computer)
and two downstream (connects to USB devices) ports.
■ USB cable included to connect the monitor’s USB ports to
the USB connector on the computer.
User Guide 1–1
Product Features
■ Mounting feature on bottom of monitor to accept an optional
Speaker Bar accessory kit.
■ Plug and play capability if supported by your system.
■ On-Screen Display (OSD) adjustments in English, Dutch,
French, Italian, Simplified Chinese, German, and Spanish for
ease of set-up and screen optimization.
■ Software and documentation CD includes an information file
(INF), Image Color Matching file (ICM), and product
documentation.
■ Energy Saver feature for Energy Star compliance.
■ AssetControl
■ Compliant with the following regulated specifications:
❏ EPA ENERGY STAR
❏ European Union CE Directives
❏ Swedish MPR II 1990
❏ Swedish TCO
1–2 User Guide
Safety and Maintenance
Guidelines
Important Safety Information
A power cord is included with your monitor. If another cord is
used, use only a power source and connection appropriate for this
monitor. For information on the correct power cord set to use with
your monitor, refer to the “Power Cord Set Requirements” section
in Appendix C.
WARNING: To reduce the risk of electric shock or damage to your
Å
equipment, do not disable the power cord grounding feature. This
equipment is designed to be connected to a grounded (earthed)
power outlet that is easily accessible to the operator. The grounding
plug is an important safety feature.
WARNING: For your safety, be sure that the power outlet you plug
Å
the power cord into is easily accessible and located as close to the
equipment as possible. When you need to disconnect the power to
the equipment, unplug the power cord from the power outlet by
grasping the plug firmly. Never pull on the cord.
2
User Guide 2–1
Safety and Maintenance Guidelines
CAUTION: For the protection of your monitor, as well as your
Ä
computer, connect all power cords for your computer and its
peripheral devices (such as a monitor, printer, scanner) to some form
of surge protection device such as a power strip or Uninterruptible
Power Supply (UPS). Not all power strips provide surge protection;
the power strips must be specifically labeled as having this ability.
Use a power strip whose manufacturer offers a Damage Replacement
Policy so you can replace your equipment if surge protection fails.
Maintenance Guidelines
To enhance the performance and extend the life of your monitor:
■ Do not open your monitor cabinet or attempt to service this
product yourself. Adjust only those controls that are covered
in the operating instructions. If your monitor is not operating
properly or has been dropped or damaged, contact your HP
authorized dealer, reseller, or service provider.
■ Use only a power source and connection appropriate for this
monitor, as indicated on the label/back plate of the monitor.
■ Be sure the total ampere rating of the products connected to
the outlet does not exceed the current rating of the electrical
outlet, and the total ampere rating of the products connected
to the cord does not exceed the rating of the cord. Look on the
power label to determine the ampere rating (AMPS or A) for
each device.
■ Install your monitor near an outlet that you can easily reach.
Disconnect the monitor by grasping the plug firmly and
pulling it from the outlet. Never disconnect the monitor by
pulling the cord.
■ Turn your monitor off when not in use. You can substantially
increase the life expectancy of your monitor by using a screen
saver program and turning off the monitor when not in use.
2–2 User Guide
■ Slots and openings in the cabinet are provided for ventilation.
These openings must not be blocked or covered. Never push
objects of any kind into cabinet slots or other openings.
■ Do not drop your monitor or place it on an unstable surface.
■ Do not allow anything to rest on the power cord. Do not walk
on the cord.
■ Keep your monitor in a well-ventilated area, away from
excessive light, heat or moisture.
■ When removing the monitor base, you must lay the monitor
face down on a soft area to prevent it from getting scratched,
defaced, or broken.
Cleaning the Monitor
1. Unplug the monitor from the wall outlet.
2. Turn off the monitor and the computer.
3. Clean the monitor plastics with a clean cloth dampened with
water.
Safety and Maintenance Guidelines
4. Clean the monitor screen with an antistatic screen cleaner.
CAUTION: Do not use benzene, thinner, ammonia, or any other
Ä
volatile substances to clean your monitor or the screen. These
chemicals may damage the cabinet finish as well as the screen.
Shipping the Monitor
Keep the original packing box in a storage area. You may need it
later if you move or ship your monitor.
User Guide 2–3
Setting Up the Monitor
To set up the monitor, ensure that the power is turned off to the
monitor, computer system, and other attached devices, then
follow the steps below.
Unfolding the Monitor Base
The monitor is shipped with the base attached in a folded flat
position. To begin using the monitor, you must unfold the base
and place the monitor in an upright position.
3
Unfolding the Base
User Guide 3–1
Setting Up the Monitor
Identifying Rear Panel Components
Rear Panel Components
No. Component Function
1 AC power
connector
2 USB downstream
connectors
3 USB upstream
connector
4 DVI connector
(available on select
models)
5 VGA connector Connects the VGA cable to the monitor.
3–2 User Guide
Connects the AC power cord to the monitor.
Connects optional USB devices to the monitor.
Connects the USB cable to the host (computer or
another USB hub).
Connects the DVI-D signal cable to the monitor.
Setting Up the Monitor
Selecting the Signal Connectors and Cables
There are two signal input connectors:
■ VGA connector
■ DVI-D connector (available on select models)
The monitor will automatically determine which inputs have
valid video signals. The inputs can be selected through the
On-Screen Display (OSD) feature or by pressing the
+ button (to
enable VGA signal input) or the – button (to enable DVI signal
input) on the monitor front bezel.
Connecting the Monitor
WARNING: To reduce the risk of electric shock or damage to your
Å
equipment: Do not disable the power cord grounding plug. The
grounding plug is an important safety feature.
Plug the power cord into a grounded (earthed) electrical outlet that is
easily accessible at all times.
Disconnect power from the monitor by unplugging the power cord
from the electrical outlet.
Do not place anything on power cords or cables. Arrange them so
that no one may accidentally step on or trip over them. Do not pull on
a cord or cable. When unplugging from the electrical outlet, grasp
the cord by the plug.
User Guide 3–3
Setting Up the Monitor
1. Place the monitor in a convenient, well-ventilated location
near your computer.
2. Pivot the monitor to the portrait position. Connect one end of
the power cable to the power connector on the monitor 1,
and the other end to an electrical wall outlet 2.
Connecting the Power Cable
3–4 User Guide
Setting Up the Monitor
3. For analog operation, connect one end of the VGA signal
cable to the VGA connector on the monitor 1
, and the other
end to the VGA connector on the computer 2.
Connecting the VGA Signal Cable
User Guide 3–5
Setting Up the Monitor
4. Connect the USB cable to the USB upstream connector on
the monitor 1 and to a convenient USB connector on the
computer 2.
Connecting the USB Cable
3–6 User Guide
Loading...
