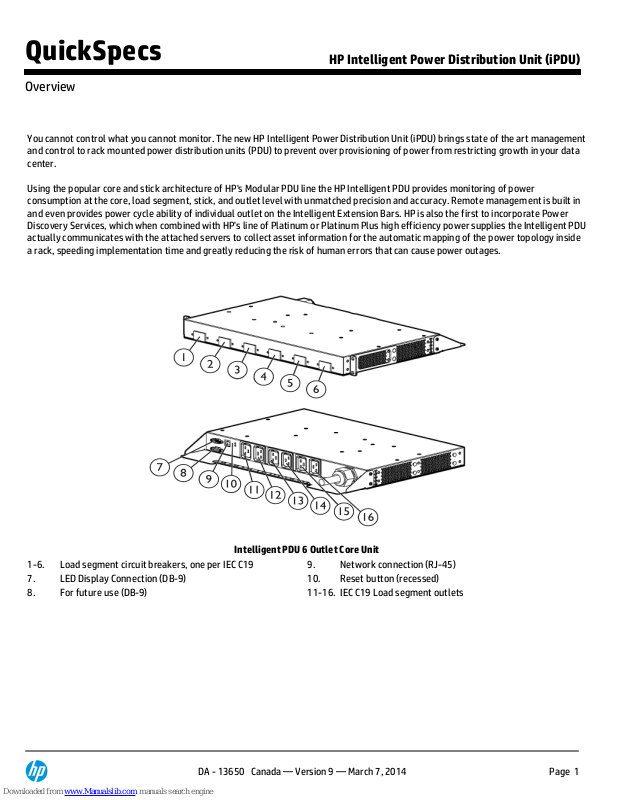

You cannot control what you cannot monitor. The new HP Intelligent Power Distribution Unit (iPDU) brings state of the art management
and control to rack mounted power distribution units (PDU) to prevent over provisioning of power from restricting growth in your data
center.
Using the popular core and stick architecture of HP's Modular PDU line the HP Intelligent PDU provides monitoring of power
consumption at the core, load segment, stick, and outlet level with unmatched precision and accuracy. Remote management is built in
and even provides power cycle ability of individual outlet on the Intelligent Extension Bars. HP is also the first to incorporate Power
Discovery Services, which when combined with HP's line of Platinum or Platinum Plus high efficiency power supplies the Intelligent PDU
actually communicates with the attached servers to collect asset information for the automatic mapping of the power topology inside
a rack, speeding implementation time and greatly reducing the risk of human errors that can cause power outages.
Intelligent PDU 6 Outlet Core Unit
1-6.
Load segment circuit breakers, one per IEC C19
9.
Network connection (RJ-45)
7.
LED Display Connection (DB-9)
10.
Reset button (recessed)
8.
For future use (DB-9)
11-16.
IEC C19 Load segment outlets
QuickSpecs
HP Intelligent Power Distribution Unit (iPDU)
Overview
DA - 13650 Canada — Version 9 — March 7, 2014
Page 1
Page 2
Intelligent PDU 12 Outlet Core Unit
1-12.
Load segment circuit breakers, one per IEC C19
26.
Network connection (RJ-45)
13-24
IEC C19 Load segment outlets
27.
LED Display Connection (DB-9)
25.
Reset button (recessed)
Intelligent PDU rear mount LED Display
1.
Multi segment LED for amperage display
7.
Scroll button for PDU Core Unit selection
QuickSpecs
HP Intelligent Power Distribution Unit (iPDU)
Overview
DA - 13650 Canada — Version 9 — March 7, 2014
Page 2
Page 3
2.
Multi segment LED for PDU Core Unit identification
8
DB-9 for firmware updates
3.
Multi segment LED for Load segment /Extension Bar
identification number
.9.
DB-9 for connection to iPDU Core Unit
4.
Multi segment LED for outlet identification number
(Intelligent Extension bars only)
10.
Recessed reset button
5.
Scroll button for outlet selection (intelligent Extension bars
only)
11.
Alarm indicator
6.
Scroll button for load segment/extension bar selection
12.
Power Indicator
Intelligent Extension Bar G2 for iPDU
1.
Outlet UID indicator (blue LED)
5.
Reset button
2.
Outlet Status indicator (red/green LED)
6.
Extension Bar UID indicator (blue LED)
3.
5x Individually monitored and switchable IEC C13 outlets
with PLC connectors
7.
Power on indicator for Intelligent Extension Bar (green
LED)
4.
Outlet number ID window (changes based on orientation)
QuickSpecs
HP Intelligent Power Distribution Unit (iPDU)
Overview
DA - 13650 Canada — Version 9 — March 7, 2014
Page 3
Page 4
Standard Extension Bar for iPDU
1.
5 x IEC C13 outlets
3.
Extension Bar UID indicator (blue LED)
2.
Extension Bar power indicator (green LED)
4.
Inlet cord with IEC C19 PLC connector to attach to iPDU
Core Unit
Models
HP Intelligent Power
Distribution Units (iPDU)
iPDU Core Units
NOTE:
Each iPDU Core has 6 or 12 IEC C19 outlets and includes the LED display unit.
NOTE:
6 outlet iPDU cores can be mounted in 1U or 0U locations. 12 outlets iPDU cores
require 2U of rack space.
HP 4.9kVA 24A Single Phase NA/JP Core Intelligent Modular Power Distribution Unit
AF520A
HP 8.3kVA 40A Single Phase NA/JP Core Intelligent Modular Power Distribution Unit
AF521A
HP 8.6kVA 24A Three Phase NA/JP Core Intelligent Modular Power Distribution Unit
AF522A
HP 14.4kVA 40A Three Phase NA/JP Intelligent Modular Power Distribution Unit
AF533A
HP 17.3kVA 48A Three Phase NA/JP Core Intelligent Modular Power Distribution Unit
AF523A
HP 11.4kVA 16A 415V Three Phase L22-20 NA Core Intelligent Power Distribution Unit
AF900A
HP 17.3kVA 24A 415V Three Phase L22-30 NA Core Intelligent Power Distribution Unit
AF902A
HP 17.3kVA 24A 415V Three Phase IEC309 NA Core Intelligent Power Distribution Unit
AF901A
HP 17.3kVA 48A 208V Three Phase 12 Outlet Core NA/JP Intelligent Power Distribution
Unit
AF535A
HP 17.3kVA 24A 415V Three Phase 12 Outlet Core NA/JP Intelligent Power Distribution
Unit
AF537A
iPDU Kits with Standard Extension Bars
HP 4.9kVA 24A Single Phase NA/JP Intelligent Modular Power Distribution Kit
AF531A
HP 8.6kVA 24A Three Phase NA/JP Intelligent Modular Power Distribution Kit
AF532A
QuickSpecs
HP Intelligent Power Distribution Unit (iPDU)
Overview
DA - 13650 Canada — Version 9 — March 7, 2014
Page 4
Page 5
NOTE:
iPDU Kits include one Core Unit, LED Display, and 4 Standard (non-intelligent)
Extension Bars. Total outlets would be 20 IEC C13 and 2 IEC C19 per kit. Additional
Standard or Intelligent Extension bars can be added for a maximum of 30 IEC C13
outlets.
Related Options
iPDU Extension Bars
HP 5xC13 Intelligent PDU Extension Bar G2 Kit
AF547A
NOTE:
Intelligent Extensions Bars have individually monitored outlets that are also
individually switchable for power cycling attached equipment. Each individual C13 outlet
has Power Line Communications to support Intelligent Power Discovery when
connected to PLC enabled common slot power supplies.
HP 5xC13 Outlets Power and UID LEDs Pair Standard Extension Bar
NOTE:
Standard (non-intelligent) Extension Bars are monitored as a single load
segment and do not support Intelligent Power Discovery. Standard Extension Bars for
HP iPDUs include a blue unit ID LED (UID) which helps associate the load segment being
monitored with the Extension bar.
AF528A
PDS Enabled power cables
with power line
communications (PLC)
HP C13 - C14 WW 250V 10Amp IPD 0.76m 1pc Jumper Cord
SG506A
HP C13 - C14 WW 250V 10Amp IPD 0.76m 5pc Jumper Cord
SG507A
HP C13 - C14 WW 250V 10Amp IPD 1.37m 1pc Jumper Cord
SG508A
HP C13 - C14 WW 250V 10Amp IPD 1.37m 5pc Jumper Cord
SG509A
HP C13 - C14 WW 250V 10Amp IPD 1.83m 1pc Jumper Cord
SG510A
HP C13 - C14 WW 250V 10Amp IPD 1.83m 5pc Jumper Cord
SG511A
HP C13-C14 8ft Single Power Line Communications Power Cable
D9Y24A
HP C13-C14 8ft 5pc Power Line Communications Power Cable
D9Y25A
HP C13 - C14 WW 250V 10Amp IPD 3.0m 1pc Jumper Cord
SG512A
HP 1.37m 250V 16A C19-C20 WW Single IPD Enabled Jumper Cord
TK744A
HP 1.37m 250V 16A C19-C20 WW 3PC Kit IPD Enabled Jumper Cord
TK745A
HP 2.0m 250V 16A C19-C20 WW Single IPD Enabled Jumper Cord
TK738A
HP 2.0m 250V 16A C19-C20 WW 3PC Kit IPD Enabled Jumper Cord
TK739A
HP C19-C20 8ft Single Power Line Communications Power Cable
TK740K
HP 2.5m 250V 16A C19-C20 WW 3PC Kit IPD Enabled Jumper Cord
TK741A
HP 3.0m 250V 16A C19-C20 WW Single IPD Enabled Jumper Cord
TK742A
HP 3.0m 250V 16A C19-C20 WW 3PC Kit IPD Enabled Jumper Cord
TK743A
NOTE:
PLC power cables are designated by bright blue IEC connectors.
NOTE:
C13-C14 PLC power cables enable Power Discovery Services communications
between HP Common Slot Platinum or Platinum Plus Power Supplies and the HP
Intelligent Extension Bars when used with the HP Intelligent PDU cores.
NOTE:
C19-C20 PLC power cables enable Power Discovery Services communications
between HP BladeSystem c7000 Platinum Enclosure and HP Intelligent PDU cores.
QuickSpecs
HP Intelligent Power Distribution Unit (iPDU)
Overview
DA - 13650 Canada — Version 9 — March 7, 2014
Page 5
Page 6
Key Features
4.9kVA to 22kVA modular PDU core units
Unique modular design architecture
Up to 2 iPDU cores can be connected serially to work off of the same IP address or local
display
Small form factor with flexible mounting options
6 and 12 IEC C19 outlet models
IEC C19 outlets accept optional iPDU Extension Bars or direct IEC C20 cable connections for HP
BladeSystems Enclosures
Automatic 100mS per outlet start delay on Intelligent Extension Bar
User configurable restart delay by Intelligent Extension Bar outlet from 0-999 seconds
Secure Web Browser user interface.
Individual outlet control and monitoring on Intelligent Extension Bars
Individual outlet monitoring on iPDU core.
Easy installation
Consolidated cord management and retention
Easily accessible outlets
All outlets can be used with either Power Discovery Services (PDS) enabled power cables or
standard IEC jumper cables. Power Discovery Services requires PDS enabled power cables and
Common Slot Platinum or Platinum Plus Power Supplies with PLC connectors on ProLiant DL
servers or BLc Single Phase Intelligent Power Module equipped HP BladeSystem c7000
Platinum Enclosures.
Unique Modular Design
Architecture
Hp's Intelligent PDUs have a patented modular architecture that improves their flexibility. This "Building
block" concept consists of two main parts, the iPDU Core Unit, and the Extension Bar(s). The HP Intelligent
PDUs ship with one Core Unit, the mountable LED display and mounting hardware. The 6 outlet Core Unit is
zero-U or 1U rack mountable. The 12 outlet core unit is 2u rack mountable. Optional Extension Bars mount
directly to the rack-frame or the rack extension unit.
PDU Core Units
Each iPDU Core Unit incorporates an embedded web engine for remote monitoring and control and
includes the LED display unit for local monitoring of current at the rack.
Core units can be mounted in zero U configurations in HP 10000 series racks or in 1U configurations
in any industry standard rack.
Core units are available in a variety of single phase or three phase inputs to match any application.
Each core unit has individually monitored IEC C19 outlets that are individually protected by high
quality commercial grade breakers.
Each IEC C19 on the HP Intelligent PDU incorporates out of band power line communications (PLC)
technology to communicate with either the Standard Extension Bars or the Intelligent Extension
bars.
The iPDU extension bars can be plugged into the Core Unit, and can be mounted directly to the rack
frame, spanning the entire length of the rack.
LED Monitoring Display
Each Intelligent PDU Core Unit includes a LED Display for local monitoring of power consumption at
the rack.
LED Displays are mountable on the inside rear door of the rack.
LED Displays have an external alert indicator that is visible from the rear of the rack with doors
closed.
QuickSpecs
HP Intelligent Power Distribution Unit (iPDU)
Product Highlights
DA - 13650 Canada — Version 9 — March 7, 2014
Page 6
Page 7
LED Displays show power draw (amperage) at the iPDU and can scroll through individual C19 outlet
(load segments), and individual C13 outlets on the Intelligent Extension Bars.
All PDU Extension Bars (overview)
All iPDU Extension bars are sold in pairs.
Each Extension bar has five IEC C13 outlets for connection to external equipment.
Extension Bars can be mounted in the rear of the rack to ease cable management.
Individual extension bars do not extend into the maintenance zone between RETMA rails at the rear
of the rack.
Extension Bars have power indicators and UID LEDs
Extension bars have bright blue PLC IEC C20 input connectors for use with HP Intelligent PDU Core
Units.
Intelligent PDU Extension Bars G2
Each Intelligent Extension Bar is 5U in height and has 5 individually monitored and switchable IEC
C13 outlets.
Each IEC C13 outlet has a status indicator and UID LED that is activated when scrolling through the
local display unit or remotely via the embedded web engine.
Each IEC C13 on the Intelligent Extension Bar incorporates bright blue PLC connections to
communicate with HP Common Slot Platinum Power Supplies with PLC.
Standard IEC C14 jumper cables can be used with the Intelligent Extension bars for powering nonIPD enabled devices.
Each IEC C13 outlet on the Intelligent Extension Bar is capable of remote power cycling or remote
lock out to prevent unauthorized equipment from being installed in the rack.
Each IEC C13 outlet on the Intelligent Extension Bar has an automatic 100mS per outlet start delay
and can be user programmed for restart delays of up to 999 seconds on a per outlet basis.
The Intelligent Extension Bar G2 has an automatic outlet numbering systems that maintains
consistent outlet identification so that Outlet Number 1 will always be the top of the Extension Bar
independent of which side of the rack the Intelligent Extension Bar G2 is mounted on.
The inlet cable on the Intelligent Extension Bar G2 has been moved to the back of the bar to ease
installation and improve cable routing to the iPDU Core.
Standard PDU Extension Bars (non-intelligent)
Standard Extension Bars can be mounted side by side for high density or redundant applications.
Standard Extension bars are monitored as a single load segment of 5 x C13 outlets at the IEC C19
outlet on the Intelligent PDU Core Unit.
Standard Extension Bars have a power indicator and UID LED that is activated when scrolling
through the local display unit or remotely via the embedded web engine.
Power line communications (Power Discovery Services (PDS) enabled) power cables
Each PDS enabled power cable incorporates RS232 serial connections to enable Power Discovery
Services.
Power Discovery Services uses out of band power line communications to transfer server identity
information between the HP Common Slot Platinum Power Supplies and the HP Intelligent PDU's
Intelligent Extension Bars and automatically maps the server to outlets on the iPDU.
PDS enabled cables and connectors conform to standard IEC specifications and sizes.
When combined with HP ProLiant rack mount servers all outlets can be used with either PDS enabled
power cables or standard IEC jumper cables. Power Discovery Services requires PDS enabled power
QuickSpecs
HP Intelligent Power Distribution Unit (iPDU)
Product Highlights
DA - 13650 Canada — Version 9 — March 7, 2014
Page 7
Page 8
cables and Common Slot Platinum or Platinum Plus Power Supplies with PLC connectors on ProLiant
DL servers or BLc Single Phase Intelligent Power Module equipped HP BladeSystem enclosures such
as the c7000 Platinum Enclosures.
Available in a wide range of lengths for C13-C14 jumper cables for ProLiant servers and C19-C20
jumper cables for BladeSystems c7000 Platinum Enclosures. If cable management arms are used a
combination of 4.5ft and 6ft cables should be used to reach Intelligent Extension Bars mounted on
alternate sides of a rack up to 1 meter deep. A combination of 6ft and 8ft or 8ft and 10ft cables
should be used for deeper racks.
Accuracy, Precision, and
Reporting
Voltage accuracy within:
1% at 200-240 volt input
Current accuracy within:
1% >1A
3% 400mA-1A
5% 100mA-400mA
10% <100mA
Wattage accuracy within 1 watt at > 20mA
Precision
0.5 Second data collection for Voltage, Amperage, Wattage, VA, and Power Factor.
Reporting
2 digit local display for amperage by iPDU core, load segment, or individual Intelligent
Extension Bar outlet
Remote reporting of Voltage, Amperage, Wattage, VA, and Power Factor down to 0.01 amp,
0.1volt measured by load segment and by individual Intelligent Extension Bar outlet
Power Discovery Services
Power Discovery Services automatically senses new equipment as it is plugged into the iPDU to map
power connections and changes, insure redundancy, and configure iPDU and Systems Insight
Manager with minimal manual configuration reducing human errors that can cause unplanned
outages.
Automatic discovery -When ProLiant servers with Platinum or Platinum Plus Common Slot Power
Supplies are connected to an iPDU Intelligent Extension Bar using PDS Enabled power cables the
iPDU automatically records the server name, server type, iLO IP address, and the Unique Universal
Identification (UUID) number and maps the server to the connected outlets.
Assisted discovery - The iPDU will detect non PDS enabled and third party equipment when they are
plugged in and highlight the outlets on the management screens. Asset and identification
information for non PDS enabled and third party equipment must be manually entered into the iPDU
Management Screens.
Once stored the iPDU will detect and track changes in the power plug locations based on the UUID
information.
This information can be automatically forwarded to Insight Control eliminating human errors in
configuration and speeding implementation.
Unused Intelligent Extension Bar C13 outlets can be disabled globally with a button click to prevent
unplanned devices from using empty outlets and protect breakers.
QuickSpecs
HP Intelligent Power Distribution Unit (iPDU)
Product Highlights
DA - 13650 Canada — Version 9 — March 7, 2014
Page 8
Page 9
Redundancy and Grouping
Two iPDUs can be paired to 2 other iPDUs in the same rack for redundancy.
HP Intelligent Extension Bars connected to iPDU Cores enable outlet grouping on a single iPDU,
outlet pairing on redundant iPDUs, and power redundancy verification. All based on UUID
information obtained automatically.
Paired iPDUs can recognize redundant Platinum Common Slot Power Supplies in ProLiant servers
and ensure they are plugged into different iPDU Intelligent Extension bars on different iPDU cores
for true power redundancy.
Redundant Platinum Common Slot Power Supplies in ProLiant servers are automatically paired
across multiple grouped iPDUs or grouped on a single iPDU to ease management and reduce
potential errors during configuration.
Up 8 outlets can be paired together across multiple grouped iPDUs or grouped on a single
iPDU.
If iPDUs are paired outlets must be paired across both iPDUS and cannot be grouped on a
single iPDU.
If redundant Platinum Common Slot Power Supplies in ProLiant servers are not connected
correctly across multiple grouped iPDUs a redundancy failure warning will be issued by
flashing the outlet UID LEDs on the Intelligent Extension Bars and via SNMP and email alerts.
Paired outlets on grouped iPDUs can be power cycled simultaneously from either iPDU via a
single control button in the remote management interface.
Grouped outlets on a single iPDU can be power cycled simultaneously via a single control
button in the remote management interface. Automatically discovered servers and assisted
discovery devices benefit from all the redundancy management features
Security
SSL 3.0/TLS 1.0 (168 bit TLS-RSA-with-3DES-EDE-CBC-SHA data encryption). X.509 certificate
Certificate Authority (CA) or self-signed certificates can be uploaded
SNMP and email alerts
The iPDU provides detailed SNMP and email alerts showing alert origination by iPDU , load segment,
and outlet as well as alert description, value, and trigger.
The iPDU allows SNMP queries for data collection.
Configuration Options
Depending on the level of monitoring and control needed there are 3 basic configurations for the HP iPDU.
Core Only
: provide highly accurate power monitoring of each C19 outlet.
Core and Standard Extension bars
: Provides highly accurate power monitoring at the C19 level as a
load segment of five C13 outlets each.
Core and Intelligent Extension Bars
: provides highly accurate power monitoring and remote
switching of each individual C13 outlet on the Intelligent Extension Bars. This configuration also
enables Power Discovery Services when combined with the Common Slot Platinum or Platinum Plus
Power Supplies.
QuickSpecs
HP Intelligent Power Distribution Unit (iPDU)
Product Highlights
DA - 13650 Canada — Version 9 — March 7, 2014
Page 9
Page 10
PDS C13 Jumper Cable
Guidelines
Rack Depth
Recommended C13-C14 cable length
Left rear
Right rear
One meter or shorter with cable
management arms
4.5ft (1.37m)
6ft (1.83m)
One meter or shorter without
cable management arms
2.5ft (0.76m) 2.5ft (0.76m)
Deeper than one meter with
cable management arms
6ft (1.83m) 8ft (2.43m)
Deeper than one meter without
cable management arms
4.5ft (1.37m) 2.5ft (0.76m)
NOTE:
Recommended lengths are from server power supplies on the right rear of servers to
Intelligent Extension Bars mount at the same U height.
Easy Installation
Installation is quick and easy. Whether you choose to mount the Intelligent PDU core in zero-U or 1U, all
required mounting brackets, accessories, and installation instructions are shipped with the product. The
Extension Bars come with easy to use, snap-in brackets, which fit directly into the rack frame of HP 10000
G2, 11000 G2, and Intelligent Series racks.
Compatibility
Ideal for use with the 10000 G2, 11000 G2, and Intelligent Series Racks, the Intelligent PDUs are largely
designed for the dense rack environment. These Intelligent PDUs connect directly to the facility input
power.
Warranty
Standard three year warranty with first year including parts and labor. HP UPSs are backed by a standard
three year limited warranty; 3 year parts, 1 year Labor, 1 year onsite.
QuickSpecs
HP Intelligent Power Distribution Unit (iPDU)
Product Highlights
DA - 13650 Canada — Version 9 — March 7, 2014
Page 10
Page 11
Service and Support
HP Technology Services
HP Technology Services offers you consultants and support experts to solve your most complex
infrastructure problems. We help keep your business running, boost availability and avoid downtime.
Protect your business beyond warranty with HP Care Pack Services
When you buy HP Options, it's also a good time to think about what level of service you may need. HP Care
Pack services provide total care and support expertise with committed response choices designed to meet
your IT and business need.
Recommended HP Care Pack Services for optimal satisfaction with your HP product
Recommended Services
3-Year HP 24x7 4 hour Response, Hardware Support Onsite Service
Provides you with rapid remote support and if required an HP authorized representative who will arrive on
site any time and day of the year to begin hardware maintenance service within 4 hours of the service
request being logged.
http://h20195.www2.hp.com/V2/GetPDF.aspx/5982-6547EEE
HP ProLiant Server Hardware Installation
Provides for the basic hardware installation of HP branded servers, storage devices and networking
options to assist you in bringing your new hardware into operation in a timely and professional manner
http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-9356EN
Related HP Care Pack Services to enhance your HP product experience
Related Services
3-Year HP 6 hour Hardware Support Onsite Call-to-Repair Service
Provides an IT manager with a team of support specialists who will quickly begin troubleshooting the
system to help return the hardware to operating condition within 6 hours of the initial service request to
the HP Global Solution Center
http://h20195.www2.hp.com/V2/GetPDF.aspx/5982-6547EN
HP Proactive Select Service
Provides a flexible way to purchase HP best-in-class consultancy and technical services. You can buy
Proactive Select Service Credits when you purchase your hardware and then use the credits over the next
12 months.
http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA2-3842ENN
Insight Remote Support
Delivers secure remote monitoring and support for HP servers and storage, 24x7 at no additional cost.
Available as part of HP Warranty, Care Pack and Service Contract offers.
Parts and materials
HP will provide HP-supported replacement parts and materials necessary to maintain the covered
hardware product in operating condition, including parts and materials for available and recommended
engineering improvements. Supplies and consumable parts will not be provided as part of this service;
standard warranty terms and conditions apply. Parts and components that have exceeded their maximum
supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating
manual or the technical product data sheet will not be provided, repaired or replaced as part of this service.
Coverage
For ProLiant servers and storage systems, this service covers HP-branded hardware options qualified for
the server, purchased at the same time or afterward, internal to the enclosure, as well as external
monitors up to 22" and tower UPS products; these items will be covered at the same service level and for
the same coverage period as the server unless the maximum supported lifetime and/or the maximum
QuickSpecs
HP Intelligent Power Distribution Unit (iPDU)
Service and Support
DA - 13650 Canada — Version 9 — March 7, 2014
Page 11
Page 12
usage limitation has been exceeded. Coverage of the UPS battery is not included; standard warranty terms
and conditions apply.
The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives
replaced by HP due to malfunction. It does not apply to any exchange of Disk or SSD/Flash Drives that have
not failed. SSD/Flash Drives that are specified by HP as consumable parts and/or that have exceeded
maximum supported lifetime and/or the maximum usage limit as set forth in the manufacturer's operating
manual or the technical data sheet are not eligible for the defective media retention service feature option.
For more information
To learn more on services for HP ESSN Options, please contact your HP sales representative or HP
Authorized Channel Partner. Or visit:
http://www.hp.com/services/proliant
or
www.hp.com/services/bladesystem
QuickSpecs
HP Intelligent Power Distribution Unit (iPDU)
Service and Support
DA - 13650 Canada — Version 9 — March 7, 2014
Page 12
Page 13
Model Selection Matrix
Intelligent PDU 6 outlet core only units
4.9 kVA iPDU
Core
8.3 kVA iPDU
Core
8.6 kVA iPDU
Core
14.4kVA iPDU
Core
17.3 kVA
iPDU Core
7.3 kVA iPDU
Core
11 kVA iPDU
Core
22kVA iPDU
Core
Part Number
AF520A AF521A AF522A AF533A AF523A AF525A AF526A AF527A
Input
Connection
(Single Input)
3.6m input
cord with L6-
30P
3.6m input
cord with
Non-NEMA
Locking
CS8265C, 50A
3.6m input
cord with
NEMA L15-
30P
3.6m input
cord with
Non-NEMA
Locking
CS8365C, 50A
3.6m input
cord with IEC60309 3 pole,
4 wire 200-
240VAC 60A
Waterproof
3.6m input
cord with IEC
60309-32A
Splashproof
3.6m input
cord with IEC60309 4 pole,
5 wire, 380-
415VAC, 16A,
Splashproof
3.6m input
cord with IEC60309 4 pole,
5 wire, 380-
415VAC, 32A,
Splashproof
Facility
power
connection
NEMA L6-30R
Non-NEMA
CS8264C or
CS8269, 50A
or equivalent
NEMA
L15-30R 200-
208V
3 phase
3 pole 4 wire
Delta
CS8364C,
CS8369, or
equivalent
200-208V
3 phase
3 pole 4 wire
Delta
IEC 460C9W,
460R9W, or
equivalent
IEC60309
3 pole, 4 wire,
200-208VAC
60A
3 Phase Delta
IEC 332C6S,
332R6S, or
equivalent
IEC60309
2 pole, 3 wire,
200- 240VAC,
32A
IEC 516C6S,
516R6S, or
equivalent
IEC60309
4 pole,
5 wire,
380-415 VAC,
16A
3 Phase Wye
IEC 532C6W,
532R6W, or
equivalent
IEC60309
4 pole,
5 wire,
380-415 VAC,
32A
3 Phase Wye
Output
Connections
on iPDU core
6 IEC 320 C-196 IEC 320 C-196 IEC 320 C-196 IEC 320 C-196 IEC 320 C-196 IEC 320 C-196 IEC 320 C-196 IEC 320 C-
19
Extension
Bars
Optional on all Core Only Models, maximum 3 pair per iPDU Core
Current (max)
24A 40A
41.52A
69A
83.04A
32A
16A/Phase
32A /phase
AC Voltage
Range
200-208V 200-208V 200-208V
3 Phase Delta
200-208V
3 Phase Delta
200-208V
3 Phase Delta
200-240V 380-415V
3 Phase Wye
380-415V
3 Phase Wye
Frequency
(Hertz)
60Hz 60Hz 60Hz 60Hz 60Hz 50Hz 50Hz 50Hz
Load Capacity
(VA)
4992
(@208V)
8320
(@208V)
8600
(@208V)
14393
(@208V)
17272
(@208V)
7360
(@230V)
11000
(@400v)
22000
(@400V)
Output
Circuit
Breakers
6 X 20A 6 X 20A 6 X 20A 6 X 20A 6 X 20A 6 X 16A 6 X 16A 6 X 16A
Overload
Protection
Yes, per individual IEC C19 outlet on Core Unit
Intelligent PDU core only units, 415 Volt North America Models
QuickSpecs
HP Intelligent Power Distribution Unit (iPDU)
Intelligent PDU Family Information
DA - 13650 Canada — Version 9 — March 7, 2014
Page 13
Page 14
11.5 kVA iPDU Core 17.3 kVA iPDU Core 17.3 kVA iPDU Core
Part Number
AF900A AF901A AF902A
Input Connection (Single Input)
3.6m input cord with NEMA L2220P
3.6m input cord with IEC 530P6S
Splashproof
3.6m input cord with NEMA L2230P
Facility power connection
NEMA 22-20R
400-415 VAC
30A 3 Phase Wye
IEC 530C6S or equivalent
IEC60309 4 pole, 5 wire, 380-
400-415 VAC
30A 3 Phase Wye
NEMA L22-30R
400-415 VAC, 30A 3 Phase Wye
Output Connections on iPDU
core
6 IEC 320 C-19 6 IEC 320 C-19 6 IEC 320 C-19
Extension Bars
Optional on all Core Only Models, maximum 3 pair per iPDU Core
Current (max)
27.71A 41.52A 41.52A
AC Voltage Range
380-415V 3 Phase Wye 380-415V 3 Phase Wye 380-415V 3 Phase Wye
Frequency (Hertz)
60Hz 60Hz 60Hz
Load Capacity (VA)
11,500 (@415V) 17,250 (@415V) 17,250 (@415V)
Output Circuit Breakers
6 X 20A 6 X 20A 6 X 20A
Overload Protection
Yes, per individual IEC C19 outlet on Core Unit
Intelligent PDU 12 outlet core only units
17.3 kVA 208V iPDU Core 17.3 kVA 415V iPDU Core
22 kVA 400V iPDU Core
Part Number
AF535A AF537A AF538A
Input Connection (Single Input)
3.6m input cord with IEC-60309
3 pole, 4 wire 200-240VAC 60A
Waterproof
3.6m input cord with IEC 530P6S
Splashproof
3.6m input cord with IEC-60309
4 pole, 5 wire, 380-415VAC, 32A,
Splashproof
Facility power connection
IEC 460C9W, 460R9W, or
equivalent
IEC60309 3 pole, 4 wire,
200-208VAC 60A 3 Phase Delta
IEC 530C6S or equivalent
IEC60309 4 pole, 5 wire, 380-
400-415 VAC, 30A 3 Phase WYE
IEC 532C6W, 532R6W, or
equivalent
IEC60309 4 pole, 5 wire
380-415 VAC, 32A 3 Phase Wye
Output Connections on iPDU
core
12 IEC 320 C-19 12 IEC 320 C-19 12 IEC 320 C-19
Extension Bars
Optional on all Core Only Models, maximum 6 pair per iPDU Core
Current (max)
83.04A 41.52A
32A /phase
AC Voltage Range
200-208V
3 Phase Delta
380-415V 3 Phase Wye 380-415V 3 Phase Wye
Frequency (Hertz)
60Hz 60Hz 50Hz
Load Capacity (VA)
17292 (@208V)
17,250 (@415V)
22000 (@400V)
Output Circuit Breakers
12 X 20A 12 X 20A 12 X 16A
Overload Protection
Yes, per individual IEC C19 outlet on Core Unit
Intelligent PDU Kits (includes 4 Standard (non-intelligent) Extension bars)
QuickSpecs
HP Intelligent Power Distribution Unit (iPDU)
Intelligent PDU Family Information
DA - 13650 Canada — Version 9 — March 7, 2014
Page 14
Page 15
4.9 kVA iPDU Kit 8.6 kVA iPDU Kit 7.3 kVA iPDU Kit
Part Number
AF531A AF532A AF534A
Input Connection (Single Input)
3.6m input cord with L6-30P
3.6m input cord with NEMA L1530P
3.6m input cord with IEC 6030932A Splashproof
Facility power connection
NEMA L6-30R
200-208V
NEMA L15-30R
208V 3 phase 3 pole 4 wire Delta
IEC 332C6S, 332R6S, or
equivalent IEC60309 2 pole, 3
wire, 200- 240VAC, 32A
Output Connections on iPDU
core
6 IEC 320 C-19 6 IEC 320 C-19 6 IEC 320 C-19
Extension Bars
4 Standard Extension Bars w/ 5x
C13 each
4 Standard Extension Bars w/ 5x
C13 each
4 Standard Extension Bars w/ 5x
C13 each
Total outlets
20 x IEC C13, 2x IEC C19
Current (max)
24A
41.52A
32A
AC Voltage Range
200-208V
208V 3 Phase Delta
220-240V
Frequency (Hertz)
60Hz 60Hz 50Hz
Load Capacity (VA)
4992 (@208V) 8600 (@208V) 7360 (@230V)
Output Circuit Breakers
6 X 20A 6 X 20A 6 X 16A
Overload Protection
Yes, per individual IEC C19 outlet
HP Power Cables
Cable
Description
Part Number
IEC C-13
4.5 ft (1.37 m), x15
HP C13 - C14 WW 250V 10Amp 1.4m 15 pc Jumper Cord
142257-007
4.5 ft (1.37 m), x1
HP C13 - C14 WW 250V 10Amp 1.4m Jumper Cord
142257-006
1.6 ft (0.5m) x1
HP C13 - C14 WW 250V 10Amp 0.7m Jumper Cord
142257-B28
8 ft (2.5m) x1
HP C13 - C14 WW 250V 10Amp 2.5m Jumper Cord
142257-002
NOTE:
Standard power cables and jumpers do not support Power Line Communications
or Power Discovery Services.
IEC C-19
8 ft (2.5m) x 1
HP C19 - C20 WW 250V 16Amp 2.5m Jumper Cord
295633-B22
NOTE:
Standard power cables and jumpers do not support Power Line Communications
or Power Discovery Services.
Please refer to the Power Cord Matrix for more information on power cords/cable part numbers, input/output descriptions.
http://www.hp.com/go/powercordmatrix
.
Disclaimer:
HP makes no recommendations regarding power connector manufactures. The model numbers listed in the above tables
are strictly for the purpose of providing examples. Please consult a licensed professional to determine the best connector or receptacle
for your specific needs.
QuickSpecs
HP Intelligent Power Distribution Unit (iPDU)
Intelligent PDU Family Information
DA - 13650 Canada — Version 9 — March 7, 2014
Page 15
Page 16
Shipping Weight
6 outlet: 20.2 lb (9.16 kg), 12 outlet: 36.4 lb (16.51 kg)
Operating Temperature
50° to 122° F (10° to 50° C)
Operating Relative Humidity (%)
10% to 90%
Operating Elevation
0 to 10,000 ft (0 to 3048 m)
Storage Temperature
-4° to 140° F (-20° to 60° C)
Storage Relative Humidity (%)
5% to 95%
Storage Elevation
0 to 30,000 ft (0 to 9144 m)
Input Plug Length
142 inches (360.7 cm)
Conformance Standards
UL, CUL, CE, NOM, D - 16A and 40A models
UL, CUL, NOM - 24A High and Low voltage models
CE, D - 32A model
Mechanical Dimensions (WxHxD), 6 outlet cores
17.5 x 1.62 x 7.5 in (44.45 x 4.11 x 19.22 cm)
Unit Weight, 6 outlet cores
20 lb (9.07 kg)
Shipping Dimensions (WxHxD), 6 outlet cores
21.5 x 12.25 x 15.0 in (54.61 x 31.12 x 38.1 cm)
Shipping Weight, 6 outlet cores
22.2 lb (10.07 kg)
Mechanical Dimensions (WxHxD), 12 outlet cores
17.5 x 3.28 x 7.5 in (44.45 x 8.4 x 19.22 cm)
Unit Weight, 12 outlet cores
32 lb (14.52 kg)
Shipping Dimensions (WxHxD), 12 outlet cores
21.5 x 12.9 x 18.2 in (54.61 x 32.76 x 46.3 cm)
Shipping Weight, Outlet cores
36.4 lb (16.51 kg)
Kit Contents
iPDU Core Unit, Rear mount LED Display, mounting brackets, Serial cables
All iPDU Core Units
All models ship with:
0U/1U Mounting brackets/hardware for Control Unit
Cord Retention bracket for the Control Unit
Tie wraps
Install Card
Sku Specific Kit Contents
AF531A, AF532A
Include iPSU Core Unit, LED Display, and 4 standard (non-intelligent)
Extension bars plus all mounting hardware.
QuickSpecs
HP Intelligent Power Distribution Unit (iPDU)
Technical Specifications
DA - 13650 Canada — Version 9 — March 7, 2014
Page 16
Page 17
Environment-friendly
Products and Approach
End-of-life Management
and Recycling
Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling
programs in many geographic areas. For trade-in information, please go to:
http://www.hp.com/go/green
. To recycle your product, please go to:
http://www.hp.com/go/green
or contact your nearest HP sales office.
Products returned to HP will be recycled, recovered or disposed of in a
responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide
treatment information for each product type for use by treatment facilities.
This information (product disassembly instructions) is posted on the Hewlett
Packard web site at:
http://www.hp.com/go/green
. These instructions may be
used by recyclers and other WEEE treatment facilities as well as HP OEM
customers who integrate and re-sell HP equipment.
© Copyright 2014 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.
QuickSpecs
HP Intelligent Power Distribution Unit (iPDU)
Technical Specifications
DA - 13650 Canada — Version 9 — March 7, 2014
Page 17
Loading...
