HP Integrity Superdome 2 Onboard
Administrator User Guide
Abstract
This user guide provides information on the initial setup and operation of the HP Integrity Superdome 2 Onboard Administrator,
including installation Onboard Administrator modules, and it also covers use of the Onboard Administrator GUI, the use of the
enclosure Insight Display, and the use of the Door Status Display. This document is for the person who installs, administers,
and troubleshoots servers and storage systems.
HP Part Number: AH337-9001A_ed3
Published: January 2011
Edition: 3
Page 2
© Copyright 2010, 2011 Hewlett-Packard Development Company, L.P.
Notices
The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express
warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall
not be liable for technical or editorial errors or omissions contained herein.
Confidential computer software. Valid license from HP required for possession, use or copying. Consistent with FAR 12.211 and 12.212, Commercial
Computer Software, Computer Software Documentation, and Technical Data for Commercial Items are licensed to the U.S. Government under
vendor's standard commercial license.
Microsoft, Windows, and Windows Server are U.S. registered trademarks of Microsoft Corporation. Java is a US trademark of Sun Microsystems,
Inc. UNIX is a registered trademark of the Open Group.
Revision History
Publication DateEditionHP Part Number
August 2010FirstAH337-9001A
November 2010SecondAH337-9001A_ed2
January 201ThirdAH337-9001A_ed3
Page 3
Contents
1 Introduction...............................................................................................8
Overview................................................................................................................................8
Access requirements................................................................................................................10
Onboard Administrator overview..............................................................................................11
Detecting component insertion and removal..........................................................................11
Identifying components.......................................................................................................11
Managing power and cooling.............................................................................................11
Controlling components......................................................................................................12
Managing partitions..........................................................................................................12
Interfaces...............................................................................................................................12
Onboard Administrator user interfaces..................................................................................13
Onboard Administrator authentication..................................................................................13
Running Onboard Administrator for the first time.........................................................................14
Logging on to the Onboard Administrator GUI...........................................................................15
Running the setup wizard.........................................................................................................15
Using online help...................................................................................................................16
Changing enclosure and device configurations...........................................................................17
Recovering the administrator password......................................................................................17
2 HP Integrity Superdome 2 Insight Display....................................................18
HP Integrity Superdome 2 Insight Display components.................................................................18
Insight Display overview..........................................................................................................18
Running the Insight Display installation......................................................................................19
Navigating the Insight Display..................................................................................................22
Health Summary screen......................................................................................................24
Enclosure Settings screen....................................................................................................25
Enclosure Info screen..........................................................................................................26
Blade and Port Info screen...................................................................................................27
Turn Enclosure UID On/Off screen.......................................................................................28
View User Note screen.......................................................................................................29
Chat Mode screen.............................................................................................................29
Insight Display errors...............................................................................................................30
Power errors......................................................................................................................30
Cooling errors...................................................................................................................30
Location errors...................................................................................................................31
Configuration errors...........................................................................................................31
Device failure errors...........................................................................................................31
3 HP Superdome 2 Door Status Display.........................................................32
Before running Door Display setup............................................................................................32
Setting up the Door Display.....................................................................................................32
Door Display status menu....................................................................................................36
Display Settings menu........................................................................................................38

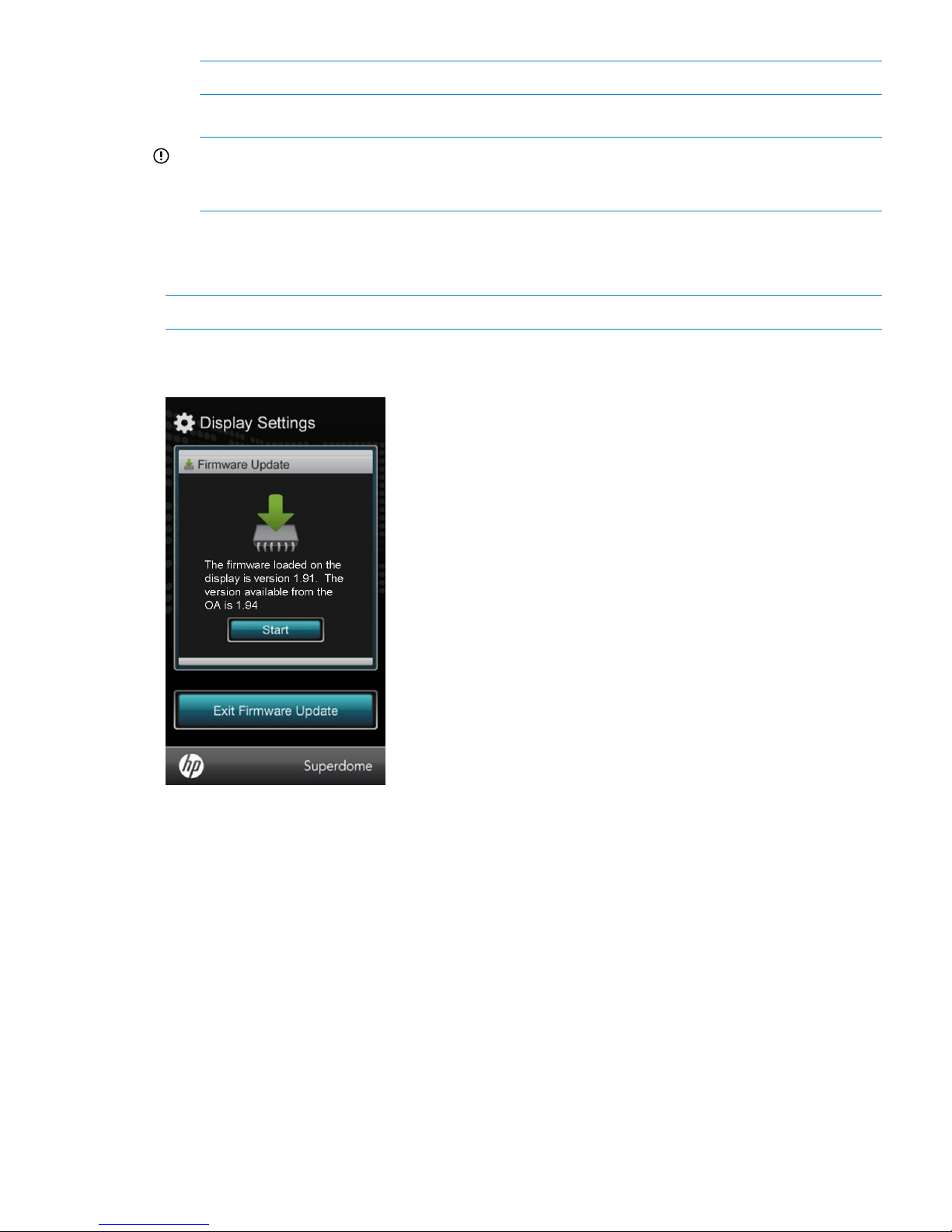

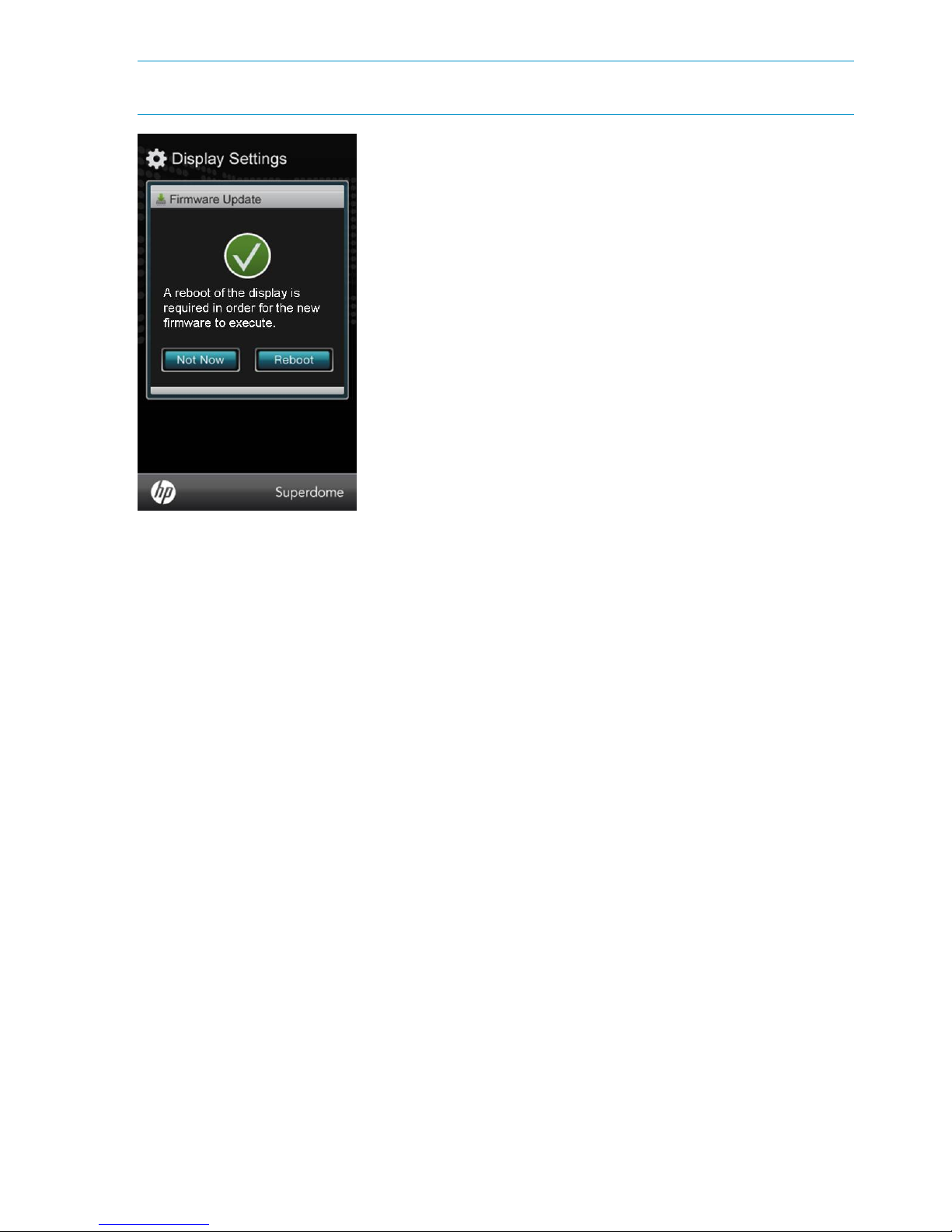

Firmware Update menu.......................................................................................................39
4 First Time Setup Wizard............................................................................41
Before you begin....................................................................................................................41
User preferences.....................................................................................................................41

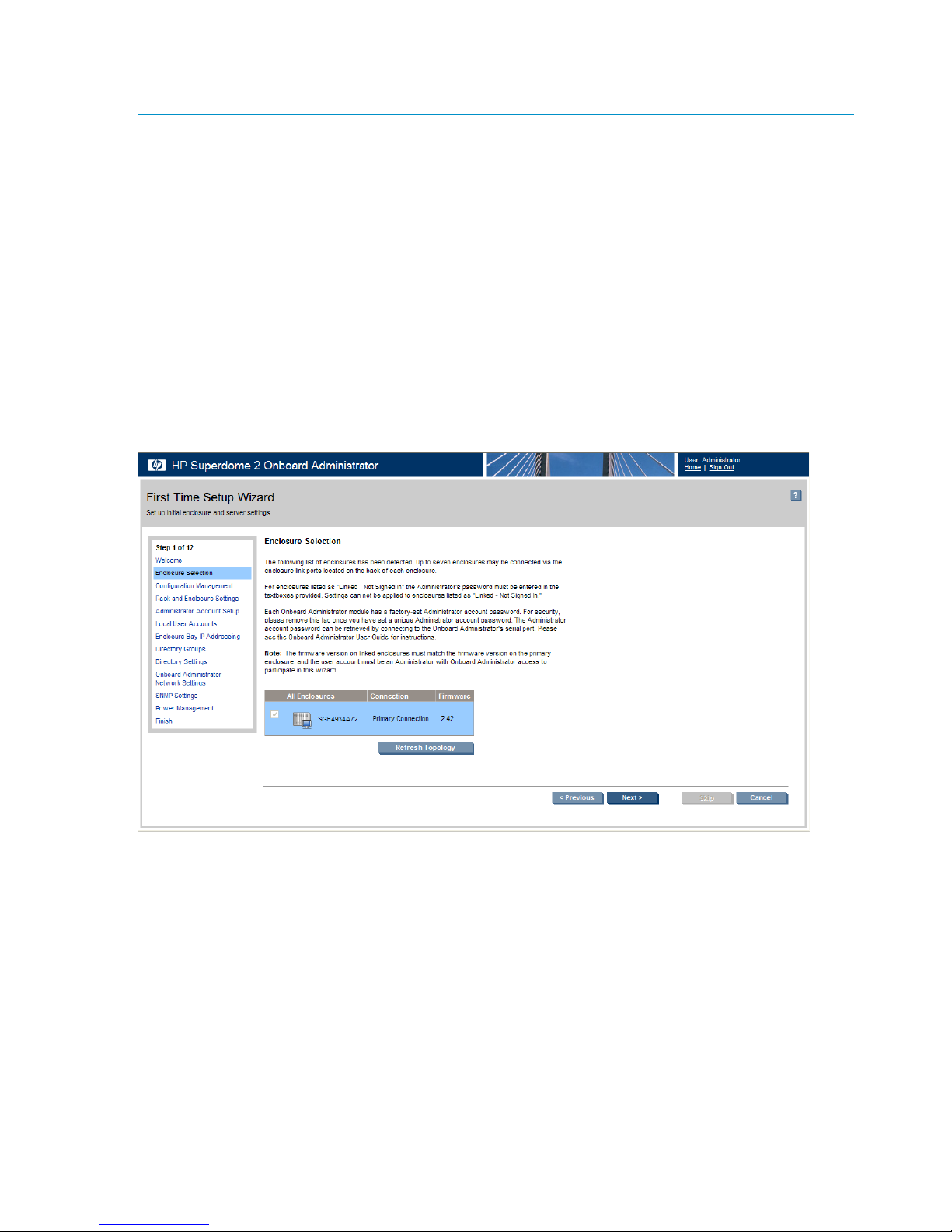

Enclosure Selection screen.......................................................................................................42

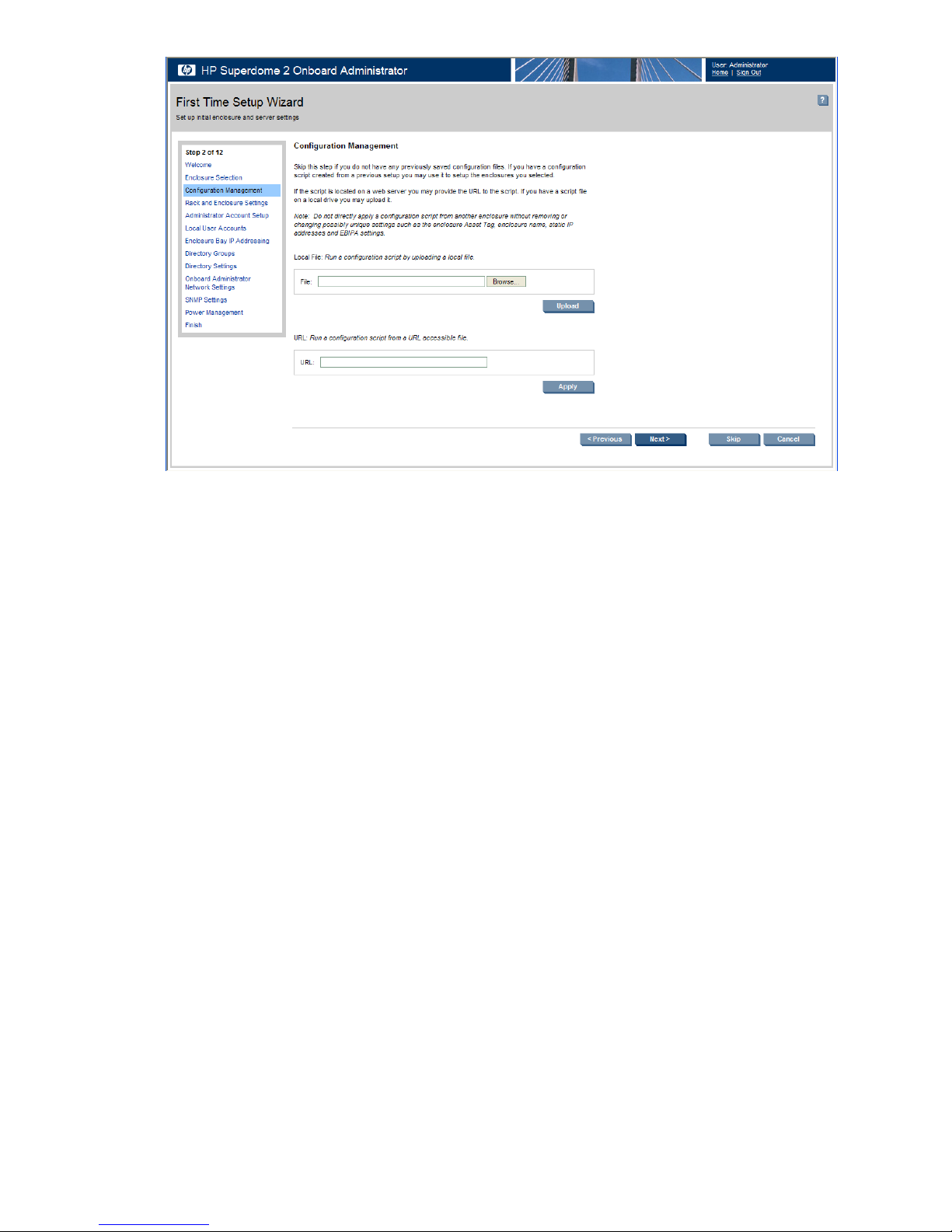

Configuration Management screen...........................................................................................42
Rack and Enclosure Settings screen...........................................................................................43

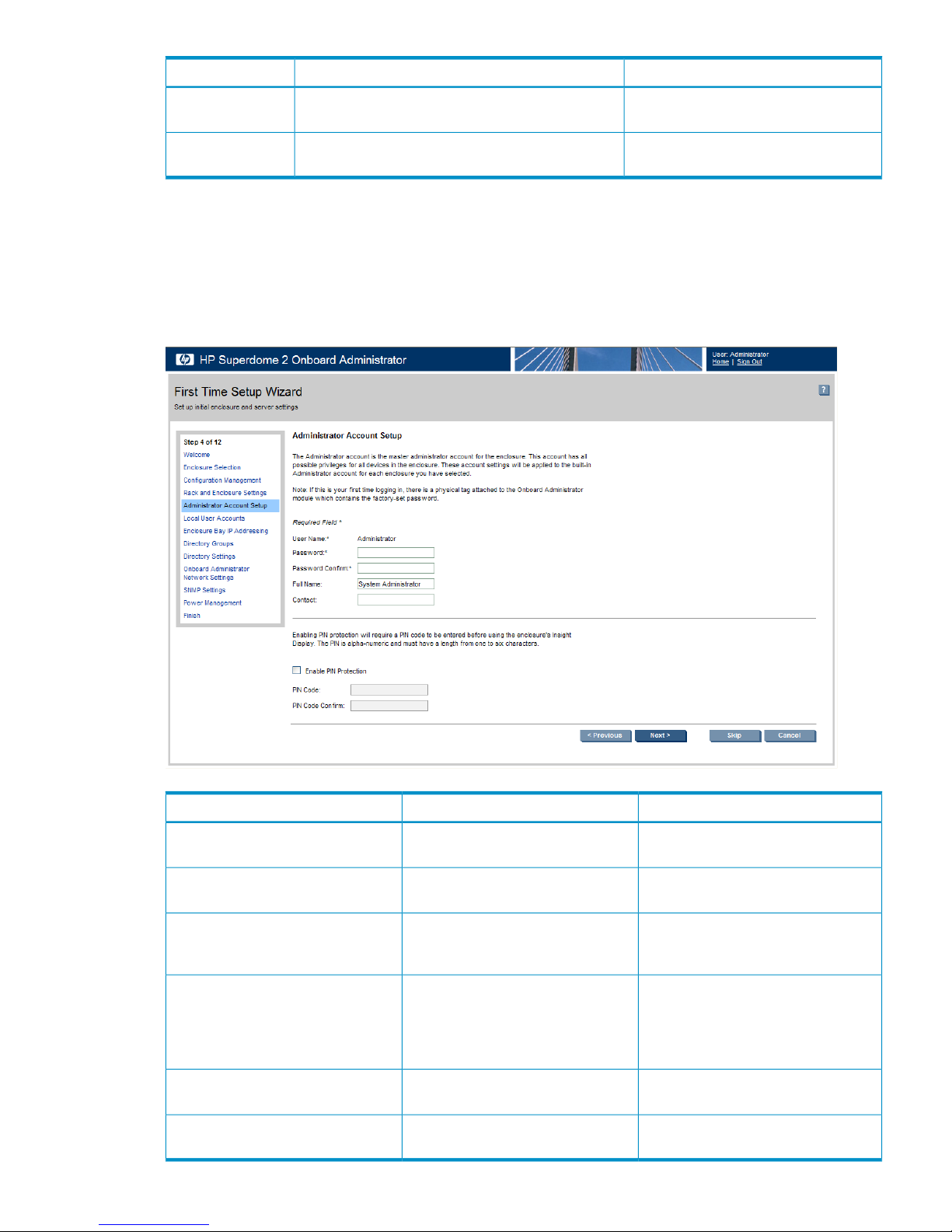

Administrator Account Setup screen..........................................................................................45
Local User Accounts screen......................................................................................................46
Contents 3
Page 4

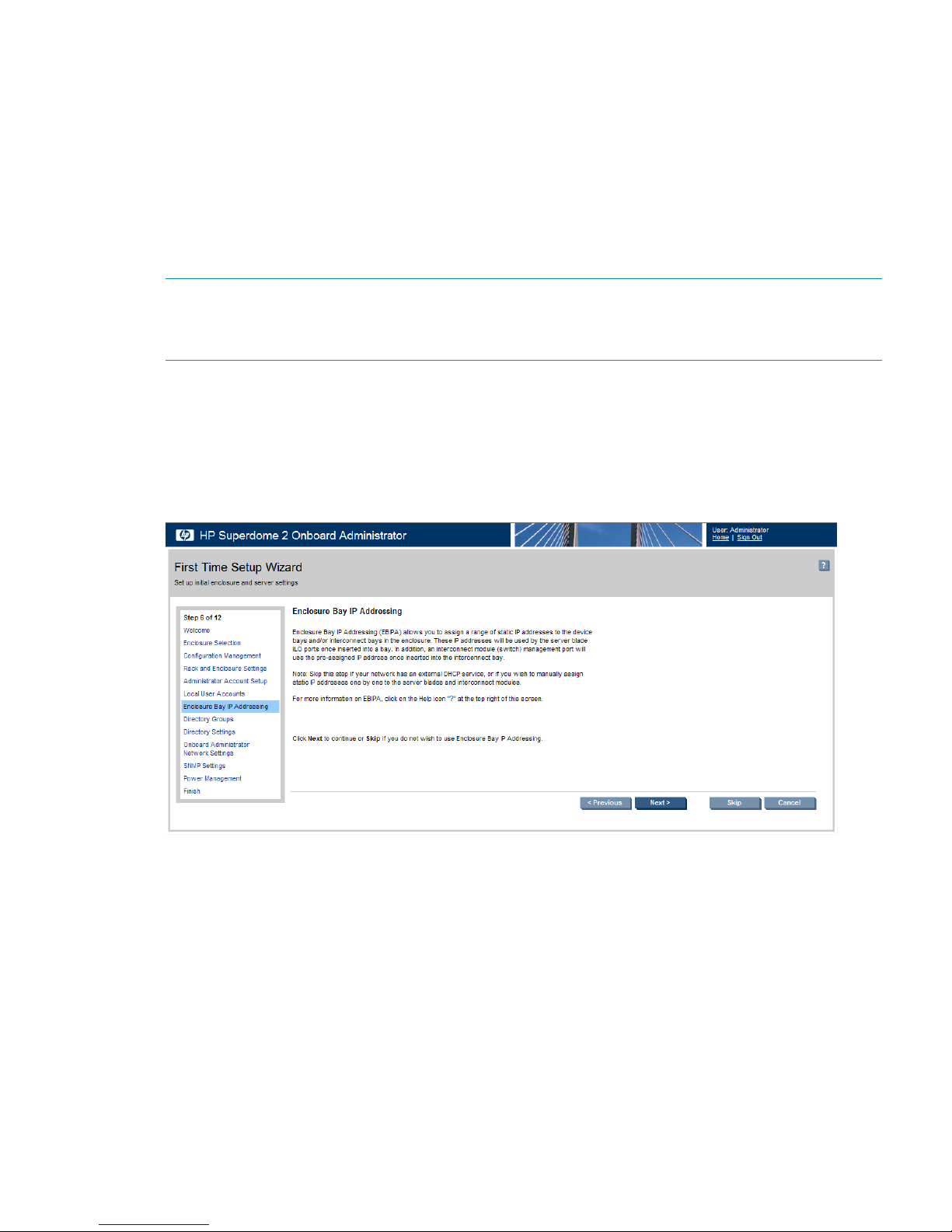

Enclosure Bay IP Addressing screen...........................................................................................47
Directory Groups screen..........................................................................................................48
Directory Settings screen..........................................................................................................49
Onboard Administrator Network Settings screen.........................................................................50
SNMP Settings screen.............................................................................................................50

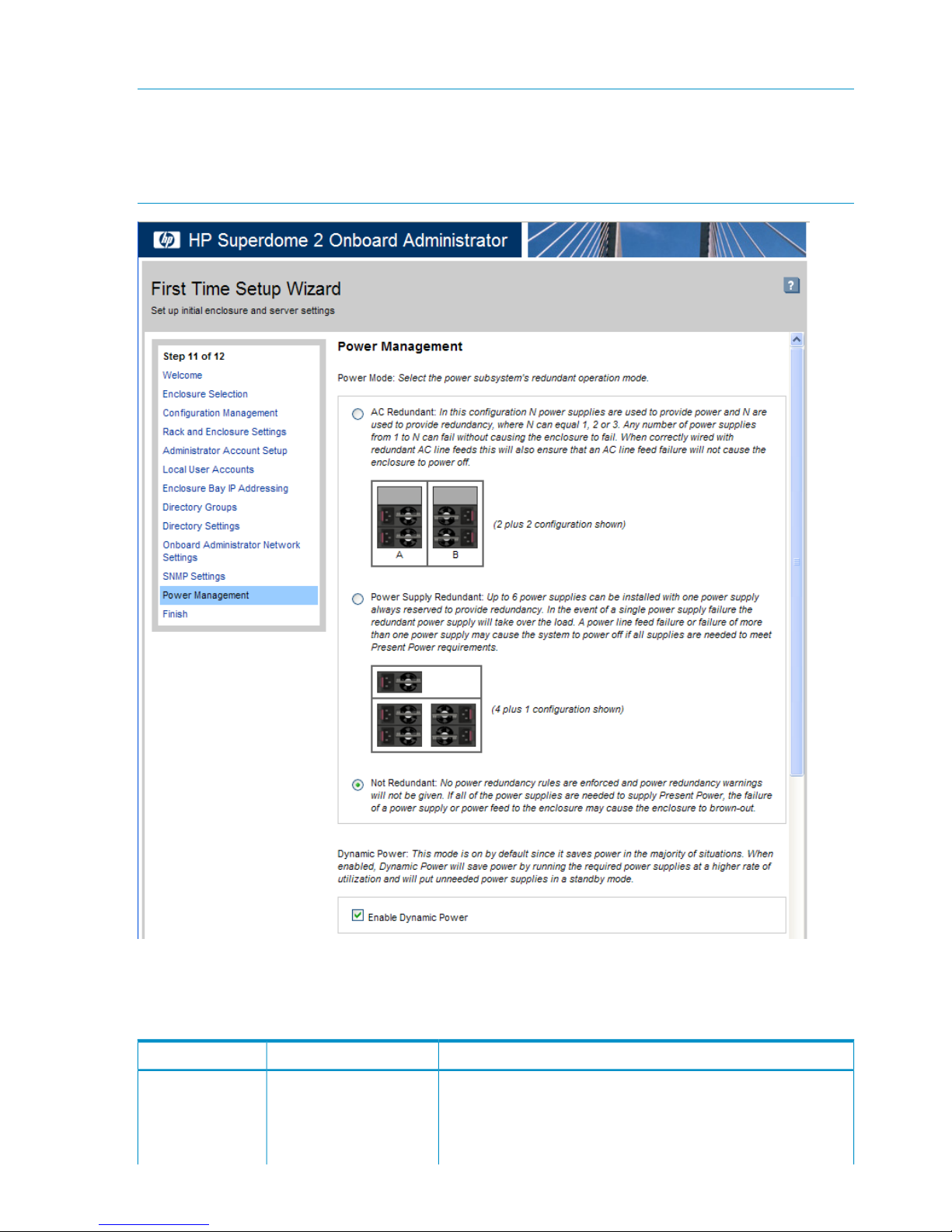

Power Management screen......................................................................................................52

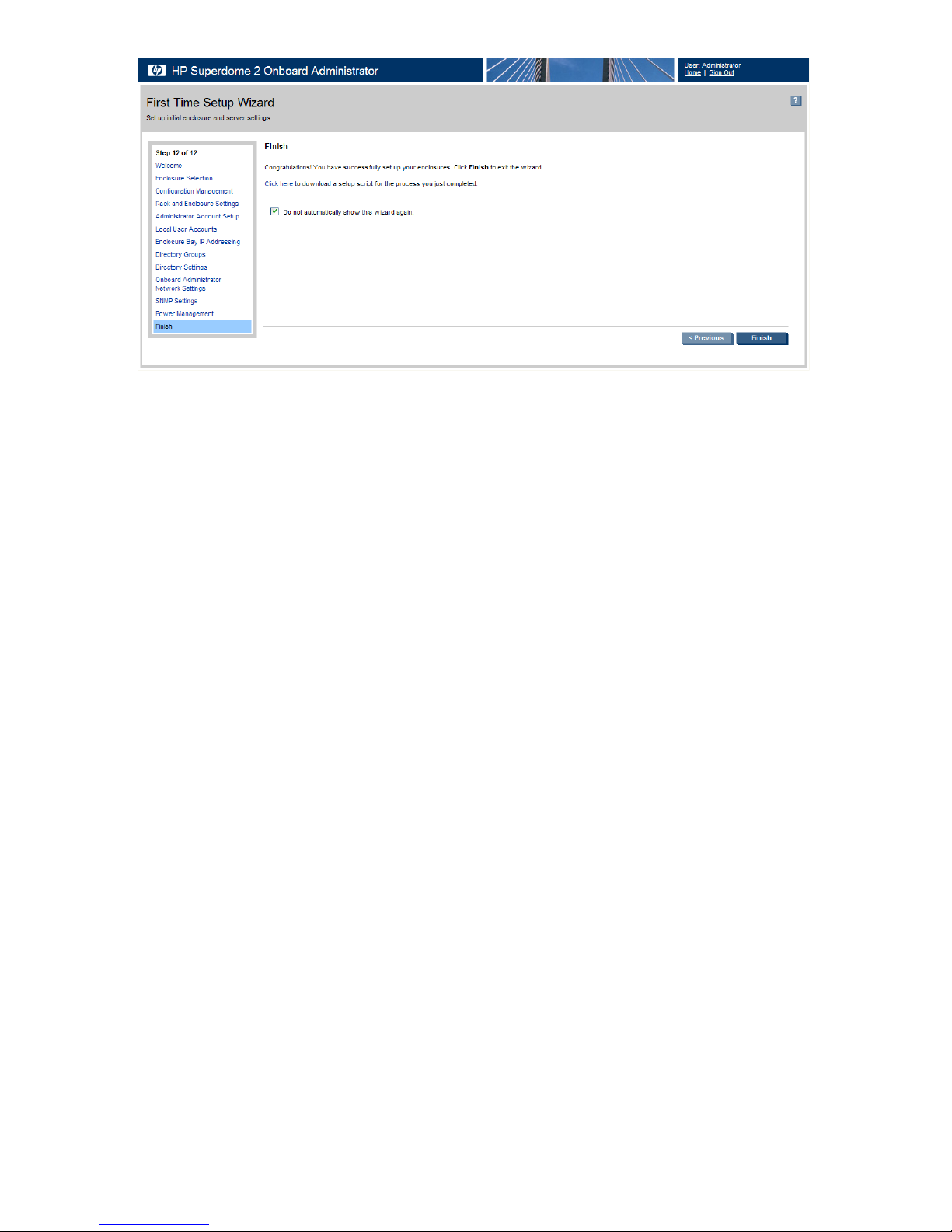

Finish....................................................................................................................................53
5 Navigating Onboard Administrator............................................................55
Navigation overview...............................................................................................................55
Tree view..........................................................................................................................55
Graphical view navigation..................................................................................................57
6 Complex Overview...................................................................................60
Complex Overview screen.......................................................................................................60
Compute Enclosures tab......................................................................................................60
Power and Thermal tab.......................................................................................................61
Complex Information screen.....................................................................................................62
Status tab.........................................................................................................................62
Information tab..................................................................................................................64
Complex Logs tab..............................................................................................................65

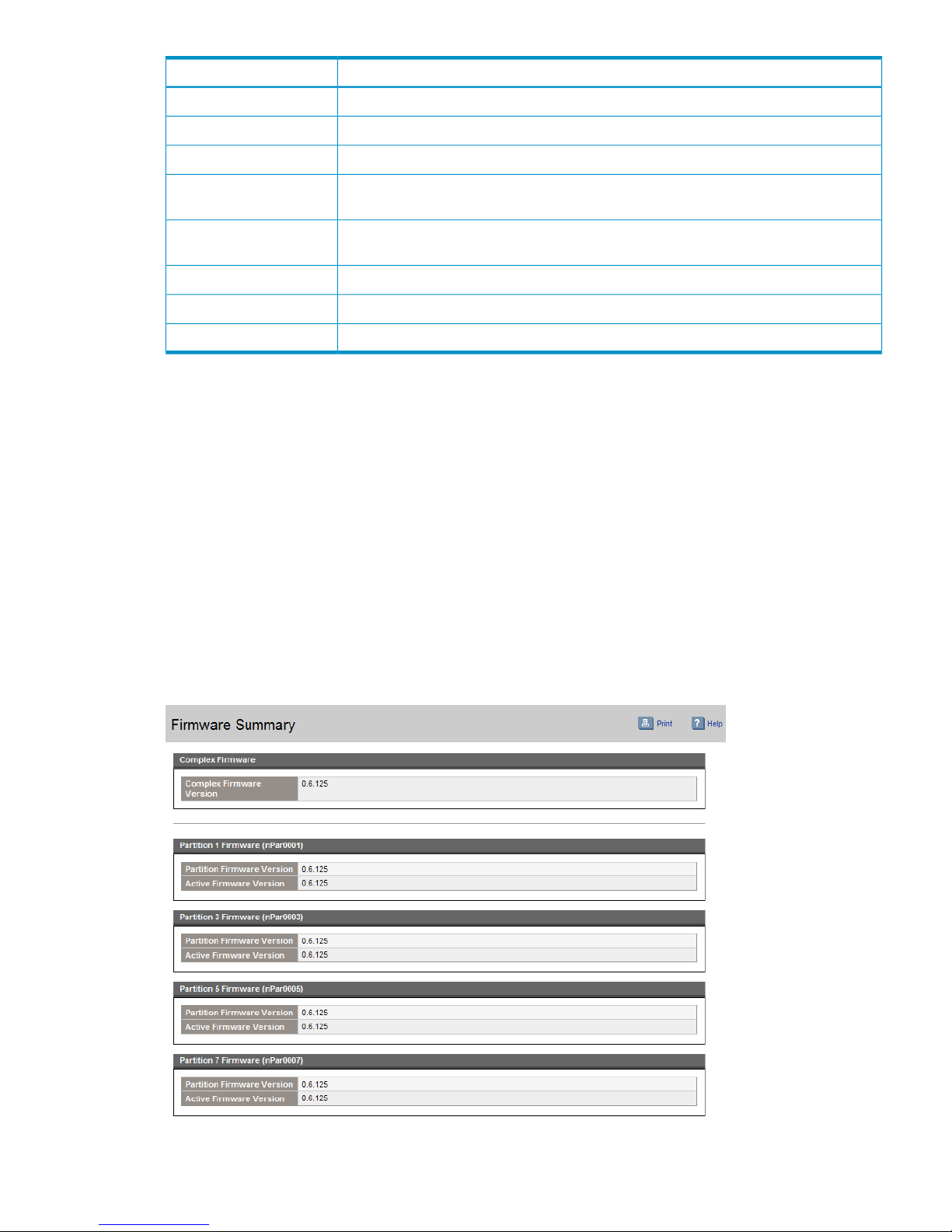

Complex Firmware Summary screen..........................................................................................65
Firmware Update screen..........................................................................................................66
Enclosure DVD Module screen..................................................................................................68
7 Configuring HP Integrity Superdome 2 compute enclosures and enclosure
devices......................................................................................................70
Viewing the status screens........................................................................................................70
Enclosure settings...................................................................................................................71
Enclosure Settings screen....................................................................................................71
Enclosure Information tab...............................................................................................73
AlertMail screen................................................................................................................74
Device Power Sequence Device Bays tabs.............................................................................76
Device Power Sequence Interconnect Bays tab...................................................................78
Date and Time screen.........................................................................................................78
Enclosure TCP/IP Settings screen..........................................................................................79
Network Access screen.......................................................................................................80
Trusted Hosts tab...........................................................................................................81
Anonymous Data tab.....................................................................................................81
Link Loss Failover screen......................................................................................................81

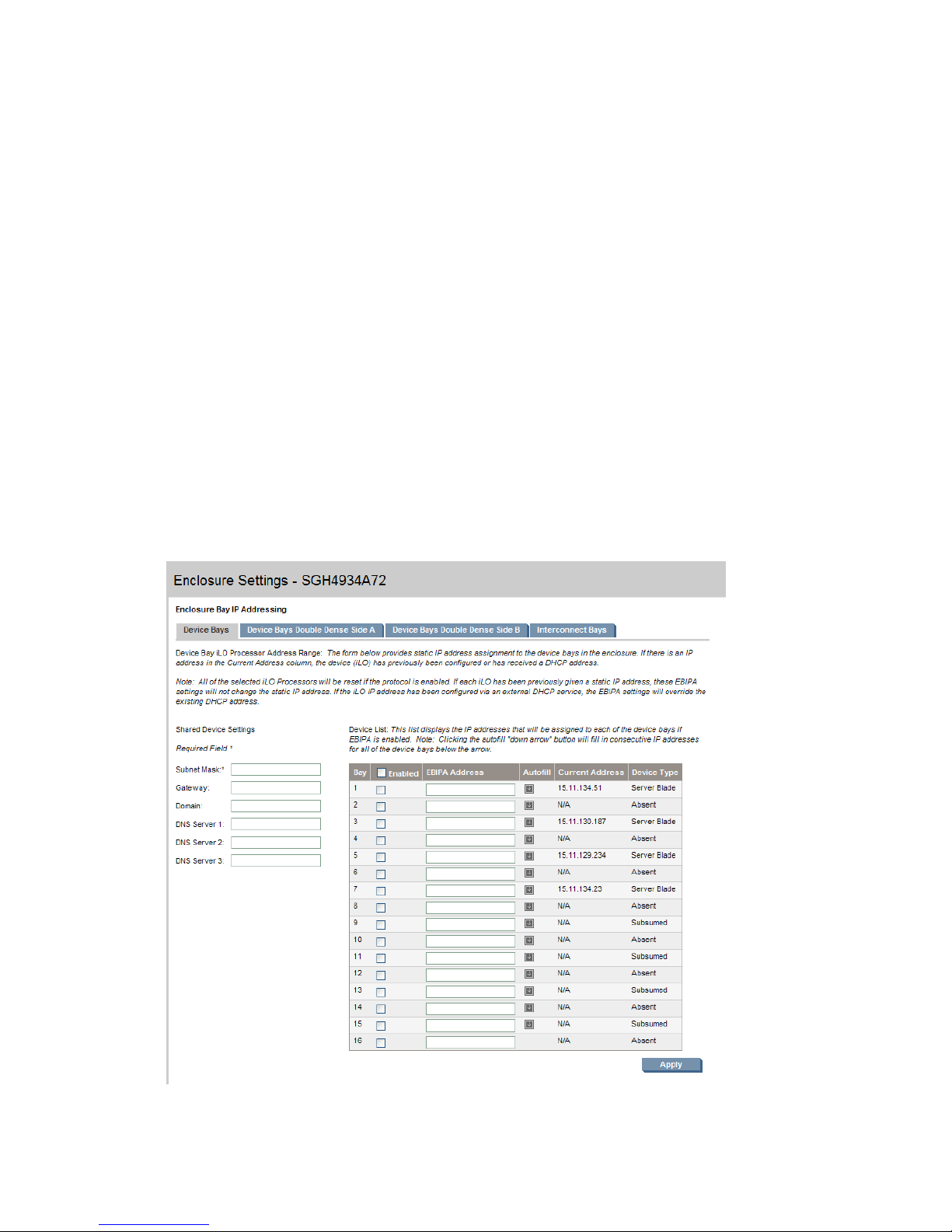

Enclosure Bay IP Addressing screen......................................................................................82
SNMP Settings screen........................................................................................................84

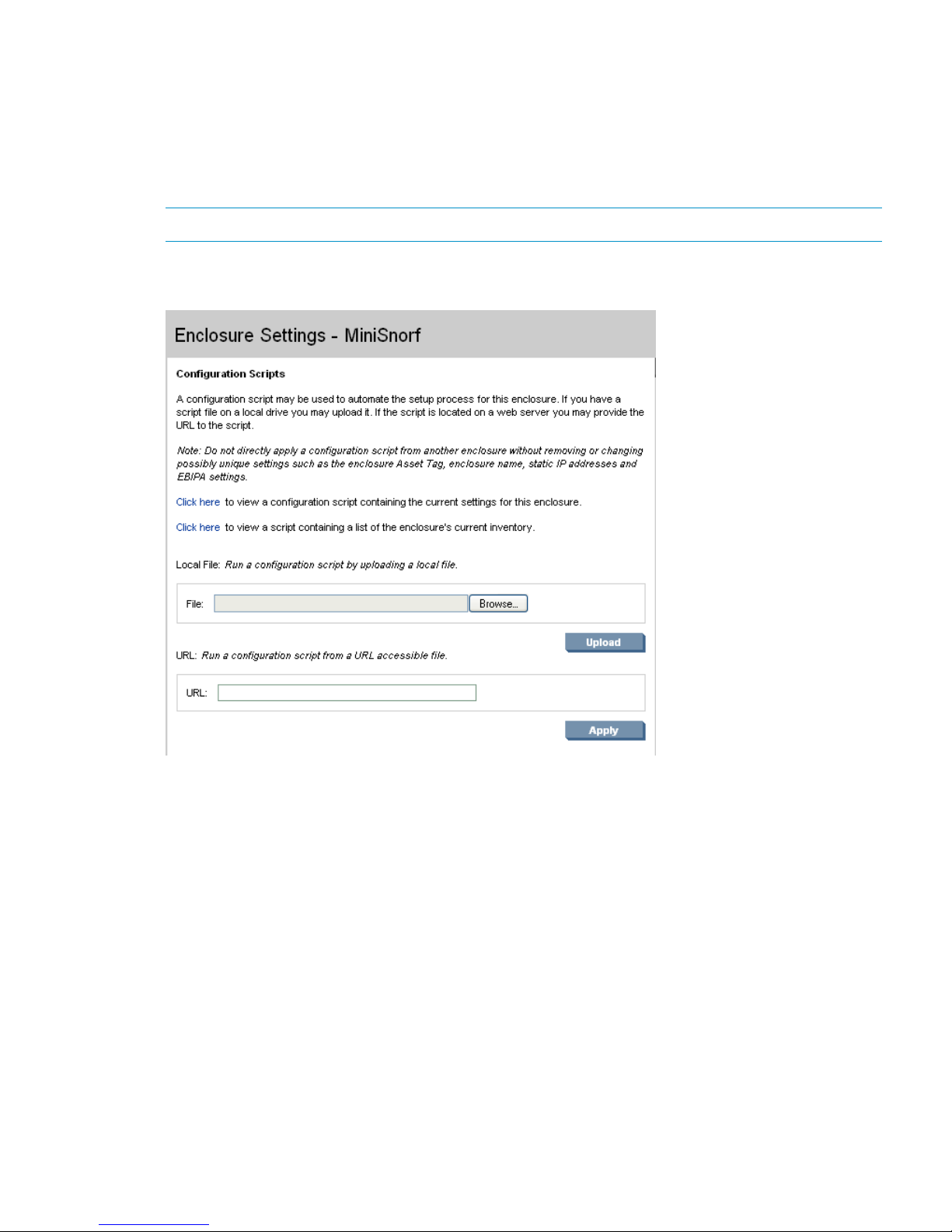

Configuration Scripts screen................................................................................................86
Device Summary screen......................................................................................................87
Active to Standby screen.....................................................................................................88
Onboard Administrator Module................................................................................................88
Active Onboard Administrator screen...................................................................................88
Active Onboard Administrator Status and Information tab...................................................89
Active Onboard Administrator Virtual Buttons tab..............................................................90

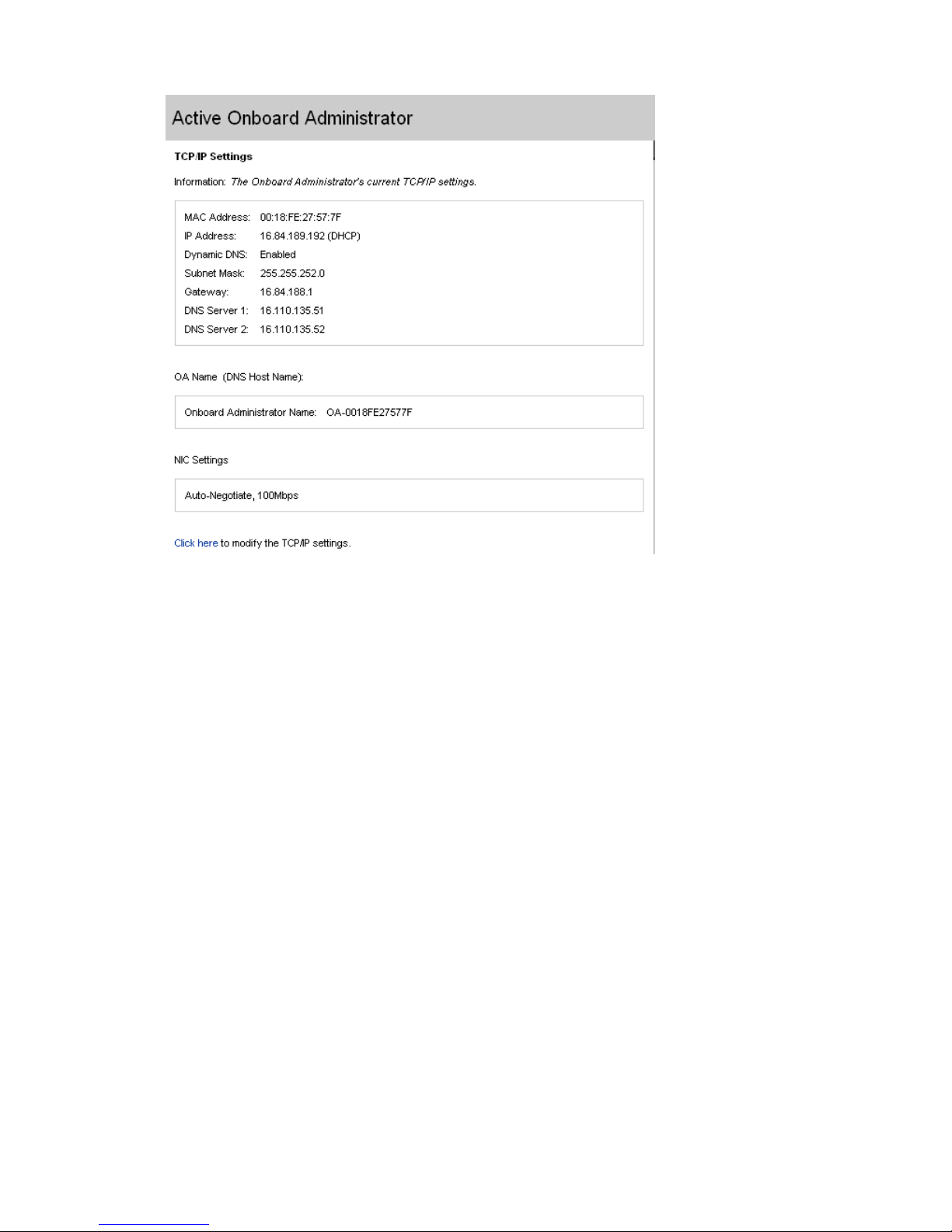

TCP/IP Settings screen...................................................................................................91

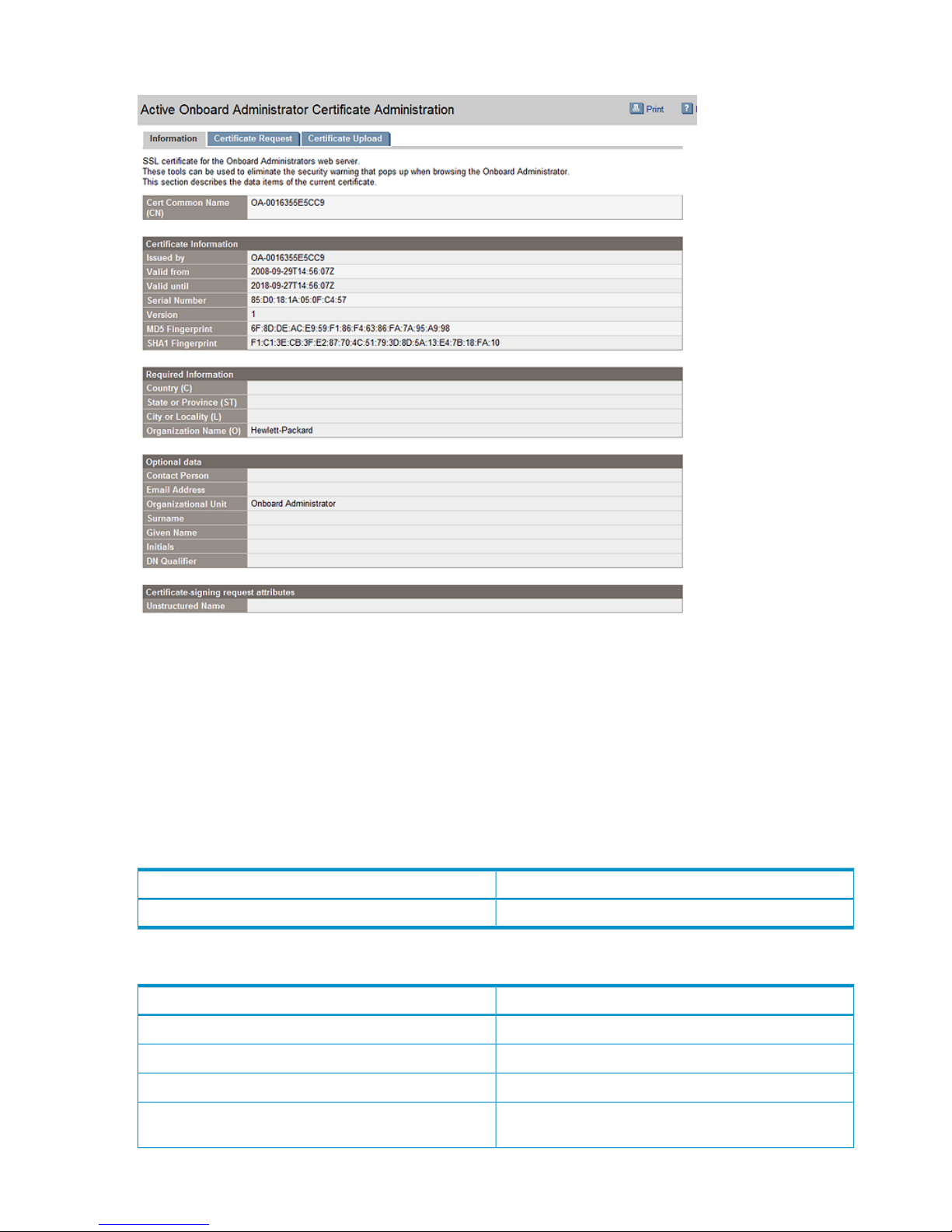

Certificate Administration screen.....................................................................................92
Certificate Request tab..............................................................................................93
Active Onboard Administrator Certificate Upload tab....................................................96
System log...................................................................................................................96
Log Options tab.......................................................................................................99
Standby Onboard Administrator screen................................................................................99
4 Contents
Page 5
TCP/IP Settings for Standby Onboard Administrator........................................................100
Standby Onboard Administrator Virtual Buttons tab.........................................................100
Standby Certificate Request tab.....................................................................................100
Standby Onboard Administrator Certificate Upload tab...................................................100
Device bays.........................................................................................................................101
Device Bay Overview screen.............................................................................................101
Device Bay Information - Bay xx screen...............................................................................103
Device Bay Information tab...........................................................................................106
Device bay virtual buttons tab.......................................................................................108
Interconnect bays..................................................................................................................108
Interconnect Bay Summary screen......................................................................................108
Interconnect Bay Information screen....................................................................................110
Interconnect Bay Information tab...................................................................................111
Interconnect Bay Virtual Buttons tab...............................................................................112
Port Mapping - Interconnect Bay screen...............................................................................113
XFM bays............................................................................................................................114
XFM Bay Summary screen.................................................................................................114
XFM Bay Information - Bay screen......................................................................................115
XFM Bay Status tab.....................................................................................................115
XFM Bay Information tab..............................................................................................116
XFM Bay Virtual Buttons...............................................................................................117
GPSM bays.........................................................................................................................117
GPSM Bay Summary screen..............................................................................................117
GPSM Bay Information screen...........................................................................................118
GPSM Status tab.........................................................................................................118
GPSM Information tab.................................................................................................119
GPSM Virtual Buttons...................................................................................................119
Enclosure power management................................................................................................120
Planning power management ...........................................................................................120
Power and Thermal screen.................................................................................................120
Power Management screen...........................................................................................121
Enclosure Power Allocation screen.................................................................................122
Enclosure Power Meter screen.......................................................................................123
Graphical View tab................................................................................................124
Enclosure Power Meter Table View tab......................................................................126
Power Subsystem screen....................................................................................................127
Power Supply Information - Bay screen...........................................................................128
Fans and cooling management..........................................................................................130
Thermal Subsystem screen............................................................................................130
Thermal Subsystem Fan Zones tab.................................................................................131
Superdome 2 Enclosure fan location rules..................................................................133
Fan Information - Bay screen.........................................................................................133
Managing users...................................................................................................................134
Users/Authentication........................................................................................................134
User roles and privilege levels............................................................................................135
Role-based user accounts..................................................................................................135
Local Users screen............................................................................................................136
Add Local User...........................................................................................................136
Edit Local User............................................................................................................137
Edit Local User Certificate Information tab.......................................................................139
Password Settings screen...................................................................................................139
Directory Settings screen...................................................................................................140
Uploading a certificate................................................................................................140
Directory Certificate Upload tab....................................................................................141
Directory Test Settings tab............................................................................................141
Contents 5
Page 6
Directory Groups.............................................................................................................143
Add an LDAP Group screen..........................................................................................144
Edit an LDAP Group screen...........................................................................................145
SSH Administration screen................................................................................................146
HP SIM Integration screen.................................................................................................147
Edit Local User Certificate Information tab.......................................................................148
Two-Factor Authentication screen............................................................................................148
Two-Factor Authentication Certificate Information tab............................................................148
Two-Factor Authentication Certificate Upload tab.................................................................149
Signed In Users....................................................................................................................149
Session Options tab.........................................................................................................150
Insight Display.....................................................................................................................150
Management network IP dependencies....................................................................................150
8 HP Integrity Superdome 2 IOX enclosures..................................................151
IOX Enclosure Information screen............................................................................................151
IOX Power and Thermal screen...............................................................................................153
IOX Power Subsystem screen..................................................................................................154
IOX Power Supply screen..................................................................................................155
IOX Thermal Subsystem screen...............................................................................................155
9 Port mapping.........................................................................................157
Device bay port mapping for Superdome 2 compute enclosures.................................................157
Device bay port mapping tabular view for Superdome 2 compute enclosures...............................157
10 Using the CLI.......................................................................................158
Command line overview........................................................................................................158
11 Using the serial connection.....................................................................159
Setting up Onboard Administrator using the CLI.......................................................................159
Pinout signals for Onboard Administrator Serial RS232 connector...............................................159
Using the service port connection...........................................................................................160
12 Using configuration scripts.....................................................................161
Configuration scripts.............................................................................................................161
Reset Factory Defaults screen..................................................................................................162
13 Troubleshooting....................................................................................163
Onboard Administrator error messages...................................................................................163
Onboard Administrator factory default settings.........................................................................172
Onboard Administrator SNMP traps.......................................................................................173
14 Enabling LDAP Directory Services Authentication to Microsoft Active
Directory..................................................................................................175
Certificate Services...............................................................................................................175
Preparing the directory..........................................................................................................175
Uploading the DC certificate (optional)...................................................................................176
Creating directory groups......................................................................................................178
Testing the directory login solution..........................................................................................179
Troubleshooting LDAP on Onboard Administrator......................................................................179
15 Support and other resources...................................................................181
Before you contact HP...........................................................................................................181
HP contact information..........................................................................................................181
Subscription service..............................................................................................................181
Documentation feedback.......................................................................................................181
Installing HP Insight Remote Support Software..........................................................................181
New and changed information in this edition...........................................................................182
Related information...............................................................................................................182
6 Contents
Page 7
Typographic conventions.......................................................................................................182
Customer self repair..............................................................................................................183
A Time zone settings..................................................................................184
Africa time zone settings........................................................................................................184
Americas time zone settings...................................................................................................184
Asia time zone settings..........................................................................................................186
Universal time zone settings...................................................................................................186
Oceanic time zone settings....................................................................................................187
Europe time zone settings......................................................................................................188
Polar time zone settings.........................................................................................................188
Standard terms, abbreviations, and acronyms...............................................189
Index.......................................................................................................190
Contents 7
Page 8
1 Introduction
Overview
HP Superdome 2 Onboard Administrator is the complex management processor, subsystem, and
firmware base used to support HP Integrity Superdome 2 complexes and all the managed devices
contained within the complex.
Onboard Administrator provides a single point from which to perform basic management tasks
for the following complex devices:
• Compute enclosures
• IOXs
• Server blades
• I/O interconnects
Onboard Administrator performs configuration steps for the complex, enables run-time management
and configuration of the complex components, and informs you of problems within the complex
through email, SNMP, or the Insight Display.
HP recommends that you read the HP Integrity Superdome 2 User Service Guide for complex
specific information before proceeding with the Onboard Administrator setup.
This user guide provides information on the following topics:
• Initial setup and operation of the HP Superdome 2 Onboard Administrator
• Use of the Onboard Administrator GUI
• Use of the compute enclosure Insight Display
• Initial setup and operation of the HP Superdome 2 Door Status Display
The HP Integrity Superdome 2 Onboard Administrator Command Line Interface User Guide covers
the use of the CLI.
The HP Superdome 2 Onboard Administrator provides several features designed to simplify
management of Superdome 2 enclosures, blades, and interconnects. Compute enclosures within
a Superdome 2 complex can be configured with redundant Onboard Administrator modules to
provide uninterrupted manageability of the entire complex in the event of a failure of a single
Onboard Administrator module.
The following table lists which Onboard Administrator feature is enhanced when an enclosure
contains redundant Onboard Administrator modules. For an enclosure with only a single Onboard
Administrator module, the table indicates the behavior of the enclosure if the single Onboard
Administrator module has failed or is removed.
Table 1 Benefits of using a redundant Onboard Administrator versus a single Onboard Administrator
Redundant Onboard
Administrator in enclosure
Single Onboard
Administrator failed or
removed
Single Onboard
Administrator in enclosure
Onboard Administrator
feature
Yes. Complete control,
including sustaining a failure
No. Power supplies continue
to deliver power to all
Yes. Complete control.Power allocation and control
of all blades and
interconnects. of either Onboard
Administrator.
blades and interconnects.
No power on requests can
be made for blades or
interconnects.
Yes. Complete control,
including sustaining a failure
No. All enclosure fans will
ramp to an un-managed
Yes. Complete control.Cooling for all blades and
interconnects.
of either Onboard
Administrator.
higher speed to protect
8 Introduction
Page 9
Table 1 Benefits of using a redundant Onboard Administrator versus a single Onboard Administrator
(continued)
Redundant Onboard
Administrator in enclosure
Single Onboard
Administrator failed or
removed
Single Onboard
Administrator in enclosure
Onboard Administrator
feature
blades and interconnects
from overheating.
Yes. Complete control,
including sustaining a failure
No. EBIPA IP addresses are
lost after lease timeout.
Yes. Complete control.EBIPA.
of either Onboard
Administrator.
Yes. Complete control,
including sustaining a failure
No. Ethernet management
communications are not
Yes. Complete control.Ethernet communications to
Onboard Administrator,
of either Onboard
Administrator.
available, including internal
management traffic such as
server iLO 3, interconnect
management processors
Virtual Connect Manager tosuch as Virtual Connect,
other VC modules in the
enclosure.
which use the Onboard
Administrator/iLO
management port.
Yes. Complete control,
including sustaining a failure
No. Neither is any
information available from
Yes. Complete control.Information and health status
reporting for all blades,
of either Onboard
Administrator.
the Onboard Administrator,
nor is any out-of-band
interconnects, fans, power
supplies, Onboard
information available fromAdministrators, and
VCM or iLO 3 on any
server.
enclosure through the
Onboard Administrator GUI
or CLI, AlertMail, or SNMP.
Yes. Complete control,
including sustaining a failure
No.Yes. Complete control.Insight Display.
of either Onboard
Administrator.
Yes. Complete control,
including sustaining a failure
No.Yes. Complete control.Enclosure DVD.
of either Onboard
Administrator.
Onboard Administrator module replacement and stored settings
When replacing an Onboard Administrator or if a failure occurs when using redundant Onboard
Administrators:
• Removing an Onboard Administrator module in a Superdome 2 enclosure with a redundant
Onboard Administrator module installed results in the other Onboard Administrator module
immediately becoming the active Onboard Administrator if it was the standby Onboard
Administrator. Only the network settings of the replaced Onboard Administrator network
settings are lost.
• If Onboard Administrator complex firmware versions are identical, manually update the
replaced Onboard Administrator network settings using the Insight Display. The replaced
Onboard Administrator module gets automatically synchronized on all enclosure settings by
the active Onboard Administrator.
NOTE: If the enclosure IP mode is enabled, both Onboard Administrators have the same
network settings and no manual update is required.
• If the complex firmware versions are not identical, the Onboard Administrator GUI and
Onboard Administrator CLI can be used to synchronize the firmware versions to the most
recent version in the modules, followed by synchronization of the active Onboard Administrator
configuration settings to the new standby Onboard Administrator module.
Overview 9
Page 10
IMPORTANT: You cannot update firmware through the HP Superdome 2 Onboard
Administrator GUI if you have complex firmware earlier than the Online Firmware Update
firmware release.
To update complex firmware if you have complex firmware earlier than the Online Firmware
Update firmware release, see the UPDATE FIRMWARE section in the HP Integrity Superdome
2 Onboard Administrator Command Line Interface User Guide.
Access requirements
To access the HP Superdome 2 Onboard Administrator web interface, you require the Onboard
Administrator IP address and a compatible web browser. You must access the application through
HTTPS (HTTP packets exchanged over an SSL-encrypted session).
Superdome 2 Onboard Administrator web interface requires an XSLT-enabled browser with support
for JavaScript 1.3 or the equivalent.
The following browsers are officially supported for use with Onboard Administrator:
• Microsoft Internet Explorer 7.0 or later
• Mozilla Firefox 2 or later
NOTE: Other browsers can be used, but are not supported.
Before running the application, you must enable the following browser settings:
• ActiveX (for Microsoft Internet Explorer)
• Cookies
• JavaScript
If you receive a notice that your browser does not have the required functionality, be sure that your
browser settings meet the preceding requirements and see “Recovering the administrator password”
(page 17).
If you are using the Japanese language version of Onboard Administrator with Microsoft Internet
Explorer, you must install the appropriate language pack within Microsoft Windows.
To access the HP Superdome 2 Onboard Administrator CLI, use the Onboard Administrator IP
address and a terminal or terminal application. To access the CLI interface, you must use Telnet
or Secure Shell depending on which of these protocols are enabled.
To access the CLI management and notification features, the ports listed on the following table
must be open on any router between Onboard Administrator and any computers used to access
or monitor Onboard Administrator.
Outgoing portIncoming portProtocol
22Secure Shell
23Telnet
25SMTP
8080Browser access
443443Browser access encrypted
161SNMP get/set
162SNMP traps
636LDAP
10 Introduction
Page 11
Outgoing portIncoming portProtocol
3389Terminal services pass-through from
PC to OA
17988Virtual media from PC to OA
514Remote syslog
LDAP and Remote syslog port number can be changed.
If a protocol is disabled, the corresponding ports are also disabled.
Onboard Administrator overview
Detecting component insertion and removal
Onboard Administrator provides component control in HP Integrity Superdome 2 blade enclosures.
Component management begins after the component is detected and identified. The Onboard
Administrator detects components in Superdome 2 enclosures through presence signals on each
bay. When you insert a component into a bay, or connect an IOX, the Onboard Administrator
immediately recognizes and identifies the component. If you remove a component from a bay or
disconnect an IOX, the Onboard Administrator deletes the information about that component.
Identifying components
To identify a component, Onboard Administrator reads an FRU EEPROM that contains specific
factory information about the component such as product name, part number, and serial number.
All FRU EEPROMs in Superdome 2 enclosures are powered on, even if the component is powered
off. Therefore, Onboard Administrator can identify the component before granting power. For
devices such as fans, power supplies, and Insight Display, Onboard Administrator directly reads
the FRU EEPROMs.
• The server blades contain several FRU EEPROMs: one on the server board, which contains
server information and embedded NIC information, and one on each installed mezzanine
option cards.
• Server blade control options also include extensive blade hardware information including:
Blade and partition firmware versions◦
◦ Blade name
◦ NIC and option card port IDs
◦ Port mapping
• Onboard Administrator provides easy-to-understand port mapping information for each server
blade and interconnect module in each enclosure.
The NIC and mezzanine option FRU data informs Onboard Administrator of the type of interconnects
each server requires. Before power is provided to a server blade, Onboard Administrator compares
this information with the FRU EEPROMs on installed interconnect modules to verify for electronic
keying errors. For interconnect modules, Onboard Administrator provides virtual power control,
dedicated serial consoles, and management Ethernet connections.
While Onboard Administrator is identifying components, the progress appears as steps on the
Insight Display. Discovery might take several minutes, and the number of installed mezzanine cards
on each server increases the time taken as each card is identified and verified.
Managing power and cooling
The most important Onboard Administrator tasks are power control and thermal management.
Onboard Administrator can remotely control the power state of all components in Superdome 2
Onboard Administrator overview 11
Page 12
compute enclosures. For components in device bays on the front of each enclosure, Onboard
Administrator communicates with iLO 3 to control blades, and with a microcontroller to control
options such as storage blades. A separate microcontroller controls power to the interconnect
modules.
After the components are powered on, the Onboard Administrator begins thermal management
with Thermal Logic. The Thermal Logic feature in Superdome 2 minimizes power consumption by
the enclosure fan subsystem by reading temperature sensors across the entire enclosure. Then,
Thermal Logic changes the fan speed in the various zones in the enclosure to minimize power
consumption and maximize cooling efficiency.
Controlling components
Onboard Administrator uses embedded management interfaces to provide detailed information
and health status of all bays in the enclosure including presence detection signals in each bay,
i2c, serial, USB, and Ethernet controllers. Onboard Administrator also offers information on firmware
versions for most components in the enclosure and can be used to update those components.
Managing partitions
The Onboard Administrator also enables users to define and manage partitions in a Superdome
2 complex.
An nPartition comprises one or more Superdome 2 server blades working as a single system. I/O
bays in IOX enclosures are assigned to nPartitions and any I/O component of a server blade,
including NICs and mezzanine cards are assigned to the nPartition containing the server blade.
In the complex, each nPartition has its own dedicated portion of the complex hardware which can
run a single instance of an operating system. Each nPartition can boot, reboot, and operate
independently of any other nPartitions and hardware within the same complex.
An nPartition includes all hardware assigned to the nPartition: all IOX I/O bays, I/O devices, and
server blades.
A complex can contain one or more nPartitions, enabling the hardware to function as a single
system or as multiple systems.
NOTE: For more information about partition creation and management, see the HP Integrity
Superdome 2 Partitioning Administrator Guide.
Interfaces
Each Superdome 2 compute enclosure has several external management interfaces that connect
the user to Onboard Administrator. The primary external management interface is the management
port for Onboard Administrator, which is an RJ-45 jack providing Ethernet communications not
only to Onboard Administrator, but also to every device or interconnect bay with a management
processor.
A serial port on the Onboard Administrator module provides full out-of-band CLI access to the
Onboard Administrator.
All Superdome 2 enclosures support two enclosure link connectors that provide private
communications among enclosures linked with CAT5 cable. In addition, the enclosure link-up
connector provides an enclosure service port that enables you to temporarily connect a personal
laptop computer to any linked enclosure Onboard Administrator for local diagnostics and
debugging.
NOTE: For complexes that have the HP Superdome 2 Door Status Display, the enclosure service
port is routed through the rack-mounted E-Switch.
Each Superdome 2 compute enclosure includes an embedded Insight Display on the front of the
enclosure, which provides status and information on all the bays in a Superdome 2 compute
12 Introduction
Page 13
enclosure and diagnostic information if the Onboard Administrator detects a problem in the
enclosure. The Insight Display configures key settings in the Onboard Administrator, including the
IP address of the Onboard Administrator.
Onboard Administrator user interfaces
The following user interfaces to the Onboard Administrator enable control and provide information
about the enclosure and installed components:
• Web interface GUI
• Scriptable CLI
• Insight Display
Remote network access to the Onboard Administrator GUI and CLI is available through the
management Ethernet port. The serial port of the Onboard Administrator is available for local CLI
access. The Superdome 2 compute enclosure link-up port is also available as the service port for
temporary local Ethernet access to the Onboard Administrators and devices in linked enclosures
using either the GUI or CLI.
NOTE: For complexes that have the HP Superdome 2 Door Status Display, the enclosure service
port is routed through the rack-mounted E-Switch.
Access the Insight Display directly through the buttons on the display, or remotely through the
Onboard Administrator GUI.
Onboard Administrator authentication
Security is maintained for all Onboard Administrator user interfaces through user authentication.
User accounts created in the Onboard Administrator define three user privilege levels and the
component bays to which each level is granted access. Onboard Administrator stores the passwords
for Local User accounts and can be configured to use LDAP authentication for user group accounts.
The Insight Display can be protected by an LCD PIN code or completely disabled.
Role-based user accounts
Onboard Administrator provides configurable user accounts that can provide complete isolation
of multiple administrative roles such as server, LAN, and SAN. User accounts are configured with
specific device bay or interconnect bay permissions and one of the three privilege levels:
• Administrator
• Operator
• User
An account with administrator privileges including Onboard Administrator bay permissions can
create or edit all user accounts on an enclosure. Operator privileges allow full information access
and control of permitted bays. User privileges allow information access, but no control capability.
Onboard Administrator requires the user to log in to the web GUI or CLI with an account and
password. The account can be a local account where the password is stored on Onboard
Administrator, or an LDAP account. The Onboard Administrator contacts the defined LDAP server
to verify the user credentials. Two-factor Authentication enables even tighter security for the user
management session to Onboard Administrator.
Rather than requiring separate logins to multiple resources (once to each enclosure or once to
every server management processor or both), Onboard Administrator enables single-point access.
Thus, the administrator can use single sign-on to log in to a single Onboard Administrator and use
the web GUI to graphically view and manage the HP Superdome 2 components in the entire
complex. For example, an IT administrator can automatically propagate management commands,
such as changing the enclosure power mode, throughout the complex.
Interfaces 13
Page 14

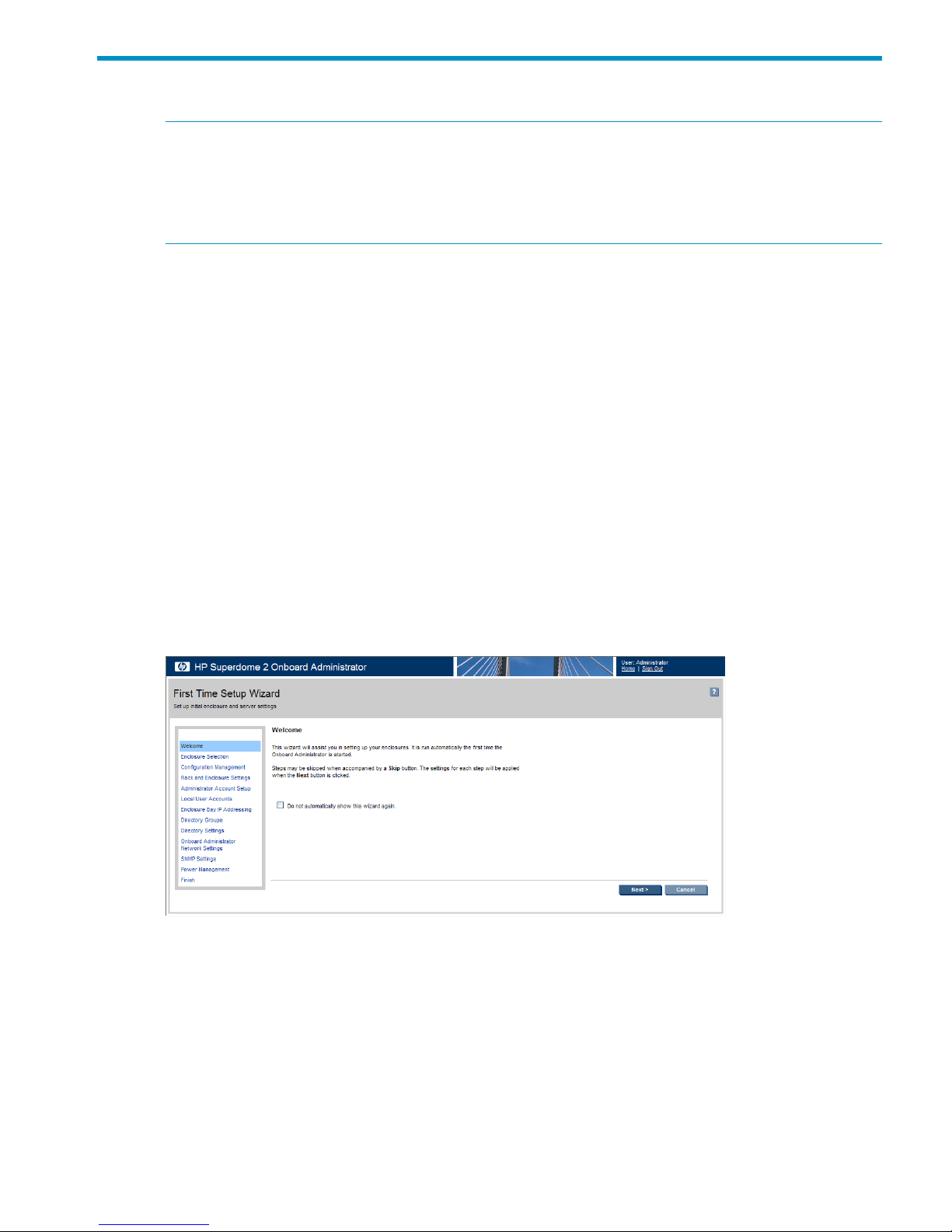

Running Onboard Administrator for the first time
Setting up a Superdome 2 enclosure using the Onboard Administrator is simplified by using the
Insight Display setup process, followed by the use of the Onboard Administrator GUI First Time
Setup Wizard or Onboard Administrator CLI to complete the reset of the enclosure settings.
The Onboard Administrator modules and many interconnect modules default to DHCP for their
management IP address. If the user has DHCP and connects the Onboard Administrator management
port to the DHCP server, then the Onboard Administrator modules and interconnect modules
supporting and configured to use the Onboard Administrator internal management network
automatically get DHCP addresses from the user DHCP server.
If you do not have a DHCP server for assigning IP addresses to management processors, you must
configure each Onboard Administrator IP address and then all the individual device and interconnect
module management IP addresses by using one of the following methods:

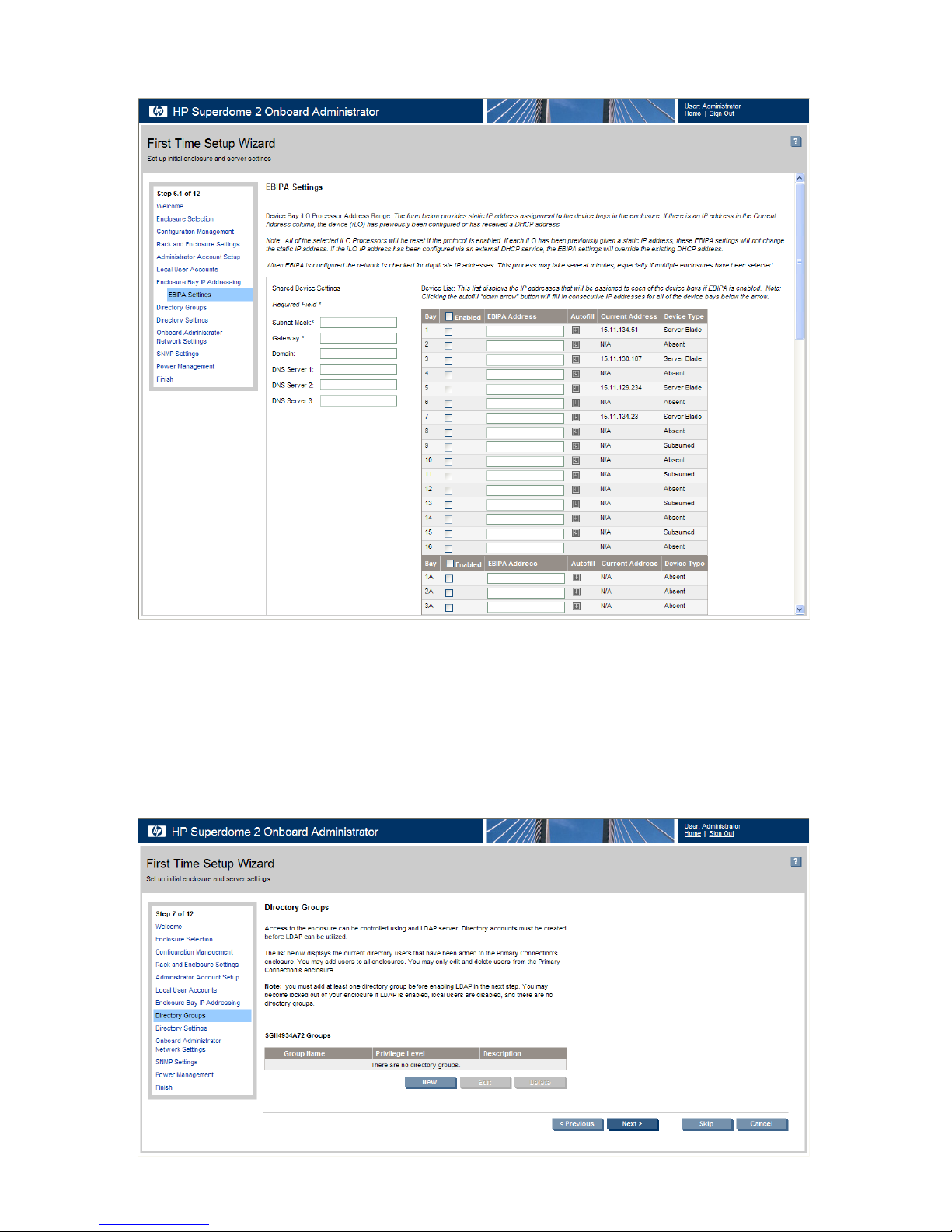

• Recommended practice: Configure each Onboard Administrator with a static IP address using
the Insight Display. Then log in to the Onboard Administrator GUI and use the First Time Setup
Wizard or log in to the Onboard Administrator CLI and configure and enable EBIPA for device
bays and interconnect bays. Enabling EBIPA for a bay enables that server or interconnect
module to be replaced and the new module automatically gets the previously configured IP
address for that bay.
• Alternative: Configure each device and interconnect module for static IP manually. For
Superdome 2 server blades, you must connect to each server blade from the SUV port (using
the SUV cable included with each compute enclosure) and configure the iLO IP address
manually during POST by pressing F8 to access the iLO option ROM settings. For the
interconnect modules with management processors that can use the Onboard Administrator
management network, access and configure their IP address using either an external serial
console port or the Onboard Administrator CLI serial connection to that bay. After changing
the interconnect module IP address manually, the switch may require power cycling to use the
new setting.
The initial credentials to log on to a new Onboard Administrator module are printed on a label
on each module. The user is Administrator and the password is unique to each module. This
password must be captured by the installer and communicated to the remote Administrator for the
first remote logon to the Onboard Administrator GUI or Onboard Administrator CLI.
The enclosure settings can be configured manually or uploaded from a configuration script or file.
The web GUI offers a First Time Setup Wizard. The CLI can be accessed from the Onboard
Administrator serial port, Ethernet management port, service port, or by using the Enclosure KVM
- Onboard Administrator CLI button.
An alternative to manual configuration is to upload a enclosure configuration file to the active
Onboard Administrator using either the GUI or CLI with an HTTP, FTP or TFTP network location for
the configuration file, or use the GUI, CLI or Insight Display to upload a configuration file from a
USB key drive plugged into the active Onboard Administrator USB port.
The recommended practice to create an enclosure configuration file is to use the GUI, CLI, or Insight
Display USB Menu to save the existing configuration to a file. The saved configuration file is a set
of CLI text commands for each configuration item. The Onboard Administrator does not save user
passwords when it saves a configuration file. The user can edit the configuration file and insert the
password commands for each user account—or use the Administrator local account to individually
update all user passwords after restoring a previously saved enclosure configuration file.
If the enclosure contains redundant Onboard Administrator modules, the remaining Onboard
Administrator updates the new Onboard Administrator with all the settings.
14 Introduction
Page 15
Logging on to the Onboard Administrator GUI
Enter the user name and initial administration password for your HP Superdome 2 Onboard
Administrator account found on the tag attached to the Onboard Administrator.
Possible issues that might occur when signing in include:
• Entering the information incorrectly. Passwords are case-sensitive.
• The account information entered not being set up for HP Superdome 2 Onboard Administrator.
• The user name entered has been deleted, disabled, or locked out.
• The password for the account requiring to be changed.
• Attempting to log on from an IP address that is not valid for the specified account.
• The password for the Administrator account being forgotten or lost. To reset the Administrator
password, see “Recovering the administrator password” (page 17).
If you continue to have problems signing in, contact your administrator.
Running the setup wizard

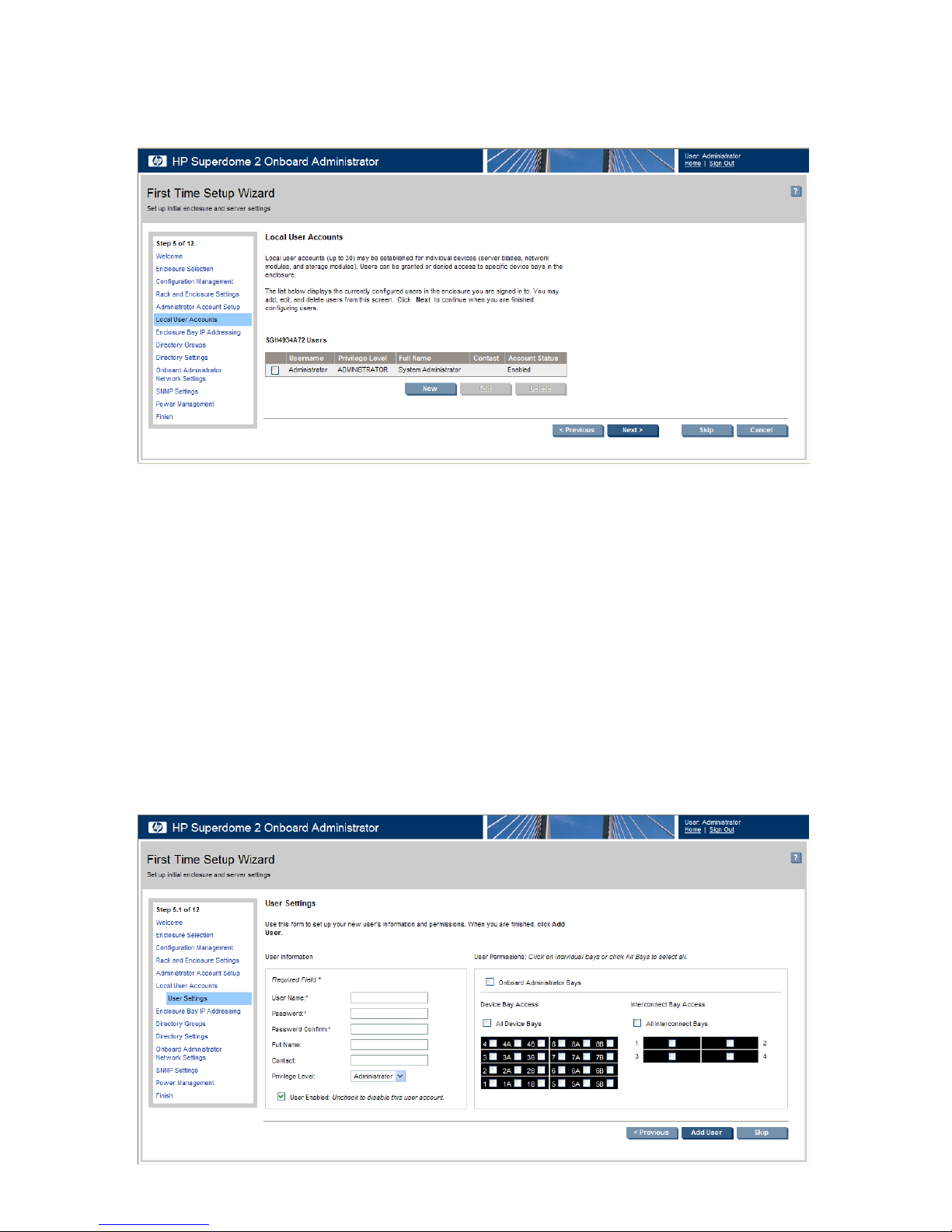

To run the setup wizard, log on to Onboard Administrator. The First Time Setup Wizard starts
automatically when you log on to Onboard Administrator for the first time. This wizard assists you
in setting up the functions of the Onboard Administrator. You can access the setup wizard at any
time after initial setup by clicking the Wizards link on the top left of the center screen.
Logging on to the Onboard Administrator GUI 15
Page 16
For more information, see “First Time Setup Wizard” (page 41).
Using online help
To access online help, click the blue box with the white question mark located at the top right of
the screen under the header bar. Online help displays information related to the section of HP
Superdome 2 Onboard Administrator that you are navigating.
16 Introduction
Page 17
Changing enclosure and device configurations
After completing the First Time Setup Wizard, return to the Onboard Administrator GUI to make
configuration changes at any time. See “Configuring HP Integrity Superdome 2 compute enclosures
and enclosure devices” (page 70) for information that helps you make changes to enclosure and
device configuration, user setup, and LDAP server settings and LDAP groups.
See “Enclosure power management” (page 120) for information on enclosure power settings.
Recovering the administrator password
If the administrator password has been lost, you can reset the administrator password to the factory
default that shipped on the tag with the Onboard Administrator module. The Onboard Administrator
resets a lost password to Lost Password mode. To recover the password and reset the administrator
password to the factory default:
1. Connect a computer to the serial port of the active Onboard Administrator using a null-modem
cable.
2. With a null-modem cable (9600 N, 8, 1, VT100, locally connect to the Onboard Administrator),
open HyperTerminal (in Microsoft Windows) or a suitable terminal window (in Linux).
3. Connect to the active Onboard Administrator.
4. Press the Onboard Administrator reset button for 5 seconds.
5. Press L to boot the system in the Lost Password mode. The password appears as the system
reboots.
Changing enclosure and device configurations 17
Page 18
2 HP Integrity Superdome 2 Insight Display
HP Integrity Superdome 2 Insight Display components
FunctionDescriptionItem
Displays Main Menu error messages
and instructions
Insight Display screen1
Moves the menu or navigation bar
selection left one position
Left arrow button2
Moves the menu or navigation bar
selection right one position
Right arrow button3
Accepts the highlighted selection and
navigates to the selected menu
OK button4
Moves the menu selection down one
position
Down arrow button5
Moves the menu selection up one
position
Up arrow button6
Insight Display overview
The Insight Display enables the rack technician to initially configure the enclosure. It also provides
information about the health and operation of the enclosure. The color of the Insight Display varies
with the condition of the enclosure health:
• Blue— The Insight Display illuminates blue when the enclosure UID is active.
The enclosure UID automatically turns on when the enclosure is powered on for the first time,
and can be turned on by selecting Turn Enclosure UID On from the Main Menu or by pressing
the enclosure UID button on the management interposer.
18 HP Integrity Superdome 2 Insight Display
Page 19
When the enclosure UID is on, the Insight Display flashes after two minutes of inactivity.
Pressing any button on the Insight Display stops the blinking and reactivates the screen.
• Green— The Insight Display illuminates green when no error or alert conditions exist, and the
enclosure is operating normally.
After two minutes of inactivity, the Insight Display light turns off. Pressing any button on the
Insight Display reactivates the screen.
• Amber— The Insight Display illuminates amber when the Onboard Administrator detects an
error or alert condition. The screen displays the details of the condition.
After two minutes of inactivity, the Insight Display flashes amber indicating that an error or
alert condition exists. If the enclosure UID is on and an error or alert condition exists, the
Insight Display illuminates blue as the enclosure UID takes priority over the alert. Pressing any
button on the Insight Display reactivates the screen.
• Dark (no power)— The Insight Display has a two-minute inactivity period. If no action is taken
and no alert condition exists, the screen light turns off after two minutes. Pressing any button
on the Insight Display reactivates the screen.
The Enclosure Health icon is located at the bottom-left corner of every screen, indicating the condition
of the enclosure health. Navigate the cursor to the Enclosure Health icon and pressing OK to access
the Health Summary screen from any Insight Display screen.
Running the Insight Display installation
When the enclosure is powered on for the first time, the Insight Display launches an installation
wizard to guide you through the configuration process. After configuring the enclosure, the Insight
Display verifies that no installation or configuration errors are present. If errors are present, the
Insight Display guides you through the process of correcting the errors.
To identify the enclosure, the rear enclosure UID light and the background of the Insight Display
glow blue when the enclosure is powered on initially.
The Installation Wizard turns on the enclosure UID at the beginning of the installation and turns it
off after the installation is complete.
The Enclosure Settings screen is the first screen that appears. The background is blue, because the
enclosure UID is active when this screen appears.
1. Review each setting on the Enclosure Settings screen for accuracy.
2. To change any value, navigate the cursor to the menu option to be edited, and press the OK
button.
3. Change the setting to the appropriate value, navigate the cursor to Accept, and then press
the OK button to return to the Enclosure Settings menu. Repeat this step until all options on the
Enclosure Settings menu are accurate.
Running the Insight Display installation 19
Page 20
TIP: Select the ? icon to access detailed help information about each setting or topic.
TIP: Within any menu option, navigate the cursor to What is This, and press the OK button
to view additional information about each setting, option, or alert.
4. When all settings on the Enclosure Settings menu are accurate, navigate the cursor to Accept
All, and then press the OK button to accept the current settings.
You can change the following options in the Enclosure Settings screen:
• Power Mode—The default setting is AC Redundant. The following selections are valid:
AC Redundant◦
◦ Power Supply Redundant
◦ None
• Power Limit—The default setting is Not Set. The Power Limit Watts ac setting can be
changed in increments of 50 Watts.
NOTE: When calculating the Power Limit Watts ac value, derate the circuit to 80% of
the maximum to prevent tripping the circuit breaker (United States only).
NOTE: If your facility cannot support the calculated peak Watts ac, set the Power Watts
ac value to match the capability of your facility.
• Dynamic Power —The default setting is Enabled. The following selections are valid:
Enabled —Some of the power supplies can be automatically placed on standby to
increase overall enclosure power subsystem efficiency.
◦
◦ Disabled —All power supplies share the load; the power subsystem efficiency varies
based on load.
• OA1 IP Addr— The default setting is DHCP; if no IP address is received, the IP address
is 0.0.0.0. The IP address, mask, and gateway are set within this option.
• OA2 IP Addr— If this module is present, the default setting is DHCP; if no IP address is
received, the IP address is 0.0.0.0. If only one Onboard Administrator module is installed,
the screen displays "Not Present."
• Enclosure Name— The default setting is a unique factory-assigned name. The accepted
character values are 0-9, A-Z ,a-z, -, _, and the box character. The box character is used
to signal the end of the name.
20 HP Integrity Superdome 2 Insight Display
Page 21
NOTE: Do not use the box character in the middle of a text box. Entries in text boxes
are truncated to the last character before the box character.
TIP: Select Clear from the navigation bar to quickly clear entries in text boxes up to the
symbol.
• Rack Name —The default setting is UnnamedRack. The accepted character values are
0-9, A-Z, a-z, -, _, and the box character. The box character is used to signal the end of
the name.
• DVD Drive— The DVD connection Settings screen is a table of all the servers with the
status of DVD Connection and blade name for that blade.
◦ Detach/Attach—Each blade can be individually attached to or detached from the
enclosure DVD drive by navigating to that bay and pressing the OK button.
◦ Change—Navigates to the Attach:Enclosure DVD menu where you can attach, attach
and reboot, or detach all bays from the DVD drive.
◦ Navigate to the DVD icon for a blade and press the OK button to change the settings
for an individual server.
◦ Navigate to All Blades and then press OK to change the settings for all servers in
the enclosure.
◦ The server name is displayed next to each DVD icon limited to the first ten characters.
5. Navigate to the Accept All button at the bottom of the Enclosure Settings screen, and then
press the OK button to accept all the settings and continue.
The installation wizard displays the Check: Installation and Cables screen.
Running the Insight Display installation 21
Page 22
6. Be sure that all components are installed and cabled before continuing. Select Continue, and
press the OK button to begin verifying for configuration and installation errors. When Continue
is selected, the enclosure UID automatically turns off.
7. If no errors are detected, the rear enclosure UID turns off, and the Insight Display screen
illuminates green. Press the OK button to return to the Main Menu. Enclosure and blade
hardware setup and configuration is complete.
If errors are detected, the Insight Display screen glows amber, and the Health Summary screen
is displayed. See “Insight Display errors” (page 30) for more information on troubleshooting
configuration and installation errors.
NOTE: Any configuration error prevents the operation of the enclosure and must be corrected
immediately.
8. Open a browser and connect to the active Onboard Administrator module using the Onboard
Administrator IP address that is configured during the Insight Display Installation Wizard
process.
9. Enter the user name and password from the tag supplied with the Onboard Administrator
module to access the remote Onboard Administrator web interface and complete the Onboard
Administrator First Time Installation Wizard.
Navigating the Insight Display
Navigate the menus and selections by using the arrow buttons on the Insight Display panel.
The first menu displayed is the Main Menu:
22 HP Integrity Superdome 2 Insight Display
Page 23
The Main Menu of the Insight Display has the following menu options:
• Health Summary
• Enclosure Settings
• Enclosure Info
• Blade or Port Info
• Turn Enclosure UID on/off
• View User Note
• Chat Mode
If the active Onboard Administrator detects a USB key drive with any *.ROM , *.CFG or *.ISO
files, a USB menu item appears at the bottom of the Main Menu.
If the active Onboard Administrator detects KVM capability, a KVM menu button appears on the
navigation bar of the Main Menu. Selecting KVM Menu causes the Insight Display to go blank and
starts the VGA connection of Onboard Administrator.
A USB key drive with the appropriate files and KVM capability is present in the Main Menu:
Navigating the Insight Display 23
Page 24
TIP: Within any menu option, navigate the cursor to What is This, and press the OK button to
view additional information about each setting, option, or alert.
The navigation bar contains options to:
• Navigate forward and backward through alert screens
• Return to the main menu
• Accept changes to current settings
• Cancel changes to current settings
• Access the Health Summary screen from any screen by selecting the Health Summary icon on
the navigation bar
Health Summary screen
The Health Summary screen displays the current status of the enclosure. The Health Summary screen
can be accessed by:
• Selecting Health Summary from the Main Menu
• Selecting the Health Summary icon from any Insight Display screen
When an error or alert condition is detected, the Health Summary screen displays the total number
of error conditions and the error locations.
Select Next Alert from the navigation bar, and press the OK button to view each individual error
condition. The Insight Display displays each error condition in the order of severity. Critical alerts
display first (if one exists), followed by caution alerts.
When the enclosure is operating normally, the Health Summary screen displays green. The bright
green rectangles are components that are installed and are on. A light green rectangle represents
a component that is installed, but powered off with no errors.
When the enclosure is operating normally, the Health Summary screen displays green. The bright
green rectangles are components that are installed and on. A dark green rectangle represents a
component that is installed, but powered off with no errors. A black rectangle represents an empty
bay.
24 HP Integrity Superdome 2 Insight Display
Page 25
NOTE: A black DVD rectangle indicates no DVD drive is connected to the Onboard Administrator
while a dark gray rectangle indicates the DVD drive is present, but that no media is present. A
dark green rectangle indicates that media is present, but not actively connected to any server or
that all connected servers have issued a disk eject command, so the disk can be removed from the
drive. A bright green rectangle indicates that the media is present in the drive and actively connected
to at least one server in the enclosure, and the drive tray is locked.
If an error occurs, the Health Summary screen background changes from green to amber and the
error is highlighted with yellow rectangles for caution and red rectangles for failures. Overall
enclosure health icons at the bottom-left corner of the Insight Display screens indicate the overall
enclosure health.
Select View Alert and press the OK button to display the errors.
Select Details to view the details of the error.
Enclosure Settings screen
The Enclosure Settings screen displays the following setting information about the enclosure:
• Power Mode setting
• Power Limit setting
• Dynamic Power setting
• Active and Standby OA IP addresses
• Enclosure Name
• Rack Name
• DVD Drive
• Insight Display PIN#
Navigating the Insight Display 25
Page 26
NOTE: The DVD Drive setting can attach or detach a CD or DVD loaded in the DVD drive
to any or all partitions in the enclosure. This feature can be used to install an operating system
or software on the partitions.
TIP: Set a PIN to protect the enclosure settings from changes.
Navigate the cursor to a setting or to ?, and press OK to change the setting or get help on that
setting.
Enclosure Info screen
The Enclosure Info screen displays information about the enclosure, including:
• Active OA IP address
• Active OA Service IP address
• Current health status of the enclosure
• Current enclosure ambient temperature
• Current ac input power to the enclosure
• Enclosure name
• Rack name
26 HP Integrity Superdome 2 Insight Display
Page 27
Blade and Port Info screen
The Blade and Port Info screen displays information about a specific server blade. On the first
screen, select the server blade number, then press the OK button. Select Blade Info or Port Info,
and press the OK button.
To view information about the server blade, select Blade Info and press the OK button.
To view the ports used by a specific server blade, select Port Info and press the OK button.
The following screen shows a server blade with four embedded NICs. The other interconnect bays
are empty. The four embedded NICs are connected to particular port numbers on the interconnect
modules.
Navigating the Insight Display 27
Page 28
Turn Enclosure UID On/Off screen
The Main Menu displays "Turn Enclosure UID Off" when the enclosure UID is active, and displays
"Turn Enclosure UID on" when the enclosure UID is off.
Selecting Turn Enclosure UID On from the main menu turns on the rear enclosure UID LED and
changes the color of the Insight Display screen to blue.
Selecting Turn Enclosure UID Off from the Main Menu turns off the rear enclosure UID LED and
changes the color of the Insight Display screen to the current alert condition.
28 HP Integrity Superdome 2 Insight Display
Page 29
View User Note screen
The View User Note screen displays six lines of text, each containing a maximum of 16 characters.
Use this screen to display helpful information such as contact phone numbers. Change this screen
using the remote Onboard Administrator user web interface. Both the background bitmap and the
text can be changed.
Chat Mode screen
The Chat Mode screen is used by the remote administrator who uses the web interface to send a
message to an enclosure Insight Display. The technician uses the Insight Display buttons to select
from a set of prepared responses, or dials in a custom response message on the ? line. To send a
response back to the Administrator, navigate the cursor to Send, then press the OK button.
The Chat Mode screen has top priority in the Insight Display and remains on the screen until you
select Send . The technician can leave this chat screen temporarily and use the other Insight Display
screens, then return to the Chat Mode screen from the Main Menu to send a response. After the
response, the Chat Mode screen is cleared. Both the A and ? responses are then displayed to the
remote Administrator on the LCD Chat web interface.
Navigating the Insight Display 29
Page 30
Insight Display errors
The enclosure installation is successful when all errors are corrected. The errors in the following
sections are specific to installation and initial configuration of the enclosure.
The following types of errors can occur when installing and configuring the enclosure:
• Power errors
• Cooling errors
• Location errors
• Configuration errors
• Device failure errors
When the enclosure UID LED is off, the Insight Display is illuminated amber when any error condition
exists. The navigation bar displays the following selections when an error condition exists:
• Health summary icon— Displays the Health Summary screen
• Fix This— Suggests corrective action to clear the current error
• Next Alert— Displays the next alert, or if none exist, displays the Health Summary screen
• Previous Alert— Displays the previous alert
Power errors
Power errors can occur because of insufficient power to bring up an enclosure. Power errors can
occur on server blades, storage blades, or interconnect modules.
To correct a power error:
1. Use the arrow buttons to navigate to Fix This, and press OK.
2. Review and complete the corrective action suggested by the Insight Display. In most cases,
you must either add power supplies to the enclosure or remove the indicated components.
Cooling errors
Cooling errors occur when too few fans are installed in the enclosure or when the existing fans
are not installed in an effective configuration. Cooling errors can occur on server blades, storage
blades, or interconnect modules.
To correct a cooling error:
30 HP Integrity Superdome 2 Insight Display
Page 31
1. Use the arrow buttons to navigate to Fix This, and press OK.
2. Review and complete the corrective action suggested by the Insight Display. In most cases,
you must either add fans to the enclosure, correct the fan configuration, or remove the indicated
components.
Location errors
Location (installation) errors occur when the component is not installed in the appropriate bay.
Location errors can occur on server blades, storage blades, power supplies, and fans.
To correct a location error:
1. Use the arrow buttons to navigate to Fix This, and press OK.
2. Review and complete the corrective action suggested by the Insight Display. Remove the
indicated component, and install it into the correct bay. The Insight Display will indicate the
correct bay number.
Configuration errors
Configuration errors can occur if the interconnect modules are installed in the wrong bays or if
mezzanine cards are installed in the wrong connectors in the server blade. Configuration errors
can occur on server blades and interconnect modules.
To correct a configuration error:
1. Use the arrow buttons to navigate to Fix This, and press OK.
2. Review and complete the corrective action suggested by the Insight Display. Depending on
the error received, do one of the following:
• Remove the indicated interconnect module and install it into the correct bay (the Insight
Display indicates the correct bay).
• Remove the server blade to correct the mezzanine card installation (the Insight Display
will indicate the correct bay). For information on installing the mezzanine card, see the
server-specific user guide on the Documentation CD.
Device failure errors
Device failure errors occur when a component has failed. Device failure errors can occur on all
components, including:
• Server blades
• Storage blades
• Power supplies
• Interconnect modules
• Onboard Administrator modules
• Fans
• ac power inputs
To correct a device failure error:
1. Use the arrow buttons to navigate to Fix This, and press OK.
2. Review and complete the corrective action suggested by the Insight Display. In most cases,
you must remove the failed component to clear the error.
3. Replace the failed component with a spare, if applicable.
NOTE: If the device failure error is an ac power input failure error, you must have the failed
ac input repaired to clear the error.
Insight Display errors 31
Page 32
3 HP Superdome 2 Door Status Display
HP Superdome 2 SD2-16s complexes that are factory integrated ship with the HP Superdome 2
Door Status Display. The Door Display is a quick method of getting basic complex status information
by using the integrated touch screen on the rack door.
NOTE: HP Superdome 2 SD2-8s complexes do not support the Door Display.
The Door Display screen and LED backlighting displays the overall status of the complex by the
following scheme:
• Solid blue— The Door Display screen and LED backlight glows solid blue when the complex
is operating under normal conditions.
• Flashing blue— The Door Display screen and LED backlight flashes blue when the enclosure
UID of any compute enclosure in the rack is turned on.
• Flashing amber— The Door Display and LED backlight flashes amber if any compute enclosure
in the rack has an error or alert condition.
If an enclosure UID is on and an error or alert condition exists, the Door Display and LED
backlight flashes blue as the enclosure UID takes priority over the alert.
• Dark (no power)— The Door Display screen turns off after one hour of displaying a screen
saver. Touch the Door Display screen to return to the last menu displayed. The LED backlight
remains glowing to reflect the current complex status.
NOTE: You can only disable the Door Display screen by using the Door Display menu. You
cannot disable the screen remotely.
After one hour of inactivity, the Door Display screen displays a screen saver. Touch the Door
Display screen to return to the last menu displayed.
Before running Door Display setup
Before running the Door Display setup, you must create Onboard Administrator accounts. The Door
Display uses the Onboard Administrator accounts to access complex information and enables you
to set the enclosure UID for compute enclosures in the rack.

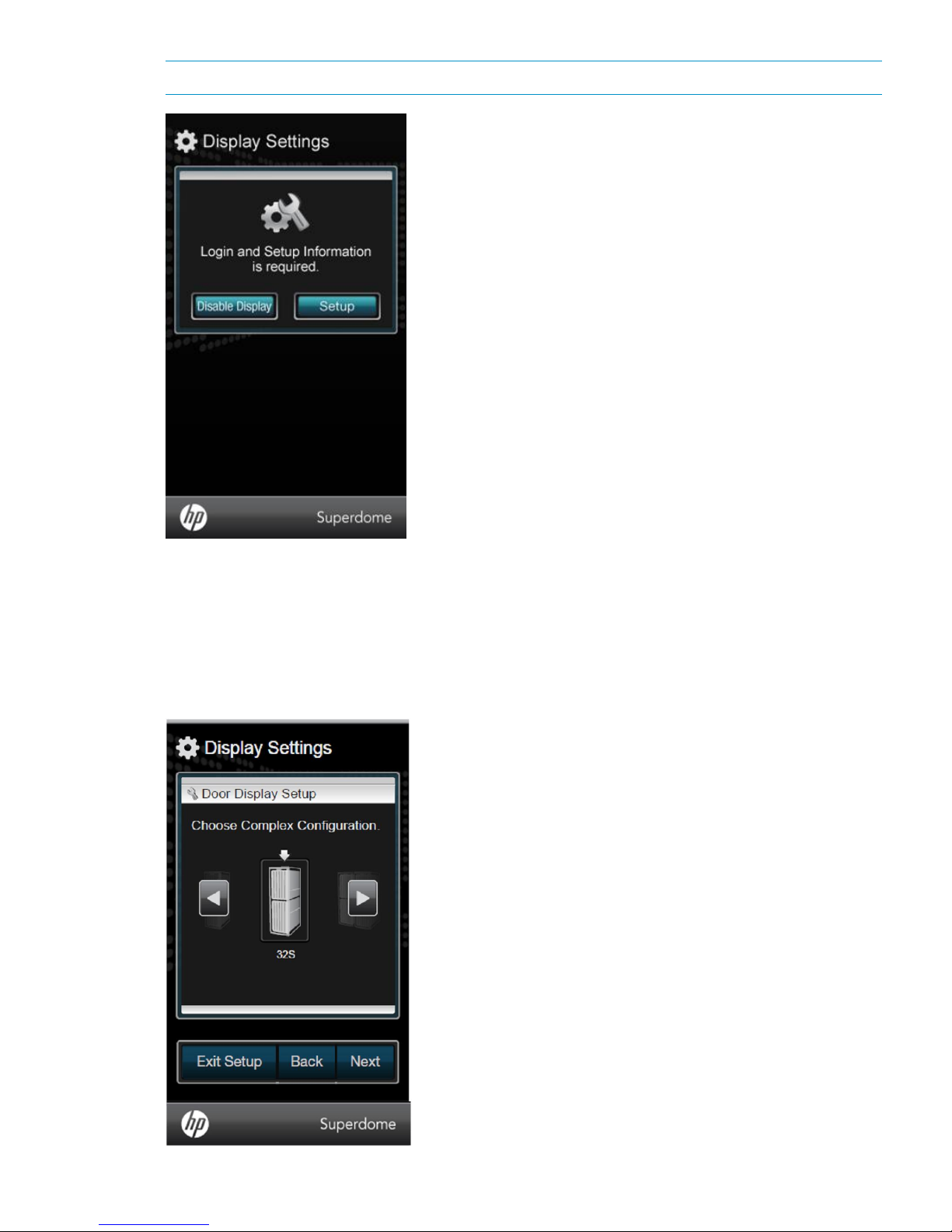

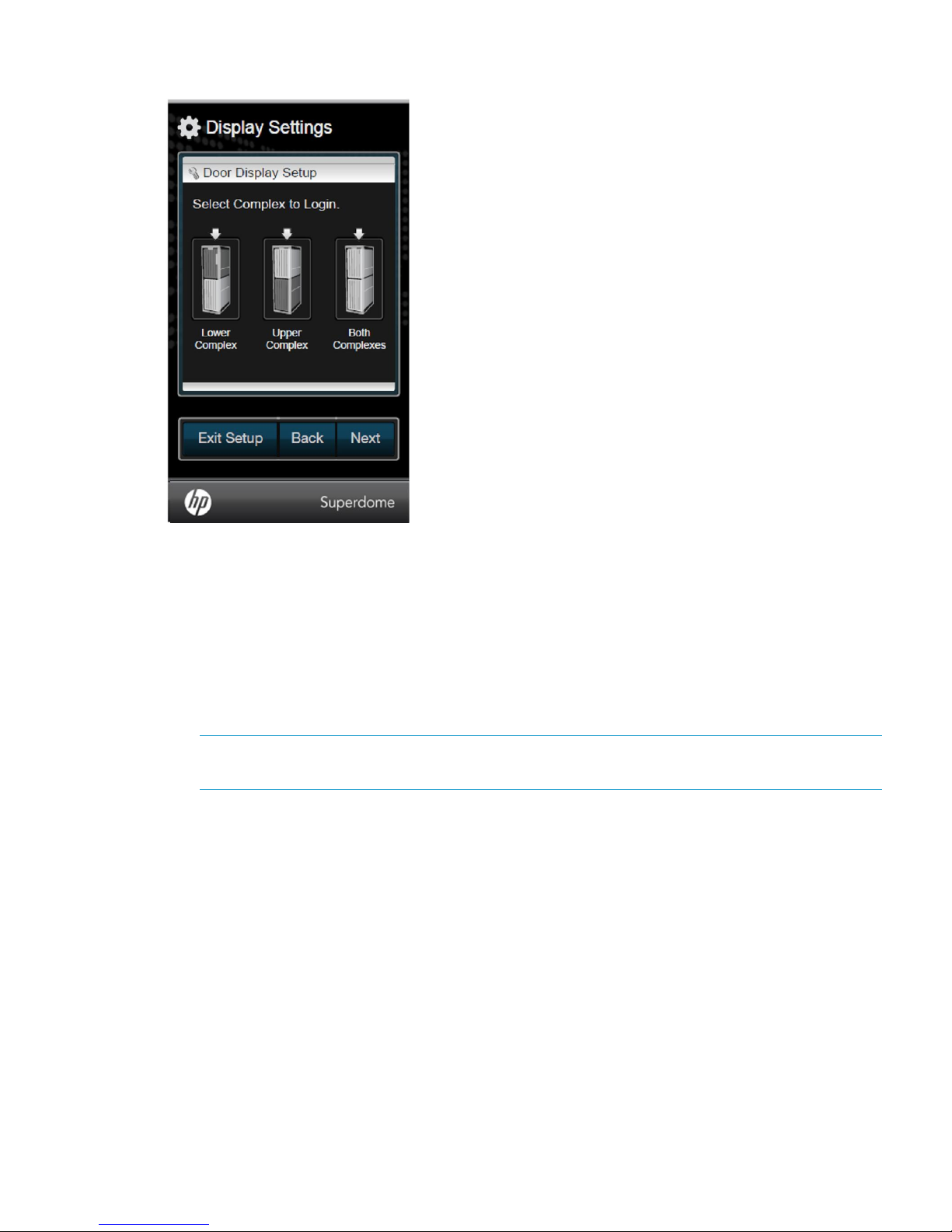

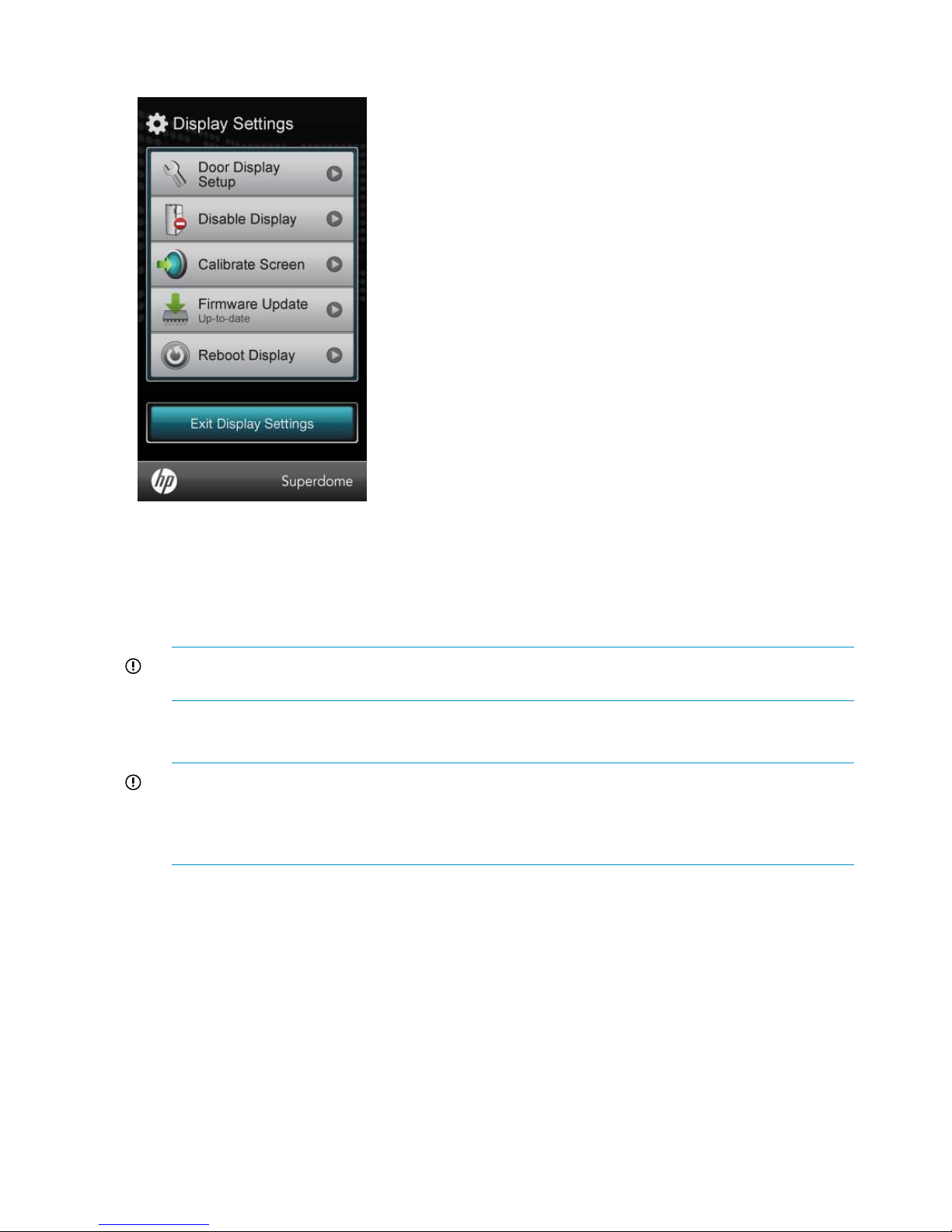

Setting up the Door Display
When the complex is first powered on, a brief animation on the Door Display screen is displayed,
and then the start up menu is displayed.
32 HP Superdome 2 Door Status Display
Page 33
NOTE: The start up menu will take several seconds to appear while the Door Display starts up.
The start up menu has the following options:
• Disable Display—If this option is selected, the Door Display screen immediately displays a
screen saver. The screen saver displays for one hour and then the Door Display shuts off.
• Setup—Select this option to begin the Door Display setup.
Complex configuration
Setting up the Door Display 33
Page 34
Select the current complex configuration in the rack.
IMPORTANT: This menu selection does not set the complex configuration on the Onboard
Administrator. To correctly set up the Door display, you must select the current complex configuration
present in the rack.
Press Next to continue.
Status display preferences
• Temperature Scale—Select between displaying enclosure temperatures in °C or °F.
• Display IP Address—Select to enable or disable display of the IP addresses of the active
Onboard Administrator and the complex service port.
NOTE: The OA IP address is not displayed until the setup process is complete.
Press Next to continue.
34 HP Superdome 2 Door Status Display
Page 35
Two 16s complex set up
If you selected Two 16s as the complex configuration, you are prompted to which complex displays
status information on the Door Display screen.
• Lower Complex—The Door Display screen displays status information for only the lower
SD2-16s complex in the rack.
• Upper Complex—The Door Display screen displays status information for only the upper
SD2-16s complex in the rack.
• Both Complexes—The Door Display screen displays status information for both SD2-16s
complexes in the rack.
NOTE: If you select Both Complexes, you are prompted to enter two user names and
passwords at the next menu.
Press Next to continue.
Setting up the Door Display 35
Page 36
Complex login
You must enter an OA account user name and password to enable the Door Display to log in to
the complex and display complex status information.
IMPORTANT: If you enter an OA Administrator or OA Operator-level user name, all complex
information is displayed and the Door Display screen can be used to set the enclosure UID.
If you enter an OA User-level user name, all complex information is displayed, but the Door Display
screen can not be used to set the enclosure UID.
Press Login to complete setup or Cancel to quit Door Display setup.
Door Display status menu
36 HP Superdome 2 Door Status Display
Page 37
The Door Display status menu displays the following information:
• Complex name—The user-specified name of the complex.
• Complex health—The current health status of the complex.
If there is an enclosure in the complex that now has fault conditions, the enclosure will be
highlighted amber and indicated with a fault symbol.
• Active (OA) IP address—The IP address of the active Onboard Administrator.
• Service IP address—The IP address of the complex service port.
• Enclosure power—The current power consumption of the enclosures in the complex in kW.
• Enclosure temperature—The current temperature of the enclosures in the complex in °C or °F.
• Enclosure UID—If an enclosure in the complex has the enclosure UID enabled, the enclosure
will be indicated with a UID symbol.
The Door Display status menu has the following menu buttons:
• Display Settings—Press this button to display the Display Settings menu.
• UID—Press this button to display the UID control overlay.
If the rack contains two SD2-16s complexes, the Door Display status menu displays the following
buttons:
• Upper Complex— Displays the status of the upper complex in the rack.
• Lower Complex— Displays the status of the lower complex in the rack.
• Logon— If the OA log on information is not specified for an enclosure in the rack, select this
option to enter the OA log on information.

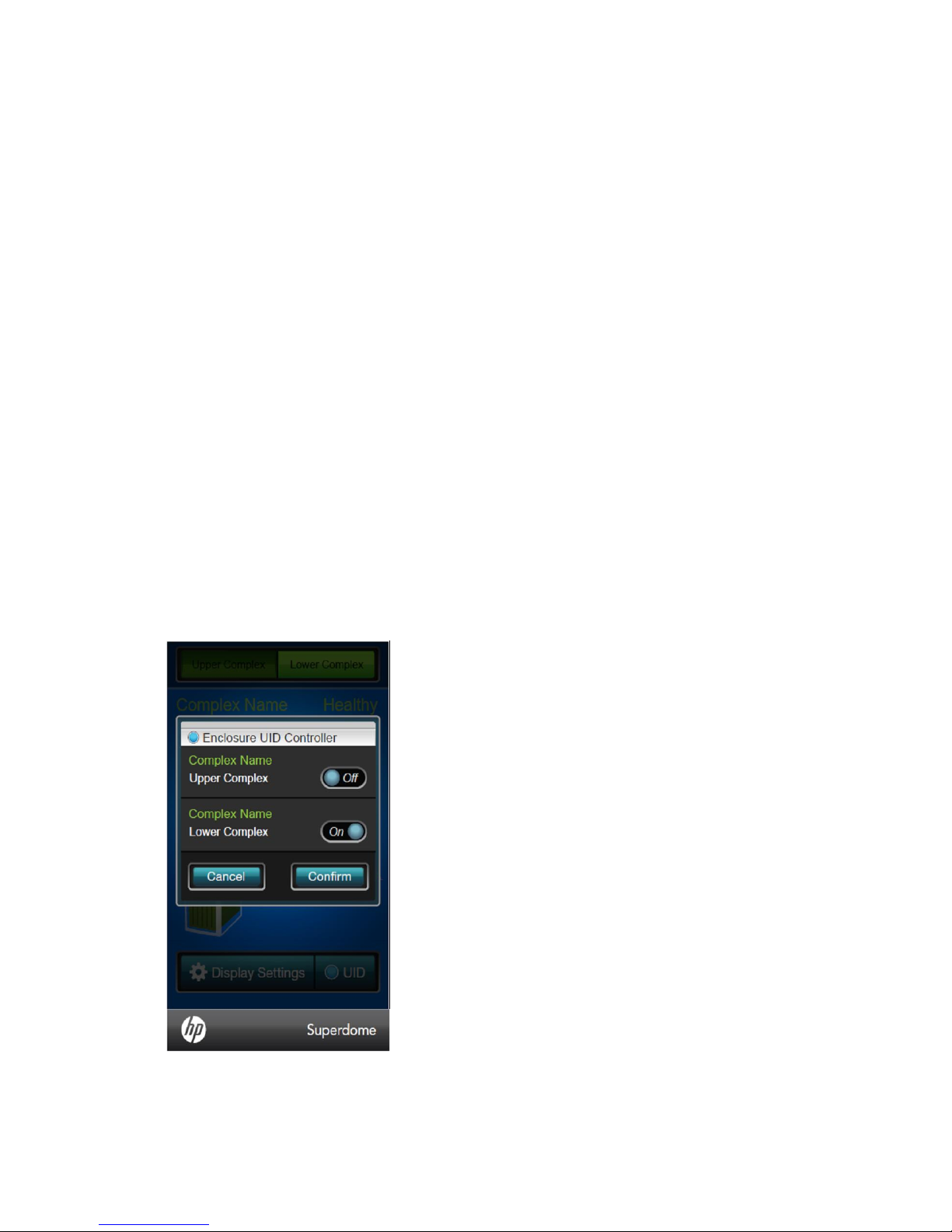

UID control
To change the UID of enclosures in the rack, push the On/Off toggle button for the enclosures.
Press Confirm to turn on or off the enclosure UIDs and return to the Door Display status menu. Press
Cancel to return to the Door Display status menu without making any changes.
Setting up the Door Display 37
Page 38
Display Settings menu
The Display Settings menu has the following options:
• Door Display Setup— Runs the initial setup of the Door Display.
• Disable Display— If this option is selected, the Door Display erases all settings. The Door
Display screen then immediately displays a screen saver. The screen saver displays for one
hour and then the Door Display shuts off.
IMPORTANT: If you select this option, you must re-enter all setting information, such as user
names and passwords before you can use the Door Display.
• Calibrate Screen— If this option is selected, the Door Display enters calibration mode for the
touch screen.
IMPORTANT: HP recommends using a stylus or the back of a pencil to calibrate the screen.
Using a finger is not precise enough to properly calibrate the screen.
Do not use metal objects to calibrate the screen. Using a metal object might damage the LCD
touch screen.
• Firmware Update— Use this option to update the Door Display firmware. The current status
of the Door Display firmware is displayed on the menu button. The firmware status is one of
the following:
◦ Setup required first— The initial Door Display setup has not been completed and the Door
Display is unable to access firmware status.
◦ Up-to-date— The current Door Display firmware matches the current revision available
on the OA. No firmware update is required. If necessary, the Door Display firmware can
be reloaded using the Firmware Update menu.
◦ Update Available— A newer firmware revision is available for the Door Display.
◦ No Update Available— The OA does not have firmware available for the Door Display.
This occurs if the OA web server is disabled.
38 HP Superdome 2 Door Status Display
Page 39
NOTE: The Door Display firmware must be updated through the Door Display menu.
• Reboot Display— Restarts the Door Display module only.
IMPORTANT: You must reboot the Door Display after the Onboard Administrator reboots.
The Door Display does not function until you reboot the Door Display after the Onboard
Administrator reboots.
Press Exit Display Settings to return to the Door Display status menu.
Firmware Update menu
NOTE: This menu is used to update the firmware of the Door Display only.
The Firmware Update menu is available if the firmware status is displayed as Up-to-date or Update
Available on the Firmware Update menu option.
Press Start to begin the firmware update process. Press Exit Firmware Update to return to the
Display Settings menu without updating the firmware.
Setting up the Door Display 39
Page 40
NOTE: If the versions of the current Door Display firmware and the firmware available on the
OA match, you are prompted to reload the firmware or cancel.
When the firmware update is complete, you are prompted to reboot the Door Display to complete
the firmware update. Press Reboot to reboot the Door Display only. After the Door Display reboots,
you are prompted to calibrate the LCD touch screen.
Press Not Now if you do not want to reboot the Door Display. The firmware update is not complete
until the Door Display is rebooted.
40 HP Superdome 2 Door Status Display
Page 41

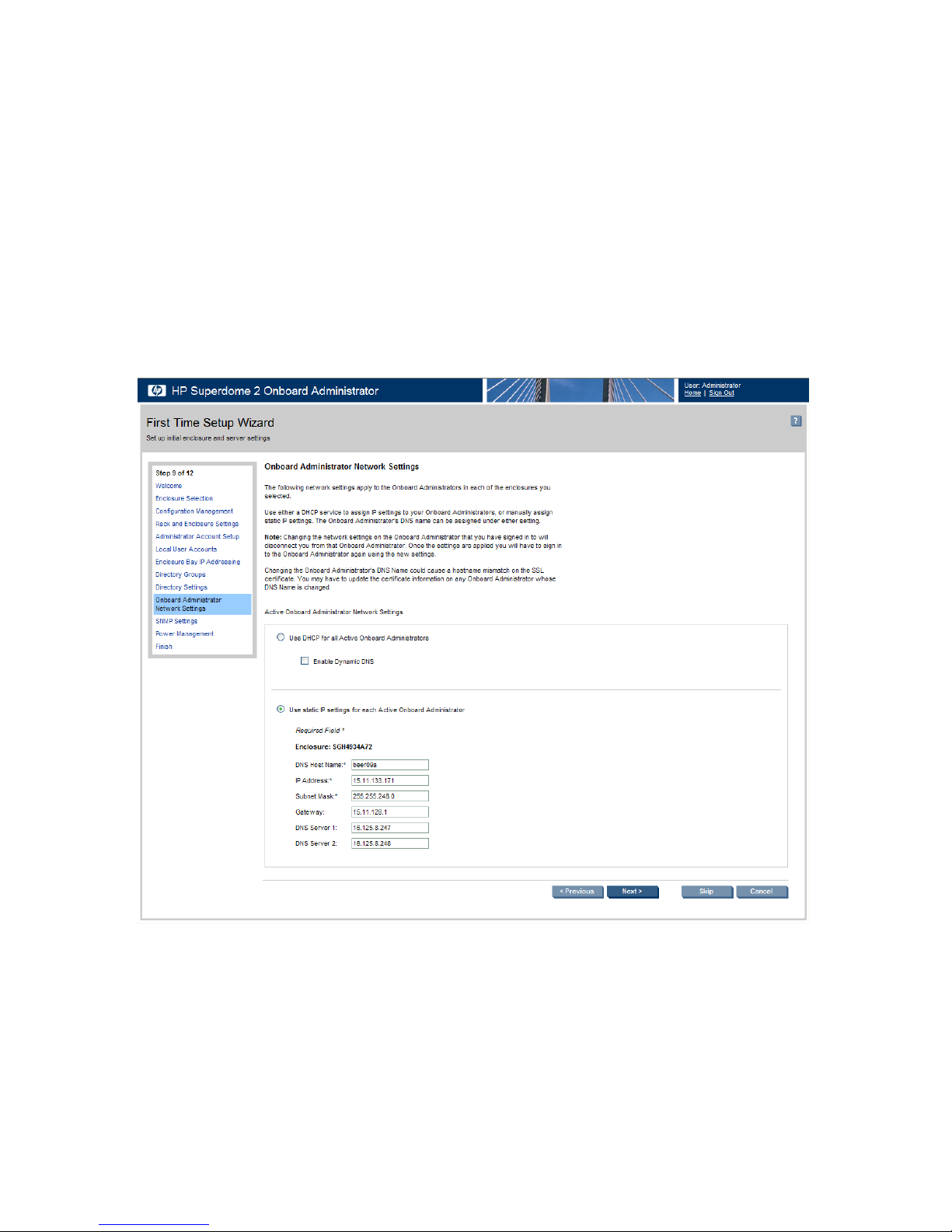

4 First Time Setup Wizard
NOTE: The First Time Setup Wizard is used only to configure compute enclosures and Onboard
Administrator network settings. The First Time Setup Wizard does not enable you to set up and
configure partitions.
For information on partition creation and management, see the HP Integrity Superdome 2 Partitioning
Administrator Guide.
Before you begin
Before running the First Time Setup Wizard, complete the following tasks:
1. Install the Onboard Administrator modules.
2. Connect the Onboard Administrator modules to the network.
3. Complete the Insight Display installation wizard. You must at least configure the active Onboard
Administrator IP address.
4. Run the Insight Display installation.
Logging on to Onboard Administrator
For information on logging on to the Onboard Administrator, see “Logging on to the Onboard
Administrator GUI” (page 15).
The first time you log on, the Onboard Administrator automatically runs the First Time Setup Wizard.
To navigate the setup wizard, click the Next button to save your changes and go to the next step.
Click the Skip button if you want to leave the step without saving the changes.
You can return to previous wizard steps by selecting them in the left tree view. You can also run
the wizard again at any time by selecting it from the Wizards menu.
User preferences
To change the display language, select a display language from the list, and then click Apply. If
you set a language preference in the Onboard Administrator GUI, the browser language setting
is overridden.
The only languages supported by the Onboard Administrator are the ones in the drop-down on
the User Preferences page. Setting the browser language preference to a language other than
those listed in the Onboard Administrator GUI has no effect on the Onboard Administrator GUI,
and the default language, English, is used.
Before you begin 41
Page 42
NOTE: After changing the settings, the browser cache must be cleared and the application must
be refreshed using the browser refresh button.
If you are using Microsoft Internet Explorer as your browser and Japanese as the display language,
all characters might not display properly. To fix this issue:
1. Go to the Regional and Language Options screen in your OS.
2. Select the Language tab.
3. Select Install files for East Asian Languages, and then click Apply.
Enclosure Selection screen
The Enclosure Selection screen displays all discovered enclosures and selects the active enclosure,
the enclosure you are signed in to by default. The check box beside each enclosure enables you
to select or clear that enclosure. Selecting the check box beside All Enclosures toggles the check
box for all enclosures.
Click the Refresh Topology button to update the rack topology information. When you select Refresh
Topology, the Enclosure Selection screen switches to the Linked Mode and all linked enclosures
appear.
If more than one enclosure is listed on the Enclosure Selection screen, select the enclosure you want
to set up, and click the Next button.
For possible values and descriptions of each box. see “Enclosure Settings screen” (page 71).
Configuration Management screen
The Configuration Management screen enables you to set up the selected enclosures using a
configuration file saved from a previous setup. You can run scripts for multiple Onboard
Administrators before leaving the current screen.
42 First Time Setup Wizard
Page 43
To set up selected enclosures using a configuration file:
On the Configuration Management screen, select one of the following options:
• Local file: Browse for the configuration file, or enter the path of the script file into the textbox.
The maximum number of characters in the file path is 256. Click Upload after entering the
script file path.
• URL: Enter an http:// path to the configuration file if it is located on a web server. The maximum
number of characters in the file path is 256. Click Upload after entering the URL. A window
appears displaying the results.
If more than one enclosure is selected during the enclosure selection, select the enclosure to upload
or apply the configuration file to use from the drop-down that appears. If multiple enclosures were
selected, repeat this process for each additional enclosure. You cannot select more than one
enclosure at a time for configuration management.

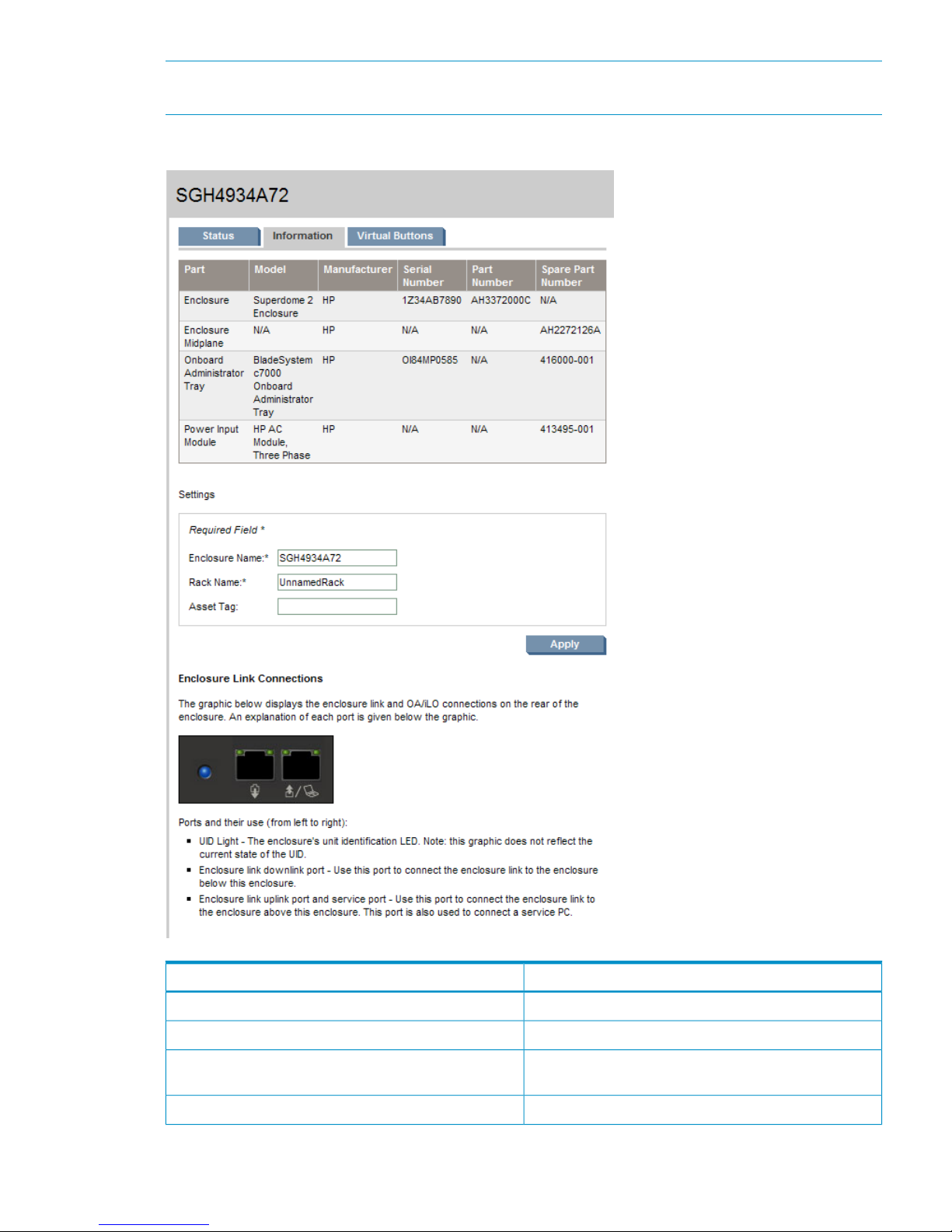

Rack and Enclosure Settings screen
This screen enables youto assign time settings and a common name to your rack and to assign
unique names and asset tags to your enclosures.
Rack and Enclosure Settings screen 43
Page 44
DescriptionPossible valueBox
The name of the rack in which the
enclosure is installed
1 to 32 characters including all alphanumeric
characters, the dash (-), and the underscore (_)
Rack Name
The current date assigned to the enclosureyyyy-mm-dd, where:Date
• mm is an integer from 1 to 12
• dd is an integer from 1 to 31
The current time assigned to the enclosurehh:mm:ss (24-hour time)Time
• hh is an integer from 0 to 23
• mm is an integer from 0 to 59
• ss is an integer from 0 to 59
IP address of primary NTP server that
provides date and time information
###.###.###.### where ### ranges from 0 to 255Primary NTP Server
IP address of secondary NTP server that
provides date and time information
###.###.###.### where ### ranges from 0 to 255Secondary NTP
Server
The time zone assigned to the enclosureTime zone settingsTime Zone
• “Africa time zone settings” (page 184)
• “Americas time zone settings” (page 184)
• “Asia time zone settings” (page 186)
• “Universal time zone settings” (page 186)
• “Oceanic time zone settings” (page 187)
• “Europe time zone settings” (page 188)
• “Polar time zone settings” (page 188)
44 First Time Setup Wizard
Page 45
DescriptionPossible valueBox
The name of the selected enclosure1 to 32 characters including all alphanumeric
characters, the dash (-), and the underscore (_)
Enclosure Name
The asset tag is used for inventory control.
The default asset tag is blank.
0 to 32 characters including all alphanumeric
characters, the dash (-), and the underscore (_)
Asset Tag
See the HP Integrity Superdome 2 User Service Guide for more information on connecting enclosures.
Administrator Account Setup screen
The Administrator Account Setup screen initially displays the name of the active enclosure and its
current settings. If multiple enclosures are selected on the Enclosure Selection screen, a button is
activated that enables you to expose separate inputs for each selected Onboard Administrator.
DescriptionPossible valueBox
The password for the Administrator
account
3 to 8 characters including all
printable characters
Password
Must match the Password value3 to 8 characters including all
printable characters
Password Confirm
The full name of the user0 to 20 characters including all
alphanumeric characters, the dash (-),
the underscore (_), and the space
Full Name
Contact information for the user
account. The contact information can
0 to 20 characters including all
alphanumeric characters, the dash (-),
the underscore (_), and the space
Contact
be the name of an individual, a
telephone number, or other useful
information.
The PIN code for the enclosure Insight
Display
1 to 6 characters from the character
sets 0 to 9, a to z, and A to Z
PIN Code
Must match the Insight Display PIN
value
1 to 6 characters from the character
sets 0 to 9, a to z, and A to Z
PIN Code Confirm
Administrator Account Setup screen 45
Page 46
Local User Accounts screen
The Local User Accounts screen displays the user accounts assigned to the Active Onboard
Administrator and provides choices for adding, editing, and deleting accounts.
• New: Click the New button to add a new user to the selected enclosure. A maximum of 30
user accounts can be added including the reserved accounts. The Add Local User screen
appears.
• Edit: Select a user (only one can be selected) by selecting the check box next to the name of
the user. Click the Edit button to change the settings on the Edit Local User screen.
• Delete: Select a user or users to be deleted by selecting the check box next to the name of the
user. Click the Delete button to delete the accounts. If an attempt is made to delete the last
Administrator account, you will receive an alert warning that at least one Administrator account
must exist and the delete action is canceled.
User Settings screen
The User Settings screen displays configurable user information. Enter user information in the User
Information and User Permissions sections. Then click Add User or Update User to save the
information. To return to the Local User Accounts screen, click Cancel.
46 First Time Setup Wizard
Page 47
For each user added, select the appropriate boxes to grant access to servers and interconnect
bays.
For possible values and descriptions of each box, see “Managing users” (page 134).
Enclosure Bay IP Addressing screen
The Onboard Administrator EBIPA feature is intended to help you provision a fixed IP address to
a particular bay in an enclosure. The components plugged into the bays are set for DHCP, and
interconnect modules are configured to use the internal management port to Onboard Administrator.
If the component is configured for a static IP address, an EBIPA assignment to that bay has no
effect.
NOTE:
If you use DHCP servers on your management network, do not use EBIPA for management IP
address assignments.
If the server blade is configured for static IP address, it carries the same address even if the blade
is moved to another enclosure.
If the server blades are set for DHCP and the Onboard Administrator is configured for EBIPA for
that bay, iLO gets an EBIPA-configured IP address when it is plugged into that enclosure.
If your network has an external DHCP service or if you want to manually assign static IP addresses
one by one to the server blades and interconnect modules, click the Skip button to bypass this step.
Enclosure Bay IP Addressing screen 47
Page 48
EBIPA Settings screen
For information on how to set up EBIPA, see (page 82).
Directory Groups screen
LDAP is an open protocol for accessing information directories. While LDAP is based on the X.500
standard, it is significantly simpler. LDAP supports TCP/IP, which enables applications to work
independently of the server hosting the directory.
Use the Directory Group screen to set directory access for the now selected enclosures.
48 First Time Setup Wizard
Page 49
On this screen, you can configure directory groups.
For possible values and descriptions of each box, see “Directory Groups” (page 143).
Directory Settings screen
Use the Directory Settings screen to set directory access for the now selected enclosures.
Using the Directory Settings screen, you can configure the following settings:
• Enable LDAP Authentication: Enables a directory server to authenticate a user login.
• Enable Local Users: Enables a user to log on using a local user account instead of a directory
account.
DescriptionPossible valueBox
The IP address or the DNS name or the
name of the domain of the directory service
###.###.###.### where ### ranges
from 0 to 255 or DNS name of the
directory server or the name of the domain
Directory Server Address
The port used for LDAP communications.
The default port is port 636
0 to xxxxDirectory Server SSL Port
First searchable path used to locate the user
when the user is trying to authenticate using
directory services
All characters except " (quotes), not to
exceed 128 characters
Search Context 1
Second searchable path used to locate the
user when the user is trying to authenticate
using directory services
All characters except " (quotes), not to
exceed 128 characters
Search Context 2
Third searchable path used to locate the
user when the user is trying to authenticate
using directory services
All characters except " (quotes), not to
exceed 128 characters
Search Context 3
• Use NT Account Name Mapping (DOMAIN\username): Enables NT name mapping so that
you can enter the NT domain and user name.
Directory Settings screen 49
Page 50
Onboard Administrator Network Settings screen
Use the Onboard Administrator Network Settings screen to modify network settings for all the
Onboard Administrator modules in the selected enclosures. Settings for Standby Onboard
Administrator modules appear only if the modules are present. Options for DHCP and static IP are
supported.
• Use DHCP for all Active Onboard Administrators: Get the IP address for the Onboard
Administrator from a DHCP server. The Standby check box is shown only if there is a Standby
Onboard Administrator in the enclosure.
• Enable Dynamic DNS: Enable using a DNS server to translate host names into IP addresses
when using DHCP.
• Use static IP settings for each Active Onboard Administrators: Manually set up static IP settings
for the Onboard Administrator. The Standby check box is shown only if there is a Standby
Onboard Administrator in the enclosure.
For possible values and descriptions of each box, see “TCP/IP Settings screen” (page 91).
SNMP Settings screen
Use the SNMP Settings screen to configure or modify the SNMP settings for the active HP Superdome
2 Onboard Administrator.
50 First Time Setup Wizard
Page 51
For possible values and descriptions of each box, see “SNMP Settings screen” (page 84).
SNMP Settings screen 51
Page 52
Power Management screen
NOTE: If redundancy mode is set to Redundant, AC Redundant, or Power Supply Redundant,
and power redundancy is lost, then you must either add additional power supplies or change the
redundancy mode setting in the Onboard Administrator to restore Power Subsystem status. One
upper and one lower power supply must always be installed and operational. See the Insight
Display for corrective steps.
The Superdome 2 enclosure power management system enables you to customize the configuration
of the enclosure. You can select from the various modes on the Onboard Administrator Power
Management screen. The power modes are explained in the following table:
DescriptionInsight Display nameMode
For dc power supplies only. In this configuration, N upper and N
lower power supplies are used to provide power and N upper and
RedundantRedundant
N lower power supplies are used to provide redundancy (where N
can equal 1, 2, or 3). Up to three upper and three lower power
supplies can fail without causing the enclosure to fail. When correctly
52 First Time Setup Wizard
Page 53
DescriptionInsight Display nameMode
wired with redundant dc line feeds, this configuration also ensures
that a dc line feed failure does not cause the enclosure to power off.
For ac power supplies only. In this configuration, N upper and N
lower power supplies are used to provide power and N upper and
AC RedundantAC Redundant
N lower power supplies are used to provide redundancy (where N
can equal 1, 2, or 3). Up to three upper and three lower power
supplies can fail without causing the enclosure to fail. When correctly
wired with redundant ac line feeds, this configuration also ensures
that an ac line feed failure does not cause the enclosure to power
off.
Up to six upper and six lower power supplies can be installed with
one upper and one lower power supply always reserved to provide
Power SupplyPower Supply
Redundant
redundancy. In the event of a single upper or lower power supply
failure, the redundant power supply in the same section (upper or
lower) takes over the load. A line feed failure of more than one
power supply in a section causes the system to power off.
There is no power redundancy and no power redundancy warnings
are given. If all power supplies are needed to supply Present Power,
NoneNot Redundant
then any power supply or line failure can cause the enclosure to
power off.
If enabled, Dynamic Power automatically places unused power
supplies in standby mode to increase enclosure power supply
Dynamic PowerDynamic Power
efficiency, thereby minimizing enclosure power consumption during
lower power demand. Increased power demands automatically
return standby power supplies to full performance. This mode is not
supported for low voltage on the Superdome 2 enclosure.
An optional setting to limit power. Whenever you attempt to power
on a device, the total power demands of the new device and of the
Power LimitPower Limit
devices already on are compared against this Static Power Limit. If
the total power demands exceed the limit, the new device is
prevented from powering on.
Dynamic Power: The default setting is Enabled. The following selections are valid:
• Enabled: Some power supplies can be automatically placed on standby to increase overall
enclosure power subsystem efficiency.
• Disabled: All power supplies share the load. The power subsystem efficiency varies based on
load.
Dynamic Power is not supported for low voltage on the Superdome 2 enclosure.
Finish
You can clear the Do not automatically start this wizard again check box to force the First Time
Setup Wizard to run again the next time a user signs into the Onboard Administrator.
Finish 53
Page 54
Click the Finish button to save and exit the First Time Setup Wizard. The First Time Setup Wizard
screen closes and you are returned to the default main screen of the Superdome 2 Onboard
Administrator.
54 First Time Setup Wizard
Page 55
5 Navigating Onboard Administrator
Navigation overview
The main HP Superdome 2 Onboard Administrator navigation system consists two views:
• Tree view: Llists all of the complex devices on the left side of the main page and remains visible
at all times.

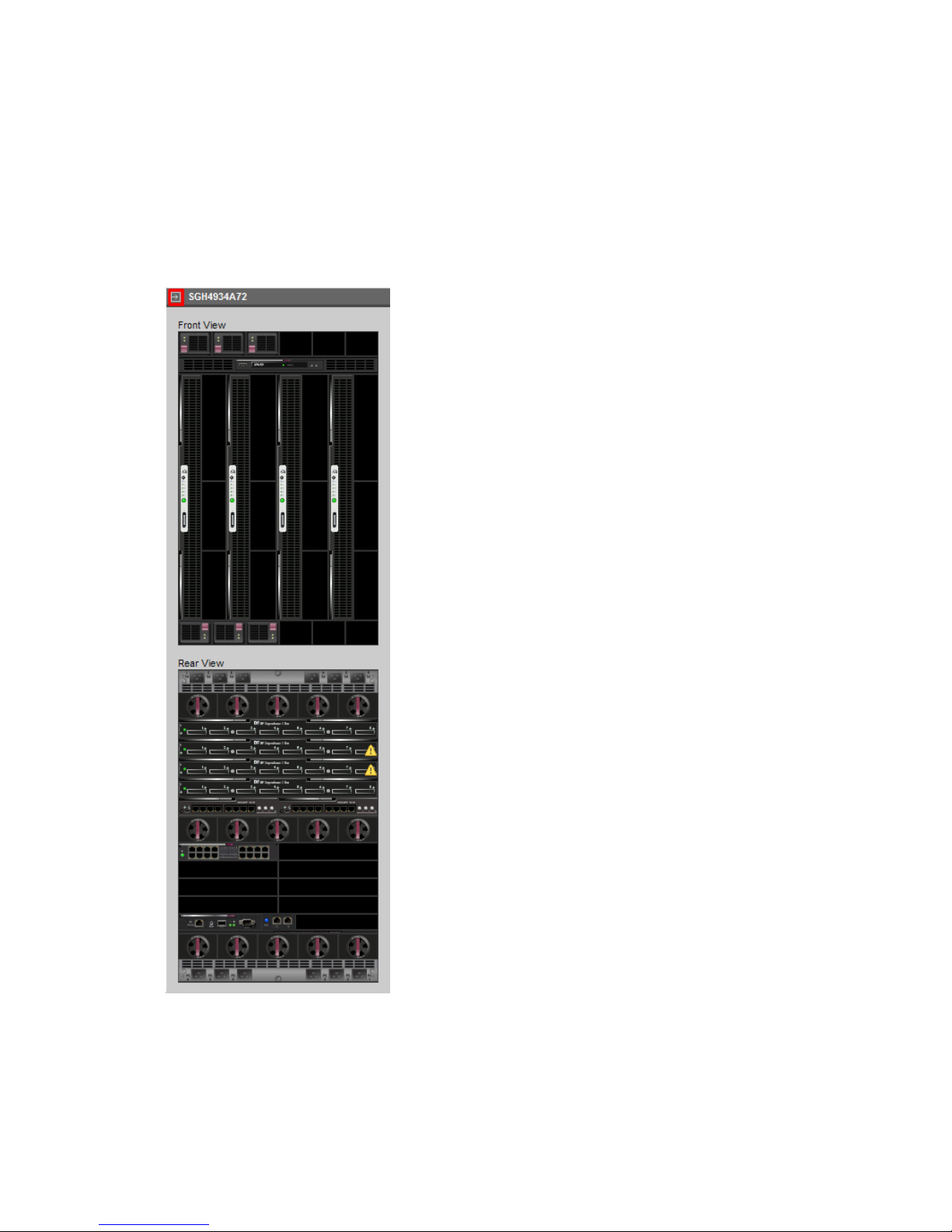

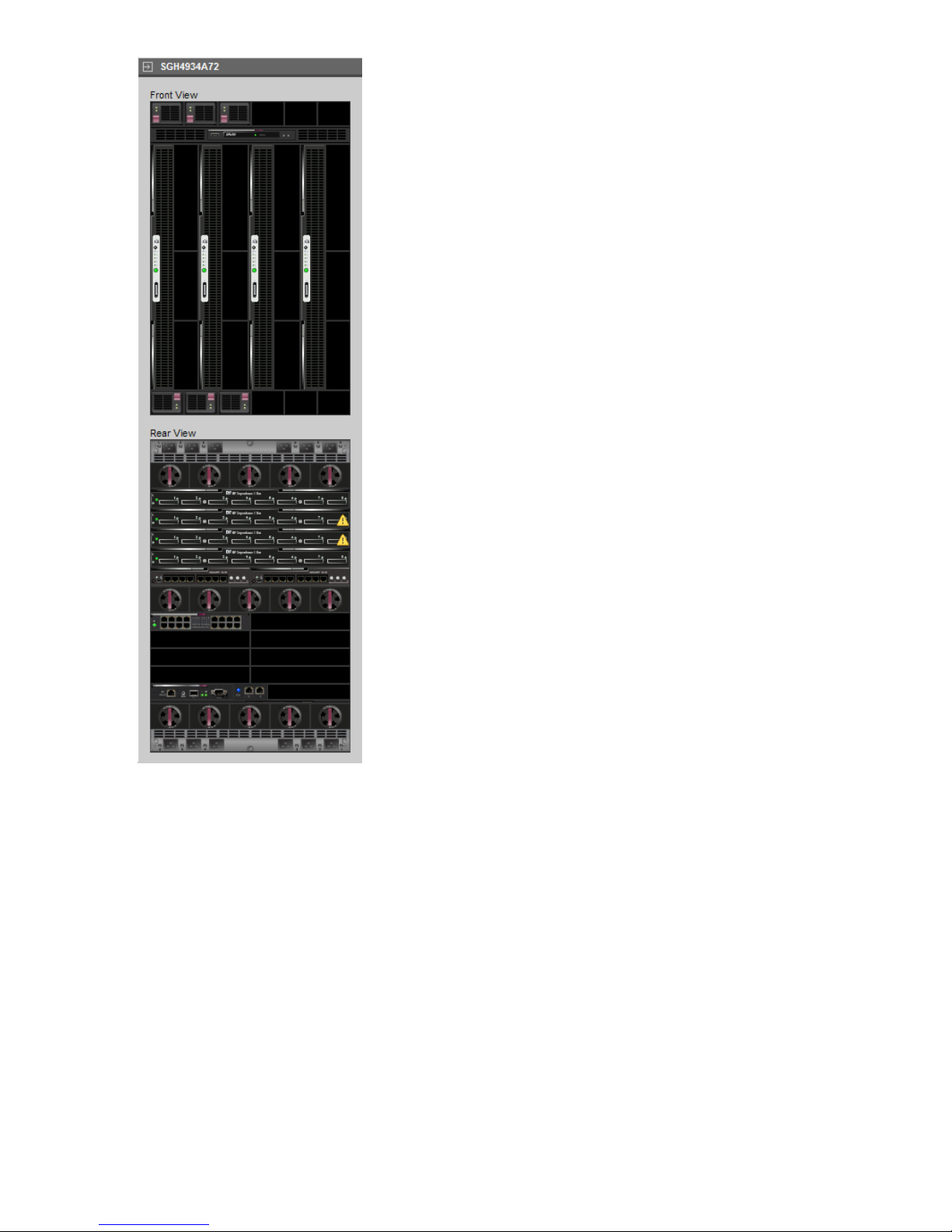

• Graphical view: Displays a physical picture of the enclosures in the complex.
You can navigate the devices and functions in a complex through either of these views.

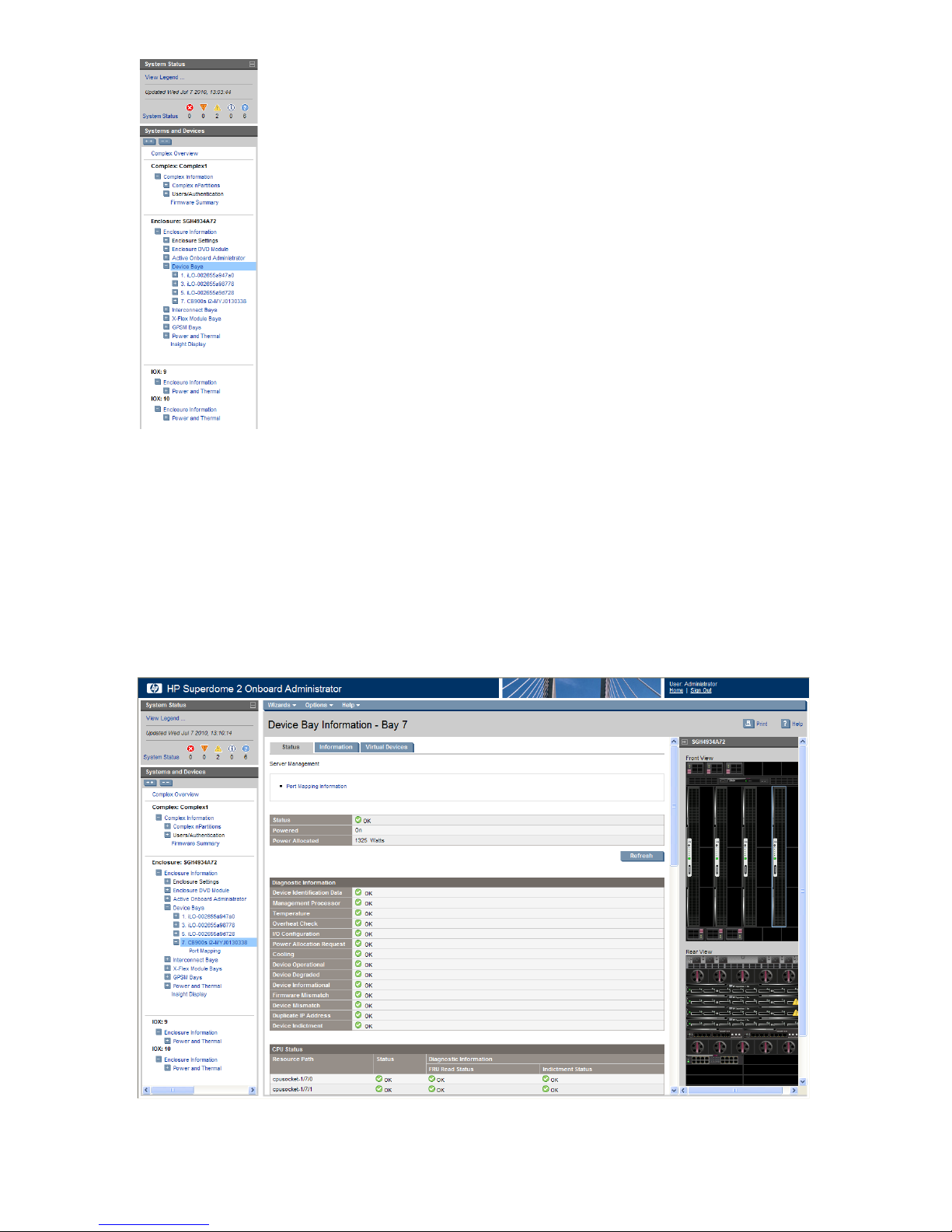

Tree view
The tree view aids in navigating individual compute enclosure devices, connected IOXs and functions
for all complex compute enclosures in a hierarchical manner. The rendering of the tree view depends
on several factors, including user permissions, device availability, and device status. If a user is
configured to be an Operator or User, it is possible that some options are not visible in the tree
view.
Navigation overview 55
Page 56
One of the main purposes of the tree view is to enable navigation using categories based on the
major systems within the complex. When a category is expanded (by clicking the white plus icon
on the blue box to the left of the category), an icon next to the category name can indicate a
degraded status of the affected system. In the case of multiple components reporting status, the
status icon indicates a cumulative worst-case status of all the devices in the same category.

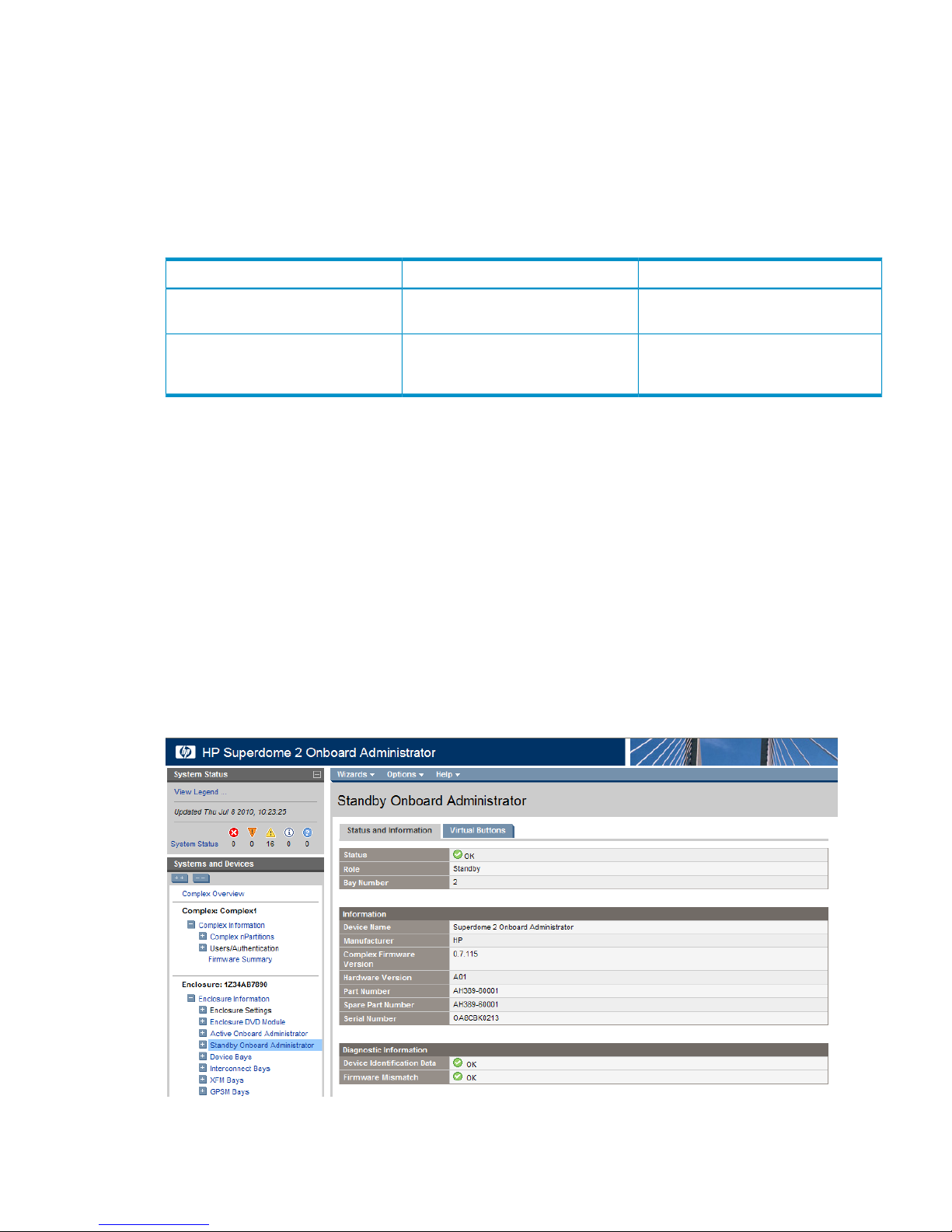

Individual device pages
Clicking the link for an individual device selects the device, opens the device detail page, and
selects the device in the graphical view in the right frame of the GUI. Individual device pages
contain detailed information on the selected device and other device-related functions.
56 Navigating Onboard Administrator
Page 57
Category summary pages
Category summary pages contain summary information for each of the devices in that category.

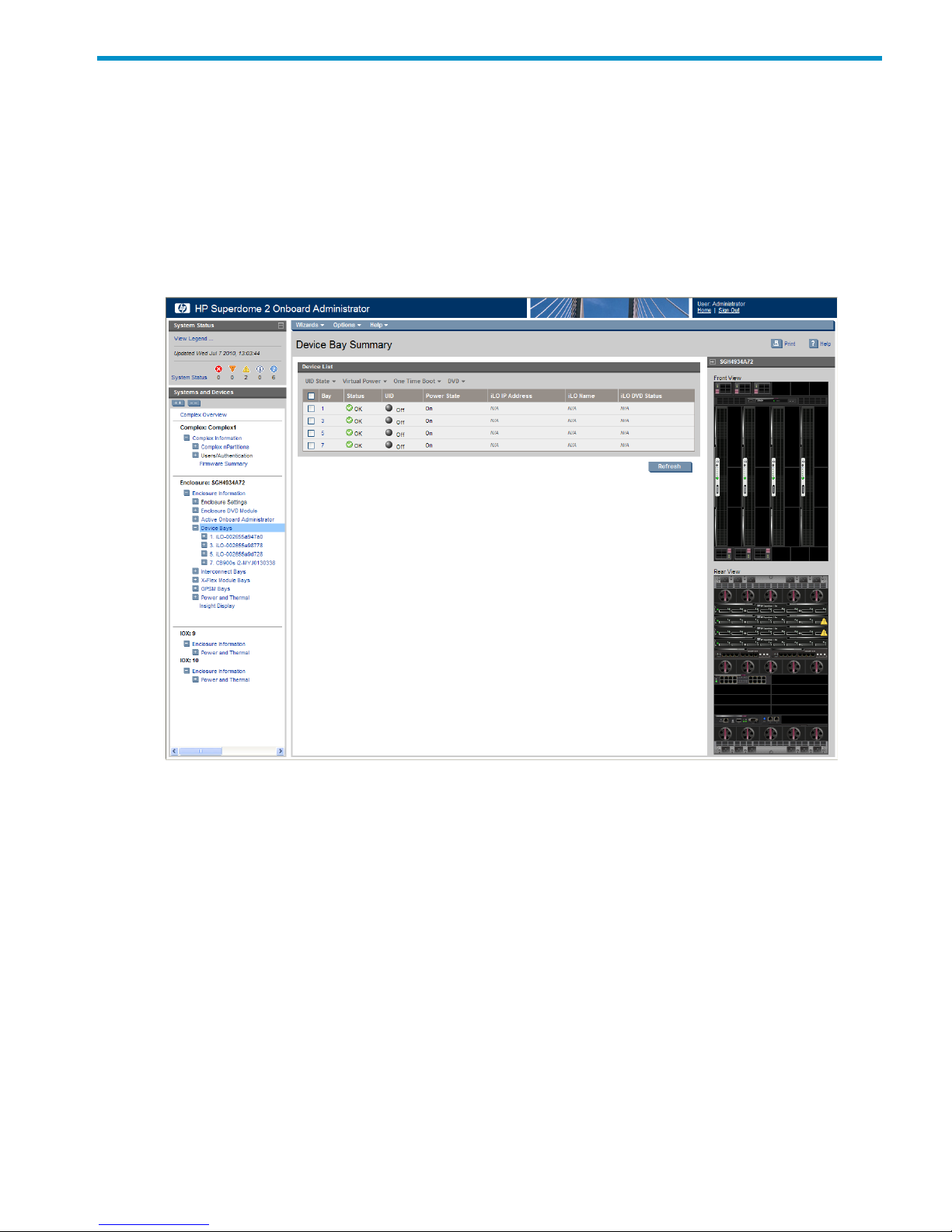

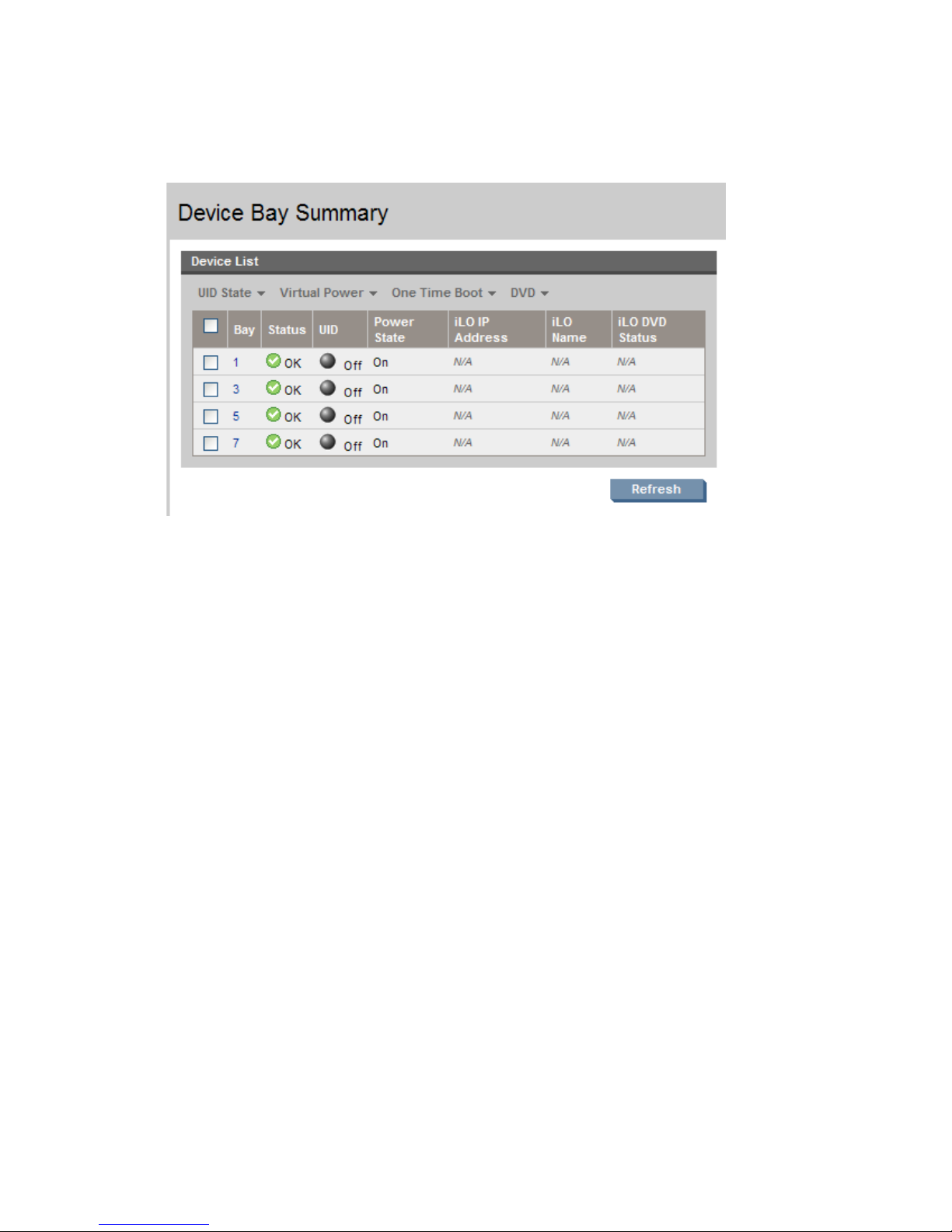

For example, clicking the Device Bays link opens the Device Bay Summary screen. Each parent
element in the tree works in this manner. When you click a category summary link, no devices are
selected in the graphical view navigation.
System forms pages
Some devices, particularly HP Onboard Administrator, can have links to various system forms
pages listed after their main links in the left tree navigation view. Form pages contain input text
boxes, radio buttons, and other HTML input elements and are used to administer settings related
to the device to which they belong. For example, you can use the HP Onboard Administrator
system forms page to change IP address settings or update firmware. These forms are linked under
the HP Onboard Administrator parent element. When you click a system forms link, the device to
which the form page belongs is selected in the graphical view. For example, clicking the UID State
link for the Active HP Onboard Administrator selects the Active HP Onboard Administrator device
in the graphical view. Links to system forms do not display status icons.
Graphical view navigation
The second component of the HP Superdome 2 Onboard Administrator GUI navigation system is
a graphical representation of physical enclosures, called the graphical view. The graphical view
consists of two subcomponents: a front view and a rear view.
The following image shows the graphical view of a typical Superdome 2 compute enclosure.
Navigation overview 57
Page 58
Selecting a device
To select a device, click the graphical representation of the device in the front or rear graphical
view. When you select a device, its border changes from gray to light blue indicating that it is the
now selected device. Selecting a device in the graphical view selects the corresponding device in
the left navigation tree view. Every time you select a device from any part of the navigation system,
the rest of the navigation reflects the device selection event and updates accordingly.
Status reporting
The graphical view reports the status of every device in the enclosure. The status of each device
is indicated next to the device by a small status icon. No status icon appears for a device that is
working properly and has an OK status. However, all other status codes appear as status icons
next to the device.
Device security
Although the front and rear graphical views are both affected by user permissions, security on the
graphical view is handled differently from the left tree view. If the user does not have the permissions
to access a device, a blank bay appears regardless of whether a device is present in that bay,
58 Navigating Onboard Administrator
Page 59
and a padlock icon appears in the bay table cell, indicating that the bay is locked to the current
user.
The user cannot select a locked bay. When the user hovers the mouse over the locked bay, a
message appears, indicating that the user does not have permission to access devices in that bay.
Minimizing the graphical view
To minimize the graphical view from the main display, click the box with the arrow, located directly
to the left of the name of the enclosure in the graphical view box. This minimizes the graphical
view and gives more room for the main section of the display. This is useful when viewing the
Onboard Administrator on a small monitor or on a monitor with low resolution.
Navigation overview 59
Page 60
6 Complex Overview

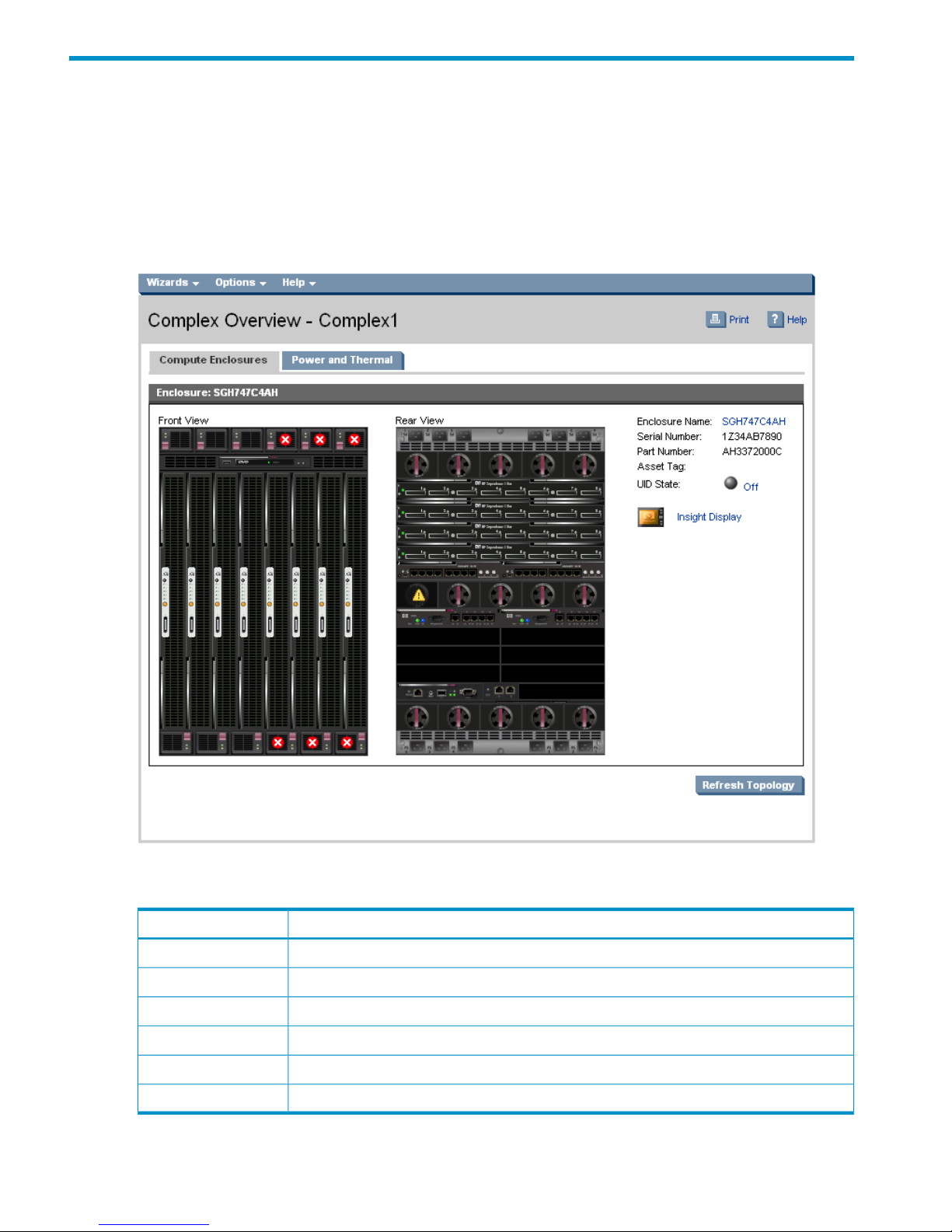

Complex Overview screen
The Complex Overview screen displays a graphical representation of each compute enclosure in
the complex, called the graphical view. The graphical view consists of a front view and a rear
view of each enclosure. When you mouse over a device in the graphical view, a window appears
with information on that device. The graphical view provides status on each device in the enclosure
and gives you the option of selecting an individual device for viewing more detailed information.
Compute Enclosures tab
DescriptionItem
The DNS name of the enclosure and the name of the enclosure in the rack.Enclosure Name
The unique serial number of the enclosure.Serial Number
The part number of the enclosure used when getting a new or replacement enclosure.Part Number
The tag used for inventory control.Asset Tag
Displays On or Off, depending on whether the UID is active.UID State
A link to the Insight Display page of the enclosure.Insight Display
To update the complex topology information, click the Refresh Topology button.
60 Complex Overview
Page 61

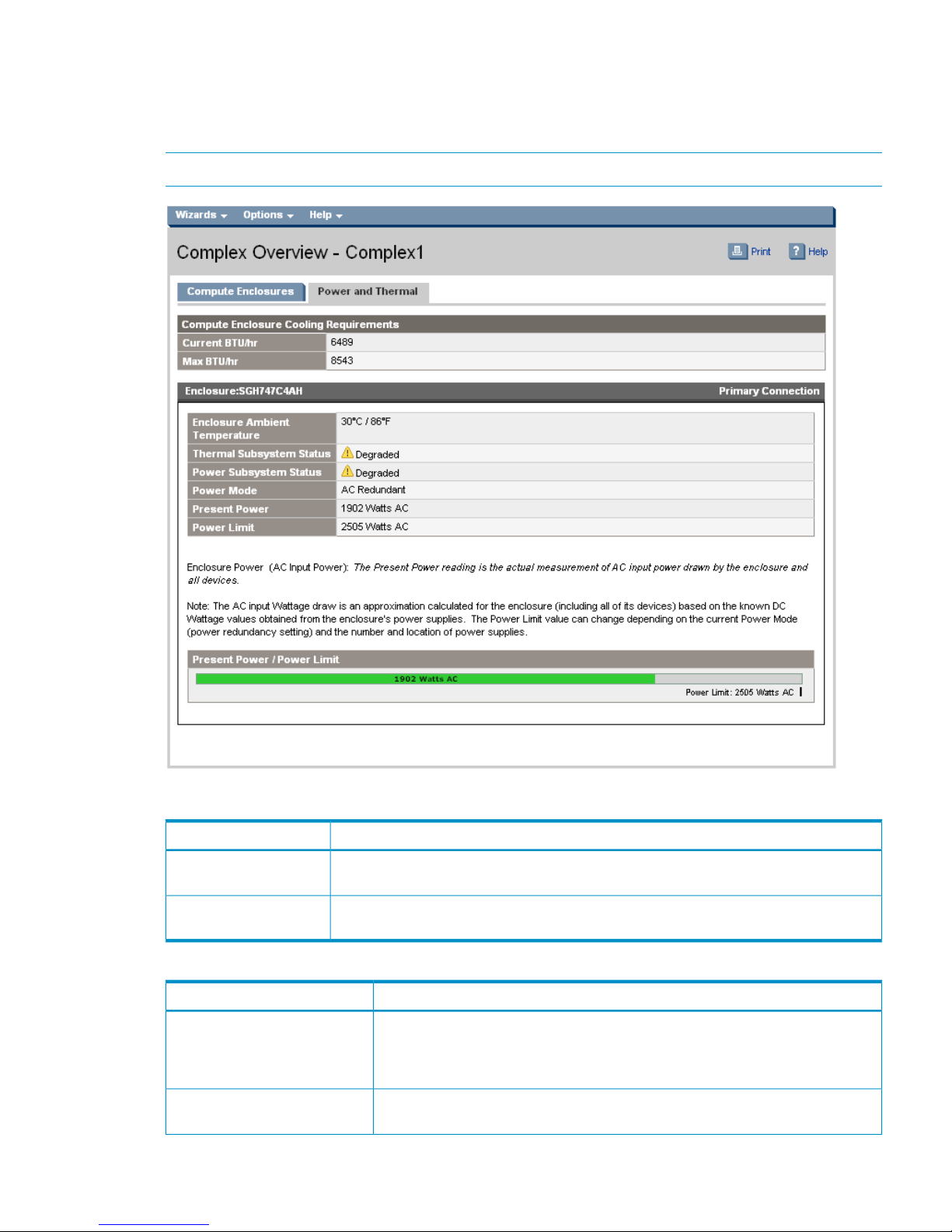

Power and Thermal tab
The Power and Thermal tab displays information about the temperature inside each compute
enclosure and the thermal and power subsystem health status. A graphical view of the present
power and power limit helps you determine the power status.
NOTE: This information is displayed only for compute enclosures. It does not include IOXs.
Table 2 Compute enclosure cooling requirements
DescriptionItem
The sum of the amount of heat being generated by the complex enclosures measured in
BTU per hour.
Current BTU/hr
The maximum amount of heat that can be generated by the complex enclosures under load
measured in Btu per hour.
Max BTU/hr
Table 3 Compute enclosure thermal and power status
DescriptionItem
This box displays the highest ambient temperature being reported by the installed
blade devices. If no blade devices are installed, then this box displays the
Enclosure Ambient Temperature
temperature of the Onboard Administrator module as an approximation of the
ambient temperature.
The overall thermal status of the enclosure. Possible values are Unknown, OK,
Degraded, or Critical Error.
Thermal Subsystem Status
Complex Overview screen 61
Page 62
Table 3 Compute enclosure thermal and power status (continued)
DescriptionItem
The overall power status of the enclosure. Possible values are Unknown, OK,
Degraded, or Critical Error.
Power Subsystem Status
A user setting to configure the enclosure dc power capacity and the input power
redundancy mode of the enclosure. See “Power Management screen” (page 121)
for possible values.
Power Mode
The amount of watts being consumed by all devices in the enclosure.Present Power
The maximum amount of power available for consumption by the enclosure measured
in watts.
Power Limit
NOTE: If redundancy mode is set to AC Redundant, or Power Supply Redundant, and power
redundancy is lost, then you must either add additional power supplies or change the redundancy
mode setting in the Onboard Administrator to restore Power Subsystem status. See the Insight
Display for corrective steps.
NOTE: The Power Limit is dependent on the enclosure power redundancy setting and the number
and location of the power supplies in the enclosure. If a Static Power Limit has been specified, the
Power Limit displays that limit.
Complex Information screen
The Complex Information screen has three tabs:
• Status
• Information
• Complex Logs
Status tab
The Status tab provides the current operational status of the entire complex and the status of each
compute enclosure and IOX in the complex.
62 Complex Overview
Page 63
DescriptionItem
The overall health of the complex. Possible values are Unknown, OK, Degraded, and Failed.Complex Status
The overall health of the CAMNET fabric in the complex. Possible values are Unknown, OK,
Degraded, and Failed.
CAMNET Status
The health of the complex Robust Store. Possible values are Unknown, OK, Degraded, and
Failed.
Robust Store Status
The overall health of the cooling systems in the complex. Possible values are Unknown, OK,
Degraded, and Failed.
Cooling Status
The overall thermal status of the complex. Possible values are Unknown, OK, Degraded, and
Failed.
Thermal Status
The overall status of product IDs of all devices in the complex. Possible values are Unknown,
OK, Degraded, and Failed.
Product ID
The overall status of enclosure IDs of all enclosures in the complex. Possible values are
Unknown, OK, Degraded, and Failed.
Enclosure ID
The Complex Status tab also displays general status information about each compute enclosure
and IOX in the complex beneath the overall status table.
Complex Information screen 63
Page 64
Enclosure Status Overview
DescriptionColumn
The number of the compute enclosure in the complex.Enclosure Number
The assigned name of the compute enclosure.Enclosure Name
The overall health of the compute enclosure. Possible values are Unknown, OK, Degraded,
and Failed.
Status
IOX Status Overview
DescriptionColumn
The number of the IOX in the complex.IOX Number
The assigned name of the IOX.IOX Name
The overall health of the IOX. Possible values are Unknown, OK, Degraded, and Failed.Status

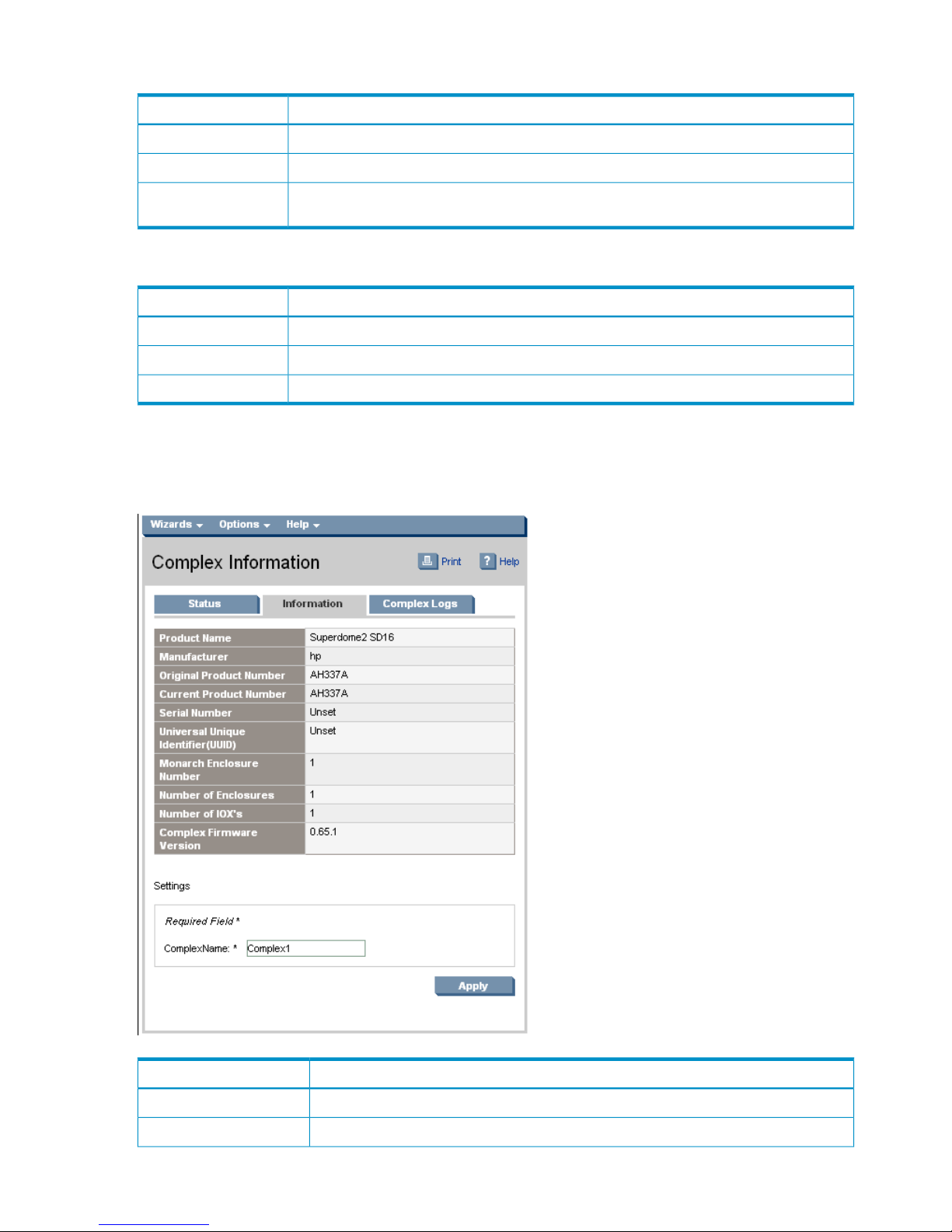

Information tab
The Information tab provides general information about the complex and an input box to change
the Complex Name.
DescriptionItem
Common descriptive name of the Superdome 2 complexProduct Name
Name of the company that manufactured the complexManufacturer
64 Complex Overview
Page 65
DescriptionItem
The original product number of the complexOriginal Product Number
The current product number of the complexCurrent Product Number
The unique manufacturer serial number of the Superdome 2 complexSerial Number
The Universally Unique Identifier number assigned to the complexUniversal Unique Identifier
(UUID)
The number of the compute enclosure in the complex designated as the monarch enclosureMonarch Enclosure
Number
The total number of compute enclosures in the complexNumber of Enclosures
The total number of IOXs in the complexNumber of IOXs
The now configured firmware bundle version on the complexComplex Firmware Version
Settings box
The text input box below the Complex Information table enables you to change the Complex Name
for the complex. After choosing a Complex Name, click the Apply button to save changes.
Complex Logs tab
The Complex Logs tab displays links to launch log viewers in new windows. The available log
viewers are the System Event Log, Forward Progress Log and the Live Log.

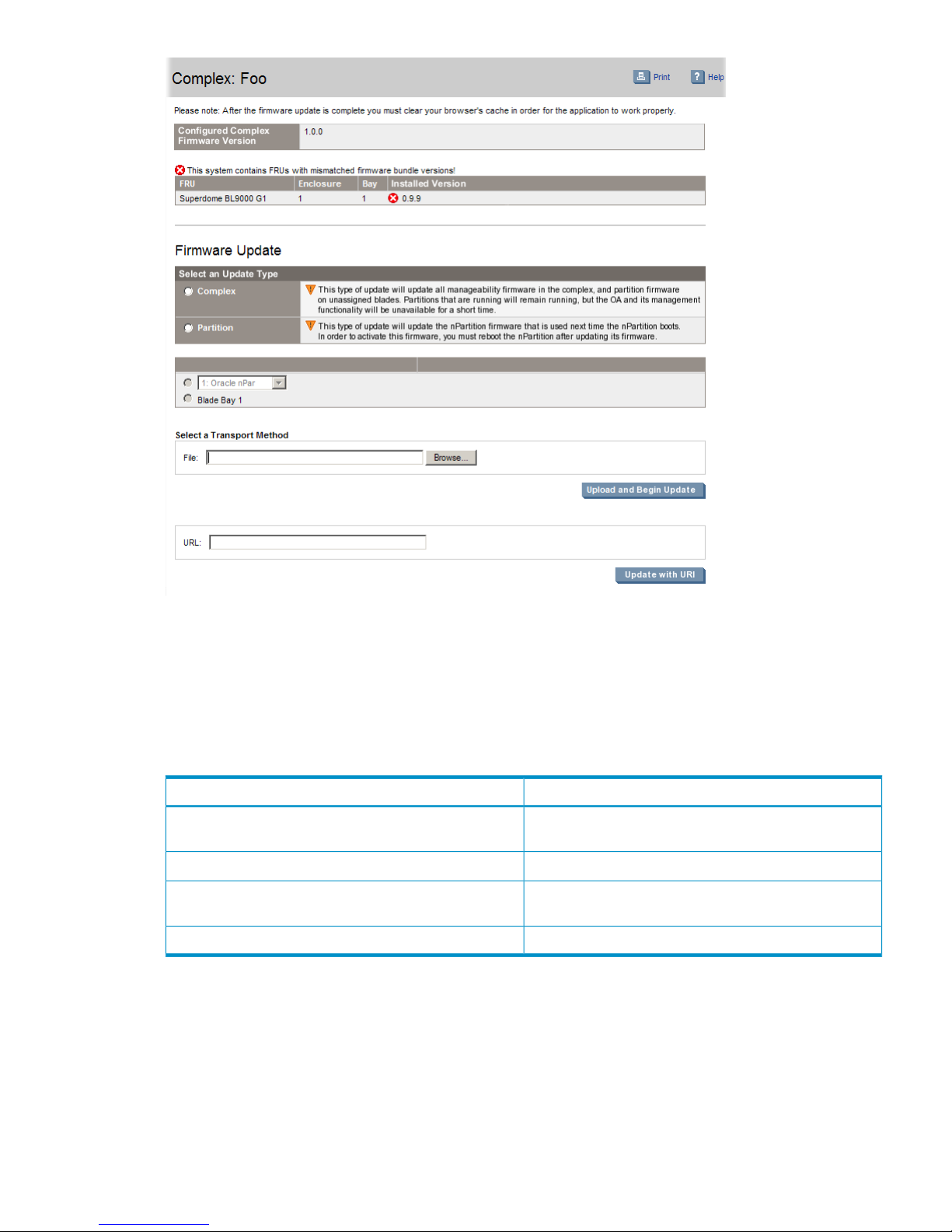

Complex Firmware Summary screen
The Complex Firmware screen displays information about the firmware version now configured
on the complex and the compliance of devices within the complex to the configured complex
firmware.
The now configured version of the complex firmware is displayed at the top of the page, and any
devices with firmware versions that do not match the complex firmware are displayed under it.
Complex Firmware Summary screen 65
Page 66
Table 4 Complex Firmware information
DescriptionItem
The version of the firmware bundle now configured on the
complex
Configured Complex Firmware Version
The compute enclosure and bay number of the device with
mismatched firmware
Enclosure / Bay
The model number of the deviceModel
The now installed version of the firmware on the deviceInstalled Version
Each partition in the complex is displayed after the Complex Firmware, with the version of the
firmware now configured and active on the partition. If any devices within a partition have firmware
versions that do not match the now configured firmware on the partition, they are displayed below
the partition firmware information.
Table 5 Partition Firmware information
DescriptionItem
The version of the firmware bundle now configured on the
partition
Configured Partition Firmware Version
The version of the firmware bundle now active on the
partition
Active Partition Firmware Version
NOTE: The active version of the firmware will not match
the configured version if the partition requires a reboot
after a firmware update.
The compute enclosure and bay number of the device with
mismatched firmware
Enclosure / Bay
Type of device with mismatched firmwareModel
The now installed version of the firmware on the deviceInstalled Version
Firmware Update screen
IMPORTANT: You cannot update firmware through the HP Superdome 2 Onboard Administrator
GUI if you have complex firmware earlier than the Online Firmware Update firmware release.
To update complex firmware if you have complex firmware earlier than the Online Firmware
Update firmware release, see the UPDATE FIRMWARE section in the HP Integrity Superdome 2
Onboard Administrator Command Line Interface User Guide.
The Firmware Update screen enables you to update the firmware for all FRUs in the complex or to
update the firmware for individual partitions. Information about the now configured complex
firmware and any FRU in the complex that does not match the current complex firmware is also
displayed.
66 Complex Overview
Page 67
Configured Complex Firmware Version
This is the now configured firmware bundle installed on the complex.
FRUs with mismatched firmware
FRUs within the complex that have mismatched firmware bundle versions now installed are listed
individually.
DescriptionItem
Common descriptive name of the FRU with mismatched
firmware.
FRU
The compute enclosure that contains the FRU.Enclosure
The bay that contains the FRU. The FRU type determines if
it is a blade, interconnect, OA, GPSM or XFM bay.
Bay
The firmware version now installed on the FRU.Installed Version
Firmware Update screen 67
Page 68
Firmware Update
This section specifies which type of update to be performed:
• Complex: This updates firmware on all FRUs in the complex and the partition firmware on all
blades that are not now assigned a partition.
• Partition: This updates the nPartition firmware on the specified partition or on an unassigned
blade. When this option is selected, the box under it becomes active and you must then select
one of the following options:
◦ Specify an nPartition to update
◦ Specify an unassigned blade by enclosure bay number
Transport Methods
After selecting your update type, you must select the method of uploading the firmware bundle
image file. You can upload directly from a local PC or you can specify a web address where the
firmware bundle is located.
• Local PC: Click Browse and navigate to the firmware bundle. Click Upload and Begin Update
to begin the update process.
• URL: Enter an HTTP or FTP web address where the firmware bundle is located.
The web address must be formatted as protocol://host/path/filename.◦
◦ If your FTP server does not support anonymous logins, a user name and password can
be specified within the web address formatted as:
ftp://username:password@host/path/filename
Click the Upload with URL button to begin the update process.
Enclosure DVD Module screen
The DVD module in a compute enclosure can be used by a partition to perform software installations
and updates in the same manner as a standard DVD drive is used in a computer system locally or
remotely.
The DVD module is not connected to any partitions in the complex after initial installation. To use
the DVD drive, an administrator must first connect the DVD module to any or all partitions through
the Onboard Administrator CLI or by navigating to the Complex nPartitions menu and selecting
the Virtual Devices tab.
For more information, see the HP Integrity Superdome 2 Partitioning Administrator Guide.
Information on the Enclosure DVD screen is current as of the last download. To view updated
information, click the Refresh button.
68 Complex Overview
Page 69
Status and Information tab information
DescriptionItem
Current status of the DVD module. Possible values are OK, Degraded, or Not Present.Status
The common descriptive name of the DVD module.Product Name
The name of the company that manufactured the DVD module.Manufacturer
The unique serial number of the DVD module.Serial Number
The part number to use when ordering an additional DVD module of this type.Part Number
The part number to use when ordering a replacement DVD module of this type.Spare Part Number
Manufacturing information about the DVD module.Engineering Date Code
Diagnostic Information
DescriptionItem
Contains information on model name, part number, serial number, and other information
used to identify the device. This data is also called FRU data. Device identification data
error displays if the data is not present or not readable by the Onboard Administrator.
Device Identification Data
There is insufficient power to adequately power the DVD module. Possible values are OK
or Insufficient enclosure power.
Power Allocation Request
Enclosure DVD Module screen 69
Page 70
7 Configuring HP Integrity Superdome 2 compute enclosures
and enclosure devices
Viewing the status screens
Each compute enclosure in the complex can be selected from the left navigation tree. Clicking the
enclosure name opens the main status screen of the enclosure.
On this page, three tabs are available at the top of the main page:
• Status
• Information
• Virtual Buttons
The Status tab displays one of the following values as Overall Enclosure Status:
• Critical/Failed
• Major
• Minor/Degraded
• Warning
• Normal/OK
• Disabled
• Unknown
• Informational
The Active HP Superdome 2 Onboard Administrator Status and Standby HP Superdome 2 Onboard
Administrator Status are similar to the Overall Enclosure Status and display a status for the Onboard
Administrator. If a Standby Onboard Administrator is not present in the system, its status value is
Absent.
Enclosure Power Mode displays the current power mode of the enclosure. The following values
are possible:
• AC Redundant
• Power Supply Redundant
• Not Redundant
The Enclosure Device Status Overview is divided into four sections:
• Device Bay Overview
• Power Supply Overview
• Interconnect Bay Overview
• Fan Overview
For each of these sections, the following values are possible:
• Critical/Failed
• Major
• Minor/Degraded
• Warning
• Normal/OK
• Disabled
70 Configuring HP Integrity Superdome 2 compute enclosures and enclosure devices
Page 71
• Unknown
• Informational
Enclosure settings
Enclosure Settings screen
This section provides detailed procedures to configure the management functionality provided by
the HP Superdome 2 Onboard Administrator.

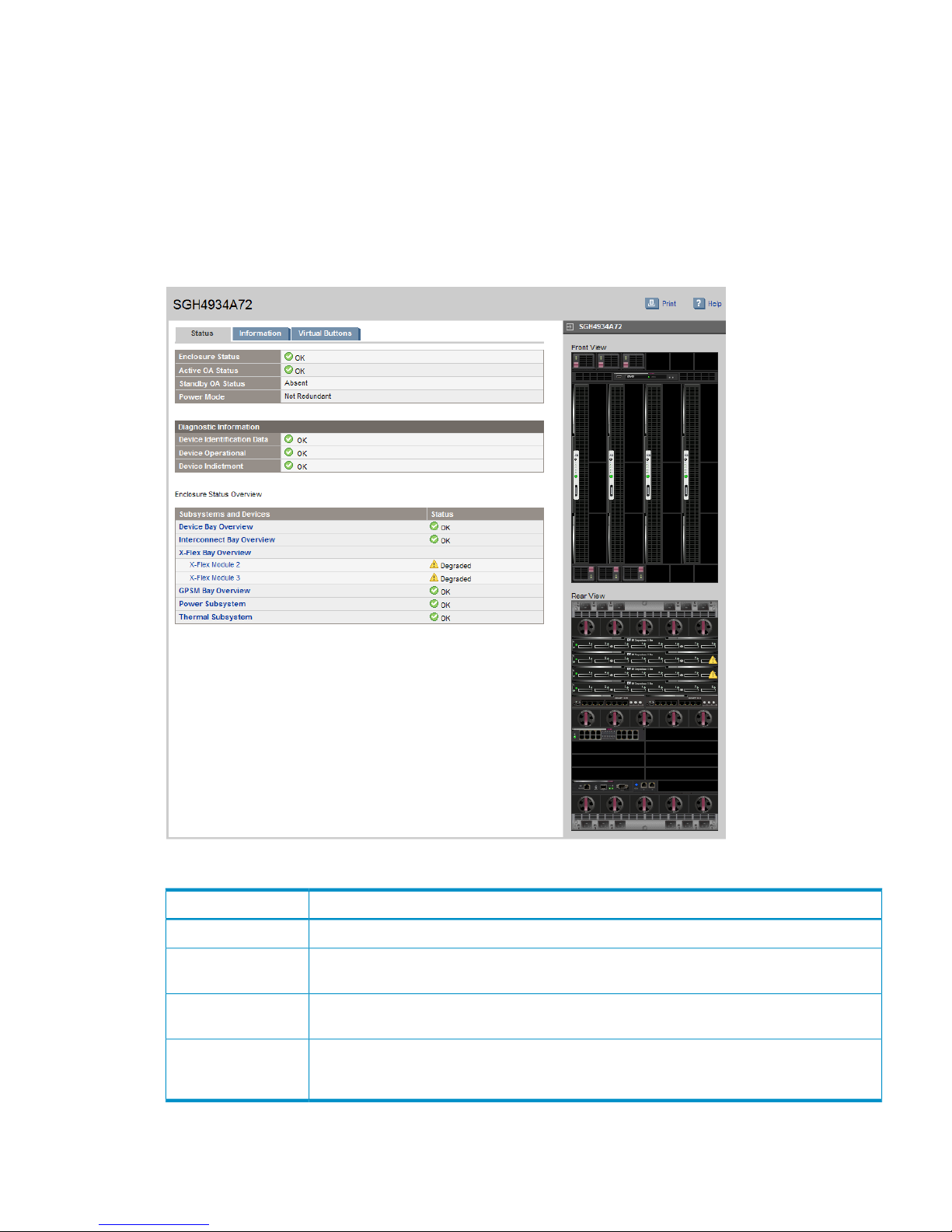

Select the tree view menu item Enclosure Information to view the enclosure Status screen.
Table 6 Status overview information
DescriptionItem
The overall status of the enclosure. Possible values are Unknown, OK, Degraded, and Failed.Enclosure Status
The overall status of the active Onboard Administrator. Possible values are Unknown, OK,
Degraded, and Failed.
Active OA Status
The overall status of the standby Onboard Administrator. Possible values are Absent, Unknown,
OK, Degraded, and Failed.
Standby OA Status
The power redundancy mode. Possible values are AC Redundant, Power Supply Redundant,
Not Redundant, or Unknown. For information on these modes, see the HP Integrity Superdome
2 User Guide.
Power Mode
Enclosure settings 71
Page 72
Diagnostic Information
Diagnostic information is gathered by polling a device microcontroller (resulting in a degraded
status if a failure has occurred), or is sent by the device microcontroller, without being polled to
report a failure.
DescriptionItem
Contains information on model name, part number, serial number, and other information
used to identify the device. This data is also called FRU data. Device identification data
error displays if the data is not present or not readable by the Onboard Administrator.
Device Identification Data
Possible values are OK or Error. View the syslog for errors. Possible reasons for the error
are mismatched firmware or a software or hardware failure.
Device Operational
Indicates if the device has been indicted by the Superdome 2 Analysis Engine.Device Indictment
Table 7 Subsystems and Devices information
DescriptionTable
The overall status of all device bays. Possible values are Unknown, OK, Degraded, and
Failed.
Device Bay Overview
All Device Bays
The overall status of the interconnect bays. Possible values are Unknown, OK, Degraded,
and Failed.
Interconnect Bay Overview
All Interconnect Bays
The overall status of the XFM bays. Possible values are Unknown, OK, Degraded, and
Failed.
X–Flex Bay Overview
All XFM Bays
The overall status of the GPSM bays. Possible values are Unknown, OK, Degraded, and
Failed.
GPSM Bay Overview
All GPSM Bays
The overall status of the Power Subsystem of the enclosure. Possible values are Unknown,
OK, Degraded, and Failed.
Power Subsystem
System Status
The overall status of the power supplies. Possible values are Unknown, OK, Degraded,
and Failed.
Power Supply Summary
All Power Supplies
The overall thermal status of the enclosure. Possible values are Unknown, OK, Degraded,
and Failed.
Thermal Subsystem
System Status
The overall status of the fans. Possible values are Unknown, OK, Degraded, and Failed.Fan Overview
All Fans
72 Configuring HP Integrity Superdome 2 compute enclosures and enclosure devices
Page 73
NOTE: If any subsystem contains a component with a status other than OK, all components of
that subsystem with a status other than OK are displayed inline.
Enclosure Information tab
DescriptionItem
The general description of the enclosure componentPart
The model name of the enclosure componentModel
The name of the company that manufactured the enclosure
component
Manufacturer
The unique serial number of the enclosure componentSerial Number
Enclosure settings 73
Page 74
DescriptionItem
The part number to be used when ordering an additional
enclosure component
Part Number
The part number to be used when ordering a replacement
enclosure component
Spare Part Number
Changing Settings
You can change enclosure settings from this screen. Click the Apply button to save the settings
after making the changes.
DescriptionPossible valueItem
The name of the selected enclosure1 to 32 characters including all
alphanumeric characters, the dash (-),
and the underscore (_)
Enclosure Name
The name of the rack in which the
enclosure is installed
1 to 32 characters including all
alphanumeric characters, the dash (-),
and the underscore (_)
Rack Name
The asset tag is used for inventory
control.
0 to 32 characters including all
alphanumeric characters, the dash (-),
and the underscore (_)
Asset Tag
The default asset tag is blank
Virtual Buttons tab
Click the Toggle On/Off button to change the state of the enclosure UID. The enclosure UID is
located to the left of the Enclosure link-down port.

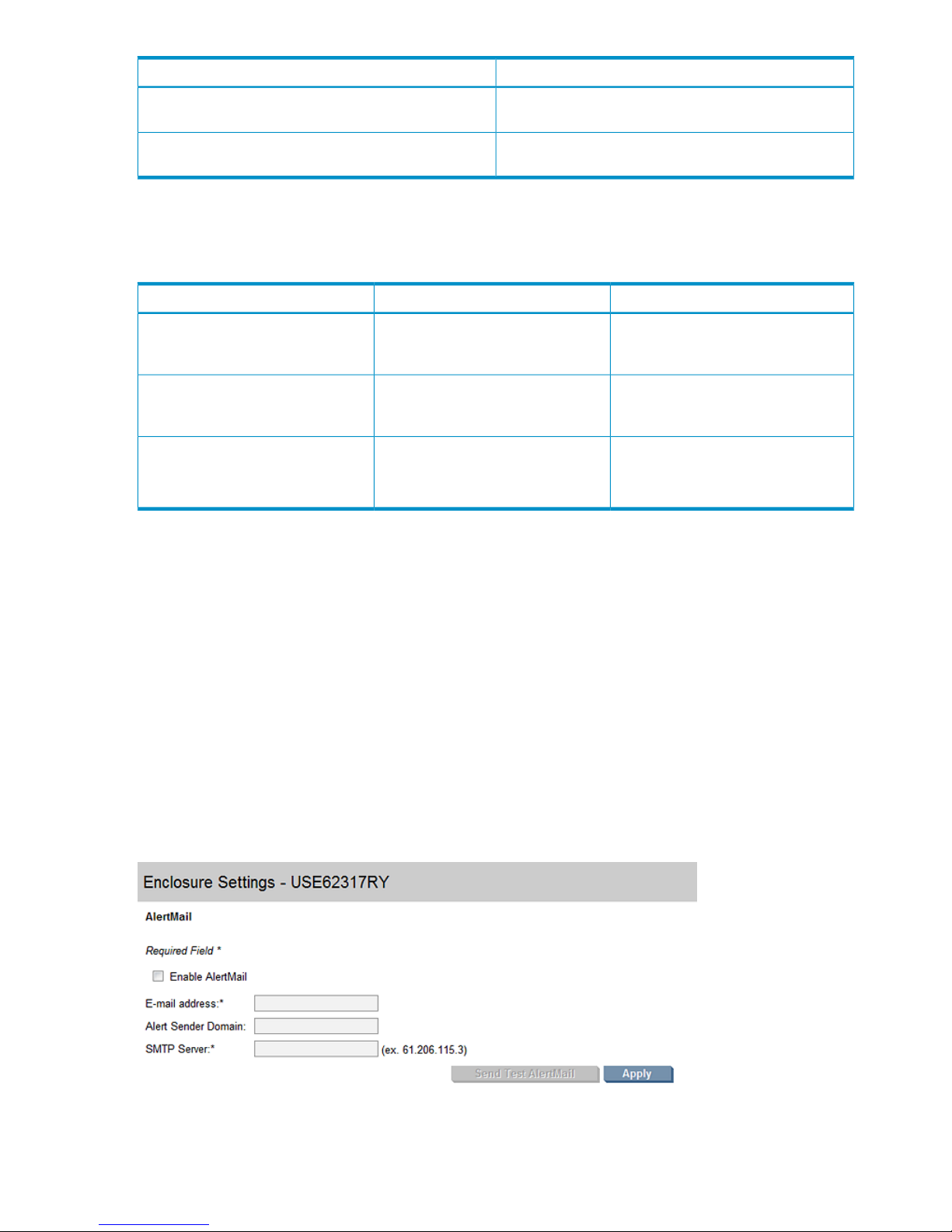

AlertMail screen
AlertMail enables users to receive system events by email instead of using SNMP traps. AlertMail
is completely independent from SNMP, and both can be enabled at the same time. AlertMail uses
standard SMTP commands to communicate with an SMTP-capable mail server. The "Reply To"
address for each email sent by AlertMail is <Enclosure Name>@<Alert Sender Domain>. To enable
the AlertMail feature, select the Enable AlertMail check box.
To test the AlertMail function:
1. Be sure that the email address, alert sender domain, and SMTP server settings are correct.
2. Select the Send Test AlertMail button.
3. To confirm that the test completed successfully, verify the recipient email account.
74 Configuring HP Integrity Superdome 2 compute enclosures and enclosure devices
Page 75
NOTE: The Alert Sender Domain is probably not required. This box depends on the mail server
setup.
DescriptionPossible valueBox
This box is a valid email address for
the administrator or other designated
individual receiving the AlertMail
<account>@<domain>E-mail address
The domain in which the Onboard
Administrator resides
A character string including all
alphanumeric characters and the dash
(-)
Alert Sender Domain
An IP address for the SMTP server###.###.###.### where ### ranges
from 0 to 255
SMTP Server
1. Select the Enable AlertMail check box to enable the AlertMail feature.
2. Enter values for the email address, alert sender domain, and SMTP server.
3. Click the Apply button to save the settings.
AlertMail, if enabled, sends alerts by email for the following events:
• Enclosure status change
• Enclosure information change
• Fan status change
• Fan inserted
• Fan removed
• Power supply status
• Power supply inserted
• Power supply removed
• Power supply overload
• Blade inserted
• Blade removed
• Blade status
• Blade thermal condition
• Blade fault
• Blade information change
• Tray status change
• Tray reset
• Switch connect
• Switch disconnect
All e-mails have the following header:
From: Enclosure ENCLOSURE-NAME <enclosure-name@serverdomain>
Date: Date in standard format
Subject: HP AlertMail-SEQ: <SEVERITY> SUBJECT
To: RECEIVER MAILBOX
Enclosure settings 75
Page 76
Where <SEVERITY> is one of the following (from highest to lowest):
• # FATAL
• # CRITICAL
• # WARNING MAJOR
• # WARNING MINOR
• # WARNING
• # NORMAL
Each subject line contains a unique sequence number to easily identify the order of events in case
the mail server distributes them in the wrong order. Sequence numbers range from 0 to 999 and
restart at 0.
The mail body is used to give more detailed information regarding the event issued. It also contains
information on what the user must do to correct any issue and what the current enclosure status is.
NOTE: The enclosure status is displayed as the status at the time when the event is processed
which can cause the status to show up as OK in an email saying a Fan has Failed if the user
replaced the fan at the time the event is sent out by AlertMail.
Sample email
Subject: HP AlertMail-010: (CRITICAL) Power Supply #1: Failed
Date: Wed, 23 Apr 2006 15:02:22 +0200
From: Enclosure EM-00508BEBA571 <EM-00508BEBA571@hp.com>
To: user@domain
X-OS: HP Superdome 2 Enclosure Manager
X-Priority: 1
Content-Type: text/plain; charset=us-ascii
EVENT (26 May 07:09): Power Supply #1 Status has changed to: Failed.
Enclosure, EM-00508BEBA571, has detected that a power supply in bay 1 has changed from status OK to Failed.
The power supply should be replaced with the appropriate spare part. You can ensure that the center wall assembly
is
operating correctly by swapping the two power supplies. Make sure that there are no bent pins on the power
supply connectors before
reinserting and that each power supply is fully seated.
An amber LED on the power supply indicates either an over-voltage, over-temperature, or loss of AC power has
occurred.
A blinking LED on the power supply indicates a current limit condition.
Enclosure Status: Degraded
Enclosure Management URL: https://16.181.75.213/
- PLEASE DO NOT REPLY TO THIS EMAIL -
Device Power Sequence Device Bays tabs
The enclosure power delay feature controls the order in which components are powered on if the
entire enclosure has been power cycled. This feature is only enabled during the active HP Superdome
2 Onboard Administrator boot process if the Onboard Administrator detects that the entire enclosure
has been power cycled and power delay has been enabled on at least one component in the
enclosure.
The active HP Superdome 2 Onboard Administrator displays a message in the system log when
power delay has been initiated, and also displays a message in the system log when power delay
has completed after the longest power delay has passed. The HP Superdome 2 Onboard
Administrator factory default setting is to disable power delay for all components.
76 Configuring HP Integrity Superdome 2 compute enclosures and enclosure devices
Page 77
Typical use cases involving bay to bay dependencies that can be resolved by enabling the enclosure
power delay feature include:
• Boot from network: Network interconnects must complete power on self test prior to servers
that are configured to boot from the network (for example, PXE or iSCSI).
• Boot from SAN: SAN interconnects must complete power on self test prior to servers that are
configured to boot from SAN
• Critical service dependencies controlled by a server such as DHCP or licensing
• Storage servers must be operational prior to servers requiring those resources
The delay time setting must be determined empirically since some dependencies are outside the
enclosure (boot from SAN might require additional delay to enable the datacenter SAN storage
system to power on). Each interconnect module has different power on timing before it is operational.
The timer used for power delay is started at the time the Onboard Administrator enters the first
system log message during Onboard Administrator initialization indicated by the system log
message Kernel: Network link up. When the HP Superdome 2 Onboard Administrator
indicates PowerDelay has been initiated for the selected devices in the system
log, the configured delay times for each bay are used to determine when that component is turned
on. After the selected delay time has elapsed, that component is turned on.
Valid settings for each bay are: Disabled, Enabled and No Poweron.
• Disabled - Disables powerdelay for this bay. HP Superdome 2 Onboard Administrator grants
power to this bay based on its power settings: for a device configured to auto power-on, the
device is granted power following an enclosure power cycle after all the Onboard Administrator
configuration checks are complete.
• Enabled - Enables powerdelay for this bay. HP Superdome 2 Onboard Administrator turns
on this bay based on the number of seconds elapsed following the detection of an enclosure
power cycle event.
• No Poweron - Prevents component power on for the bays with this configuration until after
the HP Superdome 2 Onboard Administrator logs PowerDelay has completed for
the selected devices. At this time, if the device is configured to auto power-on, the
device grants power following an enclosure power cycle after all the Onboard Administrator
configuration checks are complete.
If the device is configured to disable auto poweron, the device remains off following an enclosure
power cycle independent of the setting of power delay for that bay.
Device Bays Standard tab and Double Dense tabs
The Device Bays Standard tab indicates the current settings for all the primary bays based on the
type of enclosure. To change a setting on a particular device bay, use the menu under the Enabled
column and select Enabled, Disabled or No Poweron. If Enabled is selected, a power delay in
seconds must be entered in the Delay column for this bay. The minimum value is 1 second; the
maximum value is 3600 seconds.
If double dense C-class server blades are installed in an enclosure the power delay settings for
Side A and Side B are controlled in the Double Dense Side A and Double Dense Side B tabs.
Enclosure settings 77
Page 78
Interconnect Bays tab
Interconnect bays by default are for auto power-on. Enabling and setting a power delay for an
interconnect bay delays the power on of that bay following an enclosure power cycle event.
DescriptionColumn
Bay number of the device.Bay
The type of device in the bay, or Absent if no device is
installed in the bay
Device
Enables power sequencing, disables power sequencing,
or does not allow powering on of the device if No Poweron
is selected.
Enabled
The amount of delay, in seconds, before the device powers
on.
Delay
Device Power Sequence Interconnect Bays tab
DescriptionColumn
Bay number of the deviceBay
The type of device in the bay or Absent if no device is
installed in the bay
Device
Enables power sequencing, disables power sequencing,
or does not allow powering on of the device if No Poweron
is selected.
Enabled
The amount of delay, in seconds, before the device powers
on. Possible delay values are 1 to 3600.
Delay
Click the Apply button to save the settings.
Date and Time screen
Static date and time settings
The date and time are static and not updated in real-time. The date and time can only be set if
NTP is disabled.
DescriptionPossible valueBox
The date assigned to the enclosureyyyy-mm-ddDate
• mm is an integer from 1 to 12
• dd is an integer from 1 to 31
The time assigned to the enclosurehh:mm:ss (24-hour time, ss is optional)Time
• hh is an integer from 0 to 23
• mm is an integer from 0 to 59
• ss is an integer from 0 to 59
The time zone assigned to the enclosureTime zone settingsTime Zone
• “Africa time zone settings” (page 184)
• “Americas time zone settings” (page 184)
• “Asia time zone settings” (page 186)
• “Universal time zone settings” (page 186)
• “Oceanic time zone settings” (page 187)
78 Configuring HP Integrity Superdome 2 compute enclosures and enclosure devices
Page 79
DescriptionPossible valueBox
• “Europe time zone settings” (page 188)
• “Polar time zone settings” (page 188)
NTP Settings
To enable this feature, select Set time using an NTP server.
DescriptionPossible valueBox
IP address of primary NTP server that
provides date and time information
###.###.###.### where ### ranges from 0 to
255
Primary NTP Server
IP address of secondary NTP server that
provides date and time information
###.###.###.### where ### ranges from 0 to
255
Secondary NTP Server
The time zone assigned to the enclosureTime zone settingsTime Zone
• “Africa time zone settings” (page 184)
• “Americas time zone settings” (page 184)
• “Asia time zone settings” (page 186)
• “Universal time zone settings” (page 186)
• “Oceanic time zone settings” (page 187)
• “Europe time zone settings” (page 188)
• “Polar time zone settings” (page 188)
Click the Apply button to save the settings.
Enclosure TCP/IP Settings screen
This screen displays the current enclosure TCP/IP settings for the Active Onboard Administrator
and enables you to change the following settings:
• Enclosure IP Mode: The Enclosure IP Mode ensures all management applications point to the
active Onboard Administrator of the enclosure, using a single static IP address. This mode is
for enclosures with an active and standby Onboard Administrator. When the standby Onboard
Administrator takes over the role of the active Onboard Administrator, the Onboard
Administrator assumes the IP address of the previous active Onboard Administrator. This
ensures the Enclosure IP Mode IP address is consistently pointing to the active Onboard
Administrator.
The Enclosure IP Mode requires the active Onboard Administrator to have a static IP address.
Before enabling Enclosure IP Mode, you must configure a static IP address for the Active
Onboard Administrator. The standby Onboard Administrator can be configured for DHCP or
static IP settings. This mode is optional and is disabled by default.
The transition times from standby to active and active to standby varies, depending on the
configuration, enclosure population, and various other factors. The transition of standby to
active is normally 30 seconds. The transition of the previous active to standby is normally 90
seconds.
IMPORTANT: Replace the standby Onboard Administrator only while the enclosure is
powered on to be sure that the Enclosure IP Mode settings are not changed.
• DHCP: Gets the IP address for the Onboard Administrator from a DHCP server
Enclosure settings 79
Page 80
• Enable Dynamic DNS: Enables you to use a DNS server to translate host names into IP addresses
• Static IP Settings: Enables you to manually set up static IP settings for the Onboard Administrator
DescriptionPossible valueBox
The DNS Name of the Onboard AdministratorCan be 1 to 32 characters including all
alphanumeric characters and the dash (-)
DNS Host Name
The Onboard Administrator MAC addressThis is an informational box and cannot be
changed
MAC Address
Static IP address for the Onboard
Administrator (required if static IP settings is
selected)
###.###.###.### where ### ranges from
0 to 255
IP Address
Subnet mask for the Onboard Administrator
(required if static IP settings is selected)
###.###.###.### where ### ranges from
0 to 255
Subnet Mask
Gateway address for the Onboard
Administrator (required if static IP settings is
selected)
###.###.###.### where ### ranges from
0 to 255
Gateway
The IP address for the primary DNS server###.###.###.### where ### ranges from
0 to 255
DNS Server 1
The IP address for the secondary DNS server###.###.###.### where ### ranges from
0 to 255
DNS Server 2
NIC Settings
• Auto-Negotiate- Automatically configures the best link. This is the default setting. This option
supports a NIC speed of 10 Mb/s, 100 Mb/s, or 1000 Mbps. The 1000 Mb/s setting is
only available when you select Auto-Negotiate.
• Forced Full Duplex- Enables you to manually specify which settings the external NIC uses when
trying to establish a link. Onboard Administrator does not verify that the forced Ethernet settings
are valid on the network. The loss of communications can occur if the wrong or incompatible
settings are used. Forced settings take effect 3 seconds after enabling or disabling the settings.
The forced option supports only NIC speeds of 10 Mbps or 100 Mb/s.
• NIC Speed- Selects an NIC speed of 10 Mb/s or 100 Mb/s.
Click the Apply button to save the new settings.
Network Access screen
In this section, an administrator can configure settings relating to network access to the Onboard
Administrator. These settings are specific to the enclosure and do not affect the network
configurations for server blades.
The Protocol Restrictions subcategory is used to restrict access to the Onboard Administrator. Up
to four protocol settings can be selected to allow or restrict access to the Onboard Administrator.
• Enable Web Access (HTTP/HTTPS):This check box is selected by default. Deselecting this check
box disables HTTP/HTTPS access to the Onboard Administrator. Port 80 is used for HTTP and
port 443 is used for HTTPS.
CAUTION: Disabling Web Access (HTTP/HTTPS) disconnects all users attached to the
Onboard Administrator through HTTP/HTTPS, including the administrator.
• Enable Secure Shell: This check box is selected by default. Deselecting this check box disables
Secure Shell connections to the Onboard Administrator. Secure Shell is disabled when
Two-Factor Authentication is enabled. Disabling Two-Factor Authentication does not
80 Configuring HP Integrity Superdome 2 compute enclosures and enclosure devices
Page 81
automatically re-enable Secure Shell. To re-enable Secure Shell, you must select the check box
and then click Apply. Port 22 is used.
• Enable Telnet: This check box is selected by default. Deselecting this check box disables Telnet
connections to the Onboard Administrator. Telnet is disabled when Two-Factor Authentication
is enabled. Disabling Two-Factor Authentication does not automatically re-enable Telnet. To
re-enable Telnet, you must select the check box and click Apply. Port 23 is used.
• Enable XML Reply: This check box is selected by default. Selecting this check box enables
XML data to be shared between the Onboard Administrator and other HP management tools
such as HP Systems Insight Manager. To display the information that is shared by the Onboard
Administrator if this protocol is enabled, click View.
• Enable WS-Management: Selecting this check box enables the WS-Management connections
to the Onboard Administrator. WS-Management is enabled by default.
Click the Apply button to save the settings.
Trusted Hosts tab
The Trusted Hosts subcategory is used to restrict access to the Onboard Administrator to all hosts
except those listed. When enabled, this protocol allows access only to the Onboard Administrator
to listed hosts.
This subcategory contains one dialog box, one entry box, and one display box, which, if enabled,
is used to list trusted IP addresses.
The Enable IP address access restriction check box is not selected by default. Selecting this check
box allows only those IP addresses listed as Trusted Addresses to connect to the Onboard
Administrator.
CAUTION: Enabling IP address access restriction without first entering the user IP address in the
Trusted Addresses list disconnects the user from the Onboard Administrator.
The Trusted Addresses box is used to enter the IP addresses of all hosts that are to be trusted and
allowed to connect remotely to the Onboard Administrator through the protocols set up in the
Protocol Restrictions subcategory. This box allows for IP addresses only.
Under the Trusted Addresses box is the list box of all trusted IP addresses, if trusted IP addresses
are configured.
• To add a trusted host, enter the IP address in the Trusted Addresses box, and then click Add.
You can add a maximum of five Trusted Addresses.
• To remove a trusted host, select the IP address in the Trusted Addresses list, and then click
Remove.
• To save the settings, click the Apply button.
Anonymous Data tab
Enable Extended Data on GUI Login Page- This check box is selected by default. Clearing this check
box disables the "+" functionality in the topology view on the log on page for this enclosure.
Disabling the extended data on the GUI log on page prevents unauthenticated users from viewing
additional information. To prevent additional information from appearing for each linked enclosure,
you must clear this check box for each enclosure.
Click the Apply button to save the settings.
Link Loss Failover screen
This screen enables you to configure automatic Onboard Administrator redundancy failover based
on network link status. For Link Loss Failover to function correctly, the redundancy status of the
Enclosure settings 81
Page 82
Onboard Administrators must be OK. An OK status means that both Onboard Administrators have
the same firmware version, and that they are communicating properly.
Enable Link Loss Failover- This check box enables or disables automatic Link Loss Failover.
Failover Interval- The failover interval is the amount of time the active Onboard Administrator must
be without a link on the external Ethernet interface before the system considers an automatic
failover. The interval must be between 30 and 86400 seconds.
Click the Apply button to save the settings.
Enclosure Bay IP Addressing screen
There is an important difference between the network the Superdome 2 complex is connected to
and the management network that the Onboard Administrator uses. Enclosure Bay IP Addressing
is used to assign IP addresses to the iLO 3 processors that are bridged through the Onboard
Administrator and must not be confused with port mapping for the server blade NICs or for network
routers or switches. EBPIA does not assign IP addresses for any other device on the network, and
cannot be used as a DHCP server on the network.
The server blade iLO 3 ports and interconnect module management ports can get IP addresses on
the management network in the following ways:
• DHCP address
• Static IP address
• EBIPA
• DHCP addresses: The server blade iLO 3 defaults to DHCP addressing, got through the network
connector of the active Onboard Administrator. Interconnect modules that have an internal
management network connection to the Onboard Administrator may also default to the DHCP
address.
The Onboard Administrator GUI lists the IP address for the server blade iLO 3 port and
interconnect module management port.
• Static IP:
Manual: If your facility prefers static IP address assignment, you can change each of the
server blade iLO 3 ports and interconnect module management ports individually to
◦
unique static addresses or use EBIPA to assign a range of static IP addresses to individual
server blade and interconnect module bays.
◦ EBIPA: When a server blade or interconnect module is inserted into a bay that has EBIPA
enabled, that management port will get the specific static IP address from the Onboard
Administrator if that device is configured for DHCP.
The administrator sets an independent range for server blade bays and interconnect module bays
using the Onboard Administrator EBIPA setup wizard. The first address in a range is assigned to
the first bay and then consecutive bays through the range.
To set up your enclosure without an active network connection using EBIPA:
1. Configure a static IP for each Onboard Administrator using the Insight Display, and note the
active OA Service IP address on the Insight Display Enclosure Info screen. Attach the client
PC to the enclosure Service Port (Enclosure Link Up connector) between the OA bays with a
standard Ethernet patch cable. The client PC NIC must be configured for DHCP because it
gets an IP address in the range of 169.254.x.y approximately 1 minute later.
2. Launch a web browser (or alternatively a Telnet or Secure Shell session), and select the
Onboard Administrator Service IP address as displayed in the enclosure Insight Display on
the Enclosure Info screen.
3. Log into the Onboard Administrator as Administrator, and use the administrative password
attached to the active Onboard Administrator.
82 Configuring HP Integrity Superdome 2 compute enclosures and enclosure devices
Page 83
4. While the First Time Setup Wizard is running (alternately, after first time setup you can change
the EBIPA settings in the Enclosure Settings list), enable Device Bay EBIPA with a starting static
IP address and enable Interconnect Bay EBIPA with a different starting IP address. The Onboard
Administrator then creates 16 sequential IP addresses for the device bays and 8 sequential
IP addresses for the interconnect bays. Servers in the device bays will automatically get the
Device Bay EBIPA addresses within a minute, but the interconnect switch modules must to be
manually restarted by clicking the Virtual Power button on each Onboard Administrator
Interconnect Module Information screen.
5. Use the Onboard Administrator Device list to be sure that the server blade iLO addresses have
been set according to the EBIPA starting IP address and range.
When a server blade or interconnect module is inserted into a device bay that has EBIPA enabled,
the management port gets the specific static IP address from the Onboard Administrator if the
device is configured for DHCP. If the device is configured for static IP, it must be manually
reconfigured to DHCP to change to the EBIPA IP address.
The administrator sets an independent range for device bays and interconnect module bays using
the Onboard Administrator EBIPA setup wizard. The first address in a range is assigned to the first
bay and then consecutive bays through the range.
For example, if you set the server bay EBIPA range starting from 16.100.226.21 to 16.100.226.36,
the iLO 3 in Server bay #1 will be assigned 16.100.226.21 and the iLO 3 in Server bay #12 is
assigned 16.100.226.32, and the interconnect bay EBIPA range to 16.200.139.51 to
16.200.139.58. If you set the interconnect module port, the interconnect bay #1 is set to
16.200.139.51 and the interconnect module management port in Interconnect bay #7 is set to
16.200.139.57.
Knowing your network configuration before setting up EBIPA ensures an easy setup and enables
you to install your HP Superdome 2 Onboard Administrator on to your network quickly. Record
Enclosure settings 83
Page 84
the information requested in the boxes on the EBIPA screen, and verify before entering the data.
Use only the possible values listed in the following table.
DescriptionPossible valueBox
Subnet mask for the device bays###.###.###.### where ### ranges from 0
to 255
Subnet Mask
Gateway address for the device bays###.###.###.### where ### ranges from 0
to 255
Gateway
Domain name for the device baysA character string with a maximum of 64
characters, including all alphanumeric
characters and the dash (-)
Domain
The IP address for the primary DNS server###.###.###.### where ### ranges from 0
to 255
DNS Server 1
The IP address for the secondary DNS server###.###.###.### where ### ranges from 0
to 255
DNS Server 2
The IP address for the tertiary DNS server###.###.###.### where ### ranges from 0
to 255
DNS Server 3
Device List
DescriptionColumn
The bay in the enclosure of the device.Bay
Enables EBIPA settings for the device bay. EBIPA settings for all device bays can be enabled
by selecting the check box next to Enabled in the heading row or individual device bays can
be selected by clicking the check box for that particular device bay.
Enabled
The static IP address you want to assign to the device bay.EBIPA Address
Assigns consecutive IP addresses for the selected device bays below in the device list. Click
the autofill down arrow to assign the IP addresses.
Autofill
The current IP address of the device bay.Current Address
The type of device installed in the device bay.Device Type
SNMP Settings screen
The Onboard Administrator supports SNMP Version 1 and several groups from the standard MIB-II
MIB. Additional information about the enclosure infrastructure is available in the HP Rack Information
MIB. CPQRACK-MIB, which is part of the Insight Management MIBs, is available on the Management
CD in the Superdome 2 Essentials Foundation Pack.
The SNMP Settings screen enables you to enter system information and community strings and
designate the management stations that can receive SNMP traps from the Onboard Administrator.
If you select Enable SNMP, then the Onboard Administrator responds to SNMP requests over UDP
port 162. Port 162 is the standard UDP port used to send and receive SNMP messages.
System Information settings
In the System Information subcategory, information about the Onboard Administrator SNMP system
can be enabled and configured.
84 Configuring HP Integrity Superdome 2 compute enclosures and enclosure devices
Page 85
The Enable SNMP check box is not selected by default. When enabled, the Onboard Administrator
can be polled for status and basic information. The SNMP client can only clear SNMP alerts and
status when the Write Community string is enabled. Clearing the Enable SNMP check box disables
SNMP access to the Onboard Administrator.
DescriptionPossible valueBox
The SNMP location of the enclosure, typically
used to identify the physical or topographical
location of the Onboard Administrator.
0 to 20 characters including all alphanumeric
characters, the dash (-), the underscore (_), and
the space
System Location
The name of the system contact, used to identify
an individual or group of individuals who are
0 to 20 characters including all alphanumeric
characters, the dash (-), the underscore (_), and
the space
System Contact
to be contacted in the event of any status change
in the HP Superdome 2 Onboard Administrator.
The Read Community string enables the client
to read information, but not to manipulate the
0 to 20 characters including all alphanumeric
characters, the dash (-), the underscore (_), and
the space
Read Community
alerts or status of the HP Superdome 2 Onboard
Administrator through SNMP. The default
community name is "public" and enables a user
to receive notification traps and alerts, but not
to change or manipulate the status.
The Write Community string enables the client
to manipulate alerts of HP Superdome 2
0 to 20 characters including all alphanumeric
characters, the dash (-), the underscore (_), and
the space
Write Community
Onboard Administrator status through SNMP.
You can remotely clear alerts and mark them as
"viewed" or otherwise through their SNMP
management client through the SNMP agents.
The default value for the Write Community string
is blank.
Enclosure settings 85
Page 86
Edit any of the fields in this subcategory, and click the Apply button to save the changes.
SNMP Alert Destinations settings
In the SNMP Alert Destinations subcategory, the IP addresses and community strings for the SNMP
management clients are configured so that any alert or trap from the Onboard Administrator is
sent to the appropriate system with the community string.
DescriptionPossible valueBox
The management station IP address###.###.###.### where ### ranges
from 0 to 255
IP Address
A text string that acts as a password. It
is used to authenticate messages that
0 to 20 characters including all
alphanumeric characters, the dash (-),
the underscore (_), and the space
Community String
are sent between HP SIM and Onboard
Administrator.
Adding SNMP alert destinations
1. Enter the IP address for management clients to which the traps are to be sent in the IP Address
box.
2. Enter the appropriate community string in the Community String box directly under the IP
Address box.
3. After the IP address and community string is entered, click the Add button.
A maximum of eight SNMP alert destinations can be added.
Removing SNMP alert destinations
Select the IP address from the list containing the trap destinations, and then click the Remove button.
Testing SNMP
To send a test SNMP trap to all the configured trap destinations, click the Send Test Alert button.
SNMP must be enabled to use this function.
Configuration Scripts screen
Current configuration
To download a current configuration for the enclosure:
1. Click the Click here link. The configuration opens in a new browser window.
2. To save the configuration as a text file, select either of the following options:
• If you use Microsoft Internet Explorer 7.0 or later, select Save As.
• If you use Mozilla Firefox 2 or later, select Save Page As.
To preserve line breaks properly in a Windows environment, use this alternate method:
1. Select Edit.
2. Select Select All.
3. Copy and paste the contents into a new text document.
For security reasons, the retrieved current configuration does not contain any user passwords. You
can manually edit the script to add the user passwords after the user name on the ADD USER lines.
The enclosure Administrator account password cannot be added from the configuration script.
Also, the retrieved current configuration does not contain any of the LCD settings (Lock Buttons,
Enable PIN Protection, and PIN Code). These settings cannot be added from the configuration
script.
86 Configuring HP Integrity Superdome 2 compute enclosures and enclosure devices
Page 87
Current enclosure inventory
To download a script of the current enclosure inventory, click the Click here link; the current enclosure
inventory opens in a new browser window. To save the inventory as a text file, select either of the
following options:
• If you are using Microsoft Internet Explorer 7.0 or later, select Save As.
• If you are using Mozilla Firefox 2 or later, select Save Page As.
NOTE: Saving the enclosure inventory does not save partitioning information.
The downloaded text file provides the same information as the CLI SHOW ALL command. The text
file also displays the current configuration of the enclosure.
Device Summary screen
The FRU Summary section provides information on all FRUs within the enclosure. Information
provided in this section can quickly aid the administrator in contacting HP Customer Service for
troubleshooting, repairing, and ordering replacements.
The information is organized in tabular format and divided into subcategories within the Device
Summary section:
• Enclosure
• Onboard Administrator
• Blade
• Blade mezzanine
• Interconnect
• XFM
• GPSM
• Fan
Enclosure settings 87
Page 88
• Power supply
• Insight Display
Active to Standby screen
When a second HP Superdome 2 Onboard Administrator is installed, the menu item Active to
Standby appears under the Enclosure Settings tree menu item, and both Onboard Administrators
are visible in the tree menu and in the enclosure view under the Status tab.
If more than one Onboard Administrator is installed in the enclosure, you can manually change
the active Onboard Administrator. This feature can be useful when troubleshooting the Onboard
Administrator or if a second Onboard Administrator is installed with an older firmware version
(and automatic transition is disabled).
To perform a transition:

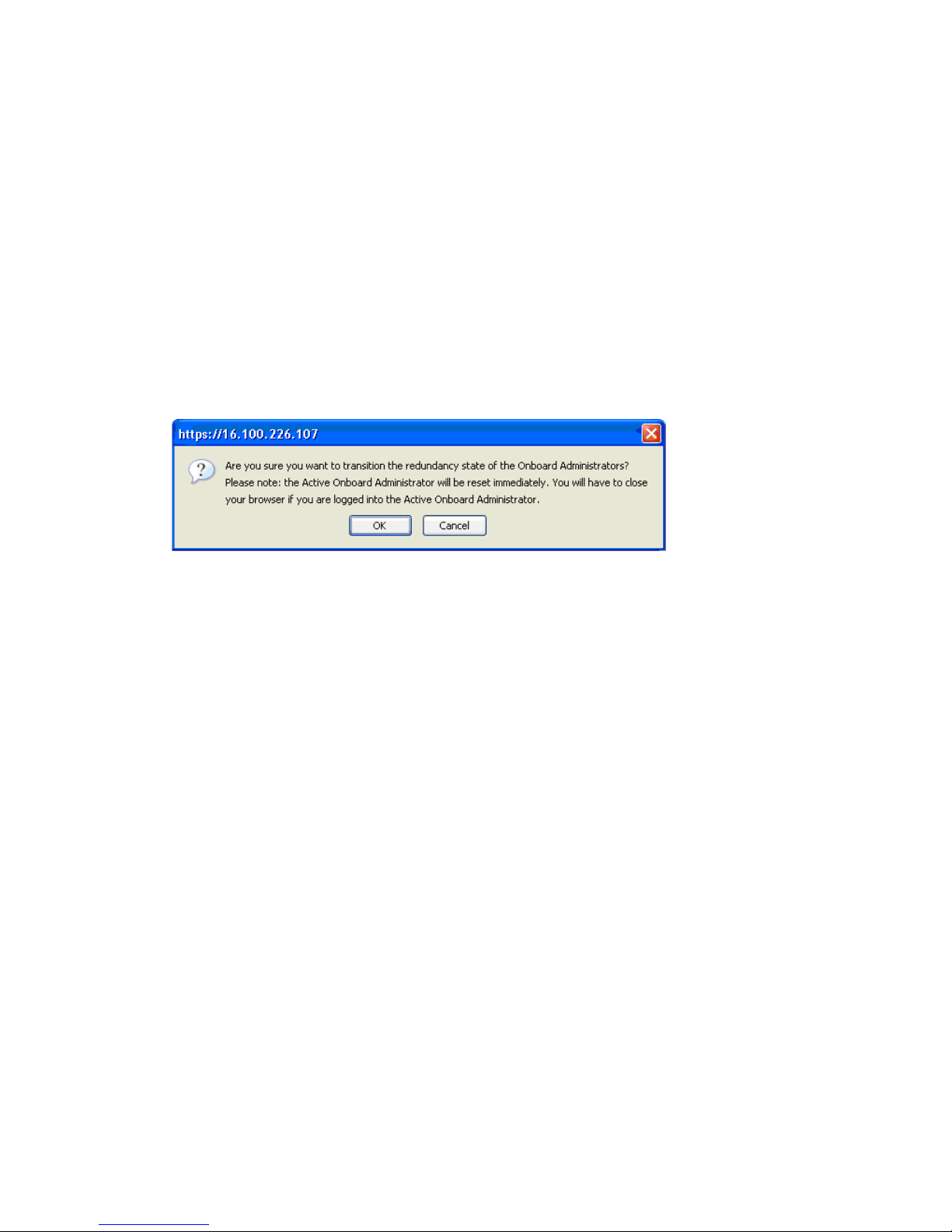

1. Click the Transition Active to Standby button to force the change. A confirmation screen
appears, confirming the transition.
2. Close your browser if you are logged on to the active Onboard Administrator.
3. Click OK to proceed, or click Cancel to exit without a change.
If only one Onboard Administrator is installed in the enclosure, the Active to Standby menu item
does not appear.
Onboard Administrator Module
Active Onboard Administrator screen
The Active Onboard Administrator screen under the Status and Information tab, has tables that
provide detailed information about your Onboard Administrator.
88 Configuring HP Integrity Superdome 2 compute enclosures and enclosure devices
Page 89
Diagnostic information is gathered by polling a device microcontroller (resulting in a degraded
status if a failure has occurred) or is sent by the device microcontroller, without being polled, to
report a failure.
Active Onboard Administrator Status and Information tab
Table 8 Status information
DescriptionItem
The overall status of the enclosure. Possible values are Unknown, OK, Degraded, and Failed.Status
Active or Standby.Role
The physical bay number where the Onboard Administrator is installed.Bay Number
The temperature of the enclosure in degrees Fahrenheit.Temperature
The temperature at which the enclosure reports a status of caution.Caution Threshold
The temperature at which the enclosure reports a critical status and powers off.Critical Threshold
Hardware information
DescriptionItem
The common descriptive name of the Onboard Administrator.Device Name
The name of the company that manufactured the Onboard Administrator.Manufacturer
The version of the complex firmware image in the Onboard Administrator.Complex Firmware
Version
The version of the enclosure hardware.Hardware Version
The part number to use when ordering an additional or replacement Onboard Administrator.Part Number
Onboard Administrator Module 89
Page 90
DescriptionItem
The spare part number to use when ordering an additional or replacement Onboard
Administrator.
Spare Part Number
The unique serial number of the Onboard Administrator.Serial Number
Diagnostic Information
DescriptionItem
This row displays information such as model name, part number, serial number, and other
information used to identify the device. This data is also called FRU data. A device identification
Device Identification
Data
data error appears if the data is not present or not readable by the Onboard Administrator.
Possible values are OK or Error.
The Onboard Administrator with the lowest firmware version displays this box when two
Onboard Administrators are present.
Firmware Mismatch

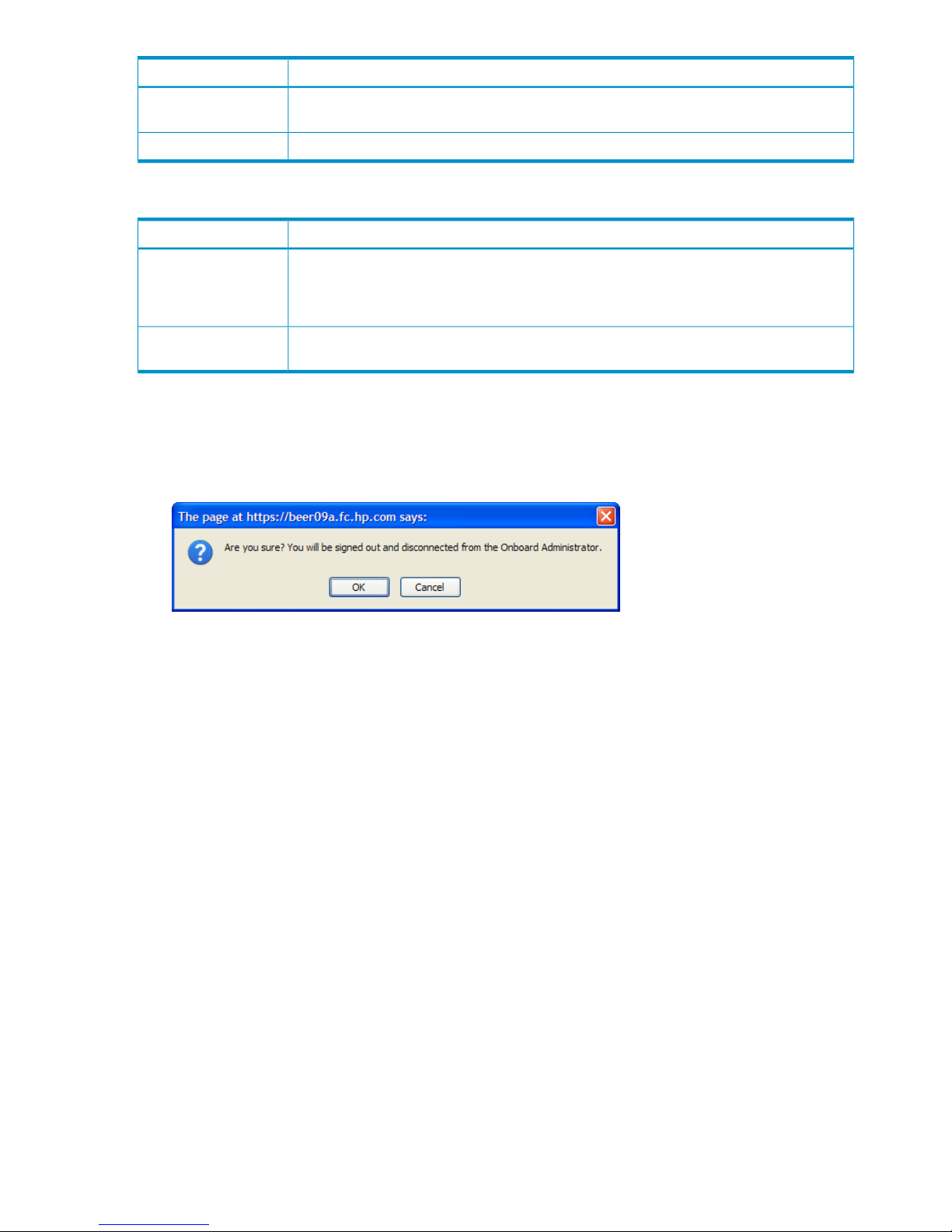

Active Onboard Administrator Virtual Buttons tab
1. Click the Reset button to reset the Onboard Administrator.
2. A confirmation screen appears, asking if you are sure that you want to perform the action
and that you will be signed out and disconnected from the Onboard Administrator.
3. Click OK to proceed, or click Cancel to exit without a change.
Click the Toggle On/Off button to change the Onboard Administrator module UID LED. This button
is useful in identifying a particular Onboard Administrator when there is more than one.
90 Configuring HP Integrity Superdome 2 compute enclosures and enclosure devices
Page 91
TCP/IP Settings screen
This screen displays the current enclosure TCP/IP settings for the active Onboard Administrator.
To change these settings, select Click here to modify the TCP/IP settings.
For information on modifying the TCP/IP settings, see “Enclosure TCP/IP Settings screen” (page 79).
Onboard Administrator Module 91
Page 92
Certificate Administration screen
Information tab
This screen displays the detailed information of the SSL certificate now in use by the Onboard
Administrator. An SSL certificate is used to certify the identity of Onboard Administrator and is
required by the underlying HTTP server to establish a secure (encrypted) communications channel
with the client web browser.
On initial start up, Onboard Administrator generates a default self-signed SSL certificate valid for
10 years, and the certificate is issued to the name of the Onboard Administrator. Because this
default certificate is self-signed, the "issued by" box is also set to the same name.
Status information
DescriptionItem
The certificate subject common name.Cert Common Name
Certificate Information
DescriptionItem
The certificate authority that issued the certificate.Issued by
The date from which the certificate is valid.Valid from
The date the certificate expires.Valid until
The serial number assigned to the certificate by the
certifying authority.
Serial Number
92 Configuring HP Integrity Superdome 2 compute enclosures and enclosure devices
Page 93
DescriptionItem
Version number of current certificate.Version
A validation of authenticity embedded in the certificate.MD5 Fingerprint
A validation of authenticity embedded in the certificate.SHA1 Fingerprint
Required Information
DescriptionItem
The two-character country code that identifies the country where the Onboard
Administrator is located.
Country (C)
The state or province where the Onboard Administrator is located.State or Province (ST)
The city or locality where the Onboard Administrator is located.City or Locality (L)
The company that owns this Onboard Administrator.Organization Name (O)
Optional data
DescriptionItem
The person responsible for the Onboard Administrator.Contact Person
The email address of the person responsible for the Onboard Administrator.Email Address
The unit within the company or organization that owns the Onboard Administrator.Organizational Unit
The surname of the person responsible for the Onboard Administrator.Surname
The given name of the person responsible for the Onboard Administrator.Given Name
The initials of the person responsible for the Onboard Administrator.Initials
The distinguished name qualifier of the Onboard Administrator.DN Qualifier
Certificate-signing request attributes
DescriptionItem
This is for additional information.Unstructured Name

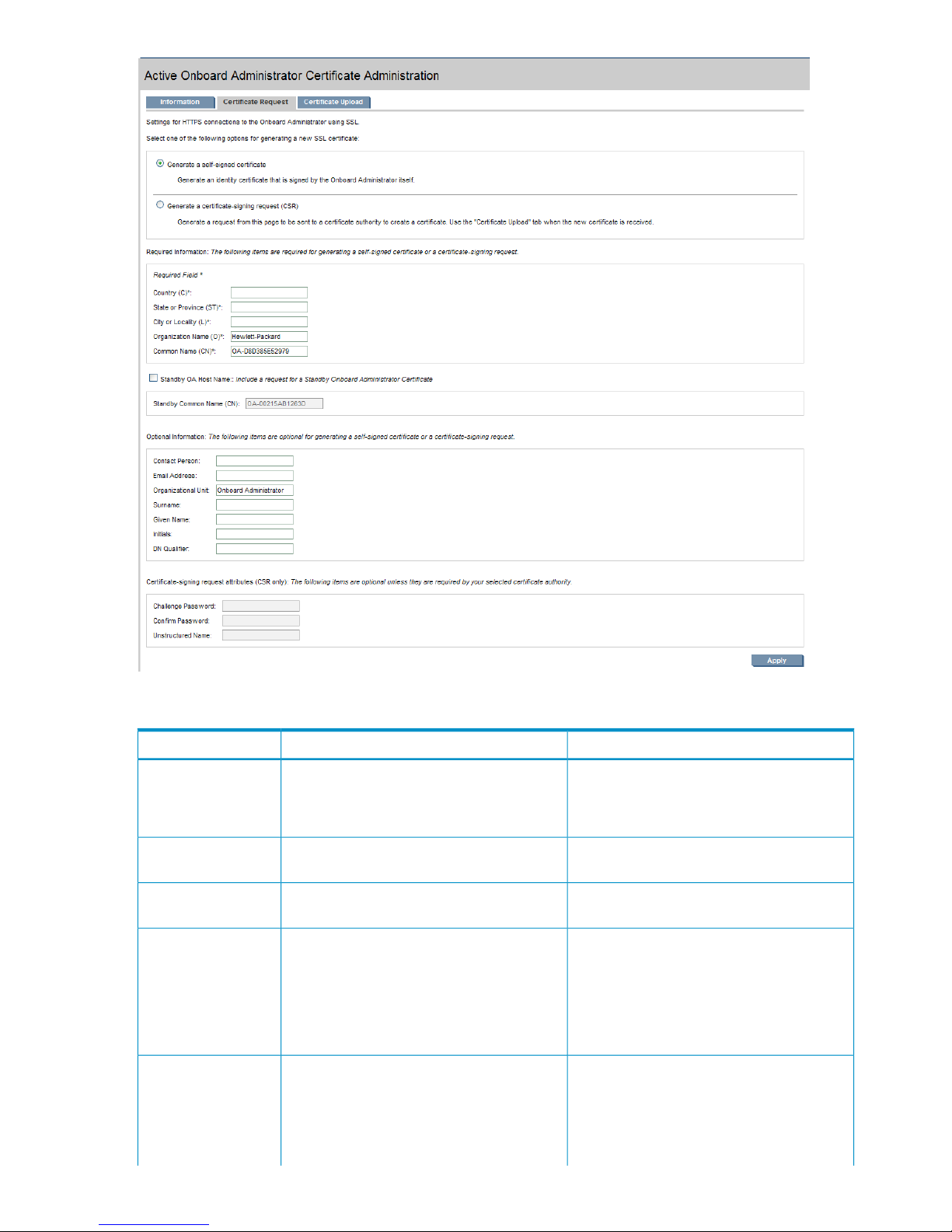

Certificate Request tab
The Certificate Request tab enables you to enter the information needed to generate a self-signed
certificate or a standardized certificate-signing request to a certificate authority.
Onboard Administrator Module 93
Page 94
Requied Information
DescriptionPossible valuesItem
A valid country code that identifies the country
where the Onboard Administrator is located.
Must be one to two characters in length.
Acceptable characters are all alphanumeric,
Country (C)
a space, and the following punctuation marks:
' ( ) + , - . / : = ?
The state or province where the Onboard
Administrator is located.
Must be 1 to 30 characters in length.State or Province (ST)
The city or locality where the Onboard
Administrator is located.
Must be 1 to 50 characters in length.City or Locality (L)
The organization that owns this Onboard
Administrator. When this information is used
Must be 1 to 60 characters in length.Organization Name
(O)
to generate a certificate-signing request, the
certificate issuing authority can be sure that the
organization requesting the certificate is legally
entitled to claim ownership of the given
company name or organization.
The Onboard Administrator name that appears
in the browser web address box.
Must be 1 to 60 characters in length. To
prevent security alerts, the value of this box
Common Name (CN)
must match exactly the host name as it is
known by the web browser. The web browser
compares the host name in the resolved web
address to the name that appears in the
94 Configuring HP Integrity Superdome 2 compute enclosures and enclosure devices
Page 95
DescriptionPossible valuesItem
certificate. For example, if the web address in
the address box is
https://oa-001635.xyz.com, then the value
must be oa-001635.xyz.com.
Select Standby OA Host Name to include a request for a Standby Onboard Administrator certificate.
Enter the information in the Standby Common Name (CN) box, which must be 1 to 60 characters
in length. This selection appears only if you have a Standby Onboard Administrator in the enclosure.
Optional Information
DescriptionPossible valuesItem
The person responsible for the Onboard
Administrator.
Must be 0 to 60 characters in length.Contact Person
The email address of the contact person
responsible for the Onboard Administrator.
Must be 0 to 60 characters in length.Email Address
The unit within the company or organization
that owns the Onboard Administrator.
Must be 0 to 60 characters in length.Organizational Unit
The surname of the person responsible for the
Onboard Administrator.
Must be 0 to 60 characters in length.Surname
The given name of the person responsible for
the Onboard Administrator.
Must be 0 to 60 characters in length.Given Name
The initials of the person responsible for the
Onboard Administrator.
Must be 0 to 20 characters in length.Initials
The distinguished name qualifier of the
Onboard Administrator.
Must be 0 to 60 characters in length.
Acceptable characters are all alphanumeric,
DN Qualifier
the space, and the following punctuation
marks: ' ( ) + , - . / : = ?
Certificate-signing request attributes
DescriptionPossible valuesBox
The password for the certificate-signing requestMust be 0 to 30 characters in lengthChallenge Password
Confirm the Challenge PasswordMust be 0 to 30 characters in lengthConfirm Password
This is for additional information (for example,
an unstructured name that is assigned to the
Onboard Administrator)
Must be 0 to 60 characters in lengthUnstructured Name
Click the Apply button to generate a self-signed certificate or a standardized certificate-signing
request.
Standardized certificate-signing request
This screen displays a standardized certificate signing request generated by the Onboard
Administrator. The content of the request in the text box may can be sent to a certificate authority
of your choice for signing. Once signed and returned from the certificate authority, the certificate
can be uploaded under the "Certificate Upload" tab.
If a static IP address is configured for Onboard Administrator when this certificate request is
generated, the certificate request will be issued to the static IP address. Otherwise, it is issued to
the dynamic DNS name of the Onboard Administrator. The certificate, by default, requests a valid
duration of 10 years (this value is now not configurable).
Onboard Administrator Module 95
Page 96
When submitting the request to the certificate authority, be sure to:
• Use the Onboard Administrator URL for the server.
• Request the certificate be generated in the RAW format.
• Include the Begin and End certificate lines.
Active Onboard Administrator Certificate Upload tab
Upload certificates for use in a Superdome 2 Onboard Administrator in the following ways:
• Paste certificate contents into the text box and click the Upload button.
• Paste the URL of the certificate into the URL box and click the Apply button.
The certificate to be uploaded must be from a certificate request sent out and signed by a certificate
authority for this particular Onboard Administrator. Otherwise, the certificate fails to match the
private keys used to generate the certificate request, and the certificate is rejected. Also, if the
Onboard Administrator domain has been destroyed or reimported, you must repeat the steps for
generating a certificate request. It is re-signed by a certificate authority because the private keys
are destroyed and recreated along with the Onboard Administrator domain.
If the new certificate is successfully accepted and installed by the Onboard Administrator, you are
automatically signed out. The HTTP server must be restarted for the new certificate to take effect.
System log
The System Log subcategory can be found within the Active Onboard Administrator category. The
System Log displays logged information of events within the Onboard Administrator.
Events are logged from the top of the list to the bottom, with the most recent logged event appearing
at the top of the list. The system log can be scrolled using the scroll bar on the right of the log
screen (if the log is larger than the display box). The log has a maximum capacity of 18.42 KB
and automatically deletes the oldest logged event first (FIFO).
To clear the list of all logged events, click the Clear button on the lower-right of the screen under
the system log display.
Remote system logging is a feature that can be used to send Onboard Administrator syslog messages
to a remote server on the network for persistent storage. The syslog messages are sent from Onboard
Administrator using the UDP protocol on a port that can be specified by the user. The default remote
syslog port is 514.
Onboard Administrators Remote System Logging feature follows the guidelines in RFC3164 (http://
www.ietf.org/rfc/rfc3164.txt).
In most Linux systems, remote system logging can be enabled by starting syslogd with the "-r"
option. The remote syslog port must also be opened in the firewall. Documentation for your particular
distribution must be consulted for additional information. Windows does not have native support
for remote system logging. Any application that listens on UDP port 514 or the specified syslog
port can receive remote system log messages from the OA.
After configuring, the Onboard Administrator remote system logging feature can be tested using
the GUI Test button on the configuration page, or using the CLI TEST SYSLOG command.
The list of possible events include:
• Enclosure Event 0x01: Enclosure Status Changed
• Enclosure Event 0x02: Enclosure UID Status Changed
• Enclosure Event 0x03: Enclosure Shutdown
• Enclosure Event 0x04: Enclosure Information Changed
• Enclosure Event 0x05: Enclosure Name Changed
• Enclosure Event 0x06: User Permissions Changed
96 Configuring HP Integrity Superdome 2 compute enclosures and enclosure devices
Page 97
• Enclosure Event 0x07: Administrator Rights Changed
• Enclosure Event 0x08: Enclosure Shutdown Pending
• Enclosure Event 0x09: Enclosure Topology Changed
• Enclosure Event 0x10: Fan Status Changed
• Enclosure Event 0x11: Fan Inserted
• Enclosure Event 0x12: Fan Removed
• Enclosure Event 0x14: Thermal Subsystem Redundancy Status Changed
• Enclosure Event 0x15: Fan at Max Percentage
• Enclosure Event 0x16: Add Fan to Bay
• Enclosure Event 0x17: Remove Fan from Bay
• Enclosure Event 0x18: Fan Over Consuming Power
• Enclosure Event 0x20: Thermal Status Changed
• Enclosure Event 0x30: Power Supply Status Changed
• Enclosure Event 0x31: Power Supply Inserted
• Enclosure Event 0x32: Power Supply Removed
• Enclosure Event 0x33: Power Supply Subsystem Redundant Status Changed
• Enclosure Event 0x34: Power Supply Subsystem Overloaded
• Enclosure Event 0x35: AC Failure
• Enclosure Event 0x36: Inadequate Power or Cooling
• Enclosure Event 0x40: Interconnect Device Status Changed
• Enclosure Event 0x41: Interconnect Device Reset
• Enclosure Event 0x42: Interconnect Device UID Status Changed
• Enclosure Event 0x43: Interconnect Device Inserted
• Enclosure Event 0x44: Interconnect Device Removed
• Enclosure Event 0x45: Interconnect Device Information Changed
• Enclosure Event 0x46: Interconnect Device Health LED Status Changed
• Enclosure Event 0x47: Interconnect Device Thermal Status Changed
• Enclosure Event 0x48: Interconnect Device CPU Fault
• Enclosure Event 0x49: Interconnect Device Power Mode Changed
• Enclosure Event 0x50: Enclosure Demonstration Mode
• Blade Event 0x100: Blade Device Status Changed
• Blade Event 0x101: Blade Device Inserted
• Blade Event 0x102: Blade Device Removed
• Blade Event 0x103: Blade Device Power State Changed
• Blade Event 0x104: Blade Device Power Management Changed
• Blade Event 0x105: Blade Device UID Status Changed
• Blade Event 0x106: Blade Device Shutdown
• Blade Event 0x107: Blade Device Fault
• Blade Event 0x108: Blade Device Thermal Status Change
Onboard Administrator Module 97
Page 98
• Blade Event 0x110: Blade Device Information Changed
• Blade Event 0x111: Blade Bay Management Processor Changed
• Blade Event 0x112: ILO Ready
• Blade Event 0x114: Keying Error
• Blade Event 0x115: ILO Has IP Address
• LCD Event 0x200: Display Changed
• LCD Event 0x201: Button Pressed
• LCD Event 0x202: Pin Information Changed
• LCD Event 0x203: User Note Information Changed
• LCD Event 0x204: Chat Requested
• LCD Event 0x205: Chat Response Sent
• LCD Event 0x206: LCD Display State Changed
• Enclosure Event 0x1001: Network Information Changed
• Enclosure Event 0x1002: SNMP Information Changed
• Enclosure Event 0x1003: System Log Cleared
• Enclosure Event 0x1004: Session Cleared
• Enclosure Event 0x1005: Time Changed
• Enclosure Event 0x1006: Session Started
• Enclosure Event 0x1007: Blade Connected
• Enclosure Event 0x1008: Blade Disconnected
• Enclosure Event 0x1009: Switch Connected
• Enclosure Event 0x100A: Switch Disconnected
• Enclosure Event 0x100B: Blade Cleared
• Enclosure Event 0x100C: Switch Cleared
• Enclosure Event 0x100D: AlertMail Information Changed
• Enclosure Event 0x100E: LDAP Information Changed
• Enclosure Event 0x100F: EBIPA Information Changed
• Enclosure Event 0x1013: User Information Changed
• Enclosure Event 0x1014: Bay Changed
• Enclosure Event 0x1016: Onboard Administrator Reboot
• Enclosure Event 0x1017: Onboard Administrator Logoff Request
• Enclosure Event 0x1018: User Added
• Enclosure Event 0x1019: User Deleted
• Enclosure Event 0x1020: User Enabled
• Enclosure Event 0x1021: User Disabled
• Enclosure Event 0x1201: Flash Pending
• Enclosure Event 0x1202: Flash Started
• Enclosure Event 0x1203: Flash Progress
98 Configuring HP Integrity Superdome 2 compute enclosures and enclosure devices
Page 99
• Enclosure Event 0x1204: Flash Complete
• Enclosure Event 0x1210: Non-iLo EBIPA
Log Options tab
This screen enables you to send system log messages to a remote host. By default, the local system
log is enabled. To manage the system log settings, you must be an Administrator or Operator with
OA bay permissions.
Select the Enable remote system logging check box to send system log messages to a remote host.
DescriptionPossible valueBox
The IP address of the remote host###.###.###.###. where ###
ranges from 0 to 255
Syslog Server Address
The IP port of the remote host. If this box
is left blank, the default UDP port 514
is used.
An integer between 1 and 65535Port
Click Test Remote Log to send a test message to the remote host address and to the local system
log. You must enable remote system logging to use this function.
Click Apply to save the settings.
Standby Onboard Administrator screen
When a second HP Superdome 2 Onboard Administrator is placed in the enclosure, it becomes
the standby Onboard Administrator. The standby Onboard Administrator is normally placed in
the available Onboard Administrator tray at the rear of the enclosure. By selecting the Active to
Standby screen, you can force a transition within the Onboard Administrator user interface to make
the active Onboard Administrator become the standby Onboard Administrator.
For an Active or Standby relationship, the two Onboard Administrator modules must have the same
firmware version installed. If the firmware versions are not identical, the Insight Display and the
main status screen of the Onboard Administrator identifies this error and alerts the user through
SNMP if enabled.
If using two Onboard Administrators, each Onboard Administrator has a unique IP address. Refer
to the Insight Display to get the IP addresses for the Active and Standby Onboard Administrators
Onboard Administrator Module 99
Page 100
and write them down. When looking at the enclosure from the rear, the bay on the left is bay 1,
while the bay on the right is bay 2. When the Active Onboard Administrator transitions to the
Standby Onboard Administrator, the DNS host name and IP addresses remains the same. To
connect to the new Active Onboard Administrator, you must completely close your browser and
connect to the host name or IP address of the former Standby Onboard Administrator.
Status, Information, and Virtual Buttons tabs
The information under the Status, Information, and Virtual Buttons tabs is the same as it is for an
active Onboard Administrator. For information on these tabs, see “Active Onboard Administrator
screen” (page 88).
TCP/IP Settings for Standby Onboard Administrator
This screen displays the current TCP/IP settings for the Onboard Administrator.
Information
DescriptionBox
The Onboard Administrator MAC address. This is an
informational box and cannot be changed.
MAC Address
Static IP address for the Onboard Administrator (required
if static IP settings is selected)
IP Address
Subnet mask for the Onboard Administrator (required if
static IP settings is selected)
Subnet Mask
Gateway address for the Onboard Administrator (required
if static IP settings is selected)
Gateway
The IP address for the primary DNS serverDNS Server 1
The IP address for the secondary DNS serverDNS Server 2
Onboard Administrator Name (DNS Host Name)- The name of the Onboard Administrator. The
default for this box is the DNS host name.
To modify the TCP/IP settings, select Click here.
Standby Onboard Administrator Virtual Buttons tab
The Virtual Buttons tab is the same as it is for an active Onboard Administrator. For information
on this tab, see “Active Onboard Administrator Virtual Buttons tab” (page 90).
Standby Certificate Request tab
The standby Certificate Request tab is the same as it is for an active Onboard Administrator. For
information on this tab, see “Certificate Request tab” (page 93).
Standby Onboard Administrator Certificate Upload tab
The standby Certificate Upload tab is the same as it is for an active Onboard Administrator. For
information on this tab, see “Active Onboard Administrator Certificate Upload tab” (page 96).
100 Configuring HP Integrity Superdome 2 compute enclosures and enclosure devices
