HP Firewall Installation Manual

HP A-F1000-A-EI/A-F1000-S-EI VPN Firewall

Installation Guide

Part number: 5998-1415

Document version: 6PW100-20110909

Legal and notice information

© Copyright 2011 Hewlett-Packard Development Company, L.P.

No part of this documentation may be reproduced or transmitted in any form or by any means without
prior written consent of Hewlett-Packard Development Company, L.P.

The information contained herein is subject to change without notice.

HEWLETT-PACKARD COMPANY MAKES NO WARRANTY OF ANY KIND WITH REGARD TO THIS
MATERIAL, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE. Hewlett-Packard shall not be liable for errors contained
herein or for incidental or consequential damages in connection with the furnishing, performance, or use
of this material.

The only warranties for HP products and services are set forth in the express warranty statements
accompanying such products and services. Nothing herein should be construed as constituting an
additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

Contents

Product overview·························································································································································· 1

Front panel view································································································································································1
Rear panel view ································································································································································1

Preparing for installation ············································································································································· 3

Safety recommendations ··················································································································································3

Safety symbols ··························································································································································3
General safety recommendations ···························································································································3
Safety with electricity ···············································································································································3
Safety with laser ·······················································································································································4

Examining the installation site ·········································································································································4

Temperature and humidity·······································································································································4
Altitude ······································································································································································5
Cleanness··································································································································································5
Cooling system ·························································································································································5
ESD prevention ·························································································································································6
EMI·············································································································································································7
Lightning protection··················································································································································7

Rack-mounting···························································································································································7
Installation tools·································································································································································7
Accessories supplied by the firewall ·······························································································································8
Checklist before installation ·············································································································································8

Installing the firewall··················································································································································10

Installation flow ······························································································································································10
Installing the firewall in a 19-inch rack························································································································ 10
Grounding the firewall ·················································································································································· 12
Installing an interface module······································································································································· 13
Connecting Ethernet cables··········································································································································· 14

Connecting a copper Ethernet cable··················································································································· 14

Connecting an optical fiber ································································································································· 14
Installing the power supply and connecting the power cord ···················································································· 16

Installing a power supply ·····································································································································16

Connecting an AC power cord ··························································································································· 16

Connecting the DC power cable ························································································································· 17

Logging in to the firewall and configuring basic settings ·······················································································18

Logging in to the firewall through the console port···································································································· 18

Connecting the firewall to a configuration terminal through a console cable················································ 18

Setting terminal parameters·································································································································· 19
Powering on the firewall ···············································································································································21

Checking before power-on··································································································································· 21

Checking after power-on ······································································································································ 21
Logging in to the firewall through Telnet ····················································································································· 22
Logging to the firewall through a web browser·········································································································· 22
Performing basic settings for the firewall····················································································································· 23

Launching the basic configuration wizard·········································································································· 23

Configuring the system name and user password····························································································· 24

Configuring service management························································································································ 25

Configuring the IP address for an interface········································································································ 26

i

Configuring NAT··················································································································································· 27

Completing the configuration wizard ·················································································································29

Hardware management and maintenance ··············································································································30

Displaying detailed information about the firewall ···································································································· 30
Displaying software and hardware version information of the firewall··································································· 31
Displaying the electrical label information of the firewall ·························································································31
Displaying the CPU usage of the firewall···················································································································· 32
Displaying the memory usage of the firewall·············································································································· 32
Displaying the operational status of the fans ·············································································································· 32
Displaying the operational status of a power supply································································································· 32
Displaying the temperature information of the firewall ······························································································ 33
Displaying operational statistics of the firewall ·········································································································· 33
Saving the running configuration of the firewall ········································································································ 34
Rebooting the firewall···················································································································································· 34

Troubleshooting··························································································································································36

Power supply system failure·········································································································································· 36
Fan failure······································································································································································· 36
Configuration terminal problems·································································································································· 37

No terminal display ·············································································································································· 37

Garbled terminal display······································································································································ 37
Password loss ································································································································································· 37

User password loss ··············································································································································· 37

Super password loss ············································································································································· 38
Cooling system failure ··················································································································································· 39
Interface module failure················································································································································· 39

Appendix A Technical specifications ······················································································································40

Dimensions and weight ················································································································································· 40
Storages ·········································································································································································· 40
Power consumption range············································································································································· 40

Power input ···························································································································································· 41
Console port ··································································································································································· 41
Combo interfaces··························································································································································· 41

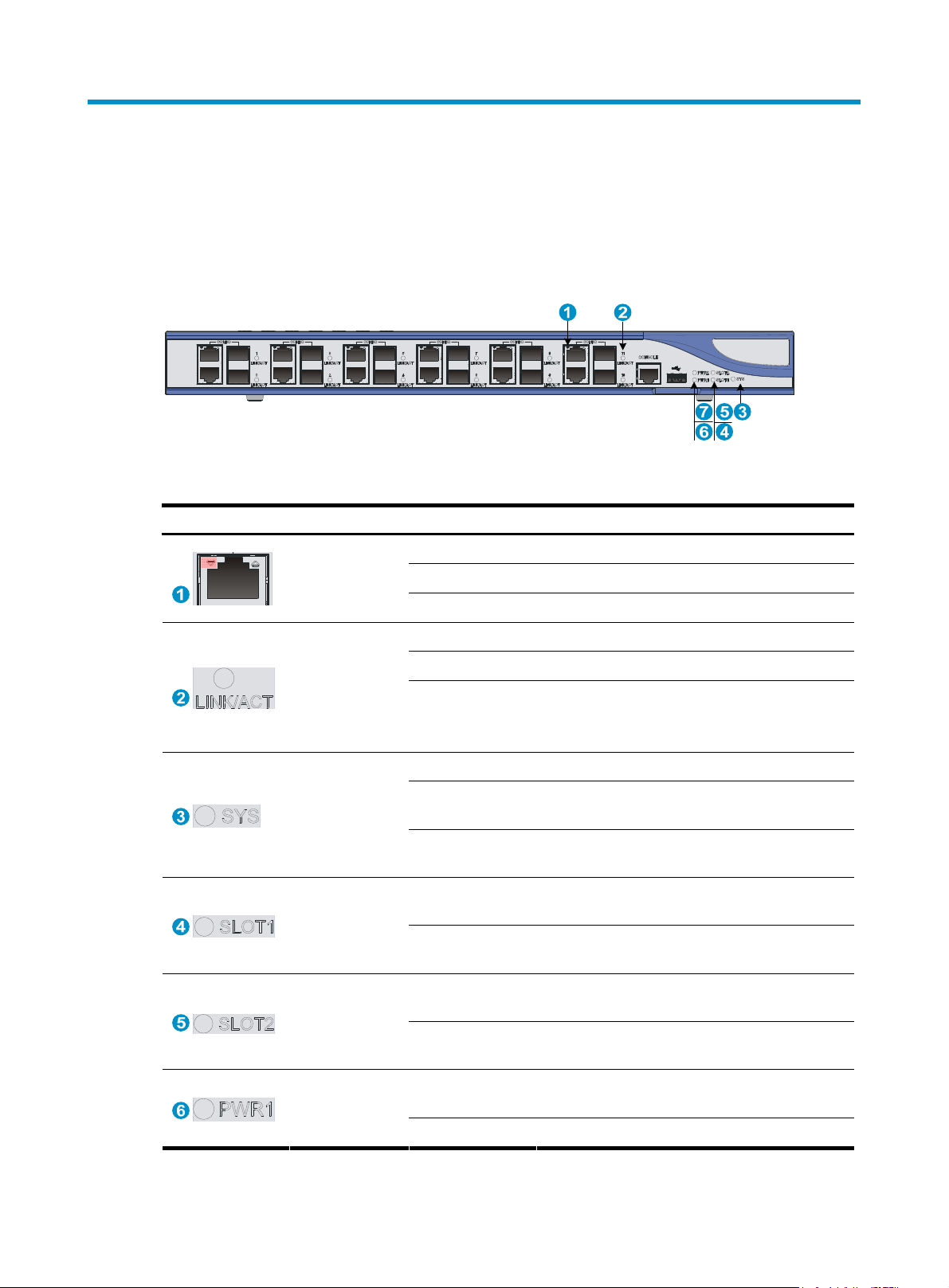

Appendix B LEDs·······················································································································································43

Front panel LEDs····························································································································································· 43

Appendix C Interface module··································································································································45

NSQ1XS2U0·································································································································································· 45

Appendix D AC power cables used in different countries or regions··································································47

10A AC power cables used in different countries or regions··················································································· 47
16A AC power cables used in different countries or regions··················································································· 50

Support and other resources ·····································································································································53

Contacting HP ································································································································································ 53

Subscription service ·············································································································································· 53
Related information························································································································································ 53

Documents······························································································································································ 53

Websites································································································································································· 53
Conventions ···································································································································································· 54

Index ···········································································································································································56

ii

Product overview

This chapter includes these sections:

• Front panel view

• Rear panel view

NOTE:

The A-F1000-S-EI and A-F1000-A-EI share the same appearance. The following section uses the
A-F1000-A-EI as an example.

Front panel view

Figure 1 Front panel view

(1) Copper Ethernet port of the combo interface (2) Fiber SFP port of the combo interface
(3) Console port (4) USB interface

Rear panel view

Figure 2 Rear panel view

(1) Power supply slot 1 (PWR1) (2) Power supply slot 2 (PWR2)
(3) Interface module slot 2 (SLOT2) (4) ”OPEN BOOK” mark
(5) Grounding screw and mark (6) Interface module slot 1 (SLOT1)

The “OPEN BOOK” mark prompts you to see the related chapters when you perform the following
operations.

1

Table 1 Description of the “OPEN BOOK” mark

Operation Reference

Grounding the firewall Grounding the firewall

Connecting the firewall to the power source

Installing the power supply and connecting the power
cord

2

Preparing for installation

This chapter includes these sections:

• Safety recommendations

• Examining the installation site

• Installation tools

• Accessories supplied by the firewall

• Checklist before installation

Safety recommendations

To avoid possible bodily injury and equipment damage, read the safety recommendations in this chapter
carefully before installing an A-F1000-A-EI/A-F1000-S-EI firewall. The recommendations do not cover
every possible hazardous condition.

This section includes these topics:

• Safety symbols

• General safety recommendations

• Safety with electricity

• Safety with laser

Safety symbols

When reading this document, note the following symbols:

WARNING means an alert that calls attention to important information that if not understood or

followed can result in personal injury.

CAUTION means an alert that calls attention to important information that if not understood or

followed can result in data loss, data corruption, or damage to hardware or software.

General safety recommendations

• Keep the chassis and installation tools away from walk areas.

• Make sure that the ground is dry and flat and anti-slip measures are in place.

• Unplug all the external cables (including power cables) before moving the chassis.

Safety with electricity

• Locate the emergency power-off switch in the room before installation. Shut the power off at once in

case accident occurs.

• Make sure that the firewall has been correctly grounded.

• Connect the interface cables for the firewall correctly.

• Use an uninterruptible power supply (UPS).

3

• If there are two power inputs, disconnect the two power inputs to power off the firewall.

• Do not work alone when the firewall has power.

• Always check that the power has been disconnected.

Safety with laser

• Do not stare into the optical port or fiber connector because the laser light emitted from the optical

fiber may hurt your eyes.

• Install a dust plug on the transceiver module to avoid damage to the transceiver module.

Examining the installation site

The HP A-F1000-A-EI/A-F1000-S-EI firewall can only be used indoors. To ensure that the firewall works
properly and to prolong its service lifetime, the installation site must meet the following requirements:

• Temperature and humidity

• Altitude

• Cleanness

• Cooling system

• ESD prevention

• EMI

• Lightning protection

• Rack-mounting

Temperature and humidity

You must maintain a proper temperature and humidity in the equipment room. Long-term high humidity
may lead to bad insulation, electricity leakage, mechanical property changes, and metal corrosion.
However, if the humidity is too low, captive screws may become loose as the result of contraction of
insulation washers and static electricity may be produced in a dry environment to jeopardize the circuits
on the device. A high temperature is the most undesirable condition, because it accelerates the aging of
insulation materials and significantly lowers reliability and service life of the firewall.

Table 2 Temperature requirements

Item Temperature

Operating temperature 0°C to 45°C (32°F to 113°F)

Storage temperature –40°C to 70°C(–40°F to 158°F)

Table 3 Humidity requirements

Item Humidity

Operating humidity 5% to 95%

Storage humidity 5% to 95%

4

Altitude

Table 4 Altitude requirements

Item Altitude

Operating altitude –60 m (–196.85 ft) to 3 km (1.86 miles)

Storage altitude –60 m (–196.85 ft) to 4.5km(2.8 miles)

Cleanness

Dust buildup on the chassis may result in electrostatic adsorption, which causes poor contact of metal
components and contact points, especially when indoor relative humidity is low. In the worst case,
electrostatic adsorption can cause communication failure.

Table 5 Dust concentration limit in the equipment room

Substance Concentration limit (particles/cu m)

Dust particles

NOTE:

Dust particle diameter  5 m

The equipment room must also meet strict limits on salts, acids, and sulfides to eliminate corrosion and
premature aging of components, as shown in Table 6.

Table 6 Harmful gas li

Gas Max. (mg/m

SO2 0.2

H2S 0.006

NH

3

Cl

2

Cooling system

The A-F1000-A-EI/A-F1000-S-EI firewall adopts left to right airflow for heat dissipation.

 3 x 104

(No visible dust on desk in three days)

mits in an equipment room

0.05

0.01

3

)

Figure 3 A-F1000-A-EI/A-F1000-S-EI airflow

5

• Make sure there is enough space (greater than 10 cm (3.94 in)) around the air intake and outlet

vents on the firewall for good ventilation.

• Make sure the installation site has a good cooling system.

ESD prevention

To prevent electrostatic discharge (ESD), note the following guidelines:

• Make sure that the firewall and the floor are well grounded.

• Take dust-proof measures for the equipment room.

• Maintain the humidity and temperature at a proper level.

• Always wear an ESD-preventive wrist strap when touching a circuit board or transceiver module.

• Place the removed interface module on an antistatic workbench, with the face upward, or put it into

an antistatic bag.

• Touch only the edges, instead of electronic components when observing or moving a removed

interface module.

To use the ESD-preventive wrist strap, perform the following steps:

Step1 Wear the wrist strap on your wrist.
Step2 Lock the wrist strap tight around your wrist to keep good contact with the skin.
Step3 Attach the ESD-preventive wrist strap to the rack with the alligator clips.
Step4 Make sure that the rack is well grounded.

Figure 4 Use an ESD-preventive wrist strap

(1) ESD-preventive wrist strap (2) Lock
(3) Alligator clip

6

g

EMI

NOTE:

CAUTION:

• Check the resistance of the ESD-preventive wrist strap for safety. The resistance readin

range of 1 to 10 megohm (Mohm) between human body and the ground.

• No ESD-preventive wrist strap is provided with the A-F1000-A-EI/A-F1000-S-EI firewall. Prepare it

yourself.

To prevent electromagnetic interference (EMI) when you use the firewall, note the following guidelines:

• Take measures against interference from the power grid.

• Do not use the firewall together with the grounding equipment or light-prevention equipment of

power equipment, and keep the firewall far away from them.

• Keep the firewall far away from high-power radio launchers, radars, and equipment with high

frequency or high current.

Use electromagnetic shielding when necessary.

should be in the

Lightning protection

To protect the firewall from lightning better, do as follows:

• Make sure the grounding cable of the chassis is well grounded.

• Make sure the grounding terminal of the AC power receptacle is well grounded.

• Install a lightning arrester at the input end of the power supply to enhance the lightning protection

capability of the power supply.

Rack-mounting

Before mounting the firewall in a standard 19-inch rack, adhere to the following requirements:

• The rack is sturdy enough to support the firewall and installation accessories.

• Make sure that the size of the rack is appropriate for the firewall, and that there is enough clearance

around the left and right sides of the firewall for heat dissipation.

• For heat dissipation and device maintenance, make sure the front and rear of the rack should be at

least 0.8 m (2.62 ft) away from walls or other devices, and that the headroom in the equipment
room should be no less than 3 m (9.84 ft).

Installation tools

Flat-blade
screwdriver

Phillips screwdriver

Needle-nose pliers

7

Wire-stripping
pliers

Diagonal pliers

RJ45 crimping
pliers

Multimeter

Network cable
tester

Mark pen

NOTE:

No installation tool or ESD-preventive wrist strap is provided with the firewall. Prepare them yourself.

Accessories supplied by the firewall

Console cable Grounding cable Feet Mounting bracket

Checklist before installation

Table 7 Checklist before installation

ESD-preventive
wrist strap

Item Requirements Result

• There is a minimum clearance of 10 cm (3.9 in) around

Installation site

Ventilation

the inlet and exhaust vents for heat dissipation of the
firewall chassis.

• A ventilation system is available at the installation site.

Operating
temperature

Operating
humidity

Cleanness Dust concentration  3 × 104 particles/m3

0°C to 45°C (32°F to 113°F)

5% to 95%

• The equipment and floor are well grounded.

• The equipment room is dust-proof.

• The humidity and temperature are at a proper level,

respectively.

• Wear an ESD-preventive wrist strap and uniform when

ESD prevention

touching a circuit board.

• Place the removed interface module on an antistatic

workbench, with the face upward, or put it into an
antistatic bag.

• Touch only the edges, instead of electronic components

when observing or moving a removed interface module.

8

Item Requirements Result

• Take effective measures to protect the power system from

the power grid system.

• Separate the protection ground of the firewall from the

EMI prevention

grounding device or lightning protection grounding
device as far as possible.

• Keep the firewall far away from radio stations, radar

and high-frequency devices working in high current.

• Use electromagnetic shielding when necessary.

Lightning
protection

• The grounding cable of the chassis is well grounded.

• The grounding terminal of the AC power receptacle is

well grounded.

• Equip an uninterruptible power supply (UPS).

Electricity safety

• In case of emergency during operation, switch off the

external power switch.

• The rack is sturdy enough to support the weight of the

firewall and installation accessories.

• The size of the cabinet is appropriate for the firewall.

• The front and rear of the cabinet are at least 0.8 m

(31.50 in) away from walls or other devices.

Safety
precautions

Tools

Reference

Rack-mounting
requirements

• The firewall is far away from any moist area and heat source.

• The emergency power switch in the equipment room is located.

• Installation accessories supplied with the firewall

• User supplied tools

• Documents shipped with the firewall

• Online documents

9

Installing the firewall

This chapter includes these sections:

• Installation flow

• Installing the firewall in a 19-inch rack

• Grounding the firewall

• Installing an interface module

• Connecting Ethernet cables

• Installing the power supply and connecting the power cord

Installation flow

Figure 5 HP firewall installation flow

Start

Install the firewall to a 19' rack

Ground the firewall

Install an interface module

Connecting Ethernet cables

Connect the power cord

End

Installing the firewall in a 19-inch rack

Step1 As shown in Figure 6, install the cage nuts to proper positions on the rack posts.

10

Figure 6 Install cage nuts

Step2 Install the mounting brackets to both sides of the front panel, as shown in Figure 7.

Figure 7 Install the mounting brackets to both sides of the front panel

Step3 Supporting the firewall bottom with one hand, push the firewall into the rack horizontally.
Step4 Fix the firewall horizontally by fastening the front mounting brackets at both sides to the rack with

appropriate pan head screws. The specifications of pan head screws must satisfy the installation
requirements, and rustproof treatment has been made to their surfaces.

11

Figure 8 Fix the firewall to the rack

Grounding the firewall

WARNING!

Correctly connecting the firewall grounding cable is crucial to lightning protection and EMI protection.

Follow these steps to connect the grounding cable:

Step1 Remove the grounding screw from the rear panel of the firewall chassis.
Step2 Attach the grounding screw to the OT terminal of the grounding cable.
Step3 Use a screwdriver to fasten the grounding screw into the grounding screw hole.
Step4 Ground the other end of the grounding cable, as shown in Figure 9, by connecting the grounding cable

to the grounding terminal of the rack.

12

Figure 9 Connect the grounding cable

1

(1) OT terminal

Installing an interface module

CAUTION:

A NSQ1XS2U0 interface module can be installed only to slot 1.

Follow these steps to install an interface module:

Step1 Remove the filler panel on slot 1. Use a Phillips screwdriver to loosen the fastening screws on the filler

panel, and then remove the filler panel.

Step2 Push the interface module slowly along the guide rails into the slot until it touches the slot bottom.

Figure 10 Install an interface module

Step3 Use a screwdriver to fasten the captive screws on the interface module.
Step4 Check the status LED of slot 1 on the front panel when you power on the firewall. On means the interface

module is installed correctly and running properly. Off means the interface module has failed the
power-on self-test (POST).

13

g

A

Connecting Ethernet cables

Connecting a copper Ethernet cable

Follow these steps to connect a copper Ethernet cable:

Step1 Plug one end of an Ethernet twisted pair cable into the copper Ethernet port (RJ-45 port) to be connected

on the firewall.

Step2 Plug the other end of the cable into the RJ-45 port of the peer device.
Step3 After the firewall is powered on, check the status LED of the port. If the LED is solid green, you can be sure

that the link is connected. For more information about the LED status, see the chapter “Appendix B

LEDs.”

Connecting an optical fiber

Before connecting the firewall to the network, you must install a transceiver module to the firewall, and
then insert the fiber connector to the transceiver module. The A-F1000-A-EI/A-F1000-S-EI firewall
supports LC connectors only.

WARNING!

When connecting an optical fiber, note the following guidelines:

• Never bend or curve a fiber when connectin

not less than 10 cm (3.94 in).

• Keep the fiber end clean.

• Make sure that the fiber connector matches the transceiver module.

• Before connecting a fiber, make sure that the optical power at the receiving end does not exceed the

upper threshold of the optical receive power of the transceiver module. Otherwise, the transceiver
module may be damaged. For the optical power of a transceiver module, see the chapter “Appendix

Technical specifications.”

Follow these steps to connect optical fibers:

Step1 Remove the dust plug of the SFP port.

Figure 11 Remove the dust plug

it. After a fiber is installed well, the bend radius must be

14

g

Step2 Plug the transceiver module into the SFP port of the firewall, as shown in Figure 12.

Figure 12 Install the transceiver module

To unplug the transceiver module, you should move the pull latch to the horizontal position, and then pull
the transceiver module out.

Step3 Remove the dust cap from the transceiver module and the protective caps from the fibers.
Step4 Plug the LC connectors on one end of the fiber cable into the Rx and Tx ports, and plug the LC connectors

on the other end to the Tx and Rx ports on the peer device, as shown in Figure 13.

Figure 13 Connect the fi

ber connectors

Step5 After the firewall is powered on, check whether the LEDs of the optical interfaces are normal. If the LED

is steady on, you can be sure that the link is connected. For more information about the LED status, see
the chapter “Appendix B LEDs.”

NOTE:

By default, the copper port of a combo interface works. You can use the combo enable { copper | fiber
command in interface view to chan
the command references for the firewalls.

e the working port. For more information about the command, see

}

15

Installing the power supply and connecting the power cord

NOTE:

• No AC power supply or DC power supply is provided with the firewall.

• You can install two power supplies in your firewall, and they must be the same model.

Installing a power supply

The procedures for installing an AC power supply and DC power supply are the same. The following uses
an AC power supply as an example.

Step1 Locate the slot to install the power supply. Use a Phillips screwdriver to loosen the fastening screws on the

filler panel, and then remove the filler panel.

Step2 Use even pressure to gently push the power supply slowly along the slide rails into the slot.

Figure 14 Insert the power supply into the slot

Step3 Fasten the captive screws on the power supply with a Phillips screwdriver.
Step4 Check the power supply LED when you power on the firewall. If the power supply LED is steady on, the

power supply works properly. For more information about LED status, see the chapter “Appendix B

LEDs.”

Connecting an AC power cord

To connect an AC power cord, follow these steps:

Step1 Make sure the firewall is well grounded.
Step2 Connect one end of the AC power cord to the AC receptacle on the firewall, and the other end to the AC

power source.

Step3 (Optional) Use a cable tie to secure the AC power cord to the power supply handle.

16

Figure 15 Connect an AC power cord

Connecting the DC power cable

Follow these steps to connect the DC power cable:

Step1 Insert the DC power cable connector with the upside up (if the upside is down, you cannot insert the

connector smoothly), as shown in callout 1 of Figure 16.

Step2 Fasten the two strain-relief screws on the power cable connector clockwise to secure the connector to the

socket, as shown in callout 2 of Figure 16.

Step3 Connect the other end of the DC power cable to the external DC power supply system.

Figure 16 Connect the DC power cable

17

Logging in to the firewall and configuring basic settings

This chapter includes these sections:

• Logging in to the firewall through the console port

• Powering on the firewall

• Logging in to the firewall through Telnet

• Logging to the firewall through a web browser

• Performing basic settings for the firewall

his chapter describes only the commonly used methods for logging in to the firewall. For more firewall

T
login methods, such as login through SSH and NMS, see the configuration guides for the firewalls.

Logging in to the firewall through the console port

Connecting the firewall to a configuration terminal through a console cable

Follow these steps to connect a configuration terminal to the firewall by using the console cable:

Step1 Select a configuration terminal, which can be a character terminal with an RS232 serial port, or a PC.
Step2 Plug the DB-9 female connector to the serial port of the configuration terminal or PC.
Step3 Connect the RJ-45 connector to the console port of the firewall.

Figure 17 Connect the console cable

18

CAUTION:

• When you connect a PC to a powered-on firewall, connect the DB-9 connector of the console cable to

the PC before connecting the RJ-45 connector to the firewall.

• When you disconnect a PC from a powered-on firewall, disconnect the DB-9 connector of the console

cable from the PC after disconnecting the RJ-45 connector from the firewall.

Setting terminal parameters

Follow these steps to set terminal parameters on a terminal, for example, Windows XP HyperTerminal:

Step1 Select Start > All Programs > Accessories > Communications > HyperTerminal to enter the

HyperTerminal window. The Connection Description dialog box appears, as shown in Figure 18.

Figure 18 Connection description

of the HyperTerminal

Step2 Type the name of the new connection in the Name text box and click OK. The following dialog box

appears. Select the serial port to be used from the Connect using drop-down list.

19

Figure 19 Set the serial port used by the HyperTerminal connection

Step3 Click OK after selecting a serial port and the following dialog box appears. Set Bits per second to 9600,

Data bits to 8, Parity to None, Stop bits to 1, and Flow control to None.

Figure 20 Set the serial port parameters

Step4 Click OK after setting the serial port parameters and the system enters the following interface.

20

Figure 21 HyperTerminal window

Step5 Click Properties in the HyperTerminal window to enter the aaa Properties dialog box. Click the Settings

tab, set the Emulation to VT100, and then click OK.

Powering on the firewall

Checking before power-on

Before powering on the firewall, verify the following items:

• The power cord and grounding cable are properly connected.

• The power source matches that required by the firewall.

• The console cable is properly connected; the terminal or PC used for configuration has started; and

the configuration parameters have been set.

Checking after power-on

After powering on the firewall, check the following items:

• The LEDs on the front panel are normal. For information about the LED status, see the chapter

“Appendix B LEDs.”

• The fans work properly, and you can hear fan rotating.

• The configuration terminal displays information normally. You can see the startup window on the

local configuration terminal.

• After the POST, the system prompts you to press Enter. When the command line prompt appears,

the firewall is ready to configure.

21

Logging in to the firewall through Telnet

NOTE:

For more information about the Telnet login, see the configuration guides for the firewalls.

You can use the default information to log in to the A-F1000-A-EI/A-F1000-S-EI firewall. The default login
information includes:

• Username: admin

• Password: admin

• IP address of port GigabitEthernet 0/0: 192.168.0.1/24

Follow these steps to log in to the firewall through Telnet:

Step1 Log in to the firewall through the console port and then use the telnet server enable command in system

view to enable the Telnet function of the firewall.

By default, Telnet is disabled on the firewall.

Step2 Connect the firewall to a PC.

Connect port GigabitEthernet 0/0 of the firewall to a PC by using an Ethernet cable.

Step3 Configure an IP address for the PC, making sure that the PC and the firewall can ping each other.

Set the IP address to any one but 192.168.0.1 within the range of 192.168.0.0/24. For example, set the
address to 192.168.0.2.

Step4 Use the Telnet command to log in to the firewall.

Logging to the firewall through a web browser

The A-F1000-A-EI/A-F1000-S-EI firewall supports web-based network management, which allows you to
manage and maintain the firewall in a more user-friendly way.

Your A-F1000-A-EI/A-F1000-S-EI firewall was delivered with the default web logging information. You
can use this default information to log in to the web page of your firewall. The default web logging
information includes:

• User name: admin

• Password: admin

• IP address: 192.168.0.1/24

Follow these steps to log in to your firewall through a web browser:

Step1 Connect a cable to the A-F1000-A-EI/A-F1000-S-EI firewall.

Connect the Ethernet interface GigabitEthernet 0/0 of the A-F1000-A-EI/A-F1000-S-EI firewall to a PC
by using a network cable.

Step2 Configure an IP address for the PC, ensuring the PC and the A-F1000-A-EI/A-F1000-S-EI firewall can

ping each other.

Set the IP address to any one but 192.168.0.1 within the range of 192.168.0.0/24. For example, set the
address to 192.168.0.2.

Step3 Launch the web browser and input the login information.

22

Launch the web browser on the PC. Type 192.168.0.1 in the address bar and press Enter. The login dialog
box appears, as shown in Figure 22. In thi
verify code and click Login.

Figure 22 Web login dialog box

Then, the web interface of the A-F1000-A-EI/A-F1000-S-EI firewall appears.

s dialog box, enter your user name (admin), password (admin),

Performing basic settings for the firewall

This section describes the fast configuration by using the basic configuration wizard. For more
information about how to configure the protocols and features for the A-F1000-A-EI/A-F1000-S-EI
firewall, see the configuration guides for the firewalls.

NOTE:

The web interfaces may vary by the software version.

Launching the basic configuration wizard

Select Wizard from the navigation tree to enter the Configuration Wizard page, and then click the Basic
Device Information hyperlink to enter the first page of the basic configuration page, as shown in Figure

23.

23

Figure 23 Basic configuration wizard: 1/6

Configuring the system name and user password

Click Next on the first page of the basic configuration wizard to enter the basic information configuration
page, as shown in Figure 24.

Figure 24 Basic c

onfiguration wizard: 2/6 (basic information)

24

Table 8 Basic information configuration items

Item Description

Sysname Set the system name. By default, the system name of the firewall is HP.

Modify Current User
Password

New Password

Confirm Password

Specify whether to modify the login password of the current user.

To modify the password of the current user, set the new password and the confirm
password, and the two passwords must be identical.

By default, the firewall login username and password are both admin.

Configuring service management

Click Next on the basic information configuration page to enter the service management page, as shown
in Figure 25.

Figure 25 Basic c

onfiguration wizard: 3/6 (service management)

Table 9 Service management configuration items

Item Description

FTP

Telnet

Specify whether to enable FTP on the device.

Disabled by default.

Specify whether to enable telnet on the device.

Disabled by default.

25

Item Description

Specify whether to enable HTTP on the device, and set the HTTP port number.

Enabled by default.

IMPORTANT:

HTTP

• If the current user has logged in to the web interface through HTTP, disabling HTTP

or modifying the HTTP port number will result in disconnection with the device;
therefore, perform the operation with caution.

• When you modify a port number, ensure that the port number is not used by

another service.

Specify whether to enable HTTPS on the device, and set the HTTPS port number.

HTTPS is the HTTP protocol that supports the Secure Sockets Layer (SSL) protocol. It
can improve device security. For more information about HTTPS.

Disabled by default.

IMPORTANT:

HTTPS

• If the current user logged in to the web interface through HTTPS, disabling HTTPS

or modifying the HTTPS port number will result in disconnection with the device;
therefore, perform the operation with caution.

• When you modify a port number, ensure that the port number is not used by

another service.

• By default, HTTPS uses the PKI domain default. If this PKI domain does not exist, the

system will prompt you for it when the configuration wizard is completed; however,
this will not affect the execution of other configurations.

Configuring the IP address for an interface

Click Next on the service management configuration page to enter the interface IP address configuration
page, as shown in Figure 26. T
Ethernet interfaces and VLAN interfaces. You can click a value in the table and then modify it. Only when
the IP configuration is Static Address, can you configure the IP address and mask.

he table lists the IP address configuration information for all Layer 3

26

Figure 26 Basic configuration wizard: 4/6 (interface IP configuration)

Table 10 Interface IP address configuration items

Item Description

IP Configuration

IP Address

Mask

Configuring NAT

Set the approach for obtaining the IP address, including:

• None: The IP address of the interface is not specified,

that is, the interface has no IP address.

• Static Address: Specify the IP address for the interface

manually; if you select this item, you need to specify
both the IP address and the mask.

• DHCP: The interface obtains an IP address

automatically through the DHCP protocol.

• Do not change: The IP address of the interface does not

change.

If you select Static Address as the approach for obtaining
the IP address, you need to set the interface IP address and
network mask.

IMPORTANT:

Modification to the
interface IP address will
result in disconnection
with the device, so make
changes with caution.

Click Next on the interface IP address configuration page to enter the NAT configuration page, as shown
in Figure 27.

27

Figure 27 Basic configuration wizard: 5/6 (NAT configuration)

Table 11 NAT configuration items

Item Description

Interface

Dynamic NAT

Source IP/Wildcard If dynamic NAT is enabled, set the source IP address and wildcard for packets.

Destination
IP/Wildcard

Protocol Type

Internal Server

Select an interface on which the NAT configuration will be applied. Generally, it is
the outgoing interface of the device.

Specify whether to enable dynamic NAT on the interface.

If dynamic NAT is enabled, the IP address of the interface will be used as the IP
address of a matched packet after the translation.

By default, dynamic NAT is disabled.

If dynamic NAT is enabled, set the destination IP address and wildcard for packets.

If dynamic NAT is enabled, select the protocol type carried over the IP protocol,
including TCP, UDP, and IP (indicating all protocols carried by the IP protocol).

Specify whether to enable the internal server.

You can configure an internal server on the NAT device by mapping a public IP
address and port number to the private IP address and port number of the internal
server.

By default, the internal server is disabled.

IMPORTANT:

Configuration of the internal server may result in disconnection with the device (for
example, specify an external IP address as the IP address of the local host or as the IP
address of the current access interface). Perform the operation with caution.

External IP: Port

When the internal server is enabled, set the valid IP address and service port number
for the external access.

28

Item Description

Internal IP: Port

If the internal server is enabled, set the IP address and service port number for the
server on the internal LAN.

Completing the configuration wizard

Click Next on the NAT configuration page to enter the page shown in Figure 28.

Figure 28 Basic configuration wizard: 6/6

This page lists all configurations you have made in the basic configuration wizard. Confirm the
configurations. To modify your configuration, click Prev to go back to the previous page; if no
modification is needed, click Finish to execute all configurations.

29

Hardware management and maintenance

This chapter includes these sections:

• Displaying detailed information about the firewall

• Displaying software and hardware version information of the firewall

• Displaying the electrical label information of the firewall

• Displaying the CPU usage of the firewall

• Displaying the memory usage of the firewall

• Displaying the operational status of the fans

• Displaying the operational status of a power supply

• Displaying the temperature information of the firewall

• Displaying operational statistics of the firewall

• Saving the running configuration of the firewall

• Rebooting the firewall

NOTE:

The CLI and outputs may vary by the software version. For more information about the commands used in
this chapter, see the command references for the firewalls.

Displaying detailed information about the firewall

Use the display device verbose command to display detailed information of the device and interface
module, including the operational status and hardware version information.

<Sysname>display device verbose
Status :OK
Type :RPU
Hardware :B
Driver :1.0
CPLD :1.0
SubCard Num :3
CFCard Num :0
Usb Num :1

The Fixed SubCard0 on Board0
Status :Normal
Type :Fixed Subcard
Hardware :B
Driver :1.0
CPLD :2.0

The SubCard1 on Board0:

30

Status :Absent

The SubCard2 on Board0:
Status :Absent

Displaying software and hardware version information of the firewall

Use the display version command to display software and hardware version information of the firewall.

<Sysname> display version
HP Comware Platform Software
Comware Software, Version 5.20, Ess 3716
Copyright (c) 2010-2011 Hewlett-Packard Development Company, L.P.
HP A-F1000-A-EI uptime is 0 week, 0 day, 0 hour, 5 minutes

2048M bytes DDR2 SDRAM Memory
4M bytes Flash Memory
PCB Version:Ver.B
Back Board PCB Version:Ver.A
Logic Version: 3.0
Basic BootWare Version: 1.03
Extend BootWare Version: 1.03
[FIXED PORT] CON (Hardware)Ver.B, (Driver)1.0, (Cpld)3.0
[FIXED PORT] GE0/0 (Hardware)Ver.B, (Driver)1.0, (Cpld)3.0
[FIXED PORT] GE0/1 (Hardware)Ver.B, (Driver)1.0, (Cpld)3.0
[FIXED PORT] GE0/2 (Hardware)Ver.B, (Driver)1.0, (Cpld)3.0
[FIXED PORT] GE0/3 (Hardware)Ver.B, (Driver)1.0, (Cpld)3.0
[FIXED PORT] GE0/4 (Hardware)Ver.B, (Driver)1.0, (Cpld)3.0
[FIXED PORT] GE0/5 (Hardware)Ver.B, (Driver)1.0, (Cpld)3.0
[FIXED PORT] GE0/6 (Hardware)Ver.B, (Driver)1.0, (Cpld)3.0
[FIXED PORT] GE0/7 (Hardware)Ver.B, (Driver)1.0, (Cpld)3.0
[FIXED PORT] GE0/8 (Hardware)Ver.B, (Driver)1.0, (Cpld)3.0
[FIXED PORT] GE0/9 (Hardware)Ver.B, (Driver)1.0, (Cpld)3.0
[FIXED PORT] GE0/10 (Hardware)Ver.B, (Driver)1.0, (Cpld)3.0
[FIXED PORT] GE0/11 (Hardware)Ver.B, (Driver)1.0, (Cpld)3.0
[SUBCARD 1] The SubCard is not present
[SUBCARD 2] The SubCard is not present

Displaying the electrical label information of the firewall

Use the display device manuinfo command to display your firewall’s electrical label information.

<Sysname> display device manuinfo
DEVICE_NAME :aaaa
DEVICE_SERIAL_NUMBER:xxxx
MAC_ADDRESS :3CE5-A6CC-8D21

31

MANUFACTURING_DATE :2010-06-29
VENDOR_NAME :HP

Displaying the CPU usage of the firewall

Use the display cpu-usage command to display the CPU usage of a firewall.

<Sysname> display cpu-usage
Unit CPU usage:
4% in last 5 seconds
4% in last 1 minute
4% in last 5 minutes

Displaying the memory usage of the firewall

Use the display memory command to display the memory usage of a firewall.

<Sysname> display memory
System Total Memory(bytes): 1874838960
Total Used Memory(bytes): 546091792
Used Rate: 29%

Displaying the operational status of the fans

Use the display fan command to display the operational status of the fans.

<Sysname> display fan
Fan 1 State: Normal
Fan 2 State: Normal

Table 12 Output description

Field Description

Fan 1 Number of the fan

The fan state:

State

• Normal—The fan is operating properly.

• Absent—The fan is not in position.

• Fault—The fan fails.

Displaying the operational status of a power supply

Use the display power command to display the operational status of a power supply.

<Sysname> display power
Power Information:
Power 1 Status: Normal
Power 2 Status: AbNormal

32

Table 13 Output description

Field Description

Power 1 Number of the power supply

The power supply state:

Status

• Normal—The power supply is operating properly.

• AbNormal—The power supply is not in position.

• Fault—The power supply fails.

Displaying the temperature information of the firewall

Use the display environment command to display the temperature information of the firewall.

<Sysname> display environment
System Temperature information (degree centigrade):

---------------------------------------------------­ SlotNo Temperature Lower limit Upper limit
0 36 0 50

Field Description

System Temperature information (degree centigrade) System temperature (°C)

SlotNO Number of the slot holding the interface module

Temperature Current temperature

Lower limit Lower threshold

Upper limit Upper threshold

Displaying operational statistics of the firewall

When you perform routine maintenance or the system fails, you may need to display the operational
information of each functional module for locating failures. Generally, you need to run the display
commands one by one. To collect more information one time, you can execute the display
diagnostic-information command in any view to display or save the operational statistics of multiple
functional modules of the firewall.

• Save the operational statistics of each functional module of the firewall.

<Sysname> display diagnostic-information
Save or display diagnostic information (Y=save, N=display)? [Y/N]:y
Please input the file name(*.diag)[cfa0:/default.diag]:aa.diag
Diagnostic information is outputting to flash0:/aa.diag.
Please wait...
Save successfully.

Execute the more aa.diag command in user view, and then press the Page Up and Page Down keys to
view the contents of the file aa.diag.

33

g

r

• Display the operational statistics of each functional module of the firewall. The output is too much

and omitted here.

<Sysname> display diagnostic-information
Save or display diagnostic information (Y=save, N=display)? [Y/N]:n
=================================================================
===============running CPU usage information===============
=================================================================
===== Current CPU usage info =====
CPU Usage Stat. Cycle: 25 (Second)
CPU Usage : 10%
CPU Usage Stat. Time : 2011-07-08 15:50:48
CPU Usage Stat. Tick : 0xf(CPU Tick High) 0xaf1d7cba(CPU Tick Low)
Actual Stat. Cycle : 0x0(CPU Tick High) 0x665cbd2a(CPU Tick Low)
Omitted

Saving the running configuration of the firewall

You can save the running configuration of the firewall in one of the following modes:

• Fast saving: Executing the save command without the safely keyword. This mode saves th e file more

quickly but is likely to lose the existing configuration file if the device reboots or the power fails
during the process. The fast saving mode is suitable for environments where the power supply is
stable.

• Safe saving: Executing the save command with the safely keyword. The mode saves the file more

slowly but can retain the configuration file in the device even if the device reboots or the power fails
during the process. The safe saving mode is preferred in environments where a stable power supply
is unavailable or remote maintenance is involved.

Follow these steps to save the current configuration of the firewall:

To do… Use the command… Remarks

Save the current configuration to the
specified file, but the configuration file will
not be set as the file for the next startup

Save the current configuration to the root
directory of the storage medium and
specify the file as the startup configuration
file that will be used at the next system
startup

save file-url

Use either command

Available in any view

save [ safely ]

NOTE:

• The configuration file must be with extension .cfg.

• During the execution of the save

command, the startup configuration file to be used at the next system
startup may be lost if the device reboots or the power supply fails. In this case, the device will boot with
the factory defaults, and after the device reboots, you need to re-specify a startup confi

uration file fo

the next system startup.

Rebooting the firewall

To reboot a firewall, use one of the following methods:

34

• Use the reboot command to reboot a firewall.

• Enable the scheduled reboot function at the CLI. You can set a time at which the firewall can

automatically reboot, or set a delay so that the firewall can automatically reboot within the delay.

• Power on the firewall after powering it off, which is also called hard reboot or cold start. Powering

off a running firewall causes data loss and hardware damages, and therefore is not recommended.

Perform the following operation to reboot the firewall immediately:

To do… Use the command… Remarks

Reboot the firewall
immediately

reboot

Required

Available in user view

Perform the following operation to enable the scheduled reboot function:

To do… Use the command… Remarks

Enable the scheduled reboot
function and specify a specific
reboot time and date

Enable the scheduled reboot
function and specify a reboot
waiting time

CAUTION:

schedule reboot at hh:mm [ date ]

schedule reboot delay { hh:mm |

mm }

Use either command

The scheduled reboot function is
disabled by default.

Available in user view

• If the main host software file is not specified, do not use the reboot command to reboot the firewall. In

this case, you should specify the main host software file first, and then reboot the firewall.

• The precision of the rebooting timer is 1 minute. One minute before the rebooting time, the device

prompts “REBOOT IN ONE MINUTE” and reboots in one minute.

• If you are performing file operations when the device is to be rebooted, the system does not execute the

reboot command for security.

35

Troubleshooting

This chapter includes these sections:

• Power supply system failure

• Fan failure

• Configuration terminal problems

• Password loss

• Cooling system failure

• Interface module failure

NOTE:

• The barcode stuck on the firewall chassis contains production and servicing information. Before you

return a faulty firewall for serving, provide the barcode information of the firewall to your local sales
agent.

• Keep the tamper-proof seal on a mounting screw on the chassis cover intact, and if you want to open the

chassis, contact the local agent of HP for permission. Otherwise, HP shall not be liable for any
consequence caused thereby.

Power supply system failure

The firewall cannot be powered on. The power LED on the front panel is off.

Follow these steps to troubleshoot the power supply system:

Step1 Turn off the power switch.
Step2 Check whether the power cord is properly, firmly connected.
Step3 Check whether the power cord is damaged.

If the cause cannot be located in the steps above and the problem persists, contact your local sales
agent.

Fan failure

After the firewall is booted, the following information appears:

%Jun 22 16:11:37:485 2010 HP DEV/4/FAN FAILED:
Fan 1 failed.

If such information appears, you need to open the chassis to check the fan. Contact your local sales
agent.

36

Configuration terminal problems

If the configuration environment setup is correct, the configuration terminal displays boot information
when the firewall is powered on. If the setup is incorrect, the configuration terminal displays nothing or
garbled text.

No terminal display

If the configuration terminal displays nothing when the firewall is powered on, check the following items:

• The power supply system works properly.

• The console cable is properly connected.

If no problem is found, the following reasons may apply:

• The console cable is connected to an incorrect serial interface (the serial interface in use is not the

one set on the terminal).

• The properties of the terminal are incorrect. You must configure the configuration terminal as follows:

set Bits per second to 9600, Data bits to 8, Parity to None, Stop bits to 1, Flow control to None, and
Terminal Emulation to VT100.

• The console cable is not in good condition.

Garbled terminal display

If terminal display is garbled, check that the Data bits field is set to 8 for the configuration terminal.

Password loss

When the user password or super password is lost, resort to the following methods:

User password loss

If you lose your password, you cannot enter the system. In this case, you can boot the system by ignoring
the system configuration. Follow these steps to solve the user password loss:

Step1 Enter the BootWare main menu, and select 6 to boot the system by ignoring the system configuration.

The system prompts the following:

Flag Set Success.

The output indicates that the setting succeeded.

Step2 When the BootWare main menu appears again, select 0 to reboot the system.

System is starting...

Booting Normal Extend BootWare....

Step3 Set a new password in system view after the system reboots.

<Sysname> system-view
[Sysname] user-interface console 0
[Sysname-ui-console0] authentication-mode password
[Sysname-ui-console0] set authentication password simple 123456

The output shows that the console port uses password authentication, and the password is set to 123456
and stored in plain text.

37

g

When you set the password by using the set authentication password { cipher | simple } password
command, follow these guidelines.

• If the cipher keyword is specified, the password is stored in cipher text. You cannot view the

password by using the display current-configuration command.

• If the simple keyword is specified, the password is stored in plain text. You can use the display

current-configuration command to view the password in the current configuration.

NOTE:

After the firewall reboots, the system runs with the initial default configuration, but the previous
configuration file is still stored in the storage medium. To restore the previous configuration, use the
display saved-configuration command to display the configuration, and then copy and execute the
configuration.

Step4 Save the new password.

[Sysname] save

NOTE:

• To save the new password, execute the save command after modifying the user password.

• HP recommends saving the modification as the default configuration file.

Super password loss

The super password enables you to switch between four super levels. In the case of super password loss,
you cannot perform higher level operations.

You can clear the super password by selecting 8 on the BootWare main menu.

========================<EXTEND-BOOTWARE MENU>========================
|<1> Boot System |
|<2> Enter Serial SubMenu |
|<3> Enter Ethernet SubMenu |
|<4> File Control |
|<5> Modify BootWare Password |
|<6> Skip Current System Configuration |
|<7> BootWare Operation Menu |
|<8> Clear Super Password |
|<9> Storage Device Operation |
|<0> Reboot |
======================================================================
Enter your choice(0-9):8

The following output indicates that you have successfully cleared the super password.

Clear Application Password Success!

NOTE:

• Select option 8, quit the menu, reboot the firewall, and then you can enter system view directly.

• This settin

(password clearing) is valid only for the first reboot of the firewall. The super password will

be restored after a second reboot.

38

Cooling system failure

When the temperature inside the firewall exceeds 45°C (113°F), the cooling system may have failed.

Follow these steps to troubleshoot the cooling system:

Step1 Check whether the fans are running properly.
Step2 Check whether the working environment of the firewall is well ventilated.
Step3 If the temperature inside the firewall exceeds 60°C (140°F), the following information appears on the

configuration terminal:

%May 19 19:38:59:134 2011 HP DRVMSG/3/Temp2High:Temperature Point 0/0 Too High.
#May 19 19:39:03:227 2011 HP DEV/1/BOARD TEMPERATURE UPPER:
Trap 1.3.6.1.4.1.25506.8.35.12.1.16: chassisIndex is 0, slotIndex 0.0

%May 19 19:39:03:228 2011 HP DEV/4/BOARD TEMP TOOHIGH:
Board temperature is too high on Chassis 0 Slot 0, type is RPU.

Step4 Use the display environment command to check whether the temperature in the firewall keeps rising. If

the temperature inside the firewall exceeds 90°C (194°F), power off the firewall immediately and contact
your local sales agent.

Interface module failure

After an interface module is installed and the firewall is powered on, the LEDs on the interface module
panel indicate abnormal operation.

Follow these steps to solve this problem:

Step1 Check whether the interface module cable is correctly selected.
Step2 Check whether the interface module cable is correctly connected.
Step3 Use the display interface command to check whether the interface has been correctly configured and is

working properly.

39

Appendix A Technical specifications

Dimensions and weight

Table 14 Dimensions and weight

Item

Dimensions without feet and rack-mounting ears (H × W
× D)

Weight

Storages

Table 15 Storages

Item

Flash

Memory type and size

USB interface

Specification

A-F1000-A-EI/A-F1000-S-EI

44.2 × 442 × 442.6 mm (1.74 × 17.40 × 17.43
in)

5.5 kg (12.13 lb)

Specification

A-F1000-A-EI/A-F1000-S-EI

1 GB NAND Flash

4 MB NOR Flash

DDR2 SDRAM

2 GB (default)

4 GB (maximum)

1

Host mode, reserved without software support

Power consumption range

Table 16 Power consumption range of the entire system

Item Specification

Power consumption range 57 W to 133 W

40

Power input

Table 17 Power input specifications

Item

AC

DC

NOTE:

No AC power supply or DC power supply is provided with the firewall.

Console port

The A-F1000-A-EI/A-F1000-S-EI firewall provides an RS-232 asynchronous serial console port that can
be connected to a computer for system debugging, configuration, maintenance, management, and host
software loading.

Table 18 Technical specifications for the console port

Remarks

A-F1000-A-EI/A-F1000-S-EI

Rated voltage range

Maximum input current

Maximum output power

Rated voltage range

Maximum input current 6 A

Maximum output power 150 W

100 to 240 VAC; 50/60 Hz

2 A

150 W

–48VDC to –60VDC

Item Specification

Connector RJ-45

Compliant standard RS-232

Baud rate

Transmission distance 15 m (49.21 ft)

9600 bps to 115200 bps

9600 bps (default)

• Provides connection to an ASCII terminal

Services

• Provides connection to the serial port of a local PC to run the terminal emulation

program

• Command line interface (CLI)

Combo interfaces

An A-F1000-A-EI/A-F1000-S-EI firewall provides 12 combo interfaces. Each combo interface contains a
copper Ethernet port and a fiber SFP port, and can work either as a copper port or fiber port. Only one
of the fiber port and copper port that form a combo interface can work at a time. By default, a combo
interface works as a copper port.

You can use the combo enable { copper | fiber } command in interface view to activate the copper port
or fiber port of the combo interafce.

41

1. Technical specifications for copper Ethernet ports

Table 19 Technical specifications for copper Ethernet ports

Item Specification

Connector RJ-45

Port

Frame format

Rate and duplex mode

2. Technical specifications for fiber Ethernet ports

Autosensing (Ethernet does not support MDI/MDIX autosensing when working in
the forced mode)

Ethernet_II

Ethernet_SNAP

10 Mbps autosensing Half/full-duplex auto-negotiation

100 Mbps autosensing Half/full-duplex auto-negotiation

1000 Mbps autosensing Full-duplex auto-negotiation

Table 20 Technical specifications for 1000 Mbps fiber Ethernet ports

Item Specification

Connector SFP/LC

Compliant
standard

Optical
transmit
power

Type

Min –9.5 dBm –9 dBm –2 dBm –4 dBm –4 dBm

802.3, 802.3u, and 802.3ab

Short-haul
multi-mode
optical
module (850
nm)

Medium-haul
single-mode
optical module
(1310 nm)

Long-haul
optical module

(1310 nm)

Long-haul
optical module

(1550 nm)

Ultra-long
haul optical
module (1550
nm)

Max 0 dBm -3 dBm 5 dBm 1 dBm 2 dBm

Receiving
sensitivity

Central
wavelength

Fiber type

Maximum
transmission
distance

Duplex mode 1000 Mbps in full-duplex

–17 dBm –20 dBm –23 dBm –21 dBm –22 dBm

850 nm 1310 nm 1310 nm 1550 nm 1550 nm

62.5/125
m
multi-mode
fiber

0.55 km
(0.34 miles)

9/125 m
single-mode
fiber

10 km (6.21
miles)

9/125 m
single-mode
fiber

40 km (24.86
miles)

9/125 m
single-mode
fiber

40 km (24.86
miles)

9/125 m
single-mode
fiber

70 km (43.50
miles)

NOTE:

No SFP transceiver module is provided with the A-F1000-A-EI/A-F1000-S-EI firewall. Prepare them by
yourself.

42

Appendix B LEDs

Front panel LEDs

Figure 29 Front panel LEDs

Table 21 Description of front panel LEDs

LED Status Meaning

Copper Ethernet
interface LEDs

Yellow/Green

Ethernet link
state/Data
transmission
state LEDs
(LINK/ACT)

Green

System LED

Green

SLOT1

Green

SLOT2

Green

OFF

Solid green

Solid yellow

Solid green

Flashing green

OFF

OFF

Slow Flashing (1
Hz)

Fast Flashing (8
Hz)

OFF

ON

OFF

ON

No link is present.

A 1000 Mbps link is present.

A 10/100 Mbps link is present.

A link is present.

Data is being received or transmitted.

No link is present.

The firewall is powered off or faulty.

The firewall operates normally as configured.

Software is being loaded or the firewall does not
start working yet.

No interface module is in slot 1 or the interface
module is faulty.

An interface module is in slot 1 and operates
normally.

No interface module is in slot 2 or the interface
module is faulty.

An interface module is in slot 2 and operates
normally.

PWR1

Green

OFF

ON

43

Power supply 1 is not in position or power input is
not available.

Power supply 1 is operational.

LED Status Meaning

Power supply 2 is not in position or power input is
not available.

PWR2

Green

OFF

ON Power supply 2 is operational.

44

Appendix C Interface module

NSQ1XS2U0

Introduction

An NSQ1XS2U0 is a Layer 3 10-Gigabit Ethernet interface module, and provides two SFP+ optical
interfaces.

CAUTION:

An NSQ1XS2U0 can be installed only in SLOT1 of the firewall.

Front panel

Figure 30 Front panel of NSQ1XS2U0

(1) Captive screw (2) SFP+ port
(3) LINK/ACT LED

LED

Table 22 Description of the LED on the front panel of NSQ1XS2U0

Status Meaning

LINK/ACT

Interface specifications

Table 23 Interface specifications of NSQ1XS2U0

Central

Model

wavelen
gth

Off

On

Flashing

No link is present.

A 10 Gbps link is present.

Data is being received or transmitted at a rate of 10 Gbps.

Fiber
mode

Fiber
diameter
(μm)

Bandwi
dth
(MHz*k
m)

Max
transmissi
on
distance

Specification (dBm)

Optical
transmit
power

Receivi
ng
sensitiv
ity

Optic
al
satur
ation

SFP-XG-S
X-MM85
0-A

850 nm MMF 50/125

2000

500

45

300 m
(984.25 ft)

82 m
(269.039 ft)

–7.3 to –1 –7.5 + 0.5

Model

SFP-XG-L
X220-M
M1310

SFP-XG-L
X-SM131
0

Central
wavelen
gth

1310 nm

Fiber
mode

MMF

SMF 9/125

Fiber
diameter
(μm)

62.5/125

62.5/125 500

50/125

Bandwi
dth
(MHz*k
m)

400

200

160

500

400

—

Max
transmissi
on
distance

66 m
(216.54 ft)

33 m
(108.27 ft)

26 m
(85.30 ft)

220 m
(721.79 ft)

220 m
(721.79 ft)

100 m
(328.08 ft)

10 km
(6.21 miles)

Specification (dBm)

Optical
transmit
power

–6.5 to
+0.5

–8.2 to +

0.5

Receivi
ng
sensitiv
ity

–6.5 +1.5

–10.3

Optic
al
satur
ation

+ 0.5

Connecting the interface cable

An NSQ1XS2U0 works with an SFP+ optical transceiver and an optic fiber with LC-type connectors. For
the connection of NSQ1XS2U0 interface cable, see the chapter “Installing the firewall.”

Figure 31 SFP+ optical transceiver

Figure 32 Optical fiber with LC-type connectors

(1) LC-type optical fiber connector (2) Optical fiber

46

Appendix D AC power cables used in different countries or regions

10A AC power cables used in different countries or regions

Table 24 10A AC power cables used in different countries or regions

Countries or regions

1

Connect
or type

Code (Length)

where the type of power
cables conforms to local
safety regulations and
can be used legally

Other countries or
regions using this
type of power cables

Countries or regions
seldom using this type of
power cables

I type

Connector outline Power cable outline Connector outline

Connect

2

or type

B type

Connector outline Power cable outline Connector outline

04041104 (3
m, i.e., 9.8 ft)

Code (Length)

04020728 (3
m, i.e., 9.8 ft)

Mainland China

Countries or regions
where the type of power
cables conforms to local
safety regulations and
can be used legally

Canada and U.S.A

Other countries or
regions using this
type of power cables

Mexico, Argentina,
Brazil, Columbia,
Venezuela, Thailand,
Peru, Philippine, and
A6 countries or
regions

Countries or regions
seldom using this type of
power cables

3

Connect
or type

Code (Length)

Countries or regions
where the type of power
cables conforms to local
safety regulations and
can be used legally

47

Other countries or
regions using this
type of power cables

Countries or regions
seldom using this type of
power cables

Holland, Denmark,

04041056

F type

Connector outline Power cable outline Connector outline

(3 m, i.e.,

9.8 ft)

Sweden, Finland,
Norway, Germany,
France, Austria, Belgium,
and Italy

Indonesia, Turkey,
Russia, and CIS

India

Countries or regions

Connect

4

or type

G type

Connector outline Power cable outline Connector outline

Connect

5

or type

Code
(Length)

04040890
(3 m, i.e.,

9.8 ft)

Code
(Length)

where the type of power
cables conforms to local
safety regulations and
can be used legally

U.K.

Countries or regions
where the type of power
cables conforms to local
safety regulations and
can be used legally

Other countries or
regions using this
type of power cables

Malaysia,
Singapore, Hong
Kong, and Egypt

Other countries or
regions using this
type of power cables

Countries or regions
seldom using this type of
power cables

Countries or regions
seldom using this type of
power cables

04040887

B type

Connector outline Power cable outline Connector outline

Connect

6

or type

D type

(3 m, i.e.,

9.8 ft)

Code
(Length)

04040889
(3 m, i.e.,

9.8 ft)

Japan

Countries or regions
where the type of power
cables conforms to local
safety regulations and
can be used legally

Hong Kong South Africa

48

Other countries or
regions using this
type of power cables

Countries or regions
seldom using this type of
power cables

Connector outline Power cable outline Connector outline

Countries or regions

7

Connect
or type

Code
(Length)

where the type of power
cables conforms to local
safety regulations and

Other countries or
regions using this
type of power cables

Countries or regions
seldom using this type of
power cables

can be used legally

04040888

I type

(3 m, i.e.,

Australia

9.8 ft)

Connector outline Power cable outline Connector outline

Countries or regions

8

Connect
or type

Code
(Length)

where the type of power
cables conforms to local
safety regulations and

Other countries or
regions using this
type of power cables

Countries or regions
seldom using this type of
power cables

can be used legally

04041119

J type

(3 m, i.e.,

Switzerland

9.8 ft)

Connector outline Power cable outline Connector outline

Countries or regions

9

Connect
or type

Code
(Length)

where the type of power
cables conforms to local
safety regulations and

Other countries or
regions using this
type of power cables

Countries or regions
seldom using this type of
power cables

can be used legally

04041120

L type

(3 m, i.e.,

Italy

9.8 ft)

Connector outline Power cable outline Connector outline

49

16A AC power cables used in different countries or regions

Table 25 16A AC power cables used in different countries or regions

Countries or regions

Countries or
regions seldom
using this type of
power cables

Connector
type

Code (Length)

where the type of
power cables
conforms to local
safety regulations and
can be used legally

Other countries or
regions using this type of
power cables

I type

1

Connector outline Power cable outline Connector outline

Connector
type

B type

2

Connector outline Power cable outline Connector outline

04043396 (3
m, i.e., 9.8 ft)

Code (Length)

0404A063 (3
m, i.e., 9.8 ft)

Mainland China

Countries or regions
where the type of
power cables
conforms to local
safety regulations and
can be used legally

Canada and U.S.A

Other countries or
regions using this type of
power cables

Mexico, Argentina,
Brazil, Columbia,
Venezuela, Thailand,
Peru, Philippine, and A6
countries or regions

Countries or
regions seldom
using this type of
power cables

3

Connector
type

Code (Length)

Countries or regions
where the type of
power cables
conforms to local
safety regulations and
can be used legally

50

Other countries or
regions using this type of
power cables

Countries or
regions seldom
using this type of
power cables

Holland, Denmark,

F type

Connector outline Power cable outline Connector outline

0404A061 (3
m, i.e., 9.8 ft)

Sweden, Finland,
Norway, Germany,
France, Austria,
Belgium, and Italy

Indonesia, Turkey,
Russia, and CIS

Countries or regions

where the type of
Connector
type

G type

4

Connector outline Power cable outline Connector outline

Connector
type

Code (Length)

0404A060 (3
m, i.e., 9.8 ft)

Code (Length)

power cables

conforms to local

safety regulations and

can be used legally

U.K.

Countries or regions

where the type of

power cables

conforms to local

safety regulations and

can be used legally

Other countries or
regions using this type of
power cables

Malaysia, Singapore,
Hong Kong, and Egypt

Other countries or
regions using this type of
power cables

Countries or
regions seldom
using this type of
power cables

Countries or
regions seldom
using this type of
power cables

B type

5

Connector outline Power cable outline Connector outline

Connector

6

type

0404A062 (3
m, i.e., 9.8 ft)

Code (Length)

Japan

Countries or regions

where the type of

power cables

conforms to local

safety regulations and

can be used legally

51

Other countries or
regions using this type of
power cables

Countries or
regions seldom
using this type of
power cables

I type

Connector outline Power cable outline Connector outline

0404A01A (3
m, i.e., 9.8 ft)

Australia

52

Support and other resources

Contacting HP

For worldwide technical support information, see the HP support website:

http://www.hp.com/support

Before contacting HP, collect the following information:

• Product model names and numbers

• Technical support registration number (if applicable)

• Product serial numbers

• Error messages

• Operating system type and revision level

• Detailed questions

Subscription service

HP recommends that you register your product at the Subscriber's Choice for Business website:

http://www.hp.com/go/wwalerts

After registering, you will receive email notification of product enhancements, new driver versions,
firmware updates, and other product resources.

Related information

Documents

To find related documents, browse to the Manuals page of the HP Business Support Center website:

http://www.hp.com/support/manuals

• For related documentation, navigate to the Networking section, and select a networking category.

• For a complete list of acronyms and their definitions, see HP A-Series Acronyms.

Websites

• HP.com http://www.hp.com

• HP Networking http://www.hp.com/go/networking

• HP manuals http://www.hp.com/support/manuals

• HP download drivers and software http://www.hp.com/support/downloads

• HP software depot http://www.software.hp.com

53
