HP F700, G6000 User Manual

HP G6000 Notebook PC and Compaq Presario F700 Notebook PC

Maintenance and Service Guide

AMD, the AMD Arrow logo, and combinations thereof, are trademarks of Advanced Micro Devices, Inc. Bluetooth is a trademark owned by its proprietor and used by Hewlett-Packard Company under license. Microsoft, Windows, and Windows Vista are either trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries. SD Logo is a trademark of its proprietor.

The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

First Edition: December 2007

Document Part Number: 460721-001

Safety warning notice

WARNING! To reduce the possibility of heat-related injuries or of overheating the computer, do not

place the computer directly on your lap or obstruct the computer air vents. Use the computer only on a hard, flat surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft surface, such as pillows or rugs or clothing, to block airflow. Also, do not allow the AC adapter to contact the skin or a soft surface, such as pillows or rugs or clothing, during operation. The computer and the AC adapter comply with the user-accessible surface temperature limits defined by the International Standard for Safety of Information Technology Equipment (IEC 60950).

iii

iv Safety warning notice

Table of contents

1 Product description

2 External component identification

Top components ...................................................................................................................... 5

Display components .................................................................................................. 5

Buttons, lights, and speakers ....................................................................................... 6

Keys ........................................................................................................................ 8

Pointing devices ....................................................................................................................... 9

Front components ................................................................................................................... 10

Right-side components ............................................................................................................ 11

Left-side components ............................................................................................................... 12

Rear component ..................................................................................................................... 13

Bottom components ................................................................................................................ 14

3 Illustrated parts catalog

Serial number location ............................................................................................................ 15

Computer major components ................................................................................................... 16

Display assembly components ................................................................................................. 21

Plastics Kit ............................................................................................................................. 23

Mass storage devices ............................................................................................................. 24

Miscellaneous parts ................................................................................................................ 25

Sequential part number listing .................................................................................................. 25

4 Removal and replacement procedures

Preliminary replacement requirements ....................................................................................... 30

Tools required ......................................................................................................... 30

Service considerations ............................................................................................. 30

Plastic parts ............................................................................................. 30

Cables and connectors ............................................................................. 31

Drive handling ......................................................................................... 31

Grounding guidelines .............................................................................................. 32

Electrostatic discharge damage .................................................................. 32

Packaging and transporting guidelines ........................................ 33

Workstation guidelines .............................................................. 33

Equipment guidelines ................................................................. 34

Unknown user password .......................................................................................... 35

Component replacement procedures ........................................................................................ 36

Serial number ......................................................................................................... 36

Computer feet ......................................................................................................... 36

Battery ................................................................................................................... 37

Camera module ...................................................................................................... 38

Hard drive ............................................................................................................. 40

Memory module ...................................................................................................... 42

RTC battery ............................................................................................................ 44

WLAN module ........................................................................................................ 45

Optical drive .......................................................................................................... 48

Switch cover ........................................................................................................... 50

Keyboard ............................................................................................................... 52

Power button board ................................................................................................. 54

Display assembly .................................................................................................... 56

Top cover ............................................................................................................... 63

System board ......................................................................................................... 65

Audio board ........................................................................................................... 68

USB/power connector board .................................................................................... 69

Fan/heat sink assembly ........................................................................................... 71

Processor ............................................................................................................... 73

5 Setup Utility

Starting the Setup Utility .......................................................................................................... 75

Changing the language of the Setup Utility ............................................................................... 75

Navigating and selecting in the Setup Utility .............................................................................. 76

Displaying system information .................................................................................................. 76

Restoring default settings in the Setup Utility .............................................................................. 76

Using advanced Setup Utility features ....................................................................................... 77

Closing the Setup Utility .......................................................................................................... 77

Setup Utility menus ................................................................................................................. 77

6 Specifications

Computer specifications .......................................................................................................... 79

15.4-inch, WXGA display specifications ................................................................................... 80

Hard drive specifications ........................................................................................................ 81

DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive specifications ................................. 82

DVD/CD-RW Combo Drive specifications ................................................................................. 83

System DMA specifications ...................................................................................................... 84

System interrupt specifications ................................................................................................. 85

System I/O address specifications ............................................................................................ 86

System memory map specifications .......................................................................................... 88

7 Screw listing

Phillips PM3.0×4.0 screw ....................................................................................................... 89

Phillips PM2.5×6.0 captive screw ............................................................................................ 90

Phillips PM2.0×4.0 screw ....................................................................................................... 92

Phillips PM2.5×8.0 screw ....................................................................................................... 94

Phillips PM2.5×10.0 screw ..................................................................................................... 97

Phillips PM2.5×5.0 screw ....................................................................................................... 98

Phillips PM2.5×4.0 screw ..................................................................................................... 101

Hex HM5.0×9.0 standoff ..................................................................................................... 102

8 Backup and recovery

Recovering system information ............................................................................................... 103

Creating recovery discs ......................................................................................... 103

Backing up your information ................................................................................... 104

Using system restore points ..................................................................................... 105

Performing a recovery ........................................................................................... 106

When to back up ................................................................................... 104

Backup suggestions ................................................................................ 104

When to create restore points .................................................................. 105

Create a system restore point ................................................................... 105

Restore to a previous date and time .......................................................... 105

Recovering from the recovery discs ........................................................... 106

Recovering from the partition on the hard drive .......................................... 106

9 Connector pin assignments

Audio-out (headphone) ......................................................................................................... 107

Audio-in (microphone) .......................................................................................................... 107

External monitor ................................................................................................................... 108

RJ-11 (modem) ..................................................................................................................... 109

RJ-45 (network) .................................................................................................................... 110

S-Video-out .......................................................................................................................... 111

Universal Serial Bus .............................................................................................................. 112

10 Power cord set requirements

Requirements for all countries and regions ............................................................................... 113

Requirements for specific countries and regions ....................................................................... 114

11 Recycling

Battery ................................................................................................................................ 115

Display ............................................................................................................................... 115

vii

Index ............................................................................................................................... 121

viii

Product description

Category Description HP G6000

Notebook PC

Product Name HP G6000 Notebook PC

Processors AMD processors:

Turion TL-62 2.10-GHz processor, 1-MB L2 cache √ √

Turion TL-60 2.00-GHz processor, 1-MB L2 cache √ √

Turion TL-58 1.90-GHz processor, 1-MB L2 cache √ √

Athlon™ TK-57 1.90-GHz processor, 512-KB

Athlon TK-55 1.80-GHz processor, 128-KB

Mobile AMD Sempron™ 4000+ 2.20-GHz

Mobile AMD Sempron 3800+ 2.20-GHz processor,

Mobile AMD Sempron 3600+ 2.00-GHz processor,

Compaq Presario F700 Notebook PC

Turion™ TL-64 2.20-GHz processor, 1-MB L2 cache √ √

L2 cache

processor, 512-KB L2 cache

256-KB L2 cache

√

√ √

Compaq Presario F700 Notebook PC

Chipset

Graphics

Panel

Northbridge and Southbridge: nVidia MCP67MV √ √

Unified Memory Architecture (UMA) graphics subsystem integrated with shared system memory (dynamically allocated)

Up to 335-MB of total available graphics

●

subsystem memory when computer system memory equals or is greater than 2048 MB

Up to 287-MB of total available graphics

●

subsystem memory when computer system memory equals or is greater than 1024 MB

Up to 96-MB of total available graphics

●

subsystem memory when computer system memory equals 512 MB

15.4-inch WXGA BrightView display panel (1280 × 800)

√ √

√√

Category Description HP G6000

Notebook PC

Compaq Presario F700 Notebook PC

All display assemblies include 2 wireless local area

network (WLAN) antennae

Memory

Supports dual-channel memory √ √

Supports up to 2 GB of system RAM √ √

PC2-5300, 667-MHz, DDR2 √ √

Supports the following configurations:

Hard drives

Customer-accessible √ √

Serial ATA √ √

2 customer-accessible/upgradable memory module slots

2048-MB total system memory (1024 × 2,

●

dual-channel)

1024-MB total system memory (1024 × 1)

●

1024-MB total system memory (512 × 2, dual

●

channel)

512-MB total system memory (512 × 1, only

●

on computer models equipped with FreeDOS and Windows Vista™ Basic)

Supports 9.5-mm, 2.5-inch hard drives √ √

√ √

Supports the following drives:

160-GB, 5400-rpm

●

120-GB, 5400-rpm

●

80-GB, 5400-rpm

●

Optical drives

Customer-accessible √ √

Parallel ATA √ √

12.7-mm tray load √ √

Supports the following drives:

Diskette drive

Web camera

Microphone

Fixed (removal of 1 screw required) √ √

DVD±RW and CD-RW SuperMulti Double-

●

Layer Combo Drive with LightScribe

DVD±RW and CD-RW SuperMulti Double-

●

Layer Combo Drive

DVD/CD-RW Combo Drive

●

Supports external USB diskette drive only √ √

VGA camera, 30 frames per second √ √

Integrated omnidirectional mono microphone √ √

√ √

Audio

High-definition, Azalia technology audio √√

2Chapter 1 Product description

Category Description HP G6000

Notebook PC

2 HP-branded Altec/Lansing speakers √

2 Presario-branded Altec/Lansing speakers √

Compaq Presario F700 Notebook PC

Modem

Supports all world-wide certification requirements √ √

Ethernet

Wireless Integrated WLAN options by way of wireless module:

Support for no-WLAN option √ √

Support for the following WLAN formats:

External media card

Ports

Audio-out (stereo headphone) √ √

S-Video-out √ √

56K V.92 1.5-inch data/fax modem √ √

Realtek 8201CL 10/100 network interface card (NIC)

2 wireless antennae built into display assembly √ √

Atheros AR2425 802.11b/g

●

Broadcom 802.11a/b/g

●

Broadcom 802.11b/g

●

Digital Media Slot supporting SD, MMC, MS, MSPro, xD. With adapter (not included), supports mini versions of SD, MMC, MS Duo.

Audio-in (mono microphone) √ √

√ √

RJ-11 (modem) √ √

RJ-45 (Ethernet, includes link and activity lights) √ √

USB (3) √ √

VGA (Dsub 15-pin) supporting 1920 × 1200

external resolution at 60-Hz, 1600 × 1200 external resolution at 75-Hz (hot plug/unplug with autodetect)

Multi-pin AC power √ √

Docking

Keyboard/ pointing devices

TouchPad with 2 TouchPad buttons √ √

Supports 2-way scroll √ √

Taps enabled as default √ √

Power requirements

6-cell, 2.20-Ah (47-Wh) Li-ion battery √ √

Security

None √ √

Spill-resistant 30.8-cm (12.1-inch) keyboard √ √

65-W AC adapter with localized cable plug support √ √

Security cable slot √√

√ √

Category Description HP G6000

Notebook PC

Operating system Preinstalled:

Compaq Presario F700 Notebook PC

Windows Vista Home Basic 32 √ √

FreeDOS √ √

Serviceability End-user replaceable parts:

Battery (system) √ √

Hard drive √ √

Memory module √ √

Optical drive √ √

WLAN module √√

Windows Vista Premium 32 √ √

AC adapter √ √

4Chapter 1 Product description

External component identification

Top components

Display components

Item Component Description

(1)

(2)

(3)

Internal display switch Turns off the display if the display is closed while the

computer is turned on.

Wireless antennae (2, select models only) Send and receive signals from one or more wireless devices.

NOTE: The antennae are not visible from the outside of

the computer. For optimal transmission, keep the areas immediately around the antennae free from obstructions. To see wireless regulatory notices, refer to the section of the Regulatory, Safety and Environmental Notices that applies to your country or region. These notices are located in Help and Support.

Internal microphone Records sound.

Top components 5

Item Component Description

(4)

(5)

Integrated webcam light (select models only) On: The webcam is in use.

Integrated webcam (select models only) Records video and captures still photographs.

Buttons, lights, and speakers

Item Component Description

(1)

(2)

(3)

Speakers (2) Produce sound.

Power button

Power lights* (2)

When the computer is off, press the button to turn on

●

the computer.

When the computer is on, press the button to initiate

●

Sleep.

When the computer is in the Sleep state, press the

●

button briefly to exit Sleep.

When the computer is in Hibernation, press the button

●

briefly to exit Hibernation.

If the computer has stopped responding and Windows® shutdown procedures are ineffective, press and hold the power button for at least 5 seconds to turn off the computer.

To learn more about power settings, select Start >

Control Panel > System and Maintenance > Power Options.

On: The computer is on.

●

Blinking: The computer is in the Sleep state.

●

Off: The computer is off or in Hibernation.

●

6Chapter 2 External component identification

Item Component Description

(4)

(5)

(6)

(7)

(8)

*The 2 power lights display the same information. The light on the power button is visible only when the computer is open. The power light on the front of the computer is visible whether the computer is open or closed.

Caps lock light On: Caps lock is on.

Battery light

Drive light Blinking: The hard drive or optical drive is being accessed.

Wireless switch Turns the wireless feature on or off, but does not create a

Wireless light

On: A battery is charging.

●

Blinking: A battery that is the only available power

●

source has reached a low battery level or a critical battery level. When the battery reaches a critical battery level, the battery light begins blinking rapidly.

Off: If the computer is plugged into an external power

●

source, the light is turned off when all batteries in the computer are fully charged. If the computer is not plugged into an external power source, the light stays off until the battery reaches a low battery level.

wireless connection.

NOTE: To establish a wireless connection, a wireless

network must already be set up.

Blue: An integrated wireless device, such as a WLAN

●

device and/or a Bluetooth® device, is turned on.

Amber: An integrated wireless device is turned off.

●

Top components 7

Keys

Item Component Function

(1)

(2)

(3)

(4)

(5)

(6)

esc key Displays system information when pressed in combination

with the fn key.

fn key Executes frequently used system functions when pressed in

combination with a function key or the esc key.

Windows logo key Displays the Windows Start menu.

Windows applications key Displays a shortcut menu for items beneath the pointer.

Embedded numeric keypad keys Can be used like the keys on an external numeric keypad.

Function keys Execute frequently used system functions when pressed in

combination with the fn key.

8Chapter 2 External component identification

Pointing devices

Item Component Function

(1)

(2)

(3)

(4)

(5)

(6)

(7)

*This table describes factory settings. To view and change pointing device preferences, select Start > Control Panel > Hardware and Sound > Mouse.

TouchPad light

TouchPad* Moves the pointer and selects or activates items on the

TouchPad horizontal scroll zone* Scrolls left or right.

Left TouchPad button* Functions like the left button on an external mouse.

TouchPad on/off button Enables/disables the TouchPad.

TouchPad vertical scroll zone* Scrolls up or down.

Right TouchPad button Functions like the right button on an external mouse.

Blue: TouchPad is enabled.

●

Amber: TouchPad is disabled.

●

screen.

Pointing devices 9

Front components

Item Component Function

(1)

(2)

(3)

(4)

(5)

Power light ● On: The computer is on.

Blinking: The computer is in the Sleep state.

●

Off: The computer is off or in Hibernation.

●

Battery light

Drive light Blinking: The hard drive or optical drive is being accessed.

Wireless switch Turns the wireless feature on or off, but does not create a

Wireless light

On: A battery is charging.

●

Blinking: A battery that is the only available power

●

source has reached a low battery level or a critical battery level. When the battery reaches a critical battery level, the battery light begins blinking rapidly.

Off: If the computer is plugged into an external power

●

wireless connection.

NOTE: To establish a wireless connection, a wireless

network must already be set up.

Blue: An integrated wireless device, such as a WLAN

●

device and/or a Bluetooth device, is turned on.

Amber: An integrated wireless device is turned off.

●

(6)

(7)

Audio-in (microphone) jack Connects an optional computer headset microphone, stereo

Audio-out (headphone) jack Produces sound when connected to optional powered stereo

10 Chapter 2 External component identification

array microphone, or monaural microphone.

speakers, headphones, ear buds, a headset, or television audio.

Right-side components

Item Component Function

(1)

(2)

(3)

(4)

Optical drive Reads optical discs and, on select models, also writes to

optical discs.

USB port Connects an optional USB device.

Power connector Connects an AC adapter.

Security cable slot Attaches an optional security cable to the computer.

NOTE: The security cable is designed to act as a

deterrent, but it may not prevent the computer from being mishandled or stolen.

Right-side components 11

Left-side components

Item Component Function

(1)

(2)

(3)

(4)

(5)

(6)

(7)

S-Video-out jack Connects an optional S-Video device such as a television,

VCR, camcorder, overhead projector, or video capture card.

External monitor port Connects an external VGA monitor or projector.

RJ-45 (network) jack Connects a network cable.

RJ-11 (modem) jack Connects a modem cable.

USB ports (2) Connect optional USB devices.

Digital Media Slot light (select models only) On: A digital card is being accessed.

Digital Media Slot (select models only) Supports the following optional digital card formats: Secure

Digital (SD) Memory Card, MultiMediaCard (MMC), Memory Stick (MS), Memory Stick Pro (MSP), xD-Picture Card (XD).

12 Chapter 2 External component identification

Rear component

Component Function

Vents (2) Enable airflow to cool internal components.

NOTE: The computer fan starts up automatically to cool

internal components and prevent overheating. It is normal for the internal fan to cycle on and off during routine operation.

Rear component 13

Bottom components

Item Component Function

(1)

(2)

(3)

(4)

(5)

Battery bay Holds the battery.

Battery release latch Releases the battery from the battery bay.

Memory/WLAN module compartment Contains the memory module slots, the WLAN module slot,

and the RTC battery.

CAUTION: To prevent an unresponsive system, replace

the wireless module only with a wireless module authorized for use in the computer by the governmental agency that regulates wireless devices in your country or region. If you replace the module and then receive a warning message, remove the module to restore computer functionality, and then contact technical support through Help and Support.

Vents (5) Enables airflow to cool internal components.

NOTE: The computer fan starts up automatically to cool

internal components and prevent overheating. It is normal for the internal fan to cycle on and off during routine operation.

Hard drive bay Holds the hard drive.

14 Chapter 2 External component identification

Illustrated parts catalog

Serial number location

When ordering parts or requesting information, provide the computer serial number and model number located on the bottom of the computer.

Serial number location 15

Computer major components

16 Chapter 3 Illustrated parts catalog

Item Description Spare part number

(1) 15.4-inch, WXGA+BrightView display assembly (includes 2 WLAN antenna transceivers and cables,

microphones and cables, and logo)

For use only with HP G7000 computer models

Does not include camera module and cable 461870-001

For use only with Compaq Presario C700 computer models

Does not include camera module and cable 461865-001

Refer to Display assembly components on page 21, for more display assembly component spare part information.

(2)

(3) Power button board (includes power button board cable)

(4) Keyboards (include keyboard cable)

For use in France 442887-051

For use in French Canada 442887-121

For use in Germany 442887-041

For use in Italy 442887-061

For use in Latin America 442887-161

For use in the Netherlands 442887-B31

Includes camera module and cable 461867-001

Includes camera module and cable 461862-001

Switch cover (includes LED board and cable)

For use in Denmark, Finland, and Norway 442887-DH1

442889-001

443153-001

For use in Saudi Arabia 442887-171

For use in South Korea 442887-AD1

For use in Spain 442887-071

For use in Turkey 442887-141

For use in the United Kingdom 442887-031

For use in the United States 442887-001

(5) Top cover (includes TouchPad and TouchPad cable)

(9a)

(9b)

(9c)

(7) System boards (include replacement thermal material)

Does not include ExpressCard assembly 461860-001

(9) Audio boards (include audio board cable)

Plastics Kit (see Plastics Kit on page 23 for more Plastics Kit spare part information)

ExpressCard slot bezel

Memory/WLAN module compartment cover

Hard drive cover

Includes ExpressCard assembly 461861-001

461872-001

442891-001

Computer major components 17

Item Description Spare part number

Includes infrared transceiver 431444-001

Does not include infrared transceiver 465229-001

(8) USB/power connector board (includes USB/power connector board cable)

(11) Processors (include replacement thermal material)

(12) Fan/heat sink assembly (includes replacement thermal material)

(13) Base enclosure (includes wireless on/off switch and rubber feet)

(14) Optical drives (include optical drive bezel and bracket)

AMD Turion TL-64 2.20-GHz processor (1-MB L2 cache)

●

AMD Turion TL-62 2.10-GHz processor (1-MB L2 cache)

●

AMD Turion TL-60 2.00-GHz processor (1-MB L2 cache)

●

AMD Turion TL-58 1.90-GHz processor (1-MB L2 cache)

●

AMD Athlon TK-57 1.90-GHz processor (512-KB L2 cache)

●

AMD Athlon TK-55 1.80-GHz processor (512-KB L2 cache)

●

AMD Sempron 3800+ 2.20-GHz processor (512-KB L2 cache)

●

AMD Sempron 3750+ 2.20-GHz processor (256-KB L2 cache)

●

AMD Sempron 3600+ 2.00-GHz processor (256-KB L2 cache)

●

Rubber Kit (not illustrated, includes 8 computer feet and 6 display bezel rubber screw covers))

DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive with LightScribe 461955-001

447444-001

461945-001

456023-001

461944-001

450802-001

459759-001

456024-001

461946-001

459818-001

450609-001

449961-001

461873-001

431431-001

DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive 461954-001

DVD/CD-RW Combo Drive 461953-001

(15) Hard drives (include hard drive bracket and connector)

120-GB, 5400-rpm 461951-001

80-GB, 5400-rpm 461950-001

(16) RTC battery

(17) WLAN modules

160-GB, 5400-rpm 451862-001

449729-001

Broadcom 802.11a/b/g WLAN modules:

● For use in Canada, the Cayman Islands, Guam, Puerto Rico, the U.S. Virgin Islands,

and the United States

For use in Afghanistan, Albania, Algeria, Andorra, Angola, Antigua and Barbuda,

●

Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain,

Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia,

Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria,

Burkina Faso, Burundi, Cameroon, Cape Verde, the Central African Republic, Chad,

Chile, Colombia, Comoros, the Congo, Costa Rica, Croatia, Cyprus, the Czech Republic,

Denmark, Djibouti, Dominica, the Dominican Republic, East Timor, Ecuador, Egypt,

El Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France,

French Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece,

441075-001

441075-002

18 Chapter 3 Illustrated parts catalog

Item Description Spare part number

Grenada, Guadeloupe, Guatemala, Guinea, Guinea-Bissau, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Ireland, Israel, Italy, the Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, Malaysia, the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Nether Antilles, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Pakistan, Palau, Panama, Papua New Guinea, Paraguay, the People's Republic of China, Peru, the Philippines, Poland, Portugal, the Republic of Moldova, Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome and Principe, Saudi Arabia, Senegal, Serbia and Montenegro, the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia, South Africa, South Korea, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia, St. Vincent and the Grenadines, Suriname, Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates, the United Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe

Atheros AR2425 802.11b/g WLAN module:

For use in Canada, the Cayman Islands, Guam, Puerto Rico, the U.S. Virgin Islands,

●

and the United States

For use in Afghanistan, Albania, Algeria, Andorra, Angola, Antigua and Barbuda,

●

Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia, Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cambodia, Cameroon, Cape Verde, the Central African Republic, Chad, Chile, Colombia, Comoros, Congo, Costa Rica, Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala, Guinea, Guinea-Bissau, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Indonesia, Ireland, Israel, Italy, the Ivory Coast, Jamaica, Japan, Jordan, Kazakhstan, Kenya, Kiribati, Kuwait, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, Malaysia, the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Nether Antilles, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Pakistan, Palau, Panama, Papua New Guinea, Paraguay, the People's Republic of China, Peru, the Philippines, Poland, Portugal, Qatar, the Republic of Moldova, Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome and Principe, Saudi Arabia, Senegal, Serbia and Montenegro, Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia, South Africa, South Korea, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia, St. Vincent and the Grenadines, Suriname, Swaziland, Sweden, Switzerland, Syria, Taiwan, Tajikistan, Tanzania, Thailand, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates, the United Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe

459339-001

459339-002

Broadcom 802.11b/g WLAN modules:

For use in Canada, the Cayman Islands, Guam, Puerto Rico, the U.S. Virgin Islands,

●

and the United States

For use in Afghanistan, Albania, Algeria, Andorra, Angola, Antigua and Barbuda,

●

441090-001

441090-002

Computer major components 19

Item Description Spare part number

French Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece,

Grenada, Guadeloupe, Guatemala, Guinea, Guinea-Bissau, Guyana, Haiti, Honduras,

Hong Kong, Hungary, Iceland, India, Ireland, Israel, Italy, the Ivory Coast, Jamaica,

Jordan, Kazakhstan, Kenya, Kiribati, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia,

Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, Malaysia,

the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius,

Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique,

Namibia, Nauru, Nepal, the Nether Antilles, the Netherlands, New Zealand,

Nicaragua, Niger, Nigeria, Norway, Oman, Pakistan, Palau, Panama,

Papua New Guinea, Paraguay, the People's Republic of China, Peru, the Philippines,

Poland, Portugal, the Republic of Moldova, Romania, Russia, Rwanda, Samoa,

San Marino, Sao Tome and Principe, Saudi Arabia, Senegal, Serbia and Montenegro,

the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands,

Somalia, South Africa, South Korea, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia,

St. Vincent and the Grenadines, Suriname, Swaziland, Sweden, Switzerland, Taiwan,

Tajikistan, Tanzania, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey, Turkmenistan,

Tuvalu, Uganda, Ukraine, the United Arab Emirates, the United Kingdom, Uruguay,

Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe

(18) Memory modules (PC2-5300, 667-MHz, DDR2)

512-MB 461948-001

(19) 6-cell, 47-Wh, 2.2-Ah battery

1024-MB 461949-001

462853-001

20 Chapter 3 Illustrated parts catalog

Display assembly components

Item Description Spare part number

(1) Display bezels:

For use only with HP G7000 computer models equipped with microphone 461871-001

For use only with Compaq Presario F700 computer models equipped with camera module and

For use only with Compaq Presario F700 computer models equipped with microphone 461866-001

(2) Display inverter

(3) Camera module

For use only with HP G7000 computer models equipped with camera module and microphone 461868-001

461863-001

microphone

431391-001

461875-001

Display assembly components 21

Item Description Spare part number

(4a)

(4b)

(5)

(6) 15.4-inch, WXGA+BrightView display panel (includes display panel and backlight

(7) Wireless Antenna Kit (includes left and right wireless antenna transceivers and cables)

(8) Display enclosures (includes logo)

For use only with Compaq Presario F700 computer models 461864-001

For use only with Compaq Presario F700 computer models 461070-001

Display Cable Kit, includes:

Camera module cable

Microphone

Display hinges (includes left and right display hinges)

cables)

For use only with HP G7000 computer models 461869-001

Display Logo Kits (not illustrated)

For use only with HP G7000 computer models 462428-001

Display Screw Kit (not illustrated, includes 8 display bezel Phillips PM2.5×8.0 screws and 2 display bezel Mylar screw covers)

433287-001

433288-001

462427-001

449726-001

461947-001

22 Chapter 3 Illustrated parts catalog

Plastics Kit

Item Description Spare part number

(1)

(2)

(3)

Plastics Kit:

Hard drive cover (includes 2 captive screws, secured by C-clips)

Memory/WLAN module compartment cover (includes 3 captive screws, secured by C-clips)

ExpressCard slot bezel

442891-001

Plastics Kit 23

Mass storage devices

Item Description Spare part number

(1) Optical drives (include bezel)

DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive with LightScribe 461955-001

DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive 461954-001

DVD/CD-RW Combo Drive 461953-001

(2) Hard drives (include bracket )

160-GB, 5400-rpm 451862-001

120-GB, 5400-rpm 461951-001

80-GB, 5400-rpm 461950-001

24 Chapter 3 Illustrated parts catalog

Miscellaneous parts

Description Spare part number

AC adapters

65-W non-PFC AC adapter

65-W PFC AC adapter 453199-001

Power cords:

For use in Argentina

For use in Australia 394279-011

For use in Denmark 394279-081

For use in Europe 394279-021

For use in Italy 394279-061

For use in South Korea 394279-AD1

For use in the United Kingdom 394279-031

For use in the United States 394279-001

Screw Kit

Hex HM5.0×9.0 standoff

●

Phillips PM3.0×4.0 screw

●

Phillips PM2.5×10.0 screw

●

Phillips PM2.5×8.0 screw

●

402018-001

394279-D01

462854-001

Phillips PM2.5×6.0 captive screw

●

Phillips PM2.5×5.0 screw

●

Phillips PM2.5×4.0 screw

●

Phillips PM2.0×4.0 screw

●

Sequential part number listing

Spare part number

394279-001 Power cord for use in the United States

394279-011 Power cord for use in Australia

394279-021 Power cord for use in Europe

394279-031 Power cord for use in the United Kingdom

394279-061 Power cord for use in Italy

394279-081 Power cord for use in Denmark

394279-AD1 Power cord for use in South Korea

Description

Miscellaneous parts 25

Spare part number

394279-D01 Power cord for use in Argentina

402018-002 65-W non-PFC AC adapter

431391-001 Display inverter

431431-001 Rubber Kit (includes 8 computer feet and 6 display bezel rubber screw covers)

431444-001 Audio board with infrared transceiver (includes audio board cable)

433287-001 Display Cable Kit ( includes 2 wireless antenna transceivers and cables and microphone)

433288-001 Display hinges (includes left and right display hinges)

441075-001 Broadcom 802.11a/b/g WLAN module for use in Canada, the Cayman Islands, Guam, Puerto Rico,

Description

the U.S. Virgin Islands, and the United States

441075-002 Broadcom 802.11a/b/g WLAN module for use in Afghanistan, Albania, Algeria, Andorra, Angola,

441090-001 Broadcom 802.11b/g WLAN module for use in Canada, the Cayman Islands, Guam, Puerto Rico,

441090-002 Broadcom 802.11b/g WLAN module for use in Afghanistan, Albania, Algeria, Andorra, Angola,

Antigua and Barbuda, Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia, Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cameroon, Cape Verde, the Central African Republic, Chad, Chile, Colombia, Comoros, the Congo, Costa Rica, Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala, Guinea, Guinea-Bissau, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Ireland, Israel, Italy, the Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, Malaysia, the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Nether Antilles, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Pakistan, Palau, Panama, Papua New Guinea, Paraguay, the People's Republic of China, Peru, the Philippines, Poland, Portugal, the Republic of Moldova, Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome and Principe, Saudi Arabia, Senegal, Serbia and Montenegro, the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia, South Africa, South Korea, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia, St. Vincent and the Grenadines, Suriname, Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates, the United Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe

the U.S. Virgin Islands, and the United States

26 Chapter 3 Illustrated parts catalog

Spare part number

442887-001 Keyboard for use in the United States

442887-031 Keyboard for use in the United Kingdom

442887-041 Keyboard for use in Germany

442887-051 Keyboard for use in France

442887-061 Keyboard for use in Italy

442887-071 Keyboard for use in Spain

442887-121 Keyboard for use in French Canada

442887-141 Keyboard for use in Turkey

442887-161 Keyboard for use in Latin America

442887-171 Keyboard for use in Saudi Arabia

442887-AD1 Keyboard for use in South Korea

442887-B31 Keyboard for use in the Netherlands

442887-DH1 Keyboard for use in Denmark, Finland, and Norway

442889-001 Switch cover (includes LED board and cable)

442891-001 Plastics Kit (see Plastics Kit on page 23 for more Plastics Kit spare part information)

Description

443153-001 Power button board (includes power button board cable)

447444-001 USB/power connector board (includes USB/power connector board cable)

449726-001 Wireless Antenna Kit (includes left and right wireless antenna transceivers and cables)

449729-001 RTC battery

449961-001 Fan/heat sink assembly (includes replacement thermal material)

450609-001 AMD Sempron 3600+ 2.00-GHz processor (256-KB L2 cache, includes replacement thermal material)

450802-001 AMD Turion TL-58 1.90-GHz processor (1-MB L2 cache, includes replacement thermal material)

451862-001 160-GB, 5400-rpm hard drive (includes hard drive bracket and connector)

453199-001 65-W PFC AC adapter

456023-001 AMD Turion TL-62 2.10-GHz processor (1-MB L2 cache, includes replacement thermal material)

456024-001 AMD Athlon TK-55 1.80-GHz processor (512-KB L2 cache, includes replacement thermal material)

459339-001 Atheros AR2425 802.11b/g WLAN module for use in Canada, the Cayman Islands, Guam, Puerto Rico,

the U.S. Virgin Islands, and the United States

459339-002 Atheros AR2425 802.11b/g WLAN module for use in Afghanistan, Albania, Algeria, Andorra, Angola,

Sequential part number listing 27

Spare part number

459759-001 AMD Athlon TK-57 1.90-GHz processor (512-KB L2 cache, includes replacement thermal material)

459818-001 AMD Sempron 3750+ 2.20-GHz processor (256-MB L2 cache, includes replacement thermal material)

461070-001 Display Logo Kit for use with Compaq Presario F700 computer models

461860-001 System board without ExpressCard assembly (includes replacement thermal material)

461861-001 System board with ExpressCard assembly (includes replacement thermal material)

461862-001 15.4-inch, WXGA+BrightView display assembly with camera module and cable for use only with Compaq

461863-001 Display bezel for use only with Compaq Presario F700 computer models equipped with camera module and

Description

Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Nether Antilles, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Pakistan, Palau, Panama, Papua New Guinea, Paraguay, the People's Republic of China, Peru, the Philippines, Poland, Portugal, Qatar, the Republic of Moldova, Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome and Principe, Saudi Arabia, Senegal, Serbia and Montenegro, Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia, South Africa, South Korea, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia, St. Vincent and the Grenadines, Suriname, Swaziland, Sweden, Switzerland, Syria, Taiwan, Tajikistan, Tanzania, Thailand, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates, the United Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe

Presario C700 computer models (includes 2 WLAN antenna transceivers and cables, microphones and cables, and logo)

microphone

461864-001 Display enclosure for use only with Compaq Presario F700 computer models

461865-001 15.4-inch, WXGA+BrightView display assembly without camera module and cable for use only with Compaq

Presario C700 computer models (includes 2 WLAN antenna transceivers and cables, microphones and cables, and logo)

461866-001 Display bezel for use only with Compaq Presario F700 computer models equipped with microphone

461867-001 15.4-inch, WXGA+BrightView display assembly with camera module and cable for use only with HP G7000

computer models (includes 2 WLAN antenna transceivers and cables, microphones and cables, and logo)

461868-001 Display bezel for use only with HP G7000 computer models equipped with camera module and microphone

461869-001 Display enclosure for use only with HP G7000 computer models

461870-001 15.4-inch, WXGA+BrightView display assembly without camera module and cable for use only with HP G7000

computer models (includes 2 WLAN antenna transceivers and cables, microphones and cables, and logo)

461871-001 Display bezel for use only with HP G7000 computer models equipped with microphone

461872-001 Top cover (includes TouchPad and TouchPad cable)

461873-001 Base enclosure (includes wireless on/off switch and rubber feet)

461875-001 Camera module

461944-001 AMD Turion TL-60 2.00-GHz processor (1-MB L2 cache, includes replacement thermal material)

461945-001 AMD Turion TL-64 2.20-GHz processor (1-MB L2 cache, includes replacement thermal material)

461946-001 AMD Sempron 3800+ 2.20-GHz processor (512-KB L2 cache, includes replacement thermal material)

461947-001 Display Screw Kit (includes 8 display bezel Phillips PM2.5×8.0 screws and 2 display bezel Mylar screw

461948-001 512-MB memory module (PC2-5300, 667-MHz, DDR2)

covers)

28 Chapter 3 Illustrated parts catalog

Spare part number

461949-001 1024-MB memory module (PC2-5300, 667-MHz, DDR2)

461950-001 80-GB, 5400-rpm hard drive (includes hard drive bracket and connector)

461951-001 120-GB, 5400-rpm hard drive (includes hard drive bracket and connector)

461953-001 DVD/CD-RW Combo Drive

461954-001 DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive

461955-001 DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive with LightScribe

462427-001 15.4-inch, WXGA+BrightView display panel (includes display panel and backlight cables)

462428-001 Display Logo Kit for use with HP G7000 computer models

462853-001 6-cell, 47-Wh, 2.2-Ah battery

462854-001 Screw Kit

465229-001 Audio board without infrared transceiver (includes audio board cable)

Description

Sequential part number listing 29

Removal and replacement procedures

Preliminary replacement requirements

Tools required

You will need the following tools to complete the removal and replacement procedures:

Flat-bladed screwdriver

●

Magnetic screwdriver

●

Phillips P0 and P1 screwdrivers

●

Service considerations

The following sections include some of the considerations that you must keep in mind during disassembly and assembly procedures.

NOTE: As you remove each subassembly from the computer, place the subassembly (and all

accompanying screws) away from the work area to prevent damage.

Plastic parts

Using excessive force during disassembly and reassembly can damage plastic parts. Use care when handling the plastic parts. Apply pressure only at the points designated in the maintenance instructions.

30 Chapter 4 Removal and replacement procedures

Cables and connectors

CAUTION: When servicing the computer, be sure that cables are placed in their proper locations

during the reassembly process. Improper cable placement can damage the computer.

Cables must be handled with extreme care to avoid damage. Apply only the tension required to unseat or seat the cables during removal and insertion. Handle cables by the connector whenever possible. In all cases, avoid bending, twisting, or tearing cables. Be sure that cables are routed in such a way that they cannot be caught or snagged by parts being removed or replaced. Handle flex cables with extreme care; these cables tear easily.

Drive handling

CAUTION: Drives are fragile components that must be handled with care. To prevent damage to the

computer, damage to a drive, or loss of information, observe these precautions:

Before removing or inserting a hard drive, shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.

Before handling a drive, be sure that you are discharged of static electricity. While handling a drive, avoid touching the connector.

Before removing a diskette drive or optical drive, be sure that a diskette or disc is not in the drive and be sure that the optical drive tray is closed.

Handle drives on surfaces covered with at least one inch of shock-proof foam.

Avoid dropping drives from any height onto any surface.

After removing a hard drive, an optical drive, or a diskette drive, place it in a static-proof bag.

Avoid exposing a hard drive to products that have magnetic fields, such as monitors or speakers.

Avoid exposing a drive to temperature extremes or liquids.

If a drive must be mailed, place the drive in a bubble pack mailer or other suitable form of protective packaging and label the package “FRAGILE.”

Preliminary replacement requirements 31

Grounding guidelines

Electrostatic discharge damage

Electronic components are sensitive to electrostatic discharge (ESD). Circuitry design and structure determine the degree of sensitivity. Networks built into many integrated circuits provide some protection, but in many cases, ESD contains enough power to alter device parameters or melt silicon junctions.

A discharge of static electricity from a finger or other conductor can destroy static-sensitive devices or microcircuitry. Even if the spark is neither felt nor heard, damage may have occurred.

An electronic device exposed to ESD may not be affected at all and can work perfectly throughout a normal cycle. Or the device may function normally for a while, then degrade in the internal layers, reducing its life expectancy.

CAUTION: To prevent damage to the computer when you are removing or installing internal

components, observe these precautions:

Keep components in their electrostatic-safe containers until you area ready to install them.

Use nonmagnetic tools.

Before touching an electronic component, discharge static electricity by using the guidelines described in this section.

Avoid touching pins, leads, and circuitry. Handle electronic components as little as possible.

If you remove a component, place it in an electrostatic-safe container.

The following table shows how humidity affects the electrostatic voltage levels generated by different activities.

CAUTION: A product can be degraded by as little as 700 V.

Typical electrostatic voltage levels

Relative humidity

Event 10% 40% 55%

Walking across carpet 35,000 V 15,000 V 7,500 V

Walking across vinyl floor 12,000 V 5,000 V 3,000 V

Motions of bench worker 6,000 V 800 V 400 V

Removing DIPS from plastic tube 2,000 V 700 V 400 V

Removing DIPS from vinyl tray 11,500 V 4,000 V 2,000 V

Removing DIPS from Styrofoam 14,500 V 5,000 V 3,500 V

Removing bubble pack from PCB 26,500 V 20,000 V 7,000 V

Packing PCBs in foam-lined box 21,000 V 11,000 V 5,000 V

32 Chapter 4 Removal and replacement procedures

Packaging and transporting guidelines

Follow these grounding guidelines when packaging and transporting equipment:

To avoid hand contact, transport products in static-safe tubes, bags, or boxes.

●

Protect ESD-sensitive parts and assemblies with conductive or approved containers or packaging.

●

Keep ESD-sensitive parts in their containers until the parts arrive at static-free workstations.

●

Place items on a grounded surface before removing items from their containers.

●

Always be properly grounded when touching a component or assembly.

●

Store reusable ESD-sensitive parts from assemblies in protective packaging or nonconductive foam.

●

Use transporters and conveyors made of antistatic belts and roller bushings. Be sure that mechanized

●

equipment used for moving materials is wired to ground and that proper materials are selected to avoid static charging. When grounding is not possible, use an ionizer to dissipate electric charges.

Workstation guidelines

Follow these grounding workstation guidelines:

Cover the workstation with approved static-shielding material.

●

Use a wrist strap connected to a properly grounded work surface and use properly grounded tools

●

and equipment.

Use conductive field service tools, such as cutters, screwdrivers, and vacuums.

●

When fixtures must directly contact dissipative surfaces, use fixtures made only of static-safe

●

materials.

Keep the work area free of nonconductive materials, such as ordinary plastic assembly aids and

●

Styrofoam.

Handle ESD-sensitive components, parts, and assemblies by the case or PCM laminate. Handle these

●

items only at static-free workstations.

Avoid contact with pins, leads, or circuitry.

●

Turn off power and input signals before inserting or removing connectors or test equipment.

●

Preliminary replacement requirements 33

Equipment guidelines

Grounding equipment must include either a wrist strap or a foot strap at a grounded workstation.

When seated, wear a wrist strap connected to a grounded system. Wrist straps are flexible straps

●

with a minimum of one megohm ±10% resistance in the ground cords. To provide proper ground, wear a strap snugly against the skin at all times. On grounded mats with banana-plug connectors, use alligator clips to connect a wrist strap.

When standing, use foot straps and a grounded floor mat. Foot straps (heel, toe, or boot straps) can

●

be used at standing workstations and are compatible with most types of shoes or boots. On conductive floors or dissipative floor mats, use foot straps on both feet with a minimum of one megohm resistance between the operator and ground. To be effective, the conductive strips must be worn in contact with the skin.

The following grounding equipment is recommended to prevent electrostatic damage:

Antistatic tape

●

Antistatic smocks, aprons, and sleeve protectors

●

Conductive bins and other assembly or soldering aids

●

Nonconductive foam

●

Conductive tabletop workstations with ground cords of one megohm resistance

●

Static-dissipative tables or floor mats with hard ties to the ground

●

Field service kits

●

Static awareness labels

●

Material-handling packages

●

Nonconductive plastic bags, tubes, or boxes

●

Metal tote boxes

●

Electrostatic voltage levels and protective materials

●

The following table lists the shielding protection provided by antistatic bags and floor mats.

Material Use Voltage protection level

Antistatic plastic Bags 1,500 V

Carbon-loaded plastic Floor mats 7,500 V

Metallized laminate Floor mats 5,000 V

34 Chapter 4 Removal and replacement procedures

Unknown user password

If the computer you are servicing has an unknown user password, follow these steps to clear the password:

NOTE: These steps also clear CMOS.

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Remove the real-time clock (RTC) battery (see

Wait approximately 5 minutes.

Replace the RTC battery and reassemble the computer.

Connect AC power to the computer. Do not reinsert any batteries at this time.

Turn on the computer.

All passwords and all CMOS settings have been cleared.

Battery on page 37).

RTC battery on page 44).

Preliminary replacement requirements 35

Component replacement procedures

This chapter provides removal and replacement procedures.

There are as many as 80 screws and standoffs, in 10 different sizes, that must be removed, replaced, or loosened when servicing the computer. Make special note of each screw and standoff size and location during removal and replacement.

Serial number

Report the computer serial number to HP when requesting information or ordering spare parts. The serial number is located on the bottom of the computer.

Computer feet

The computer feet are adhesive-backed rubber pads. The feet are included in the Rubber Kit, spare part number 431431-001. There are 8 rubber feet, in 4 different sizes, that attach to the base enclosure in the locations illustrated below.

36 Chapter 4 Removal and replacement procedures

Battery

Description Spare part number

6-cell, 2.20-Ah (47-Wh) Li-ion battery 462853-001

Before disassembling the computer, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery:

Turn the computer upside down on a flat surface, with the battery bay toward you.

2. Slide the battery release latch (1) to release the battery.

3. Pivot the battery (2) upward and remove it from the computer (3).

To install the battery, insert the rear edge of the battery into the battery bay and pivot the battery downward until it is seated. The battery release latch automatically locks the battery into place.

Component replacement procedures 37

Camera module

Description Spare part number

Camera module 461875-001

Before removing the camera module, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Battery on page 37).

Remove the camera module:

Turn the computer right-side up, with the front toward you.

Open the computer as far as possible.

3. Remove the four rubber screw covers (1) and the four Phillips PM2.5×8.0 screws (2) that secure the

display bezel to the display assembly.

4. Flex the inside edges of the display bezel left and right sides (1) until the bezel disengages from the

display enclosure.

5. Flex the inside edge of the display bezel top edge (2) until the bezel disengages from the display

enclosure.

38 Chapter 4 Removal and replacement procedures

6. Separate the display bezel top edge (3) from the display assembly to access the camera module.

7. Release the camera module (1) as far from the display enclosure as the camera module cable allows.

8. Disconnect the camera module cable (2) from the camera module.

Remove the camera module.

Reverse this procedure to install the camera module.

Component replacement procedures 39

Hard drive

NOTE: All hard drive spare part kits include a hard drive bracket.

Description Spare part number

160-GB, 5400-rpm hard drive 451862-001

120-GB, 5400-rpm hard drive 461951-001

80-GB, 5400-rpm hard drive 461950-001

Before removing the hard drive, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Battery on page 37).

Remove the hard drive:

Position the computer with the front toward you.

2. Loosen the two Phillips PM2.5×6.0 captive screws (1) that secure the hard drive cover to the

computer.

3. Lift the right side of the hard drive cover (2), swing it up and to the left, and remove the cover. The

hard drive cover is included in the Plastics Kit, spare part number 442891-001.

4. Grasp the Mylar tab (1) on the hard drive and lift the right side of the hard drive (2) to disconnect

it from the system board.

40 Chapter 4 Removal and replacement procedures

5. Remove the hard drive (3) from the hard drive bay.

If it is necessary to replace the hard drive bracket, remove the two Phillips PM3.0×4.0 hard drive

bracket screws (1) from each side of the hard drive.

7. Lift the bracket (2) straight up to remove it from the hard drive.

Reverse this procedure to reassemble and install the hard drive.

Component replacement procedures 41

Memory module

Description Spare part number

1024-MB (PC2-5300, 667-MHz, DDR2) 461949-001

512-MB (PC2-5300, 667-MHz, DDR2) 461948-001

Before removing the memory module, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Battery on page 37).

Remove the memory module:

Position the computer with the front toward you.

2. Loosen the three Phillips PM2.5×6.0 captive screws (1) that secure the memory/WLAN module

compartment cover to the computer.

3. Lift the left side of the cover (2), swing it up and to the right, and remove the cover. The memory/

WLAN module compartment cover is included in the Plastics Kit, spare part number 442891-001.

4. Spread the retaining tabs (1) on each side of the memory module slot to release the memory module.

(The edge of the module opposite the slot rises away from the computer.)

42 Chapter 4 Removal and replacement procedures

5. Remove the memory module (2) by pulling the module away from the slot at an angle.

NOTE: Memory modules are designed with a notch (3) to prevent incorrect installation into the

memory module slot.

Reverse this procedure to install a memory module.

Component replacement procedures 43

RTC battery

NOTE: Removing the RTC battery and leaving it uninstalled for 5 or more minutes causes all passwords

and CMOS settings to be cleared.

Description Spare part number

RTC battery 449137-001

Before removing the RTC battery, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Battery on page 37).

Remove the RTC battery:

Remove the RTC battery from the socket on the system board.



Reverse this procedure to install the RTC battery.

44 Chapter 4 Removal and replacement procedures

WLAN module

CAUTION: The WLAN module and the WWAN module are not interchangeable.

Description Spare part number

Broadcom 802.11a/b/g WLAN modules:

For use in Canada, the Cayman Islands, Guam, Puerto Rico, the U.S. Virgin Islands, and the United States

For use in Afghanistan, Albania, Algeria, Andorra, Angola, Antigua and Barbuda, Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia, Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cameroon, Cape Verde, the Central African Republic, Chad, Chile, Colombia, Comoros, the Congo, Costa Rica, Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala, Guinea, Guinea-Bissau, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Ireland, Israel, Italy, the Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, Malaysia, the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Nether Antilles, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Pakistan, Palau, Panama, Papua New Guinea, Paraguay, the People's Republic of China, Peru, the Philippines, Poland, Portugal, the Republic of Moldova, Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome and Principe, Saudi Arabia, Senegal, Serbia and Montenegro, the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia, South Africa, South Korea, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia, St. Vincent and the Grenadines, Suriname, Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates, the United Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe

Atheros AR2425 802.11b/g WLAN modules:

For use in Canada, the Cayman Islands, Guam, Puerto Rico, the U.S. Virgin Islands, and the United States

441075-001

441075-002

459339-001

For use in Afghanistan, Albania, Algeria, Andorra, Angola, Antigua and Barbuda, Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia, Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cambodia, Cameroon, Cape Verde, the Central African Republic, Chad, Chile, Colombia, Comoros, Congo, Costa Rica, Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala, Guinea, Guinea-Bissau, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Indonesia, Ireland, Israel, Italy, the Ivory Coast, Jamaica, Japan, Jordan, Kazakhstan, Kenya, Kiribati, Kuwait, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, Malaysia, the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Nether Antilles, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Pakistan, Palau, Panama, Papua New Guinea, Paraguay, the People's Republic of China, Peru, the Philippines, Poland, Portugal, Qatar, the Republic of Moldova, Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome and Principe, Saudi Arabia, Senegal, Serbia and Montenegro, Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia, South Africa, South Korea, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia, St. Vincent and the Grenadines, Suriname, Swaziland, Sweden, Switzerland, Syria, Taiwan, Tajikistan, Tanzania, Thailand, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates, the United Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe

Broadcom 802.11b/g WLAN modules:

Component replacement procedures 45

459339-002

Description Spare part number

For use in Canada, the Cayman Islands, Guam, Puerto Rico, the U.S. Virgin Islands, and the United States

Before removing the WLAN module, follow these steps:

441090-001

441090-002

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Remove the memory/WLAN module compartment cover (see

Battery on page 37).

Memory module on page 42).

Remove the WLAN module:

1. Disconnect the WLAN antenna cables (1) from the terminals on the WLAN module.

NOTE: The black WLAN antenna cable is connected to the WLAN module “Main” terminal. The

white WLAN antenna cable is connected to the WLAN module “Aux” terminal.

2. Remove the two Phillips PM2.0×4.0 screws (2) that secure the WLAN module to the computer. (The

edge of the module opposite the slot rises away from the computer.)

46 Chapter 4 Removal and replacement procedures

3. Remove the WLAN module (3) by pulling the module away from the slot at an angle.

NOTE: WLAN modules are designed with a notch (4) to prevent incorrect installation.

Reverse this procedure to install the WLAN module.

Component replacement procedures 47

Optical drive

NOTE: All optical drive spare part kits include an optical drive bezel and optical drive bracket.

Description Spare part number

DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive with LightScribe 461955-001

DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive 461954-001

DVD/CD-RW Combo Drive 461953-001

Before removing the optical drive, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Battery on page 37).

Remove the optical drive:

Position the computer with the left side toward you.

2. Remove the Phillips PM2.5×8.0 screw (1) that secures the optical drive to the computer.

3. Insert a thin tool, such as a paper clip (2), into the release access. (The optical drive disc tray is

partially ejected from the optical drive.)

4. Use the disc tray frame to slide the optical drive (3) out of the computer.

If it is necessary to replace the optical drive bracket, position the optical drive with the rear toward

you.

6. Remove the two Phillips PM2.0×3.0 screws (1) that secure the optical drive bracket to the optical

drive.

48 Chapter 4 Removal and replacement procedures

7. Remove the optical drive bracket (2).

Reverse this procedure to reassemble and install an optical drive.

Component replacement procedures 49

Switch cover

Description Spare part number

Switch cover (includes an LED board and LED board cable) 442889-001

Before removing the switch cover, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Battery on page 37).

Remove the switch cover:

Position the computer with the front toward you.

2. Remove the two Phillips PM2.5×10.0 screws (1) and the Phillips PM2.5×5.0 screw (2) that secure

the switch cover to the computer.

Turn the computer right-side up, with the front toward you.

Open the computer as far as possible.

5. Lift the left and right sides of the switch cover (1) until it detaches from the computer.

50 Chapter 4 Removal and replacement procedures

6. Release the switch cover (2) by swinging it up and forward until it rests upside down on the keyboard.

7. Disconnect the LED board cable (1) from the low insertion force (LIF) connector to which it is

connected (2).

Remove the switch cover.

Reverse this procedure to install the switch cover.

Component replacement procedures 51

Keyboard

For use in: Spare part number For use in: Spare part number

Denmark, Finland, and Norway 442887-DH1 Saudi Arabia 442887-171

France 442887-051 South Korea 442887-AD1

French Canada 442887-121 Spain 442887-071

Germany 442887-041 Turkey 442887-141

Italy 442887-061 The United Kingdom 442887-031

Latin America 442887-161 The United States 442887-001

The Netherlands 442887-B31

Before removing the keyboard, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then unplugging the AC adapter from the computer.

Remove the battery (see

Remove the switch cover (see

Battery on page 37).

Switch cover on page 50).

Remove the keyboard:

Turn the computer upside down, with the front toward you.

Remove the three Phillips PM2.5×8.0 screws that secure the keyboard to the computer.

Turn the computer display-side up, with the front toward you.

Open the computer as far as possible.

52 Chapter 4 Removal and replacement procedures

5. Lift the rear edge of the keyboard (1) until it rests at an angle.

6. Release the keyboard (2) by sliding it toward the display until the tabs on the keyboard front edge

disengage from the top cover.

7. Swing the keyboard (3) up and forward until it rests upside down on the palm rest.

8. Release the zero insertion force (ZIF) connector (1) to which the keyboard cable is attached, and

disconnect the keyboard cable (2) from the system board.

Remove the keyboard.

Reverse this procedure to install the keyboard.

Component replacement procedures 53

Power button board

Description Spare part number

Power button board 443153-001

Before removing the power button board, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Remove the switch cover (see

Remove the keyboard (see

Battery on page 37).

Switch cover on page 50).

Keyboard on page 52).

Remove the power button board:

1. Disconnect the power button board cable (1) from the system board.

2. Remove the power button board cable from the clips (2) built into the top cover.

3. Remove the Phillips PM2.5×5.0 screw (3) that secures the power button board to the computer.

4. Disconnect the microphone cable (1) and the speaker cable (2) from the power button board.

54 Chapter 4 Removal and replacement procedures

5. Remove the power button board (3).

Reverse this procedure to install the power button board.

Component replacement procedures 55

Display assembly

Description Spare part number

For use only with HP G7000 computer models

Includes camera module and cable

Does not include camera module and cable 461870-001

For use only with Compaq Presario C700 computer models

Includes camera module and cable

Does not include camera module and cable 461865-001

461867-001

461862-001

Before removing the display assembly, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Disconnect the wireless antenna cables from the WLAN module (see

Remove the switch cover (see

Remove the keyboard (see

Battery on page 37).

WLAN module on page 45).

Switch cover on page 50).

Keyboard on page 52).

Remove the display assembly:

Disconnect the following cables:

(1) Display panel cable

(2) Microphone cable

(3) Camera module cable

56 Chapter 4 Removal and replacement procedures

2. Remove the camera module cable and the wireless antenna cables from the clips (4) and routing

channel built into the top cover.

3. Remove the four Phillips PM2.5×8.0 screws (1) that secure the display assembly to the computer.

4. Lift the display assembly (2) straight up and remove it.

Component replacement procedures 57

If it is necessary to replace the display bezel or the display assembly internal components, remove

the following:

(1) Four rubber screw covers on the display bezel top edge

(2) Two Mylar screw covers on the display bezel bottom edge corners

(3) Two rubber screw covers on the display bezel bottom edge

(4) Eight Phillips PM2.5×8.0 screws that secure the display bezel to the display assembly

NOTE: See Camera module on page 38 for camera module removal information.

6. Flex the inside edges of the left and right sides (1) and the top and bottom sides (2) of the display

bezel until the bezel disengages from the display enclosure.

7. Remove the display bezel (3). The following display bezels are available:

For use only with HP G7000 computer models equipped with camera module and microphone,

●

spare part number 461868-001

For use only with HP G7000 computer models equipped with microphone, spare part number

●

461871-001

For use only with Compaq Presario F700 computer models equipped with camera module and

●

microphone, spare part number 461863-001

For use only with Compaq Presario F700 computer models equipped with microphone, spare

●

part number 461866-001

58 Chapter 4 Removal and replacement procedures

8. If it is necessary to replace the display inverter, release the inverter (1) as far as the display panel

cable and backlight cable allow.

9. Disconnect the display panel cable (2) and the backlight cable (3) from the display inverter.

Remove the display inverter from the display enclosure. The display inverter is available using spare

10.

part number 431391-001.

If it is necessary to replace the display panel or the display hinges, remove the six Phillips PM2.5×5.0

11.

screws (1) that secure the display panel to the display enclosure.

Component replacement procedures 59

12. Remove the display panel (2) from the display enclosure. The display panel is available using spare

part number 462427-001.

13. Remove the four Phillips PM2.0×4.0 screws (1) that secure the hinges to the display panel.

14. Remove the display hinges (2) from the display panel. The display hinges are available using spare

part number 433288-001.

If it is necessary to replace the wireless antenna transceivers and cables, remove the two Phillips

15.

PM2.0×4.0 screws (1) that secure the transceivers to the display enclosure.

16. Release the tabs built into the display enclosure shielding (2) that secure the wireless antenna cables.

60 Chapter 4 Removal and replacement procedures

17. Remove the wireless antenna transceivers (3) and cables (4) from the display enclosure. The wireless

antenna transceivers and cables are available using spare part number 449726-001.

If it is necessary to replace the microphone cable, release the tabs built into the display enclosure

18.

shielding (1) that secure the microphone cable.

19. Remove the microphone receiver (2) from the clip built into the display enclosure and the microphone

cable (3) from the display enclosure. The microphone is available in the Display Cable Kit, spare part number 433287-001.

If it is necessary to replace the camera module cable, release the tabs built into the display enclosure

20.

shielding (1) that secure the camera module cable.

Component replacement procedures 61

21. Remove the camera module cable (2) from the display enclosure. The camera module cable is

available using spare part number 433287-001.

Reverse this procedure to reassemble and install the display assembly.

62 Chapter 4 Removal and replacement procedures

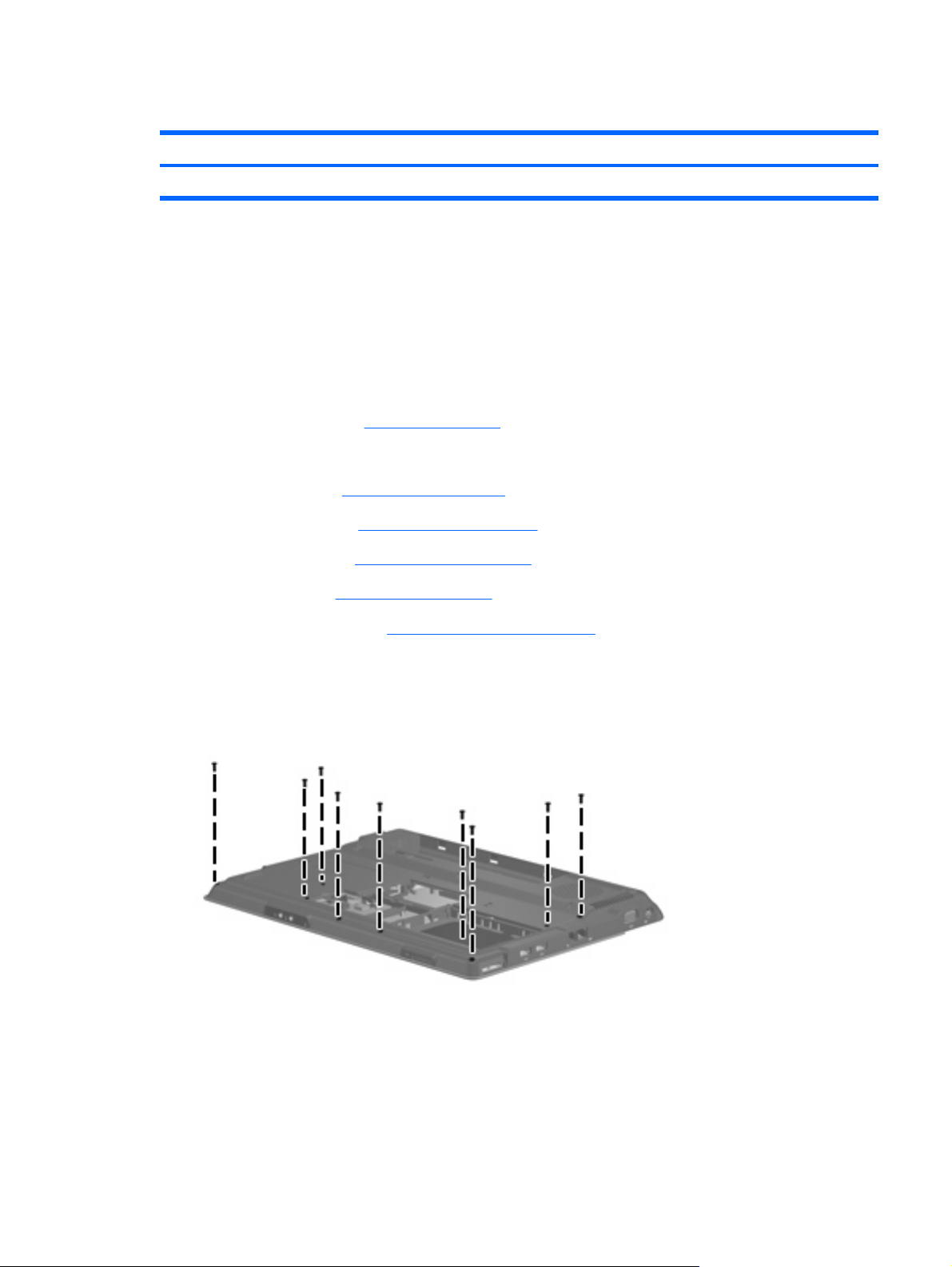

Top cover

Description Spare part number

Top cover (includes TouchPad and TouchPad cable) 461872-001

Before removing the top cover, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then unplugging the AC adapter from the computer.

Remove the battery (see

Remove the following components:

Hard drive (see

Optical drive (see

Switch cover (see

Keyboard (see

Display assembly (see

Battery on page 37).

Hard drive on page 40)

Optical drive on page 48)

Switch cover on page 50)

Keyboard on page 52)

Display assembly on page 56)

Remove the top cover:

Turn the computer upside down, with the front toward you.

Remove the nine Phillips PM2.5×8.0 screws that secure the top cover to the base enclosure.

Component replacement procedures 63

Remove the following:

(1) Three Phillips PM2.5×4.0 screws in the optical drive bay

(2) Six Phillips PM2.5×5.0 screws in the battery bay

(3) Two Hex HM5.0×9.0 standoffs in the memory/WLAN module compartment

Turn the computer right-side up, with the front toward you.

5. Disconnect the TouchPad cable (1) from the system board.

6. Remove the two Phillips PM2.5×8.0 screws (2) and the two Phillips PM2.5×5.0 screws (3) that

secure the top cover to the computer.

64 Chapter 4 Removal and replacement procedures

7. Lift the rear edge of the top cover (1) and swing it (2) up and forward until it rests at an angle.

Remove the top cover

Reverse this procedure to install the top cover.

System board

NOTE: All system board spare part kits include replacement thermal material.

Description Spare part number

System board with ExpressCard assembly 461861-001

System board without ExpressCard assembly 461860-001

Before removing the system board, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Remove the following components:

Hard drive (see

Optical drive (see

Switch cover (see

Keyboard (see

Battery on page 37).

Hard drive on page 40)

Optical drive on page 48)

Switch cover on page 50)

Keyboard on page 52)

Display assembly (see

Top cover (see

Display assembly on page 56)

Top cover on page 63)

Component replacement procedures 65

When replacing the system board, be sure that the following components are removed from the defective system board and installed on the replacement system board:

Memory modules (see

●

RTC battery (see

●

WLAN module (see

●

Fan/heat sink assembly (see

●

Processor (see

●

Processor on page 73)

Memory module on page 42)

RTC battery on page 44)

WLAN module on page 45)

Fan/heat sink assembly on page 71)

Remove the system board:

1. Remove the two Phillips PM2.5×5.0 screws (1) that secure the system board to the base enclosure.

2. Flex the front edge of the base enclosure (2) forward until the audio connectors clear the openings

in the base enclosure.

3. Use the optical drive connector (3) to lift the right side of the system board (4) until it rests at an

angle.

4. Disconnect the audio board cable (1) from the system board.

5. Disconnect the USB board cable and power connector cable (2) from the system board.

66 Chapter 4 Removal and replacement procedures

6. Remove the system board (3) by pulling it away from the base enclosure at an angle.

Reverse this procedure to install the system board.

Component replacement procedures 67

Audio board

NOTE: All audio board spare part kits include an audio board cable.

Description Spare part number

Includes infrared transceiver 431444-001

Does not include infrared transceiver 465229-001

Before removing the audio board, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Remove the following components:

Hard drive (see

Optical drive (see

Switch cover (see

Keyboard (see

Display assembly (see

Top cover (see

System board (see

Battery on page 37).

Hard drive on page 40)

Optical drive on page 48)

Switch cover on page 50)

Keyboard on page 52)

Display assembly on page 56)

Top cover on page 63)

System board on page 65)

Remove the audio board:

1. Remove the audio board cable from the clips built into the base enclosure (1).

2. Remove the two Phillips PM2.5×5.0 screws (2) that secure the audio board to the base enclosure.

68 Chapter 4 Removal and replacement procedures

3. Remove the audio board (3).

Reverse this procedure to install the audio board.

USB/power connector board

Description Spare part number

USB/power connector board 447444-001

Before removing the USB/power connector board, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Remove the following components:

Hard drive (see

Optical drive (see

Switch cover (see

Keyboard (see

Display assembly (see

Battery on page 37).

Hard drive on page 40)

Optical drive on page 48)

Switch cover on page 50)

Keyboard on page 52)

Display assembly on page 56)

Top cover (see

System board (see

Top cover on page 63)

System board on page 65)

Component replacement procedures 69

Remove the USB/power connector board:

1. Remove the USB/power connector board cable from the clips (1) built into the base enclosure

2. Remove the two Phillips PM2.5×5.0 screws (2) that secure the USB/power connector board to the

base enclosure.

3. Remove the USB/power connector board (3).

Reverse this procedure to install the USB/power connector board.

70 Chapter 4 Removal and replacement procedures

Fan/heat sink assembly

Description Spare part number

Fan/heat sink assembly (includes replacement thermal material) 449961-001

Before removing the fan/heat sink assembly, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Remove the following components:

Hard drive (see

Optical drive (see

Switch cover (see

Keyboard (see

Display assembly (see

Top cover (see

System board (see

Battery on page 37).

Hard drive on page 40)

Optical drive on page 48)

Switch cover on page 50)

Keyboard on page 52)

Display assembly on page 56)

Top cover on page 63)

System board on page 65)

Remove the fan/heat sink assembly:

Turn the system board upside down, with the RJ-11 and RJ-45 jacks toward you.

2. Disconnect the fan cable (1) from the system board.

3. Loosen the four Phillips PM2.5×6.0 captive screws (2) that secure the fan/heat sink assembly to the

system board.

Component replacement procedures 71

4. Remove the fan/heat sink assembly (3) by lifting it straight up.

NOTE: The thermal material must be thoroughly cleaned from the surfaces of the heat sink (1), (2),

and (3), the system board components (4) and (6), and the processor (5) each time the heat sink is removed. Thermal material is included with all system board, fan/heat sink assembly, and processor spare part kits.

Reverse this procedure to install the fan/heat sink assembly.

72 Chapter 4 Removal and replacement procedures

Processor

NOTE: All processor spare part kits include replacement thermal material.

Description Spare part number

AMD Turion processors (1-MB L2 cache)

TL-64 2.20-GHz processor

TL-62 2.10-GHz processor 456023-001

TL-60 2.00-GHz processor 461944-001

TL-58 1.90-GHz processor 450802-001

AMD Athlon processors (512-KB L2 cache)

TK-57 1.90-GHz processor

TK-55 1.80-GHz processor 456024-001

AMD Sempron processors

AMD Sempron 3800+ 2.20-GHz processor (512-KB L2 cache)

AMD Sempron 3750+ 2.20-GHz processor (256-KB L2 cache) 459818-001

AMD Sempron 3600+ 2.00-GHz processor (256-KB L2 cache) 450609-001

461945-001

459759-001

461946-001

Before removing the processor, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Remove the following components:

Hard drive (see

Optical drive (see

Keyboard (see

Switch cover (see

Display assembly (see

Top cover (see

System board (see

Fan/heat sink assembly (see

Battery on page 37).

Hard drive on page 40)

Optical drive on page 48)

Keyboard on page 52)

Switch cover on page 50)

Display assembly on page 56)

Top cover on page 63)

System board on page 65)

Fan/heat sink assembly on page 71)

Component replacement procedures 73

Remove the processor:

1. Use a flat-bladed screwdriver to turn the processor locking screw (1) one half-turn counterclockwise

until you hear a click.

2. Lift the processor (2) straight up and remove it.

NOTE: When you install the processor, the gold triangle (3) on the processor must be aligned with

the triangle (4) embossed on the processor slot.

Reverse this procedure to install the processor.

74 Chapter 4 Removal and replacement procedures

Setup Utility

WARNING! Only authorized technicians trained by HP must repair this equipment. All troubleshooting

and repair procedures are detailed to allow repair at only the subassembly or module level. Because of the complexity of the individual boards and subassemblies, do not attempt to make repairs at the component level or modify any printed wiring board. Improper repairs can create a safety hazard. Any indication of component replacement or printed wiring board modification may void any warranty or exchange allowances.

Starting the Setup Utility

The Setup Utility is a ROM-based information and customization utility that can be used even when your Windows operating system is not working or will not load.

NOTE: The fingerprint reader (select models only) does not work when accessing the Setup Utility.

The utility reports information about the computer and provides settings for startup, security, and other preferences.

To start the Setup Utility:

Turn on or restart the computer.

Before Windows opens and while “Press <F10> to enter setup” is displayed in the lower-left corner

of the screen, press f10.

Changing the language of the Setup Utility

The following procedure explains how to change the language of the Setup Utility. If the Setup Utility is not already running, begin at step 1. If the Setup Utility is already running, begin at step 2.

To start the Setup Utility, turn on or restart the computer, and then press f10 while “Press <F10> to

enter setup” is displayed in the lower-left corner of the screen.

2. Use the arrow keys to select System Configuration > Language, and then press enter.

Press f5 or f6 (or use the arrow keys) to select a language, and then press enter to select a language.

When a confirmation prompt with your preference selected is displayed, press enter to save your

preference.

To set your preferences and exit the Setup Utility, press f10 and then follow the instructions on the

screen.

Your preferences go into effect when the computer restarts in Windows.

Starting the Setup Utility 75

Navigating and selecting in the Setup Utility

Because the Setup Utility is not Windows-based, it does not support the TouchPad. Navigation and selection are by keystroke.

To choose a menu or a menu item, use the arrow keys.

●

To choose an item in a drop-down list or to toggle a field, for example an Enable/Disable field, use

●

either the arrow keys or f5 or f6.

To select an item, press enter.

●

To close a text box or return to the menu display, press esc.

●

To display additional navigation and selection information while the Setup Utility is open, press f1.

●

Displaying system information

The following procedure explains how to display system information in the Setup Utility. If the Setup Utility is not open, begin at step 1. If the Setup Utility is open, begin at step 2.

To start the Setup Utility, turn on or restart the computer, and then press f10 while “Press <F10> to

enter setup” is displayed in the lower-left corner of the screen.

2. Access the system information by using the Main menu.

3. To exit the Setup Utility without changing any settings, use the arrow keys to select Exit > Exit

Discarding Changes, and then press enter. (The computer restarts in Windows.)

Restoring default settings in the Setup Utility

The following procedure explains how to restore the Setup Utility default settings. If the Setup Utility is not already running, begin at step 1. If the Setup Utility is already running, begin at step 2.

To start the Setup Utility, turn on or restart the computer, and then press f10 while “Press <F10> to

enter setup” is displayed in the lower-left corner of the screen.

2. Select Exit > Load Setup Defaults, and then press enter.

When the Setup Confirmation is displayed, press enter to save your preferences.

To set your preferences and exit the Setup Utility, press f10, and then follow the instructions on the

screen.

The Setup Utility default settings are set when you exit the Setup Utility and go into effect when the computer restarts.

NOTE: Your password, security, and language settings are not changed when you restore the factory

default settings.

76 Chapter 5 Setup Utility

Using advanced Setup Utility features

This section describes the Setup Utility features recommended for all users. For more information about the Setup Utility features recommended for advanced users only, refer to Help and Support, which is accessible only when the computer is in Windows.

The Setup Utility features available for advanced users include a hard drive self-test, a Network Service Boot, and settings for boot order preferences.

The “<F12> to boot from LAN” message that is displayed in the lower-left corner of the screen each time the computer is started or restarted in Windows is the prompt for a Network Service Boot.

The “Press <F9> to change boot order” message that is displayed in the lower-left corner of the screen each time the computer is started or restarted in Windows is the prompt to change the boot order.

Closing the Setup Utility

You can close the Setup Utility with or without saving changes.

To close the Setup Utility and save your changes from the current session, use either of the following

●

procedures:

Press f10, and then follow the instructions on the screen.

◦

– or –

If the Setup Utility menus are not visible, press esc to return to the menu display. Then use the

◦

arrow keys to select Exit > Exit Saving Changes, and then press enter.

When you use the f10 procedure, you are offered an option to return to the Setup Utility. When you use the Exit Saving Changes procedure, the Setup Utility closes when you press enter.

To close the Setup Utility without saving your changes from the current session:

●

If the Setup Utility menus are not visible, press esc to return to the menu display. Then use the arrow keys to select Exit > Exit Discarding Changes, and then press enter.

After the Setup Utility closes, the computer restarts in Windows.

Setup Utility menus

The menu tables in this section provide an overview of Setup Utility options.

NOTE: Some of the Setup Utility menu items listed in this section may not be supported by your computer.

Diagnostics menu

Select To do this

Hard Disk Self Test Run a comprehensive self-test on the hard drive.

NOTE: On models with two hard drives, this menu option is

called the Primary Hard Disk Self Test.

Memory Test (select models only) Run a diagnostic test on the system memory.

Secondary Hard Disk Self Test (select models only) Run a comprehensive self-test on a secondary hard drive.

Using advanced Setup Utility features 77

Main menu

Select To do this

System information

View and change the system time and date.

●

View identification information about the computer.

●

View specification information about the processor, memory

●

size, system BIOS, and keyboard controller version (select models only).

Security menu

Select To do this

Administrator password Enter, change, or delete an administrator password.

Power-On Password Enter, change, or delete a power-on password.

System Configuration menu

Select To do this

Language Support Change the Setup Utility language.

Boot Options Set the following boot options:

f10 and f12 Delay (sec.)―Set the delay for the f10 and

●

f12 functions of the Setup Utility in intervals of 5 seconds

each (0, 5, 10, 15, 20).

CD-ROM boot―Enable/disable boot from CD-ROM.

●

Floppy boot―Enable/disable boot from Floppy.

●

Internal Network Adapter boot―Enable/disable boot from

●

Internal Network Adapter.

● Boot Order―Set the boot order for:

USB Floppy

◦

ATAPI CD/DVD-ROM Drive

◦

Hard drive

◦

USB Diskette on Key

◦

USB Hard drive

◦

Network adapter

◦

Button Sound (select models only) Enable/disable the Quick Launch Button tapping sound.

Virtualization Technology Enable/disable the processor Virtualization Technology.

Processor C4 State Enable/disable the processor C4 sleep state.

78 Chapter 5 Setup Utility

Specifications

Computer specifications

Metric U.S.

Dimensions

Length

Width 25.72 cm 10.13 in

Height (front to rear) 3.28 to 3.94 cm 1.29 to 1.55 in

Weight

Equipped with 8-cell battery and optical drive

Input power

Operating voltage

Operating current 4.74 A

Temperature

Operating (not writing to optical disc)

Operating (writing to optical disc) 5°C to 35°C 41°F to 95°F

Nonoperating -20°C to 60°C -4°F to 140°F

Relative humidity

Operating

Nonoperating 5% to 95%

Maximum altitude (unpressurized)

35.73 cm 14.07 in

2.99 kg 6.59 lbs

19.0 V dc @ 4.74 A – 65 W

0°C to 35°C 32°F to 95°F

10% to 90%

Operating (14.7 to 10.1 psia)

Nonoperating (14.7 to 4.4 psia) -15 m to 12,192 m -50 ft to 40,000 ft

Shock

Operating

Nonoperating 200 g, 2 ms, half-sine

Random vibration

Operating

-15 m to 3,048 m -50 ft to 10,000 ft

125 g, 2 ms, half-sine

0.75 g zero-to-peak, 10 Hz to 500 Hz, 0.25 oct/min sweep rate

Computer specifications 79

Metric U.S.

Nonoperating 1.50 g zero-to-peak, 10 Hz to 500 Hz, 0.5 oct/min sweep rate

NOTE: Applicable product safety standards specify thermal limits for plastic surfaces. The computer operates well within this

range of temperatures.

15.4-inch, WXGA display specifications

Metric U.S.

Dimensions

Height

Width 33.1 cm 13.03 in

Diagonal 39.1 cm 15.39 in

Number of colors

Contrast ratio

Brightness

Pixel resolution

Pitch

Format 1280 × 800

Configuration RGB vertical stripe

Backlight

Character display

Total power consumption

Viewing angle

20.7 cm 8.15 in

Up to 16.8 million

200:1 (typical)

150 nits (typical)

0.259 × 0.259 mm

Edge lit

80 × 25

4 W

+/-65° horizontal, +/-50° vertical (typical)

80 Chapter 6 Specifications

Hard drive specifications

200-GB* 160-GB* 120-GB* 80-GB*

Dimensions

Height

Width 70 mm 70 mm 70 mm 70 mm

Weight 101 g 101 g 101 g 101 g

Interface type

Transfer rate

Security

Seek times (typical read, including setting)

Single track

Average 13 ms 13 ms 13 ms 13 ms

Maximum 24 ms 24 ms 24 ms 24 ms

Logical blocks

Disc rotational speed

Operating temperature

*1 GB = 1 billion bytes when referring to hard drive storage capacity. Actual accessible capacity is less. Actual drive specifications may differ slightly.

NOTE: Certain restrictions and exclusions apply. Contact technical support for details.

9.5 mm 9.5 mm 9.5 mm 9.5 mm

SATA SATA SATA SATA

100 MB/sec 100 MB/sec 100 MB/sec 100 MB/sec

ATA security ATA security ATA security ATA security

3 ms 3 ms 3 ms 3 ms

390,700,850 312,560,640 234,420,480 156,280,320

4200 rpm 5400 rpm 5400 rpm 5400 rpm

5°C to 55°C (41°F to 131°F)

Hard drive specifications 81

DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive specifications

Applicable disc Read:

CD-DA, CD+(E)G, CD-MIDI, CD-TEXT, CD-ROM, CD-ROM XA, MIXED MODE CD, CD-I, CD-I Bridge (Photo-CD, Video CD), Multisession CD (Photo-CD, CDEXTRA, Portfolio, CD-R, CD-RW), CD-R, CD-RW, DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD-R, DVD-RW, DVD+R, DVD+RW, DVD-RAM

Access time CD DVD

Random < 175 ms < 230 ms

Audio output level

Cache buffer

Data transfer rate

24X CD-ROM

8X DVD 10,800 KB/sec

24X CD-R 3,600 KB/sec

16X CD-RW 2,400 KB/sec

8X DVD+R 10,800 KB/sec

Audio-out, 0.7 Vrms

2 MB

3,600 KB/sec

Write:

CD-R and CD-RW

DVD+R, DVD+RW, DVD-R, DVD-RW, DVD-RAM

4X DVD+RW 5,400 KB/sec

8X DVD-R 10,800 KB/sec

4X DVD-RW 5,400 KB/sec

2.4X DVD+R(9) 2,700 KB/sec

5X DVD-RAM 6,750 KB/sec

Transfer mode

Multiword DMA Mode

82 Chapter 6 Specifications

DVD/CD-RW Combo Drive specifications

Applicable disc Read:

CD-DA, CD+(E)G, CD-MIDI, CD-TEXT, CD-ROM, CD-ROM XA, MIXED MODE CD, CD-I, CD-I Bridge (Photo-CD, Video CD), Multisession CD (Photo-CD, CD-EXTRA, Portfolio, CD-R, CD-RW), CD-R, CD-RW, DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD-R, DVD-RW, DVD+R, DVD+RW, DVD-RAM

Access time CD DVD

Random < 110 ms < 130 ms

Cache buffer

Data transfer rate

24X CD-ROM 3,600 KB/sec

8X DVD 3,600 KB/sec

24X CD-R 3,600 KB/sec

24X CD-RW 3,600 KB/sec

Transfer mode

2 MB

Multiword DMA mode 2

Write:

CD-R and CD-RW

DVD/CD-RW Combo Drive specifications 83

System DMA specifications

Hardware DMA System function

DMA0 Not applicable

DMA1* Not applicable

DMA2* Not applicable

DMA3 Not applicable

DMA4 Direct memory access controller

DMA5* Available for PC Card

DMA6 Not assigned

DMA7 Not assigned

*PC Card controller can use DMA 1, 2, or 5.

84 Chapter 6 Specifications

System interrupt specifications

Hardware IRQ System function

IRQ0 System timer

IRQ1 Standard 101-/102-Key or Microsoft® Natural Keyboard

IRQ2 Cascaded

IRQ3 Intel 82801DB/DBM USB2 Enhanced Host Controller—24CD

IRQ4 COM1

IRQ5* Conexant AC—Link Audio Intel 82801DB/DBM SMBus Controller—24C3 Data Fax

Modem with SmartCP

IRQ6 Diskette drive

IRQ7* Parallel port

IRQ8 System CMOS/real-time clock

IRQ9* Microsoft ACPI-compliant system

IRQ10* Intel USB UHCI controller—24C2

Intel 82852/82855 GM/GME Graphic Controller

Realtek RTL8139 Family PCI Fast Ethernet Controller

IRQ11 Intel USB EHCI controller—24CD

Intel USB UHCI controller—24C4

Intel USB UHCI controller—24C7

Intel Pro/Wireless 2200BG

TI OHCI 1394 host controller

TI PCI1410 CardBus controller

IRQ12 Synaptics PS/2 TouchPad

IRQ13 Numeric data processor

IRQ14 Primary IDE channel

IRQ15 Secondary IDE channel

*Default configuration; audio possible configurations are IRQ5, IRQ7, IRQ9, IRQ10, or none.

NOTE: PC Cards may assert IRQ3, IRQ4, IRQ5, IRQ7, IRQ9, IRQ10, IRQ11, or IRQ15. Either the infrared or the serial port

may assert IRQ3 or IRQ4.

System interrupt specifications 85

System I/O address specifications

I/O address (hex) System function (shipping configuration)

000 - 00F DMA controller no. 1

010 - 01F Unused

020 - 021 Interrupt controller no. 1

022 - 024 Opti chipset configuration registers

025 - 03F Unused

02E - 02F 87334 “Super I/O” configuration for CPU

040 - 05F Counter/timer registers

044 - 05F Unused

060 Keyboard controller

061 Port B

062 - 063 Unused

064 Keyboard controller

065 - 06F Unused

070 - 071 NMI enable/RTC

072 - 07F Unused

080 - 08F DMA page registers

090 - 091 Unused

092 Port A

093 - 09F Unused

0A0 - 0A1 Interrupt controller no. 2

I/O Address (hex) System Function (shipping configuration)

0A2 - 0BF Unused

0C0 - 0DF DMA controller no. 2

0E0 - 0EF Unused

0F0 - 0F1 Coprocessor busy clear/reset

0F2 - 0FF Unused

100 - 16F Unused

170 - 177 Secondary fixed disk controller

178 - 1EF Unused

1F0 - 1F7 Primary fixed disk controller

1F8 - 200 Unused

201 JoyStick (decoded in ESS1688)

202 - 21F Unused

86 Chapter 6 Specifications

I/O address (hex) System function (shipping configuration)

220 - 22F Entertainment audio

230 - 26D Unused

26E - 26 Unused

278 - 27F Unused

280 - 2AB Unused

2A0 - 2A7 Unused

2A8 - 2E7 Unused

2E8 - 2EF Reserved serial port

2F0 - 2F7 Unused

2F8 - 2FF Infrared port

300 - 31F Unused

320 - 36F Unused

370 - 377 Secondary diskette drive controller

378 - 37F Parallel port (LPT1/default)

380 - 387 Unused

388 - 38B FM synthesizer—OPL3

38C - 3AF Unused

3B0 - 3BB VGA

3BC - 3BF Reserved (parallel port/no EPP support)

3C0 - 3DF VGA

3E0 - 3E1 PC Card controller in CPU

3E2 - 3E3 Unused

3E8 - 3EF Internal modem

3F0 - 3F7 “A” diskette controller

3F8 - 3FF Serial port (COM1/default)

CF8 - CFB PCI configuration index register (PCIDIVO-1)

CFC - CFF PCI configuration data register (PCIDIVO-1)

System I/O address specifications 87

System memory map specifications

Size Memory address System function

640 KB 00000000-0009FFFF Base memory

128 KB 000A0000-000BFFFF Video memory

48 KB 000C0000-000CBFFF Video BIOS

160 KB 000C8000-000E7FFF Unused

64 KB 000E8000-000FFFFF System BIOS

15 MB 00100000-00FFFFFF Extended memory

58 MB 04800000-07FFFFFF Super extended memory

58 MB 04800000-07FFFFFF Unused

2 MB 08000000-080FFFFF Video memory (direct access)

4 GB 08200000-FFFEFFFF Unused

64 KB FFFF0000-FFFFFFFF System BIOS

88 Chapter 6 Specifications

Screw listing

This section provides specification and reference information for the screws used in the computer. The screws listed in this section are available in the Screw Kit, spare part number 462854-001, or the Display Screw Kit, spare part number 461947-001.

Phillips PM3.0×4.0 screw

Color Quantity Length Thread Head diameter

Silver 4 4.0 mm 3.0 mm 5.0 mm

Where used: 4 screws that secure the hard drive bracket to the hard drive

Phillips PM3.0×4.0 screw 89

Phillips PM2.5×6.0 captive screw

Color Quantity Length Thread Head diameter

Black 9 6.0 mm 2.5 mm 5.0 mm

Where used:

(1) Two captive screws that secure the hard drive cover to the computer

(2) Three captive screws that secure the memory/WLAN module compartment cover to the computer

90 Chapter 7 Screw listing

Where used: 4 captive screws that secure the fan/heat sink assembly to the system board

Phillips PM2.5×6.0 captive screw 91

Phillips PM2.0×4.0 screw

Color Quantity Length Thread Head diameter

Silver 8 4.0 mm 2.0 mm 4.5 mm

Where used: 2 screws that secure the WLAN module to the system board

92 Chapter 7 Screw listing

HP F700, G6000 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Product description

External component identification

Top components

Display components

Buttons, lights, and speakers

Keys

Pointing devices

Front components

Right-side components

Left-side components

Rear component

Bottom components

Illustrated parts catalog

Serial number location

Computer major components

Display assembly components

Plastics Kit

Mass storage devices

Miscellaneous parts

Sequential part number listing

Removal and replacement procedures

Preliminary replacement requirements

Tools required

Service considerations

Plastic parts

Cables and connectors

Drive handling

Grounding guidelines

Electrostatic discharge damage

Packaging and transporting guidelines

Workstation guidelines

Equipment guidelines

Unknown user password

Component replacement procedures

Serial number

Computer feet

Battery

Camera module

Hard drive

Memory module

RTC battery

WLAN module

Optical drive

Switch cover

Keyboard

Power button board

Display assembly

Top cover

System board

Audio board

USB/power connector board

Fan/heat sink assembly

Processor

Setup Utility

Starting the Setup Utility

Changing the language of the Setup Utility

Navigating and selecting in the Setup Utility

Displaying system information

Restoring default settings in the Setup Utility

Using advanced Setup Utility features

Closing the Setup Utility

Setup Utility menus

Specifications

Computer specifications

15.4-inch, WXGA display specifications

Hard drive specifications

DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive specifications

DVD/CD-RW Combo Drive specifications

System DMA specifications

System interrupt specifications

System I/O address specifications

System memory map specifications

Screw listing

Phillips PM3.0×4.0 screw

Phillips PM2.5×6.0 captive screw

Phillips PM2.0×4.0 screw
