Maintenance and Service Guide
SUMMARY
This guide provides information about spare parts, removal and replacement of parts, security, backing up, and more.
© Copyright 2020 HP Development Company,
L.P.
AMD and Radeon are trademarks of Advanced
Micro Devices, Inc. Bluetooth is a trademark
owned by its proprietor and used by HP Inc.
under license. Intel, Celeron, Core, Optane,
Pentium, Thunderbolt, and vPro are trademarks
of Intel Corporation or its subsidiaries in the U.S.
and/or other countries. Microsoft and Windows
are either registered trademarks or trademarks
of Microsoft Corporation in the United States
and/or other countries. USB Type-C and USB-C
are registered trademarks of USB Implementers
Forum. DisplayPort and the DisplayPort logo are
trademarks owned by the Video Electronics
Standards Association (VESA) in the United
States and other countries.
The information contained herein is subject to
change without notice. The only warranties for
HP products and services are set forth in the
express warranty statements accompanying
such products and services. Nothing herein
should be construed as constituting an
additional warranty. HP shall not be liable for
technical or editorial errors or omissions
contained herein.
First Edition: August 2020
Product notice
This guide describes features that are common
to most models. Some features may not be
available on your computer.
Not all features are available in all editions or
versions of Windows. Systems may require
upgraded and/or separately purchased
hardware, drivers, software or BIOS update to
take full advantage of Windows functionality.
Windows 10 is automatically updated, which is
always enabled. ISP fees may apply and
additional requirements may apply over time for
updates. Go to http://www.microsoft.com for
details.
To access the latest user guides, go to
http://www.hp.com/support, and follow the
instructions to nd your product. Then select
Manuals.
Software terms
By installing, copying, downloading, or otherwise
using any software product preinstalled on this
computer, you agree to be bound by the terms
of the HP End User License Agreement (EULA). If
you do not accept these license terms, your sole
remedy is to return the entire unused product
(hardware and software) within 14 days for a full
refund subject to the refund policy of your seller.
For any further information or to request a full
refund of the price of the computer, please
contact your seller.
Not all features are available in all editions of
Windows. This computer may require upgraded
and/or separately purchased hardware, drivers
and/or software to take full advantage of
Windows functionality. Go to
http://www.microsoft.com for details.
Document Part Number: M05547-001
Safety warning notice
Reduce the possibility of heat-related injuries or of overheating the computer by following the practices
described.
WARNING! To reduce the possibility of heat-related injuries or of overheating the computer, do not place the
computer directly on your lap or obstruct the computer air vents. Use the computer only on a hard, at surface.
Do not allow another hard surface, such as an adjoining optional printer, or a soft surface, such as pillows or rugs
or clothing, to block airow. Also, do not allow the AC adapter to come into contact with the skin or a soft surface,
such as pillows or rugs or clothing, during operation. The computer and the AC adapter comply with the useraccessible surface temperature limits dened by applicable safety standards.
ENWW iii
iv Safety warning notice ENWW
Table of contents
1 Product features ....................................................................................................................................................................................... 1
Standard conguration features ............................................................................................................................................ 1
Front panel components ......................................................................................................................................................... 1
Rear panel components .......................................................................................................................................................... 2
Serial number location ............................................................................................................................................................. 2
2 Illustrated parts catalog ........................................................................................................................................................................... 5
Computer major components ................................................................................................................................................ 5
Mass storage devices ............................................................................................................................................................... 8
Cables ......................................................................................................................................................................................... 9
Miscellaneous parts ................................................................................................................................................................. 9
3 Routine care, SATA drive guidelines, and disassembly preparation ............................................................................................... 11
Electrostatic discharge information .................................................................................................................................... 12
Generating static electricity ............................................................................................................................. 12
Preventing electrostatic damage to equipment ........................................................................................... 13
Personal grounding methods and equipment .............................................................................................. 13
Grounding the work area .................................................................................................................................. 13
Recommended materials and equipment ..................................................................................................... 14
Operating guidelines .............................................................................................................................................................. 14
Routine care ............................................................................................................................................................................ 16
General cleaning safety precautions .............................................................................................................. 16
Cleaning the computer case ............................................................................................................................ 16
Cleaning the keyboard ...................................................................................................................................... 16
Cleaning the monitor ........................................................................................................................................ 17
Cleaning the mouse .......................................................................................................................................... 17
Service considerations .......................................................................................................................................................... 18
Tools and software requirements .................................................................................................................. 18
Screws ................................................................................................................................................................. 18
Cables and connectors ..................................................................................................................................... 18
Hard drives ......................................................................................................................................................... 18
ENWW v
Lithium coin cell battery ................................................................................................................................... 19
SATA hard drives ..................................................................................................................................................................... 19
Cable management ............................................................................................................................................................... 20
4 Removal and replacement procedures .............................................................................................................................................. 21
Preparation for disassembly ................................................................................................................................................ 21
Access panel ........................................................................................................................................................................... 21
Optical drive ............................................................................................................................................................................ 22
Front bezel .............................................................................................................................................................................. 23
Hood sensor module ............................................................................................................................................................. 24
Memory modules (DIMMs) .................................................................................................................................................... 25
Expansion card ....................................................................................................................................................................... 28
Drive cage ................................................................................................................................................................................ 29
Hard drive ................................................................................................................................................................................ 30
Speaker .................................................................................................................................................................................... 34
WLAN module ......................................................................................................................................................................... 35
Solid-state drive ..................................................................................................................................................................... 37
Fan shroud ............................................................................................................................................................................... 38
Heat sink .................................................................................................................................................................................. 39
Processor ................................................................................................................................................................................. 40
Power supply .......................................................................................................................................................................... 42
Battery ..................................................................................................................................................................................... 43
System board .......................................................................................................................................................................... 46
System board callouts ........................................................................................................................................................... 47
5 Troubleshooting without diagnostics ................................................................................................................................................. 49
Before you call for technical support .................................................................................................................................. 49
Helpful hints ............................................................................................................................................................................ 50
Solving general problems ..................................................................................................................................................... 51
Cannot access the Computer Setup (F10) Utility when booting the computer ....................................... 51
Computer appears locked up and will not turn o when the power button is pressed ........................ 51
Computer will not respond to keyboard or mouse ...................................................................................... 51
Computer date and time display is incorrect ................................................................................................ 51
There is no sound or sound volume is too low ............................................................................................. 52
Cannot remove computer cover or access panel ......................................................................................... 52
Poor performance ............................................................................................................................................. 52
Computer powered o automatically and the power light blinks red four times and then white
two times ............................................................................................................................................................ 53
System does not turn on and the lights on the front of the computer are not blinking ....................... 53
Solving power problems ....................................................................................................................................................... 55
Power supply shuts down intermittently ...................................................................................................... 55
vi ENWW
Computer turned o automatically, power light blinks red two times followed by a two-second
pause, and the computer beeps two times (Beeps stop after fth iteration but lights continue
blinking) ............................................................................................................................................................... 55
Power light blinks red four times followed by a two-second pause and the computer beeps four
times (Beeps stop after fth iteration but lights continue blinking) ......................................................... 55
Solving hard drive problems ................................................................................................................................................ 57
Hard drive error occurs ..................................................................................................................................... 57
Disk transaction problem ................................................................................................................................. 57
Drive not found (identied) .............................................................................................................................. 57
Nonsystem disk/NTLDR missing message ................................................................................................... 57
Computer will not boot from hard drive ........................................................................................................ 58
Computer appears locked up and will not turn o when the power button is pressed ........................ 58
Solving audio problems ........................................................................................................................................................ 59
Sound cuts in and out ....................................................................................................................................... 59
Sound does not come out of the speaker or headphones ......................................................................... 59
Computer appears to be locked up while recording audio ......................................................................... 59
Line-in jack is not functioning properly .......................................................................................................... 60
Solving printer problems ...................................................................................................................................................... 61
Printer will not print .......................................................................................................................................... 61
Printer will not turn on ...................................................................................................................................... 61
Printer prints garbled information .................................................................................................................. 61
Printer will not print .......................................................................................................................................... 61
Solving keyboard and mouse problems ............................................................................................................................. 63
Keyboard commands and typing are not recognized by the computer ................................................... 63
Mouse does not respond to movement or is too slow ................................................................................ 63
Solving hardware installation problems ............................................................................................................................. 64
A new device is not recognized as part of the system ................................................................................ 64
Computer will not start ..................................................................................................................................... 64
Power light blinks red three times and then white two times ................................................................... 65
Solving network problems .................................................................................................................................................... 66
Network driver does not detect network controller .................................................................................... 66
Network status link light never blinks ............................................................................................................ 66
Diagnostics reports a failure ............................................................................................................................ 66
Diagnostics passes, but the computer does not communicate with the network ................................. 67
Network controller stopped working when an expansion board was added to the computer ............ 67
Network controller stops working without apparent cause ....................................................................... 67
Cannot connect to network server when attempting remote system installation ................................ 67
System setup utility reports unprogrammed EEPROM ............................................................................... 68
Solving memory problems ................................................................................................................................................... 69
System will not boot or does not function properly after installing additional memory modules ...... 69
Out of memory error ......................................................................................................................................... 69
ENWW vii
Memory count during POST is wrong ............................................................................................................. 69
Insucient memory error during operation. ................................................................................................. 70
Power light blinks red ve times followed by a two-second pause and the computer beeps ve
times (Beeps stop after fth iteration but lights continue blinking) ......................................................... 70
Solving USB ash drive problems ........................................................................................................................................ 71
USB ash drive is not seen as a drive letter in Windows ............................................................................ 71
USB ash drive not found (identied) ............................................................................................................ 71
System will not boot from USB ash drive .................................................................................................... 71
The computer boots to DOS after making a bootable ash drive ............................................................. 71
Solving internet access problems ....................................................................................................................................... 72
Unable to connect to the internet ................................................................................................................... 72
Cannot automatically launch internet programs ......................................................................................... 72
Solving software problems .................................................................................................................................................. 73
Computer will not start up and the HP logo does not appear .................................................................... 73
“Illegal Operation has Occurred” error message is displayed .................................................................... 73
6 Computer Setup (F10) Utility ................................................................................................................................................................ 75
Using Computer Setup (F10) Utilities .................................................................................................................................. 75
Computer Setup—Main ........................................................................................................................................................ 76
Computer Setup—Security .................................................................................................................................................. 79
Computer Setup—Advanced ............................................................................................................................................... 83
7 POST error messages ............................................................................................................................................................................ 91
POST numeric codes and text messages ........................................................................................................................... 91
Interpreting POST diagnostic front panel lights and audible codes ............................................................................... 95
8 Password security and resetting CMOS .............................................................................................................................................. 99
Changing a setup or power-on password .......................................................................................................................... 99
Deleting a setup or power-on password ......................................................................................................................... 100
9 Using HP PC Hardware Diagnostics ................................................................................................................................................... 101
Using HP PC Hardware Diagnostics Windows (select products only) ......................................................................... 102
Using an HP PC Hardware Diagnostics Windows hardware failure ID code .......................................... 102
Accessing HP PC Hardware Diagnostics Windows ..................................................................................... 103
Accessing HP PC Hardware Diagnostics Windows from HP Help and Support ................ 103
Accessing HP PC Hardware Diagnostics Windows from Support Assistant ...................... 103
Downloading HP PC Hardware Diagnostics Windows ............................................................................... 104
Downloading the latest HP PC Hardware Diagnostics Windows version from HP .......... 104
Downloading the HP PC Hardware Diagnostics Windows from the Microsoft Store ....... 104
viii ENWW
Downloading HP Hardware Diagnostics Windows by product name or number
(select products only) ................................................................................................................ 104
Installing HP PC Hardware Diagnostics Windows ...................................................................................... 104
Using HP PC Hardware Diagnostics UEFI ......................................................................................................................... 105
Using an HP PC Hardware Diagnostics UEFI hardware failure ID code ................................................... 105
Starting HP PC Hardware Diagnostics UEFI ................................................................................................ 105
Downloading HP PC Hardware Diagnostics UEFI to a USB ash drive .................................................... 106
Downloading the latest HP PC Hardware Diagnostics UEFI version ................................... 106
Downloading HP PC Hardware Diagnostics UEFI by product name or number (select
products only) ............................................................................................................................. 106
Using Remote HP PC Hardware Diagnostics UEFI settings (select products only) ................................................... 107
Downloading Remote HP PC Hardware Diagnostics UEFI ........................................................................ 108
Downloading the latest Remote HP PC Hardware Diagnostics UEFI version ................... 108
Downloading Remote HP PC Hardware Diagnostics UEFI by product name or number 108
Customizing Remote HP PC Hardware Diagnostics UEFI settings .......................................................... 108
10 Backing up, restoring, and recovering ............................................................................................................................................ 109
Backing up information and creating recovery media ................................................................................................... 110
Using Windows tools for backing up ............................................................................................................ 110
Using the HP Cloud Recovery Download Tool to create recovery media (select products only) ........ 110
Restoring and recovering your system ............................................................................................................................ 111
Creating a system restore ............................................................................................................................. 111
Restoring and recovery methods ................................................................................................................. 111
Recovering using HP Recovery media ......................................................................................................... 111
Changing the computer boot order ............................................................................................................. 112
Using HP Sure Recover (select products only) ........................................................................................... 112
11 Statement of memory volatility ...................................................................................................................................................... 113
Current BIOS steps ............................................................................................................................................................... 113
Nonvolatile memory usage ................................................................................................................................................ 115
Questions and answers ...................................................................................................................................................... 117
Using HP Sure Start (select products only) ..................................................................................................................... 119
12 Power cord set requirements .......................................................................................................................................................... 121
General requirements ......................................................................................................................................................... 121
Japanese power cord requirements ................................................................................................................................. 121
Country-specic requirements .......................................................................................................................................... 121
13 Specications ..................................................................................................................................................................................... 123
ENWW ix
Index ........................................................................................................................................................................................................... 125
x ENWW
1 Product features
This chapter provides you with an overview of your computer's features.
Standard conguration features
Features can vary, depending on the model. For support assistance and to learn more about the hardware and
software installed on your computer model, run the HP Support Assistant utility.
NOTE: You can use this computer model in a tower orientation or a desktop orientation. In a tower orientation,
you must use a stand for support.
Front panel components
To identify the front panel components, use this illustration and table. Drive conguration varies by model. Some
models have a bezel blank that covers one or more drive bays.
Table
1-1 Front panel components and their descriptions
Item Component Item Component
1 Slim optical drive (select products only) 5 USB Type-A port
ENWW Standard conguration features 1
Table 1-1 Front panel components and their descriptions (continued)
Item Component Item Component
2 Memory card reader (select models only) 6 Audio-out (headphone)/Audio-in (microphone) combo
3 USB Type-C® charging port 7 Power button
4 USB SuperSpeed ports (3) 8 Hard drive activity light
NOTE: The combo jack supports headphones, line output devices, microphones, line input devices, or CTIA style headsets.
NOTE: The light on the power button is normally white when the power is on. If the light ashes red, the computer displays a diagnostic
code to indicate a problem.
Rear panel components
To identify the rear panel components, use this illustration and table.
jack
Table 1-2 Rear panel components and their descriptions
Item Component Item Component
1 Serial port (optional) 7 DisplayPort™ monitor connectors (2)
2 Cable lock tab 8 Optional port
3 Security lock 9 USB ports (2)
4 RJ-45 (network) jack 10 USB SuperSpeed ports (3)
5 Thumbscrew 11 Power cord connector
6 Audio-out jack for powered audio devices
NOTE: Your model might have additional optional ports available from HP.
When a graphics card is installed in one of the system board slots, you can use the video connectors on the graphics card or the integrated
graphics on the system board. The specic graphics card installed and software conguration determines the behavior.
You can disable the system board graphics by changing settings in BIOS F10 Setup.
Serial number location
Each computer has a unique serial number and a product ID number that are located on the exterior of the
computer. Keep these numbers available when contacting customer service for assistance.
2 Chapter 1 Product features ENWW
ENWW Serial number location 3
4 Chapter 1 Product features ENWW
2 Illustrated parts catalog
Use this information to determine the spare parts that are available for the computer.
NOTE: HP continually improves and changes product parts. For complete and current information about
supported parts for your computer, go to http://partsurfer.hp.com, select your country or region, and then follow
the on-screen instructions.
Computer major components
To identify the computer major components, use this illustration and table.
Table 2-1 Computer major components and their descriptions
Item Description
(1) Access panel
(2) Power supply, 180 W, EPA 90% eciency
(3) Optical disc drive:
DVD BD-WRITER DRIVE (9.5 mm, UST, 6×)
DVD+/-RW SM DL DRIVE (9.5 mm, slim, tray load)
DVD-ROM DRIVE (9.5 mm, slim, tray load)
Optical disc drive, slim blank bezel (Pro, SFF)
Optical disc drive, slim bezel assembly)
ENWW 5
Table 2-1 Computer major components and their descriptions (continued)
Item Description
(4) Memory module (UDIMM, 1.2 V, DDR4-3200, NECC):
32 GB
16 GB
8 GB
4 GB
Memory module (UDIMM, 1.2 V, DDR4-2666, NECC):
32 GB
16 GB
8 GB
4 GB
(5) System board (includes replacement thermal material):
Equipped with the NetC and Windows® 10 operating systems
Equipped with the NetC operating system
Equipped with the Windows 10 operating system
Not equipped with an operating system
(6) WLAN module:
Intel Wi-Fi 6 AX201 ax 2×2 + Bluetooth® 5 non-vPro™ WW
Intel Wi-Fi 6 AX201 ax 2×2 + Bluetooth 5 vPro WW
Realtek RTL8821CE ac 1×1 + Bluetooth 4.2 WW
Realtek RTL8822CE ac 2×2 + Bluetooth 5 M.2 2230 WW
(7) Solid-state drive:
1 TB, M.2 2280, NVMe, SuperSpeed (SS) solid-state drive with triple layer cell (TLC)
512 GB, M.2 2280, PCIe, NVMe, SS solid-state drive with TLC
512 GB, M.2 2280, PCIe-3×4, self-encrypting drive (SED) solid-state drive with TLC
512 GB, M.2 2280, PCIe, NVMe, value solid-state drive
256 GB, M.2 2280, PCIe, NVMe, SS solid-state drive with TLC
256 GB, M.2 2280, PCIe-3×4, SED solid-state drive with TLC
256 GB, M.2 2280, PCIe, NVMe, value solid-state drive
128 GB, M.2 2280, PCIe, NVMe solid-state drive with TLC
16 GB, M.2 2280, PCIe-3×2, NVMe solid-state drive with TLC
256 GB, M.2 2280, PCIe + 16 GB 3D solid-state drive
512 GB, M.2 2280, PCIe, NVMe + 32 GB 3D solid-state drive
(8) System chassis (includes drive cage)
6 Chapter 2 Illustrated parts catalog ENWW
Table 2-1 Computer major components and their descriptions (continued)
Item Description
(9) Fan shroud
(10) Speaker (includes cable)
(11) PCIe expansion card:
AMD® Radeon® RX 550X 4 GB LP PCIe×16 DP+HDMI
AMD Radeon RX 550X 4 GB DisplayPort card
AMD Radeon R7 430 2 GB 2 DisplayPort 64 bit card
AMD Radeon R7 430 2 GB DisplayPort VGA 64 bit card
AMD Radeon R7 430 2 GB LP 2DP PCIe×16 64 bit GFX
AMD Radeon R7 430 2 GB LP PCIe×16 DP VGA 64 bit
(12) Heat sink
(13) Hood sensor
(14) Processor:
Intel® Core® i7-10700 2.9 GHz, 8 cores, 65 W
Intel Core i5-10600 3.3 GHz, 6 cores, 65 W
Intel Core i5-10500 3.1 GHz, 6 cores, 65 W
Intel Core i5-10400 2.9 GHz, 6 cores, 65 W
Intel Core i3-10320 3.8 GHz, 4 cores, 65 W
Intel Core i3-10300 3.7 GHz, 4 cores, 65 W
Intel Core i3-10100 3.6 GHz, 4 cores, 65 W
Intel Pentium® Gold G6600 4.2 GHz, 2 cores, 58 W
Intel Pentium Gold G6500 4.1 GHz, 2 cores, 58 W
Intel Pentium Gold G6400 4.0 GHz, 2 cores, 58 W
Intel Celeron® G5920 3.5 GHz, 2 cores, 58 W
Intel Celeron G5900 3.4 GHz, 2 cores, 58 W
(15) Hard drive:
2 TB, SATA, 7200 RPM, 3.5 in hard drive
2 TB, SATA, 5400 RPM, 7.0 mm hard drive
1 TB, SATA, 7200 RPM, 3.5 in hard drive
1 TB, SATA, 7200 RPM, 9.5 mm hard drive
500 GB, SATA, 7200 RPM, 3.5 in
500 GB, SATA, 7200 RPM, 7.0 mm
500 GB, SATA, 7200 RPM, 7.0 mm, FIPS
ENWW Computer major components 7
Table 2-1 Computer major components and their descriptions (continued)
Item Description
500 GB, 7200 RPM, 7.0 mm, SED, Opal2
(16) Front bezel
Mass storage devices
To identify the available hard drives, solid-state drives, and optical drives, use this table.
Table 2-2 Hard drives and their descriptions
Description
Hard drives:
2 TB, SATA, 7200 RPM, 3.5 in hard drive
2 TB, SATA, 5400 RPM, 7.0 mm hard drive
1 TB, SATA, 7200 RPM, 3.5 in hard drive
1 TB, SATA, 7200 RPM, 9.5 mm hard drive
500 GB, SATA, 7200 RPM, 3.5 in
500 GB, SATA, 7200 RPM, 7.0 mm
500 GB, SATA, 7200 RPM, 7.0 mm, FIPS
500 GB, 7200 RPM, 7.0 mm, SED, Opal2
Solid-state drives:
1 TB, M.2 2280, NVMe, SS solid-state drive with TLC
512 GB, M.2 2280, PCIe, NVMe, SS solid-state drive with TLC
512 GB, M.2 2280, PCIe-3×4, SED solid-state drive with TLC
512 GB, M.2 2280, PCIe, NVMe, value solid-state drive
256 GB, M.2 2280, PCIe, NVMe, SS solid-state drive with TLC
256 GB, M.2 2280, PCIe-3×4, SED solid-state drive with TLC
256 GB, M.2 2280, PCIe, NVMe, value solid-state drive
128 GB, M.2 2280, PCIe, NVMe solid-state drive with TLC
16 GB, M.2 2280, PCIe-3×2, NVMe solid-state drive with TLC
256 GB, M.2 2280, PCIe + 16 GB 3D solid-state drive
512 GB, M.2 2280, PCIe, NVMe + 32 GB 3D solid-state drive
Optical disc drives:
DVD BD-WRITER DRIVE (9.5 mm, UST, 6×)
DVD+/-RW SM DL DRIVE (9.5 mm, slim, tray load)
DVD-ROM DRIVE (9.5 mm, slim, tray load)
8 Chapter 2 Illustrated parts catalog ENWW
Cables
Table 2-2 Hard drives and their descriptions (continued)
Description
Optical disc drive, slim blank bezel (Pro, SFF)
Optical disc drive, slim bezel assembly)
To identify the computer cables, use this table.
Table 2-3 Cables and their descriptions
Description
SATA power cable
Wireless antenna cables
Adapter, DisplayPort-to-HDMI 1.4
Adapter, DisplayPort-to-VGA
Adapter, DisplayPort-to-DVI
Adapter, USB-to-serial
Cable, DisplayPort-to-HDMI
DisplayPort cable
Grommet, hard drive
Miscellaneous parts
To identify the various computer parts, use this table.
Table
2-4 Miscellaneous parts and their descriptions
Description
Light cover
Mouse
USB, laser
USB, optical
Keyboard
USB
Wireless + cable adapter + mouse
ENWW Cables 9
10 Chapter 2 Illustrated parts catalog ENWW
3 Routine care, SATA drive guidelines, and
disassembly preparation
This information provides general service information for the computer. Adherence to the procedures and
precautions is essential for proper service.
IMPORTANT: When the computer is plugged into an AC power source, voltage is always applied to the system
board. You must disconnect the power cord from the power source before opening the computer to prevent
system board or component damage.
ENWW 11
Electrostatic discharge information
A sudden discharge of static electricity from your nger or other conductor can destroy static-sensitive devices
or microcircuitry. Often the spark is neither felt nor heard, but damage occurs.
An electronic device exposed to electrostatic discharge (ESD) might not appear to be aected at all and can work
perfectly throughout a normal cycle. The device might function normally for a while, but it has been degraded in
the internal layers, reducing its life expectancy.
Networks built into many integrated circuits provide some protection, but in many cases, the discharge contains
enough power to alter device parameters or melt silicon junctions.
IMPORTANT: To prevent damage to the device when you are removing or installing internal components,
observe these precautions:
Keep components in their electrostatic-safe containers until you are ready to install them.
Before touching an electronic component, discharge static electricity by using the guidelines described in this
section.
Avoid touching pins, leads, and circuitry. Handle electronic components as little as possible.
If you remove a component, place it in an electrostatic-safe container.
Generating static electricity
This table shows how humidity aects the electrostatic voltage levels generated by dierent activities. A product
can be degraded by 700 V.
● Dierent activities generate dierent amounts of static electricity.
● Static electricity increases as humidity decreases.
Table
3-1 Static electricity occurrence based on activity and humidity
Relative humidity
Event 55% 40% 10%
Walking across carpet
Walking across vinyl oor
Motions of bench worker
Removing DIPs (dual in-line packages) from plastic tube
Removing DIPs from vinyl tray
Removing DIPs from polystyrene foam
Removing bubble pack from PCB (printed circuit board)
Packing PCBs in foam-lined box
Multiple electric components can be packaged together in plastic tubes, trays, or polystyrene foam.
7,500 V
3,000 V
400 V
400 V
2,000 V
3,500 V
7,000 V
5,000 V
15,000 V
5,000 V
800 V
700 V
4,000 V
5,000 V
20,000 V
11,000 V
35,000 V
12,000 V
6,000 V
2,000 V
11,500 V
14,500 V
26,500 V
21,000 V
12 Chapter 3 Routine care, SATA drive guidelines, and disassembly preparation ENWW
Preventing electrostatic damage to equipment
Many electronic components are sensitive to ESD. Circuitry design and structure determine the degree of
sensitivity. The following packaging and grounding precautions are necessary to prevent static electricity
damage to electronic components.
● To avoid hand contact, transport products in static-safe containers such as tubes, bags, or boxes.
● Protect all electrostatic parts and assemblies with conductive or approved containers or packaging.
● Keep electrostatic-sensitive parts in their containers until they arrive at static-free stations.
● Place items on a grounded surface before removing them from their container.
● Always be properly grounded when touching a sensitive component or assembly.
● Avoid contact with pins, leads, or circuitry.
● Place reusable electrostatic-sensitive parts from assemblies in protective packaging or conductive foam.
Personal grounding methods and equipment
Use this equipment to prevent static electricity damage to electronic components.
● Wrist straps are exible straps with a maximum of 1 MΩ ±10% resistance in the ground cords. To provide
proper ground, a strap must be worn snug against bare skin. The ground cord must be connected and t
snugly into the banana plug connector on the grounding mat or workstation.
● Heel straps/Toe straps/Boot straps can be used at standing workstations and are compatible with most
types of shoes or boots. On conductive oors or dissipative oor mats, use them on both feet with a
maximum of 1 MΩ ±10% resistance between the operator and ground.
Table
3-2 Static shielding protection levels
Static shielding protection levels
Method Voltage
Antistatic plastic
Carbon-loaded plastic
Metallized laminate
Grounding the work area
To prevent static damage at the work area, use these precautions.
● Cover the work surface with approved static-dissipative material. Provide a wrist strap connected to the
work surface and properly grounded tools and equipment.
● Use static-dissipative mats, foot straps, or air ionizers to give added protection.
● Handle electrostatic sensitive components, parts, and assemblies by the case or PCB laminate. Handle
them only at static-free work areas.
1,500
7,500
15,000
● Turn o power and input signals before inserting and removing connectors or test equipment.
● Use xtures made of static-safe materials when xtures must directly contact dissipative surfaces.
ENWW Electrostatic discharge information 13
● Keep work area free of nonconductive materials such as ordinary plastic assembly aids and polystyrene
foam.
● Use eld service tools, such as cutters, screwdrivers, and vacuums, that are conductive.
Recommended materials and equipment
HP recommends the these materials and equipment to prevent static electricity.
● Antistatic tape
● Antistatic smocks, aprons, or sleeve protectors
● Conductive bins and other assembly or soldering aids
● Conductive foam
● Conductive tabletop workstations with ground cord of 1 MΩ ±10% resistance
● Static-dissipative table or oor mats with hard tie to ground
● Field service kits
● Static awareness labels
● Wrist straps and footwear straps providing 1 MΩ ±10% resistance
● Material handling packages
● Conductive plastic bags
● Conductive plastic tubes
● Conductive tote boxes
● Opaque shielding bags
● Transparent metallized shielding bags
● Transparent shielding tubes
Operating guidelines
This information details how to prevent overheating and to help prolong the life of the computer.
● Keep the computer away from excessive moisture, direct sunlight, and extremes of heat and cold.
● Operate the computer on a sturdy, level surface. Leave a 10.2 cm (4 inch) clearance on all vented sides of
the computer and above the monitor to permit the required airow.
● Never restrict the airow into the computer by blocking any vents or air intakes. Do not place the keyboard,
with the keyboard feet down, directly against the front of the desktop unit as this also restricts airow.
● Occasionally clean the air vents on all vented sides of the computer. Lint, dust, and other foreign matter can
block the vents and limit the airow. Be sure to unplug the computer before cleaning the air vents.
● Never operate the computer with the cover or side panel removed.
14 Chapter 3 Routine care, SATA drive guidelines, and disassembly preparation ENWW
● Do not stack computers on top of each other or place computers so near each other that they are subject
to each other’s recirculated or preheated air.
● If the computer is to be operated within a separate enclosure, intake and exhaust ventilation must be
provided on the enclosure, and the same operating guidelines listed previously still apply.
● Keep liquids away from the computer and keyboard.
● Never cover the ventilation slots on the monitor with any type of material.
● Install or enable power management functions of the operating system or other software, including Sleep
states.
ENWW Operating guidelines 15
Routine care
Use this information to properly care for your computer.
General cleaning safety precautions
Use this information to safely clean your computer.
1. Never use solvents or ammable solutions to clean the computer.
2. Never immerse any parts in water or cleaning solutions; apply any liquids to a clean cloth and then use the
cloth on the component.
3. Always unplug the computer when cleaning with liquids or damp cloths.
4. Always unplug the computer before cleaning the keyboard, mouse, or air vents.
5. Disconnect the keyboard before cleaning it.
6. Wear safety glasses equipped with side shields when cleaning the keyboard.
Cleaning the computer case
Follow all safety precautions before cleaning the computer case.
To clean the computer case, follow these procedures:
● To remove light stains or dirt, use plain water with a clean, lint-free cloth or swab.
● For stronger stains, use a mild dishwashing liquid diluted with water. Rinse well by wiping it with a cloth or
swab dampened with clear water.
● For stubborn stains, use isopropyl (rubbing) alcohol. No rinsing is needed because the alcohol evaporates
quickly and does not leave a residue.
● After cleaning, always wipe the unit with a clean, lint-free cloth.
● Occasionally clean the air vents on the computer. Lint and other foreign matter can block the vents and
limit the airow.
Cleaning the keyboard
Use this information to properly clean the keyboard. Follow all safety precautions before cleaning the keyboard.
To clean the tops of the keys or the keyboard body, follow the procedures described in Cleaning the computer
case on page 16.
When cleaning debris from under the keys, review all rules in General cleaning safety precautions on page 16
before following these procedures.
CAUTION: Use safety glasses equipped with side shields before attempting to clean debris from under the
keys.
● You can remove visible debris underneath or between the keys by vacuuming or shaking.
● You can use canned, pressurized air to clean debris from under the keys. Use caution because too much air
pressure can dislodge lubricants applied under the wide keys.
16 Chapter 3 Routine care, SATA drive guidelines, and disassembly preparation ENWW
● If you remove a key, use a specially designed key puller to prevent damage to the keys. This tool is
available through many electronic supply outlets.
IMPORTANT: Never remove a wide leveled key (like the space bar) from the keyboard. If these keys are
improperly removed or installed, the keyboard might not function properly.
● You can clean under a key with a swab moistened with isopropyl alcohol and squeezed out. Be careful not
to wipe away lubricants necessary for proper key functions. Use tweezers to remove any bers or dirt in
conned areas. Allow the parts to air dry before reassembly.
Cleaning the monitor
Use this information to properly clean the monitor.
● Wipe the monitor screen with a clean cloth moistened with water or with a towelette designed for cleaning
monitors. Do not use sprays or aerosols directly on the screen; the liquid can seep into the housing and
damage a component. Never use solvents or ammable liquids on the monitor.
● To clean the monitor body, follow the procedures in Cleaning the computer case on page 16.
Cleaning the mouse
Use this information to properly clean the mouse.
Before cleaning the mouse, be sure that the power to the computer is turned o.
● Clean the mouse ball by rst removing the retaining plate and the ball from the housing. Pull out any debris
from the ball socket and wipe the ball with a clean, dry cloth before reassembly.
● To clean the mouse body, follow the procedures in Cleaning the computer case on page 16.
ENWW Routine care 17
Service considerations
Keep these considerations in mind during the disassembly and assembly of the computer.
Tools and software requirements
Servicing the computer requires these tools.
● Torx T-15 screwdriver
● Flat-bladed screwdriver (can sometimes be used in place of the Torx screwdriver)
● Phillips P1 screwdriver
● Nonconductive, nonmarking pry tool
● Diagnostics software
Screws
The screws used in the computer are not interchangeable. They could have standard or metric threads and
might be of dierent lengths.
If you use an incorrect screw during the reassembly process, it can damage the unit. HP strongly recommends
that you keep all screws that you remove during disassembly with the removed part and then return them to
their proper locations.
IMPORTANT: As you remove each subassembly from the computer, place it away from the work area to
prevent damage.
Cables and connectors
Use this information properly handle cables.
Apply only the tension required to seat or unseat the cables during insertion or removal from the connector.
Handle cables by the connector whenever possible. In all cases, avoid bending or twisting the cables, and route
the cables so that they cannot be caught or snagged by parts being removed or replaced.
IMPORTANT: When servicing this computer, be sure to place cables in their proper location during the
reassembly process. Improper cable placement can damage the computer.
Hard drives
Handle hard drives as delicate, precision components, avoiding all physical shock and vibration. This advice
applies to failed drives as well as replacement spares.
● If a drive must be mailed, place the drive in a bubble-pack mailer or other suitable protective packaging and
label the package “Fragile: Handle With Care.”
● Do not remove hard drives from the shipping package for storage. Keep hard drives in their protective
packaging until they are actually mounted in the computer.
● Avoid dropping drives from any height onto any surface.
● If you are inserting or removing a hard drive, turn o the computer. Do not remove a hard drive while the
computer is on or in standby mode.
18 Chapter 3 Routine care, SATA drive guidelines, and disassembly preparation ENWW
● Before handling a drive, ensure that you are discharged of static electricity. While handling a drive, avoid
touching the connector.
● Do not use excessive force when inserting a drive.
● Avoid exposing a hard drive to liquids, temperature extremes, or products that have magnetic elds such
as monitors or speakers.
Lithium coin cell battery
The battery that comes with the computer provides power to the real-time clock and has a minimum lifetime of
approximately three years.
See the appropriate removal and replacement chapter for the chassis that you are working on for instructions on
the replacement procedures.
WARNING! This computer contains a lithium battery. There is a risk of re and chemical burn if the battery is
handled improperly. Do not disassemble, crush, puncture, short external contacts, dispose of in water or re, or
expose it to temperatures higher than 140°F (60°C). Do not attempt to recharge the battery.
NOTE: Do not dispose of batteries, battery packs, and accumulators with general household waste. To forward
them to recycling centers or proper disposal, use the public collection system or return them to HP, their
authorized partners, or their agents.
SATA hard drives
The Self Monitoring Analysis and Recording Technology (SMART) ATA drives for the HP Personal Computers have
built-in drive failure prediction that warns the user or network administrator of an impending failure or crash of
the hard drive.
The SMART drive tracks fault prediction and failure indication parameters such as reallocated sector count, spin
retry count, and calibration retry count. If the drive determines that a failure is imminent, it generates a fault
alert.
Table
3-3 SATA hard drive characteristics
Serial ATA hard drive characteristics
Number of pins/conductors in data cable 7/7
Number of pins in power cable 15
Maximum data cable length 100 cm (39.37 in)
Data interface voltage dierential 400 mV–700 mV
Drive voltages 3.3 V, 5 V, 12 V
Jumpers for conguring drive N/A
Data transfer rate 6.0 Gbps
Always use an HP-approved SATA 6.0 Gbps cable because it is fully backwards compatible with the SATA 1.5
Gbps drives. Current HP desktop products ship with SATA 6.0 Gbps hard drives.
SATA data cables are susceptible to damage if overexed. Never crease a SATA data cable and never bend it
tighter than a 30 mm (1.18 in) radius.
ENWW SATA hard drives 19
The SATA data cable is a thin, seven-pin cable designed to transmit data for only a single drive.
Cable management
Always follow good cable management practices when working inside the computer.
● Keep cables away from major heat sources like the heat sink.
● Keep cables clear of sliding or moveable parts to prevent them from being cut or crimped when the parts
are moved.
● When folding a at ribbon cable, never fold to a sharp crease. Sharp creases can damage the wires.
● Do not bend any cable sharply. A sharp bend can break the internal wires.
● Never bend a SATA data cable tighter than a 30 mm (1.18 in) radius.
● Never crease a SATA data cable.
20 Chapter 3 Routine care, SATA drive guidelines, and disassembly preparation ENWW
4 Removal and replacement procedures
Adherence to these procedures and precautions is essential for proper service. After completing all necessary
removal and replacement procedures, run the Diagnostics utility to verify that all components operate properly.
NOTE: Not all features listed in this guide are available on all computers.
NOTE: HP continually improves and changes product parts. For complete and current information about
supported parts for your computer, go to http://partsurfer.hp.com, select your country or region, and then follow
the on-screen instructions.
Preparation for disassembly
Use this information to properly prepare to disassemble and reassemble the computer.
See Routine care on page 16 for initial safety procedures.
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the computer
on, and then shut it down through the operating system.
IMPORTANT: Turn o the computer before disconnecting any cables.
Regardless of the power state, voltage is always present on the system board as long as the system is
plugged into an active AC outlet. In some systems, the cooling fan is on even when the computer is in the
Standby or Suspend modes. Always disconnect the power cord before servicing a unit.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer
4. If the computer is on a stand, remove the computer from the stand.
CAUTION: Beware of sharp edges inside the chassis.
NOTE: During disassembly, label each cable as you remove it, and note its position and routing. Keep all screws
with the removed components.
Access panel
To remove the access panel, use these procedures.
Before removing the access panel, follow these steps:
▲ Prepare the computer for disassembly (Preparation for disassembly on page 21).
ENWW 21
Remove the access panel:
▲ Loosen the thumbscrew on the rear of the computer (1), slide the panel forward (2), and lift if o the
computer (3).
To install the access panel, reverse the removal procedure.
Optical drive
To remove the optical drive, use these procedures.
Before removing the optical drive, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 21).
2. Remove the access panel (Access panel on page 21).
Remove the optical drive:
1. Disconnect the power cable (1) and data cable (2) from the rear of the optical drive.
22 Chapter 4 Removal and replacement procedures ENWW
2. Push the green release latch (3) on the right rear side of the drive toward the center of the drive, and then
slide the drive forward and out of the bay (4).
3. If you are installing an optical drive in a bay covered by a bezel blank, remove the front bezel (Front bezel
on page 23).
4. Install the release latch onto the drive. Align the small pin on the release latch with the small hole on the
side of the drive, and press the latch rmly onto the drive.
5. Connect the power cable and data cable to the rear of the drive, and then connect the opposite end of the
data cable to one of the SATA connectors on the system board labeled SATA1 or SATA2.
Front bezel
To remove the front bezel, use these procedures.
Before removing the front bezel, follow these steps:
ENWW Front bezel 23
1. Prepare the computer for disassembly (Preparation for disassembly on page 21).
2. Remove the access panel (Access panel on page 21).
Remove the front bezel:
1. Disengage the three tabs (1) on the top of the front bezel from the system chassis.
2. Swing the top edge of the front bezel (2) away from the system chassis.
3. Remove the bezel from the access panel.
To install the front bezel, reverse the removal procedure.
Hood sensor module
To remove the hood sensor module, use these procedures. The hood sensor module is located on the rear panel
of the computer chassis.
Before removing the hood sensor module, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 21).
2. Remove the access panel (Access panel on page 21).
Remove the hood sensor module:
1. Disconnect the hood sensor module cable (1) from the system board.
24 Chapter 4 Removal and replacement procedures ENWW
2. Lift to remove the hood sensor module (2) from the system chassis.
To install the hood sensor module, reverse the removal procedures.
Memory modules (DIMMs)
To remove the memory modules, use this information and procedures.
Table
4-1 Memory module descriptions
Description
Memory module (UDIMM, 1.2 V, DDR4-3200, NECC):
32 GB
16 GB
8 GB
4 GB
Memory module (UDIMM, 1.2 V, DDR4-2666, NECC):
32 GB
16 GB
8 GB
4 GB
The memory sockets on the system board are populated with at least one preinstalled memory module. To
achieve the maximum memory support, you can populate the system board with up to 128 GB of memory
congured in a high-performing dual-channel mode.
For proper system operation, the DIMMs must adhere to the following specications:
● Industry-standard 288-pin
● Unbuered non-ECC PC4-19200 DDR4-2400/2666 MHz-compliant
ENWW Memory modules (DIMMs) 25
● 1.2 V DDR4-SDRAM memory modules
● CAS latency 17 DDR4 2400/2666 MHz (17-17-17 timing)
● Mandatory JEDEC SPD information
The computer supports the following setups:
● 512 Mbit, 1 Gbit, 2 Gbit, and 4 Gbit non-ECC memory technologies
● Single-sided and double-sided memory modules
● Memory modules constructed with ×8 and ×16 DDR devices; memory modules constructed with ×4 SDRAM
are not supported
NOTE: The system does not operate properly if you install unsupported memory modules.
There are four memory sockets on the system board, with two sockets per channel. The sockets are labeled
DIMM1, DIMM2, DIMM3, and DIMM4. Sockets DIMM1 and DIMM2 operate in memory channel B. Sockets DIMM3
and DIMM4 operate in memory channel A.
The system automatically operates in single-channel mode, dual-channel mode, or ex mode, depending on
how the DIMMs are installed.
NOTE: Single-channel and unbalanced dual-channel memory congurations results in inferior graphics
performance.
● The system operates in single-channel mode if the DIMM sockets are populated in one channel only.
● The system will operate in a higher-performing dual-channel mode if the total memory capacity of the
DIMMs in channel A is equal to the total memory capacity of the DIMMs in channel B. The technology and
device width can vary between the channels. For example, if channel A is populated with two 1 GB DIMMs
and channel B is populated with one 2 GB DIMM, the system will operate in dual-channel mode.
● The system operates in ex mode if the total memory capacity of the DIMMs in channel A is not equal to
the total memory capacity of the DIMMs in channel B. In ex mode, the channel populated with the least
amount of memory describes the total amount of memory assigned to dual channel and the remainder is
assigned to single channel. For optimal speed, the channels should be balanced so that the largest amount
of memory is spread between the two channels. If one channel will have more memory than the other, the
larger amount should be assigned to channel A. For example, if you are populating the sockets with one 2
GB DIMM, and three 1 GB DIMMs, channel A should be populated with the 2 GB DIMM and one 1 GB DIMM,
and channel B should be populated with the other two 1 GB DIMMs. With this conguration, 4 GB runs as
dual channel and 1 GB will run as single channel.
● In any mode, the maximum operational speed is determined by the slowest DIMM in the system.
26 Chapter 4 Removal and replacement procedures ENWW
IMPORTANT: You must disconnect the power cord and wait approximately 30 seconds for the power to drain
before adding or removing memory modules. Regardless of the power state, voltage is always supplied to the
memory modules as long as the computer is plugged into an active AC outlet. Adding or removing memory
modules while voltage is present can cause irreparable damage to the memory modules or system board.
The memory module sockets have gold-plated metal contacts. When upgrading the memory, it is important to
use memory modules with gold-plated metal contacts to prevent corrosion, oxidation, or both resulting from
having incompatible metals in contact with each other.
Static electricity can damage the electronic components of the computer or optional cards. Before beginning
these procedures, be sure that you are discharged of static electricity by briey touching a grounded metal
object. For more information, see
When handling a memory module, be careful not to touch any of the contacts. Doing so can damage the module.
Before replacing the memory modules, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 21).
2. Remove the access panel (Access panel on page 21).
Replace a memory module:
1. To remove a memory module, open both latches of the memory module socket (1), and then remove the
memory module from the socket (2).
Electrostatic discharge information on page 12.
ENWW Memory modules (DIMMs) 27
2. To install a memory module, open both latches of the memory module socket (1), and insert the memory
module into the socket (2). Press the module down into the socket so that the module is fully inserted and
properly seated. Be sure that the latches are in the closed position (3).
NOTE: A memory module can be installed in only one way. Match the notch on the module with the tab
on the memory socket.
Populate the black DIMM sockets before the white DIMM sockets.
For maximum performance, populate the sockets so that the memory capacity is spread as equally as
possible between channel A and channel B.
The computer automatically recognizes the additional memory when you turn on the computer.
Expansion card
The computer has one PCI Express ×1 expansion socket, two PCI Express ×16 expansion sockets, and one PCI
Express ×8 expansion socket.
NOTE: You can install a PCI Express ×1, ×8, or ×16 expansion card in the PCI Express ×16 socket.
For dual graphics card congurations, the rst (primary) card must be installed in the PCI Express ×16 socket.
Before replacing the expansion modules, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 21).
2. Remove the access panel (Access panel on page 21).
To replace or add an expansion card:
28 Chapter 4 Removal and replacement procedures ENWW
1. Release the slot cover retention latch (1) that secures the slot covers by lifting the tab on the latch and
rotating the latch to the open position.
2. If you are removing a PCI Express ×16 card, pull the retention arm (2) on the back of the expansion socket
away from the card.
3. Carefully rock the card back and forth until the connectors pull free from the socket. Lift the card straight
up (3) and then away from the inside of the chassis to remove it. Be sure not to scrape the card against
other components.
4. Locate the correct vacant expansion socket on the system board and the corresponding expansion slot on
5. Before installing an expansion card, remove the expansion slot cover or the existing expansion card.
6. Store the removed card in antistatic packaging.
7. If you are not installing a new expansion card, install an expansion slot cover to close the open slot.
8. After installing an expansion card, connect external cables to the installed card and internal cables to the
9. Reassemble and recongure the computer, if necessary.
Drive cage
To remove the drive cage, use these procedures. The drive cage is located next to the heat sink. The drive cage is
secured with three slotted Torx screws.
Before removing the drive cage, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 21).
the back of the system chassis.
IMPORTANT: After removing an expansion card, you must replace it with a new card or expansion slot
cover for proper cooling of internal components during operation.
system board, if needed.
2. Remove the access panel (Access panel on page 21).
Remove the drive cage:
ENWW Drive cage 29
1. Press the drive cage release button (1) to allow the drive cage to be released.
2. Swing the drive cage (2) up and toward the front of the system chassis.
To reset the drive cage, reverse the removal procedure.
Hard drive
To remove the hard drive, use these procedures.
Table
4-2 Hard drives descriptions
Description
2 TB, SATA, 7200 RPM, 3.5 in hard drive
2 TB, SATA, 5400 RPM, 7.0 mm hard drive
1 TB, SATA, 7200 RPM, 3.5 in hard drive
1 TB, SATA, 7200 RPM, 9.5 mm hard drive
500 GB, SATA, 7200 RPM, 3.5 in
500 GB, SATA, 7200 RPM, 7.0 mm
500 GB, SATA, 7200 RPM, 7.0 mm, FIPS
500 GB, 7200 RPM, 7.0 mm, SED, Opal2
NOTE: Before you remove the old hard drive, be sure to back up the data from the old hard drive so that you
can transfer the data to the new hard drive.
Before removing the hard drive, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 21).
2. Remove the access panel (Access panel on page 21).
3. Remove the optical drive (Optical drive on page 22).
30 Chapter 4 Removal and replacement procedures ENWW
4. Remove the front bezel (Front bezel on page 23).
5. Release the drive cage (Drive cage on page 29).
Remove the hard drive:
1. Release the hard drive power and data cables from the retention clips (1) and (2) built into the drive cage.
2. Disconnect the hard drive power cable (3) and data cable (4) from the system board.
3. Pull the release lever outward (1).
4. While pulling the release lever outward, slide the drive to the left (2) until it stops, and then remove the
hard drive from the drive cage.
ENWW Hard drive 31
5. Disconnect the hard drive power cable (1) and data cable (2) from the hard drive.
6. To install a new hard drive, you must transfer the silver and blue isolation mounting guide screws from the
old hard drive to the new hard drive.
32 Chapter 4 Removal and replacement procedures ENWW
7. You can also install a 2.5 inch hard drive into a 3.5 inch drive bay using an adapter bracket similar to the
following example. Slide the 2.5 inch drive into the 3.5 inch adapter bracket.
8. Secure the drive to the bay adapter bracket by installing four black M3 adapter bracket screws through the
underside of the bracket and into the drive.
ENWW Hard drive 33

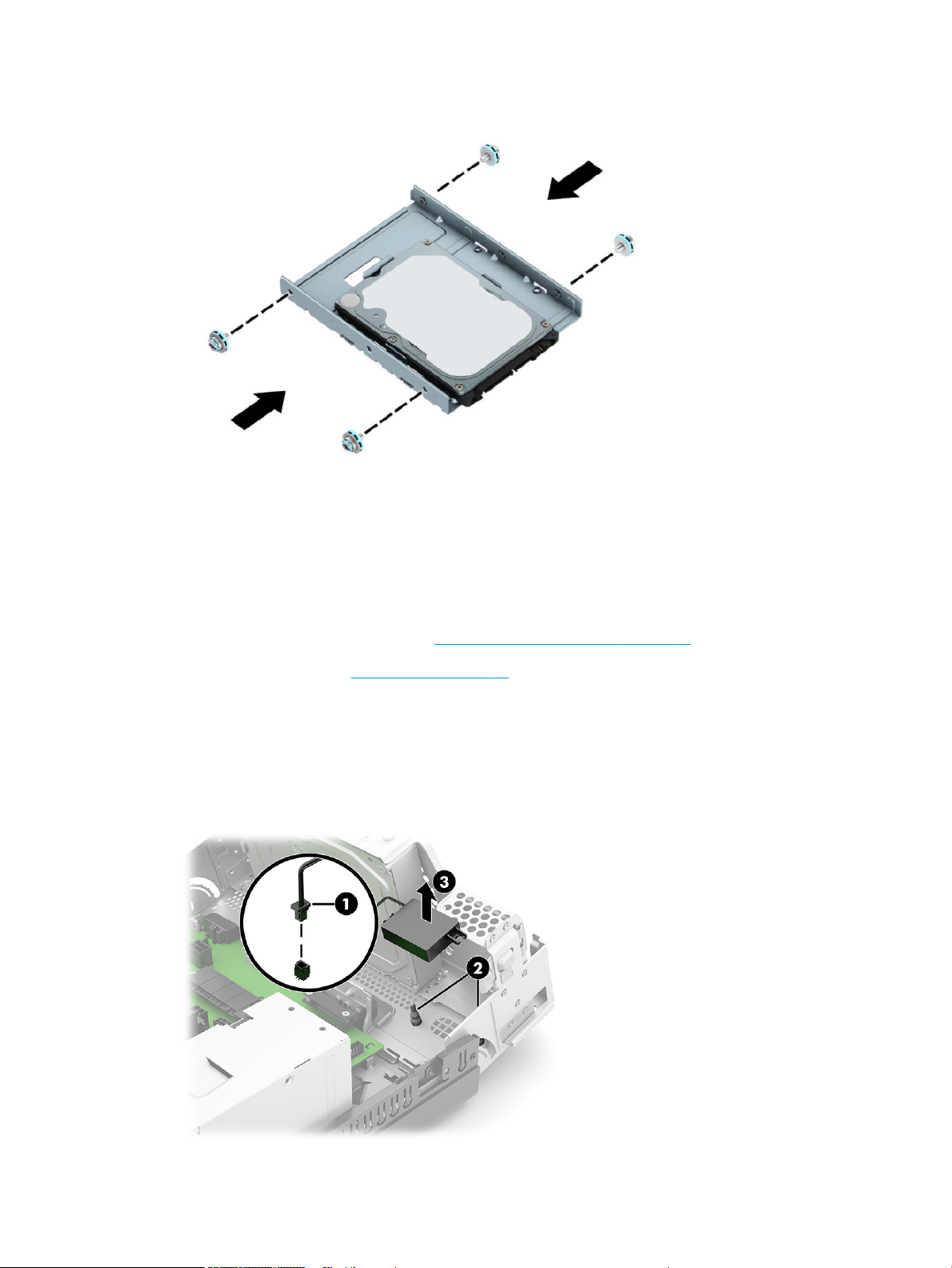

9. Install four 6-32 silver-and-blue mounting screws in the adapter bracket (two on each side of the bracket).
Speaker
To remove the speaker, use these procedures. A single speaker is located on the left side of the computer behind
the front bezel, inside the chassis. It is secured by a white peg that you pull out to release.
Before removing the speaker, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 21).
2. Remove the access panel (Access panel on page 21).
Remove the speaker:
1. Disconnect the speaker cable from the system board (1).
2. Release the speaker from the rubber retention clips (2) built into the system chassis.
3. Remove the speaker (3).
34 Chapter 4 Removal and replacement procedures ENWW
To install the speaker, reverse the removal procedures.
WLAN module
To remove the WLAN module, use these procedures.
Table 4-3 WLAN module descriptions
Description
WLAN modules:
Intel Wi-Fi 6 AX201 ax 2×2 + Bluetooth 5 non-vPro WW
Intel Wi-Fi 6 AX201 ax 2×2 + Bluetooth 5 vPro WW
Realtek RTL8821CE ac 1×1 + Bluetooth 4.2 WW
Realtek RTL8822CE ac 2×2 + Bluetooth 5 M.2 2230 WW
The WLAN module is located near the memory modules.
NOTE: WLAN module appearance can vary.
Before removing the WLAN module, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 21).
2. Remove the access panel (Access panel on page 21).
3. Remove the optical drive (Optical drive on page 22).
4. Remove the front bezel (Front bezel on page 23).
5. Release the drive cage (Drive cage on page 29).
Remove the WLAN module:
1. Disconnect the antenna cables from the module (1).
NOTE: The WLAN antenna cable labeled 1/MAIN connects to the WLAN module Main terminal. The WLAN
antenna cable labeled 2/AUX connects to the WLAN module Aux terminal.
2. Remove the screw (2) that secures the module to the computer.
ENWW WLAN module 35
3. Pull the module to remove it from the socket (3).
4. If the WLAN antenna is not connected to the terminal on the WLAN module, a protective sleeve must be
installed on the antenna connector, as shown in the following illustration.
To install the WLAN module, reverse the removal procedure.
NOTE: WLAN modules are designed with a notch to prevent incorrect insertion.
36 Chapter 4 Removal and replacement procedures ENWW
Solid-state drive
To remove the solid-state drive, use these procedures.
Table 4-4 Solid-state drive descriptions
Description
Solid-state drives:
1 TB, M.2 2280, NVMe, SS solid-state drive with TLC
512 GB, M.2 2280, PCIe, NVMe, SS solid-state drive with TLC
512 GB, M.2 2280, PCIe-3×4, SED solid-state drive with TLC
512 GB, M.2 2280, PCIe, NVMe, value solid-state drive
256 GB, M.2 2280, PCIe, NVMe, SS solid-state drive with TLC
256 GB, M.2 2280, PCIe-3×4, SED solid-state drive with TLC
256 GB, M.2 2280, PCIe, NVMe, value solid-state drive
128 GB, M.2 2280, PCIe, NVMe solid-state drive with TLC
16 GB, M.2 2280, PCIe-3×2, NVMe solid-state drive with TLC
256 GB, M.2 2280, PCIe + 16 GB 3D solid-state drive
512 GB, M.2 2280, PCIe, NVMe + 32 GB 3D solid-state drive
Before removing the solid-state drive, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 21).
2. Remove the access panel (Access panel on page 21).
3. Remove the optical drive (Optical drive on page 22).
4. Remove the front bezel (Front bezel on page 23).
5. Release the drive cage (Drive cage on page 29).
Remove the solid-state drive:
1. Remove the screw that secures the drive (1).
ENWW Solid-state drive 37
2. Pull the drive out of the system board connector (2).
To install the solid-state drive, reverse the removal procedure.
NOTE: Solid-state drives are designed with a notch to prevent incorrect insertion.
Fan shroud
To remove the fan shroud, use these procedures.
Before removing the fan shroud, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 21).
2. Remove the access panel (Access panel on page 21).
Remove the fan shroud:
1. Release the fan shroud by pressing out on the two release tabs (1).
38 Chapter 4 Removal and replacement procedures ENWW
2. Remove the fan shroud (2).
To install the fan shroud, reverse the removal procedures.
Heat sink
To remove the heat sink, use these procedures.
IMPORTANT: The bond between the heat sink and the processor can be very tight.
If the computer will turn on, before removing the heat sink, turn on the computer until it warms the heat sink.
Warming the heat sink loosens the bond between the heat sink and the processor, thereby making it easier to
separate them.
Make sure not to pull the processor out of the socket when you lift the heat sink, especially if you cannot warm
the heat sink before removal. Inadvertently removing the processor can damage the pins.
Before removing the heat sink, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 21).
2. Remove the access panel (Access panel on page 21).
3. Remove the fan shroud (Fan shroud on page 38).
Remove the heat sink:
1. Disconnect the fan cable (1) from the system board.
ENWW Heat sink 39
2. In the order indicated on the heat sink, loosen the four captive Torx screws (2), and then lift the heat sink
out of the computer (3).
IMPORTANT: Be sure to loosen the screws in the order indicated by the numbers stamped on the heat
sink.
IMPORTANT: For optimum thermal performance, be sure not to touch the thermal grease on the surface
of the processor or the heat sink.
IMPORTANT: Tighten heat sink retaining screws in diagonally opposite pairs (as in an X) to evenly seat the heat
sink on the processor to avoid damage that could require replacing the system board.
To replace the heat sink, reverse the removal procedures.
Processor
To remove the processor, use these procedures.
Table
Description
Processors:
Intel Core i7-10700 2.9 GHz, 8 cores, 65 W
Intel Core i5-10600 3.3 GHz, 6 cores, 65 W
Intel Core i5-10500 3.1 GHz, 6 cores, 65 W
Intel Core i5-10400 2.9 GHz, 6 cores, 65 W
Intel Core i3-10320 3.8 GHz, 4 cores, 65 W
Intel Core i3-10300 3.7 GHz, 4 cores, 65 W
Intel Core i3-10100 3.6 GHz, 4 cores, 65 W
4-5 Processor descriptions
Intel Pentium Gold G6600 4.2 GHz, 2 cores, 58 W
Intel Pentium Gold G6500 4.1 GHz, 2 cores, 58 W
40 Chapter 4 Removal and replacement procedures ENWW
Table 4-5 Processor descriptions (continued)
Description
Intel Pentium Gold G6400 4.0 GHz, 2 cores, 58 W
Intel Celeron G5920 3.5 GHz, 2 cores, 58 W
Intel Celeron G5900 3.4 GHz, 2 cores, 58 W
Before removing the processor, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 21).
2. Remove the access panel (Access panel on page 21).
3. Remove the fan shroud (Fan shroud on page 38).
4. Remove the heat sink (Heat sink on page 39).
Remove the processor:
1. Slide the locking lever (1) to the right until it is free to swing back, and then swing the locking lever (2) to its
fully open position.
2. Remove the Torx screw (3) that secures the microprocessor retainer in place.
3. Raise and rotate the microprocessor retainer (4) to its fully open position.
ENWW Processor 41
4. 4. Carefully lift the processor (5) from the socket.
IMPORTANT: Do not handle the pins in the processor socket. These pins are fragile, and handling them
could cause irreparable damage. If pins are damaged, you might have to replace the system board.
The heat sink must be installed within 24 hours of installing the processor to prevent damage to the
processor’s solder connections.
To replace the processor, reverse the removal procedures.
NOTE: After installing a new processor onto the system board, always update the system ROM to ensure that
the latest version of the BIOS is being used on the computer. You can nd the latest system BIOS on the web at:
http://h18000.www1.hp.com/support/les. [web at: http://h18000.www1.hp.com/support/les.
Power supply
To remove the power supply, use these procedures.
Before removing the power supply, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 21).
2. Remove the access panel (Access panel on page 21).
3. Remove the optical drive (Optical drive on page 22).
4. Remove the front bezel (Front bezel on page 23).
5. Remove the drive cage (Drive cage on page 29).
Remove the power supply:

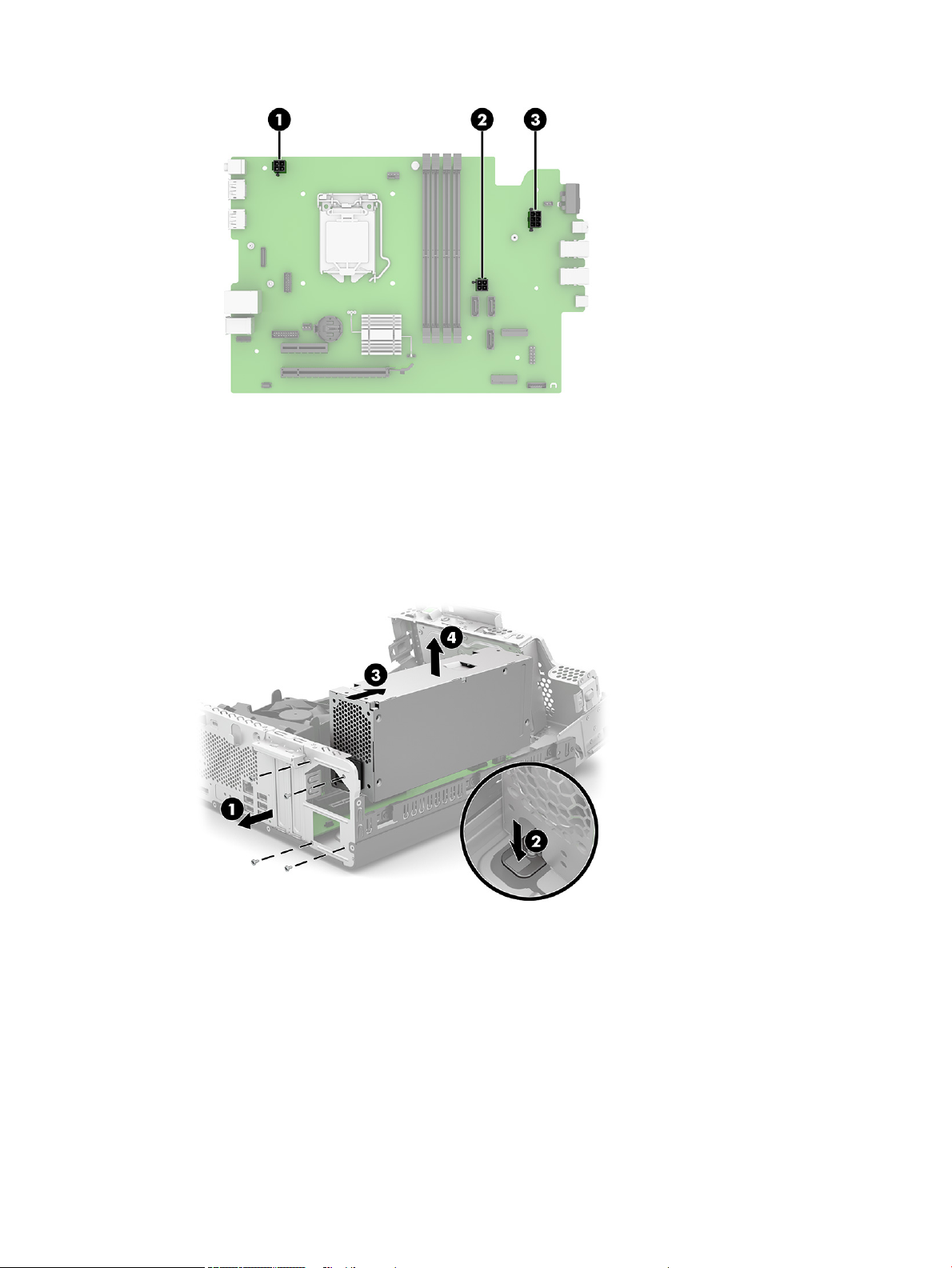

1. Disconnect the power supply P1 (1), P2 (2), and P3 cables (3) from the system board.
42 Chapter 4 Removal and replacement procedures ENWW
2. From the computer rear panel, remove the four screws (1) that secure the power supply to the system
chassis.
3. From the front of the computer, press and hold the power supply release tab (2).
4. While holding the power supply release tab, slide the power supply (3) toward the front of the computer
until it disengages from the system chassis.
5. Remove the power supply (4).
To install the power supply, reverse the removal procedures.
Battery
To remove the battery, use these procedures. The battery that comes with the computer provides power to the
real-time clock. When replacing the battery, use a battery equivalent to the battery originally installed in the
computer. The computer comes with a 3 V lithium coin cell battery.
ENWW Battery 43
WARNING! The computer contains an internal lithium manganese dioxide battery. There is a risk of re and
burns if the battery is not handled properly. To reduce the risk of personal injury:
Do not attempt to recharge the battery.
Do not expose to temperatures higher than 60°C (149°F).
Do not disassemble, crush, puncture, short external contacts, or dispose of in re or water.
Replace the battery only with the HP spare part that is designated for this product.
IMPORTANT: Before replacing the battery, back up the computer CMOS settings. When the battery is removed
or replaced, the CMOS settings are cleared.
Static electricity can damage the electronic components of the computer or optional equipment. Before
beginning these procedures, be sure that you are discharged of static electricity by briey touching a grounded
metal object.
NOTE: You can extend the lifetime of the lithium battery by plugging the computer into an AC outlet. The
lithium battery is used only when the computer is not connected to AC power.
HP encourages customers to recycle used electronic hardware, HP original print cartridges, and rechargeable
batteries. For more information about recycling programs, go to http://www.hp.com/recycle.
Before removing the battery, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 21).
2. Remove the access panel (Access panel on page 21).
Remove the battery:
1. Locate the battery and battery holder on the system board.
2. Depending on the type of battery holder on the system board, complete the following instructions to
replace the battery.
44 Chapter 4 Removal and replacement procedures ENWW
3. Type 1: Lift the battery out of its holder.
4. Slide the replacement battery into position, positive side up. The battery holder automatically secures the
battery in the proper position.
5. Type 2: To release the battery from its holder, squeeze the metal clamp that extends above one edge of
the battery (1). When the battery pops up, lift it out (2).
6. To insert the new battery, slide one edge of the replacement battery under the holder’s lip with the positive
side up (1). Push the other edge down until the clamp snaps over the other edge of the battery (2).
ENWW Battery 45
7. Type 3: Pull back the clip (1) that is holding the battery in place, and remove the battery (2).
8. Insert the new battery and position the clip back into place.
System board
To remove the system board, use these procedures.
NOTE: All system board spare part kits include replacement thermal material.
NOTE: System board appearance can vary.
Before removing the system board, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 21).
2. Remove the access panel (Access panel on page 21).
3. Remove the optical drive (Optical drive on page 22).
4. Remove the front bezel (Front bezel on page 23).
5. Release the drive cage (Drive cage on page 29).
6. Remove the fan shroud (Fan shroud on page 38).
7. Remove the heat sink (Heat sink on page 39).
Remove the system board:
1. Remove the six Torx screws that secure the system board to the system chassis.
46 Chapter 4 Removal and replacement procedures ENWW
2. Lift the rear edge of the system board (1) and swing it up and forward until it rests at an angle and clears
the system chassis rear panel.
3. Slide the system board (2) up and back at an angle and remove it from the system chassis.
To install the system board, reverse the removal procedures.
NOTE: When replacing the system board, you must change the chassis serial number in the BIOS.
When replacing the system board, you must reprogram the SMBIOS information about the aected computer.
Failure to reprogram the board will result in eventual failure, such as an activation failure (need to reactivate the
system) or a system recovery failure.
Update SMBIOS information in Computer Setup.
System board callouts
Use this illustration and table to determine system board callout locations.
ENWW System board callouts 47
Table 4-6 System board callouts
Item Color Component Itewm Color Component
(1) White Power supply P3 (5) Blue Drive data connectors (3)
(2) White Heat sink fan (6) White Power supply P2
(3) White Power supply P1 (7) White Hard drive power
connector
(4) Black Hard drive power
Table 4-7 System board callouts
Item Color Component Itewm Color Component
(1) Processor (4) PCIe card slot
(2) Memory slots (5) PCIe ×16 card slot
(3) Battery socket
48 Chapter 4 Removal and replacement procedures ENWW
5 Troubleshooting without diagnostics
Use these sections to identify and correct minor problems.
CAUTION: Misuse of the computer or failure to establish a safe and comfortable work environment may result
in discomfort or serious injury. See the Safety & Comfort Guide at http://www.hp.com/ergo for more information
about choosing a workspace and creating a safe and comfortable work environment. For more information, see
the Safety & Regulatory Information guide.
Before you call for technical support
If you are having problems with the computer, try these solutions to isolate the exact problem before calling for
technical support.
● Run the HP diagnostic tool.
● Run the hard drive self-test in Computer Setup.
● Check the power light on the front of the computer to see if it is blinking red. The blinking lights are error
codes that will help you diagnose the problem.
● If you are working on a network, plug another computer with a dierent cable into the network connection.
There might be a problem with the network plug or cable.
● If you recently added new hardware, remove the hardware and see if the computer functions properly.
● If you recently installed new software, uninstall the software and see if the computer functions properly.
● Boot the computer to the Safe Mode to see if it will boot without all of the drivers loaded. When booting the
operating system, use “Last Known Conguration.”
● See the comprehensive online technical support at http://www.hp.com/support.
To assist you in resolving problems online, HP Instant Support Professional Edition provides you with self-solve
diagnostics. If you need to contact HP support, use HP Instant Support Professional Edition's online chat feature.
Access HP Instant Support Professional Edition at: http://www.hp.com/go/ispe.
Access the Business Support Center (BSC) at http://www.hp.com/go/bizsupport for the latest online support
information, software and drivers, proactive notication, and worldwide community of peers and HP experts.
If it becomes necessary to call for technical assistance, be prepared to do the following tasks to ensure that your
service call is handled properly:
● Be in front of your computer when you call.
● Before you call, write down the computer serial number and product ID number.
ENWW 49
● Spend time troubleshooting the problem with the service technician.
● Remove any hardware that was recently added to your system.
● Remove any software that was recently installed.
Restore the system from the Recovery Disc Set that you created or restore the system to its original
●
factory condition in System Software Requirement Disks (SSRD).
IMPORTANT: Restoring the system will erase all data on the hard drive. Be sure to back up all data les before
running the restore process.
NOTE: For sales information and warranty upgrades (Care Packs), call your local authorized service provider or
dealer.
Helpful hints
If you encounter problems with the computer or software, see this list of general suggestions before taking
further action.
● Check that the computer is plugged into a working electrical outlet.
● Check that the computer is turned on and the white power light is on.
● Check the power light on the front of the computer to see if it is blinking red. The blinking lights are error
codes that help you diagnose the problem.
● Press and hold any key if the system beeps. Then the keyboard should be operating correctly.
● Check all cable connections for loose connections or incorrect connections.
● Wake the computer by pressing any key on the keyboard or pressing the power button. If the system
remains in suspend mode, shut down the computer by pressing and holding the power button for at least
four seconds, and then press the power button again to restart the computer. If the system will not shut
down, unplug the power cord, wait a few seconds, and then plug it in again. The computer will restart if it is
set to turn on automatically as soon as power is restored in Computer Setup. If it does not restart, press
the power button to start the computer.
● Be sure that all the needed device drivers have been installed. For example, if you are using a printer, you
need a driver for that model printer.
● Remove all bootable media (such as a USB device) from the system before turning it on.
● If you have installed an operating system other than the factory-installed operating system, check to be
sure that it is supported on the system.
NOTICE: When the computer is plugged into an AC power source, there is always voltage applied to the system
board. You must disconnect the power cord from the power source before opening the computer to prevent
system board or component damage.
50 Chapter 5 Troubleshooting without diagnostics ENWW
Solving general problems
You might be able to easily resolve the general problems described in this section. If a problem persists and you
cannot resolve it yourself or if you feel uncomfortable about performing the operation, contact an authorized
dealer or reseller.
CAUTION: When the computer is plugged into an AC power source, voltage is always applied to the system
board. To reduce the risk of personal injury from electrical shock, hot surfaces, or both, be sure to disconnect the
power cord from the AC outlet and allow the internal system components to cool before touching.
Cannot access the Computer Setup (F10) Utility when booting the computer
Use this information to troubleshoot the computer.
Cause Solution
The Computer Setup (F10) Utility is set to Fast Boot causing the F10
access screen to display too briey when booting the computer.
Before turning on the computer, press and hold f10. Turn on the
computer and continue to hold F10 until the Computer Setup (F10)
Utility is displayed. - or – Follow the Windows® instructions for
rebooting the computer into the Computer Setup (F10) Utility.
Computer appears locked up and will not turn o when the power button is pressed
Use this information to troubleshoot the computer.
Cause Solution
Software control of the power switch is not functional. 1. Press and hold the power button for at least 4 s until the
computer turns o.
2. Disconnect the power cord from the electrical outlet.
Computer will not respond to keyboard or mouse
Use this information to troubleshoot the computer.
Cause Solution
Computer is in Sleep state. To resume from Sleep state, press the power button. When
attempting to resume from Sleep state, do not hold down the
power button for more than 4 s. Otherwise, the computer shuts
down and you lose any unsaved data.
System has locked up. Restart computer.
USB cables may not be seated properly. Disconnect, and then reconnect USB cables to keyboard and mouse.
Computer date and time display is incorrect
Use this information to troubleshoot the computer.
ENWW Solving general problems 51
Cause Solution
RTC (real-time clock) battery may need to be replaced. Reset the date and time under Control Panel. (Computer Setup can
There is no sound or sound volume is too low
Use this information to troubleshoot the computer.
Cause Solution
System volume might be set low or muted. 1. Check the front panel to see if an amber light indicates the
also be used to update the RTC date and time.) If the problem
persists, replace the RTC battery. See the Removal and
Replacement section for instructions on installing a new battery, or
contact an authorized dealer or reseller for RTC battery
replacement. To access Control Panel in Windows 10, type
control panel in the taskbar search box, and then select
Control Panel.
system has been muted. Tap the touch-sensitive button to
toggle the mute on and o.
2. Check the Computer Setup settings to be sure that the
internal system speaker is not muted. This setting does not
aect the external speakers.
3. Be sure that the external speakers are properly connected
and powered on and that the speakers' volume control is set
correctly.
Cannot remove computer cover or access panel
Use this information to troubleshoot the computer.
Cause Solution
Smart Cover Lock, featured on some computers, is locked. Unlock the Smart Cover Lock using Computer Setup. In case of
Poor performance
Use this information to troubleshoot the computer.
4. Use the system volume control available in the operating
system to be sure that the speakers are not muted or to
increase the volume.
forgotten password, power loss, or computer malfunction, you
must manually disable the Smart Cover lock. A key to unlock the
Smart Cover Lock is not available from HP. Keys are typically
available from a hardware store.
52 Chapter 5 Troubleshooting without diagnostics ENWW
Cause Solution
Processor is too hot. 1. Be sure that airow to the computer is not blocked. Leave a
10.2 cm (4 inch) clearance on all vented sides of the computer
to permit the required airow.
2. Be sure that fans are connected and working properly (some
fans only operate when needed).
3. Be sure that the processor heat sink is installed properly.
Hard drive is full. Transfer data from the hard drive to create more space on the hard
drive.
Low on memory. Add more memory.
Hard drive fragmented. Defragment hard drive.
Program previously accessed did not release reserved memory
back to the system.
Virus resident on the hard drive. Run virus protection program.
Too many applications running. 1. Close unnecessary applications to free memory.
Some software applications, especially games, are stressful on the
graphics subsystem.
Cause unknown. Restart the computer.
Restart the computer.
2. Add more memory.
3. Some applications run in the background and can be closed by
right-clicking their corresponding icons in the task tray.
1. Lower the display resolution for the current application or
consult the documentation that came with the application for
suggestions on how to improve performance by adjusting
parameters in the application.
2. Add more memory.
3. Upgrade the graphics solution.
Computer powered o automatically and the power light blinks red four times and then
white two times
Use this information to troubleshoot the computer.
Cause Solution
Processor thermal protection activated. A fan might be blocked or
not turning, or the heat sink is not properly attached to the
processor.
1. Be sure that the computer air vents are not blocked and the
processor cooling fan is running.
2. Open the access panel, press the power button, and see if the
processor fan (or other system fan) spins. If the fan does not
spin, be sure that the fan cable is plugged onto the system
board header.
3. If fan a plugged in and not spinning, replace it.
System does not turn on and the lights on the front of the computer are not blinking
Use this information to troubleshoot the computer.
ENWW Solving general problems 53
Cause Solution
System unable to power on. Press and hold the power button for less than 4 s. If the hard drive
light turns white, then:
1. If the computer has a voltage selector, check that the voltage
selector (located on the rear of the power supply) is set to the
appropriate voltage. Proper voltage setting depends on your
region.
2. Remove the expansion cards one at a time until the 5V_aux
light on the system board turns on.
3. Replace the system board.
OR
Press and hold the power button for less than 4 s. If the hard drive
light does not turn white, then:
1. Check whether the unit is plugged into a working AC outlet.
2. Open the access panel and check that the power button cable
is properly connected to the system board.
3. Check that the power supply cables are properly connected to
the system board.
4. Check to see if the 5V_aux light on the system board is turned
on. If it is turned on, then replace the power button assembly.
5. If the 5V_aux light on the system board is o, then replace the
power supply.
6. Replace the system board.
54 Chapter 5 Troubleshooting without diagnostics ENWW
Solving power problems
These tables provide common causes and solutions for power problems.
Power supply shuts down intermittently
Use this information to troubleshoot the computer.
Cause Solution
If the computer has a voltage selector, voltage selector switch on
rear of computer chassis (some models) not switched to correct line
voltage (115 V or 230 V).
Power supply will not turn on because of internal power supply
fault.
Select the proper AC voltage using the selector switch.
Replace the power supply.
Computer turned o automatically, power light blinks red two times followed by a twosecond pause, and the computer beeps two times (Beeps stop after fth iteration but
lights continue blinking)
Use this information to troubleshoot the computer.
Cause Solution
Processor thermal protection activated. A fan might be blocked or
not turning, or the heat sink is not properly attached to the
processor.
1. Be sure that the computer air vents are not blocked and the
processor cooling fan is running.
2. Open the access panel, press the power button, and see if the
processor fan (or other system fan) spins. If the fan does not
spin, be sure that the fan cable is plugged onto the system
board header.
3. If the fan is plugged in and not spinning, replace it.
Power light blinks red four times followed by a two-second pause and the computer
beeps four times (Beeps stop after fth iteration but lights continue blinking)
Use this information to troubleshoot the computer.
Cause Solution
Power failure (power supply is overloaded). 1. If the computer has a voltage selector, check that the voltage
selector, located on the rear of the power supply (some
ENWW Solving power problems 55
Cause Solution
models), is set to the appropriate voltage. Proper voltage
setting depends on your region.
2. Open the access panel, and be sure that the power supply
cable is seated into the connector on the system board.
3. Check whether a device is causing the problem by removing
all attached devices (such as hard drives or optical drives and
expansion cards). Turn on the system. If the system enters
POST, then power o and replace one device at a time and
repeat this procedure until failure occurs. Replace the device
that is causing the failure. Continue adding devices one at a
time to ensure all devices are functioning properly.
4. Replace the power supply.
5. Replace the system board.
56 Chapter 5 Troubleshooting without diagnostics ENWW
Solving hard drive problems
These tables provide common causes and solutions for hard drive problems.
Hard drive error occurs
Use this information to troubleshoot the computer.
Cause Solution
Hard disk has bad sectors or has failed. 1. In Windows 10, type file in the taskbar search box, and
Disk transaction problem
Use this information to troubleshoot the computer.
Cause Solution
then select File Explorer from the list of applications. In the
left column, expand This PC, right-click a drive, select
Properties, and then select the Tools tab. Under Error
checking, click Check.
2. Use a utility to locate and block usage of bad sectors. If
necessary, reformat the hard disk.
Either the directory structure is bad or there is a problem with a le. In Windows 10, type file in the taskbar search box, and then
Drive not found (identied)
Use this information to troubleshoot the computer.
Cause Solution
Cable could be loose. Check cable connections.
The system might not have automatically recognized a newly
installed device.
The device is attached to a SATA port that has been hidden in
Computer Setup.
Drive responds slowly immediately after startup. Run Computer Setup and increase the POST Delay in Advanced >
select File Explorer from the list of applications. In the left column,
expand This PC, right-click a drive, select Properties, and then select
the Tools tab. Under Error checking, click Check.
See reconguration directions in the Solving hard drive problems
on page 57 section. If the system still does not recognize the new
device, check to see if the device is listed in Computer Setup. If it is
listed, the probable cause is a driver problem. If it is not listed, the
probable cause is a hardware problem. If this is a newly installed
drive, run the Computer Setup utility, and add a POST delay under
Advanced > Boot Options.
Run the Computer Setup utility and be sure that Device Available is
selected for the device's SATA port in Advanced > Port Options.
Boot Options.
Nonsystem disk/NTLDR missing message
Use this information to troubleshoot the computer.
ENWW Solving hard drive problems 57
Cause Solution
The system is trying to start from the hard drive, but the hard drive
might have been damaged.
System les missing or not properly installed. 1. Insert bootable media and restart the computer.
Hard drive boot has been disabled in Computer Setup. Run the Computer Setup utility, and enable the hard drive entry in
Bootable hard drive is not attached as rst in a multiple hard drive
conguration.
Bootable hard drive is not listed rst in the Boot Order. Run the Computer Setup utility, and select Advanced > Boot
Computer will not boot from hard drive
Use this information to troubleshoot the computer.
Cause Solution
▲ Perform Drive Protection System (DPS) testing in system
ROM.
2. Boot to the windows installation media, and select the
recovery option. If only a restore kit is available, then select
the File Backup Program option, and then restore the system.
3. Install system les for the appropriate operating system.
the Advanced > Boot Options list.
If attempting to boot from a hard drive, be sure that it is attached to
the system board dark blue SATA connector.
Options, and be sure that the bootable hard drive is listed
immediately under the Hard Drive entry.
The device is attached to a SATA port that has been hidden in
Computer Setup.
Boot order is not correct. Run the Computer Setup utility, and change boot sequence in
Hard drive is damaged. Observe whether the front panel power light is blinking red and
1. Check SATA cable connections.
2. Run the Computer Setup utility, and be sure that Device
Available is selected for the device's SATA port in Advanced >
Port Options.
Advanced > Boot Options.
whether any beeps are heard. See the Worldwide Limited Warranty
for terms and conditions.
Computer appears locked up and will not turn o when the power button is pressed
Use this information to troubleshoot the computer.
Cause Solution
Software control of the power switch is not functional. 1. Press and hold the power button for at least 4 s until the
computer turns o.
2. Disconnect the power cord from the electrical outlet.
58 Chapter 5 Troubleshooting without diagnostics ENWW
Solving audio problems
If the computer has audio features and you encounter audio problems, see the common causes and solutions
listed in these tables.
Sound cuts in and out
Use this information to troubleshoot the computer.
Cause Solution
Processor resources are being used by other open applications. Shut down all open processor-intensive applications.
Sound does not come out of the speaker or headphones
Use this information to troubleshoot the computer.
Cause Solution
Software volume control is turned down or muted. Double-click the Speaker icon on the taskbar, be sure that Mute is
not selected, and use the volume slider to adjust the volume. You
can perform this action with the touch-sensitive buttons on the
front of the computer.
Audio is hidden in Computer Setup. Enable the audio in Computer Setup: Advanced > Built-in Device
Options.
The external speakers are not turned on. Turn on the external speakers.
Headphones or devices connected to the line-out connector mute
the internal speaker.
Computer is in the Sleep state. Press the power button to resume from the Sleep state. When
Internal speaker is disabled in Computer Setup. Enable the internal speaker in Computer Setup. Select Advanced >
Some applications can select which audio output device is used. Be sure that the application has selected the correct audio device.
The operating system controls might be set to use a dierent audio
device as the default output device than what is expected.
Turn on and use headphones or external speakers, if connected, or
disconnect headphones or external speakers.
attempting to resume from the Sleep state, do not hold down the
power button for more than 4 seconds. Otherwise, the computer
will shut down, and you will lose any unsaved data.
Built-in Device Options.
Set the operating system to use the correct audio device.
Computer appears to be locked up while recording audio
Use this information to troubleshoot the computer.
Cause
The hard disk might be full. Before recording, be sure that there is enough free space on the
Solution
hard disk. You can also try recording the audio le in a compressed
format.
ENWW Solving audio problems 59
Line-in jack is not functioning properly
Use this information to troubleshoot the computer.
Cause Solution
Jack has been recongured in the audio driver or application
software.
In the audio driver or application software, recongure the jack or
set the jack to its default value.
60 Chapter 5 Troubleshooting without diagnostics ENWW
Solving printer problems
If you encounter printer problems, see the documentation that came with the printer and the common causes
and solutions listed in these tables.
Printer will not print
Use this information to troubleshoot the computer.
Cause Solution
Printer is not turned on and online. Turn the printer on and be sure that it is online.
The correct printer drivers for the application are not installed. 1. Install the correct printer driver for the application.
2. Try printing using the MS-DOS command:
DIR C:\ > [printer port] where [printer port] is
the address of the printer being used. If the printer works, reload
the printer driver. To run MS-DOS commands, press the Windows
key + r, type cmd in the Open box, and then select OK.
If you are on a network, you might not have made the connection
to the printer.
Printer might have failed. Run printer self-test.
Printer will not turn on
Use this information to troubleshoot the computer.
Cause Solution
The cables might not be connected properly. Reconnect all cables, and check the power cord and electrical
Printer prints garbled information
Use this information to troubleshoot the computer.
Cause Solution
The correct printer driver for the application is not installed. Install the correct printer driver for the application.
The cables might not be connected properly. Reconnect all cables.
Make the proper network connections to the printer.
outlet.
Printer memory might be overloaded. Reset the printer by turning it o for 1 min, and then turn it back on.
Printer will not print
Use this information to troubleshoot the computer.
ENWW Solving printer problems 61
Cause Solution
Printer is not turned on and online. Turn the printer on and be sure that it is online.
The correct printer drivers for the application are not installed. 1. Install the correct printer driver for the application.
2. Try printing using the MS-DOS command:
DIR C:\ > [printer port] where [printer port] is
the address of the printer being used. If the printer works, reload
the printer driver. To run MS-DOS commands, press the Windows
key + r, type cmd in the Open box, and then select OK.
If you are on a network, you might not have made the connection
to the printer.
Printer might have failed. Run printer self-test.
Make the proper network connections to the printer.
62 Chapter 5 Troubleshooting without diagnostics ENWW
Solving keyboard and mouse problems
If you encounter keyboard or mouse problems, see the documentation that came with the equipment and the
common causes and solutions listed in these tables.
Keyboard commands and typing are not recognized by the computer
Use this information to troubleshoot the computer.
Cause Solution
Keyboard connector is not properly connected. Shut down the computer, reconnect the keyboard, and then restart
the computer.
Program in use has stopped responding to commands. Shut down your computer using the mouse, and then restart the
computer.
Keyboard needs repairs. See the Worldwide Limited Warranty for terms and conditions.
Computer is in the Sleep state. Press the power button to resume from the Sleep state. When
attempting to resume from the Sleep date, do not hold down the
power button for more than 4 seconds. Otherwise, the computer
will shut down, and you will lose any unsaved data.
Mouse does not respond to movement or is too slow
Use this information to troubleshoot the computer.
Cause Solution
Mouse connector is not properly plugged into the back of the
computer.
Program in use has stopped responding to commands. Shut down the computer using the keyboard, and then restart the
Mouse might need repair. See the Worldwide Limited Warranty for terms and conditions.
Computer is in the Sleep state. Press the power button to resume from the Sleep state. When
If using a wireless mouse, you might need to resynchronize the
mouse with the computer.
Shut down the computer using the keyboard.
1. Press the ctrl and esc keys at the same time (or press the
Windows logo key) to display the Start menu.
2. Use the arrow keys to scroll to and select the power icon at
the top right on the menu, and then press enter.
3. Use the arrow keys to select Shut Down, and then press enter.
4. After the shutdown is complete, plug the mouse connector
into the back of the computer (or the keyboard) and restart.
computer.
attempting to resume from the Sleep state, do not hold down the
power button for more than 4 seconds. Otherwise, the computer
will shut down, and you will lose any unsaved data.
Follow the instructions that came with the mouse.
ENWW Solving keyboard and mouse problems 63
Solving hardware installation problems
You might need to recongure the computer when you add or remove hardware, such as an additional drive or
expansion card.
If you install a plug and play device, Windows automatically recognizes the device and congures the computer. If
you install a non-plug and play device, you must recongure the computer after completing installation of the
new hardware. In Windows, use the Add Hardware Wizard, and follow the instructions that appear on the screen.
To open the Add Hardware Wizard, open a command prompt and type .
WARNING! When the computer is plugged into an AC power source, voltage is always applied to the system
board. To reduce the risk of personal injury from electrical shock, hot surfaces, or both, be sure to disconnect the
power cord from the AC outlet and allow the internal system components to cool before touching.
A new device is not recognized as part of the system
Use this information to troubleshoot the computer.
Cause Solution
Cables of new external device are loose or power cables are
unplugged.
Power switch of new external device is not turned on. Turn o the computer, turn on the external device, and then turn on
When the system advised you of changes to the conguration, you
did not accept them.
A plug and play board might not automatically congure when
added if the default conguration conicts with other devices.
USB ports on the computer are disabled in Computer Setup. Run the Computer Setup utility and ensure that Device available is
Computer will not start
Use this information to troubleshoot the computer.
Cause Solution
Wrong memory modules were used in the upgrade, or memory
modules were installed in the wrong location.
Be sure that all cables are properly and securely connected and that
pins in the cable or connector are not bent down.
the computer to integrate the device with the computer system.
Reboot the computer and follow the instructions for accepting the
changes.
Use Windows Device Manager to clear the automatic settings for
the board, and choose a basic conguration that does not cause a
resource conict. You can also use Computer Setup to recongure
or disable devices to resolve the resource conict. To access Device
Manager in Windows 10, type device manager in the taskbar
search box, and then select Device Manager from the list of
applications.
selected for appropriate USB ports under Advanced > Port Options.
1. Review the documentation that came with the system to
determine if you are using the correct memory modules and
to verify the proper installation.
NOTE: DIMM1 or XMM1 must always be installed. DIMM1
must be installed before DIMM3.
2. Observe the beeps and lights on the front of the computer.
Beeps and blinking lights are codes for specic problems.
3. If you still cannot resolve the issue, contact Customer
Support.
64 Chapter 5 Troubleshooting without diagnostics ENWW
Power light blinks red three times and then white two times
Use this information to troubleshoot the computer.
Cause Solution
Memory is installed incorrectly or is bad. To avoid damage to the DIMMs or the system board, you must
unplug the computer power cord before attempting to reseat,
install, or remove a DIMM module.
1. Reseat DIMMs. Turn on the system.
2. Replace DIMMs one at a time to isolate the faulty module.
NOTE: DIMM1 or XMM1 must always be installed. DIMM1
must be installed before DIMM3.
3. Replace third-party memory with HP memory.
4. Replace the system board.
ENWW Solving hardware installation problems 65
Solving network problems
Some common causes and solutions for network problems are listed in these tables. The guidelines do not
discuss the process of debugging the network cabling.
Network driver does not detect network controller
Use this information to troubleshoot the computer.
Cause Solution
Network controller is disabled. 1. Run Computer Setup and enable network controller.
Incorrect network driver. Check the network controller documentation for the correct driver
Network status link light never blinks
2. Enable the network controller in the operating system using
Device Manager.
To access Device Manager in Windows 10, type device
manager in the taskbar search box, and then select Device
Manager from the list of applications.
or obtain the latest driver from the manufacturer’s website.
Use this information to troubleshoot the computer.
NOTE: The network status light is supposed to blink when there is network activity.
Cause Solution
No active network is detected. Check cabling and network equipment for proper connection.
Network controller is not set up properly. Check for the device status within Windows, such as Device
Manager for driver load and the Network Connections applet within
Windows for link status. To access Device Manager in Windows 10,
type device manager in the taskbar search box, and then
select Device Manager from the list of applications.
Network controller is disabled. 1. Run Computer Setup and enable network controller.
2. Enable the network controller in the operating system using
Device Manager.
To access Device Manager in Windows 10, type device
manager in the taskbar search box, and then select Device
Manager from the list of applications.
Network driver is not properly loaded. Reinstall network drivers.
System cannot autosense the network. Disable autosensing capabilities, and force the system into the
correct operating mode.
Diagnostics reports a failure
Use this information to troubleshoot the computer.
66 Chapter 5 Troubleshooting without diagnostics ENWW
Cause Solution
The cable is not securely connected. Be sure that the cable is securely attached to the network
connector and that the other end of the cable is securely attached
to the correct device.
The cable is attached to the incorrect connector. Be sure that the cable is attached to the correct connector.
There is a problem with the cable or a device at the other end of the
cable.
The network controller is defective. Contact an authorized service provider.
Be sure that the cable and device at the other end are operating
correctly.
Diagnostics passes, but the computer does not communicate with the network
Use this information to troubleshoot the computer.
Cause Solution
Network drivers are not loaded, or driver parameters do not match
current conguration.
The network controller is not congured for this computer. Select the Network and Sharing Center icon in the Control Panel,
Be sure that the network drivers are loaded and that the driver
parameters match the conguration of the network controller. Be
sure that the correct network client and protocol is installed.
and congure the network controller. To access Control Panel in
Windows 10, type control panel in the taskbar search box,
and then select Control Panel from the list of applications.
Network controller stopped working when an expansion board was added to the computer
Use this information to troubleshoot the computer.
Cause Solution
The network controller requires drivers. Verify that the drivers were not accidentally deleted when the
drivers for a new expansion board were installed.
Network controller stops working without apparent cause
Use this information to troubleshoot the computer.
Cause Solution
The cable is not securely connected. Be sure that the cable is securely attached to the network
connector, and that the other end of the cable is securely attached
to the correct device.
The network controller is defective. Contact an authorized service provider.
Cannot connect to network server when attempting remote system installation
Use this information to troubleshoot the computer.
ENWW Solving network problems 67
Cause Solution
The network controller is not congured properly. Verify network connectivity, that a DHCP Server is present, and that
the Remote System Installation Server contains the network
interface card (NIC) drivers for your NIC.
System setup utility reports unprogrammed EEPROM
Use this information to troubleshoot the computer.
Cause Solution
Unprogrammed EEPROM. Contact an authorized service provider.
68 Chapter 5 Troubleshooting without diagnostics ENWW
Solving memory problems
If you encounter memory problems, some common causes and solutions are listed in these tables.
IMPORTANT: Power can still be supplied to the DIMMs when the computer is turned o (depending on the
Management Engine (ME) settings). To avoid damage to the DIMMs or the system board, you must unplug the
computer power cord before attempting to reseat, install, or remove a memory module.
For those systems that support ECC memory, HP does not support mixing ECC and non-ECC memory. Otherwise,
the computer will not boot the operating system.
NOTE: The memory count will be aected by congurations with the Management Engine (ME) enabled. The
ME uses 8 MB of system memory in single-channel mode or 16 MB of memory in dual-channel mode to
download, decompress, and execute the ME rmware for Out-of-Band (OOB), third-party data storage, and other
management functions.
System will not boot or does not function properly after installing additional memory modules
Use this information to troubleshoot the computer.
Cause Solution
A memory module is not installed in the DIMM1 or XMM1 socket. Verify that a memory module is installed in the DIMM1 or XMM1
socket on the system board. This socket must be populated with a
memory module.
Memory module is not the correct type or speed grade for the
system, or the new memory module is not seated properly.
Out of memory error
Use this information to troubleshoot the computer.
Cause Solution
You have run out of memory to run the application. Check the application documentation to determine the memory
Memory count during POST is wrong
Use this information to troubleshoot the computer.
Cause
The memory modules might not be installed correctly. Check that the memory modules have been installed correctly and
Integrated graphics might use system memory. No action required.
Replace module with the correct industry-standard device for the
computer. On some models, ECC and non-ECC memory modules
cannot be mixed.
requirements.
Solution
that proper modules are used.
ENWW Solving memory problems 69
Insucient memory error during operation.
Use this information to troubleshoot the computer.
Cause Solution
Too many Terminate and Stay Resident programs (TSRs) are
installed.
You have run out of memory for the application. Check the memory requirements for the application or add more
Delete any TSRs that you do not need.
memory to the computer.
Power light blinks red ve times followed by a two-second pause and the computer
beeps ve times (Beeps stop after fth iteration but lights continue blinking)
Use this information to troubleshoot the computer.
Cause Solution
Memory is installed incorrectly or is bad. 1. Reseat DIMMs. Turn on the system.
2. Replace DIMMs one at a time to isolate the faulty module.
3. Replace third-party memory with HP memory.
4. Replace the system board.
70 Chapter 5 Troubleshooting without diagnostics ENWW
Solving USB ash drive problems
If you encounter USB ash drive problems, common causes and solutions are listed in these tables.
USB ash drive is not seen as a drive letter in Windows
Use this information to troubleshoot the computer.
Cause Solution
The drive letter after the last physical drive is not available. Change the default drive letter for the ash drive in Windows.
USB ash drive not found (identied)
Use this information to troubleshoot the computer.
Cause Solution
The device is attached to a USB port that has been hidden in
Computer Setup.
The device was not properly seated before startup. Be sure that the device is fully inserted into the USB port before
Run the Computer Setup utility and enable USB ports in Advanced >
Port Options.
applying power to the system
System will not boot from USB ash drive
Use this information to troubleshoot the computer.
Cause Solution
Boot order is not correct. Run the Computer Setup utility, and change boot sequence in
Advanced > Boot Options.
Removable Media Boot is disabled in the Computer Setup utility. Run the Computer Setup utility, and enable booting to removable
media in Advanced > Boot Options. Be sure that USB is enabled in
Storage > Boot Order.
The computer boots to DOS after making a bootable ash drive
Use this information to troubleshoot the computer.
Cause Solution
Flash drive is bootable. Install the ash drive only after the operating system boots.
Flash drive is defective. Try a dierent ash drive.
ENWW Solving USB ash drive problems 71
Solving internet access problems
If you encounter internet access problems, consult your internet service provider (ISP), or see the common
causes and solutions listed in these tables.
Unable to connect to the internet
Use this information to troubleshoot the computer.
Cause Solution
Internet Service Provider (ISP) account is not set up properly. Verify Internet settings, or contact your ISP for assistance.
Web browser is not set up properly. Verify that the web browser is installed, and set up to work with
Cable/DSL modem is not plugged in. Plug in cable/DSL modem. You should see a power light on the
your ISP.
front of the cable/DSL modem.
Cable/DSL service is not available or has been interrupted due to
bad weather.
The CAT5 UTP cable is disconnected. Connect the CAT5 UTP cable between the cable modem and the
IP address is not congured properly. Contact your ISP for the correct IP address.
Cookies are corrupted. (A “cookie” is a small piece of information
that a web server can store temporarily with the web browser. This
is useful for having the browser remember some specic
information that the Web server can later retrieve.)
Cannot automatically launch internet programs
Use this information to troubleshoot the computer.
Cause Solution
You must log on to your ISP before some programs will start. Log on to your ISP and launch the program.
Try connecting to the internet at a later time or contact your ISP. (If
the cable/DSL service is connected, the cable light on the front of
the cable/DSL modem will be on.)
computer’s RJ-45 connector. (If the connection is good, the PC light
on the front of the cable/DSL modem will be on.)
1. Type control panel in the taskbar search box, and then
select Control Panel from the list of applications.
2. Click Internet Options.
3. In the Browsing history section, click the Delete button.
4. Select the Cookies and website data check box, and click the
Delete button.
72 Chapter 5 Troubleshooting without diagnostics ENWW
Solving software problems
Most software problems occur as a result of these situations.
● The application was not installed or congured correctly.
● There is insucient memory available to run the application.
● There is a conict between applications.
● All the necessary device drivers might not have been installed.
● If you have installed an operating system other than the factory-installed operating system, it might not be
supported on the system.
If you encounter software problems, see the applicable solutions listed in the following table.
Computer will not start up and the HP logo does not appear
Use this information to troubleshoot the computer.
Cause Solution
ROM issue - POST error has occurred. Observe the beeps and lights on the front of the computer. See the
Worldwide Limited Warranty for terms and conditions.
“Illegal Operation has Occurred” error message is displayed
Use this information to troubleshoot the computer.
Cause Solution
Software being used is not Microsoft-certied for your version of
Windows.
Conguration les are corrupt. If possible, save all data, close all programs, and restart the
Verify that the software is certied by Microsoft for your version of
Windows (see program packaging for this information).
computer.
ENWW Solving software problems 73
74 Chapter 5 Troubleshooting without diagnostics ENWW
6 Computer Setup (F10) Utility
This information provides details of the Computer Setup Utility.
● Change settings from the defaults or restore the settings to default values.
● View the system conguration, including settings for processor, graphics, memory, audio, storage,
communications, and input devices.
● Modify the boot order of bootable devices such as hard drives or USB ash media devices.
● Enter the Asset Tag or property identication number assigned by the company to this computer.
● Enable the power-on password prompt during system restarts (warm boots) as well as during startup.
● Establish an administrator password that controls access to the Computer Setup (F10) Utility and the
settings described in this section.
● Establish minimum requirements for valid passwords, including length and required types of characters.
● Secure integrated I/O functionality, including the serial, USB, or audio, or embedded NIC, so that they
cannot be used until they are unsecured.
● Enable or disable dierent types of boot sources.
● Congure features such as Secure Boot, power management, virtualization support, and language and
keyboard type used in Setup and POST.
● Replicate the system setup by saving system conguration information about a USB device and restoring it
on one or more computers.
● Enable or disable DriveLock security or securely erase a hard drive (when supported by drive).
Using Computer Setup (F10) Utilities
You can access Computer Setup only by turning the computer on or restarting the system.
To access the Computer Setup Utilities menu, complete these steps:
ENWW 75
1. Turn on or restart the computer.
2. Repeatedly press f10 when the power button light turns white to access the utility.
You can also press esc to see a menu that allows you to access dierent options available at startup,
including the Computer Setup utility.
A choice of four headings appears in the Computer Setup Utilities menu: Main, Security, Advanced, and UEFI
Drivers.
NOTE: If you do not press f10 at the appropriate time, you must restart the computer and again
repeatedly press f10 when the power button light turns white to access the utility.
NOTE: Selecting UEFI Drivers restarts the computer into the third-party option ROM management
application. You can access this application directly by pressing f3 during startup.
3. Use the arrow (left and right) keys to select the appropriate heading. Use the arrow (up and down) keys to
select the option you want, and then press enter. To return to the Computer Setup Utilities menu, press
esc.
4. To apply and save changes, select Main > Save Changes and Exit.
● If you have made changes that you do not want applied, select Ignore Changes and Exit.
● To restore settings from the Advanced and Main menus to original values, select Apply Factory
Defaults and Exit.
● To restore settings from the Advanced and Main menus to those previously saved by Save Custom
Defaults, select Apply Custom Defaults and Exit. If no custom defaults have been saved, then factory
defaults are used.
NOTE: You cannot modify settings in the Security menu by selecting Apply Defaults. You reset those
values by selecting Restore Security Settings to Factory Defaults at the bottom of the Security menu.
NOTE: Not all settings shown in the following sections are available for all models.
IMPORTANT: Do not turn computer power o while the BIOS is saving the Computer Setup (F10) changes
because the settings could become corrupted. It is safe to turn o the computer only after exiting the F10 Setup
screen.
Computer Setup—Main
This table provides information about the Computer Setup Main menu.
NOTE: Support for specic Computer Setup options can vary, depending on the hardware conguration.
76 Chapter 6 Computer Setup (F10) Utility ENWW
Table 6-1 Computer Setup—Main
Option Description
System Information Lists all information in following list if Advanced System Information is selected. Lists smaller subset if Basic
System Information is selected.
● Product name
● Installed memory size
● Processor type
● Processor cache size (L1/L2/L3)
● Processor speed
● MicroCode revision
● Processor stepping
● Memory speed
● DIMM size (for each installed module)
● System BIOS version
● ME Firmware version (Intel only)
● Video BIOS version
● Reference code revision
● Super I/O rmware version
● USB Type-C controller rmware version
● Born on date
● Serial number
● SKU number
● UUID (Universally Unique Identier)
● Asset tracking number
● Feature byte
● Build ID
● Product family
● System board ID
● System board CT number
● Panel type
● Panel serial number
● Integrated MAC Address
ENWW Computer Setup—Main 77
Table 6-1 Computer Setup—Main (continued)
Option Description
System Diagnostics If the hard drive has the HP Advanced Diagnostics installed, the application launches. If HP Advanced
Update System BIOS Lets you update the system BIOS from www.hp.com or another network server, from a removable USB drive,
Diagnostics is not installed, then a basic version that is built into the BIOS provides the capability to perform
the following functions:
● Memory Test
● Hard Drive Check
● Language
or from a le located on the hard drive.
● Check [current selection] for BIOS Updates
The string that appears here depends on the setting in BIOS Update Preferences.
● Lock BIOS Version
If this option is selected, the system is locked to the current BIOS version and, updates are not allowed.
● BIOS Rollback Policy
■ Unrestricted Rollback to older BIOS—Lets you roll back to any previous version of BIOS.
■ Restricted Rollback to older BIOS—If selected, Minimum BIOS Version becomes active, which lets
you manually enter the minimum BIOS version that you can roll back to.
● Allow BIOS Updates Using a Network
● BIOS Update Preferences
■ Check for Update on Next Reboot—Default is disabled.
■ BIOS Source—Lets you select either HP.com or a custom URL. If Custom URL is selected, Edit
Custom URL becomes active. HP recommends using a custom URL only for a managed IT
environment.
■ Automatic BIOS Update Setting
Allows conguration of a periodic check for updates:
NOTE: If Microsoft Windows BitLocker Drive Encryption (BDE) is enabled, it must be temporarily
suspended before the BIOS is ashed.
■ Do not update
■ Checking for updates and prompt the user to accept or reject the update at that time
■ Checking for updates and install all new versions
■ Checking for updates and install only new versions marked important
■ BIOS Update Frequency
78 Chapter 6 Computer Setup (F10) Utility ENWW
Table 6-1 Computer Setup—Main (continued)
Option Description
■ Daily
■ Weekly
■ Monthly (default)
● Network Conguration Settings
● Update BIOS Using Local Media
Lets you access les on either USB storage or the hard drive. The HP BIOS Update and Recovery
application included in BIOS Softpaqs at www.hp.com copies the BIOS le to the correct location on the
hard drive or USB device.
Change date and time Lets you update system date and time.
Set machine unique data Allows you to set or view data that is unique to each machine, such as feature byte, build ID, serial number,
SKU number, product family, system board CT number, and product name.
System IDs Lets you set the following values:
● Asset Tracking Number
● Ownership Tag
Replicated Setup Backup current settings to USB device
Saves system conguration to a formatted USB ash media device.
Restore current settings from USB device
Restores system conguration from a USB ash media device.
Save Custom Defaults Saves the current system conguration settings as the custom default set.
Apply Custom Defaults
and Exit
Apply Factory Defaults and
Exit
Ignore Changes and Exit Exits Computer Setup without applying or saving any changes.
Save Changes and Exit Saves changes to current system conguration, exits Computer Setup, and reboots.
Suppress POST errors Select to turn o any errors generated by Power On Self Test (POST) during boot up.
Applies the custom default settings to the computer after rebooting. Does not apply to options in the
Security menu.
Restores the factory system conguration settings to the computer after rebooting. Does not apply to
options in the Security menu.
Computer Setup—Security
This table provides information about the Computer Setup Security menu.
NOTE: Support for specic Computer Setup options can vary, depending on the hardware conguration.
ENWW Computer Setup—Security 79
Table 6-2 Computer Setup—Security
Option Description
Create BIOS Administrator
Password
Change BIOS Administrator
Password (This selection is
active only if a BIOS
administrator password is
set.)
Create POST Power-On
Password
Change POST Power-On
Password (This selection is
active only if a BIOS
administrator password is
set.)
Lets you set and enable a BIOS administrator password, which controls access to the following features:
● Setup Menu (F10)
● Third Party Option ROM Management (F3)
● Update system ROM
● WMI commands that change system settings
● BIOS Conguration Utility (BCU)
● Alternative power-on password
NOTE: Creating a BIOS user disables the Fast Boot option.
NOTE: If the password is set, you must change Computer Setup options, update the BIOS, and make
changes to certain plug and play settings under Windows.
Lets you change the BIOS administrator password.
You must know the current password to be able to change it.
The power-on password prompt appears after a power cycle or reboot. If the user does not enter the correct
power-on password, the unit will not boot.
Lets you change the POST power-on password.
You must know the current password to be able to change it.
Password Policies Let you set the guidelines for a valid password. Options include:
● Password minimum length
● Requires at least one symbol
● Requires at least one number
● Requires at least one uppercase character
● Requires at least one lowercase character
● Allow spaces
Clear Password Jumper
Select Honor to allow or Ignore to not allow the absence of the password jumper to clear the passwords at
boot up. Default is Honor.
Security Conguration TPM Embedded Security
● TPM Specication Version
80 Chapter 6 Computer Setup (F10) Utility ENWW
Table 6-2 Computer Setup—Security (continued)
Option Description
Displays the current TPM version.
● TPM Device
Lets you set the Trusted Platform Module as available or hidden.
● TPM State
Select to enable the TPM.
● ClearTPM
Select to reset the TPM to an unowned state. After the TPM is cleared, it is also turned o. To
temporarily suspend TPM operations, turn the TPM o instead of clearing it.
IMPORTANT: Clearing the TPM resets it to factory defaults and turns it o. You will lose all created
keys and data protected by those keys.
● TPM Activation Policy
○ F1 to boot
○ Allow user to reject
○ No prompts
BIOS SureStart
● Verify Boot Block on every boot—Select to enable HP SureStart.
● BIOS Data Recovery Policy—Select Automatic or Manual to determine data recovery process. Manual
recovery is intended only for situations when you want forensic analysis before HP SureStart recovery.
When this policy is set to manual, HP SureStart will not correct any issues that are found until the local
user enters the manual recovery key sequence. This can result in a computer that cannot boot until the
manual recovery key sequence is entered.
● Dynamic Runtime Scanning of Boot Block—Veries the integrity of the BIOS boot block region several
times each hour while the computer is running. Default is Enabled.
● Sure Start BIOS Settings Protection—When enabled, HP Sure Start locks all critical BIOS settings and
provides enhanced protection for these settings using nonvolatile (ash) memory.
NOTE: An administrator password must be set to activate this setting.
● Enhanced HP Firmware Runtime Intrusion Prevention and Detection—Enables monitoring of HP
system rmware executing out of main memory while the operating system is running. Any anomalies
detected in HP system rmware that is active while the operating system is running will result in a Sure
Start security event being generated.
● Sure Start Security Event Policy—Controls HP Sure Start behavior upon identifying a critical security
event (any modication to HP rmware) while the operating system is running.
– Log Event Only—HP Sure Start will log all critical security events in the HP Sure Start audio log
within the HP Sure Start nonvolatile (ash) memory.
– Log Event and notify user—In addition to logging all critical security events, HP Sure Start will
notify the user within the operating system that a critical event has occurred.
– Log Event and power o system—In addition to logging all critical security events, HP Sure Start
turns of the computer upon detecting a HP Sure Start Security Event. Because of the potential for
ENWW Computer Setup—Security 81
Table 6-2 Computer Setup—Security (continued)
Option Description
data loss, HP recommends this setting only in situations where security integrity of the system is
a higher priority than the risk of potential data loss.
Smart Cover
● Cover Removal Sensor (Disabled/Notify user/Administrator password)
Lets you disable the cover sensor or congure what action is taken if the computer cover is removed. Default
is Disabled.
NOTE: Notify user alerts the user with a POST error on the rst boot after the sensor detects removal of
the cover. If the password is set, Administrator Password requires that the password be entered to boot the
computer if the sensor detects that the cover has been removed.
Intel Software Guard Extensions (SGX)
Intel SGX is a set of processor code instructions from that allows user-level code to allocate private regions
of memory, that unlike normal process memory is also protected from processes running at higher privilege
levels.
● Software control
● Disable
● Enable
Utilities Hard Drive Utilities
● Save/Restore MBR of System Hard Drive
NOTE: Windows 10 systems are generally not formatted to include an Master Boot Record
(MBR). Instead they use GUID Partition Table (GPT) format, which better supports large hard drives.
Enabling this feature will save the MBR of the system hard drive. If the MBR gets changed, the user will
be prompted to restore the MBR. Default is disabled.
The MBR contains information needed to successfully boot from a disk and to access the data stored
on the disk. Master Boot Record Security can prevent unintentional or malicious changes to the MBR,
such as those caused by some viruses or by the incorrect use of certain disk utilities. It also allows you
to recover the "last known good" MBR, should changes to the MBR be detected when the system is
restarted.
NOTE: Most operating systems control access to the MBR of the current bootable disk; the BIOS
cannot prevent changes that may occur while the operating system is running.
Restores the backup Master Boot Record to the current bootable disk. Default is disabled.
Only appears if all of the following conditions are true:
– MBR security is enabled.
– A backup copy of the MBR has been previously saved.
– The current bootable disk is the same disk from which the backup copy was saved.
82 Chapter 6 Computer Setup (F10) Utility ENWW
Table 6-2 Computer Setup—Security (continued)
Option Description
IMPORTANT: If you restoring a previously saved MBR after a disk utility or operating system modied
the MBR, the data on the disk might become inaccessible. Only restore a previously saved MBR if you
are condent that the current bootable disk's MBR has been corrupted or infected with a virus.
● Save/Restore GPT of System Hard Drive
Enabling this feature saves the GUID Partition Table (GPT) of the system hard drive. If the GPT is
subsequently changed, the user is prompted to choose whether to restore GPT.
● DriveLock/Automatic DriveLock
Allows you to assign or modify a master or user password for hard drives. When this feature is enabled,
the user is prompted to provide one of the DriveLock passwords during POST. If neither is successfully
entered, the hard drive remains inaccessible until one of the passwords is successfully provided during
a subsequent cold-boot sequence.
NOTE: This selection appears only when at least one drive that supports the DriveLock feature is
attached to the system.
IMPORTANT: Be aware that these settings take place immediately. It is not necessary to save.
IMPORTANT: Be sure to document the DriveLock password. Losing a DriveLock password will render a
drive permanently locked.
After you select a drive, the following options are available:
- Set DriveLock Master Password. Sets the drive’s master password but does not enable DriveLock.
- Enable DriveLock. Sets the drive’s user password and enables DriveLock.
● Secure Erase
Lets you select a hard drive to completely erase.
After you erase a hard drive with a program that uses Secure Erase rmware commands, no le
recovery program, partition recovery program, or other data recovery method can extract data from
the drive.
● Allow OPAL Hard Drive SED Authentication
Default is disabled.
System Management
Command
Restore Security Settings
to Default
Allows authorized personnel to reset security settings during a service event. Default is enabled.
This action resets security devices, clears BIOS passwords (not including DriveLock), and restores settings in
the Security menu to factory defaults.
Computer Setup—Advanced
This table provides information about the Computer Setup Advanced menu.
NOTE: Support for specic Computer Setup options can vary, depending on the hardware conguration.
Table 6-3 Computer Setup—Advanced (for advanced users)
Option Heading
Display Language Lets you select the language of the menus in F10 Setup and the keyboard layout.
ENWW Computer Setup—Advanced 83
Table 6-3 Computer Setup—Advanced (for advanced users) (continued)
Option Heading
Scheduled Power-On This feature wakes the system when it is o at a specied date and time.
Boot Options Select the devices that the computer can boot from, as well as other options, including:
● Startup Delay (sec). Enabling this feature adds a user-specied delay to the POST process. One purpose
for the delay is to provide additional time to activate hotkeys such as esc for the Startup Menu or f10
for Computer Setup.
● Fast Boot—Default is enabled.
● USB Storage Boot—Default is enabled.
● Network (PXE) Boot—Default is enabled.
● After Power Loss—Default is Power O.
■ Power o—Causes the computer to remain o when power is restored.
■ Power on—Causes the computer to turn on automatically as soon as power is restored.
■ Previous state—Causes the computer to turn on automatically as soon as power is restored, if it
was on when power was lost.
NOTE: If the system is congured to Power On from Keyboard Ports (see Power Management
Options), then this setting is forced to Power On.
● Prompt on Memory Size Change. Default is enabled.
● Prompt on Fixed Storage Change. Default is disabled.
● Audio Alerts During Boot. Default is enabled. When disabled, most audible beeps from errors, warnings,
and password prompts during boot up are suppressed.
● UEFI Boot Order.
Default is enabled. Specify the order in which UEFI boot sources (such as a internal hard drive, USB hard
drive, USB optical drive, or internal optical drive) are checked for a bootable operating system image.
UEFI boot sources always have precedence over legacy boot sources.
● Legacy Boot Order
Specify the order in which legacy boot sources (such as a network interface card, internal hard drive,
USB optical drive, or internal optical drive) are checked for a bootable operating system image.
Specify the order of attached hard drives. The rst hard drive in the order will have priority in the boot
sequence and will be recognized as drive C (if any devices are attached).
NOTE: To drag a device to a preferred place, press enter.
NOTE: MS-DOS drive lettering assignments might not apply after a non-MS-DOS operating system has
started.
Shortcut to Temporarily Override Boot Order
To boot one time from a device other than the default device specied in Boot Order, restart the computer
and press esc (to access the Startup menu) and then f9 (Boot Menu), or only f9 (skipping the Startup menu)
when the power button light turns white. After POST is completed, a list of bootable devices is displayed. Use
the arrow keys to select the preferred bootable device and press enter. The computer then boots from the
selected non-default device for this one time.
84 Chapter 6 Computer Setup (F10) Utility ENWW
Table 6-3 Computer Setup—Advanced (for advanced users) (continued)
Option Heading
Secure Boot Conguration Congure Legacy Support and Secure Boot
Lets you turn o all legacy support on the computer, including booting to DOS, running legacy graphics
cards, booting to legacy devices, and so on.
Lets you be sure that an operating system is legitimate before booting to it, making Windows resistant to
malicious modication from preboot to full operating system booting, preventing rmware attacks. UEFI and
Windows Secure Boot only allow code signed by preapproved digital certicates to run during the rmware
and OS boot process.
● Legacy Support Enable and Secure Boot Disable
● Legacy Support Disable and Secure Boot Enable
● Legacy Support Disable and Secure Boot Disable
Default is Legacy Support Disable and Secure Boot Disable.
Secure Boot Key Management
Lets you manage the custom key settings.
Import Custom Secure Boot keys
Default is disabled.
Clear Secure Boot Keys
Lets you delete any previously loaded custom boot keys. Clearing keys will disable secure boot. Default is
disabled.
Reset Secure Boot keys to factory defaults
Default is disabled.
Enable MS UEFI CA key
Disabling this setting alters the Secure Boot key list to further restrict the allowed software components. Set
this option to disable to support Device Guard.
Ready BIOS for Device Guard Use
Requires BIOS Administrator password to be congured and Secure Boot to be enabled.
ENWW Computer Setup—Advanced 85
Table 6-3 Computer Setup—Advanced (for advanced users) (continued)
Option Heading
System Options Congure storage controller for Intel Optane
Enables the Intel® Optane™ memory module.
Hyperthreading
Lets you control processor capability. Default is enabled.
Multiprocessor
Use this option to disable multiprocessor support under the operating system. Default is enabled.
Virtualization Technology (VTx) (Intel only)
Controls the virtualization features of the processor. Changing this setting requires turning the computer o
and then back on. Default is disabled.
Virtualization Technology for Directed I/O (VTd) (Intel only)
Controls virtualization DMA remapping features of the chipset. Changing this setting requires turning the
computer o and then back on. Default is disabled.
M.2 SSD
Lets you disable the M.2 solid-state drive slot. Default is enabled.
M.2 WLAN/BT
Lets you disable the wireless module slot. Default is enabled.
Allow PCIe/PCI SERR# Interrupt (enable/disable)
Allows PCI devices to report PCI/PCIe System Error signals, such as address parity errors, data parity errors,
and critical errors other than parity. Default is enabled.
Power Button Override (disable/4 sec/15 sec)
Lets you disable or enable and select the number of seconds you have to hold down the power button for it
to force the system to turn o. Default is 4 sec.
86 Chapter 6 Computer Setup (F10) Utility ENWW
Table 6-3 Computer Setup—Advanced (for advanced users) (continued)
Option Heading
Built-In Device Options Embedded LAN Controller
Select to show the device in the operating system. Default is enabled.
Wake On LAN
Lets you either disable the Wake On LAN feature or congure where the computer boots, including the
network or hard drive. Default is Boot to Network.
Allow No Panel conguration
When enabled, POST blink and beep codes and error messages are not generated. Default is disabled.
Video memory size
Use this option to manage graphics memory allocation. The value you choose is allocated permanently to
graphics and is unavailable to the operating system.
Integrated Camera
Clear to disable the integrated camera. Default is enabled.
Audio Device
Select to show the device in the operating system. Default is enabled.
Integrated Microphone
Clear to disable the integrated microphone. This does not aect devices plugged into audio jacks. Default is
enabled.
Internal Speakers (does not aect external speakers)
Clear to disable the chassis speaker or speakers. This function is applicable to normal audio playback in the
operating system and does not aect the error or warning beeps during POST. Default is enabled.
Headphone Output
Clear to disable the headphone jack. Default is enabled.
Collaboration Buttons
Clear to disable the collaboration buttons. Default is enabled.
Button Sensitivity
Select from low, medium, or high. Default is low.
LAN/WLAN auto switching
Select to enable auto switching between a wired and wireless connection. Default is disabled.
Wake on WLAN
Select to enable wake on WLAN. Default is disabled.
M.2 USB/Bluetooth
Select to enable the M.2 controller. Default is enabled.
Increase Idle Fan Speed(%)
Sets idle fan speed percentage. This setting only changes the minimum fan speed. The fan is still
automatically controlled.
ENWW Computer Setup—Advanced 87
Table 6-3 Computer Setup—Advanced (for advanced users) (continued)
Option Heading
Port Options SATA0
Lets you disable the connector. Default is enabled.
SATA1
Lets you disable the connector. Default is enabled.
Rear USB ports
Lets you disable the ports. Default is enabled.
Right USB ports
Lets you disable the ports. Default is enabled.
USB Legacy Port Charging
Lets you enable USB charging port capability when the computer is in hibernate or shutdown mode. Default
is enabled.
USB Type-C Downstream Charging
Lets you enable USB charging port capability when the computer is in hibernate on or o. Default is enabled.
Restrict USB Devices
Specify the following categories of USB devices to enable:
● Allow all USB devices (default)
● Allow only keyboard and mouse
● Allow all but storage devices and hubs.
When some devices are restricted, the system will disable USB ports that do not meet the allowed
criteria. This feature is usually combined with similar policies within the operating system because USB
devices can be moved to dierent ports. The ports disabled by the BIOS remain disabled until the system is
restarted.
USB Type-C Controller Firmware Update
Default is enabled.
Option ROM Launch Policy These policies control whether Legacy Option ROMs or UEFI drivers are loaded. Default is All UEFI.
Congure Option ROM Launch Policy
● All legacy
● All UEFI
● All UEFI except video
88 Chapter 6 Computer Setup (F10) Utility ENWW
Table 6-3 Computer Setup—Advanced (for advanced users) (continued)
Option Heading
Power Management
Options
Runtime Power Management (enable/disable)
Allows certain operating systems to reduce processor voltage and frequency when the current software load
does not require the full capabilities of the processor. Default is enabled.
Extended Idle Power States (enable/disable)
Allows certain operating systems to decrease the processors power consumption when the processor is idle.
Default is enabled.
S5 Maximum Power Savings (enable/disable)
Enabling this feature reduces the power of the system as much as possible in the S5 state. Power is
removed from the wake up circuitry, the expansion slots, and any management features while in S5. Default
is disabled.
SATA Power Management (enable/disable)
Enables or disables SATA bus, device power management, or both. Default is enabled.
PCI Express Power Management (enable/disable)
Enabling this option permits the PCI Express links to use Active Power State Management (ASPM) to enter
lower power states while not in use. Default is enabled.
Power On from Keyboard Ports (enable/disable)
When enabled, this feature allows a key press to turn on the system when it is o (S5 state). If using a USB
keyboard, you must plug it into one of the rear ports labeled with the keyboard icon. Default is disabled.
Unique Sleep State Blink Rates (enable/disable)
This feature is designed to provide a visual indication of what Sleep state the system is in. Each Sleep state
has a unique blink pattern. Default is disabled.
NOTE: A normal shutdown goes to the S4 state for Windows 8 or later.
S0 (On) = solid white light.
S3 (Stand By) = 3 blinks at 1 Hz (50% duty cycle) followed by a pause of 2 seconds (white light), repeated
cycles of 3 blinks and a pause.
S4 (Hibernation) = 4 blinks at 1 Hz (50% duty cycle) followed by a pause of 2 seconds (white light), repeated
cycles of 4 blinks and a pause.
S5 (Soft O) = Light is o.
ENWW Computer Setup—Advanced 89
Table 6-3 Computer Setup—Advanced (for advanced users) (continued)
Option Heading
Electronic labels Displays system labels.
Remote Management
Options
Active Management (AMT) (Intel only) (enable/disable). Default is enabled.
Allows you to discover, repair, and protect networked computing devices.
USB Key Provisioning Support (enable/disable) Default is disabled.
USB Redirection Support (enable/disable). Default is enabled.
USB redirection allows USB devices plugged into a client computer to be transparently redirected to the
guest operating system.
Uncongure AMT on next boot (Do Not Apply/Apply). Default is Do Not Apply.
SOL Terminal Emulation Mode (ANSI / VT100). Default is ANSI.
SOL (serial-over-LAN) terminal emulation mode is only activated during remote AMT (Active Management
Technology) redirection operations. The emulation options allow administrators to select which mode works
best with their console.
Show Uncongure ME Conrmation Prompt (enable/disable). Default is enabled.
Verbose Boot Messages (enable/disable). Default is enabled.
Verbose boot shows additional logging information during startup, which is mainly for debugging if
something goes wrong during bootup.
Watchdog Timer (enable/disable). Default is enabled.
Allows you to set amount of time for a operating system and BIOS watchdog alert to be sent if the timers are
not deactivated. BIOS watchdog is deactivated by BIOS and would indicate that a halt occurred during
execution if the alert is sent to the management console. An operating system alert is deactivated by the
operating system image and would indicate that a hang occurred during its initialization.
● OS Watchdog Timer (min.) – (5/10/15/20/25). Default is 5 min.
● BIOS Watchdog Timer (min.) – (5/10/15/20/25). Default is 5 min.
CIRA Timeout (min.) (1/2/3/4/Never)
CIRA is Customer Initiated Remote Assistance, an Intel service to help users employing Active Management
Technology (AMT).
90 Chapter 6 Computer Setup (F10) Utility ENWW
