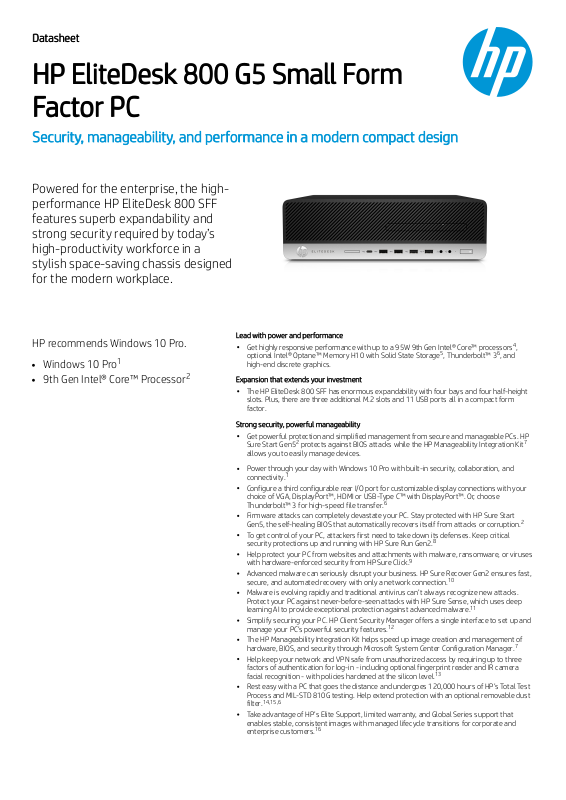

DatasheetDatasheet
HP EliteDesk 800 G5 Small FormHP EliteDesk 800 G5 Small Form
Factor PCFactor PC
Security, manageability, and performance in a modern compact designSecurity, manageability, and performance in a modern compact design
Powered for the enterprise, the highperformance HP EliteDesk 800 SFF
features superb expandability and
strong security required by today’s
high-productivity workforce in a
stylish space-saving chassis designed
for the modern workplace.
HP recommends Windows 10 Pro.
Windows 10 Pro
9th Gen Intel® Core™ Processor
Lead with power and performanceLead with power and performance
Get highly responsive performance with up to a 95W 9th Gen Intel® Core™ processors ,
optional Intel® Optane™ Memory H10 with Solid State Storage , Thunderbolt™ 3 , and
high-end discrete graphics.
Expansion that extends your investmentExpansion that extends your investment
The HP EliteDesk 800 SFF has enormous expandability with four bays and four half-height
slots. Plus, there are three additional M.2 slots and 11 USB ports all in a compact form
factor.
Strong security, powerful manageabilityStrong security, powerful manageability
Get powerful protection and simplified management from secure and manageable PCs. HP
Sure Start Gen5 protects against BIOS attacks while the HP Manageability Integration Kit
allows you to easily manage devices.
Power through your day with Windows 10 Pro with built-in security, collaboration, and
connectivity.
Configure a third configurable rear I/O port for customizable display connections with your
choice of VGA, DisplayPort™, HDMI or USB-Type C™ with DisplayPort™. Or, choose
Thunderbolt™ 3 for high-speed file transfer.
Firmware attacks can completely devastate your PC. Stay protected with HP Sure Start
Gen5, the self-healing BIOS that automatically recovers itself from attacks or corruption.
To get control of your PC, attackers first need to take down its defenses. Keep critical
security protections up and running with HP Sure Run Gen2.
Help protect your PC from websites and attachments with malware, ransomware, or viruses
with hardware-enforced security from HP Sure Click.
Advanced malware can seriously disrupt your business. HP Sure Recover Gen2 ensures fast,
secure, and automated recovery with only a network connection.
Malware is evolving rapidly and traditional antivirus can’t always recognize new attacks.
Protect your PC against never-before-seen attacks with HP Sure Sense, which uses deep
learning AI to provide exceptional protection against advanced malware.
Simplify securing your PC. HP Client Security Manager offers a single interface to set up and
manage your PC’s powerful security features.
The HP Manageability Integration Kit helps speed up image creation and management of
hardware, BIOS, and security through Microsoft System Center Configuration Manager.
Help keep your network and VPN safe from unauthorized access by requiring up to three
factors of authentication for log-in - including optional fingerprint reader and IR camera
facial recognition - with policies hardened at the silicon level.
Rest easy with a PC that goes the distance and undergoes 120,000 hours of HP’s Total Test
Process and MIL-STD 810G testing. Help extend protection with an optional removable dust
filter.
Take advantage of HP’s Elite Support, limited warranty, and Global Series support that
enables stable, consistent images with managed lifecycle transitions for corporate and
enterprise customers.
1
2
4
5 6
2 7
1
6
2
8
9
10
11
12
7
13
14,15,6
16
Data sheet | HP EliteDesk 800 G5 Small Form Factor PC
HP recommends Windows 10 Pro.
HP EliteDesk 800 G5 Small Form Factor PC Specifications TableHP EliteDesk 800 G5 Small Form Factor PC Specifications Table
Available Operating SystemsAvailable Operating Systems
Windows 10 Pro 64 – HP recommends Windows 10 Pro.
Windows 10 Pro 64 (National Academic only)
Windows 10 Home 64
Windows 10 Home Single Language 64
FreeDOS
Processor familyProcessor family
8th Generation Intel® Core™ i3 processor (i3-8100); 8th Generation Intel® Core™ i5 processor (i5-8500); 8th Generation Intel® Core™ i7 processor (i7-8700); 9th
Generation Intel® Core™ i3 processor (i3-9100, i3-9300); 9th Generation Intel® Core™ i5 processor (i5-9500, i5-9600, i5-9600K); 9th Generation Intel® Core™ i7
processor (i7-9700, i7-9700K); 9th Generation Intel® Core™ i9 processor (i9-9900, i9-9900K); Intel® Celeron® processor (G4930T is Windows 10 only); Intel®
Pentium® processor (G5420, G5600, G5620 are Windows 10 only)
Available ProcessorsAvailable Processors
Intel® Celeron® G4930 with Intel® UHD Graphics 610 (3.2 GHz base frequency, 2 MB cache, 2 cores); Intel® Core™ i3-8100 with Intel® UHD Graphics 630 (3.6 GHz base
frequency, 6 MB cache, 4 cores); Intel® Core™ i3-9100 with Intel® UHD Graphics 630 (3.6 GHz base frequency, up to 4.2 GHz with Intel® Turbo Boost Technology, 6 MB
cache, 4 cores); Intel® Core™ i3-9300 with Intel® UHD Graphics 630 (3.7 GHz base frequency, up to 4.3 GHz with Intel® Turbo Boost Technology, 8 MB cache, 4 cores);
Intel® Core™ i5-8500 with Intel® UHD Graphics 630 (3 GHz base frequency, up to 4.1 GHz with Intel® Turbo Boost Technology, 9 MB cache, 6 cores) supports Intel®
vPro™ Technology; Intel® Core™ i5-9600 with Intel® UHD Graphics 630 (3.1 GHz base frequency, up to 4.6 GHz with Intel® Turbo Boost Technology, 9 MB cache, 6
cores) supports Intel® vPro™ Technology; Intel® Core™ i5-9600K with Intel® UHD Graphics 630 (3.7 GHz base frequency, up to 4.6 GHz with Intel® Turbo Boost
Technology, 9 MB cache, 6 cores) supports Intel® vPro™ Technology; Intel® Core™ i7-8700 with Intel® UHD Graphics 630 (3.2 GHz base frequency, up to 4.6 GHz with
Intel® Turbo Boost Technology, 12 MB cache, 6 cores) supports Intel® vPro™ Technology; Intel® Core™ i7-9700K with Intel® UHD Graphics 630 (3.6 GHz base
frequency, up to 4.9 GHz with Intel® Turbo Boost Technology, 12 MB cache, 8 cores) supports Intel® vPro™ Technology; Intel® Core™ i9-9900 with Intel® UHD Graphics
630 (3.1 GHz base frequency, up to 5 GHz with Intel® Turbo Boost Technology, 16 MB cache, 8 cores) supports Intel® vPro™ Technology; Intel® Core™ i9-9900K with
Intel® UHD Graphics 630 (3.6 GHz base frequency, up to 5 GHz with Intel® Turbo Boost Technology, 16 MB cache, 8 cores) supports Intel® vPro™ Technology; Intel®
Pentium® Gold G5420 with Intel® UHD Graphics 610 (3.8 GHz base frequency, 4 MB cache, 2 cores); Intel® Pentium® Gold G5600 with Intel® UHD Graphics 630 (3.9
GHz base frequency, 4 MB cache, 2 cores); Intel® Pentium® Gold G5620 with Intel® UHD Graphics 630 (4 GHz base frequency, 4 MB cache, 2 cores); Intel®Core™ i59500 with Intel®UHD Graphics 630 (3 GHz base frequency, up to 4.4 GHz with Intel®Turbo Boost Technology, 9 MB cache, 6 cores) supports Intel® vPro™ Technology;
Intel®Core™ i7-9700 with Intel®UHD Graphics 630 (3 GHz base frequency, up to 4.8 GHz with Intel®Turbo Boost Technology, 12 MB cache, 8 cores) supports Intel®
vPro™ Technology
ChipsetChipset Intel® Q370 (vPro); Intel® Q370 (non-vPro)
Form factorForm factor Small form factor
Maximum memoryMaximum memory
128 GB DDR4-2666 SDRAM
Transfer rates up to 2666 MT/s.
Memory slotsMemory slots 4 DIMM
Internal storageInternal storage
500 GB up to 2 TB 7200 rpm SATA
up to 2 TB 5400 rpm SATA
up to 500 GB SATA SED Opal 2 HDD
up to 500 GB 7200 rpm SATA FIPS SED
256 GB up to 512 GB SATA TLC SSD
256 GB up to 512 GB SATA SED Opal 2 TLC SSD
256 GB up to 512 GB SATA FIPS SSD
256 GB up to 1 TB PCIe® NVMe™ M.2 SSD
128 GB up to 2 TB PCIe® NVMe™ TLC M.2 SSD
256 GB up to 512 GB PCIe® NVMe™ SED Opal 2 TLC M.2 SSD
up to 512 GB Intel® Optane™ Memory H10 with Solid State Storage
Storage accelerationStorage acceleration 16 GB NVMe™ Intel® Optane™ Memory for storage acceleration
Additional storageAdditional storage 5-in-1 SD card reader
Optical driveOptical drive HP 9.5 mm Slim Blu-ray writer; HP 9.5 mm Slim DVD-ROM; HP 9.5 mm Slim DVD-Writer
Available GraphicsAvailable Graphics
Integrated: Intel® UHD Graphics 630; Intel® UHD Graphics 610
Discrete: NVIDIA® GeForce® GT 730 (2 GB DDR5 dedicated); AMD Radeon™ R7 430 Graphics (2 GB GDDR5 dedicated); NVIDIA® Quadro® P400 (2 GB GDDR5 dedicated);
AMD Radeon™ RX 550 Graphics (4 GB GDDR5 dedicated)
AudioAudio Conexant CX20632 codec, universal audio jack, headset and headphone front ports (3.5 mm), multi-streaming capable
Expansion slotsExpansion slots 1 M.2 2230; 2 M.2 2230/2280; 1 PCIe 3.0 x16; 1 PCIe 3.0 x16 (wired as x4); 2 PCIe 3.0 x1 (1 PCIe M.2 2230 slot for WLAN and 2 PCIe M.2 2230/2280 slot for storage.)
Ports and ConnectorsPorts and Connectors
Front: 1 headphone; 1 headset connector; 1 USB 2.0; 1 USB 2.0 (fast charging); 1 USB Type-C™ (charging); 2 USB 3.1 Gen 2
Rear: 1 audio-in; 1 audio-out; 1 power connector; 1 RJ-45; 2 USB 2.0; 2 DisplayPort™ 1.2; 2 USB 3.1 Gen 1; 2 USB 3.1 Gen 2
Optional: 1 DisplayPort™ 1.2; 1 HDMI 2.0; 1 serial; 1 serial and PS/2 ports combination; 1 Thunderbolt™ 3.0; 1 USB 3.1 Type-C™ Gen 1 (DisplayPort™); 1 VGA
Input devicesInput devices
HP PS/2 Business Slim Keyboard; HP USB Conferencing Keyboard; HP USB Business Slim Keyboard; HP USB Keyboard; HP USB Premium Keyboard; HP USB Smart
Card (CCID) Keyboard; HP Wireless Business Slim Keyboard and Mouse Combo; HP Wireless Collaboration Keyboard; HP USB Business Slim Antimicrobial Keyboard; HP
USB Collaboration Keyboard ; HP PS/2 Mouse; HP USB 1000 dpi Laser Mouse; HP USB Antimicrobial Mouse; HP USB Hardened Mouse; HP USB Optical Mouse; HP
USB Premium Mouse; HP USB Fingerprint Mouse
CommunicationsCommunications
LAN: Integrated Intel® I219LM GbE LOM; Intel® I210-T1 PCIe® GbE WLAN: Intel® Dual Band Wi-Fi 5 9560 (2x2) and Bluetooth® 5 M.2, non-vPro™; Intel® Dual Band
Wi-Fi 5 9560 (2x2) and Bluetooth® 5 M.2, vPro™; Intel® Wi-Fi 6 AX200 (2x2) and Bluetooth® M.2 Combo Card non-vPro™; Intel® Wi-Fi 6 AX200 (2x2) and Bluetooth®
M.2 Combo Card vPro™; Realtek RTL8822BE-CG 802.11a/b/g/n/ac (2x2) with Bluetooth® 4.1 M.2 PCIe® ;
Drive BaysDrive Bays 1 slim ODD; One 2.5" HDD; Two 3.5" HDD
EnvironmentalEnvironmental Operating temperature: 10 to 35°C; Operating humidity: 10 to 90% RH
Available SoftwareAvailable Software
Absolute Persistence module; HP Hotkey Support; HP Noise Cancellation Software; HP Support Assistant; Buy Office (sold separately); HP Sure Recover; HP
JumpStarts
Security managementSecurity management
DriveLock; HP BIOSphere Gen5; HP Client Security Suite Gen 5; HP Password Manager; HP Power On Authentication; HP Sure Click; HP Sure Recover; HP Sure Run; HP
Sure Sense; HP Sure Start Gen 5; Intel® Identity Protection Technology (Intel® IPT); Parallel enable/disable (via BIOS); Power-on password (via BIOS); RAID
configurations; Removable media write/boot control; SATA port disablement (via BIOS); Serial enable/disable (via BIOS); Setup password (via BIOS); Solenoid lock and
hood sensor; Support for chassis padlocks and cable lock devices; TPM 2.0 (Firmware: 7.85) endpoint security controller (Infineon SLB9670) shipped with Windows
10. Common Criteria EAL4+ Certified. FIPS 140-2 Level 2 Certified; USB enable/disable (via BIOS)
Management featuresManagement features
HP BIOS Config Utility (download); HP Client Catalog (download); HP Cloud Recovery; HP Driver Packs (download); HP Management Integration Kit for Microsoft
System Center Configuration Management Gen 3; HP System Software Manager (download)
PowerPower 250 W internal power supply, up to 92% efficiency, active PFC
DimensionsDimensions 10 x 33.8 x 30.8 cm
WeightWeight 6.13 kg (Exact weight depends on configuration.)
Energy efficiency complianceEnergy efficiency compliance ENERGY STAR® certified; EPEAT® 2019 registered where applicable
Environmental specificationsEnvironmental specifications Low halogen
