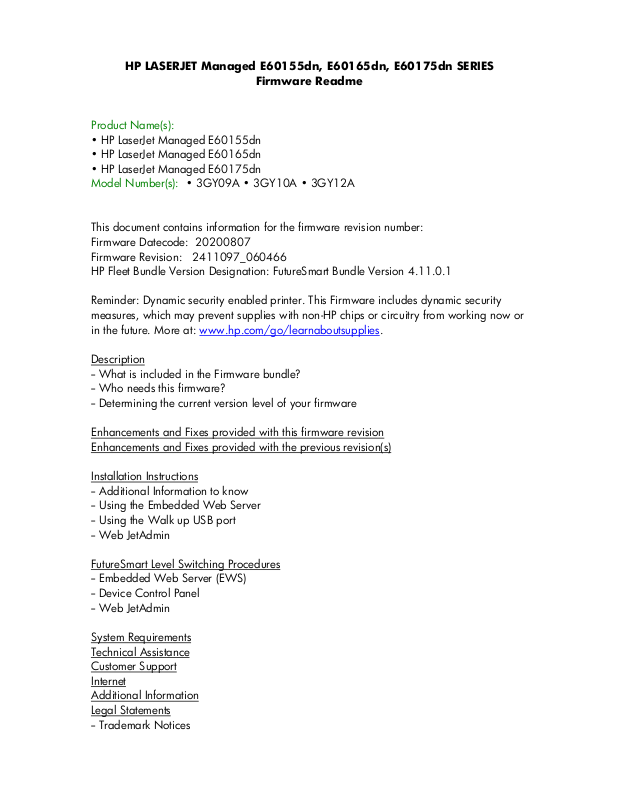

HP E60155dn, E60165dn, E60175dn User Manual

HP LASERJET Managed E60155dn, E60165dn, E60175dn SERIES
Firmware Readme
Product Name(s):
• HP LaserJet Managed E60155dn
• HP LaserJet Managed E60165dn
• HP LaserJet Managed E60175dn
Model Number(s): • 3GY09A • 3GY10A • 3GY12A
This document contains information for the firmware revision number: Firmware Datecode: 20200807 Firmware Revision: 2411097_060466 HP Fleet Bundle Version Designation: FutureSmart Bundle Version 4.11.0.1
Reminder: Dynamic security enabled printer. This Firmware includes dynamic security measures, which may prevent supplies with non-HP chips or circuitry from working now or in the future. More at: www.hp.com/go/learnaboutsupplies.
Description
-- What is included in the Firmware bundle?
-- Who needs this firmware?
-- Determining the current version level of your firmware
Enhancements and Fixes provided with this firmware revision Enhancements and Fixes provided with the previous revision(s)
Installation Instructions
-- Additional Information to know
-- Using the Embedded Web Server
-- Using the Walk up USB port
-- Web JetAdmin
FutureSmart Level Switching Procedures
-- Embedded Web Server (EWS)
-- Device Control Panel
-- Web JetAdmin
System Requirements Technical Assistance Customer Support Internet Additional Information Legal Statements
-- Trademark Notices
-- OPEN-SOURCE SOFTWARE LICENSE AGREEMENTS (In English)
-- License and Copyright
Description
This Readme file provides specific installation instructions and other information you should know before you perform a firmware update for your HP LaserJet Series printer or MFP. Installation instructions are provided for Single and Multiple Printer Updates.
This document provides specific update, installation and troubleshooting information. For additional information on the device features, refer to the online user guide found on the Windows Printing System Installer CD-ROM that came with your printer or at hp.com.
What is included in a Firmware bundle? The HP LaserJet printer firmware update file available from the HP web site contains firmware for the printer, embedded JetDirect (if applicable), HP paper handling accessories used with the device in one convenient download file. When the Remote Firmware Upgrade file is sent to the HP LaserJet Printer or MFP firmware for the engine and all connected accessories are upgraded.
Who needs this firmware? Similar to HP Inc. providing improved software for your HP LaserJet Printer or MFP, HP Inc. provides firmware updates for your printer periodically through its supported lifecycle. A firmware update may be necessary if it is determined that you may benefit from the resolution of any issue that is documented below. These updates are available on the HP support web site. Determining the current version level of your firmware
To determine the current level of firmware installed on the device: Go to the printer’s or MFP’s control panel.
1. Go to the printer’s control panel.
2. Select the Reports application.
3. Select the Configuration/Status Pages menu.
4. Select the Configuration Page option.
5. Select the Print.
On the printed Configuration page look in the section marked "Device Information" for the Firmware Datecode and Firmware Revision. The Firmware Datecode and Firmware Revision will look something like this:
IMPORTANT NOTE:
This firmware file requires an interactive update method. You CANNOT update these Product(s)/Model(s) using the traditional FTP, LPR or Port 9100 methods of upgrading. Please use one of the following methods listed below to update the firmware of this device.
Enhancements and Fixes provided with this Firmware revision
The following new functionality or features are provided by this firmware release: Firmware Datecode: 20200807 Firmware Revision: 2411097_060466 HP Fleet Bundle Version Designation: FutureSmart Bundle Version 4.11.0.1
For information on HP Security Bulletins addressed by firmware releases, please visit:
https://support.hp.com/security-bulletins
To initiate a subscription to receive future HP Security Bulletin alerts via email, visit:
https://www.hp.com/go/alerts
ENHANCEMENT:
Base:
➢ No New Updates
Security/Authentication:
➢ The Embedded Web Server Security Log now provides access to device generated
Syslog event information. The log stores all generated syslog event messages to an internal file that can be exported from the device EWS Security page.
➢ Added support for the HP Smartcard NIPRNet Solution for US Government to now
authenticate automatically using the Signature or PIV-Authentication certificate. The preferred certificate for authentication is configured using the Prefer-GSC-IS over PIV card setting.
Embedded JetDirect:
➢ No New Updates
FIXES:
Base:
➢ Jobs may not get duplexed when media is loaded short edge feed in certain cases. ➢ The Date and Time stamp within the Service Event logs can be different compared
to the actual time, depending upon the time zone the printer is set to.
➢ The device status of "Printer is low on toner/ink" displays in the Window's printer
spooler when a long-life consumable, such as an image drum or fuser, is in a low status.
➢ 49.4A.04 error may occur intermittently when printing from certain types of
customized applications.
➢ Some media type strings are displayed incorrectly in Japanese language. ➢ If an export file is created with the Import/Export feature where the "Local quota
and job accounting settings" is checked and the "Local Quota" setting in the Embedded Web Server (EWS) is disabled (EWS > General > Quota Settings > Local Quota) then the "Local Quota" setting in the EWS will no longer be available in the EWS after the import.
➢ A device administrator may be unable to access secured Embedded Web Server
features when a third-party Authorization proxy is registered.
➢ Card Reader may fail after a power cycle and will require the device to be
registered again before it works.
➢ A 49.4A.04 error may occur when printing certain types of PostScript files. ➢ The Job Log does not display the full name of a Printed job.
Security/Authentication:
➢ An intermittent 33.05.18 Security Alert may occur during a device power cycle. ➢ LDAP with secure connection fails on server with Channel Binding enabled. ➢ A corresponding Event Log entry is not created when a Syslog event message is
sent for a Potential Intrusion Detection event.
Embedded JetDirect:
➢ The device may become unresponsive in the morning or after long idle periods
which will require a power cycle.
➢ The Current Settings page when printed in the Polish language is using incorrect
structure and words.
➢ The connection screen in Polish language is not localized correctly. ➢ Web JetAdmin and HP Security Manager can't remediate SNMPv1/2 credentials
when WiFi Direct is enabled.
➢ The Remote Control Panel feature will not load properly when using a Remote
Embedded Web Server session over a Cloud Connected, Virtual JetAdvantage Management Connector (VJAMc), device.
Current firmware revisions included in this firmware bundle:
DEVICE FIRMWARE REVISION
COMPONENT
FIRMWARE VERSION
HP LASERJET Managed E60155dn, E60165dn, E60175dn Series
Firmware Datecode: 20200807 Firmware Revision: 2411097_060466
Embedded JetDirect:
JSI24110014
DC Controller Version
9.106
Optional Trays Version
4.108
HP Fleet Release Designation
Original Release FutureSmart 4.11.0.1
MD5 checksum for .bdl file
f8f9901f1a2d0d057e423f92205a3108
Enhancements and Fixes provided with this Firmware revision
The following new functionality or features are provided by this firmware release: Firmware Datecode: 20200205 Firmware Revision: 2410035_055359 HP Fleet Bundle Version Designation: FutureSmart Bundle Version 4.10.0.1
For information on HP Security Bulletins addressed by firmware releases, please visit:
https://support.hp.com/security-bulletins
To initiate a subscription to receive future HP Security Bulletin alerts via email, visit:
https://www.hp.com/go/alerts
ENHANCEMENT:
Base:
➢ No New Updates
Security/Authentication:
➢ No New Updates
Embedded JetDirect:
➢ No New Updates
FIXES:
Base:
➢ Several PrintMarkerStatus supply OIDs are missing after upgrade to FutureSmart
Firmware Bundle version 4.10.
Security/Authentication:
➢ No New Updates
Embedded JetDirect:
➢ No New Updates
Current firmware revisions included in this firmware bundle:
DEVICE FIRMWARE REVISION
COMPONENT
FIRMWARE VERSION
HP LASERJET Managed E60155dn, E60165dn, E60175dn Series
Firmware Datecode: 20200205 Firmware Revision: 2410035_055359
Embedded JetDirect:
JSI24100003
DC Controller Version
9.103
Optional Trays Version
4.108
HP Fleet Release Designation
Original Release FutureSmart 4.10.0.1
MD5 checksum for .bdl file
ffc7d2e3bbe31e7ec9419ee511632969
Enhancements and Fixes provided with this Firmware revision
The following new functionality or features are provided by this firmware release: Firmware Datecode: 20191224 Firmware Revision: 2410028_055009 HP Fleet Bundle Version Designation: FutureSmart Bundle Version 4.10
For information on HP Security Bulletins addressed by firmware releases, please visit:
https://support.hp.com/security-bulletins
To initiate a subscription to receive future HP Security Bulletin alerts via email, visit:
https://www.hp.com/go/alerts
ENHANCEMENT:
