HP E273m User Manual

Datasheet

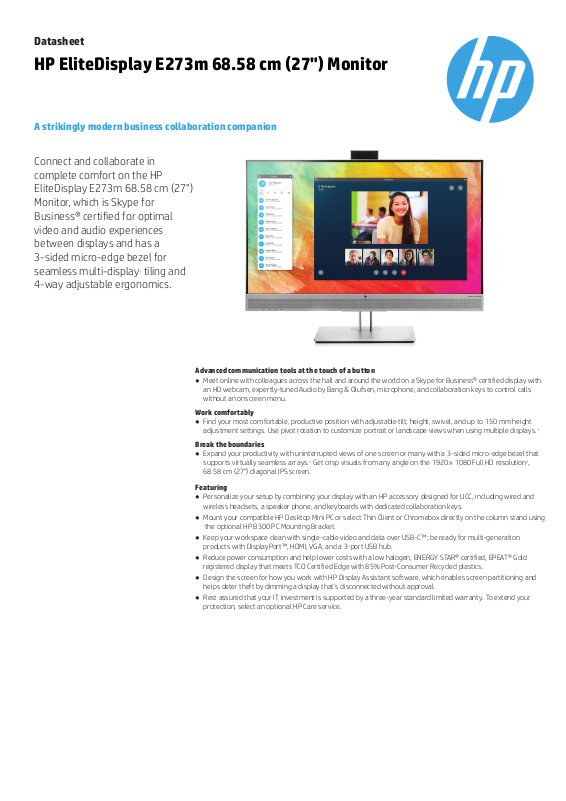

HP EliteDisplay E273m 68.58 cm (27") Monitor
A strikingly modern business collaboration companion
Connect and collaborate in complete comfort on the HP EliteDisplay E273m 68.58 cm (27") Monitor, which is Skype for Business® certified for optimal video and audio experiences between displays and has a 3-sided micro-edge bezel for seamless multi-display1tiling and 4-way adjustable ergonomics.
Advanced communication tools at the touch of a button
Meet online with colleagues across the hall and around the world on a Skype for Business® certified display with
an HD webcam, expertly-tuned Audio by Bang & Olufsen, microphone, and collaboration keys to control calls without an onscreen menu.
Work comfortably
Find your most comfortable, productive position with adjustable tilt, height, swivel, and up to 150 mm height
adjustment settings. Use pivot rotation to customize portrait or landscape views when using multiple displays.
Break the boundaries
Expand your productivity with uninterrupted views of one screen or many with a 3-sided micro-edge bezel that
supports virtually seamless arrays.1Get crisp visuals from any angle on the 1920 x 1080 Full HD resolution2,
68.58 cm (27") diagonal IPS screen.
Featuring
Personalize your setup by combining your display with an HP accessory designed for UCC, including wired and
wireless headsets, a speaker phone, and keyboards with dedicated collaboration keys. Mount your compatible HP Desktop Mini PC or select Thin Client or Chromebox directly on the column stand using
the optional HP B300 PC Mounting Bracket.
Keep your workspace clean with single-cable video and data over USB-C™; be ready for multi-generation
products with DisplayPort™, HDMI, VGA, and a 3-port USB hub. Reduce power consumption and help lower costs with a low halogen, ENERGY STAR® certified, EPEAT® Gold
registered display that meets TCO Certified Edge with 85% Post-Consumer Recycled plastics. Design the screen for how you work with HP Display Assistant software, which enables screen partitioning and
helps deter theft by dimming a display that’s disconnected without approval. Rest assured that your IT investment is supported by a three-year standard limited warranty. To extend your
protection, select an optional HP Care service.
1
Datasheet
HP EliteDisplay E273m 68.58 cm (27") Monitor Specifications Table
Product Color Black
Display size (diagonal) 68.58 cm (27")
Display Type IPS w/LED backlight
Panel Active Area 59.78 x 33.63 cm;
Viewing Angle 178° horizontal; 178° vertical
Brightness 250 cd/m²
Contrast Ratio 1000:1 static; 5000000:1 dynamic
Response Ratio 5 ms on/off
Aspect Ratio 16:9
Native Resolution FHD (1920 x 1080 @ 60 Hz)
Resolutions Supported 1920 x 1080; 1680 x 1050; 1600 x 900; 1440 x 900;1280 x 1024; 1280 x 800; 1280 x 720; 1024 x768; 800 x 600; 720 x 400; 640 x 480
Display Features Anti-glare; In plane switching; Language selection; LED Backlights; On-screen controls; Pivot rotation; Plugand Play; User programmable; Anti-static
User Controls Color Control; Image Control; Information; Input Control; Language; Luminance; Management; Menu; OSD Control; PIP Control; Power Control
Input signal 1 DisplayPort™ 1.2 (with HDCP support); 1 HDMI (with HDCP support); 1 VGA
Ports and Connectors 2 USB 3.0; 1 USB Type-C™ (upstream, power delivery up to 15 W)
Input power Input voltage:100 to 240 VAC
Power consumption Panel Active Area: 59.78 x 33.63 cm; Power consumption Description: 68 W (maximum), 32 W (typical), 0.5 W (standby); Screen resolution: FHD (1920 x
Dimensions with Stand (W x D x H)
Dimensions without Stand (W x D x H)
Weight 7.9 kg (With stand)
Ergonomic features Tilt: -5 to +22°; Swivel: 45° ±2°; Pivot rotation: 90°; Height: 150 mm
Certification and Compliance BSMI; CB; CCC; CE; CEL; CECP; FCC; ICE; ISC; ISO 9241-307; PSB; TUV-S; VCCI; WEEE; EAC; Vietnam MEPS; Australian-New Zealand MEPS; SmartWay
Environmental Arsenic-free display glass; Mercury-free display backlights; Low halogen
Energy Efficiency Compliance ENERGY STAR®certified; EPEAT® Gold
What's in the box Monitor; AC power cable; CD (includes user guide, warranty, drivers); DisplayPort™ 1.2 cable; HP Display Assistant; USB cable (Type A male to Type B male)
Warranty 3-years limited warranty including 3 years of parts and labour. Certain restrictions and exclusions apply.
1
1
1
1
1080 @ 60 Hz)
61 x 21.4 x 38.4 cm
61 x 4.75 x 38.9 cm
Transport Partnership - NA only; Microsoft WHQL Certification(Windows 10, Windows 8.1 and Windows 7); cTUVus; MexicoCoC; MSIP
2
Datasheet
HP EliteDisplay E273m 68.58 cm (27") Monitor
Accessories and services (not included)
HP B300 PC Mounting Bracket
HP Integrated Work Center for Desktop Mini and Thin Client
HP UHD USB Graphics Adapter
HP Business PC Security Lock v2 Kit
Customize an altogether better solution with the HP B300 PC Mounting Bracket, which lets you attach your HP Workstation, HP Desktop Mini, HP Chromebox or select HP Thin Client directly behind select 2017 and2018 HP EliteDisplays and HP Z Displays.
1
Product number: 2DW53AA
Make the most of small work spaces with an HP IWC Desktop Mini/Thin Client that lets you create a compact desktop solution bycombining a display1with an HP Desktop Mini, HPThin Client or HP Chromebox1and giving you convenient front access to all of its inputs.
Product number: G1V61AA
Boost your productivity by extending or mirroring your desktop to aUHD display with the HP UHD USB Graphics Adapter.
Product number: N2U81AA
Help prevent chassis tampering and secure your PC and display in workspaces and public areas with the HP Business PC Security Lock v2 Kit.
Product number: N3R93AA
HP 5 year Next business day Onsite Standard Monitor Hardware Support
Receive 5 years of next business day onsite HWSupport from an HP-qualified technician foryour computing device,if the issue cannot be solved remotely.
Product number: U7935E
Datasheet
HP EliteDisplay E273m 68.58 cm (27") Monitor
Messaging Footnotes
1
Each displaysold separately.
2
All performance specifications represent the typical specificationsprovided by HP's component manufacturers; actual performancemay vary either higheror lower.
3
Sold separately.
4
HP DesktopMini PC, Thin Client, and Chromebox soldseparately and require the HP B300PCMounting Bracket, also soldseparately. See display QuickSpecs forproduct compatibility.
5
Only supportsUSB-C™ DisplayPort Altmode and no power delivery is enabled.
6
External powersupplies, power cords,cables and peripheralsare not LowHalogen. Service parts obtained afterpurchase may notbe Low Halogen.
7
EPEAT® registered where applicable.EPEAT registrationvaries by country. See www.epeat.net forregistration status in your country. Search keyword generator on HP’s 3rdpartyoption store for solargenerator
accessories at www.hp.com/go/options.
8
HP Care Packs soldseparately. Service levelsand response times forHPCare Packs may vary depending on your geographic location. Service starts on date of hardware purchase. Restrictions andlimitationsapply. For details, visit www.hp.com/go/cpc. HPServices are governed by the applicable HP termsandconditions of service providedorindicated to Customer atthe time of purchase. Customer may have additional statutory rights according to applicablelocal laws, and such rights arenot in any way affectedby the HP terms and conditionsof service or the HP LimitedWarranty provided with your HP Product.
Technical specifications disclaimers
1
All specificationsrepresent the typical specifications provided by HP's componentmanufacturers, actual performancemayvary either higher orlower.
2
External powersupplies, power cords,cables and peripheralsare not LowHalogen. Service parts obtained afterpurchase may notbe Low Halogen.
Sign up for updates
www.hp.com/go/getupdated
© Copyright 2017 HP Development Company, L.P.The information contained herein is subjectto change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothingherein shouldbe construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. ENERGY STAR®and the ENERGY STAR® mark are registered trademarks of the U.S. Environmental Protection Agency. DisplayPort™ and the DisplayPort™ logo are trademarks owned by the Video Electronics Standards Association (VESA®) in the United States and other countries.
4AA7-1507EEE, October 2017
