QuickSpecs
HP E24t G4 FHD Touch Monitor

Technical Specifications

c06922719 — DA16769 — Worldwide — Version 1 — December 1, 2020
Page 1

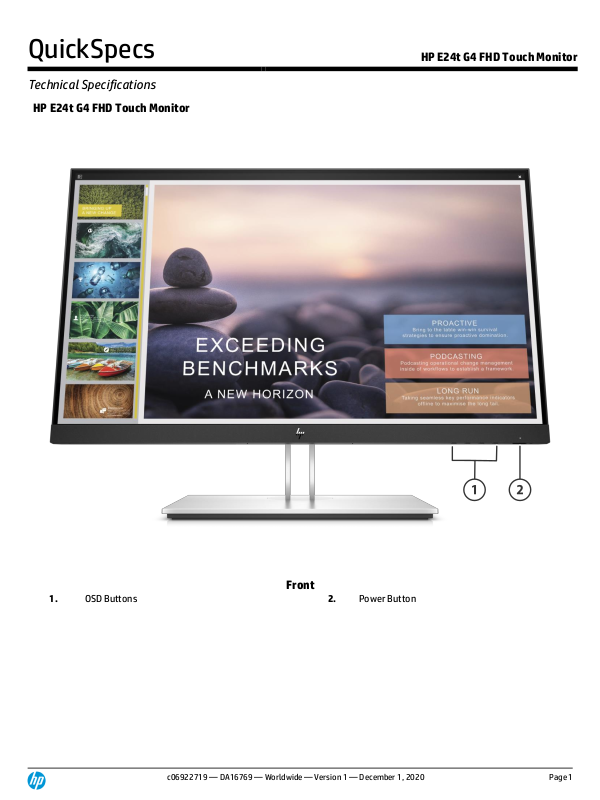

HP E24t G4 FHD Touch Monitor
Front
1.
OSD Buttons
2.
Power Button
QuickSpecs
HP E24t G4 FHD Touch Monitor
Technical Specifications
c06922719 — DA16769 — Worldwide — Version 1 — December 1, 2020
Page 2
HP E24t G4 FHD Touch Monitor
Back
1.
Power Button
5.
USB-B Port
2.
DisplayPort™
6.
USB-A Ports (2)
3.
HDMI Port
7.
USB-A Ports (2)
4.
VGA Port
QuickSpecs
HP E24t G4 FHD Touch Monitor
Technical Specifications
c06922719 — DA16769 — Worldwide — Version 1 — December 1, 2020
Page 3
Models: 9VH85AA
Panel Specifications
Display Size (Diagonal)
23.8-in
Display Panel Type
IPS Micro-Edge Bezel
Yes, 3-sided
Native Resolution/Timing
1920×1080 @ 60 Hz
Native Resolution Note*
1 VGA, 1 HDMI 1.4, 1 DisplayPort 1.2
Panel Bit Depth
8 Aspect Ratio
16:9
Brightness - Typical
300 cd/m²
Static Contrast Ratio - Typical
1000:1
Dynamic Contrast Ratio (DCR)
5,000,000:1
Flicker Free
Yes Pixel Pitch
0.2058(H)mm x 0.2058(V)mm
Pixels Per Inch (PPI)
123
Backlight Lamp Life (to half brightness
- in hours)
30k minimum
Anti-Glare Panel
Yes Response Time - Typical
5ms (gray to gray)
Horizontal Viewing Angle (typical CR>10)
178°
Vertical Viewing Angle (typical CR>10)
178°
Touch-Enable
Yes Panel Active Area (w x h)
476.06mm x 267.79mm
Preset Graphic Modes/Supported Resolutions
640 x 480 @ 60 Hz 720 x 400 @ 70 Hz 800 x 600 @ 60 Hz 1024 x 768 @ 60 Hz 1280 x 720 @ 60 Hz 1280 x 800 @ 60 Hz 1280 x 1024 @ 60 Hz 1366 x 768 @ 60 Hz 1440 x 900 @ 60 Hz 1600 x 900 @ 60 Hz 1680 x 1050 @ 60 Hz 1920 x 1080 @ 60 Hz
Maximum Resolution
1920 x 1080 @ 60 Hz
Recommended Resolution
1920 x 1080 @ 60 Hz
Vertical Scan Range
50Hz - 60Hz
Horizontal Scan Range
30KHz - 80KHz
Default Color Temperature
Neutral (6500K)
Maximum Pixel Clock Speed
170MHz
*VGA or DisplayPort™ 1.2 or HDMI 1.4 required to drive panel at its native resolution
NOTE: Performance specifications represent the typical specifications provided by HP's component manufacturers; actual performance may vary either higher or lower.
Color Gamut Coverage
NTSC
72%
Color Space / Subsampling Support
RGB 4:4:4, YCBCR 4:4:4, YCBCR 4:2:2
Default Color Temperature
Neutral (6500K)
Low Blue Light Modes
Yes RGB Channel Adjust
Yes, Gain
QuickSpecs
HP E24t G4 FHD Touch Monitor
Technical Specifications
c06922719 — DA16769 — Worldwide — Version 1 — December 1, 2020
Page 4
Monitor Specifications
Touch Panel Type
Up to 10 Point Advanced In-Cell Touch, Self-Capacitive
Exterior Color of Monitor Bezel and Stand
Black
Plug & Play
Yes Tilt
–5° to +23°
Swivel
±45°
Pivot
±90°
Height Adjustment Range
150 mm
VESA Mounting
Yes Security Lock Ready
Yes Detachable Base
Yes Warranty
Based on region
On Screen Display (OSD)
On Screen Display User Controls
Brightness+, Color, Image, Input, Power, Menu, Management, Information, Exit
User Programmable Modes
Yes, 10
Monitor Control Buttons or Switches
Menu/OK, Minus ("-")/Brightness, Plus ("+")/Color, Back/Input, Power
User-Assignable Function Buttons
Yes, 4
Languages
10 (English, Spanish, German, French, Italian, Netherlands, Portuguese, Japanese, T-Chinese and S-Chinese)
Connector Types
DisplayPort™
1, DisplayPort™ 1.2
HDMI
1, HDMI1.4
VGA 1
USB-A
4 USB-B
1 HDCP support
Yes, (DisplayPort™ and HDMI)
Power & Operating Specs
Power Supply
Internal
Power Source
100 – 240 VAC 50/60 Hz
Power Consumption - Maximum
52 W
Energy Saving
0.5 W
Power Consumption - Typical
25 W
Power cable length
1.9 m
Energy Star Data
Operational Mode at 100 VAC
12.28 W
Operational Mode at 115 VAC
12.25 W
Operational Mode at 230 VAC
12.43 W
EU Energy Efficiency Class (EC1062)
On-mode Power Consumption (EC 1062/2010)
13 W
Annual Power Consumption (EC 1062/2010)
18 kWh
Energy Efficiency Class (EC 1062/2010)
A++
Operating Conditions Operating Temperature - Celsius
5° – 35°C
Operating Temperature - Fahrenheit
41° -95°F
Non-operating Temperature - Celsius
34° 60°C
Non-operating Temperature ­Fahrenheit
-29° - 140°F
Operating Humidity
20 – 80% Relative Humidity (non-condensing)
Non-operating Humidity
5 – 95%
Operating Altitude
0 - 5,000 m (16,400 ft.)
Non-operating Altitude
0 – 12,192 m (40,000 ft.)
QuickSpecs
HP E24t G4 FHD Touch Monitor
Technical Specifications
c06922719 — DA16769 — Worldwide — Version 1 — December 1, 2020
Page 5
Environmental Features and Certifications
Mercury-free LED display backlighting
Yes, Mercury-free LED backlighting
Arsenic-Free Display Glass
Yes
Low Halogen**
Yes GSE HP-00011-01B, table 2 defines low-halogen (BFR, CFR, PVC) NOTE: External power supplies, power cords, cables and peripherals are not Low Halogen. Service parts obtained after purchase may not be Low Halogen.
Agency Approvals and Certifications
CE,CB,KC/KCC/NOM/PSB/ICE/TUV-S/ISO 9241-307/ EAC/UL/CSA/PSB/ISC/CCC/CEL/Energy Star/ISC/VCCI/FCC/BSMI/Vietnam MEPS/Australian-New Zealand MEPS/WEEE
Microsoft WHQL Certification
Win 10, Win 8, Win 7
ENERGY STAR®
Yes
EPEAT® 2019 Registered*
Yes
China Energy Label
CEL Grade 1
TCO Certified
Yes
SmartWay Transport Partnership - NA only
Yes (NA SKU)
* Based on US EPEAT® registration according to IEEE 1680.1-2018 EPEAT®. Status varies by country. Visit
http://www.epeat.net for more information.
**External power supplies, power cords, cables and peripherals are not Low Halogen. Service parts obtained after purchase may not be Low Halogen.
NOTE: DisplayPort™ and the DisplayPort™ logo are trademarks owned by the Video Electronics Standards Association (VESA®) in the United States and other countries.
Metric
Imperial
Unit Product/Package Specifications
Product Dimensions
(Unpacked with stand) (W x D x H)
53.94 x 20.7 x 49.49 cm
21.24 x 8.15 x 19.48 in
Product Dimensions
(Packed) (W x D x H)
61 x 22.5 x 39.5 cm
24.02 x 8.86 x 15.55 in
Display Head Dimensions
(Unpacked without stand) (W x D x H)
53.94 x 4.7 x 32.33 cm
21.24 x 1.85 x 12.73 in
Base Area Footprint
(w x d mm)
260 x 207 mm
10.24 x 8.15 in
Bezel Measurements
Bottom 19.66 mm
Bottom 00.77 in
Product Weight
(Unpacked with stand)
5.8 kg
12.8 lb
Product Weight
(Packed)
8.7 kg
19.2 lb
Product Weight
(Head Only)
3.4 kg
7.5 lb
Display Management Software
HP Display Center
What's in the box?
AMS: AC Power Cord (1.8m) 5.9 ft, HDMI Cable (1.8m) 5.9 ft, DP Cable (1.8m) 5.9 ft LA: AC Power Cord (1.8m) 5.9 ft, HDMI Cable (1.8m) 5.9 ft, DP Cable (1.8m) 5.9 ft APJ (exclude Japan): AC Power Cord (1.8m) 5.9 ft, VGA Cable (1.8m) 5.9 ft, HDMI Cable (1.8m) 5.9 ft APJ Japan: AC Power Cord (1.8m) 5.9 ft, VGA Cable (1.8m) 5.9 ft, HDMI Cable (1.8m) 5.9 ft, DP Cable (1.8m) 5.9 ft EMEA: AC Power Cord (1.8m) 5.9 ft, VGA Cable (1.8m) 5.9 ft, HDMI Cable (1.8m) 5.9 ft
QuickSpecs
HP E24t G4 FHD Touch Monitor
Technical Specifications
c06922719 — DA16769 — Worldwide — Version 1 — December 1, 2020
Page 6
User Guide and Warranty Languages
User Guide Languages
English, Arabic, S. Chinese, T. Chinese, Czech, Danish, Dutch, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Kazakh, Korean, Norwegian, Polish, Brazilian Portuguese, Russian, Slovenian, Spanish, Swedish and Turkish.
Warranty Languages
English, Arabic, S. Chinese, T. Chinese, Czech, Danish, Dutch, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Kazakh, Korean, Norwegian, Polish, Brazilian Portuguese, Russian, Slovenian, Spanish, Swedish and Turkish.
