HP (Hewlett-Packard) DV6-3225DX User Manual

Notebook PC User Guide

Bluetooth is a trademark owned by its proprietor and used by Hewlett-Packard Company under license. Intel is a trademark of Intel Corporation in the U.S. and other countries. Microsoft and Windows are U.S. registered trademarks of Microsoft Corporation. SD Logo is a trademark of its proprietor.

The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

Second Edition: December 2010

First Edition: April 2010

Document Part Number: 597853-002

Product notice

This user guide describes features that are common to most models. Some features might not be available on the computer.

Safety warning notice

WARNING! To reduce the possibility of heat-related injuries or of overheating the computer, do not

place the computer directly on your lap or obstruct the computer air vents. Use the computer only on a hard, flat surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft surface, such as pillows or rugs or clothing, to block airflow. Also, do not allow the AC adapter to contact the skin or a soft surface, such as pillows or rugs or clothing, during operation. The computer and the AC adapter comply with the user-accessible surface temperature limits defined by the International Standard for Safety of Information Technology Equipment (IEC 60950).

iii

iv Safety warning notice

Table of contents

Index ................................................................................................................................................................... 97

1Features

Identifying hardware

To see a list of hardware installed on the computer:

1. Select Start > Control Panel > System and Security.

2. In the System area, click Device Manager.

Use Device Manager to add hardware or modify device configurations.

NOTE: Windows® includes the User Account Control feature that improves the security of the

computer. You might be prompted for your permission or password for tasks such as installing applications, running utilities, or changing Windows settings. For more information, see Help and Support.

Identifying hardware 1

Components

Top components

TouchPad

Component Function

TouchPad Moves the pointer and selects or activates items on the screen.

To view or change the pointing device preferences:

1. Select Start > Devices and Printers.

2. Right-click the device representing the computer.

3. Select Mouse settings.

2 Chapter 1 Features

TouchPad buttons

Item Description Function

2 Left TouchPad button Functions like the left button on an external

3 Right TouchPad button Functions like the right button on an external

TouchPad On/Off button Turns the TouchPad on and off. Press and hold

the button for two seconds to turn the TouchPad on and off.

mouse.

To view or change pointing device preferences:

1. Select Start > Devices and Printers.

2. Right-click the device representing your computer.

3. Select Mouse settings.

Components 3

Lights

Item Description Function

1 TouchPad light Amber—The TouchPad is disabled.

2 Caps Lock light On—The Caps Lock is on.

3 Power light ● On—The computer is on.

Flashing—The computer is in Sleep.

●

● Off—The computer is off or in Hibernation.

4 Volume Mute light Amber—The computer sound is off.

5 Wireless light ● White—An integrated wireless device, such as a

6 Fingerprint Reader light

wireless local area network (WLAN) device and/or a Bluetooth® device, is detected.

● Amber—No wireless devices are detected.

White—The fingerprint was read.

●

● Amber—The fingerprint was not read.

4 Chapter 1 Features

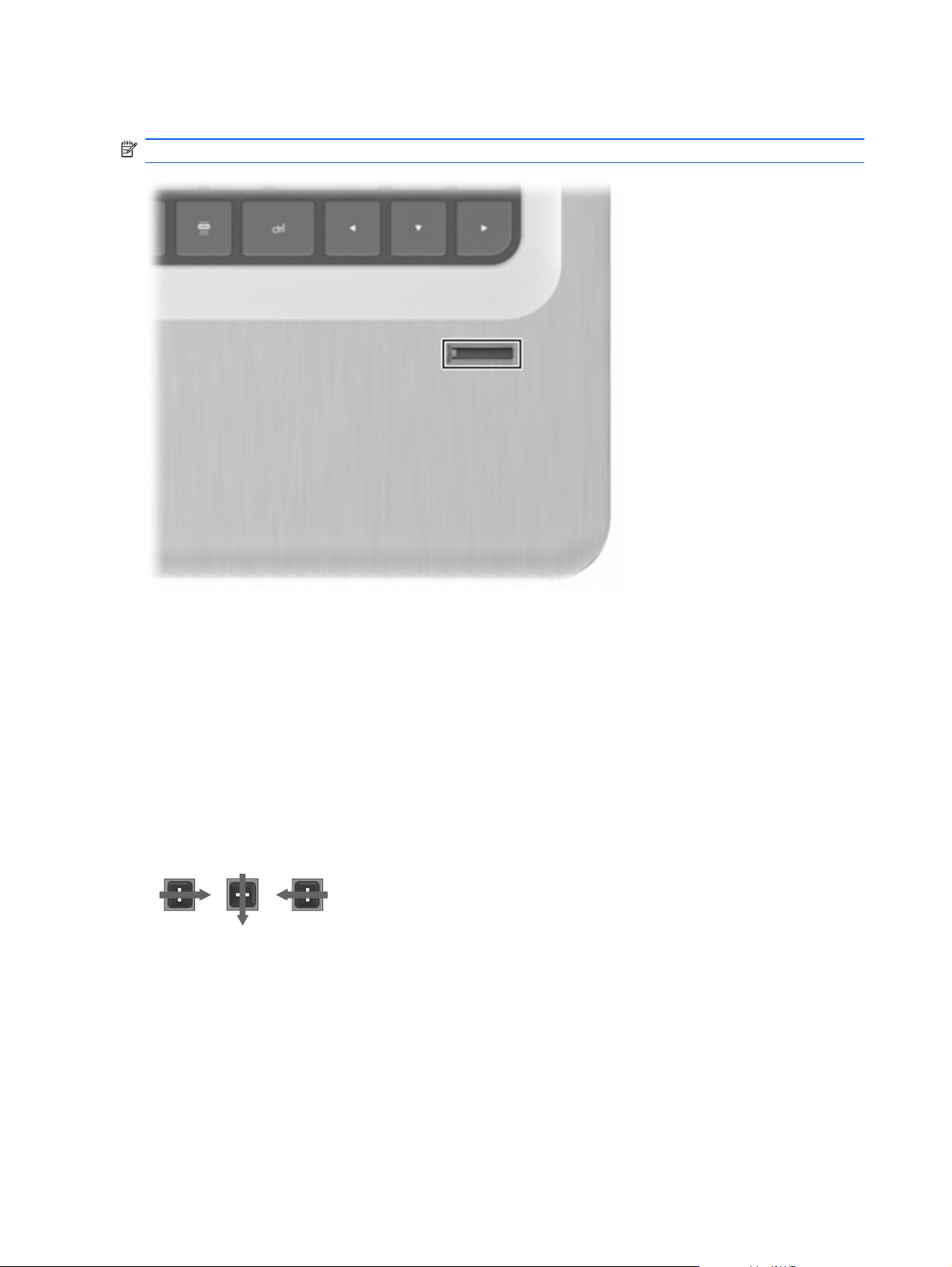

Buttons and Fingerprint Reader (select models only)

Item Description Function

1 Power button Press the Power button to:

●

Turn on the computer.

● Initiate Sleep.

● Exit Sleep.

Exit Hibernation.

●

If the computer has stopped responding and Windows shutdown procedures are ineffective, press and hold the Power button for at least five seconds to shut down the computer.

For more information about the power settings, select

Start > Control Panel > System and Security > Power Options.

2 Fingerprint Reader (select models only) Allows a fingerprint logon to Windows, instead of a

password logon.

For information about changing the factory settings, see Help and Support.

Components 5

Keys

Item Description Function

1 esc key Press the esc and fn keys at the same time to display

system information.

2 E-mail key Opens a new e-mail in the default e-mail client.

3 Media Application key Launches the MediaSmart application.

4 Web Browser key Launches the default web browser.

5 Print key Sends the currently-active document to the default

printer.

6 Calculator key Launches the Calculator application.

7 fn key Press the fn key at the same time as a function key or

8 Windows Logo key Displays the Windows Start menu.

9 Function keys Press a function key and the fn key at the same time to

10 Windows Application key Displays a shortcut menu for items beneath the pointer.

11 QuickLock key Initiates QuickLock.

12 Backlight key Turns the backlit keyboard on or off.

the esc key to execute frequently used system functions.

execute frequently used system functions.

6 Chapter 1 Features

Front components

Description Function

Speakers Produce sound.

Right-side components

Item Description Function

1 USB ports (2) Connect optional USB devices.

2 Optical drive Reads optical discs and, on select models, writes to

3 Optical Drive light Flashing—Accessing the optical drive.

4 Hibernate light White—The computer is in Hibernate.

5 Hard Disk Drive light ● White—The hard disk drive is active.

6 AC Adapter light ● On—The computer is connected to external power.

7 Power connector Connects an AC adapter.

8 Security Cable slot Connects an optional security cable. The security cable

optical discs.

● Amber—The hard disk drive is parked.

Off—The computer is not connected to external

●

power.

is designed to act as a deterrent, but might not prevent the computer from being mishandled or stolen.

Components 7

Left-side components

Item Description Function

1 Vents (2) Enable airflow to cool internal components.

2 External Monitor port Connects an external VGA monitor or projector.

NOTE: The computer fan starts up automatically to

cool internal components and prevent overheating. It is normal for the internal fan to cycle on and off during routine operation.

3 RJ-45 (network) jack Connects a network cable.

4 HDMI port Connects an optional video or audio device, such as a

5 eSATA/USB port (select models only) Connects an optional high-performance eSATA

6 USB port Connects an optional USB device.

7 Audio-in (microphone) jack Connects an optional computer headset microphone,

8 Audio-out (headphone) jack Produces sound when connected to optional powered

9 SD card reader Reads SD cards that are inserted into the reader.

high-definition television, or any compatible digital or audio component.

component, such as an eSATA external hard drive, or connects an optional USB device.

NOTE: Depending on the computer model, the

computer might include only a USB port.

stereo array microphone, monaural microphone.

stereo speakers, headphones, ear buds, a headset, or television audio.

8 Chapter 1 Features

Bottom components

Item Description Function

1 Battery bay Holds the battery.

2 Vents (6) Enable airflow to cool internal components.

NOTE: The computer fan starts up automatically to

cool internal components and prevent overheating. It is normal for the internal fan to cycle on and off during routine operation.

3 Battery Release latch Releases the battery from the battery bay.

4 Primary Hard Drive bay Holds the primary hard drive, the memory module slots,

and the WLAN module (select models only).

CAUTION: To prevent an unresponsive system,

replace the wireless module with a wireless module authorized for use by the governmental agency that regulates wireless devices in your country or region. If you replace the module and then receive a warning message, remove the module to restore computer functionality, and then contact technical support through Help and Support.

Components 9

Display components

Item Description Function

1 Internal microphones (2) Record sound.

2 Webcam light On—The webcam is in use.

3 Webcam Records video and captures still photographs.

10 Chapter 1 Features

Wireless antennas (select models only)

On select computer models, at least two antennas send and receive signals from one or more wireless devices. These antennas are not visible from the outside of the computer.

NOTE: For optimal transmission, keep the areas immediately around the antennas free from

obstructions.

To review wireless regulatory notices, see the country-specific section of the Regulatory, Safety and Environmental Notices chapter in Help and Support.

Components 11

Additional hardware components

Item Description Function

1 Power cord* Connects an AC adapter to an AC outlet.

2 AC adapter Converts AC power to DC power.

3 Battery* Provides power when the computer is not connected to

an external power source.

* Batteries and power cords vary in appearance by region and country.

12 Chapter 1 Features

Labels

The labels affixed to the computer provide information needed when troubleshooting system problems or traveling internationally with the computer.

●

Service tag—Provides important information including:

The service tag label is affixed to the bottom of the computer. When contacting technical support, have this information available.

Item Description Function

1 Serial number (s/n) An alphanumeric identifier that is

2 Product name The name affixed to the front of the

3 Warranty period The duration (in years) of the

Microsoft Certificate of Authenticity—Contains the Windows Product Key. You might need the

●

unique to each product.

computer.

warranty period for this computer.

Product Key to update or troubleshoot the operating system. This certificate is affixed to the bottom of the computer.

● Regulatory label—Provides regulatory information about the computer. The regulatory label is

affixed inside the battery bay.

● Modem approval label—Provides regulatory information about the modem and lists the agency

approval markings required by some countries or regions where the modem has been approved for use. You might need this information when traveling internationally. The modem approval label is affixed inside the hard drive bay.

● Wireless certification label(s) (select models only)—Provides information about optional wireless

devices and the approval markings of some of the countries or regions where the devices have been approved for use. An optional device might be a wireless local area network (WLAN) device or an optional Bluetooth device. If the computer model includes one or more wireless devices, one or more certification labels are included with the computer. You might need this information when traveling internationally. Wireless certification labels are affixed inside the Mini Card compartment.

● SIM (subscriber identity module) label (select models only)—Provides the ICCID (Integrated

Circuit Card Identifier) of the SIM. This label is located inside the battery bay.

● HP Mobile Broadband Module serial number label (select models only)—Provides the serial

number of the HP Mobile Broadband Module. This label is located inside the battery bay.

Labels 13

2 Wireless, local area network, and

modem

Using wireless devices

Wireless technology transfers data across radio waves instead of wires. The computer might be equipped with one or more of the following wireless devices:

● Wireless local area network (WLAN) device—Connects the computer to wireless local area

networks (commonly referred to as Wi-Fi networks, wireless LANs, or WLANs) in corporate offices, your home, and public places such as airports, restaurants, coffee shops, hotels, and universities. In a WLAN, each mobile wireless device communicates with a wireless router or a wireless access point.

Bluetooth device (select models only)—Creates a personal area network (PAN) to connect to

●

other Bluetooth-enabled devices such as computers, phones, printers, headsets, speakers, and cameras. In a PAN, each device communicates directly with other devices, and devices must be relatively close together—typically within 10 meters (approximately 33 feet) of each other.

Computers with WLAN devices support one or more of the following IEEE industry standards:

● 802.11b, the first popular standard, supports data rates of up to 11 Mbps and operates at a

frequency of 2.4 GHz.

● 802.11g supports data rates of up to 54 Mbps and operates at a frequency of 2.4 GHz. An

802.11g WLAN device is backward compatible with 802.11b devices, so that they can operate on the same network.

802.11a supports data rates of up to 54 Mbps and operates at a frequency of 5 GHz.

●

NOTE: 802.11a is not compatible with 802.11b and 802.11g.

● 802.11n supports data rates of up to 450 Mbps and might operate at 2.4 GHz or 5 GHz, making

it backward compatible with 802.11a, b, and g.

For more information on wireless technology, see the information and website links provided in Help and Support.

14 Chapter 2 Wireless, local area network, and modem

Identifying wireless and network status icons

Icon Name Description

Wireless (connected) Identifies the location of the wireless light and the wireless key on

Wired network (connected) Indicates that one or more network drivers are installed, and one

Wired network (disabled/ disconnected)

Network (connected) Indicates that one or more network drivers are installed, and one

Network (disconnected) Indicates that one or more network drivers are installed and

Network (disabled/ disconnected)

the computer. Also identifies the HP Wireless Assistant software on the computer and indicates that one or more of the wireless devices are on.

or more network devices are connected to a wired network.

Indicates that one or more network drivers are installed, but no network devices are connected (or all network devices are disabled in Windows Control Panel).

or more network devices are connected to a wireless network.

wireless connections are available, but no network devices are connected to a wireless network.

Indicates that one or more network drivers are installed, but no wireless connections are available (or all wireless network devices are disabled by the wireless key or HP Wireless Assistant).

Using the wireless controls

Control the wireless devices on the computer using:

Wireless action key or hotkey (fn+f12)

●

HP Wireless Assistant software

●

HP Connection Manager software (select models only)

●

Operating system controls

●

Using the wireless key

The computer has a wireless key, one or more wireless devices, and one or two wireless lights, depending on the model. All of the wireless devices on the computer are enabled at the factory, so the wireless light illuminates white when you turn on the computer.

The wireless light indicates the overall power state of your wireless devices, not the status of individual devices. If the wireless light illuminates white, at least one wireless device is on. If the wireless light is off, all wireless devices are off.

NOTE: On some models, the wireless light illuminates amber when all wireless devices are off.

Because the wireless devices are enabled at the factory, use the wireless key to turn on or turn off the wireless devices simultaneously. Individual wireless devices are controlled through HP Wireless Assistant.

Using wireless devices 15

Using HP Wireless Assistant

A wireless device is turned on or off using HP Wireless Assistant. If a wireless device is disabled by Setup Utility, it must be re-enabled by Setup Utility before it can be turned on or off using Wireless Assistant.

NOTE: Enabling or turning on a wireless device does not automatically connect the computer to a

network or a Bluetooth-enabled device.

To view the state of the wireless devices, click the Show hidden icons icon, the arrow at the left of the notification area, and position the mouse pointer over the wireless icon.

If the wireless icon is not displayed in the notification area:

1. Select Start > Control Panel > Hardware and Sound > Windows Mobility Center.

2. Click the Wireless icon in the Wireless Assistant tile, which is located in the bottom row of

Windows Mobility Center. Wireless Assistant appears.

3. Click Properties.

4. Select the check box next to HP Wireless Assistant icon in notification area.

5. Click Apply.

6. Click Close.

For more information, see the Wireless Assistant software Help. To access Help:

1. Open Wireless Assistant by clicking the Wireless icon in Windows Mobility Center.

2. Click the Help button.

Using operating system controls

Some operating systems offer a way to manage integrated wireless devices and the wireless connection. For example, Windows provides the Network and Sharing Center that allows you to set up a connection or network, connect to a network, manage wireless networks, and diagnose and repair network problems.

To access the Network and Sharing Center, select Start > Control Panel > Network and Internet > Network and Sharing Center.

For more information, select Start > Help and Support.

16 Chapter 2 Wireless, local area network, and modem

Using a WLAN

With a WLAN device, access is available to a wireless local area network (WLAN), which is composed of other computers and accessories that are linked by a wireless router or a wireless access point.

NOTE: The terms wireless router and wireless access point are often used interchangeably.

● A large-scale WLAN, such as a corporate or public WLAN, typically uses wireless access points

that accommodate a large number of computers and accessories and can separate critical network functions.

● A home or small office WLAN uses a wireless router, which allows several wireless and wired

computers to share an Internet connection, a printer, and files without requiring additional pieces of hardware or software.

To use the WLAN device in the computer, connect to a WLAN infrastructure (provided through a service provider or a public or corporate network).

Setting up a WLAN

To set up a WLAN and connect to the Internet, you need:

A broadband modem (either DSL or cable) (1) and high-speed Internet service purchased from

●

an Internet service provider (ISP)

A wireless router (purchased separately) (2)

●

The wireless computer (3)

●

The illustration below shows an example of a wireless network installation that is connected to the Internet.

As your network grows, additional wireless and wired computers can be connected to the network to access the Internet.

For help in setting up your WLAN, see the information provided by your router manufacturer or your ISP.

Using a WLAN 17

Protecting your WLAN

Because the WLAN standard was designed with only limited security capabilities—basically to foil casual eavesdropping rather than more powerful forms of attack—it is essential to understand that WLANs are vulnerable to well-known and well-documented security weaknesses.

WLANs in public areas, or “hotspots,” like coffee shops and airports might not provide any security. New technologies are being developed by wireless manufacturers and hotspot service providers that make the public environment more secure and anonymous. If you are concerned about the security of the computer in a hotspot, limit your network activities to noncritical e-mail and basic Internet surfing.

When setting up a WLAN or access an existing WLAN, always enable security features to protect your network from unauthorized access. The common security levels are Wi-Fi Protected Access (WPA)-Personal and Wired Equivalent Privacy (WEP). Because wireless radio signals travel outside the network, other WLAN devices can pick up unprotected signals and either connect to your network (uninvited) or capture information being sent across it. To protect the WLAN:

● Use a wireless transmitter with built-in security

Many wireless base stations, gateways, or routers provide built-in security features such as wireless security protocols and firewalls. With the correct wireless transmitter, you can protect your network from the most common wireless security risks.

● Work behind a firewall

A firewall is a barrier that checks both data and requests that are sent to your network, and discards any suspicious items. Firewalls are available in many varieties, both software and hardware. Some networks use a combination of both types.

● Use wireless encryption

A variety of sophisticated encryption protocols is available for your WLAN. Find the solution that works best for your network security:

◦ Wired Equivalent Privacy (WEP) is a wireless security protocol that encodes or encrypts all

network data before it is transmitted using a WEP key. The network assigns the WEP key, but you can set up your own key, generate a different key, or choose other advanced options. Without the correct key, others cannot access the WLAN.

◦ WPA (Wi-Fi Protected Access), like WEP, uses security settings to encrypt and decrypt

data that is transmitted over the network. However, instead of using one static security key for encryptions as WEP does, WPA uses “temporal key integrity protocol” (TKIP) to dynamically generate a new key for every packet. It also generates different sets of keys for each computer on the network.

18 Chapter 2 Wireless, local area network, and modem

Connecting to a WLAN

To connect to the WLAN:

1. Be sure that the WLAN device is on. If it is on, the wireless light is illuminated white. If the

wireless light is off, press the wireless key.

NOTE: On some models, the wireless light is amber when all wireless devices are off.

2. Click the Network icon in the notification area at the far right of the taskbar.

3. Select your WLAN from the list.

4. Click Connect.

NOTE: If no WLANs are listed, you are out of range of a wireless router or access point.

● If the network is a security-enabled WLAN, enter a network security key at the prompt,

which is a security code, and then click OK to complete the connection.

● If you do not see the network you want to connect to, click Open Network and Sharing

Center, and then click Set up a new connection or network. A list of options appears.

Search for and connect to a network or to create a new network connection.

After the connection is made, place the mouse pointer over the Network icon in the notification area to verify the name and status of the connection.

NOTE: The functional range (how far your wireless signals travel) depends on WLAN

implementation, router manufacturer, and interference from other electronic devices or structural barriers such as walls and floors.

More information about using a WLAN is available through:

Your ISP and the user guides included with the wireless router and other WLAN equipment

●

Help and Support information and website links

●

For a list of public WLANs near you, contact your ISP or search the Web. Websites that list public WLANs include Cisco Internet Mobile Office Wireless Locations, Hotspotlist, and Geektools. Check with each public WLAN location for cost and connection requirements.

Roaming to another network

When you move the computer within range of another WLAN, Windows attempts to connect to that network. If the attempt is successful, the computer is automatically connected to the new network. If Windows does not recognize the new network, follow the instructions in “Connecting to a WLAN.”

Using a WLAN 19

Using Bluetooth wireless devices (select models only)

A Bluetooth device provides short-range wireless communications that replace the physical cable connections that traditionally link electronic devices such as:

Computers (desktop, notebook, PDA)

●

Phones (cellular, cordless, smart phone)

●

Imaging devices (printer, camera)

●

● Audio devices (headset, speakers)

Bluetooth devices provide peer-to-peer capability that allows you to set up a personal area network (PAN) of Bluetooth devices. For information on configuring and using Bluetooth devices, see the Bluetooth software Help.

Bluetooth and Internet Connection Sharing (ICS)

HP does not recommend setting up a host, Bluetooth computer and using it as a gateway through which other computers connect to the Internet. When two or more computers are connected using Bluetooth, and Internet Connection Sharing (ICS) is enabled on one of the computers, the other computers cannot connect to the Internet using the Bluetooth network.

The strength of Bluetooth is in synchronizing information transfers between the computer and wireless devices including cellular phones, printers, cameras, and PDAs. The inability to consistently connect two or more computers to share the Internet through Bluetooth is a limitation of Bluetooth and the Windows operating system.

20 Chapter 2 Wireless, local area network, and modem

Connecting to a local area network

Connecting to a local area network (LAN) requires an 8-pin, RJ-45 network cable (purchased separately). If the network cable contains noise suppression circuitry (1), which prevents interference from TV and radio reception, orient the circuitry end of the cable (2) toward the computer.

WARNING! To reduce the risk of electric shock, fire, or damage to the equipment, do not connect a

modem or telephone cable to the RJ-45 (network) jack.

To connect the network cable:

1. Connect the network cable to the network jack (1) on the computer.

2. Connect the other end of the cable to a network wall jack (2).

Connecting to a local area network 21

3 Pointing devices and keyboard

Using pointing devices

Setting pointing device preferences

Use Mouse Properties in Windows to customize settings for pointing devices, such as button configuration, click speed, and pointer options.

To access Mouse Properties:

1. Select Start > Devices and Printers.

2. Right-click the device representing the computer.

3. Select Mouse settings.

Using the TouchPad

The following illustration and table describe the computer TouchPad.

Component Description

(1) TouchPad off indicator To switch the TouchPad zone on and off, quickly double-tap the

TouchPad off indicator.

22 Chapter 3 Pointing devices and keyboard

NOTE: When the TouchPad zone is active, the light is off.

Component Description

(2) TouchPad zone Moves the pointer and selects or activates items on the screen.

(3) Left TouchPad button Functions like the left button on an external mouse.

(4) Right TouchPad button Functions like the right button on an external mouse.

Turning the TouchPad on and off

The TouchPad is turned on at the factory. When the TouchPad zone is active, the light is off. To turn the TouchPad on and off, quickly double-tap the TouchPad off indicator.

Using TouchPad gestures

The TouchPad supports a variety of TouchPad gestures. To activate the TouchPad gestures, place two fingers on the TouchPad as described in the following sections.

To enable or disable gestures, click the Synaptics icon in the notification area, at the far right of the taskbar, and then check or uncheck Disable gestures. To enable or disable a specific gesture, select Control Panel > Hardware and Sound > Mouse > Device settings > Settings, and then check or clear the check box next to the gesture you want to enable or disable.

Scrolling

Scrolling is useful for moving up or down on a page or image. To scroll, place two fingers slightly apart on the TouchPad and drag them across the TouchPad in an up, down, left, or right motion.

NOTE: Scrolling speed is controlled by finger speed.

Using pointing devices 23

Pinching

Pinching allows you to zoom in or out on items such as PDFs, images, and photos.

To pinch:

Zoom in by holding two fingers together on the TouchPad, and then pull the fingers apart to

●

increase an object's size.

Zoom out by holding two fingers apart on the TouchPad, and then pull the fingers together to

●

decrease an object's size.

Rotating

Rotating allows you rotate items such as photos and pages. To rotate, move your thumb and forefinger in a circular motion on the TouchPad.

24 Chapter 3 Pointing devices and keyboard

Using the touchscreen (select models only)

The touchscreen allows you to make selections or activate items on the screen using your finger.

The touchscreen functions with the default calibration or with a calibration set by another user. However, HP recommends calibrating the touchscreen. Calibration optimizes digitizer performance for all users and particularly for left-handed users.

Calibrating the touchscreen

To calibrate touch:

1. Double-click the calibration desktop icon.

- or -

Select Start > Control Panel > Tablet Properties, and then select the Calibrate Touch tab.

2. Follow the on-screen instructions.

Use your finger to touch the exact center of each of the calibration markers. The calibration

●

markers are displayed on the screen as plus signs (+). This will calibrate the touch.

Be sure to calibrate the touch for use in all 4 screen orientations. Use the screen rotate

●

button on the display to rotate the screen to a new orientation.

Do not change the screen orientation until you have completed the calibration.

●

Using pointing devices 25

Performing actions on the touchscreen

Use a plastic computer pen or your fingernail to perform click or flick actions.

The instructions in this section are based on the preferences set at the factory. To modify settings for recognized clicks and flicks select Start > Control Panel > Hardware and Sound > Pen and Touch.

Performing clicks

To perform clicks on the touchscreen:

Tap an item to select it as you would with the left button of an external mouse.

●

● Tap and hold on an item to select it as you would with the right button of an external mouse.

● Tap an item twice to double-click as you would with the left button of an external mouse.

Performing flicks

NOTE: Flicks are not recognized by some software programs.

To perform flicks on the touchscreen:

● Flick upward to scroll up.

● Flick downward to scroll down.

● Flick to the left to navigate back a page or screen.

● Flick to the right to navigate forward a page or screen.

Changing or testing click settings

To change or test click settings:

1. Select Start > Control Panel > Hardware and Sound > Pen and Touch > Pen Options tab.

2. Under Pen actions, select the action, and then click Settings.

3. Make changes or test the settings, and then click OK.

NOTE: Pen button options are not supported.

Changing or creating flick assignments

To change or create flick assignments:

1. Select Start > Control Panel > Hardware and Sound > Pen and Touch > Flicks tab.

2. Click Navigational flicks and editing flicks, and then click Customize.

3. Follow the on-screen instructions to change or create a flick assignment.

4. Click OK.

26 Chapter 3 Pointing devices and keyboard

Setting touchscreen preferences

To set touchscreen preferences:

For clicks, flicks, and visual feedback, select Start > Control Panel > Hardware and Sound >

●

Pen and Touch. These preferences are specific to the touchscreen and the computer.

● For left-handed or right-handed users, select Start > Control Panel > Hardware and Sound >

Tablet PC Settings > General tab. These preferences are specific to the touchscreen and the

computer.

For pointer speed, click speed, and mouse trails, select Start > Control Panel > Hardware and

●

Sound > Mouse. These preferences apply to any pointing device in the system.

Connecting an external mouse

Connect an external USB mouse to the computer using one of the USB ports on the computer. A USB mouse also connects to the computer by using optional docking device ports or optional expansion product.

Using the action keys

Action keys are customized actions that are assigned to specific keys at the top of the keyboard.

To use an action key, press and hold this key to activate the assigned function.

NOTE: The action key feature is enabled at the factory. You can disable this feature in Setup Utility.

If this feature is disabled in Setup Utility, you will need to press fn and an action key to activate the assigned function. Refer to the “Setup Utility (BIOS)” chapter for additional information.

Icon Description

Opens Help and Support, which provides information about the Windows operating system and computer, answers to questions and tutorials, and updates to the computer.

Help and Support also provides automated troubleshooting and links to support specialists.

Decreases the screen brightness level incrementally when holding down this key.

Increases the screen brightness level incrementally when holding down this key.

Switches the screen image among display devices connected to the system. For example, if a monitor is connected to the computer, pressing this key alternates the screen image from computer display to monitor display to simultaneous display on both the computer and the monitor.

Most external monitors receive video information from the computer using the external VGA video standard. The

Switch Screen Image key also alternates images among other devices that are receiving video information from

the computer.

Using the action keys 27

Icon Description

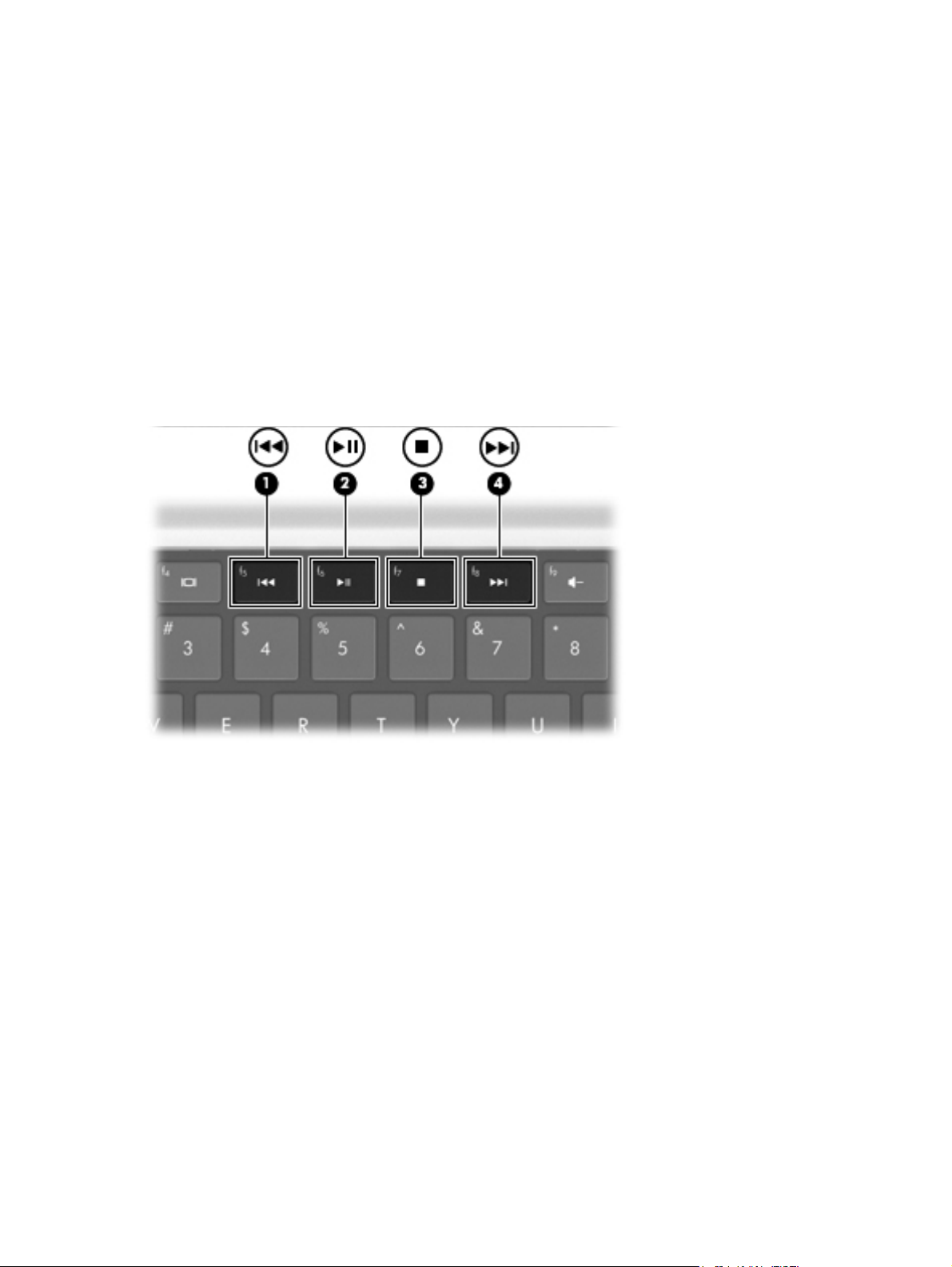

Plays the previous track of an audio CD or the previous section of a DVD or a BD.

Plays, pauses, or resumes an audio CD, a DVD, or a BD.

Stops audio or video playback of a CD, a DVD, or a BD.

Plays the next track of an audio CD or the next section of a DVD or a BD.

Decreases speaker sound incrementally when holding down this key.

Increases speaker sound incrementally when holding down this key.

Mutes or restores speaker sound.

Turns the wireless feature on or off.

NOTE: This key does not establish a wireless connection. To establish a wireless connection, a wireless network

must be set up.

Initiates QuickLock.

prt sc Takes a snapshot or picture of the computer screen and copies it to the clipboard.

Turns the backlit keyboard on and off.

28 Chapter 3 Pointing devices and keyboard

Using the hotkeys

Hotkeys are combinations of the fn key (1) and either the esc key (2) or an action key (3).

Press fn+esc to display information about system hardware components and the system BIOS version number. Depending on the application you are using, pressing fn and one of the action keys opens a specific shortcut menu within that application.

To use a hotkey command:

● Press the fn key, and then press the second key of the hotkey command.

– or –

● Press and hold down the fn key, press the second key of the hotkey command, and then release

both keys at the same time.

Using the hotkeys 29

Cleaning the TouchPad and keyboard

Dirt and grease on the TouchPad cause the pointer to jump around on the screen. To avoid this, clean the TouchPad with a damp cloth, and wash your hands frequently when using the computer.

WARNING! To reduce the risk of electric shock or damage to internal components, do not use a

vacuum cleaner attachment to clean the keyboard. A vacuum cleaner deposits household debris on the keyboard surface.

Clean the keyboard regularly to prevent keys from sticking and to remove dust, lint, and particles that become trapped beneath the keys. A can of compressed air with a straw extension can blow air around and under the keys to loosen and remove debris.

30 Chapter 3 Pointing devices and keyboard

4Multimedia

Multimedia features

The computer includes multimedia features that allow you to listen to music, watch movies, and view pictures. The computer might include the following multimedia components:

● Optical drive for playing audio and video discs

Integrated speakers for listening to music

●

Integrated microphone for recording your own audio

●

Integrated webcam that allows you to capture and share video

●

● Preinstalled multimedia software that allows you to play and manage your music, movies, and

pictures

Multimedia keys that provide fast access to multimedia tasks

●

NOTE: The computer might not include all of the components listed.

Multimedia features 31

Identifying your multimedia components

Item Description Function

1 Internal digital dual array microphone (2) Records sound.

2 Webcam light Illuminates when video software accesses the webcam.

3 Webcam Records video, and captures still photographs.

4 Volume Down key Decreases the volume.

5 Volume Up key Increases the volume.

6 Volume Mute key Mutes and restores speaker sound.

7 Speakers (2) Produce sound.

8 Audio-out (headphone) jack Produces sound when connected to optional powered

9 Audio-in (microphone) jack Connects an optional computer headset microphone,

stereo speakers, headphones, earbuds, headset, or television audio.

WARNING! To reduce the risk of personal injury,

adjust the volume before putting on headphones, earbuds, or a headset. For additional safety information, see Regulatory, Safety and Environmental Notices.

NOTE: When a device is connected to the headphone

jack, the computer speakers are disabled.

stereo array microphone, or monaural microphone.

32 Chapter 4 Multimedia

Adjusting the volume

Adjust the volume using the computer volume keys.

● To decrease volume, press the Volume Down key (1).

● To increase volume, press the Volume Up key (2).

● To mute or restore volume, press the Volume Mute key (3).

NOTE: Volume is controlled through the Windows operating system and some programs.

Multimedia features 33

Using the media activity keys

The media activity keys control the play of an audio CD or a DVD or BD that is inserted into an external optical drive (purchased separately).

● When an audio CD or a DVD is not playing, press the Play/Pause key to play the disc (2).

● When an audio CD or a DVD is playing, use the following keys:

◦ To play the previous track of an audio CD or the previous section of a DVD, press the

Previous Track key (1).

◦ To pause or resume playing the disc, press Play/Pause key (2).

◦ To stop the disc, press the Stop key (3).

◦ To play the next track of an audio CD or the next section of a DVD, press the Next Track

key (4).

34 Chapter 4 Multimedia

Multimedia software

Preinstalled multimedia software allows you to play music, watch movies, and view pictures.

Using HP MediaSmart software

HP MediaSmart turns the computer into a mobile entertainment center. Enjoy music and DVD and BD movies, view Internet and live TV, and manage and edit your photo collections.

NOTE: Use an integrated TV tuner (select models only) or an optional external TV tuner (purchased

separately) to watch, record, and pause live TV on the computer.

MediaSmart includes:

Internet TV—With an Internet connection, play classic oldies, choose from a range of TV shows

●

and channels, and watch the HP-TV channel streamed in full-screen.

Photo and video upload support

●

Upload MediaSmart photos to Internet photo storage sites, such as Snapfish.

◦

◦ Upload home videos (for example, fun videos created with the integrated webcam) to

YouTube.

Pandora Internet radio (North America only)—Listen to music selected just for you, streamed

●

from the Internet.

To start MediaSmart, double-click the MediaSmart icon on the computer desktop.

For more information on using MediaSmart, select Start > Help and Support, and then type MediaSmart in the search box.

Using other preinstalled multimedia software

NOTE: Some programs might be located in subfolders.

To locate other preinstalled multimedia software:

1. Select Start > All Programs

2. Open the multimedia program you want to use. For example, if you want to use Windows Media

Player to play an audio CD, click Windows Media Player.

Installing multimedia software from a disc

To install any multimedia software from a CD or DVD:

1. Insert the disc into the optical drive.

2. When the installation wizard opens, follow the on-screen instructions.

3. Restart the computer, if prompted.

NOTE: For details about using software included with the computer, see the software

manufacturer’s instructions. The instructions might be provided with the software, on the software disc, or on the manufacturer’s website.

Multimedia software 35

Audio

The computer has a variety of audio features that allow you to:

Play music using the computer speakers and/or connected external speakers.

●

● Record sound using the internal microphone or a connected external microphone.

● Download music from the Internet.

● Create multimedia presentations using audio and images.

Transmit sound and images with instant messaging programs.

●

Stream radio programs (select models only) or receiving FM radio signals.

●

Create or “burn” audio CDs.

●

Connecting external audio devices

WARNING! To reduce the risk of personal injury, adjust the volume before putting on headphones,

earbuds, or a headset. For additional safety information, see the Regulatory, Safety and Environmental Notices.

To connect external devices such as external speakers, headphone, or a microphone, see the information provided with the device. For best results:

● Be sure that the device cable is securely connected to the correct jack on the computer. Cable

connectors are normally color-coded to match the corresponding jacks on the computer.

● Be sure that you install all drivers required by the external device.

NOTE: A driver is a required program that acts like a translator between the device and the

programs that use the device.

Checking your audio functions

To check the system sound on the computer:

1. Select Start > Control Panel.

2. Click Hardware and Sound.

3. Click Sound.

4. When the Sound window appears, click the Sounds tab.

5. Under Program Events, select any sound event, such as a beep or alarm.

6. Click the Test button. You should hear sound through the speakers or through connected

headphones.

To check the record functions:

1. Select Start > All Programs > Accessories > Sound Recorder.

2. Click Start Recording and speak into the microphone. For best results when recording, speak

directly into the microphone and record sound in a setting free of background noise.

36 Chapter 4 Multimedia

3. Save the file to the desktop.

4. Open Windows Media Player or MediaSmart, and play back the sound.

To confirm or change the audio settings on the computer, select Start > Control Panel > Hardware and Sound > Sound.

Video

The computer has a variety of video features that allow you to:

Watch movies.

●

Play games over the Internet.

●

Edit pictures and video to create presentations.

●

● Connect external video devices.

● Watch TV, including high-definition TV (select models only).

Connecting an external monitor or projector

The external monitor port connects an external display device such as an external monitor or a projector to the computer.

To connect a display device, connect the device cable to the external monitor port.

NOTE: If a properly connected external display device does not display an image, press the Switch Screen Image key to transfer the image to the device. Repeatedly pressing the Switch Screen Image

key alternates the screen image between the computer display and the device.

Video 37

Connecting an HDMI device

The computer includes an HDMI (High Definition Multimedia Interface) port. The HDMI port connects the computer to an optional video or audio device, such as a high-definition television, or any compatible digital or audio component.

The computer supports one HDMI device connected to the HDMI port, while simultaneously supporting an image on the computer display or any other supported external display.

NOTE: To transmit video signals through the HDMI port, you need an HDMI cable (purchased

separately), available from most electronic retailers.

To connect a video or audio device to the HDMI port:

1. Connect one end of the HDMI cable to the HDMI port on the computer.

2. Connect the other end of the cable to the video device, according to the device manufacturer’s

instructions.

3. Press the Switch Screen Image key to switch the image between the display devices connected

to the computer.

Configuring audio for HDMI (select models only)

To configure HDMI audio:

1. Connect an audio or video device, such as a high-definition TV, to the HDMI port.

2. Configure the default audio playback device:

a. Right-click the Speakers icon in the notification area at the far right of the taskbar.

b. Click Playback devices.

c. On the Playback tab, click either Digital Output or Digital Output Device (HDMI).

d. Click Set Default.

e. Click OK.

38 Chapter 4 Multimedia

To return audio to the computer speakers:

1. Right-click the Speakers icon in the notification area at the far right of the taskbar.

2. Click Playback devices.

3. On the Playback tab, click Speakers.

4. Click Set Default.

5. Click OK.

Webcam

The computer includes an integrated webcam, located at the top of the display. The webcam is an input device that captures and shares video.

To use the webcam:

1. Click the HP MediaSmart icon on the desktop.

2. Select the Video icon on the MediaSmart SmartMenu.

3. Click Webcam.

For more information on using HP MediaSmart, click Start > Help and Support, and type

MediaSmart in the Search box.

For optimum webcam performance:

If you are having trouble viewing or sending multimedia files to someone on another LAN or

●

outside your network firewall, temporarily disable the firewall, perform the task you want to perform, and then reenable the firewall. To permanently resolve the problem, reconfigure the firewall as necessary, and then adjust the policies and settings of other intrusion detection systems.

Whenever possible, place bright light sources behind the camera and out of the picture area.

●

Webcam 39

5 Power management

Setting power options

Using power-saving states

The computer has two power-saving states enabled at the factory: Sleep and Hibernation.

When Sleep is initiated, the power lights blink and the screen clears. Your work is saved to memory, letting you exit Sleep faster than exiting Hibernation. If the computer is in the Sleep state for an extended period or if the battery reaches a critical battery level while in the Sleep state, the computer initiates Hibernation.

When Hibernation is initiated, your work is saved to a hibernation file on the hard drive and the computer turns off.

CAUTION: To prevent possible audio and video degradation, loss of audio or video playback

functionality, or loss of information, do not initiate Sleep or Hibernation while reading from or writing to a disc or an external media card.

NOTE: You cannot initiate any type of networking connection or perform any computer functions

while the computer is in the Sleep state or in Hibernation.

Initiating and exiting Sleep

The system is set at the factory to initiate Sleep after 15 minutes of inactivity when running on battery power and 30 minutes of inactivity when running on external power.

Power settings and timeouts are changed using Power Options in Windows Control Panel.

To initiate Sleep while the computer is on:

Press the Power button.

●

Close the display.

●

Click Start, click the arrow next to the Shut Down button, and then click Sleep.

●

To exit Sleep:

Press the Power button

●

If the display is closed, open the display.

●

Press a key on the keyboard or button on the remote control (select models only).

●

Activate the TouchPad.

●

40 Chapter 5 Power management

When the computer exits Sleep, the Power light illuminates, and you return to the screen where you entered Sleep.

NOTE: If a password is required when exiting Sleep, enter your Windows password at the prompt.

Initiating and exiting Hibernation

Hibernation initiates after 1,080 minutes (18 hours) of inactivity when running on both battery power and external power, or when the battery reaches a critical battery level.

Power settings and timeouts are changed using Power Options in Windows Control Panel.

To initiate Hibernation, click Start, click the arrow next to the Shut down button, and then click Hibernate.

To exit Hibernation, press the Power button. The power light illuminates, and you return to the screen where you entered Hibernation.

NOTE: If a password is required when exiting Hibernation, enter your Windows password at the

prompt.

Using the battery meter

The battery meter is located in the notification area at the far right of the taskbar. The battery meter allows you to quickly access power settings, view remaining battery charge, and select a different power plan.

● To display the percentage of remaining battery charge and the current power plan, move the

pointer over the battery meter icon.

● To access Power Options or to change the power plan, click the Battery Meter icon, and then

select an item from the list.

Different Battery Meter icons indicate whether the computer is running on battery or external power. The icons also display a message if the battery has reached a low battery level, critical battery level, or reserve battery level.

To hide or display the battery meter icon:

1. Right-click the Show hidden icons icon, which is the arrow at the left side of the notification

area.

2. Click Customize notification icons.

3. Under the Behaviors column, select Show icons and notifications for the Power icon.

4. Click OK.

Using power plans

A power plan is a collection of system settings that manages how the computer uses power. Power plans can help you conserve power or maximize performance.

You can change power plan settings or create your own power plan.

Setting power options 41

Viewing the current power plan

To view to current power plan:

Click the Battery Meter icon in the notification area at the far right of the task bar.

●

– or –

Select Start > Control Panel > System and Security > Power Options.

●

Selecting a different power plan

To select a different power plan:

● Click the Battery Meter icon in the notification area at the far right of the task bar, and then select

a power plan from the list.

– or –

● Select Start > Control Panel > System and Security > Options, and then select a power plan

from the list.

Customizing power plans

To customize a power plan:

1. Click the Battery Meter icon in the notification area at the far right of the task bar, and then click

More power options.

– or –

Select Start > Control Panel > System and Security > Power Options.

2. Select a power plan, and then click Change plan settings.

3. Change the settings as needed.

4. To change additional settings, click Change advanced power settings, and then make

changes.

Setting password protection on wakeup

To set a password prompt when the computer exits Sleep or Hibernation:

1. Select Start > Control Panel > System and Security > Power Options.

2. In the left pane, click Require a password on wakeup.

3. Click Change Settings that are currently unavailable.

4. Click Require a password (recommended).

5. Click Save changes.

42 Chapter 5 Power management

Using external AC power

WARNING! To reduce potential safety issues, use only the AC adapter provided with the computer,

a replacement AC adapter provided by HP, or a compatible AC adapter purchased from HP.

WARNING! Do not charge the computer battery while on board an aircraft.

External AC power is supplied through:

An approved AC adapter

●

An optional docking device or expansion product

●

Connect the computer to external AC power:

When charging or calibrating a battery.

●

When installing or modifying system software.

●

When writing information to a CD or DVD.

●

When connecting to external AC power:

The battery begins to charge.

●

If the computer is turned on, the Battery Meter icon in the notification area changes appearance.

●

When disconnecting from external AC power:

The computer switches to battery power.

●

The display brightness is automatically decreased to save battery life. To increase display

●

brightness, press the Increase Screen Brightness key or reconnect the AC adapter.

Using external AC power 43

Connecting the AC adapter

WARNING! To reduce the risk of electric shock or damage to the equipment:

Connect the power cord into an AC outlet that is easily accessible at all times.

Disconnect power from the computer by disconnecting the power cord from the AC outlet (not by disconnecting the power cord from the computer).

If the power cord has a 3-pin connector, connect the cord into a grounded (earthed) 3-pin outlet. Do not disable the power cord grounding pin, for example, by attaching a 2-pin adapter. The grounding pin is an important safety feature.

To connect the computer to external AC power:

1. Connect the AC adapter to the power connector on the computer.

2. Connect the power cord to the AC adapter.

3. Connect the other end of the power cord to an AC outlet.

44 Chapter 5 Power management

Using battery power

When a charged battery is in the computer and the computer is not connected to external power, the computer runs on battery power. When the computer is connected to external AC power, the computer runs on AC power.

If the computer contains a charged battery and is running on external AC power supplied through the AC adapter, the computer switches to battery power if the AC adapter is disconnected from the computer.

NOTE: The display brightness is decreased to save battery life when you disconnect AC power. To

increase display brightness, press the Increase Screen Brightness key or reconnect the AC adapter.

Keep a battery in the computer or in storage, depending on how you work. Keeping the battery in the computer whenever the computer is connected to AC power charges the battery and also protects your work in case of a power outage. However, a battery in the computer slowly discharges when the computer is off and disconnected from external power.

WARNING! To reduce potential safety issues, use only the battery provided with the computer, a

replacement battery provided by HP, or a compatible battery purchased from HP.

Finding battery information in Help and Support

Help and Support provides the following tools and information about the battery:

● Battery Check tool to test battery performance

● Information on calibration, power management, and proper care and storage to maximize battery

life

● Information on battery types, specifications, life cycles, and capacity

To access battery information, select Start > Help and Support > Learn > Power Plans: Frequently Asked Questions.

Using Battery Check

Help and Support provides information on the status of the battery installed in the computer.

NOTE: The computer must be connected to external power for Battery Check to function properly.

To run Battery Check:

1. Connect the AC adapter to the computer.

2. Select Start > Help and Support > Troubleshoot > Power, Thermal and Mechanical.

3. Click the Power tab, and then click Battery Check.

Battery Check examines the battery and its cells to verify that they are functioning properly, and then reports the results of the examination.

Displaying the remaining battery charge

To display the remaining battery charge, move the pointer over the battery meter icon in the notification area.

Using battery power 45

Inserting or removing the battery

CAUTION: Removing a battery that is the sole power source causes loss of information. To prevent

loss of information, initiate Hibernation or shut down the computer through Windows before removing the battery.

To insert the battery:

1. Turn the computer upside down on a flat surface.

2. Insert the battery into the battery bay (1) and rotate it downward until it is seated (2).

The battery release latch automatically locks the battery into place.

To remove the battery:

1. Close the display.

2. Turn the computer upside down on a flat surface.

3. Slide the battery release latch to release the battery (1).

4. Pivot the battery upward (2), and then remove the battery from the computer (3).

46 Chapter 5 Power management

Charging a battery

WARNING! Do not charge the computer battery while on board aircraft.

The battery charges whenever the computer is plugged into external power through an AC adapter, an optional power adapter, an optional expansion product, or an optional docking device.

The battery charges whether the computer is off or in use, but it charges faster when the computer is off.

Charging might take longer if a battery is new, has been unused for two weeks or more, or is much warmer or cooler than room temperature.

To prolong battery life and optimize the accuracy of battery charge displays:

If charging a new battery, charge it fully before turning on the computer.

●

Allow the battery to discharge below five percent of a full charge through normal use before

●

charging it.

If the battery has been unused for one month or more, calibrate the battery instead of simply

●

charging it.

Maximizing battery discharge time

Battery discharge time varies depending on the features used while on battery power. Maximum discharge time gradually shortens, as the battery storage capacity naturally degrades.

To maximize battery discharge time:

● Lower the brightness on the display.

● Check the Power saver setting in Power Options.

● Remove the battery from the computer when it is not being used or charged.

● Store the battery in a cool, dry location.

Using battery power 47

Managing low battery levels

The information in this section describes the alerts and system responses set at the factory. Some low-battery alerts and system responses can be changed using Power Options in Windows Control Panel. Preferences set using Power Options do not affect lights.

Identifying low battery levels

If a low battery level is not resolved, the computer enters a critical battery level.

The computer takes the following actions for a critical battery level:

If Hibernation is enabled and the computer is on or in Sleep, the computer initiates Hibernation.

●

If Hibernation is disabled and the computer is on or in Sleep, the computer remains briefly in

●

Sleep, and then shuts down and loses any unsaved information.

Resolving a low battery level

CAUTION: To reduce the risk of losing information when the computer reaches a critical battery

level and has initiated Hibernation, do not restore power until the power lights turn off.

Resolving a low battery level when external power is available

To resolve a low battery level when external power is available, connect on of the following devices:

AC adapter

●

Optional expansion product or docking device

●

Optional power adapter

●

Resolving a low battery level when a charged battery is available

To resolve a low battery level when a charged battery is available:

1. Shut down the computer or initiate Hibernation.

2. Remove the discharged battery, and then insert a charged battery.

3. Turn on the computer.

Resolving a low battery level when no power source is available

To resolve a low battery level when no power source is available, initiate Hibernation or save your work and then shut down the computer.

Resolving a low battery level when the computer cannot exit Hibernation

To resolve a low battery level when the computer cannot exit Hibernation:

1. Insert a charged battery or connect the computer into external power.

2. Press the Power button to exit Hibernation.

48 Chapter 5 Power management

Calibrating a battery

Calibrate the battery when:

● The battery charge displays seem inaccurate.

● You observe a significant change in battery run time.

A heavily used battery should only be calibrated once a month. Do not calibrate a new battery.

To calibrate the battery:

1. Fully charge the battery.

WARNING! Do not charge the computer battery while on board an aircraft.

NOTE: The battery charges while the computer is off or in use, but it charges faster when the

computer is off.

To fully charge the battery:

a. Insert the battery into the computer.

b. Connect the computer to an AC adapter, optional power adapter, optional expansion

product, or optional docking device, and then connect the adapter or device to an external power source.

c. Leave the computer connected to external power until the battery is fully charged.

2. Disable Hibernation and Sleep. To disable Hibernation and Sleep:

a. Click the Battery Meter icon in the notification area, and then click More power options.

– or –

Select Start > Control Panel > System and Security > Power Options.

b. Under the current power plan, click Change plan settings.

c. Record the Turn off the display settings listed in the On battery column so they can be reset

after the calibration.

d. Change the Turn off the display settings to Never.

e. Click Change advanced power settings.

f. Click the plus sign next to Sleep, and then click the plus sign next to Hibernate after.

g. Record the On battery setting under Hibernate after so it can be reset after the calibration.

h. Change the On battery setting to Never.

i. Click OK.

j. Click Save changes.

Using battery power 49

3. Discharge the battery. To discharge the battery:

a. Disconnect the computer from the external power source, but do not shut down the

computer.

b. Run the computer on battery power until the battery is discharged.

The computer must remain on while the battery is being discharged. The battery discharges whether or not you are using the computer, but the battery discharges faster while you are using it.

If you plan to leave the computer unattended during the discharge, save your information

●

before beginning the discharge procedure.

If you use the computer occasionally during the discharge procedure and have set energy-

●

saving timeouts, expect the following performance from the system during the discharge process:

◦ The monitor does not shut down automatically.

◦ The hard drive speed does not decrease automatically when the computer is idle.

System-initiated Hibernation does not occur.

◦

4. Recharge the battery. To recharge the battery:

a. Connect the computer to external power until the battery is fully recharged.

The computer can be used while the battery is recharging, but the battery charges faster if the computer is off.

b. If the computer is off, turn it on when the battery is fully charged.

5. Re-enable Hibernation and Sleep. To re-enable Hibernation and Sleep:

CAUTION: Failure to re-enable Hibernation after calibration might result in a full battery

discharge and information loss if the computer reaches a critical battery level.

a. Click the Battery Meter icon in the notification area, and then click More power options.

– or –

Select Start > Control Panel > System and Security > Power Options.

b. Under the current power plan, click Change plan settings.

c. Re-enter the settings that you recorded for the items in the On battery column.

d. Click Change advanced power settings.

e. Click the plus sign next to Sleep, and then click the plus sign next to Hibernate after.

f. Re-enter the setting that you recorded for On battery.

g. Click OK.

h. Click Save changes.

50 Chapter 5 Power management

Conserving battery power

To conserve battery power:

● Select Start > Control Panel > System and Security > Power Options > Power Saver power

plan.

● Shut down wireless and local area network (LAN) connections and exit modem applications

when you are not using them.

● Disconnect external devices that are not connected to an external power source when you are

not using them.

● Stop, disable, or remove any external media cards that you are not using.

● Press the Decrease Screen Brightness key or Increase Screen Brightness key to adjust screen

brightness as needed.

● If leaving your work, initiate Sleep or Hibernation, or shut down the computer.

Storing a battery

CAUTION: To prevent damage to a battery, do not expose it to high temperatures for extended

periods of time.

If a computer is unused and disconnected from external power for more than 2 weeks, remove the battery and store it separately.

To prolong the charge of a stored battery, place it in a cool, dry place.

NOTE: Checked a stored battery every 6 months. If the capacity is less than 50 percent, recharge

the battery before returning it to storage.

Calibrate a battery before using it if it has been stored for one month or more.

Disposing of a used battery

WARNING! To reduce the risk of fire or burns, do not disassemble, crush, or puncture the battery.

Do not short external contacts. Do not dispose of the battery in fire or water.

For more information, see the Regulatory, Safety and Environmental Notices included with this computer.

Replacing the battery

Computer battery life varies, depending on power management settings, programs running on the computer, display brightness, external devices connected to the computer, and other factors.

Battery Check notifies you to replace the battery when an internal cell is not charging properly, or when the battery storage capacity has reached a weak condition. A message refers you to the HP website for more information about ordering a replacement battery. If the battery is covered by an HP warranty, instructions include a warranty ID.

NOTE: HP recommends purchasing a new battery when the storage capacity light illuminates

green-yellow.

Using battery power 51

Switching between graphics modes (select models only)

The computer is equipped with switchable graphics and has two modes for processing graphics. When switching from AC power to battery power, the computer switches from High-performance mode to Power-saving mode to conserve battery life. Similarly, when switching from battery power to AC power, the computer switches back to the High-performance mode.

NOTE: In order to optimize computer performance, the system might not allow switching modes, or

prompt you to switch modes. It might be necessary to close all programs before switching.

NOTE: HDMI only works in the High-performance mode. HDMI cannot be used in Power-saving

mode.

When switching between AC and battery power, you are notified that the computer is about to switch graphics modes. If you prefer, choose to continue using the same graphics mode. While the computer switches modes, the screen goes blank for a few seconds. When the switch is complete, a notification appears in the notification area, and the screen image reappears.

NOTE: When select computer models are in slate mode, the screen orientations are reset when

switching between graphics modes.

To determine which graphics mode you are using, right-click on the Windows desktop, and then click

Configure Switchable Graphics.

Shutting down the computer

CAUTION: Unsaved information is lost when the computer shuts down.

NOTE: If the computer is in the Sleep or in Hibernation, exit Sleep or Hibernation before shutting

down.

The shut down command closes all open programs, including the operating system, and then turns off the display and computer.

Shut down the computer when:

Replacing the battery or accessing components inside the computer.

●

Connecting an external hardware device that does not connect to a USB port.

●

Disconnecting from external power for an extended period.

●

Although the computer can be shut down with the Power button, HP recommends using the Windows shut down command.

To shut down the computer:

1. Save your work, and close all open programs.

2. Click Start.

3. Click Shut down.

52 Chapter 5 Power management

If the computer is unresponsive and you are unable to use the recommended shutdown procedures, try the following emergency procedures:

1. Press ctrl+alt+delete, and then press the Power button.

2. Press and hold the Power button for at least five seconds.

3. Disconnect the computer from external power, and remove the battery.

Shutting down the computer 53

6 Drives

Handling drives

Drives are fragile computer components that must be handled with care. Adhere to the following cautions before handling drives:

CAUTION: To reduce the risk of damage to the computer, damage to a drive, or loss of information:

Before moving a computer that is connected to an external hard drive, initiate Sleep and allow the screen to clear, or properly disconnect the external hard drive.

Before handling a drive, discharge static electricity by touching the unpainted metal surface of the drive.

Do not touch the connector pins on a removable drive or on the computer.

Handle a drive carefully. Do not drop a drive or place items on it.

Before removing or inserting a drive, shut down the computer. If you are unsure whether the computer is off, in Sleep, or in Hibernation, turn on the computer and then shut it down through the operating system.

Do not use excessive force when inserting a drive into a drive bay.

Do not type on the keyboard or move the computer while the optical drive is writing to a disc. The write process is sensitive to vibration.

When the battery is the only source of power, be sure that the battery is sufficiently charged before writing to media.

Avoid exposing a drive to temperature or humidity extremes.

Avoid exposing a drive to liquids. Do not spray the drive with cleaning products.

Remove media from a drive before removing the drive from the drive bay, or traveling with, shipping, or storing a drive.

If a drive must be mailed, place the drive in a bubble-pack mailer or other suitable protective packaging and label the package “FRAGILE.”

Avoid exposing a drive to magnetic fields. Security devices with magnetic fields include airport walkthrough devices and security wands. The airport security devices that check carry-on luggage, such as conveyor belts, use x-rays instead of magnetism and do not damage a drive.

54 Chapter 6 Drives

Optical drive

The computer includes an optical drive that expands the functionality of the computer. The optical drive allows you to read data discs, play music, and watch movies. If the computer includes a Blu-ray Disc (BD) ROM Drive, then high-definition video can also be watched.

Identifying the installed optical drive

To identify an optical drive:

1. Select Start > Computer.

A list of all the drives installed in the computer appears.

2. Identify the optical drive installed in the computer. Optical drives that might be installed in the

computer include:

NOTE: Some drives might not be supported by the computer.

● LightScribe DVD±RW/R and CD-RW Combo drive with Double-Layer (DL) support

● Blu-ray ROM DVD+/-RW SuperMulti DL Drive

Blu-ray ROM with LightScribe DVD+/-RW SuperMulti DL Drive

●

Using optical discs

CAUTION: To prevent audio and video degradation, loss of information, or loss of audio or video

playback functionality, do not initiate Sleep or Hibernation while reading or writing to a CD or DVD.

An optical drive, such as a DVD-ROM drive, supports optical discs (CDs and DVDs). These discs store information, such as music, photos, and movies. If the optical drive is a Blu-ray Disc ROM Drive, it also reads Blu-ray Discs.

NOTE: Some drives listed might not be supported by the computer.

Optical drive type Write to CD-RW Write to DVD±RW/R Write to DVD+RWDLWrite label to

SuperMulti LightScribe DVD±RW and CD-RW Combo with DL support

Blu-ray ROM with LightScribe DVD+/RW SuperMulti DL Drive

Blu-ray ROM DVD+/RW SuperMulti DL Drive

Yes Yes Yes Yes

Yes Yes Yes No

LightScribe CD or DVD ±RW/R

Optical drive 55

Selecting the right disc (CDs, DVDs, and BDs)

CDs, used to store digital data, are also used for commercial audio recordings and are convenient for your personal storage needs. DVDs and BDs are used primarily for movies, software, and data backup purposes. DVDs and BDs are the same form factor as CDs, but have a much higher storage capacity.

NOTE: The optical drive might not support all types of optical discs.

CD-R discs

CD-R (write-once) discs are widely used for creating a permanent copy of data that can be shared as needed. Typical uses include:

● Distributing large presentations

● Sharing scanned and digital photos, video clips, and written data

● Making your own music CDs

Keeping permanent archives of computer files and scanned home records

●

Offloading files from your hard drive to free up disk space

●

CD-RW discs

Use CD-RW discs (a rewritable version of a CD) to store large projects that must be updated frequently. Typical uses include:

● Developing and maintaining large documents and project files

● Transporting work files

● Making weekly backups of hard drive files

● Updating photos, video, audio, and data continuously

DVD±R discs

Use DVD±R discs to permanently store large amounts of information. After data is recorded, it cannot be erased or written over.

DVD±RW discs

Use DVD±RW discs to erase or write over data that you saved earlier. This type of disc is ideal for testing audio or video recordings before burning them to a CD or DVD that cannot be changed.

LightScribe DVD+R discs

Use LightScribe DVD+R discs for sharing and storing data, home videos, and photos. These discs are read-compatible with most DVD-ROM drives and DVD video players. With a LightScribe-enabled drive and LightScribe software, write data to the disc, and then add a designer label to the outside of the disc.

56 Chapter 6 Drives

Blu-ray discs (BD)

NOTE: Blu-ray is a new format containing new technologies. Certain disc, digital connection,

compatibility, and/or performance issues might arise, and do not constitute defects in the product. Flawless playback on all systems is not guaranteed.

BD is a high-density optical disc format for the storage of digital information, including high-definition video. A single-layer Blu-ray disc stores 25 GB, over five times the storage capacity of a single-layer

4.7 GB DVD . A dual-layer Blu-ray Disc stores 50 GB, almost six times the storage capacity of an 8.5 GB dual-layer DVD.

Typical uses include:

Storage of large amounts of data

●

High-definition video playback and storage

●

Video games

●

Playing a CD, DVD, or BD

To play an optical disc:

1. Turn on the computer.

2. Press the release button (1) on the drive bezel to release the disc tray.

3. Pull out the tray (2).

4. Hold the disc by the edges to avoid touching the flat surfaces and position the disc label-side up

over the tray spindle.

NOTE: If the tray is not fully accessible, tilt the disc carefully to position it over the spindle.

5. Gently press the disc (3) down onto the tray spindle until the disc snaps into place.

6. Close the disc tray.

If you have not configured AutoPlay, an AutoPlay dialog box appears. You are prompted to select how you want to use the media content. For more information, see Configuring AutoPlay.

Optical drive 57

NOTE: For best results, be sure that the AC adapter is connected to an external power source while

playing a BD.

Configuring AutoPlay

To configure AutoPlay:

1. Select Start > Default Programs > Change AutoPlay settings.

2. Confirm that the Use AutoPlay for all media and devices check box is selected.

3. Click Choose a default, and then select one of the available options for each media type listed.

NOTE: Choose HP MediaSmart to play DVDs.

4. Click Save.

For more information about AutoPlay, see Help and Support.

Changing DVD region settings

CAUTION: The region settings on the DVD drive can be changed five times.

The region setting selected the fifth time becomes the permanent region setting on the DVD drive.

The number of region changes remaining is displayed on the DVD Region tab.

Most DVDs containing copyrighted files also contain region codes. The region codes help protect copyrights internationally.

Play a DVD containing a region code only if the region code on the DVD matches the region setting on your DVD drive.

To change region settings through the operating system:

1. Select Start > Control Panel > System and Security.

2. In the System area, click Device Manager.

NOTE: Windows includes the User Account Control feature to improve security of the

computer. You might be prompted for your permission or password for tasks such as installing software, running utilities, or changing Windows settings. For more information, see Windows Help.

3. Expand the DVD/CD-ROM drives to show all of the installed drives.

4. Right-click the DVD drive where you want to change region settings, and then click Properties.

5. Click the DVD Region tab, and change the settings.

6. Click OK.

58 Chapter 6 Drives

Observing the copyright warning

It is a criminal offense, under applicable copyright laws, to make unauthorized copies of copyrightprotected material, including computer programs, films, broadcasts, and sound recordings. Do not use this computer for such purposes.

CAUTION: To prevent loss of information or damage to a disc:

Before writing to a disc, connect the computer to a reliable external power source. Do not write to a disc while the computer is running on battery power.

Before writing to a disc, close all open programs except the disc software you are using.

Do not copy directly from a source disc to a destination disc or from a network drive to a destination disc. Save the information to the hard drive, and then burn from the hard drive to the destination disc.

Do not use the computer keyboard or move the computer while the computer is writing to a disc. The write process is sensitive to vibration.

For details about using software included with the computer, see the software manufacturer’s instructions, which might be provided on disc, in the software Help, or on the manufacturer's website.

Copying a CD or DVD

To copy a CD or DVD:

1. Select Start > All Programs > CyberLink DVD Suites > Power2Go.

2. Insert the disc you want to copy into the optical drive.

3. Click Copy at the bottom right of the screen.

Power2Go reads the source disc and copies the data to a temporary folder on the hard drive.

4. When prompted, remove the source disc from the optical drive, and then insert a blank disc into

the drive.

After the information is copied, the disc created ejects automatically.

Optical drive 59

Creating (burning) a CD or DVD

CAUTION: Observe the copyright warning. It is a criminal offense, under applicable copyright laws,

to make unauthorized copies of copyright-protected material, including computer programs, films, broadcasts, and sound recordings. Do not use this computer for such purposes.

If the computer includes a CD-RW, DVD-RW, or DVD±RW optical drive, use software such as Windows Media Player or CyberLink Power2Go to burn data, video, and audio files, including MP3 and WAV music files.

Observe the following guidelines when burning a CD or DVD:

● Before burning a disc, save and close any open files and close all programs.

● A CD-R or DVD-R is best for burning audio files because after the information is copied, it

cannot be changed.

NOTE: An audio DVD cannot be created with CyberLink Power2Go.

● Use CD-Rs to burn music CDs, because some home and car stereos do not play CD-RWs.

● A CD-RW or DVD-RW is generally best for burning data files or for testing audio or video

recordings before burning them to a CD or DVD that cannot be changed.

● DVD players used in home systems do not support all DVD formats. For a list of supported

formats, see the user guide that came with the DVD player.

● An MP3 file uses less space than other music file formats, and the process for creating an MP3

disc is the same as the process for creating a data file. MP3 files play on MP3 players or on computers with MP3 software installed.

To burn a CD or DVD:

1. Download or copy the source files into a folder on the hard drive.

2. Insert a blank CD or DVD into the optical drive.

3. Select Start > All Programs, and then select the name of the software you want to use.

NOTE: Some programs might be located in subfolders.

4. Select the kind of CD or DVD you want to create—data, audio, or video.

5. Right-click Start, click Open Windows Explorer, and navigate to the folder where the source

files are stored.

6. Open the folder, and then drag and drop the files into the drive that contains the blank optical

disc.

7. Initiate the burning process as directed by the program selected.

For specific instructions, see the software manufacturer's instructions, which might be provided with the software, on disc, or on the manufacturer's website.

60 Chapter 6 Drives

Removing a CD, DVD, or BD

To remove an optical disc:

1. Press the release button on the drive bezel to release the disc tray (1).

2. Gently pull out the tray until it stops (2).

3. Remove the disc from the tray by gently pressing down on the spindle while lifting the outer

edges of the disc (3). Hold the disc by the edges and avoid touching the flat surfaces.

NOTE: If the tray is not fully accessible, tilt the disc carefully as you remove it.

4. Close the disc tray, and then place the disc in a protective case.

Optical drive 61

Using external drives

Removable external drives expand storing options and information access. A USB mouse can be connected to the system using the ports on an optional docking device or optional expansion product.

USB drives include:

1.44-megabyte diskette drive

●

Hard drive module (a hard drive with an adapter attached)

●

● DVD-ROM Drive

● DVD/CD-RW Combo Drive

● DVD±RW and CD-RW Combo Drive

For more information about required software and drivers or to learn which computer port to use, see the manufacturer's instructions.

To connect an external drive to the computer:

CAUTION: To reduce the risk of damage to the equipment when connecting a powered drive, be

sure that the AC power cord is disconnected.

1. Connect the drive to the computer.

2. If connecting a powered drive, connect the drive power cord to a grounded AC outlet.

To disconnect a powered drive:

1. Disconnect the drive from the computer.

2. Disconnect the AC power cord.

62 Chapter 6 Drives

Improving hard drive performance

Using Disk Defragmenter

As you use the computer, files on the hard drive become fragmented. Disk Defragmenter consolidates the fragmented files and folders on the hard drive so that the system runs more efficiently.

After starting Disk Defragmenter, it works without supervision. Depending on the size of the hard drive and the number of fragmented files, Disk Defragmenter might take more than an hour to complete. Set it to run during the night or another time when you do not need access to the computer.

HP recommends defragmenting the hard drive at least once a month. Set Disk Defragmenter to run on a monthly schedule, but the computer can be defragmented manually at any time.

To run Disk Defragmenter:

1. Select Start > All Programs > Accessories > System Tools > Disk Defragmenter.

2. Click Defragment disk.

NOTE: Windows includes the User Account Control feature to improve the security of the

computer. You might be prompted for your permission or password for tasks such as installing software, running utilities, or changing Windows settings. For more information, see Help and Support.

For more information, see the Disk Defragmenter software Help.

Using Disk Cleanup

Disk Cleanup searches the hard drive for unnecessary files that, when safely deleted, free up disk space and help the computer to run more efficiently.

To run Disk Cleanup:

1. Select Start > All Programs > Accessories > System Tools > Disk Cleanup.

2. Follow the on-screen instructions.

Improving hard drive performance 63

Using HP ProtectSmart Hard Drive Protection

HP ProtectSmart Hard Drive Protection protects the hard drive by parking the drive and halting I/O requests under one of the following conditions:

You drop the computer.

●

You move the computer with the display closed while the computer is running on battery power.

●

After one of these events, HP ProtectSmart Hard Drive Protection returns the hard drive to normal operation.

NOTE: If the SmartBay contains a hard drive, the hard drive is protected by HP ProtectSmart Hard

Drive Protection. Hard drives that are in an optional docking device, or are connected to a USB port, are not protected by HP ProtectSmart Hard Drive Protection.

For more information, see the HP ProtectSmart Hard Drive Protection Software Help.

Identifying HP ProtectSmart Hard Drive Protection status

The drive light on the computer illuminates to indicate that a hard drive is parked. To determine whether drives are currently protected or whether a drive is parked, select Start > Control Panel > Hardware and Sound > Windows Mobility Center.

The Mobility Center indicates HP ProtectSmart Hard Drive Protection status if:

● The software is enabled, a green check mark is superimposed over the hard drive icon.

● The software is disabled, a white diagonal line is superimposed over the hard drive icon.

● The drive is parked, a yellow moon is superimposed over the hard drive icon.

NOTE: The icon in the Mobility Center might not show the most up-to-date status for the drive. For

immediate updates after a change in status, enable the notification area icon.

To enable the notification area icon:

1. Select Start > Control Panel > Hardware and Sound > HP ProtectSmart Hard Drive

Protection.

NOTE: If prompted by User Account Control, click Yes.

2. On the icon in System Tray row, click Show.

3. Click OK.

Managing power with a parked hard drive

If HP ProtectSmart Hard Drive Protection has parked a drive:

● The computer does not shut down.

● The computer does not initiate Sleep or Hibernation.

NOTE: If the computer is running on battery power and reaches a critical battery level, HP

ProtectSmart Hard Drive Protection initiates Hibernation.

64 Chapter 6 Drives

Before moving the computer, HP recommends shutting down the computer or initiating Sleep or Hibernation.

Using HP ProtectSmart Hard Drive Protection software

The HP ProtectSmart Hard Drive Protection software:

Enables and disables HP ProtectSmart Hard Drive Protection.

●

NOTE: Depending on your user privileges, you might not have the rights to enable or disable

HP ProtectSmart Hard Drive Protection. Additionally, members of an Administrator group can change the privileges for non-Administrator users.

● Determines whether a drive in the system is supported.

To open the software and change settings:

1. In Mobility Center, click the Hard Drive icon to open the HP ProtectSmart Hard Drive Protection

window.

– or –

Select Start > Control Panel > Hardware and Sound > HP ProtectSmart Hard Drive

Protection.

NOTE: If prompted by User Account Control, click Yes.

2. Click the appropriate button to change the settings.

3. Click OK.

Using HP ProtectSmart Hard Drive Protection 65

Replacing a drive in the primary hard drive bay

CAUTION: To prevent information loss or an unresponsive system:

Shut down the computer before removing the hard drive from the hard drive bay. Do not remove the hard drive while the computer is on or in Sleep or Hibernation.

If you are not sure whether the computer is off or in Hibernation, turn on the computer by pressing the Power button, and then shut down the computer through the operating system.

NOTE: The cover of the primary hard drive bay is marked with a “1” and the cover of the secondary

hard drive bay is marked with a “2.”

To remove the primary hard drive:

1. Save your work.

2. Shut down the computer and close the display.

3. Disconnect all external hardware devices connected to the computer.

4. Disconnect the power cord from the AC outlet.

5. Turn the computer upside down on a flat surface, with the hard drive bay toward you.

6. Remove the battery from the computer.

7. Remove the four hard drive cover screws (1).

8. Lift the hard drive cover away from the computer (2).

9. Pull firmly on the plastic tab (1) on the hard drive cable to disconnect it from the system board.

66 Chapter 6 Drives

10. Using the tab (2) on the right side of the hard drive, lift the hard drive to a 45-degree angle, and

then remove the hard drive (3) from the computer.

To install the primary hard drive:

1. Insert the hard drive into the hard drive bay (1).

2. Using the tab (2), pull the hard drive to the right so that the rubber spacers tuck into the

openings on the right side of the hard drive bay.

3. Connect the hard drive cable (3) to the hard drive connector on the system board.

4. Align the tabs on the hard drive cover with the notches on the computer (1).

5. Close the cover (2).

Replacing a drive in the primary hard drive bay 67

6. Tighten the hard drive cover screws (3).

7. Replace the battery.

8. Turn over the computer.

9. Connect external devices to the computer.

10. Connect the computer to AC power.

11. Turn on the computer.

68 Chapter 6 Drives

7 External devices

Using a USB device

A USB port connects an optional external device, such as a USB keyboard, mouse, drive, printer, scanner, or hub, to the computer or to an optional expansion product.

Some USB devices might require additional support software, which is usually included with the device. For more information about device-specific software, see the manufacturer's instructions.

The computer has 3 USB ports, which support USB 1.0, USB 1.1, and USB 2.0 devices. To add more USB ports, connect an optional hub or optional expansion product

Connecting a USB device

CAUTION: To prevent damage to a USB connector, use minimal force to connect a USB device.

To connect a USB device to the computer, connect the USB cable for the device to the USB port.

A sound alerts you when the USB device is detected.

NOTE: The first time a USB device is connected, the Installing device driver software message

displays in the notification area at the far right of the taskbar.

Using a USB device 69

Removing a USB device

CAUTION: To prevent loss of information or an unresponsive system, adhere to the instructions in

“Removing a USB device.”

CAUTION: To prevent damage to a USB connector, do not pull on the cable to remove the USB

device.

To remove a USB device:

1. Click the Safely Remove Hardware and Eject Media icon in the notification area at the far right

of the taskbar.

To display the Safely Remove Hardware and Eject Media icon, click the Show hidden icons icon, which is the arrow at the left of the notification area.

2. Click the name of the device in the list.

You are prompted that it is safe to remove the device.

3. Remove the device.

Using an eSATA device

An eSATA port connects an optional high-performance eSATA component, such as an eSATA external hard drive.

Some eSATA devices might require additional support software, which is usually included with the device. For more information about device-specific software, see the software manufacturer's instructions. These instructions are provided with the software, on disk, in the software Help, or on the manufacturer's website.

NOTE: The eSATA port also supports an optional USB device.

70 Chapter 7 External devices

Connecting an eSATA device

CAUTION: To prevent damage to an eSATA port connector, use minimal force to connect an

eSATA device.

To connect an eSATA device to the computer, connect the eSATA cable for the device to the eSATA port.

A sounds alerts you that the device is connected to the computer.

Using an eSATA device 71

Removing an eSATA device

CAUTION: To prevent loss of information or an unresponsive system, adhere to the instructions in

“Removing an eSATA device.”

CAUTION: To prevent damage to an eSATA connector, do not pull on the cable to remove the

eSATA device.

To remove an eSATA device:

1. Click the Safely Remove Hardware and Eject Media icon in the notification area at the far right

of the taskbar.

To display the Safely Remove Hardware and Eject Media icon, click the Show hidden icons icon, which is the arrow at the left of the notification area.

2. Click the name of the device in the list.

You are prompted that it is safe to remove the device.

3. Remove the device.

72 Chapter 7 External devices

8 External media cards

Using Digital Media Slot cards

Optional digital cards provide secure data storage and convenient data sharing. These cards are used with digital media-equipped cameras and PDAs, as well as with other computers.

The Digital Media Slot supports the following digital card formats:

Memory Stick (MS)

●

Memory Stick Pro (MSP)

●

MultiMediaCard (MMC)

●

● Secure Digital (SD) Memory Card

● Secure Digital High Capacity (SDHC) Memory Card

● xD-Picture Card (XD)

xD-Picture Card (XD) Type H

●

xD-Picture Card (XD) Type M

●

Inserting a digital card

CAUTION: To avoid damaging the digital card or the computer, do not insert any adapter into the

Digital Media Slot.

CAUTION: To prevent damage to the digital card connectors, use minimal force to insert a digital

card.

1. Hold the digital card label-side up, with the connectors facing the computer.

Using Digital Media Slot cards 73

2. Insert the card into the Digital Media Slot, and then push in on the card until it is firmly seated.

A sounds alerts you when a device is detected, and a menu of options appears.

Removing a digital card

CAUTION: To prevent loss of data or an unresponsive system, adhere to the instructions in

“Removing a digital card.”

NOTE: To stop a data transfer, click Cancel in the operating system Copying window.

To remove a digital card:

1. Save all information and close all programs associated with the digital card.

2. Click the Safely Remove Hardware and Eject Media icon in the notification area at the far right

of the taskbar.

To display the Safely Remove Hardware and Eject Media icon, click the Show hidden icons icon, which is the arrow at the left side of the notification area.

3. Click the name of the digital card in the list.

You are prompted that it is safe to remove the hardware device.

4. Press in on the digital card (1), and then remove the card from the slot (2).

74 Chapter 8 External media cards

9 Memory modules

The computer has one memory module compartment, which is located on the bottom of the computer. The memory capacity of the computer is upgraded by adding a memory module to the vacant expansion memory module slot or by upgrading the existing memory module in the primary memory module slot.

WARNING! To reduce the risk of electric shock and damage to the equipment, disconnect the

power cord and remove all batteries before installing a memory module.

CAUTION: Electrostatic discharge (ESD) damages electronic components. Before beginning any

procedure, be sure that you are discharged of static electricity by touching a grounded metal object.

NOTE: To use a dual-channel configuration when adding a second memory module, be sure that

both memory modules are the same size.

To add or replace a memory module:

1. Save your work.

2. Shut down the computer, and close the display.

If you are not sure whether the computer is off or in Hibernation, turn on the computer by pressing the Power button, and then shut down the computer through the operating system.

3. Disconnect all external devices connected to the computer.

4. Disconnect the power cord from the AC outlet.

5. Turn the computer upside down on a flat surface.

6. Remove the battery from the computer.

7. Remove the four memory module compartment screws (1).

8. Lift the memory module compartment cover (2) away from the computer.

9. If replacing a memory module, remove the existing memory module by:

a. Pulling away the retention clips (1) on each side of the memory module.

The memory module tilts up.

CAUTION: To prevent damage to the memory module, hold the memory module by the

edges only. Do not touch the components on the memory module.

b. Grasping the edge of the memory module (2), and gently pulling the module out of the

memory module slot.

To protect a memory module after removal, place it in an electrostatic-safe container.

10. Insert a new memory module by:

76 Chapter 9 Memory modules

CAUTION: To prevent damage to the memory module, hold the memory module by the edges

only. Do not touch the components on the memory module, and do not bend the memory module.

a. Aligning the notched edge (1) of the memory module with the tab in the memory module

slot.

b. With the memory module at a 45-degree angle from the surface of the memory module

compartment, pressing the module (2) into the memory module slot until it is seated.

c. Gently pressing the memory module (3) down, applying pressure to both the left and right

edges of the memory module, until the retention clips snap into place.

11. Align the tab (1) on the memory module compartment cover with the notch on the computer.

12. Close the cover (2).

13. Insert and tighten the four memory module compartment screws (3).

14. Replace the battery.

15. Turn over the computer.

16. Connect external devices to the computer.

17. Connect the computer to AC power.

18. Turn on the computer.

78 Chapter 9 Memory modules

10 Security

Protecting the computer

Standard security features provided by the Windows operating system and the non-Windows Setup Utility protect your personal settings and data from a variety of risks.

Follow the procedures in this guide to use:

Passwords

●

Antivirus software

●

Firewall software

●

● Critical security updates

● Optional security cable

● Fingerprint reader (select models only)

NOTE: Security solutions are designed to act as deterrents, but they might not deter software

attacks or prevent the computer from being mishandled or stolen.

NOTE: Before sending the computer for service, remove all password and fingerprint settings.

Computer risk Security feature

Unauthorized use of the computer ● QuickLock

● Power-on password

Computer viruses Norton Internet Security software

Unauthorized access to data ● Firewall software

● Windows updates

Unauthorized access to Setup Utility, BIOS settings, and other system identification information

Ongoing or future threats to the computer Critical security updates from Microsoft®

Unauthorized access to a Windows user account User password

Unauthorized removal of the computer Security cable slot (used with an optional security cable)

Administrator password

Protecting the computer 79

Using passwords

A password is a group of characters that you choose to secure your computer information. Several types of passwords can be set, depending on how you want to control access to your information. Passwords are set in Windows or in the non-Windows Setup Utility preinstalled on the computer.

CAUTION: To prevent being locked out of the computer, record each password set. Because most

passwords are not displayed as they are set, changed, or deleted, it is essential to record each password immediately and store it in a secure place.

Use the same password for a Setup Utility feature and for a Windows security feature, and the same password can be used for more than one Setup Utility feature.

To setup a password in Setup Utility:

Combine up to 8 letters and numbers. Passwords are case sensitive.

●

Enter the password at the Setup Utility prompt. A password set in Windows must be entered at a

●

Windows prompt.

To safely create and save passwords:

Follow requirements set by the program.

●

Write down your passwords and store them in a secure place away from the computer.

●

Do not store passwords in a file on the computer.

●

Do not use your name or other personal information that can easily be discovered by an

●

outsider.

For additional information about Windows passwords, such as screen-saver passwords, select Start

> Help and Support.

Setting passwords in Windows

Password Function

Administrator password Protects administrator-level access to computer contents.

User password Protects access to a Windows user account. It also protects

QuickLock Protects the computer by requiring a password in the

NOTE: This password cannot be used to access Setup

Utility contents.

access to the computer contents and must be entered when you exit Sleep or Hibernation.

Windows Log On dialog box before accessing the computer. After setting a user or administrator password:

1. Initiate QuickLock by pressing the QuickLock key.

2. Exit QuickLock by entering your Windows user or

administrator password.

80 Chapter 10 Security

Setting passwords in Setup Utility

Password Function

Administrator password

Power-on password ● Protects access to the computer contents.

For details about passwords, see Administrator password or Power-on password.

Administrator password

Your administrator password protects the configuration settings and system identification information in Setup Utility. After this password is set, you must enter it each time you access Setup Utility.

Your administrator password is not interchangeable with an administrator password set in Windows, nor is it displayed as it is set, entered, changed, or deleted. Be sure that you record your password and store it in a safe place.

Protects access to Setup Utility.

●

● After this password is set, it is entered each time you

access Setup Utility.

CAUTION: If you forget your administrator password,

Setup Utility cannot be accessed.

● After this password is set, it must be entered each time

you turn on or restart the computer, or exit Hibernation.

CAUTION: If you forget your power-on password, the

computer cannot be turned on or restarted, or exit Hibernation.

Using passwords 81

Managing an administrator password

To set, change, or delete this password:

1. Open Setup Utility by turning on or restarting the computer. When the Press the ESC key for

Startup Menu message appears in the lower left corner of the screen, press the f10 key.

– or –

Open Setup Utility by turning on or restarting the computer. When the Press the ESC key for Startup Menu message appears in the lower left corner of the screen, press the esc key. When the Startup Menu appears, press the f10 key.

2. Use the arrow keys to select Security > Set Administrator Password, and then press the enter

key.

To set an administrator password, type your password in the Enter New Password and

●

Confirm New Password fields, and then press the enter key.

To change an administrator password, type your current password in the Enter Current

●

Password field, type a new password in the Enter New Password and Confirm New Password fields, and then press the enter key.

To delete an administrator password, type your current password in the Enter Password

●

field, and then press the enter key four times.

3. To save your changes and exit Setup Utility, use the arrow keys to select Exit > Exit Saving

Changes.

Changes go into effect when the computer restarts.

Entering an administrator password

At the Enter Password prompt, type your administrator password, and then press the enter key. After three unsuccessful attempts to enter the administrator password, restart the computer and try again.

Power-on password

Your power-on password prevents unauthorized use of the computer. After this password is set, it must be entered each time you turn on or restart the computer, or exit Hibernation. A power-on password is not displayed as it is set, entered, changed, or deleted.

82 Chapter 10 Security

Managing a power-on password

To set, change, or delete the power-on password:

1. Open Setup Utility by turning on or restarting the computer. When the Press the ESC key for

Startup Menu message appears in the lower left corner of the screen, press the f10 key.

– or –

2. Use the arrow keys to select Security > Set Power-On Password, and then press the enter

key.

To set a power-on password, type your password in the Enter New Password and Confirm

●

New Password fields, and then press the enter key.

To change a power-on password, type your current password in the Enter Current

●

Password field, type a new password in the Enter New Password and Confirm New Password fields, and then press the enter key.

To delete a power-on password, type your current password in the Enter Current Password

●

field, and then press the enter key four times.

3. To save your changes and exit Setup Utility, use the arrow keys to select Exit > Exit Saving

Changes.

Changes go into effect when the computer restarts.

Entering a power-on password

At the Enter Password prompt, type your password, and then press the enter key. After three unsuccessful attempts to enter the password, restart the computer and try again.

Using passwords 83

Using antivirus software

When using the computer to access e-mail, a network, or the Internet, the computer is exposed to viruses. Computer viruses disable the operating system, programs, or utilities, or cause them to function abnormally.

Antivirus software detects most viruses, destroys them, and in most cases, repairs any damage caused. To provide ongoing protection against newly discovered viruses, keep antivirus software upto-date.

Norton Internet Security, an antivirus program, is preinstalled on the computer. The software includes 60 days of free updates. HP recommends protecting the computer against new viruses beyond 60 days by purchasing extended update service. Instructions for using and updating Norton Internet Security software and for purchasing extended update service are provided within the program. To view and access Norton Internet Security, select Start > All Programs > Norton Internet Security.

For more information about computer viruses, type viruses in the Help and Support search box.

Using firewall software

When using the computer for e-mail, network, or Internet access, unauthorized persons might gain access to the computer, your personal files, and information about you. Use the firewall software preinstalled on the computer to protect your privacy.

Firewall features include logging and reporting of network activity, and automatic monitoring of all incoming and outgoing traffic. For more information, see the firewall user guide or contact the firewall manufacturer.

NOTE: Under some circumstances a firewall blocks access to Internet games, interferes with printer

or file sharing on a network, or blocks authorized e-mail attachments. To temporarily resolve the problem, disable the firewall, perform the task, and then reenable the firewall. To permanently resolve the problem, reconfigure the firewall.

84 Chapter 10 Security

Installing critical security updates

CAUTION: Microsoft sends alerts regarding critical updates. To protect the computer from security

breaches and computer viruses, install all critical updates from Microsoft as soon as you receive an alert.

Updates to the operating system and other software might have become available after the computer was shipped. To be sure that all available updates are installed on the computer:

Run Windows Update after you set up the computer. Use the update link at Start > All

●

Programs > Windows Update.

Run Windows Update monthly thereafter.

●

Obtain updates to Windows and other Microsoft programs, as they are released, from the

●

Microsoft website and through the updates link in Help and Support.

Installing an optional security cable

NOTE: A security cable is designed to act as a deterrent, but it might not prevent the computer from

being mishandled or stolen.

NOTE: The location of the security cable slot varies by computer model.

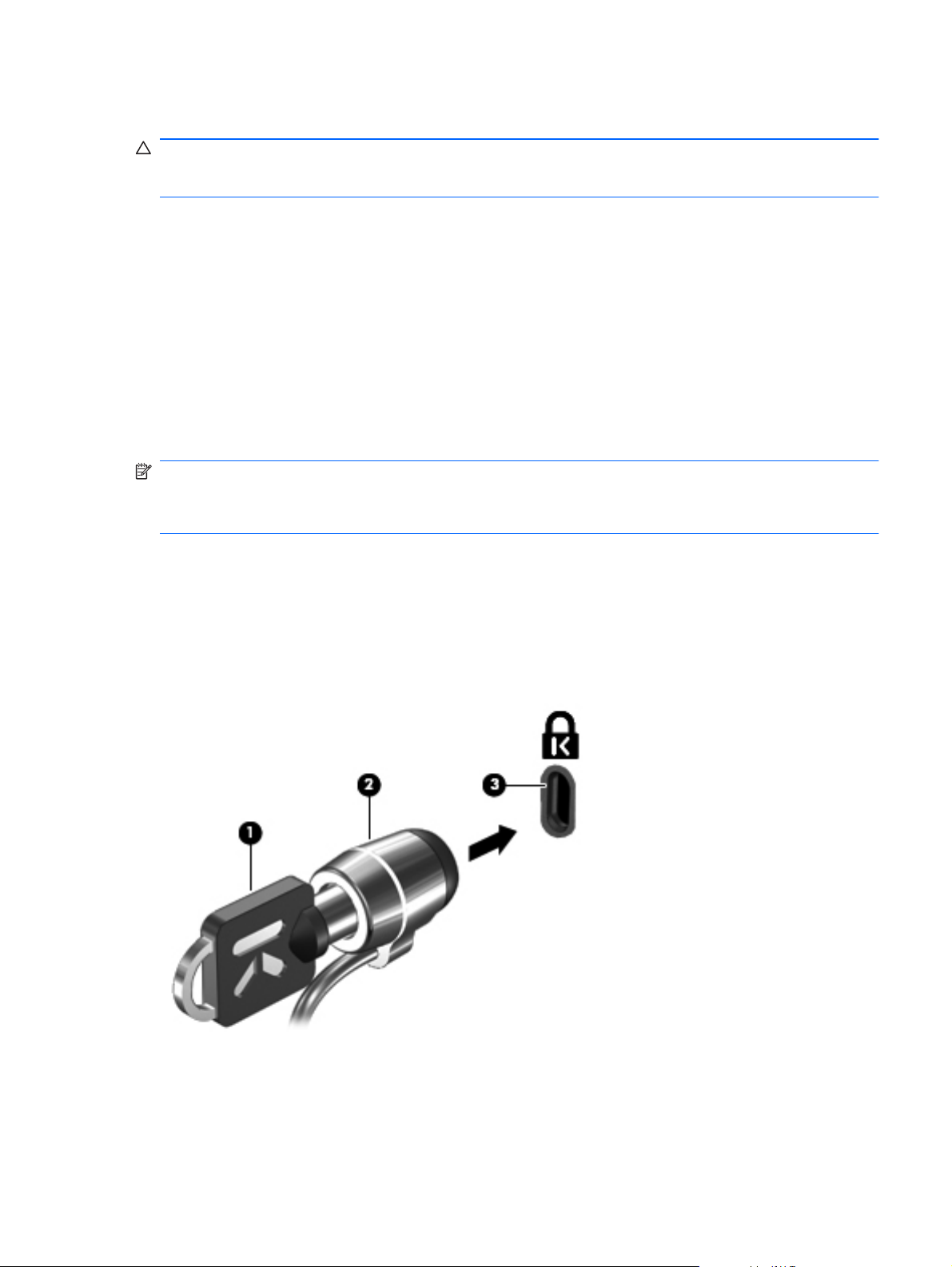

To attached the security cable:

1. Loop the security cable around a secured object.

2. Insert the key (1) into the cable lock (2).

3. Insert the cable lock into the security cable slot on the computer (3), and then lock the cable lock

with the key.

Installing critical security updates 85

Using the fingerprint reader (select models only)

NOTE: The location of the fingerprint reader varies by computer model.

Locating the Fingerprint Reader

The Fingerprint Reader is a small metallic sensor that is located:

● Near the bottom of the TouchPad

● On the right side of the keyboard

● On the upper-right side of the display

● On the left side of the display

Depending on the computer model, the Fingerprint Reader might be oriented horizontally or vertically. Both orientations require that you swipe your finger perpendicular to the metallic sensor.

86 Chapter 10 Security

Registering fingerprints

A Fingerprint Reader allows you to log on to Windows using a fingerprint that you have registered using DigitalPersona Personal software, instead of using a Windows password.

To register one or more fingerprints:

1. In Windows, click the DigitalPersona Personal icon in the notification area at the far right of the

taskbar.

2. Read the welcome text, and then click Next.

The Verify Your Identity window appears.

3. Type your Windows password, if one has been established, and then click Next.

NOTE: If you do not have a Windows password, the Protect Your Windows Account window

appears. Create a Windows password at this time, or skip this step by clicking Next. However, setting a Windows password optimizes the security of the computer.

The Fingerprint Registration Training window appears.

4. View the demonstration, and then click Next.

The Register a Fingerprint window appears.

5. Click the finger on the screen that corresponds to the finger you want to register.

The next window appears, outlining that finger in green.

6. Slowly swipe your chosen finger over the Fingerprint Reader.

NOTE: If the swipe is not completed correctly, a message explains why the swipe was

unsuccessful.

NOTE: For best results, swipe the same finger in the same direction each time you use the

Fingerprint Reader.

7. Continue swiping the same finger over the Fingerprint Reader until you have completed four

successful swipes.

When the fingerprint is registered successfully, the Register a Fingerprint window appears, allowing you to register more fingerprints. Repeat steps 5 through 7 to register additional fingerprints.

8. When you are finished registering fingerprints, click Next.

If you register only one fingerprint, a message recommends that you register additional fingerprints. Click Yes to register more fingerprints, and then repeat steps 1 through 8 for each fingerprint registered.

– or –

Click No if you do not want to register additional fingerprints. The Registration Complete window appears.

9. Click Finish.

NOTE: Repeat steps 1 through 9 for each additional user.

Using the fingerprint reader (select models only) 87

Using your registered fingerprint to log on to Windows

To log on to Windows using your fingerprint:

1. After you register your fingerprints, restart Windows.

2. Swipe any of your registered fingers to log on to Windows.

88 Chapter 10 Security

11 Troubleshooting

Cannot connect to a WLAN

Before troubleshooting a network connection problem, be sure that device drivers are installed for all wireless devices.

NOTE: Wireless networking devices are included with select computer models only. If wireless

networking is not listed in the feature list on the side of the original computer package, add wireless networking capability to the computer by purchasing a wireless networking device.

Possible causes for wireless connection problems include:

Changing the network configuration (SSID or security)

●

Disabling or incorrectly installing the wireless device

●

Failing wireless device or router hardware

●

Encountering interference from other devices

●

If you have a problem connecting to a WLAN, confirm that the integrated WLAN device is properly installed on the computer:

NOTE: Windows includes the User Account Control feature to improve the security of the computer.

You might be prompted for your permission or password for tasks such as installing software, running utilities, or changing Windows settings. For more information, see Help and Support.

1. Select Start > Control Panel > System and Security.

2. In the System area, click Device Manager.

3. Expand the list of Network adapters by clicking the plus (+) sign.

4. Identify the WLAN device from the Network adapters list. The listing for a WLAN device might

include the term wireless, wireless LAN, WLAN, Wi-Fi, or 802.11.

If no WLAN device is listed, either the computer does not have an integrated WLAN device, or the driver for the WLAN device is not properly installed.

For more information on troubleshooting WLANs, see the website links provided in Help and Support.

Cannot connect to a WLAN 89

Cannot connect to a preferred network

Windows automatically repairs a corrupted WLAN connection:

If there is a Network icon in the notification area, right-click the icon, and then click

●

Troubleshoot problems.

Windows resets your network device and attempts to reconnect to one of the preferred networks.

If there is no Network icon in the notification area:

●

1. Select Start > Control Panel > Network and Internet > Network and Sharing Center.

2. Click Troubleshoot problems and select the network you want to repair.

Network icon is not displayed

If the network icon is not displayed in the notification area after configuring the WLAN, the software driver is either missing or corrupted. A Windows “Device not Found” error message might appear. Reinstall the driver.

Get the latest version of the WLAN device software and drivers for the computer from the HP website

http://www.hp.com. If the WLAN device was purchased separately, consult the manufacturer's

at website for the latest software.

For the latest version of the WLAN device software:

1. Open a Web browser and go to

2. Select your country or region.

3. Click the option for software and driver downloads.

4. Type the computer model number in the search box.

5. Press the enter key, and then follow the on-screen instructions.

NOTE: If the WLAN device was purchased separately, consult the manufacturer's website for the

latest software.

http://www.hp.com/support.

Current network security codes are unavailable

If prompted for a network key or a name (SSID) when connecting to a WLAN, the network is protected by security. Enter the current codes to make a connection on a secure network. The SSID and network key are alphanumeric codes that are entered to identify the computer to the network. To find the codes:

For a network connected to your personal wireless router, review the router user guide for

●

instructions on setting up the same codes on both the router and the WLAN device.

For a private network, such as a network in an office or at a public Internet chat room, contact

●

the network administrator to obtain the codes, and then enter the codes when prompted.

Some networks change the SSID or network keys used in their routers or access points on a regular basis to improve security. Change the corresponding code in the computer accordingly.

90 Chapter 11 Troubleshooting

If provided with new wireless network keys and SSID, and if you have previously connected to that network, follow the steps below to connect to the network:

1. Select Start > Control Panel > Network and Internet > Network and Sharing Center.

2. In the left panel, click Manage wireless networks.

A list showing the available WLANs appears. If you are in a hotspot where several WLANs are active, multiple networks appear.

3. Select the network in the list, right-click the network, and then click Properties.

NOTE: If the network you want is not listed, check with the network administrator to be sure

that the router or access point is operating.

4. Click the Security tab and enter the correct wireless encryption data into the Network security

key box.

5. Click OK to save these settings.

WLAN connection is very weak

If the connection is very weak, or if the computer cannot make a connection to a WLAN, minimize interference from other devices by:

Moving the computer closer to the wireless router or access point.

●

Temporarily disconnecting devices such as a microwave, cordless phone, or cellular phone.

●

To force the device to reestablish all connection values:

1. Select Start > Control Panel > Network and Internet > Network and Sharing Center.

2. In the left panel, click Manage wireless networks.

A list showing the available WLANs appears. If you are in a hotspot where several WLANs are active, multiple networks appear.

3. Select a network, and then click Remove.

Cannot connect to the wireless router

If you are trying to connect to the wireless router and are unsuccessful, reset the wireless router by removing power from the router for 10 to 15 seconds.

If the computer cannot make a connection to a WLAN, restart the wireless router. For details, see the router manufacturer's instructions.

The optical disc tray does not open for removal of a CD, a DVD, or a BD

1. Insert the end of a paper clip into the release access in the front bezel of the drive (1).

2. Press in gently on the paper clip until the disc tray is released, and then pull out the tray until it

stops (2).

WLAN connection is very weak 91

3. Remove the disc from the tray by gently pressing down on the spindle while lifting the outer

edges of the disc (3). Hold the disc by the edges and avoid touching the flat surfaces.

NOTE: If the tray is not fully accessible, tilt the disc carefully as you remove it.

4. Close the disc tray, and then place the disc in a protective case.

The computer does not detect the CD, DVD, or BD drive

If Windows does not detect an installed device, the device driver software might be missing or corrupted. If you suspect that the optical drive is not being detected, verify that the optical drive is listed in the Device Manager utility by:

1. Removing any discs from the optical drive.

2. Selecting Start > Control Panel > System and Security.

3. In the System area, clicking Device Manager.

4. In the Device Manager window, clicking the arrow next to DVD/CD-ROM drives to expand the

list to show all of the installed drives.

5. Right-clicking the optical device listing to perform the following tasks:

Update the driver software

●

● Disable

● Uninstall

92 Chapter 11 Troubleshooting

● Scann for hardware changes. Windows scans your system for installed hardware and

installs any required drivers

● Click Properties to verify that the device is working properly

◦ The Properties window provides details about the device to help you troubleshoot

issues

◦ Click the Driver tab to update, disable, or uninstall drivers for this device

A CD, DVD, or BD does not play

To play a CD, DVD, or BD:

● Save your work and close all open programs before playing a disc.

Log off the Internet before playing a disc.

●

Be sure that you insert the disc properly.

●

Be sure that the disc is clean. If necessary, clean the disc with filtered water and a lint-free cloth.

●

Wipe from the center of the disc to the outer edge.

Check the disc for scratches. If you find scratches, treat the disc with an optical disc repair kit

●

available at many electronics stores.

Disable Sleep before playing the disc.

●

Do not initiate Hibernation or Sleep while playing a disc. Otherwise, you might see a warning message asking if you want to continue. If this message appears, click No. After clicking No, the computer might:

◦ Resume playback.

◦ Close the playback window in the multimedia program. To return to playing the disc, click

the Play button in your multimedia program. In some cases, you might need to exit the program, and then restart it.

Increase system resources.

●

◦ Shut down printers and scanners, and unplug cameras and portable handheld devices.

Disconnecting these Plug and Play devices frees up valuable system resources and results in better playback performance.

Change desktop color properties. Because the human eye cannot easily tell the difference

◦

between colors beyond 16 bits, you should not notice any loss of color while watching a movie if you lower system color properties to 16-bit color by:

1. Right-clicking on a blank area of the computer desktop, and selecting Screen resolution.

2. Selecting Advanced Settings > Monitor tab.

3. Selecting High Color (16 bit), if this setting is not already selected.

4. Clicking OK.

A CD, DVD, or BD does not play 93

A CD, DVD, or BD does not play automatically

1. Click Start > Default Programs > Change AutoPlay Settings.

2. Confirm that the Use AutoPlay for all media and devices check box is selected.

3. Click Save.

A disc should now start automatically when it is inserted into the optical drive.

A DVD or BD movie stops, skips, or plays erratically

● Clean the disc.

Conserve system resources by:

●

Logging off the Internet.

◦

Changing the color properties of the desktop.

◦

1. Right-click on a blank area of the computer desktop, and then select Screen resolution.

2. Select Advanced Settings > Monitor tab.

3. Select High Color (16 bit), if this setting is not already selected.

4. Click OK.

Disconnecting external devices, such as a printer, scanner, camera, or handheld device.

◦

A DVD or BD movie is not visible on an external display

1. If both the computer display and an external display are on, press the Switch Screen Image key

one or more times to switch between the 2 displays.

2. Configure the monitor settings to make the external display primary:

a. Right-click on a blank area of the computer desktop, and select Screen resolution.

b. Specify a primary display and a secondary display.

NOTE: When using both displays, the movie image does appear on any display designated as

the secondary display.

For information about a multimedia question not covered in this guide, go to Start > Help and

Support.

The process of burning a CD or DVD does not begin, or it stops before completion

Be sure that all other programs are closed.

●

Disable Sleep and Hibernation.

●

Be sure that you are using the right kind of disc for your drive. For more information about disc

●

types, see the user guides.

94 Chapter 11 Troubleshooting

HP (Hewlett-Packard) DV6-3225DX User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Identifying hardware

Components

Top components

TouchPad

TouchPad buttons

Lights

Buttons and Fingerprint Reader (select models only)

Keys

Front components

Right-side components

Left-side components

Bottom components

Display components

Wireless antennas (select models only)

Additional hardware components

Labels

Using wireless devices

Identifying wireless and network status icons

Using the wireless controls

Using the wireless key

Using HP Wireless Assistant

Using operating system controls

Using a WLAN

Setting up a WLAN

Protecting your WLAN

Connecting to a WLAN

Roaming to another network

Using Bluetooth wireless devices (select models only)

Bluetooth and Internet Connection Sharing (ICS)

Connecting to a local area network

3 Pointing devices and keyboard

Using pointing devices

Setting pointing device preferences

Using the TouchPad

Turning the TouchPad on and off

Using TouchPad gestures

Scrolling

Pinching

Rotating

Using the touchscreen (select models only)

Calibrating the touchscreen

Performing actions on the touchscreen

Performing clicks

Performing flicks

Changing or testing click settings

Changing or creating flick assignments

Setting touchscreen preferences

Connecting an external mouse

Using the action keys

Using the hotkeys

Cleaning the TouchPad and keyboard

Multimedia features

Identifying your multimedia components

Adjusting the volume

Using the media activity keys

Multimedia software

Using HP MediaSmart software

Using other preinstalled multimedia software

Installing multimedia software from a disc

Audio

Connecting external audio devices

Checking your audio functions

Video

Connecting an external monitor or projector

Connecting an HDMI device

Configuring audio for HDMI (select models only)

Webcam

5 Power management

Setting power options

Using power-saving states

Initiating and exiting Sleep

Initiating and exiting Hibernation

Using the battery meter

Using power plans

Viewing the current power plan

Selecting a different power plan
