HP (Hewlett-Packard) DV6 User Manual

HP Pavilion dv6 Notebook PC
Maintenance and Service Guide
© Copyright 2011 Hewlett-Packard Development Company, L.P.
AMD, the AMD Arrow logo, Athlon, Phenom, and Turion combinations thereof, are trademarks of Advanced Micro Devices, Inc. Bluetooth is a trademark owned by its proprietor and used by Hewlett-Packard Company under license. Intel and Core are trademarks of Intel Corporation in the U.S. and other countries. Microsoft and Windows are U.S. registered trademarks of Microsoft Corporation. SD Logo is a trademark of its proprietor.
The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
Second Edition: May 2011
First Edition: March 2011
Document Part Number: 635489-002
Safety warning notice
WARNING! To reduce the possibility of heat-related injuries or of overheating the device, do not
place the device directly on your lap or obstruct the device air vents. Use the device only on a hard, flat surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft surface, such as pillows or rugs or clothing, to block airflow. Also, do not allow the AC adapter to contact the skin or a soft surface, such as pillows or rugs or clothing, during operation. The device and the AC adapter comply with the user-accessible surface temperature limits defined by the International Standard for Safety of Information Technology Equipment (IEC 60950).
iii
iv Safety warning notice
Table of contents
1 Product description ........................................................................................................... 1
2 External component identification ................................................................................... 11
Display ................................................................................................................................. 11
Buttons, speakers, and fingerprint reader (select models only) ...................................................... 12
Keys ..................................................................................................................................... 13
Lights .................................................................................................................................... 14
TouchPad .............................................................................................................................. 15
Front ..................................................................................................................................... 16
Rear ..................................................................................................................................... 16
Left side ................................................................................................................................ 17
Right side .............................................................................................................................. 18
Bottom .................................................................................................................................. 19
3 Illustrated parts catalog .................................................................................................. 20
Service tag ............................................................................................................................ 20
Computer major components ................................................................................................... 22
Cable Kit .............................................................................................................................. 32
Display assembly subcomponents ............................................................................................. 34
Mass storage devices ............................................................................................................. 36
Miscellaneous parts ................................................................................................................ 37
Sequential part number listing .................................................................................................. 38
4 Removal and replacement procedures ............................................................................ 52
Preliminary replacement requirements ....................................................................................... 52
Tools required ......................................................................................................... 52
Service considerations ............................................................................................. 52
Plastic parts ............................................................................................. 52
Cables and connectors ............................................................................. 52
Drive handling ......................................................................................... 53
Grounding guidelines .............................................................................................. 53
v
Electrostatic discharge damage .................................................................. 53
Packaging and transporting guidelines ........................................ 55
Component replacement procedures ........................................................................................ 57
Service tag ............................................................................................................. 57
Computer feet ......................................................................................................... 58
Battery ................................................................................................................... 59
Optical drive .......................................................................................................... 60
Hard drive ............................................................................................................. 62
RTC battery ............................................................................................................ 65
Memory module ...................................................................................................... 66
WLAN module ........................................................................................................ 67
Keyboard ............................................................................................................... 70
Top cover ............................................................................................................... 74
Power button board ................................................................................................. 77
Fingerprint reader board .......................................................................................... 78
Bluetooth module .................................................................................................... 79
USB board ............................................................................................................. 82
Power connector cable ............................................................................................ 83
System board ......................................................................................................... 85
Fan/heat sink assembly ........................................................................................... 90
Processor ............................................................................................................... 95
Speakers ................................................................................................................ 99
Optical drive connector cable ................................................................................. 102
Display assembly .................................................................................................. 103
5 Setup Utility (BIOS) and System Diagnostics .................................................................. 112
Using Setup Utility ................................................................................................................ 112
Starting Setup Utility .............................................................................................. 112
Changing the language of Setup Utility .................................................................... 112
Navigating and selecting in Setup Utility .................................................................. 113
Displaying system information ................................................................................. 113
Restoring factory settings in Setup Utility ................................................................... 114
Exiting Setup Utility ............................................................................................... 114
Updating the BIOS ................................................................................................ 114
Determining the BIOS version .................................................................. 115
Downloading a BIOS update ................................................................... 115
Using System Diagnostics ...................................................................................................... 116
6 Specifications ............................................................................................................... 117
Computer specifications ........................................................................................................ 117
15.6-inch display specifications ............................................................................................. 118
vi
Hard drive specifications ...................................................................................................... 119
Hard drive specifications (continued) ...................................................................................... 120
7 Backup and recovery .................................................................................................... 121
Restore ............................................................................................................................... 121
Creating restore media ......................................................................................................... 122
Performing a system restore ................................................................................................... 123
Restoring using the dedicated recovery partition (select models only) ........................... 123
Restoring using the restore media ............................................................................ 124
Changing the computer boot order .......................................................................... 124
Backing up and recovering your information ........................................................................... 125
Using Windows Backup and Restore ....................................................................... 126
Using Windows system restore points ...................................................................... 126
When to create restore points .................................................................. 126
Create a system restore point ................................................................... 127
Restore to a previous date and time .......................................................... 127
8 Power cord set requirements ........................................................................................ 128
Requirements for all countries ................................................................................................ 128
Requirements for specific countries and regions ....................................................................... 129
9 Recycling ...................................................................................................................... 130
Battery ................................................................................................................................ 130
Display ............................................................................................................................... 130
Index ............................................................................................................................... 136
vii
viii

1 Product description

Category Description Computer models
equipped with an AMD processor
Product Name HP Pavilion dv6 Notebook PC √√
Processors AMD A8-3530MX 2.60-GHz processor, (1.90-GHz
FSB, 4.0-MB L2 cache, quad core, 45 W)
AMD A8-3510MX 2.50-GHz processor (1.50-GHz
FSB, 4.0-MB L2 cache, quad core, 45 W)
AMD A8-3500M 2.40-GHz processor (1.5-GHz FSB,
4.0-MB L2 cache, quad core, 35 W)
AMD A6-3410MX 2.30-GHz processor (1.60-GHz
FSB, 2.0-MB L2 cache, quad core, 45 W)
AMD A6-3400M 2.30-GHz processor (1.4-GHz FSB,
4.0-MB L2 cache, quad core, 35 W)
AMD A4-3310MX 2.50-GHz processor (2.10-GHz
FSB, 2.0-MB L2 cache, dual core, 45 W)
AMD A4-3300M 2.50-GHz processor (1.9-GHz FSB,
4.0-MB L2 cache, dual core, 35 W)
AMD E2-3000M 2.40-GHz processor (1.8-GHz FSB,
4.0-MB L2 cache, quad core, 35 W)
Computer models equipped with an Intel processor
AMD Athlon II N370 2.50-GHz processor (1.0-MB
L2 cache, 1066-MHz, 3.2GT/sec, dual core, 35 W)
AMD Athlon II P360 2.30-GHz processor (1.0-MB
L2 cache, 1066-MHz, 3.2GT/sec, dual core, 25 W)
AMD Athlon II P340 2.20-GHz processor (1.0-MB
L2 cache, 1066-MHz, 3.2GT/sec, dual core, 25 W)
AMD Phenom II N970 2.20-GHz processor (2.0-MB
L2 cache, 1333-MHz, 3.6GT/ sec, quad core, 35 W)
AMD Phenom II N870 2.30-GHz processor (1.5-MB
L2 cache, 1333-MHz, 3.6GT/ sec, triple core, 35 W)
AMD Phenom II N850 2.20-GHz processor (1.5-MB
L2 cache, 1333-MHz, 3.6GT/ sec, triple core, 35 W)
1
Category Description Computer models
equipped with an AMD processor
Computer models equipped with an Intel processor
AMD Phenom II N660 3.00-GHz processor (2.0-MB
L2 cache, 1333-MHz, 3.6GT/ sec, dual core, 35 W)
AMD Phenom II P960 1.80-GHz processor (2.0-MB
L2 cache, 1066-MHz, 3.6GT/sec, quad core, 25 W)
AMD Phenom II P860 2.00-GHz processor (1.5-MB
L2 cache, 1333-MHz, 3.6GT/sec, triple core, 25 W)
AMD Phenom II P650 2.60-GHz processor (2.0-MB
L2 cache, 1066-MHz, 3.6GT/sec, triple core, 25 W)
AMD Turion II P570 2.70-GHz processor (2.0-MB
L2 cache, 1066-MHz, 3.6GT/sec, dual core, 35 W)
AMD Turion II P560 2.50-GHz processor (2.0-MB
L2 cache, 1066-MHz, 3.6GT/sec, dual core, 25 W)
Intel Core i7-2820QM 2.30-GHz (SC turbo up to
3.10-GHz) processor (8.0-MB L3 cache, quad core, 45 W)
Intel Core i7-2720QM 2.20-GHz (SC turbo up to
3.00-GHz) processor (6.0-MB L3 cache, quad core, 45 W)
Intel Core i7-2630QM 2.00-GHz (SC turbo up to
2.90-GHz) processor (6.0-MB L3 cache, quad core, 45 W)
Intel Core i7-2620M 2.70-GHz (SC turbo up to 3.40-
GHz) processor (4.0-MB L3 cache, dual core, 35 W)
Intel Core i5-2540M 2.60-GHz (SC turbo up to 3.30-
GHz) processor (3.0-MB L3 cache, dual core, 35 W)
Intel Core i5-2520M 2.50-GHz (SC turbo up to 3.20-
GHz) processor (3.0-MB L3 cache, dual core, 35 W)
Intel Core i5-2430M 2.40-GHz (SC turbo up to 3.00-
GHz) processor (3.0-MB L3 cache, dual core, 35 W)
Intel Core i5-2410M 2.30-GHz (SC turbo up to 2.90-
GHz) processor (3.0-MB L3 cache, dual core, 35 W)
Intel Core i3-2350M 2.30-GHz processor (3.0-MB
L3 cache, dual core, 35 W)
Intel Core i3-2330M 2.20-GHz processor (3.0-MB
L3 cache, dual core, 35 W)
Intel Core i3-2310M 2.10-GHz processor (3.0-MB
L3 cache, dual core, 35 W)
Intel Pentium B950 TJ85 2.10-GHz processor (2.0-MB
L3 cache, dual core, 35 W)
Intel Pentium B940 TJ85 2.00-GHz processor (2.0-MB
L3 cache, dual core, 35 W)
2 Chapter 1 Product description
Category Description Computer models
equipped with an AMD processor
Computer models equipped with an Intel processor
Chipset Northbridge: AMD A70M Fusion controller hub (FCH)
Northbridge: AMD A60M FCH +NEC USB 3.0
Northbridge: AMD A60M FCH
Northbridge: ATI RS880M - AMD M880G with ATI Mobility Radeon HD 4250
Northbridge: AMD RS880MD
Southbridge: AMD SB820M
Intel® HM65 Express chipset with NEC USB 3.0
3
Category Description Computer models
equipped with an AMD processor
Computer models equipped with an Intel processor
Graphics Internal graphics:
AMD Radeon™ HD 6620G graphics on computer models equipped with an AMD A8 processor
AMD Radeon HD 6520G graphics on computer models equipped with an AMD A6 processor
AMD Radeon HD 6480G graphics on computer models equipped with an AMD A4 processor
ATi Mobility Radeon HD 4250 graphics supporting DX10.1 on computer models equipped with an AMD Athlon, Phenom, and Turion processor
Switchable discrete graphics:
AMD RadeonT HD 6755G2 graphics on computer models equipped with an AMD A8 or A6 processor; supports bus alive/chip off (BACO), dual graphics, HD decode, DX11, and HDMI
AMD RadeonT HD 6645G2 graphics on computer models equipped with an AMD A8 processor; supports BACO, dual graphics, HD decode, DX11, and HDMI
AMD RadeonT HD 6545G2 graphics on computer models equipped with an AMD A6 processor; supports BACO, dual graphics, HD decode, DX11, and HDMI
AMD RadeonT HD 6515G2 graphics on computer models equipped with an AMD A4 processor; supports BACO, dual graphics, HD decode, DX11, and HDMI
ATi XT Radeon HD 6650M M2 package with 1024-MB of graphics subsystem discrete memory (64-MB × 16 DDR3 @ 900MHz × 8 PCs), 128­bit muxless; supports HD decode, DX11, and HDMI
ATi XT Radeon HD 6470M M2 package with 512-MB of graphics subsystem discrete memory (64-MB × 16 DDR3 @ 900MHz × 4 PCs), 64­bit muxless; supports HD decode, DX11, and HDMI
4 Chapter 1 Product description
Category Description Computer models
equipped with an AMD processor
Computer models equipped with an Intel processor
Internal graphics: Intel HD Graphics 3000
Switchable discrete graphics:
ATI XT Radeon HD 6770M M2 package with 1024-MB of graphics subsystem discrete memory (32-MB × 32 GDDR5 × 8 PCs, 5GBPS), muxless, with reserve space for 2-GB graphics subsystem memory
ATi XT Radeon HD 6490M M2 package with 1024-MB of graphics subsystem discrete memory (64-MB × 32 GDDR5 × 4 PCs, 5GBPS), with a maximum of 1-GB of graphics subsystem memory, muxless
Support DX11, HD decode, and HDMI √√
Panel 15.6-in, full high-definition (FHD), light-emitting diode
(LED), low-voltage differential signalling (LVDS), WVA AntiGlare (1080p, 1900×1080) display; typical brightness: 220 nits
15.6-in, HD, LED, LVDS, SVA BrightView (1366×768) display; typical brightness: 200 nits
All display assemblies include 2 wireless local area network (WLAN) antenna cables
√√
Supports 16:9 ultra wide aspect ratio
Lighted logo on top bezel
Memory 2 customer-accessible/upgradable memory
module slots
Supports dual-channel memory √√
Supports up to 8192 GB of system RAM
Supports up to 16384 GB of system RAM
DDR3/1333-MHz √√
√√
5
Category Description Computer models
equipped with an AMD processor
Computer models equipped with an Intel processor
Supports the following configurations:
8192-MB total system memory (4096×2)
6144-MB total system memory (4096×1 + 2048×1)
4096-MB total system memory (4096×1 or 2048×2)
3072-MB total system memory (2048×1 + 1024×1)
2048-MB total system memory (2048×1 or 1024×2)
1024-MB total system memory (1024×1; not supported on computer models equipped with an AMD processor)
Supports the following configurations:
16384-MB total system memory (8192×2)
12288-MB total system memory (8192×1 + 4096×1)
8192-MB total system memory (8192×1 or 4096×2)
6144-MB total system memory (4096×1 + 2048×1)
4096-MB total system memory (4096×1 or 2048×2)
3072-MB total system memory (2048×1 + 1024×1)
2048-MB total system memory (2048×1 or 1024×2)
1024-MB total system memory (1024×1)
Hard drives Supports 6.35-cm (2.5-in) hard drives in 12.7-mm (.
50-in), 9.5-mm (.37-in), and 7.0-mm (.28­in) thicknesses
Customer-accessible √√
Accelerometer / HDD protection support √√
Serial ATA √√
√√
6 Chapter 1 Product description
Category Description Computer models
equipped with an AMD processor
Computer models equipped with an Intel processor
Supports the following configurations:
1 TB, 5400 rpm (12.7 mm)
750 GB, 7200 and 5400 rpm (9.5 mm)
640 GB, 7200 and 5400 rpm (9.5 mm)
500 GB, 7200 and 5400 rpm (9.5 mm)
320 GB, 7200 (7.0 mm) and 5400 rpm (9.5 mm)
250 GB, 7200 rpm (7.0 mm)
Supports 160-GB solid-state drive
Optical drive Fixed √√
Serial ATA √√
12.7-mm tray load √√
Blu-ray ROM with LightScribe DVD ±R/RW Super Multi
Double-Layer Drive
Blu-ray Disc R/RW with SuperMulti Double-Layer Drive
DVD±RW and CD-RW Super Multi Double-Layer
Combo Drive with LightScribe
√√
√√
√√
Supports zero-power optical drive
Audio and video Dual array digital microphones with appropriate beam-
forming, echo-cancellation, noise-suppression software
HD audio √√
HP-branded Altec/Lansing quad Beats Audio speakers
(select models only)
HP TrueVision HD webcam √√
Ethernet Integrated 10/100/1000 network interface
card (NIC)
Wireless Integrated wireless local area network (WLAN) options
by way of wireless module
Two WLAN antennas built into display assembly √√
√√
√√
√√
√√
7
Category Description Computer models
equipped with an AMD processor
Computer models equipped with an Intel processor
Support for the following WLAN formats:
Broadcom 4313 802.11b/g/n 1×1 WiFi and 2070 Bluetooth 2.1+EDR Combo adapter (BT3.0+HS ready)
Broadcom 4313 802.11b/g/n 1×1 WiFi Adapter
Ralink RT3090BC4 802.11b/g/n 1×1 WiFi and Bluetooth 2.1+EDR Combo Adapter (BT3.0+HS ready)
Ralink 5390GN 802.11b/g/n 1×1 WiFi Adapter
Support for the following WLAN formats:
Atheros 9285G 802.11b/g/n 1×1 WiFi Adapter
Atheros AR8002WB-1NGB 802.11b/g/n 1×1 WiFi and Bluetooth 2.1+EDR Combo Adapter (BT3.0+HS ready)
Realtek RTL8191SE 802.11b/g/n 1×1 WiFi Adapter
Realtek 8188BC8 802.11a/b/g/n 2×2 WiFi and Bluetooth 3.0+HS Combo Adapter
√√
Support for the following WLAN formats:
Intel Centrino Advanced-N 6230
Intel Centrino Wireless-N 1000
Intel Centrino Wireless-N + WiMAX 6150
External media card
HP Multi-Format Digital Media Reader supports the following digital card formats:
Secure Digital (SD) Memory Card
Secure Digital Extended Capacity (SDxC) Memory Card
Secure Digital High Capacity (SDHC) Memory Card
Ultra High Speed MultiMediaCard (UHS/MMC)
√√
8 Chapter 1 Product description
Category Description Computer models
equipped with an AMD processor
Computer models equipped with an Intel processor
Ports
Keyboard/ pointing devices
TouchPad with multi-touch gestures, 2-finger scrolling,
3-pin AC power
Audio-in (mono microphone)
Audio-out (stereo headphone)
HDMI version 1.4 supporting up to 1920 ×1200 @ 60Hz
RJ-45 (Ethernet, includes link and activity lights)
USB 2.0 (3 ports)
VGA (Dsub 15 pin) supporting 2048×1536 external resolution @ 85 Hz (on computer models equipped with an AMD Athlon, Phenom, or Turion processor) or 1920×1600 external resolution @ 60 Hz (on computer models equipped with an AMD A8, A6, A4, or E2 processor), hot plug and unplug and auto­detection for correct output to wide-aspect vs. standard aspect video
Full-size, textured, pocket, keyboard with numeric keypad
and pinch-zoom enabled
√√
√√
√√
Dura-coat, island-style keyboard √√
Multitouch gestures (2-finger scrolling and pinch-zoom)
enabled by default
Taps enabled by default √√
Power requirements
Support for the following 3-wire plug with ground pin AC adapters (supports 3-pin DC connector):
120W AC adapter with localized cable plug support
90W EM AC adapter with localized cable plug support
90W AC adapter with localized cable plug support
65W EM AC adapter with localized cable plug support
65W AC adapter with localized cable plug support
√√
√√
9
Category Description Computer models
equipped with an AMD processor
Computer models equipped with an Intel processor
Support for the following batteries:
9cell, 100-Whr, 3.00-Ah Li-ion battery
6-cell, 62-Whr, 2.80-Ah Li-ion battery
6-cell, 55-Whr, 2.55-Ah Li-ion battery
Security Security cable slot √√
Fingerprint reader with Digital Persona
software support (select models only)
Supports Intel AT-p Ready
Operating system
Preinstalled:
Preinstalled:
Windows 7 Home Basic (select models only)
Windows 7 Home Premium 64-bit (select models only)
Windows 7 Professional 64-bit (select models only)
Windows 7 Home Basic (64- and 32-bit; select models only)
√√
Windows 7 Home Premium (64- and 32-bit; select models only)
Windows 7 Professional (64- and 32-bit; select models only)
Windows 7 Starter (32-bit; select models only)
Windows 7 Ultimate (64-bit; select models only)
FreeDOS
RedFlag
Serviceability End-user replaceable parts:
AC adapter
Battery
Hard drive
Memory modules (2)
Optical drive
WLAN module
√√
10 Chapter 1 Product description

2 External component identification

Display

Item Component Description
(1) WLAN antennas (2)* Send and receive wireless signals to communicate
with WLANs.
(2) Internal microphones (2) Record sound.
(3) Webcam light On: The webcam is in use.
(4) Webcam Records video and captures still photographs.
To use the webcam, select Start > All Programs > CyberLink YouCam > CyberLink YouCam.
*The antennas are not visible from the outside of the computer. For optimal transmission, keep the areas immediately around the antennas free from obstructions. To see wireless regulatory notices, refer to the section of the Regulatory, Safety, and Environmental Notices that applies to your country or region. These notices are located in Help and Support.
Display
11

Buttons, speakers, and fingerprint reader (select models only)

Item Component Description
(1) Power button
(2) Speakers (2) Produce sound.
(3) Web browser button Opens the default Web browser.
(4) Fingerprint reader (select models only) Allows a fingerprint logon to Windows, instead of a
When the computer is off, press the button to turn on the computer.
When the computer is on, press the button briefly to initiate Sleep.
When the computer is in the Sleep state, press the button briefly to exit Sleep.
When the computer is in Hibernation, press the button briefly to exit Hibernation.
If the computer has stopped responding and Windows shutdown procedures are ineffective, press and hold the power button for at least 5 seconds to turn off the computer.
To learn more about your power settings, select Start >
Control Panel > System and Security > Power Options, or refer to the HP Notebook Reference Guide.
password logon.
12 Chapter 2 External component identification

Keys

Item Component Description
(1) esc key Displays system information when pressed in combination
with the fn key.
(2) fn key Executes frequently used system functions when pressed
in combination with the num lk key, the b key, or the
esc key.
(3) Windows logo key Displays the Windows Start menu.
(4) b key Increases or decreases the Beats Audio bass settings
(select models only). Beats Audio is an enhanced audio profile that provides a deep, controlled bass while maintaining a clear sound. Beats Audio is enabled by default.
You can also view and control the bass settings through the Windows operating system. To view and control the bass properties:
Select Start > All Programs > Beats Audio Control Panel > Listening Experience.
– or –
Select Start > Control Panel > Hardware and Sound > Beats Audio Control Panel > Listening Experience.
(5) Windows applications key Displays a shortcut menu for items beneath the pointer.
Keys
13

Lights

Item Component Description
(6) Integrated numeric keypad When the keypad has been enabled, the keys can be
used like an external numeric keypad.
(7) num lk key Enables/disables the integrated numeric keypad when
pressed in combination with the fn key.
(8) Action keys Execute frequently used system functions.
Item Component Description
(1) Caps lock light On: Caps lock is on.
(2) Power light
(3) Mute light
14 Chapter 2 External component identification
White: the computer is on.
Blinking white: the computer is in the Sleep state.
Off: the computer is off or in Hibernation.
Amber: Computer sound is off.
Off: Computer sound is on.
Item Component Description
(4) Wireless light
(5) Fingerprint reader light (select models only)

TouchPad

White: An integrated wireless device, such as a WLAN device and/or a Bluetooth device, is on.
Amber: All wireless devices are off.
White: The fingerprint was read.
Amber: The fingerprint was not read.
Item Component Description
(1) TouchPad off light
(2) TouchPad on/off button Turns the TouchPad on and off.
(3) TouchPad zone Moves the pointer and selects or activates items on
(4) Left TouchPad button Functions like the left button on an external mouse.
(5) TouchPad on light
(6) Right TouchPad button Functions like the right button on an external mouse.
On: The TouchPad is off.
Off: The TouchPad is on.
the screen.
On: The TouchPad is on.
Off: The TouchPad is off.
TouchPad
15

Front

Rear

Item Component Description
(1) Digital Media Slot Supports the following digital card formats:
Secure Digital (SD) Memory Card
Secure Digital Extended Capacity (SDxC) Memory Card
Secure Digital High Capacity (SDHC) Memory Card
Ultra High Speed MultiMediaCard (UHS/MMC)
(2) Speakers (2) (select models only) Produce sound.
Component Description
Vent Enables airflow to cool internal components.
NOTE: the computer fan starts up automatically to cool
internal components and prevent overheating. It is normal for the internal fan to cycle on and off during routine operation.
16 Chapter 2 External component identification

Left side

Item Component Description
(1) Vent Enables airflow to cool internal components.
(2) External monitor port Connects an external VGA monitor or projector.
(3) HDMI port Connects an optional video or audio device, such as a
NOTE: the computer fan starts up automatically to cool
internal components and prevent overheating. It is normal for the internal fan to cycle on and off during routine operation.
high-definition television, or any compatible digital or audio component.
(4) RJ-45 (network) jack Connects a network cable.
(5) SuperSpeed USB ports (2) Connect optional USB 3.0 devices (select models only)
and provide enhanced USB power performance.
NOTE: The SuperSpeed USB ports are also compatible
with USB 1.0 and USB 2.0 devices.
(6) Audio-in (microphone) jack Connects an optional computer headset microphone,
stereo array microphone, or monaural microphone.
(7) Audio-out (headphone) jacks (2) Produce sound when connected to optional powered
stereo speakers, headphones, ear buds, a headset, or television audio.
WARNING! To reduce the risk of personal injury,
adjust the volume before putting on headphones, earbuds, or a headset. For additional safety information, refer to the Regulatory, Safety, and Environmental Notices.
NOTE: When a device is connected to a headphone
jack, the computer speakers are disabled.
Left side
17

Right side

Item Component Description
(1) Optical drive Reads and writes (select models only) to an optical disc.
(2) Optical drive light
(3) Optical drive eject button Ejects the optical drive.
(4) Power light
(5) Drive light
(6) USB ports (2) Connect optional USB devices.
(7) Security cable slot Attaches an optional security cable to the computer.
Green: The optical drive is being accessed.
Off: The optical drive is off.
White: the computer is on.
Blinking white: the computer is in the Sleep state.
Off: the computer is off or in Hibernation.
Blinking white: The hard drive is being accessed.
Amber: HP ProtectSmart Hard Drive Protection has temporarily parked the hard drive.
NOTE: For information on HP ProtectSmart Hard
Drive Protection, refer to the HP Notebook Reference Guide.
NOTE: The security cable is designed to act as a
deterrent, but it may not prevent the computer from being mishandled or stolen.
(8) Battery light
(9) Power connector Connects an AC adapter.
18 Chapter 2 External component identification
White: the computer is connected to external power and the battery is fully charged.
Amber: A battery is charging.
Blinking amber: The battery has reached a low battery level, or there is a battery error. When a battery reaches a critical battery level, the battery light begins blinking rapidly.

Bottom

Item Component Description
(1) Battery bay Holds the battery.
(2) Battery release latch Releases the battery from the battery bay.
(3) Vents (6) Enable airflow to cool internal components.
NOTE: the computer fan starts up automatically to cool
internal components and prevent overheating. It is normal for the internal fan to cycle on and off during routine operation.
(4) Hard drive bay Contains the hard drive, the WLAN device, and the
memory module slots.
CAUTION: To prevent an unresponsive system, replace
the wireless module only with a wireless module authorized for use in the computer by the governmental agency that regulates wireless devices in your country or region. If you replace the module and then receive a warning message, remove the module to restore computer functionality, and then contact technical support through Help and Support.
Bottom
19

3 Illustrated parts catalog

Service tag

When ordering parts or requesting information, provide the computer serial number and model number provided on the service tag.
Item Component Description
(1) Product name This is the product name affixed to the front of
(2) Serial number (s/n) This is an alphanumeric identifier that is unique to
20 Chapter 3 Illustrated parts catalog
the computer.
each product.
Item Component Description
(3) Part number/Product number (p/n) This number provides specific information about the
product’s hardware components. The part number helps a service technician determine what components and parts are needed.
(4) Warranty period This number describes the duration of the warranty
period for the computer.
(5) Model description This is the alphanumeric identifier used to locate
documents, drivers, and support for the computer.
Service tag
21

Computer major components

Item Component Spare part number
(1) Display assembly (includes webcam, two microphones, and wireless antenna transceivers and cables):
15.6-in, full high-definition (FHD), light-emitting diode (LED), AntiGlare display assembly in dark umber finish
22 Chapter 3 Illustrated parts catalog
654103-001
Item Component Spare part number
15.6-in, FHD, LED, AntiGlare display assembly in steel gray finish 654110-001
15.6-in, HD, LED, BrightView display assembly:
In butter gold finish 641482-001
In dark umber finish 640431-001
In espresso black finish 640430-001
In linen white finish 640433-001
In Pacific blue finish 641479-001
In pearl pink finish 641481-001
In ruby red finish 640434-001
In Sonoma red finish 641480-001
In steel gray finish 650798-001
NOTE: For more display assembly spare part information, see
(2) Keyboard (includes keyboard cable):
Keyboard in black finish:
For use only with computer models equipped with an AMD processor in Brazil 640436-201
For use only with computer models equipped with an AMD processor in Bulgaria 640436-261
For use only with computer models equipped with an Intel processor in India 640436-D61
For use only with computer models equipped with an Intel processor in Israel 640436-BB1
For use only with computer models equipped with an Intel processor in Japan 640436-291
For use only with computer models equipped with an Intel processor in South Korea 640436-AD1
For use only with computer models equipped with an Intel processor in Taiwan 640436-AB1
For use only with computer models equipped with an Intel processor in Thailand 640436-281
For use with all computer models:
For use in Belgium 640436-A41
For use in Canada 640436-121
For use in the Czech Republic and Slovakia 640436-221
Display assembly subcomponents on page 34.
For use in Denmark, Finland, and Norway 640436-DH1
For use in France 640436-051
For use in Germany 640436-041
For use in Greece 640436-DJ1
For use in Hungary 640436-211
For use in Italy 640436-061
Computer major components
23
Item Component Spare part number
For use in Latin America 640436-161
For use in the Netherlands 640436-B31
For use in Portugal 640436-131
For use in Russia 640436-251
For use in Saudi Arabia 640436-171
For use in Slovenia 640436-BA1
For use in Spain 640436-071
For use in Switzerland 640436-BG1
For use in Turkey 640436-141
For use in the United Kingdom 640436-031
For use in the United States 640436-001
Keyboard in silver finish:
For use only with computer models equipped with an AMD processor in Brazil 644363-201
For use only with computer models equipped with an AMD processor in Bulgaria 644363-261
For use only with computer models equipped with an Intel processor in India 644363-D61
For use only with computer models equipped with an Intel processor in Israel 644363-BB1
For use only with computer models equipped with an Intel processor in Japan 644363-291
For use only with computer models equipped with an Intel processor in South Korea 644363-AD1
For use only with computer models equipped with an Intel processor in Taiwan 644363-AB1
For use only with computer models equipped with an Intel processor in Thailand 644363-281
For use with all computer models:
For use in Belgium 644363-A41
For use in Canada 644363-121
For use in the Czech Republic and Slovakia 644363-221
For use in Denmark, Finland, and Norway 644363-DH1
For use in France 644363-051
For use in Germany 644363-041
For use in Greece 644363-DJ1
For use in Hungary 644363-211
For use in Italy 644363-061
For use in Latin America 644363-161
For use in the Netherlands 644363-B31
24 Chapter 3 Illustrated parts catalog
Item Component Spare part number
For use in Portugal 644363-131
For use in Russia 644363-251
For use in Saudi Arabia 644363-171
For use in Slovenia 644363-BA1
For use in Spain 644363-071
For use in Switzerland 644363-BG1
For use in Turkey 644363-141
For use in the United Kingdom 644363-031
For use in the United States 644363-001
(3) Top cover (includes TouchPad and TouchPad button board, but does not include TouchPad cable or TouchPad
button board cable):
NOTE: The TouchPad cable and TouchPad button board cable are included in the Cable Kit, spare part number
640422-001.
In butter gold finish 641497-001
In dark umber finish 640463-001
In espresso black finish 640458-001
In linen white finish 640460-001
In Pacific blue finish 641494-001
In pearl pink finish 641496-001
In ruby red finish 640461-001
In Sonoma red finish 641495-001
In steel gray finish 650802-001
(4) Power button board (does not include cable)
NOTE: The power button board cable is not included in the power button board
spare part kit. The power button board cable is included in the Cable Kit, spare part number 640422-001.
(5) Fingerprint reader board (select models only, includes bracket, but does not
include cable)
NOTE: The fingerprint reader board cable is not included in the fingerprint reader
board spare part kit. The fingerprint reader board cable is included in the Cable Kit, spare part number 640422-001.
(6) Bluetooth module (for use only with computer models equipped with an Intel processor)
640439-001
640427-001
NOTE: The Bluetooth module spare part kit does not include the Bluetooth module cable. The Bluetooth
module cable is available in the Cable Kit, spare part number 641478-001.
EDR v.4.0 655792-001
EDR v.3.0 537921-001
Computer major components
25
Item Component Spare part number
(7) Bluetooth module cable (for use only with computer models equipped with an
Intel processor)
(8) USB board (does not include cable)
NOTE: The USB board cable is not included in the USB board spare part kit. The
USB board cable is included in the Cable Kit, spare part number 640422-001.
Cable Kit, includes: 640422-001
(9a) Optical drive connector cable
(9b) Hard drive connector cable
Not illustrated:
Power button board cable
Fingerprint reader board cable
TouchPad cable
TouchPad button board cable
USB board cable
NOTE: See
(10) Power connector cable 640424-001
Cable Kit on page 32 for more Cable Kit spare part information.
641478-001
640441-001
(11) Speaker cover:
For use only with computer models in dark umber and steel gray finish 641438-001
For use only with computer models in butter gold, espresso black, linen white, Pacific
blue, pearl pink, ruby red, and Sonoma red finish
(12) Speaker Kit (includes left and right speakers and cable) 640449-001
(13) System board (includes replacement thermal material):
For use only with computer models equipped with an AMD processor:
Equipped with the A70M chipset, HD6750 graphics subsystem chipset, and 1024-MB
of graphics subsystem discrete memory
Equipped with the A70M chipset, HD6490 graphics subsystem chipset, and 512-MB
of graphics subsystem discrete memory
Equipped with the A70M chipset and a graphics subsystem with UMA memory 650852-001
Equipped with the A60M chipset, HD6750 graphics subsystem chipset, and 1024-MB
of graphics subsystem discrete memory
Equipped with the A60M chipset, HD6490 graphics subsystem chipset, and 512-MB
of graphics subsystem discrete memory
Equipped with the A60M chipset and a graphics subsystem with UMA memory 650849-001
Equipped with the RS880MD chipset, the HD6650 graphics subsystem chipset, and
1024-MB of graphics subsystem discrete memory
640443-001
650854-001
650853-001
650851-001
650850-001
659127-001
26 Chapter 3 Illustrated parts catalog
Item Component Spare part number
Equipped with the RS880MD chipset, the HD6470 graphics subsystem chipset, and
512-MB of graphics subsystem discrete memory
Equipped with the RS880M chipset, and a graphics subsystem with UMA memory 659125-001
Equipped with the RS880MD chipset, HD6650 graphics subsystem chipset, 1024-MB
of graphics subsystem discrete memory, and USB version 3.0
Equipped with the RS880MD chipset, HD6650 graphics subsystem chipset, 1024-MB
of graphics subsystem discrete memory, and USB version 2.0
Equipped with the RS880MD chipset, HD6470 graphics subsystem chipset, 512-MB of
graphics subsystem discrete memory, and USB version 3.0
Equipped with the RS880MD chipset, HD6470 graphics subsystem chipset, 512-MB of
graphics subsystem discrete memory, and USB version 2.0
Equipped with the RS880M chipset, a graphics subsystem with UMA memory, and
USB version 3.0
Equipped with the RS880M chipset, a graphics subsystem with UMA memory, and
USB version 2.0
For use only with computer models equipped with an Intel processor:
Equipped with an Intel dual core processor, the HD6770 chipset, a graphics
subsystem with 1024-MB of discrete memory, and supports bus alive/chip off (BACO) and USB version 3.0
659126-001
640454-001
640452-001
640453-001
640451-001
640455-001
640450-001
659151-001
Equipped with an Intel dual core processor, the HD6490 chipset, a graphics
subsystem with 1024-MB of discrete memory, and supports bus alive/chip off (BACO) and USB version 3.0
Equipped with an Intel quad core processor, the HD6490 chipset, a graphics
subsystem with 1024-MB of discrete memory, and supports bus alive/chip off (BACO) and USB version 3.0
Equipped with an Intel quad core processor, the HD6770 chipset, a graphics
subsystem with 1024-MB of discrete memory, and supports bus alive/chip off (BACO) and USB version 3.0
Equipped with an Intel dual core processor, the HD6490 chipset, a graphics
subsystem with 1024-MB of discrete memory, and supports bus alive/chip off (BACO) and USB version 2.0
Equipped with an Intel quad core processor, the HM65 chipset, and the HD6490
graphics subsystem with 1024-MB of discrete memory
Equipped with an Intel quad core processor, the HM65 chipset, and a graphics
subsystem with UMA memory
For use only with computer models equipped with a quad core processor, the Intel
HD6770 graphics subsystem, and 2048-MB of discrete memory
For use only with computer models equipped with a dual core processor, the Intel
HD6770 graphics subsystem, and 2048-MB of discrete memory
For use only with computer models equipped with a quad core processor, the Intel
HD6770 graphics subsystem, and 1024-MB of discrete memory
659150-001
659149-001
659148-001
659147-001
659998-001
659999-001
650799-001
650800-001
641488-001
Computer major components
27
Item Component Spare part number
For use only with computer models equipped with a dual core processor, the Intel
HD6770 graphics subsystem, and 1024-MB of discrete memory
For use only with computer models equipped with a quad core processor, the Intel
HD6490 graphics subsystem, and 1024-MB of discrete memory
For use only with computer models equipped with a dual core processor, the Intel
HD6490 graphics subsystem, 1024-MB of discrete memory, and USB version 3.0
For use only with computer models equipped with a dual core processor, the Intel
HD6490 graphics subsystem, 1024-MB of discrete memory, and USB version 2.0
For use only with computer models equipped with a quad core processor, a graphics
subsystem with UMA memory, and USB version 3.0
For use only with computer models equipped with a dual core processor, a graphics
subsystem with UMA memory, and USB version 3.0
For use only with computer models equipped with a dual core processor, a graphics
subsystem with UMA memory, and USB version 2.0
Thermal Material Kit (not illustrated, includes replacement thermal paste and pads)
For use only with computer models equipped with an AMD A8, A6, A4, or
E2 processor and a graphics subsystem with discrete memory
For use only with computer models equipped with an AMD A8, A6, A4, or
E2 processor and a graphics subsystem with UMA memory
641489-001
641486-001
641484-001
641487-001
641491-001
641485-001
641490-001
654111-001
654112-001
For use only with computer models equipped with an AMD Athlon, Phenom, or
Turion processor and a graphics subsystem with discrete memory
For use only with computer models equipped with an AMD Athlon, Phenom, or Turion
AMD processor and a graphics subsystem with UMA memory
For use only with computer models equipped with an Intel processor and a graphics
subsystem with 2048-MB of discrete memory
For use only with computer models equipped with an Intel processor and a graphics
subsystem with 1024-MB of discrete memory
For use only with computer models equipped with an Intel processor and a graphics
subsystem with UMA memory
(14) Processor (includes replacement thermal material)
AMD A8-3530MX 2.60-GHz processor, (1.90-GHz FSB, 4.0-MB L2 cache, quad
core, 45 W)
AMD A8-3510MX 2.50-GHz processor (1.50-GHz FSB, 4.0-MB L2 cache, quad core,
45 W)
AMD A8-3500M 2.40-GHz processor (1.5-GHz FSB, 4.0-MB L2 cache, quad core,
35 W)
AMD A6-3410MX 2.30-GHz processor (1.60-GHz FSB, 2.0-MB L2 cache, quad core,
45 W)
640457-001
640456-001
650801-001
641493-001
641492-001
653364-001
653358-001
653350-001
653357-001
AMD A6-3400M 2.30-GHz processor (1.4-GHz FSB, 4.0-MB L2 cache, quad core,
35 W)
28 Chapter 3 Illustrated parts catalog
653349-001
Item Component Spare part number
AMD A4-3310MX 2.50-GHz processor (2.10-GHz FSB, 2.0-MB L2 cache, dual core,
45 W)
AMD A4-3300M 2.50-GHz processor (1.9-GHz FSB, 4.0-MB L2 cache, dual core, 35W)653348-001
AMD E2-3000M 2.40-GHz processor (1.8-GHz FSB, 4.0-MB L2 cache, quad core, 35W)653351-001
AMD Athlon II N370 2.50-GHz processor (1.0-MB L2 cache, 1066-MHz, 3.2GT/sec,
dual core, 35 W)
AMD Athlon II P360 2.30-GHz processor (1.0-MB L2 cache, 1066-MHz, 3.2GT/sec,
dual core, 25 W)
AMD Athlon II P340 2.20-GHz processor (1.0-MB L2 cache, 1066-MHz, 3.2GT/sec,
dual core, 25 W)
AMD Phenom II N970 2.20-GHz processor (2.0-MB L2 cache, 1333-MHz, 3.6GT/
sec, quad core, 35 W)
AMD Phenom II N870 2.30-GHz processor (1.5-MB L2 cache, 1333-MHz, 3.6GT/
sec, triple core, 35 W)
AMD Phenom II N850 2.20-GHz processor (1.5-MB L2 cache, 1333-MHz, 3.6GT/
sec, triple core, 35 W)
AMD Phenom II N660 3.00-GHz processor (2.0-MB L2 cache, 1333-MHz, 3.6GT/
sec, dual core, 35 W)
653356-001
634686-001
636635-001
616343-001
635496-001
635495-001
616345-001
635494-001
AMD Phenom II P960 1.80-GHz processor (2.0-MB L2 cache, 1066-MHz, 3.6GT/sec,
quad core, 25 W)
AMD Phenom II P860 2.00-GHz processor (1.5-MB L2 cache, 1333-MHz, 3.6GT/sec,
triple core, 25 W)
AMD Phenom II P650 2.60-GHz processor (2.0-MB L2 cache, 1066-MHz, 3.6GT/sec,
triple core, 25 W)
AMD Turion II P570 2.70-GHz processor (2.0-MB L2 cache, 1066-MHz, 3.6GT/sec,
dual core, 35 W)
AMD Turion II P560 2.50-GHz processor (2.0-MB L2 cache, 1066-MHz, 3.6GT/sec,
dual core, 25 W)
Intel Core i7-2820QM 2.30-GHz (SC turbo up to 3.10-GHz) processor (8.0-MB
L3 cache, quad core, 45 W)
Intel Core i7-2720QM 2.20-GHz (SC turbo up to 3.00-GHz) processor (6.0-MB
L3 cache, quad core, 45 W)
Intel Core i7-2630QM 2.00-GHz (SC turbo up to 2.90-GHz) processor (6.0-MB
L3 cache, quad core, 45 W)
Intel Core i7-2620M 2.70-GHz (SC turbo up to 3.40-GHz) processor (4.0-MB
L3 cache, dual core, 35 W)
Intel Core i5-2540M 2.60-GHz (SC turbo up to 3.30-GHz) processor (3.0-MB
L3 cache, dual core, 35 W)
634689-001
634688-001
634687-001
634690-001
634691-001
634694-001
631254-001
635501-001
631252-001
631255-001
Computer major components
29
Item Component Spare part number
Intel Core i5-2520M 2.50-GHz (SC turbo up to 3.20-GHz) processor (3.0-MB
L3 cache, dual core, 35 W)
Intel Core i5-2430M 2.40-GHz (SC turbo up to 3.00-GHz) processor (3.0-MB
L3 cache, dual core, 35 W)
Intel Core i5-2410M 2.30-GHz (SC turbo up to 2.90-GHz) processor (3.0-MB
L3 cache, dual core, 35 W)
Intel Core i3-2350M 2.30-GHz processor (3.0-MB L3 cache, dual core, 35 W) 653340-001
Intel Core i3-2330M 2.20-GHz processor (3.0-MB L3 cache, dual core, 35 W) 653339-001
Intel Core i3-2310M 2.10-GHz processor (3.0-MB L3 cache, dual core, 35 W) 638037-001
Intel Pentium B950 TJ85 2.10-GHz processor (2.0-MB L3 cache, dual core, 35 W) 653338-001
Intel Pentium B940 TJ85 2.00-GHz processor (2.0-MB L3 cache, dual core, 35 W) 653337-001
(15) Fan/heat sink assembly (includes replacement thermal material):
For use only with computer models equipped with an AMD processor:
For use only with computer models equipped with an AMD A8, A6, or A4 processor
and a graphics subsystem with discrete memory
For use only with computer models equipped with an AMD A8, A6, or A4 processor
and a graphics subsystem with UMA memory
For use only with computer models equipped with an AMD Athlon, Phenom, or
Turion processor and a graphics subsystem with discrete memory
631253-001
653341-001
638039-001
650848-001
650847-001
640426-001
For use only with computer models equipped with an AMD Athlon, Phenom, or
Turion processor and a graphics subsystem with UMA memory
For use only with computer models equipped with an Intel processor:
For use only with computer models equipped with a graphics subsystem with 2048-MB
discrete memory
For use only with computer models equipped with a graphics subsystem with 1024-MB
discrete memory
For use only with computer models equipped with a graphics subsystem with
UMA memory
(16) Base enclosure (includes battery release latch and 4 rubber feet)
In aluminum finish for use only with computer models equipped with an
AMD processor
For use only with computer models in dark umber and steel gray finish 640419-001
For use only with computer models in butter gold, espresso black, linen white, Pacific
blue, pearl pink, ruby red, and Sonoma red finish
(17) Battery:
9-cell, 100-Whr, 3.00-Ah Li-ion battery 636631-001
6-cell, 62-Whr, 2.80-Ah Li-ion battery 593562-001
640425-001
650797-001
641477-001
641476-001
640440-001
640418-001
30 Chapter 3 Illustrated parts catalog
Item Component Spare part number
6-cell, 55-Whr, 2.55-Ah Li-ion battery 593554-001
(18) Memory modules (2, DDR3, 10600, 1333-MHz):
8 GB 634091-001
4 GB 621569-001
2 GB 621565-001
1 GB 639736-001
(19) RTC battery 608771-001
(20) Hard drive (2.5-in, SATA, does not include hard drive bracket, hard drive connector cable, or screws):
1-TB, 5400-rpm, 12.7 mm 638974-001
750-GB, 7200-rpm, 9.5 mm 633252-001
750-GB, 5400-rpm, 9.5 mm 634250-001
640-GB, 7200-rpm, 9.5 mm 621046-001
500-GB, 7200-rpm, 9.5 mm 608218-001
320-GB, 7200-rpm, 7.0 mm 641672-001 and
634862-001
250-GB, 7200-rpm, 7.0 mm 635225-001 and
634861-001
160-GB solid-state drive (not illustrated, for use only with computer models
equipped with an Intel processor)
Hard Drive Hardware Kit (not illustrated, includes hard drive bracket and screws) 640428-001
(21) WLAN module:
For use on all computer models:
Atheros 9485GN 802.11b/g/n 1×1 WiFi and 3012 Bluetooth 4.0 Combo Adapter 655795-001
Broadcom 4313 802.11b/g/n 1×1 WiFi and 2070 Bluetooth 2.1+EDR Combo
adapter (BT3.0+HS ready)
Broadcom 4313 802.11b/g/n 1×1 WiFi Adapter 593836-001
Broadcom 4313GN 802.11b/g/n 1×1 WiFi and 20702 Bluetooth 4.0 Combo
Adapter
Ralink RT3090BC4 802.11b/g/n 1×1 WiFi and Bluetooth 2.1+EDR Combo Adapter
(BT3.0+HS ready)
Ralink 5390GN 802.11b/g/n 1×1 WiFi Adapter 630703-001
For use only with computer models equipped with an AMD processor:
Atheros 9285G 802.11b/g/n 1×1 WiFi Adapter 605560-005
641825-001
600370-001
657325-001
630705-001
Atheros AR8002WB-1NGB 802.11b/g/n 1×1 WiFi and Bluetooth 2.1+EDR Combo
Adapter (BT3.0+HS ready)
Computer major components
593127-001
31
Item Component Spare part number
Realtek RTL8191SE 802.11b/g/n 1×1 WiFi Adapter 640926-001
Realtek 8188BC8 802.11a/b/g/n 2×2 WiFi and Bluetooth 3.0+HS Combo Adapter 602993-001
For use only with computer models equipped with an Intel processor:
Intel Centrino Advanced-N 6230 631956-001
Intel Centrino Wireless-N 1000 593530-001
Intel Centrino Wireless-N + WiMAX 6150 633817-001
(22) Optical drive (includes bezel and bracket):
DVD±RW and CD-RW Super Multi Double-Layer FX Combo Drive with LightScribe 641808-001
DVD±RW and CD-RW FX Combo Drive 659966-001
DVD±RW and CD-RW Super Multi Double-Layer FX Combo Drive with LightScribe 659967-001
Blu-ray ROM with LightScribe DVD ±R/RW Super Multi Double-Layer Drive for use only
DVD±RW and CD-RW Super Multi Double-Layer Combo Drive with LightScribe 641809-001
Optical drive bay space saver (not illustrated) 659965-001
(23) Service cover — available in the Plastics Kit, spare part number 640444-001

Cable Kit

641824-001
with computer models equipped with an Intel processor
Item Component Spare part number
Cable Kit, includes: 640422-001
(1) Optical drive connector cable
(2) Hard drive connector cable
32 Chapter 3 Illustrated parts catalog
Item Component Spare part number
(3) Fingerprint reader board cable
(4) USB board cable
(5) TouchPad cable
(6) TouchPad button board cable
(7) Power button board cable
Cable Kit
33

Display assembly subcomponents

Item Component Spare part number
(1) Display hinge covers (2) 641807-001
(2) Display bezel:
For use only with computer models in dark umber and steel gray finish 640421-001
For use only with computer models in butter gold, espresso black, linen white, Pacific
blue, pearl pink, ruby red, and Sonoma red finish
(3) Display Hinge Kit (includes left and right display hinges and brackets) 640429-001
(4) Display panel:
15.6-in, FHD, LED, AntiGlare display panel 653378-001
15.6-in, HD, LED, BrightView display panel 640445-001
(5) Display Cable Kit (includes display panel cable and webcam/microphone module cable)
For use only with computer models equipped with a FHD display assembly 656805-001
For use only with computer models in dark umber and steel gray finish 644362-001
For use only with computer models in butter gold, espresso black, linen white, Pacific
blue, pearl pink, ruby red, and Sonoma red finish
(6) Webcam/microphone module 639387-001
(7) Antenna Kit (includes left and right wireless antenna cables and transceivers) 640411-001
640420-001
640423-001
(8) Display enclosure:
In butter gold finish 641475-001
34 Chapter 3 Illustrated parts catalog
Item Component Spare part number
In dark umber finish 640417-001
In espresso black finish 640412-001
In linen white finish 640414-001
In Pacific blue finish 641472-001
In pearl pink finish 641474-001
In ruby red finish 640415-001
In Sonoma red finish 641473-001
In steel gray finish 650796-001
Display Rubber Kit (not illustrated) 641810-001
Display Screw Kit (not illustrated) 640448-001
Display assembly subcomponents
35

Mass storage devices

Item Component Spare part number
(1) Hard drive (2.5-in, SATA, does not include hard drive bracket, hard drive connector cable, or screws):
1-TB, 5400-rpm, 12.7 mm 638974-001
750-GB, 7200-rpm, 9.5 mm 633252-001
750-GB, 5400-rpm, 9.5 mm 634250-001
640-GB, 7200-rpm, 9.5 mm 621046-001
500-GB, 7200-rpm, 9.5 mm 608218-001
320-GB, 7200-rpm, 7.0 mm 641672-001 and
250-GB, 7200-rpm, 7.0 mm 635225-001 and
Hard Drive Hardware Kit, includes: 640428-001
(2) Hard drive bracket
36 Chapter 3 Illustrated parts catalog
634862-001
634861-001
Item Component Spare part number
Hard drive screws (not illustrated)
(3) 160-GB solid-state drive (for use only with computer models equipped with an
Intel processor)
(4) Optical drive (includes bezel and bracket):
DVD±RW and CD-RW Super Multi Double-Layer FX Combo Drive with LightScribe 641808-001
DVD±RW and CD-RW FX Combo Drive 659966-001
DVD±RW and CD-RW Super Multi Double-Layer FX Combo Drive with LightScribe 659967-001
Blu-ray ROM with LightScribe DVD ±R/RW Super Multi Double-Layer Drive for use only
with computer models equipped with an Intel processor
DVD±RW and CD-RW Super Multi Double-Layer Combo Drive with LightScribe 641809-001
Optical drive bay space saver (not illustrated) 659965-001

Miscellaneous parts

Component Spare part number
HP Smart AC adapter:
For use with all computer models:
641825-001
641824-001
120-W PFC RC V HP Smart AC adapter 609941-001
90-W PFC RC V HP Smart AC adapter 609940-001
65-W RC V HP Smart AC adapter 609939-001
For use only with computer models equipped with an Intel processor:
90-W PFC RC V EM HP Smart AC adapter 609947-001
65-W RC V EM HP Smart AC adapter 609948-001
Power cord (3-pin, black, 1.83-m):
For use with all computer models:
For use in Argentina 490371-D01
For use in Denmark 490371-081
For use in Europe 490371-021
For use in Italy 490371-061
For use in North America 490371-001
For use in South Africa 490371-AR1
For use in Switzerland 490371-111
For use in the United Kingdom and Singapore 490371-031
Miscellaneous parts
37
Component Spare part number
For use only with computer models equipped with AMD processors in Brazil 490371-202
For use only with computer models equipped with Intel processors:
For use in Australia 490371-111
For use in India 490371-D61
For use in Israel 490371-BB1
For use in Japan 490371-291
For use in the People's Republic of China 490371-AA1
For use in South Korea 490371-AD1
For use in Taiwan 490371-AB1
For use in Thailand 490371-281
Remote control (full-function, with teletext) 465541-004
USB DVD-T antenna 581223-001
USB DVB-T TV tuner 581222-001
Screw Kit 640447-001

Sequential part number listing

Spare part number Description
465541-004 Remote control (full-function, with teletext)
490371-001 Power cord for use with all computer models in North America (3-pin, black, 1.83-m)
490371-011 Power cord for use only with computer models equipped with an Intel processor in Australia (3-
pin, black, 1.83-m)
490371-021 Power cord for use with all computer models in Europe (3-pin, black, 1.83-m)
490371-031 Power cord for use with all computer models in the United Kingdom and Singapore (3-pin, black,
1.83-m)
490371-061 Power cord for use with all computer models in Italy (3-pin, black, 1.83-m)
490371-081 Power cord for use with all computer models in Denmark (3-pin, black, 1.83-m)
490371-111 Power cord for use with all computer models in Switzerland (3-pin, black, 1.83-m)
490371-201 Power cord for use only with computer models equipped with an Intel processor in Thailand (3-
pin, black, 1.83-m)
490371-202 Power cord for use only with computer models equipped with an AMD processor in Brazil (3-pin,
black, 1.83-m)
490371-291 Power cord for use only with computer models equipped with an Intel processor in Japan (3-pin,
black, 1.83-m)
38 Chapter 3 Illustrated parts catalog
Spare part number Description
490371-AA1 Power cord for use only with computer models equipped with an Intel processor in the People's
Republic of China (3-pin, black, 1.83-m)
490371-AB1 Power cord for use only with computer models equipped with an Intel processor in Taiwan (3-pin,
black, 1.83-m)
490371-AD1 Power cord for use only with computer models equipped with an Intel processor in South Korea
(3-pin, black, 1.83-m)
490371-AR1 Power cord for use with all computer models in South Africa (3-pin, black, 1.83-m)
490371-BB1 Power cord for use only with computer models equipped with an Intel processor in Israel (3-pin,
black, 1.83-m)
490371-D01 Power cord for use with all computer models in Argentina (3-pin, black, 1.83-m)
490371-D61 Power cord for use only with computer models equipped with an Intel processor in India (3-pin,
black, 1.83-m)
537921-001 Bluetooth module (for use only with computer models equipped with an Intel processor)
NOTE: The Bluetooth module spare part kit does not include a Bluetooth module cable. The
Bluetooth module cable is included in the Cable Kit, spare part number 640206-001.
581222-001 USB DVB-T TV tuner
581223-001 USB DVD-T antenna
593127-001 Atheros AR8002WB-1NGB 802.11b/g/n 1×1 WiFi and Bluetooth 2.1+EDR Combo Adapter
(BT3.0+HS ready) for use only with computer models equipped with an AMD processor
593530-001 Intel Centrino Wireless-N 1000 WLAN module for use only on computer models equipped with
an Intel processor
593554-001 6-cell, 55-Whr, 2.55-Ah Li-ion battery
593562-001 6-cell, 62-Whr, 2.80-Ah Li-ion battery
593836-001 Broadcom 4313 802.11b/g/n 1×1 WiFi Adapter for use with all computer models
600370-001 Broadcom 4313 802.11b/g/n 1×1 WiFi and 2070 Bluetooth 2.1+EDR Combo Adapter
(Bluetooth 3.0+HS ready) for use with all computer models
602993-001 Realtek 8188BC8 802.11a/b/g/n 2×2 WiFi and Bluetooth 3.0+HS Combo Adapter for
use only with computer models equipped with an AMD processor
605560-005 Atheros 9285G 802.11b/g/n 1×1 WiFi Adapter for use only with computer models equipped
with an AMD processor
608218-001 500-GB, 7200-rpm, 9.5 mm hard drive for use with all computer models (2.5-in, SATA, does not
include hard drive bracket, hard drive connector cable, or screws)
608771-001 RTC battery (includes cable and double-sided tape)
609939-001 65-W RC V HP Smart AC adapter for use with all computer models
609940-001 90-W PFC RC V HP Smart AC adapter for use with all computer models
609941-001 120-W PFC RC V HP Smart AC adapter for use with all computer models
609947-001 90-W PFC RC V EM HP Smart AC adapter for use only with computer models equipped with an
Intel processor
Sequential part number listing
39
Spare part number Description
609948-001 65-W PFC RC V EM HP Smart AC adapter for use only with computer models equipped with an
Intel processor
616343-001 AMD Athlon II P340 2.20-GHz processor (1.0-MB L2 cache, 1066-MHz, 3.2GT/sec, dual core,
25 W; includes replacement thermal material)
616345-001 AMD Phenom II N850 2.20-GHz processor (1.5-MB L2 cache, 1333-MHz, 3.6GT/sec,
triple core, 35 W; includes replacement thermal material)
621046-001 640-GB, 7200-rpm, 9.5 mm hard drive for use with all computer models (2.5-in, SATA, does not
include hard drive bracket, hard drive connector cable, or screws)
621565-001 2-GB memory module (DDR3, 10600, 1333-MHz)
621569-001 4-GB memory module (DDR3, 10600, 1333-MHz)
630703-001 Ralink 5390GN 802.11b/g/n 1×1 WiFi Adapter for use with all computer models
630705-001 Ralink RT3090BC4 802.11b/g/n 1×1 WiFi and Bluetooth 2.1+EDR Combo Adapter
(Bluetooth 3.0+HS ready) for use with all computer models
631252-001 Intel Core i7-2620M 2.70-GHz (SC turbo up to 3.40-GHz) processor (4-MB L3 cache, dual core,
35 W; includes replacement thermal material)
631253-001 Intel Core i5-2520M 2.50-GHz (SC turbo up to 3.20-GHz) processor (3.0-MB L3 cache,
dual core, 35 W; includes replacement thermal material)
631254-001 Intel Core i7-2720QM 2.20-GHz (SC turbo up to 3.00-GHz) processor (6.0-MB L3 cache,
quad core, 45 W; includes replacement thermal material)
631255-001 Intel Core i5-2540M 2.60-GHz (SC turbo up to 3.30-GHz) processor (3.0-MB L3 cache,
dual core, 35 W; includes replacement thermal material)
631956-001 Intel Centrino Advanced-N 6230 WLAN module for use only on computer models equipped with
an Intel processor
633252-001 750-GB, 7200-rpm, 9.5 mm hard drive for use with all computer models (2.5-in, SATA, does not
include hard drive bracket, hard drive connector cable, or screws)
633817-001 Intel Centrino Wireless-N + WiMAX 6150 WLAN module for use only with computer models
equipped with an Intel processor
634091-001 8-GB memory module (DDR3, 10600, 1333-MHz)
634250-001 750-GB, 5400-rpm, 9.5 mm hard drive for use with all computer models (2.5-in, SATA, does not
include hard drive bracket, hard drive connector cable, or screws)
634686-001 AMD Athlon II N370 2.50-GHz processor (1.0-MB L2 cache, 1066-MHz, 3.2GT/sec, dual core,
35 W; includes replacement thermal material)
634687-001 AMD Phenom II P650 2.60-GHz processor (2.0-MB L2 cache, 1066-MHz, 3.6GT/sec,
triple core, 25 W; includes replacement thermal material)
634688-001 AMD Phenom II P860 2.00-GHz processor (1.5-MB L2 cache, 1333-MHz, 3.6GT/sec,
triple core, 25 W; includes replacement thermal material)
634689-001 AMD Phenom II P960 1.80-GHz processor (2.0-MB L2 cache, 1066-MHz, 3.6GT/sec,
quad core, 25 W; includes replacement thermal material)
634690-001 AMD Turion II P570 2.70-GHz processor (2.0-MB L2 cache, 1066-MHz, 3.6GT/sec, dual core,
35 W; includes replacement thermal material)
40 Chapter 3 Illustrated parts catalog
Spare part number Description
634691-001 AMD Turion II P560 2.50-GHz processor (2.0-MB L2 cache, 1066-MHz, 3.6GT/sec, dual core,
25 W; includes replacement thermal material)
634694-001 Intel Core i7-2820QM 2.30-GHz (SC turbo up to 3.20-GHz) processor (8.0-MB L3 cache,
quad core, 45 W; includes replacement thermal material)
634861-001 250-GB, 7200-rpm, 7.0 mm hard drive (2.5-in, SATA, does not include hard drive bracket,
hard drive connector cable, or screws)
634862-001 320-GB, 7200-rpm, 7.0 mm hard drive (2.5-in, SATA, does not include hard drive bracket,
hard drive connector cable, or screws)
635225-001 250-GB, 7200-rpm, 7.0 mm hard drive (2.5-in, SATA, does not include hard drive bracket,
hard drive connector cable, or screws)
635494-001 AMD Phenom II N660 3.00-GHz processor (2.0-MB L2 cache, 1333-MHz, 3.6GT/sec,
dual core, 35 W; includes replacement thermal material)
635495-001 AMD Phenom II N870 2.30-GHz processor (1.5-MB L2 cache, 1333-MHz, 3.6GT/sec,
triple core, 35 W; includes replacement thermal material)
635496-001 AMD Phenom II N970 2.20-GHz processor (2.0-MB L2 cache, 1333-MHz, 3.6GT/sec,
quad core, 35 W; includes replacement thermal material)
635501-001 Intel Core i7-2630QM 2.00-GHz (SC turbo up to 2.90-GHz) processor (6.0-MB L3 cache,
quad core, 45 W; includes replacement thermal material)
636631-001 9-cell, 100-Whr, 3.00-Ah Li-ion battery
636635-001 AMD Athlon II P360 2.30-GHz processor (1.0-MB L2 cache, 1066-MHz, 3.2GT/sec, dual core,
25 W; includes replacement thermal material)
638037-001 Intel Core i3-2310M 2.10-GHz processor (3.0-MB L3 cache, dual core, 35 W; includes
replacement thermal material)
638039-001 Intel Core i5-2410M 2.30-GHz (SC turbo up to 2.90-GHz) processor (3.0-MB L3 cache,
dual core, 35 W; includes replacement thermal material)
638974-001 1-TB, 5400-rpm, 12.7 mm hard drive (2.5-in, SATA, does not include hard drive bracket,
hard drive connector cable, or screws)
639387-001 Webcam/microphone module
639736-001 1-GB memory module (DDR3, 10600, 1333-MHz)
640411-001 Antenna Kit (includes left and right wireless antenna cables and transceivers)
640412-001 Display enclosure in espresso black finish
640414-001 Display enclosure in linen white finish
640415-001 Display enclosure in ruby red finish
640417-001 Display enclosure in dark umber finish
640418-001 Base enclosure for use only with computer models in butter gold, espresso black, linen white,
Pacific blue, pearl pink, ruby red, and Sonoma red finish (includes battery release latch and 4 rubber feet)
640419-001 Base enclosure for use only with computer models in dark umber and steel gray finish (includes
battery release latch and 4 rubber feet)
Sequential part number listing
41
Spare part number Description
640420-001 Display bezel for use only with computer models in butter gold, espresso black, linen white,
Pacific blue, pearl pink, ruby red, and Sonoma red finish
640421-001 Display bezel for use only with computer models in dark umber and steel gray finish
640422-001 Cable Kit (includes the optical drive connector cable, hard drive connector cable, power button
board cable, fingerprint reader board cable, TouchPad cable, TouchPad button board cable, and USB board cable)
NOTE: See
640423-001 Display Cable Kit for use only with computer models in butter gold, espresso black, linen white,
Pacific blue, pearl pink, ruby red, and Sonoma red finish (includes display panel cable and webcam/microphone module cable)
640424-001 Power connector cable
640425-001 Fan/heat sink assembly for use only with computer models equipped with an AMD Athlon,
Phenom, or Turion processor and a graphics subsystem with UMA memory (includes replacement thermal material)
640426-001 Fan/heat sink assembly for use only with computer models equipped with an AMD Athlon,
Phenom, or Turion processor and a graphics subsystem with discrete memory (includes replacement thermal material)
640427-001 Fingerprint reader board (select models only, includes bracket, but does not include cable)
NOTE: The fingerprint reader board cable is not included in the fingerprint reader board spare
part kit. The fingerprint reader board cable is included in the Cable Kit, spare part number 640422-001.
640428-001 Hard Drive Hardware Kit (includes hard drive bracket and screws)
640429-001 Display Hinge Kit (includes left and right display hinges and brackets)
640430-001 15.6-in, HD, LED, BrightView display assembly in espresso black finish (includes webcam, two
microphones, and wireless antenna transceivers and cables)
Cable Kit on page 32 for more Cable Kit spare part information.
640431-001 15.6-in, HD, LED, BrightView display assembly in dark umber finish (includes webcam, two
microphones, and wireless antenna transceivers and cables)
640433-001 15.6-in, HD, LED, BrightView display assembly in linen white finish (includes webcam, two
microphones, and wireless antenna transceivers and cables)
640434-001 15.6-in, HD, LED, BrightView display assembly in ruby red finish (includes webcam, two
microphones, and wireless antenna transceivers and cables)
640436-001 Keyboard in black finish for use with all computer models in the United States (includes
keyboard cable)
640436-031 Keyboard in black finish for use with all computer models in the United Kingdom and Singapore
(includes keyboard cable)
640436-041 Keyboard in black finish for use with all computer models in Germany (includes keyboard cable)
640436-051 Keyboard in black finish for use with all computer models in France (includes keyboard cable)
640436-061 Keyboard in black finish for use with all computer models in Italy (includes keyboard cable)
640436-071 Keyboard in black finish for use with all computer models in Spain (includes keyboard cable)
640436-121 Keyboard in black finish for use with all computer models in Canada (includes keyboard cable)
42 Chapter 3 Illustrated parts catalog
Spare part number Description
640436-131 Keyboard in black finish for use with all computer models in Portugal (includes keyboard cable)
640436-141 Keyboard in black finish for use with all computer models in Turkey (includes keyboard cable)
640436-161 Keyboard in black finish for use with all computer models in Latin America (includes
keyboard cable)
640436-171 Keyboard in black finish for use with all computer models in Saudi Arabia (includes
keyboard cable)
640436-201 Keyboard in black finish for use only with computer models equipped with an AMD processor
in Brazil (includes keyboard cable)
640436-211 Keyboard in black finish for use with all computer models in Hungary (includes keyboard cable)
640436-221 Keyboard in black finish for use with all computer models in the Czech Republic and Slovakia
(includes keyboard cable)
640436-251 Keyboard in black finish for use with all computer models in Russia (includes keyboard cable)
640436-261 Keyboard in black finish for use only with computer models equipped with an AMD processor
in Bulgaria (includes keyboard cable)
640436-281 Keyboard in black finish for use only with computer models equipped with an Intel processor
in Thailand (includes keyboard cable)
640436-291 Keyboard in black finish for use only with computer models equipped with an Intel processor
in Japan (includes keyboard cable)
640436-A41 Keyboard in black finish for use with all computer models in Belgium (includes keyboard cable)
640436-AB1 Keyboard in black finish for use only with computer models equipped with an Intel processor
in Taiwan (includes keyboard cable)
640436-AD1 Keyboard in black finish for use only with computer models equipped with an Intel processor
in South Korea (includes keyboard cable)
640436-B31 Keyboard in black finish for use with all computer models in the Netherlands (includes
keyboard cable)
640436-BA1 Keyboard in black finish for use with all computer models in Slovenia (includes keyboard cable)
640436-BB1 Keyboard in black finish for use only with computer models equipped with an Intel processor
in Israel (includes keyboard cable)
640436-BG1 Keyboard in black finish for use with all computer models in Switzerland (includes
keyboard cable)
640436-D61 Keyboard in black finish for use only with computer models equipped with an Intel processor
in India (includes keyboard cable)
640436-DH1 Keyboard in black finish for use with all computer models in Denmark, Finland, and Norway
(includes keyboard cable)
640436-DJ1 Keyboard in black finish for use with all computer models in Greece (includes keyboard cable)
640439-001 Power button board (does not include cable)
NOTE: The power button board cable is not included in the power button board spare part kit.
The power button board cable is included in the Cable Kit, spare part number 640422-001.
Sequential part number listing
43
Spare part number Description
640440-001 Base enclosure for use only with computer models in aluminum finish (includes battery release
latch and 4 rubber feet)
640441-001 USB board (does not include cable)
NOTE: The USB board cable is not included in the USB board spare part kit. The USB board
cable is included in the Cable Kit, spare part number 640422-001.
640443-001 Speaker cover for use only with computer models in butter gold, espresso black, linen white,
Pacific blue, pearl pink, ruby red, and Sonoma red finish
640444-001 Plastics Kit (includes the service cover)
640445-001 15.6-in, HD, LED, BrightView display panel
640447-001 Screw Kit
640448-001 Display Screw Kit
640449-001 Speaker Kit (includes left and right speakers and cable)
640450-001 System board for use only with computer models equipped with an AMD processor, the RS880M
chipset, a graphics subsystem with UMA memory, and USB version 2.0 (includes replacement thermal material)
640451-001 System board for use only with computer models equipped with an AMD processor, the
RS880MD chipset, the HD6470 graphics subsystem chipset, 512-MB of graphics subsystem discrete memory, and USB version 2.0 (includes replacement thermal material)
640452-001 System board for use only with computer models equipped with an AMD processor, the
RS880MD chipset, HD6650 graphics subsystem chipset, 1024-MB of graphics subsystem discrete memory, and USB version 2.0 (includes replacement thermal material)
640453-001 System board for use only with computer models equipped with an AMD processor, the
RS880MD chipset, the HD6470 graphics subsystem chipset, 512-MB of graphics subsystem discrete memory, and USB version 3.0 (includes replacement thermal material)
640454-001 System board for use only with computer models equipped with an AMD processor, the
RS880MD chipset, HD6650 graphics subsystem chipset, 1024-MB of graphics subsystem discrete memory, and USB version 3.0 (includes replacement thermal material)
640455-001 System board for use only with computer models equipped with and AMD processor, the
RS880M chipset, a graphics subsystem with UMA memory, and USB version 3.0 (includes replacement thermal material)
640456-001 Thermal Material Kit for use only with computer models equipped with an AMD AMD Athlon,
Phenom, or Turion processor and a graphics subsystem with UMA memory (includes replacement thermal paste and pads)
640457-001 Thermal Material Kit for use only with computer models equipped with an AMD AMD Athlon,
Phenom, or Turion processor and a graphics subsystem with discrete memory (includes replacement thermal paste and pads)
640458-001 Top cover in espresso black finish (includes TouchPad and TouchPad button board, but does not
include TouchPad cable or TouchPad button board cable)
NOTE: The TouchPad cable and TouchPad button board cable are included in the Cable Kit,
spare part number 640422-001.
44 Chapter 3 Illustrated parts catalog
Spare part number Description
640460-001 Top cover in linen white finish (includes TouchPad and TouchPad button board, but does not
include TouchPad cable or TouchPad button board cable)
NOTE: The TouchPad cable and TouchPad button board cable are included in the Cable Kit,
spare part number 640422-001.
640461-001 Top cover in ruby red finish (includes TouchPad and TouchPad button board, but does not include
TouchPad cable or TouchPad button board cable)
NOTE: The TouchPad cable and TouchPad button board cable are included in the Cable Kit,
spare part number 640422-001.
640463-001 Top cover in dark umber finish (includes TouchPad and TouchPad button board, but does not
include TouchPad cable or TouchPad button board cable)
NOTE: The TouchPad cable and TouchPad button board cable are included in the Cable Kit,
spare part number 640422-001.
640926-001 Realtek RTL8191SE 802.11b/g/n 1×1 WiFi Adapter for use only with computer models
equipped with an AMD processor
641438-001 Speaker cover for use only with computer models in dark umber and steel gray finish
641472-001 Display enclosure in Pacific blue finish
641473-001 Display enclosure in Sonoma red finish
641474-001 Display enclosure in pearl pink finish
641475-001 Display enclosure in butter gold finish
641476-001 Fan/heat sink assembly for use only with computer models equipped with an Intel processor and
a graphics subsystem with UMA memory (includes replacement thermal material)
641477-001 Fan/heat sink assembly for use only with computer models equipped with an Intel processor and
a graphics subsystem with 1024-MB discrete memory (includes replacement thermal material)
641478-001 Bluetooth module cable (for use only with computer models equipped with an Intel processor)
641479-001 15.6-in, HD, LED, BrightView display assembly in Pacific blue finish (includes webcam, two
microphones, and wireless antenna transceivers and cables)
641480-001 15.6-in, HD, LED, BrightView display assembly in Sonoma red finish (includes webcam, two
microphones, and wireless antenna transceivers and cables)
641481-001 15.6-in, HD, LED, BrightView display assembly in pearl pink finish (includes webcam, two
microphones, and wireless antenna transceivers and cables)
641482-001 15.6-in, HD, LED, BrightView display assembly in butter gold finish (includes webcam, two
microphones, and wireless antenna transceivers and cables)
641484-001 System board for use only with computer models equipped with an Intel dual core processor, the
Intel HD6490 graphics subsystem, 1024-MB of discrete memory, and USB version 3.0 (includes replacement thermal material)
641485-001 System board for use only with computer models equipped with an Intel dual core processor, a
graphics subsystem with UMA memory, and USB version 3.0 (includes replacement thermal material)
Sequential part number listing
45
Spare part number Description
641486-001 System board for use only with computer models equipped with an Intel quad core processor, the
Intel HD6490 graphics subsystem, and 1024-MB of discrete memory (includes replacement thermal material)
641487-001 System board for use only with computer models equipped with an Intel dual core processor, the
Intel HD6490 graphics subsystem, 1024-MB of discrete memory, and USB version 2.0 (includes replacement thermal material)
641488-001 System board for use only with computer models equipped with an Intel quad core processor, the
Intel HD6770 graphics subsystem, and 1024-MB of discrete memory (includes replacement thermal material)
641489-001 System board for use only with computer models equipped with an Intel dual core processor, the
Intel HD6770 graphics subsystem, and 1024-MB of discrete memory (includes replacement thermal material)
641490-001 System board for use only with computer models equipped with an Intel dual core processor, a
graphics subsystem with UMA memory, and USB version 2.0 (includes replacement thermal material)
641491-001 System board for use only with computer models equipped with an Intel quad core processor and
a graphics subsystem with UMA memory (includes replacement thermal material)
641492-001 Thermal Material Kit for use only with computer models equipped with an Intel processor and a
graphics subsystem with UMA memory (includes replacement thermal paste and pads)
641493-001 Thermal Material Kit for use only with computer models equipped with an Intel processor and a
graphics subsystem with 1024-MB of discrete memory (includes replacement thermal paste and pads)
641494-001 Top cover in Pacific blue finish (includes TouchPad and TouchPad button board, but does not
include TouchPad cable or TouchPad button board cable)
NOTE: The TouchPad cable and TouchPad button board cable are included in the Cable Kit,
spare part number 640422-001.
641495-001 Top cover in Sonoma red finish (includes TouchPad and TouchPad button board, but does not
include TouchPad cable or TouchPad button board cable)
NOTE: The TouchPad cable and TouchPad button board cable are included in the Cable Kit,
spare part number 640422-001.
641496-001 Top cover in pearl pink finish (includes TouchPad and TouchPad button board, but does not
include TouchPad cable or TouchPad button board cable)
NOTE: The TouchPad cable and TouchPad button board cable are included in the Cable Kit,
spare part number 640422-001.
641497-001 Top cover in butter gold finish (includes TouchPad and TouchPad button board, but does not
include TouchPad cable or TouchPad button board cable)
NOTE: The TouchPad cable and TouchPad button board cable are included in the Cable Kit,
spare part number 640422-001.
641672-001 320-GB, 7200-rpm, 7.0 mm hard drive (2.5-in, SATA, does not include hard drive bracket,
hard drive connector cable, or screws)
641807-001 Display hinge covers
641808-001 DVD±RW and CD-RW Super Multi Double-Layer FX Combo Drive with LightScribe
46 Chapter 3 Illustrated parts catalog
Spare part number Description
641809-001 DVD±RW and CD-RW Super Multi Double-Layer Combo Drive with LightScribe
641810-001 Display Rubber Kit
641824-001 Blu-ray ROM with LightScribe DVD ±R/RW Super Multi Double-Layer Drive (for use only with
computer models equipped with an Intel processor)
641825-001 160-GB solid-state drive (for use only with computer models equipped with an Intel processor)
644362-001 Display Cable Kit for use only with computer models in dark umber and steel gray finish (includes
display panel cable and webcam/microphone module cable)
644363-001 Keyboard in silver finish for use with all computer models in the United States (includes
keyboard cable)
644363-031 Keyboard in silver finish for use with all computer models in the United Kingdom and Singapore
(includes keyboard cable)
644363-041 Keyboard in silver finish for use with all computer models in Germany (includes keyboard cable)
644363-051 Keyboard in silver finish for use with all computer models in France (includes keyboard cable)
644363-061 Keyboard in silver finish for use with all computer models in Italy (includes keyboard cable)
644363-071 Keyboard in silver finish for use with all computer models in Spain (includes keyboard cable)
644363-121 Keyboard in silver finish for use with all computer models in Canada (includes keyboard cable)
644363-131 Keyboard in silver finish for use with all computer models in Portugal (includes keyboard cable)
644363-141 Keyboard in silver finish for use with all computer models in Turkey (includes keyboard cable)
644363-161 Keyboard in silver finish for use with all computer models in Latin America (includes
keyboard cable)
644363-171 Keyboard in silver finish for use with all computer models in Saudi Arabia (includes
keyboard cable)
644363-201 Keyboard in silver finish for use only with computer models equipped with an AMD processor
in Brazil (includes keyboard cable)
644363-211 Keyboard in silver finish for use with all computer models in Hungary (includes keyboard cable)
644363-221 Keyboard in silver finish for use with all computer models in the Czech Republic and Slovakia
(includes keyboard cable)
644363-251 Keyboard in silver finish for use with all computer models in Russia (includes keyboard cable)
644363-261 Keyboard in silver finish for use only with computer models equipped with an AMD processor
in Bulgaria (includes keyboard cable)
644363-281 Keyboard in silver finish for use only with computer models equipped with an Intel processor
in Thailand (includes keyboard cable)
644363-291 Keyboard in silver finish for use only with computer models equipped with an Intel processor
in Japan (includes keyboard cable)
644363-A41 Keyboard in silver finish for use with all computer models in Belgium (includes keyboard cable)
644363-AB1 Keyboard in silver finish for use only with computer models equipped with an Intel processor
in Taiwan (includes keyboard cable)
Sequential part number listing
47
Spare part number Description
644363-AD1 Keyboard in silver finish for use only with computer models equipped with an Intel processor
in South Korea (includes keyboard cable)
644363-B31 Keyboard in silver finish for use with all computer models in the Netherlands (includes
keyboard cable)
644363-BA1 Keyboard in silver finish for use with all computer models in Slovenia (includes keyboard cable)
644363-BB1 Keyboard in silver finish for use only with computer models equipped with an Intel processor
in Israel (includes keyboard cable)
644363-BG1 Keyboard in silver finish for use with all computer models in Switzerland (includes
keyboard cable)
644363-D61 Keyboard in silver finish for use only with computer models equipped with an Intel processor
in India (includes keyboard cable)
644363-DH1 Keyboard in silver finish for use with all computer models in Denmark, Finland, and Norway
(includes keyboard cable)
644363-DJ1 Keyboard in silver finish for use with all computer models in Greece (includes keyboard cable)
650796-001 Display enclosure in steel gray finish
650797-001 Fan/heat sink assembly for use only with computer models equipped with an Intel processor and
a graphics subsystem with 2048-MB discrete memory (includes replacement thermal material)
650798-001 15.6-in, HD, LED, BrightView display assembly in steel gray finish (includes webcam, two
microphones, and wireless antenna transceivers and cables)
650799-001 System board for use only with computer models equipped with an Intel quad core processor and
the Intel HD6770 graphics subsystem with 2048-MB of discrete memory (includes replacement thermal material)
650800-001 System board for use only with computer models equipped with an Intel dual core processor and
the Intel HD6770 graphics subsystem with 2048-MB of discrete memory (includes replacement thermal material)
650801-001 Thermal Material Kit for use only with computer models equipped with an Intel processor and a
graphics subsystem with 2048-MB of discrete memory (includes replacement thermal paste and pads)
650802-001 Top cover in steel gray finish (includes TouchPad and TouchPad button board, but does not
include TouchPad cable or TouchPad button board cable)
NOTE: The TouchPad cable and TouchPad button board cable are included in the Cable Kit,
spare part number 640422-001.
650847-001 Fan/heat sink assembly for use only with computer models equipped with an AMD A8, A6, or
A4 processor and a graphics subsystem with UMA memory (includes replacement thermal material)
650848-001 Fan/heat sink assembly for use only with computer models equipped with an AMD A8, A6, or
A4 processor and a graphics subsystem with discrete memory (includes replacement thermal material)
650849-001 System board for use only with computer models equipped with an AMD processor, the A60M
chipset, and a graphics subsystem with UMA memory (includes replacement thermal material)
48 Chapter 3 Illustrated parts catalog
Spare part number Description
650850-001 System board for use only with computer models equipped with an AMD processor, the A60M
chipset, the HD6490 graphics subsystem chipset, and 512-MB of graphics subsystem discrete memory (includes replacement thermal material)
650851-001 System board for use only with computer models equipped with an AMD processor, the A60M
chipset, the HD6750 graphics subsystem chipset, and 1024-MB of graphics subsystem discrete memory (includes replacement thermal material)
650852-001 System board for use only with computer models equipped with an AMD processor, the A70M
chipset, and a graphics subsystem with UMA memory (includes replacement thermal material)
650853-001 System board for use only with computer models equipped with an AMD processor, the A70M
chipset, the HD6490 graphics subsystem chipset, and 512-MB of graphics subsystem discrete memory (includes replacement thermal material)
650854-001 System board for use only with computer models equipped with an AMD processor, the A70M
chipset, the HD6750 graphics subsystem chipset, and 1024-MB of graphics subsystem discrete memory (includes replacement thermal material)
653337-001 Intel Pentium B950 TJ85 2.10-GHz processor (2.0-MB L3 cache, dual core, 35 W; includes
replacement thermal material)
653338-001 Intel Pentium B940 TJ85 2.00-GHz processor (2.0-MB L3 cache, dual core, 35 W; includes
replacement thermal material)
653339-001 Intel Dual Core i3-2330M 2.20-GHz processor (3.0-MB L3 cache, 35 W; includes replacement
thermal material)
653340-001 Intel Dual Core i3-2350M 2.30-GHz processor (3.0-MB L3 cache, 35 W; includes replacement
thermal material)
653341-001 Intel Dual Core i5-2430M 2.40-GHz (SC turbo up to 3.00-GHz) processor (3.0-MB L3 cache, 35
W; includes replacement thermal material)
653348-001 AMD A4-3300M 2.50-GHz processor (1.9-GHz FSB, 4.0-MB L2 cache, dual core, 35 W;
includes replacement thermal material)
653349-001 AMD A6-3400M 2.30-GHz processor (1.4-GHz FSB, 4.0-MB L2 cache, quad core, 35 W;
includes replacement thermal material)
653350-001 AMD A8-3500M 2.40-GHz processor (1.5-GHz FSB, 4.0-MB L2 cache, quad core, 35 W;
includes replacement thermal material)
653351-001 AMD E2-3000M 2.40-GHz processor (1.8-GHz FSB, 4.0-MB L2 cache, quad core, 35 W;
includes replacement thermal material)
653356-001 AMD A4-3310MX 2.50-GHz processor (2.10-GHz FSB, 2.0-MB L2 cache, dual core, 45 W;
includes replacement thermal material)
653357-001 AMD A6-3410MX 2.30-GHz processor (1.60-GHz FSB, 2.0-MB L2 cache, quad core, 45 W;
includes replacement thermal material)
653358-001 AMD A8-3510MX 2.50-GHz processor (1.50-GHz FSB, 4.0-MB L2 cache, quad core, 45 W;
includes replacement thermal material)
653364-001 AMD A8-3530MX 2.60-GHz processor, (1.90-GHz FSB, 4.0-MB L2 cache, quad core, 45 W;
includes replacement thermal material)
653378-001 15.6-in, FHD, LED, AntiGlare display panel
Sequential part number listing
49
Spare part number Description
654103-001 15.6-in, FHD, LED, AntiGlare display assembly in dark umber finish (includes webcam, two
microphones, and wireless antenna transceivers and cables)
654110-001 15.6-in, FHD, LED, AntiGlare display assembly in steel gray finish (includes webcam, two
microphones, and wireless antenna transceivers and cables)
654111-001 Thermal Material Kit for use only with computer models equipped with an AMD A8, A6, A4, or
E2 processor and a graphics subsystem with discrete memory (includes replacement thermal pads and paste)
654112-001 Thermal Material Kit for use only with computer models equipped with an AMD A8, A6, A4, or
E2 processor and a graphics subsystem with UMA memory (includes replacement thermal pads and paste)
655792-001 Bluetooth module EDR v.4.0 (for use only with computer models equipped with an Intel processor,
does not include cable)
655795-001 Atheros 9485GN 802.11b/g/n 1×1 WiFi and 3012 Bluetooth 4.0 Combo Adapter
656805-001 Display Cable Kit for use only with computer models equipped with a FHD display assembly
(includes display panel cable and webcam/microphone module cable)
657325-001 Broadcom 4313GN 802.11b/g/n 1×1 WiFi and 20702 Bluetooth 4.0 Combo Adapter
659125-001 System board for use only with computer models equipped with an AMD processor, the RS880M
chipset, and a graphics subsystem with UMA memory (includes replacement thermal material)
659126-001 System board for use only with computer models equipped with an AMD processor, the
RS880MD chipset, the HD6470 graphics subsystem chipset, and 512-MB of graphics subsystem discrete memory (includes replacement thermal material)
659127-001 System board for use only with computer models equipped with an AMD processor, the
RS880MD chipset, the HD6650 graphics subsystem chipset, and 1024-MB of graphics subsystem discrete memory (includes replacement thermal material)
659147-001 System board for use only with computer models equipped with an Intel dual core processor, the
HD6490 chipset, a graphics subsystem with 1024-MB of discrete memory, and supports bus alive/chip off (BACO) and USB version 2.0 (includes replacement thermal material)
659148-001 System board for use only with computer models equipped with an Intel quad core processor, the
HD6770 chipset, a graphics subsystem with 1024-MB of discrete memory, and supports bus alive/chip off (BACO) and USB version 3.0 (includes replacement thermal material)
659149-001 System board for use only with computer models equipped with an Intel quad core processor, the
HD6490 chipset, a graphics subsystem with 1024-MB of discrete memory, and supports bus alive/chip off (BACO) and USB version 3.0 (includes replacement thermal material)
659150-001 System board for use only with computer models equipped with an Intel dual core processor, the
HD6490 chipset, a graphics subsystem with 1024-MB of discrete memory, and supports bus alive/chip off (BACO) and USB version 3.0 (includes replacement thermal material)
659151-001 System board for use only with computer models equipped with an Intel dual core processor, the
HD6770 chipset, a graphics subsystem with 1024-MB of discrete memory, and supports bus alive/chip off (BACO) and USB version 3.0 (includes replacement thermal material)
659965-001 Optical drive bay space saver
659966-001 DVD±RW and CD-RW FX Combo Drive
659967-001 DVD±RW and CD-RW Super Multi Double-Layer FX Combo Drive with LightScribe
50 Chapter 3 Illustrated parts catalog
Spare part number Description
659998-001 System board for use only with computer models equipped with an Intel quad core processor, the
HM65 chipset, and the HD6490 graphics subsystem with 1024-MB of discrete memory (includes replacement thermal material)
659999-001 System board for use only with computer models equipped with an Intel quad core processor, the
HM65 chipset, and a graphics subsystem with UMA memory (includes replacement thermal material)
Sequential part number listing
51
4 Removal and replacement
procedures

Preliminary replacement requirements

Tools required

You will need the following tools to complete the removal and replacement procedures:
Flat-bladed screwdriver
Magnetic screwdriver
Phillips P0 and P1 screwdrivers

Service considerations

The following sections include some of the considerations that you must keep in mind during disassembly and assembly procedures.
NOTE: As you remove each subassembly from the computer, place the subassembly (and all
accompanying screws) away from the work area to prevent damage.
Plastic parts
CAUTION: Using excessive force during disassembly and reassembly can damage plastic parts.
Use care when handling the plastic parts. Apply pressure only at the points designated in the maintenance instructions.
Cables and connectors
CAUTION: When servicing the computer, be sure that cables are placed in their proper locations
during the reassembly process. Improper cable placement can damage the computer.
Cables must be handled with extreme care to avoid damage. Apply only the tension required to unseat or seat the cables during removal and insertion. Handle cables by the connector whenever possible. In all cases, avoid bending, twisting, or tearing cables. Be sure that cables are routed in such a way that they cannot be caught or snagged by parts being removed or replaced. Handle flex cables with extreme care; these cables tear easily.
52 Chapter 4 Removal and replacement procedures
Drive handling
CAUTION: Drives are fragile components that must be handled with care. To prevent damage to
the computer, damage to a drive, or loss of information, observe these precautions:
Before removing or inserting a hard drive, shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.
Before handling a drive, be sure that you are discharged of static electricity. While handling a drive, avoid touching the connector.
Before removing a diskette drive or optical drive, be sure that a diskette or disc is not in the drive and be sure that the optical drive tray is closed.
Handle drives on surfaces covered with at least one inch of shock-proof foam.
Avoid dropping drives from any height onto any surface.
After removing a hard drive, an optical drive, or a diskette drive, place it in a static-proof bag.
Avoid exposing an internal hard drive to products that have magnetic fields, such as monitors or speakers.
Avoid exposing a drive to temperature extremes or liquids.
If a drive must be mailed, place the drive in a bubble pack mailer or other suitable form of protective packaging and label the package “FRAGILE.”

Grounding guidelines

Electrostatic discharge damage
Electronic components are sensitive to electrostatic discharge (ESD). Circuitry design and structure determine the degree of sensitivity. Networks built into many integrated circuits provide some protection, but in many cases, ESD contains enough power to alter device parameters or melt silicon junctions.
A discharge of static electricity from a finger or other conductor can destroy static-sensitive devices or microcircuitry. Even if the spark is neither felt nor heard, damage may have occurred.
An electronic device exposed to ESD may not be affected at all and can work perfectly throughout a normal cycle. Or the device may function normally for a while, then degrade in the internal layers, reducing its life expectancy.
Preliminary replacement requirements
53
CAUTION: To prevent damage to the computer when you are removing or installing internal
components, observe these precautions:
Keep components in their electrostatic-safe containers until you are ready to install them.
Before touching an electronic component, discharge static electricity by using the guidelines described in this section.
Avoid touching pins, leads, and circuitry. Handle electronic components as little as possible.
If you remove a component, place it in an electrostatic-safe container.
The following table shows how humidity affects the electrostatic voltage levels generated by different activities.
CAUTION: A product can be degraded by as little as 700 V.
Typical electrostatic voltage levels
Relative humidity
Event 10% 40% 55%
Walking across carpet 35,000 V 15,000 V 7,500 V
Walking across vinyl floor 12,000 V 5,000 V 3,000 V
Motions of bench worker 6,000 V 800 V 400 V
Removing DIPS from plastic tube 2,000 V 700 V 400 V
Removing DIPS from vinyl tray 11,500 V 4,000 V 2,000 V
Removing DIPS from Styrofoam 14,500 V 5,000 V 3,500 V
Removing bubble pack from PCB 26,500 V 20,000 V 7,000 V
Packing PCBs in foam-lined box 21,000 V 11,000 V 5,000 V
54 Chapter 4 Removal and replacement procedures
Packaging and transporting guidelines
Follow these grounding guidelines when packaging and transporting equipment:
To avoid hand contact, transport products in static-safe tubes, bags, or boxes.
Protect ESD-sensitive parts and assemblies with conductive or approved containers or packaging.
Keep ESD-sensitive parts in their containers until the parts arrive at static-free workstations.
Place items on a grounded surface before removing items from their containers.
Always be properly grounded when touching a component or assembly.
Store reusable ESD-sensitive parts from assemblies in protective packaging or nonconductive foam.
Use transporters and conveyors made of antistatic belts and roller bushings. Be sure that mechanized equipment used for moving materials is wired to ground and that proper materials are selected to avoid static charging. When grounding is not possible, use an ionizer to dissipate electric charges.
Workstation guidelines
Follow these grounding workstation guidelines:
Cover the workstation with approved static-shielding material.
Use a wrist strap connected to a properly grounded work surface and use properly grounded tools and equipment.
Use conductive field service tools, such as cutters, screwdrivers, and vacuums.
When fixtures must directly contact dissipative surfaces, use fixtures made only of static­safe materials.
Keep the work area free of nonconductive materials, such as ordinary plastic assembly aids and Styrofoam.
Handle ESD-sensitive components, parts, and assemblies by the case or PCM laminate. Handle these items only at static-free workstations.
Avoid contact with pins, leads, or circuitry.
Turn off power and input signals before inserting or removing connectors or test equipment.
Preliminary replacement requirements
55
Equipment guidelines
Grounding equipment must include either a wrist strap or a foot strap at a grounded workstation.
When seated, wear a wrist strap connected to a grounded system. Wrist straps are flexible straps with a minimum of one megohm ±10% resistance in the ground cords. To provide proper ground, wear a strap snugly against the skin at all times. On grounded mats with banana-plug connectors, use alligator clips to connect a wrist strap.
When standing, use foot straps and a grounded floor mat. Foot straps (heel, toe, or boot straps) can be used at standing workstations and are compatible with most types of shoes or boots. On conductive floors or dissipative floor mats, use foot straps on both feet with a minimum of one megohm resistance between the operator and ground. To be effective, the conductive must be worn in contact with the skin.
The following grounding equipment is recommended to prevent electrostatic damage:
Antistatic tape
Antistatic smocks, aprons, and sleeve protectors
Conductive bins and other assembly or soldering aids
Nonconductive foam
Conductive tabletop workstations with ground cords of one megohm resistance
Static-dissipative tables or floor mats with hard ties to the ground
Field service kits
Static awareness labels
Material-handling packages
Nonconductive plastic bags, tubes, or boxes
Metal tote boxes
Electrostatic voltage levels and protective materials
The following table lists the shielding protection provided by antistatic bags and floor mats.
Material Use Voltage protection level
Antistatic plastics Bags 1,500 V
Carbon-loaded plastic Floor mats 7,500 V
Metallized laminate Floor mats 5,000 V
56 Chapter 4 Removal and replacement procedures

Component replacement procedures

This chapter provides removal and replacement procedures.
There are as many as 88 screws that must be removed, replaced, or loosened when servicing the computer. Make special note of each screw and screw lock size and location during removal and replacement.

Service tag

When ordering parts or requesting information, provide the computer serial number and model number provided on the service tag.
Item Component Description
(1) Product name This is the product name affixed to the front of
the computer.
(2) Serial number (s/n) This is an alphanumeric identifier that is unique to
each product.
(3) Part number/Product number (p/n) This number provides specific information about the
product’s hardware components. The part number helps a service technician determine what components and parts are needed.
Component replacement procedures
57
Item Component Description
(4) Warranty period This number describes the duration of the warranty
(5) Model description This is the alphanumeric identifier used to locate

Computer feet

the computer feet are adhesive-backed rubber pads. There are 4 rubber feet that attach to the base enclosure in the locations illustrated below.
period for the computer.
documents, drivers, and support for the computer.
58 Chapter 4 Removal and replacement procedures

Battery

Description Spare part number
9-cell, 100-Whr, 3.00-Ah Li-ion battery 636631-001
6-cell, 62-Whr, 2.80-Ah Li-ion battery 593562-001
6-cell, 55-Whr, 2.55-Ah Li-ion battery 593554-001
Before disassembling the computer, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
Remove the battery:
1. Slide the battery release latch (1) to release the battery.
2. Pivot the front edge of the battery (2) up and back.
3. Remove the battery (3) from the computer.
Component replacement procedures
59
To insert the battery:
1. Align the tabs on the rear edge of the battery with the notches on the rear edge of the battery bay.
2.
Pivot the front edge of the battery down into the battery bay until it is seated. (The battery release latch will automatically lock into place.)

Optical drive

NOTE: The optical drive spare part kit includes a bezel and bracket.
Description Spare part number
DVD±RW and CD-RW Super Multi Double-Layer FX Combo Drive with LightScribe 641808-001
DVD±RW and CD-RW FX Combo Drive 659966-001
DVD±RW and CD-RW Super Multi Double-Layer FX Combo Drive with LightScribe 659967-001
Blu-ray ROM with LightScribe DVD ±R/RW Super Multi Double-Layer Drive for use only with computer models equipped with an Intel processor
DVD±RW and CD-RW Super Multi Double-Layer Combo Drive with LightScribe 641809-001
Optical drive bay space saver (not illustrated) 659965-001
641824-001
Before removing the optical drive, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4. Remove the battery (see
Battery on page 59).
Remove the optical drive:
1. Slide the service cover release latch to release the service cover.
60 Chapter 4 Removal and replacement procedures
2.
Lift the rear edge of the service cover up and forward until it rests at an angle.
3. Remove the service cover. The service cover is available in the Plastics Kit, spare part number
640444-001.
4. Remove the Phillips PM2.5×4.0 screw that secures the optical drive to the computer.
5. Remove the optical drive by sliding it out of the optical drive bay.
6. If it is necessary to replace the optical drive bracket, position the optical drive with the rear panel
toward you.
Component replacement procedures
61
7.
Remove the two Phillips PM2.0×4.0 screws (1) that secure the bracket to the optical drive.
8.
Remove the optical drive bracket (2).
Reverse this procedure to reassemble and install the optical drive.

Hard drive

NOTE: The hard drive and solid-state drive spare part kit does not include the bracket, connector
cable, or screws. The bracket and screws are included in the Hard Drive Hardware Kit, spare part number 640428-001. The connector cable is included in the Cable Kit, spare part number 640422-001.
Description Spare part number
1-TB, 5400-rpm, 12.7 mm 638974-001
750-GB, 7200-rpm, 9.5 mm 633252-001
750-GB, 5400-rpm, 9.5 mm 634250-001
640-GB, 7200-rpm, 9.5 mm 621046-001
500-GB, 7200-rpm, 9.5 mm 608218-001
320-GB, 7200-rpm, 7.0 mm 641672-001 and
634862-001
250-GB, 7200-rpm, 7.0 mm 635225-001 and
634861-001
160-GB solid-state drive (for use only with computer models equipped with an Intel processor) 641825-001
Before removing the hard drive, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
62 Chapter 4 Removal and replacement procedures
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then unplugging the AC adapter from the computer.
4. Remove the battery (see
5. Remove the service cover (see
Remove the hard drive:
1. Disconnect the hard drive connector cable (1) from the system board.
2. Remove the four Phillips PM2.5×4.0 screws (2) that secure the hard drive to the computer.
3. Use the Mylar tab built into the hard drive bracket to lift and remove the hard drive (3) from
the computer.
Battery on page 59).
Optical drive on page 60).
4. If it is necessary to replace the hard drive connector cable or hard drive bracket:
a. Remove the four Phillips PM3.0×4.0 screws (1) that secure the hard drive bracket to the
hard drive.
b. Remove the hard drive bracket (2) from the hard drive.
Component replacement procedures
63
c.
Disconnect the hard drive connector cable (3) from the hard drive.
Reverse this procedure to reassemble and install the hard drive.
64 Chapter 4 Removal and replacement procedures

RTC battery

Description Spare part number
RTC battery 608771-001
Before removing the RTC battery, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4. Remove the battery (see
5. Remove the service cover (see
Battery on page 59).
Optical drive on page 60).
Remove the RTC battery:
Remove the RTC battery from the socket on the system board.
Reverse this procedure to install the RTC battery.
Component replacement procedures
65

Memory module

Description Spare part number
8-GB (DDR3, 10600, 1333-MHz) 634091-001
4-GB (DDR3, 10600, 1333-MHz) 621569-001
2-GB (DDR3, 10600, 1333-MHz) 621565-001
1-GB (DDR3, 10600, 1333-MHz) 639736-001
Before removing a memory module, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4. Remove the battery (see
5. Remove the service cover (see
Battery on page 59).
Optical drive on page 60).
Remove the memory module:
1. Spread the retaining tabs (1) on each side of the memory module slot to release the memory
module. (The memory module tilts up.)
2. Remove the memory module (2) by pulling it away from the slot at an angle.
Reverse this procedure to install a memory module.
66 Chapter 4 Removal and replacement procedures

WLAN module

Description Spare part number
For use on all computer models:
Atheros 9485GN 802.11b/g/n 1×1 WiFi and 3012 Bluetooth 4.0 Combo Adapter 655795-001
Broadcom 4313 802.11b/g/n 1×1 WiFi and 2070 Bluetooth 2.1+EDR Combo adapter (BT3.0+HS ready)
Broadcom 4313 802.11b/g/n 1×1 WiFi Adapter 593836-001
Broadcom 4313GN 802.11b/g/n 1×1 WiFi and 20702 Bluetooth 4.0 Combo Adapter 657325-001
Ralink RT3090BC4 802.11b/g/n 1×1 WiFi and Bluetooth 2.1+EDR Combo Adapter (BT3.0+HS ready)
Ralink 5390GN 802.11b/g/n 1×1 WiFi Adapter 630703-001
For use only with computer models equipped with an AMD processor:
Atheros 9285G 802.11b/g/n 1×1 WiFi Adapter 605560-005
Atheros AR8002WB-1NGB 802.11b/g/n 1×1 WiFi and Bluetooth 2.1+EDR Combo Adapter (BT3.0+HS ready)
Realtek RTL8191SE 802.11b/g/n 1×1 WiFi Adapter 640926-001
Realtek 8188BC8 802.11a/b/g/n 2×2 WiFi and Bluetooth 3.0+HS Combo Adapter 602993-001
For use only with computer models equipped with an Intel processor:
Intel Centrino Advanced-N 6230 631956-001
Intel Centrino Wireless-N 1000 593530-001
Intel Centrino Wireless-N + WiMAX 6150 633817-001
600370-001
630705-001
593127-001
CAUTION: To prevent an unresponsive system, replace the wireless module only with a wireless
module authorized for use in the computer by the governmental agency that regulates wireless devices in your country or region. If you replace the module and then receive a warning message, remove the module to restore device functionality, and then contact technical support.
Before removing the WLAN module, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4.
Remove the battery (see
5. Remove the service cover (see
Battery on page 59).
Optical drive on page 60).
Component replacement procedures
67
Remove the WLAN module:
1. Disconnect the WLAN antenna cables from the terminals on the WLAN module.
NOTE: The #1/black WLAN antenna cable is connected to the WLAN module Main terminal.
The #2/gray WLAN antenna cable is connected to the WLAN module Aux terminal.
2.
Remove the two Phillips PM2.0×4.0 screws that secure the WLAN module to the system board. (The WLAN module tilts up.)
3. Remove the WLAN module by pulling the module away from the slot at an angle.
68 Chapter 4 Removal and replacement procedures
NOTE: If the WLAN antennas are not connected to the terminals on the WLAN module, the protective
sleeves must be installed on the antenna connectors, as shown in the following illustration.
Reverse this procedure to install the WLAN module.
Component replacement procedures
69

Keyboard

NOTE: The keyboard spare part kit includes a keyboard cable.
Description Spare part number Description Spare part number
Keyboard in black finish:
For use only with computer models equipped with an AMD processor in Brazil
For use only with computer models equipped with an AMD processor in Bulgaria
For use only with computer models equipped with an Intel processor in India
For use only with computer models equipped with an Intel processor in Israel
For use only with computer models equipped with an Intel processor in Japan
For use with all computer models in Belgium
For use with all computer models in Canada
For use with all computer models in the Czech Republic and Slovakia
640436-201 For use only with computer models
equipped with an Intel processor in Latin America
640436-261 For use only with computer models
equipped with an Intel processor in South Korea
640436-D61 For use only with computer models
equipped with an Intel processor in Taiwan
640436-BB1 For use only with computer models
equipped with an Intel processor in Thailand
640436-291 For use with all computer models
in the Netherlands
640436-A41 For use with all computer models
in Portugal
640436-121 For use with all computer models
in Russia
640436-221 For use with all computer models
in Saudi Arabia
640436-161
640436-AD1
640436-AB1
640436-281
640436-B31
640436-131
640436-251
640436-171
For use with all computer models in Denmark, Finland, and Norway
For use with all computer models in France
For use with all computer models in Germany
For use with all computer models in Greece
For use with all computer models in Humgary
For use with all computer models in Italy
For use only with computer models equipped with an AMD processor in Brazil
640436-DH1 For use with all computer models
640436-051 For use with all computer models
640436-041 For use with all computer models
640436-DJ1 For use with all computer models
640436-211 For use with all computer models
640436-061 For use with all computer models
Keyboard in silver finish:
644363-201 For use only with computer models
70 Chapter 4 Removal and replacement procedures
640436-BA1
in Slovenia
640436-071
in Spain
640436-BG1
in Switzerland
640436-141
in Turkey
640436-031 in the United Kingdom and Singapore
640436-001 in the United States
644363-161 equipped with an Intel processor in Latin America
Description Spare part number Description Spare part number
For use only with computer models equipped with an AMD processor in Bulgaria
For use only with computer models equipped with an Intel processor in India
For use only with computer models equipped with an Intel processor in Israel
For use only with computer models equipped with an Intel processor in Japan
For use with all computer models in Belgium
For use with all computer models in Canada
For use with all computer models in the Czech Republic and Slovakia
For use with all computer models in Denmark, Finland, and Norway
For use with all computer models in France
644363-261 For use only with computer models
equipped with an Intel processor in South Korea
644363-D61 For use only with computer models
equipped with an Intel processor in Taiwan
644363-BB1 For use only with computer models
equipped with an Intel processor in Thailand
644363-291 For use with all computer models
in the Netherlands
644363-A41 For use with all computer models
in Portugal
644363-121 For use with all computer models
in Russia
644363-221 For use with all computer models
in Saudi Arabia
644363-DH1 For use with all computer models
in Slovenia
644363-051 For use with all computer models
in Spain
644363-AD1
644363-AB1
644363-281
644363-B31
644363-131
644363-251
644363-171
644363-BA1
644363-071
For use with all computer models in Germany
For use with all computer models in Greece
For use with all computer models in Humgary
For use with all computer models in Italy
644363-041 For use with all computer models
in Switzerland
644363-DJ1 For use with all computer models
in Turkey
644363-211 For use with all computer models
in the United Kingdom and Singapore
644363-061 For use with all computer models
in the United States
644363-BG1
644363-141
644363-031
644363-001
Before removing the keyboard, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4. Remove the battery (see
Battery on page 59).
5. Remove the service cover (see
Optical drive on page 60).
Component replacement procedures
71
Remove the keyboard:
1. Remove the Phillips PM2.5×4.0 screw that secures the keyboard to the computer.
2. Rest the computer on its left side.
3. Open the computer.
4. Insert a screw driver or similar thin tool into the keyboard screw hole, and then press on the back
of the keyboard until the keyboard disengages from the computer.
5. Turn the computer right-side up with the front toward you.
72 Chapter 4 Removal and replacement procedures
6.
Lift the rear edge (1) of the keyboard, and then slide the keyboard (2) back until the keyboard cable is accessible.
7.
Release the zero insertion force (ZIF) connector (1) to which the keyboard cable is attached, and then disconnect the keyboard cable (2) from the system board.
8. Remove the keyboard.
Reverse this procedure to install the keyboard.
Component replacement procedures
73

Top cover

NOTE: The top cover spare part kit includes the TouchPad and TouchPad button board, but does not
include the TouchPad cable or TouchPad button board cable. The TouchPad cable and TouchPad button board cable are included in the Cable Kit, spare part number 640422-001.
Description Spare part number
In butter gold finish 641497-001
In dark umber finish 640463-001
In espresso black finish 640458-001
In linen white finish 640460-001
In Pacific blue finish 641494-001
In pearl pink finish 641496-001
In ruby red finish 640461-001
In Sonoma red finish 641495-001
In steel gray finish 650802-001
Before removing the top cover, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then unplugging the AC adapter from the computer.
4. Remove the battery (see
Optical drive (see
Hard drive (see
Keyboard (see
Battery on page 59), and then remove the following components:
Optical drive on page 60)
Hard drive on page 62)
Keyboard on page 70)
NOTE: When replacing the top cover, be sure that the power button board and cable (see Power button board on page 77) and fingerprint reader board and cable (see Fingerprint reader board on page 78) are removed from the defective top cover and installed on the replacement top cover.
Remove the top cover:
1. Close the computer.
2. Turn the computer upside down, with the front toward you.
74 Chapter 4 Removal and replacement procedures
3.
Remove the seven Phillips PM2.5×10.0 screws that secure the top cover to the computer.
4. Remove the following screws that secure the top cover to the computer:
Three Phillips PM2.0×3.0 screws (1) in the optical drive bay
Three Phillips PM2.5×6.0 screws (2)
One Phillips PM2.0×4.0 screw (3) in the hard drive bay
5.
Turn the computer right-side up, with the front toward you.
6. Open the computer.
Component replacement procedures
75
7.
Release the ZIF connectors to which the following cables are attached, and then disconnect the cables from the system board:
NOTE: The power button board cable, TouchPad button board cable, and fingerprint reader
board cable are included in the Cable Kit, spare part number 640422-001.
Power button board cable (1)
TouchPad button board cable (2)
Fingerprint reader board cable (3) (select models only)
8. Remove the seven Phillips PM2.5×6.0 screws that secure the top cover to the computer.
9. Lift the rear edge of the top cover (1) until the left and right sides disengage from the
base enclosure.
76 Chapter 4 Removal and replacement procedures
10.
Remove the top cover (2).
Reverse this procedure to install the top cover.

Power button board

Description Spare part number
Power button board (does not include cable)
NOTE: The power button board cable is not included in the power button board spare part kit. The
power button board cable is included in the Cable Kit, spare part number 640422-001.
640439-001
Before removing the power button board, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4. Remove the battery (see
Optical drive (see
Hard drive (see
Keyboard (see
Top cover (see
Battery on page 59), and then remove the following components:
Optical drive on page 60)
Hard drive on page 62)
Keyboard on page 70)
Top cover on page 74)
Remove the power button board:
1. Turn the top cover upside down, with the front toward you.
2.
Release the power button board cable from the clip (1) built into the top cover.
Component replacement procedures
77
3.
Remove the three Phillips PM2.0×4.0 screws (2) that secure the power button board to the top cover.
4. Remove the power button board and cable (3).
Reverse this procedure to install the power button board and cable.

Fingerprint reader board

Description Spare part number
Fingerprint reader board (select models only, includes bracket, but does not include cable)
NOTE: The fingerprint reader board cable is not included in the fingerprint reader board spare
part kit. The fingerprint reader board cable is included in the Cable Kit, spare part number 640422-001.
Before removing the fingerprint reader board, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then unplugging the AC adapter from the computer.
4. Remove the battery (see
Battery on page 59), and then remove the following components:
640427-001
Optical drive (see
Hard drive (see
Optical drive on page 60)
Hard drive on page 62)
78 Chapter 4 Removal and replacement procedures
Keyboard (see
Keyboard on page 70)
Top cover (see
Top cover on page 74)
Remove the fingerprint reader board and cable:
1. Turn the top cover upside down, with the front toward you.
2. Release the fingerprint reader board cable (1) from the clips (2) built into the top cover.
3. Remove the two Phillips PM2.0×4.0 screws (3) that secure the fingerprint reader board and
bracket to the top cover.
4. Remove the fingerprint reader board bracket (4) and the fingerprint reader board (5).
Reverse this procedure to install the fingerprint reader board and cable.

Bluetooth module

NOTE: This section applies only to computer models equipped with an Intel processor.
Description Spare part number
EDR v.4.0 655792-001
EDR v.3.0 537921-001
NOTE: The Bluetooth module spare part kit does not include a Bluetooth module cable. The Bluetooth module cable is
available in the Cable Kit, spare part number 640422-001.
Component replacement procedures
79
Before removing the Bluetooth module and cable, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4. Remove the battery (see
Optical drive (see
Hard drive (see
Keyboard (see
Top cover (see
Battery on page 59), and then remove the following components:
Optical drive on page 60)
Hard drive on page 62)
Keyboard on page 70)
Top cover on page 74)
Remove the Bluetooth module and cable:
1. Disconnect the Bluetooth module cable (1) from the system board.
2. Release the Bluetooth module cable from the clips (2) and the routing channel built into the front
speaker assembly.
3.
Release the Bluetooth module (3) from the clip built into the front speaker assembly.
4. Remove the Bluetooth module and the Bluetooth module cable.
80 Chapter 4 Removal and replacement procedures
5.
If it is necessary to replace the Bluetooth module cable, disconnect the cable from the Bluetooth module and replace it.
Reverse this procedure to install the Bluetooth module and cable.
Component replacement procedures
81

USB board

Description Spare part number
USB board (does not include cable)
NOTE: The USB board cable is not included in the USB board spare part kit. The USB board cable
is included in the Cable Kit, spare part number 640422-001.
640441-001
Before removing the USB board, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4. Remove the battery (see
Optical drive (see
Hard drive (see
Keyboard (see
Top cover (see
Battery on page 59), and then remove the following components:
Optical drive on page 60)
Hard drive on page 62)
Keyboard on page 70)
Top cover on page 74)
Remove the USB board and cable:
1. Release the ZIF connector to which the USB board cable is connected, and then disconnect the
USB board cable (1) from the system board.
2. Remove the Phillips PM2.5×5.0 screw (2) that secures the USB board to the base enclosure.
3. Remove the USB board (3) and cable.
82 Chapter 4 Removal and replacement procedures
Reverse this procedure to install the USB board.

Power connector cable

Description Spare part number
Power connector cable 640424-001
Before removing the power connector cable, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4. Remove the battery (see
Optical drive (see
Hard drive (see
Keyboard (see
Top cover (see
USB board (see
Battery on page 59), and then remove the following components:
Optical drive on page 60)
Hard drive on page 62)
Keyboard on page 70)
Top cover on page 74)
USB board on page 82)
Remove the power connector cable:
1. Disconnect the power connector cable (1) from the system board.
2. Release the power connector cable from the clips (2) built into the base enclosure.
3. Remove the two Phillips PM2.0×2.0 screws (3) that secure the power connector to the
base enclosure.
Component replacement procedures
83
4.
Remove the power connector (4) from the base enclosure.
Reverse this procedure to install the power connector cable.
84 Chapter 4 Removal and replacement procedures

System board

NOTE: The system board spare part kit includes replacement thermal material.
Replacement thermal material is also available in the Thermal Material Kit, using the following spare part numbers:
654111-001 — For use only with computer models equipped with an AMD A8, A6, A4, or E2 processor and a graphics subsystem with discrete memory
654112-001 — For use only with computer models equipped with an AMD A8, A6, A4, or E2 processor and a graphics subsystem with UMA memory
640457-001 — For use only with computer models equipped with an AMD processor and a graphics subsystem with discrete memory
640456-001 — For use only with computer models equipped with an AMD processor and a graphics subsystem with UMA memory
650801-001 — For use only with computer models equipped with an Intel processor and a graphics subsystem with 2048-MB of discrete memory
641493-001 — For use only with computer models equipped with an Intel processor and a graphics subsystem with 1024-MB of discrete memory
641492-001 — For use only with computer models equipped with an Intel processor and a graphics subsystem with UMA memory
Description Spare part number
For use only with computer models equipped with an AMD processor:
Equipped with the A70M chipset, HD6750 graphics subsystem chipset, and 1024-MB of graphics subsystem discrete memory
Equipped with the A70M chipset, HD6490 graphics subsystem chipset, and 512-MB of graphics subsystem discrete memory
Equipped with the A70M chipset and a graphics subsystem with UMA memory 650852-001
Equipped with the A60M chipset, HD6750 graphics subsystem chipset, and 1024-MB of graphics subsystem discrete memory
Equipped with the A60M chipset, HD6490 graphics subsystem chipset, and 512-MB of graphics subsystem discrete memory
Equipped with the A60M chipset and a graphics subsystem with UMA memory 650849-001
Equipped with the RS880MD chipset, the HD6650 graphics subsystem chipset, and 1024-MB of graphics subsystem discrete memory
Equipped with the RS880MD chipset, the HD6470 graphics subsystem chipset, and 512-MB of graphics subsystem discrete memory
Equipped with the RS880M chipset, and a graphics subsystem with UMA memory 659125-001
Equipped with the RS880MD chipset, HD6650 graphics subsystem chipset, 1024-MB of graphics subsystem discrete memory, and USB version 3.0
650854-001
650853-001
650851-001
650850-001
659127-001
659126-001
640454-001
Component replacement procedures
85
Description Spare part number
Equipped with the RS880MD chipset, HD6650 graphics subsystem chipset, 1024-MB of graphics subsystem discrete memory, and USB version 2.0
Equipped with the RS880MD chipset, HD6470 graphics subsystem chipset, 512-MB of graphics subsystem discrete memory, and USB version 3.0
Equipped with the RS880MD chipset, HD6470 graphics subsystem chipset, 512-MB of graphics subsystem discrete memory, and USB version 2.0
Equipped with the RS880M chipset, a graphics subsystem with UMA memory, and USB version 3.0 640455-001
Equipped with the RS880M chipset, a graphics subsystem with UMA memory, and USB version 2.0 640450-001
For use only with computer models equipped with an Intel processor:
Equipped with an Intel dual core processor, the HD6770 chipset, a graphics subsystem with 1024­MB of discrete memory, and supports bus alive/chip off (BACO) and USB version 3.0
Equipped with an Intel dual core processor, the HD6490 chipset, a graphics subsystem with 1024­MB of discrete memory, and supports bus alive/chip off (BACO) and USB version 3.0
Equipped with an Intel quad core processor, the HD6490 chipset, a graphics subsystem with 1024­MB of discrete memory, and supports bus alive/chip off (BACO) and USB version 3.0
Equipped with an Intel quad core processor, the HD6770 chipset, a graphics subsystem with 1024­MB of discrete memory, and supports bus alive/chip off (BACO) and USB version 3.0
Equipped with an Intel dual core processor, the HD6490 chipset, a graphics subsystem with 1024­MB of discrete memory, and supports bus alive/chip off (BACO) and USB version 2.0
640452-001
640453-001
640451-001
659151-001
659150-001
659149-001
659148-001
659147-001
Equipped with an Intel quad core processor, the HM65 chipset, and the HD6490 graphics subsystem with 1024-MB of discrete memory
Equipped with an Intel quad core processor, the HM65 chipset, and a graphics subsystem with UMA memory
For use only with computer models equipped with a quad core processor, the Intel HD6770 graphics subsystem, and 2048-MB of discrete memory
For use only with computer models equipped with a dual core processor, the Intel HD6770 graphics subsystem, and 2048-MB of discrete memory
For use only with computer models equipped with a quad core processor, the Intel HD6770 graphics subsystem, and 1024-MB of discrete memory
For use only with computer models equipped with a dual core processor, the Intel HD6770 graphics subsystem, and 1024-MB of discrete memory
For use only with computer models equipped with a quad core processor, the Intel HD6490 graphics subsystem, and 1024-MB of discrete memory
For use only with computer models equipped with a dual core processor, the Intel HD6490 graphics subsystem, 1024-MB of discrete memory, and USB version 3.0
For use only with computer models equipped with a dual core processor, the Intel HD6490 graphics subsystem, 1024-MB of discrete memory, and USB version 2.0
For use only with computer models equipped with a quad core processor, a graphics subsystem with UMA memory, and USB version 3.0
659998-001
659999-001
650799-001
650800-001
641488-001
641489-001
641486-001
641484-001
641487-001
641491-001
86 Chapter 4 Removal and replacement procedures
Description Spare part number
For use only with computer models equipped with a dual core processor, a graphics subsystem with UMA memory, and USB version 3.0
For use only with computer models equipped with a dual core processor, a graphics subsystem with UMA memory, and USB version 2.0
641485-001
641490-001
Before removing the system board, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4. Remove the battery (see
Optical drive (see
Hard drive (see
WLAN module (see
Keyboard (see
Battery on page 59), and then remove the following components:
Optical drive on page 60)
Hard drive on page 62)
WLAN module on page 67)
Keyboard on page 70)
Top cover (see
Top cover on page 74)
When replacing the system board, be sure that the following components are removed from the defective system board and installed on the replacement system board:
RTC battery (see
Memory module (see
Fan and heat sink (see
Processor (see
RTC battery on page 65)
Memory module on page 66)
Fan/heat sink assembly on page 90)
Processor on page 95)
Remove the system board:
1. Close the computer.
2. Turn the computer upside down, with the font toward you.
Component replacement procedures
87
3.
Disconnect the speaker cable (1) and the optical drive connector cable (2) from the system board.
4. Turn the computer right side up, with the front toward you.
5. Open the computer.
6. Disconnect the following cables from the system board:
Display panel cable (1)
Webcam/microphone cable (2)
Bluetooth module cable (3)
USB board cable (4)
Power connector cable (5)
88 Chapter 4 Removal and replacement procedures

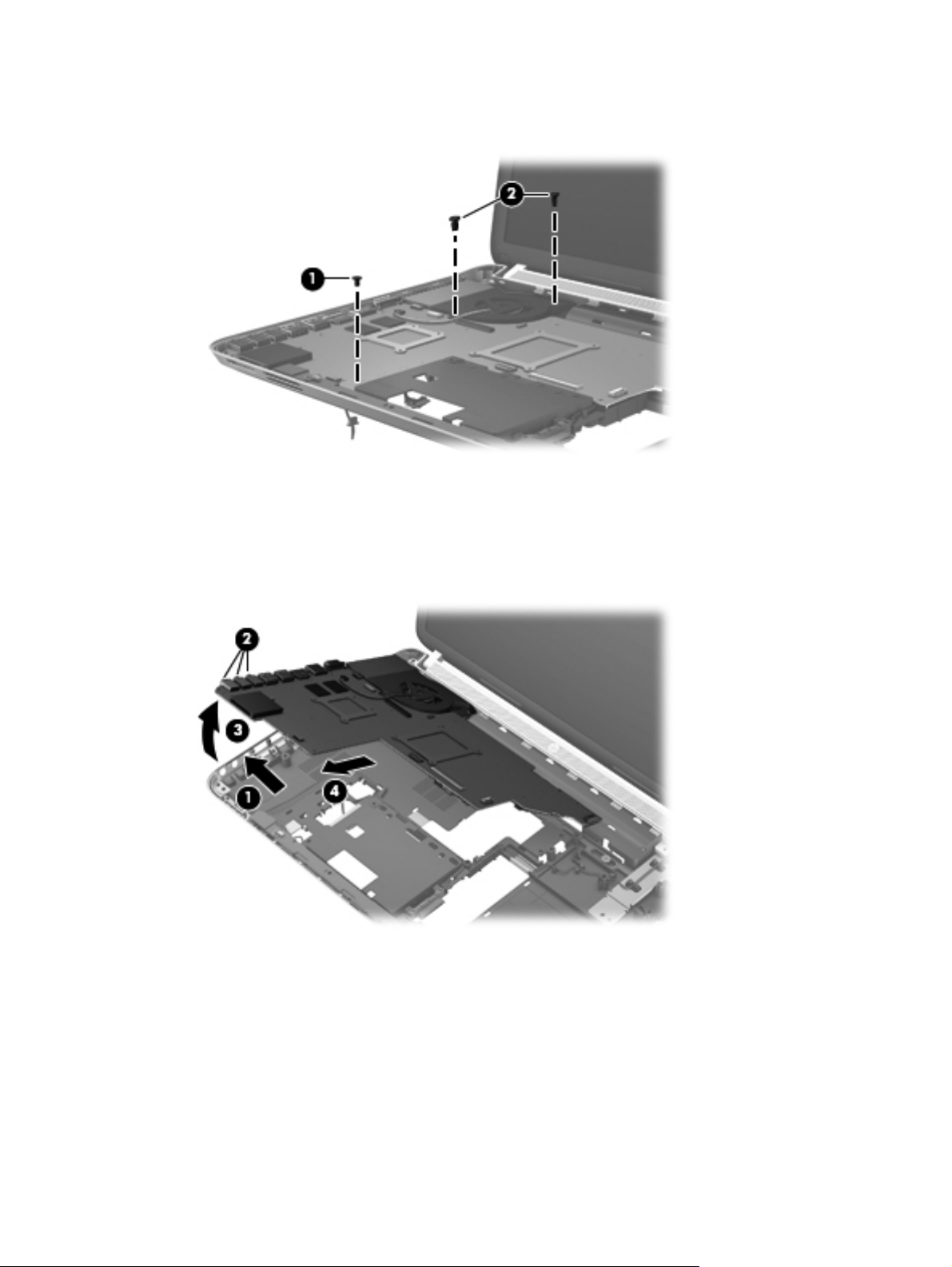

7.
Remove the Phillips PM2.5×4.0 screw (1) and the two Phillips PM2.5×5.0 screws (2) that secure the system board to the base enclosure.
8. Flex the left side of the base enclosure (1) outward to provide clearance for the audio
connectors (2) and the other connectors on the left side of the system board.
9. Lift the front edge of the system board (3) until it rests at an angle.
10. Remove the system board (4) by sliding it up and forward at an angle.
Reverse this procedure to install the system board.
Component replacement procedures
89

Fan/heat sink assembly

NOTE: The system board spare part kit includes replacement thermal material.
Replacement thermal material is also available in the Thermal Material Kit, using the following spare part numbers:
654111-001 — For use only with computer models equipped with an AMD A8, A6, A4, or E2 processor and a graphics subsystem with discrete memory
654112-001 — For use only with computer models equipped with an AMD A8, A6, A4, or E2 processor and a graphics subsystem with UMA memory
640457-001 — For use only with computer models equipped with an AMD processor and a graphics subsystem with discrete memory
640456-001 — For use only with computer models equipped with an AMD processor and a graphics subsystem with UMA memory
650801-001 — For use only with computer models equipped with an Intel processor and a graphics subsystem with 2048-MB of discrete memory
641493-001 — For use only with computer models equipped with an Intel processor and a graphics subsystem with 1024-MB of discrete memory
641492-001 — For use only with computer models equipped with an Intel processor and a graphics subsystem with UMA memory
Description Spare part number
For use only with computer models equipped with an AMD processor:
For use only with computer models equipped with an AMD A8, A6, or A4 processor and a graphics subsystem with discrete memory
For use only with computer models equipped with an AMD A8, A6, or A4 processor and a graphics subsystem with UMA memory
For use only with computer models equipped with an AMD Athlon, Phenom, or Turion processor and a graphics subsystem with discrete memory
For use only with computer models equipped with an AMD Athlon, Phenom, or Turion processor and a graphics subsystem with UMA memory
For use only with computer models equipped with an Intel processor:
For use only with computer models equipped with a graphics subsystem with 2048-MB discrete memory
For use only with computer models equipped with a graphics subsystem with 1024-MB discrete memory
For use only with computer models equipped with a graphics subsystem with UMA memory 641476-001
650848-001
650847-001
640426-001
640425-001
650797-001
641477-001
90 Chapter 4 Removal and replacement procedures
NOTE: To properly ventilate the computer, allow at least 7.6 cm (3 in) of clearance on the left side of
the computer. the computer uses an electric fan for ventilation. The fan is controlled by a temperature sensor and is designed to turn on automatically when high temperature conditions exist. These conditions are affected by high external temperatures, system power consumption, power management/battery conservation configurations, battery fast charging, and software requirements. Exhaust air is displaced through the ventilation grill located on the left side of the computer.
Before removing the fan/heat sink assembly, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4. Remove the battery (see
Optical drive (see
Hard drive (see
WLAN module (see
Keyboard (see
Top cover (see
System board (see
Remove the fan/heat sink assembly:
1. Disconnect the fan cable from the system board.
Battery on page 59), and then remove the following components:
Optical drive on page 60)
Hard drive on page 62)
WLAN module on page 67)
Keyboard on page 70)
Top cover on page 74)
System board on page 85)
2. Turn the system board upside down, with the fan away from you.
Component replacement procedures
91
3.
Loosen the captive screws (1) that secure the fan/heat sink assembly to the system board.
NOTE: The number of screws used to secure the fan/heat sink assembly to the system board
varies by computer model.
NOTE: Due to the adhesive quality of the thermal material located between the heat sink and
system board components, it may be necessary to move the heat sink from side to side to detach it.
92 Chapter 4 Removal and replacement procedures
Loading...
