HP 3115m Notebook PC
Maintenance and Service Guide
© Copyright 2011 Hewlett-Packard
Development Company, L.P.
AMD, the AMD Arrow logo, and
combinations thereof, are trademarks of
Advanced Micro Devices, Inc. Microsoft and
Windows are U.S. registered trademarks of
Microsoft Corporation. SD Logo is a
trademark of its proprietor.
The information contained herein is subject
to change without notice. The only
warranties for HP products and services are
set forth in the express warranty statements
accompanying such products and services.
Nothing herein should be construed as
constituting an additional warranty. HP shall
not be liable for technical or editorial errors
or omissions contained herein.
First Edition: November 2011
Document Part Number: 667975-001
Safety warning notice
WARNING! To reduce the possibility of heat-related injuries or of overheating the device, do not
place the device directly on your lap or obstruct the device air vents. Use the device only on a hard, flat
surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft surface,
such as pillows or rugs or clothing, to block airflow. Also, do not allow the AC adapter to contact
the skin or a soft surface, such as pillows or rugs or clothing, during operation. The device and the AC
adapter comply with the user-accessible surface temperature limits defined by the International
Standard for Safety of Information Technology Equipment (IEC 60950).
iii
iv Safety warning notice
Table of contents
1 Product description ........................................................................................................... 1
2 External component identification ..................................................................................... 4
Display ................................................................................................................................... 5
Buttons .................................................................................................................................... 6
Keys ....................................................................................................................................... 8
Lights ...................................................................................................................................... 9
TouchPad .............................................................................................................................. 10
Front ..................................................................................................................................... 10
Left side ................................................................................................................................ 11
Right side .............................................................................................................................. 12
Bottom .................................................................................................................................. 13
3 Illustrated parts catalog .................................................................................................. 14
Service tag ............................................................................................................................ 15
Computer major components ................................................................................................... 16
Display assembly subcomponents ............................................................................................. 19
Mass storage devices ............................................................................................................. 21
Miscellaneous parts ................................................................................................................ 22
Sequential part number listing .................................................................................................. 23
4 Removal and replacement procedures ............................................................................ 25
Preliminary replacement requirements ....................................................................................... 25
Tools required ......................................................................................................... 25
Service considerations ............................................................................................. 25
Plastic parts ............................................................................................. 25
Cables and connectors ............................................................................. 25
Drive handling ......................................................................................... 26
Grounding guidelines .............................................................................................. 26
Electrostatic discharge damage .................................................................. 26
Packaging and transporting guidelines ........................................ 28
v
Component replacement procedures ........................................................................................ 30
Service tag ............................................................................................................. 30
Computer feet ......................................................................................................... 31
Battery ................................................................................................................... 32
SIM ....................................................................................................................... 33
Display panel ......................................................................................................... 34
Webcamera module ................................................................................................ 35
WLAN module ........................................................................................................ 37
WWAN module ..................................................................................................... 39
RTC battery ............................................................................................................ 41
Hard drive ............................................................................................................. 43

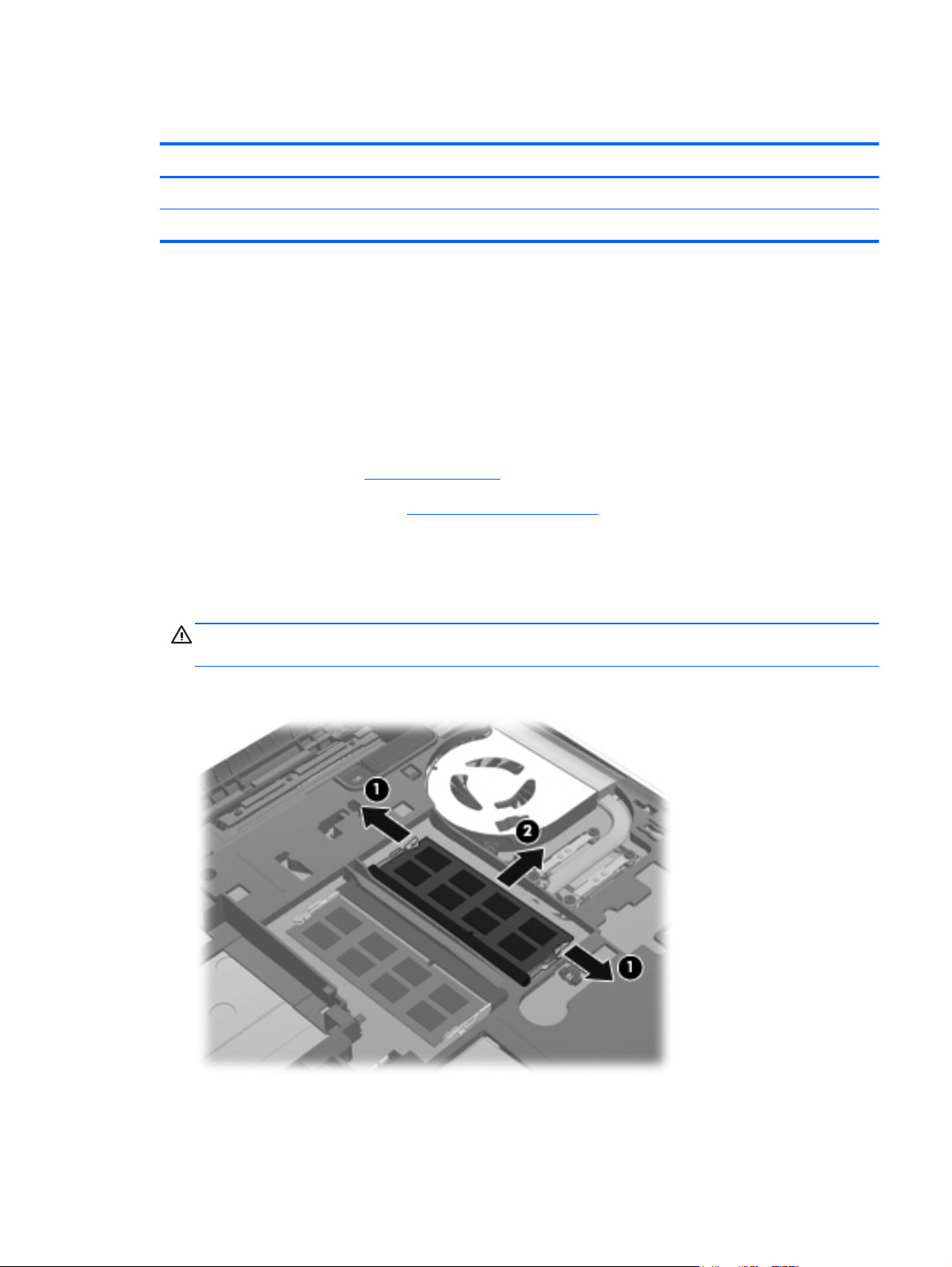

Memory module ...................................................................................................... 45
Keyboard ............................................................................................................... 46
Display assembly .................................................................................................... 49
Top cover ............................................................................................................... 53
Speakers ................................................................................................................ 55
TouchPad button board ............................................................................................ 57
System board ......................................................................................................... 58
Power connector cable ............................................................................................ 60
Fan ....................................................................................................................... 61
Heat sink ................................................................................................................ 63
5 Setup Utility (BIOS) and System Diagnostics .................................................................... 65
Using Setup Utility .................................................................................................................. 65
Starting Setup Utility ................................................................................................ 65
Changing the language of Setup Utility ...................................................................... 65
Navigating and selecting in Setup Utility .................................................................... 66
Displaying system information ................................................................................... 66
Restoring factory settings in Setup Utility ..................................................................... 67
Exiting Setup Utility ................................................................................................. 67
Updating the BIOS .................................................................................................. 67
Determining the BIOS version .................................................................... 68
Downloading a BIOS update ..................................................................... 68
Using System Diagnostics ........................................................................................................ 69
6 Specifications ................................................................................................................. 70
Computer specifications .......................................................................................................... 70
11.6-inch display specifications ............................................................................................... 71
Hard drive specifications ........................................................................................................ 72
vi
7 Backup and recovery ...................................................................................................... 73
Restore ................................................................................................................................. 73
Creating restore media ........................................................................................................... 74
Performing a system restore ..................................................................................................... 75
Restoring using the dedicated recovery partition (select models only) ............................. 75
Restoring using the restore media .............................................................................. 76
Changing the computer boot order ............................................................................ 76
Backing up and recovering your information ............................................................................. 77
Using Windows Backup and Restore ......................................................................... 78
Using Windows system restore points ........................................................................ 78
When to create restore points .................................................................... 78
Create a system restore point ..................................................................... 79
Restore to a previous date and time ............................................................ 79
8 Power cord set requirements .......................................................................................... 80
Requirements for all countries .................................................................................................. 80
Requirements for specific countries and regions ......................................................................... 81
9 Recycling ........................................................................................................................ 83
Index ................................................................................................................................. 84
vii
viii
1 Product description
Category Description
Product Name HP 3115m Notebook PC
Processors AMD® E450 1.65-GHz processor (1.0-MB L2 cache, 1333-MHz, dual core, 18 W)
AMD E300 1.30-GHz processor (1.0-MB L2 cache, 1066-MHz, dual core, 18 W)
Chipset AMD A50M fusion controller hub (FCH)
Graphics AMD Radeon™ HD 6320 discrete-class graphics on computer models equipped with an AMD
E450 1.65-GHz processor
AMD Radeon HD 6310 discrete-class graphics on computer models equipped with an AMD E300
1.00-GHz processor
Support for Blu-ray playback with HD decode and DX11 support
Panel 11.6-in, high-definition (HD), light-emitting diode (LED), BrightView (1366×768) display;
typical brightness: 200 nits
All display assemblies include 2 wireless local area network (WLAN) antenna cables
Supports 16:9 wide aspect ratio
Support for non-flush glass panel cover (non-PMMA)
Select computer model display assemblies include 2 wireless wide area network
(WWAN) antenna cables
Memory Two customer-accessible/upgradable memory module slots
DDR3-1066-MHz single channel support
Supports up to 4096 GB of system RAM
Supports the following configurations:
●
4096-MB total system memory (4096×1 or 2048×2)
●
2048-MB total system memory (2048×1)
Hard drives Supports 6.35-cm (2.5-in) hard drives in 9.5-mm (.37-in) and 7.0-mm (.28-in) thicknesses
Customer-accessible
Serial ATA (SATA)
Supports Accelerometer hard drive protection
1
Category Description
Supports the following hard drives:
●
500-GB, 5400-rpm, 7.0-mm
●
320-GB, 5400-rpm, 7.0-mm
Supports the following mSATA solid-state drives:
●
160-GB solid-state drive
●
128-GB solid-state drive
Optical drive External USB optical drive (computer USB ports support 2A current)
SATA
12.7mm tray load
Supports the following external optical drives:
●
Blu-ray ROM DVD±R/RW Super Multi Double-Layer Drive
●
DVD±RW and CD-RW Super Multi Double-Layer Combo Drive
Audio and video Single digital microphone
Beats Audio with Beats logo (support Beats hotkey [fn+b])
Two integrated stereo speakers
HP TrueVision high-definition webcam (fixed, no tilt, 1280×800 by 30 frames per second)
Ethernet Integrated Gigabit network interface card (NIC), PCIE interface
Wireless Integrated WLAN options by way of wireless module
Two WLAN antennas built into display assembly
Supports a Ralink 3592BC8 802.11a/b/g/n 2×2 WiFi and Bluetooth 3.0+HS Combo Adapter
WLAN module
Integrated WWAN options by way of wireless module
Two WWAN antennas built into display assembly (select models only)
Supports the HP hs2340 HSPA+ Mobile Broadband Module
External media card Push-push insertion/removal
HP Multi-Format Digital Media Reader supports the following digital card formats:
●
MultiMediaCard
●
Secure Digital (SD) Card
●
Secure Digital High-Capacity (SDHC) Card
●
Secure Digital Extended Capacity (SDxC) Card
Subscriber identity module (SIM) slot (populated with WWAN; toolless user accessible)
2 Chapter 1 Product description
Category Description
Ports
Keyboard/pointing
devices
TouchPad with multi-touch gestures
Taps enabled as default
Power requirements Supports a 65-W PFC RC V 3-wire HP Smart AC adapter
Supports a 6-cell, 55-Whr, 2.55-Ah Li-ion battery
Security Security cable slot
Operating system Preinstalled:
●
3-pin AC power
●
Audio-in (mono microphone), supports jack detection
●
Audio-out (stereo headphone), supports jack detection
●
HDMI version 1.3b supporting 1080p, 1920 ×1080 @ 60Hz
●
RJ-45 (Ethernet, includes link and activity lights)
●
USB 2.0 (3 ports)
●
VGA (Dsub 15 pin) supporting 2048×1536 external resolution @ 60 Hz, hot plug and unplug
and auto-detection for correct output to wide-aspect vs. standard aspect video
97% Duracoat, island-style keyboard, no spill-resistance (in charcoal and linen white finishes)
●
Windows 7 Home Basic (64- and 32-bit)
●
Windows 7 Home Premium (64- and 32-bit)
●
Windows 7 Professional (64- and 32-bit)
●
Windows 7 Starter 32-bit (only on computer models equipped with 2-GB memory)
●
DVD SSRD recovery solution
Serviceability End-user replaceable parts:
●
AC adapter
●
Battery
●
Hard drive
●
Memory modules (2)
●
SIM
●
Solid-state drive
●
WLAN module
●
WWAN module
3
2 External component identification
4 Chapter 2 External component identification
Display
Item Component Description
(1) Internal display switch Turns off the display or initiates Sleep if the display is
closed while the power is on.
NOTE: The display switch is not visible from the outside
of the computer.
(2) WLAN antennas (2)* Send and receive wireless signals to communicate
with WLANs.
(3) WWAN antennas (2)* (select models only) Send and receive wireless signals to communicate
with WWANs.
(4) Internal microphone Records sound.
(5) Webcam Records video and captures still photographs.
To use the webcam, select Start > All Programs >
CyberLink and Chat > CyberLink YouCam.
(6) Webcam light On: The webcam is in use.
*The antennas are not visible from the outside of the computer. For optimal transmission, keep the areas immediately around
the antennas free from obstructions. To see wireless regulatory notices, refer to the section of the Regulatory, Safety and
Environmental Notices that applies to your country or region. These notices are located in Help and Support.
Display
5
Buttons
6 Chapter 2 External component identification
Item Component Description
(1) Power button
(2) QuickWeb button (select models only)
●
When the computer is off, press the button to turn on
the computer.
●
When the computer is on, press the button briefly to
initiate Sleep.
●
When the computer is in the Sleep state, press the
button briefly to exit Sleep.
●
When the computer is in Hibernation, press the
button briefly to exit Hibernation.
If the computer has stopped responding and Windows
shutdown procedures are ineffective, press and hold the
power button for at least 5 seconds to turn off
the computer.
To learn more about your power settings, select Start >
Control Panel > System and Security > Power
Options, or refer to the HP Notebook Reference Guide.
●
When the computer is off or in Hibernation, press
the button to open HP QuickWeb.
●
When the computer is in Microsoft Windows, press
the button to open the default Web browser.
●
When the computer is in HP QuickWeb, press the
button to open the Web browser.
QuickWeb allows you to browse the Internet,
communicate with others using Skype, and explore other
HP QuickWeb programs. When the computer is off or in
Hibernation, you can press the QuickWeb button to
access these features without waiting for the operating
system to start.
NOTE: For more information, refer to the HP
QuickWeb software Help. If your computer does not
have HP QuickWeb software, the button does not start
QuickWeb or perform any action or function
in QuickWeb.
Buttons
7
Keys
Item Component Description
(1) esc key Displays system information when pressed in combination
with the fn key.
(2) fn key Displays system information when pressed in combination
with the esc key.
(3) Windows logo key Displays the Windows Start menu.
(4) Windows applications key Displays a shortcut menu for items beneath the pointer.
(5) Action keys Execute frequently used system functions.
8 Chapter 2 External component identification
Lights
Item Component Description
(1) Power light
(2) Mute light
(3) Wireless light
(4) Caps lock light On: Caps lock is on.
(5) TouchPad light
●
White: The computer is on.
●
Blinking white: The computer is in the Sleep state.
●
Off: The computer is off or in Hibernation.
●
Amber: Computer sound is off.
●
Off: Computer sound is on.
●
White: An integrated wireless device, such as a
WLAN device and/or a Bluetooth device, is on.
●
Amber: All wireless devices are off.
●
On: The TouchPad is on.
●
Off: The TouchPad is off.
Lights
9
TouchPad
Item Component Description
Front
(1) TouchPad light
(2) TouchPad on/off button Turns the TouchPad on and off. Quickly double-tap the
(3) TouchPad zone Moves the pointer and selects or activates items on
(4) TouchPad left button Functions like the left button on an external mouse.
(5) TouchPad right button Functions like the right button on an external mouse.
Component Description
Speakers (2) Produce sound.
●
On: The TouchPad is off.
●
Off: The TouchPad is on.
TouchPad on/off button to turn the TouchPad on and off.
the screen.
10 Chapter 2 External component identification
Left side
Item Component Description
(1) Power connector Connects an AC adapter.
(2) Battery light
(3) Security cable slot Attaches an optional security cable to the computer.
(4) Vent Enables airflow to cool internal components.
(5) Hard drive light
●
White: The computer is connected to external
power. If a battery installed, the battery is
fully charged.
●
Amber: The computer is connected to external
power and the battery is charging.
●
Off: The computer is not connected to
external power.
●
Blinking: The computer is in the Sleep state.
NOTE: The security cable is designed to act as a
deterrent, but it may not prevent the computer from being
mishandled or stolen.
NOTE: The computer fan starts up automatically to cool
internal components and prevent overheating. It is normal
for the internal fan to cycle on and off during
routine operation.
●
Blinking white: The hard drive is being accessed.
●
Amber: HP ProtectSmart Hard Drive Protection has
temporarily parked the hard drive.
NOTE: For information on HP ProtectSmart Hard
Drive Protection, refer to the HP Notebook
Reference Guide.
(6) HDMI port (select models only) Connects an optional video or audio device, such as a
high-definition television, or any compatible digital or
audio component.
(7) USB port (2) Connects an optional USB device.
Left side
11
Right side
Item Component Description
(1) Digital Media Slot Supports the following digital card formats:
(2) Audio-out (headphone) jack Produce sound when connected to optional powered
●
MultiMediaCard
●
SD Card
●
Secure Digital High-Capacity (SDHC) Card
●
Secure Digital Extended Capacity (SDxC) Card
stereo speakers, headphones, ear buds, a headset, or
television audio.
WARNING! To reduce the risk of personal injury,
adjust the volume before putting on headphones,
earbuds, or a headset. For additional safety information,
refer to the Regulatory, Safety, and
Environmental Notices.
NOTE: When a device is connected to the jack, the
computer speakers are disabled.
(3) Audio-in (microphone) jack Connects an optional computer headset microphone,
stereo array microphone, or monaural microphone.
(4) USB 2.0 ports (2) Connect optional USB 2.0 devices.
(5) External monitor port Connects an external VGA monitor or projector.
(6) RJ-45 (network) jack Connects a network cable.
12 Chapter 2 External component identification
Bottom
Item Component Description
(1) Battery bay Holds the battery.
(2) SIM slot (select models only) Supports a wireless subscriber identity module (SIM). The
SIM slot is located inside the battery bay.
(3) Battery/service cover latch Releases the battery from the battery bay.
(4) Vent Enables airflow to cool internal components.
NOTE: The computer fan starts up automatically to cool
internal components and prevent overheating. It is normal
for the internal fan to cycle on and off during
routine operation.
(5) Service cover Provides access to the hard drive bay, a memory module
slot, the SIM slot (select models only), the WLAN module,
and the WWAN module (select models only).
Bottom
13
3 Illustrated parts catalog
14 Chapter 3 Illustrated parts catalog
Service tag
When ordering parts or requesting information, provide the computer serial number and model
description provided on the service tag.
Item Description Function
(1) Product name This is the product name affixed to the front of
the computer.
(2) Serial number (s/n) This is an alphanumeric identifier that is unique to
each product.
(3) Part number/Product number (p/n) This number provides specific information about the
product's hardware components. The part number
helps a service technician to determine what
components and parts are needed.
(4) Warranty period This number describes the duration of the warranty
period for the computer.
(5) Model description This is the alphanumeric identifier used to locate
documents, drivers, and support for the computer.
Service tag
15
Computer major components
16 Chapter 3 Illustrated parts catalog
Item Component Spare part number
(1) Display assembly: The display assembly is spared at the subcomponent level only. For display assembly spare
part information, see
(2) Keyboard in charcoal finish (includes keyboard cable):
For use in Brazil 659500-201
For use in Canada 659500-121
For use in Latin America 659500-161
For use in the United States 659500-001
Display assembly subcomponents on page 19.
(3) Top cover in charcoal finish (includes power button board and cable and TouchPad
and TouchPad cable):
(4) Speakers (includes cables) 659508-001
(5) TouchPad button board (includes cable) 664993-001
(6) System board (includes processor and replacement thermal material):
For use only with computer models equipped with an AMD E450 processor and
WWAN capability
For use only with computer models equipped with an AMD E450 processor but not
WWAN capability
For use only with computer models equipped with an AMD E300 processor and
WWAN capability
For use only with computer models equipped with an AMD E300 processor but not
WWAN capability
(7) Power connector cable (includes bracket) 664995-001
(8) Heat sink (includes replacement thermal material) 664999-001
(9) Fan 665000-001
(10) Base enclosure (includes battery release latch) 659496-001
(11) RTC battery:
659513-001
659512-001
659511-001
659510-001
659509-001
For use only on computer models with WWAN compatibility 664994-001
For use only on computer models without WWAN compatibility 599516-001
(12) Memory modules (2, PC3, 10600, 1333-MHz):
4 GB 621569-001
2 GB 621565-001
(13) HP hs2340 HSPA+ Mobile Broadband Module WWAN module 632155-001
(14) Ralink 3592BC8 802.11a/b/g/n 2×2 WiFi and Bluetooth 3.0+HS
Combo Adapter
(15) Hard drive (does not include the hard drive bracket, connector cable, isolators, or screws. These components are
included in the Hard Drive Hardware Kit, spare part number 664913-001):
500-GB, 5400-rpm, SATA, 7.0-mm 669299-001
630813-001
Computer major components
17
Item Component Spare part number
320-GB, 5400-rpm, SATA, 7.0-mm 645193-001
Solid-state drive:
160-GB solid-state drive 659933-001
128-GB solid-state drive 675097-001
Hard Drive Hardware Kit (not illustrated, includes the hard drive bracket,
connector cable, isolators, and screws)
NOTE: See
Kit information.
(16) Service cover in charcoal finish (includes two rubber feet and shielding): 659503-001
(17) Rubber Kit (includes two rear corner covers and two rubber feet) 664996-001
(18) 6-cell, 55-Whr, 2.55-Ah Li-ion battery 646757-001
Mass storage devices on page 21 for more Hard Drive Hardware
664913-001
18 Chapter 3 Illustrated parts catalog
Display assembly subcomponents
Item Component Spare part number
(1) Display bezel (includes display lid switch magnet) 669025-001
(2) Webcamera module 659516-001
Display Hinge Kit,includes: 659499-001
(3a) Left and right hinges
(3b) Left and right hinge brackets
(4) 11.6-in, LED, HD, BrightView SVA display panel 668353-001
Display assembly subcomponents
19
Item Component Spare part number
(5) Display Cable Kit (includes display panel cable and webcamera module cable) 659498-001
(6) Wireless Antenna Kit (includes left and right WLAN antenna cables
and transceivers and left and right WWAN antenna cables and transceivers)
(7) Display enclosure (in charcoal finish):
For use with computer models equipped with WLAN only capability (includes WLAN
antenna cables and transceivers):
For use with computer models equipped with WLAN and WWAN capability (WLAN
antenna cables and transceivers and WWAN antenna cables and transceivers):
659492-001
659493-001
671685-001
20 Chapter 3 Illustrated parts catalog
Mass storage devices
Item Component Spare part number
(1) Hard drive (does not include the hard drive bracket, connector cable, isolators, or screws):
500-GB, 5400-rpm, SATA, 7.0-mm 669299-001
320-GB, 5400-rpm, SATA, 7.0-mm 645193-001
(2) Solid-state drive:
160-GB solid-state drive 659933-001
128-GB solid-state drive 675097-001
Hard Drive Hardware Kit, includes:
(3a) Hard drive bracket
(3b) Hard drive connector cable
(3c) Hard drive isolators
Mass storage devices
21
Item Component Spare part number
Screws (not illustrated)
(4) External optical drive:
Blu-ray ROM DVD±R/RW Super Multi Double-Layer Drive 659941-001
DVD±RW and CD-RW Super Multi Double-Layer Combo Drive 659940-001
Miscellaneous parts
Component Spare part number
65-W PFC RC V 3-wire HP Smart AC adapter 609939-001
HP lock:
HP keyed cable lock 626729-001
HP notebook combination lock 591699-001
HP USB optical mouse 434594-001
Power cord (3-pin, black, 1.83-m):
For use in Argentina 490371-D01
For use in Brazil 490371-202
For use in North America 490371-001
Screw Kit 659507-001
22 Chapter 3 Illustrated parts catalog
Sequential part number listing
Spare part number Description
434594-001 HP USB optical mouse
490371-001 Power cord for use in North America (3-pin, black, 1.83-m)
490371-202 Power cord for use in Brazil (3-pin, black, 1.83-m)
490371-D01 Power cord for use in Argentina (3-pin, black, 1.83-m)
591699-001 HP notebook combination lock
599516-001 RTC battery for use only with computer models without WWAN capability
609939-001 HP Smart AC Adapter RC V 3-wire for use in all countries and regions except India
621565-001 2-GB memory module (PC3, 10600, 1333-MHz)
621569-001 4-GB memory module (PC3, 10600, 1333-MHz)
626729-001 HP keyed cable lock
630813-001 Ralink 3592BC8 802.11a/b/g/n 2×2 WiFi and Bluetooth 3.0+HS Combo Adapter
632155-001 HP hs2340 HSPA+ Mobile Broadband Module
645193-001 320-GB, 5400-rpm hard drive only (does not include bracket, connector cable, isolators, or screws;
SATA, 7.0-mm)
646757-001 6-cell, 55-Whr, 2.55-Ah Li-ion battery
659492-001 Wireless Antenna Kit (inclues WLAN and WWAN antenna cables and transceivers)
659493-001 Display enclosure for use with computer models equipped with WLAN only capability in charcoal
finish (includes WLAN antenna cables and transceivers)
659496-001 Base enclosure (includes battery release latch)
659498-001 Display Cable Kit (includes display panel cable and webcamera module cable)
659499-001 Display Hinge Kit (includes left and right display hinges)
659500-001 Keyboard in charcoal finish for use in the United States (includes keyboard cable)
659500-121 Keyboard in charcoal finish for use in Canada (includes keyboard cable)
659500-161 Keyboard in charcoal finish for use in Latin America (includes keyboard cable)
659500-201 Keyboard in charcoal finish for use in Brazil (includes keyboard cable)
659503-001 Service cover in charcoal finish (includes two rubber feet and shielding)
659507-001 Screw Kit
659508-001 Speaker Kit (includes left and right speakers and cable)
659509-001 System board for use only with computer models equipped with an AMD E300 processor but not
WWAN capability (includes processor and replacement thermal material)
659510-001 System board for use only with computer models equipped with an AMD E300 processor and
WWAN capability (includes processor and replacement thermal material)
Sequential part number listing
23
Spare part number Description
659511-001 System board for use only with computer models equipped with an AMD E450 processor but not
WWAN capability (includes processor and replacement thermal material)
659512-001 System board for use only with computer models equipped with an AMD E450 processor and
WWAN capability (includes processor and replacement thermal material)
659513-001 Top cover in charcoal finish (includes power button board and cable and TouchPad and
TouchPad cable)
659516-001 Webcamera module (includes double-sided adhesive)
659933-001 160-GB solid-state drive only (does not include bracket, connector cable, isolators, or screws)
659940-001 External DVD±RW and CD-RW Super Multi Double-Layer Combo Drive
659941-001 External Blu-ray ROM DVD±R/RW Super Multi Double-Layer Drive
664913-001 Hard Drive Hardware Kit (includes bracket, connector cable, isolators, and screws)
664993-001 TouchPad button board (includes cable)
664994-001 RTC battery for use only with computer models with WWAN capability
664995-001 Power connector cable (includes bracket)
664996-001 Rubber Kit (includes two rear corner covers and two rubber feet)
664999-001 Heat sink (includes replacement thermal material)
665000-001 Fan
668353-001 11.6-in, LED, HD, BrightView SVA display panel
669025-001 Display bezel (includes display lid switch magnet)
669299-001 500-GB, 5400-rpm hard drive only (does not include bracket, connector cable, isolators, or screws;
SATA, 7.0-mm)
671685-001 Display enclosure for use with computer models equipped with WLAN and WWAN capability in
charcoal finish (includes WLAN antenna cables and transceivers and WWAN antenna cables and
transceivers)
675097-001 128-GB solid-state drive only (does not include bracket, connector cable, isolators, or screws)
24 Chapter 3 Illustrated parts catalog
4 Removal and replacement
procedures
Preliminary replacement requirements
Tools required
You will need the following tools to complete the removal and replacement procedures:
●
Flat-bladed screwdriver
●
Magnetic screwdriver
●
Phillips P0 and P1 screwdrivers
Service considerations
The following sections include some of the considerations that you must keep in mind during
disassembly and assembly procedures.
NOTE: As you remove each subassembly from the computer, place the subassembly (and all
accompanying screws) away from the work area to prevent damage.
Plastic parts
CAUTION: Using excessive force during disassembly and reassembly can damage plastic parts. Use
care when handling the plastic parts. Apply pressure only at the points designated in the
maintenance instructions.
Cables and connectors
CAUTION: When servicing the computer, be sure that cables are placed in their proper locations
during the reassembly process. Improper cable placement can damage the computer.
Cables must be handled with extreme care to avoid damage. Apply only the tension required to unseat
or seat the cables during removal and insertion. Handle cables by the connector whenever possible. In
all cases, avoid bending, twisting, or tearing cables. Be sure that cables are routed in such a way that
they cannot be caught or snagged by parts being removed or replaced. Handle flex cables with
extreme care; these cables tear easily.
Preliminary replacement requirements
25
Drive handling
CAUTION: Drives are fragile components that must be handled with care. To prevent damage to
the computer, damage to a drive, or loss of information, observe these precautions:
Before removing or inserting a hard drive, shut down the computer. If you are unsure whether
the computer is off or in Hibernation, turn the computer on, and then shut it down through the
operating system.
Before handling a drive, be sure that you are discharged of static electricity. While handling a drive,
avoid touching the connector.
Before removing a diskette drive or optical drive, be sure that a diskette or disc is not in the drive and
be sure that the optical drive tray is closed.
Handle drives on surfaces covered with at least one inch of shock-proof foam.
Avoid dropping drives from any height onto any surface.
After removing a hard drive, an optical drive, or a diskette drive, place it in a static-proof bag.
Avoid exposing an internal hard drive to products that have magnetic fields, such as monitors
or speakers.
Avoid exposing a drive to temperature extremes or liquids.
If a drive must be mailed, place the drive in a bubble pack mailer or other suitable form of protective
packaging and label the package “FRAGILE.”
Grounding guidelines
Electrostatic discharge damage
Electronic components are sensitive to electrostatic discharge (ESD). Circuitry design and structure
determine the degree of sensitivity. Networks built into many integrated circuits provide some
protection, but in many cases, ESD contains enough power to alter device parameters or melt
silicon junctions.
A discharge of static electricity from a finger or other conductor can destroy static-sensitive devices or
microcircuitry. Even if the spark is neither felt nor heard, damage may have occurred.
An electronic device exposed to ESD may not be affected at all and can work perfectly throughout a
normal cycle. Or the device may function normally for a while, then degrade in the internal layers,
reducing its life expectancy.
26 Chapter 4 Removal and replacement procedures
CAUTION: To prevent damage to the computer when you are removing or installing internal
components, observe these precautions:
Keep components in their electrostatic-safe containers until you are ready to install them.
Before touching an electronic component, discharge static electricity by using the guidelines described
in this section.
Avoid touching pins, leads, and circuitry. Handle electronic components as little as possible.
If you remove a component, place it in an electrostatic-safe container.
The following table shows how humidity affects the electrostatic voltage levels generated by
different activities.
CAUTION: A product can be degraded by as little as 700 V.
Typical electrostatic voltage levels
Relative humidity
Event 10% 40% 55%
Walking across carpet 35,000 V 15,000 V 7,500 V
Walking across vinyl floor 12,000 V 5,000 V 3,000 V
Motions of bench worker 6,000 V 800 V 400 V
Removing DIPS from plastic tube 2,000 V 700 V 400 V
Removing DIPS from vinyl tray 11,500 V 4,000 V 2,000 V
Removing DIPS from Styrofoam 14,500 V 5,000 V 3,500 V
Removing bubble pack from PCB 26,500 V 20,000 V 7,000 V
Packing PCBs in foam-lined box 21,000 V 11,000 V 5,000 V
Preliminary replacement requirements
27
Packaging and transporting guidelines
Follow these grounding guidelines when packaging and transporting equipment:
●
To avoid hand contact, transport products in static-safe tubes, bags, or boxes.
●
Protect ESD-sensitive parts and assemblies with conductive or approved containers or packaging.
●
Keep ESD-sensitive parts in their containers until the parts arrive at static-free workstations.
●
Place items on a grounded surface before removing items from their containers.
●
Always be properly grounded when touching a component or assembly.
●
Store reusable ESD-sensitive parts from assemblies in protective packaging or
nonconductive foam.
●
Use transporters and conveyors made of antistatic belts and roller bushings. Be sure that
mechanized equipment used for moving materials is wired to ground and that proper materials
are selected to avoid static charging. When grounding is not possible, use an ionizer to dissipate
electric charges.
Workstation guidelines
Follow these grounding workstation guidelines:
●
Cover the workstation with approved static-shielding material.
●
Use a wrist strap connected to a properly grounded work surface and use properly grounded tools
and equipment.
●
Use conductive field service tools, such as cutters, screwdrivers, and vacuums.
●
When fixtures must directly contact dissipative surfaces, use fixtures made only of staticsafe materials.
●
Keep the work area free of nonconductive materials, such as ordinary plastic assembly aids
and Styrofoam.
●
Handle ESD-sensitive components, parts, and assemblies by the case or PCM laminate. Handle
these items only at static-free workstations.
●
Avoid contact with pins, leads, or circuitry.
●
Turn off power and input signals before inserting or removing connectors or test equipment.
28 Chapter 4 Removal and replacement procedures
Equipment guidelines
Grounding equipment must include either a wrist strap or a foot strap at a grounded workstation.
●
When seated, wear a wrist strap connected to a grounded system. Wrist straps are flexible straps
with a minimum of one megohm ±10% resistance in the ground cords. To provide proper ground,
wear a strap snugly against the skin at all times. On grounded mats with banana-plug connectors,
use alligator clips to connect a wrist strap.
●
When standing, use foot straps and a grounded floor mat. Foot straps (heel, toe, or boot straps)
can be used at standing workstations and are compatible with most types of shoes or boots. On
conductive floors or dissipative floor mats, use foot straps on both feet with a minimum of one
megohm resistance between the operator and ground. To be effective, the conductive must be
worn in contact with the skin.
The following grounding equipment is recommended to prevent electrostatic damage:
●
Antistatic tape
●
Antistatic smocks, aprons, and sleeve protectors
●
Conductive bins and other assembly or soldering aids
●
Nonconductive foam
●
Conductive tabletop workstations with ground cords of one megohm resistance
●
Static-dissipative tables or floor mats with hard ties to the ground
●
Field service kits
●
Static awareness labels
●
Material-handling packages
●
Nonconductive plastic bags, tubes, or boxes
●
Metal tote boxes
●
Electrostatic voltage levels and protective materials
The following table lists the shielding protection provided by antistatic bags and floor mats.
Material Use Voltage protection level
Antistatic plastics Bags 1,500 V
Carbon-loaded plastic Floor mats 7,500 V
Metallized laminate Floor mats 5,000 V
Preliminary replacement requirements
29
Component replacement procedures
This chapter provides removal and replacement procedures.
There are as many as 44 screws that must be removed, replaced, or loosened when servicing
the computer. Make special note of each screw size and location during removal and replacement.
Service tag
When ordering parts or requesting information, provide the computer serial number and model number
provided on the service tag. The battery must be removed to access the service tag. See
on page 32 for battery removal procedures.
Battery
Item Component Description
(1) Product name This is the product name affixed to the front of
(2) Serial number (s/n) This is an alphanumeric identifier that is unique to
30 Chapter 4 Removal and replacement procedures
the computer.
each product.
Item Component Description
(3) Part number/Product number (p/n) This number provides specific information about the
(4) Warranty period This number describes the duration of the warranty
(5) Model description This is the alphanumeric identifier used to locate
Computer feet
The computer feet are adhesive-backed rubber pads. There are 2 oblong rubber feet that attach to the
rear corner covers as indicated in the following illustration. These feet are available in the Rubber Kit,
spare part number 664996-001.
product’s hardware components. The part number helps
a service technician determine what components and
parts are needed.
period for the computer.
documents, drivers, and support for the computer.
Component replacement procedures
31
Battery
Description Spare part number
6-cell, 55-Whr, 2.55-Ah Li-ion battery 646757-001
Before disassembling the computer, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
Remove the battery:
1. Slide the battery/service cover latch (1) to release the battery.
2. Pivot the front edge of the battery (2) up and back.
3. Remove the battery from the computer.
To insert the battery:
1. Align the tabs on the rear edge of the battery with the notches on the rear edge of the battery bay.
2. Pivot the front edge of the battery down into the battery bay until it is seated. (The battery release
latch will automatically lock into place.)
32 Chapter 4 Removal and replacement procedures
SIM
NOTE: The SIM is provided by the end-user as a security measure for the WWAN module. The SIM
should be removed, placed into a static-dissipative container, and then replaced when the computer
is reassembled.
Before removing the SIM, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4. Remove the battery (see
Remove the SIM:
1. Press in on the SIM (1) to release it from the SIM slot.
2. Remove the SIM (2) from the SIM slot.
Battery on page 32).
Insert the SIM into the SIM slot, and gently push the SIM into the slot until it is firmly seated.
Component replacement procedures
33
Display panel
Description Spare part number
11.6-in, LED, HD, BrightView SVA display panel 668353-001
Before removing the display panel, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4. Remove the battery (see
5. Remove the service cover (see
Battery on page 32).
WLAN module on page 37).
Remove the display panel:
1. Turn the computer right-side up, with the front toward you.
2. Open the computer.
3. Flex the inside edges of the top edge (1), the left and right sides (2), and the bottom edge (3) of
the display bezel until the bezel disengages from the display enclosure.
4.
Remove the display bezel (4). The display bezel includes the display hinge covers and the lid
switch magnet and is available using spare part number 669025-001.
5.
Remove the four Phillips PM2.0×3.6 screws (1) that secure the display panel to the
display enclosure.
34 Chapter 4 Removal and replacement procedures
6.
Swing the top edge of the display panel (2) forward until it rests on the keyboard.
7.
Detach the adhesive strip (3) that secures the display panel cable to the display panel.
8.
Disconnect the display panel cable (4) from the display panel.
9. Remove the display panel.
Reverse this procedure to install the display bezel and panel.
Webcamera module
Description Spare part number
Webcamera module 659516-001
Before removing the webcamera module, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4. Remove the battery (see
5. Remove the display bezel (see
Battery on page 32).
Display panel on page 34).
6. Remove the display panel (see
Display panel on page 34).
Component replacement procedures
35
Remove the webcamera module:
1. Release the webcamera module (1) from the display enclosure. (The webcamera module is
attached to the display enclosure with double-sided tape)
2. Disconnect the webcamera module cable (2) from the webcamera module.
3. Remove the webcamera module.
Reverse this procedure to install the webcamera module.
36 Chapter 4 Removal and replacement procedures
WLAN module
Description Spare part number
Ralink 3592BC8 802.11a/b/g/n 2×2 WiFi and Bluetooth 3.0+HS Combo Adapter 630813-001
CAUTION: To prevent an unresponsive system, replace the wireless module only with a wireless
module authorized for use in the computer by the governmental agency that regulates wireless devices
in your country or region. If you replace the module and then receive a warning message, remove the
module to restore device functionality, and then contact technical support.
Before removing the WLAN module, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4.
Remove the battery (see
Remove the WLAN module:
Battery on page 32).
1. Firmly slide and hold the battery/service cover latch (1) to the left to release the service cover,
and then slide the service cover (2) toward the front of the computer as far as it will slide.
2. Remove the service cover (3) by lifting it straight up.
Component replacement procedures
37
3.
Remove the service cover. The service cover is available using spare part number 659503-001.
4. Disconnect the WLAN antenna cables (1) from the terminals on the WLAN module.
NOTE: The #1 WLAN antenna cable is connected to the WLAN module #1 terminal. The #2
WLAN antenna cable is connected to the WLAN module #2 terminal.
5. Remove the Phillips PM2.0×3.7 screw (2) that secures the WLAN module to the system board.
(The WLAN module tilts up.)
6. Remove the WLAN module by pulling the module away from the slot at an angle (3).
NOTE: WLAN modules are designed with a notch (4) to prevent incorrect insertion into the
memory module slot.
NOTE: If the WLAN antennas are not connected to the terminals on the WLAN module, the protective
sleeves must be installed on the antenna connectors, as shown in the following illustration.
Reverse this procedure to install the WLAN module.
38 Chapter 4 Removal and replacement procedures
WWAN module
NOTE: This section applies only to computer models equipped with an Intel processor.
Description Spare part number
HP hs2340 HSPA+ Mobile Broadband Module 632155-001
CAUTION: To prevent an unresponsive system, replace the wireless module only with a wireless
module authorized for use in the computer by the governmental agency that regulates wireless devices
in your country or region. If you replace the module and then receive a warning message, remove the
module to restore device functionality, and then contact technical support.
Before removing the WWAN module, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4. Remove the battery (see
5. Remove the service cover (see
Battery on page 32).
WLAN module on page 37).
Remove the WWAN module:
1. Disconnect the WWAN antenna cables (1) from the terminals on the WWAN module.
NOTE: The red WLAN antenna cable is connected to the WWAN module #1 terminal. The blue
WWAN antenna cable is connected to the WWAN module #2 terminal.
2. Remove the Phillips PM2.0×3.7 screw (2) that secures the WWAN module to the system board.
(The WWAN module tilts up.)
Component replacement procedures
39
3.
Remove the WWAN module by pulling the module away from the slot at an angle (3).
NOTE: WWAN modules are designed with a notch (4) to prevent incorrect insertion into the
memory module slot.
NOTE: If the WWAN antennas are not connected to the terminals on the WWAN module, the
protective sleeves must be installed on the antenna connectors, as shown in the following illustration.
Reverse this procedure to install the WWAN module.
40 Chapter 4 Removal and replacement procedures
RTC battery
Description Spare part number
For use only on computer models with WWAN compatibility 664994-001
For use only on computer models without WWAN compatibility 599516-001
Before removing the RTC battery, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4. Remove the battery (see
5. Remove the service cover (see
Battery on page 32).
WLAN module on page 37).
Remove the RTC battery:
NOTE: Steps 1 and 2 apply to computer models with WWAN capability. See step 3 for RTC battery
removal information on computer models without WLAN capability.
1. Disconnect the RTC battery cable (1) from the system board.
Component replacement procedures
41
2.
Remove the RTC battery (2). (The RTC battery is attached to the system board with doublesided tape.)
Reverse this procedure to install the RTC battery on a computer model with WWAN capability.
NOTE: Step 3 applies to computer models without WLAN capability. See steps 1 and 2 for RTC
battery removal information on computer models with WWAN capability.
3. Use a thin, non-conductive tool to remove the RTC battery from the socket on the system board.
Reverse this procedure to install the RTC battery on computer models with WLAN capability. When
installing the RTC battery, make sure the “+” sign faces up.
42 Chapter 4 Removal and replacement procedures
Hard drive
NOTE: The hard drive spare part kit does not include the hard drive bracket, connector cable,
isolators, or screws. These components are included in the Hard Drive Hardware Kit, spare part
number 664913-001.
Description Spare part number
500-GB, 5400-rpm, SATA, 7.0-mm 669299-001
320-GB, 5400-rpm, SATA, 7.0-mm 645193-001
Before removing the hard drive, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4. Remove the battery (see
5. Remove the service cover (see
Battery on page 32).
WLAN module on page 37).
Remove the hard drive:
1. Disconnect the hard drive connector cable (1) from the system board.
2. Remove the Phillips PM2.5×5.7 screw (2) that secures the hard drive to the computer.
3. Use the tab (3) on the hard drive bracket to lift the left side of the hard drive until it rests at
an angle.
Component replacement procedures
43
4.
Slide the hard drive (4) up and to left at an angle and out of the hard drive bay.
5. If it is necessary to replace the connector cable (1), the screws (2), the bracket (3), or the
isolators (4), remove and replace the components. The bracket, connector cable, isolators, and
screws are available in the Hard Drive Hardware Kit, spare part number 664913-001.
Reverse this procedure to reassemble and install the hard drive.
44 Chapter 4 Removal and replacement procedures
Memory module
Description Spare part number
4-GB memory module (PC3, 10600, 1333-MHz) 621569-001
2-GB memory module (PC3, 10600, 1333-MHz) 621565-001
Before removing a memory module, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4. Remove the battery (see
5. Remove the service cover (see
Battery on page 32).
WLAN module on page 37).
Remove the memory module:
1. Spread the retaining tabs (1) on each side of the memory module slot to release the
memory module. (The memory module tilts up.)
CAUTION: To prevent damage to the memory module, hold it by the edges only. Do not touch
the components on the memory module.
2. Remove the memory module (2) by pulling it away from the slot at an angle.
Reverse this procedure to install a memory module.
Component replacement procedures
45
Keyboard
NOTE: The keyboard spare part kit includes a keyboard cable.
For use in country or region: Spare part number: For use in country or region: Spare part number:
Keyboard in charcoal finish:
For use in Brazil 659500-201 For use in Latin America 659500-161
For use in Canada 659500-121 For use in the United States 659500-001
Before removing the keyboard, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet
the computer on, and then shut it down through the operating system.
and then unplugging the AC adapter from the computer.
4. Remove the battery (see
5. Remove the service cover (see
Battery on page 32).
WLAN module on page 37).
Remove the keyboard:
1. Remove the two rubber feet (1) that are attached to the rear corner covers. The rubber feet are
attached to the rear corner covers by double-sided tape and are included in the Rubber Kit, spare
part number 664996-001.
2. Remove the two Phillips PM2.0×5.7 screws (2) that secure the rear corner covers to the computer.
3. Remove the rear corner covers (3). The rear corner covers are included in the Rubber Kit, spare
part number 664996-001.
46 Chapter 4 Removal and replacement procedures
4.
Remove the three Phillips PM2.0×5.7 screws that secure the keyboard to the computer.
5. Rest and secure the computer on its right side.
6. Partially open the computer.
7.
Insert a screwdriver or similar thin tool into the keyboard release opening, and then press on the
back of the keyboard until the keyboard disengages from the computer.
Component replacement procedures
47
8.
Turn the computer right-side up with the front toward you.
9. Lift the rear edge of the keyboard (1), and then swing the keyboard up and forward until it rests
upside down on the palm rest.
10. Release the zero insertion force (ZIF) connector (2) to which the keyboard cable is attached, and
then disconnect the keyboard cable (3) from the system board.
11. Remove the keyboard (3).
Reverse this procedure to install the keyboard.
48 Chapter 4 Removal and replacement procedures
Display assembly
NOTE: The display assembly subcomponents are spared as individual components.
Before removing the display assembly subcomponents, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4. Remove the battery (see
5. Remove the service cover (see
6. Remove the rear covers (see
Remove the display assembly subcomponents:
1.
Release the wireless antenna cables (1) from the clips (2) and routing channel built into the
base enclosure.
2. Disconnect the display panel cable (3) from the system board.
3. Release the display panel cable (4) from the clip built into the base enclosure.
Battery on page 32).
WLAN module on page 37).
Keyboard on page 46).
4. Remove the two Phillips PM2.0×5.7 screws (1) that secure the display assembly to the computer.
Component replacement procedures
49
5.
Remove the display assembly (2).
NOTE: See Display panel on page 34 and Webcamera module on page 35 for display bezel,
display panel, and webcamera module removal procedures.
6. If it is necessary to replace the hinges:
a. Remove the display assembly.
b. Remove the display bezel.
c.
Remove the display panel.
d.
Remove the four Phillips PM2.0×4.2 (1) screws that secure the hinges to the
display enclosure.
50 Chapter 4 Removal and replacement procedures
e.
Remove the hinges (2). The hinges are available in the Display Hinge Kit, spare part number
659499-001.
7. If it is necessary to replace the display panel cable:
a. Remove the display assembly.
b. Remove the display bezel.
c. Remove the display panel.
d.
Remove the left display hinge.
e. Release the webcamera cable (1) from the display enclosure. (The webcamera cable is
attached to the display enclosure with double-sided tape.)
f. Release the display panel cable from the clip (2) built into the display enclosure near the left
display hinge area.
Component replacement procedures
51
g.
Remove the display panel cable (3). The display panel cable is available in the Display
Cable Kit, spare part number 659498-001.
8. If it is necessary to replace the wireless antenna cables and transceivers:
a. Remove the display assembly.
b. Remove the display bezel.
c. Remove the display panel.
d. Remove the display hinges.
e. Remove the Phillips PM2.0×4.2 screw (1) that secures the right enclosure bracket to the
display enclosure.
f. Remove the left and right enclosure brackets (2). The left and right display enclosure brackets
are included in the Display Hinge Kit, spare part number 659499-001.
g. Release the wireless antenna cables (3) from the clips (4) and routing channels built into the
display enclosure.
h. Detach the WLAN transceivers (5) from the display enclosure. (The transceivers are attached
to the display enclosure with double-sided tape.)
52 Chapter 4 Removal and replacement procedures
i.
Remove the wireless antenna cables and transceivers (6). The WLAN antenna are available
in the Wireless Antenna Kit, spare part number 659492-001.
Reverse this procedure to reassemble and install the display assembly.
Top cover
Description Spare part number
Top cover in charcoal finish (includes power button board and cable and TouchPad and
TouchPad cable)
Before removing the top cover, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
2. Disconnect all external devices connected to the computer.
3.
4. Remove the battery (see
5. Remove the service cover (see
6. Remove the keyboard (see
7.
659513-001
the computer on, and then shut it down through the operating system.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
Battery on page 32).
WLAN module on page 37).
Keyboard on page 46).
Remove the display assembly (see
Display assembly on page 49).
When replacing the top cover, be sure that the TouchPad button board and cable (see
TouchPad button
board on page 57) and speakers (see Speakers on page 55) are removed from the defective
top cover and installed on the replacement top cover.
Component replacement procedures
53
Remove the top cover:
1. Close the computer.
2.
Turn the computer upside down, with the front toward you.
3. Remove the seven Phillips PM2.5×7.0 screws that secure the top cover to the computer.
4. Turn the computer right-side up, with the front toward you.
5. Open the computer.
6. Disconnect the following cables from the system board:
(1) Power button board cable
(2) TouchPad button board cable
(3) Speaker cable
54 Chapter 4 Removal and replacement procedures
7.
Remove the four Phillips PM2.5×7.0 screws that secure the top cover to the computer.
8.
Lift the rear edge of the top cover (1) until the left and right sides disengage from the
base enclosure.
9. Remove the top cover (2).
Reverse this procedure to install the top cover.
Speakers
Description Spare part number
Speaker Kit (includes left and right speakers and cable) 659508-001
Before removing the speakers, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
2. Disconnect all external devices connected to the computer.
the computer on, and then shut it down through the operating system.
Component replacement procedures
55
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4. Remove the battery (see
a. Service cover (see
b. Keyboard (see
c. Top cover (see
Remove the speakers:
1. Turn the top cover upside down, with the front edge toward you.
2. Release the speaker cables from the clips built into the TouchPad (1) and top cover (2).
3. Release the speakers from the clips (3) built into the top cover.
4. Remove the speakers and cables (4).
Battery on page 32), and then remove the following components:
WLAN module on page 37)
Keyboard on page 46)
Top cover on page 53)
Reverse this procedure to install the speakers.
56 Chapter 4 Removal and replacement procedures
TouchPad button board
Description Spare part number
TouchPad button board (includes cable) 664993-001
Before removing the TouchPad button board, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4. Remove the battery (see
a. Service cover (see
b. Keyboard (see
c. Top cover (see
Battery on page 32), and then remove the following components:
WLAN module on page 37)
Keyboard on page 46)
Top cover on page 53)
Remove the TouchPad button board and cable:
1. Turn the top cover upside down, with the front edge toward you.
2. Release the ZIF connector to which the TouchPad cable is attached, and then disconnect the
TouchPad cable (1) from the TouchPad button board.
3. Remove the two Phillips PM2.0×3.8 screws (2) that secure the TouchPad button board to the
top cover.
Component replacement procedures
57
4.
Remove the TouchPad button board (3) and cable.
Reverse this procedure to install the TouchPad button board and cable.
System board
NOTE: The system board spare part kit includes replacement thermal material.
Description Spare part number
For use only with computer models equipped with an AMD E450 processor and WWAN capability 659512-001
For use only with computer models equipped with an AMD E450 processor but not
WWAN capability
For use only with computer models equipped with an AMD E300 processor and WWAN capability 659510-001
For use only with computer models equipped with an AMD E300 processor but not
WWAN capability
Before removing the system board, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
659511-001
659509-001
4. Remove the battery (see
5.
Remove the WLAN module (see
Battery on page 32).
WLAN module on page 37).
58 Chapter 4 Removal and replacement procedures
6.
Remove the WWAN module (see
WWAN module on page 39).
7. Disconnect the hard drive connector cable from the system board (see
8.
Remove the keyboard (see
9. Disconnect the display panel cable from the system board (see
10. Remove the top cover (see
When replacing the system board, be sure that the following components are removed from the
defective system board and installed on the replacement system board:
●
SIM (see
●
RTC battery (see
●
Memory module (see
●
Power connector cable (see
●
Fan (see
●
Heat sink (see
Remove the system board:
1. Lift the left side of the system board (1) until it rests at an angle.
SIM on page 33)
RTC battery on page 41)
Fan on page 61)
Heat sink on page 63)
Keyboard on page 46).
Display assembly on page 49).
Top cover on page 53).
Memory module on page 45)
Power connector cable on page 60)
Hard drive on page 43).
2. Remove the system board (2) by sliding it up and to the left at an angle.
Reverse this procedure to install the system board.
Component replacement procedures
59
Power connector cable
Description Spare part number
Power connector cable (includes bracket) 664995-001
Before removing the power connector cable, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4. Remove the battery (see
a. Service cover (see
b. Keyboard (see
c. Top cover (see
d. System board (see
Battery on page 32), and then remove the following components:
WLAN module on page 37)
Keyboard on page 46)
Top cover on page 53)
System board on page 58)
Remove the power connector cable:
1. Turn the system board upside down, with the right side toward you.
2. Disconnect the power connector cable (1) from the system board.
3. If necessary, separate the power connector bracket (2) from the power connector.
Reverse this procedure to install the power connector cable and bracket.
60 Chapter 4 Removal and replacement procedures
Fan
Description Spare part number
Fan 665000-001
NOTE: To properly ventilate the computer, allow at least 7.6 cm (3 in) of clearance on the left side of
the computer. The computer uses an electric fan for ventilation. The fan is controlled by a temperature
sensor and is designed to turn on automatically when high temperature conditions exist. These
conditions are affected by high external temperatures, system power consumption, power
management/battery conservation configurations, battery fast charging, and software requirements.
Exhaust air is displaced through the ventilation grill located on the left side of the computer.
Before removing the fan, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4. Remove the battery (see
a. Service cover (see
b. Keyboard (see
c. Top cover (see
d. System board (see
Battery on page 32), and then remove the following components:
WLAN module on page 37)
Keyboard on page 46)
Top cover on page 53)
System board on page 58)
Remove the fan:
1. Turn the system board upside down, with the front toward you.
2.
Disconnect the fan cable (1) from the system board.
3.
Remove the two Phillips PM2.0×4.6 screws (2) that secure the fan to the system board.
Component replacement procedures
61
4.
Remove the fan (3).
Reverse this procedure to install the fan.
62 Chapter 4 Removal and replacement procedures
Heat sink
Description Spare part number
Heat sink (includes replacement thermal material) 664999-001
NOTE: To properly ventilate the computer, allow at least 7.6 cm (3 in) of clearance on the left side of
the computer. The computer uses an electric fan for ventilation. The fan is controlled by a temperature
sensor and is designed to turn on automatically when high temperature conditions exist. These
conditions are affected by high external temperatures, system power consumption, power
management/battery conservation configurations, battery fast charging, and software requirements.
Exhaust air is displaced through the ventilation grill located on the left side of the computer.
Before removing the heat sink, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet
the computer on, and then shut it down through the operating system.
and then unplugging the AC adapter from the computer.
4. Remove the battery (see
a. Service cover (see
b. Keyboard (see
c. Top cover (see
d. System board (see
Battery on page 32), and then remove the following components:
WLAN module on page 37)
Keyboard on page 46)
Top cover on page 53)
System board on page 58)
Remove the heat sink:
1. Turn the system board upside down, with the front toward you.
2.
Loosen the captive screws (1) that secure the heat sink to the system board.
NOTE: The number of screws used to secure the heat sink to the system board varies by
computer model.
NOTE: Due to the adhesive quality of the thermal material located between the heat sink and
system board components, it may be necessary to move the heat sink from side to side to
detach it.
3. Remove the heat sink (2).
Component replacement procedures
63
NOTE: The thermal material must be thoroughly cleaned from the surfaces of the heat sink and the
system board components each time the heat sink is removed. Replacement thermal material is included
with the heat sink and system board spare part kits.
The following illustration shows the replacement thermal material locations on a computer model
equipped with an AMD processor and a graphics subsystem with discrete memory. Thermal paste is
used on the processor (1) and the heat sink section (2) that services it.
Reverse this procedure to install the heat sink.
64 Chapter 4 Removal and replacement procedures
5 Setup Utility (BIOS) and System
Diagnostics
Using Setup Utility
Setup Utility, or Basic Input/Output System (BIOS), controls communication between all the input and
output devices on the system (such as disk drives, display, keyboard, mouse, and printer). Setup Utility
includes settings for the types of peripherals installed, the startup sequence of the computer, and the
amount of system and extended memory.
NOTE: Use extreme care when making changes in Setup Utility. Errors can prevent the computer from
operating properly.
Starting Setup Utility
NOTE: An external keyboard or mouse connected to a USB port can be used with Setup Utility only if
USB legacy support is enabled.
To start Setup Utility, follow these steps:
1. Turn on or restart the computer, and then press esc while the “Press the ESC key for Startup Menu”
message is displayed at the bottom of the screen.
2.
Press f10 to enter Setup Utility.
Changing the language of Setup Utility
1. Start Setup Utility.
2. Use the arrow keys to select System Configuration > Language, and then press enter.
3. Use the arrow keys to select a language, and then press enter.
4. When a confirmation prompt with your language selected is displayed, press enter.
5. To save your change and exit Setup Utility, use the arrow keys to select Exit > Exit Saving
Changes, and then press enter.
Your change takes effect immediately.
Using Setup Utility
65
Navigating and selecting in Setup Utility
To navigate and select in Setup Utility, follow these steps:
1. Turn on or restart the computer, and then press esc while the “Press the ESC key for Startup Menu”
message is displayed at the bottom of the screen.
●
To select a menu or a menu item, use the tab key and the keyboard arrow keys and then
press enter, or use a pointing device to click the item.
●
To scroll up and down, click the up arrow or the down arrow in the upper-right corner of the
screen, or use the up arrow key or the down arrow key.
●
To close open dialog boxes and return to the main Setup Utility screen, press esc, and then
follow the on-screen instructions.
2. Press f10 to enter Setup Utility.
To exit Setup Utility menus, choose one of the following methods:
●
To exit Setup Utility menus without saving your changes, press the esc key, and then follow the onscreen instructions.
– or –
Use the arrow keys to select Exit > Exit Discarding Changes, and then press enter.
●
To save your changes and exit Setup Utility menus, press f10, and then follow the onscreen instructions.
– or –
Use the tab key and the arrow keys to select Exit > Exit Saving Changes, and then
press enter.
Your changes go into effect when the computer restarts.
Displaying system information
1. Start Setup Utility.
2. Select the Main menu. System information such as the system time and date, and identification
information about the computer is displayed.
3. To exit Setup Utility without changing any settings, use the arrow keys to select Exit > Exit
Discarding Changes, and then press enter.
66 Chapter 5 Setup Utility (BIOS) and System Diagnostics
Restoring factory settings in Setup Utility
NOTE: Restoring defaults will not change the hard drive mode.
To return all settings in Setup Utility to the values that were set at the factory, follow these steps:
1. Turn on or restart the computer, and then press esc while the “Press the ESC key for Startup Menu”
message is displayed at the bottom of the screen.
2. Press f10 to enter Setup Utility.
3. Use the arrow keys to select Exit > Load Setup Defaults.
4. Follow the on-screen instructions.
5. To save your changes and exit, press f10, and then follow the on-screen instructions.
– or –
Use the arrow keys to select Exit > Exit Saving Changes, and then press enter.
Your changes go into effect when the computer restarts.
NOTE: Your password settings and security settings are not changed when you restore the
factory settings.
Exiting Setup Utility
●
To exit Setup Utility and save your changes from the current session:
If the Setup Utility menus are not visible, press esc to return to the menu display. Then use the
arrow keys to select Exit > Exit Saving Changes, and then press enter.
●
To exit Setup Utility without saving your changes from the current session:
If the Setup Utility menus are not visible, press esc to return to the menu display. Then use the
arrow keys to select Exit > Exit Discarding Changes, and then press enter.
Updating the BIOS
Updated versions of the BIOS may be available on the HP Web site.
Most BIOS updates on the HP Web site are packaged in compressed files called SoftPaqs.
Some download packages contain a file named Readme.txt, which contains information regarding
installing and troubleshooting the file.
Using Setup Utility
67
Determining the BIOS version
To determine whether available BIOS updates contain later BIOS versions than those currently installed
on the computer, you need to know the version of the system BIOS currently installed.
BIOS version information (also known as ROM date and System BIOS) can be displayed by pressing fn
+esc (if you are already in Windows) or by using Setup Utility.
1. Start Setup Utility (BIOS).
2. Use the arrow keys to select Main.
3. To exit Setup Utility (BIOS) without saving your changes, use the tab key and the arrow keys to
select Exit > Exit Discarding Changes, and then press enter.
Downloading a BIOS update
CAUTION: To reduce the risk of damage to the computer or an unsuccessful installation, download
and install a BIOS update only when the computer is connected to reliable external power using the AC
adapter. Do not download or install a BIOS update while the computer is running on battery power,
docked in an optional docking device, or connected to an optional power source. During the
download and installation, follow these instructions:
Do not disconnect power from the computer by unplugging the power cord from the AC outlet.
Do not shut down the computer or initiate Sleep or Hibernation.
Do not insert, remove, connect, or disconnect any device, cable, or cord.
1. Windows 7—Select Start > Help and Support > Maintain.
Windows XP—Select Start > Help and Support, and then select the software and
drivers update.
2.
Follow the on-screen instructions to identify your computer and access the BIOS update you want
to download.
3. At the download area, follow these steps:
a. Identify the BIOS update that is later than the BIOS version currently installed on your
computer. Make a note of the date, name, or other identifier. You may need this information
to locate the update later, after it has been downloaded to your hard drive.
b.
Follow the on-screen instructions to download your selection to the hard drive. Make a note
of the path to the location on your hard drive where the BIOS update is downloaded. You
will need to access this path when you are ready to install the update.
NOTE: If you connect your computer to a network, consult the network administrator before
installing any software updates, especially system BIOS updates.
68 Chapter 5 Setup Utility (BIOS) and System Diagnostics
BIOS installation procedures vary. Follow any instructions that are displayed on the screen after the
download is complete. If no instructions are displayed, follow these steps:
1. Windows 7—Open Windows Explorer by selecting Start > Computer.
Windows XP—Open Windows Explorer by selecting Start > My Computer.
2. Double-click your hard drive designation. The hard drive designation is typically Local Disk (C:).
3. Using the hard drive path you recorded earlier, open the folder on your hard drive that contains
the update.
4. Double-click the file that has an .exe extension (for example, filename.exe). The BIOS
installation begins.
5. Complete the installation by following the on-screen instructions.
NOTE: After a message on the screen reports a successful installation, you can delete the
downloaded file from your hard drive.
Using System Diagnostics
System Diagnostics allows you to run diagnostic tests to determine if the computer hardware is
functioning properly. The following diagnostic tests are available in System Diagnostics:
●
Start-up test—This test analyzes the main computer components that are required to start
the computer.
●
Run-in test—This test repeats the start-up test and checks for intermittent problems that the start-up
test does not detect.
●
Hard disk test—This test analyzes the physical condition of the hard drive, and then checks all
data in every sector of the hard drive. If the test detects a damaged sector, it attempts to move the
data to a good sector.
●
Memory test—This test analyzes the physical condition of the memory modules. If it reports an
error, replace the memory modules immediately.
●
Battery test—This test analyzes the condition of the battery. If the battery fails the test, contact HP
support to report the issue and purchase a replacement battery.
You can also view system information and error logs in the System Diagnostics window.
To start System Diagnostics:
1. Turn on or restart the computer. While the “Press the ESC key for Startup Menu” message is
displayed in the lower-left corner of the screen, press esc. When the Startup Menu is displayed,
press f2.
2.
Click the diagnostic test you want to run, and then follow the on-screen instructions.
NOTE: If you need to stop a diagnostics test while it is running, press esc.
Using System Diagnostics
69
6 Specifications
Computer specifications
Metric U.S.
Dimensions
Width 29.16 cm 11.48 in
Depth 2.15 cm 8.46 in
Height (front to back) 2.11 to 3.19 cm 0.83 to 1.26 in
Weight
With 6-cell battery 1.60 kg 3.53 lb
With 3-cell battery 1.46 kg 3.22 lb
Input power
Operating voltage and current 18.5 V dc @ 3.5 A - 65 W
Temperature
Operating 5°C to 35°C 41°F to 95°F
Nonoperating -20°C to 60°C -4°F to 140°F
Relative humidity (noncondensing)
Operating 10% to 90%
Nonoperating 5% to 95%
Maximum altitude (unpressurized)
Operating -15 m to 3,048 m -50 ft to 10,000 ft
Nonoperating -15 m to 12,192 m -50 ft to 40,000 ft
NOTE: Applicable product safety standards specify thermal limits for plastic surfaces. The device operates well within this
range of temperatures.
70 Chapter 6 Specifications
11.6-inch display specifications
Metric U.S.
Dimensions
Height 14.70 cm 5.79 in
Width 25.90 cm 10.20 in
Diagonal 29.50 cm 11.61 in
Number of colors Up to 16.8 million
Contrast ratio 200:1 (typical)
Brightness 200 nits (typical)
Pixel resolution
Pitch 0.197 mm × 0.197 mm
Format 1366 × 768
Configuration RGB vertical stripe
Backlight LED
Character display 80 × 25
Total power consumption 2.0 W
Viewing angle ±65° horizontal, ±50° vertical (typical)
11.6-inch display specifications
71
Hard drive specifications
*640-GB *500-GB *320-GB *250-GB
Dimensions
Height 9.5 mm 9.5 mm 9.5 and 7.0 mm 9.5 and 7.0 mm
Length 100.2 mm 100.4 mm 100.4 mm 100.4 mm
Width 69.9 mm 69.9 mm 69.9 mm 69.9 mm
Weight 98 g 110 g 110 g 110 g
Interface type SATA SATA SATA SATA
Transfer rate
Synchronous (maximum) 106 MB/sec 1.1 GB/sec 1.1 GB/sec 1.1 GB/sec
Security ATA security ATA security ATA security ATA security
Seek times (typical read, including setting)
Single track 1.5 ms 1.5 ms 1.5 ms 1.5 ms
Average (read/write) 12/13 ms 11/13 ms 11/13 ms 11/13 ms
Maximum 24 ms 22 ms 22 ms 22 ms
Logical blocks 1,250,263,728 976,773,168 628,142,448 488,397,168
Disk rotational speed 5400 rpm 7200 and 5400 rpm 7200 and 5400 rpm 5400 rpm
Operating
temperature
*1 GB = 1 billion bytes when referring to hard drive storage capacity. Actual accessible capacity is less.
NOTE: Certain restrictions and exclusions apply. Contact technical support for details.
0°C to 60°C (32°F to 140°F)
72 Chapter 6 Specifications
7 Backup and recovery
Your computer includes tools provided by the operating system and HP to help you safeguard your
information and restore it if ever needed.
This chapter provides information on the following topics:
●
Creating a set of recovery discs or a recovery flash drive (Recovery Manager software feature)
●
Performing a system restore (from the partition, recovery discs, or a recovery flash drive)
●
Backing up your information
●
Recovering a program or driver
Restore
In the event of hard drive failure, to restore your system to its factory image you will need a set of
recovery discs or a recovery flash drive that you can create using HP Recovery Manager. HP
recommends that you use this software to create either a set of recovery discs or a recovery flash drive
immediately after software setup.
If for some other reason you need to restore your system, this can be achieved using the HP Recovery
partition (select models only), without the need for recovery discs or a recovery flash drive. To check for
the presence of a recovery partition, click Start, right-click Computer, click Manage, and then click
Disk Management. If the recovery partition is present, a Recovery drive is listed in the window.
CAUTION: HP Recovery Manager (partition, or discs/flash drive) restores only software that was
preinstalled at the factory. Software not provided with this computer must be reinstalled manually.
NOTE: Recovery discs have been included if your computer does not have a recovery partition.
Restore
73
Creating restore media
HP recommends that you create either a set of recovery discs or a recovery flash drive to be sure that
you can restore your computer to its original factory state if the hard drive fails, or if for any reason you
cannot restore using the recovery partition tools. Create these discs or the flash drive after setting up the
computer for the first time.
NOTE: HP Recovery Manager allows the creation of only one set of recovery discs or one recovery
flash drive. Handle these discs or flash drive carefully and keep them in a safe place.
NOTE: If your computer does not include an integrated optical drive, you can use an optional
external optical drive (purchased separately) to create recovery discs, or you can purchase recovery
discs for your computer from the HP Web site. If you use an external optical drive, it must be connected
directly to a USB port on the computer, not to a USB port on an external device, such as a USB hub.
Guidelines:
●
Purchase high-quality DVD-R, DVD+R, DVD-R DL, or DVD+R DL discs.
NOTE: Read-write discs, such as CD-RW, DVD±RW, double-layer DVD±RW, and BD-RE
(rewritable Blu-ray) discs, are not compatible with the Recovery Manager software.
●
The computer must be connected to AC power during this process.
●
Only one set of recovery discs or one recovery flash drive can be created per computer.
NOTE: If you are creating recovery discs, number each disc before inserting into the
optical drive.
●
If necessary, you can exit the program before you have finished creating the recovery discs or
recovery flash drive. The next time you open Recovery Manager, you will be prompted to continue
the backup creation process.
To create a set of recovery discs or a recovery flash drive:
1.
Select Start > All Programs > Recovery Manager > Recovery Media Creation.
2. Follow the on-screen instructions.
74 Chapter 7 Backup and recovery
Performing a system restore
Recovery Manager software allows you to repair or restore the computer to its original factory state.
Recovery Manager works from recovery discs, a recovery flash drive, or from a dedicated recovery
partition (select models only) on the hard drive.
NOTE: A system restore needs to be performed if the computer hard drive has failed or if all attempts
to correct any functional computer issues fail. A system restore should be used as a final attempt to
correct computer issues.
Note the following when performing a system restore:
●
You can restore only the system that you have previously backed up. HP recommends that you use
HP Recovery Manager to create either a set of recovery discs or a recovery flash drive as soon as
you set up the computer.
●
Windows has its own built-in repair features, such as System Restore. If you have not already tried
these features, try them before using Recovery Manager.
●
Recovery Manager restores only software that was preinstalled at the factory. Software not
provided with this computer must be downloaded from the manufacturer's Web site or reinstalled
from the disc provided by the manufacturer.
Restoring using the dedicated recovery partition (select models only)
When using the dedicated recovery partition, there is an option to back up pictures, music and other
audio, videos and movies, recorded TV shows, documents, spreadsheets and presentations, e-mails,
Internet favorites and settings during this process.
To restore the computer from the recovery partition, follow these steps:
1. Access Recovery Manager in either of the following ways:
●
Select Start > All Programs > Recovery Manager > Recovery Manager.
– or –
●
Turn on or restart the computer, and then press esc while the “Press the ESC key for Startup
Menu” message is displayed at the bottom of the screen. Then, press f11 while the “F11
(System Recovery)” message is displayed on the screen.
2. Click System Recovery in the Recovery Manager window.
3. Follow the on-screen instructions.
Performing a system restore
75
Restoring using the restore media
1. If possible, back up all personal files.
2. Insert the first recovery disc into the optical drive on your computer or an optional external optical
drive, and then restart the computer.
– or –
Insert the recovery flash drive into a USB port on your computer, and then restart the computer.
NOTE: If the computer does not automatically restart in the Recovery Manager, the computer
boot order needs to be changed.
3.
Press f9 at system bootup.
4. Select the optical drive or the flash drive.
5. Follow the on-screen instructions.
Changing the computer boot order
To change the boot order for recovery discs:
1. Restart the computer.
2. Press esc while the computer is restarting, and then press f9 for boot options.
3.
Select Internal CD/DVD ROM Drive from the boot options window.
To change the boot order for recovery flash drive:
1.
Insert the flash drive into a USB port.
2. Restart the computer.
3.
Press esc while the computer is restarting, and then press f9 for boot options.
4. Select the flash drive from the boot options window.
76 Chapter 7 Backup and recovery
Backing up and recovering your information
It is very important to back up your files and keep any new software in a safe place. As you add new
software and data files, continue to create backups on a regular basis.
How completely you are able to recover your system depends on how recent your backup is.
NOTE: A recovery from your most recent backup needs to be performed if the computer has a virus
attack or if any major system components fail. In order to correct computer issues, a recovery should
first be attempted before a system restore is attempted.
You can back up your information to an optional external hard drive, a network drive, or discs. Back
up your system at the following times:
●
At regularly scheduled times
TIP: Set reminders to back up your information periodically.
●
Before the computer is repaired or restored
●
Before you add or modify hardware or software
Guidelines:
●
Create system restore points using the Windows System Restore feature, and periodically copy
them to an optical disc or an external hard drive. For more information on using system restore
points, refer to Using Windows system restore points.
●
Store personal files in the Documents library and back up this folder periodically.
●
Save customized settings in a window, toolbar, or menu bar by taking a screen shot of your
settings. The screen shot can be a time-saver if you have to re-enter your preferences.
To create a screen shot:
1. Display the screen you want to save.
2.
Copy the screen image:
To copy only the active window, press alt+prt sc.
To copy the entire screen, press prt sc.
3. Open a word-processing document, and then select Edit > Paste. The screen image is added to
the document.
4. Save and print the document.
Backing up and recovering your information
77
Using Windows Backup and Restore
Guidelines:
●
Be sure that the computer is connected to AC power before you start the backup process.
●
Allow enough time to complete the backup process. Depending on file sizes, it may take over
an hour.
To create a backup:
1.
Select Start > Control Panel > System and Security > Backup and Restore.
2. Follow the on-screen instructions to schedule and create a backup.
NOTE: Windows includes the User Account Control feature to improve the security of the computer.
You may be prompted for your permission or password for tasks such as installing software, running
utilities, or changing Windows settings. Refer to Help and Support for more information.
Using Windows system restore points
A system restore point allows you to save and name a snapshot of your hard drive at a specific point in
time. You can then recover back to that point if you want to reverse subsequent changes.
NOTE: Recovering to an earlier restore point does not affect data files saved or e-mails created since
the last restore point.
You also can create additional restore points to provide increased protection for your files and settings.
When to create restore points
●
Before you add or modify software or hardware
●
Periodically, whenever the computer is functioning optimally
NOTE: If you revert to a restore point and then change your mind, you can reverse the restoration.
78 Chapter 7 Backup and recovery
Create a system restore point
1.
Select Start > Control Panel > System and Security > System.
2. In the left pane, click System Protection.
3. Click the System Protection tab.
4. Follow the on-screen instructions.
Restore to a previous date and time
To revert to a restore point (created at a previous date and time), when the computer was functioning
optimally, follow these steps:
1. Select Start > Control Panel > System and Security > System.
2. In the left pane, click System Protection.
3. Click the System Protection tab.
4. Click System Restore.
5. Follow the on-screen instructions.
Backing up and recovering your information
79
8 Power cord set requirements
The wide-range input feature of the computer permits it to operate from any line voltage from 100 to
120 volts AC, or from 220 to 240 volts AC.
The 3-conductor power cord set included with the computer meets the requirements for use in the
country or region where the equipment is purchased.
Power cord sets for use in other countries and regions must meet the requirements of the country or
region where the computer is used.
Requirements for all countries
The following requirements are applicable to all countries and regions:
●
The length of the power cord set must be at least 1.5 m (5.0 ft) and no more than 2.0 m (6.5 ft).
●
All power cord sets must be approved by an acceptable accredited agency responsible for
evaluation in the country or region where the power cord set will be used.
●
The power cord sets must have a minimum current capacity of 10 A and a nominal voltage rating
of 125 or 250 V ac, as required by the power system of each country or region.
●
The appliance coupler must meet the mechanical configuration of an EN 60 320/IEC 320
Standard Sheet C13 connector for mating with the appliance inlet on the back of the computer.
80 Chapter 8 Power cord set requirements
Requirements for specific countries and regions
Country/region Accredited agency Applicable note number
Argentina IRAM 1
Australia SAA 1
Austria OVE 1
Belgium CEBEC 1
Brazil ABNT 1
Canada CSA 2
Chile IMQ 1
Denmark DEMKO 1
Finland FIMKO 1
France UTE 1
Germany VDE 1
India ISI 1
Israel SII 1
Italy IMQ 1
Japan JIS 3
The Netherlands KEMA 1
New Zealand SANZ 1
Norway NEMKO 1
The People's Republic of China CCC 4
Saudi Arabia SASO 7
Singapore PSB 1
South Africa SABS 1
South Korea KTL 5
Sweden SEMKO 1
Switzerland SEV 1
Taiwan BSMI 6
Thailand TISI 1
The United Kingdom ASTA 1
Requirements for specific countries and regions
81
Country/region Accredited agency Applicable note number
The United States UL 2
1. The flexible cord must be Type HO5VV-F, 3-conductor, 0.75-mm² conductor size. Power cord set fittings (appliance
coupler and wall plug) must bear the certification mark of the agency responsible for evaluation in the country or region
where it will be used.
2. The flexible cord must be Type SVT/SJT or equivalent, No. 18 AWG, 3-conductor. The wall plug must be a two-pole
grounding type with a NEMA 5-15P (15 A, 125 V) or NEMA 6-15P (15 A, 250 V ac) configuration. CSA or C-UL mark.
UL file number must be on each element.
3. The appliance coupler, flexible cord, and wall plug must bear a “T” mark and registration number in accordance with the
Japanese Dentori Law. The flexible cord must be Type VCTF, 3-conductor, 0.75-mm² or 1.25-mm² conductor size. The
wall plug must be a two-pole grounding type with a Japanese Industrial Standard C8303 (7 A, 125 V ac) configuration.
4. The flexible cord must be Type RVV, 3-conductor, 0.75-mm² conductor size. Power cord set fittings (appliance coupler
and wall plug) must bear the CCC certification mark.
5. The flexible cord must be Type H05VV-F 3X0.75-mm² conductor size. KTL logo and individual approval number must be
on each element. Corset approval number and logo must be printed on a flag label.
6. The flexible cord must be Type HVCTF 3×1.25-mm² conductor size. Power cord set fittings (appliance coupler, cable, and
wall plug) must bear the BSMI certification mark.
For 127 V ac, the flexible cord must be Type SVT or SJT 3 x 18 AWG, with plug NEMA 5-15P (15 A, 125 V ac), with UL
7.
and CSA or C-UL marks. For 240 V ac, the flexible cord must be Type H05VV-F 3×0.75-/1.00-mm² conductor size, with
plug BS 1363/A with BSI or ASTA marks.
82 Chapter 8 Power cord set requirements
9 Recycling
When a non-rechargeable or rechargeable battery has reached the end of its useful life, do not dispose
of the battery in general household waste. Follow the local laws and regulations in your area for
battery disposal.
HP encourages customers to recycle used electronic hardware, HP original print cartridges, and
rechargeable batteries. For more information about recycling programs, see the HP Web site at
http://www.hp.com/recycle.
83
Index
A
AC adapter, spare part number
22, 23
Action keys 8
antenna
locations 5
removal 52
spare part number 20, 23, 53
Antenna Kit, spare part number
20, 53
audio, product description 2
audio-in jack 12
audio-out jack 12
B
base enclosure, spare part
number 17, 23
battery
removal 32
spare part number 18, 23, 32
battery bay 13
battery/service cover latch 13
Blu-ray ROM DVD±R/RW Super
Multi Double-Layer Drive
precautions 26
spare part number 22, 24
bottom components 13
button components 6
buttons
power 7
QuickWeb 7
TouchPad 10
TouchPad on/off 10
C
cables, service considerations 25
caps lock light 9
chipset, product description 1
components
bottom 13
buttons 6
display 5
front 10
keys 8
left-side 11
lights 9
right-side 12
TouchPad 10
computer feet
locations 31
spare part number 31
computer major components 16
computer part number 31
computer specifications 70
connectors, service
considerations 25
D
Digital Media Slot 12
display
components 5
specifications 71
display assembly
removal 49
subcomponents 19
display bezel
removal 34
spare part number 19, 24, 34
Display Cable Kit, spare part
number 20, 23, 52
display enclosure, spare part
numbers 20, 23, 24
Display Hinge Kit, spare part
number 19, 23, 51
display panel
product description 1
removal 34
spare part number 19, 24, 34
display panel cable
removal 51
spare part number 20, 23, 52
display switch 5
drives, preventing damage 26
DVD±RW and CD-RW Super Multi
Double-Layer Combo Drive
precautions 26
spare part number 22, 24
E
electrostatic discharge 26
equipment guidelines 29
esc key 8
Ethernet, product description 2
external media cards, product
description 2
external monitor port 12
F
fan
removal 61
spare part number 17, 24, 61
feet
locations 31
spare part number 31
fn key 8
front components 10
G
graphics, product description 1
grounding guidelines 26
guidelines
equipment 29
grounding 26
packaging 28
84 Index
transporting 28
workstation 28
H
hard drive
precautions 26
product description 1
removal 43
spare part numbers 17, 21,
23, 24, 43
specifications 72
hard drive bracket
illustrated 21
removal 44
hard drive connector cable
illustrated 21
removal 44
Hard Drive Hardware Kit, spare
part number 18, 21, 24, 43
hard drive isolators
illustrated 21
removal 44
hard drive light 11
HDMI port 11
headphone jack 12
heat sink
removal 63
spare part number 17, 24, 63
hinge
removal 50
spare part number 19, 23, 51
J
jacks
audio-in 12
audio-out 12
headphone 12
microphone 12
network 12
RJ-45 12
K
key components 8
keyboard
product description 3
removal 46
spare part numbers 17, 23,
46
keys
Action 8
esc 8
fn 8
Windows applications 8
Windows logo 8
L
left-side components 11
light components 9
lights
battery 11
caps lock 9
hard drive 11
mute 9
power 9
TouchPad 9, 10
webcam 5
wireless 9
lock, spare part numbers 22, 23
M
mass storage device
precautions 26
removal 43
spare part numbers 21, 43
memory module
product description 1
removal 45
spare part numbers 17, 23,
45
microphone
location 5
product description 2
microphone jack 12
model description 31
model name 1
monitor port 12
mouse, spare part number 22, 23
mute light 9
N
network jack 12
O
operating system, product
description 3
optical drive
precautions 26
product description 2
spare part numbers 22, 24
P
packaging guidelines 28
plastic parts, service
considerations 25
pointing device, product
description 3
ports
external monitor 12
HDMI 11
monitor port 12
product description 3
USB 11, 12
power button 7
power connector 11
power connector cable
removal 60
spare part number 17, 24
power cord
set requirements 80
spare part numbers 22, 23
power light 9
power requirements, product
description 3
processor, product description 1
product description
audio 2
chipset 1
display panel 1
Ethernet 2
external media cards 2
graphics 1
hard drives 1
keyboard 3
memory module 1
microphone 2
operating system 3
optical drive 2
pointing device 3
ports 3
power requirements 3
processors 1
product name 1
security 3
serviceability 3
video 2
wireless 2
product name 1, 30
product number 31
Q
QuickWeb button 7
Index
85
R
rear corner covers
removal 46
spare part number 24, 46
removal/replacement
preliminaries 25
procedures 30
right-side components 12
RJ-45 jack 12
RTC battery
removal 41
spare part numbers 17, 23,
24, 41
Rubber Kit, spare part number
18, 24, 31
S
Screw Kit, spare part number 22,
23
security cable slot 11
security, product description 3
serial number 30
service considerations
cables 25
connectors 25
plastic parts 25
service cover
location 13
removal 37
spare part number 18, 23, 38
service tag 15, 30
serviceability, product description
3
SIM slot 13
SIM, removal 33
solid-state drive, spare part
numbers 18, 21, 24
Speaker Kit, spare part number
23, 55
speakers
location 10
removal 55
spare part number 17, 23, 55
specifications
computer 70
display 71
hard drive 72
system board
removal 58
spare part numbers 17, 23,
24, 58
T
tools required 25
top cover
removal 53
spare part number 17, 24, 53
TouchPad button 10
TouchPad button board
removal 57
spare part number 17, 24, 57
TouchPad components 10
TouchPad light 9, 10, 11
TouchPad on/off button 10
TouchPad zone 10
transporting guidelines 28
U
USB port 11, 12
V
vents 11, 13
video, product description 2
W
warranty period 31
webcam 5
webcam light 5
webcamera module
removal 35
spare part number 19, 24, 35
Windows applications key 8
Windows logo key 8
wireless antenna
locations 5
removal 52
spare part number 20, 23, 53
Wireless Antenna Kit, spare part
number 23
wireless light 9
wireless, product description 2
WLAN module
removal 37
spare part number 17, 23, 37
workstation guidelines 28
WWAN module
removal 39
spare part number 17, 23, 39
86 Index
Loading...
