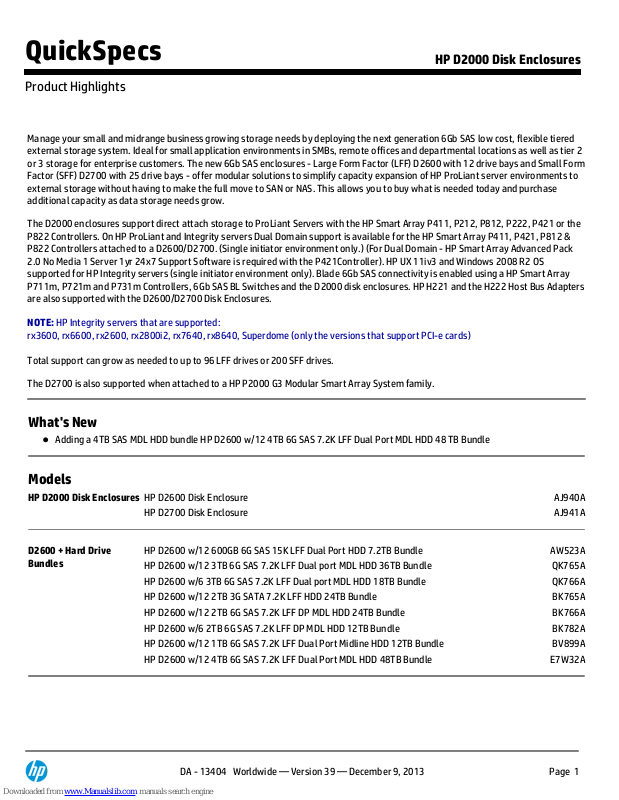

HP AJ941A, D2600, D2700 Specifications

Manage your small and midrange business growing storage needs by deploying the next generation 6Gb SAS low cost, flexible tiered external storage system. Ideal for small application environments in SMBs, remote offices and departmental locations as well as tier 2 or 3 storage for enterprise customers. The new 6Gb SAS enclosures - Large Form Factor (LFF) D2600 with 12 drive bays and Small Form Factor (SFF) D2700 with 25 drive bays - offer modular solutions to simplify capacity expansion of HP ProLiant server environments to external storage without having to make the full move to SAN or NAS. This allows you to buy what is needed today and purchase additional capacity as data storage needs grow.
2.0 No Media 1 Server 1yr 24x7 Support Software is required with the P421Controller). HP UX 11iv3 and Windows 2008 R2 OS supported for HP Integrity servers (single initiator environment only). Blade 6Gb SAS connectivity is enabled using a HP Smart Array P711m, P721m and P731m Controllers, 6Gb SAS BL Switches and the D2000 disk enclosures. HP H221 and the H222 Host Bus Adapters are also supported with the D2600/D2700 Disk Enclosures.
NOTE:
HP Integrity servers that are supported:
rx3600, rx6600, rx2600, rx2800i2, rx7640, rx8640, Superdome (only the versions that support PCI-e cards)
Total support can grow as needed to up to 96 LFF drives or 200 SFF drives.
The D2700 is also supported when attached to a HP P2000 G3 Modular Smart Array System family.
What's New
Adding a 4TB SAS MDL HDD bundle HP D2600 w/12 4TB 6G SAS 7.2K LFF Dual Port MDL HDD 48 TB Bundle
Models
HP D2000 Disk Enclosures
HP D2600 Disk Enclosure
AJ940A
HP D2700 Disk Enclosure
AJ941A
D2600 + Hard Drive Bundles
HP D2600 w/12 600GB 6G SAS 15K LFF Dual Port HDD 7.2TB Bundle
AW523A
HP D2600 w/12 3TB 6G SAS 7.2K LFF Dual port MDL HDD 36TB Bundle
QK765A
HP D2600 w/6 3TB 6G SAS 7.2K LFF Dual port MDL HDD 18TB Bundle
QK766A
HP D2600 w/12 2TB 3G SATA 7.2K LFF HDD 24TB Bundle
BK765A
HP D2600 w/12 2TB 6G SAS 7.2K LFF DP MDL HDD 24TB Bundle
BK766A
HP D2600 w/6 2TB 6G SAS 7.2K LFF DP MDL HDD 12TB Bundle
BK782A
HP D2600 w/12 1TB 6G SAS 7.2K LFF Dual Port Midline HDD 12TB Bundle
BV899A
HP D2600 w/12 4TB 6G SAS 7.2K LFF Dual Port MDL HDD 48TB Bundle
E7W32A
QuickSpecs
HP D2000 Disk Enclosures
Product Highlights
DA - 13404 Worldwide — Version 39 — December 9, 2013
Page 1
D2700 + Hard Drive Bundles
HP D2700 w/25 146GB 6G SAS 15K SFF Dual Port HDD 3.6TB Bundle
AW524A
HP D2700 w/25 300GB 6G SAS 10K SFF Dual Port HDD 7.5TB Bundle
AW525A
HP D2700 w/25 300GB 6G SAS 15K SFF Dual Port HDD 7.5TB Bundle
QW957A
HP D2700 w/25 450GB 6G SAS 10K SFF Dual Port HDD 11.2TB Bundle
BK767A
HP D2700 w/25 600GB 6G SAS 10K SFF Dual Port HDD 15TB Bundle
BK768A
HP D2700 w/10 600GB 6G SAS 10K SFF Dual Port HDD 6TB Bundle
BK783A
HP D2700 w/25 900GB 6G SAS 10K SFF Dual port HDD 22.5TB Bundle
QK771A
HP D2700 w/10 900GB 6G SAS 10K SFF Dual port HDD 9TB Bundle
QK772A
HP D2700 w/25 1TB 6G SAS 7.2K SFF Dual port MDL HDD 25TB Bundle
QK769A
HP D2700 w/10 1TB 6G SAS 7.2K SFF Dual port MDL HDD 10TB Bundle
QK770A
HP D2600 Disk Enclosure
Front panel LEDs and buttons
1.
Disk drives
2.
UID push button and LED
3.
Enclosure LEDs
4.
Rack-mounting thumb screw
QuickSpecs
HP D2000 Disk Enclosures
Product Highlights
DA - 13404 Worldwide — Version 39 — December 9, 2013
Page 2
HP D2700 Disk Enclosure
Front panel LEDs and buttons
1.
Disk drives
2.
UID push button and LED
3.
Enclosure LEDs
4.
Rack-mounting thumb screw
Rear Panel components
1.
Power Supply 1
6.
Fan 2
2.
Power Supply 2
7.
Rear UID push button
3.
Fan 1
8.
Enclosure LEDs
4.
I/O Module A
9.
Power on/standby button
5.
I/O Module B
QuickSpecs
HP D2000 Disk Enclosures
Product Highlights
DA - 13404 Worldwide — Version 39 — December 9, 2013
Page 3
Affordable, low cost Storage
Purchase only what you need today and avoid up-front costs. Modular platform provides investment protection and by purchasing only what is needed today, allows for growth as storage requirements evolve. Buying storage only when needed simplifies planning and relieves budget pressures. D2700: Maximum storage capacity of 30 TB SAS (1.2 TB SAS), 25 TB SAS MDL (1TB SAS MDL) or SATA (1TB SATA MDL) per enclosure scalable to 240 TB SAS, 200 TB SAS MDL or SATA (dependent on the Smart Array Controller). D2700 also supports SAS SLC and MLC Solid State Drives (SSD) . Number of Solid State drives is limited to twenty five (25) SSDs per controller. D2600: Maximum storage capacity of 7.2 TB SAS (600GB SAS) or 48 TB SAS MDL or SATA MDL (4TB SAS or SATA HDD) per enclosure scalable to 57.6 TB SAS, or 384 TB SAS MDL or SATA MDL. Enterprise-class dual port SAS or archival-class SATA drives as the need and budget dictates
Flexible/Scalable
Grow storage capacity easily by attaching up to four D2600 enclosures from a single Controller port, for expansion of up to 8 enclosures or 96 drives, allowing for room to grow as storage demands increase Grow storage capacity easily by attaching up to two D2700 enclosures from a single Controller port, for expansion of up to 4 enclosures or 100 drives, allowing for room to grow as storage demands increase. (Smart Array Controllers P411 & P812) With the new Smart Array P421 and P822 Controllers grow your storage capacity easily by attaching up to four (4) D2700 enclosures from a single Controller port, for expansion of up to eight (8) enclosures or 200 drives, allowing for room to grow as storage demands increase Smart Array Controllers P421 and P822 support the mixing of the D2600 and the D2700 for expansion, Supports four (4) D2600 and four (4) D2700 (4xLFF and 4xSFF) allowing for expansion up to 148 drives. Flexibility to mix and match SAS and SATA drives in the same enclosure
Easy to Manage
Hassle free expansion - little IT expertise required. Compatible with the latest HP Smart Array SAS controllers (P812, P411, P212, P222, P421, P822, P711m, P721m, P731m). Compatible with HP H221 and H222 Host Bus Adapters (HBAs) Familiar ProLiant management tools provided via the Smart Controller - SIM, ACU, ORCA. Easy removal of parts provides better serviceability.
High performance 6Gb SAS host connectivity
6Gb SAS host connectivity enables a higher data transfer rate. End-to-end 6 Gb SAS connectivity ensures a high performance storage solution using a P212, P411, P812, P222, P421 P822, P711m, P721m or the P731m Smart Array controller and the D2000 enclosures. D2600/D2700 is also supported with the HP H221 and the H222 Host Bus adapters (HBA). SAS disk enclosure support for c-Class BladeSystem utilizing the recently introduced HP 6Gb SAS BL Switch with the P711m and P721m Smart Array Controllers. Since storage is contained within the rack, latency is reduced as data does not travel over large distances.
HP reliability
Deploy with confidence. HP offers a complete end-to-end storage solution including the D2000 storage enclosures, Smart Array P212, P411, P812, P222, P421, P822, P711m, P721m or the P731m Controllers and HP ProLiant Servers Familiar Smart Array technology of the P212, P411, P812, P222, P421,P822, P711m P721m and the P731m Controllers enable support for RAID levels 0, 1, 1+0, 5 and RAID 6 with ADG, 50 and 60. Optional battery-backed write cache.
QuickSpecs
HP D2000 Disk Enclosures
At a Glance
DA - 13404 Worldwide — Version 39 — December 9, 2013
Page 4
Advanced Data Guarding (RAID 6): This is the highest level of fault tolerance. It allocates two sets of parity data across drives and allows simultaneous write operations. This level of fault tolerance can withstand two simultaneous drive failures without downtime or data loss. Distributed Data Guarding (RAID 5): This allocates parity data across multiple drives and allows simultaneous write operations. Receive pre-failure alerts with HP SIM. When drives installed in D2000 disk enclosures are used in conjunction with the P212, P411, P812, P222, P421, P822, P711m, P721m and the P731m Smart Array Controller and Systems Insight Manager, the Smart Array firmware in HP hard drives enables extensive fault prediction capabilities. If potential problems develop in one of the drives, the Smart Array Controller, Systems Insight Manager and/or Smart hard disk drive lets you know in advance so you can have the drive replaced, before it fails, under warranty. Remove / replace/ add components when system is running without service disruption with hot Plug drives, power and cooling Redundant power and cooling provides increased reliability as failure of a power supply or fans does not interrupt system functioning Dual domain SAS creates redundant pathways from servers to storage devices. The redundant paths created by these configurations reduce or eliminate single points of failure within the storage network. This provides increased levels of high availability with redundant paths from the controller to the drives. Dual domain SAS implementations make it possible to tolerate host bus adapter (HBA) failure, external cable failure, expander failure, failure in a spanned disk (JBOD) environments.
QuickSpecs
HP D2000 Disk Enclosures
At a Glance
DA - 13404 Worldwide — Version 39 — December 9, 2013
Page 5
HP D2000 Disk Enclosures
The HP D2000 Disk Enclosures (hereafter referred to as "D2000") is a family of disk drive storage enclosure with 6 Gb SAS host connectivity. The D2000 is a 2U direct attach, external storage solution designed for small to medium size deployments or remote locations. These enclosures deliver industry­leading availability, storage density, and upgradeability to meet customers' demanding and growing storage needs. The D2000 delivers the ideal mix of low-cost and high capacity, for minimum I/O workloads such as reference data, archival, and disk-to-disk backup.
High Levels of Storage Density, Data Protection, and Functionality
Storage Capacity
- The SFF D2700 disk enclosure supports up to 25 (twenty five) 6Gb SFF SAS drives for a maximum capacity of 30 TB with 6G 1.2 TB SAS drives or 25 TB with 1 TB 6G SAS MDL or 1 TB 3G SATA MDL drives. D2700 also supports SAS SLC and MLC Solid State Drives. Number of Solid State drives is limited to twenty five (25) per controller. The LFF D2600 disk enclosure supports up to 12 (twelve) 6G LFF SAS drives for a maximum capacity of 7.2 TB with 6G 600GB SAS drives or 48 TB with 6G 4 TB SAS MDL or 3G 4TB SATA MDL drives.
Data Protection
- D2000 is designed for a high level of data protection. It includes redundant fans and power supplies (standard), and supports various RAID levels including RAID6 with ADG, 50 & 60 (depending upon the Smart Array Controller used)
Storage Manageability
- The D2000 features familiar configuration and management tools such as Array Configuration Utility (ACU) and HP Systems Insight Manager (SIM). Online Management Features include: Online Capacity Expansion, Online RAID Level Migration, Online Stripe Size Migration, Online Spares (Global)
Choice of Computing Platform
- The D2000 is designed and qualified for HP ProLiant servers
Advanced Data Guarding
(RAID 6 with ADG)
Fault Tolerance
- It allocates two sets of parity data across drives and allows simultaneous write operations. This level of fault tolerance can withstand two simultaneous drive failures without downtime or data loss.
Low Total Cost of Ownership
The modular, scalable design of the D2000 disk enclosure family provides an extremely flexible platform. You can buy what you need today and purchase additional capacity as your data storage needs grow, instead of making a large up-front investment. Additional drives and enclosures can be easily added as your needs dictate.
Cascading
- The D2700 has the unique capability of cascading up to two (2) enclosures behind a single SAS port (depends on the Smart Array Controller). The D2600 has the capability of cascading up to four (4) enclosures behind a single SAS port (depends on the Smart Array Controller).
Pre-Failure Warranty
- Drives installed in either the D2600 or the D2700 and monitored under HP Systems Insight Manager are supported by a Pre-Failure (replacement) Warranty (3 years for SAS drives). Pre-Failure Warranty allows for the replacement of designated drives in the D2600 or the D2700 before they actually fail when using HP Systems Insight Manager on HP ProLiant servers.
NOTE:
Some operating systems may not support all of these features.
Integrated Configuration and Management Tools
- The D2000 family utilizes the standard, integrated set of Smart Array management and utility software for HP ProLiant Servers. These tools consistently lower the cost of ownership by reducing training and technical expertise necessary to install and maintain HP server storage.
QuickSpecs
HP D2000 Disk Enclosures
D2000 Enclosure Components
DA - 13404 Worldwide — Version 39 — December 9, 2013
Page 6
D2000 Disk Enclosures
D2600 Disk Enclosure
The 2U array houses up to twelve (12) 3.5 inch Universal hot pluggable SAS drives.
Each D2600 includes the following standard components:
D2600 base enclosure with redundant power supplies and fan modules Two (2) integrated 6Gb SAS IO Modules Rack mounting hardware kit Two (2) 0.5m mini-SAS cables Two (2) PDU interconnect cords
D2700 Disk Enclosure
The 2U array houses up to twenty five (25) 2.5 inch Universal hot pluggable SAS drives.
Each D2700 includes the following standard components:
D2700 base enclosure with redundant power supplies and fan modules Two (2) integrated 6Gb SAS IO Modules Rack mounting hardware kit Two (2) 0.5m mini-SAS cables Two (2) PDU interconnect cords
Smart Array P411 Features
The HP Smart Array P411 is HP's PCI Express (PCIe) Serial Attached SCSI (SAS) RAID controller Low profile, half height card has 8 ports and utilizes DDR2-800 memory The P411 is ideal for RAID 0/1, 5, 1+0 & 5+0 and can be upgraded with the 512MB battery-backed write cache (BBWC) module and Smart Array Advanced via license key for RAID 6 & 6+0, 50 and 60 For more information see:
http://h18004.www1.hp.com/products/quickspecs/13202_div/13202_div.html
Smart Array P212 Features
The HP Smart Array P212 is HP's entry level PCI Express (PCIe) Serial Attached SCSI (SAS) RAID controller The Low Profile, Half height card has 8 ports and utilizes DDR2-266 memory The P212 is ideal for RAID 0/1, 1+0 and can be upgraded with the 256MB battery-backed write cache (BBWC) module for RAID 5, 5+0 For more information see:
http://h18004.www1.hp.com/products/quickspecs/13203_div/13203_div.html
Smart Array P812 Features
The HP Smart Array P812 provides superior RAID performance, while delivering high levels of connectivity, reliability, and many advanced features Increased connectivity with 8 internal ports and 16 external ports. 1 G 72-bit wide DDR2-800 flash-backed write cache (FBWC). Smart Array Advanced Pack (SAAP) license key included standard For more information see:
http://h18004.www1.hp.com/products/quickspecs/13558_div/13558_div.html
QuickSpecs
HP D2000 Disk Enclosures
D2000 Enclosure Components
DA - 13404 Worldwide — Version 39 — December 9, 2013
Page 7
Smart Array P222 Features
Second Generation 6Gb/s SAS Controllers Eight (8) SAS physical links distributed across 1 internal x4/1 external x4 wide port connectors Read ahead caching Flash Backed Write-back Cache For more information see:
http://h18000.www1.hp.com/products/quickspecs/14227_div/14227_div.html
Smart Array P421 Features
Second Generation 6Gb/s SAS Controllers The SA-P421 Controller supports up to 200 drives Eight (8) SAS physical links distributed across 2 external x4 miniSAS connectors. Write-back caching (with FBWC) For more information see:
http://h18000.www1.hp.com/products/quickspecs/14229_div/14229_div.html
Smart Array P822 Features
Second Generation 6Gb/s SAS Controllers The SA-P822 Controller supports up to 200 drives PCIe 3.0 with DDR3-1333 cache. Write-back caching (with FBWC) For more information:
http://h18000.www1.hp.com/products/quickspecs/14341_div/14341_div.html
Smart Array P711m Features
Storage interface (SAS/SATA) Recovery ROM protects against ROM corruption. Smart Array PCIe mezzanine card that connects to a HP 6Gb/s SAS BL Switch through the c-Class enclosure high-speed mid-plane supporting shared SAS storage. Eight (8) 6Gb/s SAS physical links distributed across 4 external 2x ports to support up to 4 6Gb/s SAS Switches For more information see:
http://h18004.www1.hp.com/products/quickspecs/14035_div/14035_div.html
Smart Array P721m Features
6 Gb/s SAS technology delivers up to 600 MB/s per physical link Smart Array PCIe mezzanine card that connects to a HP 6Gb/s SAS BL Switch through the c-Class enclosure high-speed mid-plane supporting shared SAS storage. Four (4) 6Gb/s SAS physical links distributed across 2 external 2x ports to supports up to 2 6Gb/s SAS Switches Two (2) 6Gb/s SAS physical links distributed across 2 internal 1x ports to support up to 2 6Gb/s SAS HDDs Software consistency among all Smart Array family products: Array Configuration Utility, Systems Insight Manager, Array Diagnostic Utility (ADU) and SmartStart For more information see:
http://h18000.www1.hp.com/products/quickspecs/14404_div/14404_div.html
Smart Array P731m Features
Eight (8) 6 Gb/s SAS physical links distributed equally across 4 external 2x ports to support up to four 6 Gb/s SAS Switches 6 Gb/s SAS technology delivers up to 600 MB/s theoretical bandwidth per physical lane RAID 0, 1, 10, 5, 50, 6, 60, 1 ADM, 10 ADM
QuickSpecs
HP D2000 Disk Enclosures
D2000 Enclosure Components
DA - 13404 Worldwide — Version 39 — December 9, 2013
Page 8
