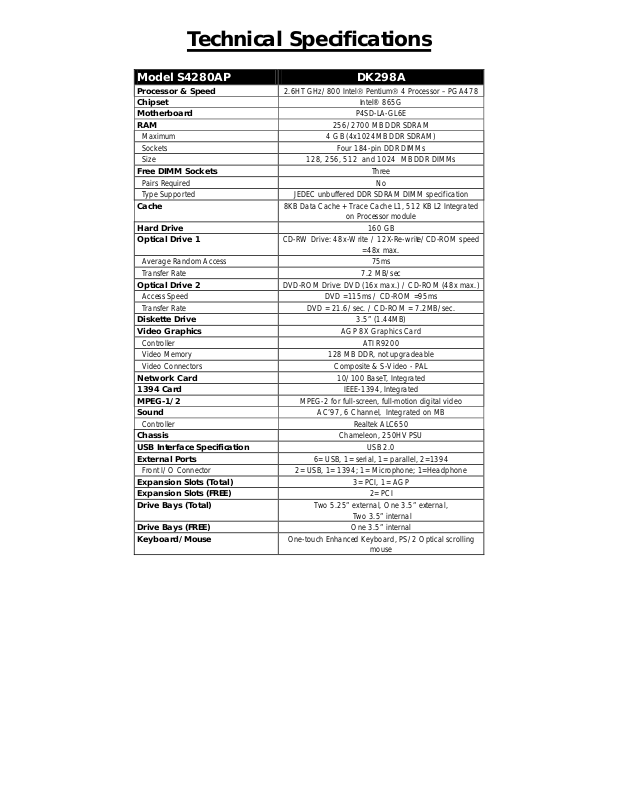

Technical Specifications
Model S4280AP DK298A
Processor & Speed 2.6HT GHz/800 Intel Pentium 4 Processor – PGA478
Chipset Intel® 865G
Motherboard P4SD-LA-GL6E
RAM 256/2700 MB DDR SDRAM
Maximum 4 GB (4x1024MB DDR SDRAM)
Sockets Four 184-pin DDR DIMMs
Size 128, 256, 512 and 1024 MB DDR DIMMs
Free DIMM Sockets Three
Pairs Required No
Type Supported JEDEC unbuffered DDR SDRAM DIMM specification
Cache 8KB Data Cache + Trace Cache L1, 512 KB L2 Integrated
on Processor module
Hard Drive 160 GB
Optical Drive 1 CD-RW Drive: 48x-Write / 12X-Re-write/CD-ROM speed
=48x max.
Average Random Access 75ms
Transfer Rate 7.2 MB/sec
Optical Drive 2 DVD-ROM Drive: DVD (16x max.) / CD-ROM (48x max.)
Access Speed DVD =115ms / CD-ROM =95ms
Transfer Rate DVD = 21.6/sec. / CD-ROM = 7.2MB/sec.
Diskette Drive 3.5” (1.44MB)
Video Graphics AGP 8X Graphics Card
Controller ATI R9200
Video Memory 128 MB DDR, not upgradeable
Video Connectors Composite & S-Video - PAL
Network Card 10/100 BaseT, Integrated
1394 Card IEEE-1394, Integrated
MPEG-1/2 MPEG-2 for full-screen, full-motion digital video
Sound AC’97, 6 Channel, Integrated on MB
Controller Realtek ALC650
Chassis Chameleon, 250HV PSU
USB Interface Specification USB 2.0
External Ports 6= USB, 1= serial, 1= parallel, 2=1394
Front I/O Connector 2= USB, 1= 1394; 1= Microphone; 1=Headphone
Expansion Slots (Total) 3= PCI, 1= AGP
Expansion Slots (FREE) 2= PCI
Drive Bays (Total) Two 5.25” external, One 3.5” external,
Two 3.5” internal
Drive Bays (FREE) One 3.5” internal
Keyboard/Mouse One-touch Enhanced Keyboard, PS/2 Optical scrolling
mouse
