7 Parts and diagrams
Ordering parts and supplies
●
External panels and covers
●
Internal components
●
Paper-pickup drive assembly
●
Duplexing-feed drive assembly (duplex models)
●
Duplexing reverse-drive assembly (duplex models)
●
Developing separation-drive assembly
●
Fuser drive assembly
●
Cassette (tray 2)
●
Paper-pickup assembly (HP CLJ 3600/3800)
●
Paper-pickup assembly (HP CLJ 3000)
●
Electronic transfer belt (simplex models)
●
Electronic transfer belt (duplex models)
●
Multipurpose tray assembly (tray 1)
●
Duplex-paper feed assembly (duplex models)
●
Fuser
●
PCAs
●

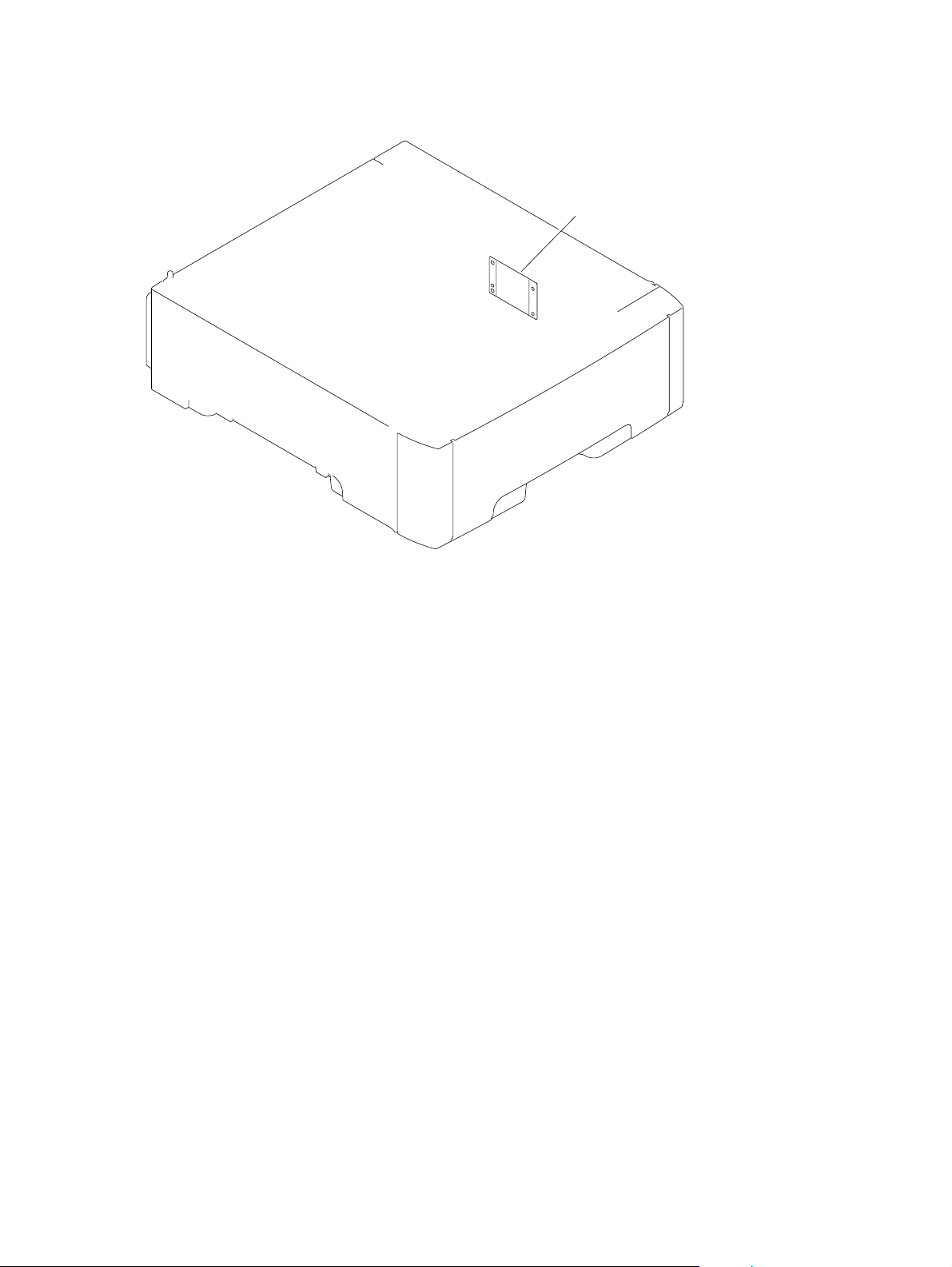

500-sheet feeder cassette (tray 3)
●
500-sheet feeder paper-pickup assembly
●
500-sheet feeder PCA
●
Alphabetical parts list
●
Numerical parts list
●
ENWW 251
Ordering parts and supplies
This section describes Web resources for ordering parts and for technical support and resources for
ordering related documentation and software.
Parts
Order replacement parts from the following Web sites:
www.hp.com/ssg/parts/direct_order.html
●
HP Parts Store:
●
Partsurfer:
●
HP Parts Portal:
●
www.hp.com/buy/parts
www.partsurfer.hp.com
www.hp.com/go/HPparts
How to use the parts lists and diagrams
The figures in this chapter show the major subassemblies in the printer and their component parts. A
parts list table follows each exploded-view assembly diagram. Each table lists the item number, the
associated part number, and the description of each part. If a part is not listed in the table, then it is not
a field replacement unit (FRU).
CAUTION Be sure to order the correct part. When looking for part numbers for electrical
components, pay careful attention to the voltage that is listed in the description column to ensure
that the part number selected is for the correct printer model.
NOTE In this manual, the abbreviation “PCA” stands for “printed circuit board assembly.”
components described as a PCA might consist of a single circuit board or a circuit board plus
other parts, such as cables and sensors.
Types of screws
Illustration Description Size Part Number Use
Screw w/washer M3X8 XA9–1420–000CN Used to secure metal
components to metal
components (for example,
a ground wire to the
frame)
Screw, RS M3X6
M3X10
Screw, tapping, truss
head
M4X10 XB4–7401–000CN Used to secure anything
XA9–1499–000CN Used to secure metal to
metal
to plastic
252 Chapter 7 Parts and diagrams ENWW
Related documentation and software
Table 7-1 Technical support Web sites
HP Customer Care Online
Software drivers, support documentation, and answers to
frequently asked questions
HP Technical Training (North America)
Classes and schedules
www.hp.com/go/support
www.hp.com/go/resellertraining
Accessories and supplies
Table 7-2 Accessories and supplies
Item Part number Service/exchange number Description
Memory (DIMMs)
(HP Color LaserJet
3000/3800 Series only)
500-sheet feeder (tray 3) Q5985A Q5985-67901 Optional accessory
Internal (EIO) connectivity for
the HP Color LaserJet 3000
and 3800 Series printers
Q7721A Q7721-67951 Synchronous 128 MB DDR
SDRAM DIMM
Q7722A Q7722-67951 Synchronous 256 MB DDR
SDRAM DIMM
Q7723A Q7723-67951 Synchronous 512 MB DDR
SDRAM DIMM
J6073A HP EIO high-performance
hard disk
J7934A HP Jetdirect 620n print server
(10/100-TX Ethernet)
Printer supplies for the
HP Color LaserJet 3000
Series printer
J7960A HP Jetdirect 625n print server
(10/100/1000T Ethernet)
J7961A HP Jetdirect 635n IPv6/
IPsec/Gigabit print server
J7972G HP 1284 parallel card
J6035D/G HP Jetdirect 175x print server
(fast Ethernet, value feature
set, 10/100-TX, USB 1.1)
J7942A HP Jetdirect en3700 print
server (fast Ethernet, 10/100TX, USB 2.0)
J7951A HP Jetdirect ew2400 wired/
wireless print server (fast
Ethernet, value feature set,
USB 2.0)
Q7560A
Q7561A Q7561-67901 Cyan print cartridge
Q7562A Q7562-67901 Yellow print cartridge
Q7563A Q7563-67901 Magenta print cartridge
Q7560-67901 Black print cartridge
ENWW Ordering parts and supplies 253
Table 7-2 Accessories and supplies (continued)
Item Part number Service/exchange number Description
Printer supplies for the
HP Color LaserJet 3600
Series printer
Printer supplies for the
HP Color LaserJet 3800
Series printer
Cable C6518A USB 2.0 printer cable (2-
Media C2934A 50 sheets
Q6470A
Q6471A Q6471-67901 Cyan print cartridge
Q6472A Q6472-67901 Yellow print cartridge
Q6473A Q6473-67901 Magenta print cartridge
Q6470A Q6470-67901 Black print cartridge
Q7581A Q7581-67901 Cyan print cartridge
Q7582A Q7582-67901 Yellow print cartridge
Q7583A Q7583-67901 Magenta print cartridge
C2936A 50 sheets
Q2419A 50 sheets
Q6470-67901 Black print cartridge
meter [6.5-feet] standard)
HP Color LaserJet
Transparencies (letter)
HP Color LaserJet
Transparencies (A4)
Reference, service, and
training materials
HP LaserJet High Gloss
paper (letter)
C4179A 200 sheets
HP LaserJet High Gloss
paper (letter)
C4179B 200 sheets
HP LaserJet High Gloss
paper (A4)
Q1298A HP LaserJet Tough paper
(letter)
Q1298B HP LaserJet Tough paper
(A4)
HPU1132 HP Premium Choice LaserJet
paper (letter)
CHP410 HP Premium Choice LaserJet
paper (A4)
HPJ1124 HP LaserJet paper (letter)
CHP310 HP LaserJet paper (A4)
5851-1468 HP LaserJet Printer Family
Print Media Specification
Guide
5021-0337 PCL/PLJ Technical
Reference Package
254 Chapter 7 Parts and diagrams ENWW
Table 7-2 Accessories and supplies (continued)
Item Part number Service/exchange number Description
For downloadable versions,
go to
www.hp.com/support/
clj3000, www.hp.com/
support/clj3600, or
www.hp.com/support/
clj3800. When connected,
select Manuals.
Service and training CD Q5982-14006 CD based service and training
information
Assembly, service, and
training CD
Service manual (this manual) Q5982-90946 Printed copy of this manual
Control-panel overlays
(HP Color LaserJet 3000
Series only)
Control-panel overlays
(HP Color LaserJet
3600/3800 Series only)
Formatter
HP Color LaserJet 3000
Series
Q5982-67907 base and N models (new)
Q5982-60113 CD based service and training
information (English)
Q7533-60112 German, French, Italian
Q7533-60113 Spanish, Dutch, Portuguese,
Catalan
Q7533-60114 Finnish, Norwegian, Swedish,
Slovak
Q7533-60115 Czech, Hungarian, Polish
Q5982-60107 French, Spanish, Portuguese
Q5982-60108 German, French, Italian
Q5982-60109 Spanish, Dutch, Portuguese,
Catalan
Q5982-60110 Finnish, Norwegian, Swedish,
Slovak
Q5982-60111 Czech, Hungarian, Polish
Q5982-69001 base and N models
(exchange)
Q5982-67908 DN and DTN models (new)
Q5982-69002 DN and DTN models
(exchange)
Formatter
HP Color LaserJet 3800
Series
I controller (formatter)
HP Color LaserJet 3600
Series only
Power cord 8120–5301 Power cord, OPT-903 3-
Q5982-67907 base and N models (new)
Q5982-69001 base and N models
(exchange)
Q5982-67908 DN and DTN models (new)
Q5982-69002 DN and DTN models
(exchange)
Q5987-67901 I controller
COND 1.9-M-LG ROHS
(110v)
ENWW Ordering parts and supplies 255
Table 7-2 Accessories and supplies (continued)
Item Part number Service/exchange number Description
256 Chapter 7 Parts and diagrams ENWW
ENWW Ordering parts and supplies 257
External panels and covers
See front-cover assembly
Simplex model or Duplex model
See Multipurpose tray (tray1)
Figure 7-1 External panels and covers (1 of 2)
258 Chapter 7 Parts and diagrams ENWW
Table 7-3 External panels and covers (1 of 2)
Ref Description Part number Qty
1 Link, multipurpose tray (tray 1) hinge left RC1-6381-000CN 1
2 Link, multipurpose tray (tray 1) hinge right RC1-6382-000CN 1
3 Spring, tension RC1-6383-000CN 2
4 Cover, left RC1-6687-000CN 1
5 Cover, multipurpose tray (tray 1) RC1-6690-000CN 1
6 Cover, cassette rear right (hinge) RC1-6691-000CN 1
7 Cover, cassette rear left RC1-6792-000CN 1
8 Cover, rear lower RC1-7550-000CN 1
11 Cover, right RM1–2669–000CN 1
16 Multipurpose tray (tray 1) extension tray assembly RM1-2710-000CN 1
ENWW External panels and covers 259
Figure 7-2 External panels and covers (2 of 2)
260 Chapter 7 Parts and diagrams ENWW
Table 7-4 External panels, and covers (2 of 2)
Ref Description Part number Qty
12 Interlock-switch assembly RM1-2670-000CN 1
13 Upper cover assembly (fuser door) (simplex models) RM1-2671-000CN 1
14 Top-cover assembly (simplex models) RM1-2672-000CN 1
14A Cable, paper-full (simplex models) RM1-2630-000CN 1
14B Connector, snap-tight (simplex models) VS1-7207-003CN 1
15 Top-cover assembly (duplex models) RM1-2713-000CN 1
15A Cable, paper-full (duplex models) RM1-2620-000CN 1
15B Upper cover assembly (fuser door) (duplex models) RM1-2714-000CN 1
17 Face-down tray assembly (HP CLJ 3000) RM1-2777-000CN 1
17 Face-down tray assembly (HP CLJ 3600/3800) RM1-2750-000CN 1
19 Cable, duplexing (duplex models) RM1-2617-000CN 1
ENWW External panels and covers 261
Figure 7-3 Front-cover assembly (simplex model)
262 Chapter 7 Parts and diagrams ENWW
Table 7-5 Front-cover assembly (simplex model)
Ref Description Part number Qty
All Front-cover assembly (simplex models) RM1-2673-000CN 1
ENWW External panels and covers 263
Figure 7-4 Front-cover assembly (duplex model)
264 Chapter 7 Parts and diagrams ENWW
Table 7-6 Front-cover assembly (duplex model)
Ref Description Part number Qty
All Front-cover assembly (duplex models) RM1-2715-000CN 1
1 Fan (duplex models) RK2-0954-000CN 1
ENWW External panels and covers 265
Internal components
Figure 7-5 Internal components (1 of 5)
266 Chapter 7 Parts and diagrams ENWW
Table 7-7 Internal components (1 of 5)
Ref Description Part number Qty
1 Holder, fan RC1-6631-000CN 1
2 Duct, fan RC1-6632-000CN 1
3 Lever lock, left RC1-6633-000CN 3
4 Spring, tension RC1-6636-000CN 4
5 Lever, lock slide, left RC1-6636-000CN 1
6 Lever, lock slide, right RC1-6643-000CN 1
7 Cam, slide, right RC1-6645-000CN 1
9 Lever, lock, left upper RC1-7618-000CN 1
10 Cover, slide plate, right RC1-6824-000CN 1
12 Spring, grounding RC1-7583-000CN 1
13 Fan RK2-0954-000CN 1
14 Lever, lock, right RC1-6640-000CN 4
15 Spring, grounding RC1-6641-000CN 4
16 Spring, tension RC1-6677-000CN 4
18 Guide, cartridge, left RC1-6629-000CN 1
20 Gear, 58T RC1–6571-000CN 4
21 Bushing RC1-6573-000CN 4
23 Gear, 29T RC1-6575-000CN 4
24 Cartridge, guide, right assembly RM1-2771-000CN 1
25 Contact-holder assembly RM1-2683-000CN 1
26 Media-sensor cassette assembly (HP CLJ 3600/3800) RM1-2684-000CN 1
26A Cable, media sensor cassette assembly (HP CLJ 3600/3800) RM1-2589-000CN 1
29 Guide, duplexing external (duplex models) RC1-6744-000CN 1
30 Cover, guide crossmember RC1-6795-000CN 1
31 Spring, tension RC1-7552-000CN 2
33 Latch, left RC1-7554-000CN 1
34 Latch, right RC1-7555-000CN 1
39 Duct, 2 RC1-7547-000CN 1
40 Duct, 3 RC1-7548-000CN 1
43 Cable, panel RM1-2596-000CN 1
ENWW Internal components 267
See fuser drive assembly
See fuser
See duplex
separation drive
assembly
HP CLJ 3000
25
K
Y
C
M
HP CLJ 3600/3800
K
Y
C
M
Figure 7-6 Internal components (2 of 5)
268 Chapter 7 Parts and diagrams ENWW
Table 7-8 Internal components (2 of 5)
Ref Description Part number Qty
6 Cam, gear. 48T RC1-6584-000CN 4
7 Gear, 41T RC1-6589-000CN 2
8 Gear, 19T/30T RC1-6593-000CN 1
9 Gear, 31T RC1-6594-000CN 1
10 Gear, 17T/41T RC1-6596-000CN 1
11 Flag, developing estrangement (developing separation) RC1-6605-000CN 2
12 Cover, crossmember, upper RC1-6668-000CN 1
13 Guide, cable, right 1 RC1-6682-000CN 1
14 Bushing RC1-6823-000CN 4
15 Guide, cable, right 3 RC1-7544-000CN 1
16 Guide, cable, right 4 RC1-7545-000CN 1
17 Crossmember, drive side plate RC1-7576-000CN 1
18 Cover, shutter, left RC1-6651-000CN 4
19 Holder, toner cartridge RC1-6771-000CN 4
20 Cable, scanner flat (long (HP CLJ 3000) RK2-0971-000CN 1
20 Cable, scanner flat (long (HP CLJ 3600/3800) RK2-0966-000CN 1
21 Cable, scanner flat short RK2-0967-000CN 1
23 Cable, scanner RM1-2594-000CN 1
24 Drive-motor assembly, print-cartridge (HP CLJ 3600/3800: K, Y,
C, M cartridges; HP CLJ 3000: Y, C, M cartridges only)
25 Drive-motor assembly, print-cartridge (HP CLJ 3000: K cartridge
only)
26 Lever, sensing RC1-7597-000CN 1
27 Spring, tension RC1-7598-000CN 1
29 Cable, memory tag RM1-2627-000CN 1
30 Drive-motor assembly, black print-cartridge (HP CLJ 3000 only;
K motor)
RM1-2689-000CN 1
RM1-2773-000CN 1
RM1-2773-000CN 1
ENWW Internal components 269
See ETB simplex models
See duplex
assembly
See ETB
duplex models
Figure 7-7 Internal components (3 of 5)
See paper-pickup assembly
270 Chapter 7 Parts and diagrams ENWW
Table 7-9 Internal components (3 of 5)
Ref Description Part number Qty
1 Cover, gear RC1-6405-000CN 1
2 Guide, cassette front, left RC1-6499-000CN 1
3 Guide, cassette front, right RC1-6502-000CN 1
5 Cam, slide, left RC1-6638-000CN 1
6 Rod, link, left RC1-6639-000CN 1
7 Rod, link, right RC1-6646-000CN 1
8 Foot, rear RC1-6650-000CN 2
10 Holder, ETB, left RC1-6673-000CN 1
11 Holder, ETB, right RC1-6674-000CN 1
16 Mount, hinge, left RC1-6684-000CN 1
24 Cable, duplex docking RM1-2609-000CN 1
25 Motor, AC 24V, 9W RK2-0939-000CN 1
26 Cable, sensor RM1-2603-000CN 1
28 Right-rear base assembly RM1-2678-000CN 1
28A Cassette sensor PCA RM1-2576-000CN 1
32 Plate, gear 3 RL1-1069-000CN 1
33 Foot, rubber assembly, front RL1-1067-000CN 2
ENWW Internal components 271
Figure 7-8 Internal components (4 of 5)
272 Chapter 7 Parts and diagrams ENWW
Table 7-10 Internal components (4 of 5)
Ref Description Part number Qty
1 Holder, drawer connector RC1-6652-000CN 1
2 Holder, drawer RC1-6653-000CN 1
3 Guide, cable, left RC1-6681-000CN 1
4 Arm, switch-link RC1-6700-000CN 1
5 Guide, flexible flat cable 1 RC1-6772-000CN 1
6 Guide, flexible flat cable 2 RC1-6773-000CN 1
7 Guard, cable RC1-6825-000CN 1
8 Bracket, left, rear RC1-7551-000CN 1
9 Sensor, temperature WP2-5214-000CN 1
12 Cable, environment sensor RM1-2595-000CN 1
13 Cable, ETB RM1-2608-000CN 1
14 Cable, drum motor RM1-2610-000Cn 1
15 Cable, solenoid RM1-2611-000CN 1
16 Cable, cassette RM1-2613-000CN 1
17 Cable, drum motor (HP CLJ 3000) RM1-2629-000CN 1
17 Cable, drum motor (HP CLJ 3600/3800) RM1-2614-000CN 1
18 Cable, paper-full RM1-2628-000CN 1
21 Fuser cable assembly RM1-2597-000CN 1
23 Cable, drive power RM1-2605-000CN 1
24 Scanner assembly (HP CLJ 3000) RM1-2952-000CN 1
24 Scanner assembly (HP CLJ 3600/3800) RM1-2640-000CN 1
ENWW Internal components 273
See paper-pickup assembly
9
Figure 7-9 Internal components (5 of 5)
274 Chapter 7 Parts and diagrams ENWW
Table 7-11 Internal components (5 of 5)
Ref Description Part number Qty
1 Cover, rear RC1-6627-000CN 1
2 Cover RC1-7577-000CN 1
3 Cable, drive flat 1 RK2-0969-000CN 1
4 Cable, drive flat 2 RK2-0970-000CN 1
5 Duct 1 RC1-7546-000CN 1
9 Relay, PCA RM1-2582-000CN 1
10 Cable, panel connecting RM1-2587-000CN 1
11 Cable, power control RM1-2592-000CN 1
12 Cable, clamp WT2-5944-000CN 2
14 Multipurpose tray paper-pickup gear assembly RM1-2704-000CN 1
16 Shield, PCA RC1-7599-000CN 1
17 Cover, connector RC1-6607-000CN 1
18 Cover, paper sensor RC1-6611-000CN 1
19 Cover, registration sensor RC1-6612-000CN 1
ENWW Internal components 275
Paper-pickup drive assembly
Figure 7-10 Paper-pickup drive assembly
276 Chapter 7 Parts and diagrams ENWW
Table 7-12 Paper-pickup drive assembly
Ref Description Part number Qty
All Paper-pickup drive assembly RM1-2679-000CN 1
ENWW Paper-pickup drive assembly 277
Duplexing-feed drive assembly (duplex models)
Figure 7-11 Duplexing-feed drive assembly (duplex models)
278 Chapter 7 Parts and diagrams ENWW
Table 7-13 Duplexing-feed drive assembly (duplex models)
Ref Description Part number Qty
All Duplexing-feed drive assembly (duplex models) RM1-2720-000CN 1
ENWW Duplexing-feed drive assembly (duplex models) 279
Duplexing reverse-drive assembly (duplex models)
Figure 7-12 Duplexing reverse-drive assembly (duplex models)
280 Chapter 7 Parts and diagrams ENWW
Table 7-14 Duplexing reverse-drive assembly (duplex models)
Ref Description Part number Qty
All Duplexing reverse-drive assembly (duplex models) RM1-2721-000CN 1
1 Cable, duplexing (duplex models) RM1-2616-000CN 1
2 Cable, duplexing sensor (duplex models) RM1-2618-000CN 1
ENWW Duplexing reverse-drive assembly (duplex models) 281
Developing separation-drive assembly
Figure 7-13 Developing separation-drive assembly
282 Chapter 7 Parts and diagrams ENWW
Table 7-15 Developing separation-drive assembly
Ref Description Part number Qty
All Developing separation (estrangement) drive assembly RM1-2687-000CN 1
ENWW Developing separation-drive assembly 283
Fuser drive assembly
Figure 7-14 Fuser drive assembly
284 Chapter 7 Parts and diagrams ENWW
Table 7-16 Fuser drive assembly
Ref Description Part number Qty
All Fuser drive assembly RM1-2668-000CN 1
1 Cable, fuser drive RM1-2619-000CN 1
ENWW Fuser drive assembly 285
Cassette (tray 2)
Figure 7-15 Cassette (tray 2)
286 Chapter 7 Parts and diagrams ENWW
Table 7-17 Cassette (tray 2)
Ref Description Part number Qty
All Cassette, 250-sheet RM1-2705-000CN 1
6 Cover, cassette, front RC1-6491-000CN 1
25 Separation-pad assembly RM1-2709-000CN 1
ENWW Cassette (tray 2) 287
Paper-pickup assembly (HP CLJ 3600/3800)
Figure 7-16 Paper-pickup assembly (HP CLJ 3600/3800)
288 Chapter 7 Parts and diagrams ENWW
Table 7-18 Paper-pickup assembly (HP CLJ 3600/3800)
Ref Description Part number Qty
All Paper-pickup assembly (HP CLJ 3600/3800) RM1-2755-000CN 1
1 Multipurpose tray roller (HP CLJ 3600/3800) RM1-2741-000CN 1
2 Cover, cassette roller assembly (HP CLJ 3600/3800) RM1-6609-000CN 1
3 Cassette RM1-2702-000CN 1
4 Multipurpose tray separation-pad assembly (HP CLJ 3600/3800) RM1-2699-000CN 1
ENWW Paper-pickup assembly (HP CLJ 3600/3800) 289
Paper-pickup assembly (HP CLJ 3000)
Figure 7-17 Paper-pickup assembly (HP CLJ 3000)
290 Chapter 7 Parts and diagrams ENWW
Table 7-19 Paper-pickup assembly (HP CLJ 3000)
Ref Description Part number Qty
All Paper-pickup assembly (HP CLJ 3000) RM1-2774-000CN 1
7 Spring, tension (HP CLJ 3000) RC1-6516-000CN 2
8 Bushing (HP CLJ 3000) RC1-6517-000CN 1
9 Bushing (HP CLJ 3000) RC1-6518-000CN 1
10 Clutch, mechanical (HP CLJ 3000) RM1-2699-000CN 1
11 Spring, compression (HP CLJ 3000) RC1-6520-000CN 1
12 Gear, 18T (HP CLJ 3000) RC1-6521-000CN 1
18 Preregistration-guide assembly (HP CLJ 3000) RM1-2775-000CN 1
25 Block, Multipurpose path (HP CLJ 3000) RC1-7959-000CN
ENWW Paper-pickup assembly (HP CLJ 3000) 291
Electronic transfer belt (simplex models)
Figure 7-18 Electronic transfer belt (simplex models)
292 Chapter 7 Parts and diagrams ENWW
Table 7-20 Electronic transfer belt (simplex models)
Ref Description Part number Qty
All Electronic transfer belt (simplex models) RM1-2690-000CN 1
6 Motor, DC (ETB) (simplex models) RK2-0937-000CN 1
ENWW Electronic transfer belt (simplex models) 293
Electronic transfer belt (duplex models)
See electronic transfer belt (simplex models)
Figure 7-19 Electronic transfer belt (duplex models)
294 Chapter 7 Parts and diagrams ENWW
Table 7-21 Electronic transfer belt (duplex models)
Ref Description Part number Qty
All Electronic transfer belt (duplex models) RM1-2711-000CN 1
ENWW Electronic transfer belt (duplex models) 295
Multipurpose tray assembly (tray 1)
Figure 7-20 Multipurpose tray assembly (tray 1)
296 Chapter 7 Parts and diagrams ENWW
Table 7-22 Multipurpose tray assembly (tray 1)
Ref Description Part number Qty
All Multipurpose tray assembly (tray 1) RM1-2711-000CN 1
ENWW Multipurpose tray assembly (tray 1) 297
Duplex-paper feed assembly (duplex models)
See Duplexing
reverse drive
assembly
See Duplexing
feed drive
assembly
Figure 7-21 Duplex-paper feed assembly (duplex models)
298 Chapter 7 Parts and diagrams ENWW
Table 7-23 Duplex-paper feed assembly (duplex models)
Ref Description Part number Qty
1 Duplex-paper feed assembly (duplex models) RM1-2718-000CN 1
2 Position-guide assembly (duplex models) RM1-2719-000CN 1
3 Lower guide assembly (duplex models) RM1-2722-000CN 1
ENWW Duplex-paper feed assembly (duplex models) 299
Fuser
Figure 7-22 Fuser
300 Chapter 7 Parts and diagrams ENWW
Table 7-24 Fuser
Ref Description Part number Qty
All Fuser assembly 110V-127V RM1-2665-000CN 1
All Fuser assembly 220V-240V RM1-2743-000CN 1
ENWW Fuser 301
PCAs
Figure 7-23 PCAs
302 Chapter 7 Parts and diagrams ENWW
Table 7-25 PCAs
Ref Description Part number Qty
1 DC controller PCA assembly (HP CLJ 3000) RM1-2600-000CN 1
1 DC controller PCA assembly (HP CLJ 3600/3800) RM1-2580-000CN 1
2 High-voltage PCA assembly RM1-2578-000CN 1
3 Low-voltage power PCA assembly (110V-127V) RK2-0956-000CN 1
3 Low-voltage power PCA assembly (220V-240V) RK2-0957-000CN 1
4 Control panel-assembly (HP CLJ 3000) RK2-0996-000CN 1
4 Control-panel assembly (HP CLJ 3600/3800) RK2-0989-000CN 1
5 Driver PCA RM1-2581-000CN 1
6 Cartridge-sensor PCA RM1-2585-000CN 1
7 Duplexing PCA assembly (duplex models) RM1-2584-000CN 1
Formatter, new, HP Color LaserJet 3000 and 3000n Series only
(128 MB)
Formatter, exchange, HP Color LaserJet 3000 and 3000n Series
only (128 MB)
Formatter, new, HP Color LaserJet 3000dn and 3000dtn Series
only (256 MB)
Formatter, exchange, HP Color LaserJet 3000dn and 3000dtn
Series only (256 MB)
Formatter, new, HP Color LaserJet 3800 and 3800n Series only
(128 MB)
Formatter, exchange, HP Color LaserJet 3800 and 3800n Series
only (128 MB)
Formatter, new, HP Color LaserJet 3800dn and 3800dtn Series
only (256 MB)
Formatter, exchange, HP Color LaserJet 3800dn and 3800dtn
Series only (256 MB)
I controller (formatter), HP Color LaserJet 3600 Series only Q5987-67901 1
Firmware, Compact Flash, HP Color LaserJet 3000 Series only Q7725-67903 1
Firmware, Compact Flash, HP Color LaserJet 3600/3800 Series
only
DIMM, 64 MB DDR SDRAM, HP Color LaserJet 3600 Series only Q7800-67951 1
Q5982-67907 1
Q5982-69001 1
Q5982-67908 1
Q5982-69002 1
Q5982-67907 1
Q5982-69001 1
Q5982-67908 1
Q5982-69002 1
Q7725-67902 1
NOTE This illustration does not show the relay PCA. See callout 9 in Figure 7-9 Internal
components (5 of 5) on page 274.
ENWW PCAs 303
500-sheet feeder cassette (tray 3)
Figure 7-24 500-sheet feeder cassette (tray 3)
304 Chapter 7 Parts and diagrams ENWW
Table 7-26 500-sheet feeder cassette (tray 3)
Ref Description Part number Qty
500–sheet feeder and cassette Q5985–67901 1
All 500–sheet cassette (only), tray 3 RM1-2732-000CN 1
14 Cover, 500-sheet cassette RC1-6945-000CN 1
25 Separation-pad-holder assembly (500-sheet feeder) RM1-2735-000CN
ENWW 500-sheet feeder cassette (tray 3) 305
500-sheet feeder paper-pickup assembly
20
Figure 7-25 500-sheet feeder paper-pickup assembly
306 Chapter 7 Parts and diagrams ENWW
Table 7-27 500-sheet feeder paper-pickup assembly
Ref Description Part number Qty
All 500-sheet feeder paper-pickup assembly RM1-2725-000CN 1
20 Photointerruptor WG8-5696-000CN 1
21 Cable, option sensor RM1-2625-000CN 1
22 Sensor, media assembly RM1-2757-000CN 1
22A Cable, option media sensor (500-sheet feeder) RM1-2624-000CN 1
23 Paper-pickup-roller assembly (500-sheet feeder) RM1–2727–000CN 1
ENWW 500-sheet feeder paper-pickup assembly 307
500-sheet feeder PCA
Figure 7-26 500-sheet feeder PCA
1
308 Chapter 7 Parts and diagrams ENWW
Table 7-28 500-sheet feeder PCA
Ref Description Part number Qty
1 PCA assembly (500-sheet feeder) RM1-2583-000CN 1
ENWW 500-sheet feeder PCA 309
Loading...
