HP c-Class, BladeSystem c7000, BladeSystem c3000 Overview

Download

HP BladeSystem c7000 Enclosure

HP BladeSystem c7000 EnclosureHP BladeSystem c7000 Enclosure

HP BladeSystem c7000 Enclosure

HP BladeSystem c7000 Enclosure - Front View

HP BladeSystem c7000 Enclosure - Front ViewHP BladeSystem c7000 Enclosure - Front View

HP BladeSystem c7000 Enclosure - Front View

HP BladeSystem c7000 Enclosure - Rear View

HP BladeSystem c7000 Enclosure - Rear ViewHP BladeSystem c7000 Enclosure - Rear View

HP BladeSystem c7000 Enclosure - Rear View

Device Bay 1

Active Cool Fans & fan bays

Device Bay 2

Interconnect Bays

Device Bay 3

Onboard Administrator

Device Bay 4

Power Inputs (single phase model shown)

Device Bay 5

Device Bay 6

Device Bay 7

Device Bay 8

Device Bay 9

10.

Device Bay 9

11.

Device Bay 11

12.

Device Bay 12

13.

Device Bay 13

14.

Device Bay 14

15.

Device Bay 15

16.

Device Bay 16

17.

Power Supply Bay 1

18.

Power Supply Bay 2

19.

Power Supply Bay 3

20.

Power Supply Bay 4

21.

Power Supply Bay 5

QuickSpecs

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class InfrastructureHP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Infrastructure

Overview

DA - 12517 Worldwide — Version 19 — September 15, 2008

Page 1

22.

Power Supply Bay 6

23.

Insight Display

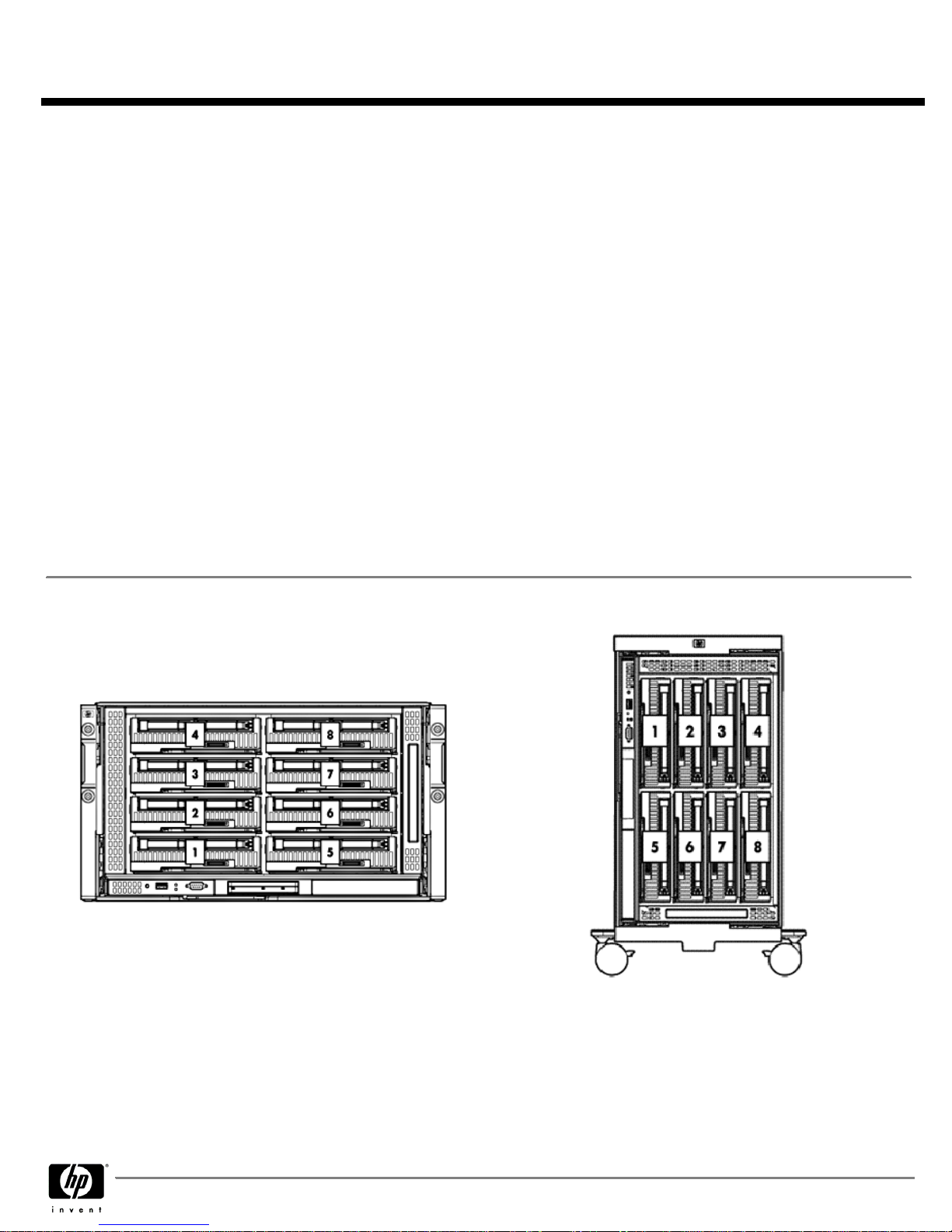

HP BladeSystem c3000 Enclosure - Front View

HP BladeSystem c3000 Enclosure - Front ViewHP BladeSystem c3000 Enclosure - Front View

HP BladeSystem c3000 Enclosure - Front View

HP BladeSystem c3000 Enclosure - Tower - Rear View

HP BladeSystem c3000 Enclosure - Tower - Rear ViewHP BladeSystem c3000 Enclosure - Tower - Rear View

HP BladeSystem c3000 Enclosure - Tower - Rear View

Device Bays 1 thru 8

Local KVM interface

Enclosure DVD Drive

Interconnect Bay 1

Standby Onboard Administrator (reserved for Future)

Active Cool Fans

Insight Display

Interconnect Bay 2

Active Onboard Administrator

Enclosure Up-link and Service Port

Enclosure Down-link

iLO/Onboard Administrator Port

iLO/Onboard Administrator Port 2 (reserved for future)

Power Supplies

10.

Interconnect Bay 4

11.

Interconnect Bay 3

QuickSpecs

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class InfrastructureHP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Infrastructure

Overview

DA - 12517 Worldwide — Version 19 — September 15, 2008

Page 2

What's New

What's NewWhat's New

What's New

Support for Cisco Catalyst Blade Switches 3120 G and 3120X for HP Support for HP BladeSystem c3000 Enclosure - Tower Model

At A Glance

At A GlanceAt A Glance

At A Glance

NOTE:

NOTE:NOTE:

NOTE:

This document covers the HP BladeSystem c7000 and c3000 Enclosures. For more information on HP ProLiant Server Blades

and HP BladeSystem c-Class Interconnect Components please see the following QuickSpecs:

HP ProLiant Server Blades:

http://h18000.www1.hp.com/products/quickspecs/division/11070.html

HP BladeSystem c-Class Interconnect QuickSpecs:

http://h18000.www1.hp.com/products/quickspecs/12524_div/12524_div.html

HP BladeSystem c-Class c7000 Enclosure QuickSpecs

http://h18000.www1.hp.com/products/quickspecs/12810_div/12810_div.html

HP BladeSystem c-Class c3000 Enclosure QuickSpecs:

http://h18000.www1.hp.com/products/quickspecs/12790_div/12790_div.html

HP BladeSystem solutions start with a c7000 or c3000 Enclosure:

For the c3000 Enclosure, customers can add c3000 power supplies, Active Cool Fans, a c3000 DVD drive, and if needed, an optional local KVM module. For the c7000 Enclosure, customers can add optional c7000 hot-plug power supplies, HP Active Cool Fans, and an optional redundant Onboard Administrator module. Once the enclosure has been selected, the following components can be added: networking interconnect modules, HP ProLiant and Integrity Server Blades, and Insight Control management tools. Reference the QuickSpecs listed above. Protected by HP Services and a worldwide network of HP Authorized Channel Partners. Three-year parts, 3 Year Labor and 3 Year on-site limited global warranty. Certain restrictions and exclusions apply. For additional information please visit:

http://h18004.www1.hp.com/products/blades/components/components.html

QuickSpecs

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class InfrastructureHP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Infrastructure

Overview

DA - 12517 Worldwide — Version 19 — September 15, 2008

Page 3

NOTE:

NOTE: NOTE:

NOTE:

For a brief, printer friendly data sheet that describes this product and informs you of the essential capabilities and

specifications, please visit:

http://isspit.corp.hp.com/document_storage/LaunchDeliverables/4AA0-5978ENW_Rev_1.PDF

HP BladeSystem Overview

HP BladeSystem OverviewHP BladeSystem Overview

HP BladeSystem Overview

As server, storage and network technologies have changed; traditional rack-mounted infrastructure solutions have generated increased complexity of both infrastructure management and physical datacenter deployment.

HP BladeSystem is the evolution of the entire rack-mounted infrastructure. A BladeSystem reduces costs and simplifies the management, building, and maintenance of the infrastructure behind your multi-server environment. It consolidates and repackages all the supporting infrastructure elements-compute, storage, network, and power into a single platform that can accelerate the integration and optimization of your data center.

With the flexibility to scale from a single enclosure holding up to 16 blades, to a rack containing 4 enclosures holding up to 64 blades, the c-Class infrastructure is designed to meet the needs of today's businesses.

An HP BladeSystem c-Class infrastructure is made up of several components:

ProLiant and Integrity Server blades for Windows, Linux, and HP UX. Choice of AMD or Intel processors, including the latest dual-core processors for 32-bit and 64-bit applications. HP BladeSystem c-Class enclosure that provides connectivity, power, and cooling options. The cClass enclosure is designed for full redundancy and high availability. Redundant power, cooling, enclosure management, and interconnect modules are part of the standard enclosure design. Onboard Administrator module which provides a single point of control for intelligent management of the entire enclosure. Insight Display powered by the Onboard Administrator provides local management through an LCD display conveniently sited on the front of the system. Ethernet, Fibre Channel, InfiniBand, iSCSI, and other interconnect choices A power subsystem that provides hot-plug redundant power modes and Dynamic Power Saving mode, which uses up to 22% less power than traditional rack-mounted servers. PARSEC (Parallel, Redundant, Scaleable, Enclosure Cooling) architecture: for maximum cooling that consumes less power and reduces datacenter noise. Zoned cooling that allows only those fans that are required to speed up, reducing power consumption noise and airflow through the system. Direct-attach storage blades, tape blades, or future shared storage blades, which will provide block-based shared storage capacity for the server blades in the enclosure.

QuickSpecs

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class InfrastructureHP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Standard Features

DA - 12517 Worldwide — Version 19 — September 15, 2008

Page 4

HP BladeSystem c-Class

HP BladeSystem c-ClassHP BladeSystem c-Class

HP BladeSystem c-Class c3000 Enclosure

c3000 Enclosurec3000 Enclosure

c3000 Enclosure

A BladeSystem c3000 enclosure holds up to 8 server and/or storage blades plus redundant network and storage switches. It includes a shared, multi-terabit high-speed mid-plane for wire-once connectivity of server blades to network and shared storage. Power is delivered through a pooled power backplane that ensures the full capacity of the hot-plug power supplies is available to all blades.

Each c3000 enclosure is built with the following functions:

Up to 8 half-height and/or up to 4 full-height server blades and/or storage blades per enclosure. Up to 4 different interconnect fabrics (Ethernet, FC, IB, iSCSI, SAS, etc.) supported simultaneously within the enclosure. A single-phase power subsystem - for flexibility in connecting to datacenter power, or to UPS's or to low-line wall outlets PARSEC enclosure design - Parallel, redundant and scalable cooling and airflow design Four (4) or Six (6) Active Cool fans as standard. For redundancy and improved power consumption and acoustics; additional Active Cool Fan kits can be added for a maximum of 10 fans Fully redundant design-redundant interconnections between servers and interconnect modules; a mid-plane with no active components; redundant cooling using hot-plug Active Cool fans; hotplug power supplies. Best performance per watt - lower wattage per server blade, in comparison to rack-mounted servers Full AC redundancy - with no power zones. Single or redundant Onboard Administrator management modules (optional active-standby design)

An Onboard Administrator management module is built in to the enclosure with the following functions:

Robust, multiple enclosure setup and control. Reports asset and inventory information for the devices in the enclosure. Reports thermal and power information, including real-time actual power usage per server and per enclosure. Front-mounted Insight Display for easy management within the datacenter. Integrated access to all server blade iLOs from a single cable. Provides integrated access to interconnect bay device management ports from the single Onboard Administrator cable. Single sign-on capability for all devices in the enclosure Role-based security locally and/or with LDAP directory services. Provides a wizard-based initial setup process for easy configuration.

A BladeSystem c3000 enclosure provides the following benefits:

With local and remote hardware management integrated across the solution, one full enclosure can be managed as easily as one server. Scalable: Management and network interconnects extend scalability beyond a single enclosure, allowing resources to be pooled and shared across multiple enclosures. Investment protection: Accommodates multiple server and network designs in one enclosure. Lower costs per server, in comparison to rack-mounted servers Lower power consumption, in comparison to rack-mounted servers Service and management: Allows multiple administrators to remotely access and maintain multiple servers & interconnect devices simultaneously.

QuickSpecs

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class InfrastructureHP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Standard Features

DA - 12517 Worldwide — Version 19 — September 15, 2008

Page 5

HP BladeSystem c-Class

HP BladeSystem c-ClassHP BladeSystem c-Class

HP BladeSystem c-Class c7000 Enclosure

c7000 Enclosurec7000 Enclosure

c7000 Enclosure

A BladeSystem c7000 enclosure holds up to 16 server and/or storage blades plus redundant network and storage switches. It includes a shared, multi-terabit high-speed mid-plane for wire-once connectivity of server blades to network and shared storage. Power is delivered through a pooled power backplane that ensures the full capacity of the hot-plug power supplies is available to all blades.

Each c7000 enclosure is built with the following functions:

Up to 16 half-height and/or up to 8 full-height server blades and/or storage blades per enclosure. Up to 4 different interconnect fabrics (Ethernet, FC, IB, iSCSI, SAS, etc.) supported simultaneously within the enclosure. Choice of a single-phase or a three-phase power subsystem - for flexibility in connecting to datacenter power. PARSEC enclosure design - Parallel, redundant and scalable cooling and airflow design Four (4) or Six (6) Active Cool fans as standard. For redundancy and improved power consumption and acoustics; additional Active Cool Fan kits can be added for a maximum of 10 fans Fully redundant design-redundant interconnections between servers and interconnect modules; a mid-plane with no active components; redundant cooling using hot-plug Active Cool fans; hotplug power supplies. Best performance per watt - lower wattage per server blade, in comparison to rack-mounted servers Full AC redundancy - with no power zones. Redundant Onboard Administrator management modules (optional active-standby design)

An Onboard Administrator management module is built in to the enclosure with the following functions:

A BladeSystem c7000 enclosure provides the following benefits:

QuickSpecs

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class InfrastructureHP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Standard Features

DA - 12517 Worldwide — Version 19 — September 15, 2008

Page 6

HP ProLiant & Integrity

HP ProLiant & IntegrityHP ProLiant & Integrity

HP ProLiant & Integrity Server Blades

Server BladesServer Blades

Server Blades

Delivering best-in-class performance, choice and reliability on AMD Opteron™, Intel® Xeon™, Intel® Itanium 2™ and processors for Windows, Linux, or HP-UX based servers, the HP portfolio of server blades supports a variety of application requirements for scale-out architectures. HP offers one-, two-, and four-processor (dual-core) server blades, including the widest range of performance, and form factors, and the most processing density and performance of any other portfolio. This portfolio of servers is designed for 32-bit and 64-bit applications. For more information please see:

http://h18000.www1.hp.com/products/quickspecs/Division/12534.html

HP SB40c Storage Blade

HP SB40c Storage BladeHP SB40c Storage Blade

HP SB40c Storage Blade

The StorageWorks SB40c is a half-height c-Class storage blade featuring support for up to six hot-plug Small Form Factor (SFF) Serial Attached SCSI (SAS) or Serial ATA (SATA) hard disk drives. The SB40c connects directly to the adjacent server blade to provide up to 876GB additional storage capacity to that blade. For maximum fault tolerance the SB40c uses supports hardware RAID 0, 1, 1+0, 5, and 6 (ADG), using the onboard Smart Array P400 with up to 256MB of battery-backed write cache. For more information please see:

http://h18000.www1.hp.com/products/quickspecs/12587_div/12587_div.html

HP StorageWorks Ultrium

HP StorageWorks UltriumHP StorageWorks Ultrium

HP StorageWorks Ultrium 448 Tape Blade

448 Tape Blade448 Tape Blade

448 Tape Blade

The HP StorageWorks Ultrium 448c Tape Blade is ideal for HP BladeSystem c-Class customers who need a data protection solution but are not connected into a Storage Area Network (SAN). This tape blade provides direct attach data protection for the adjacent server and network backup protection for all other data within the enclosure. The HP Ultrium 448c Tape Blade is the first HP StorageWorks tape product developed exclusively for the BladeSystem c-Class enclosures. For more information, please visit

http://h18000.www1.hp.com/products/quickspecs/12729_div/12729_div.html

HP BladeSystem c-Class

HP BladeSystem c-ClassHP BladeSystem c-Class

HP BladeSystem c-Class Interconnect Options

Interconnect OptionsInterconnect Options

Interconnect Options

HP also offers one of the broadest selections of interconnect fabric options in the industry to provide network, SAN/network attached storage (NAS), and cluster connectivity.

HP BladeSystem interconnects provide:

Virtual Connect Ethernet and Fibre Channel to simply connections moves and changes in both the Ethernet and SAN environment. Seamless integration of Ethernet, FC, InfiniBand, iSCSI, and SAS fabrics: Standard-based switch options include Cisco, Brocade, and HP (BNT) products that integrate within your existing standards. Built-in redundancy: Rear-mounting interconnect modules designed for redundant interconnections between server blades and switches. Cable reduction: Interconnect switches provide up to 32-to-1 network cable reductions per server blade enclosure

For more information HP BladeSystem c-Class Interconnect Components, please visit:

http://h18000.www1.hp.com/products/quickspecs/12524_div/12524_div.html

QuickSpecs

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class InfrastructureHP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Standard Features

DA - 12517 Worldwide — Version 19 — September 15, 2008

Page 7

Rack Airflow

Rack AirflowRack Airflow

Rack Airflow Requirements

RequirementsRequirements

Requirements

Rack 10000 series cabinets

Rack 10000 series cabinetsRack 10000 series cabinets

Rack 10000 series cabinets The increasing power of new high-performance processor technology requires increased cooling efficiency for rack-mounted servers. The 10000 Series Racks provide enhanced airflow for maximum cooling, allowing these racks to be fully loaded with servers using the latest processors.

CAUTION:

CAUTION: CAUTION:

CAUTION:

If a third-party rack is used, observe the following additional requirements to ensure

adequate airflow and to prevent damage to the equipment:

Front and rear doors: If your 42U server rack includes closing front and rear doors, you must allow 830 square inches (5,350 sq cm) of hole evenly distributed from top to bottom to permit adequate airflow (equivalent to the required 64 percent open area for ventilation). The clearance from face of rack to inside of the front door needs to be 1.75" minimum. Side: The clearance between the installed rack component and the side panels of the rack must be a minimum of 2.75 inches (7 cm). Depth: Minimum 39.4 inches (1000mm) Adjustable rack rails are shipped with each enclosure:

Minimum rail length: 25 inches (635mm) Maximum rail length: 34 inches (864mm)

CAUTION:

CAUTION: CAUTION:

CAUTION:

Always use blanking panels to fill all remaining empty front panel U-spaces in the rack. This arrangement ensures proper airflow. Using a rack without blanking panels results in improper cooling that can lead to thermal damage.

Factory Express Portfolio

Factory Express PortfolioFactory Express Portfolio

Factory Express Portfolio for Servers and Storage

for Servers and Storagefor Servers and Storage

for Servers and Storage

HP Factory Express offers configuration, customization, integration and deployment services for HP servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging and custom packaging. HP products supported through Factory Express include: a wide array of servers and storage: HP Integrity, HP ProLiant & HP ProLiant & Integrity Server Blades, HP BladeSystem, HP 9000 servers as well as the MSAxxxx, VA7xxx, EVA, XP, rackable tape libraries and configurable network switches.

For more information on Factory Express services for your specific server model please contact your sales representative or go to

http://www.hp.com/go/factory-express

Insight Control

Insight ControlInsight Control

Insight Control Environment for

Environment forEnvironment for

Environment for BladeSystem

BladeSystemBladeSystem

BladeSystem Management Suite

Management SuiteManagement Suite

Management Suite

Insight Control Environment for BladeSystem delivers foundation management for HP BladeSystem lifecycles, including hardware resource deployment, health monitoring, software version control, performance monitoring, vulnerability, scanning and patch management. Installs and licenses the following components by default using a wizard-based integrated installer:

HP Systems Insight Manager HP iLO Select Pack HP Insight Power Manager HP ProLiant Essentials Rapid Deployment Pack HP ProLiant Essentials Performance Management Pack HP ProLiant Essentials Vulnerability and Patch Management Pack HP ProLiant Essentials Virtual Machine Management Pack

Additional ProLiant Essentials software and management tools included on the Insight Control Management DVD can be installed manually.

QuickSpecs

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class InfrastructureHP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Standard Features

DA - 12517 Worldwide — Version 19 — September 15, 2008

Page 8

Server Migration Pack

NOTE:

NOTE:NOTE:

NOTE:

HP Server Migration Pack - Universal Edition is licensed separately from the Insight Control Environment Suite.

HP Open Service Event Manager HP Instant Support Enterprise Edition

NOTE:

NOTE:NOTE:

NOTE:

Server Migration Pack - Universal Edition can be installed from the SMP-P2P CD included in the

Insight Control Management media kit.

NOTE:

NOTE: NOTE:

NOTE:

Insight Control Environment for HP BladeSystem can be installed from the Insight Control Management DVD, which can be delivered with HP BladeSystem c-Class enclosures with a choice of licensing options. Licensing options include a free 30 day evaluation license for 8 servers (default option for every enclosure order), a full purchased license for 8 blade servers or a full purchased license for 16 blade servers). For additional information on HP c-Class Enclosures please visit: HP BladeSystem c-Class c7000 Enclosure QuickSpecs

http://h18000.www1.hp.com/products/quickspecs/12810_div/12810_div.html

HP BladeSystem c-Class c3000 Enclosure QuickSpecs:

http://h18000.www1.hp.com/products/quickspecs/12790_div/12790_div.html

NOTE:

NOTE:NOTE:

NOTE:

For additional product and licensing information about Insight Control Environment for BladeSystem, HP Systems Insight Manager and Essentials software refer to

http://www.hp.com/servers/proliantessentials

HP Insight Control Environment for Linux (ICE-Linux) provides comprehensive discovery, imaging & deployment, monitoring, and management for Linux-based ProLiant server platforms. Built on the industry-leading HP Systems Insight Manager framework, this solution integrates open source technology with experience leveraged from HP's Linux products in HP ICLE and HP XC Clusters, while providing paths to the future with developing management technologies.

HP Insight Control management suites and most HP ProLiant Essentials include one year of 24 x 7 HP Software Technical Support and Update Service ensuring rapid access to HP support staff and proactive delivery of software updates. For more information about this service, please visit:

http://www.hp.com/services/insight

HP Software Support

HP Software SupportHP Software Support

HP Software Support

HP Insight Control Environment for BladeSystem and Insight Control Linux Edition will include one year of 24 x 7 HP Software Technical Support and Update Service. This service provides access to HP technical resources for help in resolving software implementation or operations problems. The service also provides access to software updates and reference manuals either in electronic form or on physical media as they are made available from HP.

With this service, HP Insight Control Environment for BladeSystem and Insight Control Linux Edition customers will benefit from expedited problem resolution and proactive notification and delivery of:

http://www.hp.com/go/ice software updates

To activate your HP Software Technical Support and Update Service for HP Insight Control Environment for BladeSystem and Insight Control Linux Edition, you must register your software purchase through the HP website at:

http://www.hp.com/services/insight

Failure to register your service will jeopardize service fulfillment.

Your Service Agreement Identifier (SAID) will be delivered to you after registration. After you have

QuickSpecs

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class InfrastructureHP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Standard Features

DA - 12517 Worldwide — Version 19 — September 15, 2008

Page 9

received your SAID, you can go to the software update manager (SUM) web page to view your contract online and elect electronic delivery (in addition to standard media-based updates). For more information about this service, see:

http://www.hp.com/services/insight

Unified Core Services and

Unified Core Services andUnified Core Services and

Unified Core Services and Flexible Software

Flexible SoftwareFlexible Software

Flexible Software Extensions

ExtensionsExtensions

Extensions

HP Systems Insight Manager

HP Systems Insight Manager (HP SIM) provides a unified, secure and extensible standards-based environment to centrally manage servers, storage and other infrastructure devices, (both HP and non-HP) across multiple operating system platforms.

ProLiant Essentials Rapid Deployment Pack

Rapid Deployment Pack (RDP) extends HP Systems Insight Manager with a complete deployment solution for HP ProLiant blade servers. RDP provides a central location to configure server hardware, deploy Windows, Linux and VMware ESX operating environments and install HP ProLiant Support Pack drivers using images and scripted profiles.

Integrated Lights-Out Select Pack

Upgrades the iLO 2 processor with enhanced console sharing and replay, virtual media (floppy, CD/DVD, USB key), virtual folders, historical power reporting, power capping and enterprise security (directory services and twofactor authentication) for servers managed using remote consoles available in iLO 2 Standard and iLO 2 Standard Blade Edition.

Insight Power Manager (IPM)

Upgrades the single-server remote management capabilities of iLO Select/Advanced to include centralized reporting and policy-based management of power consumption and thermal output provided by the Insight Power Manager. IPM unifies all of this functionality within a single user interface - HP Systems Insight Manager.

Integrated Lights-Out Power Management Pack

Is energy-efficient management software that delivers centralized control, reliable security, and energy savings for your BladeSystem infrastructure. iPMP combines the total control of iLO 2 Advanced in the area of remote management with the energy monitoring and control of the Insight Power Manager to deliver a robust solution capable of full remote control and power management of ProLiant servers through a unified interface within HP Systems Insight Manager.

ProLiant Essentials Performance Management Pack

Performance Management Pack (offered exclusively through the Insight Control suites) - a performance management solution that identifies and explains hardware performance bottlenecks on ProLiant servers and attached options enabling users to better utilize their valuable resources.

HP Insight Dynamics - VSE

Introducing HP Insight Dynamics - VSE, the world's first software integrated by design to let IT professionals analyze and optimize their virtual & physical environments in the same way. It combines the best of the industry-leading HP infrastructure management portfolio-including HP Systems Insight Manager, HP Insight Control and HP Virtual Server Environment-into one integrated offering for HP BladeSystem, ProLiant and Integrity servers.

For more information, visit:

http://www.hp.com/go/insightdynamics

Server Migration Pack Universal Edition

Upgrading, replacing, or virtualizing your existing server? Effortlessly transition to new virtual or physical HP ProLiant servers or BladeSystem with automated, accurate and affordable migration of OS, application and data. SMP Universal automates the manual processes required for migrating servers between physical or virtual platforms, whether migrating to VMware or Microsoft virtual machines. SMP Universal allows all of the following:

QuickSpecs

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class InfrastructureHP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Standard Features

DA - 12517 Worldwide — Version 19 — September 15, 2008

Page 10

Physical to ProLiant Physical to virtual Virtual to virtual Virtual to ProLiant

Virtual Machine Management Pack

Virtual Machine Management Pack - provides central management and control of virtual machines from Microsoft and VMware. Integrated approach provides the ability to manage both physical and virtual resources from a single management console.

The Vulnerability and Patch Management Pack

Vulnerability and Patch Management Pack (offered exclusively through the Insight Control suites) - identifies and remediates software security vulnerabilities due to missing patches as well operating system configurations that can be exploited by viruses, worms, and other blended threats.

NOTE:

NOTE:NOTE:

NOTE:

Flexible and volume quantity license kits are available for ProLiant Essentials Value Packs. Refer to:

http://www.hp.com/servers/proliantessentials/vpm

or the various ProLiant Essentials Value Pack product QuickSpecs for more information. NOTE:

NOTE:NOTE:

NOTE:

Selected software packages listed here include one year of 24 x 7 Software Technical Support and Update Service. If you have any questions about this service please visit the HP website at:

http://www.hp.com/services/insight

Core Infrastructure

Core InfrastructureCore Infrastructure

Core Infrastructure Management

ManagementManagement

Management

SmartStart

SmartStart is a tool that simplifies server setup, providing a rapid way to deploy reliable and consistent server configurations. For more information, please visit the SmartStart Web site at:

http://www.hp.com/servers/smartstart

SmartStart version supported (minimum): SmartStart 7.60

Insight Management Agents

The Insight Management Agents should be installed on all HP servers to present system instrumentation, health and configuration information into HP Systems Insight Manager and the HP System Management Homepage. The HP System Management Homepage aggregates systems data from Insight Management Agents and other HP management tools, providing a consolidated browser-based interface for managing individual servers.

Insight Management Agents and The HP System Management Homepage are included on ProLiant Support Packs, and can also be installed using the server profiles provided with the ProLiant Essentials Rapid Deployment Pack.

For additional information about the Management Agents and the HP System Management Homepage please visit the management Web site at:

http://www.hp.com/servers/manage

Subscriber's Choice

Subscriber's Choice Driver and Support Alerts/Notifications is a web-based email subscription service that provides software and driver change notifications for ProLiant products. Sign up at:

http://www.hp.com/go/subscriberschoice

and customize your profile to receive various new alerts as they become available, on a weekly or monthly basis.

QuickSpecs

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class InfrastructureHP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Standard Features

DA - 12517 Worldwide — Version 19 — September 15, 2008

Page 11

ProLiant Support Packs and ROMPaq, software

The latest software, drivers, and firmware fully optimized and tested for your ProLiant server and options, available through ProLiant Support Packs the ProLiant Essentials Rapid Deployment Pack, SmartStart or downloaded from software and drivers download pages website at:

http://www.hp.com/go/support

HP Enterprise

HP EnterpriseHP Enterprise

HP Enterprise Configurator

ConfiguratorConfigurator

Configurator

The HP eCo-Enterprise Configurator now provides factory default racking for our HP hardware portfolio. This approach is aligned with our strategic direction to meet the needs and expectations of our valued customers. If you require "custom" rack configuration, please contact HP's Customer Business Center or an Authorized Partner for assistance.

HP BladeSystem Power

HP BladeSystem PowerHP BladeSystem Power

HP BladeSystem Power Sizer

SizerSizer

Sizer

The HP BladeSystem Power Sizer helps in sizing the power infrastructure needed for a HP BladeSystem solution. This sizer enables effective planning for the power consumption and heat load of the BladeSystem at its site.

The sizer enables you to:

Select the type and number of components within each Blade Server and Blade Enclosure. View the effect of component changes on the power consumption and heat loading. Review server loading and determine power supply and power subsystem requirements. Approximate electrical and heat load for facilities planning purposes.

The sizing estimate is based on component level power measurements for a system stressed to maximum capability.

Values obtained from the BladeSystem Sizer tool are measured with all components stressed to 100% load and are intended for facilities planning purposes only. Actual power consumption varies with application type, application utilization, and ambient temperature.

The p-class BladeSystem and the c-Class BladeSystem solutions are supported in the BladeSystem Power Sizer.

Available at

http://www.hp.com/go/bladesystem/powercalculator

QuickSpecs

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class InfrastructureHP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Standard Features

DA - 12517 Worldwide — Version 19 — September 15, 2008

Page 12

Service and Support

Service and SupportService and Support

Service and Support

This product is covered by a global limited warranty and supported by HP Services and a worldwide network of HP Authorized Channel Partners. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Additional support may be covered under the warranty or available for an additional fee. Enhancements to warranty services are available through HP Care Pack services or customized service agreements.

HP Care Pack services provide total care and support expertise with committed response designed to meet your IT and business needs.

The HP Care Pack service for HP ProLiant BL c-Class server blades, cover the server blade and all HP branded hardware options qualified for the server, purchased at the same time or afterwards, internal to the server.

HP Care Pack services for the c7000 and c3000 enclosures cover the enclosure, power supplies and fans. HP qualified rack options are covered by these services when installed within the same rack. HP supported c-Class enclosure devices including pass thru, Ethernet interconnect and virtual connect modules are also covered by the c7000 and c3000 enclosure Care Pack services.

NOTE:

NOTE:NOTE:

NOTE:

SAN/Fabric switches for the HP c-Class BladeSystem are not covered under the c7000 enclosure Care Packs, SAN/Fabric switches carry separate Care Packs. SAN/Fabric Switch Care Pack service level support should always be uplifted to match existing storage or server service level.

To fully capitalize on your HP BladeSystem servers' capabilities requires a service partner who thoroughly understands your server technology and systems environment. HP Services, an industry leader in provision of multi vender support solutions provides a range of support services designed to meet the varying needs of business. Whether an SMB or large global corporation HP has a HP BladeSystem server support offer to help you speedily deploy and maximize system uptime.

Recommended Service

Recommended ServiceRecommended Service

Recommended Service

- Simplify ProLiant solution implementation, maintenance and management.

Support Service

Support ServiceSupport Service

Support Service

- 4-Hour Response Coverage, 3-Year, 24 x 7, Same Business Day

Deployment Service

Deployment ServiceDeployment Service

Deployment Service

- Installation and Start Up for HP BladeSystem Infrastructure

Enhanced Service

Enhanced ServiceEnhanced Service

Enhanced Service

- Optimize service level to increase IT performance and availability

Support Service

Support Service Support Service

Support Service

- HP Proactive BladeSystem Service, 1-Year

Deployment Service

Deployment ServiceDeployment Service

Deployment Service

- Enhanced Network Installation and Start-up for HP BladeSystem Switches

Installation & Start-Up service for HP BladeSystem Infrastructure plus HP BladeSystem Enhanced Network Installation and Start-UP as per the Customer Description and/or Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F, excluding HP holidays.

For a complete listing of service offerings and information visit:

http://www.hp.com/services/bladesystemservices http://www.hp.com/go/proliant/carepack

QuickSpecs

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class InfrastructureHP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Standard Features

DA - 12517 Worldwide — Version 19 — September 15, 2008

Page 13

For a complete configuration of the HP BladeSystem, please do the following:

Step 1: Select desired model, configuration and quantity of HP ProLiant server and Storage blades

Step 1: Select desired model, configuration and quantity of HP ProLiant server and Storage bladesStep 1: Select desired model, configuration and quantity of HP ProLiant server and Storage blades

Step 1: Select desired model, configuration and quantity of HP ProLiant server and Storage blades

NOTE:

NOTE: NOTE:

NOTE:

For server blade information, please visit:

http://h18000.www1.hp.com/products/quickspecs/division/12534.html

NOTE:

NOTE:NOTE:

NOTE:

For Storage Blade information, please visit:

http://h18000.www1.hp.com/products/quickspecs/12587_div/12587_div.html

Step 2: Determine quantity of HP BladeSystem c-Class Enclosures to purchase and choose Required Options

Step 2: Determine quantity of HP BladeSystem c-Class Enclosures to purchase and choose Required OptionsStep 2: Determine quantity of HP BladeSystem c-Class Enclosures to purchase and choose Required Options

Step 2: Determine quantity of HP BladeSystem c-Class Enclosures to purchase and choose Required Options

(One of the

following from each list unless otherwise noted):

NOTE:

NOTE: NOTE:

NOTE:

Each HP BladeSystem c3000 Server Blade Enclosure holds up to 8 half-height blades, or up to 4 full-height server blades. Server blanks will be shipped in all empty bays.

NOTE:

NOTE:NOTE:

NOTE:

Each HP BladeSystem c7000 Enclosure holds up to 16 half-height blades. Server blanks will be shipped in all empty bays.

Base Server Blade Enclosure Configuration

Base Server Blade Enclosure ConfigurationBase Server Blade Enclosure Configuration

Base Server Blade Enclosure Configuration

HP BladeSystem c-Class

HP BladeSystem c-ClassHP BladeSystem c-Class

HP BladeSystem c-Class Server Blade Enclosures

Server Blade EnclosuresServer Blade Enclosures

Server Blade Enclosures

HP BladeSystem c3000 Enclosure

HP BladeSystem c3000 EnclosureHP BladeSystem c3000 Enclosure

HP BladeSystem c3000 Enclosure HP BLc3000 CTO Enclosure -Rack

NOTE:

NOTE: NOTE:

NOTE:

CTO model includes 4 Active Cool Fans

437507-B21

HP BLc3000 CTO Enclosure - Tower

NOTE:

NOTE: NOTE:

NOTE:

CTO model includes 4 Active Cool Fans

458034-B21

HP BladeSystem c7000 Enclosure

HP BladeSystem c7000 EnclosureHP BladeSystem c7000 Enclosure

HP BladeSystem c7000 Enclosure HP BLc7000 CTO Enclosure

NOTE:

NOTE:NOTE:

NOTE:

CTO model includes 1x Onboard Administrator, 4x Active Cool Fans and 0x

power supplies.

412152-B22

Required Options (one of the following from each category unless otherwise noted)

Required Options (one of the following from each category unless otherwise noted)Required Options (one of the following from each category unless otherwise noted)

Required Options (one of the following from each category unless otherwise noted)

BLc3000 Onboard

BLc3000 OnboardBLc3000 Onboard

BLc3000 Onboard Administrator

AdministratorAdministrator

Administrator

HP BLc3000 Onboard Administrator, FIO

NOTE:

NOTE:NOTE:

NOTE:

Required when purchasing the BLc3000 Enclosure (P/N 437507-B21)

448589-B21

HP BL3000 Tower Onboard Administrator, FIO

NOTE:

NOTE: NOTE:

NOTE:

Supports CTO Enclosure - Tower (p/n 458034-B21) only.

461514-B21

c-Class Power Modules (1

c-Class Power Modules (1c-Class Power Modules (1

c-Class Power Modules (1 per enclosure)

per enclosure)per enclosure)

per enclosure)

HP BLc7000 Single Phase Power Module, FIO

413379-B21

HP BLc7000 Three Phase Power Module, FIO, INT'L

413381-B21

HP BLc7000 Three Phase Power Module, FIO, NA/JPN

413380-B21

c-Class Power Supply

c-Class Power Supplyc-Class Power Supply

c-Class Power Supply

HP c7000 Enclosure Hot-Plug Power Supply Option Kit (supplied with IEC C20 - C19 jumper cord)

NOTE:

NOTE: NOTE:

NOTE:

If Three Phase Power Module selected, a minimum of 3 Power Supply Option

Kits are needed. For full redundancy 6 Power Supply Option Kits are required

412138-B21

c-Class Active Cool Fan

c-Class Active Cool Fanc-Class Active Cool Fan

c-Class Active Cool Fan

HP Active Cool Fan Option Kit

NOTE:

NOTE:NOTE:

NOTE:

A minimum of 4 Active Cool fans is required, 8 Active Cool fans can support a full blade enclosure, 10 Active Cool fans should be ordered for reduced power consumption and noise reduction. NOTE:

NOTE:NOTE:

NOTE:

Single-Phase models may require additional power supplies. Fans should be added to provide redundancy, reduce power consumption and reduce noise. NOTE:

NOTE: NOTE:

NOTE:

Three-Phase models require a minimum of 6 Active Cool fans.

412140-B21

QuickSpecs

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class InfrastructureHP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Infrastructure

Configuration Information Factory Integrated Models

DA - 12517 Worldwide — Version 19 — September 15, 2008

Page 14

Step 2A: Select other factory integratable enclosure options:

Step 2A: Select other factory integratable enclosure options:Step 2A: Select other factory integratable enclosure options:

Step 2A: Select other factory integratable enclosure options: Enclosure Options

Enclosure OptionsEnclosure Options

Enclosure Options

HP BLc7000 Insight Control Environment For BladeSystem 16 License, including 1 year of 24x7 Technical Support and Updates, FIO

417688-B23

HP c-Class Insight Control Environment for BladeSystem, 8 server blade licenses including 1 year of 24x7 Technical Support and Updates

NOTE:

NOTE:NOTE:

NOTE:

Supports the c3000 and c7000 c-Class Server Blade Enclosures.

439034-B23

HP BLc7000 Insight Control Environment For BladeSystem Evaluation License, FIO

417687-B22

HP BLc3000 Rack Rails

437576-B21

Additional C3000 Power

Additional C3000 PowerAdditional C3000 Power

Additional C3000 Power Supplies

SuppliesSupplies

Supplies

HP 1200W AC Power Supply

NOTE:

NOTE:NOTE:

NOTE:

Includes a C13 to C14 PDU power cord. NOTE:

NOTE:NOTE:

NOTE:

Order additional power supplies, as determined by the use of the HP BladeSystem Power Calculator. NOTE:

NOTE:NOTE:

NOTE:

For a full enclosure, order 4 power supplies in a Power Supply Redundant (N+1) configuration; order 6 power supplies in an AC Redundant (N+N) configuration.

437572-B21

HP BLc3000 Enclosure

HP BLc3000 EnclosureHP BLc3000 Enclosure

HP BLc3000 Enclosure DVD Drive

DVD DriveDVD Drive

DVD Drive

HP c3000 Enclosure DVD Drive

437577-B21

Step 3: Select an interconnect kit.

Step 3: Select an interconnect kit.Step 3: Select an interconnect kit.

Step 3: Select an interconnect kit. A pair of interconnects must be order if redundancy is required. For additional information on Interconnect Options, please visit: HP BladeSystem c-Class Interconnect QuickSpecs:

http://h18000.www1.hp.com/products/quickspecs/12524_div/12524_div.html

HP BladeSystem

HP BladeSystemHP BladeSystem

HP BladeSystem c-Class Ethernet

c-Class Ethernetc-Class Ethernet

c-Class Ethernet Interconnects

InterconnectsInterconnects

Interconnects

HP 1/10Gb-F Virtual Connect Ethernet Module for c-Class BladeSystem

447047-B21

HP BladeSystem c-Class Virtual Connect 1Gb SX SFP

453151-B21

HP BladeSystem c-Class Virtual Connect 1Gb RJ-45 SFP Opt Kit

453154-B21

HP 1Gb Virtual Connect Ethernet Module for c-Class BladeSystem

NOTE:

NOTE:NOTE:

NOTE:

This module must be upgraded to VC Management firmware v1.20 or greater.

399593-B22

Ethernet Pass-Through Module for HP BladeSystem

406740-B21

Cisco Catalyst Blade Switch 3120X for HP

451439-B21

Cisco Catalyst Blade Switch 3120G for HP

451438-B21

Cisco Catalyst Blade Switch 3020 for HP c-Class BladeSystem

410916-B21

GbE2c Ethernet Blade Switch for HP c-Class BladeSystem

410917-B21

GbE2c Layer 2/3 Ethernet Blade Switch for HP c-Class BladeSystem

438030-B21

HP GbE2c Layer 2/3 Ethernet Blade Switch Advanced Functionality Software

NOTE:

NOTE:NOTE:

NOTE:

Provides additional feature functionality such as Hot Links, PVLAN Edge and IGMPv3 Snooping. Purchase of this SW entitles users to three years of additional software upgrades as made available. This option may be purchased at any time.

485192-B21

HP 1:10 Gb Ethernet BL-c Switch

438031-B21

HP 1:10 GbE BLc Advanced Functionality Software

NOTE:

NOTE:NOTE:

NOTE:

485193-B21

QuickSpecs

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class InfrastructureHP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Infrastructure

Configuration Information Factory Integrated Models

DA - 12517 Worldwide — Version 19 — September 15, 2008

Page 15

HP 10Gb Ethernet BL-c Switch

NOTE:

NOTE: NOTE:

NOTE:

The purchase the HP 10Gb Ethernet BL0c Switch, also requires the purchase of one (1) HP NC512m Dual Port 10GbE Multifunction BL-c Adapter (P/N 440910B21) per server blade that requires 10Gbit support.

445860-B21

HP 10GbE BLc Advanced Functionality Software

NOTE:

NOTE:NOTE:

NOTE:

485194-B21

NOTE:

NOTE:NOTE:

NOTE:

The HP BladeSystem c-Class Network Interconnects ship as single units. The above interconnects must be ordered in quantities of two for redundancy support.

HP BladeSystem

HP BladeSystemHP BladeSystem

HP BladeSystem c-Class FC SAN

c-Class FC SANc-Class FC SAN

c-Class FC SAN Interconnects

InterconnectsInterconnects

Interconnects

HP 4Gb Virtual Connect Fibre Channel Module for c-Class BladeSystem

409513-B21

16 port FC Pass-thru Module for c-Class BladeSystem

403626-B21

HP Brocade 4/12 SAN Switch

AE370A

HP Brocade 4/24 SAN Switch Power Pack

AE371A

HP Brocade 4/24 SAN Switch

AE372A

HP Brocade 4/12 SAN Switch Upgrade LTU

AE373A

Cisco MDS 9124e 12-port Fabric Switch

AG641A

Cisco MDS 9124e 24-port Fabric Switch

AG642A

Cisco MDS 9124e 12-port Upgrade LTU

T5169A

HP BladeSystem

HP BladeSystemHP BladeSystem

HP BladeSystem InfiniBand Interconnects

InfiniBand InterconnectsInfiniBand Interconnects

InfiniBand Interconnects

HP 4X DDR IB Switch Module for HP c-Class BladeSystem

410398-B21

Step 4: Select rack power distribution for single-phase models

Step 4: Select rack power distribution for single-phase modelsStep 4: Select rack power distribution for single-phase models

Step 4: Select rack power distribution for single-phase models

NOTE:

NOTE: NOTE:

NOTE:

A pair of PDUs must be ordered for AC Feed redundancy.

HP Monitored Power

HP Monitored PowerHP Monitored Power

HP Monitored Power Distribution Unit

Distribution UnitDistribution Unit

Distribution Unit

HP 17.3 kVA S348 Monitored PDU- single input, 3Ø, 48A (NA/JPN)

AF916A

HP 22 kVA S332 Monitored PDU- single input, 3-phase, 32A (INTL)

AF917A

HP 8.6 kVA S1324 Monitored PDU- single input, 3Ø, 24A (NA/JPN)

NOTE:

NOTE:NOTE:

NOTE:

Supports the c3000 c-Class Server Blade Enclosure.

AF504A

HP 11 kVA S1316 Monitored PDU- single input, 3Ø, 16A (INTL)

NOTE:

NOTE:NOTE:

NOTE:

Supports the c3000 c-Class Server Blade Enclosure.

AF508A

HP Modular Power

HP Modular PowerHP Modular Power

HP Modular Power Distribution

DistributionDistribution

Distribution Units

UnitsUnits

Units

HP 8.6 kVA Modular PDU 24A 3Ø Core Only (NA/Jpn**)

AF512A

HP 11 kVA Modular PDU 16A 3Ø Core Only (Intl**)

AF513A

HP 8.3kVA Modular Distribution Unit 40 Amp (NA/JPN)

NOTE:

NOTE: NOTE:

NOTE:

Supports the c3000 c-Class Server Blade Enclosure.

252663-D73

HP 8.3k VA Modular PDU 40 Amp Core Only (NA/JPN)

252663-D75

HP 9.2kVA Modular PDU 40 Amp Core Only (Intl)

252663-B34

HP7.3kVA Modular PDU 32 Amp Core Only (Intl)

252663-B33

HP 8.3kVA Modular Distribution Unit 40 Amp (Intl)

NOTE:

NOTE:NOTE:

NOTE:

Supports the c3000 c-Class Server Blade Enclosure.

252663-B32

HP 4.9kVA Modular PDU 24 Amp Core Only(NA/JPN)

252663-D74

HP 4.9kVA Modular Distribution Unit 24 Amp (NA/JPN)

NOTE:

NOTE: NOTE:

NOTE:

Supports the c3000 c-Class Server Blade Enclosure.

252663-D72

QuickSpecs

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class InfrastructureHP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Infrastructure

Configuration Information Factory Integrated Models

DA - 12517 Worldwide — Version 19 — September 15, 2008

Page 16

** The Modular Distribution Unit Kits excludes the extension bars as they are not required with the HP BladeSystem

HP Two C-13 PDU Extension Bars

AF500A

NOTE:

NOTE:NOTE:

NOTE:

Each extension bar has a C19 input and 7 C13 receptacles. The option is ideal for model S348, and, model S332, which both have only C19 outlets (12) and for all Core Only Modular PDUs.

NOTE:

NOTE:NOTE:

NOTE:

For additional information on HP Power Distribution Units including accessories please go to:

www.hp.com/go/pdu

(Worldwide)

HP UPS

HP UPSHP UPS

HP UPS

HP rack-mountable R5500 UPS (5000VA / 4500 watts)

AF426A

NOTE:

NOTE:NOTE:

NOTE:

The R5500 includes four c-13 PDU Extension bars. NOTE:

NOTE:NOTE:

NOTE:

The R5500 supports 4 power supplies in the Power Supply Redundant (N+1) power mode. NOTE:

NOTE:NOTE:

NOTE:

Supports the c3000 c-Class Server Blade Enclosure.

Step 5: Select Wall Outlet Power Cords

Step 5: Select Wall Outlet Power Cords Step 5: Select Wall Outlet Power Cords

Step 5: Select Wall Outlet Power Cords

(For connection to standard wall outlets)

NOTE:

NOTE:NOTE:

NOTE:

Select one wall outlet power cord for each power supply when plugging the power supplies into a wall outlet.

NOTE:

NOTE:NOTE:

NOTE:

Wall Outlet power cords should only be used with low-line (100v to 110V) power sources. If high-line power outlets are required, safety regulations require the use of a PDU or a UPS between the c3000 enclosures power supplies and wall outlets. NOTE:

NOTE: NOTE:

NOTE:

A standard PDU power cord(c13 to C14) is included with each AC power supply, so these wall outlet power cords are not required if you plan to plug the power supplies into a PDU or UPS. Order the appropriate power cord for your countries standard electrical outlets.

Order the appropriate power cord for your countries standard electrical outlets.Order the appropriate power cord for your countries standard electrical outlets.

Order the appropriate power cord for your countries standard electrical outlets.

Wall Outlet Power Cords

Wall Outlet Power CordsWall Outlet Power Cords

Wall Outlet Power Cords

Nema 5-15P to IEC320-C13, low voltage (6 ft/2 m), North America

NOTE:

NOTE: NOTE:

NOTE:

HP Power cord (6 ft) 1.83 meter 10A C-13-UL domestic power cord, for

grounded USA 110V wall outlets.

AF556A

Power Cord, C13,10A , 1.83m, Japan

NOTE:

NOTE: NOTE:

NOTE:

HP Power cord 2 meter C13 Japan low-line power cord, for Japanese 100V

wall outlets.

AF572A

QuickSpecs

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class InfrastructureHP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Infrastructure

Configuration Information Factory Integrated Models

DA - 12517 Worldwide — Version 19 — September 15, 2008

Page 17

HP BladeSystem

HP BladeSystemHP BladeSystem

HP BladeSystem c-Class Server Blade

c-Class Server Bladec-Class Server Blade

c-Class Server Blade Enclosures

EnclosuresEnclosures

Enclosures

HP BladeSystem c3000 Enclosures - Rack Models

HP BladeSystem c3000 Enclosures - Rack ModelsHP BladeSystem c3000 Enclosures - Rack Models

HP BladeSystem c3000 Enclosures - Rack Models

- Supports a full enclosure of 8

blades HP BladeSystem c3000 Single-Phase Enclosure

NOTE:

NOTE: NOTE:

NOTE:

Includes 4 Power Supplies, 6 Fans, an Onboard Administrator module, a

DVD drive, rail kit, and 8 Insight Control Environment Licenses

437504-B22

HP BladeSystem Single-Phase c3000 Enclosure

NOTE:

NOTE: NOTE:

NOTE:

Includes 4 Power Supplies, 6 Fans, an Onboard Administrator module, a

DVD drive, rail kit, and 8 Insight Control Environment Trial Licenses.

437502-B22

HP BladeSystem c3000 Enclosures - Rack Models

HP BladeSystem c3000 Enclosures - Rack ModelsHP BladeSystem c3000 Enclosures - Rack Models

HP BladeSystem c3000 Enclosures - Rack Models

- A "starter" enclosure that

supports up to 4 blades HP BladeSystem c3000 Single-Phase Enclosure

NOTE:

NOTE: NOTE:

NOTE:

Includes 2 Power Supplies, 4 Fans, a DVD drive, rail kit, and 8 Insight Control

Environment Licenses

437504-B21

HP BladeSystem Single-Phase c3000 Enclosure

NOTE:

NOTE: NOTE:

NOTE:

Includes 2 Power Supplies, 4 Fans, a DVD drive, rail kit, and 8 Insight Control

Environment 30 Day Trial Licenses

437502-B21

HP BladeSystem c3000 Enclosures - Tower Models

HP BladeSystem c3000 Enclosures - Tower ModelsHP BladeSystem c3000 Enclosures - Tower Models

HP BladeSystem c3000 Enclosures - Tower Models

- Supports a full enclosure of 8

blades HP BladeSystem c3000 Tower Enclosure with 8 Insight Control Environment for

BladeSystem Licenses

NOTE:

NOTE: NOTE:

NOTE:

Includes 4 Power Supplies, 6 Fans, an Onboard Administrator module, a

DVD drive and 8 Insight Control Environment Licenses.

458033-B21

HP BladeSystem c3000 Tower Enclosure with 8 Insight Control Environment Trial Licenses.

NOTE:

NOTE: NOTE:

NOTE:

Includes 4 Power Supplies, 6 Fans, an Onboard Administrator module, a

DVD drive and 8 Insight Control Environment Trial Licenses.

458032-B21

HP BladeSystem c3000 Enclosures - Tower Models

HP BladeSystem c3000 Enclosures - Tower ModelsHP BladeSystem c3000 Enclosures - Tower Models

HP BladeSystem c3000 Enclosures - Tower Models

- A "starter" enclosure that

supports up to 4 blades HP BladeSystem c3000 Tower Enclosure

NOTE:

NOTE: NOTE:

NOTE:

Includes 2 Power Supplies, 4 Fans, an Onboard Administrator module, a DVD drive and Trial Licenses; additional power supplies and fans can subsequently be added to support more than 4 blades

469499-B21

HP BladeSystem c3000 Tower Enclosure

NOTE:

NOTE: NOTE:

NOTE:

Includes 2 Power Supplies, 4 Fans, an Onboard Administrator module, a DVD drive and Insight Control Environment for BladeSystem Licenses; additional power supplies and fans can subsequently be added to support more than 4 blades.

469500-B21

HP BladeSystem c7000 Enclosures

HP BladeSystem c7000 EnclosuresHP BladeSystem c7000 Enclosures

HP BladeSystem c7000 Enclosures HP BLc7000 Single Phase Enclosure with 2 Power Supplies and 4 Fans with 16 Insight

Control Linux Edition Licenses

441908-B23

HP BladeSystem c7000 Enclosure, Single-Phase with 2 Power Supplies, 4 Fans with 16 Insight Control Environment Licenses

403321-B22

HP BladeSystem c7000 Enclosure, Three-Phase North America/Japan with 6 Power Supplies, 6 Fans with 16 Insight Control Environment Licenses

412136-B22

HP BladeSystem c7000 Enclosure, Three-Phase International with 6 Power Supplies,6 Fans with 16 Insight Control Environment Licenses

403319-B22

HP BladeSystem c7000 Enclosure, Single-Phase with 2 Power Supplies, 4 Fans with 8 Insight Control Environment 30 Day Trial Licenses

403320-B22

QuickSpecs

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class InfrastructureHP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Infrastructure

Related Options

DA - 12517 Worldwide — Version 19 — September 15, 2008

Page 18

HP BladeSystem c7000 Enclosure, Three-Phase North America/Japan with 6 Power Supplies,6 Fans with 8 Insight Control Environment 30 day Trial Licenses

412133-B22

HP BladeSystem c7000 Enclosure, Three-Phase International with 6 Power Supplies,6 Fans with 8 Insight Control Environment 30 Day Trial Licenses

403318-B22

NOTE:

NOTE:NOTE:

NOTE:

All c7000 BTO enclosures will ship with 12 server blanks. Additional server blanks may be purchased if required. CTO enclosures will ship with the required number of server blanks.

c3000 Enclosure Options

c3000 Enclosure Optionsc3000 Enclosure Options

c3000 Enclosure Options

HP c-Class Replacement Enclosure Miscellaneous Blanks kit

412148-B21

NOTE:

NOTE:NOTE:

NOTE:

Contains 1 each of Power Supply Blank, Interconnect Module Blank, Local KVM option blank, DVD Blank, Active Cool Fan Blank, and c3000 minidivider) NOTE:

NOTE: NOTE:

NOTE:

This kit should only be ordered to replace lost or damaged blanks.

HP c-Class Replacement Server Blank and Coupler Option Kit (contains 1 x halfheight server blank with coupler)

NOTE:

NOTE: NOTE:

NOTE:

The coupler allows half-height server blanks to be coupled together to create a full-height server blank. NOTE:

NOTE:NOTE:

NOTE:

This kit should only be ordered to replace lost or damaged blanks.

412150-B21

HP BLc3000 Rack Rails

NOTE:

NOTE: NOTE:

NOTE:

For use with the c3000 rack-able (437507-B21) model.

437576-B21

c7000 Enclosure Options

c7000 Enclosure Optionsc7000 Enclosure Options

c7000 Enclosure Options

HP Redundant Onboard Administrator Option

412142-B21

HP c7000 Enclosure 10K Rack Ship Bracket Option Kit

NOTE:

NOTE:NOTE:

NOTE:

The shipping bracket is required when shipping a c7000 enclosure when

installed in a rack. It is not required for normal operation.

433718-B21

HP c7000 Replacement Enclosure Miscellaneous Blanks kit (contains 1 each of Power Supply Blank, Interconnect Module Blank, Onboard Administrator Blank, Active Cool Fan Blank)

NOTE:

NOTE:NOTE:

NOTE:

This kit should only be ordered to replace lost or damaged blanks.

412148-B21

HP c-Class Server Blank and Coupler Option Kit (contains 1 x half-height server blank with coupler)

NOTE:

NOTE:NOTE:

NOTE:

The coupler allows half-height server blanks to be coupled together to create a full-height server blank. NOTE:

NOTE:NOTE:

NOTE:

This kit should only be ordered to replace lost or damaged blanks.

412150-B21

c-Class Power Supply

c-Class Power Supplyc-Class Power Supply

c-Class Power Supply

HP c7000 Enclosure Hot-Plug Power Supply Option Kit (supplied with IEC C20 - C19 jumper cord)

412138-B21

HP 1200W AC Power Supply

NOTE:

NOTE:NOTE:

NOTE:

Supports the c3000 c-Class Server Blade Enclosure. NOTE:

NOTE:NOTE:

NOTE:

Includes a C13 to C14 PDU power cord. NOTE:

NOTE:NOTE:

NOTE:

For a full enclosure, order 2 additional power supplies (4 total) in a Power Supply Redundant (N+1) configuration; order 4 additional power supplies (6 total) in an AC Redundant (N+N) configuration.

437572-B21

NOTE:

NOTE:NOTE:

NOTE:

For c-3000 Low-line Power Cords, please order the appropriate power cord for your countries standard electrical outlets. Please see Step 5 above for power cord part numbers.

c-Class Active Cool Fan

c-Class Active Cool Fanc-Class Active Cool Fan

c-Class Active Cool Fan

HP Active Cool Fan Option Kit

NOTE:

NOTE:NOTE:

NOTE:

A minimum 4 Active Cool fans is required, 8 Active Cool fans can support a full blade enclosure, 10 Active Cool fans should be ordered for reduced power consumption and noise reduction. NOTE:

NOTE: NOTE:

NOTE:

Supports the c3000 and c7000 c-Class Server Blade Enclosures.

412140-B21

QuickSpecs

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class InfrastructureHP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Infrastructure

Related Options

DA - 12517 Worldwide — Version 19 — September 15, 2008

Page 19

HP BLc3000 Enclosure

HP BLc3000 EnclosureHP BLc3000 Enclosure

HP BLc3000 Enclosure DVD Drive

DVD DriveDVD Drive

DVD Drive

HP c3000 Enclosure DVD Drive

437577-B21

Other c3000 enclosure

Other c3000 enclosureOther c3000 enclosure

Other c3000 enclosure options

optionsoptions

options

HP BLc3000 Rack Rails

437576-B21

HP BladeSystem

HP BladeSystemHP BladeSystem

HP BladeSystem c-Class Ethernet

c-Class Ethernetc-Class Ethernet

c-Class Ethernet Interconnects

InterconnectsInterconnects

Interconnects

HP 1Gb Virtual Connect Ethernet Module for c-Class BladeSystem

NOTE:

NOTE:NOTE:

NOTE:

This module must be upgraded to VC Management firmware v1.20 or greater

399593-B22

Ethernet Pass-Through Module for HP BladeSystem

NOTE:

NOTE:NOTE:

NOTE:

The Ethernet Pass-Thru Module is shipped as a single unit and should be ordered in quantities of two.

406740-B21

Cisco Catalyst Blade Switch 3120X for HP

451439-B21

Cisco Catalyst Blade Switch 3120G for HP

451438-B21

Cisco Catalyst Blade Switch 3020 for HP c-Class BladeSystem

410916-B21

HP GbE2c Ethernet Blade Switch for HP c-Class BladeSystem

410917-B21

HP GbE2c Layer 2/3 Ethernet Blade Switch

438030-B21

HP GbE2c Layer 2/3 Ethernet Blade Switch Advanced Functionality Software

NOTE:

NOTE:NOTE:

NOTE:

485192-B21

HP 1:10Gb Ethernet BL-c switch

438031-B21

HP 10Gb SR XFP Module

443756-B21

HP 10Gb LR XFP Module

443757-B21

HP 1:10 Gb Ethernet BL-c Switch

438031-B21

HP 1:10 GbE BLc Advanced Functionality Software

NOTE:

NOTE:NOTE:

NOTE:

485193-B21

HP 10Gb Ethernet BL-c Switch

NOTE:

NOTE: NOTE:

NOTE:

The purchase the HP 10Gb Ethernet BL0c Switch, also requires the purchase of one (1) HP NC512m Dual Port 10GbE Multifunction BL-c Adapter (P/N 440910B21) per blade that requires 10Gbit support

445860-B21

HP 10GbE BLc Advanced Functionality Software

NOTE:

NOTE:NOTE:

NOTE:

485194-B21

NOTE:

NOTE: NOTE:

NOTE:

The HP BladeSystem c-Class Network Interconnects ship as single units. The

above interconnects must be ordered in quantities of two for redundancy support.

HP BladeSystem

HP BladeSystemHP BladeSystem

HP BladeSystem c-Class FC SAN

c-Class FC SANc-Class FC SAN

c-Class FC SAN Interconnects

InterconnectsInterconnects

Interconnects

HP 4Gb Virtual Connect Fibre Channel Module for c-Class BladeSystem

409513-B21

16 port FC Pass-thru Module for c-Class BladeSystem

403626-B21

HP Brocade 4/12 SAN Switch

AE370A

HP Brocade 4/24 SAN Switch Power Pack

AE371A

HP Brocade 4/24 SAN Switch

AE372A

HP Brocade 4/12 SAN Switch Upgrade LTU

AE373A

Cisco MDS 9124e 12-port Fabric Switch

AG641A

Cisco MDS 9124e 24-port Fabric Switch

AG642A

Cisco MDS 9124e 12-port Upgrade LTU

T5169A

QuickSpecs

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class InfrastructureHP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Infrastructure

Related Options

DA - 12517 Worldwide — Version 19 — September 15, 2008

Page 20

HP BladeSystem

HP BladeSystemHP BladeSystem

HP BladeSystem InfiniBand Interconnects

InfiniBand InterconnectsInfiniBand Interconnects

InfiniBand Interconnects

HP 4X DDR IB Switch Module for HP c-Class BladeSystem

410398-B21

HP Insight Control

HP Insight ControlHP Insight Control

HP Insight Control Environment

EnvironmentEnvironment

Environment Management Suite

Management SuiteManagement Suite

Management Suite

NOTE:

NOTE: NOTE:

NOTE:

Electronic licensing options are available for Insight Control suites software products. Please see the appropriate Insight Control QuickSpecs for additional information.

HP Insight Control Environment for BladeSystem

HP Insight Control Environment for BladeSystemHP Insight Control Environment for BladeSystem

HP Insight Control Environment for BladeSystem HP Insight Control Environment for BladeSystem, No Media 1-Server License including

1 year of 24x7 Technical Support and Updates

NOTE:

NOTE: NOTE:

NOTE:

Customer will receive a printed license entitlement certificate via physical shipment. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support and Update Service.

453484-B21

HP Insight Control Management Software Media Kit

NOTE:

NOTE: NOTE:

NOTE:

Insight Control Management DVD media without licenses. Contains Insight Manager and Essentials software products and components licensed by Insight Control Management suites. Uses an integrated installer to perform quick and accurate software installation and updates.

436222-B21

NOTE:

NOTE: NOTE:

NOTE:

Contains 1 license for each of RDP, PMP, VPM, IPM and iLO Select. Includes one year of 24 x 7 HP Software Technical Support and Update Service. NOTE:

NOTE:NOTE:

NOTE:

For additional License Kits, please see the QuickSpecs at:

http://h18000.www1.hp.com/products/quickspecs/12631_div/12631_div.html

HP Insight Control Environment for Linux

HP Insight Control Environment for LinuxHP Insight Control Environment for Linux

HP Insight Control Environment for Linux HP Insight Control Environment for Linux, No Media, 8-Server license, including One

year of 24x7 Technical Support and Updates, FIO

NOTE:

NOTE:NOTE:

NOTE:

This part number can be used to purchase eight (8) server blade licenses with a single activation key. Customer will receive a printed license entitlement certificate via physical shipment. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support and Update Service. For Factory Integration only. NOTE: Orderable only with c-Class blade enclosure (c3000 or c7000).

464429-B21

HP Insight Control Environment for Linux, No Media, 16-Server license, including One year of 24x7 Technical Support and Updates, FIO

NOTE:

NOTE:NOTE:

NOTE:

This part number can be used to purchase sixteen (16) server blade licenses with a single activation key. Customer will receive a printed license entitlement certificate via physical shipment. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support and Update Service. For Factory Integration only. NOTE:

NOTE:NOTE:

NOTE:

Orderable only with c-Class blade enclosure (c7000).

464432-B21

NOTE:

NOTE:NOTE:

NOTE:

For additional information regarding the HP Virtual Connect Enterprise Manager License kits, please visit:

http://h18000.www1.hp.com/products/quickspecs/13019_div/13019_div.html

iLO Power Management Pack for BladeSystem

iLO Power Management Pack for BladeSystemiLO Power Management Pack for BladeSystem

iLO Power Management Pack for BladeSystem HP iLO Power Management Pack for BladeSystem, No Media, 1-Server License

including 1 year of 24x7 Technical Support and Updates

NOTE:

NOTE: NOTE:

NOTE:

This option kit includes 1 license for iLO Select and Insight Power Manager.

Customer will receive a printed license entitlement certificate via physical shipment.

442937-B21

QuickSpecs

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class InfrastructureHP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Infrastructure

Related Options

DA - 12517 Worldwide — Version 19 — September 15, 2008

Page 21

The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support and Update Service.

NOTE:

NOTE: NOTE:

NOTE:

For additional -HP Insight Power Manager Packs please see the QuickSpecs

at:

http://h18000.www1.hp.com/products/quickspecs/12632_div/12632_div.html

Server Management

Server ManagementServer Management

Server Management Stand Alone Software

Stand Alone SoftwareStand Alone Software

Stand Alone Software Product - ProLiant

Product - ProLiantProduct - ProLiant

Product - ProLiant Essentials

EssentialsEssentials

Essentials

NOTE:

NOTE: NOTE:

NOTE:

Electronic licensing options are available for select ProLiant Essentials software products. Please see the appropriate ProLiant Essentials QuickSpecs for additional information.

Deploy

DeployDeploy

Deploy ProLiant Essentials Rapid Deployment Pack

ProLiant Essentials Rapid Deployment PackProLiant Essentials Rapid Deployment Pack

ProLiant Essentials Rapid Deployment Pack ProLiant Essentials Rapid Deployment Pack No Media 1-Server License including 1

year of 24x7 Technical Support and Updates

NOTE:

NOTE:NOTE:

NOTE:

This license allows 1 server to be deployed and managed via RDP. Customer will receive a printed license entitlement certificate via physical shipment. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support and Update Service.

452151-B21

NOTE:

NOTE:NOTE:

NOTE:

For additional ProLiant Essentials Rapid Deployment Pack License Kits- please see the QuickSpecs at:

http://h18000.www1.hp.com/products/quickspecs/11053_div/11053_div.html

HP Server Migration Pack - Universal Edition

HP Server Migration Pack - Universal EditionHP Server Migration Pack - Universal Edition

HP Server Migration Pack - Universal Edition HP Server Migration Pack - Universal Edition, No Media, Physical / Virtual to ProLiant

Single Migration License, including 1 year of 24x7 Technical Support

NOTE:

NOTE:NOTE:

NOTE:

This license allows 1 physical to ProLiant or virtual to ProLiant migration. Customer will receive a printed license entitlement certificate and documentation via physical shipment. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support Service.

460750-B21

HP Server Migration Pack - Universal Edition, No Media, Physical / Virtual to Virtual Single Migration License, including 1 year of 24x7 Technical Support

NOTE:

NOTE:NOTE:

NOTE:

This license allows 1 physical to virtual or virtual to virtual migration. Customer will receive a printed license entitlement certificate and documentation via physical shipment. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support.

460753-B21

HP Server Migration Pack - Universal Edition, No Media, 1-Year Unlimited Migration License, including 1 year of 24x7 Technical Support

NOTE:

NOTE: NOTE:

NOTE:

This license allows unlimited migrations (physical to ProLiant, physical to virtual, virtual to virtual, and virtual to ProLiant) for one year. Customer will receive a printed license entitlement certificate and documentation via physical shipment. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support Service.

460756-B21

NOTE:

NOTE: NOTE:

NOTE:

For additional License Kits, please see the QuickSpecs at:

http://h18000.www1.hp.com/products/quickspecs/12855_div/12855_div.html

Monitor

MonitorMonitor

Monitor HP Insight Dynamics - VSE

HP Insight Dynamics - VSEHP Insight Dynamics - VSE

HP Insight Dynamics - VSE

QuickSpecs

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class InfrastructureHP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Infrastructure

Related Options

DA - 12517 Worldwide — Version 19 — September 15, 2008

Page 22

HP Insight Dynamics-VSE without Insight Control Environment, 1-server license including 1 year of 24x7 Technical Support and Updates

NOTE:

NOTE:NOTE:

NOTE:

This license supports HP ProLiant ML/DL and c-Class Blade servers. Customer

will receive via email a receipt and link to a license entitlement certificate.

483531-B21

HP Insight Dynamics-VSE with Insight Control Environment, 1-server license including 1 year of 24x7 Technical Support and Updates

NOTE:

NOTE:NOTE:

NOTE:

This license supports HP ProLiant c-Class Blade servers. Customer will receive

a printed license entitlement certificate via physical shipment.

483534-B21

NOTE:

NOTE:NOTE:

NOTE:

For additional license kits, please see the QuickSpecs at:

http://h18000.www1.hp.com/products/quickspecs/13050_div/13050_div.html

Control

ControlControl

Control Integrated Lights-Out Select Pack

Integrated Lights-Out Select PackIntegrated Lights-Out Select Pack

Integrated Lights-Out Select Pack ProLiant Essentials Integrated Lights-Out Select Pack, No Media, 1-Server License

NOTE:

NOTE: NOTE:

NOTE:

For additional License Kits, please see the QuickSpecs at:

http://h18000.www1.hp.com/products/quickspecs/12362_div/12362_div.html

452158-B21

Featuring:

Featuring: Featuring:

Featuring:

Sophisticated remote control and security features for HP BladeSystem servers and ProLiant ML/DL servers.

NOTE:

NOTE: NOTE:

NOTE:

For additional ProLiant Essentials Integrated Lights-Out Value Packs please see the QuickSpecs at:

http://h18000.www1.hp.com/products/quickspecs/12362_div/12362_div.html

Optimize

OptimizeOptimize

Optimize HP Insight Power Manager (IPM)

HP Insight Power Manager (IPM)HP Insight Power Manager (IPM)

HP Insight Power Manager (IPM) HP Insight Power Manager, No Media, 1-Server License, including 1 year of 24x7

Technical Support and Updates

NOTE:

NOTE: NOTE:

NOTE:

Customers purchasing this upgrade must already have an iLO Advanced or Select license on each managed server. Customer will receive a printed license entitlement certificate via physical shipment. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support and Update Service.

452677-B21

NOTE:

NOTE: NOTE:

NOTE:

For additional -HP Insight Power Manager Packs please see the QuickSpecs at:

http://h18000.www1.hp.com/products/quickspecs/12623_div/12623_div.html

ProLiant Essentials Virtual Machine Management Pack

ProLiant Essentials Virtual Machine Management PackProLiant Essentials Virtual Machine Management Pack

ProLiant Essentials Virtual Machine Management Pack ProLiant Essentials Virtual Machine Management Pack, No Media, 1-Server License,

including 1 year of 24x7 Technical Support and Updates

NOTE:

NOTE: NOTE:

NOTE:

452153-B21

NOTE:

NOTE:NOTE:

NOTE:

For additional ProLiant Virtual Machine Management Pack License Kits please see the QuickSpecs at:

http://h18000.www1.hp.com/products/quickspecs/12328_div/12328_div.html

NOTE:

NOTE: NOTE:

NOTE:

Flexible and volume quantity license kits are available for ProLiant Essentials

Value Packs. Refer to:

http://www.hp.com/servers/proliantessentials

or the various ProLiant Essentials Value Pack product QuickSpecs for more information. NOTE:

NOTE:NOTE:

NOTE:

For more information regarding ProLiant Essentials Software, please see the

following URL:

http://www.hp.com/servers/proliantessentials

QuickSpecs

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class InfrastructureHP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Infrastructure

Related Options

DA - 12517 Worldwide — Version 19 — September 15, 2008

Page 23

HP Insight Control

HP Insight ControlHP Insight Control

HP Insight Control Environment for Linux

Environment for LinuxEnvironment for Linux

Environment for Linux

HP Insight Control Environment for Linux, No Media, 8-Server license, including One year of 24x7 Technical Support and Updates, FIO

NOTE:

NOTE: NOTE:

NOTE:

This part number can be used to purchase eight (8) server blade licenses with a single activation key. Customer will receive a printed license entitlement certificate via physical shipment. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support and Update Service. For Factory Integration only. Orderable only with c-Class blade enclosure (c3000 or c7000).

464429-B21

NOTE:

NOTE:NOTE:

NOTE:

For additional information regarding the HP Virtual Connect Enterprise Manager License kits, please visit:

http://h18000.www1.hp.com/products/quickspecs/13019_div/13019_div.html

HP Virtual Connect

HP Virtual ConnectHP Virtual Connect

HP Virtual Connect Enterprise Manager

Enterprise ManagerEnterprise Manager

Enterprise Manager

HP Virtual Connect Enterprise Manager for BL-c3000, No Media, 1-Enclosure License including 1 year of 24x7 Technical Support and Updates.

NOTE:

NOTE: NOTE:

NOTE:

This license allows 1 BL-c3000 enclosure to be managed with VCEM. Customer will receive a printed license entitlement certificate via physical shipment. The license entitlement certificate must be redeemed online or via fax to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support and Update Service.

459867-B21

NOTE:

NOTE: NOTE:

NOTE:

For additional information regarding the HP Virtual Connect Enterprise Manager License kits, please visit:

http://h18000.www1.hp.com/products/quickspecs/12860_div/12860_div.html

HP c-Class Storage

HP c-Class StorageHP c-Class Storage

HP c-Class Storage Blades

BladesBlades

Blades

HP StorageWorks SB40c storage blade

411243-B21

HP PCI Express Mezzanine pass-thru card for HP BladeSystem

NOTE:

NOTE: NOTE:

NOTE:

The Mezzanine card is needed to support the SB40c storage blade (PN: 411243-B21) with HP c-Class BladeSystem full-height server blades.

431643-B21

NOTE:

NOTE: NOTE:

NOTE:

For additional information regarding the HP StorageWorks SB40c storage blade, please visit:

http://h18000.www1.hp.com/products/quickspecs/12587_div/12587_div.html

HP c-Class Tape Blades

HP c-Class Tape BladesHP c-Class Tape Blades

HP c-Class Tape Blades

HP Ultrium 448c Tape Blade

440947-B21

HP PCI Express Mezzanine pass-thru card for HP BladeSystem

NOTE:

NOTE: NOTE:

NOTE:

The HP PCI Express Mezzanine Pass-Thru Card for HP BladeSystem (PN: 431643-B21) is required when installing a tape blade adjacent to a full-height server blade.

431643-B21

NOTE:

NOTE: NOTE:

NOTE:

For additional information regarding the HP Ultrium 448c Tape Blade, please visit:

http://h18000.www1.hp.com/products/quickspecs/12729_div/12729_div.html

QuickSpecs

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class InfrastructureHP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Infrastructure

Related Options

DA - 12517 Worldwide — Version 19 — September 15, 2008

Page 24

HP PCI Expansion Blade

HP PCI Expansion BladeHP PCI Expansion Blade

HP PCI Expansion Blade

PCI Expansion Blade

448018-B21

NOTE:

NOTE: NOTE:

NOTE:

For additional information regarding the HP PCI Expansion Blade, please visit:

http://h18000.www1.hp.com/products/quickspecs/12753_div/12753_div.html

HP StorageWorks AIO

HP StorageWorks AIOHP StorageWorks AIO

HP StorageWorks AIO SB600c shared storage

SB600c shared storageSB600c shared storage

SB600c shared storage blade

bladeblade

blade

HP StorageWorks AiO SB600c Storage Blade - 1.16TB

NOTE:

NOTE: NOTE:

NOTE:

Shared storage blade for server blades within the enclosure. The SB600c can be either NAS (file-based shared storage or iSCSI Shared Storage connected to server blades within the enclosure using an Ethernet switch in the enclosures interconnect bays.

AG780A

StorageWorks Storage Mirroring for AiO Edition 1 LTU

NOTE:

NOTE:NOTE:

NOTE:

This optional software is for mirroring data between AiO Storage blades in different locations. This is host-based data replication software for disaster recovery and data protection. NOTE:

NOTE:NOTE:

NOTE:

order 1 unit for each AiO SB600c Storage Blade.

T5321A

NOTE:

NOTE: NOTE:

NOTE:

For additional information regarding the HP StorageWorks All-in-One Storage Systems, please visit:

http://h18000.www1.hp.com/products/quickspecs/12786_div/12786_div.html

HP Rack 5000 Series

HP Rack 5000 SeriesHP Rack 5000 Series

HP Rack 5000 Series (Graphite Metallic)

HP 5642 Rack - Unassembled

NOTE:

NOTE:NOTE:

NOTE:

Please see the HP Rack 5642 QuickSpecs for additional part numbers and Technical Specifications such as height, width, depth, weight, and color:

http://h18000.www1.hp.com/products/quickspecs/12074_div/12074_div.html

(Worldwide) NOTE:

NOTE:NOTE:

NOTE:

For additional information regarding Rack Cabinets, please see the following URL:

http://www.hp.com/go/rackandpower

358254-B21

HP Rack 10000 G2

HP Rack 10000 G2HP Rack 10000 G2

HP Rack 10000 G2 Series

SeriesSeries

Series

(Carbon/Graphite

Metallic)

10642 G2 (42U) Rack Cabinet - Pallet

AF001A

10642 G2 (42U) Rack Cabinet - Shock Pallet

AF002A

10642 G2 (42U) Rack Cabinet - Crated

AF003A

10642 G2 (42U) Rack Cabinet, with Extension - Shock Pallet

AF004A

10636 G2 (36U) Rack Cabinet - Shock Pallet

AF011A

10636 G2 (36U) Rack Cabinet - Crated

AF012A

10636 G2 (36U) Rack Cabinet, with Extension - Shock Pallet

AF013A

10636 G2 (36U) Rack Cabinet, without door - Shock Pallet

AF014A

NOTE:

NOTE: NOTE:

NOTE:

It is mandatory to use a shock pallet when shipping racks with equipment installed. NOTE:

NOTE:NOTE:

NOTE:

Please see the Rack 10000 G2 QuickSpecs for additional part numbers and Technical Specifications such as height, width, depth, weight, and color:

http://h18000.www1.hp.com/products/quickspecs/12402_div/12402_div.html

(Worldwide) NOTE:

NOTE: NOTE:

NOTE:

For additional information regarding Rack Cabinets, please see the following

URL:

http://www.hp.com/go/rackandpower

QuickSpecs

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class InfrastructureHP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Infrastructure

Related Options

DA - 12517 Worldwide — Version 19 — September 15, 2008

Page 25

HP Modular Cooling

HP Modular CoolingHP Modular Cooling

HP Modular Cooling System

SystemSystem

System

HP Modular Cooling System

AF098A

Tape Libraries

Tape LibrariesTape Libraries

Tape Libraries

NOTE:

NOTE:NOTE:

NOTE:

The following options are supported in an Enterprise Backup Solution (EBS) environment with the HP BladeSystem c-Class enclosure. For complete compatibility details, please visit:

http://www.hp.com/go/ebs

HP StorageWorks MSL2024 Tape Library

HP StorageWorks MSL2024 Tape LibraryHP StorageWorks MSL2024 Tape Library

HP StorageWorks MSL2024 Tape Library HP StorageWorks MSL2024 1 LTO-4 Ultrium 1840 SCSI Drive Library

AJ033A

HP StorageWorks MSL2024 1 LTO-4 Ultrium 1840 4GB FC Library

AJ034A

HP StorageWorks MSL2024 1 LTO-3 Ultrium 960 SCSI Drive Library

AG115A

HP StorageWorks MSL2024 1 LTO-3 Ultrium 960 4GB FC Library

AG326B

HP StorageWorks MSL2024 1 LTO-3 Ultrium 920 SAS Drive Library

AH559A

HP StorageWorks MSL2024 1 LTO-3 Ultrium 920 SCSI Drive Library

AH169A

HP StorageWorks MSL2024 1 LTO-2 Ultrium 448 SCSI Drive Library

AG116A

HP StorageWorks MSL4048 Tape Library

HP StorageWorks MSL4048 Tape LibraryHP StorageWorks MSL4048 Tape Library

HP StorageWorks MSL4048 Tape Library HP StorageWorks MSL4048 1 Ultrium 448 SCSI Drive Library

AG320A

HP StorageWorks MSL4048 1 Ultrium 920 SAS Drive Library

AH560A

HP StorageWorks MSL4048 1 Ultrium 920 SCSI Drive Library

AH171A

HP StorageWorks MSL4048 1 Ultrium 960 SCSI Drive Library

AG322A

HP StorageWorks MSL4048 1 Ultrium 960 4GB FC Library

AG324B

HP StorageWorks MSL4048 1 LTO-4 Ultrium 1840 SCSI Drive Library

AJ035A

HP StorageWorks MSL4048 1 LTO-4 Ultrium 1840 4GB FC Library

AJ036A

HP StorageWorks MSL8096 Tape Library

HP StorageWorks MSL8096 Tape LibraryHP StorageWorks MSL8096 Tape Library

HP StorageWorks MSL8096 Tape Library HP StorageWorks MSL8096 2 Ultrium 920 SAS Drive Library

AH561A

HP StorageWorks MSL8096 2 Ultrium 960 4GB FC Library

AH218A

HP StorageWorks MSL8096 2 Ultrium 960 SCSI Drive Library

AH219A

HP StorageWorks MSL8096 2 LTO-4 Ultrium 1840 SCSI Drive Library

AJ039A

HP StorageWorks MSL8096 2 LTO-4 Ultrium 1840 4GB FC Library

AJ040A

HP StorageWorks MSL6000 Tape Library

HP StorageWorks MSL6000 Tape LibraryHP StorageWorks MSL6000 Tape Library

HP StorageWorks MSL6000 Tape Library LTO-4 Ultrium 1840 technology

LTO-4 Ultrium 1840 technologyLTO-4 Ultrium 1840 technology

LTO-4 Ultrium 1840 technology HP StorageWorks MSL6030 1 LTO-4 Ultrium 1840 SCSI Drive Library

AJ029A

HP StorageWorks MSL6030 1 LTO-4 Ultrium 1840 4GB FC Library

AJ030A

HP StorageWorks MSL6060 2 LTO-4 Ultrium 1840 SCSI Drive Library

AJ031A

HP StorageWorks MSL6060 2 LTO-4 Ultrium 1840 4GB FC Library

AJ032A

LTO-3 Ultrium 960 technology

LTO-3 Ultrium 960 technologyLTO-3 Ultrium 960 technology

LTO-3 Ultrium 960 technology HP StorageWorks MSL6030 1 Ultrium 960 Dr LVDS Library

AD606B

HP StorageWorks MSL6030 1 Ultrium 960 Dr FC Library

AD608B

HP StorageWorks MSL6030 2 Ultrium 960 Dr LVDS Library

AD607B

HP StorageWorks MSL6030 2 Ultrium 960 Dr FC Library

AD609B

12000 Virtual Library System

12000 Virtual Library System12000 Virtual Library System

12000 Virtual Library System HP StorageWorks 12000 Virtual Library System Gateway Base Library

AH814A

6000 Virtual Library Systems

6000 Virtual Library Systems6000 Virtual Library Systems

6000 Virtual Library Systems

QuickSpecs

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class InfrastructureHP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Infrastructure

Related Options

DA - 12517 Worldwide — Version 19 — September 15, 2008

Page 26

HP StorageWorks 6218 Virtual Library System

AH809A

HP StorageWorks 6227 Virtual Library System

AH810A

HP StorageWorks 6227 Virtual Library System

AH811A

HP StorageWorks 6653 Virtual Library System

AH812A

NOTE:

NOTE: NOTE:

NOTE:

Please reference the Virtual Library Systems QuickSpecs at

http://www.hp.com/go/automation

for additional information needed to create a complete solution. Reference current compatibility information at

http://www.hp.com/go/ebs

Monitors and Keyboards

Monitors and KeyboardsMonitors and Keyboards

Monitors and Keyboards

TFT7600 Rackmount Keyboard Monitor US

AG052A

TFT7600 Rackmount Keyboard Monitor UK

AG053A

TFT7600 Rackmount Keyboard Monitor FR

AG055A

TFT7600 Rackmount Keyboard Monitor SP

AG057A

TFT7600 Rackmount Keyboard Monitor DEN

AG058A

TFT7600 Rackmount Keyboard Monitor NOR

AG059A

TFT7600 Rackmount Keyboard Monitor SWI

AG061A

TFT7600 Rackmount Keyboard Monitor BEL

AG063A

TFT7600 Rackmount Keyboard Monitor RUS

AG065A

TFT7600 Rackmount Keyboard Monitor INTL

AG066A

1U Rackmount Keyboard with USB, US

AG072A

1U Rackmount Keyboard with USB, UK

AG073A

1U Rackmount Keyboard with USB, GR

AG074A

1U Rackmount Keyboard with USB, FR

AG075A

1U Rackmount Keyboard with USB, ITL

AG076A

1U Rackmount Keyboard with USB, SP

AG077A

1U Rackmount Keyboard with USB, DEN

AG078A

1U Rackmount Keyboard with USB, NOR

AG079A

1U Rackmount Keyboard with USB, SE/FI

AG080A

1U Rackmount Keyboard with USB, SWI

AG081A

1U Rackmount Keyboard with USB, PORT

AG082A

1U Rackmount Keyboard with USB, BEL

AG083A

1U Rackmount Keyboard with USB, JPN2

AG084A

1U Rackmount Keyboard with USB, RUS

AG085A

1U Rackmount Keyboard with USB, INTL

AG086A

NOTE:

NOTE:NOTE:

NOTE:

For additional information regarding Rack Options, please see the following

URL:

http://www.hp.com/go/rackandpower

HP KVM Switch Options

HP KVM Switch OptionsHP KVM Switch Options

HP KVM Switch Options

2x1x16 IP Console Switch with Virtual Media

AF601A

4x1x16 IP Console Switch with Virtual Media

AF602A

2x16 Server Console Switch with Virtual Media

AF600A

PS/2 Virtual Media Interface Adapter, 1 pack

NOTE:

NOTE: NOTE:

NOTE:

Requires PS/2 and one USB port on server.

AF604A

QuickSpecs

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class InfrastructureHP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Infrastructure

Related Options

DA - 12517 Worldwide — Version 19 — September 15, 2008

Page 27

BladeSystem c-Class KVM Interface Adapter - 1 pack

AF605A

HP 1x8 Server Console Switch

336044-B21

HP 2x16 Server Console Switch

336045-B21

PS/2 Interface Adapter, 1-pack

262588-B21

PS/2 Interface Adapter, 8-pack

262587-B21

USB Interface Adapter, 1-pack

336047-B21

Serial Interface Adapter, 1-pack with power supply

373045-B21

NOTE:

NOTE:NOTE:

NOTE:

Cat5e cables are required to connect Interface Adapters to Consoles Switches. Cat52 cables can be found at the following URL:

http://www.hp.com/go/kvm

HP 1x4 Console Switch

AF611A

HP PS2 Server Console Cable, 6 foot, 2-Pack

AF612A

HP USB Server Console Cable, 6 foot, 2-Pack

NOTE:

NOTE: NOTE:

NOTE:

required for supporting USB peripherals.

AF613A

HP USB KVM Cable with audio, 6'-2-pack

371729-B21

NOTE

NOTE NOTE

NOTE

For additional information regarding KVM switches, Serial Console servers, rack mount monitors, keyboards and all related options please see the following URL:

http://www.hp.com/go/kvm

HP Serial Console Server

HP Serial Console ServerHP Serial Console Server

HP Serial Console Server Options

OptionsOptions

Options

HP 16 Port Serial Console Server (worldwide)

AF101A

HP 48 Port Serial Console Server (worldwide)

AF102A

Serial Adapter, RJ45-DB9 DCE Female, 1 Pack

AF103A

Serial Adapter, RJ45-DB9 DCE Female, 8 Pack

AF110A

NOTE:

NOTE:NOTE:

NOTE:

Cat5e cables are required to connect Serial Adapters to Serial Console Servers. Additional Serial Adapters and Cat5e cables can be found at the following URL:

http://www.hp.com/go/kvm

NOTE:

NOTE:NOTE:

NOTE:

For additional information regarding KVM switches, Serial Console servers, rack mount monitors, keyboards and all related options please see the following URL:

http://www.hp.com/go/kvm

Service and Support

Service and SupportService and Support

Service and Support Offerings for c3000

Offerings for c3000Offerings for c3000

Offerings for c3000 Enclosure

EnclosureEnclosure

Enclosure (HP Care Pack Services)

NOTE:

NOTE: NOTE:

NOTE:

HP Care Pack services for the c3000 Enclosure cover the enclosure, power supplies and fans. HP qualified rack options are covered by these services when installed within the same rack. HP supported c-Class enclosure devices including pass thru, Ethernet interconnect and virtual connect modules are also covered by the c3000 enclosure Care Pack services. NOTE:

NOTE: NOTE:

NOTE:

SAN/Fabric switches for the HP c-Class BladeSystem are not covered under the c3000 enclosure Care Packs, SAN/Fabric switches carry separate Care Packs. SAN/Fabric Switch Care Pack service level support should always be uplifted to match existing storage or server service level.

Hardware Services On-site Service

Hardware Services On-site ServiceHardware Services On-site Service

Hardware Services On-site Service Next Business Day On-site Service, 5-Day x 9-Hour Coverage, 3 Years, Electronic

NOTE:

NOTE: NOTE:

NOTE:

Uplifts the Ethernet devices to the same level of warranty as the c-class enclosure.

UH309E

4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic

UH310E

4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic

UH311E

QuickSpecs

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class InfrastructureHP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Infrastructure

Related Options

DA - 12517 Worldwide — Version 19 — September 15, 2008

Page 28

6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic

UH312E

Support Plus 24

Support Plus 24Support Plus 24

Support Plus 24 Onsite HW support 24x7, 4-Hour response and Insight Control Environment for

BladeSystem Software Updates and Software Technical support offsite, onsite at HP's discretion, 24x7 2-Hour response time including. HP holidays, Electronic

UF540E

Installation & Start-up Services

Installation & Start-up ServicesInstallation & Start-up Services

Installation & Start-up Services HP BladeSystem c3000 + ICE + OS Installation and Startup Service for Blade

ardware and Insight Control Software, Electronic

UF817E

HP BladeSystem c3000 Installation & Startup for Blade Hardware and Operating ystem

UF818E

HP BladeSystem c3000 Enhanced Network Installation and Startup Service, Electronic

UF814E

ProLiant BL c-Class Enclosure and Blade Hardware Installation, Electronic

UE494E

ProLiant BL c-Class Blade Server Hardware Installation, Electronic

UE493E

NOTE:

NOTE: NOTE:

NOTE:

For more information, customer/resellers can contact:

http://www.hp.com/services/bladesystemservices

NOTE:

NOTE:NOTE:

NOTE:

The HP Care Pack service part numbers below covers the HP Brocade 4Gb,

12 Port SAN Switch and Brocade 4/24 SAN Switch.

Hardware Services On-site Service

Hardware Services On-site ServiceHardware Services On-site Service

Hardware Services On-site Service Next Business Day On-site Service, 5-Day x 9-Hour Coverage,3 Years, Electronic

UE436E

4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic

UE437E

4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, (24 port) Electronic

UE438E

6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic

UE439E

Hardware Installation, Electronic

U5988E

NOTE:

NOTE: NOTE:

NOTE:

The HP Care Pack service part numbers below covers the Brocade 4/24 SAN Switch Power Pack.

Hardware Services On-site Service

Hardware Services On-site ServiceHardware Services On-site Service

Hardware Services On-site Service Support Plus

Support PlusSupport Plus

Support Plus Onsite Hardware support, 8am-9pm, M-F, 4-hour response and Software Technical

support offsite, onsite at HP's discretion, 8am-9pm, M-F 2-hour response time excluding HP holidays, Electronic

UE728E

Support Plus 24

Support Plus 24Support Plus 24

Support Plus 24 Onsite Hardware support, 8am-9pm, M-F, 4-Hour response and Software Technical

support offsite, onsite at HP's discretion, 8am-9pm, M-F 2-Hour response time excluding. HP holidays, Electronic

UE729E

NOTE:

NOTE: NOTE:

NOTE:

The HP Care Pack service part numbers below covers the HP Cisco MDS 9124e 12 port and 24 port Fabric Switch.

Hardware Services On-site Service

Hardware Services On-site ServiceHardware Services On-site Service

Hardware Services On-site Service Next Business Day On-site Service, 5-Day x 9-Hour Coverage, 3 Years, Electronic

UF313E

4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic

UF972E

4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic

UF973E

6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic

UF974E

Hardware Installation, Electronic

U5988E

QuickSpecs

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class InfrastructureHP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Infrastructure

Related Options

DA - 12517 Worldwide — Version 19 — September 15, 2008

Page 29

Software Installation and StartUp Services

Software Installation and StartUp ServicesSoftware Installation and StartUp Services

Software Installation and StartUp Services Provides for the Installation and Start-up of ProLiant Essentials Rapid Deployment

Pack, Electronic

U5683E

NOTE:

NOTE:NOTE:

NOTE:

Provides installation on a Customer supplied server designated as a Deployment Server. Includes the deployment of a single server. This new server will be deployed using either one of the pre-configured scripts or an image. In addition, the service will provide for the capture and storage of the configuration of the newly deployed server and orientation on product usage. To be delivered during standard office ours, standard office days.

Provides for the Installation and Start-up of Rapid Deployment Pack Implementation of Rapid Deployment Pack (Basic), Electronic

UA042E

NOTE:

NOTE:NOTE:

NOTE:

Service coverage: onsite installation of the Vulnerability and Patch Management (VPM) software on a customer designated server, configuration of the VPM software to acquire security patches, enabling the VPM software to scan up to five (5) systems, applying the security patches to the designated servers, generating a report from VPM that shows the vulnerability assessment results, and providing customer with an orientation to the software.

Provides for the Installation and Start-up of System Insight Manager (Electronic)

UA041E

Provides for the Installation and Start-up of System Insight Manager Agents (Electronic)

UA040E

Provides for the Installation and Startup of Insight Control - Linux Edition

UF369E

Provides for the Installation and Startup of Virtual Machine Management & Server Migration Pack

UD546E

Software Operating Environment Care Packs

Software Operating Environment Care PacksSoftware Operating Environment Care Packs

Software Operating Environment Care Packs 1 Year Microsoft operating environment software support 24x7 - 10 incidents

U9269E

1 Year Red Hat operating System software support 24x7 - 10 incidents

U3408E

1 Year SuSE operating System software support 24x7 - 10 incidents

U9936E

1 Year 9x5 ProLiant Essentials Software Support

UF512E

1 Year 24x7 ProLiant Essentials Software Support

UF513E

3 Year 9x5 ProLiant Essentials Software Support

UF514E

HP 3 Year 24x7 ProLiant Essentials Software Support

UF515E

NOTE:

NOTE:NOTE:

NOTE:

For more information, customer/resellers can contact:

http://www.hp.com/hps/carepack/services/

NOTE:

NOTE:NOTE:

NOTE:

NOTE: NOTE:

NOTE:

Hardware Services On-site Service

Hardware Services On-site ServiceHardware Services On-site Service

Hardware Services On-site Service Next Business Day On-site Service, 5-Day x 9-Hour Coverage, 3 Years, Electronic

NOTE:

NOTE: NOTE:

NOTE:

Uplifts the Ethernet devices to the same level of service as the c-class enclosure

HA101A3#6X4

4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic

HA103A3#6X4

QuickSpecs

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class InfrastructureHP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Infrastructure

Related Options

DA - 12517 Worldwide — Version 19 — September 15, 2008

Page 30

4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic

HA104A3#6X4

6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic

HA105A3#6X4

Support Plus

Support PlusSupport Plus

Support Plus Onsite HW support, 8am-9pm, M-F, 4hr response and SW Tech support offsite,

onsite at HP's discretion, 8am-9pm, M-F 2hr response time excl. HP holidays, 3 Years

HA109A3#6X4

Support Plus 24 - Onsite HW support 24x7, 4hr response and SW support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, 3 Year

HA110A3#6X4

Proactive 24 Service - Mission Critical proactive environment 24x7 4hr onsite HW support, 3 Years

HA111A3#6X4

Critical Service - Mission Critical proactive environment 6-Hour Call-to-Repair onsite HW support, 3 Years

HA112A3#6X4

Installation & Start-up Services

Installation & Start-up ServicesInstallation & Start-up Services

Installation & Start-up Services HP BladeSystem c3000 Hard Ware Installation

HA113A1#57A

HP BladeSystem c3000 Infrastructure Installation and Startup Service for Blade Hardware and Insight Control Software

NOTE:

NOTE: NOTE:

NOTE:

For more information, customer/resellers can contact:

http://www.hp.com/services/bladesystemservices

HA114A1#57A

NOTE:

NOTE:NOTE:

NOTE:

The HP Care Pack service part numbers below covers the HP Brocade 4Gb,

12 Port SAN Switch and Brocade 4/24 SAN Switch.

Hardware Services On-site Service

Hardware Services On-site ServiceHardware Services On-site Service

Hardware Services On-site Service Next Business Day On-site Service, 5-Day x 9-Hour Coverage, 3 Years

HA101A3#85J

4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years

HA103A3#85J

4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years

HA104A3#85J

6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic

HA105A3#85J

Hardware Installation, Electronic

HA113A1#5D2

NOTE:

NOTE:NOTE:

NOTE:

The HP Care Pack service part numbers below covers the Brocade 4/24 SAN

Switch Power Pack.

Hardware Services On-site Service

Hardware Services On-site ServiceHardware Services On-site Service

Hardware Services On-site Service Support Plus

Support PlusSupport Plus

Support Plus Onsite HW support, 8am-9pm, M-F, 4hr response and SW Tech support offsite,

onsite at HP's discretion, 8am-9pm, M-F 2hr response time excluding HP holidays, Electronic

HA109A3#85K

Support Plus 24

Support Plus 24Support Plus 24

Support Plus 24 Onsite HW support 24x7, 4hr response and SW Tech support offsite, onsite at HP's

discretion, 24x7 2hr response time including HP holidays, Electronic

HA110A3#85K

NOTE:

NOTE:NOTE:

NOTE:

The HP Care Pack service part numbers below covers the HP Cisco MDS

9124e 12 port and 24 port Fabric Switch.

Hardware Services On-site Service

Hardware Services On-site ServiceHardware Services On-site Service

Hardware Services On-site Service Next Business Day On-site Service, 5-Day x 9-Hour Coverage, 3 Years

HA101A3#87L

4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years

HA103A3#87L

4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years

HA104A3#87L

6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic

HA105A3#87L

QuickSpecs

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class InfrastructureHP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Infrastructure

Related Options

DA - 12517 Worldwide — Version 19 — September 15, 2008

Page 31

Hardware Installation, Electronic

HA113A1#5D2

NOTE:

NOTE: NOTE:

NOTE:

For more information, customer/resellers can contact:

http://www.hp.com/hps/carepack/services/

Service and Support

Service and SupportService and Support

Service and Support Offerings for c7000

Offerings for c7000Offerings for c7000

Offerings for c7000 Enclosure

EnclosureEnclosure

Enclosure (HP Care Pack Services)

NOTE:

NOTE:NOTE:

NOTE:

HP Care Pack services for the c7000 Enclosure cover the enclosure, power supplies and fans. HP qualified rack options are covered by these services when installed within the same rack. HP supported c-Class enclosure devices including pass thru, Ethernet interconnect and virtual connect modules are also covered by the c7000 enclosure Care Pack services.

NOTE:

NOTE:NOTE:

NOTE:

Hardware Services On-site Service

Hardware Services On-site ServiceHardware Services On-site Service

Hardware Services On-site Service Next Business Day On-site Service, 5-Day x 9-Hour Coverage, 3 Years, Electronic

NOTE:

NOTE: NOTE:

NOTE:

Uplifts the Ethernet devices to the same level of service as the c-class

enclosure

UE477E

4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic

UE478E

4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic

UE479E

6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic

UE480E

Support Plus 24

Support Plus 24Support Plus 24

Support Plus 24 Onsite HW support 24x7, 4hr response and Insight Control Linux Edition SW

Updates, SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time including. HP holidays, Electronic

UH321E

Onsite HW support 24x7, 4hr response and Insight Control Environment for BladeSystem SW Updates, SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time including. HP holidays, Electronic

UH322E

Onsite HW support 24x7, 4hr response and Insight Control Data Center Edition SW Updates, SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time including. HP holidays, Electronic

UH323E

Installation & Start-up Services

Installation & Start-up ServicesInstallation & Start-up Services

Installation & Start-up Services HP BladeSystem c7000 Infrastructure Installation and Startup Service for Blade

Hardware and Insight Control Software, Electronic

UE602E

HP BladeSystem C7000 Enhanced Network Installation and Startup Service, Electronic

UE603E

ProLiant BL c-Class Enclosure and Blade Hardware Installation, Electronic

UE494E

ProLiant BL c-Class Blade Server Hardware Installation, Electronic

UE493E

NOTE:

NOTE:NOTE:

NOTE:

For more information, customer/resellers can contact:

http://www.hp.com/services/bladesystemservices

Hardware Services On-site Service

Hardware Services On-site ServiceHardware Services On-site Service

Hardware Services On-site Service Next Business Day On-site Service, 5-Day x 9-Hour Coverage, 3 Years, Electronic

UE436E

4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic

UE437E

4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic

UE438E

6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic

UE439E

QuickSpecs

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class InfrastructureHP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Infrastructure

Related Options

DA - 12517 Worldwide — Version 19 — September 15, 2008

Page 32

Hardware Installation, Electronic

U5988E

NOTE:

NOTE: NOTE:

NOTE:

The HP Care Pack service part numbers below covers the Brocade 4/24 SAN

Switch Power Pack.

Hardware Services On-site Service

Hardware Services On-site ServiceHardware Services On-site Service

Hardware Services On-site Service Support Plus

Support PlusSupport Plus

Support Plus Onsite HW support, 8am-9pm, M-F, 4hr response and SW Tech support offsite,

onsite at HP's discretion, 8am-9pm, M-F 2hr response time excluding HP holidays, Electronic

UE728E

Support Plus 24

Support Plus 24Support Plus 24

Support Plus 24 Onsite HW support 24x7, 4hr response and SW Tech support offsite, onsite at HP's

discretion, 24x7 2hr response time including HP holidays, Electronic

UE729E

NOTE:

NOTE:NOTE:

NOTE:

The HP Care Pack service part numbers below covers the HP Cisco MDS 9124e 12 port and 24 port Fabric Switch.

Hardware Services On-site Service

Hardware Services On-site ServiceHardware Services On-site Service

Hardware Services On-site Service Next Business Day On-site Service, 5-Day x 9-Hour Coverage, 3 Years, Electronic

UF313E

4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic

UF972E

4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic

UF973E

6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic

UF974E

Hardware Installation, Electronic

U5988E

Software Installation and StartUp Services

Software Installation and StartUp ServicesSoftware Installation and StartUp Services

Software Installation and StartUp Services Provides for the Installation and Start-up of ProLiant Essentials Rapid Deployment

Pack, Electronic

U5683E

NOTE:

NOTE: NOTE:

NOTE:

Provides for the Installation and Start-up of Rapid Deployment Pack Implementation of Rapid Deployment Pack (Basic) (Electronic)

UA042E

NOTE:

NOTE:NOTE:

NOTE:

Provides for the Installation and Start-up of System Insight Manager (Electronic)

UA041E

Provides for the Installation and Start-up of System Insight Manager Agents (Electronic)

UA040E

Provides for the Installation and Startup of Insight Control - Linux Edition

UF369E

Provides for the Installation and Startup of Virtual Machine Management & Server Migration Pack

UD546E

Software Operating Environment Care Packs

Software Operating Environment Care PacksSoftware Operating Environment Care Packs

Software Operating Environment Care Packs 1 Year Microsoft operating environment software support 24x7 - 10 incidents

U9269E

1 Year Red Hat operating system software support 24x7 - 10 incidents

U3408E

QuickSpecs

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class InfrastructureHP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Infrastructure

Related Options

DA - 12517 Worldwide — Version 19 — September 15, 2008

Page 33

1 Year SuSE operating system software support 24x7 - 10 incidents

U9936E

1 Year 9x5 ProLiant Essentials Software Support

UF512E

1 Year 24x7 ProLiant Essentials Software Support

UF513E

3 Year 9x5 ProLiant Essentials Software Support

UF514E

3 Year 24x7 ProLiant Essentials Software Support

UF515E

NOTE:

NOTE:NOTE:

NOTE:

For more information, customer/resellers can contact:

http://www.hp.com/hps/carepack/services/

BCS Flexible Care Packs Integrity blade server enclosure

BCS Flexible Care Packs Integrity blade server enclosureBCS Flexible Care Packs Integrity blade server enclosure

BCS Flexible Care Packs Integrity blade server enclosure

NOTE:

NOTE: NOTE:

NOTE:

NOTE:NOTE:

NOTE:

Hardware Services On-site Service

Hardware Services On-site ServiceHardware Services On-site Service

Hardware Services On-site Service Next Business Day On-site Service, 5-Day x 9-Hour Coverage, 3 Years, Electronic

NOTE:

NOTE: NOTE:

NOTE:

Uplifts the Ethernet devices to the same level of service as the c-class

enclosure.

HA101A3#6Q6

4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic

HA103A3#6Q6

4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic

HA104A3#6Q6

6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic

HA105A3#6Q6

Support Plus

Support PlusSupport Plus

Support Plus Proactive 24 Service - Mission Critical proactive environment 24x7 4hr onsite HW

support

HA111A3#6Q6

Critical Service - Mission Critical proactive environment 6-Hour Call-to-Repair onsite HW support

HA112A3#6Q6

Installation & Start-up Services

Installation & Start-up ServicesInstallation & Start-up Services

Installation & Start-up Services HP BladeSystem c7000 Infrastructure Installation and Startup Service for Blade

Hardware and Insight Control Software, Electronic

HA114A1#57A

NOTE:

NOTE:NOTE:

NOTE:

The HP Care Pack service part numbers below covers the HP Brocade 4Gb, 12 Port SAN Switch and Brocade 4/24 SAN Switch.

Hardware Services On-site Service

Hardware Services On-site ServiceHardware Services On-site Service

Hardware Services On-site Service Next Business Day On-site Service, 5-Day x 9-Hour Coverage, 3 Years, Electronic

HA101A3#85J

4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic

HA103A3#85J

4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic

HA104A3#85J

6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic

HA105A3#85J

Hardware Installation, Electronic

HA113A1#5D2

NOTE:

NOTE: NOTE:

NOTE:

The HP Care Pack service part numbers below covers the Brocade 4/24 SAN

Switch Power Pack.

Hardware Services On-site Service

Hardware Services On-site ServiceHardware Services On-site Service

Hardware Services On-site Service

QuickSpecs

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class InfrastructureHP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Infrastructure

Related Options

DA - 12517 Worldwide — Version 19 — September 15, 2008

Page 34

Support Plus

Support PlusSupport Plus

Support Plus Onsite HW support, 8am-9pm, M-F, 4hr response and SW Tech support offsite,

onsite at HP's discretion, 8am-9pm, M-F 2hr response time excluding HP holidays, Electronic

HA109A3#85K

Support Plus 24

Support Plus 24Support Plus 24

Support Plus 24 Onsite HW support 24x7, 4hr response and SW Tech support offsite, onsite at HP's

discretion, 24x7 2hr response time including HP holidays, Electronic

HA110A3#85K

NOTE:

NOTE:NOTE:

NOTE:

The HP Care Pack service part numbers below covers the HP Cisco MDS 9124e 12 port and 24 port Fabric Switch.

Hardware Services On-site Service

Hardware Services On-site ServiceHardware Services On-site Service

Hardware Services On-site Service Next Business Day On-site Service, 5-Day x 9-Hour Coverage, 3 Years, Electronic

HA101A3#87L

4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic

HA103A3#87L

4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic

HA104A3#87L

6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic

HA105A3#87L

Hardware Installation, Electronic

HA113A1#5D2

NOTE:

NOTE: NOTE:

NOTE:

For more information, customer/resellers can contact:

http://www.hp.com/hps/carepack/services/

QuickSpecs

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class InfrastructureHP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Infrastructure

Related Options

DA - 12517 Worldwide — Version 19 — September 15, 2008

Page 35

Figure 1

Figure 1Figure 1

Figure 1

Installing a tape blade adjacent to a half-height server blade.

Figure 2

Figure 2Figure 2

Figure 2

Installing a tape blade adjacent to a full-height server blade.

HP StorageWorks Ultrium 448c & 920c Tape Blade

HP StorageWorks Ultrium 448c & 920c Tape BladeHP StorageWorks Ultrium 448c & 920c Tape Blade

HP StorageWorks Ultrium 448c & 920c Tape Blade

Description

DescriptionDescription

Description

Quantity

QuantityQuantity

Quantity

Supported

SupportedSupported

Supported

Position

PositionPosition

Position

Supported

SupportedSupported

Supported

Comments

CommentsComments

Comments

HP Ultrium Tape Blade

HP Ultrium Tape BladeHP Ultrium Tape Blade

HP Ultrium Tape Blade

NOTE:

NOTE:NOTE:

NOTE:

Connected adjacent to a half-height server blade (Figure 1)

Up to 8 per HP

BladeSystem c-Class

c7000 Enclosure

Odd or Even slots next to

partner server blade

A tape blade supports one partner server blade, and one partner server blade supports one tape blade. Identify the partner server blade to be installed with the tape blade. The two blades always occupy a pair of slots, as follows: 1 & 2, 3 & 4, 5 & 6, 7 & 8, 9 & 10, 11 & 12, 13 & 14, 15 & 16 (See Figure 1). If the partner server blade is installed in an odd-numbered bay, the tape blade is installed in the adjacent even-numbered bay to the right. If the partner server blade is installed in an even-numbered bay, the tape blade is installed in the adjacent odd-numbered bay to the left.

HP Ultrium Tape Blade

HP Ultrium Tape BladeHP Ultrium Tape Blade

HP Ultrium Tape Blade

NOTE:

NOTE:NOTE:

NOTE:

Connected adjacent to a full-height server blade (Figure 2)

Up to 4 per HP

BladeSystem c-Class

c7000 Enclosure

Odd or Even slots next to

partner server blade (lower

bays only)

A tape blade supports one partner server blade, and one partner server blade supports one tape blade. When partnering a tape blade with a full height server blade, an HP PCI Express

QuickSpecs

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class InfrastructureHP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Infrastructure

Storage

DA - 12517 Worldwide — Version 19 — September 15, 2008

Page 36

Mezzanine Pass-Thru Card for BladeSystem c-Class (431643-B21) is required. This card is installed in mezzanine 3 connector in the server blade. Identify the partner server blade to be installed with the tape blade. The two blades always occupy a pair of slots, as follows: 9 & 10, 11 & 12, 13 & 14, 15 & 16 (See Figure 2). If the partner server blade is installed in an odd-numbered bay, the tape blade is installed in the adjacent even-numbered bay to the right. If the partner server blade is installed in an even-numbered bay, the tape blade is installed in the adjacent odd-numbered bay to the left. The tape blade is always located on the lower row of the enclosure when installed next to a full-height server blade.

Tape Libraries and Virtual Library Systems

Tape Libraries and Virtual Library SystemsTape Libraries and Virtual Library Systems

Tape Libraries and Virtual Library Systems

NOTE:

NOTE:NOTE:

NOTE:

For an up-to-date listing of the latest O/S Support details for each of the Tape Drives listed below, please see the following:

http://h18000.www1.hp.com/products/quickspecs/Division/10233.html

(Worldwide)

NOTE:

NOTE:NOTE:

NOTE:

For an up-to-date listing of the latest O/S Support details for each of the Tape Autoloaders & Tape Libraries listed below, please see the following:

http://h18000.www1.hp.com/products/quickspecs/Division/10809.html

(Worldwide)

NOTE:

NOTE:NOTE:

NOTE:

For complete listing of tape drive offerings see

http://www.hp.com/products1/storage/compatibility/tapebackup/ISS/index.html

For details on connecting tape drives to this server, see the following:

Position

PositionPosition

Position

Supported

SupportedSupported

Supported

Position

PositionPosition

Position Controller

ControllerController

Controller

Part Number

Part NumberPart Number

Part Number

HP StorageWorks Tape

HP StorageWorks TapeHP StorageWorks Tape

HP StorageWorks Tape Libraries, External

Libraries, ExternalLibraries, External

Libraries, External MSL2024 MSL4048 MSL6000

External

Please consult the EBS connectivity matrix at

http://www.hp.com/go/ebs

for detailed connectivity information

N/A

HP StorageWorks Virtual

HP StorageWorks VirtualHP StorageWorks Virtual

HP StorageWorks Virtual Library Systems

Library SystemsLibrary Systems

Library Systems 12000 VLS 1002i VLS 6218 VLS 6227 VLS 6636 VLS 6653 VLS

External

Please consult the EBS connectivity matrix at

http://www.hp.com/go/ebs

for detailed connectivity information

N/A

QuickSpecs

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class InfrastructureHP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Infrastructure

Storage

DA - 12517 Worldwide — Version 19 — September 15, 2008

Page 37

Server Blade, Power Supply and Fan Population Guidelines

Server Blade, Power Supply and Fan Population GuidelinesServer Blade, Power Supply and Fan Population Guidelines

Server Blade, Power Supply and Fan Population Guidelines

Fan & power supply bay numbering

Fan & power supply bay numberingFan & power supply bay numbering

Fan & power supply bay numbering

HP BladeSystem c3000 Enclosure - Rack

HP BladeSystem c3000 Enclosure - RackHP BladeSystem c3000 Enclosure - Rack

HP BladeSystem c3000 Enclosure - Rack

HP BladeSystem c3000 Enclosure - Tower

HP BladeSystem c3000 Enclosure - TowerHP BladeSystem c3000 Enclosure - Tower

HP BladeSystem c3000 Enclosure - Tower

Fan bay numbering

Fan bay numberingFan bay numbering

Fan bay numbering

HP BladeSystem c3000 Enclosure - Rack

HP BladeSystem c3000 Enclosure - RackHP BladeSystem c3000 Enclosure - Rack

HP BladeSystem c3000 Enclosure - Rack

HP BladeSystem c3000 Enclosure - Tower

HP BladeSystem c3000 Enclosure - TowerHP BladeSystem c3000 Enclosure - Tower

HP BladeSystem c3000 Enclosure - Tower

Power supply bay numbering

Power supply bay numberingPower supply bay numbering

Power supply bay numbering

Power Supplies & Fans must be placed in the following bays

Power Supplies & Fans must be placed in the following baysPower Supplies & Fans must be placed in the following bays

Power Supplies & Fans must be placed in the following bays

QuickSpecs

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class InfrastructureHP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Infrastructure

Technical Specifications

DA - 12517 Worldwide — Version 19 — September 15, 2008

Page 38

Number of Fans

Number of FansNumber of Fans

Number of Fans

Fan Bays Used

Fan Bays UsedFan Bays Used

Fan Bays Used

2,4,5, 6

all bays filled

Number of Power Supplies

Number of Power SuppliesNumber of Power Supplies

Number of Power Supplies

(for PS Redundant or non-redundant

mode)

Power Supply Bays Used

Power Supply Bays UsedPower Supply Bays Used

Power Supply Bays Used

1 & 2

1, 2, & 3

1, 2, 3, 4

1 through 5

All bays

Number of Power Supplies

Number of Power SuppliesNumber of Power Supplies

Number of Power Supplies

(For AC Redundant mode)

Place Power Supplies in bays:

Place Power Supplies in bays:Place Power Supplies in bays:

Place Power Supplies in bays:

1 & 4

1, 2, 4, & 5

all bays filled

NOTE:

NOTE:NOTE:

NOTE:

With four fans, the enclosure will support only 4 half-Height Server blades in the bottom half of the enclosure device bays. With six fans, all 8 server bays may be filled. NOTE:

NOTE: NOTE:

NOTE:

For correct operation, fans and server blades must be installed in the correct bays. The Onboard Administrator will ensure

that fans and blades are correctly placed before allowing systems to power on.

Half-height server blade bay numbering

Half-height server blade bay numberingHalf-height server blade bay numbering

Half-height server blade bay numbering

HP BladeSystem c3000 Enclosure - Racks

HP BladeSystem c3000 Enclosure - RacksHP BladeSystem c3000 Enclosure - Racks

HP BladeSystem c3000 Enclosure - Racks

HP BladeSystem c3000 Enclosure - Tower

HP BladeSystem c3000 Enclosure - TowerHP BladeSystem c3000 Enclosure - Tower

HP BladeSystem c3000 Enclosure - Tower

Device Bay 1

Device Bay 2

Device Bay 3

Device Bay 4

Device Bay 5

Device Bay 6

Device Bay 7

QuickSpecs

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class InfrastructureHP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Infrastructure

Technical Specifications

DA - 12517 Worldwide — Version 19 — September 15, 2008

Page 39

Device Bay 8

NOTE:

NOTE: NOTE:

NOTE:

Half-height server blades should be populated from the bottom half of the enclosure, in the following order (bays 1, 5, 2, 6,

3, 7, 4, & 8)

Full-height server blade bay numbering

Full-height server blade bay numberingFull-height server blade bay numbering

Full-height server blade bay numbering

HP BladeSystem c3000 Enclosure - Racks

HP BladeSystem c3000 Enclosure - RacksHP BladeSystem c3000 Enclosure - Racks

HP BladeSystem c3000 Enclosure - Racks

HP BladeSystem c3000 Enclosure - Tower

HP BladeSystem c3000 Enclosure - TowerHP BladeSystem c3000 Enclosure - Tower

HP BladeSystem c3000 Enclosure - Tower

Device Bay 1

Device Bay 2

Device Bay 3

Device Bay 4

NOTE:

NOTE: NOTE:

NOTE:

Full-height servers should be populated from the bottom to the top (bays 1 thru 4). With four fans, only the bottom 2 bays

can be used; with six fans, all bays can be used.

Mixed Configuration - Full Height and Half Height Population

Mixed Configuration - Full Height and Half Height PopulationMixed Configuration - Full Height and Half Height Population

Mixed Configuration - Full Height and Half Height Population The c3000 enclosure is divided into 2 zones or quadrants by the horizontal (vertical on Tower model) support metalwork. Zone 1

includes bays 1, 2, 4, & 5; and Zone 2 contains bays 3, 4, 7, & 8. Within each zone a removable divider is used to support half height devices. To install a full-height blade in any zone this divider must be removed. An optional mini-divider support bracket is included with every c3000 enclosure. As a consequence of using the mini-divider in the Zone 2, this zone can only contain one full height blade and 2 half-height blades. Zone 1 can contain either 4 half-height blades, or by removing the divider, it can contain 2 full-height blades.

NOTE:

NOTE:NOTE:

NOTE:

Please read the RTF card (included with each c3000 enclosure) and the "HP BladeSystem c3000 Setup and Installation

Guide" for more information on using bay dividers and the mini-divider for mixed configurations.

NOTE:

NOTE:NOTE:

NOTE:

Storage or tape blades can be installed in the same zone as both full-height and half-height blades, a bracket ships with

each SB40c that allows a half-height blade to be mounted to the left side of a storage or tape blade.

NOTE:

NOTE:NOTE:

NOTE:

In this case, the SB40c or tape blade cannot be removed without first removing the half height blade and mounting bracket.

NOTE:

NOTE:NOTE:

NOTE:

For Mixed configurations of full height and half height population rules; please see the c3000 Enclosure installation and

QuickSpecs

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class InfrastructureHP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Infrastructure

Technical Specifications

DA - 12517 Worldwide — Version 19 — September 15, 2008

Page 40

users guide at:

http://h71028.www7.hp.com/enterprise/cache/316682-0-0-0-121.html

Server Blade, Power Supply and Fan Population Guidelines

Server Blade, Power Supply and Fan Population GuidelinesServer Blade, Power Supply and Fan Population Guidelines

Server Blade, Power Supply and Fan Population Guidelines

Fan bay numbering

Fan bay numberingFan bay numbering

Fan bay numbering

c7000 Enclosure - Fans must be placed in the following bays

c7000 Enclosure - Fans must be placed in the following baysc7000 Enclosure - Fans must be placed in the following bays

c7000 Enclosure - Fans must be placed in the following bays

Number of Fans

Number of FansNumber of Fans

Number of Fans

Fan Bays Used

Fan Bays UsedFan Bays Used

Fan Bays Used

4, 5, 9, 10

3, 4, 5, 8, 9, 10

1, 2, 4, 5, 6, 7, 9, 10

1, 2, 3, 4, 5, 6, 7, 8, 9, 10

NOTE:

NOTE:NOTE:

NOTE:

For correct operation fans and server blades must be installed in the correct bays. The Onboard Administrator will ensure

that fans and blades are correctly placed before allowing systems to power on.

c7000 Enclosure - Half-height server blade bay numbering

c7000 Enclosure - Half-height server blade bay numberingc7000 Enclosure - Half-height server blade bay numbering

c7000 Enclosure - Half-height server blade bay numbering

QuickSpecs

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class InfrastructureHP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Infrastructure

Technical Specifications

DA - 12517 Worldwide — Version 19 — September 15, 2008

Page 41

Device Bays 1-16

Device Bays 9

Device Bays 2

10.

Device Bays 10

Device Bays 3

11.

Device Bays 11

Device Bays 4

12.

Device Bays 12

Device Bays 5

13.

Device Bays 13

Device Bays 6

14.

Device Bays 14

Device Bays 7

15.

Device Bays 15

Device Bays 8

16.

Device Bays 16

NOTE:

NOTE: NOTE:

NOTE:

Half-height servers should be populated from top and bottom from left to right from the front of the enclosure. So the first two half-height servers would be placed in bays 1 & 9 the second two half-height servers would be placed in bays 2 & 10 and so on until the enclosure is full.

c7000 Enclosure - Full-height server blade bay numbering

c7000 Enclosure - Full-height server blade bay numberingc7000 Enclosure - Full-height server blade bay numbering

c7000 Enclosure - Full-height server blade bay numbering

Device Bays 1-8

Device Bay 5

Device Bay 2

Device Bay 6

Device Bay 3

Device Bay 7

Device Bay 4

Device Bay 8

NOTE:

NOTE:NOTE:

NOTE:

Full-height servers should be populated from left to right.

c7000 Enclosure - Mixed Configuration - Full Height and Half-Height Population rules

c7000 Enclosure - Mixed Configuration - Full Height and Half-Height Population rulesc7000 Enclosure - Mixed Configuration - Full Height and Half-Height Population rules

c7000 Enclosure - Mixed Configuration - Full Height and Half-Height Population rules

QuickSpecs

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class InfrastructureHP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Infrastructure

Technical Specifications

DA - 12517 Worldwide — Version 19 — September 15, 2008

Page 42

The c7000 enclosure is divided into 4 quadrants by the vertical support metalwork. Within each quadrant a removable divider is used to support half height devices. To install a full-height blade in any quadrant this divider must be removed. As a consequence a quadrant can only contain either full-height server blades or half-height server blades.

NOTE:

NOTE:NOTE:

NOTE:

Storage blades and Tape blades can be installed in the same quadrant as both full-height and half-height blades, a bracket ships with each SB40c that allows a half-height blade to be mounted on top of an SB40c/Tape Blade that allows a half-height blade to be mounted on top of the storage blade. NOTE:

NOTE: NOTE:

NOTE:

The lower tape or storage blade cannot be removed without first removing the upper half height blade.

HP BladeSystem

HP BladeSystemHP BladeSystem

HP BladeSystem c3000 Server Blade

c3000 Server Bladec3000 Server Blade

c3000 Server Blade Enclosure -Rack Model

Enclosure -Rack ModelEnclosure -Rack Model

Enclosure -Rack Model

Dimensions

DimensionsDimensions

Dimensions

Height

10.4 in (265 mm)

Width

19.1 in (485 mm)

Depth

32.877 in (835 mm)

Shipping Dimensions

Shipping DimensionsShipping Dimensions

Shipping Dimensions

Height

23.0 in (584 mm)

Width

23.88 in (607 mm)

Depth

39.88 in (1013 mm)

C3000 Enclosure Weight

C3000 Enclosure WeightC3000 Enclosure Weight

C3000 Enclosure Weight

Unboxed

145 lb (65.8 kg) approximately

Shipping

195 lb (88.5 kg) approximately

Max Enclosure Weight

Max Enclosure WeightMax Enclosure Weight

Max Enclosure Weight (approximated for fully loaded enclosure)

Unboxed

300 lb (136 kg) approximately

Shipping

350 lb (158.8 kg) approximately

Temperature Range

Temperature RangeTemperature Range

Temperature Range

Operating

50° to 95° F (10° to 35° C)

Non-Operating

-22° to 140° F (-30° to 60° C)

Relative Humidity

Relative HumidityRelative Humidity

Relative Humidity (non-condensing)

Operating

20% to 80%

Non-Operating

5% to 95%

Wet Bulb Temperature

Wet Bulb TemperatureWet Bulb Temperature

Wet Bulb Temperature

Operating

82.4° F (28° C)

Non-Operating

101.7° F (38.7° C)

QuickSpecs

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class InfrastructureHP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Infrastructure

Technical Specifications

DA - 12517 Worldwide — Version 19 — September 15, 2008

Page 43

NOTE:

NOTE: NOTE:

NOTE:

Operating temperature has an altitude derating of 1.8° F (1° C) per 1,000 ft (304.8 m). No direct sunlight. Upper operating limit is 10,000 ft (3,048 m) or 70Kpa/10.1 psia. Upper non-operating limit is 30,000 ft (9,144 m) or 30.3 KPa/4.4 psia. Storage maximum humidity of 95% is based on a maximum temperature of 113° F (45° C). Altitude maximum for storage is 70 KPa. NOTE:

NOTE:NOTE:

NOTE:

For additional Technical Specifications regarding the c3000 Server Blade Enclosure, please see:

http://h18000.www1.hp.com/products/quickspecs/12790_div/12790_div.html

Enclosure Unit - Tower

Enclosure Unit - TowerEnclosure Unit - Tower

Enclosure Unit - Tower Model

ModelModel

Model

Dimensions

DimensionsDimensions

Dimensions

(H x W x D)

(with bezel)

21.29 x 13.48 x 34.43 in (54.08 x 34.24 x 87.45 cm)

Weight

WeightWeight

Weight (approximate)

Maximum (all server blades and interconnects installed)

342 lb (155 kg)

Minimum (2 power supplies & 4 fans, no server blades nor interconnects installed)

192 lb (87.09 kg)

Input Requirements

Input RequirementsInput Requirements

Input Requirements (per AC power supply)

Rated Line Voltage

90 - 132 VAC 180 - 264 VAC

Rated Input Current

9.3 A (at 100 VAC)

9.7 A (at 110 VAC)

7.8 A (at 200 VAC)

7.2 A (at 208 VAC)

6.8 A (at 220 VAC)

6.2 A (at 240 VAC)

Rated Input Frequency

47 to 63 Hz

BTU Rating

BTU RatingBTU Rating

BTU Rating

Maximum per power supply

2728 BTU/hr (at 100 VAC) 3069 BTU/hr (at 120VAC) 4092 BTU/hr (at 200 to 240 VAC)

Power Specifications

Power SpecificationsPower Specifications

Power Specifications

To review typical system power ratings use the Power Calculator which is available via the online tool located at URL:

www.hp.com/go/bladesystem/powercalculator

Power Supply Output

Power Supply OutputPower Supply Output

Power Supply Output (per power supply)

Rated Steady-State Power

800 W (at 100 VAC), 900 W (at 120 VAC) 1200 W (at 200 to 240 VAC)

Maximum Peak Power

880 W (at 100 VAC), 990 W (at 120 VAC) 1350 W (at 200 to 240 VAC

System Inlet Temperature

System Inlet TemperatureSystem Inlet Temperature

System Inlet Temperature

Operating

10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1000 ft) above sea level to a maximum of 3050 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 10°C/hr (18°F/hr). The upper limit may be limited by the type and number of options installed. System performance may be reduced if operating with a fan fault or above 30°C (86°F).

Non-operating

-30° to 60°C (-22° to 140°F). Maximum rate of change is 20°C/hr (36°F/hr).

QuickSpecs

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class InfrastructureHP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Infrastructure

Technical Specifications

DA - 12517 Worldwide — Version 19 — September 15, 2008

Page 44

Relative Humidity

Relative HumidityRelative Humidity

Relative Humidity (non-condensing)

Operating

10 to 90% relative humidity (Rh), 28°C (82.4°F) maximum wet bulb temperature, noncondensing.

Non-operating

5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, noncondensing.

Altitude

AltitudeAltitude

Altitude

Operating

3050 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min).

Non-operating

9144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min).

Acoustic Noise

Acoustic NoiseAcoustic Noise

Acoustic Noise

Listed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109).

Idle

depends on server configuration & mix of server blades

Operating

varies by CPU utilization, server configuration, and mix of server blades

HP BladeSystem

HP BladeSystemHP BladeSystem

HP BladeSystem c7000 Server Blade

c7000 Server Bladec7000 Server Blade

c7000 Server Blade Enclosure

EnclosureEnclosure

Enclosure

Dimensions

DimensionsDimensions

Dimensions

Height

17.4in (442 mm)

Width

17.5in (445 mm)

Depth

32in (813 mm)

Shipping Dimensions

Shipping DimensionsShipping Dimensions

Shipping Dimensions

Height

29.88in (759 mm)

Width

23.88in (607 mm)

Depth

39.88in (1013 mm)

Single Phase Enclosure

Single Phase EnclosureSingle Phase Enclosure

Single Phase Enclosure Weight

WeightWeight

Weight

Unboxed

121 lb (54.9 Kg)

Shipping

164 lb (74.4 Kg)

Three -Phase Enclosure

Three -Phase EnclosureThree -Phase Enclosure

Three -Phase Enclosure NA/JPN Weight

NA/JPN WeightNA/JPN Weight

NA/JPN Weight

Unboxed

150 lb (68 Kg)

Shipping

193 lb (87.5 Kg)

Three-Phase Enclosure

Three-Phase EnclosureThree-Phase Enclosure

Three-Phase Enclosure International Weight

International WeightInternational Weight

International Weight

Unboxed

150 lb (68 Kg)

Shipping

193 lb (87.5 Kg)

Max Enclosure Weight

Max Enclosure WeightMax Enclosure Weight

Max Enclosure Weight

Unboxed

450 lb (204 Kg)

Shipping

493 lb (223.6 Kg)

Temperature Range

Temperature RangeTemperature Range

Temperature Range

Operating

50° to 95° F (10° to 35° C)

Non-Operating

-22° to 140° F (-30° to 60° C)

Relative Humidity

Relative HumidityRelative Humidity

Relative Humidity (non-condensing)

(non-condensing)(non-condensing)

(non-condensing)

Operating

20% to 80%

Non-Operating

5% to 95%

Wet Bulb Temperature

Wet Bulb TemperatureWet Bulb Temperature

Wet Bulb Temperature

Operating

82.4° F (28° C)

Non-Operating

101.7° F (38.7° C)

QuickSpecs

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class InfrastructureHP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Infrastructure

Technical Specifications

DA - 12517 Worldwide — Version 19 — September 15, 2008

Page 45

NOTE:

NOTE: NOTE:

NOTE:

NOTE: NOTE:

NOTE:

For additional Technical Specifications regarding the c7000 Server Blade Enclosure, please see:

http://h18000.www1.hp.com/products/quickspecs/12810_div/12810_div.html

QuickSpecs

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class InfrastructureHP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Infrastructure

Technical Specifications

DA - 12517 Worldwide — Version 19 — September 15, 2008

Page 46

NOTE:

NOTE:NOTE:

NOTE: To review maximum system power ratings for facilities planning purposes use the Active Answers Power Calculator which is available via the online tool located at URL:

http://www.hp.com/go/bladesystem/powercalculator

Environment-friendly

Environment-friendlyEnvironment-friendly

Environment-friendly Products and Approach

Products and ApproachProducts and Approach

Products and Approach

End-of-life Management

End-of-life ManagementEnd-of-life Management

End-of-life Management and Recycling

and Recyclingand Recycling

and Recycling

Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to

http://www.hp.com/go/green

. To recycle your product, please go to:

http://www.hp.com/go/green

or contact your nearest HP sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard web site at:

http://www.hp.com/go/green

. These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment.

The information contained herein is subject to change without notice.

Microsoft and Windows NT are US registered trademarks of Microsoft Corporation. Intel, the Intel logo, Xeon and Xeon Inside are trademarks of Intel Corporation in the U.S. and other countries

The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

QuickSpecs

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class InfrastructureHP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Infrastructure

Power Specifications

DA - 12517 Worldwide — Version 19 — September 15, 2008

Page 47

HP c-Class, BladeSystem c7000, BladeSystem c3000 Overview

Specifications and Main Features

Frequently Asked Questions

User Manual
