HP Deskjet 6940 series

User's guide

Hewlett-Packard Company notices

The information contained in this document is subject to change without notice.

The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

Acknowledgements

Microsoft, Windows, and Windows XP are registered trademarks of Microsoft Corporation.

TrueType is a U.S. trademark of Apple Computer, Inc.

Adobe, Adobe Photoshop, and Acrobat are trademarks of Adobe Systems Incorporated.

Bluetooth is a trademark owned by its proprietor and used by HewlettPackard Company under license.

1Welcome.................................................................................................................4

2 Special features.....................................................................................................5

3 Get started..............................................................................................................6

Printer features .......................................................................................................6

Buttons and lights ...................................................................................................8

Paper trays ...........................................................................................................11

Photo/envelope feeder .........................................................................................13

Print cartridges .....................................................................................................15

Ink-backup mode ..................................................................................................16

Automatic paper-type sensor ...............................................................................17

Quiet mode ...........................................................................................................17

4 Connect to the printer.........................................................................................18

USB ......................................................................................................................18

Wired Ethernet networking ...................................................................................19

Bluetooth wireless printing ...................................................................................34

5 Print photos.........................................................................................................38

Print borderless photos ........................................................................................38

Print photos with a border ....................................................................................40

HP Real Life technologies ....................................................................................42

Photo print cartridge .............................................................................................42

Maximum dpi ........................................................................................................43

Advanced color settings .......................................................................................44

Color management ...............................................................................................44

Gray photo print cartridge .....................................................................................45

Exif Print ...............................................................................................................45

Store and handle photo paper ..............................................................................46

Save money when printing photos .......................................................................46

Other photo projects .............................................................................................46

Share photos with friends and family ...................................................................47

6 Print photos from a digital camera....................................................................48

Use a PictBridge camera ......................................................................................48

Use a Bluetooth camera phone ............................................................................49

7 Print other documents........................................................................................51

E-mail ...................................................................................................................51

Letters ...................................................................................................................52

Documents ...........................................................................................................53

Envelopes .............................................................................................................54

Brochures .............................................................................................................55

Greeting cards ......................................................................................................57

Postcards ..............................................................................................................58

Transparencies .....................................................................................................59

Labels ...................................................................................................................60

Index cards and other small media ......................................................................61

Booklets ................................................................................................................62

Posters .................................................................................................................63

User's guide 1

Iron-on transfers ...................................................................................................65

Banners ................................................................................................................66

CD/DVD tattoos ....................................................................................................67

8 Printing tips..........................................................................................................69

Printing shortcuts ..................................................................................................69

Fast/economical printing .......................................................................................69

General everyday printing ....................................................................................70

Presentation printing ............................................................................................70

Print in grayscale ..................................................................................................70

Select a print quality .............................................................................................70

Set the page order ................................................................................................71

Print multiple pages on a single sheet of paper ...................................................71

Print preview .........................................................................................................71

Set a custom paper size .......................................................................................72

Select a paper type ..............................................................................................72

Select a paper source ..........................................................................................73

Print task quick sets ..............................................................................................73

Automatic two-sided printing ................................................................................74

Manual two-sided printing ....................................................................................76

Resize a document ...............................................................................................79

Watermarks ..........................................................................................................79

9 Printer software...................................................................................................81

Printer Properties dialog box ................................................................................81

What's This? help .................................................................................................81

Ink Status window .................................................................................................81

Download printer software updates ......................................................................82

10 Maintenance.........................................................................................................83

Install print cartridges ...........................................................................................83

Set the auto-off feature .........................................................................................86

Align the print cartridges .......................................................................................87

Calibrate color ......................................................................................................87

Automatically clean print cartridges ......................................................................87

Print a test page ...................................................................................................87

View estimated ink levels .....................................................................................87

Maintain the printer body ......................................................................................88

Remove ink from your skin and clothing ..............................................................88

Manually clean print cartridges .............................................................................88

Maintain print cartridges .......................................................................................89

Printer Toolbox .....................................................................................................90

11 Troubleshooting..................................................................................................92

Ethernet problems ................................................................................................92

Printer does not print ............................................................................................94

Paper jam .............................................................................................................95

Paper problems ....................................................................................................97

Paper mismatch ....................................................................................................98

Printer is stalled ....................................................................................................98

Print cartridge problems .......................................................................................99

Photos do not print correctly ...............................................................................101

PictBridge problems ...........................................................................................103

Bluetooth printing problems ................................................................................104

2 HP Deskjet 6940 series

Contents

Banners do not print correctly ............................................................................106

Print quality is poor .............................................................................................106

Document is misprinted ......................................................................................108

Problems with borderless documents ................................................................109

Error messages ..................................................................................................113

Printer lights are on or flashing ...........................................................................114

Document prints slowly .......................................................................................116

If you continue to have problems .......................................................................117

HP support process ............................................................................................117

12 Accessories.......................................................................................................118

Automatic Two-Sided Printing Accessory (duplexer) .........................................118

250-Sheet Plain Paper Tray ...............................................................................125

Auto Two-Sided Print Accessory with Small Paper Tray ....................................130

13 Supplies..............................................................................................................141

Paper ..................................................................................................................141

USB cables .........................................................................................................141

Accessories ........................................................................................................141

14 Specifications ...................................................................................................142

Printer specifications ..........................................................................................142

15 Environmental information...............................................................................143

Environmental statement ....................................................................................143

Print cartridge recovery ......................................................................................144

User's guide 3

Welcome

To find an answer to a question, select one of the following topics:

● Special features

● Get started

● Connect to the printer

● Print photos

● Print photos from a digital camera

● Print other documents

● Printing tips

● Printer software

● Maintenance

● Troubleshooting

● Optional accessories

● Supplies

● Specifications

● Environmental information

4 HP Deskjet 6940 series

Special features

Congratulations! You have purchased an HP Deskjet printer that is equipped with several exciting features:

● Built-in networking capabilities: Connect to a wired network without using an external print server.

● Ink-backup mode: Use ink-backup mode to continue printing with one print cartridge when the other print cartridge has run out of ink.

● Print Cancel button: Cancel print jobs at the touch of a button.

● Borderless printing: Use the entire page surface when printing photos and

brochures with the borderless printing feature.

● Real Life technologies: Get better photos easier with HP Real Life technologies. Automatic red-eye removal and adaptive lighting to enhance detail in shadows are just a few of the many technologies included.

● Six-ink upgradeable printing: Enhanced photo printing with a six-ink photo print

cartridge (purchased separately).

HP Vivera Inks deliver true-to-life photo quality and exceptional fade resistance resulting in vivid colors that last. HP Vivera Inks are specially-formulated and scientifically tested for quality, purity and fade resistance.

● Printing from a digital camera: Print photos directly from a PictBridge-compatible camera using the front USB port.

● Automatic paper-type sensor: Use the auto paper-type sensor to optimize print quality for various papers.

● Quiet mode: Use the Quiet mode feature when you require quieter printing, as when a baby is sleeping nearby, or when clients are in the office.

● Photo/envelope feeder: Use the photo/envelope feeder to conveniently print single envelopes, photos, or postcards.

● Bluetooth printing: Print images without a cable using Bluetooth. Use an optional

HP Bluetooth Wireless Printer Adapter to print images from most Bluetooth devices

to the printer without a cable connection.

● Optional Automatic Two-Sided Printing Accessory: Purchase an Automatic

Two-Sided Printing Accessory to print two-sided documents automatically.

● Optional Auto Two-Sided Print Accessory with Small Paper Tray: Purchase an

Auto Two-Sided Print Accessory with Small Paper Tray to print two-sided documents

automatically and load small media from the back of the printer.

● Optional 250-Sheet Plain Paper Tray Accessory: Purchase a 250-Sheet Plain

Paper Tray Accessory to expand the printer's paper-handling capability.

User's guide 5

Get started

● Printer features

● Buttons and lights

● Paper trays

● Photo/envelope feeder

● Print cartridges

● Ink-backup mode

● Automatic paper-type sensor

● Quiet mode

For a description of the optional accessories, see the optional accessories page.

Printer features

The printer has several features to make printing easier and more efficient.

1 Buttons and lights

2 Paper trays

3 Photo/envelope feeder

4 Front USB port

6 HP Deskjet 6940 series

1 Print cartridges

2 Automatic paper-type sensor (not illustrated)

3 Ink-backup mode (not illustrated)

1 Rear USB port

2 Wired Ethernet port

Optional accessories

User's guide 7

Chapter 3

Optional accessories (continued)

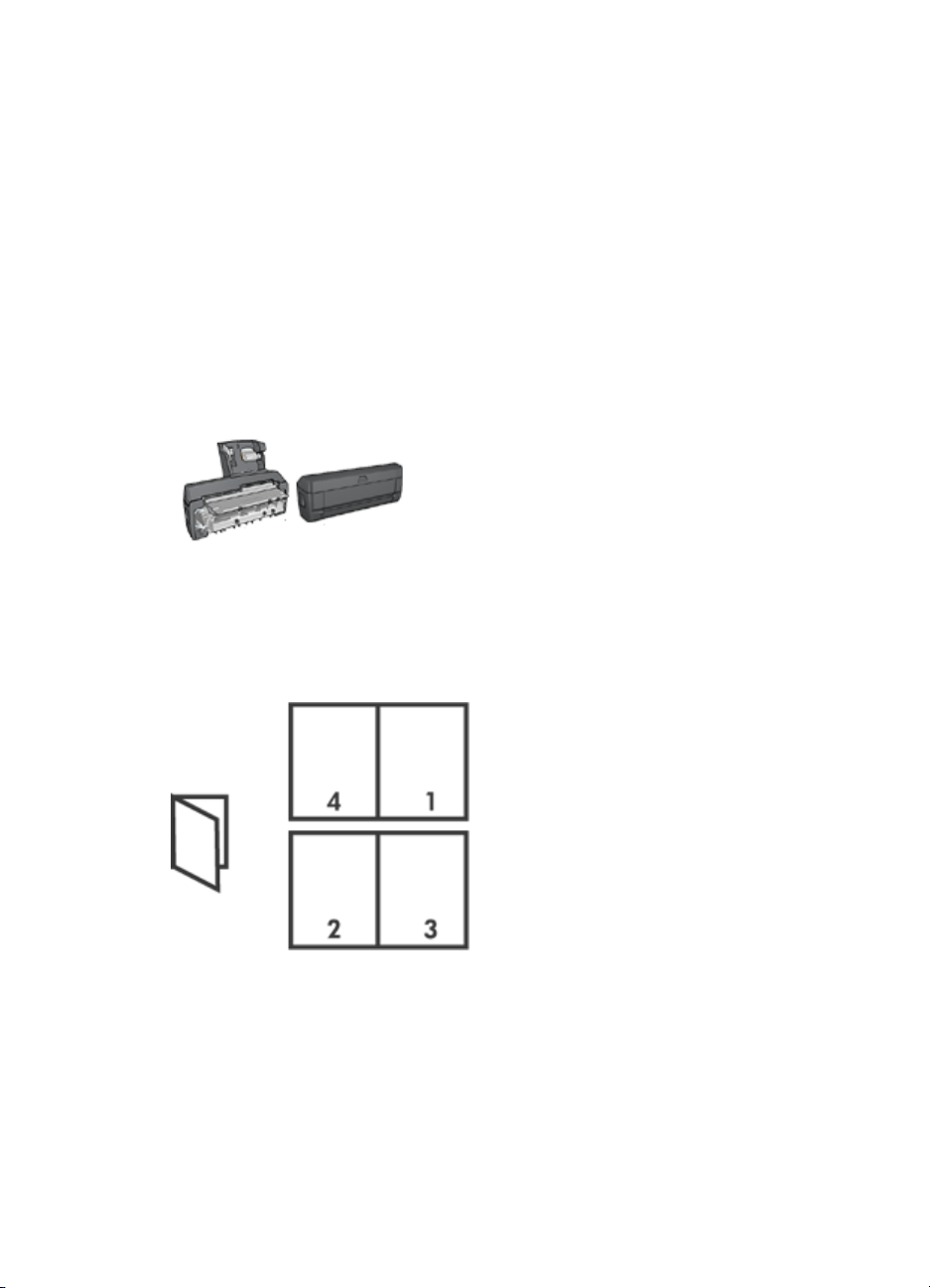

Automatic Two-Sided Printing Accessory

(optional)

Buttons and lights

Use the printer buttons to turn the printer on and off, cancel a print job, and restart a job. The printer lights give you visual cues about the status of the printer.

1 Power button and light

2 Print Cancel button

3 Resume button and light

4 Network light

5 Report Page button

6 Print Cartridge Status lights

250-Sheet Plain Paper Tray (optional)

Auto Two-Sided Print Accessory with Small Paper Tray (optional)

For a description of the following buttons and lights, click the appropriate option:

● Report Page button

● Network light

Power button and light

Use the Power button to turn the printer on and off. It can take a few seconds for the printer to turn on after you press the Power button.

The Power light flashes when the printer is processing.

Caution Always use the Power button to turn the printer on and off. Using a

power strip, surge protector, or a wall-mounted switch to turn the printer on and off might cause printer failure.

The printer is designed with an auto-off feature that, when set, automatically places the printer into a low power mode when it has been idle for 30 minutes. In this mode, the printer continues to consume a maximum 3.0 watts of power and turns back on automatically when print jobs are sent to the printer. You can manually turn the printer off by pressing and holding the Power button for three seconds. When the printer is manually turned off, the printer uses less than one watt of power.

8 HP Deskjet 6940 series

Note Energy consumption can be prevented by turning the printer power off,

and then disconnecting the end of the printer power cord from the electrical source.

Print Cancel button

Pressing the Print Cancel button cancels the current print job.

Resume button

The Resume light flashes when an action is required, such as loading paper or clearing a paper jam. When the problem is solved, press the Resume button to continue printing.

Print Cartridge Status lights

The Print Cartridge Status lights indicate the status of the print cartridges.

1 Print Cartridge Status lights

User's guide 9

Chapter 3

1. The left status light represents the tri-color print cartridge, which is installed in the left side of the print cartridge cradle.

– The light is on and solid when the tri-color print cartridge is low on ink. – The light flashes when the tri-color print cartridge needs to be serviced.

2. The right status light represents the print cartridge that is installed on the right side of the print cartridge cradle. That print cartridge can be the black print cartridge, the

photo print cartridge, or the gray photo print cartridge.

– The light is on and solid when the black, photo, or gray photo print cartridge is

low on ink.

– The light flashes when the black, photo, or gray photo print cartridge needs to

be serviced.

PictBridge lights

Plug a PictBridge-enabled camera into the front USB port using a digital camera USB cable to print digital photographs.

1 Connection light

2 Error light

When a PictBridge-compatible camera is connected correctly, the green Connection light is illuminated. The printer Power light flashes and the Connection light remains lit solid

10 HP Deskjet 6940 series

when printing from the camera. If the camera is not PictBridge-compatible or is not in PictBridge mode, the amber Error light flashes.

Paper trays

The printer has two paper trays:

In tray

The In tray holds paper or other media.

1 In tray

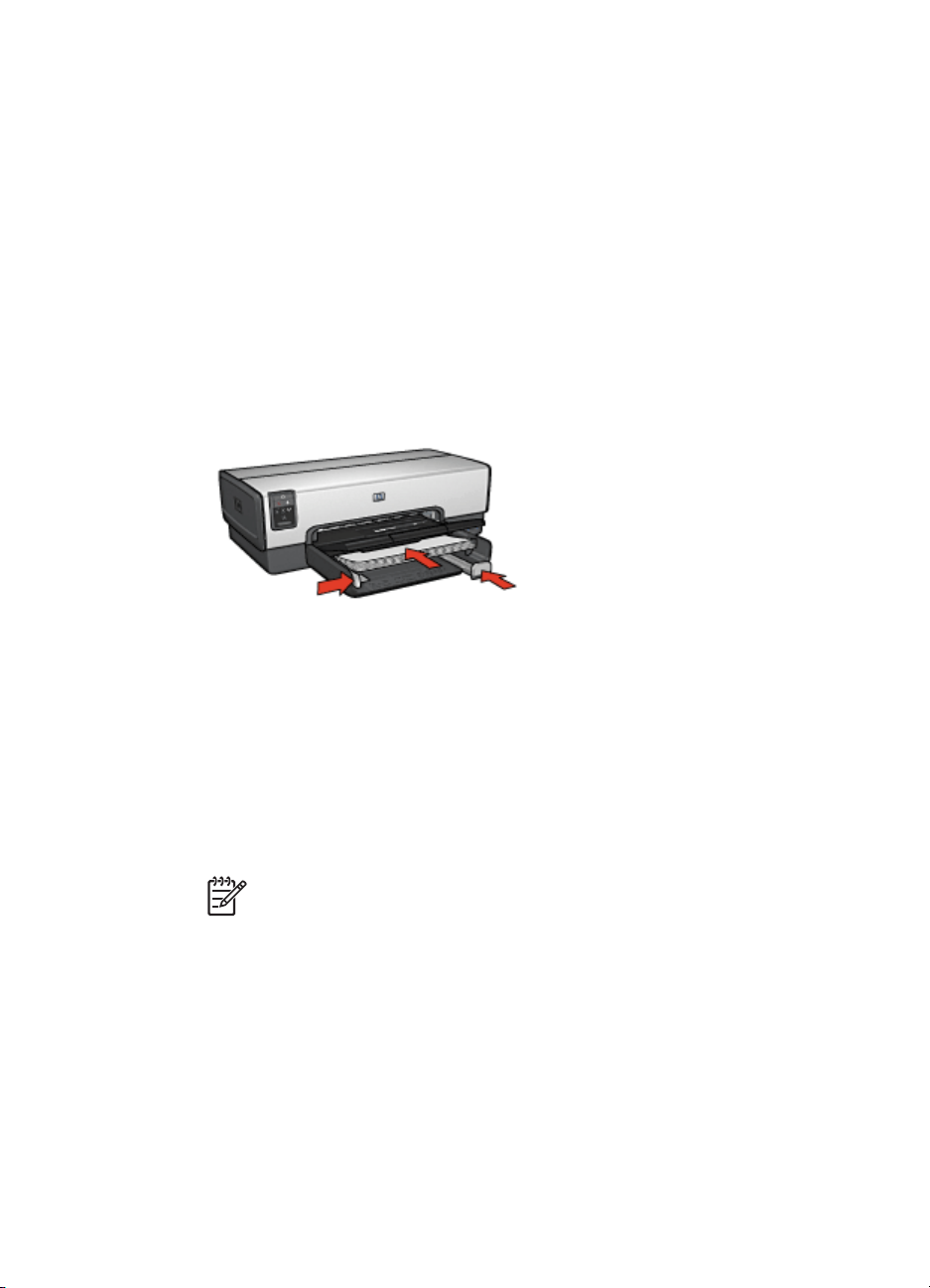

Slide the paper guides firmly against the edges of the media on which you are printing.

1 Paper-width guide

2 Paper-length guide

Out tray

Printed pages are deposited in the Out tray.

User's guide 11

Chapter 3

1 Out tray

2 Photo/envelope feeder

Use the photo/envelope feeder to print single envelopes, small photos, and cards. Raise the Out tray to load paper or other media. Lower the Out tray before printing.

To prevent paper from falling out of the Out tray, fully pull out the Out-tray extension. If you are printing in the Fast Draft mode, unfold the Out-tray extension stop.

Do not unfold the Out-tray extension stop when printing on legal paper.

1 Out-tray extension

2 Out-tray extension stop

After the print job is complete, fold the Out-tray extension stop, and then push the Outtray extension into the Out tray.

12 HP Deskjet 6940 series

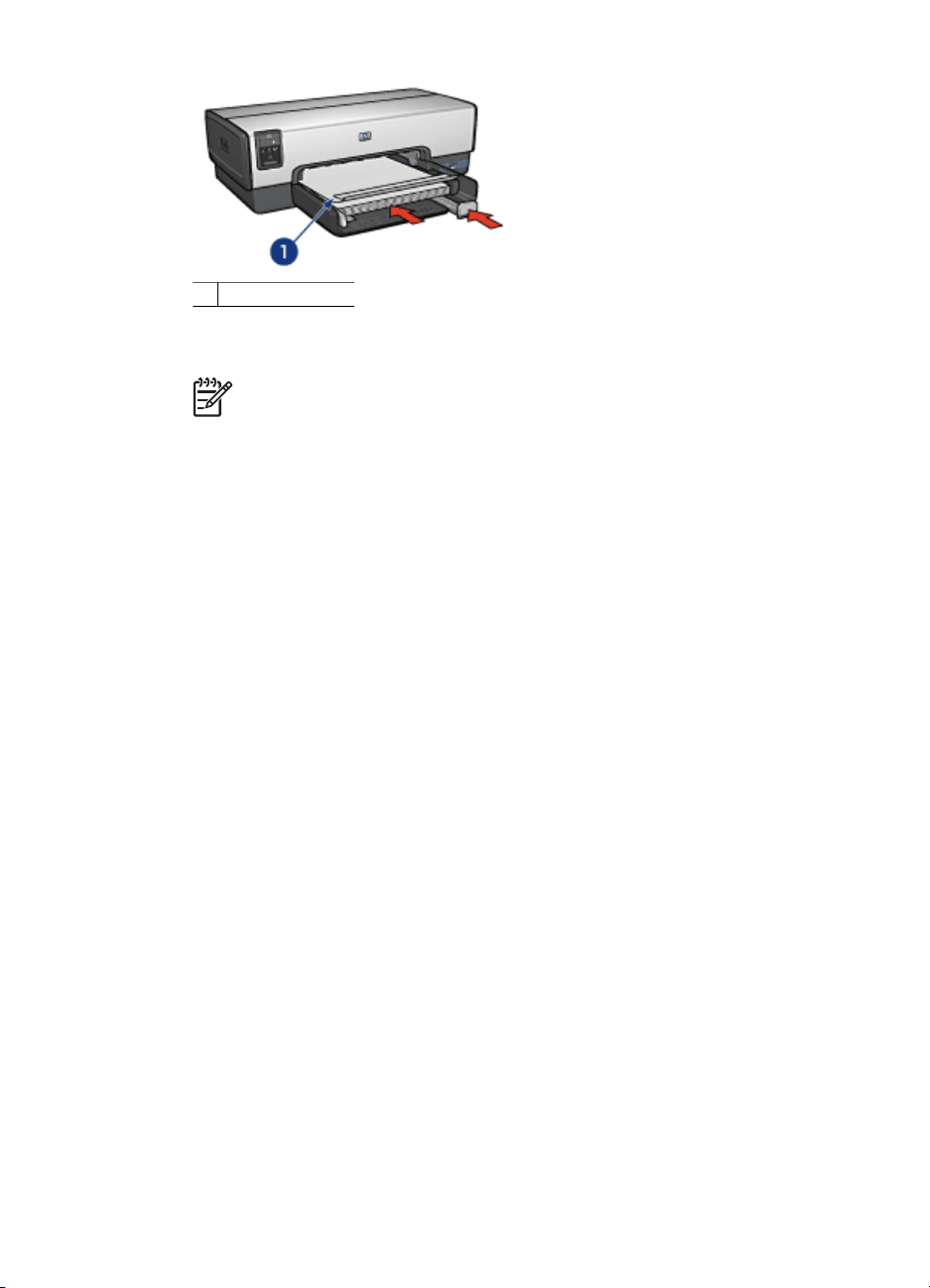

Photo/envelope feeder

Use the photo/envelope feeder to print a variety of media sizes including the following documents:

● Envelopes

● Photos

● Postcards

1 Photo/envelope feeder

Envelopes

Follow these steps to use the photo/envelope feeder for single envelopes:

1. Insert the envelope into the photo/envelope feeder with the side to be printed on facing down and the flap to the left.

2. Push the envelope into the printer as far as it will go without bending.

3. Print the envelope.

Photos

Follow these steps to use the photo/envelope feeder to print a single photo:

1. Insert the photo paper into the photo/envelope feeder with the side to be printed on facing down.

2. Gently push the photo paper into the photo/envelope feeder as far as it will comfortably go.

User's guide 13

Chapter 3

3. Slide the photo/envelope feeder forward as far as it will go.

4. Print the photo.

Postcards

Follow these steps to use the photo/envelope feeder to print a single postcard:

1. Insert the postcard into the photo/envelope feeder with the side to be printed on facing down.

2. Gently push the postcard into the photo/envelope feeder as far as it will comfortably go.

14 HP Deskjet 6940 series

3. Slide the photo/envelope feeder forward as far as it will go.

4. Print the postcard.

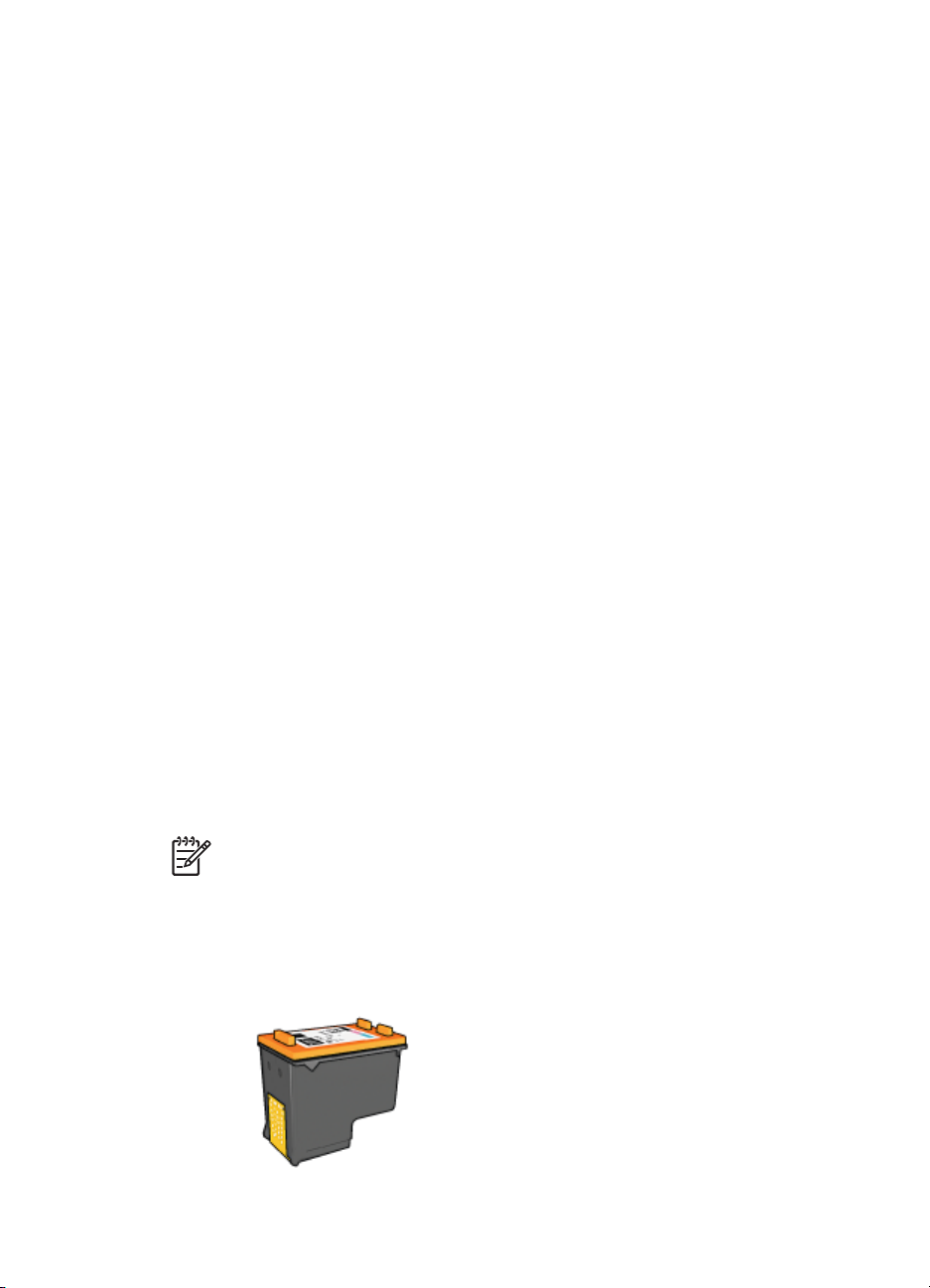

Print cartridges

Four print cartridges can be used with the printer.

1 Black print cartridge

2 Tri-color print cartridge

3 Photo print cartridge

4 Gray photo print cartridge

Note The availability of print cartridges varies by country/region.

Use print cartridges

The print cartridges can be used in the following ways:

● Everyday printing: Use the black and tri-color print cartridges for everyday print jobs.

● Quality color photos: For more vibrant colors when printing color photographs or other special documents, remove the black print cartridge and install a photo print cartridge. The photo print cartridge, in combination with the tri-color print cartridge, provides you with virtually grain-free photos.

● Quality black-and-white photos: For outstanding black-and-white photographs, remove the black print cartridge and use a gray photo print cartridge in combination with the tri-color print cartridge.

Replace print cartridges

When buying print cartridges, look for the print cartridge selection number.

User's guide 15

Chapter 3

You can find the selection number in three places:

● Selection number label: Look at the label on the print cartridge that you are replacing.

1 Selection number label

● Printer documentation: For a list of print cartridge selection numbers, see the reference guide that came with the printer.

● Print Cartridge Ordering Information dialog box: For a list of print cartridge selection numbers, open the printer Toolbox, click the Estimated Ink Level tab, and then click the Print Cartridge Information button.

If a print cartridge runs out of ink, the printer can operate in ink-backup mode.

For information about installing a replacement print cartridge, see the print cartridge

installation page.

Ink-backup mode

Use the ink-backup mode to operate the printer with only one print cartridge. The inkbackup mode is initiated when a print cartridge is removed from the print cartridge cradle.

Ink-backup mode output

Printing in ink-backup mode slows the printer and affects the quality of printouts.

Installed print cartridge

Black print cartridge Colors print as grayscale.

Tri-color print cartridge Colors print but black is grayed and is not a true black.

Photo print cartridge Colors print as grayscale.

Gray photo print cartridge

Note HP does not recommend using the photo print cartridge or the gray photo

print cartridge for ink-backup mode.

16 HP Deskjet 6940 series

Result

Colors print as grayscale.

Exit ink-backup mode

Install two print cartridges in the printer to exit ink-backup mode.

For instructions about installing a print cartridge, see the print cartridge installation page.

Automatic paper-type sensor

The HP automatic paper-type sensor detects the paper in the printer, and then selects optimal print settings for that media. The result is fewer mouse clicks to start printing, and automatic optimal print quality on plain, photo, brochure and other high-quality papers. The sensor also checks the paper width to ensure it matches the size selected in the printer software. If the widths are different, the printer warns you so that you do not waste a sheet of paper.

When the auto paper-type sensor is engaged, the printer uses a red optical sensor light to scan the first page of a document and determine the best paper-type setting and check paper width. If the paper width is different from the printer software, the printer warns you and gives you the opportunity to stop printing. If the width matches, the printer determines the paper-type setting and the page is printed.

Note The Automatic Paper-Type Sensor is not available for documents that are

printed from the 250-Sheet Plain Paper Tray Accessory or the Auto Two-Sided Print Accessory with Small Paper Tray.

For more information about using the automatic paper-type setting, see Select a paper

type.

Caution Do not place the printer in direct sunlight. Direct sunlight can interfere

with the auto paper-type sensor.

Quiet mode

Use the Quiet mode feature when you require quieter printing, such as when a baby is sleeping nearby, or when clients are in the office. To activate Quiet mode, open the

Printer Properties dialog box, click the Paper/Quality tab, and then click Quiet

Printing. By activating Quiet mode, the speed and sound level of the print job is reduced. To resume normal printing speed, click Quiet Printing again to clear this feature.

Quiet mode can be used in Normal, Fast Normal, and Draft print modes.

User's guide 17

USB

Connect to the printer

● Wired Ethernet networking

● Connecting a digital camera

● USB

● Bluetooth wireless printing

The printer connects to the computer with a universal serial bus (USB) cable. The computer must be running Windows 98 SE or later to use a USB cable.

For instructions about connecting the printer with a USB cable, see the setup poster that came with the printer.

Note A USB cable might not be packaged with the printer.

To change a USB connection to an Ethernet connection

If you initially installed the printer as a standalone printer with a USB connection, and later decided to set up the printer on a network, you must change how the printer is accessed. If you already understand how to connect to a network, you can use the general instructions that follow. For more detailed instructions on connecting the printer to a network, see the setup poster.

1. Unplug the USB connection from the back of the printer.

2. Connect an Ethernet cable from the Ethernet port on the back of the printer to an available Ethernet port on the router, switch, or access point.

3. Insert the printer software CD in the computer CD-ROM drive. The Setup Wizard begins.

4. On the Connection Type screen, select Wired Network, and then click Next.

5. Follow the onscreen instructions to complete the network installation.

6. When the installation is complete, open Printers and Faxes in Control Panel and delete the printers for the USB installation.

18 HP Deskjet 6940 series

Wired Ethernet networking

For setup information, click one of the following options:

● Ethernet basics

● What you need for a wired network

● Install the printer on an Ethernet network

For a description of the printer's Ethernet feature, click one of the following options:

● Ethernet lights

● Report Page button

● Network light

● Reports page

● Embedded Web server (EWS)

Other information:

● Resetting the printer to the factory default settings

● Troubleshooting

● Glossary

Ethernet basics

The printer's built-in Ethernet feature allows you to connect the printer directly to a 10/100

Base-T Ethernet network without the aid of an external print server.

To install the printer on an Ethernet network, follow the Ethernet installation instructions.

Hardware

Hubs, switches, and routers

On an Ethernet network, devices, such as computers and printers, are each connected to a network hub, switch, or router.

Hubs, switches, and routers can look similar, but there are important differences:

● Hubs are passive. Other devices on the network plug into the hub in order to communicate with one another. A hub does not manage the network.

● A switch allows devices on a network to communicate directly with one another in a smooth and efficient manner. A switch monitors and directs network traffic in order to allow each transmission the most possible bandwidth. By monitoring network traffic, a switch minimizes collisions and maximizes speed.

● Routers primarily connect different networks (for example, connecting a home network to the Internet). Routers are active. Routers have network administration tools, such as firewalls and DHCP. A router can act as a gateway, while a hub and a switch cannot.

Cables

Use a CAT-5 Ethernet cable to connect the printer to an Ethernet network. Ethernet cables have an RJ-45 plug.

User's guide 19

Chapter 4

1 RJ-45 plug

Network communication

TCP/IP

Devices on a network communicate with one another using a "language" called a

protocol. The printer is designed to operate on networks that use a popular protocol called TCP/IP.

IP address

Each device on a network identifies itself with a unique IP address. Most networks use a software tool, such as DHCP or AutoIP, to automatically assign IP addresses.

Internet connections

Networks might not be connected to the Internet.

If you place the printer on a network connected to the Internet, it is recommended that you use a gateway so that the printer's IP address is assigned through DHCP.

A gateway can either be a router or a Windows computer running Internet Connection

Sharing (ICS). For more information about ICS, see the documentation that came with

the Windows computer.

Ethernet network examples

To see some examples of Ethernet networks, see the Ethernet network examples page.

Printing

Computers on the network send print jobs directly to the printer, which prints them in the order received.

The printer can accept print jobs sent simultaneously from four users.

For example, if five users each send a print job to the printer at the same time, the printer accepts four of the print jobs and rejects the fifth. The user who sent the fifth print job should wait a few minutes and then resend the print job.

What you need for a wired network

To connect the printer to a wired network, you need the following:

● A functional Ethernet network that includes an Ethernet router, switch, or a wireless access point with Ethernet ports

● CAT-5 Ethernet cable Although standard Ethernet cables look similar to standard telephone cables, they

are not interchangeable. There is a different number of wires in each one and each

20 HP Deskjet 6940 series

has a different connector. An Ethernet cable connector (also called an RJ-45 connector) is wider and thicker and always has eight contacts on the end. A phone connector has between two and six contacts.

● A desktop computer or laptop with either a wired or wireless connection to the router or access point.

● Broadband Internet access (recommended) such as cable or DSL.

Ethernet network examples

These are some common Ethernet network configurations:

Shared Internet connection with a router acting as a gateway

In this example, a router manages the network connections and acts as a gateway between the network and the Internet.

Shared Internet connection with a PC acting as a gateway

In this example, the network devices are connected to a hub. A computer on the network acts as the gateway between the network and the Internet. The gateway computer uses

Windows Internet Connection Sharing (ICS) to manage the network connections and

provide Internet access to the other devices.

DSL or cable Internet connection without a gateway

User's guide 21

Chapter 4

This example looks similar to the first example. However, in this example, the network devices are connected to a hub, rather than a router. The hub is directly connected to the Internet.

Caution HP does not recommend this configuration. If possible, use a gateway

to manage the network's Internet access in order to limit exposure to viruses and guard against unwanted entry.

Ethernet network without an Internet connection

In this example, the network devices are connected to a hub. Devices use AutoIP to obtain IP addresses.

Install the printer on an Ethernet network

Installing the printer on an Ethernet network is a two-part process.

First you must connect the printer to the network. Then you must install the printer software on each computer that will use the printer.

● Connect the printer to an Ethernet network

● Install the printer software

Connect the printer to an Ethernet network

Follow these steps to connect the printer to an Ethernet network:

1. If necessary, set up the printer hardware. For printer hardware setup instructions, see the setup poster that came with the printer.

2. Verify that the printer is powered on.

3. Connect the Ethernet cable to an available port on the network hub or router.

22 HP Deskjet 6940 series

Note Do not plug the Ethernet cable into a port labeled WAN, Uplink, or

Internet.

4. Connect the Ethernet cable to the Ethernet port on the back of the printer.

5. Do one of the following:

State of the Link light

On Go to step 6.

Off Repeat steps 2 through 4. If the lights are still off, verify

6. Print an HP Report page.

7. Install the printer software on each computer that will use the printer.

Caution It is recommended that the printer and the computers that use it

be on the same subnet. Printer installation across subnets can be problematic depending on the type of router used.

Install the printer software

Before installing the printer software on a networked computer, verify the following items:

● The printer is set up and powered on.

● The network hub, switch, or router is powered on and functioning properly.

● All computers on the network are powered on and connected to the network.

● The printer is installed on the network.

Task

the following items:

– The printer is powered on. – The network hub or router is powered on. – All cable connections are secure.

– You are using an Ethernet cable.

Previous installations

If the printer software was previously installed on the computer, you must use the printer software CD to install an Ethernet version of the printer driver on the computer. Follow the steps below. The printer software installation wizard guides you through the installation process.

Caution It is recommended that the printer and the computers that use it be on

the same subnet. Printer installation across subnets can be problematic depending on the type of router used.

User's guide 23

Chapter 4

Software installation

Follow these steps to install the printer software on the computer:

1. Close all applications running on the computer.

2. Insert the printer software CD in the computer's CD-ROM drive.

3. Follow the onscreen instructions. On the Connection Type screen, select Wired Network.

4. After the installation has completed, follow the onscreen instructions to print a test page.

Ethernet lights

The printer's Ethernet lights indicate the status of the printer's Ethernet connection.

Link light

The Link light is solid when the printer is connected to an Ethernet network and powered on.

State of the Link

State of the printer

light

On Connected to an Ethernet network and powered on.

Off Not connected to an Ethernet network or powered off.

Activity light

The Activity light flashes when the printer is receiving or transmitting data over the Ethernet connection.

State of the Activity

State of the printer

light

Flashing Receiving or transmitting data over the Ethernet connection.

24 HP Deskjet 6940 series

(continued)

State of the Activity light

Off Not receiving or transmitting data over the Ethernet connection.

Report Page button

Use the Report Page button to do the following:

● Print an HP Report page

● Reset the printer to the factory default settings

State of the printer

1 Report Page button

Network light

The Network light illuminates when the printer is connected to an Ethernet network.

Status of the icon

On Connected to an Ethernet network.

User's guide 25

Status of the printer network connection

Chapter 4

(continued)

Status of the icon Status of the printer network

Off Not connected to an Ethernet network.

HP Report page

The HP Report page supplies useful information about the printer's wired and front USB

port connections.

Print an HP Report page

To print an HP Report page, verify that the printer is powered on and idle, and then press the Report Page button once.

connection

If the printer has just been connected to a network, wait a few minutes before printing the HP Report page to allow the printer to obtain valid settings.

26 HP Deskjet 6940 series

Select the language

The default language for the HP Report page is English. Follow these steps to print the page in another language:

1. Press the Report Page button to print the English version of the page.

2. On the lower portion of the page, find the language that you want.

3. To print the page in that language, follow the instructions that correspond to the language.

For example, to print the page in French, press and hold down the Report Page button, press the Resume button twice, and then release the Report Page button.

Understand the HP Report page

The HP Report page lists the following information that you might frequently need to know:

General information

General information applies to Ethernet networks:

Item

Meaning

Network Status The printer's network status:

● Ready: The printer is ready to print.

● Offline: The printer is not connected to a network.

Active Connection Type

The type of network the printer is connected to:

● Wired: The printer is connected to an Ethernet network.

● Disabled: The printer is not connected to a network.

URL The address to use in order to open the printer's embedded Web

server.

Hardware

The printer's Media Access Control (MAC) address.

Address (MAC)

Firmware Revision

Revision number of the printer's internal software.

This item might be requested by HP Service and Support.

Host Name The printer's host name on the network.

IP Address The printer's current IP address on the network.

Subnet Mask The printer's subnet mask.

Default Gateway The printer's gateway address.

Configuration Source

How the printer obtained its IP address:

● Automatic: AutoIP or DHCP

● Manual: Static IP address

User's guide 27

Chapter 4

(continued)

Item Meaning

DNS Server The IP address of the printer's domain name server. Not Specified

means that no IP address has been set. This setting does not apply to the printer.

mDNS The printer's mDNS service name on the network.

This name is used by Apple Rendezvous to identify the printer on Mac OS X v10.2.3 and higher.

Admin Password

Indicates whether the printer's embedded Web server is password protected.

● Set: A password is required.

● Not Set: A password is not required.

Link Config The network link configuration:

● 10T-Full

● 10T-Half

● 100TX-Full

● 100TX-Half

802.11 wireless

The 802.11 wireless information does not apply to the HP Deskjet 6940 series printer.

Miscellaneous

The Miscellaneous section contains information that applies to Ethernet and PictBridge connections:

Item

Total Packets Transmitted

Total Packets Received

PictBridge Status

Meaning

Number of packets sent without error.

This item might be requested by HP Service and Support.

Number of packets received without error.

This item might be requested by HP Service and Support.

● Connected: The printer is connected to a digital camera.

● Error: Something is wrong with the PictBridge connection.

PictBridge Last Error

The last known error to occur in the printer PictBridge function since the printer was last turned on.

Embedded Web server (EWS)

The embedded Web server (EWS) provides a simple way to manage the printer on a network.

Use the printer's EWS to do the following:

● Check the printer's status.

● Adjust the printer's network configuration.

28 HP Deskjet 6940 series
