HP (Hewlett-Packard) C240, C200, C160 User Manual
Model C160 / C180 / C200 / C240
Owner’s Guide
HP Part No. A4200-90033
Edition E0997
Printed in U.S.A.
Hewlett-Packard Co. 1997
Printing History
First Printing: September 1997
UNIX is a registered trademark in the United States and other countries,
licensed exclusively through X/Open Company Limited.
NOTICE
The information contained in this document is subject to change without
notice.
HEWLETT -PACKARD MAKES NO WARRANTY OF ANY KIND WITH
REGARD TO THIS MATERIAL INCLUDING BUT NOT LIMITED TO
THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Hewlett-Packard shall not be liable for errors contained herein or for incidental or consequential damages in
connection with the furnishing, performance or use of this material.
Hewlett-Packard assumes no responsibility for the use or reliability of its
software on equipment that is not furnished by Hewlett-Packard.
This document contains proprietary information that is protected by copyright. All rights reserved. No part of this document may be photocopied,
reproduced or translated to another language without the prior written consent of Hewlett-Packard Company.
RESTRICTED RIGHTS LEGEND. Use, duplication, or disclosure by government is subject to restrictions as set forth in subdivision (c) (1) (ii) of the
Rights in Technical Data and Computer Software Clause at DFARS
252.227.7013. Hewlett-Packard Co., 3000 Hanover St., Palo Alto, CA
94304.
10 9 8 7 6 5 4 3 2 1
Preface xi
Contents
Audience xii
Safety and Regulatory Statements xii
Release Document(s) xii
Related Manuals xiii
Revision History xiii
Documentation Conventions xiv
Problems, Questions, and Suggestions xv
1 Product Information
Product Description 3
System Unit Front Panel Controls 5
System Power Switch 5
Power LED 6

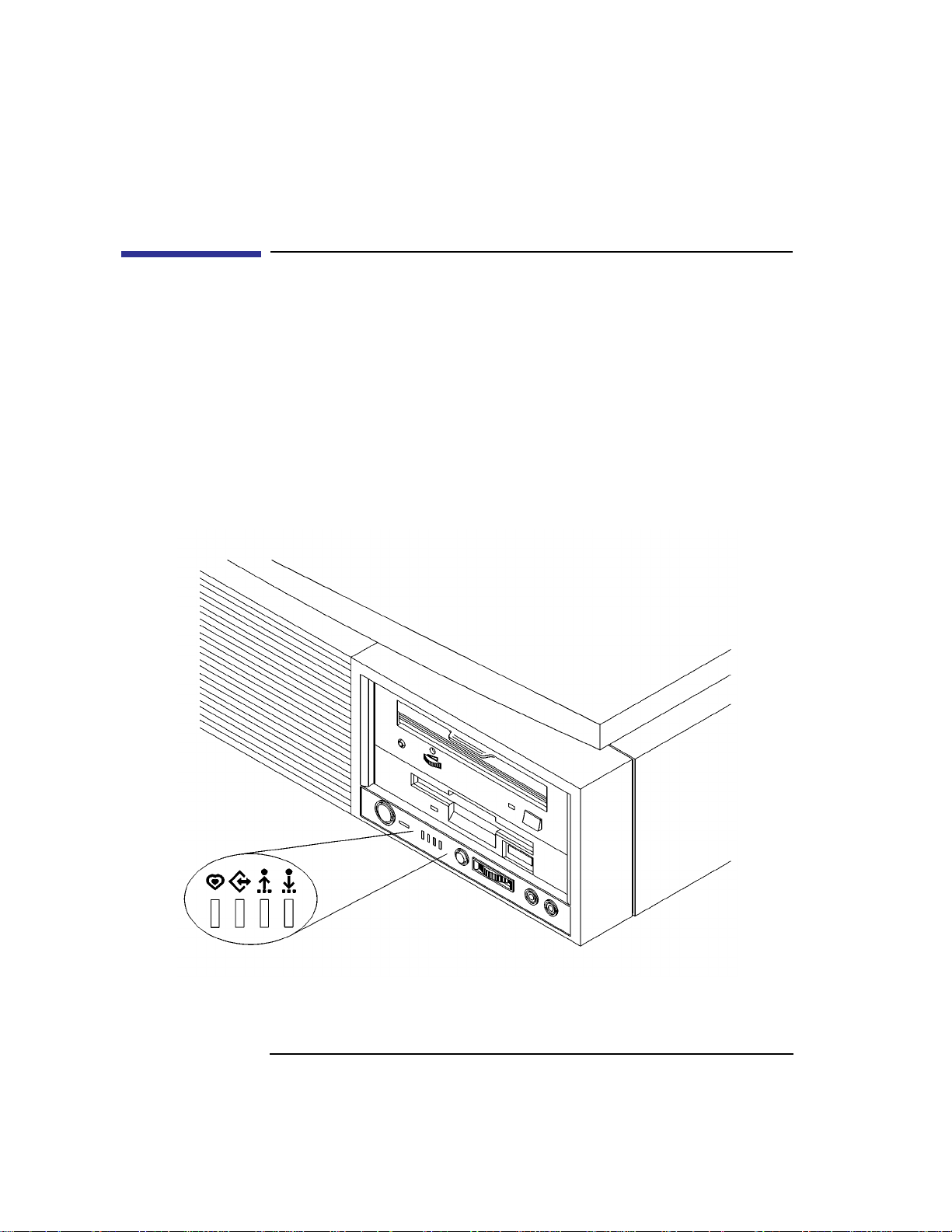

System LEDs 6
Audio Controls 7
Storage Device Controls and Features 8
CD-ROM Drive 8
DDS Tape Drive 10
Floppy Disk Drive 12
System Unit Rear Panel Connectors 13
Pullout Card 14
Security Loop 14
Audio Connectors 15
PS/2 Keyboard and Mouse Connectors 17
HP Parallel I/O Connector 17
802.3 Network Connectors 17
Serial Input/Output Connectors 18
iii
Contents
SCSI Connectors 19
TOC Button 19
Power Cord Connector 19
Monitors 20
Keyboard 21
Pointing Devices 21
Operating System Overview 22
2 Using Your CD-ROM Drive
CD-ROM Drive and CD-ROM Media Descriptions 25
CD-ROM Drive 25
Controls and Features 26
CD-ROM Media 28
Caring for CD-ROM Discs 28
Operating the CD-ROM Drive 29
Loading and Unloading a CD-ROM in the Disc Tray 29
Disc Tray Description 29
Loading a CD-ROM Disc in a Horizontally Mounted Drive 30
Unloading a CD-ROM Disc in a Horizontally Mounted Drive 31

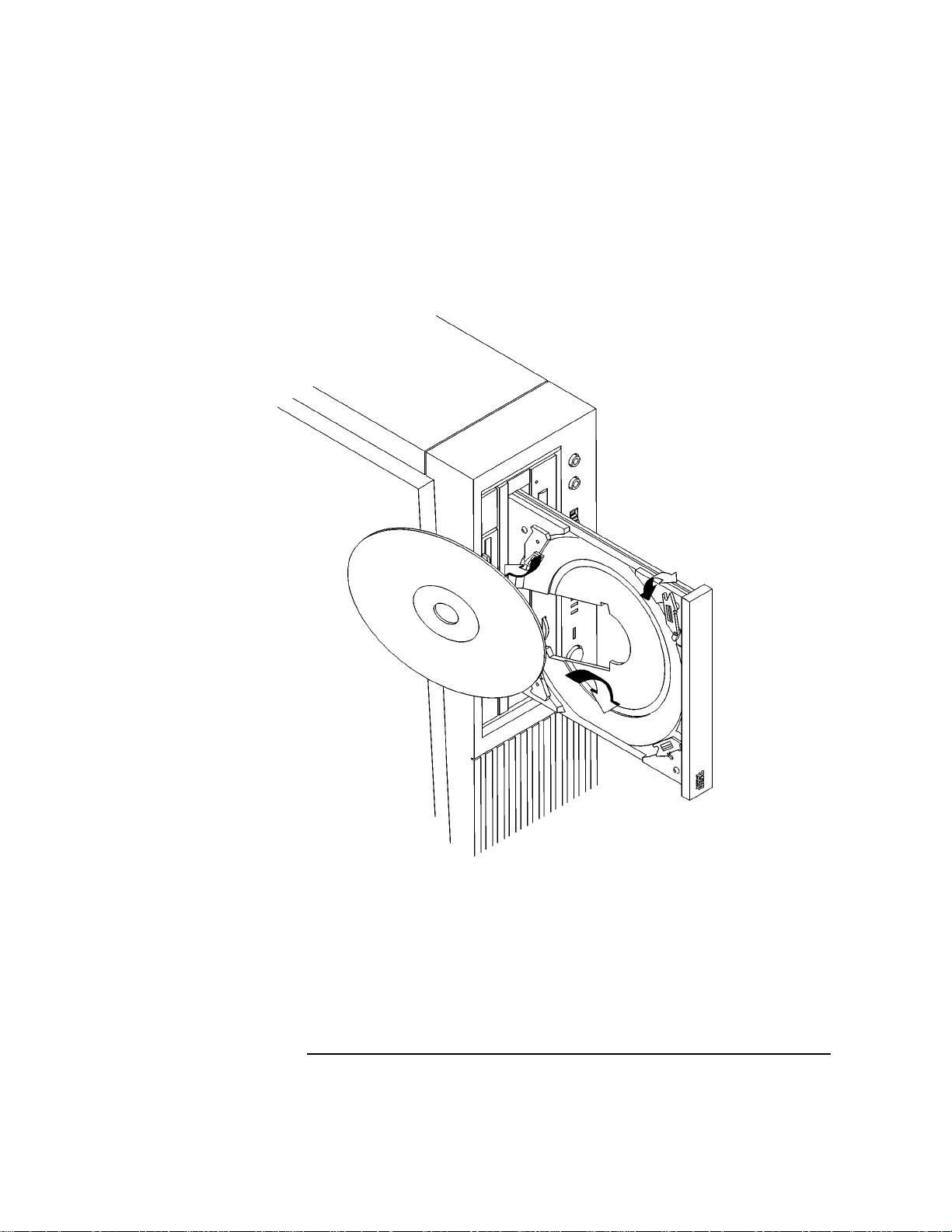

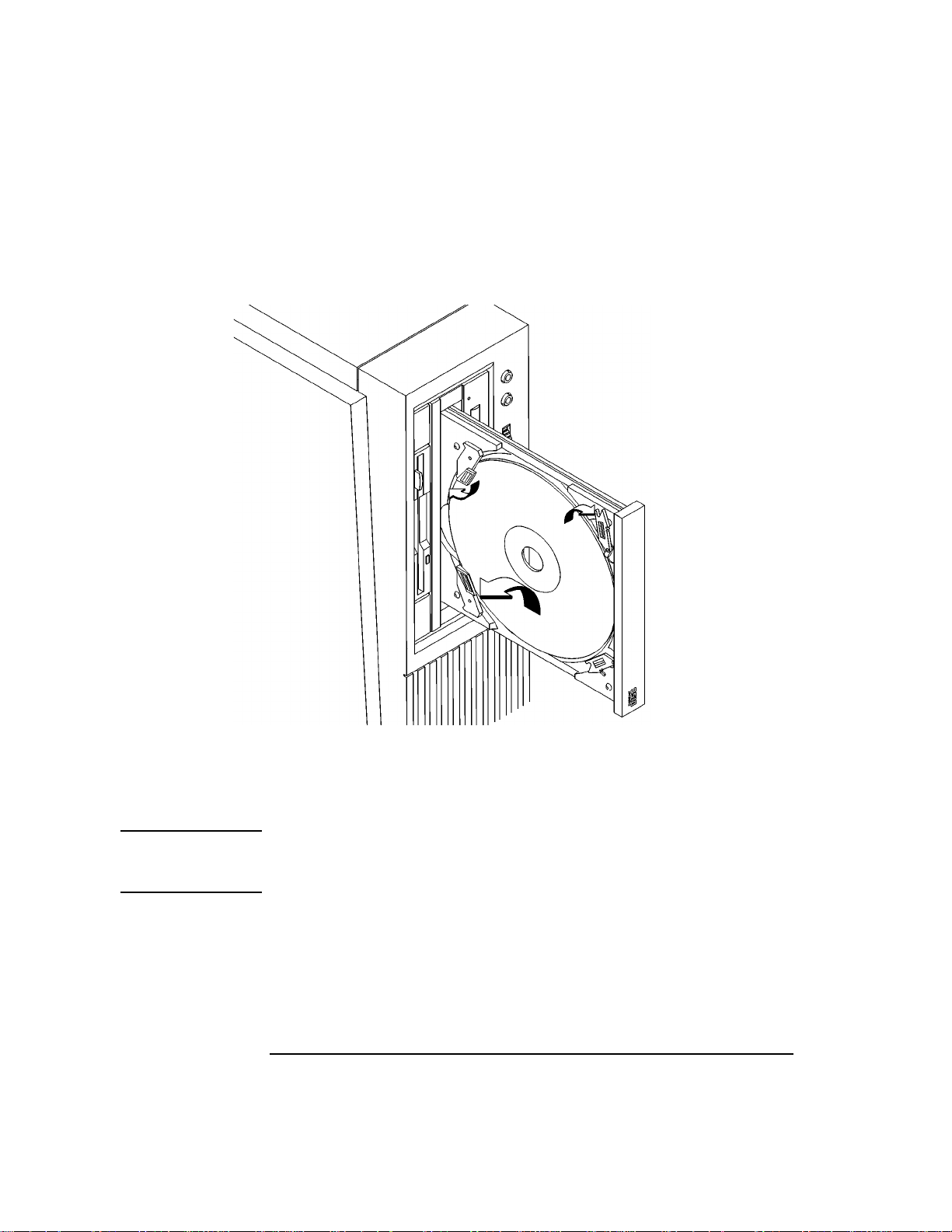

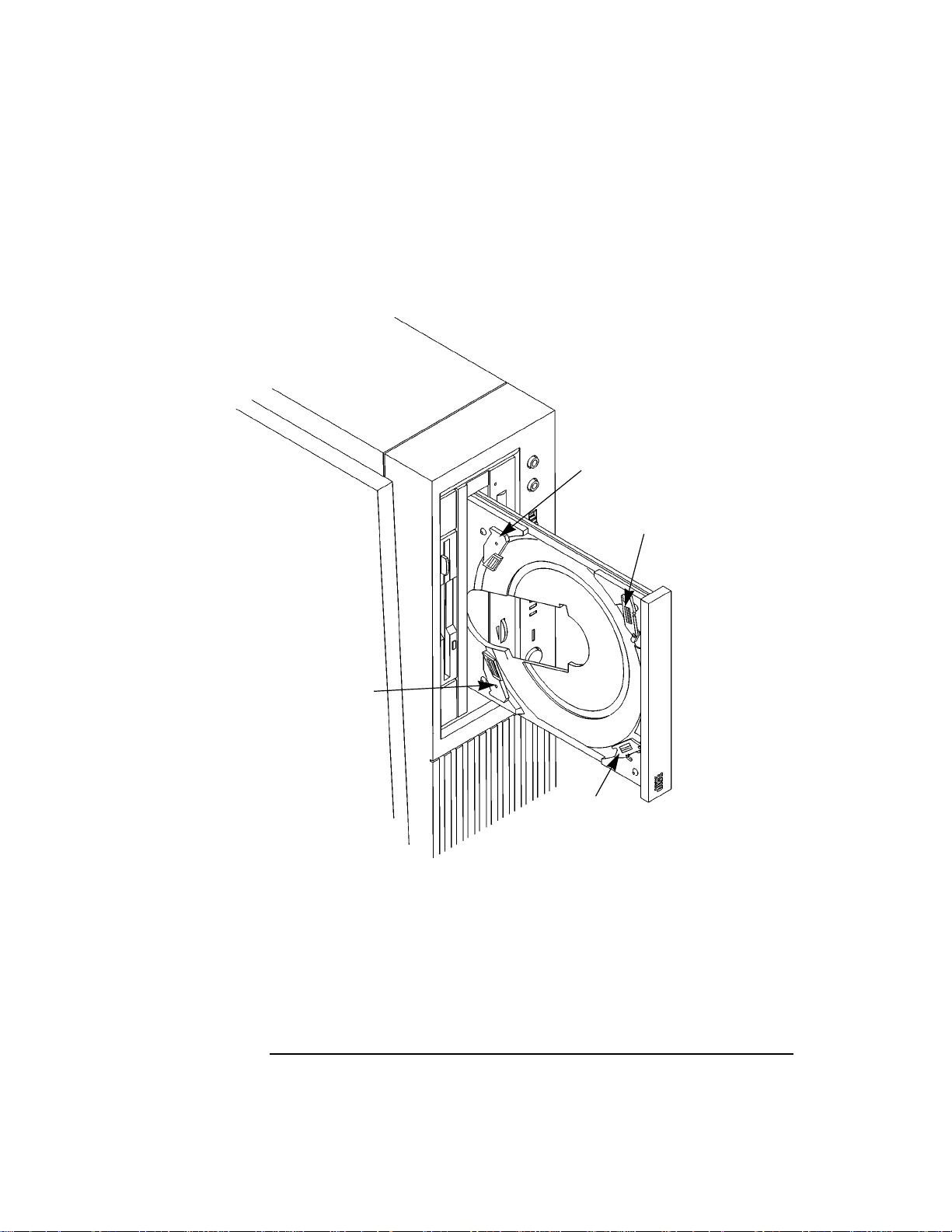

Loading a CD-ROM Disc in a Vertically Mounted Drive 32
Unloading a CD-ROM Disc in a Vertically Mounted Drive 34
Verifying the CD-ROM Drive Operation 35
Mounting and Unmounting a CD-ROM Disc 36
Mounting a CD-ROM Disc Using SAM 36
Unmounting a CD-ROM Disc Using SAM 38
Reading the Busy Light 39
Troubleshooting 41
iv
Contents
3 Using Your Digital Data Storage (DDS) Tape Drive
DDS Tape Drive and Data Cassette Descriptions 45
DDS Drive 45
Storage Capacities 45
Controls and Indicators 46
LEDs 47
LED Warning Conditions 48
Data Cassettes 49
Media Life 49
Cleaning the Tape Heads 50
Media Restrictions 50

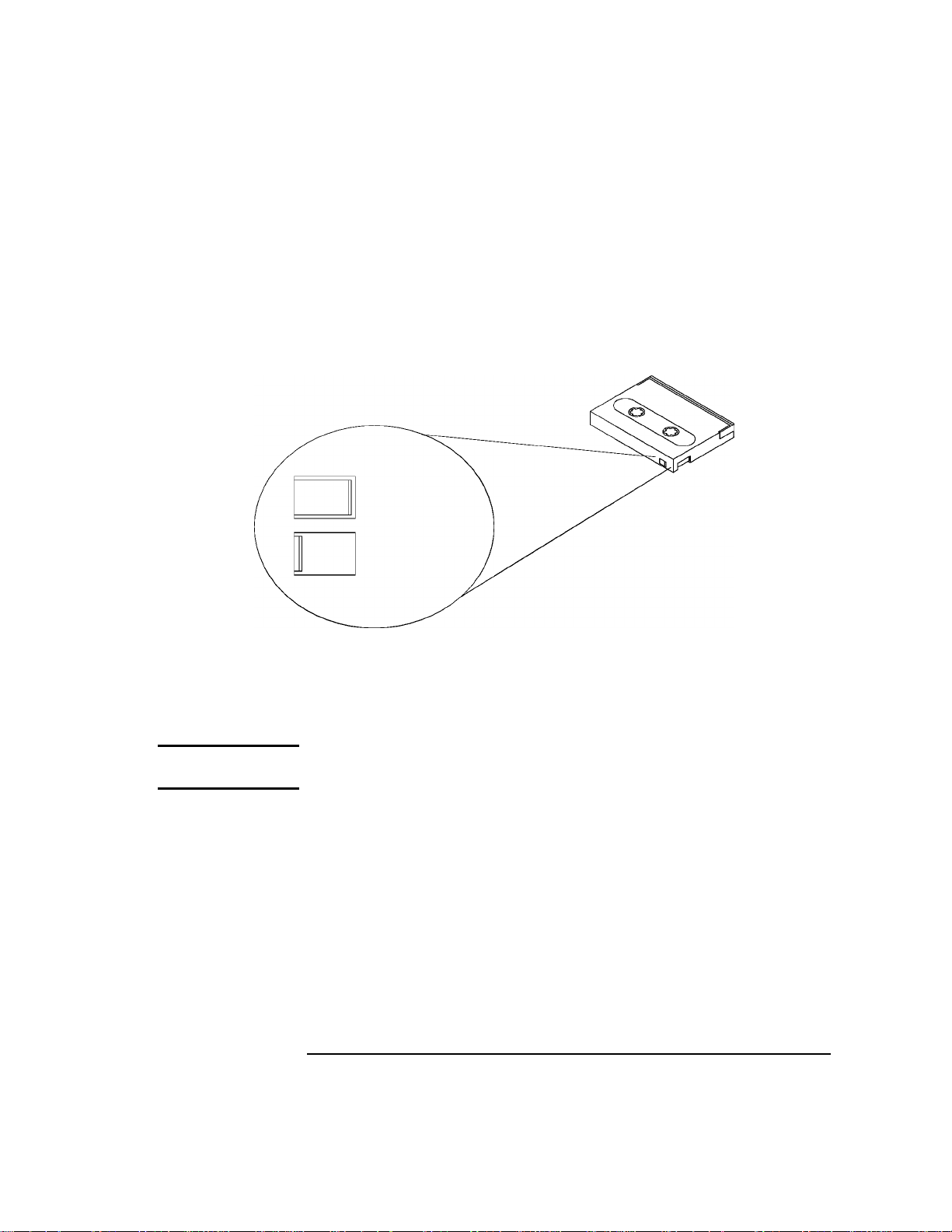

Setting the Write-Protect Tab on a Data Cassette 51
Operating the DDS Tape Drive 52

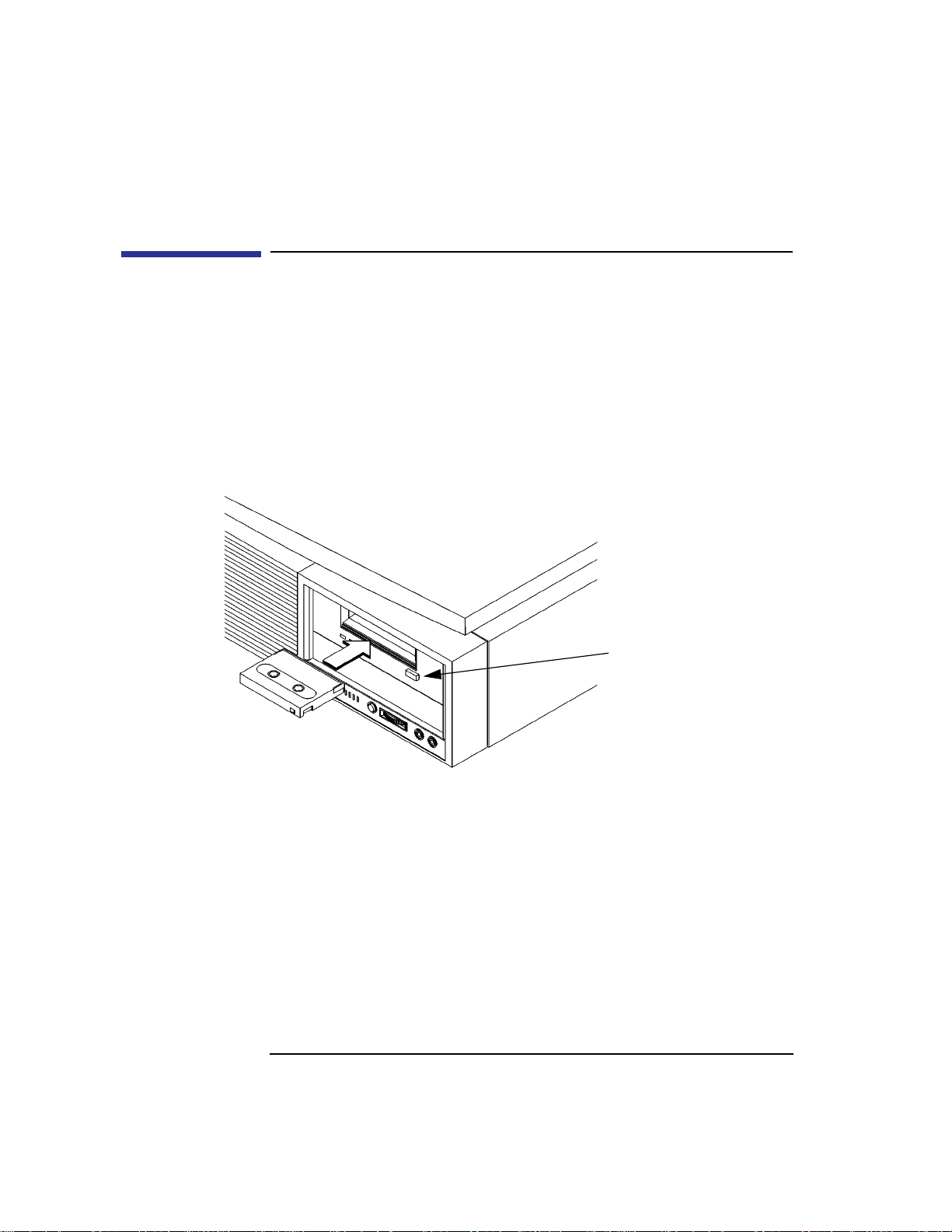

Loading and Unloading a Data Cassette 52
Verifying the DDS Tape Drive Operation 53
Using Device Files 54
Archiving Data 55
Writing to a Data Cassette 55
Restoring Files from a Data Cassette to Your System 56
Listing the Files on a Data Cassette 56
Further Command Information 57
Troubleshooting 58
Ordering Information 58
4 Using Your 3.5-Inch Floppy Disk Drive
Using the Floppy Diskette 61
Setting the Write-Protect Tab on a Diskette 61
Inserting and Removing a Diskette 62
Operating the Floppy Drive 63
Verifying the Floppy Drive Configuration 63
v
Contents
Using Device Files 64
Formatting a New Diskette 65
Transferring Data To and From a Floppy Diskette 66
Saving Files to a Floppy Diskette 66
Restoring Files from a Floppy Diskette to Your System 66
Listing the Files on a Floppy Diskette 67
For More Information 68
Configuring the Floppy Driver 69
Troubleshooting 70
Ordering Information 70
5 Solving Problems
Common Problems and Solutions 73
Problems with Powering Up the System 73
Problems Loading and Booting the Operating System 74
Problems with the 802.3 Network 75
Problems Using a Hard Disk Drive 76
Problems Using the CD-ROM Drive 77
Problems Using the DDS Tape Drive 78
Problems Using the Floppy Disk Drive 79

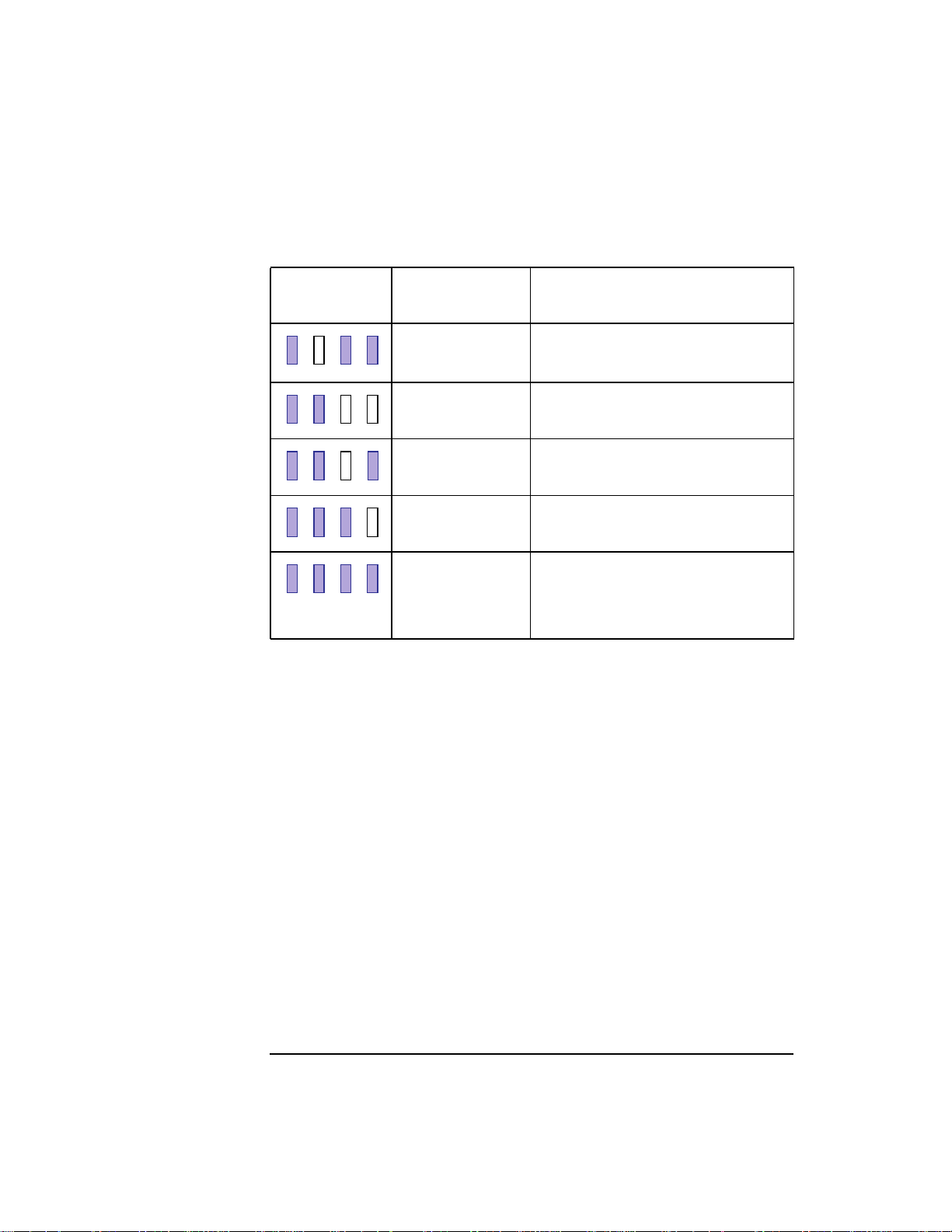

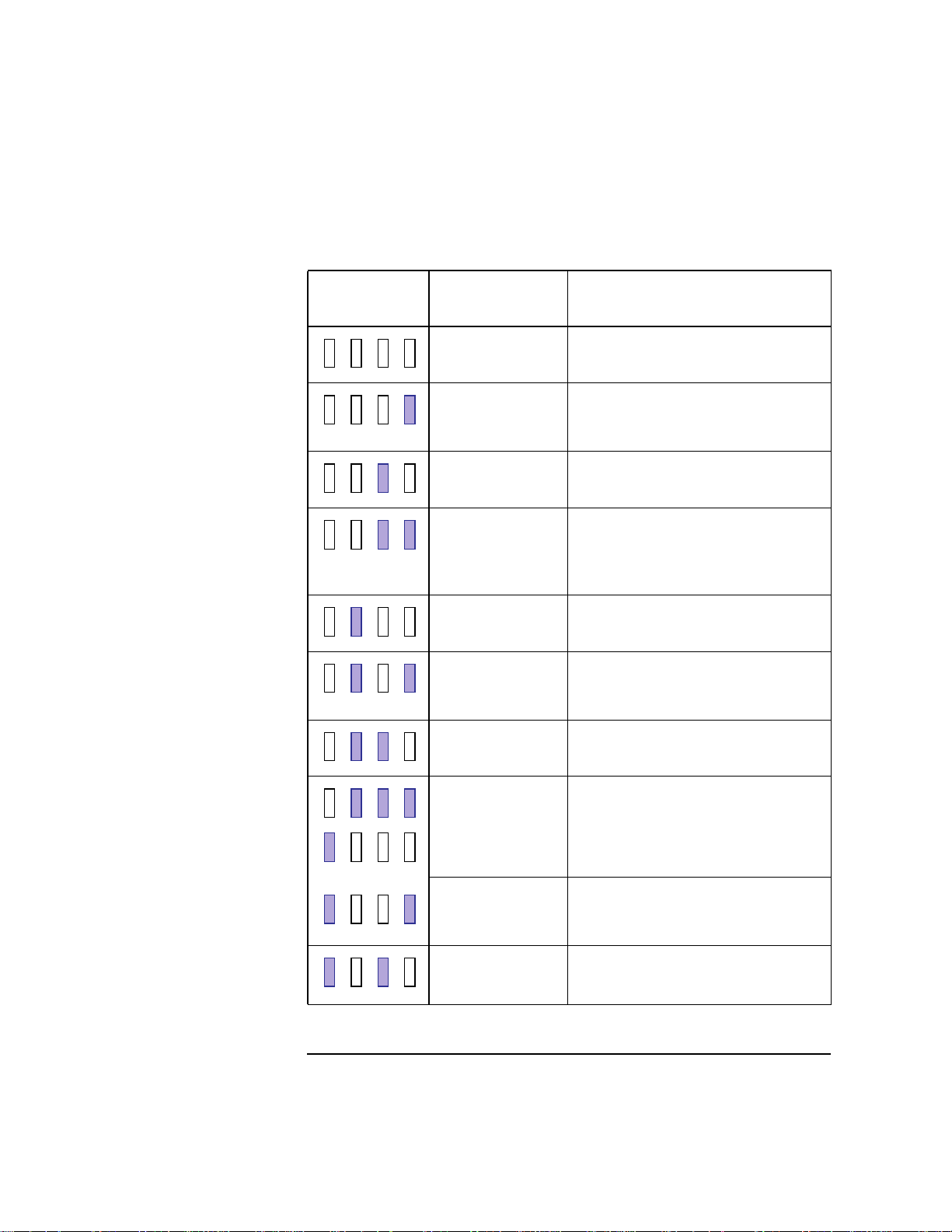

LED Error Codes 80
Dealing with a Boot Failure 83
Running System Verification Tests 84
A Safety and Regulatory Statements
Declaration of Conformity 1 89
Declaration of Conformity 2 90
vi
Contents
Declaration of Conformity 3 91
Special Video Configuration Statements 92
For EN55022 or CISPR 22 Applications: 92
For FCC Applications: 92
Emissions Regulations 93
Federal Communications Commission (FCC) 93
VCCI Class 2 ITE 94
94
Emissions Regulations Compliance 94
Acoustics 94
Regulation On Noise Declaration For Machines -3. GSGV 94
Electrostatic Discharge (ESD) Precautions 95
Safety Statement 96
Laser Safety Statement (U.S.A. Only) 97
Visible LEDs 97
Warnings and Cautions 98
B Changing Your Workstation’s Hardware Configuration
Checking the SCSI IDs 101
Preparing Your Workstation 103
Installing Storage Devices 105
Preparing to Install Your Storage Device 106
Configuring your Storage Device 106
Determining Your Storage Devices Position 106
Storage Device Cable Routing 108
Removing the Storage Tray 108
vii
Contents
Installing a CD-ROM or a DDS-Format Tape Drive 109
Installing a Floppy Drive 111
Installing a Hard Disk Drive in Position 1 113
Installing a Hard Disk Drive in Position 3 or Position 4 115
Replacing the Storage Tray 118
Configuring a Hard Disk Drive 120
Removing the Main Tray Assembly 122
Replacing the Main Tray Assembly 124
Installing Additional memory 126
Installing the EGRAM (Enhanced Graphics RAM) Module (C160/C180) 130
Installing an EISA, PCI, or GSC Option Board 136
Graphics Adapter Considerations 137
Special Video Configuration Statements 137
Graphics Paths 138
Graphics Configuration Restrictions 139
Installing the Option Board 141
Replacing the Battery 146
Changing Your Monitor Type 148
Setting the Monitor Type from the Boot Console Interface 148
Setting the Monitor Type at Power On 148
Changing the Console to External Terminal 149
C SCSI Connections
SCSI Bus Differences 153
SCSI Restrictions 156
Cables 156
Connectors and Terminators 158
SCSI Configuration Constraints 159
viii
Contents
Narrow, Single-ended SCSI Bus Configuration Constraints 159
Fast, Wide, Differential SCSI Bus Configuration Constraints 160
Ultra, Wide-SE SCSI Bus Configuration Constraints 160
Determining SCSI Bus Length 161
Narrow, Single-Ended SCSI Bus Length 161
Fast, Wide Differential SCSI Bus Length 163
Ultra, Wide, Single-Ended SCSI Bus Length 165
Assigning SCSI Device IDs 167
Narrow Single-Ended SCSI Device IDs 168
Ultra, Wide SCSI IDs 170
Connecting to the SCSI Ports 172
System SCSI Port Connection 172
D The Boot Console Interface
Boot Console Interface Features 177
Accessing the Boot Console Interface 182
Booting Your Workstation 183
Searching for Bootable Media 185
Resetting Your Workstation 186
Displaying and Setting Paths 187
Displaying and Setting the Monitor Type 189
The Monitor Command 189
Displaying the Current Monitor Configuration 190
Setting the Monitor Type 191
Setting the Monitor Type at Power On 193
Changing the Console to External Terminal 194
Displaying the Current Memory Configuration 195
ix
Contents
Memory Information Sample 1 196
Memory Information Sample 2 197
Displaying the Status of the System I/O 198
Setting the Auto Boot and Auto Search Flags 199
Displaying and Setting the Security Mode 201
Displaying and Setting the Fastboot Mode 202
Displaying the LAN Station Address 203
Configure and Display LAN Settings 204
Displaying System Information 206
Displaying PIM Information 207
x
Preface
This owner’s guide describes how to use your HP 9000 C Class workstation.
This manual assumes that you have installed your workstation as described
in the C Class Hardware Installation Card.
xi
Audience
This guide is intended for HP 9000 Model C160/C180/C200/C240 workstation users.
Safety and Regulatory Statements
See Appendix A in the back of this manual for safety and regulatory statements that apply to this workstation.
Release Document(s)
Please refer to the Release Document(s) you received with your system or
system software for additional information that we may not have been able
to include in this guide at the time of its publication.
xii
Related Manuals
Refer to the following manuals for more information:
• C Class Hardware Installation Card (A4200-90012)
• Using Your HP Workstation (A2615-90003)
• Installing and Updating HP-UX (B2355-90050)
• Configuring HP-UX for Peripherals (B2355-90053)
• HP Visual User Environment User’s Guide (B1171-90079)
• Managing Clusters of HP 9000 Computers: Sharing the HP-UX
File System (B2355-90038)
To order manuals, please contact your local sales office.
Revision History
The revision history for each edition of the manual is listed below:
HP Part No. Edition Revision History
A4200-90033 E0997 First printing
xiii
Documentation Conventions
Unless otherwise noted in the text, this guide uses the following symbolic
conventions.
user-supplied values Italic words or characters in for-
mats and command descriptions
represent values that you must
supply.
sample user input In examples, information that the
user enters appears in color.
output
Information that the system displays appears in
face.
this type-
literal values Bold words or characters in for-
mats and command descriptions
represent commands or keywords
that you must use literally. Pathnames are also in bold.
KEY Text with a line above and a line
below denotes a key on your keyboard, or a key or button which is
drawn on your workstation’s
graphic display.
(In this manual we refer to the
Enter key . On your keyboard the
key may be labeled either Enter
or Return.)
xiv
Problems, Questions, and Suggestions
If you have any problems, questions, or suggestions with our hardware, software, or documentation, please call 1-800-633-3600 (US & Canada) or contact the HP Response Center for your country.
xv
xvi
1
Product Information
1
Product Information
This chapter introduces the HP 9000 Model C160/C180/C200/C240 workstations, including their controls and indicators. This chapter discusses the
following topics:
• Product description
• System unit front panel controls
• System unit rear panel connectors
• Monitors
• Keyboards
• Operating system overview
2
Product Information
Product Description
Product Description
The Model C160/C180/C200/C240 workstations contain the following key
features:
• Processor Performance
160 MHz (Model C160)
180 MHz (Model C180)
200 MHz (Model C200)
236 MHz (Model C240)
• Operating System: Native HP-UX
HP-UX 10.20 (Model C160)
HP-UX 10.20 (Model C180)
HP-UX 10.20 with Additional Core Enhancements (ACE) (Models C200
)
C240
• User Interface
/
HP VUE version 3.0 graphical user interface
HP CDE graphical user interface
• Compatibility
Source and binary code compatible with the Series 700 product family
• Optional Graphics
Fast 2D color graphics; choice of 1 to 4 displays
HP VISUALIZE-8/24 - Accelerated 8-plane or 24-plane 3D graphics
HP VISUALIZE-48 - 24/24 image planes, 8 overlay planes,
24-bit Z buffer 3D graphics
HP VISUALIZE-48XP - Advanced, 24/24 image planes, 8 overlay planes,
24-bit Z buffer 3D graphics
• Memory
32 MB to 1.5 GB main memory in pairs of 16 MB, 32 MB, 64 MB or
128 MB modules
Six pairs maximum
3
Product Information
Product Description
• Internal Storage Devices
Fast, Wide Differential SCSI Hard Disk Drives (C160/C180)
or
Ultra, Wide Single-Ended (C200/C240)
1-inch Low Profile Drive (up to two)
1.6-inch Full Height Drive (one)
Single-Ended SCSI Removable Media
CD-ROM Drive
or
2.0/4.0 GB, 4-mm DDS Tape Drive
4/8 GB, DDS2 DAT Drive (C200/C240)
12/24 GB, DDS3 DAT Drive (C200/C240)
3.5-inch Floppy Disk Drive (not a SCSI Device)
• Standard Network
Ethernet IEEE 802.3 AUI
RJ45, UTP Twisted Pair
10Base-T, 100Base-T (C200/C240 only)
• Standard I/O
One Single-Ended, 8-bit , 5 MB/sec synchronous, 1.5 MB/sec asynchronous
ALT-1, 50-pin, high density SCSI connector
One Fast, Wide (for hard disk drives) 20 MB/sec synchronous 68-pin, high density SCSI connector (C160/C180)
One Ultra, Wide, Single-Ended SCSI connector (C200/C240)
Two Serial Interfaces RS232C, 9-pin male
One Parallel Interface, Centronics, BUSY handshake, 25-pin female
16 Bit Audio Line-in and Line-out connectors
Two PS/2 ports (keyboard and mouse)
One HP-HIL connector (C160/C180 only)
• EISA/GSC
4 slots total: 1 GSC/PCI, 1 GSC/EISA/PCI and 2 GSC/EISA (C160/180)
4 slots total: 3 GSC/PCI, 1 GSC/EISA/PCI (C200/C240)
• Keyboards
PS/2 Keyboard (mouse)
or
ITF Keyboard (also known as HP HIL) (HP HIL mouse)(C160/C180 only)
4
System Unit Front Panel Controls
System Unit Front Panel Controls
Figure 1 shows the location of the system unit front panel controls.
Removable
Storage Devices
Power Switch
Power LED
System LEDs
Mute
Product Information
Volume
Headset
Mic
Figure 1 System Unit Front Panel Controls
System Power Switch
Use the power switch to power the system unit on and off.
NOTICE: There is no need to manually shut down the HP-UX operating system on
your workstation before powering it off. When you turn off the power
switch, your workstation automatically shuts down the operating system
before terminating the power.
NOTICE: The C200/C240 when turned off and plugged in will draw 30 watts of
power and the cooling fan may turn on.
5
Product Information
System Unit Front Panel Controls
Power LED
The power LED is located on the left side of the front panel on the disk tray .
It lights when the system unit power is on and flashes until the OS is booted.
Once the OS is booted, the LED remains on without flashing, indicating that
a soft shutdown is enabled.
System LEDs
The Model C160/C180/C200 workstations have four diagnostic LEDs
located next to the system power LED.
For more information on the error codes displayed by the diagnostic LEDs,
see “LED Error Codes” in the chapter, “Solving Problems”.
LED 4 - System Heartbeat
LED 3 - SCSI Bus Activity
LED 2 - Network Transmit
LED 1 - Network Receive
6
System Unit Front Panel Controls
Audio Controls
Next to the system LEDs are the following audio controls:
Product Information
Headset Jack
Volume Control Adjusts the audio output volume
Mic Jack Accommodates microphones
Mute Button Turns off the audio output to line
Accommodates mini-headphones with a 3.5 mm diameter
miniature stereo plug.
to the headset or lineout.
with a 3.5 mm diameter miniature stereo plug.
out and speaker only.
The volume control, headset jack, and microphone jack features of the CDROM are supported through applications only.
For more information on the features and electrical specifications, see the
section titled “Security Loop,” later in this chapter.
7
Product Information
System Unit Front Panel Controls
Storage Device Controls and Features
The Model C160/C180/C200/C240 workstations allow up to two of the following internal storage devices: CD-ROM drive, DDS tape drive, or floppy
drive. The following sections describe the controls and features of these
devices.
NOTICES: You may not have two of the same type of device. For example, you can
have a CD-ROM device and a floppy device, but not two CD-ROMs.
Due to space limitations, a DDS-format tape drive and a CD-ROM drive
cannot both be mounted in the system at the same time.
CD-ROM Drive
Figure 2 shows the operating controls and features of the CD-ROM drive,
and Table 1 describes them.
Headphone
Jack
Volume
Control
Disk Tray
Busy
Indicator
Figure 2 CD-ROM Drive Controls and Features
8
Emergency
Eject
Eject
Button
Table 1 CD-ROM Drive Controls and Features
Control/Feature Purpose
Busy Indicator Lights during a data access oper-
ation and blinks during a data
transfer. The indicator blinks
initially and then stays lit when
there is one of the following:
• A defective disc
• A disc insertion error (for
example, an upside-down
disc)
• No disc present
Eject Button Press to open the disc tray and
insert or remove a disc. When
the drive is in use, press the eject
button for more than one second
to open the disc tray.
Product Information
System Unit Front Panel Controls
Emergency Eject Remove the Phillips-type screw
and insert the end of a paper clip
to open the disc tray when the
workstation does not have
power.
Disc Tray Holds the CD-ROM disc. This
type of CD-ROM drive does not
use a disc caddy. The disc tray
does not open if the workstation
power is off.
Headphone Jack Used to connect headphones
with a 1/8-inch connector.
Volume Control Volume control for the head-
phone jack.
9
Product Information
System Unit Front Panel Controls
DDS Tape Drive
Your DDS tape drive is either a DDS-DC (early or later model) or a DDS-2
tape drive with a 3.5-inch form factor, data compression, and a single-ended
SCSI interface. Both drives incorporate data compression capability and are
high-capacity, high transfer-rate devices for data storage on tape. With compression, the DDS-DC drives can store up to 4 GB of data on a 90 meter tape
and the DDS-2 drive can store up to 8 GB of data on a 120 meter tape.
Figure 3, Figure 4, and Figure 5 show the LEDs, and eject button of the
DDS-format tape drives.
Cassette LED Drive LED Eject Button
Figure 3 DDS-DC (Early Model) Drive Controls and Indicators
Tape Clean
DCLZ
Tape LED Clean/Attention LED Eject Button
Figure 4 DDS-DC (Later Model) Drive Controls and Indicators
10
Tape Clean
Tape LED Clean/Attention LED Eject Button
Figure 5 DDS-2 Drive Controls and Indicators
Table 2 DDS Tape Drive Controls and Features
Control/Feature Purpose
Eject Button Push the eject button to remove tape
cassettes from the drive.
Product Information
System Unit Front Panel Controls
Drive LEDs The DDS drive LEDs light and flash
to indicate drive status and error conditions.
11
Product Information
System Unit Front Panel Controls
Floppy Disk Drive
Figure 6 shows the operating controls and features of the floppy drive, and
Table 3 describes them.
Eject ButtonDrive LED
Figure 6 Floppy Drive Controls and Features
Table 3 Floppy Drive Controls and Features
Control/Feature Purpose
Eject Button Push the eject button to
remove floppy diskettes
from the drive.
Drive LED The floppy drive LED
flashes to indicate the
drive is in use.
12
Product Information
System Unit Rear Panel Connectors
System Unit Rear Panel Connectors
This section describes the following connectors on the system unit’s rear
panel:
• Security loop
• Audio connectors
• Keyboard and mouse connectors
• HP parallel (Centronics) I/O connector
• 802.3 network connectors
• Serial I/O connectors
• SCSI connectors (including Fast, Wide SCSI and single-ended SCSI)
• TOC (Transfer of Control) button
• Power cord connector
NOTICE: To maintain emissions compliance, verify that all cables are fully
seated and properly fastened.
Figure 7 shows the locations of the connectors on the system unit’s rear
panel.
13
Product Information
System Unit Rear Panel Connectors
Monitor
(C180, C200)
Security Loop
Pullout Card
Power
TOC
LAN-AUI
LAN-TP
Serial 1
Serial 2
PS/2 Mouse
PS/2 Keyboard
Monitor (C160/C180)
HP Parallel
Single-Ended SCSI
Fast, Wide SCSI
(Ultra Wide Single-Ended C200/C240)
Audio Line Out
Audio Line In
Figure 7 System Unit Rear Panel Connectors
Pullout Card
The pullout card contains serial and model number information along with
regulatory agency information.
Security Loop
The security loop provides a means of locking the storage tray with a padlock or other locking device, to prevent unauthorized removal from the system.
14
