Overview

To connect your BladeSystem to outside networks and storage, HP offers a variety of options to support your familiar standards such as Ethernet, Fibre Channel and InfiniBand. The built-in Virtual Connect architecture includes a 5 Terabit backplane, supports 4 redundant fabrics at once and includes 8, high-performance interconnect bays. All interconnect options are hot-pluggable and can be installed in pairs for full redundancy.
Ethernet Switch Modules
Ethernet Switch Modules
Ethernet Switch ModulesEthernet Switch Modules
HP 1:10Gb Ethernet BL-c SwitchHP 1:10Gb Ethernet BL-c Switch
1.
UID LED
2.
Link Activity LEDs
3.
Speed LEDs
4.
Reset Button
5.
RJ-45 1Gb Uplink Ports
6.
10Gb XFP Module Cages
7.
10Gb CX4 Uplink Port
8.
DB-9 Serial Management Port
9.
Health LED
Cisco Catalyst Blade for 3020
Cisco Catalyst Blade for 3020
Cisco Catalyst Blade for 3020Cisco Catalyst Blade for 3020
1.
Switch Module
2.
Release latch
3.
UID LED
4.
SFP Module Port LED
5.
SFP Module Ports for SX/LX Fiber
6.
Gigabit Ethernet Port LEDs
7.
Gigabit Ethernet RJ-45 Ports
8.
Health LED
9.
Mode Button
10.
Switch LED Panel
1.
Switch Module
2.
UID LED
3.
Health LED
Cisco Catalyst Blade Switch 3120 Series
Cisco Catalyst Blade Switch 3120 Series
Cisco Catalyst Blade Switch 3120 SeriesCisco Catalyst Blade Switch 3120 Series
8.
Slot for Cisco Twin Gigabit Module or X2 Transceiver module.
9.
LEDs for ports 21 -22
10.
Slot for Cisco Twin Gigabit Module or X2 Transceiver module
DA - 12524 Worldwide — Version 11 — July 14, 2008
Page 1
QuickSpecs
Overview
4.
Release latch
5.
LEDs for ports 19 -20
6.
Gigabit Ethernet RJ-45 Ports 23 -26
7.
StackWise Ports
1.
UID LED
2.
Health LED
3.
DB-9 Serial Management Port
4.
10GbE XFP Module Cage
5.
10GbE XFP Module Cage
HP BladeSystem c-Class Interconnect Components
HP BladeSystem c-Class Interconnect Components
HP BladeSystem c-Class Interconnect ComponentsHP BladeSystem c-Class Interconnect Components
11.
Console Port
12.
Mode Button
13.
Switch System LED Panel
HP 10Gb Ethernet BL-c Switch
HP 10Gb Ethernet BL-c Switch
HP 10Gb Ethernet BL-c SwitchHP 10Gb Ethernet BL-c Switch
6.
10GbE XFP Module Cage
7.
10GbE XFP Module Cage
8.
Reset Button
9.
Activity LED
10.
Link LED
HP GbE2c Ethernet Blade Switch
HP GbE2c Ethernet Blade Switch
HP GbE2c Ethernet Blade SwitchHP GbE2c Ethernet Blade Switch
1.
Reset Button
2.
Health LED
3.
UID LED
4.
DB-9 Serial Management Port
5.
RJ-45 1Gb Uplink Ports
Brocade 8Gb SAN Switch
Brocade 8Gb SAN Switch
Brocade 8Gb SAN SwitchBrocade 8Gb SAN Switch
HP GbE2c Layer 2/3 Ethernet Blade Switch for c-Class
HP GbE2c Layer 2/3 Ethernet Blade Switch for c-Class
HP GbE2c Layer 2/3 Ethernet Blade Switch for c-ClassHP GbE2c Layer 2/3 Ethernet Blade Switch for c-Class
BladeSystem
BladeSystem
BladeSystemBladeSystem
1.
UID LED
2.
DB-9 Serial Management Port
3.
RJ-45 1Gb Uplink Ports
4.
Reset Button
5.
SFP module cages for optional Fiber Uplinks
6.
Health LED
Brocade 4Gb SAN Switch for HP c-Class BladeSystem
Brocade 4Gb SAN Switch for HP c-Class BladeSystem
Brocade 4Gb SAN Switch for HP c-Class BladeSystemBrocade 4Gb SAN Switch for HP c-Class BladeSystem
DA - 12524 Worldwide — Version 11 — July 14, 2008
Page 2
QuickSpecs
Overview
Cisco MDS 9124e Fabric Switch for HP c-Class BladeSystem
Cisco MDS 9124e Fabric Switch for HP c-Class BladeSystem
Cisco MDS 9124e Fabric Switch for HP c-Class BladeSystemCisco MDS 9124e Fabric Switch for HP c-Class BladeSystem
HP BladeSystem c-Class Interconnect Components
HP BladeSystem c-Class Interconnect Components
HP BladeSystem c-Class Interconnect ComponentsHP BladeSystem c-Class Interconnect Components
Brocade 8Gb SAN Switch
Brocade 8Gb SAN Switch
Brocade 8Gb SAN SwitchBrocade 8Gb SAN Switch
Virtual Connect Modules
Virtual Connect Modules
Virtual Connect ModulesVirtual Connect Modules
HP 1/10Gb Virtual Connect Ethernet Module for c-Class
HP 1/10Gb Virtual Connect Ethernet Module for c-Class
HP 1/10Gb Virtual Connect Ethernet Module for c-ClassHP 1/10Gb Virtual Connect Ethernet Module for c-Class
BladeSystem
BladeSystem
BladeSystemBladeSystem
1.
X1 10GBASE-CX4 port
2.
X2 10GBASE-CX4 port
3.
USB 2.0 connector (covered, for future use)
4.
Ports 1-8 (10/100/1000BASE-T)
5.
Reset button (recessed)
6.
Next button
HP 1/10Gb-F Virtual Connect Ethernet Module for c-Class BladeSystem
HP 1/10Gb-F Virtual Connect Ethernet Module for c-Class BladeSystem
HP 1/10Gb-F Virtual Connect Ethernet Module for c-Class BladeSystemHP 1/10Gb-F Virtual Connect Ethernet Module for c-Class BladeSystem
1.
10GBASE-CX4 port
2.
10GBASE Fiber XFP port
3.
10GBASE Fiber XFP port
4.
1000BASE-X Fiber SFP port
5.
1000BASE-X Fiber SFP port
HP 4Gb Virtual Connect Fibre Channel Module for c-Class
HP 4Gb Virtual Connect Fibre Channel Module for c-Class
HP 4Gb Virtual Connect Fibre Channel Module for c-ClassHP 4Gb Virtual Connect Fibre Channel Module for c-Class
BladeSystem
BladeSystem
BladeSystemBladeSystem
1.
UID Indicator
2.
Module Health Indicator
3.
Port Configuration Status Indicator
4.
Link Status Indicator
5.
Port Activity Indicator
6.
Ports 1-4 (4Gb Fibre Channel)
6.
USB Management Port
7.
Next button
8.
Ports 1-4 (10/100/1000BASE-T)
9.
Reset button (recessed)
DA - 12524 Worldwide — Version 11 — July 14, 2008
Page 3
QuickSpecs
Overview
HP BladeSystem c-Class Interconnect Components
HP BladeSystem c-Class Interconnect Components
HP BladeSystem c-Class Interconnect ComponentsHP BladeSystem c-Class Interconnect Components
Mezzanines and Adapters
Mezzanines and Adapters
Mezzanines and AdaptersMezzanines and Adapters
HP NC512m Dual Port 10GbE
HP NC512m Dual Port 10GbE
HP NC512m Dual Port 10GbEHP NC512m Dual Port 10GbE
Multifunction BL-c Adapter
Multifunction BL-c Adapter
Multifunction BL-c AdapterMultifunction BL-c Adapter
HP NC360m Dual Port 1GbE BL-c Adapter
HP NC360m Dual Port 1GbE BL-c Adapter
HP NC360m Dual Port 1GbE BL-c AdapterHP NC360m Dual Port 1GbE BL-c Adapter
HP NC373m PCI Express Dual Port
HP NC373m PCI Express Dual Port
HP NC373m PCI Express Dual PortHP NC373m PCI Express Dual Port
Multifunction Gigabit Server Adapter
Multifunction Gigabit Server Adapter
Multifunction Gigabit Server AdapterMultifunction Gigabit Server Adapter
HP NC326m PCI Express Dual Port 1Gb
HP NC326m PCI Express Dual Port 1Gb
HP NC326m PCI Express Dual Port 1GbHP NC326m PCI Express Dual Port 1Gb
Server Adapter
Server Adapter
Server AdapterServer Adapter
HP NC364m Quad Port 1GbE BL-c
HP NC364m Quad Port 1GbE BL-c
HP NC364m Quad Port 1GbE BL-cHP NC364m Quad Port 1GbE BL-c
Adapter
Adapter
AdapterAdapter
HP NC325m PCI Express Quad Port
HP NC325m PCI Express Quad Port
HP NC325m PCI Express Quad PortHP NC325m PCI Express Quad Port
Gigabit Server Adapter
Gigabit Server Adapter
Gigabit Server AdapterGigabit Server Adapter
DA - 12524 Worldwide — Version 11 — July 14, 2008
Page 4
QuickSpecs
Overview
HP BladeSystem c-Class Interconnect Components
HP BladeSystem c-Class Interconnect Components
HP BladeSystem c-Class Interconnect ComponentsHP BladeSystem c-Class Interconnect Components
QLogic QMH4062 1GbE iSCSI Adapter
QLogic QMH4062 1GbE iSCSI Adapter
QLogic QMH4062 1GbE iSCSI AdapterQLogic QMH4062 1GbE iSCSI Adapter
HP 1Gb Ethernet Pass-Thru Module
HP 1Gb Ethernet Pass-Thru Module
HP 1Gb Ethernet Pass-Thru ModuleHP 1Gb Ethernet Pass-Thru Module
QLogic QMH2462 4Gb FC HBA
QLogic QMH2462 4Gb FC HBA
QLogic QMH2462 4Gb FC HBAQLogic QMH2462 4Gb FC HBA
What's New
What's New
What's NewWhat's New
Addition of Brocade 8Gb SAN Switch for HP BladeSystem c-Class Addition of QLogic QMH4062 1GbE iSCSI Adapter for HP c-Class BladeSystem
DA - 12524 Worldwide — Version 11 — July 14, 2008
HP 4Gb FC Pass-Thru Module
HP 4Gb FC Pass-Thru Module
HP 4Gb FC Pass-Thru ModuleHP 4Gb FC Pass-Thru Module
Emulex LPe1105-HP 4Gb FC HBA
Emulex LPe1105-HP 4Gb FC HBA
Emulex LPe1105-HP 4Gb FC HBAEmulex LPe1105-HP 4Gb FC HBA
Page 5
QuickSpecs
HP BladeSystem c-Class Interconnect Components
HP BladeSystem c-Class Interconnect Components
HP BladeSystem c-Class Interconnect ComponentsHP BladeSystem c-Class Interconnect Components
Overview
At A Glance
At A Glance
At A GlanceAt A Glance
NOTE:
NOTE:
This document covers the HP BladeSystem c-Class Interconnects Components only. For more information on HP ProLiant c-
NOTE:NOTE: Class Server Blades and HP BladeSystem c-Class Infrastructure please see the following QuickSpecs:
HP ProLiant c-Class Server Blade QuickSpecs:
http://h18004.www1.hp.com/products/blades/components/c-class-bladeservers.html
HP BladeSystem c-Class Infrastructure QuickSpecs:
http://h18004.www1.hp.com/products/blades/components/enclosures/c-class/c7000/index.html
Warranty:
Warranty:
Warranty:Warranty: of HP Authorized Channel Partners. Support for software and initial setup is available for 90 days from date of purchase. Additional support may be covered under the warranty or available for an additional fee. Enhancements to warranty services are available through HP Care Pack services or customized service agreements. Server Blade Interconnect Limited Warranty includes 1 year Parts, 1 year Labor, 1-year on-site support. Additional information regarding worldwide limited warranty and technical support is available at:
http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html
Switch Modules
Switch Modules
Switch ModulesSwitch Modules
HP 10Gb Ethernet BL-c
HP 10Gb Ethernet BL-c
HP 10Gb Ethernet BL-cHP 10Gb Ethernet BL-c Switch
Switch
SwitchSwitch
HP 1:10 Gb Ethernet BL-c
HP 1:10 Gb Ethernet BL-c
HP 1:10 Gb Ethernet BL-cHP 1:10 Gb Ethernet BL-c Switch
Switch
SwitchSwitch
Cisco Catalyst Blade
Cisco Catalyst Blade
Cisco Catalyst BladeCisco Catalyst Blade Switch 3120 Series
Switch 3120 Series
Switch 3120 SeriesSwitch 3120 Series
Cisco Catalyst 3020
Cisco Catalyst 3020
Cisco Catalyst 3020Cisco Catalyst 3020 Blade Switch
Blade Switch
Blade SwitchBlade Switch
HP GbE2c Ethernet Blade
HP GbE2c Ethernet Blade
HP GbE2c Ethernet BladeHP GbE2c Ethernet Blade Switch for
Switch for
Switch forSwitch for c-Class BladeSystem
c-Class BladeSystem
c-Class BladeSystemc-Class BladeSystem (GbE2c)
(GbE2c)
(GbE2c)(GbE2c)
This product is covered by a global limited warranty and supported by HP Services and a worldwide network
Provides sixteen 10GbE downlinks along with four10GbE uplinks (XFP) make this switch the perfect choice for any bandwidth intensive application. A robust set of industry standard Ethernet Layer 2 switching and Layer 3 routing functions, QOS, security and high availability features. Dramatically reduces cabling, power and cooling requirements compared to stand-alone switches or pass-thru modules, while providing over 34Gb of non blocking uplink bandwidth to handle the most demanding applications. A combination of excellent performance which includes low latency, wire speed performance for Layer 2 and Layer 3 packets and low power consumption makes the HP 1:10Gb Ethernet BL-c Switch an ideal solution for any large data center environment.
Provides sixteen 1Gb downlinks, four 1Gb uplinks along with 3 10Gb uplinks (CX4, XFP) and a 10Gb cross-connect. A robust set of industry standard Ethernet Layer 2 switching and Layer 3 routing functions, QOS, security and high availability features. Dramatically reduces cabling, power and cooling requirements compared to stand-alone switches or pass-thru modules, while providing over 34Gb of non blocking uplink bandwidth to handle the most demanding applications. A combination of excellent performance which includes low latency, wire speed performance for Layer 2 and Layer 3 packets and low power consumption makes the HP 1:10Gb Ethernet BL-c Switch an ideal solution for any large data center environment.
Provides sixteen internal 1Gb downlinks Up to four uplinks can be optionally configured as fiber SX/LX links Designed to fit seamlessly into existing Cisco networks. Two uplinks can optionally be configured as internal cross-connects
Provides sixteen internal 1Gb downlinks and eight 1Gb RJ-45 copper uplinks. Up to four uplinks can be optionally configured as fiber SX/LX links. Designed to fit seamlessly into existing Cisco networks. Two uplinks can optionally be configured as internal cross-connects.
Provides sixteen internal downlinks, five uplinks and two internal cross-connects. Provides a full set of industry standard Gigabit Ethernet Layer 2 features. Dramatically reduces cabling, power and cooling requirements compared to stand-alone switches or pass-thru modules, allowing you to realize the full cost saving capabilities of the HP c-Class BladeSystem
DA - 12524 Worldwide — Version 11 — July 14, 2008
Page 6
QuickSpecs
Overview
HP GbE2c Layer 2/3
HP GbE2c Layer 2/3
HP GbE2c Layer 2/3HP GbE2c Layer 2/3 Ethernet Blade Switch for
Ethernet Blade Switch for
Ethernet Blade Switch forEthernet Blade Switch for c-Class BladeSystem
c-Class BladeSystem
c-Class BladeSystemc-Class BladeSystem (GbE2c L2/3)
(GbE2c L2/3)
(GbE2c L2/3)(GbE2c L2/3)
Brocade 8Gb SAN Switch
Brocade 8Gb SAN Switch
Brocade 8Gb SAN SwitchBrocade 8Gb SAN Switch for HP BladeSystem c-
for HP BladeSystem c-
for HP BladeSystem c-for HP BladeSystem c­Class
Class
ClassClass
Brocade 4Gb SAN Switch
Brocade 4Gb SAN Switch
Brocade 4Gb SAN SwitchBrocade 4Gb SAN Switch for HP c-Class
for HP c-Class
for HP c-Classfor HP c-Class BladeSystem
BladeSystem
BladeSystemBladeSystem
Cisco MDS 9124e Fabric
Cisco MDS 9124e Fabric
Cisco MDS 9124e FabricCisco MDS 9124e Fabric Switch for HP c-Class
Switch for HP c-Class
Switch for HP c-ClassSwitch for HP c-Class BladeSystem
BladeSystem
BladeSystemBladeSystem
Provides sixteen internal downlinks, five uplinks and two internal cross-connects. Up to four uplinks can be optionally configured as fiber SX links Provides a full set of industry standard Gigabit Ethernet Layer 2 switching and layer 3 routing features Dramatically reduces cabling, power and cooling requirements compared to stand-alone switches or pass-thru modules, allowing you to realize the full cost saving benefits of the HP c-Class BladeSystem.
Enables support of virtualized environments and other emerging technologies through high-speed technology that doubles the performance of the current storage network. Both internal and external facing ports auto-sense lower bandwidth components for flexibility and investment protection (2, 4, or 8 Gb). Includes connection speed support for all ports to provide a high-performance system with aggregate bandwidth of up to 384 Gbps (24 ports x 8 Gbps x 2 for full duplex). Support for up to a single trunk made up of all eight SAN ports for a total of up to 64 Gbps balanced throughput. Enables organizations to better manage data flows and meet service level agreements while maintaining optimized application performance in virtual environments with new optional Adaptive Networking services, including Quality of Service Traffic Prioritization, Preferred Path Traffic Isolation, Top Talkers, and Ingress Rate Limiting. Employs N_Port ID Virtualization (NPIV), an ANSI T11 standard, to enable interoperability with other SAN fabrics and eliminate domain considerations while improving SAN scalability. Designed to scale as business needs dictate with the option of a 12-port model and a 12-port upgrade license, as well as a 24-port and 24-port Power Pack+ models.
An embedded Fibre Channel switch, delivering high performance, value, and high-availability for HP BladeSystem c-Class customers who desire the benefits of a SAN solution in a hot-pluggable design supporting redundant configurations. Up to eight external facing ports auto-sense lower bandwidth components for greater flexibility and investment protection (4, 2, or 1 Gbps). Employs N_Port ID Virtualization (NPIV), an ANSI T11 standard, to enable interoperability with supported SAN fabrics and to eliminate domain considerations for improving SAN scalability via Brocade Access Gateway technology. Designed to scale as business needs dictate with the option of a 12-port model and a 12-port upgrade license, as well as a 24-port and 24-port Power Pack models IT organizations can lower costs, minimize deployment time, increase performance, and significantly simplify their environments through the integration of 4 Gbps Fibre Channel switching with the HP BladeSystem c-Class.
An embedded Fibre Channel switch, delivering high performance, value, and high-availability for HP BladeSystem c-Class customers who desire the benefits of a SAN solution in a hot-pluggable design supporting redundant configurations. Up to eight external facing ports auto-sense lower bandwidth components for greater flexibility and investment protection (4, 2, or 1 Gbps). Designed to scale as business needs dictate with the option of a 12-port model and a 12-port upgrade license, as well as a 24-port model. Simplifies deployment while optimizing core edge fabrics with support for virtual output queuing, flexible buffer credit allocation, Port Channels, Fabric Shortest Path First (FSPF), and more. New N-Port Virtualizer with FlexAttach (SAN-OS v3.3(1a) and later) employs industry-standard N­Port Virtualization technology to eliminate domain count concerns, enable fabric interoperability, and enables the flexibility to move or replace servers without impact to the SAN connections. Support for up to 16 VSANs per switch Offers an extensive security framework to protect highly sensitive data crossing today's enterprise network
HP BladeSystem c-Class Interconnect Components
HP BladeSystem c-Class Interconnect Components
HP BladeSystem c-Class Interconnect ComponentsHP BladeSystem c-Class Interconnect Components
DA - 12524 Worldwide — Version 11 — July 14, 2008
Page 7
QuickSpecs
Overview
Virtual Connect Modules
Virtual Connect Modules
Virtual Connect ModulesVirtual Connect Modules
HP 1/10Gb Virtual
HP 1/10Gb Virtual
HP 1/10Gb VirtualHP 1/10Gb Virtual Connect Ethernet Modules
Connect Ethernet Modules
Connect Ethernet ModulesConnect Ethernet Modules for the c-Class
for the c-Class
for the c-Classfor the c-Class BladeSystem
BladeSystem
BladeSystemBladeSystem
HP 4Gb Virtual Connect
HP 4Gb Virtual Connect
HP 4Gb Virtual ConnectHP 4Gb Virtual Connect Fibre Channel Module for
Fibre Channel Module for
Fibre Channel Module forFibre Channel Module for the c-Class BladeSystem
the c-Class BladeSystem
the c-Class BladeSystemthe c-Class BladeSystem
Mezzanines and Adapters
Mezzanines and Adapters
Mezzanines and AdaptersMezzanines and Adapters
Ethernet Mezzanine Cards
Ethernet Mezzanine Cards
Ethernet Mezzanine CardsEthernet Mezzanine Cards
The simplest, most flexible connection to your Fiber and copper Ethernet networks. A new class of blade interconnect that simplifies server connections by cleanly separating the server enclosure from LAN, simplifies networks by reducing cables without adding switches to manage, and allows you to change servers in just minutes, not days. An innovative, new class of integrated interconnects from HP.
Simplest, most flexible connection to your SAN fabrics. A new class of blade interconnect that simplifies server connections by cleanly separating the server enclosure from SAN, simplifies SAN fabrics by reducing cables without adding switches to the domain, and allows you to change servers in just minutes, not days.
The QLogic QMH4062 1GbE iSCSI Adapter is a dual port fully integrated Gigabit Ethernet iSCSI target mezzanine optimized for iSCSI traffic from an c-Class ProLiant server. It is an alternative to less integrated iSCSI offerings and often more costly non TCP/IP implementations. Designed for ultimate performance, the QMH4062 provides full stateful offloading of iSCSI and TCP/IP traffic for both Microsoft Windows and Linux. The adapter supports iSCSI boot certification for VMware ESX Server 3.5 and ESXi 3.5. The QMH4062 is IPv6 compliant providing an end-to-end IPv6 solution when using either a Cisco Catalyst Blade Switch 3120 for HP with the IPv6 software upgrade or the Ethernet Pass-Thru. The NC512m is a dual port 10 Gigabit Ethernet network server adapter supporting stateful TCP offloading. It offers the highest bandwidth available in a ProLiant Ethernet c-Class adapter. Two NC512m adapter is supported on all ProLiant c-Class servers in mezzanine slot 2 or 3 (full height servers) and slot 2 (half height servers) providing up to sixty-four (64) 10 Gigabit Ethernet adapter ports per c7000 enclosure and thirty-two (32) per c3000 enclosure. The HP NC364m is a quad port network adapter providing four Gigabit Ethernet ports on a single card saving valuable server mezzanine slots for other purposes. The x4 PCI Express NC364m is supported on both HP Integrity and ProLiant c-Class servers in all mezzanine slots. The NC373m is a dual port Multifunction Gigabit Ethernet adapter supporting TOE (TCP/IP Offload Engine) for Microsoft Windows and accelerated iSCSI (Internet Small Computer System Interface) The Multifunction capabilities permit a unified fabric combining accelerated networking, storage, and clustering over a single network connection. The HP NC360m is a dual port 1 GbE BL-c network adapter providing two Gigabit Ethernet ports on a single mezzanine card. The NC360m is designed for applications requiring additional Gigabit Ethernet ports than those provided on the server. Like the NC360m, the NC326m is a dual port Gigabit Ethernet adapter designed for applications requiring additional Gigabit Ethernet ports than those provided on the server. The NC326m has a Broadcom controller where as the NC360m has an Intel controller giving customer a choice of the network controller manufacturer. Like the NC364m, the NC325m is a quad port Gigabit Ethernet adapter providing the highest port density available for BladeSystem servers in a single adapter. The NC325m , as well as the NC364m, are ideal for virtualization, security, server consolidation, network segmentation, and other ProLiant server applications requiring maximum throughput and port density. The NC325m has a Broadcom controller where as the NC364m has an Intel controller.
HP BladeSystem c-Class Interconnect Components
HP BladeSystem c-Class Interconnect Components
HP BladeSystem c-Class Interconnect ComponentsHP BladeSystem c-Class Interconnect Components
An innovative, new class of integrated interconnects from HP.
NOTE:
NOTE:
NOTE: NOTE:
http://www.hp.com/servers/networking
For additional information on the BladeSystem Ethernet adapter mezzanine options, see:
DA - 12524 Worldwide — Version 11 — July 14, 2008
Page 8
QuickSpecs
Overview
Pass Thru Modules
Pass Thru Modules
Pass Thru ModulesPass Thru Modules
Host Bus Adapters
Host Bus Adapters
Host Bus AdaptersHost Bus Adapters
HP Ethernet and Fibre Channel Pass-Thru Modules provide transparent, 1:1 port connectivity between the Server and an external switch. The Fibre Channel Pass-Thru Module includes 16 short wave SFP transceivers.
The QLogic QMH2462 4Gb FC HBA Adapter provides the c-Class BladeSystem with two 4Gb Fibre Channel ports for fast and reliable SAN connectivity. Through the implementation of a SAN with the HP BladeSystem, customers can achieve improved data availability, easily scale capacity, and realize management cost savings from consolidating disk resources. Fibre Channel capability is achieved using a QLogic FC Mezzanine HBA specifically designed for HP c-Class BladeSystem. The HP BladeSystem is optimized for HP StorageWorks and compatible with third party storage vendors. The Emulex LPe1105-HP dual port PCI Express Fibre Channel HBA provides reliable, high­performance 4 Gb/s connectivity, enabling high-availability to scalable storage in order to meet the needs of the most demanding applications and environments. Based on the same field-proven ASIC, firmware, and driver technology as Emulex's LPe1150 HBA, the Emulex LPe1105-HP is fully driver compatible with all Emulex HBAs. As a centralized management suite, HBAnyware™ incorporates agent technology that provides discovery, reporting and management of local and remote HBAs.
HP BladeSystem c-Class Interconnect Components
HP BladeSystem c-Class Interconnect Components
HP BladeSystem c-Class Interconnect ComponentsHP BladeSystem c-Class Interconnect Components
HP BladeSystem c-Class Enclosures
HP BladeSystem c-Class Enclosures
HP BladeSystem c-Class EnclosuresHP BladeSystem c-Class Enclosures
1.
Upper Fan System
2.
Interconnect Bays 1/2
3.
Interconnect Bays 3/4
4.
Interconnect Bays 5/6
HP BladeSystem c7000 Enclosure - Rear View showing Interconnect Bays
HP BladeSystem c7000 Enclosure - Rear View showing Interconnect Bays
HP BladeSystem c7000 Enclosure - Rear View showing Interconnect BaysHP BladeSystem c7000 Enclosure - Rear View showing Interconnect Bays
5.
Interconnect Bays 7/8
6.
On Board Administrator
7.
Lower Fan System
8.
Rear Power Complex
DA - 12524 Worldwide — Version 11 — July 14, 2008
Page 9
QuickSpecs
Overview

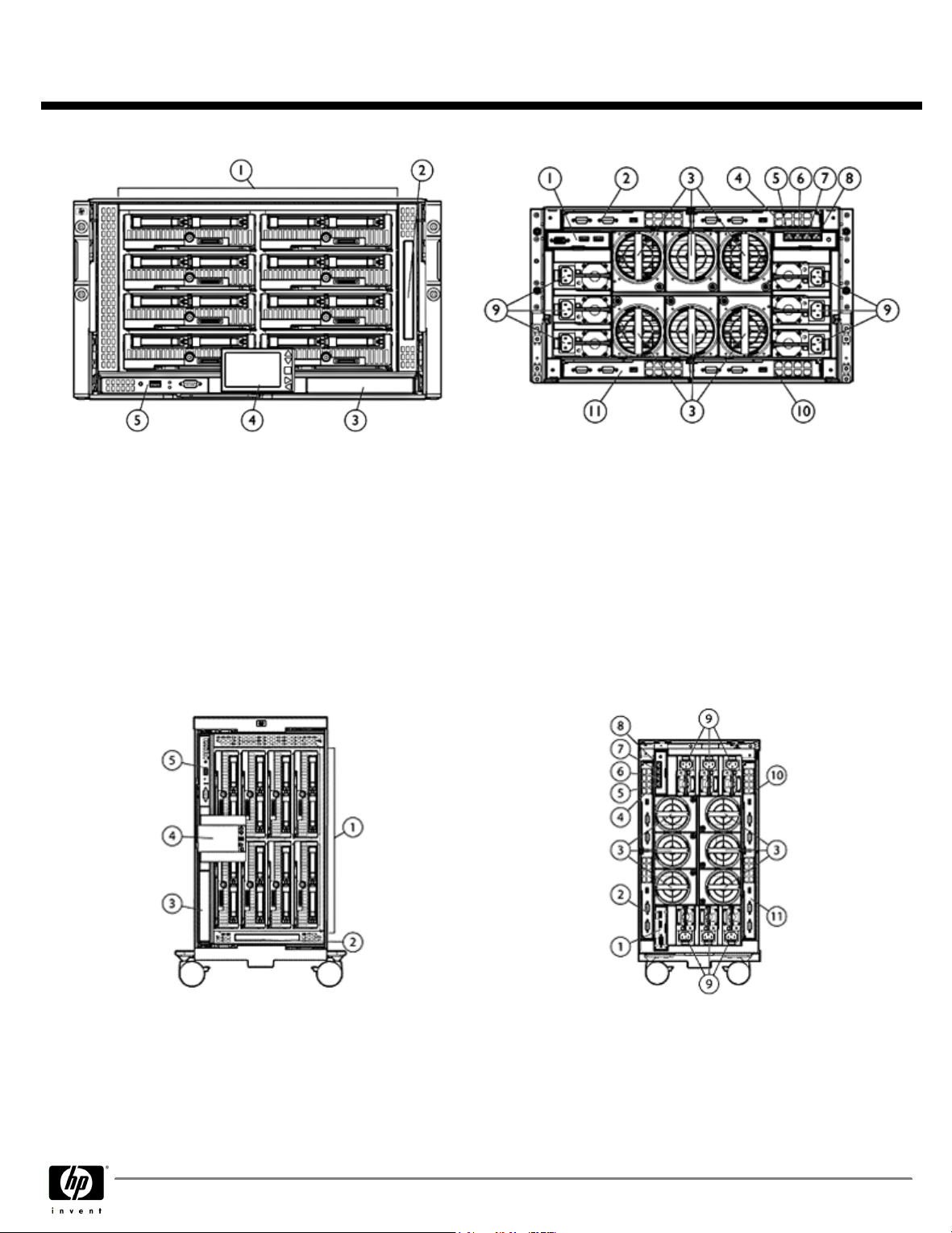

HP BladeSystem c3000 Enclosure - Rack - Front View
HP BladeSystem c3000 Enclosure - Rack - Front View
HP BladeSystem c3000 Enclosure - Rack - Front ViewHP BladeSystem c3000 Enclosure - Rack - Front View
1.
Device Bays 1 thru 8
2.
Enclosure DVD Drive
3.
Standby Onboard Administrator (reserved for Future)
4.
Insight Display
5.
Active Onboard Administrator
HP BladeSystem c-Class Interconnect Components
HP BladeSystem c-Class Interconnect Components
HP BladeSystem c-Class Interconnect ComponentsHP BladeSystem c-Class Interconnect Components
HP BladeSystem c3000 Enclosure - Rack - Rear View
HP BladeSystem c3000 Enclosure - Rack - Rear View
HP BladeSystem c3000 Enclosure - Rack - Rear ViewHP BladeSystem c3000 Enclosure - Rack - Rear View
1.
Local KVM interface (reserved for future)
2.
Interconnect Bay 1
3.
Active Cool Fans
4.
Interconnect Bay 2
5.
Enclosure Up-link and Service Port
6.
Enclosure Down-link
7.
iLO/Onboard Administrator Port
8.
iLO/Onboard Administrator Port 2 (reserved for future)
9.
Power Supplies
10.
Interconnect Bay 4
11.
Interconnect Bay 3
HP BladeSystem c3000 Enclosure - Tower - Front View
HP BladeSystem c3000 Enclosure - Tower - Front View
HP BladeSystem c3000 Enclosure - Tower - Front ViewHP BladeSystem c3000 Enclosure - Tower - Front View
1.
Device Bays 1 thru 8
2.
Enclosure DVD Drive
3.
Standby Onboard Administrator (reserved for Future)
4.
Insight Display
5.
Active Onboard Administrator
DA - 12524 Worldwide — Version 11 — July 14, 2008
HP BladeSystem c3000 Enclosure - Tower - Rear View
HP BladeSystem c3000 Enclosure - Tower - Rear View
HP BladeSystem c3000 Enclosure - Tower - Rear ViewHP BladeSystem c3000 Enclosure - Tower - Rear View
1.
Local KVM interface
2.
Interconnect Bay 1
3.
Active Cool Fans
4.
Interconnect Bay 2
5.
Enclosure Up-link and Service Port
6.
Enclosure Down-link
Page 10
QuickSpecs
Overview
HP BladeSystem c-Class Interconnect Components
HP BladeSystem c-Class Interconnect Components
HP BladeSystem c-Class Interconnect ComponentsHP BladeSystem c-Class Interconnect Components
7.
iLO/Onboard Administrator Port
8.
iLO/Onboard Administrator Port 2 (reserved for future)
9.
Power Supplies
10.
Interconnect Bay 4
11.
Interconnect Bay 3
DA - 12524 Worldwide — Version 11 — July 14, 2008
Page 11
QuickSpecs
HP BladeSystem c-Class Interconnect Components
HP BladeSystem c-Class Interconnect Components
HP BladeSystem c-Class Interconnect ComponentsHP BladeSystem c-Class Interconnect Components

Standard Features (HP BladeSystem c-Class Interconnect Components)

Mezzanines
Mezzanines
MezzaninesMezzanines
Port Mapping
Port Mapping
Port MappingPort Mapping
Port mapping differs slightly between full height and half height server blades due to the support for additional Mezzanine cards on the full height version. HP has simplified the processes of mapping Mezzanine ports to switch ports by providing intelligent management tools via the Onboard Administrator and HP Insight Manager Software. The Onboard Administrator Guide, Enclosure Setup and Installation Guide provides detailed information on port mapping.
C7000 Half Height Server Blade
C7000 Half Height Server Blade
C7000 Half Height Server BladeC7000 Half Height Server Blade
C3000 Half Height Server Blade
C3000 Half Height Server Blade
C3000 Half Height Server BladeC3000 Half Height Server Blade
C7000 Full Height Sever Blade
C7000 Full Height Sever Blade
C7000 Full Height Sever BladeC7000 Full Height Sever Blade
C3000 Full Height Sever Blade
C3000 Full Height Sever Blade
C3000 Full Height Sever BladeC3000 Full Height Sever Blade
DA - 12524 Worldwide — Version 11 — July 14, 2008
Page 12
QuickSpecs
HP BladeSystem c-Class Interconnect Components
HP BladeSystem c-Class Interconnect Components
HP BladeSystem c-Class Interconnect ComponentsHP BladeSystem c-Class Interconnect Components
Standard Features (HP BladeSystem c-Class Interconnect Components)
Models
Models
ModelsModels
Switch Modules
Switch Modules
Switch ModulesSwitch Modules HP 10Gb Ethernet Blade Switch HP 1:10 Gb Ethernet BL-c Switch Cisco Catalyst Blade Switch 3120X for HP Cisco Catalyst Blade Switch 3120G for HP Cisco Catalyst 3020 Blade Switch for HP c-Class BladeSystem HP GbE2c Ethernet Blade Switch for c-Class BladeSystem HP GbE2c Layer2/3 Ethernet Blade Switch for c-Class BladeSystem Brocade 8/12c SAN Switch for HP BladeSystem c-Class, Full Fabric Brocade 8/24c SAN Switch for HP BladeSystem c-Class, Full Fabric Brocade 8/24c SAN Switch Power Pack for HP BladeSystem c-Class, Full Fabric Brocade 8/12c SAN Switch 12-port Upgrade LTU Brocade 4/12 SAN Switch for HP c-Class BladeSystem, Full Fabric Brocade 4/24 SAN Switch for HP c-Class BladeSystem, Full Fabric Brocade 4/24 SAN Switch Power Pack for HP c-Class BladeSystem, Full Fabric Brocade 4/12 SAN Switch 12-port Upgrade LTU Cisco MDS 9124e 12-port Fabric Switch for HP c-Class BladeSystem Cisco MDS 9124e 24-port Fabric Switch for HP c-Class BladeSystem Cisco MDS 9124e Fabric Switch 12-port Upgrade LTU Virtual Connect Modules
Virtual Connect Modules
Virtual Connect ModulesVirtual Connect Modules HP 1/10Gb Virtual Connect Ethernet Module for c-Class BladeSystem HP 1/10Gb-F Virtual Connect Ethernet Module for c-Class BladeSystem HP 4Gb Virtual Connect Fibre Channel Module for c-Class BladeSystem Mezzanines and Adapters
Mezzanines and Adapters
Mezzanines and AdaptersMezzanines and Adapters QLogic QMH4062 1GbE iSCSI Adapter for HP c-Class BladeSystem HP NC512m Dual Port 10GbE Multifunction BL-c Adapter
NOTE:
NOTE:
NOTE: NOTE: BL-c Switch. NOTE:
NOTE:
NOTE: NOTE: mezzanine slots and one adapter per a type II x8 PCI Express mezzanine slot in a half height server. For more information, see the Mezzanine Slot Compatibility matrix within the HP NC512m Dual Port 10GbE Multifunction BL-c Adapter QuickSpecs: NOTE:
NOTE:
NOTE: NOTE: maximum of 32 GB for Windows and 64 GB for Linux. NOTE:
NOTE:
NOTE: NOTE:
HP NC373m PCI Express Dual Port Multifunction Gigabit Server Adapter for c-Class BladeSystem HP NC364m Quad Port 1GbE BL-c Adapter HP NC360m Dual Port 1GbE BL-c Adapter HP NC326m PCI Express Dual Port 1Gb Server Adapter for c-Class BladeSystem HP NC325m PCI Express Quad Port 1Gb Server Adapter for c-Class BladeSystem HP 1Gb Ethernet Pass-Thru Module for c-Class BladeSystem HP 4Gb Fibre Channel Pass-Thru Module for c-Class BladeSystem QLogic QMH2462 4Gb FC HBA for HP c-Class BladeSystem Emulex LPe1105-HP 4Gb FC HBA for HP c-Class BladeSystem
An NC512m network adapter card is required for each server blade connecting to the HP 10Gb Ethernet
Two NC512m adapters are supported per ProLiant c-Class full height server in type II x8 PCI Express
http://h18004.www1.hp.com/products/servers/networking/nc512m/index.html
The NC512m requires a minimum of 2 GB of server memory per NC512m card and supports a
Each port on the NC512m transmits from the server only at 20 Gbps full duplex per port.
Part Number
Part Number
Part NumberPart Number 445860-B21 438031-B21 451439-B21
451438 -B21
410916-B21 410917-B21 438030-B21
AJ820A AJ821A AJ822A
T5517A AE370A AE372A AE371A AE373A
AG641A AG642A
T5169A
399593-B22 447047-B21 409513-B21
488074-B21 440910-B21
406770-B21 447883-B21 445978-B21 406771-B21 416585-B21 406740-B21 403626-B21 403619-B21 403621-B21
DA - 12524 Worldwide — Version 11 — July 14, 2008
Page 13
QuickSpecs

Standard Features

Intelligent Manageability
Intelligent Manageability
Intelligent ManageabilityIntelligent Manageability
Integrated Lights-Out 2 (iLO 2) Standard Blade Edition (integrated on motherboard)
Virtual KVM based remote console Virtual media (single server, browser based access only) Remote Serial Console Virtual Power Button Control Virtual Unit ID control Integrated Remote Console (Active X Control client) Dedicated network connectivity OS independent hardware health status Automatic IP Configuration via DHCP/DNS/WINS Industry Standard RC4, 128-bit Secure Sockets Layer (SSL) and Secure Shell (SSH) Security Advanced Encryption Standard (AES/Triple Data Encryption Standard (3DES) IML and iLO 2 Event Logging Support for 12 user accounts with customizable access privileges Single sign-on from HP BladeSystem Onboard Administrator
Upgrade to HP ProLiant Essentials Integrated Light-Out Select Pack for the following features:
Power Regulator Reporting Virtual Media (command line and scripted multi-server) Enterprise security (includes directory services and two-factor authentication)
HP BladeSystem c-Class Interconnect Components
HP BladeSystem c-Class Interconnect Components
HP BladeSystem c-Class Interconnect ComponentsHP BladeSystem c-Class Interconnect Components
Onboard Administrator
Onboard Administrator
Onboard AdministratorOnboard Administrator
NOTE:
NOTE:
NOTE: NOTE: Floppy/CD-ROM is included with the BL c-Class server.
An Onboard Administrator management module is built in to the enclosure with the following functions:
Advanced features such as Graphical Remote Console and browser accessible Virtual
Robust, multiple enclosure setup and control. Reports asset and inventory information for the devices in the enclosure. Reports thermal and power information, including real-time actual power usage per server and per enclosure. Front mounted Insight Display for easy management within the datacenter. Integrated access to all server blade iLOs from a single cable. Provides integrated access to interconnect bay device management ports from the single Onboard Administrator cable. Single sign-on capability for all devices in the enclosure Role-based security locally and/or with LDAP directory services. Provides a wizard-based initial setup process for easy configuration.
DA - 12524 Worldwide — Version 11 — July 14, 2008
Page 14
QuickSpecs
Standard Features
Factory Express Portfolio
Factory Express Portfolio
Factory Express PortfolioFactory Express Portfolio for Servers and Storage
for Servers and Storage
for Servers and Storagefor Servers and Storage
Service and Support
Service and Support
Service and SupportService and Support
HP Factory Express offers configuration, customization, integration and deployment services for HP servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.
Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging and custom packaging. HP products supported through Factory Express include: a wide array of servers and storage: HP Integrity, HP ProLiant & HP ProLiant Server Blades, HP BladeSystem, HP 9000 servers as well as the MSAxxxx, VA7xxx, EVA3000 & EVA5000, XP, rackable tape libraries and configurable network switches.
NOTE:
NOTE:
NOTE: NOTE: your sales representative or go to:
HP Care Pack services provide total care and support expertise with committed response designed to meet your IT and business needs.
The HP Care Pack service or ProLiant BL c-Class server blades, cover the server blade and all HP branded hardware options qualified for the server, purchased at the same time or afterwards, internal to the server.
HP BladeSystem c-Class Interconnect Components
HP BladeSystem c-Class Interconnect Components
HP BladeSystem c-Class Interconnect ComponentsHP BladeSystem c-Class Interconnect Components
For more information on Factory Express services for your specific server model please contact
http://www.hp.com/go/factory-express
.
HP Care Pack services for the c7000 and c3000 Enclosure cover the enclosure, power supplies and fans. HP qualified rack options are covered by these services when installed within the same rack. HP supported c-Class enclosure devices including pass thru, Ethernet interconnect and virtual connect modules are also covered by the c7000 and c3000 enclosure Care Pack services.
NOTE:
NOTE:
SAN/Fabric switches for the HP c-Class BladeSystem are not covered under the c7000 enclosure
NOTE:NOTE: Care Packs, SAN/Fabric switches carry separate Care Packs. SAN/Fabric Switch Care Pack service level support should always be uplifted to match existing storage or server service level.
To fully capitalize on your HP BladeSystem servers' capabilities requires a service partner who thoroughly understands your server technology and systems environment. HP Services, an industry leader in provision of multi vender support solutions provides a range of support services designed to meet the varying needs of business. Whether an SMB or large global corporation HP has a HP BadeSystem server support offer to help you speedily deploy and maximize system uptime.
Recommended Service
Recommended Service
Recommended ServiceRecommended Service
Support Service
Support Service
Support ServiceSupport Service Deployment Service
Deployment Service
Deployment ServiceDeployment Service
Enhanced Service
Enhanced Service
Enhanced Service Enhanced Service
Support Service
Support Service
Support Service Support Service Deployment Service
Deployment Service
Deployment ServiceDeployment Service
Installation & Start-Up service for HP BladeSystem Infrastructure plus HP BladeSystem Enhanced Network Installation and Start-UP as per the Customer Description and/or Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F, excluding HP holidays.
- Simplify ProLiant solution implementation, maintenance and management.
- 4-Hour Response Coverage, 3-Year, 24 x 7, Same Business Day
- Installation and Start Up for HP BladeSystem Infrastructure
- Optimize service level to increase IT performance and availability
- HP Proactive BladeSystem Service, 1-Year
- Enhanced Network Installation and Start-up for HP BladeSystem Switches
For a complete listing of service offerings and information visit:
http://www.hp.com/services/bladesystemservices
DA - 12524 Worldwide — Version 11 — July 14, 2008
Page 15
QuickSpecs
Standard Features
http://www.hp.com/go/proliant/carepack
HP BladeSystem c-Class Interconnect Components
HP BladeSystem c-Class Interconnect Components
HP BladeSystem c-Class Interconnect ComponentsHP BladeSystem c-Class Interconnect Components
DA - 12524 Worldwide — Version 11 — July 14, 2008
Page 16
QuickSpecs
HP BladeSystem c-Class Interconnect Components
HP BladeSystem c-Class Interconnect Components
HP BladeSystem c-Class Interconnect ComponentsHP BladeSystem c-Class Interconnect Components

Options

Configuration Steps
Configuration Steps
Configuration StepsConfiguration Steps
For a complete configuration on the HP ProLiant Server Blades, please do the following: Step 1: Select desired model, configuration and quantity of HP ProLiant server blades
Step 1: Select desired model, configuration and quantity of HP ProLiant server blades
Step 1: Select desired model, configuration and quantity of HP ProLiant server bladesStep 1: Select desired model, configuration and quantity of HP ProLiant server blades
NOTE:
NOTE:
For server blade information, please visit:
NOTE:NOTE:
http://h18004.www1.hp.com/products/blades/components/c-class-bladeservers.html
Step 2: Determine quantity of HP BladeSystem c-Class Server Blade Enclosures to purchase
Step 2: Determine quantity of HP BladeSystem c-Class Server Blade Enclosures to purchase
Step 2: Determine quantity of HP BladeSystem c-Class Server Blade Enclosures to purchaseStep 2: Determine quantity of HP BladeSystem c-Class Server Blade Enclosures to purchase
NOTE:
NOTE:
Each HP BladeSystem c-Class Server Blade Enclosure holds 2, 4, 8 or 16 HP ProLiant server blades plus a minimum of two
NOTE:NOTE: Interconnects depending on server blade selection. NOTE:
NOTE:
NOTE: NOTE:
http://h18004.www1.hp.com/products/blades/components/enclosures/c-class/c7000/index.html
Step 3: Determine number and type of Interconnect Components required for base configuration
Step 3: Determine number and type of Interconnect Components required for base configuration
Step 3: Determine number and type of Interconnect Components required for base configurationStep 3: Determine number and type of Interconnect Components required for base configuration
NOTE:
NOTE:
NOTE: NOTE:
http://h18004.www1.hp.com/products/blades/components/c-class-interconnects.html
For additional information on HP BladeSystem c-Class Infrastructure please visit:
For additional information on HP BladeSystem c-Class Interconnect Components please visit
Service and Support
Service and Support
Service and SupportService and Support Offerings
Offerings
OfferingsOfferings (HP Care Pack Services)
NOTE:
NOTE:
NOTE: NOTE: Connect Ethernet/Fibre Channel Module OR two Ethernet/Fibre Channel Pass-Thru Modules for a redundant Ethernet/Fibre Channel configuration.
Step 1 - Base Configurations (Select one)
Step 1 - Base Configurations (Select one)
Step 1 - Base Configurations (Select one)Step 1 - Base Configurations (Select one) Switch Modules
Switch Modules
Switch ModulesSwitch Modules
Each HP BladeSystem c-Class enclosure requires two Ethernet/Fibre Channel switches OR Virtual
Choose a base configuration that meets your Ethernet/Fibre Channel networking needs Order in quantities of two for a fully redundant configuration Choose additional options for the base configuration that meet your needs for cabling and software options Bays 1 and 2 are reserved for Ethernet Switches or Pass-Thru Modules supporting Server LAN on Motherboard (LOM) NIC connections to ports on the Ethernet Switch or Pass-Thru Module. Supported bays for additional Ethernet and/or Fibre Channel Switch Modules include unpopulated Bays 3/4, 5/6, or 7/ 8 Redundant Switches must be configured adjacent to one another in Bays 1/2, 3/4, 5/6, or 7/ 8.
HP 10Gb Ethernet Blade Switch HP 1:10Gb Ethernet BL-c Switch for c-Class BladeSystem Cisco Catalyst 3020 Blade Switch for HP c-Class
BladeSystem HP GbE2c Ethernet Blade Switch for c-Class BladeSystem HP GbE2c Layer2/3 Ethernet Blade Switch for c-Class
BladeSystem HP Brocade 4/12 SAN Switch
Includes: (1) 4Gb SAN Switch; 12 ports enabled for any combination (internal and external); two (2) short wave 4Gb SFPs; WebTools license; Zoning license; Access Gateway; full fabric connectivity; documentation
NOTE:
NOTE:
NOTE: NOTE: sales order when factory integration is indicated
#0D1 will appear after this part number on your
445860-B21 438031-B21 410916-B21
410917-B21 438030-B21
AE370A
DA - 12524 Worldwide — Version 11 — July 14, 2008
Page 17
QuickSpecs
Options
HP BladeSystem c-Class Interconnect Components
HP BladeSystem c-Class Interconnect Components
HP BladeSystem c-Class Interconnect ComponentsHP BladeSystem c-Class Interconnect Components
HP Brocade 8/12c SAN Switch Includes: (1) 8Gb SAN Switch; 12 ports enabled for any combination (internal and external); two (2) short wave 8Gb SFP+s; full fabric connectivity; documentation
NOTE:
NOTE:
NOTE: NOTE: sales order when factory integration is indicated.
HP Brocade 8/24c SAN Switch Includes: (1) 8Gb SAN Switch; 24 ports enabled (16 internal ports, 8 external; four (4) short wave 8Gb SFP+s; full fabric connectivity; documentation
NOTE:
NOTE:
NOTE: NOTE: sales order when factory integration is indicated.
HP Brocade 8/24c SAN Switch Power Pack + Includes: (1) 8Gb SAN Switch; 24 ports enabled (16 internal ports, 8 external; four (4) short wave 8Gb SFP+s; full fabric connectivity; documentation and includes Power Pack+ features and management tools (Additional Options, Software for list of management tools included)
NOTE:
NOTE:
NOTE: NOTE: sales order when factory integration is indicated.
HP Brocade 4/24 SAN Switch Includes: (1) 4Gb SAN Switch; 24 ports enabled (16 internal ports, 8 external); four (4) short wave 4Gb SFPs; WebTools license; Zoning license; Access Gateway; full fabric connectivity; documentation
NOTE:
NOTE:
NOTE: NOTE: sales order when factory integration is indicated
HP Brocade 4/24 SAN Switch Power Pack Includes: (1) 4Gb SAN Switch; 24 ports enabled (16 internal, 8 external); four (4) short wave 4Gb SFPs; WebTools license; Zoning license; Access Gateway; full fabric connectivity; documentation and includes Power Pack features and management tools (Additional Options, Software for list of management tools included)
NOTE:
NOTE:
NOTE: NOTE: sales order when factory integration is indicated
Cisco MDS 9124e 12-port Fabric Switch Includes: (1) 4Gb SAN Switch; 12 ports enabled (8 server, 4 external); two (2) short wave 4Gb SFPs; SAN-OS; eight (8) port dust covers; documentation
NOTE:
NOTE:
NOTE: NOTE: the c3000 Interconnect Bays 3 & 4. The Cisco MDS 9124e FC switch will be supported in the c3000 Interconnect Bay 2 with a future firmware update NOTE:
NOTE:
NOTE: NOTE: sales order when factory integration is indicated.
#0D1 will appear after this part number on your
#0D1 will appear after this part number on your
#0D1 will appear after this part number on your
#0D1 will appear after this part number on your
#0D1 will appear after this part number on your
The Cisco FC switch module is only supported in
#0D1 will appear after this part number on your
AJ820A
AJ821A
AJ822A
AE372A
AE371A
AG641A
DA - 12524 Worldwide — Version 11 — July 14, 2008
Page 18
QuickSpecs
Options
HP BladeSystem c-Class Interconnect Components
HP BladeSystem c-Class Interconnect Components
HP BladeSystem c-Class Interconnect ComponentsHP BladeSystem c-Class Interconnect Components
Cisco MDS 9124e 24-port Fabric Switch Includes: (1) 4Gb SAN Switch; 24 ports enabled (16 server, 8 external); four (4) short wave 4Gb SFPs; SAN­OS; eight (8) port dust covers; documentation
NOTE:
NOTE:
NOTE: NOTE: sales order when factory integration is indicated.
Virtual Connect Modules
Virtual Connect Modules
Virtual Connect ModulesVirtual Connect Modules
Mezzanines and Adapters
Mezzanines and Adapters
Mezzanines and AdaptersMezzanines and Adapters
Step 2 - Additional Options (Select each type of required options with quantities specified):
Step 2 - Additional Options (Select each type of required options with quantities specified):
Step 2 - Additional Options (Select each type of required options with quantities specified):Step 2 - Additional Options (Select each type of required options with quantities specified): Switch Module Options
Switch Module Options
Switch Module OptionsSwitch Module Options
HP 1/10Gb Virtual Connect Ethernet Module for c-Class BladeSystem
HP 1/10Gb-F Virtual Connect Ethernet Module for c­Class BladeSystem
HP 4Gb Virtual Connect Fibre Channel Module for c­Class BladeSystem
HP NC325m PCI Express Quad Port 1Gb Server Adapter for c-Class BladeSystem
HP NC326m PCI Express Dual Port 1Gb Server Adapter for c-Class BladeSystem
HP NC360m Dual Port 1GbE BL-c Adapter HP NC364m Quad Port 1GbE BL-c Adapter HP NC373m PCI Express Dual Port Multifunction Gigabit
Server Adapter for c-Class BladeSystem HP NC512m Dual Port 10GbE Multifunction BL-c Adapter
NOTE:
NOTE:
NOTE: NOTE: each server blade connecting to the HP 10Gb Ethernet BL­c Switch. NOTE:
NOTE:
NOTE: NOTE: server in a type II mezzanine slot. For more information, see the Mezzanine Slot Compatibility matrix within the HP NC512m Dual Port 10GbE Multifunction BL-c Adapter QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/ 12752_div/12752_div.html
NOTE:
NOTE:
NOTE:NOTE:
QLogic QMH4062 1GbE iSCSI Adapter for HP c-Class BladeSystem
QLogic QMH2462 4Gb FC HBA for HP c-Class BladeSystem
Emulex LPe1105-HP 4Gb FC HBA for HP c-Class BladeSystem
Cisco Catalyst Blade Switch 3120X for HP Cisco Catalyst Blade Switch 3120G for HP 1000Base SX Fiber SFP Module for the Cisco 3020
Catalyst Blade Switch HP BLc GbE2c Layer 2/3 Fiber SFP Option Kit
NOTE:
NOTE:
NOTE: NOTE: SFP modules with this part number will operate in the GbE2c Layer 2/3 Ethernet Blade Switch.
#0D1 will appear after this part number on your
An NC512m network adapter card is required for
A maximum of one NC512m is supported per
The NC512m requires 4GB of server memory
Each kit contains two SX SFP fiber modules. Only
AG642A
399593-B22
447047-B21
409513-B21
416585-B21
406771-B21
445978-B21 447883-B21 406770-B21
440910-B21
488074-B21
403619-B21
403621-B21
451439-B21 451438-B21 378929-B21
440627-B21
DA - 12524 Worldwide — Version 11 — July 14, 2008
Page 19
QuickSpecs
Options
HP BladeSystem c-Class Interconnect Components
HP BladeSystem c-Class Interconnect Components
HP BladeSystem c-Class Interconnect ComponentsHP BladeSystem c-Class Interconnect Components
HP 1Gb RJ-45 SFP for the Virtual Connect Ethernet Module
HP 1Gb SX SFP for the Virtual Connect Ethernet Module HP 10Gb SR XFP for the Virtual Connect Ethernet Module HP 10Gb LR XFP for the Virtual Connect Ethernet Module Choose one of the following pre-qualified cable lengths:
Choose one of the following pre-qualified cable lengths:
Choose one of the following pre-qualified cable lengths:Choose one of the following pre-qualified cable lengths: 10Gb XFP 850nm SR for cable lengths up to 82 meters
(MM) 10Gb XFP 1310nm LR for cable lengths up to 10KM (SM) HP BLadeSystem c-Class .5m 10-GbE CX4 Cable HP BLadeSystem c-Class 1m 10-GbE CX4 Cable HP BladeSystem c-Class 3m 10-GbE CX4 Cable HP BLadeSystem c-Class 15m 10-GbE CX4 Cable
NOTE:
NOTE:
NOTE: NOTE: BL-c Switch.
4Gb Optical Transceivers (SFPs), Short Wave (4Gb ­150m)
4Gb Optical Transceivers (SFPs), Long Wave - 10 km
NOTE:
NOTE:
NOTE: NOTE: Brocade 4Gb SAN Switches listed above. The Brocade 8Gb SAN Switches require B-series SFPs listed below. Part numbers A7446B and AE493A are not supported with the Brocade 8Gb SAN Switch.
HP 8Gb SW B-series FC SFP+ (for use with Brocade 8Gb SAN Switch)
HP 4Gb SW B-series FC SFP (for use with Brocade 8Gb SAN Switch)
HP 4Gb LW B-series 10km FC SFP (for use with Brocade 8Gb SAN Switch)
HP 4Gb LW B-series 35km FC SFP 1 Pack (for use with Brocade 8Gb SAN Switch)
Brocade Power Pack Software Bundle
NOTE
NOTE:
NOTENOTE NOTE:
NOTE:
NOTE: NOTE: to Power Pack. Includes bundled license for: ISL Trunking, Advanced Performance Monitoring*, Fabric Watch*, Extended Fabric*. NOTE:
NOTE:
NOTE: NOTE: not supported in Access Gateway mode
Brocade Power Pack+ Software Bundle (only supported with Brocade 8Gb SAN Switch)
NOTE:
NOTE:
NOTE: NOTE: to Power Pack. Includes bundled license for: 8-24 Port Adaptive Networking*, 8-24 Port ISL Trunking, Advanced Performance Monitoring*, Fabric Watch*, Extended Fabric*. NOTE:
NOTE:
NOTE: NOTE:
The above cables support the HP 1:10Gb Ethernet
These 4Gb Optical Transceivers support the
Only supported with Brocade 4Gb SAN Switch. For upgrading Brocade 4Gb Full Fabric switches
Power Pack features noted with an asterisk (*) are
For upgrading Brocade 8Gb Full Fabric switches
Power Pack features noted with an asterisk (*) are
453154-B21
453151-B21 443756-B21 443757-B21
443756 B21
443757 B21 444477-B21 444477-B22 444477-B23 444477-B27
A7446B
AE493A
AJ716A
AJ715A
AK870A
AN211A
T3573A
T5521A
DA - 12524 Worldwide — Version 11 — July 14, 2008
Page 20
QuickSpecs
Options
HP BladeSystem c-Class Interconnect Components
HP BladeSystem c-Class Interconnect Components
HP BladeSystem c-Class Interconnect ComponentsHP BladeSystem c-Class Interconnect Components
not supported in Access Gateway mode.
Cisco MDS 9000 4Gb FC SFP, Short Range Transceiver 500m, (4 Pack)
Cisco MDS 9000 4 Gb FC SFP 4km Medium Range Transceiver
Cisco MDS 9000 4 Gb FC SFP 10km Long Range Transceiver
NOTE:
NOTE:
NOTE: NOTE: box are optional and must be ordered separately. Fibre Channel ports on the MDS 9124e Fabric Switch may be configured to accept either Short Range, Medium Range, or Long Wave SFP optic transceivers. However, when ordering the MDS 9124e Fabric Switch, ports must be populated with above Cisco SFP optical transceiver options only (no substitutes allowed). Using other transceivers may void product warranty.
Brocade SAN Switch/Cisco 9124 Optical Cables
Brocade SAN Switch/Cisco 9124 Optical Cables
Brocade SAN Switch/Cisco 9124 Optical CablesBrocade SAN Switch/Cisco 9124 Optical Cables LC-LC OM3 type cables
LC-LC OM3 type cables
LC-LC OM3 type cablesLC-LC OM3 type cables .5 m LC-LC Multi-Mode OM3 Fibre Channel Cable 1 m LC-LC Multi-Mode OM3 Fibre Channel Cable 2 m LC-LC Multi-Mode OM3 Fibre Channel Cable 5 m LC-LC Multi-Mode OM3 Fibre Channel Cable 15 m LC-LC Multi-Mode OM3 Fibre Channel Cable 30 m LC-LC Multi-Mode OM3 Fibre Channel Cable 50 m LC-LC Multi-Mode OM3 Fibre Channel Cable LC-LC OM2 Type Cables
LC-LC OM2 Type Cables
LC-LC OM2 Type CablesLC-LC OM2 Type Cables 2 m LC-LC Multi-Mode Fibre Channel Cable 5 m LC-LC Multi-Mode Fibre Channel Cable 15 m LC-LC Multi-Mode Fibre Channel Cable 30 m LC-LC Multi-Mode Fibre Channel Cable 50 m LC-LC Multi-Mode Fibre Channel Cable LC-SC OM2 Type Cables
LC-SC OM2 Type Cables
LC-SC OM2 Type CablesLC-SC OM2 Type Cables 2 m LC-SC Multi-Mode Fibre Channel Cable 5 m LC-SC Multi-Mode Fibre Channel Cable 15 m LC-SC Multi-Mode Fibre Channel Cable 30 m LC-SC Multi-Mode Fibre Channel Cable 50 m LC-SC Multi-Mode Fibre Channel Cable
NOTE:
NOTE:
NOTE: NOTE: Brocade SAN and Cisco MDS 9124e Switches listed above.
Additional SFPs beyond what is included in the
The Optical cables listed above support the
AE379A
AE494A
AE380A
AJ833A AJ834A AJ835A AJ836A AJ837A AJ838A AJ839A
221692-B21 221692-B22 221692-B23 221692-B26 221692-B27
221691-B21 221691-B22 221691-B23 221691-B26 221691-B27
DA - 12524 Worldwide — Version 11 — July 14, 2008
Page 21
QuickSpecs
HP BladeSystem c-Class Interconnect Components
HP BladeSystem c-Class Interconnect Components
HP BladeSystem c-Class Interconnect ComponentsHP BladeSystem c-Class Interconnect Components
Options
Step 4: Select a HP BladeSystem c-Class power enclosure and power supplies based on configuration
Step 4: Select a HP BladeSystem c-Class power enclosure and power supplies based on configuration
Step 4: Select a HP BladeSystem c-Class power enclosure and power supplies based on configurationStep 4: Select a HP BladeSystem c-Class power enclosure and power supplies based on configuration
NOTE:
NOTE:
NOTE: NOTE:
http://h18004.www1.hp.com/products/blades/components/enclosures/c-class/c7000/index.html
Use c-Class sizing tool to help determine power configuration:
http://h30099.www3.hp.com/configurator/calc/Power%20Calculator%20Catalog.xls
NOTE:
NOTE:
NOTE:NOTE:
Step 5: Select power distribution (only required with 3U power enclosures)
Step 5: Select power distribution (only required with 3U power enclosures)
Step 5: Select power distribution (only required with 3U power enclosures)Step 5: Select power distribution (only required with 3U power enclosures)
NOTE:
NOTE:
NOTE:NOTE:
http://h18004.www1.hp.com/products/blades/components/enclosures/c-class/c7000/index.html
Service and Support
Service and Support
Service and SupportService and Support Offerings
Offerings
OfferingsOfferings (HP Care Pack Services)
For additional information on HP BladeSystem c-Class Infrastructure please visit:
Power enclosures and supplies are not needed if using facility DC (-48V ± 10%).
For additional information on HP BladeSystem c-Class Infrastructure please visit:
NOTE:
NOTE:
The HP Care Pack service part numbers below for ProLiant BL c-Class server
NOTE:NOTE: blades, cover the server blade and all HP branded hardware options qualified for the server, purchased at the same time or afterwards, internal to the server.
Hardware Services On-site Service
Hardware Services On-site Service
Hardware Services On-site ServiceHardware Services On-site Service 4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic 4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic 6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years,
Electronic Support Plus 24
Support Plus 24
Support Plus 24Support Plus 24 Onsite HW support 24x7, 4hr response and Microsoft O/S SW Tech support offsite,
onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
NOTE:
NOTE:
NOTE: NOTE: enclosure, power supplies and fans. HP qualified rack options are covered by these services when installed within the same rack. HP supported c-Class enclosure devices including pass thru, Ethernet interconnect and virtual connect modules are also covered by the c7000 enclosure Care Pack services.
NOTE:
NOTE:
NOTE:NOTE: year labor, 1 year on-site support.
NOTE:
NOTE:
NOTE:NOTE: covered under the c7000 and c3000 enclosure Care Packs, SAN/Fabric storage blade switches carry separate Care Packs. SAN/Fabric Blade Switch Care Pack service level support should always be uplifted to match existing storage or server service level.
Hardware Services On-site Service
Hardware Services On-site Service
Hardware Services On-site ServiceHardware Services On-site Service Next Business Day On-site Service, 5-Day x 9-Hour Coverage, 3 Years, Electronic
NOTE:
NOTE: Uplifts the Ethernet devices to the same level of warranty as the c-class
NOTE:NOTE: enclosure.
4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic 4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic 6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years,
Electronic Installation & Start-up Services
Installation & Start-up Services
Installation & Start-up ServicesInstallation & Start-up Services HP BladeSystem c-Class Infrastructure Installation and Startup Service, Electronic HP BladeSystem Enhanced Network Installation and Startup Service, Electronic
HP Care Pack services for the c7000 and c3000 enclosure cover the
SAN/Fabric storage blade switches Limited Warranty includes 1 year parts, 1
SAN/Fabric storage blade switches for the HP c-Class BladeSystem are not
UE458E UE459E UE460E
UE473E
UE477E
UE478E UE479E UE480E
UE602E UE603E
DA - 12524 Worldwide — Version 11 — July 14, 2008
Page 22
QuickSpecs
Options
HP BladeSystem c-Class Interconnect Components
HP BladeSystem c-Class Interconnect Components
HP BladeSystem c-Class Interconnect ComponentsHP BladeSystem c-Class Interconnect Components
ProLiant BL c-Class Blade Server Hardware Installation, Electronic ProLiant BL c-Class Enclosure and Server Blade Hardware Installation, Electronic
NOTE:
NOTE:
NOTE: NOTE:
http://www.hp.com/services/bladesystemservices
NOTE:
NOTE:
NOTE: NOTE: Blade.
Installation & Start-up Services
Installation & Start-up Services
Installation & Start-up ServicesInstallation & Start-up Services Hardware Installation, Electronic 4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
NOTE:
NOTE:
NOTE: NOTE: Adapter for c-Class BladeSystem.
Installation & Start-up Services
Installation & Start-up Services
Installation & Start-up ServicesInstallation & Start-up Services Hardware Installation, Electronic 4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
NOTE:
NOTE:
NOTE: NOTE: Blade.
Installation & Start-up Services
Installation & Start-up Services
Installation & Start-up ServicesInstallation & Start-up Services Hardware Installation, Electronic 4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
NOTE:
NOTE:
NOTE:NOTE: 12 Port SAN Switch and Brocade 4/24 SAN Switch.
Hardware Services On-site Service
Hardware Services On-site Service
Hardware Services On-site ServiceHardware Services On-site Service Hardware Installation, Electronic 4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, (12 port) Electronic 4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, (24 port) Electronic Support Plus
Support Plus
Support PlusSupport Plus Onsite Hardware support, 8am-9pm, M-F, 4-hour response and Software Technical
support offsite, onsite at HP's discretion, 8am-9pm, M-F 2-hour response time excluding HP holidays, Electronic
4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, (24 port) Electronic Support Plus 24
Support Plus 24
Support Plus 24Support Plus 24 Onsite Hardware support 24x7, 4-hour response and software Technical support
offsite, onsite at HP's discretion, 24x7 2-hour response time including HP holidays, Electronic
Software Installation and Start Up Services
Software Installation and Start Up Services
Software Installation and Start Up ServicesSoftware Installation and Start Up Services Provides for the Installation and Start-up of ProLiant Essentials Rapid Deployment
Pack, Electronic
NOTE:
NOTE:
NOTE: NOTE: Deployment Server. Includes the deployment of a single server. This new server will be deployed using either one of the pre-configured scripts or an image. In addition, the service will provide for the capture and storage of the configuration of the newly deployed server and orientation on product usage. To be delivered during standard office ours, standard office days.
Provides for the Installation and Start-up of Rapid Deployment Pack Implementation of Rapid Deployment Pack (Basic) (Electronic)
For more information, customer/resellers can contact:
The HP Care Pack service part numbers below covers the HP SB40c Storage
The HP Care Pack service part numbers below covers the HP InfiniBand
The HP Care Pack service part numbers below covers the HP Storage Tape
The HP Care Pack service part numbers below covers the HP Brocade 4Gb,
Provides installation on a Customer supplied server designated as a
UE493E UE494E
UF213E UF207E
HC046E
UA248E
U2090E H4622E
U5988E
UC009E
UE438E
UE728E
UC019E
UE729E
U5683E
UA042E
DA - 12524 Worldwide — Version 11 — July 14, 2008
Page 23
QuickSpecs
Options
HP BladeSystem c-Class Interconnect Components
HP BladeSystem c-Class Interconnect Components
HP BladeSystem c-Class Interconnect ComponentsHP BladeSystem c-Class Interconnect Components
Provides for the Installation and Start-up of System Insight Manager (Electronic) Provides for the Installation and Start-up of System Insight Manager Agents (Electronic) Provides for the Installation and Startup of Insight Control - Linux Edition Provides for the Installation and Startup of Virtual Machine Management & Server
Migration Pack Software Operating Environment Care Packs
Software Operating Environment Care Packs
Software Operating Environment Care PacksSoftware Operating Environment Care Packs
NOTE:
NOTE:
NOTE: NOTE:
http://www.hp.com/hps/carepack/services/
HP Proactive BladeSystem Service Care Pack
HP Proactive BladeSystem Service Care Pack
HP Proactive BladeSystem Service Care PackHP Proactive BladeSystem Service Care Pack 1 Year, HP Proactive BladeSystem Service
NOTE:
NOTE:
NOTE:NOTE:
http://www.hp.com/services/proactivebladeservice
For more information, customer/resellers can contact:
For more information, customer/resellers can contact:
UA041E UA040E
UF369E
UD546E
UG858E
DA - 12524 Worldwide — Version 11 — July 14, 2008
Page 24
QuickSpecs
HP BladeSystem c-Class Interconnect Components
HP BladeSystem c-Class Interconnect Components
HP BladeSystem c-Class Interconnect ComponentsHP BladeSystem c-Class Interconnect Components

Technical Specifications

For Technical Specifications for the HP BladeSystem c-Class Interconnect Components, please visit the QuickSpecs of the products listed below: HP 10Gb Ethernet BL-c Switch
http://h18000.www1.hp.com/products/quickspecs/12751_div/12751_div.html
HP 1:10 Gb Ethernet BL-c Switch:
http://h18000.www1.hp.com/products/quickspecs/12723_div/12723_div.html
Cisco Catalyst 3120 Blade Switches
http://h18000.www1.hp.com/products/quickspecs/13023_div/13023_div.html
Cisco Catalyst 3020 Blade Switch:
http://h18000.www1.hp.com/products/quickspecs/12515_div/12515_div.html
HP 1/10Gb Virtual Connect Ethernet Module for the c-Class BladeSystem:
http://h18000.www1.hp.com/products/quickspecs/12597_div/12597_div.html
HP GbE2c Layer2/3 Ethernet Blade Switch for c-Class BladeSystem:
http://h18000.www1.hp.com/products/quickspecs/12670_div/12670_div.html
HP GbE2c Ethernet Blade Switch for c-Class BladeSystem
http://h18000.www1.hp.com/products/quickspecs/12514_div/12514_div.html
Cisco MDS 9124e Fabric Switch for HP c-Class BladeSystem
http://h18000.www1.hp.com/products/quickspecs/12653_div/12653_div.html
Brocade 4Gb SAN Switch for HP c-Class BladeSystem
http://h18006.www1.hp.com/products/quickspecs/12480_div/12480_div.html
Brocade 8Gb SAN Switch for HP BladeSystem c-Class
http://h18006.www1.hp.com/products/quickspecs/13084_div/13084_div.html
QLogic QMH4062 1GbE iSCSI Adapter for HP BladeSystem c-Class
http://h18006.www1.hp.com/products/quickspecs/13083_div/13083_div.html
or
Environment-friendly
Environment-friendly
Environment-friendlyEnvironment-friendly Products and Approach
Products and Approach
Products and ApproachProducts and Approach
End-of-life Management
End-of-life Management
End-of-life ManagementEnd-of-life Management and Recycling
and Recycling
and Recyclingand Recycling
Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to
http://www.hp.com/go/green http://www.hp.com/go/green
Products returned to HP will be recycled, recovered or disposed of in a responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard web site at: be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment.
http://www.hp.com/go/green
. To recycle your product, please go to: or contact your nearest HP sales office.
. These instructions may
DA - 12524 Worldwide — Version 11 — July 14, 2008
Page 25
QuickSpecs
HP BladeSystem c-Class Interconnect Components
HP BladeSystem c-Class Interconnect Components
HP BladeSystem c-Class Interconnect ComponentsHP BladeSystem c-Class Interconnect Components
Technical Specifications
© Copyright 2008 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
Microsoft and Windows NT are US registered trademarks of Microsoft Corporation. Intel, the Intel logo, Xeon and Xeon Inside are trademarks of Intel Corporation in the U.S. and other countries.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
DA - 12524 Worldwide — Version 11 — July 14, 2008
Page 26
Loading...
