HP BladeSystem c-Class Infrastructure, BladeSystem c7000 Quickspecs

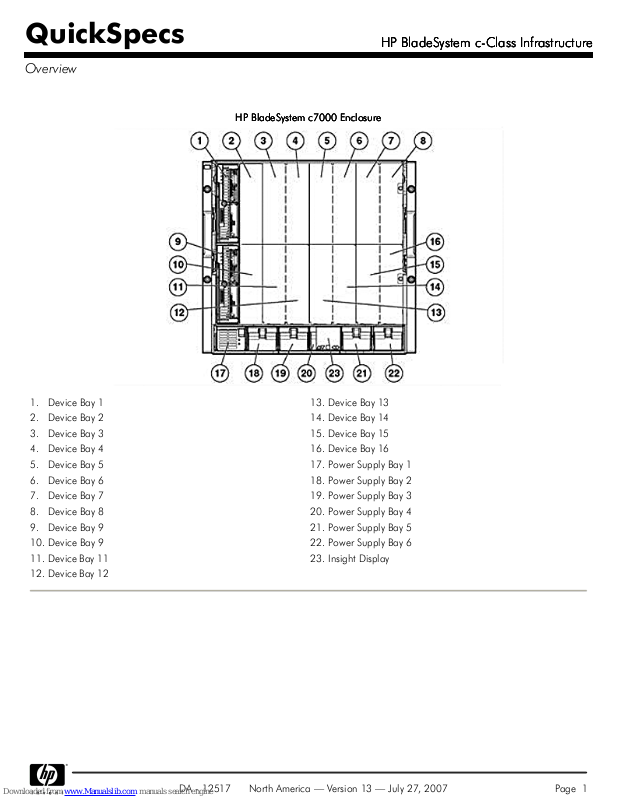

HP BladeSystem c7000 Enclosure

HP BladeSystem c7000 EnclosureHP BladeSystem c7000 Enclosure

HP BladeSystem c7000 Enclosure

1.

Device Bay 1

13.

Device Bay 13

2.

Device Bay 2

14.

Device Bay 14

3.

Device Bay 3

15.

Device Bay 15

4.

Device Bay 4

16.

Device Bay 16

5.

Device Bay 5

17.

Power Supply Bay 1

6.

Device Bay 6

18.

Power Supply Bay 2

7.

Device Bay 7

19.

Power Supply Bay 3

8.

Device Bay 8

20.

Power Supply Bay 4

9.

Device Bay 9

21.

Power Supply Bay 5

10.

Device Bay 9

22.

Power Supply Bay 6

11.

Device Bay 11

23.

Insight Display

12.

Device Bay 12

QuickSpecs

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class InfrastructureHP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Infrastructure

Overview

DA - 12517 North America — Version 13 — July 27, 2007

Page 1

HP BladeSystem c7000 Enclosure - Rear View

HP BladeSystem c7000 Enclosure - Rear ViewHP BladeSystem c7000 Enclosure - Rear View

HP BladeSystem c7000 Enclosure - Rear View

1.

Active Cool Fans & fan bays

3.

Onboard Administrator

2.

Interconnect Bays

4.

Power Inputs (single phase model shown)

HP ProLiant & Integrity

HP ProLiant & IntegrityHP ProLiant & Integrity

HP ProLiant & Integrity
Server Blades

Server BladesServer Blades

Server Blades

Delivering best-in-class performance, choice and reliability on AMD Opteron™, Intel® Xeon™, Intel®
Itanium 2™ and processors for Windows, Linux, or HP-UX based servers, the HP portfolio of server
blades supports a variety of application requirements for scale-out architectures. HP offers one-, two-,
and four-processor (dual-core or quad-core) server blades, including the widest range of performance,
and form factors, and the most processing density and performance of any other portfolio. This portfolio
of servers is designed for 32-bit and 64-bit applications.
For more information please see:

http://h18000.www1.hp.com/products/quickspecs/North_America/12534.html

What's New

What's NewWhat's New

What's New

Larger 3 inch display for better viewing angle
Insight Control Environment including RDP, Insight Power Manager, iLO Select License and Virtual Machine Manager
PCI Expansion blade to support additional third-part PCI or PCI-E cards.
Zoned cooling support for better power consumption and greater reliability.
7x24 Phone and free upgrade support included for 1 Year with all software products.

At A Glance

At A GlanceAt A Glance

At A Glance

QuickSpecs

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class InfrastructureHP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Infrastructure

Overview

DA - 12517 North America — Version 13 — July 27, 2007

Page 2

This document covers the HP BladeSystem c-Class Infrastructure only. For more information on HP ProLiant Server Blades and HP
BladeSystem c-Class Interconnect Components please see the following QuickSpecs:
HP ProLiant Server Blades:

http://h18000.www1.hp.com/products/quickspecs/North_America/11070.html

HP BladeSystem c-Class Interconnect QuickSpecs:

http://h18000.www1.hp.com/products/quickspecs/12524_na/12524_na.HTML

HP BladeSystem solutions start with a c7000 Enclosure, with optional c7000 hot-plug power supplies, HP Active Cool Fans, and an
optional redundant Onboard Administrator module. Once the enclosure has been selected, the following components can be
added: networking interconnect modules, HP ProLiant and Integrity Server Blades, and Insight Control management tools. Reference
the QuickSpecs listed above.

For additional information please visit:

http://h18004.www1.hp.com/products/blades/components/components.html

Protected by HP Services and a worldwide network of resellers and service providers. Three-year, on-site limited global warranty.
Certain restrictions and exclusions apply. Pre-Failure Notification on processors, memory, and SCSI hard drives.

QuickSpecs

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class InfrastructureHP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Infrastructure

Overview

DA - 12517 North America — Version 13 — July 27, 2007

Page 3

NOTE:

NOTE: NOTE:

NOTE:

For a brief, printer friendly data sheet that describes this product and informs you of the essential capabilities and

specifications, please visit:

http://h71028.www7.hp.com/ERC/downloads/4AA0-5978ENW.pdf

HP BladeSystem Overview

HP BladeSystem OverviewHP BladeSystem Overview

HP BladeSystem Overview

As server, storage and network technologies have changed; traditional rack-mounted infrastructure
solutions have generated increased complexity of both infrastructure management and physical
datacenter deployment.

HP BladeSystem is the evolution of the entire rack-mounted infrastructure. A BladeSystem reduces costs
and simplifies the management, building, and maintenance of the infrastructure behind your multi-server
environment. It consolidates and repackages all the supporting infrastructure elements-compute,
storage, network, and power into a single platform that can accelerate the integration and optimization
of your data center.

With the flexibility to scale from a single enclosure holding up to 16 blades, to a rack containing 4
enclosures holding up to 64 blades, the c-Class infrastructure is designed to meet the needs of today's
businesses.

An HP BladeSystem c-Class infrastructure is made up of several components:

ProLiant and Integrity Server blades for Windows, Linux, and HP UX.
Choice of AMD or Intel processors, including the latest dual-core processors for 32-bit and 64-bit
applications.
HP BladeSystem c-Class enclosure that provides connectivity, power, and cooling options. The c­Class enclosure is designed for full redundancy and high availability. Redundant power, cooling,
enclosure management, and interconnect modules are part of the standard enclosure design.
Onboard Administrator module which provides a single point of control for intelligent
management of the entire enclosure.
Insight Display powered by the Onboard Administrator provides local management through an
LCD display conveniently sited on the front of the system.
Ethernet, Fibre Channel, InfiniBand, iSCSI, and other interconnect choices
A power subsystem that provides hot-plug redundant power modes and Dynamic Power Saving
mode, which uses up to 22% less power than traditional rack-mounted servers.
PARSEC (Parallel, Redundant, Scaleable, Enclosure Cooling) architecture: for maximum cooling
that consumes less power and reduces datacenter noise.
Zoned cooling that allows only those fans that are required to speed up, reducing power
consumption noise and airflow through the system.
Direct-attach storage blades, tape blades, or future shared storage blades, which will provide
block-based shared storage capacity for the server blades in the enclosure.

QuickSpecs

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class InfrastructureHP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Overview

DA - 12517 North America — Version 13 — July 27, 2007

Page 4

HP BladeSystem c-Class

HP BladeSystem c-ClassHP BladeSystem c-Class

HP BladeSystem c-Class
c7000 Enclosure

c7000 Enclosurec7000 Enclosure

c7000 Enclosure

A BladeSystem c7000 enclosure holds up to 16 server and/or storage blades plus redundant network
and storage switches. It includes a shared, multi-terabit high-speed mid-plane for wire-once connectivity
of server blades to network and shared storage. Power is delivered through a pooled power backplane
that ensures the full capacity of the hot-plug power supplies is available to all blades.

Each c7000 enclosure is built with the following functions:

Up to 16 half-height and/or up to 8 full-height server blades and/or storage blades per
enclosure.
Up to 4 different interconnect fabrics (Ethernet, FC, IB, iSCSI, SAS, etc.) supported simultaneously
within the enclosure.
Choice of a single-phase or a three-phase power subsystem - for flexibility in connecting to
datacenter power.
PARSEC enclosure design - Parallel, redundant and scalable cooling and
airflow design
Four (4) or Six (6) Active Cool fans as standard. For redundancy and improved power
consumption and acoustics; additional Active Cool Fan kits can be added for a maximum of 10
fans
Fully redundant design-redundant interconnections between servers and interconnect modules; a
mid-plane with no active components; redundant cooling using hot-plug Active Cool fans; hot­plug power supplies.
Best performance per watt - lower wattage per server blade, in comparison to rack-mounted
servers
Full AC redundancy - with no power zones.
Redundant Onboard Administrator management modules (optional active-standby design)

An Onboard Administrator management module is built in to the enclosure with the following functions:

Robust, multiple enclosure setup and control.
Reports asset and inventory information for the devices in the enclosure.
Reports thermal and power information, including real-time actual power usage per server and
per enclosure.
Front-mounted Insight Display for easy management within the datacenter.
Integrated access to all server blade iLOs from a single cable.
Provides integrated access to interconnect bay device management ports from the single Onboard
Administrator cable.
Single sign-on capability for all devices in the enclosure
Role-based security locally and/or with LDAP directory services.
Provides a wizard-based initial setup process for easy configuration.

A BladeSystem c7000 enclosure provides the following benefits:

With local and remote hardware management integrated across the solution, one full enclosure
can be managed as easily as one server.
Scalable: Management and network interconnects extend scalability beyond a single enclosure,
allowing resources to be pooled and shared across multiple enclosures.
Investment protection: Accommodates multiple server and network designs in one enclosure.
Lower costs per server, in comparison to rack-mounted servers
Lower power consumption, in comparison to rack-mounted servers

QuickSpecs

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class InfrastructureHP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Overview

DA - 12517 North America — Version 13 — July 27, 2007

Page 5

HP ProLiant & Integrity

HP ProLiant & IntegrityHP ProLiant & Integrity

HP ProLiant & Integrity
Server Blades

Server BladesServer Blades

Server Blades

Delivering best-in-class performance, choice and reliability on AMD Opteron™, Intel® Xeon™, Intel®
Itanium 2™ and processors for Windows, Linux, or HP-UX based servers, the HP portfolio of server
blades supports a variety of application requirements for scale-out architectures. HP offers one-, two-,
and four-processor (dual-core) server blades, including the widest range of performance, and form
factors, and the most processing density and performance of any other portfolio. This portfolio of servers
is designed for 32-bit and 64-bit applications.
For more information please see:

http://h18000.www1.hp.com/products/quickspecs/North_America/12534.html

HP SB40c Storage Blade

HP SB40c Storage BladeHP SB40c Storage Blade

HP SB40c Storage Blade

The StorageWorks SB40c is a half-height c-Class storage blade featuring support for up to six hot-plug
Small Form Factor (SFF) Serial Attached SCSI (SAS) or Serial ATA (SATA) hard disk drives. The SB40c
connects directly to the adjacent server blade to provide up to 876GB additional storage capacity to that
blade. For maximum fault tolerance the SB40c uses supports hardware RAID 0, 1, 1+0, 5, and 6
(ADG), using the onboard Smart Array P400 with up to 256MB of battery-backed write cache.
For more information please see:

http://h18000.www1.hp.com/products/quickspecs/12587_na/12587_na.HTML

HP StorageWorks Ultrium

HP StorageWorks UltriumHP StorageWorks Ultrium

HP StorageWorks Ultrium
448 Tape Blade

448 Tape Blade448 Tape Blade

448 Tape Blade

The HP StorageWorks Ultrium 448c Tape Blade is ideal for HP BladeSystem c-Class customers who
need a data protection solution but are not connected into a Storage Area Network (SAN). This tape
blade provides direct attach data protection for the adjacent server and network backup protection for
all other data within the enclosure. The HP Ultrium 448c Tape Blade is the first HP StorageWorks tape
product developed exclusively for the BladeSystem c-Class enclosures. For more information, please visit

http://h18000.www1.hp.com/products/quickspecs/12729_na/12729_na.HTML

.

HP BladeSystem c-Class

HP BladeSystem c-ClassHP BladeSystem c-Class

HP BladeSystem c-Class
Interconnect Options

Interconnect OptionsInterconnect Options

Interconnect Options

HP also offers one of the broadest selections of interconnect fabric options in the industry to provide
network, SAN/network attached storage (NAS), and cluster connectivity.

HP BladeSystem interconnects provide:

Virtual Connect Ethernet and Fibre Channel to simply connections moves and changes in both the
Ethernet and SAN environment.
Seamless integration of Ethernet, FC, InfiniBand, iSCSI, and SAS fabrics: Standard-based switch
options include Cisco, Brocade, and HP (BNT) products that integrate within your existing
standards.
Built-in redundancy: Rear-mounting interconnect modules designed for redundant
interconnections between server blades and switches.
Cable reduction: Interconnect switches provide up to 32-to-1 network cable reductions per server
blade enclosure

For more information HP BladeSystem c-Class Interconnect Components, please visit:

http://h18000.www1.hp.com/products/quickspecs/12524_na/12524_na.HTML

QuickSpecs

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class InfrastructureHP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Overview

DA - 12517 North America — Version 13 — July 27, 2007

Page 6

Factory Express Portfolio

Factory Express PortfolioFactory Express Portfolio

Factory Express Portfolio
for Servers and Storage

for Servers and Storagefor Servers and Storage

for Servers and Storage

HP Factory Express offers configuration, customization, integration and deployment services for HP
servers and storage products. Customers can choose how their factory solutions are built, tested,
integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex
configuration and design services as well as individual factory services, such as image loading, asset
tagging and custom packaging. HP products supported through Factory Express include: a wide array of
servers and storage: HP Integrity, HP ProLiant & HP ProLiant & Integrity Server Blades, HP BladeSystem,
HP 9000 servers as well as the MSA1000, VA7xxx, EVA, XP, rackable tape libraries and configurable
network switches.

For more information on Factory Express services for your specific server model please contact your sales
representative or go to

http://www.hp.com/go/factory-express

Insight Control

Insight ControlInsight Control

Insight Control
Environment for

Environment forEnvironment for

Environment for
BladeSystem

BladeSystemBladeSystem

BladeSystem

Starting July 9, 2007, HP Insight Control management suites and most HP ProLiant Essentials will
include one year of 24 x 7 HP Software Technical Support and Update Service ensuring rapid access to
HP support staff and proactive delivery of software updates. From more information about this service,
please visit:

http://www.hp.com/services/insight

.

Insight Control Environment for BladeSystem delivers foundation management for HP BladeSystem
lifecycles, including hardware resource deployment, health monitoring, software version control,
performance monitoring, vulnerability scanning and patch management.

Installs and licenses the following components by default using a wizard-based integrated installer:

HP Systems Insight Manager
HP iLO Select Pack
HP Insight Power Manager
HP ProLiant Essentials Rapid Deployment Pack
HP ProLiant Essentials Performance Management Pack
HP ProLiant Essentials Vulnerability and Patch Management Pack
HP ProLiant Essentials Virtual Machine Management Pack

Additional ProLiant Essentials software and management tools included on the Insight Control
Management DVD can be installed manually.

Server Migration Pack
HP Open Service Event Manager
HP Instant Support Enterprise Edition

NOTE:

NOTE:NOTE:

NOTE:

Server Migration Pack - Physical to ProLiant Edition can be installed from the SMP-P2P CD

included in the Insight Control Management media kit.

NOTE:

NOTE:NOTE:

NOTE:

Insight Control Data Center Edition can be installed from the Insight Control Management DVD,
which can be delivered with HP BladeSystem c-Class enclosures with a choice of licensing options.
Licensing options include a free 30 day evaluation license for 8 servers (default option for every
enclosure order), a full purchased license for 8 blade servers or a full purchased license for 16 blade
servers). For additional information on HP c-Class Infrastructure please visit: HP BladeSystem c-Class
Infrastructure QuickSpecs:

http://h18000.www1.hp.com/products/quickspecs/12517_na/12517_na.HTML

NOTE:

NOTE:NOTE:

NOTE:

For additional product and licensing information about Insight Control Environment for
BladeSystem, HP Systems Insight Manager and Essentials software refer to

http://www.hp.com/servers/proliantessentials

.

QuickSpecs

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class InfrastructureHP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Overview

DA - 12517 North America — Version 13 — July 27, 2007

Page 7

HP Insight Control Linux

HP Insight Control LinuxHP Insight Control Linux

HP Insight Control Linux
Edition

EditionEdition

Edition

HP Insight Control Linux Edition for HP BladeSystem is a blade-centric Linux management and
deployment software package that provides administration and control of HP BladeSystem servers. It is
the latest version of what was formerly known as HP Control Tower. This software is built on Linux and
open source components and delivers deployment and in-depth management of HP BladeSystem
ProLiant servers.

The HP Insight Control Linux Edition provides these key capabilities:

Easy to use interface that is tailored to the specific tasks and operations unique to blade and Linux
users
Discovery, health monitoring and alerting, and control operations for HP BladeSystem through a
secure, web-based console
Easy to use, flexible task chain operations for deployment and change management tasks
One to many operating system provisioning of HP BladeSystem c-Class and p-Class servers
Detailed blade rack visualization combined with an interface to HP BladeSystem Onboard
Administrator (OA) enclosure management module and HP's Integrated Lights-Out (iLO) and iLO
2 remote management processor
Secure and separate management network unites deployment, monitoring and remote
management for all types of customer networking environments
Modular design provides easy extensibility for future additions and functionality

NOTE:

NOTE: NOTE:

NOTE:

Insight Control Linux Edition can be delivered with HP BladeSystem c--Class enclosures with a
choice of licensing options, which include a free 30-day evaluation license for 8 servers (default option
for every enclosure order), a full purchased license for 8 blade servers or a full purchased license for 16
blade servers).

HP Software Support

HP Software SupportHP Software Support

HP Software Support

Starting in July 2007, HP Insight Control Environment for BladeSystem and Insight Control Linux Edition
will include one year of 24 x 7 HP Software Technical Support and Update Service. This service provides
access to HP technical resources for help in resolving software implementation or operations problems.
The service also provides access to software updates and reference manuals either in electronic form or
on physical media as they are made available from HP.

With this service, HP Insight Control Environment for BladeSystem and Insight Control Linux Edition
customers will benefit from expedited problem resolution and proactive notification and delivery of

http://www.hp.com/go/ice

software updates.

To activate your HP Software Technical Support and Update Service for HP Insight Control Environment
for BladeSystem and Insight Control Linux Edition, you must register your software purchase through the
HP website at

http://www.hp.com/services/insight

.

Failure to register your service will jeopardize service fulfillment.

Your Service Agreement Identifier (SAID) will be delivered to you after registration. After you have
received your SAID, you can go to the software update manager (SUM) web page to view your contract
online and elect electronic delivery (in addition to standard media-based updates). For more information
about this service, see

http://www.hp.com/services/insight

.

QuickSpecs

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class InfrastructureHP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Overview

DA - 12517 North America — Version 13 — July 27, 2007

Page 8

Unified Core Services and

Unified Core Services andUnified Core Services and

Unified Core Services and
Flexible

FlexibleFlexible

Flexible
Software Extensions

Software ExtensionsSoftware Extensions

Software Extensions

HP Systems Insight
Manager

HP Systems Insight Manager (HP SIM) provides a unified, secure and
extensible standards-based environment to centrally manage servers, storage
and other infrastructure devices, (both HP and non-HP) across multiple
operating system platforms.

ProLiant Essentials Rapid
Deployment Pack

Rapid Deployment Pack (RDP) extends HP Systems Insight Manager with a
complete deployment solution for HP ProLiant blade servers. RDP provides a
central location to configure server hardware, deploy Windows, Linux and
VMware ESX operating environments and install HP ProLiant Support Pack
drivers using images and scripted profiles.

ProLiant Essentials
Performance Management
Pack

Performance Management Pack (offered exclusively through the Insight
Control suites) - a performance management solution that identifies and
explains hardware performance bottlenecks on ProLiant servers and attached
options enabling users to better utilize their valuable resources.

Insight Management
Agents

The Insight Management Agents should be installed on all HP servers to
present system instrumentation, health and configuration information into HP
Systems Insight Manager and the HP System Management Homepage. The
HP System Management Homepage aggregates systems data from Insight
Management Agents and other HP management tools, providing a
consolidated browser-based interface for managing individual servers.

Insight Management Agents and The HP System Management Homepage
are included on ProLiant Support Packs, and can also be installed using the
server profiles provided with the ProLiant Essentials Rapid Deployment Pack

For additional information about the Management Agents and the HP System
Management Homepage please visit the management Web site at

http://www.hp.com/servers/manage

.

Subscriber's Choice

Subscriber's Choice Driver and Support Alerts/Notifications is a web-based
email subscription service that provides software and driver change
notifications for ProLiant products. Sign up at

http://www.hp.com/go/subscriberschoice

and customize your profile to receive various new alerts as they become
available, on a weekly or monthly basis.

ProLiant Support Packs
and ROMPaq, software

The latest software, drivers, and firmware fully optimized and tested for your
ProLiant server and options, available through ProLiant Support Packs the
ProLiant Essentials Rapid Deployment Pack, SmartStart or downloaded from
Software and Drivers download pages website at

http://www.hp.com/go/support

.

QuickSpecs

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class InfrastructureHP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Overview

DA - 12517 North America — Version 13 — July 27, 2007

Page 9

Optional ProLiant

Optional ProLiantOptional ProLiant

Optional ProLiant
Essentials Value Packs

Essentials Value PacksEssentials Value Packs

Essentials Value Packs

Optional software offerings that selectively extend the functionality of an Adaptive Infrastructure to
address specific business problems and needs:

Integrated Lights-Out Select Pack - upgrades the Integrated Lights-Out processor with scripted and
command line virtual media, Power Regulator reporting and enterprise security
Virtualization Management Software - Get the most out of server virtualization by unifying the
management of physical and virtual servers in HP Systems Insight Manager. The Virtual Machine
Management Pack plug-in provides central management and control of VMware and Microsoft
virtual machines and provides physical host to virtual machine association. The Server Migration
Pack plug-in automates the manual task of migrating servers between physical or virtual
platforms.

NOTE:

NOTE: NOTE:

NOTE:

Flexible and volume quantity license kits are available for ProLiant Essentials Value Packs. Refer
to

http://www.hp.com/servers/proliantessentials

or the various ProLiant Essentials Value Pack product

QuickSpecs for more information.

HP Enterprise

HP EnterpriseHP Enterprise

HP Enterprise
Configurator

ConfiguratorConfigurator

Configurator

The HP eCo-Enterprise Configurator now provides factory default racking for our HP hardware portfolio.
This approach is aligned with our strategic direction to meet the needs and expectations of our valued
customers. If you require "custom" rack configuration, please contact HP's Customer Business Center or
an Authorized Partner for assistance.

HP BladeSystem Power

HP BladeSystem PowerHP BladeSystem Power

HP BladeSystem Power
Sizer

SizerSizer

Sizer

The HP BladeSystem Power Sizer helps in sizing the power infrastructure needed for a HP BladeSystem
solution. This sizer enables effective planning for the power consumption and heat load of the
BladeSystem at its site.

The sizer enables you to:

Select the type and number of components within each Blade Server and Blade Enclosure.
View the effect of component changes on the power consumption and heat loading.
Review server loading and determine power supply and power subsystem requirements.
Approximate electrical and heat load for facilities planning purposes.

The sizing estimate is based on component level power measurements for a system stressed to maximum
capability.

Values obtained from the BladeSystem Sizer tool are measured with all components stressed to 100%
load and are intended for facilities planning purposes only. Actual power consumption varies with
application type, application utilization, and ambient temperature.

The p-class BladeSystem and the c-Class BladeSystem solutions are supported in the BladeSystem Power
Sizer.

Available at

http://www.hp.com/go/bladesystem/powercalculator

Service and Support

Service and SupportService and Support

Service and Support

This product is covered by a global limited warranty and supported by HP Services and a worldwide
network of resellers and service providers. Hardware diagnostic support and repair is available for three
years from date of purchase. Support for software and initial setup is available for 90 days from date of
purchase. Additional support may be covered under the warranty or available for an additional fee.
Enhancements to warranty services are available through HP Care Pack services or customized service
agreements.

NOTE:

NOTE: NOTE:

NOTE:

Server Blade Limited Warranty includes 3 year Parts, 3 year Labor, 3-year on-site support. This

QuickSpecs

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class InfrastructureHP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Overview

DA - 12517 North America — Version 13 — July 27, 2007

Page 10

warranty supports the HP ProLiant BL460c, BL465c, BL480c and BL685c Server Blades.
NOTE:

NOTE:NOTE:

NOTE:

Server Blade Enclosure Limited Warranty includes 3 year Parts, 3 year Labor, 3-year on-site
support.
NOTE:

NOTE:NOTE:

NOTE:

Server Blade Interconnect Limited Warranty includes 1 year Parts, 1 year Labor, 1-year on-site
support
NOTE:

NOTE:NOTE:

NOTE:

Server Warranty includes 3 year Parts, 3 year Labor, 3-year on-site support. Additional
information regarding worldwide limited warranty and technical support is available at:

http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html

The HP Care Pack service part numbers below for ProLiant BL c-Class (or p-Class) server blades, cover
the server blade and all HP branded hardware options qualified for the server, purchased at the same
time or afterwards, internal to the server.

HP Care Pack services for the c7000 Enclosure cover the enclosure, power supplies and fans. HP
qualified rack options are covered by these services when installed within the same rack. HP supported
c-Class enclosure devices including pass thru, Ethernet interconnect and virtual connect modules are
also covered by the c7000 enclosure Care Pack services.

HP services provide continuous care and support expertise with committed response designed to meet
your IT and business needs.

To fully capitalizing on your HP BladeSystem servers' capabilities requires a service partner who
thoroughly understands your server technology and systems environment. HP Services, an industry leader
in provision of multi vender support solutions provides a range of support services designed to meet the
varying needs of business. Whether an SMB or large global corporation HP has a HP BadeSystem server
support offer to help you speedily deploy and maximize system uptime.

Enhanced Care - Minimum recommended service support offer designed to ensure customers have
access to expert assistance, whenever they need it.

4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years.

Continuance Care - Recommended service delivering cost-effective support options designed to extend
HP Services committed response and guaranteed fix times, designed to speed problem identification and
resolution.

4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years.

Total Care - Highest HP Support service level recommend to help increase IT performance and
availability with comprehensive, integrated hardware and software services

Support Plus 24 - Onsite HW support 24x7, 4hr response and Microsoft O/S SW Tech support
offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays.

Deployment Services - HP Installation and Start Up services designed to take time, risk, and worry out of
the deployment of HP BladeSystem servers - and free customers IT support staff to focus on what they do
best, their business.

Installation & Start-Up service for HP BladeSystem Infrastructure plus HP BladeSystem Enhanced
Network Installation and Start-UP as per the Customer Description and/or Data Sheet. To be
delivered on a scheduled basis 8am-5pm, M-F, excl. HP holidays

For a complete listing of service offerings and information visit:

http://www.hp.com/services/bladesystemservices
http://www.hp.com/go/proliant/carepack

QuickSpecs

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class InfrastructureHP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Overview

DA - 12517 North America — Version 13 — July 27, 2007

Page 11

For a complete configuration of the HP BladeSystem, please do the following:

Step 1: Select desired model, configuration and quantity of HP ProLiant server and Storage blades

Step 1: Select desired model, configuration and quantity of HP ProLiant server and Storage bladesStep 1: Select desired model, configuration and quantity of HP ProLiant server and Storage blades

Step 1: Select desired model, configuration and quantity of HP ProLiant server and Storage blades

NOTE:

NOTE: NOTE:

NOTE:

For server blade information, please visit:

http://h18000.www1.hp.com/products/quickspecs/North_America/12534.html

NOTE:

NOTE:NOTE:

NOTE:

For Storage Blade information, please visit:

http://h18000.www1.hp.com/products/quickspecs/12587_na/12587_na.HTML

Step 2: Determine quantity of HP BladeSystem c-Class Enclosures to purchase and choose Required Options

Step 2: Determine quantity of HP BladeSystem c-Class Enclosures to purchase and choose Required OptionsStep 2: Determine quantity of HP BladeSystem c-Class Enclosures to purchase and choose Required Options

Step 2: Determine quantity of HP BladeSystem c-Class Enclosures to purchase and choose Required Options

(One of the

following from each list unless otherwise noted):

NOTE:

NOTE: NOTE:

NOTE:

Each HP BladeSystem c-Class Server Blade Enclosure holds up to 16 half-height blades. Server blanks will be shipped in all

empty bays.

Base Server Blade Enclosure Configuration

Base Server Blade Enclosure ConfigurationBase Server Blade Enclosure Configuration

Base Server Blade Enclosure Configuration

HP BladeSystem BLc7000

HP BladeSystem BLc7000HP BladeSystem BLc7000

HP BladeSystem BLc7000
c-Class Server Blade

c-Class Server Bladec-Class Server Blade

c-Class Server Blade
Enclosures

EnclosuresEnclosures

Enclosures

HP BLc7000 CTO Enclosure

NOTE:

NOTE:NOTE:

NOTE:

CTO model includes 1x Onboard Administrator, 4x Active Cool Fans and 0x
power supplies.

412152-B22

Required Options (one of the following from each category unless otherwise noted)

Required Options (one of the following from each category unless otherwise noted)Required Options (one of the following from each category unless otherwise noted)

Required Options (one of the following from each category unless otherwise noted)

c-Class Power Modules (1

c-Class Power Modules (1c-Class Power Modules (1

c-Class Power Modules (1
per enclosure)

per enclosure)per enclosure)

per enclosure)

HP BLc7000 Single Phase Power Module, FIO

413379-B21

HP BLc7000 Three Phase Power Module, FIO

413380-B21

c-Class Power Supply

c-Class Power Supplyc-Class Power Supply

c-Class Power Supply

HP c7000 Enclosure Hot-Plug Power Supply Option Kit (supplied with IEC C20 - C19
jumper cord)

NOTE:

NOTE: NOTE:

NOTE:

If Three Phase Power Module selected, a minimum of 3 Power Supply Option

Kits are needed. For full redundancy 6 Power Supply Option Kits are required

412138-B21

c-Class Active Cool Fan

c-Class Active Cool Fanc-Class Active Cool Fan

c-Class Active Cool Fan

HP Active Cool Fan Option Kit

NOTE:

NOTE:NOTE:

NOTE:

A minimum of 4 Active Cool fans is required, 8 Active Cool fans can support
a full blade enclosure, 10 Active Cool fans should be ordered for reduced power
consumption and noise reduction.
NOTE:

NOTE:NOTE:

NOTE:

Single-Phase models may require additional power supplies. Fans should be
added to provide redundancy, reduce power consumption and reduce noise.
NOTE:

NOTE: NOTE:

NOTE:

Three-Phase models require a minimum of 6 Active Cool fans.

412140-B21

Step 2A: Select other factory integratable enclosure options:

Step 2A: Select other factory integratable enclosure options:Step 2A: Select other factory integratable enclosure options:

Step 2A: Select other factory integratable enclosure options:
Enclosure Options

Enclosure OptionsEnclosure Options

Enclosure Options

HP BLc7000 Insight Control Linux Edition 16 License, including 1 year of 24x7
Technical Support and Updates, FIO

441604-B22

HP BLc7000 Insight Control Environment For BladeSystem 16 License, including 1
year of 24x7 Technical Support and Updates, FIO

417688-B22

HP BLc7000 Insight Control Environment For BladeSystem 8 License, including 1 year
of 24x7 Technical Support and Updates, FIO

439034-B22

Step 3: Select an interconnect kit.

Step 3: Select an interconnect kit.Step 3: Select an interconnect kit.

Step 3: Select an interconnect kit.
A pair of interconnects must be order if redundancy is required. For additional information on Interconnect Options, please visit:
HP BladeSystem c-Class Interconnect QuickSpecs:

http://h18000.www1.hp.com/products/quickspecs/12524_na/12524_na.HTML

QuickSpecs

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class InfrastructureHP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Infrastructure

Configuration Information Factory Integrated Models

DA - 12517 North America — Version 13 — July 27, 2007

Page 12

HP BladeSystem

HP BladeSystemHP BladeSystem

HP BladeSystem
c-Class Ethernet

c-Class Ethernetc-Class Ethernet

c-Class Ethernet
Interconnects

InterconnectsInterconnects

Interconnects

HP 4Gb Virtual Connect Fibre Channel Module for c-Class BladeSystem

409513-B21

HP 1Gb Virtual Connect Ethernet Module for c-Class BladeSystem

399593-B22

Ethernet Pass-Through Module for HP BladeSystem

406740-B21

Cisco Catalyst Blade Switch 3020 for HP c-Class BladeSystem

410916-B21

GbE2c Ethernet Blade Switch for HP c-Class BladeSystem

410917-B21

GbE2 Layer 2/3 Ethernet Blade Switch for HP c-Class BladeSystem

438030-B21

HP 1:10 Gb Ethernet BL-c Switch

438031-B21

HP 10Gb Ethernet BL-c Switch

NOTE:

NOTE: NOTE:

NOTE:

The purchase the HP 10Gb Ethernet BL0c Switch, also requires the purchase
of one (1) HP NC512m Dual Port 10GbE Multifunction BL-c Adapter (P/N 440910­B21) per server blade that requires 10Gbit support.

445860-B21

NOTE:

NOTE:NOTE:

NOTE:

The HP BladeSystem c-Class Network Interconnects ship as single units. The

above interconnects must be ordered in quantities of two for redundancy support.

HP BladeSystem

HP BladeSystemHP BladeSystem

HP BladeSystem
c-Class FC SAN

c-Class FC SANc-Class FC SAN

c-Class FC SAN
Interconnects

InterconnectsInterconnects

Interconnects

HP 4Gb Virtual Connect Fibre Channel Module for c-Class BladeSystem

409513-B21

16 port FC Pass-thru Module for c-Class BladeSystem

403626-B21

HP Brocade 4/12 SAN Switch

AE370A

HP Brocade 4/24 SAN Switch Power Pack

AE371A

HP Brocade 4/24 SAN Switch

AE372A

HP Brocade 4/12 SAN Switch Upgrade LTU

AE373A

Cisco MDS 9124e 12-port Fabric Switch

AG641A

Cisco MDS 9124e 24-port Fabric Switch

AG642A

Cisco MDS 9124e 12-port Upgrade LTU

T5169A

HP BladeSystem

HP BladeSystemHP BladeSystem

HP BladeSystem
InfiniBand Interconnects

InfiniBand InterconnectsInfiniBand Interconnects

InfiniBand Interconnects

HP 4X DDR IB Switch Module for HP c-Class BladeSystem

410398-B21

Step 4: Select rack power distribution for single-phase models

Step 4: Select rack power distribution for single-phase modelsStep 4: Select rack power distribution for single-phase models

Step 4: Select rack power distribution for single-phase models

NOTE:

NOTE: NOTE:

NOTE:

A pair of PDUs must be ordered for AC Feed redundancy.

HP Monitored Power

HP Monitored PowerHP Monitored Power

HP Monitored Power
Distribution Unit

Distribution UnitDistribution Unit

Distribution Unit

HP 17.3 kVA S348 Monitored PDU- single input, 3-phase, 60A

AF916A

HP Modular Power

HP Modular PowerHP Modular Power

HP Modular Power
Distribution

DistributionDistribution

Distribution
Units

UnitsUnits

Units

HP 8.6 kVA Modular PDU 24A 3Ø Core Only**

AF512A

HP 8,3k VA Modular PDU 40 Amp Core Only**

252663-D75

HP 4.9kVA Modular PDU 24 Amp Core Only**

252663-D74

**The Modular Distribution Unit Kits excludes the extension bars as they are not
required with the HP BladeSystem

HP Two C-13 PDU Extension Bars

AF500A

NOTE:

NOTE:NOTE:

NOTE:

Each extension bar has a C19 input and 7 C13 receptacles. The option is
ideal for model S348, and, model S332, which both have only C19 outlets (12) and
for all Core Only Modular PDUs.

QuickSpecs

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class InfrastructureHP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Infrastructure

Configuration Information Factory Integrated Models

DA - 12517 North America — Version 13 — July 27, 2007

Page 13

HP BladeSystem

HP BladeSystemHP BladeSystem

HP BladeSystem
c-Class Server Blade

c-Class Server Bladec-Class Server Blade

c-Class Server Blade
Enclosures

EnclosuresEnclosures

Enclosures

HP BLc7000 Single Phase Enclosure with 2 Power Supplies and 4 Fans with 16 Insight
Control Linux Edition Licenses

441908-B22

HP BladeSystem c7000 Enclosure, Single-Phase with 2 Power Supplies, 4 Fans with
16 Insight Control Environment Licenses

403321-B22

HP BladeSystem c7000 Enclosure, Three-Phase with 6 Power Supplies, 6 Fans with 16
Insight Control Environment Licenses

412136-B22

HP BladeSystem c7000 Enclosure, Single-Phase with 2 Power Supplies, 4 Fans with 8
Insight Control Environment 30 Day Trial Licenses

403320-B22

HP BladeSystem c7000 Enclosure, Three-Phase with 6 Power Supplies,6 Fans with 8
Insight Control Environment 30 day Trial Licenses

412133-B22

NOTE:

NOTE: NOTE:

NOTE:

All c7000 BTO enclosures will ship with 12 server blanks. Additional server
blanks may be purchased if required. CTO enclosures will ship with the required
number of server blanks.

c7000 Enclosure Options

c7000 Enclosure Optionsc7000 Enclosure Options

c7000 Enclosure Options

HP Redundant Onboard Administrator Option

412142-B21

HP c7000 Enclosure 10K Rack Ship Bracket Option Kit

NOTE:

NOTE:NOTE:

NOTE:

The shipping bracket is required when shipping a c7000 enclosure when

installed in a rack. It is not required for normal operation.

433718-B21

HP c7000 Replacement Enclosure Miscellaneous Blanks kit (contains 1 each of Power
Supply Blank, Interconnect Module Blank, Onboard Administrator Blank, Active Cool
Fan Blank)

NOTE:

NOTE:NOTE:

NOTE:

This kit should only be ordered to replace lost or damaged blanks.

412148-B21

HP c-Class Server Blank and Coupler Option Kit (contains 1 x half-height server blank
with coupler)

NOTE:

NOTE:NOTE:

NOTE:

The coupler allows half-height server blanks to be coupled together to create
a full-height server blank.
NOTE:

NOTE:NOTE:

NOTE:

This kit should only be ordered to replace lost or damaged blanks.

412150-B21

c-Class Power Supply

c-Class Power Supplyc-Class Power Supply

c-Class Power Supply

HP c7000 Enclosure Hot-Plug Power Supply Option Kit (supplied with IEC C20 - C19
jumper cord)

412138-B21

c-Class Active Cool Fan

c-Class Active Cool Fanc-Class Active Cool Fan

c-Class Active Cool Fan

HP Active Cool Fan Option Kit

NOTE:

NOTE:NOTE:

NOTE:

A minimum 4 Active Cool fans is required, 8 Active Cool fans can support a
full blade enclosure, 10 Active Cool fans should be ordered for reduced power
consumption and noise reduction.

412140-B21

HP BladeSystem

HP BladeSystemHP BladeSystem

HP BladeSystem
c-Class Ethernet

c-Class Ethernetc-Class Ethernet

c-Class Ethernet
Interconnects

InterconnectsInterconnects

Interconnects

HP 1Gb Virtual Connect Ethernet Module for c-Class BladeSystem

399593-B22

Ethernet Pass-Through Module for HP BladeSystem

406740-B21

Cisco Catalyst Blade Switch 3020 for HP c-Class BladeSystem

410916-B21

HP GbE2c Ethernet Blade Switch for HP c-Class BladeSystem

410917-B21

HP GbE2c Layer 2/3 Ethernet Blade Switch

438030-B21

HP 10Gb SR XFP Module

443756-B21

HP 10Gb LR XFP Module

443757-B21

HP 1:10 Gb Ethernet BL-c Switch

438031-B21

HP 10Gb Ethernet BL-c Switch

NOTE:

NOTE: NOTE:

NOTE:

The purchase the HP 10Gb Ethernet BL0c Switch, also requires the purchase
of one (1) HP NC512m Dual Port 10GbE Multifunction BL-c Adapter (P/N 440910­B21) per blade that requires 10Gbit support

445860-B21

NOTE:

NOTE: NOTE:

NOTE:

The HP BladeSystem c-Class Network Interconnects ship as single units. The
above interconnects must be ordered in quantities of two for redundancy support.

QuickSpecs

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class InfrastructureHP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Infrastructure

Related Options

DA - 12517 North America — Version 13 — July 27, 2007

Page 14

HP BladeSystem

HP BladeSystemHP BladeSystem

HP BladeSystem
c-Class FC SAN

c-Class FC SANc-Class FC SAN

c-Class FC SAN
Interconnects

InterconnectsInterconnects

Interconnects

HP 4Gb Virtual Connect Fibre Channel Module for c-Class BladeSystem

409513-B21

16 port FC Pass-thru Module for c-Class BladeSystem

403626-B21

HP Brocade 4/12 SAN Switch

AE370A

HP Brocade 4/24 SAN Switch Power Pack

AE371A

HP Brocade 4/24 SAN Switch

AE372A

HP Brocade 4/12 SAN Switch Upgrade LTU

AE373A

Cisco MDS 9124e 12-port Fabric Switch

AG641A

Cisco MDS 9124e 24-port Fabric Switch

AG642A

Cisco MDS 9124e 12-port Upgrade LTU

T5169A

HP BladeSystem

HP BladeSystemHP BladeSystem

HP BladeSystem
InfiniBand Interconnects

InfiniBand InterconnectsInfiniBand Interconnects

InfiniBand Interconnects

HP 4X DDR IB Switch Module for HP c-Class BladeSystem

410398-B21

Insight Control

Insight ControlInsight Control

Insight Control
Environment for

Environment forEnvironment for

Environment for
BladeSystem

BladeSystemBladeSystem

BladeSystem

HP Insight Control Environment for BladeSystem, No Media, 8 Licenses including 1
year of 24x7 Technical Support and Updates

NOTE:

NOTE: NOTE:

NOTE:

For use with up to 8 HP BladeSystem server blades. Contains an 8-server
Insight Control license with one unique activation key, an 8-server RDP license and
documentation.

436747-B22

HP Insight Control Environment for BladeSystem, No Media, Flexible Quantity License
including 1 year of 24x7 Technical Support and Updates

NOTE:

NOTE: NOTE:

NOTE:

For use with multiple HP BladeSystem server blades. This part number can be
used to purchase multiple licenses (minimum quantity of 5). The quantity ordered of
this part number will be the quantity of licenses provided in the form of a
corresponding Insight Control activation key, RDP license and documentation.

436749-B22

HP Insight Control Environment for BladeSystem RDP Upgrade, No Media 8 Licenses
including 1 year of 24x7 Technical Support and Updates

NOTE:

NOTE: NOTE:

NOTE:

For use with up to 8 HP BladeSystem servers in environments where the
ProLiant Essentials Rapid Deployment Pack is already installed and sufficiently
licensed. Contains an 8-server Insight Control license with one unique activation key
and documentation.
NOTE:

NOTE: NOTE:

NOTE:

This option does not include an RDP license.

436751-B22

HP Insight Control Environment for BladeSystem RDP Upgrade, No Media, Flexible
Quantity License including 1 year of 24x7 Technical Support and Updates

NOTE:

NOTE: NOTE:

NOTE:

For use with multiple HP BladeSystem server blades in environments where the
ProLiant Essentials Rapid Deployment Pack is already installed and sufficiently
licensed. This part number can be used to purchase multiple licenses (minimum
quantity of 5). The quantity ordered of this part number will be the quantity of licenses
included in the kit in the form of a corresponding Insight Control activation key and
documentation.
NOTE:

NOTE: NOTE:

NOTE:

This option does not include an RDP license.

436753-B22

HP Insight Control Environment for BladeSystem, Tracking License including 1 year of
24x7 Technical Support and Updates

NOTE:

NOTE: NOTE:

NOTE:

For use with signed and implemented Activation Key Agreements (AKA) only.
Purchase of this part number entitles the customer to deploy additional licenses of the
product under the terms of the existing Activation Key Agreement. No physical
components are delivered in conjunction with the purchase of this part number. For
more information on Activation Key Agreements please visit the follow URL

http://h18004.www1.hp.com/products/servers/proliantessentials/license/akalic.html

437786-B22

QuickSpecs

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class InfrastructureHP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Infrastructure

Related Options

DA - 12517 North America — Version 13 — July 27, 2007

Page 15

HP c-Class Storage

HP c-Class StorageHP c-Class Storage

HP c-Class Storage
Blades

BladesBlades

Blades

HP StorageWorks SB40c storage blade

411243-B21

HP PCI Express Mezzanine pass-thru card for HP BladeSystem

431643-B21

NOTE:

NOTE: NOTE:

NOTE:

The mezzanine card is needed to support the SB40c storage blade (P/N
411243-B21) with HP c-Class BladeSystem full-height server blades.

HP PCI Expansion Blade

HP PCI Expansion BladeHP PCI Expansion Blade

HP PCI Expansion Blade

PCI Expansion Blade

448018-B21

NOTE:

NOTE: NOTE:

NOTE:

For additional information regarding the HP PCI Expansion Blade, please visit:

http://h18000.www1.hp.com/products/quickspecs/12753_div/12753_div.HTML

HP c-Class Tape Blades

HP c-Class Tape BladesHP c-Class Tape Blades

HP c-Class Tape Blades

HP Ultrium 448c Tape Blade

440947-B21

NOTE:

NOTE: NOTE:

NOTE:

The HP PCI Express Mezzanine Pass-Thru Card for HP BladeSystem (431643­B21) is required when installing a tape blade adjacent to a full-height server blade.

HP Rack 5000 Series

HP Rack 5000 SeriesHP Rack 5000 Series

HP Rack 5000 Series
(Metallic Carbonite)

HP 5642 Rack - Unassembled

NOTE:

NOTE:NOTE:

NOTE:

Please see the HP Rack 5642 QuickSpecs for additional part numbers and
Technical Specifications such as height, width, depth, weight, and color:

http://h18000.www1.hp.com/products/quickspecs/12074_na/12074_na.HTML

NOTE:

NOTE:NOTE:

NOTE:

For additional information regarding Rack Cabinets, please see the following
URL:

http://www.hp.com/go/rackandpower

358254-B21

HP Rack 10000 G2

HP Rack 10000 G2HP Rack 10000 G2

HP Rack 10000 G2
Series

SeriesSeries

Series

(Graphite Metallic)

10622 G2 (22U) Rack Cabinet Shock

AF022A

10622 G2 (22U) Rack Cabinet Pallet

AF021A

10642 G2 (42U) Rack Cabinet - Pallet

AF001A

10642 G2 (42U) Rack Cabinet - Shock Pallet

AF002A

10642 G2 (42U) Rack Cabinet - Crated

AF003A

10642 G2 (42U) Rack Cabinet, with Extension - Shock Pallet

AF004A

10642 G2 (42U) Rack Shock Pallet- for field racking

AF007A

10636 G2 (36U) Rack Cabinet - Shock Pallet

AF011A

10636 G2 (36U) Rack Cabinet - Crated

AF012A

10636 G2 (36U) Rack Cabinet, with Extension - Shock Pallet

AF013A

10636 G2 (36U) Rack Cabinet, without door - Shock Pallet

AF014A

10647 G2 (47U) Rack Cabinet - Pallet

AF031A

10842 G2 (42U) Rack Cabinet Shock

AF042A

10842 G2 (42U) Rack Cabinet Pallet

AF041A

NOTE:

NOTE:NOTE:

NOTE:

Please see the Rack 10000 G2 QuickSpecs for additional part numbers and
Technical Specifications such as height, width, depth, weight, and color:

http://h18000.www1.hp.com/products/quickspecs/12402_na/12402_na.HTML

NOTE:

NOTE: NOTE:

NOTE:

For additional information regarding Rack Cabinets, please see the following

URL:

http://www.hp.com/go/rackandpower

.

Tape Libraries

Tape LibrariesTape Libraries

Tape Libraries

The following options are supported in an Enterprise Backup Solution (EBS)
environment with the HP BladeSystem c-Class enclosure. Please visit

http://www.hp.com/go/ebs

for complete compatibility details.

HP StorageWorks MSL2024 Tape Library

HP StorageWorks MSL2024 Tape LibraryHP StorageWorks MSL2024 Tape Library

HP StorageWorks MSL2024 Tape Library

QuickSpecs

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class InfrastructureHP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Infrastructure

Related Options

DA - 12517 North America — Version 13 — July 27, 2007

Page 16

HP StorageWorks MSL2024 1 Ultrium 960 Drive Library

AG115A

HP StorageWorks MSL2024 1 Ultrium 960 4GB FC Drive Library

AG326B

HP StorageWorks MSL2024 1 Ultrium 920 SAS Drive Library

AH559A

HP StorageWorks MSL2024 1 Ultrium 920 Drive Library

AH169A

HP StorageWorks MSL2024 2 Ultrium 920 Drive Library

AH170A

HP StorageWorks MSL2024 1 Ultrium 448 Drive Library

AG116A

HP StorageWorks MSL2024 2 Ultrium 448 Drive Library

AG117A

HP StorageWorks MSL4048 Tape Library

HP StorageWorks MSL4048 Tape LibraryHP StorageWorks MSL4048 Tape Library

HP StorageWorks MSL4048 Tape Library
HP StorageWorks MSL4048 1 Ultrium 448 Drive Library

AG320A

HP StorageWorks MSL4048 2 Ultrium 448 Drive Library

AG321A

HP StorageWorks MSL4048 1 Ultrium 920 SAS Drive Library

AH560A

HP StorageWorks MSL4048 1 Ultrium 920 Drive Library

AH171A

HP StorageWorks MSL4048 2 Ultrium 920 Drive Library

AH172A

HP StorageWorks MSL4048 1 Ultrium 960 Drive Library

AG322A

HP StorageWorks MSL4048 1 Ultrium 960 4GB FC Drive Library

AG324B

HP StorageWorks MSL4048 2 Ultrium 960 Drive Library

AG323A

HP StorageWorks MSL4048 2 Ultrium 960 4GB FC Drive Library

AG325B

HP StorageWorks MSL8096 Tape Library

HP StorageWorks MSL8096 Tape LibraryHP StorageWorks MSL8096 Tape Library

HP StorageWorks MSL8096 Tape Library
HP StorageWorks MSL8096 2 Ultrium 920 SAS Drive Library

AH561A

HP StorageWorks MSL8096 2 Ultrium 960 4GB FC Library

AH218A

HP StorageWorks MSL8096 2 Ultrium 960 Drive Library

AH219A

HP StorageWorks MSL6000 Tape Library

HP StorageWorks MSL6000 Tape LibraryHP StorageWorks MSL6000 Tape Library

HP StorageWorks MSL6000 Tape Library
Ultrium 960 technology

Ultrium 960 technologyUltrium 960 technology

Ultrium 960 technology
HP StorageWorks MSL6030 1 Ultrium 960 Dr LVDS Library

AD606B

HP StorageWorks MSL6030 1 Ultrium 960 Dr FC Library

AD608B

HP StorageWorks MSL6030 2 Ultrium 960 Dr LVDS Library

AD607B

HP StorageWorks MSL6030 2 Ultrium 960 Dr FC Library

AD609B

NOTE:

NOTE: NOTE:

NOTE:

Please reference the MSL2024, MSL4048 and MSL6000 Tape Library

QuickSpecs at

http://www.hp.com/go/automation

for additional information needed
to create a complete solution; reference current compatibility information at

http://www.hp.com/go/ebs

HP StorageWorks Virtual Library Systems

HP StorageWorks Virtual Library SystemsHP StorageWorks Virtual Library Systems

HP StorageWorks Virtual Library Systems
HP StorageWorks 300 Virtual Library System Gateway Base Unit

AH138A

HP StorageWorks 1002i 2TB Virtual Library System

AG124A

HP StorageWorks 6105 Virtual Library System

AF728A

HP StorageWorks 6510 Virtual Library System

AF729A

HP StorageWorks 6840 Virtual Library System

AG051A

HP StorageWorks 6109 Virtual Library System

AG167A

HP StorageWorks 6518 Virtual Library System

AG168A

HP StorageWorks 6870 Virtual Library System

AG169A

NOTE:

NOTE: NOTE:

NOTE:

Please reference the Virtual Library Systems QuickSpecs at

http://www.hp.com/go/automation

for additional information needed to create a
complete solution. Reference current compatibility information at

http://www.hp.com/go/ebs

QuickSpecs

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class InfrastructureHP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Infrastructure

Related Options

DA - 12517 North America — Version 13 — July 27, 2007

Page 17

Rack Options for Rack

Rack Options for RackRack Options for Rack

Rack Options for Rack
10000 G2 Series

10000 G2 Series10000 G2 Series

10000 G2 Series

HP 10642 G2 Front Door ALL

AF009A

HP 10636 G2 Front Door ALL

AF019A

10642 G2 (42U) Side Panels (set of two) (Graphite Metallic)

AF054A

10636 G2 (36U) Side Panels (set of two) (Graphite Metallic)

AF056A

10642 Rear Extension Kit

AF058A

10636 G2 Rear Extension Kit

AF060A

600mm G2 Stabilizer Option Kit (Graphite)

AF062A

600mm G2, Heavy Duty Stabilizer Option Kit (Graphite)

AF064A

800mm G2, Heavy Duty Stabilizer Option Kit (Graphite)

NOTE:

NOTE:NOTE:

NOTE:

Supports 10000 G2 Series only.

AF068A

HP 10000 G2 Rack Grounding Kit

AF074A

600W 10K G2 Rack Tie Down

AF076A

NOTE:

NOTE:NOTE:

NOTE:

For additional information regarding Rack Options, please see the following

URL:

http://www.hp.com/go/rackandpower

.

HP Modular Cooling

HP Modular CoolingHP Modular Cooling

HP Modular Cooling
System

SystemSystem

System

HP Modular Cooling System

AF098A

HP Rack 10000 Series

HP Rack 10000 SeriesHP Rack 10000 Series

HP Rack 10000 Series
(Graphite Metallic)

HP S10614 (14U) Rack Cabinet - Shock Pallet

292302-B22

HP Rack 10647 (47U) Cabinet - Crated

245160-B23

HP Rack 10622 (22U) Cabinet - Crated

245163-B23

Monitors and Keyboards

Monitors and KeyboardsMonitors and Keyboards

Monitors and Keyboards

TFT7210R Rack Mounted 17" Monitor

348373-B21

TFT7600 Rackmount Keyboard Monitor

AG052A

1U Rackmount Keyboard with USB

AG072A

NOTE:

NOTE:NOTE:

NOTE:

For additional information regarding Rack Options, please see the following

URL:

http://www.hp.com/go/rackandpower

HP KVM Switch Options

HP KVM Switch OptionsHP KVM Switch Options

HP KVM Switch Options

2x1x16 IP Console Switch with Virtual Media

AF601A

4x1x16 IP Console Switch with Virtual Media

AF602A

2x16 Server Console Switch with Virtual Media

AF600A

PS/2 Virtual Media Interface Adapter, 1 pack

NOTE:

NOTE: NOTE:

NOTE:

Requires PS/2 and one USB port on server.

AF604A

BladeSystem c-Class KVM Interface Adapter - 1 pack

AF605A

HP 1x8 Server Console Switch

336044-B21

HP 2x16 Server Console Switch

336045-B21

PS/2 Interface Adapter, 1-pack

262588-B21

PS/2 Interface Adapter, 8-pack

262587-B21

USB Interface Adapter, 1-pack

336047-B21

Serial Interface Adapter, 1-pack with power supply

373045-B21

NOTE:

NOTE:NOTE:

NOTE:

Cat5e cables are required to connect Interface Adapters to Consoles
Switches. Cat52 cables can be found at the following URL:

http://www.hp.com/go/kvm

QuickSpecs

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class InfrastructureHP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Infrastructure

Related Options

DA - 12517 North America — Version 13 — July 27, 2007

Page 18

HP 1x4 Console Switch

AF611A

HP PS2 Server Console Cable, 6 foot, 2-Pack

AF612A

HP USB Server Console Cable, 6 foot, 2-Pack

NOTE:

NOTE: NOTE:

NOTE:

required for supporting USB peripherals.

AF613A

HP USB KVM Cable with audio, 6'-2-pack

371729-B21

NOTE

NOTE NOTE

NOTE

For additional information regarding KVM switches, Serial Console servers,
rack mount monitors, keyboards and all related options please see the following URL:

http://www.hp.com/go/kvm

HP Serial Console Server

HP Serial Console ServerHP Serial Console Server

HP Serial Console Server
Options

OptionsOptions

Options

HP 16 Port Serial Console Server

AF101A

HP 48 Port Serial Console Server

AF102A

Serial Adapter, RJ45-DB9 DCE Female, 1 Pack

AF103A

Serial Adapter, RJ45-DB9 DCE Female, 8 Pack

AF110A

NOTE:

NOTE:NOTE:

NOTE:

Cat5e cables are required to connect Serial Adapters to Serial Console
Servers. Additional Serial Adapters and Cat5e cables can be found at the following
URL:

http://www.hp.com/go/kvm

.

NOTE:

NOTE:NOTE:

NOTE:

For additional information regarding KVM switches, Serial Console servers,
rack mount monitors, keyboards and all related options please see the following URL:

http://www.hp.com/go/kvm

.

Service and Support

Service and SupportService and Support

Service and Support
Offerings

Offerings Offerings

Offerings

(HP Care Pack

Services)

NOTE:

NOTE:NOTE:

NOTE:

The HP Care Pack service part numbers below for ProLiant BL c-Class server
blades, cover the server blade and all HP branded hardware options qualified for the
server, purchased at the same time or afterwards, internal to the server.

Hardware Services On-site Service

Hardware Services On-site ServiceHardware Services On-site Service

Hardware Services On-site Service
4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic

UE458E

4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic

UE459E

6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years,
Electronic

UE460E

Support Plus 24

Support Plus 24Support Plus 24

Support Plus 24
Onsite HW support 24x7, 4hr response and Microsoft O/S SW Tech support offsite,

onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic

UE473E

NOTE:

NOTE: NOTE:

NOTE:

HP Care Pack services for the c7000 Enclosure cover the enclosure, power
supplies and fans. HP qualified rack options are covered by these services when
installed within the same rack. HP supported c-Class enclosure devices including pass
thru, Ethernet interconnect and virtual connect modules are also covered by the
c7000 enclosure Care Pack services.
NOTE:

NOTE: NOTE:

NOTE:

SAN/Fabric switches for the HP c-Class BladeSystem are not covered under
the c7000 enclosure Care Packs, SAN/Fabric switches carry separate Care Packs.
SAN/Fabric Switch Care Pack service level support should always be uplifted to match
existing storage or server service level.

Hardware Services On-site Service

Hardware Services On-site ServiceHardware Services On-site Service

Hardware Services On-site Service
Next Business Day On-site Service, 5-Day x 9-Hour Coverage, 3 Years, Electronic

NOTE:

NOTE: NOTE:

NOTE:

Uplifts the Ethernet devices to the same level of warranty as the c-class
enclosure

UE477E

4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic

UE478E

4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic

UE479E

QuickSpecs

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class InfrastructureHP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Infrastructure

Related Options

DA - 12517 North America — Version 13 — July 27, 2007

Page 19

6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years,
Electronic

UE480E

Installation & Start-up Services

Installation & Start-up ServicesInstallation & Start-up Services

Installation & Start-up Services
HP BladeSystem c-Class Infrastructure Installation and Startup Service, Electronic

UE602E

HP BladeSystem Enhanced Network Installation and Startup Service, Electronic

UE603E

ProLiant BL c-Class Blade Server Hardware Installation, Electronic

UE493E

ProLiant BL c-Class Enclosure and Server Blade Hardware Installation, Electronic

UE494E

NOTE:

NOTE: NOTE:

NOTE:

For more information, customer/resellers can contact

http://www.hp.com/services/bladesystemservices

NOTE:

NOTE: NOTE:

NOTE:

The HP Care Pack service part numbers below covers the HP Brocade 4Gb,
12 Port SAN Switch and Brocade 4/24 SAN Switch.

Hardware Services On-site Service

Hardware Services On-site ServiceHardware Services On-site Service

Hardware Services On-site Service
Next Business Day On-site Service, 5-Day x 9-Hour Coverage,

3 Years, Electronic

UE436E

4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic

UE437E

4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic

UE438E

6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years,
Electronic

UE439E

Hardware Installation, Electronic

U5988E

NOTE:

NOTE: NOTE:

NOTE:

The HP Care Pack service part numbers below covers the Brocade 4/24 SAN
Switch Power Pack.

Hardware Services On-site Service

Hardware Services On-site ServiceHardware Services On-site Service

Hardware Services On-site Service
Support Plus

Support PlusSupport Plus

Support Plus
Onsite HW support, 8am-9pm, M-F, 4hr response and SW Tech support offsite,

onsite at HP's discretion, 8am-9pm, M-F 2hr response time excl. HP holidays, 3 Years,
Electronic

UE728E

Support Plus 24

Support Plus 24Support Plus 24

Support Plus 24
Onsite HW support 24x7, 4hr response and SW Tech support offsite, onsite at HP's

discretion, 24x7 2hr response time incl. HP holidays, 3 Years, Electronic

UE729E

Software Installation and StartUp Services

Software Installation and StartUp ServicesSoftware Installation and StartUp Services

Software Installation and StartUp Services
Provides for the Installation and Start-up of ProLiant Essentials Rapid Deployment

Pack, Electronic

NOTE:

NOTE:NOTE:

NOTE:

Provides installation on a Customer supplied server designated as a
Deployment Server. Includes the deployment of a single server. This new server will be
deployed using either one of the pre-configured scripts or an image. In addition, the
service will provide for the capture and storage of the configuration of the newly
deployed server and orientation on product usage. To be delivered during standard
office ours, standard office days.

U5683E

Provides for the Installation and Start-up of Rapid Deployment Pack Implementation of
Rapid Deployment Pack (Basic) (Electronic)

UA042E

HP ProLiant Essentials Vulnerability and Patch Management Pack Installation and
Startup Service, Electronic

NOTE:

NOTE: NOTE:

NOTE:

Service coverage: onsite installation of the Vulnerability and Patch
Management (VPM) software on a customer designated server, configuration of the
VPM software to acquire security patches, enabling the VPM software to scan up to
five (5) systems, applying the security patches to the designated servers, generating a
report from VPM that shows the vulnerability assessment results, and providing
customer with an orientation to the software.

UC929E

QuickSpecs

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class InfrastructureHP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Infrastructure

Related Options

DA - 12517 North America — Version 13 — July 27, 2007

Page 20

Provides for the Installation and Start-up of System Insight Manager (Electronic)

UA041E

Provides for the Installation and Start-up of System Insight Manager Agents (Electronic)

UA040E

Provides for the Installation and Startup of Insight Control - Linux Edition

UF369E

Provides for the Installation and Startup of Virtual Machine Management & Server
Migration Pack

UD546E

Software Operating Environment Care Packs

Software Operating Environment Care PacksSoftware Operating Environment Care Packs

Software Operating Environment Care Packs
1 yr Microsoft Operating environment software support 24x7 - 10 incidents

U9269E

1 yr Red Hat Operating System software support 24x7 - 10 incidents

U3408E

1 yr SuSE Operating System software support 24x7 - 10 incidents

U9936E

NOTE:

NOTE: NOTE:

NOTE:

For more information, customer/resellers can contact

http://www.hp.com/hps/carepack/services/

QuickSpecs

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class InfrastructureHP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Infrastructure

Related Options

DA - 12517 North America — Version 13 — July 27, 2007

Page 21

Figure 1

Figure 1Figure 1

Figure 1

Installing a tape blade adjacent to a half­height server blade.

Figure 2

Figure 2Figure 2

Figure 2

Installing a tape blade adjacent to a full­height server blade.

HP StorageWorks Ultrium 448c Tape Blade

HP StorageWorks Ultrium 448c Tape BladeHP StorageWorks Ultrium 448c Tape Blade

HP StorageWorks Ultrium 448c Tape Blade

Description

DescriptionDescription

Description

Quantity

QuantityQuantity

Quantity

Supported

SupportedSupported

Supported

Position

PositionPosition

Position

Supported

SupportedSupported

Supported

Comments

CommentsComments

Comments

HP Ultrium 448c Tape

HP Ultrium 448c TapeHP Ultrium 448c Tape

HP Ultrium 448c Tape
Blade

BladeBlade

Blade

NOTE:

NOTE: NOTE:

NOTE:

Connected
adjacent to a half-height
server blade (Figure 1)

Up to 8 per HP

BladeSystem c-Class

c7000 Enclosure

Odd or Even slots next to

partner server blade

A tape blade supports one partner server
blade, and one partner server blade
supports one tape blade.
Identify the partner server blade to be
installed with the HP Ultrium 448c Tape
Blade. The two blades always occupy a
pair of slots, as follows: 1 & 2, 3 & 4, 5 &
6, 7 & 8, 9 & 10, 11 & 12, 13 & 14, 15 &

16.
If the partner server blade is installed in an
odd-numbered bay, the HP Ultrium 448c
Tape Blade is installed in the adjacent
even-numbered bay to the right.
If the partner server blade is installed in an
even-numbered bay, the HP Ultrium 448c
Tape Blade is installed in the adjacent
odd-numbered bay to the left.

QuickSpecs

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class InfrastructureHP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Infrastructure

Storage

DA - 12517 North America — Version 13 — July 27, 2007

Page 22

HP Ultrium 448c Tape

HP Ultrium 448c TapeHP Ultrium 448c Tape

HP Ultrium 448c Tape
Blade

BladeBlade

Blade

NOTE:

NOTE: NOTE:

NOTE:

Connected
adjacent to a full-height
server blade (Figure 2)

Up to 4 per HP

BladeSystem c-Class

c7000 Enclosure

Slots 10, 12, 14, or 16

(lower bays only)

A tape blade supports one partner server
blade, and one partner server blade
supports one tape blade.
When partnering a tape blade with a full
height server blade, an HP PCI Express
Mezzanine Pass-Thru Card for BladeSystem
c-Class (431643-B21) is required. This
card is installed in mezzanine 3 connector
in the server blade.
Identify the partner server blade to be
installed with the HP Ultrium 448c Tape
Blade. The two blades always occupy a
pair of slots, as follows: 9 & 10, 11 & 12,
13 & 14, 15 & 16.
The partner server blade is installed in an
odd-numbered bay. The HP Ultrium 448c
Tape Blade is installed in the adjacent
even-numbered bay to the right.
The tape blade is always located on the
lower row of the enclosure in an even­numbered bay (slots 10, 12, 14 or 16)

QuickSpecs

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class InfrastructureHP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Infrastructure

Storage

DA - 12517 North America — Version 13 — July 27, 2007

Page 23

Server Blade and Fan Population Guidelines

Server Blade and Fan Population GuidelinesServer Blade and Fan Population Guidelines

Server Blade and Fan Population Guidelines

Fan bay numbering

Fan bay numberingFan bay numbering

Fan bay numbering

Fans must be placed in the following bays

Fans must be placed in the following baysFans must be placed in the following bays

Fans must be placed in the following bays

Number of Fans

Number of FansNumber of Fans

Number of Fans

Fan Bays Used

Fan Bays UsedFan Bays Used

Fan Bays Used

4

4, 5, 9, 10

6

3, 4, 5, 8, 9, 10

8

1, 2, 4, 5, 6, 7, 9, 10

10

1, 2, 3, 4, 5, 6, 7, 8, 9, 10

NOTE:

NOTE:NOTE:

NOTE:

For correct operation fans and server blades must be installed in the correct bays. The Onboard Administrator will ensure that

fans and blades are correctly placed before allowing systems to power on.

Half-height server blade bay numbering

Half-height server blade bay numberingHalf-height server blade bay numbering

Half-height server blade bay numbering

1. Device Bay 1 9. Device Bay 9

QuickSpecs

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class InfrastructureHP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Infrastructure

Technical Specifications

DA - 12517 North America — Version 13 — July 27, 2007

Page 24

2. Device Bay 2

10. Device Bay 10

3. Device Bay 3

11. Device Bay 11

4. Device Bay 4

12. Device Bay 12

5. Device Bay 5

13. Device Bay 13

6. Device Bay 6

14. Device Bay 14

7. Device Bay 7

15. Device Bay 15

8. Device Bay 8

16. Device Bay 16

NOTE:

NOTE:NOTE:

NOTE:

Half-height servers should be populated from top and bottom from left to right from the front of the enclosure. So the first two
half-height servers would be placed in bays 1 & 9 the second two half-height servers would be placed in bays 2 & 10 and so on until
the enclosure is full.

Full-height server blade bay numbering

Full-height server blade bay numberingFull-height server blade bay numbering

Full-height server blade bay numbering

1. Device Bay 1 5. Device Bay 5

2. Device Bay 2 6. Device Bay 6

3. Device Bay 3 7. Device Bay 7

4. Device Bay 4 8. Device Bay 8

NOTE:

NOTE:NOTE:

NOTE:

Full-height servers should be populated from left to right.

Mixed Configuration - Full Height and Half-Height Population rules

Mixed Configuration - Full Height and Half-Height Population rulesMixed Configuration - Full Height and Half-Height Population rules

Mixed Configuration - Full Height and Half-Height Population rules

QuickSpecs

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class InfrastructureHP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Infrastructure

Technical Specifications

DA - 12517 North America — Version 13 — July 27, 2007

Page 25

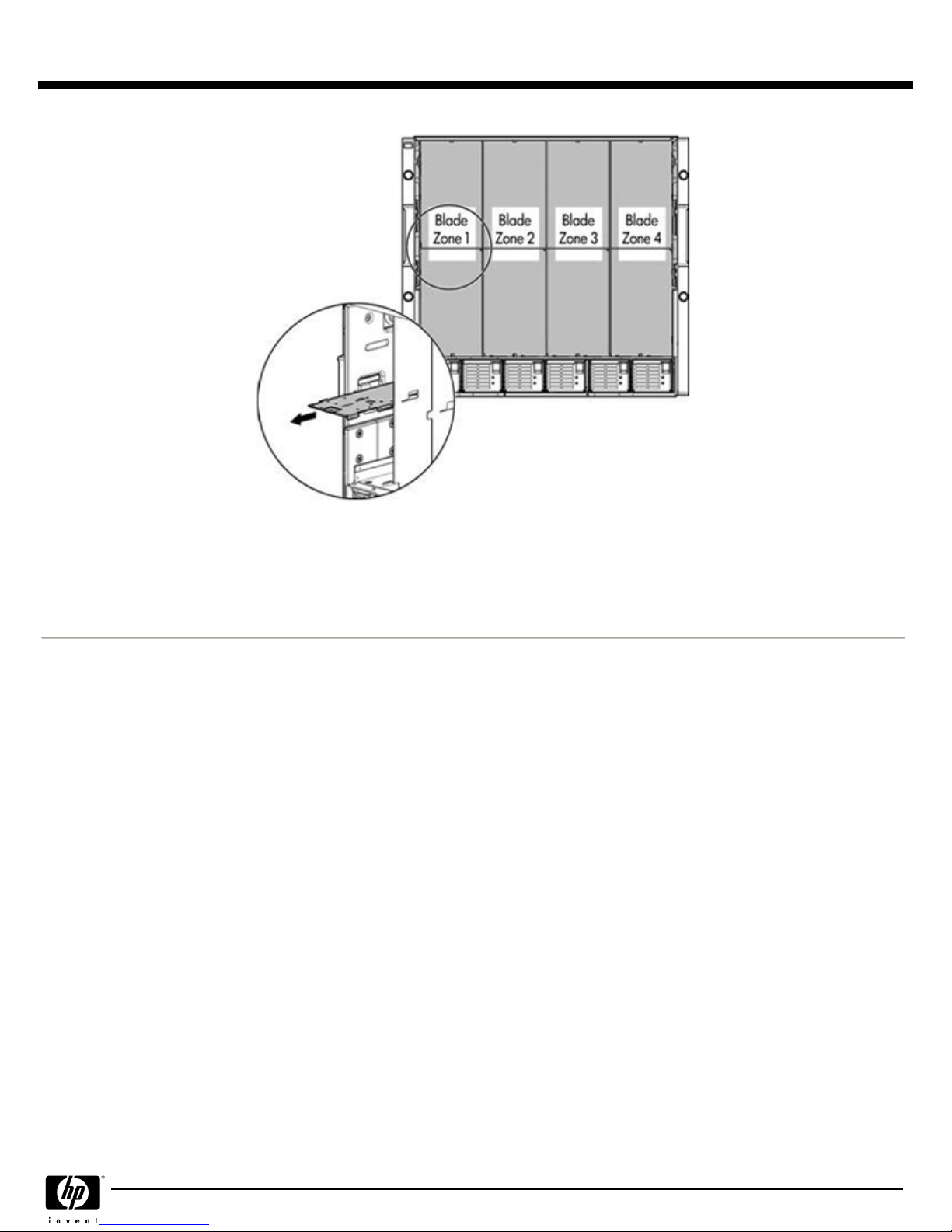

The c7000 enclosure is divided into 4 zones or quadrants by the vertical support metalwork. Within each zone a removable divider is
used to support half height devices. To install a full-height blade in any zone this divider must be removed. As a consequence a zone
can only contain either full-height server blades or half-height server blades.

NOTE:

NOTE: NOTE:

NOTE:

Storage blades and Tape blades can be installed in the same zone as both full-height and half-height blades, a bracket ships
with each SB40c that allows a half-height blade to be mounted on top of an SB40c. Note the SB40c cannot be removed without first
removing the half height blade and mounting bracket.

HP BladeSystem

HP BladeSystemHP BladeSystem

HP BladeSystem
c7000 Server Blade

c7000 Server Bladec7000 Server Blade

c7000 Server Blade
Enclosure

EnclosureEnclosure

Enclosure

Dimensions

DimensionsDimensions

Dimensions

Height

17.4in (442 mm)

Width

17.5in (445 mm)

Depth

32in (813 mm)

Shipping Dimensions

Shipping DimensionsShipping Dimensions

Shipping Dimensions

Height

29.88in (759 mm)

Width

23.88in (607 mm)

Depth

39.88in (1013 mm)

Single Phase Enclosure

Single Phase EnclosureSingle Phase Enclosure

Single Phase Enclosure
Weight

WeightWeight

Weight

Unboxed

121 lb (54.9 Kg)

Shipping

164 lb (74.4 Kg)

Three -Phase Enclosure

Three -Phase EnclosureThree -Phase Enclosure

Three -Phase Enclosure
Weight

WeightWeight

Weight

Unboxed

150 lb (68 Kg)

Shipping

193 lb (87.5 Kg)

Max Enclosure Weight

Max Enclosure WeightMax Enclosure Weight

Max Enclosure Weight

Unboxed

450 lb (204 Kg)

Shipping

493 lb (223.6 Kg)

Temperature Range

Temperature RangeTemperature Range

Temperature Range

Operating

50° to 95° F (10° to 35° C)

Non-Operating

-22° to 140° F (-30° to 60° C)

Relative Humidity

Relative HumidityRelative Humidity

Relative Humidity
(non-condensing)

(non-condensing)(non-condensing)

(non-condensing)

Operating

20% to 80%

Non-Operating

5% to 95%

Wet Bulb Temperature

Wet Bulb TemperatureWet Bulb Temperature

Wet Bulb Temperature

Operating

82.4° F (28° C)

Non-Operating

101.7° F (38.7° C)

NOTE:

NOTE: NOTE:

NOTE:

Operating temperature has an altitude derating of 1.8° F (1° C) per 1,000 ft (304.8 m). No
direct sunlight. Upper operating limit is 10,000 ft (3,048 m) or 70Kpa/10.1 psia. Upper non-operating
limit is 30,000 ft (9,144 m) or 30.3 KPa/4.4 psia. Storage maximum humidity of 95% is based on a
maximum temperature of 113° F (45° C). Altitude maximum for storage is 70 KPa.

QuickSpecs

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class InfrastructureHP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Infrastructure

Technical Specifications

DA - 12517 North America — Version 13 — July 27, 2007

Page 26

Power

PowerPower

Power

Input Requirements -

Input Requirements -Input Requirements -

Input Requirements ­Single Phase Model

Single Phase ModelSingle Phase Model

Single Phase Model

Rated input voltage

100 to 120 VAC
200 to 240 VAC

Rated input frequency

50 to 60 Hz

Rated input current
per power supply

12.6 A at 208 VAC

11.9 A at 220 VAC

13.1 A at 200 VAC

Rated input power
per power supply

2612 VA Max

Input Requirements -

Input Requirements -Input Requirements -

Input Requirements ­Three Phase Model

Three Phase ModelThree Phase Model

Three Phase Model

Rated input voltage

200 to 208 VAC Line to Line
3-Phase Delta

Rated input frequency

50 to 60 Hz

Max input current per line
cord

22.6A at 200 VAC

21.8A at 208 VAC

20.6A at 220 VAC

Max input power
per line cord

7836VA Max

Power Cords

Power CordsPower Cords

Power Cords

Single Phase

IEC-320 C19-C20 1.22m (4 ft)

3-Phase

2 x NEMA L15-30p 2.44m(10 ft)

Output

OutputOutput

Output
Specifications

SpecificationsSpecifications

Specifications

Per Power Supply
200 - 240 VAC
100 - 120 VAC

2250 W
960 W

Option Kits

Option KitsOption Kits

Option Kits

Power Supply Option

Power Supply OptionPower Supply Option

Power Supply Option
Shipping Dimensions

Shipping DimensionsShipping Dimensions

Shipping Dimensions

Height

8.75 in (223 mm)

Width

8.63 in (219 mm)

Depth

35.13 in (892 mm)

Weight

8.5 lbs (3.85 Kg)

Fan Option Shipping

Fan Option ShippingFan Option Shipping

Fan Option Shipping
Dimensions

DimensionsDimensions

Dimensions

Height

8.75 in (223 mm)

Width

9.75 in (248 mm)

Depth

15.88 in (403 mm)

Weight

4.0 lbs (1.8 Kg)

Onboard Administrator

Onboard AdministratorOnboard Administrator

Onboard Administrator
Option Shipping

Option ShippingOption Shipping

Option Shipping
Dimensions

DimensionsDimensions

Dimensions

Height

2.50 in (63.5 mm)

Width

9.88 in (251 mm)

Depth

13.50 in (343 mm)

Weight

4.0 lbs (1.8 Kg)

QuickSpecs

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class InfrastructureHP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Infrastructure

Technical Specifications

DA - 12517 North America — Version 13 — July 27, 2007

Page 27

Rack Airflow

Rack AirflowRack Airflow

Rack Airflow
Requirements

RequirementsRequirements

Requirements

Rack 10000 series cabinets

Rack 10000 series cabinetsRack 10000 series cabinets

Rack 10000 series cabinets
The increasing power of new high-performance processor technology requires increased cooling
efficiency for rack-mounted servers. The 10000 Series Racks provide enhanced airflow for maximum
cooling, allowing these racks to be fully loaded with servers using the latest processors.

CAUTION:

CAUTION:CAUTION:

CAUTION:

If a third-party rack is used, observe the following additional requirements to ensure

adequate airflow and to prevent damage to the equipment:

Front and rear doors: If your 42U server rack includes closing front and rear doors, you must
allow 830 square inches (5,350 sq cm) of hole evenly distributed from top to bottom to permit
adequate airflow (equivalent to the required 64 percent open area for ventilation).
The clearance from face of rack to inside of the front door needs to be 1.75" minimum.
Side: The clearance between the installed rack component and the side panels of the rack must be
a minimum of 2.75 inches (7 cm).
Depth: Minimum 39.4 inches (1000mm)
Adjustable rack rails are shipped with each enclosure:

Minimum rail length: 25 inches (635mm)

Maximum rail length: 34 inches (864mm)

CAUTION:

CAUTION:CAUTION:

CAUTION:

Always use blanking panels to fill all remaining empty front panel U-spaces in the rack. This
arrangement ensures proper airflow. Using a rack without blanking panels results in improper cooling
that can lead to thermal damage.

QuickSpecs

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class InfrastructureHP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Infrastructure

Technical Specifications

DA - 12517 North America — Version 13 — July 27, 2007

Page 28

NOTE:

NOTE:NOTE:

NOTE:
To review maximum system power ratings for facilities planning purposes use the Active Answers Power Calculator which is available
via the online tool located at URL:

http://www.hp.com/go/bladesystem/powercalculator

© Copyright 2007 Hewlett-Packard Development Company, L.P.

The information contained herein is subject to change without notice.

Microsoft and Windows NT are US registered trademarks of Microsoft Corporation. Intel is a US registered trademark of Intel
Corporation.

The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.

QuickSpecs

HP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class InfrastructureHP BladeSystem c-Class Infrastructure

HP BladeSystem c-Class Infrastructure

Power Specifications

DA - 12517 North America — Version 13 — July 27, 2007

Page 29
