HP G62 Notebook PC

Maintenance and Service Guide

SUMMARY

This guide is a troubleshooting reference used for maintaining and servicing the computer. It provides comprehensive information on identifying computer features, components, and spare parts; troubleshooting computer problems; and performing computer disassembly procedures.

ATI and ATI Mobility Radeon are trademarks of Advanced Micro Devices, Inc. Bluetooth is a trademark owned by its proprietor and used by Hewlett-Packard Company under license. Intel, Arrandale, and Core are trademarks of Intel corporation in the U.S. and other countries. Microsoft and Windows are U.S. registered trademarks of Microsoft Corporation. SD Logo is a trademark of its proprietor.

The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

First Edition: May 2010

Document Part Number: 620650-001

Safety warning notice

WARNING! To reduce the possibility of heat-related injuries or of overheating the computer, do not

place the computer directly on your lap or obstruct the computer air vents. Use the computer only on a hard, flat surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft surface, such as pillows or rugs or clothing, to block airflow. Also, do not allow the AC adapter to contact the skin or a soft surface, such as pillows or rugs or clothing, during operation. The computer and the AC adapter comply with the user-accessible surface temperature limits defined by the International Standard for Safety of Information Technology Equipment (IEC 60950).

iii

iv Safety warning notice

MSG revision history

Revision Publication date Description

A October 2010

Added newly supported hard drives to spare parts listings in the

●

following locations:

storage devices on page 26, Sequential part number listing on page 29, Hard drive on page 42.

Added newly supported memory modules to spare parts listings in the

●

following locations:

storage devices on page 26, Sequential part number listing on page 29, Memory module on page 50.

Added newly supported WLAN modules to spare parts listings in the

●

following locations: Computer major components on page 17, Mass

storage devices on page 26, Sequential part number listing on page 29, WLAN module on page 47.

Added newly supported processors to spare parts listings in the

●

following locations: Computer major components on page 17, Mass

storage devices on page 26, Sequential part number listing on page 29, Processor on page 81.

Added newly supported system boards to spare parts listings in the

●

following locations: Computer major components on page 17, Mass

storage devices on page 26, Sequential part number listing on page 29, System board on page 74.

Computer major components on page 17, Mass

vi MSG revision history

Table of contents

1 Product description ........................................................................................................................................ 1

2 External component identification ................................................................................................................ 5

Identifying the hardware ....................................................................................................................... 5

Top components ................................................................................................................................... 6

TouchPad ............................................................................................................................ 6

Lights ................................................................................................................................... 7

Button and speakers ............................................................................................................ 8

Keys ..................................................................................................................................... 9

Display ............................................................................................................................... 10

Right-side components ....................................................................................................................... 11

Left-side components ......................................................................................................................... 12

Bottom components ........................................................................................................................... 13

Wireless antennas .............................................................................................................................. 14

Additional hardware components ....................................................................................................... 15

3 Illustrated parts catalog ............................................................................................................................... 16

Serial number location ........................................................................................................................ 16

Computer major components ............................................................................................................. 17

Display assembly components ........................................................................................................... 23

Plastics Kit .......................................................................................................................................... 25

Mass storage devices ......................................................................................................................... 26

Miscellaneous parts ............................................................................................................................ 28

Sequential part number listing ............................................................................................................ 29

4 Removal and replacement procedures ....................................................................................................... 34

Preliminary replacement requirements ............................................................................................... 34

Tools required .................................................................................................................... 34

Service considerations ....................................................................................................... 34

Plastic parts ....................................................................................................... 34

Cables and connectors ..................................................................................... 35

Drive handling ................................................................................................... 35

Grounding guidelines ......................................................................................................... 36

vii

Electrostatic discharge damage ........................................................................ 36

Packaging and transporting guidelines ............................................. 37

Workstation guidelines ..................................................................... 37

Equipment guidelines ....................................................................... 38

Component replacement procedures ................................................................................................. 39

Serial number .................................................................................................................... 39

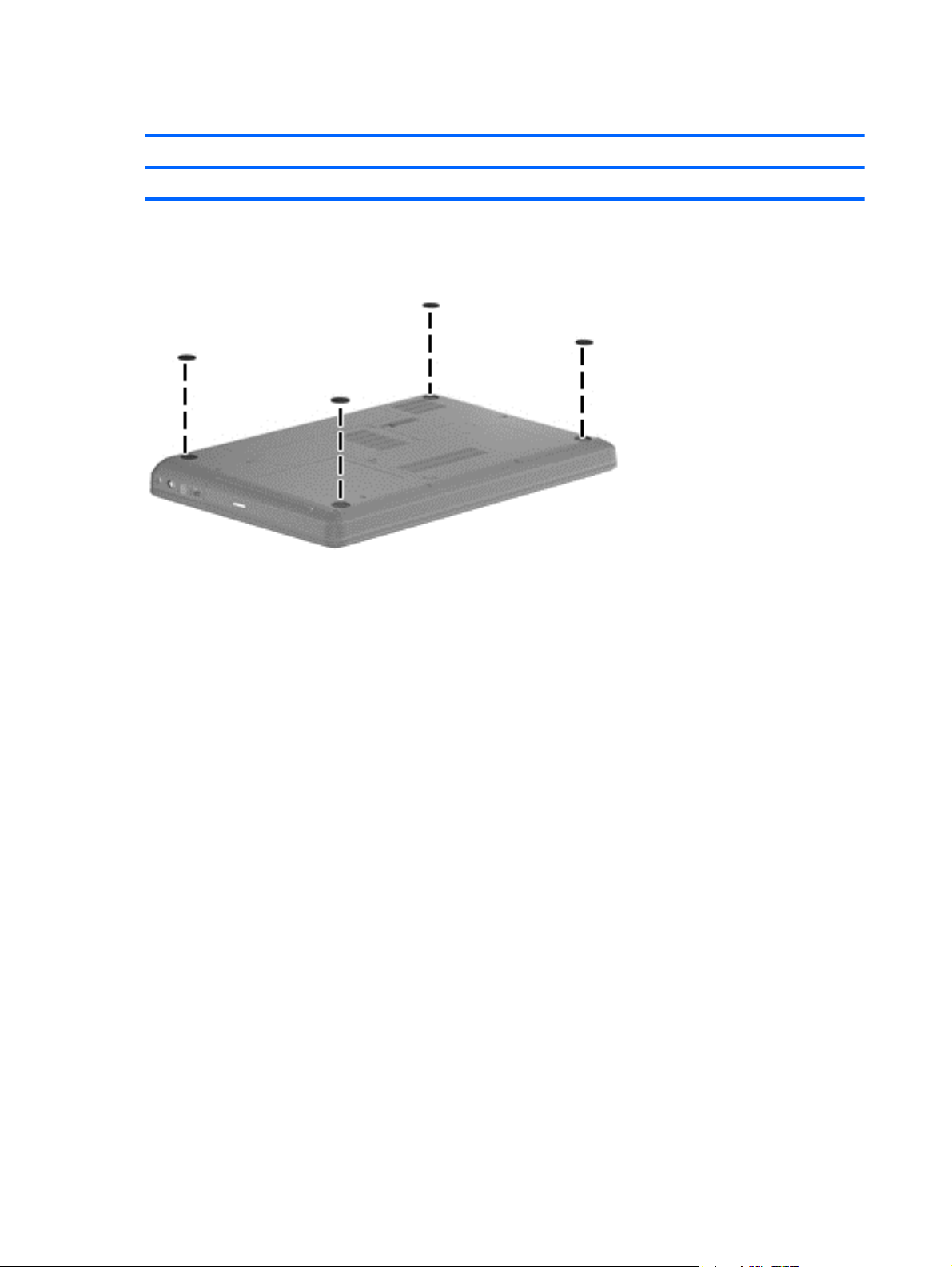

Computer feet .................................................................................................................... 40

Battery ............................................................................................................................... 41

Hard drive .......................................................................................................................... 42

Optical drive ....................................................................................................................... 45

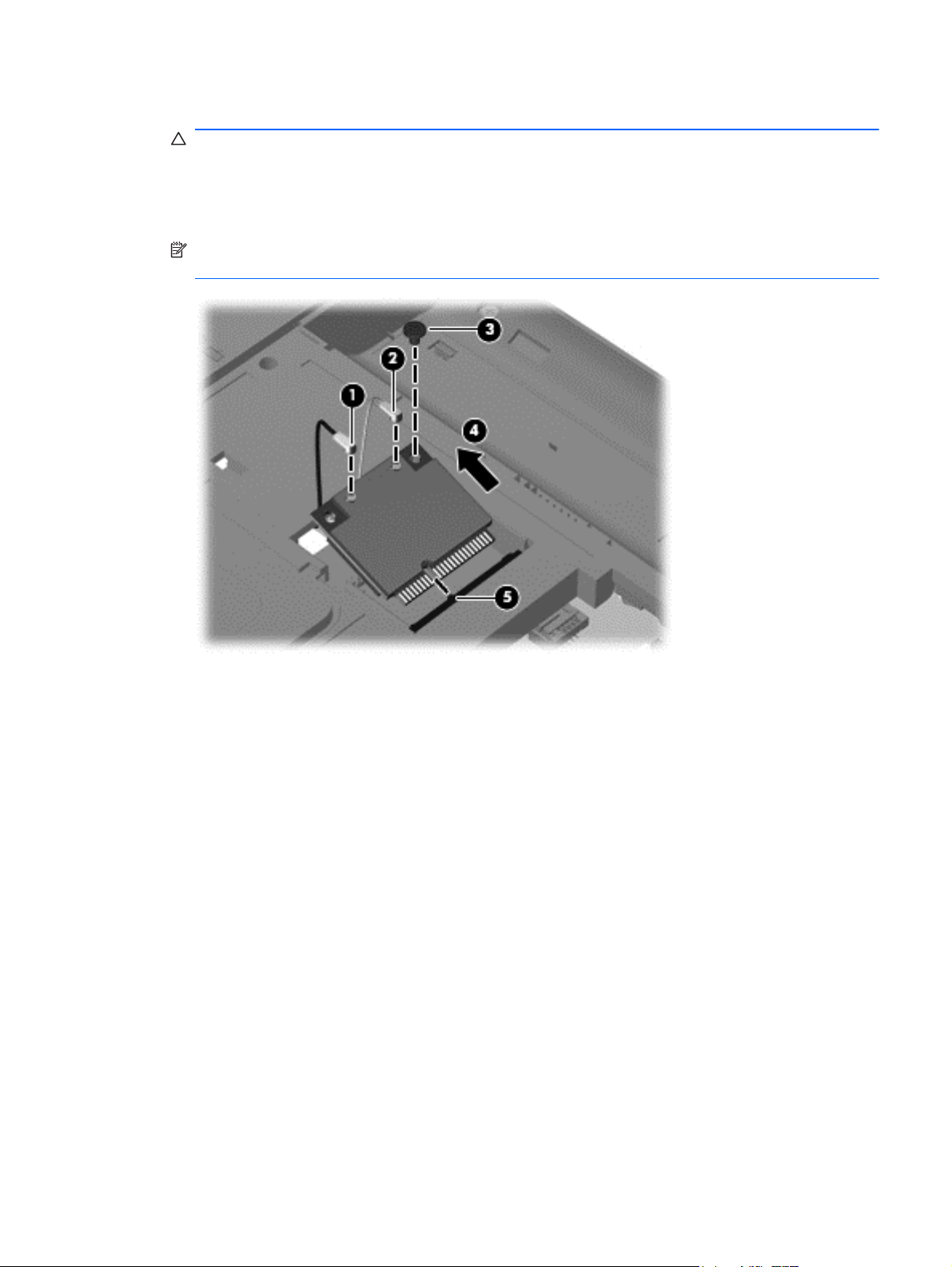

WLAN module .................................................................................................................... 47

Memory module ................................................................................................................. 50

............................................................................................................................................ 51

RTC battery ....................................................................................................................... 51

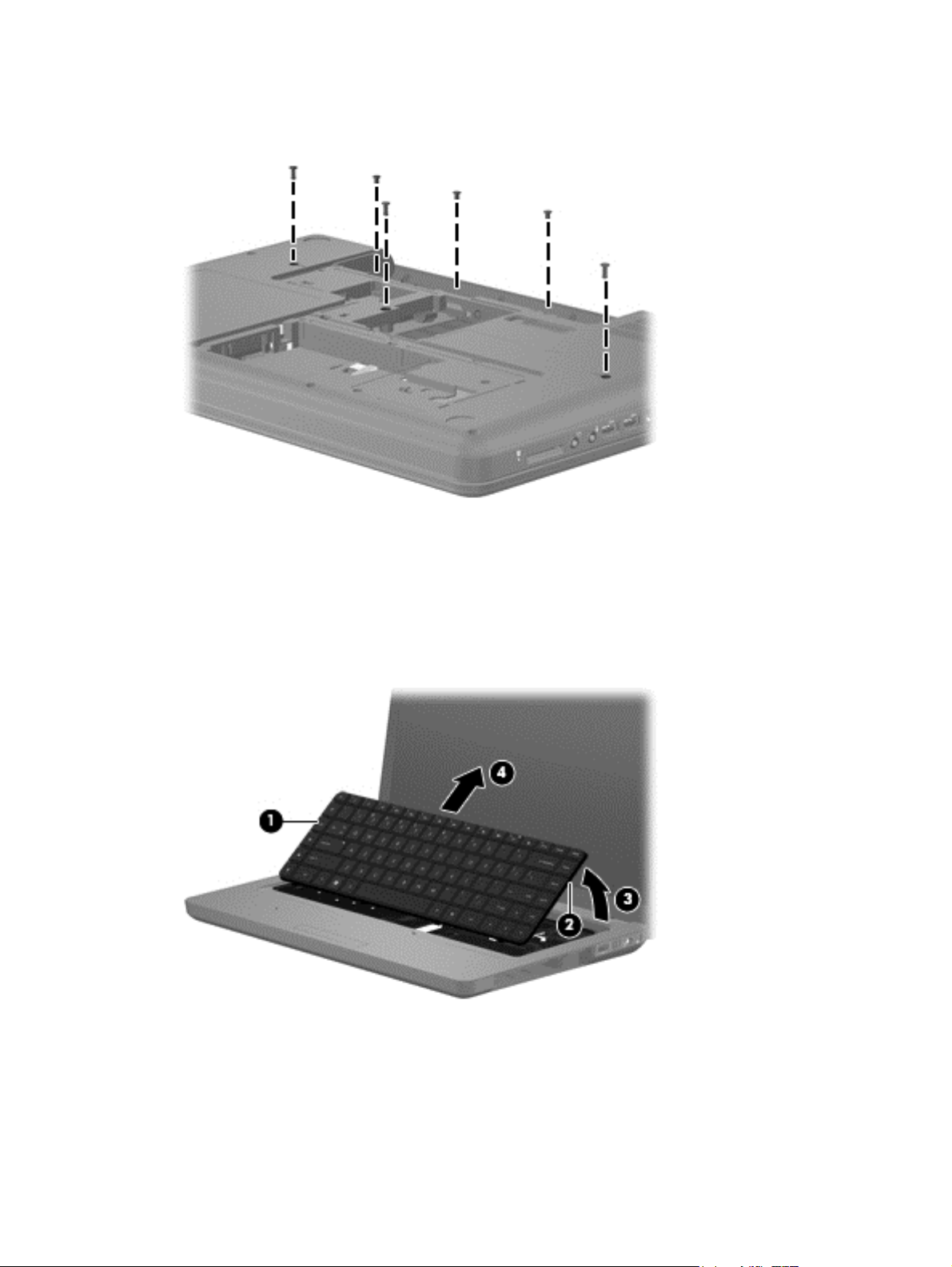

Keyboard ........................................................................................................................... 53

Top cover ........................................................................................................................... 56

Speaker assembly ............................................................................................................. 59

Power button board ........................................................................................................... 61

TouchPad button board ..................................................................................................... 62

Modem module .................................................................................................................. 63

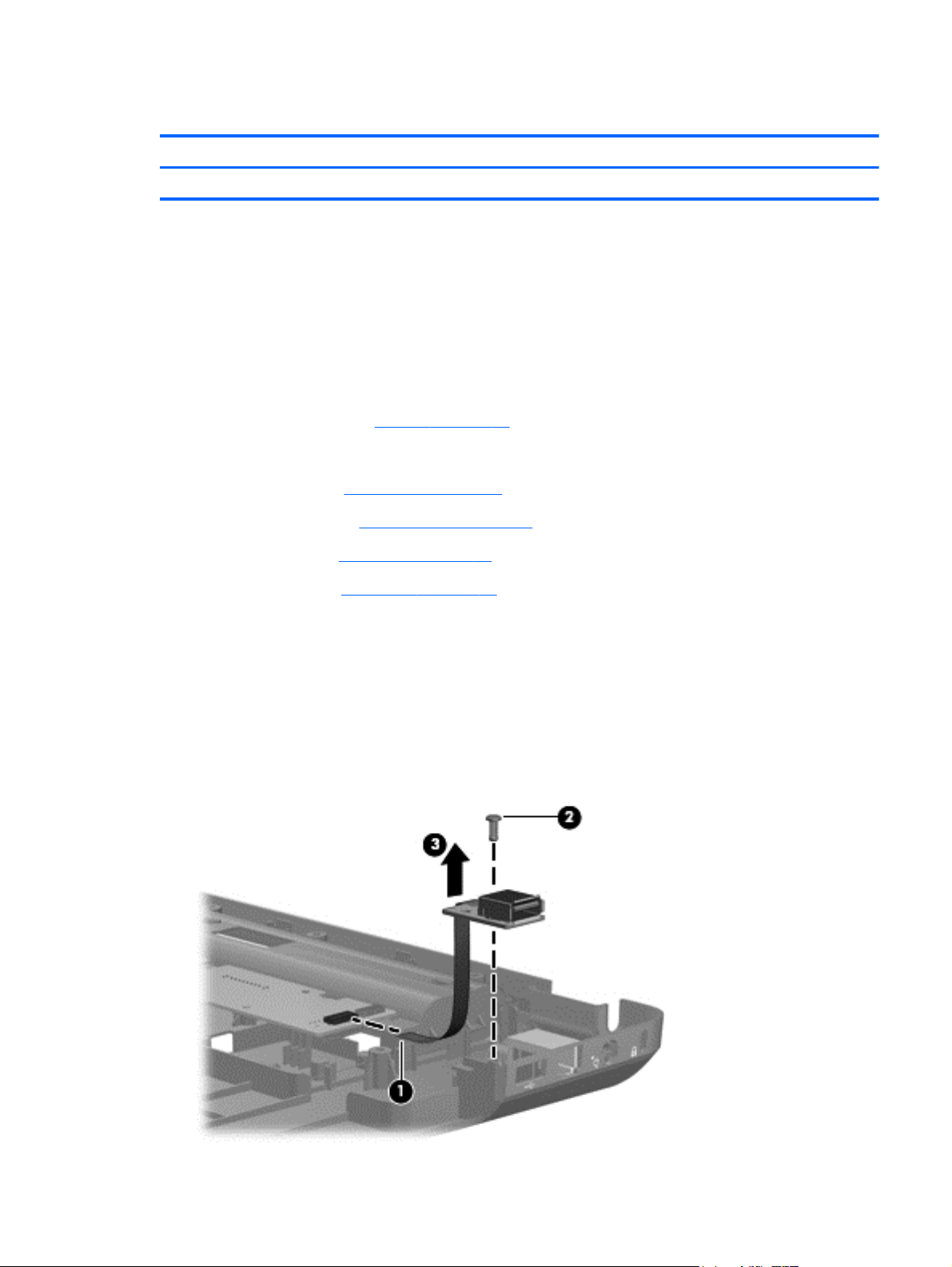

USB board ......................................................................................................................... 65

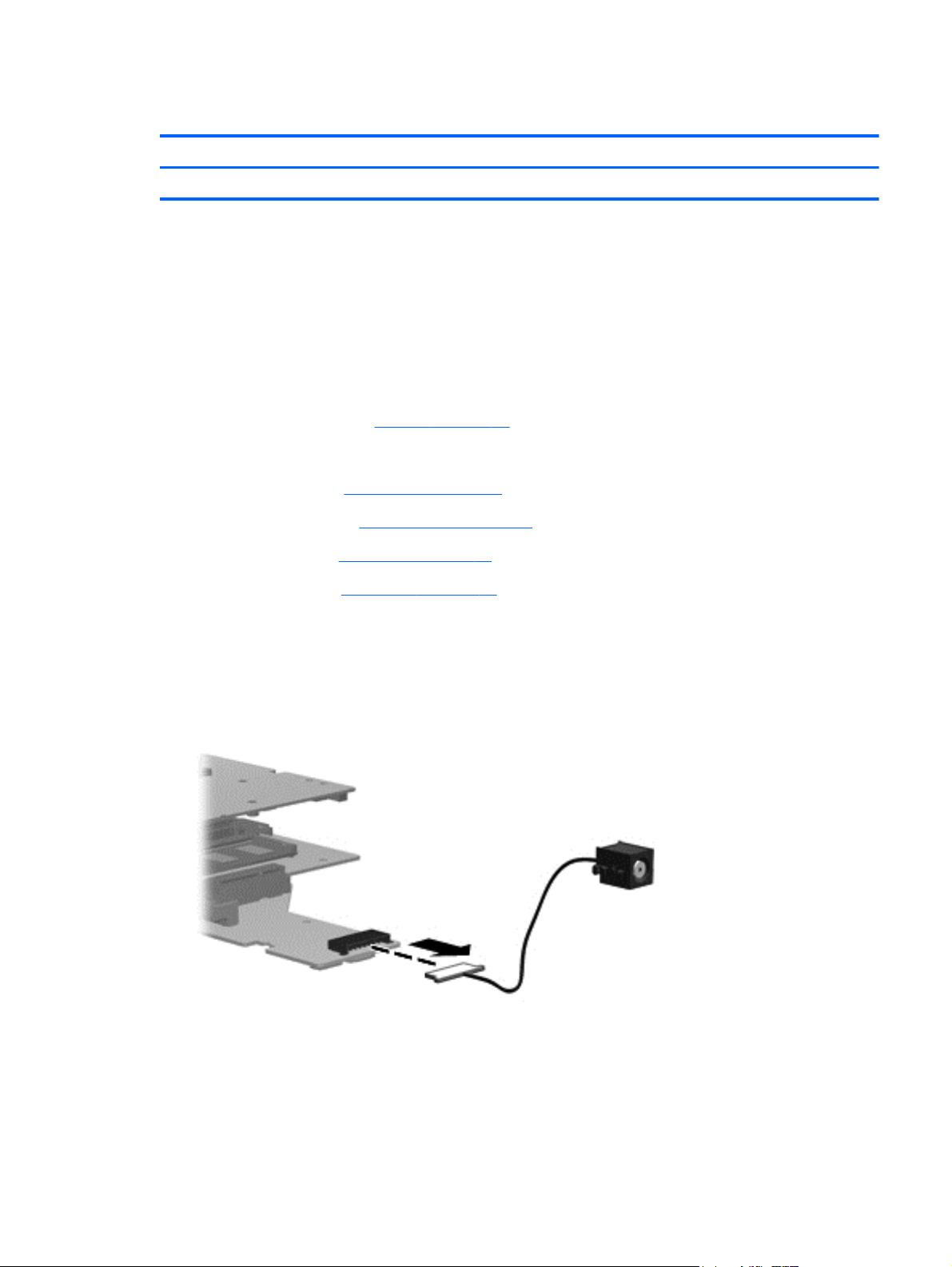

Power connector ................................................................................................................ 67

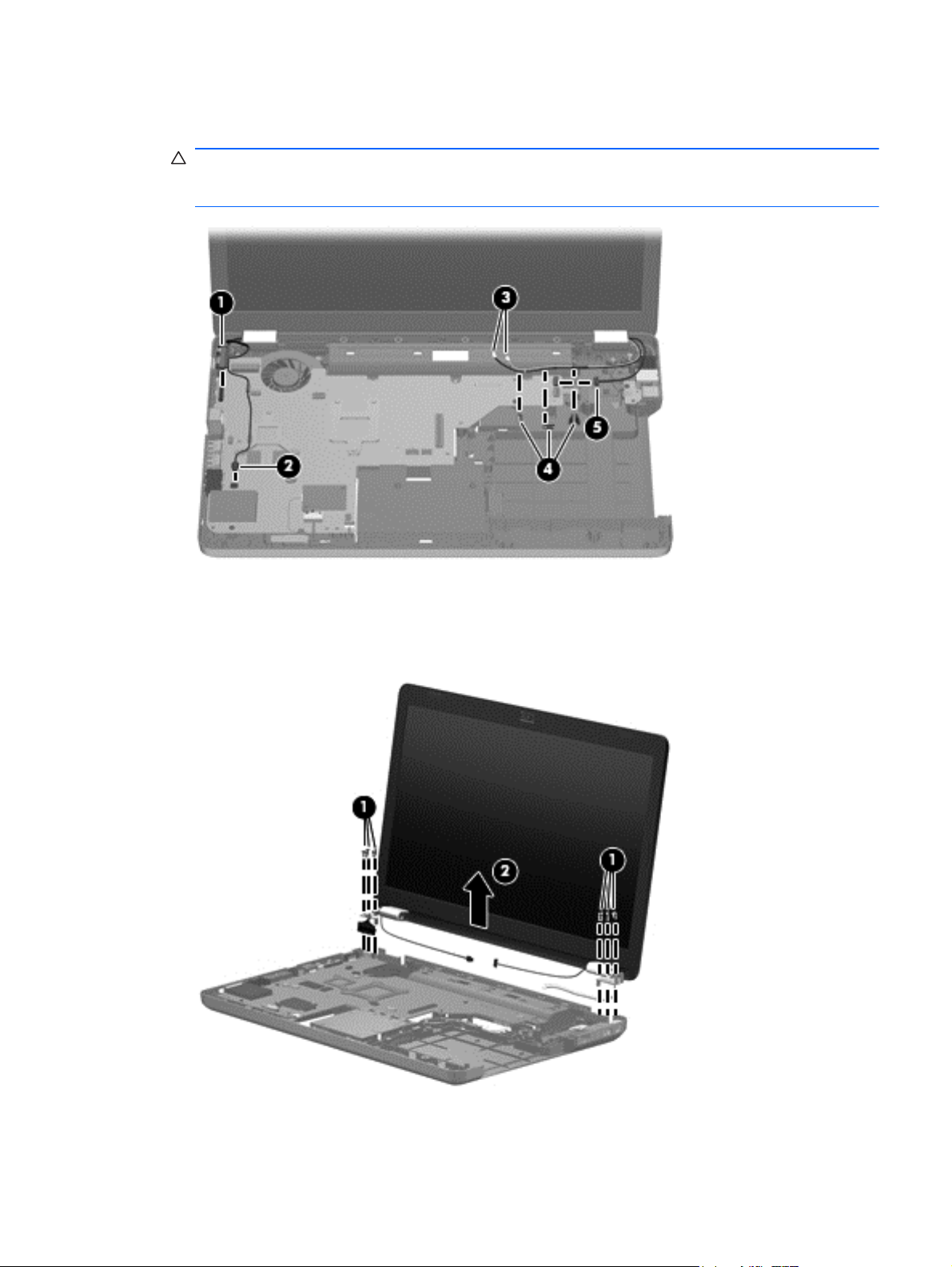

Display assembly ............................................................................................................... 68

System board ..................................................................................................................... 74

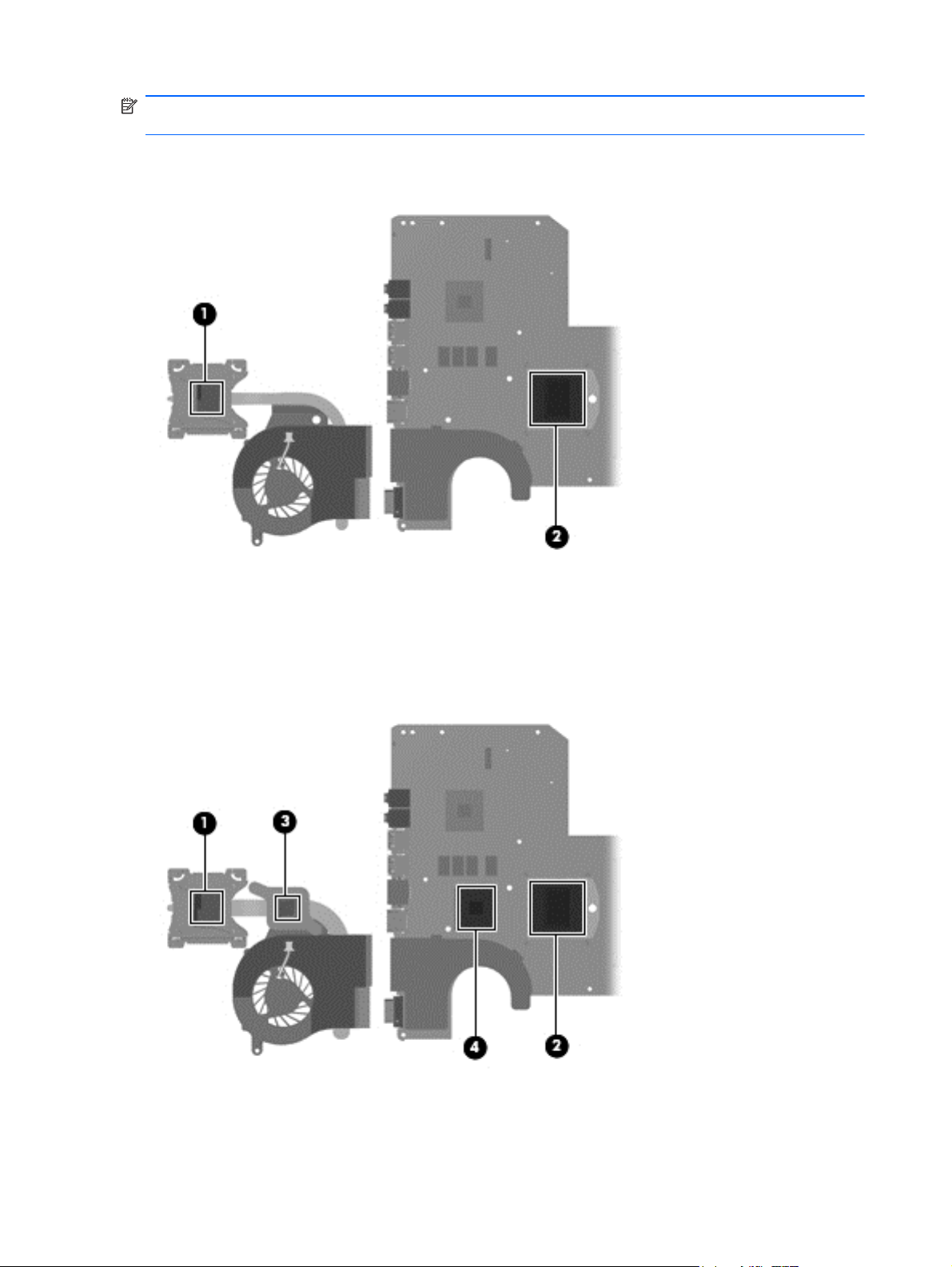

Fan/heat sink assembly ..................................................................................................... 77

Processor ........................................................................................................................... 81

5 Setup Utility ................................................................................................................................................... 83

Computer Setup in Windows 7 ........................................................................................................... 83

Starting Setup Utility .......................................................................................................... 83

Using Setup Utility ............................................................................................................. 83

Changing the language of Setup Utility ............................................................. 83

Navigating and selecting in Setup Utility ........................................................... 84

Displaying system information .......................................................................... 84

Restoring default settings in Setup Utility .......................................................... 85

Exiting Setup Utility ........................................................................................... 86

Setup Utility menus ............................................................................................................ 86

Main menu ........................................................................................................ 86

Security menu ................................................................................................... 86

System Configuration menu .............................................................................. 87

Diagnostics menu .............................................................................................. 87

Computer Setup in Linux .................................................................................................................... 88

Starting Computer Setup ................................................................................................... 88

viii

Using Computer Setup ...................................................................................................... 88

Navigating and selecting in Computer Setup .................................................... 88

Restoring factory settings in Computer Setup ................................................... 89

Computer Setup menus ..................................................................................................... 90

File menu .......................................................................................................... 90

Security menu ................................................................................................... 91

Diagnostics menu .............................................................................................. 91

System Configuration menu .............................................................................. 92

6 Specifications ................................................................................................................................................ 94

Computer specifications ..................................................................................................................... 94

39.6-cm (15.6-in) display specifications ............................................................................................. 95

Hard drive specifications .................................................................................................................... 96

DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive with LightScribe specifications ........ 97

Blu-ray ROM with LightScribe DVD±R/RW SuperMulti Double-Layer Drive specifications ............... 98

System resource specifications .......................................................................................................... 99

7 Backup and recovery .................................................................................................................................. 100

Windows 7 ........................................................................................................................................ 101

Creating recovery discs ................................................................................................... 101

Backing up your information ............................................................................................ 102

Using Windows Backup and Restore .............................................................. 103

Using system restore points ............................................................................ 104

When to create restore points ........................................................ 104

Create a system restore point ........................................................ 104

Restore to a previous date and time ............................................... 104

Performing a recovery ..................................................................................................... 104

Recovering from the recovery discs ................................................................ 105

Recovering from the dedicated recovery partition (select models only) .......... 105

Linux backup and recovery .............................................................................................................. 106

8 Connector pin assignments ....................................................................................................................... 107

Audio-out (headphone) ..................................................................................................................... 107

Audio-in (microphone) ...................................................................................................................... 107

External monitor ............................................................................................................................... 108

RJ-11 (modem) ................................................................................................................................ 109

RJ-45 (network) ................................................................................................................................ 109

HDMI ................................................................................................................................................ 110

Universal Serial Bus ......................................................................................................................... 111

9 Power cord set requirements .................................................................................................................... 112

Requirements for all countries or regions ......................................................................................... 112

Requirements for specific countries or regions ................................................................................ 113

10 Recycling ................................................................................................................................................... 114

Battery .............................................................................................................................................. 114

Display .............................................................................................................................................. 114

Index ................................................................................................................................................................. 121

1 Product description

Category Description HP G62 HP G62

Product Name Compaq Presario CQ62 Notebook PC √

HP G62 Notebook PC √

UMA Discrete

Processors Intel Arrandale™ i7–620M Processor (2.66 GHz, 4 MB

total L3 cache, 1066 MHz)—Dual core 35 W

Intel Arrandale i5–540M Processor (2.53 GHz, 3 MB total

L3 cache, 1066 MHz)—Dual core 35 W

Intel Arrandale i5–520M Processor (2.4 GHz, 3 MB total

L3 cache, 1066 MHz)—Dual Core 35 W

Intel Arrandale i5–450M Processor (2.4 GHz, 3 MB total

L3 cache, 1066 MHz)—Dual Core 35 W

Intel Arrandale i5–430 Processor (2.26 GHz, 3 MB total

L3 cache, 1066 MHz)—Dual Core 35 W

Intel Arrandale i3–370 Processor (2.4 GHz, 3 MB L3

cache, 1066 MHz)—Dual Core 35 W

Intel Arrandale i3–350 Processor (2.26 GHz, 3 MB L3

cache, 1066 MHz)—Dual Core 35 W

Chipset Intel® HM55 Express Chipset √

Graphics Intel HD Graphics Media Accelerator √

ATI Mobility Radeon™ HD5470 with 512 MB dedicated

video memory

ATI Mobility Radeon HD 545v with 512 MB for vision

label mapping

√√

√

Support for BD or HD-DVD playback with HD decoder

and DX10 support

Panel 39.6-cm (15.6-in) HD LED BrightView (1366 x 768) √√

16:9 wide aspect ratio √√

Memory 2 customer-accessible/upgradable SODIMM slots √√

Supports dual-channel memory DDR3, 1066 MHz √√

Supports up to 8 GB of system memory √√

√

Category Description HP G62 HP G62

UMA Discrete

Supports the following configurations:

Hard drives Supports 9.5-mm, 6.35-cm (2.5-in) SATA hard drive √√

Customer accessible √√

Supports the following drives:

4096 MB (2048 MB × 2) √√

●

3072 MB (1024 MB × 1 + 2048 MB × 1) √√

●

2048 MB (2048 MB × 1) √√

●

2048 MB (1024 MB × 2) √√

●

750 GB, 5400 rpm √√

●

640 GB, 5400 rpm √√

●

500 GB, 5400 rpm √√

●

500 GB, 7200 rpm √√

●

320 GB, 5400 rpm √√

●

320 GB, 7200 rpm √√

●

250 GB, 5400 rpm √√

●

250 GB, 7200 rpm √√

●

160 GB, 7200 rpm √√

●

Optical drives 12.7-mm (0.50-in) fixed SATA tray load √√

DVD±RW and CD-RW SuperMulti Double-Layer Combo

Drive with LightScribe

Blu-ray ROM with LightScribe DVD±R/RW SuperMulti

Double-Layer Drive

Webcam (select models only) VGA camera, fixed angle with activity light and single

analog microphone

Microphone Integrated single analog microphone (for models with no

webcam)

Audio High-definition audio supports Microsoft® premium

requirements with Presario/HP Altec Lansing speakers

Modem (select models only) 56K V.92 data/fax MDC modem (computer models not

equipped with a modem have a cover over the RJ-11 jack opening)

Supports all worldwide certification requirements √√

Ethernet Integrated 10/100 network interface card (NIC)

Integrated wireless local area network (WLAN) options by

way of wireless module:

2 wireless antennas built into display assembly √√

Support for no-WLAN option √√

√√

2 Chapter 1 Product description

Category Description HP G62 HP G62

UMA Discrete

Support for the following WLAN formats:

Atheros AR9285 802.11 a/b/g/n 2x2 √√

Intel WiFi Link 5100 802.11/b/g/n WLAN module √√

Broadcom 4313 802.11b/g/n 1x1 √√

Broadcom 4313 802.11b/g/n 1x1 WiFi and 2070

Bluetooth 2.1+EDR Combo adapter (BT3.0+HS ready)

Ralink RT3090BC4 802.11b/g/n 1x1 WiFi and Bluetooth

2.1+EDR Combo Adapter (BT3.0+HS ready)

Realtek RTL8191SE 802.11b/g/n 1x1 WiFi Adapter √√

External media card (select models only )

Ports Audio-in (stereo microphone) √√

Audio-out (stereo headphone) √√

High-Definition Multimedia Interface (HDMI) version 1.3

Hot plug/unplug with auto-detect √√

RJ-11 (modem, select models only) √√

RJ-45 (Ethernet) √√

USB (Three USB ports; one is an eSATA/USB port) √√

VGA (Dsub 15-pin) supporting 1600 × 1200 external

Digital Media Slot supporting SD, MMC, MS, MSPro, xD cards. Supports mini versions of SD, MMC, MS Duo with adapter, not included

supporting 1080p with High-bandwidth Digital Content Protection (HDCP) key (select models only)

resolution at 75 Hz

√√

Multi-pin AC power √√

Keyboard/pointing devices 39.62-cm (15.6-in), Full-size keyboard √√

TouchPad with 2 buttons and 2-way scroll (taps enabled

as default)

Power requirements 6-cell, 2.20–Ah, 47 Wh battery √√

6-cell, 2.55–Ah, 55 Wh battery √√

6-cell, 2.8–Ah, 62 Wh battery √√

9-cell, 2.8–Ah, 93 Wh battery √√

65-W AC adapter with localized cable plug support √

90-W AC adapter with localized cable plug support √

Security Kensington Security Lock √√

Operating system Preinstalled:

Windows 7® Home Premium (32 & 64 bit) √√

Windows 7 Home Basic (32 & 64 bit) √√

√√

Category Description HP G62 HP G62

UMA Discrete

Free DOS √√

Serviceability End-user replaceable parts:

AC adapter √√

Battery (system) √√

Hard drive √√

Memory module √√

Optical drive √√

Mini-card devices √√

4 Chapter 1 Product description

2 External component identification

Identifying the hardware

Components included with the computer might vary by region and model. The illustrations in this chapter identify the standard features on most computer models.

To see a list of hardware installed in the computer:

1. Select Start > My Computer.

2. In the left pane of the System Tasks window, select View system information.

3. Select Hardware tab > Device Manager.

Add hardware or modify computer configurations using Device Manager.

Identifying the hardware 5

Top components

TouchPad

Component Description

(1) TouchPad light Off—Touchpad is on.

Amber—Touchpad is off.

(2) TouchPad zone Moves the pointer and selects or activates items on the

(3) Left TouchPad button Press the left side of the TouchPad button to execute

(4) Right TouchPad button Press the right side of the TouchPad button to execute

*This table describes factory settings.

screen.

functions like the left button on an external mouse.

functions like the right button on an external mouse.

To view or change the pointing device preferences:

1. Select Start > Devices and Printers.

2. Right-click the device representing the computer.

3. Select Mouse settings.

6 Chapter 2 External component identification

Lights

Component Description

(1) TouchPad light

(2) Caps lock light On—Caps lock is on

(3) Power light

(4) Wireless light

Off—TouchPad is enabled.

●

Amber—TouchPad is disabled.

●

On—The computer is on.

●

Flashing—The computer is in Sleep.

●

Off—The computer is off or in Hibernation.

●

White—An integrated wireless device, such as a

●

wireless local area network (WLAN) device and/or a Bluetooth® device, is on.

Amber—No wireless devices are detected.

●

Top components 7

Button and speakers

Component Description

(1) Power button

(2) Speakers grill Two integrated speakers produce sound.

*This table describes factory settings. For information about changing factory settings, see the user guides located in Help and Support.

When the computer is off, press the button to turn on

●

the computer.

When the computer is on, press the button to initiate

●

Sleep.

When the computer is in Sleep, press the button to exit

●

Sleep.

When the computer is in Hibernation, press the button

●

to exit Hibernation.

If the computer has stopped responding and Windows shutdown procedures are ineffective, press and hold the power button for at least five seconds to turn off the computer.

To learn more about your power settings, select Start > Control Panel > System and Security > Power Options.

8 Chapter 2 External component identification

Keys

Component Description

(1) esc key Displays system information when pressed in combination

(2) Send e-mail key Opens a new e-mail in your default e-mail client.

(3) Media application key Launches CyberLink PowerDVD.

(4) Web browser key Launches default web browser.

(5) Print key Sends the currently-active document to the default printer.

(6) Calculator key Launches the calculator application.

(7) fn key Displays system information when pressed in conjunction

(8) Windows logo key Displays the Windows Start menu.

(9) Windows applications key Displays a shortcut menu for items where the cursor is

(10) Action keys Executes frequently-used system actions.

with the fn key.

with the esc key.

positioned

Top components 9

Display

Component Description

(1) Wireless antenna (2) Sends and receives signals from one or more wireless devices.

(2) Internal microphone Records sound.

(3) Integrated webcam (select models only) Records audio and video and captures still photographs.

(4) Webcam light (select models only) On—The webcam is in use.

10 Chapter 2 External component identification

Right-side components

Component Description

(1) Optical drive Reads and writes to optical discs.

(2) USB port Connects an optional USB device.

(3) RJ-11 (modem) jack (select models only) Connects a modem cable.

(4) AC adapter light

(5) Power connector Connects an AC adapter.

(6) Security cable slot Attaches an optional security cable to the computer.

Flashing white—The computer is in Sleep.

●

On white—The computer is connected to external power.

●

Flashing amber—The computer is charged.

●

Off—The computer is not connected to external power.

●

NOTE: The security cable is designed to act as a deterrent,

but it might not prevent the computer from being mishandled or stolen.

Right-side components 11

Left-side components

Component Description

(1) External monitor port Connects an external VGA monitor or projector.

(2) Vent Enables airflow to cool internal components.

NOTE: The computer fan starts up automatically to cool

internal components and prevent overheating. It is normal for the internal fan to cycle on and off during routine operation.

(3) HDMI port (select models only) Connects an optional video or audio device, such as a

(4) RJ-45 (network) jack Connects a network cable.

(5) USB ports (2) Connects an optional USB devices.

(6) Audio-in (microphone) jack Connects an optional computer headset microphone,

(7) Audio-out (headphone) jack Produces sound when connected to optional powered

(8) Digital Media Slot (select models only) Supports the following optional digital card formats:

(9) Drive light On—The hard drive is in use.

high-definition television, or any compatible digital or audio component.

NOTE: Depending on the computer model, the computer

might include an HDMI port or a USB port at this location.

stereo array microphone, or monaural microphone.

stereo speakers, headphones, earbuds, a headset, or television audio.

Memory Stick (MS)

●

Memory Stick Pro (MSP)

●

MultiMediaCard (MMC)

●

Secure Digital (SD) Memory Card

●

xD-Picture Card (XD)

●

12 Chapter 2 External component identification

Bottom components

Component Description

(1) Battery bay Holds the battery.

(2) Vents (4) Enable airflow to cool internal components.

NOTE: The computer fan starts up automatically to cool

internal components and prevent overheating. It is normal for the internal fan to cycle on and off during routine operation.

(3) Battery release latch Releases the battery from the battery bay.

(4) Memory module compartment Contains two memory module slots and, on select

(5) Hard drive bay Holds the hard drive.

models, the wireless LAN (WLAN) device.

CAUTION: To prevent an unresponsive system, replace

the wireless module only with a wireless module authorized for use in the computer by the governmental agency that regulates wireless devices in your country or region. If you replace the module and then receive a warning message, remove the module to restore computer functionality, and then contact technical support through Help and Support.

Bottom components 13

Wireless antennas

At least two antennas send and receive signals from one or more wireless devices. These antennas are not visible from the outside of the computer.

NOTE: For optimal transmission, keep the areas immediately around the antennas free from

obstructions.

To review the wireless regulatory notices, see to the section of the Regulatory, Safety and Environmental Notices that applies to your country or region. These notices are located in Help and Support.

14 Chapter 2 External component identification

Additional hardware components

Component Description

(1) Power cord* Connects an AC adapter to an AC outlet.

(2) AC adapter Converts AC power to DC power.

(3) Battery* Powers the computer when the computer is not plugged into

*Power cords vary in appearance by country or region.

external power.

Additional hardware components 15

3 Illustrated parts catalog

Serial number location

When ordering parts or requesting information, provide the computer serial number and model number located in the battery bay of the computer.

Component Description

(1) Product name The name affixed to the front of the computer.

(2) Serial number (s/n) An alphanumeric identifier that is unique to each product.

(3) Part number/Product number (p/n) This number provides specific information about the product’s

(4) Warranty period The duration of the warranty period for the computer.

(5) Model description An alphanumeric identifier used to locate documents, drivers, and

16 Chapter 3 Illustrated parts catalog

hardware components. The part number helps a service technician to determine what components and parts are needed.

support for the computer.

Computer major components

Computer major components 17

Item Description Spare part number

(1) 39.6-cm (15.6-in) High Definition (HD), light-emitting diode (LED) display assembly

for use in:

NOTE: For more information on the display assembly internal component spare part

information, See

(2) Power button board 606008-001

(3) Keyboard (includes keyboard cable) for use in:

HP G62 biscotti computer models 605906-001

●

HP G62 silver computer models 605907-001

●

HP G62 white computer models 605908-001

●

HP G62 matte black computer models 608444-001

●

HP G62 red computer models 615423-001

●

HP G62 blue computer models 615424-001

●

Adriatics 605922-BA1

●

Belgium 605922-A41

●

Czech Republic 605922-221

●

France 605922-051

●

Germany 605922-041

●

Display assembly components on page 23.

(4) Speaker assembly

(5) Top cover (includes TouchPad board) for use in:

Greece 605922-DJ1

●

Hungry 605922-211

●

for International use 605922-B31

●

Israel 605922-BB1

●

Italy 605922-061

●

North America 605922–001

●

Norway 605922-DH1

●

Portugal 605922-131

●

Russia 605922-251

●

Saudi Arabia 605922-171

●

Spain 605922-071

●

Switzerland 605922-BG1

●

Turkey 605922-141

●

United Kingdom 605922-031

●

(includes cable) 606007-001

Matte black computer models 606004-001

●

Biscotti computer models 610567-001

●

18 Chapter 3 Illustrated parts catalog

Item Description Spare part number

(6) Fan/heat sink assembly (includes replacement thermal material) for use with:

Thermal pad 634363–001

(7) Touchpad button board (includes bracket and cable) 606005-001

(8) Modem module (select models only) (for model 1.0 only) 510110–001

(9) RTC battery (includes mounting adhesive) 606015-001

(10) System board (includes replacement thermal material) for use in:

Silver computer models 610568-001

●

White computer models 610569-001

●

Red computer models 615433–001

●

Blue computer models 615434–001

●

UMA systems 606013-001

●

Discrete systems 606014-001

●

HD UMA system board with card reader 605903–001

●

HD 5470/512 MB discrete system board with card reader 605902-001

●

HD 5470/1 GB discrete system board with card reader 608340-001

●

HD 5470/ 512 MB discrete system board with card reader (for model 1.1 only) 615381-001

●

(11) Memory module (1066 MHz, DDR3)

(12) Hard drive

HD 5470/1 GB discrete system board with card reader (for model 1.1 only) 615382–001

●

1 GB 598859-001

●

2 GB 598856-001

●

4 GB (for model 1.1 only) 599092-001

●

750 GB, 5400 rpm 619686–001

●

640 GB, 5400 rpm 603785–001

●

500 GB, 5400 rpm (for model 1.1 only) 634638-001

●

500 GB, 7200 rpm 610583-001

●

320 GB, 5400 rpm (for model 1.1 only) 622643-001

●

320 GB, 7200 rpm 603783-001

●

250 GB, 5400 rpm (for model 1.1 only) 622641-001

●

250 GB, 7200 rpm 635225-001

●

160 GB, 7200 rpm 615076-001

●

Hard Drive Hardware Kit (not illustrated, includes bracket and screws) 605919-001

●

(13) Processor (includes replacement thermal material)

Intel Arrandale i5–520M Processor (2.4 GHz, 3 MB total L3 cache, 1066 MHz)—

●

Dual Core 35 W

Computer major components 19

594187-001

Item Description Spare part number

Intel Arrandale i5–540M Processor (2.53 GHz, 3 MB total L3 cache, 1066 MHz)—

●

Dual core 35 W

Intel Arrandale i3–330 Processor (2.13 GHz, 3 MB L3 cache, 1066 MHz)—Dual

●

Core 35 W (for model 1.0 only)

Intel Arrandale i3–350 Processor (2.26 GHz, 3 MB L3 cache, 1066 MHz)—Dual

●

Core 35 W

Intel Arrandale i5–430 Processor (2.26 GHz, 3 MB total L3 cache, 1066 MHz)—Dual

●

Core 35 W

Intel Arrandale i3–370 Processor (2.4 GHz, 3 MB L3 cache, 1066 MHz)—Dual Core

●

35 W

Intel Arrandale i5–450 Processor (2.4 GHz, 3 MB L3 cache, 1066 MHz)—Dual Core

●

35 W

Pentium Arrandale P6000 Processor (1.86 GHz, 3 MB L3 cache, 1066 MHz)—Dual

●

Core 35 W

Pentium Arrandale P6100 Processor (2.0 GHz, 3 MB L3 cache, 1066 MHz)—Dual

●

Core 35 W (for model 1.1 only)

Intel Arrandale i3–380 Processor (2.53 GHz, 3 MB L3 cache, 1066 MHz)—Dual

●

Core 35 W (for model 1.1 only)

Intel Arrandale i5–560 Processor (2.66–3.2 GHz, 3 MB L3 cache, 1066 MHz)—Dual

●

Core 35 W (for model 1.1 only)

Intel Arrandale i5–580 Processor (2.66–3.33 GHz, 3 MB L3 cache, 1066 MHz)—

●

Dual Core 35 W (for model 1.1 only)

594188-001

597622-001

597623-001

597624-001

613584-001

613585-001

613586-001

613587-001

625823-001

625824-001

625825-001

(14) Wireless (WLAN) module

Intel Pentium P6200 Processor (2.13 GHz, 3 MB L3 cache, 1066 MHz)—Dual Core

●

35 W (for model 1.1 only)

Intel Core i5–460 Processor (2.53 GHz, 3 MB L3 cache, 1066 MHz)—Dual Core 35

●

W (for model 1.1 only)

Atheros AR9285 802.11 a/b/g/n 2x2 WiFi adapter for use in Canada, the Cayman

●

Islands, Guam, Puerto Rico, the United States, and the US Virgin Islands

625831-001

626039-001

580101-001

20 Chapter 3 Illustrated parts catalog

Item Description Spare part number

Intel WiFi Link 5100 802.11/b/g/n WLAN module for use in Afghanistan, Albania,

●

Algeria, Andorra, Angola, Antigua and Barbuda, Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia, Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cameroon, Canada, Cape Verde, the Cayman Islands, the Central African Republic, Chad, Chile, Colombia, Comoros, the Congo, Costa Rica, Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala, Guam, Guinea, Guinea-Bissau, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Ireland, Israel, Italy, the Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, Malaysia, the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Nether Antilles, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Palau, Panama, Papua New Guinea, Paraguay, the People's Republic of China, Peru, the Philippines, Poland, Portugal, Puerto Rico, the Republic of Moldova, Romania, Rwanda, Samoa, San Marino, Sao Tome and Principe, Saudi Arabia, Senegal, Serbia and Montenegro, the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia, South Africa, South Korea, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia, St. Vincent and the Grenadines, Suriname, Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, the United Arab Emirates, the United Kingdom, Uruguay, the U.S. Virgin Islands, the United States, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe

593530–001

(15) Optical drive (includes optical drive bezel and bracket)

DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive with LightScribe for use

Blu-ray ROM with LightScribe DVD±R/RW SuperMulti Double-Layer Drive for use with:

Realtek RTL8191SE 802.11b/g/n 1x1 WiFi Adapter 593533–001

●

Broadcom 4313 802.11b/g/n 1x1 WiFi Adapter 593836-001

●

Broadcom 4313 802.11b/g/n 1x1 WiFi and 2070 Bluetooth 2.1+EDR Combo adapter

●

(BT3.0+HS ready) (for model 1.1 only)

Ralink RT3090BC4 802.11b/g/n 1x1 WiFi and Bluetooth 2.1+EDR Combo Adapter

●

(BT3.0+HS ready) (for model 1.1 only)

with:

Matte black computer models 605920-001

●

Biscotti computer models 610558-001

●

Silver computer models 610559-001

●

White computer models 610560-001

●

Red computer models 615435–001

●

Blue computer models 615436–001

●

Matte black computer models 605921-001

●

Biscotti computer models 610561-001

●

600370–001

602992-001

Silver computer models 610562-001

●

Computer major components 21

Item Description Spare part number

(16) Battery

(17) Power connector (includes cable) 609154-001

(18) USB board 606011-001

(19) RJ-11 connector included in Cable Kit 606009-001

(20) Bluetooth module (for model 1.0 only) 537921–001

Bluetooth module cable 605904–001

(21) Base enclosure for use with:

White computer models 610563-001

●

Red computer models 615437–001

●

Blue computer models 615438–001

●

6-cell Li-lon, 2.20 Ah, 47 Wh 593553-001

●

6-cell Li-lon, 2.55 Ah, 55 Wh 593554-001

●

Matte black computer models 606018-001

●

Biscotti computer models 610564-001

●

Silver computer models 610565-001

●

White computer models 610566-001

●

Plastics Kit 606006-001

(21)

(23)

Red computer models 615427-001

●

Blue computer models 615428-001

●

Rubber Kit (not illustrated, includes four rubber feet) 606012-001

Hard drive cover

●

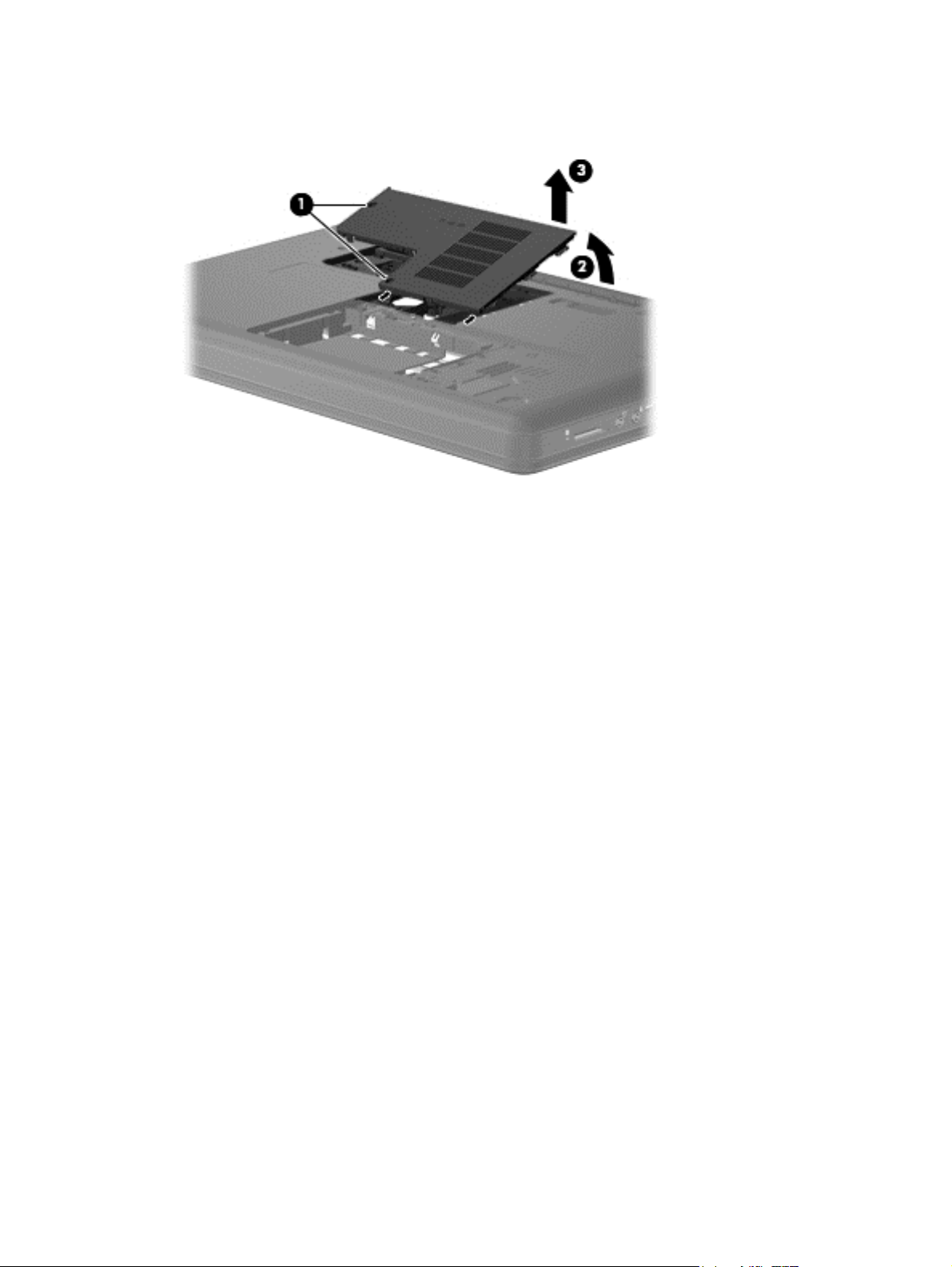

Memory module cover

●

22 Chapter 3 Illustrated parts catalog

Display assembly components

Item Description Spare part number

(1) Display bezel 605913–001

(2) Display bracket (with hinges) 605915-001

(3) 39.6-cm (15.6-in) high definition, Brightview, display panel (includes display panel

cable)

(4) Microphone(includes calbe) 606002–001

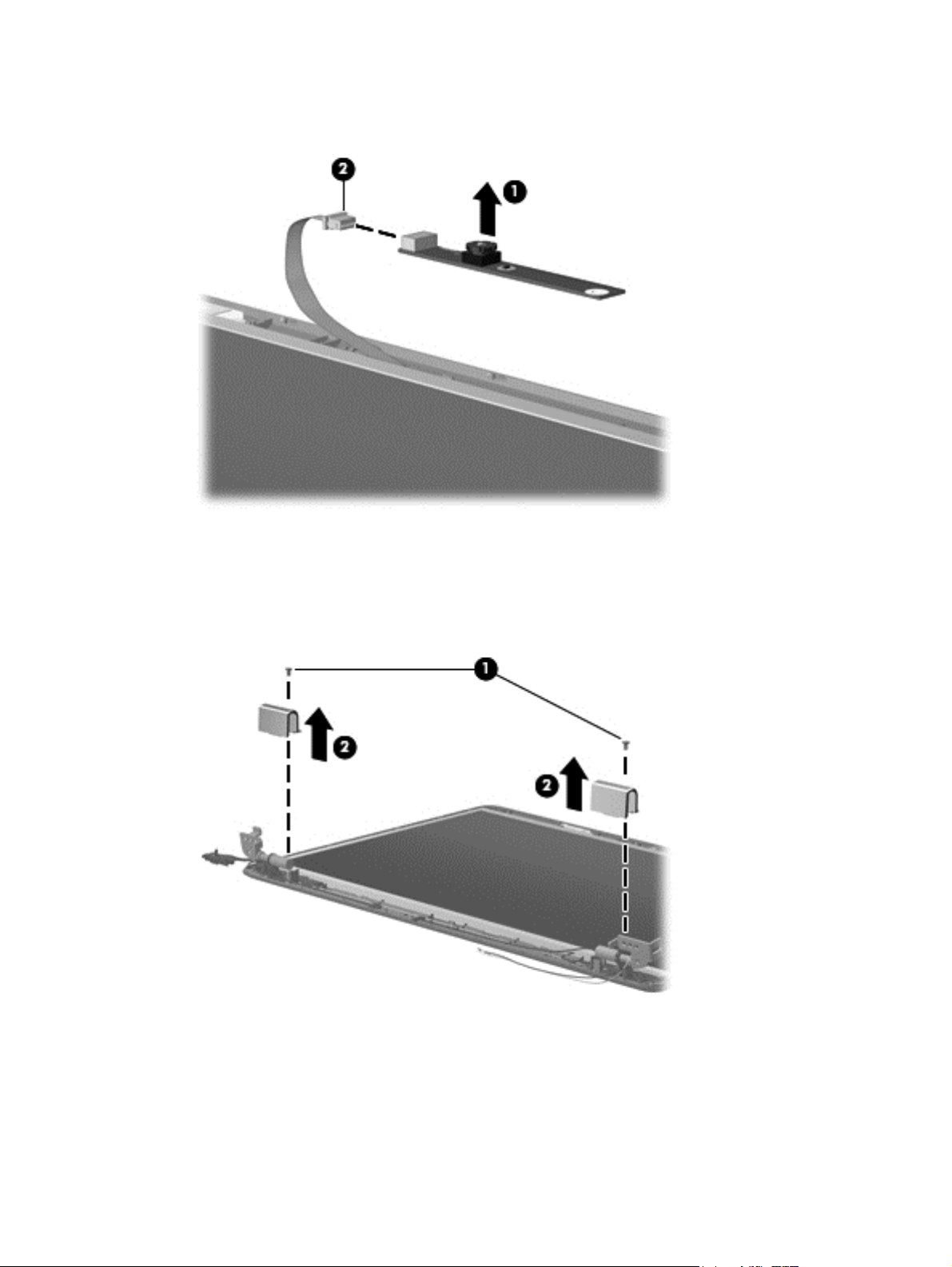

(5) Webcam module 606001-001

Webcam module cable 605916–001

595130-001

Display assembly components 23

Item Description Spare part number

(6) Wireless antenna (includes wireless antenna transceivers and cable) 606016-001

(7) Display back cover (includes logo) for use with:

(8) Display hinge covers 606017-001

Display screw kit (not illustrated) 605918-001

Display rubber display kit (not illustrated, includes display bezel rubber screw covers) 605917-001

Matte black computer models 608445-001

●

Biscotti computer models 605910-001

●

Silver computer models 605911-001

●

White computer models 605912-001

●

Red computer models 615425-001

●

Blue computer models 615426-001

●

24 Chapter 3 Illustrated parts catalog

Plastics Kit

Item Description Spare part number

Plastics kit 606006-001

(1) Hard drive bay cover (includes captive screws)

(2) Wireless/memory module mini-card compartment cover (includes captive screw)

Plastics Kit 25

Mass storage devices

Item Description Spare part number

(1) Optical drive (12.7 mm, SATA, fixed, includes bezel and bracket)

DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive with LightScribe for use

Blu-ray ROM with LightScribe DVD±R/RW SuperMulti Double-Layer Drive for use with:

with:

Matte black computer models 605920-001

●

Biscotti computer models 610558-001

●

Silver computer models 610559-001

●

White computer models 610560-001

●

Red computer models 615435–001

●

Blue computer models 615436–001

●

Matte black computer models 605921-001

●

Biscotti computer models 610561-001

●

Silver computer models 610562-001

●

White computer models 610563-001

●

Red computer models 615437–001

●

Blue computer models 615438–001

●

(2) Hard drive

750 GB, 5400 rpm 619686–001

●

26 Chapter 3 Illustrated parts catalog

Item Description Spare part number

Hard drive hardware kit (not illustrated, includes bracket and screws) 605919-001

640 GB, 5400 rpm 603785–001

●

500 GB, 5400 rpm (for model 1.1 only) 634638-001

●

500 GB, 7200 rpm 610583-001

●

320 GB, 5400 rpm (for model 1.1 only) 622643-001

●

320 GB, 7200 rpm 603783-001

●

250 GB, 5400 rpm (for model 1.1 only) 622641-001

●

250 GB, 7200 rpm 6335225-001

●

160 GB, 7200 rpm 615076-001

●

Mass storage devices 27

Miscellaneous parts

Description Spare part number

AC adapters

65-W AC adapter 609939-001

●

90-W AC adapter 609940-001

●

Power cord, AC, 3 wire, black, 1.83-m (for use with both HP G62 and Presario CQ 62 computer models) for use in:

Denmark 490371-081

●

Europe 490371-021

●

Israel 490371-BB1

●

Italy 490371-061

●

North America 430971-001

●

South Africa 490371-AR1

●

Switzerland 490371-111

●

the United Kingdom and Singapore 490371-031

●

Cable Kit 606009-001

Optical drive connector cable

●

Power button cable

●

RJ-11 cable

●

TouchPad cable

●

USB cable

●

Screw kit

Phillips M2.0x3.0 screw

●

Phillips M2.5x3.0 screw

●

Phillips M2.5x4.0 screw

●

Phillips M2.5x5.0 screw

●

Phillips M2.5x6.5 screw

●

606010-001

28 Chapter 3 Illustrated parts catalog

Sequential part number listing

Spare part number Description

490371-001 Power cord for use in North America with HP G62 computer models

490371-021 Power cord for use in Europe with HP G62 computer models

490371-031 Power cord for use in the United Kingdom and Singapore with HP G62 computer models

490371-061 Power cord for use in Italy with HP G62 computer models

490371-081 Power cord for use in Denmark with HP G62 computer models

490371-111 Power cord for use in Switzerland with HP G62 computer models

490371-AR1 Power cord for use in South Africa with HP G62 computer models

490371-BB1 Power cord for use in Israel with HP G62 computer models

510110–001 56K V.92 data/fax modem (select models only) (for model 1.0 only)

537921-001 Bluetooth module (for model 1.0 only)

580101-001 Atheros AR9285 802.11 a/b/g/n 2x2 WiFi adapter for use in Canada, the Cayman Islands,

Guam, Puerto Rico, the United States, and the US Virgin Islands

587259-011 Intel Arrandale i7–620M Processor (2.66 GHz, 4 MB total L3 cache, 1066 MHz)—Dual core 35

593530-001 Intel WiFi Link 5100 802.11/b/g/n WLAN module for use in Afghanistan, Albania, Algeria,

Andorra, Angola, Antigua and Barbuda, Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia, Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cameroon, Canada, Cape Verde, the Cayman Islands, the Central African Republic, Chad, Chile, Colombia, Comoros, the Congo, Costa Rica, Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala, Guam, Guinea, Guinea-Bissau, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Ireland, Israel, Italy, the Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, Malaysia, the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Nether Antilles, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Palau, Panama, Papua New Guinea, Paraguay, the People's Republic of China, Peru, the Philippines, Poland, Portugal, Puerto Rico, the Republic of Moldova, Romania, Rwanda, Samoa, San Marino, Sao Tome and Principe, Saudi Arabia, Senegal, Serbia and Montenegro, the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia, South Africa, South Korea, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia, St. Vincent and the Grenadines, Suriname, Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, the United Arab Emirates, the United Kingdom, Uruguay, the U.S. Virgin Islands, the United States, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe

593533–001 Realtek RTL8191SE 802.11b/g/n 1x1 WiFi Adapter

593553–001 Battery, 6-cell, 2.20 Ah, 47 Wh

593554-001 Battery, 6-cell, 2.55 Ah, 55 Wh

593836-001 Broadcom 4313 802.11b/g/n 1x1 WiFi Adapter

594187-001 Intel Arrandale i5–520M Processor (2.4 GHz, 3 MB total L3 cache, 1066 MHz)—Dual Core 35

Sequential part number listing 29

Spare part number Description

594188-001 Intel Arrandale i5–540M Processor (2.53 GHz, 3 MB total L3 cache, 1066 MHz)—Dual core 35

595130-001 High Definition display panel (includes display panel and backlight cables)

597622-001 Intel Arrandale i3–330 Processor (2.13 GHz, 3 MB L3 cache, 1066 MHz)—Dual Core 35 W (for

model 1.0 only)

597623-001 Intel Arrandale i3–350 Processor (2.26 GHz, 3 MB L3 cache, 1066 MHz)—Dual Core 35 W

597624-001 Intel Arrandale i5–430 Processor (2.26 GHz, 3 MB total L3 cache, 1066 MHz)—Dual Core 35 W

598856-001 2 GB memory module (1066 MHz, DDR3)

598859-001 1 GB memory module (1066 MHz, DDR3)

599092-001 4 GB memory module (1066 MHz, DDR3) (for model 1.1 only)

600370-001 Broadcom 4313 802.11b/g/n 1x1 WiFi and 2070 Bluetooth 2.1+EDR Combo adapter

(BT3.0+HS ready) (for model 1.1 only)

602992-001 Ralink RT3090BC4 802.11b/g/n 1x1 WiFi and Bluetooth 2.1+EDR Combo Adapter (BT3.0+HS

ready) (for model 1.1 only)

605902–001 HD 5470/512 MB discrete system board with card reader

605903-001 HD UMA system board with card reader

605904-001 Bluetooth module cable

605906-001 39.6-cm (15.6-in) HD, light-emitting diode display assembly for HP G62 biscotti computer

models

605907-001 39.6-cm (15.6-in) HD, light-emitting diode display assembly for HP G62 silver computer models

605908-001 39.6-cm (15.6-in) HD, light-emitting diode display assembly for HP G62 white computer models

605910-001 Display back cover for use with HP G62 biscotti computer models

605911-001 Display back cover for use with HP G62 silver computer models

605912-001 Display back cover for use with HP G62 white computer models

605913-001 Display bezel

605915–001 Display hinge kit (includes left and right display hinges)

605916-001 Webcam module cable

605917-001 Display rubber kit

605918-001 Display screw kit

605919-001 Hard Drive Hardware Kit (includes bracket and screws)

605920-001 DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive with LightScribe for use with

matte black computer models

605921-001 Blu-ray ROM with LightScribe DVD±R/RW SuperMulti Double-Layer Drive for use with matte

black computer models

605922–001 Keyboard for use in North America (includes keyboard cable)

605922–031 Keyboard for use in the United Kingdom (includes keyboard cable)

605922–041 Keyboard for use in Germany (includes keyboard cable)

30 Chapter 3 Illustrated parts catalog

Spare part number Description

605922–051 Keyboard for use in France (includes keyboard cable)

605922–061 Keyboard for use in Italy (includes keyboard cable)

605922–071 Keyboard for use in Spain (includes keyboard cable)

605922–131 Keyboard for use in Portugal (includes keyboard cable)

605922–141 Keyboard for use in Turkey (includes keyboard cable)

605922–171 Keyboard for use in Saudi Arabia (includes keyboard cable)

605922–211 Keyboard for use in the Hungary (includes keyboard cable)

605922–221 Keyboard for use in Czech Republic (includes keyboard cable)

605922–251 Keyboard for use in Russia (includes keyboard cable)

605922–A41 Keyboard for use in Belgium (includes keyboard cable)

605922–B31 Keyboard for international use (includes keyboard cable)

605922–BA1 Keyboard for use in Adriatics (includes keyboard cable)

605922–BB1 Keyboard for use in Israel (includes keyboard cable)

605922–BG1 Keyboard for use in Switzerland (includes keyboard cable)

605922–DH1 Keyboard for use in Norway (includes keyboard cable)

605922–DJ1 Keyboard for use in Greece (includes keyboard cable)

606001–001 Webcam module

606002–001 Microphone (includes cable)

606003–001 High Definition display panel (includes display panel and backlight cables)

606004–001 Top cover (includes TouchPad board) for use in matte black computer models

606005–001 Touchpad button board (includes bracket and cable)

606006–001 Plastics kit

606007–001 Speaker assembly (includes cable)

606008–001 Power button board

606009–001 Cable kit

606010–001 Screw kit

606011–001 USB board

606012–001 Rubber kit (includes four rubber feet)

606013–001 Fan/heat sink assembly (includes replacement thermal material) for use with UMA systems

606014–001 Fan/heat sink assembly (includes replacement thermal material) for use with discrete systems

606015–001 RTC battery

606016–001 Wireless antenna kit (includes wireless antenna transceivers and cable)

606017–001 Display hinge covers

606018–001 Base enclosure with HDMI card reader for matte black computer models

Sequential part number listing 31

Spare part number Description

608340–001 HD 5470/1 G discrete system board with card reader

608444–001 39.6-cm (15.6-in) HD, light-emitting diode display assembly for HP G62 matte black computer

models

608445–001 Display back cover for use with HP G62 matte black computer models

609154–001 Power connector (includes cable)

609939–001 65-W AC adapter

609940–001 90-W AC adapter

610558–001 DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive with LightScribe for use with

biscotti computer models

610559–001 DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive with LightScribe for use with

silver computer models

610560–001 DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive with LightScribe for use with

white computer models

610561–001 Blu-ray ROM with LightScribe DVD±R/RW SuperMulti Double-Layer Drive for use with biscotti

computer models

610562–001 Blu-ray ROM with LightScribe DVD±R/RW SuperMulti Double-Layer Drive for use with silver

computer models

610563–001 Blu-ray ROM with LightScribe DVD±R/RW SuperMulti Double-Layer Drive for use with white

computer models

610564–001 Base enclosure with HDMI card reader for biscotti computer models

610565–001 Base enclosure with HDMI card reader for silver computer models

610566–001 Base enclosure with HDMI card reader for white computer models

610567–001 Top cover (includes TouchPad board) for use in biscotti computer models

610568–001 Top cover (includes TouchPad board) for use in silver computer models

610569–001 Top cover (includes TouchPad board) for use in white computer models

610583–001 500 GB, 7200 rpm hard drive

613584-001 Intel Arrandale i3–370 Processor (2.4 GHz, 3 MB L3 cache, 1066 MHz)—Dual Core 35 W

613585-001 Intel Arrandale i5–450 Processor (2.4 GHz, 3 MB L3 cache, 1066 MHz)—Dual Core 35 W

613586-001 Pentium Arrandale P6000 Processor (1.86 GHz, 3 MB L3 cache, 1066 MHz)—Dual Core 35 W

613587-001 Pentium Arrandale P6100 Processor (2.0 GHz, 3 MB L3 cache, 1066 MHz)—Dual Core 35 W

(for model 1.1 only)

615076–001 160 GB, 7200 rpm hard drive

615381–001 HD 5470/ 512 MB discrete system board with card reader (for model 1.1 only)

615382–001 HD 5470/1 G discrete system board with card reader (for model 1.1 only)

615423–001 39.6-cm (15.6-in) HD, light-emitting diode display assembly for HP G62 red computer models

615424–001 39.6-cm (15.6-in) HD, light-emitting diode display assembly for HP G62 blue computer models

615425–001 Display back cover for use with HP G62 red computer models

615426–001 Display back cover for use with HP G62 blue computer models

32 Chapter 3 Illustrated parts catalog

Spare part number Description

615427–001 Base enclosure with HDMI card reader for red computer models

615428–001 Base enclosure with HDMI card reader for blue computer models

615433–001 Top cover (includes TouchPad board) for use in red computer models

615434–001 Top cover (includes TouchPad board) for use in blue computer models

615435–001 DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive with LightScribe for use with red

computer models

615436–001 DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive with LightScribe for use with blue

computer models

615437–001 Blu-ray ROM with LightScribe DVD±R/RW SuperMulti Double-Layer Drive for use with red

computer models

615438–001 Blu-ray ROM with LightScribe DVD±R/RW SuperMulti Double-Layer Drive for use with blue

computer models

619686–001 750 GB, 5400 rpm hard drive

622641–001 250 GB, 5400 rpm hard drive (for model 1.1 only)

622643–001 320 GB, 5400 rpm hard drive (for model 1.1 only)

625823-001 Intel Arrandale i3–380 Processor (2.53 GHz, 3 MB L3 cache, 1066 MHz)—Dual Core 35 W (for

model 1.1 only)

625824-001 Intel Arrandale i5–560 Processor (2.66–3.2 GHz, 3 MB L3 cache, 1066 MHz)—Dual Core 35 W

(for model 1.1 only)

625825-001 Intel Arrandale i5–580 Processor (2.66–3.33 GHz, 3 MB L3 cache, 1066 MHz)—Dual Core 35

W (for model 1.1 only)

625831-001 Intel Pentium P6200 Processor (2.13 GHz, 3 MB L3 cache, 1066 MHz)—Dual Core 35 W (for

model 1.1 only)

626039-001 Intel Core i5–460 Processor (2.53 GHz, 3 MB L3 cache, 1066 MHz)—Dual Core 35 W (for

model 1.1 only)

634363–001 Thermal pads

634638–001 500 GB, 5400 rpm hard drive (for model 1.1 only)

635225–001 250 GB, 7200 rpm hard drive

Sequential part number listing 33

4 Removal and replacement procedures

Preliminary replacement requirements

Tools required

The following tools are needed to complete the removal and replacement procedures:

Flat-bladed screwdriver

●

Magnetic screwdriver

●

Phillips P0 and P1 screwdrivers

●

Service considerations

Before disassembly or assembly procedures, review and adhere to all service considerations.

NOTE: As you remove each subassembly from the computer, place the subassembly (and all

accompanying screws) away from the work area to prevent damage.

Plastic parts

Using excessive force during disassembly and reassembly can damage plastic parts. Use care when handling the plastic parts. Apply pressure only at the points designated in the maintenance instructions.

34 Chapter 4 Removal and replacement procedures

Cables and connectors

CAUTION: When servicing the computer, be sure that cables are placed in their proper locations

during the reassembly process. Improper cable placement can damage the computer.

Cables must be handled with extreme care to avoid damage. Apply only the tension required to unseat or seat the cables during removal and insertion. Handle cables by the connector whenever possible. In all cases, avoid bending, twisting, or tearing cables. Be sure that cables are routed in such a way that they cannot be caught or snagged by parts being removed or replaced. Handle flex cables with extreme care; these cables tear easily.

Drive handling

CAUTION: Drives are fragile components that must be handled with care. To prevent damage to

the computer, damage to a drive, or loss of information, observe these precautions:

Before removing or inserting a hard drive, shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.

Before handling a drive, be sure that you are discharged of static electricity. While handling a drive, avoid touching the connector.

Before removing a diskette drive or optical drive, be sure that a diskette or disc is not in the drive and be sure that the optical drive tray is closed.

Handle drives on surfaces covered with at least one inch of shock-proof foam.

Avoid dropping drives from any height onto any surface.

After removing a hard drive, an optical drive, or a diskette drive, place it in a static-proof bag.

Avoid exposing a hard drive to products that have magnetic fields, such as monitors or speakers.

Avoid exposing a drive to temperature extremes or liquids.

If a drive must be mailed, place the drive in a bubble pack mailer or other suitable form of protective packaging and label the package “FRAGILE.”

Preliminary replacement requirements 35

Grounding guidelines

Electrostatic discharge damage

Electronic components are sensitive to electrostatic discharge (ESD). Circuitry design and structure determine the degree of sensitivity. Networks built into many integrated circuits provide some protection, but in many cases, ESD contains enough power to alter device parameters or melt silicon junctions.

A discharge of static electricity from a finger or other conductor can destroy static-sensitive devices or microcircuitry. Even if the spark is neither felt nor heard, damage might have occurred.

An electronic device exposed to ESD might not be affected at all and can work perfectly throughout a normal cycle. Or the device might function normally for a while, then degrade in the internal layers, reducing its life expectancy.

CAUTION: To prevent damage to the computer when removing or installing internal components,

observe these precautions:

Keep components in their electrostatic-safe containers until you are ready to install them.

Use nonmagnetic tools.

Before touching an electronic component, discharge static electricity by using the guidelines described in this section.

Avoid touching pins, leads, and circuitry. Handle electronic components as little as possible.

If you remove a component, place it in an electrostatic-safe container.

The following table shows how humidity affects the electrostatic voltage levels generated by different activities.

CAUTION: A product can be degraded by as little as 700 V.

Typical electrostatic voltage levels

Relative humidity

Event 10% 40% 55%

Walking across carpet 35,000 V 15,000 V 7,500 V

Walking across vinyl floor 12,000 V 5,000 V 3,000 V

Motions of bench worker 6,000 V 800 V 400 V

Removing DIPS from plastic tube 2,000 V 700 V 400 V

Removing DIPS from vinyl tray 11,500 V 4,000 V 2,000 V

Removing DIPS from Styrofoam 14,500 V 5,000 V 3,500 V

Removing bubble pack from PCB 26,500 V 20,000 V 7,000 V

Packing PCBs in foam-lined box 21,000 V 11,000 V 5,000 V

36 Chapter 4 Removal and replacement procedures

Packaging and transporting guidelines

Follow these grounding guidelines when packaging and transporting equipment:

To avoid hand contact, transport products in static-safe tubes, bags, or boxes.

●

Protect ESD-sensitive parts and assemblies with conductive or approved containers or

●

packaging.

Keep ESD-sensitive parts in their containers until the parts arrive at static-free workstations.

●

Place items on a grounded surface before removing items from their containers.

●

Always be properly grounded when touching a component or assembly.

●

Store reusable ESD-sensitive parts from assemblies in protective packaging or nonconductive

●

foam.

Use transporters and conveyors made of antistatic belts and roller bushings. Be sure that

●

mechanized equipment used for moving materials is wired to ground and that proper materials are selected to avoid static charging. When grounding is not possible, use an ionizer to dissipate electric charges.

Workstation guidelines

Follow these grounding workstation guidelines:

Cover the workstation with approved static-shielding material.

●

Use a wrist strap connected to a properly grounded work surface and use properly grounded

●

tools and equipment.

Use conductive field service tools, such as cutters, screwdrivers, and vacuums.

●

When fixtures must directly contact dissipative surfaces, use fixtures made only of static-safe

●

materials.

Keep the work area free of nonconductive materials, such as ordinary plastic assembly aids and

●

Styrofoam.

Handle ESD-sensitive components, parts, and assemblies by the case or PCM laminate. Handle

●

these items only at static-free workstations.

Avoid contact with pins, leads, or circuitry.

●

Turn off power and input signals before inserting or removing connectors or test equipment.

●

Preliminary replacement requirements 37

Equipment guidelines

Grounding equipment must include either a wrist strap or a foot strap at a grounded workstation.

When seated, wear a wrist strap connected to a grounded system. Wrist straps are flexible

●

straps with a minimum of one megohm ±10% resistance in the ground cords. To provide proper ground, wear a strap snugly against the skin at all times. On grounded mats with banana-plug connectors, use alligator clips to connect a wrist strap.

When standing, use foot straps and a grounded floor mat. Foot straps (heel, toe, or boot straps)

●

can be used at standing workstations and are compatible with most types of shoes or boots. On conductive floors or dissipative floor mats, use foot straps on both feet with a minimum of one megohm resistance between the operator and ground. To be effective, the conductive strips must be worn in contact with the skin.

The following grounding equipment is recommended to prevent electrostatic damage:

Antistatic tape

●

Antistatic smocks, aprons, and sleeve protectors

●

Conductive bins and other assembly or soldering aids

●

Nonconductive foam

●

Conductive tabletop workstations with ground cords of one megohm resistance

●

Static-dissipative tables or floor mats with hard ties to the ground

●

Field service kits

●

Static awareness labels

●

Material-handling packages

●

Nonconductive plastic bags, tubes, or boxes

●

Metal tote boxes

●

Electrostatic voltage levels and protective materials

●

The following table lists the shielding protection provided by antistatic bags and floor mats.

Material Use Voltage protection level

Antistatic plastic Bags 1,500 V

Carbon-loaded plastic Floor mats 7,500 V

Metallized laminate Floor mats 5,000 V

38 Chapter 4 Removal and replacement procedures

Component replacement procedures

This chapter provides removal and replacement procedures.

There are as many as 75 screws, in 12 different sizes, that must be removed, replaced, or loosened when servicing the computer. Make special note of each screw size and location during removal and replacement.

Serial number

The serial number label, located in the battery bay of the computer, provides important information that you may need when contacting technical support.

(1) Product name (4) Warranty period

(2) Serial number (5) Model description (select models)

(3) Product number

Component replacement procedures 39

Computer feet

Description Spare part number

Rubber Feet Kit 606012-001

The computer feet are adhesive-backed rubber pads. The feet attach to the base enclosure in the locations illustrated below.

40 Chapter 4 Removal and replacement procedures

Battery

Description Spare part number

6 cell, 2.20 Ah, 47 Wh 593553-001

6 cell, 2.55 Ah, 55 Wh 593554-001

Before disassembling the computer:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn on

the computer, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first disconnecting the power cord from the AC

outlet and then disconnecting the AC adapter from the computer.

Remove the battery:

1. Turn the computer upside down on a flat surface.

2. Slide the battery release latch (1) to release the battery.

3. Pivot the battery (2) upward and lift it out of the computer (3).

To insert the battery, insert the rear edge of the battery into the battery bay and pivot the front edge downward until the battery is seated. The battery release latch automatically locks the battery into place.

Component replacement procedures 41

Hard drive

NOTE: The hard drive spare part kit includes a hard drive bracket and hard drive connector. The

hard drive bracket and hard drive connector, as well as the hard drive bracket screws, are also available in the Hard Drive Hardware Kit.

Description Spare part number

750 GB, 5400 rpm 619686–001

640 GB, 5400 rpm 603785–001

500 GB, 5400 rpm (for models 1.1 only) 634638-001

500 GB, 7200 rpm 610583-001

0 GB, 5400 rpm (for models 1.1 only) 622643-001

320 GB, 7200 rpm 603783-001

0 GB, 5400 rpm (for models 1.1 only) 622641-001

250 GB, 7200 rpm 635225-001

160 GB, 7200 rpm 615076-001

Hard drive hardware kit (not illustrated, includes connector, bracket, and screws) 605919-001

Before removing the hard drive:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn on

the computer, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first disconnecting the power cord from the AC

outlet and then disconnecting the AC adapter from the computer.

4. Remove the battery (see

Battery on page 41).

Remove the hard drive:

1. Position the computer with the front toward you.

2. Loosen the two Phillips PM2.5×6.0 captive screws (1) that secure the hard drive cover to the

computer.

42 Chapter 4 Removal and replacement procedures

3. Lift the left side of the hard drive cover (2), swing it forward, and remove the cover (3). The hard

drive cover is included in the plastics kit, spare part number 606006-001.

4. Disconnect the hard drive cable from the system board (1).

5. Use the mylar tab on the hard drive bracket to move the hard drive to the right (2) bracket to lift

the hard drive out (3) of the hard drive bay.

6. To replace the hard drive bracket, remove the four Phillips PM3.0×4.0 screws (1) that secure the

hard drive bracket to the hard drive

Component replacement procedures 43

7. Grasp the two attached Mylar tabs and pull the bracket straight up to remove it from the hard

drive (2).

Reverse this procedure to install the hard drive.

44 Chapter 4 Removal and replacement procedures

Optical drive

NOTE: The optical drive spare part kit includes an optical drive bezel and optical drive bracket.

Description Spare part

DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive with LightScribe for use with:

Biscotti computer models 610558-001

●

Matte black computer models 605920-001

●

Silver computer models 610559-001

●

White computer models 610560-001

●

Red computer models 615435–001

●

Blue computer models 615436–001

●

Blu-ray ROM with LightScribe DVD±R/RW SuperMulti Double-Layer Drive for use with:

Biscotti computer models 610561-001

●

Matte black computer models 605921-001

●

Silver computer models 610562-001

●

White computer models 610563-001

●

number

Red computer models 615437–001

●

Blue computer models 615438–001

●

Before removing the optical drive:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn on

the computer, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first disconnecting the power cord from the AC

outlet and then disconnecting the AC adapter from the computer.

4. Remove the battery (see

5. Remove the hard drive (see

Battery on page 41).

Hard drive on page 42).

Remove the optical drive:

1. Position the computer upside down with the front toward you.

2. Insert a thin tool, such as a screw driver (1), into the release access slot in the hard drive bay.

Component replacement procedures 45

3. Grasp the bezel and slide the optical drive out of the computer (2).

4. To replace the optical drive bracket, position the optical drive with the optical drive bracket

toward you.

5. Remove the two Phillips PM2.0×3.0 screws (1) that secure the optical drive bracket to the optical

drive.

6. Remove the optical drive bracket (2).

Reverse the above procedure to reassemble and install the optical drive.

46 Chapter 4 Removal and replacement procedures

WLAN module

Description Spare part

Atheros AR9285 802.11 a/b/g/n 2x2 WiFi adapter 580101-001

Intel WiFi Link 5100 802.11/b/g/n WLAN module 593530-001

Realtek RTL8191SE 802.11b/g/n 1x1 WiFi Adapter 593533-001

Broadcom 4313 802.11b/g/n 1x1 WiFi Adapter 593836-001

Broadcom 4313 802.11b/g/n 1x1 WiFi and 2070 Bluetooth 2.1+EDR Combo adapter (BT3.0+HS ready) (for model 1.1 only)

Ralink RT3090BC4 802.11b/g/n 1x1 WiFi and Bluetooth 2.1+EDR Combo Adapter (BT3.0+HS ready) (for model 1.1 only)

number

600370-001

602992-001

Before removing the WLAN module:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn on

the computer, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first disconnecting the power cord from the AC

outlet and then disconnecting the AC adapter from the computer.

4. Remove the battery (see

Battery on page 41).

Remove the WLAN module:

1. Turn the computer upside down with the front toward you.

2. Loosen the two Phillips PM2.5×6.0 captive screws (1) that secure the mini-card compartment

cover.

3. Lift the back side of the memory module cover (2)

Component replacement procedures 47

4. Lift the cover off the computer (3). The mini-card compartment cover is included in the plastics

kit, spare part number 606006-001.

5. Disconnect the main antenna cable (1) and the auxiliary antenna cable (2) from the wireless

module.

6. Remove the Phillips PM2.0×3.0 screw (3) that secures the WLAN module to the computer. (The

edge of the module opposite the slot rises away from the computer.)

48 Chapter 4 Removal and replacement procedures

7. Remove the WLAN module (4) by pulling it away from the slot at an angle.

CAUTION: To prevent an unresponsive system, replace the wireless module only with a

wireless module authorized for use in the computer by the governmental agency that regulates wireless devices in your country or region. If you replace the module and then receive a warning message, remove the module to restore computer functionality, and then contact technical support through Help and Support.

NOTE: WLAN modules are designed with a notch (5) to prevent incorrect insertion into the

WLAN module slot.

Reverse this procedure to install a WLAN module.

Component replacement procedures 49

Memory module

Description Spare part number

1 GB, 1066 MHz DDR3 598859-001

2 GB, 1066 MHz DDR3 598856-001

4 GB, 1066 MHz DDR3 (for model 1.1 only) 599092-001

Before removing the memory module:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn on

the computer, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first disconnecting the power cord from the AC

outlet and then disconnecting the AC adapter from the computer.

4. Remove the battery (see

Battery on page 41).

Remove the memory module:

1. Turn the computer upside down with the front toward you.

2. Loosen the two Phillips PM2.5×6.0 captive screws (1) that secure the mini-card compartment

cover to the computer.

3. Lift the back side of the memory module cover (2)

4. Lift the cover off the computer (3). The mini-card compartment cover is included in the plastics

kit, spare part number 606006-001.

NOTE: Small tabs hold the cover in place. Firmly pull up on the cover to release the tabs.

5. Spread the retaining tabs (1) on each side of the memory module slot to release the memory

module. (The edge of the module opposite the slot rises away from the computer.)

50 Chapter 4 Removal and replacement procedures

6. Remove the module (2) by pulling it away from the slot at an angle.

NOTE: Memory modules are designed with a notch (3) to prevent incorrect insertion into the

memory module slot.

Reverse this procedure to install a memory module.

RTC battery

Description Spare part number

RTC battery 606015-001

Before removing the RTC battery:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn on

the computer, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first disconnecting the power cord from the AC

outlet and then disconnecting the AC adapter from the computer.

4. Remove the battery (see

Remove the RTC battery:

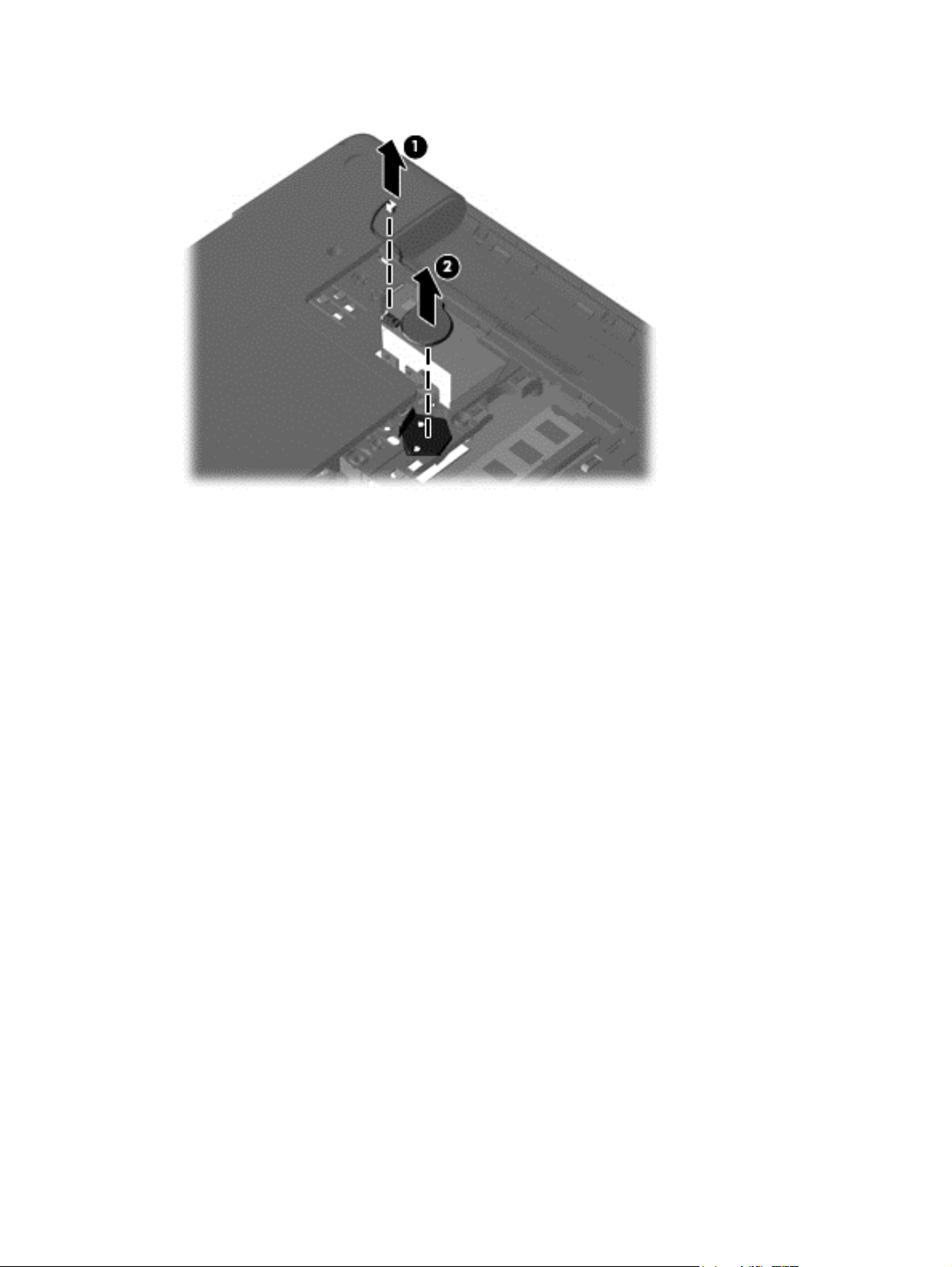

1. Unplug the RTC battery from the system board (1).

Battery on page 41).

2. Use a sharp, non-conductive, tool to release the RTC battery from the adhesive material that

secures the RTC battery to the system board..

Component replacement procedures 51

3. Lift the battery (2) out of the computer.

Reverse this procedure to install the RTC battery.

52 Chapter 4 Removal and replacement procedures

Keyboard

Description Spare part number

For use in Adriatics 605922-BA1

For use in Belgium 605922-A41

For use in the Czech Republic 605922-221

For use in France 605922-051

For use in Germany 605922-041

For use in Greece 605922-DJ1

For use in Hungary 605922-211

For International use 605922-B31

For use in Israel 605922-BB1

For use in Italy 605922-061

For use in North America 605922-001

For use in Norway 605922-DH1

For use in Portugal 605922-131

For use in Russia 605922-251

For use in Saudi Arabia 605922-171

For use in Spain 605922-071

For use in Switzerland 605922-BG1

For use in Turkey 595199-141

For use in the United Kingdom 595199-031

Before removing the keyboard:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn on

the computer, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first disconnecting the power cord from the AC

outlet and then disconnecting the AC adapter from the computer.

4. Remove the battery (see

5. Remove the hard drive (see

6. Remove the WLAN/Memory Module compartment cover (see

Battery on page 41).

Hard drive on page 42).

WLAN module on page 47).

Remove the keyboard:

1. Turn the computer upside down with the front toward you.

Component replacement procedures 53

2. Remove the three Phillips PM2.5×5.0 and three Phillips PM2.5x6.5 screws that secure the

keyboard to the computer.

3. Turn the computer display-side up with the front toward you.

4. Open the computer as far as possible.

5. Release the tabs along the left (1) and right (2) edges of the keyboard using a thin flat-bladed

screwdriver.

6. Lift the rear edge of the keyboard (3), and set the keyboard back towards the display (4).

54 Chapter 4 Removal and replacement procedures

7. Release the zero insertion force (ZIF) connector (1) to which the keyboard cable is attached and

disconnect the keyboard cable (2) from the system board.

8. Remove the keyboard.

Reverse this procedure to install the keyboard.

Component replacement procedures 55

Top cover

Description Spare part number

For use with biscotti computer models 610567-001

For use with matte black computer models 606004-001

For use with silver computer models 610568-001

For use with white computer models 610569-001

For use with red computer models 615433–001

For use with blue computer models 615434–001

Before removing the switch cover:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn on

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first disconnecting the power cord from the AC

4. Remove the following components:

the computer, and then shut it down through the operating system.

outlet and then disconnecting AC adapter from the computer.

a. Battery (see

b. Hard drive (See

c. Optical drive (see

d. WLAN module (see

e. Memory module (see

f. Keyboard (see

Battery on page 41).

Hard drive on page 42).

Optical drive on page 45).

WLAN module on page 47).

Memory module on page 50).

Keyboard on page 53).

Remove the switch cover:

1. Turn the computer upside down with the front toward you.

56 Chapter 4 Removal and replacement procedures

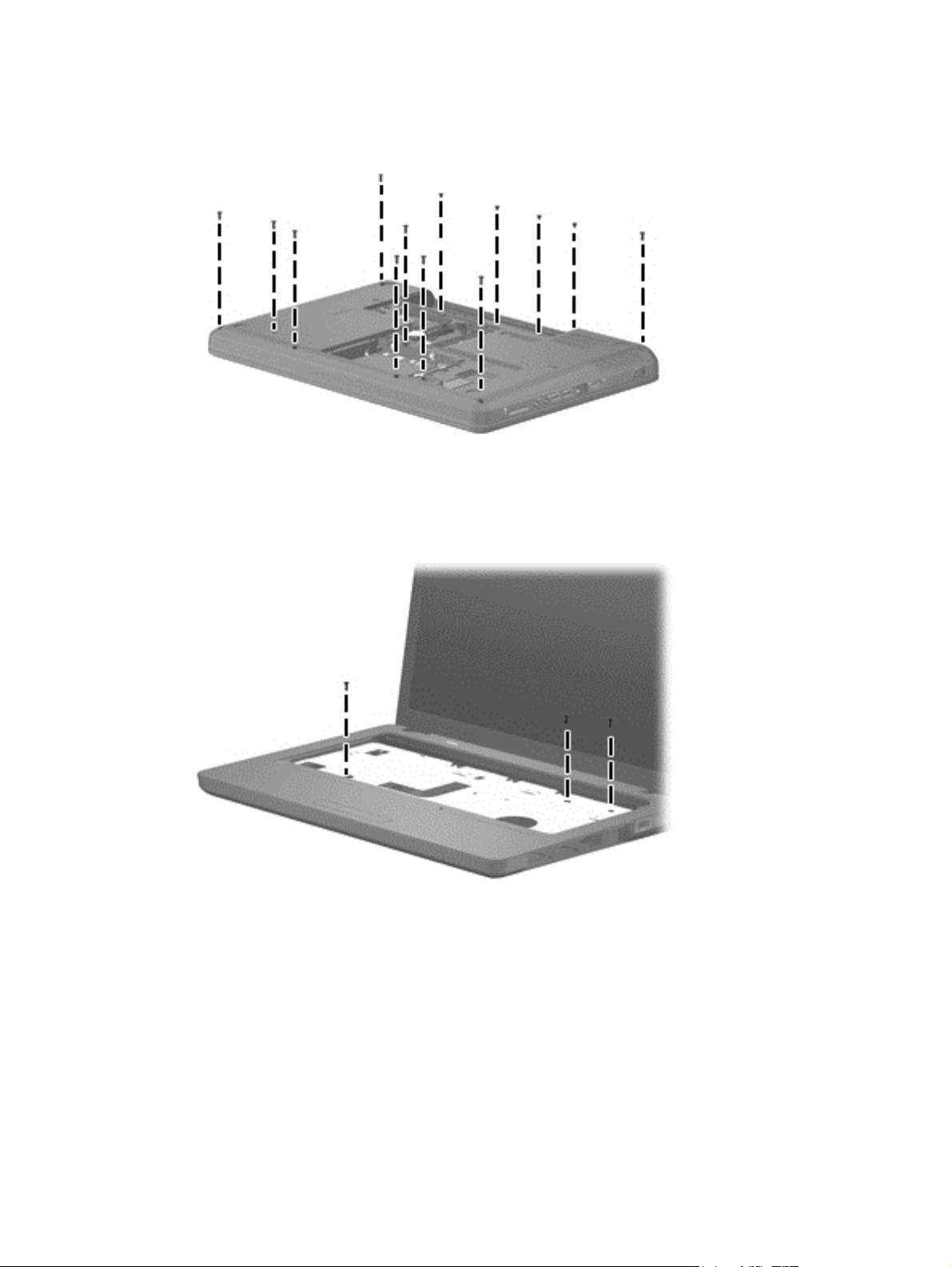

2. Remove four Phillips PM2.5x3 screws in the battery bay, and remove nine Phillips PM2.5x6.5

screws on the base enclosure. The top cover screws are identified by a triangle icon embossed on the base enclosure.

3. Turn the computer display-side up with the front toward you.

4. Open the computer as far as possible.

5. Remove the three Phillips PM2.5×6.0 screw that secures the top cover to the computer.

Component replacement procedures 57

6. Release the power button ZIF connector (1), speaker cable (2), touchpad ZIF connector (3), and

touchpad button ZIF connector (4).

7. Lift the rear edge of the top cover (1) until the top cover disengages from the base enclosure.

Remove the top cover (2).

NOTE: The TouchPad is glued to the top cover and is included with the top cover spare part.

Reverse this procedure to install the switch cover.

58 Chapter 4 Removal and replacement procedures

Speaker assembly

Description Spare part number

Speaker assembly (includes cable) 606007-001

Before removing the speaker assembly:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn on

the computer, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first disconnecting the power cord from the AC

outlet and then disconnecting the AC adapter from the computer.

4. Remove the battery (see

Battery on page 41).

5. Remove the following components:

a. Hard drive (see

b. Optical drive (see

c. Keyboard (see

d. Top cover (see

Hard drive on page 42)

Optical drive on page 45)

Keyboard on page 53)

Top cover on page 56)

Remove the speaker assembly:

1. Turn the top cover upside down.

2. Remove the three Phillips PM2.5×3.0 screws (1) that secure the speaker assembly to the top

cover.

3. Lift up and remove the speakers (2).

Component replacement procedures 59

Reverse this procedure to install the speaker assembly.

60 Chapter 4 Removal and replacement procedures

Power button board

Description Spare part number

Power button board 606008-001

Before removing the power button board:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn

the computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first disconnecting the power cord from the AC

outlet and then disconnecting the AC adapter from the computer.

4. Remove the battery (see

Battery on page 41).

5. Remove the following components:

a. Hard drive (see

b. Optical drive (see

c. Keyboard (see

d. Top cover (see

Hard drive on page 42)

Optical drive on page 45)

Keyboard on page 53)

Top cover on page 56)

Remove the power button board:

1. Turn the top cover upside down with the rear edge toward you.

2. Remove the Phillips PM2.0×3.0 screw (1) that secures the power button board to the top cover.

3. Lift up and remove the power button board (2).

Reverse this procedure to install the power button board.

Component replacement procedures 61

TouchPad button board

Description Spare part number

Touchpad button board (includes bracket and cable) 606005-001

Before removing the TouchPad button board:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn on

the computer, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first disconnecting the power cord from the AC

outlet and then disconnecting the AC adapter from the computer.

4. Remove the battery (see

Battery on page 41).

5. Remove the following components:

a. Hard drive (see

b. Optical drive (see

c. Keyboard (see

d. Top cover (see

Hard drive on page 42)

Optical drive on page 45)

Keyboard on page 53)

Top cover on page 56)

Remove the TouchPad button board:

1. Turn the top cover upside down with the front toward you.

2. Remove the four Phillips PM2.0×3.0 screws (1) that secure the TouchPad bracket to the top

cover.

3. Lift up and remove the TouchPad button board bracket (2). The TouchPad button is fused on the

TouchPad button board bracket.

Reverse the above procedure to reassemble and install the TouchPad button board.

62 Chapter 4 Removal and replacement procedures

Modem module

Description Spare part number

56K V.92 data/fax modem (select models only) (for model 1.0 only) 510100-001

Before removing the modem module:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn on

the computer, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first disconnecting the power cord from the AC

outlet and then disconnecting the AC adapter from the computer.

4. Remove the battery (see

Battery on page 41).

5. Remove the following components:

a. Hard drive (see

b. Optical drive (see

c. Keyboard (see

d. Top cover (see

Hard drive on page 42)

Optical drive on page 45)

Keyboard on page 53)

Top cover on page 56)

Remove the modem module:

1. Turn the computer upright with the front toward you.

2. Remove the two Phillips PM2.0×3.0 screws (1) that secure the modem module to the system

board.

3. Lift up on the front of the modem module (2) to disconnect it from the system board.

Component replacement procedures 63

Reverse the above procedure to install the modem module, and be sure that the connector on the bottom of the modem module connects firmly into the system board.

64 Chapter 4 Removal and replacement procedures

USB board

Description Spare part number

USB board 606011-001

Before removing the USB board:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn on

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first disconnecting the power cord from the AC

the computer, and then shut it down through the operating system.

outlet and then disconnecting the AC adapter from the computer.

4. Remove the battery (see

Battery on page 41).

5. Remove the following components:

a. Hard drive (see

b. Optical drive (see

c. Keyboard (see

d. Top cover (see

Hard drive on page 42)

Optical drive on page 45)

Keyboard on page 53)

Top cover on page 56)

Remove the USB board:

1. Position the computer upright with the right side toward you.

2. Disconnect the USB board cable (1) from the system board.

3. Remove the Phillips PM2.5×6.0 screw (2) that secures the USB board to the base enclosure.

4. Lift the USB board (3) straight up to remove it from the computer. The USB cable is available

with the cable kit using spare part number 606009-001

Component replacement procedures 65

Reverse this procedure to install the USB board.

66 Chapter 4 Removal and replacement procedures

Power connector

Description Spare part number

Power connector (includes cable) 609154-001

Before removing the power connector cable:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn on

the computer, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first disconnecting the power cord from the AC

outlet and then disconnecting the AC adapter from the computer.

4. Remove the battery (see

Battery on page 41).

5. Remove the following components:

a. Hard drive (see

b. Optical drive (see

c. Keyboard (see

d. Top cover (see

Hard drive on page 42)

Optical drive on page 45)

Keyboard on page 53)

Top cover on page 56)

Remove the power connector cable:

1. Turn the computer upright with the right side toward you.

2. Disconnect the power connector cable (1) from the system board.

3. Lift the power connector (2) from the clips built into the base enclosure.

Reverse this procedure to install the power connector.

Component replacement procedures 67

Display assembly

Description Spare part number

39.6-cm (15.6-in) High Definition (HD), light-emitting diode (LED) display assembly for use in:

Biscotti computer models 605906-001

●

Silver computer models 605907-001

●

White computer models 605908-001

●

Matte black computer models 608444-001

●

Red computer models 615423-001

●

Blue computer models 615424-001

●

Before removing the display assembly:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn on

the computer, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first disconnecting the power cord from the AC

outlet and then disconnecting the AC adapter from the computer.

4. Remove the battery (see

5. Disconnect the wireless antenna cables from the WLAN module (see

Battery on page 41).

WLAN module

on page 47).

6. Remove the following components:

a. Optical drive (see

b. Keyboard (see

c. Top cover (see

Optical drive on page 45)

Keyboard on page 53)

Top cover on page 56)

Remove the display assembly:

1. Turn the computer display-side up, with the front toward you.

2. Open the display as far as possible.

3. Disconnect the display panel cable (1) and the microphone cable (2) from the system board and

remove it from its routing channel.

4. Pull the antenna cables through the opening in the top cover (3) and disengage the cables from

the clip in the routing channel leading to the display hinge (4).

68 Chapter 4 Removal and replacement procedures

5. Disconnect the webcam cable (5) from the system board and release it from the clips that attach

it to the system board.

CAUTION: Support the display assembly when removing the display screws in the following

steps. Failure to support the display assembly can result in damage to the assembly and other components.

6. Remove the six black Phillips PM2.5×7.0 screws (1) that secure the display assembly to the

computer.

7. Lift the display panel (2) straight up to remove it.

Reverse this procedure to install the display assembly.

Component replacement procedures 69

8. To replace any of the display assembly internal components, remove the following screw covers

and screws:

(1) Two mylar screw covers on the display bezel bottom edge

(2) Two Phillips PM2.5×4.0 screws

The display screw covers are included in the display rubber kit, spare part number 605917-001.

9. Flex the inside edge of the top (1), the left and right sides (2), and the bottom (3) of the display

bezel until the bezel disengages from the display back cover.

10. Remove the display bezel (4).

Reverse this procedure to install the display bezel.

11. To replace the webcam module (select models only), lift the webcam module as far from the

display enclosure as the webcam module cable allows.

70 Chapter 4 Removal and replacement procedures

12. Disconnect the webcam module cable (1) from the webcam module, and remove the webcam

module (2). The webcam module is available using spare part number 606001-001.

Reverse this procedure to install the webcam module.

13. To replace the display hinge covers, remove the two Phillips PM2.5×6.0 screws (1) that secure

each hinge to the display enclosure.

14. Remove the display hinge covers (2). The display hinge covers are available using spare part

number 606017-001.

Reverse this procedure to install the display hinge covers.

15. To replace the display panel, remove eight phillips PM2.5×6.0 screws (1) that secure the display

panel to the display enclosure.

Component replacement procedures 71

16. Remove the display panel (2) from the display enclosure. The display panel is available using

the spare part number 606003-001.

Reverse this procedure to install the display panel.

17. To replace the display panel brackets, remove the two Phillips PM2.0×3.0 screws (1) that secure

each bracket to the display panel.

18. Remove the display panel brackets (2) from the display panel. The display panel brackets are

available using spare part number 605915-001.

Reverse this procedure to install the display panel brackets.

19. To replace the wireless antenna transceivers, lift up on the silver transceiver (1) and release the

adhesive material from the display cover (2).

72 Chapter 4 Removal and replacement procedures

20. Lift up to remove the antenna transceivers (3). The wireless antenna transceivers with cable is

available using spare part number 606016-001..

Reverse this procedure to install the display wireless antenna transceivers.

Component replacement procedures 73

System board

NOTE: The system board spare part kit includes UMA or discrete graphics subsystem memory and

replacement thermal material.

Description Spare part number

HD UMA system board with card reader 605903-001

HD 5470/512 MB discrete system board with card reader 605902-001

HD 5470/1 GB discrete system board with card reader 608340-001

HD 5470/ 512 MB discrete system board with card reader (for model 1.1 only) 615381-001

HD 5470/1 GB discrete system board with card reader (for model 1.1 only) 615382-001

When replacing the system board, be sure that the following components are removed from the defective system board and installed on the replacement system board:

Memory modules (see

●

WLAN module (see

●

Modem module (see

●

Memory module on page 50)

WLAN module on page 47)

Modem module on page 63)

Before removing the system board:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn on

the computer, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first disconnecting the power cord from the AC

outlet and then disconnecting the AC adapter from the computer.

4. Remove the battery (see

Battery on page 41).

5. Remove the following components:

a. Hard drive (see

b. Optical drive (see

c. WLAN module (see

d. Memory module (see

Hard drive on page 42)

Optical drive on page 45)

WLAN module on page 47)

Memory module on page 50)

e. Keyboard (see

f. Top cover (see

g. Modem module (see

h. Display assembly (see

Keyboard on page 53)

Top cover on page 56)

Modem module on page 63)

Display assembly on page 68)

74 Chapter 4 Removal and replacement procedures

Remove the following cables from the system board:

Power connector cable (see

●

USB board cable (see

●

Power connector on page 67)

USB board on page 65)

Remove the system board:

1. Turn the computer upright with the right side toward you.

2. Remove the four Phillips PM2.5×4.0 (1) screws that secure the system board to the computer.

3. Grasp the right edge (2) of the system board.

4. Lift the system board (3), and pull it away from the base enclosure at an angle.

Reverse this procedure to install the system board.

Component replacement procedures 75

5. To replace the modem module cable, remove the RJ-11 connector cable from the clips (1), and

then lift the connector straight up (2) and out of the computer. The modem module cable is available with the cable kit using spare part number 606009-001.

Reverse this procedure to install the modem module cable.

When replacing the system board, be sure that the following components are removed from the defective system board and installed on the replacement system board:

Fan/heat sink assembly (see

●

Processor (see

●

Processor on page 81)

Fan/heat sink assembly on page 77)

Reverse the preceding procedure to install the system board.

76 Chapter 4 Removal and replacement procedures

Fan/heat sink assembly

Description Spare part number

Fan/heat sink assembly (includes replacement thermal material) for use only with computer models with UMA graphics subsystem memory

Fan/heat sink assembly (includes replacement thermal material) for use only with computer models with discrete graphics subsystem memory

Thermal pad 634363–001

606013-001

606014-001

Before removing the fan/heat sink assembly:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn on

the computer, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first disconnecting the power cord from the AC

outlet and then disconnecting the AC adapter from the computer.

4. Remove the battery (see

Battery on page 41).

5. Remove the following components:

a. Hard drive (see

b. Optical drive (see

c. Keyboard (see

Hard drive on page 42)

Optical drive on page 45)

Keyboard on page 53)

d. Top cover (see

e. Display assembly (see

f. System board (see

Top cover on page 56)

Display assembly on page 68)

System board on page 74)

Remove the fan/heat assembly (fan/heat sink appearance may vary):

NOTE: Steps 1 through 4 apply only to computer models equipped with graphics subsystems

having UMA memory.

1. Turn the system board right-side up, with the front toward you.

Component replacement procedures 77

2. Disconnect the fan cable from the system board.

3. Follow the sequence embossed on heat sink to loosen the four Phillips PM2.5×7.0 captive

screws (1) that secure the fan/heat sink assembly to the system board.

NOTE: Due to the adhesive quality of the thermal material located between the fan/heat sink

assembly and system board components, it might be necessary to move the fan/heat sink assembly from side to side to detach the assembly.

4. Remove the fan/heat sink assembly (2) by lifting straight up.

NOTE: Steps 5 through 8 apply only to computer models equipped with graphics subsystems

having discrete memory.

1. Turn the system board right-side up, with the front toward you.

78 Chapter 4 Removal and replacement procedures

2. Disconnect the fan cable from the system board.

3. Loosen the two Phillips captive screws (1) and four Phillips spring-loaded captive screws (2) that

secure the fan/heat sink assembly.

NOTE: Due to the adhesive quality of the thermal material located between the fan/heat sink

assembly and system board components, it might be necessary to move the fan/heat sink assembly from side to side to detach the assembly.

4. Remove the fan/heat sink assembly (3) by lifting straight up.

Reverse this procedure to install the fan/heat sink assembly.

The thermal material must be thoroughly cleaned from the surface of the fan/heat sink assembly (1), (3) and the processor (2) and video components (4) each time the fan/heat sink assembly is removed. Thermal pads and thermal paste must be installed on all surfaces before the fan/heat sink assembly is reinstalled.

Component replacement procedures 79

NOTE: Thermal pads and thermal paste are included with all fan/heat sink assembly, system board,

and processor spare part kits.

The following illustration shows the locations for thermal material on systems with UMA graphics subsystems.

The thermal material must be thoroughly cleaned from the surface of the fan/heat sink assembly (1) and (3), and the processor component (2), each time the fan/heat sink assembly is removed. Thermal pads and thermal paste must be installed on all surfaces before the fan/heat sink assembly is reinstalled.

The following illustration shows the locations for thermal material on systems with discrete graphics subsystems.

80 Chapter 4 Removal and replacement procedures

Processor

NOTE: All processor spare part kits include thermal material.

Description Spare part number

Intel Arrandale i5–520M Processor (2.4 GHz, 3 MB total L3 cache, 1066 MHz)—Dual Core 35 W 594187–001

Intel Arrandale i5–540M Processor (2.53 GHz, 3 MB total L3 cache, 1066 MHz)—Dual core 35 W 594188–001

Intel Arrandale i3–330 Processor (2.13 GHz, 3 MB L3 cache, 1066 MHz)—Dual Core 35 W (for model 1.0 only)

Intel Arrandale i3–350 Processor (2.26 GHz, 3 MB L3 cache, 1066 MHz)—Dual Core 35 W 597623–001

Intel Arrandale i5–430 Processor (2.26 GHz, 3 MB total L3 cache, 1066 MHz)—Dual Core 35 W 597624-001

Intel Arrandale i3–370 Processor (2.4 GHz, 3 MB L3 cache, 1066 MHz)—Dual Core 35 W 613584-001

Intel Arrandale i5–450 Processor (2.4 GHz, 3 MB L3 cache, 1066 MHz)—Dual Core 35 W 613585-001

Pentium Arrandale P6000 Processor (1.86 GHz, 3 MB L3 cache, 1066 MHz)—Dual Core 35 W 613586-001

Pentium Arrandale P6100 Processor (2.0 GHz, 3 MB L3 cache, 1066 MHz)—Dual Core 35 W (for model 1.1 only)

Intel Arrandale i3–380 Processor (2.53 GHz, 3 MB L3 cache, 1066 MHz)—Dual Core 35 W (for model 1.1 only)

Intel Arrandale i5–560 Processor (2.66–3.2 GHz, 3 MB L3 cache, 1066 MHz)—Dual Core 35 W (for model 1.1 only)

Intel Arrandale i5–580 Processor (2.66–3.33 GHz, 3 MB L3 cache, 1066 MHz)—Dual Core 35 W (for model 1.1 only)

Intel Pentium P6200 Processor (2.13 GHz, 3 MB L3 cache, 1066 MHz)—Dual Core 35 W (for model 1.1 only)

Intel Core i5–460 Processor (2.53 GHz, 3 MB L3 cache, 1066 MHz)—Dual Core 35 W (for model

1.1 only)

597622–001

613587-001

625823-001

625824-001

625825-001

625831-001

626039-001

Before removing the processor:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn on

the computer, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first disconnecting the power cord from the AC

outlet and then disconnecting the AC adapter from the computer.

4. Remove the battery (see

Battery on page 41).

5. Remove the following components:

a. Hard drive (see

b. Optical drive (see

c. Keyboard (see

d. Top cover (see

Hard drive on page 42)

Optical drive on page 45)

Keyboard on page 53)

Top cover on page 56)

Component replacement procedures 81

e. Display assembly (see Display assembly on page 68)

f. System board (see

g. Fan/heat sink assembly (see

System board on page 74)

Fan/heat sink assembly on page 77)

Remove the processor:

1. Turn the processor locking screw (1) one-half turn counterclockwise until you hear a click.

2. Lift the processor (2) straight up and remove it.

NOTE: The gold triangle (3) on the processor must be aligned with the triangle icon (4)

embossed on the processor socket when you install the processor.

Reverse this procedure to install the processor.

82 Chapter 4 Removal and replacement procedures

5 Setup Utility

Computer Setup in Windows 7

To view the drives installed on the computer, select Start > Computer.

On models with a secondary hard drive (drive D), the optical drive becomes drive E. The next drive added to the system, such as a new USB drive, is assigned the next available drive letter.

Starting Setup Utility

Setup Utility is a ROM-based information and customization utility that can be used even when the Windows operating system is not working.

The utility reports information about the computer and provides settings for startup, security, and other preferences.

To start Setup Utility:

Open Setup Utility by turning on or restarting the computer. When the Press the ESC key for Startup Menu message displays in the lower-left corner of the screen, press the f10 key.

– or –

1. Open Setup Utility by turning on or restarting the computer. When the Press the ESC key for

Startup Menu message displays in the lower-left corner of the screen, press the esc key.

2. When the Startup Menu displays, press the f10 key.

Using Setup Utility

Changing the language of Setup Utility

The following procedure explains how to change the language of Setup Utility. If Setup Utility is not already running, begin at step 1. If Setup Utility is already running, begin at step 2.

1. Open Setup Utility by turning on or restarting the computer. When the Press the ESC key for

Startup Menu message displays in the lower-left corner of the screen, press the f10 key.

– or –

Open Setup Utility by turning on or restarting the computer. When the Press the ESC key for Startup Menu message displays in the lower-left corner of the screen, press the esc key. When the Startup Menu displays, press the f10 key.

2. Use the arrow keys to select System Configuration > Language, and then press the enter key.

Computer Setup in Windows 7 83

3. Use the arrow keys to select a language, and then press enter key.

4. When a confirmation prompt with your language selected displays, press the enter key.

5. To save your change and exit Setup Utility, use the arrow keys to select Exit > Exit Saving

Changes, and then press the enter key.

Changes goes into effect immediately.

Navigating and selecting in Setup Utility

Because Setup Utility is not Windows based, it does not support the TouchPad. Navigation and selection are by keystroke.

To choose a menu or a menu item, use the arrow keys.

●

To choose an item in a list or to toggle a field, for example an Enable/Disable field, use either the

●

arrow keys or the f5 or f6 keys.

To select an item, press the enter key.

●

To close a text box or return to the menu display, press the esc key.

●

To display additional navigation and selection information while Setup Utility is open, press the

●

f1 key.

Displaying system information

The following procedure explains how to display system information in Setup Utility. If Setup Utility is not open, begin at step 1. If Setup Utility is open, begin at step 2.

1. Open Setup Utility by turning on or restarting the computer. When the Press the ESC key for

Startup Menu message displays in the lower-left corner of the screen, press the f10 key.

– or –

2. Select the Main menu. System information such as the system time and date, and identification

information about the computer is displayed.

3. To exit Setup Utility without changing any settings, use the arrow keys to select Exit > Exit

Discarding Changes, and then press the enter key.

84 Chapter 5 Setup Utility

Restoring default settings in Setup Utility

The following procedure explains how to restore Setup Utility default settings. If Setup Utility is not already running, begin at step 1. If Setup Utility is already running, begin at step 2.

1. Open Setup Utility by turning on or restarting the computer. When the Press the ESC key for

Startup Menu message displays in the lower-left corner of the screen, press the f10 key.

– or –

2. Use the arrow keys to select Exit > Load Setup Defaults, and then press the enter key.

3. When the Setup Confirmation appears, press the enter key.

4. To save your change and exit Setup Utility, use the arrow keys to select Exit > Exit Saving

Changes, and then press the enter key.

Setup Utility default settings go into effect when the computer restarts.

NOTE: Password, security, and language settings are not changed when you restore the factory

default settings.

Computer Setup in Windows 7 85

Exiting Setup Utility

You can exit Setup Utility with or without saving changes.

To exit Setup Utility and save changes from the current session:

●

If the Setup Utility menus are not displayed, press the esc key to return to the menu display. Then use the arrow keys to select Exit > Exit Saving Changes, and then press the enter key.

To exit Setup Utility without saving changes from the current session:

●

If the Setup Utility menus are not displayed, press the esc key to return to the menu display. Then use the arrow keys to select Exit > Exit Discarding Changes, and then press the enter key.

After either choice, the computer restarts in Windows.

Setup Utility menus

The menu tables in this section provide an overview of Setup Utility options.

NOTE: Some of the Setup Utility menu items listed in this chapter might not be supported by the

computer.

Main menu

Select To do this

System information

Security menu

Select To do this

Administrator password Enter, change, or delete an administrator password.

Power-On password Enter, change, or delete a power-on password.

View and change the system time and date.

●

View identification information about the computer.

●

View specification information about the processor, memory size,

●

system BIOS, and keyboard controller version (select models only).

86 Chapter 5 Setup Utility

System Configuration menu

Select To do this

Language Support Change the language of Setup Utility.

Button Sound (select models only) Enable/disable the capacitive button tapping sound.

Virtualization Technology (select models only) Enable/disable the processor Virtualization Technology.

Processor C6 State (select models only) Enable/disable the processor C6 sleep state.

LAN Power Saving (select models only) Enable/disable LAN Power Saving. When enabled, saves power when

the computer is in DC mode.

Card Reader/1394 Power Saving (select models only)

Fan Always On Enabled/disable Fan Always On. When enabled, the computer fan will

Action Keys Mode Enable/disable Action Keys Mode.

Boot Options Set the following boot options:

Enable/disable Card Reader/1394 Power Saving.

always be on.

POST hotkey delay (sec.)―Set the delay for the f1, f2, f9, f10, f11,

●

and f12 functions of Setup Utility in intervals of 5 seconds each (0, 5, 10, 15, 20).

CD-ROM Boot―Enable/disable boot from CD-ROM.

●

Floppy Boot―Enable/disable boot from diskette.

●

Internal Network Adapter Boot―Enable/disable boot from the

●

internal network adapter.

Boot Order―Set the boot order for:

●

Notebook Hard Drive

◦

Internal CD/DVD ROM Drive

◦

USB Diskette on Key/USB Hard Disk

◦

USB CD/DVD ROM Drive

◦

Diagnostics menu

Select To do this

Hard Disk Self Test Run a comprehensive self-test on the hard drive.

Secondary Hard Disk Self Test (select models only)

Memory Test Run a diagnostic test on the system memory.

USB Floppy

◦

Network Adapter

◦

NOTE: On models with two hard drives, this menu option is called the

Primary Hard Disk Self Test.

Run a comprehensive self-test on a secondary hard drive.

Computer Setup in Windows 7 87

Computer Setup in Linux

Starting Computer Setup

Computer Setup is a preinstalled, ROM-based utility that can be used even when the operating system is not working or will not load.

NOTE: Some of the Computer Setup menu items listed in this guide might not be supported by the

computer.

NOTE: Pointing devices are not supported in Computer Setup. Use the keyboard to navigate and

make selections.

NOTE: An external keyboard connected by USB can be used with Computer Setup only if USB

legacy support is enabled.

To start Computer Setup:

1. Turn on or restart the computer.

2. Before the operating system opens and when the F10=ROM Based Setup message displays in

the lower-left corner of the screen, press the f10 key.

Using Computer Setup

Navigating and selecting in Computer Setup

The information and settings in Computer Setup are accessed from the File, Security, Diagnostics, and System Configuration menus.

1. Open Computer Setup by turning on or restarting the computer, and then pressing the f10 key

when the F10 = ROM Based Setup message appears in the lower-left corner of the screen.

Because Computer Setup is not operating system based, it does not support the TouchPad. Navigation and selection are by keystroke:

To choose a menu or a menu item, use the arrow keys.

●

To select an item, press the enter key.

●

To close open dialog boxes and return to the main Computer Setup screen, press the esc

●

key.

To view navigation information, press the f1 key.

●

To change the language, press the f2 key.

●

2. Select the File, Security, Diagnostics, or System Configuration menu.

3. To exit Computer Setup, choose one of the following methods:

To exit Computer Setup without saving your preferences, use the arrow keys to select File

●

> Ignore Changes And Exit. Then follow the instructions on the screen.

To save your preferences and exit Computer Setup, use the arrow keys to select File >

●

Save Changes And Exit. Then follow the instructions on the screen.

Your preferences go into effect when the computer restarts.

88 Chapter 5 Setup Utility

Restoring factory settings in Computer Setup

To return all settings in Computer Setup to the values that were set at the factory:

1. Open Computer Setup by turning on or restarting the computer, and then pressing the f10 key

when the F10 = ROM Based Setup message displays in the lower-left corner of the screen.

2. Use the arrow keys to select File > Restore Defaults, and then press the enter key.

3. When the confirmation dialog box opens, press the f10 key.

4. To save your preferences and exit Computer Setup, use the arrow keys to select File > Save

Changes And Exit. Then follow the instructions on the screen.

Your preferences go into effect when the computer restarts.

NOTE: Your password settings and security settings are not changed when you restore the factory

settings.

Computer Setup in Linux 89

Computer Setup menus

The menu tables in this section provide an overview of Computer Setup options.

NOTE: Some of the Computer Setup menu items listed in this chapter might not be supported by

the computer.

File menu

Select To do this

System information

Restore Defaults Replace the configuration settings in Computer Setup with

Ignore Changes And Exit Cancel any changes entered during the current session, and

Save Changes And Exit Save any changes entered during the current session, and

View identification information for the computer.

●

View specification information for the processor, cache

●

and memory size, and system ROM.

the original factory settings. (Password settings and security settings are not changed when you restore the factory settings.)

then exit and restart the computer.

then exit and restart the computer. Changes go into effect when the computer restarts.

90 Chapter 5 Setup Utility

HP (Hewlett-Packard) B5A24UA-ABA, G62 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

1 Product description

2 External component identification

Identifying the hardware

Top components

TouchPad

Lights

Button and speakers

Keys

Display

Right-side components

Left-side components

Bottom components

Wireless antennas

Additional hardware components

3 Illustrated parts catalog

Serial number location

Computer major components

Display assembly components

Plastics Kit

Mass storage devices

Miscellaneous parts

Sequential part number listing

4 Removal and replacement procedures

Preliminary replacement requirements

Tools required

Service considerations

Plastic parts

Cables and connectors

Drive handling

Grounding guidelines

Electrostatic discharge damage

Packaging and transporting guidelines

Workstation guidelines

Equipment guidelines

Component replacement procedures

Serial number

Computer feet

Battery

Hard drive

Optical drive

WLAN module

Memory module

RTC battery

Keyboard

Top cover

Speaker assembly

Power button board

TouchPad button board

Modem module

USB board

Power connector

Display assembly

System board

Fan/heat sink assembly

Processor

5 Setup Utility

Computer Setup in Windows 7

Starting Setup Utility

Using Setup Utility

Changing the language of Setup Utility

Navigating and selecting in Setup Utility

Displaying system information

Restoring default settings in Setup Utility

Exiting Setup Utility

Setup Utility menus

Main menu

Security menu

System Configuration menu

Diagnostics menu

Computer Setup in Linux

Starting Computer Setup

Using Computer Setup

Navigating and selecting in Computer Setup

Restoring factory settings in Computer Setup

Computer Setup menus

File menu
