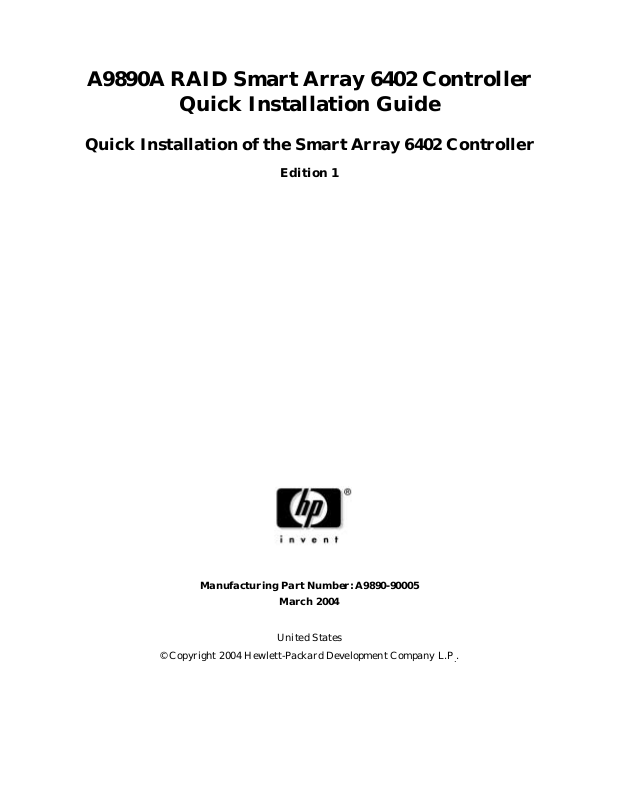

A9890A RAID Smart Array 6402 Controller
Quick Installation Guide
Quick Installation of the Sma rt Array 6402 Controller
Edition 1
Manufacturing Part Number: A9890-90005
March 2004
United States
© Copyright 2004 Hewlett-Packard Development Company L.P
.
.
Legal Notices
The info rm a tion in this docum e nt i s subject to change wit ho u t notice.
Hewlett-Packard mak es no warr anty of any kind with regard to this manual, including, but not l imi te d to, the
implied warranti es of mer chantability and fitness for a particul ar purpos e. Hewlett-Packard shall not be held
liable for errors contained herein or direct, indirect, special, incidental or consequential damages in
connection with the furnish i ng, performance, or use of this material.
Warranty
A copy of the specific warrant y terms applicable to your Hewlett-P ackard product and replacement parts can
be obtained from your local Sales and Service Office.
U.S. Government License
Proprietary compu ter softw are . Valid license f rom HP required for posses sion, use or c opying . Consis tent wi th
FAR 12.211 and 12.212, Commercial Computer Software, Computer Software Documentation, and Technical
Data for Commerc ial Ite m s are licen se d to the U.S. Governmen t unde r vend o r's standa r d co mm e rc ial licen se.
Copyright Notice
Copyright
adaptation, or translation of this document without prior written permission is prohibited, except as allowed
under th e cop yright l a ws.
Trademark Notices
UNIX
Open Group.
2004 Hewlett-Packard Development Com pany L.P. All rights reserved. Reproduc tio n,
is a registered trademark i n the United States and other countrie s , licensed exclus i vely throu g h The
4
A9890A RAID Smart Array 6402 Controller Multi-OS Overview
1 A9890A RAID Smart Array 6402 Controller
Multi-OS Overview
NOTE The latest copy of this document can be found at http://docs.hp.com within the Networking and
Communications area.
Chapter 1
5
A9890A RAID Smart Array 6402 Controller Multi-OS Overview
RAID Smart Array 6402 Installation Prerequisites
RAID Sm art Array 6402 Ins ta llation Prerequisites
Before installing the Smart Array 6402 con trolle r, ensure that the following hardware and software
prerequisite s are met:
•Check the Smart Array 6402 Release Notes for known problems or other information needed for
installation.
• Confirm that the Smart A rray 6402 co ntro ller and so ftware is supp orted on the HP Integrity serv er and
IO slot chosen, see Sma rt Array 6 402 contro l ler Support Matri x located in the Smart Array 6402 Support
Guide, avai l abl e at http://www.docs.hp .com in the Networking & Communications section for more
information.
• Check the HP Integrity server’s documentation to determine if additional tools may be required for
component installat i on.
• For specific instructions on co nt ro ller in stallation, see syste m -sp e cific doc um e ntation on “installin g
networking contr ol lers” fo r each ty pe of HP Inte gri ty se rv er that Sma rt A rray 6402 co nt rolle r will b e
installed into.
• See your system har dware docu me ntation to determ ine if OL* is sup p orted. For detailed information
about OL*, see the Inte rf a ce control l ercontroller OL* Support Guide. You can view, download, or print it
from http://www.docs.hp.com.
• Smart Array 6402 controller software media is available. It is included on CD/ or available on the web
through http://www.software.hp.com.
• For HP-UX, confirm that HP-UX super- u s er priv ileges are available; t hey are nece ssa ry to co mpl et e the
installation.
• For HP-UX confirm that the /usr/bin, /usr/sbin, and /sbin directories are in your PATH by logging in
as root and using the echo $PATH command.
• Confirm that the operating system i s the corre ct ver sion .
• Ensure that the proper version of firmware (FW for 64-bit systems) loaded on the controller.
F or mo re i n formation about the requir ed operating system versi ons, see the Smart Array 6402 Release Notes.
6
Chapter 1
Smart Array 6402 Controller HP-UX Installation
RAID Smart Array 6402 Installation Prerequisites
2 Smart Array 6402 Controller HP-UX
Installation
Chapter 2
7
Smart Array 6402 Controller HP-UX Installation
Install Smart Array 6402 C ontroller
Install Smart Array 6402 Control ler
CAUTION Smart Array 6402 controllers contain electronic components that can easily be damaged by
small amounts of electricity. To avoid damage, follow these guidelines:
• Store controller s in thei r anti-static plastic bags until installation.
• Work in a static-free area, if possible.
• Handle controllers by the edges only. Do not touch electronic components or electr ica l
traces.
• Use a suitable ground—any exposed metal surface on the computer chassis.
Installing the Smart Array 6402 Controller
The controller comes pre-configured. You do not have to set any jumpers or connectors.
Step 1. Access the system controller bay
• If the system is ru nning, shut it down b y exe cuting: shutdown -h. Respond “y” to the continue
to shutdown prompt, or use OL* features to power down the slot.
• Wait for the system to shut down completely , and then power off the system by pressing the
system off button, or that the slot is powered down if using OL* features . Ensure that the
system is grounded.
• Open the system to gain access to the PCI backplane.
• For better performance, insert the controller into the highest performance PCI slot available.
Step 2. Install the controller
• Slide the controlle r ed ge -co nn e ctor into the PCI slot until it is fully seated.
• Secure the controller and reassemble the system.
8
Chapter 2
Figure 2-1 Inserting the Controller
Smart Array 6402 Controller HP-UX Installation
Install Smart Array 6402 C ontroller
Table 2-1
Item
ID
1 Internal SCSI connector, port A1*
2 Internal SCSI connector, port A2*
3 External SC SI conn ecto r, port A1*
4 External SC SI conn ecto r, port A2*
5 Controller battery
6 Ba tt e ry-back ed cache module
7 Connector for expansion board
NOTE Do not use both connectors on a port simultaneously.
Description
Chapter 2
9
Smart Array 6402 Controller HP-UX Installation
Install Smart Array 6402 S oftwareInstallation
Install Sma r t Array 6402 S oftwareInstallation
This chapter contains HP-UX installation information for the A9890A RAID Smart Array 6402 controller.
Installing the Software
This section describes the step s nec es sary to load the Smar t Array 6402 software.
Here are the steps to load the Smart Array 6402 software, using the HP-UX swinstall program.
Step 1. Log on to the system as root.
Step 2. Insert the software media int o th e appr opr iate driv e. If the software is bein g loa d ed from a
CD-ROM, go to step 3; otherwise, go to step 4. The software can also be located at
http://www.software.hp.com.
Step 3. Mount the CD-ROM drive by using the following command at the command prompt:
$ mount device_name
where device_name is the name assigned to the CD-ROM drive.
Step 4. Run the swinstall p rogr am using the followin g com m and:
$ /usr/sbin/swinstall
This opens the Softw a re Sel ectio n window.
Step 5. Change the Sour ce Ho st Na me, if nec es sar y, and then enter th e mount point of the drive in the
Source Depot Path field. Select the
Step 6. The Software Selection window now contains a list of available software to install.
Step 7. Highlight the Smart Array 6402 software:
RAIDSA -> B.11.23.01 RAID SA; Supptd HW=A9890A
Choose
Step 8. From the Actions men u, s el ect the Install... menu, and then choose
installatio n and opens the Install Analysis win do w.
Step 9. Select the
message.
Step 10. Select the
swinstall loads the file set, ru ns t h e control script for the filesets , and builds the kernel . When the
processing is fi n i shed, the Status field displays a Ready message. Select Done and then the Note
window opens.
Mark for Install from the Actions menu; this chooses the highlighted sof tware .
OK button in the Install Analysis window when the Status field displays a Rea dy
YES button in the Confirmation window to start software installation.
OK button to retur n to the Software Selection window.
Install. This begins pro d uc t
Step 11. Select the
reboots.
When the system comes back up, log on to the system as root and view the
/var/adm/sw/swagent.log and /var/adm/sw/swinstall.log files to view error or warnin g
messages that may have occ ur red during the installation.
10
OK button in the Note window to reboot. The user interface disappears and the system
Chapter 2
Smart Array 6402 Controller HP-UX Installation
Install Smart Array 6402 S oftwareInstallation
Step 12. Verify that all installed Smart Array 6402 controllers have a software state of CLAIMED, by running
the ioscan -kfnC ext_bus |grep ciss command.
Chapter 2
11
Smart Array 6402 Controller HP-UX Installation
Install Smart Array 6402 S oftwareInstallation
12
Chapter 2
Smart Array 6402 Controller Linux Installation
Install Smart Array 6402 S oftwareInstallation
3 Smart Array 6402 Controller Linux
Installation
Chapter 3
13
Smart Array 6402 Controller Linux Installation
Smart Array 6402 Quick Installation
Smart Array 6402 Qui ck Inst allatio n
This chapter contains Linux installation information for the RAID Smar t Array 6402, A9890 A contr olle r.
Install Smart Array 6402 Controllers
CAUTION Smart Array 6402 controllers contain electronic components that can easily be damaged by
small amounts of electricity. To avoid damage, follow these guidelines:
• Store controller s in thei r anti-static plastic bags until installation.
• Work in a static-free area, if possible.
• Handle controllers by the edges only. Do not touch electronic components or electr ica l
traces.
• Use the disposable groundi ng wrist strap pro vided wit h each co ntro l le r. Fol l ow the
instruct ions incl ud e d w ith t h e gr o u n ding strap.
• Use a suitable ground—any exposed metal surface on the computer chassis.
Installing the Smart Array 6402 Controller
The controller comes pre-configured. You do not have to set any jumpers or connectors.
Step 1. Access the system controller bay
• If the system is ru nning, shut it down b y exe cuting: shutdown -h. Respond “y” to the continue
to shutdown prompt, or use OL* features to power down the slot.
• Wait for the system to shut down completely , and then power off the system by pressing the
system off button, or that the slot is powered down if using OL* features . Ensure that the
system is grounded.
• Open the system to gain access to the PCI backplane.
• For better performance, insert the controller into the highest performance PCI slot available.
Step 2. Install the controller
• Slide the controlle r ed ge -co nn e ctor into the PCI slot until it is fully seated.
• Secure the controller and reassemble the system.
14
Chapter 3
Figure 3-1 Inserting the Controller
Smart Array 6402 Controller Linux Installation
Smart Array 6402 Quick Installation
Table 3-1
Item
ID
1 Internal SCSI connector, port A1*
2 Internal SCSI connector, port A2*
3 External SC SI conn ecto r, port A1*
4 External SC SI conn ecto r, port A2*
5 Controller battery
6 Ba tt e ry-back ed cache module
7 Connector for expansion board
NOTE Do not use both connectors on a port simultaneously.
Install Smart Array 6402 Software
Description
This section describes the steps necessary to load the RAID 6402 software on an Integrity server running the
Linux operatin g system.
Installing the Software Prior to OS Install
Here are the steps to load the Smart Array 6402 software pri or to installing the operating syste m :
Step 1. Install the controller using the instructions provided in Linux portion of this guide.
Chapter 3
15
Smart Array 6402 Controller Linux Installation
Smart Array 6402 Quick Installation
Step 2. Boot the system
Step 3. Go through the normal OS installation proc ess.
NOTE Linux will recognize that the card is present in the system and will load the correct driver
automatically.
Installing the Software with Linux Install
Here are the steps to load the Smart Array 6402 software when Linux is installed.
Step 1. Install the controller using the instructions provided in Linux portion of this guide.
Step 2. Run the following command upon rebooting the system in order to ensure that the driver gets
properly loaded for the contro ller.
RedHat Linux:
The hardware detection functionality in RedHat Linux will find the adapter and properly configure the
system files . Run the following comman d to ensure the driver ge ts prope rly loaded:
# mkinitrd -f /boot/efi/efi/redhat/initrd-$(uname -r).img $(uname -r)
SUSE Linux
The hardware detection functionality in SUSE Linux will find the adapter and properly configure the system
files. Run the following command to ensure the driver gets properly loaded:
# mkinitrd -k /boot/vmlinux -i/boot/initrd
16
Chapter 3
Smart Array 6402 Controller Windows Installation
Smart Array 6402 Quick Installation
4 Smart Array 6402 Controller Windows
Installation
Chapter 4
17
Smart Array 6402 Controller Windows Installation
Smart Array 6402 Quick Installation
Smart Array 6402 Qui ck Inst allatio n
This chapter provides Windows installation information for the RAID Smart Array 6402, A9890A
controller.The procedure for installing the controller can be split into several phases. The sequence in which
you must perform the phases depends on the type of server.
The following section s summarize the recommended sequence of phases for each sit uat i on. For more
information about any phas e of the instal latio n proc e dure, refer to the HP Smart Array 6402 Series
Controllers User Guide on the Do cu m entation CD in the con trolle r kit.
Install Smart Array 6402 Software
Use the steps in this section to configure your HP Smart Array as the boot controller. After the OS
installation is com p lete, the HP Array Co nf ig ur atio n U tility (ACU) can be used to con figur e the rest of yo u r
logical drives.
Step 1. When using an HP Smart Array controller as your boot controller, use the Option Rom
Configuration for Arrays (ORCA) utility to configure your logical boot drive. The ORCA utility can
only be accessed when the system is booting. Press the F8 key when the prompt appears on the
screen during boot to start ORCA and configure your logical boot drive. Refer to the HP Smart
Array 6402 Series Controllers User Guide (available on the HP Smart Setup media) for details on
using the ORCA utility.
NOTE FOR CELL-BASED SYSTEMS: The Smart Array Option ROM must be loaded manually the first
time during both manual o r software pre- load instal latio ns. This can be done at the EF I shell by
executing a search all comm and at the EFI promp t. The F 8 pr om pt will app ea r. Continue with the
configuration without resetting the system.
Step 2. Once thelogical boot drive is configured, exit ORCA, select the EFI Shell [Built-in] from the EFI
Boot Manager, then type reset. The OS installation can proceed after the reboot is compl et e. If you
are performing a manual instal latio n an d using the Sm art Array 6400 as you r boot contr o ller, you
must load an OEM boot d riv er: Lau nch the EFI- Base d Setup U tilit y (EBSU). Instru ction s on how
to launch t he EBSU are pr ovided i n the , HP Integrity Server Essentials Foundation Pack, HP Smart
Setup Installati on Poster for Microsoft Window s in the Manual OS Installation section. Select Load
OEM Boot Driver by pressing the “b” key. Select the appropriate control l er at the promp t to load
the boot driver, then exit EBSU.
NOTE For remote access, the Te lnet and Hyperterminal applications on Windows NT4 and Windows 2000
do not correctly m ap the AS CI I string for the functio n k e ys. To enter the config ur atio n utility
during POST, press the “Esc” key immediately followed by pressing “8” after the Smart Array
banner is displayed on the remo te consol e.
Step 3. Install the operating system.
Step 4. When installing additional Smart Array controllers, ensure each controller has been updated to the
latest revision of the driver.
Step 5. Install the Array Configuration Utility (ACU) from the Smart Setup CD.
18
Chapter 4
Smart Array 6402 Controller Windows Installation
Smart Array 6402 Quick Installation
Step 6. Install the Management Agents.
Step 7. Create and format ad ditio n al log ical drives using th e ACU online configurati on utility if desired.
Chapter 4
19
Smart Array 6402 Controller Windows Installation
Smart Array 6402 Quick Installation
20
Chapter 4
Loading...
