HP ARCS 48U, ARCS 42U User Manual
HPE Adaptive Rack Cooling System User Guide
Abstract
This document is for the person who installs racks and rack products. This procedure is
performed only by trained personnel. Hewlett Packard Enterprise assumes you are qualified in
performing installations and trained in recognizing hazards in rack products.
Part Number: P07980-001
Published: December 2018
Edition: 1
©
Copyright 2018, 2018 Hewlett Packard Enterprise Development LP
Notices
The information contained herein is subject to change without notice. The only warranties for Hewlett
Packard Enterprise products and services are set forth in the express warranty statements accompanying
such products and services. Nothing herein should be construed as constituting an additional warranty.
Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained
herein.
Confidential computer software. Valid license from Hewlett Packard Enterprise required for possession,
use, or copying. Consistent with FAR 12.211 and 12.212, Commercial Computer Software, Computer
Software Documentation, and Technical Data for Commercial Items are licensed to the U.S. Government
under vendor's standard commercial license.
Links to third-party websites take you outside the Hewlett Packard Enterprise website. Hewlett Packard
Enterprise has no control over and is not responsible for information outside the Hewlett Packard
Enterprise website.
Acknowledgments
Microsoft® and Windows® are either registered trademarks or trademarks of Microsoft Corporation in the
United States and/or other countries.
Google ® and the Google Logo® are registered trademarks of Google Inc.
Contents
Overview.................................................................................................. 5
HPE Adaptive Rack Cooling System introduction............................. 11
Configuration factors............................................................................15
Installation............................................................................................. 16
Product overview...........................................................................................................................5
Introduction to the HPE Adaptive Rack Cooling System.............................................................11
HPE Adaptive Rack Cooling System component identification.................................................. 13
Optimum environment and site preparation................................................................................15
Safety information....................................................................................................................... 15
HPE Adaptive Rack Cooling System contents............................................................................16
Accessory and option kit contents.............................................................................................. 16
Required tools.............................................................................................................................22
Installing the HPE Adaptive Rack Cooling System..................................................................... 23
Baying the racks together........................................................................................................... 26
Integrating the HPE Adaptive Rack Cooling System and IT Rack .............................................29
HPE Adaptive Rack Cooling System pressure tube connections ................................... 29
Installing the pressure sampling tubes.............................................................................29
Configuring the unit ....................................................................................................................34
Installing the option kits ..............................................................................................................36
Installing the side panel blanks on the IT racks............................................................... 36
Installing side panel blanks on a 42U IT rack........................................................36
Installing side panel blanks on a 48U IT rack........................................................39
Installing the HPE ARCS Auto Door Release Kit and HPE ARCS Auto Door
Controller Kit.....................................................................................................................41
Installing the 6U Facade.................................................................................................. 49
Connecting to the facility water................................................................................................... 51
Management module............................................................................ 58
Management module overview................................................................................................... 58
Management module components..............................................................................................58
Accessing the management module through a terminal emulation program..............................60
Logging in through the terminal emulation program.........................................................60
Accessing the management module through the web interface................................................. 60
Logging in through the web interface............................................................................... 61
Configuring the leak detection alarm relay for facility power shutdown...................................... 61
Operator display....................................................................................62
Operator display overview.......................................................................................................... 62
Operator display components.......................................................................................... 62
Warning and alarm messages..........................................................................................62
3
Frequently asked questions.................................................................64
HPE Adaptive Rack Cooling System frequently asked questions.............................................. 64
Troubleshooting.................................................................................... 66
HPE Adaptive Rack Cooling System troubleshooting.................................................................66
Specifications........................................................................................67
HPE Adaptive Rack Cooling System specifications....................................................................67
Thermal and air flow performance................................................................................... 68
Environmental specifications............................................................................................68
Rack specifications .................................................................................................................... 69
Replaceable parts and maintenance and service information......... 70
Obtaining replaceable parts ....................................................................................................... 70
Maintenance and service............................................................................................................ 70
Air and water heat exchanger maintenance.....................................................................70
Water quality and leveling requirements and condensation
management.......................................................................................... 71
Acceptable water quality specifications ..................................................................................... 71
Frost damage .............................................................................................................................71
Water precautions.......................................................................................................................72
Plumbing materials to avoid .......................................................................................................72
Leveling requirements ................................................................................................................72
Condensation management .......................................................................................................72
Websites................................................................................................ 73
Support and other resources...............................................................74
Accessing Hewlett Packard Enterprise Support......................................................................... 74
Accessing updates......................................................................................................................74
Customer self repair....................................................................................................................75
Remote support.......................................................................................................................... 75
Warranty information...................................................................................................................75
Regulatory information................................................................................................................76
Documentation feedback............................................................................................................ 76
4
Overview
Product overview
The HPE Adaptive Rack Cooling System is a supplemental cooling system for data centers. It is a liquidto-air heat exchanger and fan system that removes heat generated by rack-installed IT equipment. The
HPE Adaptive Rack Cooling System is connected to adjoining racks with baying brackets and front and
rear extensions, creating a cold aisle and hot aisle air plenum. Hot air from the IT exhaust is pulled
through the HPE Adaptive Rack Cooling System, cooled with the heat exchanger that is connected to
facility water, and the cooled air is then returned to the inlet of the servers. The HPE Adaptive Rack
Cooling System is offered in four configurations using either HPE ARCS 42U 600x1600mm Racks or HPE
ARCS 48U 600x1600mm Racks.
NOTE: The HPE Adaptive Rack Cooling System supports both HPE ARCS 42U and 48U 600x1600mm
Racks. For the following front elevation views, the HPE ARCS 48U 600x1600mm Rack is shown. The
HPE Adaptive Rack Cooling System is shown without doors for better viewing of components.
The thermal airflow illustrations show a top view of the HPE Adaptive Rack Cooling System and HPE
ARCS 42U/48U 600x1600mm Racks.
HPE Adaptive Rack Cooling System + one HPE ARCS 42U/48U 600x1600 Rack
Airflow for HPE Adaptive Rack Cooling System (single-rack configuration)
Overview 5
Item Description
1 HPE Adaptive Rack Cooling System
2 HPE ARCS 48U 600x1600mm Rack
HPE Adaptive Rack Cooling System + two HPE ARCS 42U/48U 600x1600 Racks
Air flow for HPE Adaptive Rack Cooling System (dual-rack configuration)
6 Overview
Item Description
1 HPE Adaptive Rack Cooling System
2 HPE ARCS 48U 600x1600mm Rack
HPE Adaptive Rack Cooling System + three HPE ARCS 42U/48U 600x1600mm Racks
Air flow for HPE Adaptive Rack Cooling System (three-rack configuration)
Overview 7
Item Description
1 HPE Adaptive Rack Cooling System
2 HPE ARCS 48U 600x1600mm Rack
HPE Adaptive Rack Cooling System + four HPE ARCS 42U/48U 600x1600mm Racks
Air flow for HPE Adaptive Rack Cooling System (four-rack configuration)
8 Overview
Item Description
1 HPE Adaptive Rack Cooling System
2 HPE ARCS 48U 600x1600mm Rack
The airflow of the HPE Adaptive Rack Cooling System fully supports the industry standard front-to-back
cooling—cold air pulled into the front of the server and warm air expelled out the rear of the unit. All
devices receive adequate and evenly distributed cool air regardless of the mounting position within the
rack. The HPE Adaptive Rack Cooling System distributes precisely cooled and targeted air flow evenly
across the front of the IT equipment. The HPE Adaptive Rack Cooling System and rack extensions
channel warmed air from the rear of the IT equipment into the side-mounted or center-mounted HPE
Adaptive Rack Cooling System cooling unit. From there, it is cooled and recirculated to the front of the
equipment stack.
A 6U facade comes in the HPE ARCS 48U Air Rack Installation Kit, and you can place it on top of the
HPE Adaptive Rack Cooling System to make the HPE Adaptive Rack Cooling System the same height as
the HPE ARCS 48U 600x1600mm Racks. The following illustration shows a single-unit configuration with
the 6U facade in place on the HPE Adaptive Rack Cooling System and the HPE Adaptive Rack Cooling
System doors in place.
Overview 9
Item Description
1 HPE Adaptive Rack Cooling System with 6U
facade
2 HPE ARCS 48U 600x1600mm Rack
10 Overview
HPE Adaptive Rack Cooling System introduction
Introduction to the HPE Adaptive Rack Cooling System
The HPE Adaptive Rack Cooling System is a liquid-to-air heat exchanger and fan system that removes
heat generated by rack-installed IT equipment. It is connected to adjoining racks by means of a cold aisle
and hot aisle air plenum. Hot air from the IT exhaust is pulled through the HPE Adaptive Rack Cooling
System, cooled with the heat exchanger connected to facility water, and the cooled air is then returned to
the inlet of the servers.
Unit Side View
Item Reference
1 Humidity sensor
2 Touchscreen display
3 Front air plenum
4 Fan units (4)
5 Condensation pump
6 Leak sensors
7 Isolation valves
8 Control valve
9 Rear air plenum
10 Heat exchanger unit
Unit Front View
HPE Adaptive Rack Cooling System introduction 11
Item Description
1 CMC (management module)
2 Transfer switch
Unit Rear View
Item Description
1 Water supply
2 Water return
12 HPE Adaptive Rack Cooling System introduction
HPE Adaptive Rack Cooling System component identification
Control Valve
Item Reference
1 Electrical connector
2 Actuator assembly
3 Valve position indicator
Isolation Valves
HPE Adaptive Rack Cooling System introduction 13
Item Reference
1 Valve position indicator
2 Logic switch
3 Valve lock
4 Valve power connector
5 Valve status connector
Connectors
Item Reference
1 AC power in
2 Fan power connectors
3 Valve connectors
4 Rear air pressure connectors
5 CAN bus connection
6 Ethernet connection
7 -10 Sensors
11 ARPO (alarm) relay output
12 Door opening
13 Fuses
14 HPE Adaptive Rack Cooling System introduction
Configuration factors
Optimum environment and site preparation
CAUTION: Water quality that is out of spec may cause decreased cooling capacity or disruption in
service. The facility water supplied to the HPE Adaptive Rack Cooling System must meet the
guidelines stated in this manual. The HPE Adaptive Rack Cooling System warranty does not cover
damage caused by facility water that does not meet specifications.
To provide optimum performance with minimum maintenance, your site must meet environmental
requirements. The HPE Adaptive Rack Cooling System is intended to be installed in an indoor location
that is temperature controlled and relatively free of conductive contaminants.
To route water lines to your HPE Adaptive Rack Cooling System, use one of the following methods:
• Through an opening in the raised floor
• Through the top of the HPE Adaptive Rack Cooling System
Safety information
The HPE Adaptive Rack Cooling System is rated at a maximum facility pressure of 8 bar (116 PSI).
If valves are installed on the external pipe work that could potentially trap fluid inside the HPE Adaptive
Rack Cooling System, special precautions must be taken. To prevent severe plumbing failure due to
extreme pressure, use an expansion tank with a preinstalled safety valve in the plumbing circuit
connected to the unit.
WARNING: This equipment must be installed in a restricted access area. The equipment is not to
be accessible to persons (including children) with reduced physical, sensory, or mental capabilities,
or a lack of experience and knowledge, unless they have been given supervision or instruction. Only
authorized technicians trained by Hewlett Packard Enterprise should attempt to repair this
equipment. All troubleshooting and repair procedures are detailed to allow only subassembly- or
module-level repair. Because of the complexity of the individual boards and subassemblies, no one
should attempt to make repairs at the component level or to modify any printed wiring board.
Improper repairs can create a safety hazard.
Configuration factors 15
Installation
HPE Adaptive Rack Cooling System contents
The HPE Adaptive Rack Cooling System contains the following items:
• HPE ARCS Accessory Kit
• Power Cord kit
Accessory and option kit contents
If any of the following items are missing or damaged, contact your Hewlett Packard Enterprise authorized
reseller. Listed materials are subject to change.
Accessory Kits
HPE ARCS Accessory Kit
The HPE ARCS Accessory Kit comes with the HPE Adaptive Rack Cooling System. Use the parts
included in this kit to properly install the HPE Adaptive Rack Cooling System.
Item Description Quantity
1 Baying brackets 6 small
2 6-32 x 5/8 Phillips head screws 16
3 M5.5 x 10 Torx screws with serrated
16 Installation
12
head
Table Continued
Item Description Quantity
4 Air pressure tubing kit with brackets (not
shown)*
5 Leveling pads 2
6 M6 x 1 x 10 Flathead Torx trilobe screws 16
7 M5.5 x 13 Torx screws 6
8 HPE G2 Rack Baying Kit (Contains
brackets and screws used to bay the
racks together on either a 600mm or 24inch pitch.)
Worm drive hose and tube clamps 2
Panduit boots 2
Gasket, 15 x 15 1
Masterkleer PVC clear tubing, 6 ft. 2
Safety, compliance, & warranty
information
1
2
1
*The HPE ARCS Air Pressure Tubing Kit contains the following components:

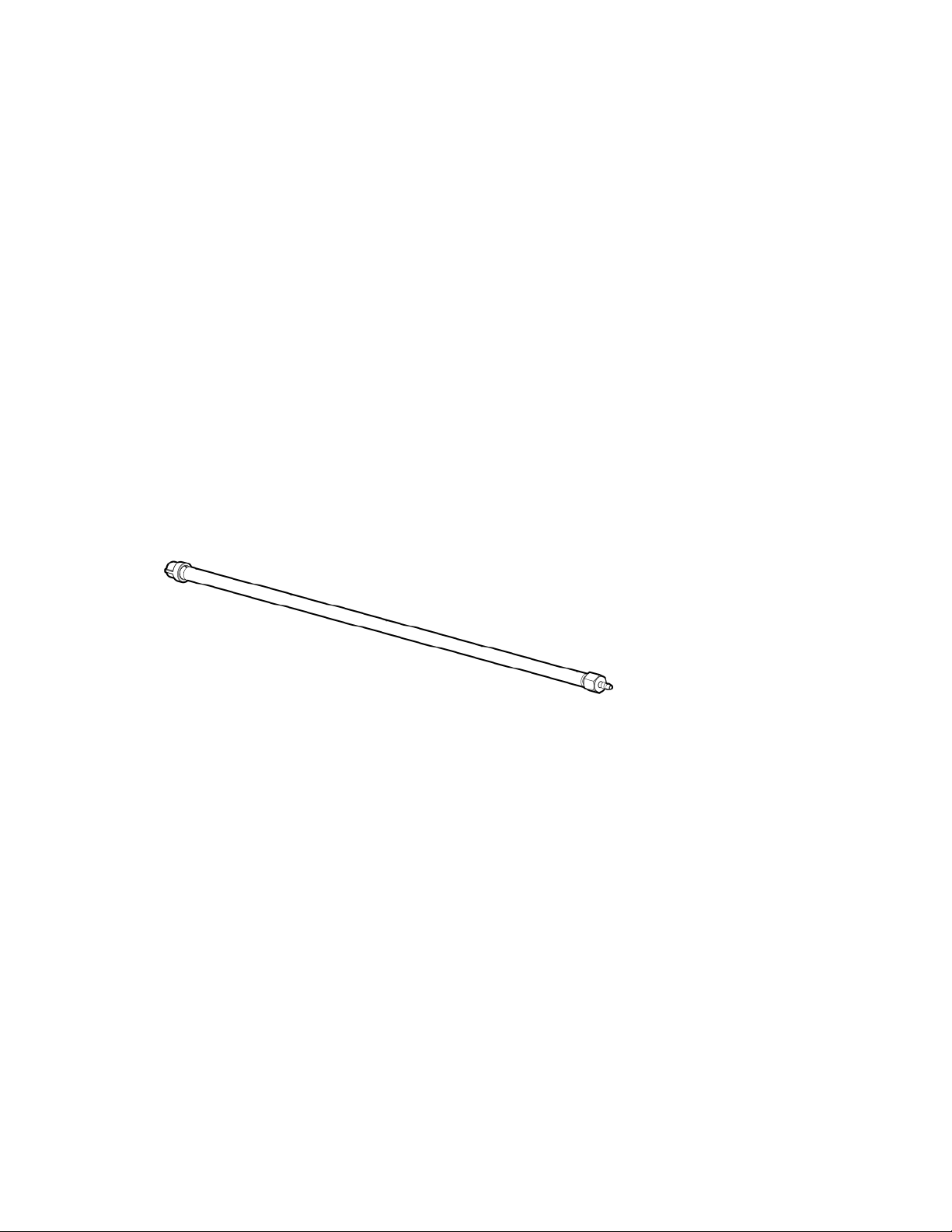

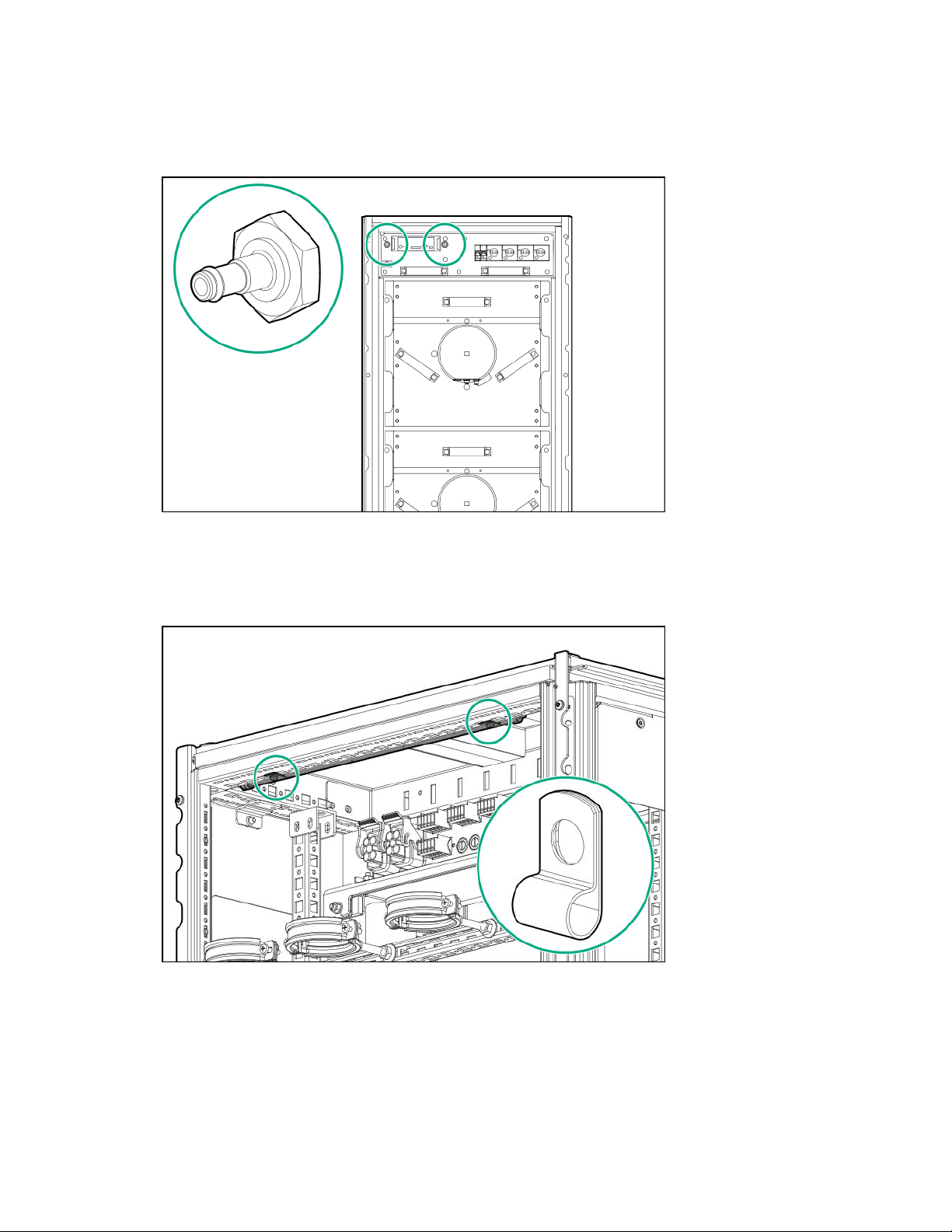

• Aluminum pipe, 1/8" diameter X 18" long, threaded on both ends
• Aluminum end cap, 1/8" diameter
• Barbed, threaded NPTF hose end, 1/8" diameter
• Pipe clamp, galvanized, 3/8"ID X 9/16" long (for HPE Adaptive Rack Cooling System)
• Pipe clamp, galvanized, 3/8"ID X 11/16" long (for HPE ARCS 42U/48U 600x1600mm Racks)
• Screw, 5.5x1.81x10 Pan Torx T25
• Flat washer, M6
• Plastic barbed tube fittings for air & water, 1/8"
• Polyurethane Tubing for Water, 5/32"ID, 1/4" OD
HPE ARCS Power Cord Kit
The HPE ARCS Power Cord Kit contains:
• IEC 60309 32/30A 220/415V 6h/IP44 power cord (Quantity 2)
• NEMA L22-20P 277/480V 4P/5W power cord (Quantity 2)
HPE ARCS Air Rack Accessory Kit
The HPE ARCS Air Rack Accessory Kit comes with the HPE ARCS 42U/48U 600x1600mm Racks. Use
the parts included in this kit to properly install the racks.
Installation 17
Item Description Quantity
Gasket, 15x15 Foam for sealing the rack 1
HPE G2 Rack
Grounding Kit
HPE G2 Rack
Baying Kit
Rack Hardware Kit Screws, cage nuts, and other hardware
Cable ties Used to attach cables to the rack 1
Transportation
bracket kit
Option Kits
HPE ARCS Water Hook-Up Kit
Hewlett Packard Enterprise recommends using the HPE Adaptive Rack Cooling SystemWater Hook-Up
Kit to connect the HPE Adaptive Rack Cooling System to a facility water supply. Each kit includes two
hose assemblies with 2-inch sanitary flange connections that are required for connecting the facility
supply and return lines to the main inlet and outlet connections of an HPE Adaptive Rack Cooling
System. One Water Hook-Up Kit is required for each HPE Adaptive Rack Cooling System.
Cables, screws, and washers used to
ground the rack through the rack frame
Brackets and screws used to bay the
racks together on either a 600mm or 24inch pitch
used to install servers to the EIA rail
Install these brackets when rack is fully
loaded and will be shipped
1
1
1
1
NOTE: To properly connect the Water Hook-Up Kit, the facility plumbing connection must be a 2-inch
flange fitting.
NOTE: The illustration is not drawn to scale. The actual length of the hoses is approximately 1.83 m (6 ft).
HPE ARCS 42U Air Rack Installation Kit
18 Installation
Item Description
1
2
3
4
5
6
7

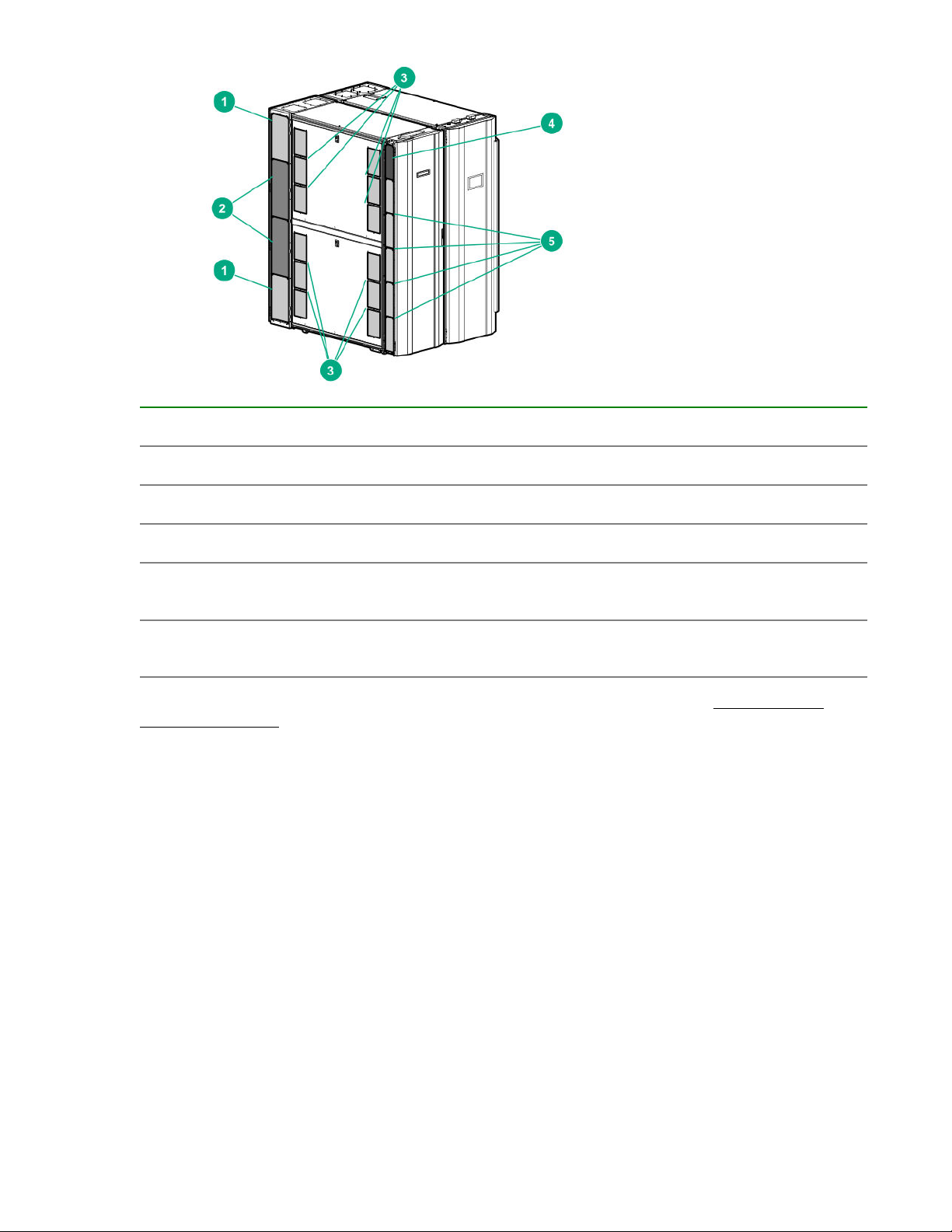

HPE ARCS 48U Air Rack Installation Kit

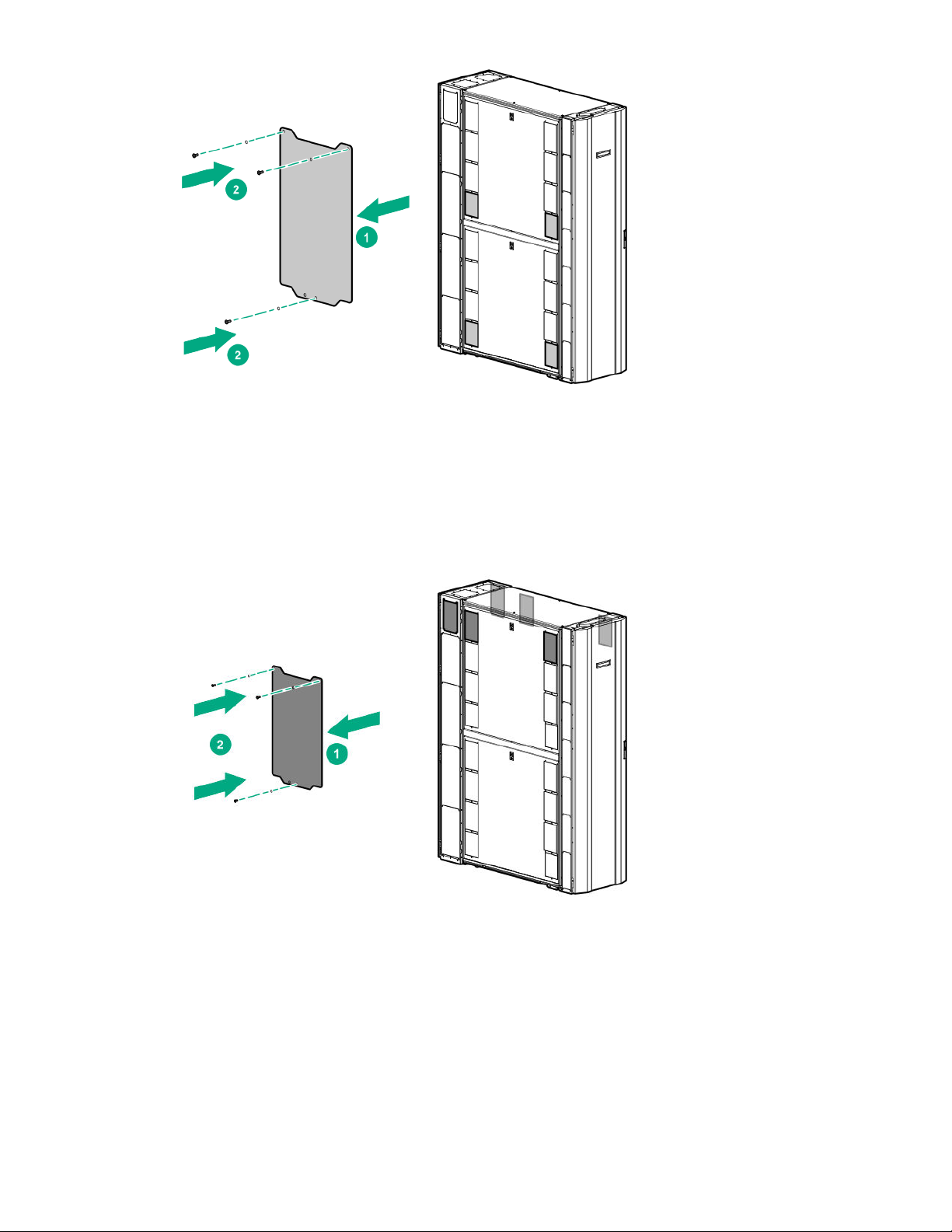

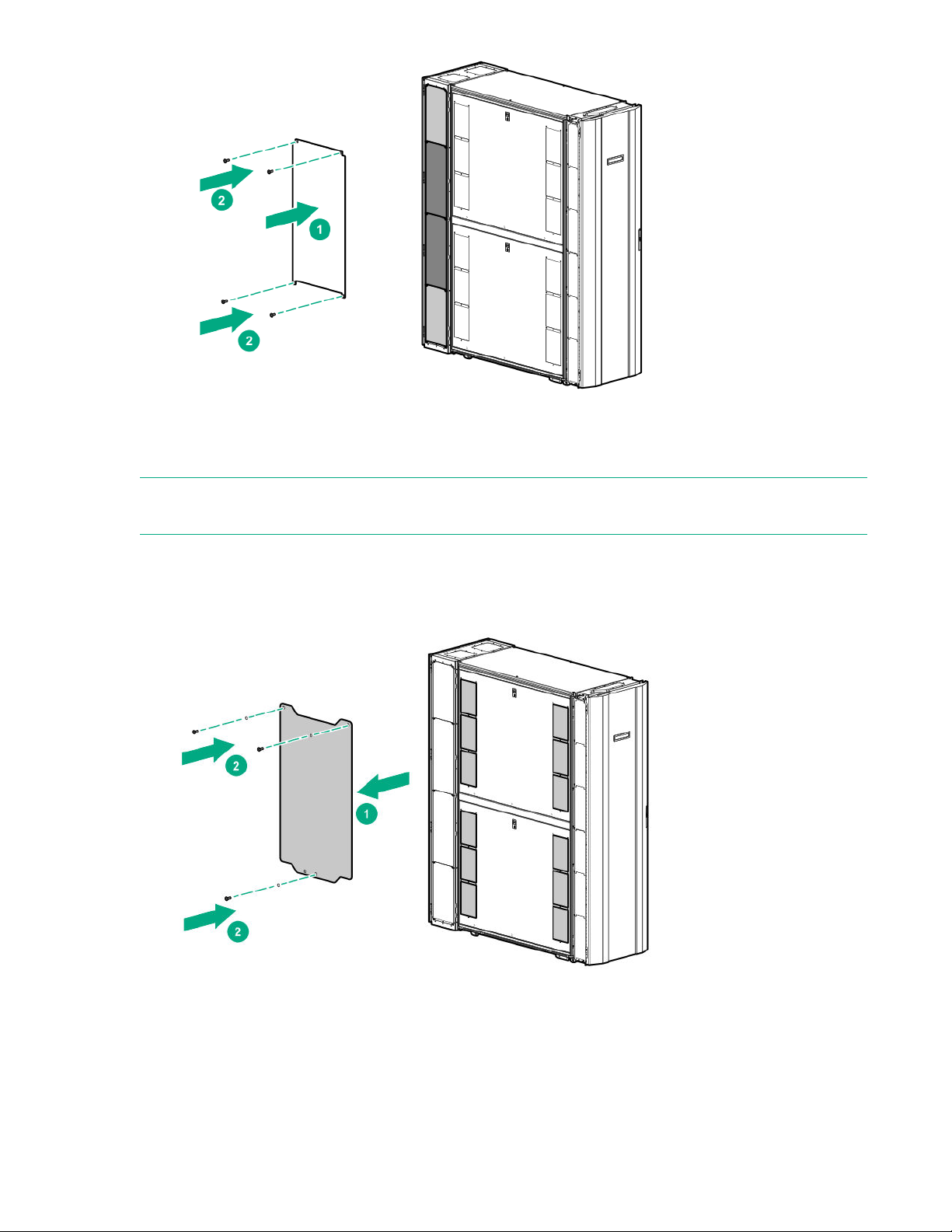

Large side panel blank for the rear extension (4)
Small side panel blank for the rear extension (4)
Rack side panel blank (24)
Side panel blank for the front extension, Panel B (10)
Side panel blank for the front extension, Panel D (2)

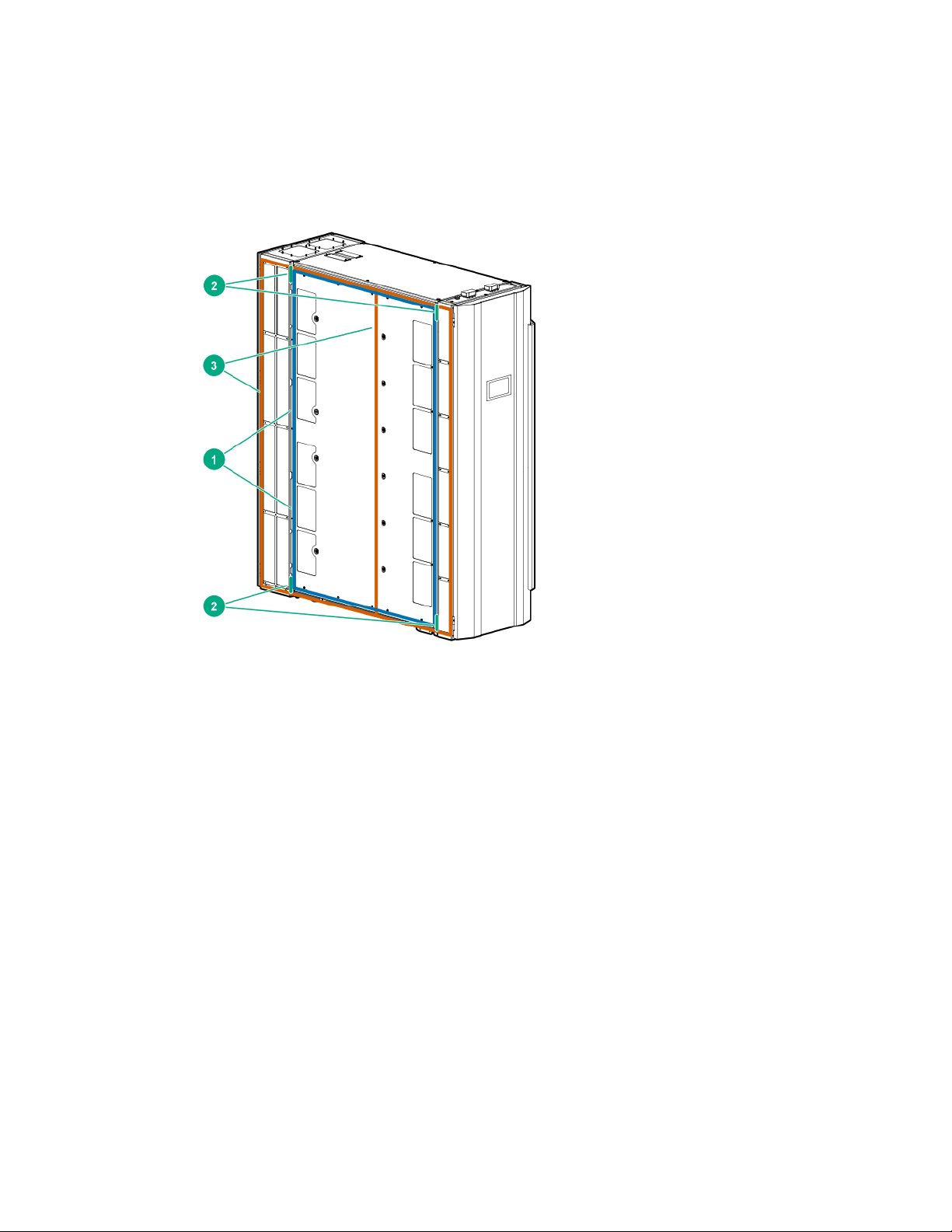

Side panel sealing tape
Screws, 6-32, 3/8" long (160)
Installation 19
Item Description
1
2
3
4
5
6
7
8
9
HPE ARCS Auto Door Release Kit
20 Installation
Rack side panel blank, 48U (8)
Rack side panel blank (8)
Side panel blank for the front extension, Panel C (4)
Side panel blank for the front extension, Panel A (4)
Screw, 6-32, 3/8" long (80)
Grounding screw (1)
Screw, 5.5 X1.81X10 Pan Torx T25 (3)
Facade, 6U (1)
Left and right extension brackets
Item Description
1
2
3
4
5
6
7
HPE ARCS Auto Controller Kit
Striker assembly with Southco R4-90-121-10 (1)
Front door latch assembly with bracket (1)
Rear door latch assembly (2)
Auto door cable harness assembly (1)
Screws, rear lock mount (8)
Screws, 1/4-20 button head (2)
Screws, M5.5X10 Torx pan head tap (3)
Installation 21
Item Description
1
2
3
4
5
6
7
8
Required tools
The following tools are required for installation:
• Flat blade screwdriver
• #2 Phillips screwdriver
Power supply, 24 Volt (1) with mounting hardware
CMC III I/O ARCS Rack Module (1) with mounting hardware
Screws, M5.5X10 Torx pan head tap (2)
Custom mounting bracket (1)
Zip ties (50)
C13/14 power cord, 12 ft (1)
CanBus cable, 5 meters (1)
HPE Adaptive Rack Cooling System IO Module cable (1)
• Adjustable wrench
• Torx screwdriver set
22 Installation
• Bubble level
• (Optional) 5mm square head key for hex drain
Installing the HPE Adaptive Rack Cooling System
Procedure
1. Read the unpacking instructions on the HPE Adaptive Rack Cooling System packaging material.
WARNING: The HPE Adaptive Rack Cooling System is shipped on a pallet and weighs
approximately 645 kg (1,423 lb) by itself or 732 kg (1,614lb) including packaging. Hewlett
Packard Enterprise recommends hiring professional movers to move the unit, remove the HPE
Adaptive Rack Cooling System from the pallet, and move the HPE Adaptive Rack Cooling
System to the final location.
2. Using four or more people and the ramps that came with the HPE ARCS 42U/48U 600x1600mm
Rack, remove the HPE Adaptive Rack Cooling System from the pallet.
3. Roll the HPE Adaptive Rack Cooling System to the final location.
CAUTION: Before attaching the hoses to the HPE Adaptive Rack Cooling System, verify that
the water supply and return are closed. Water that leaks into the unit can cause significant
damage.

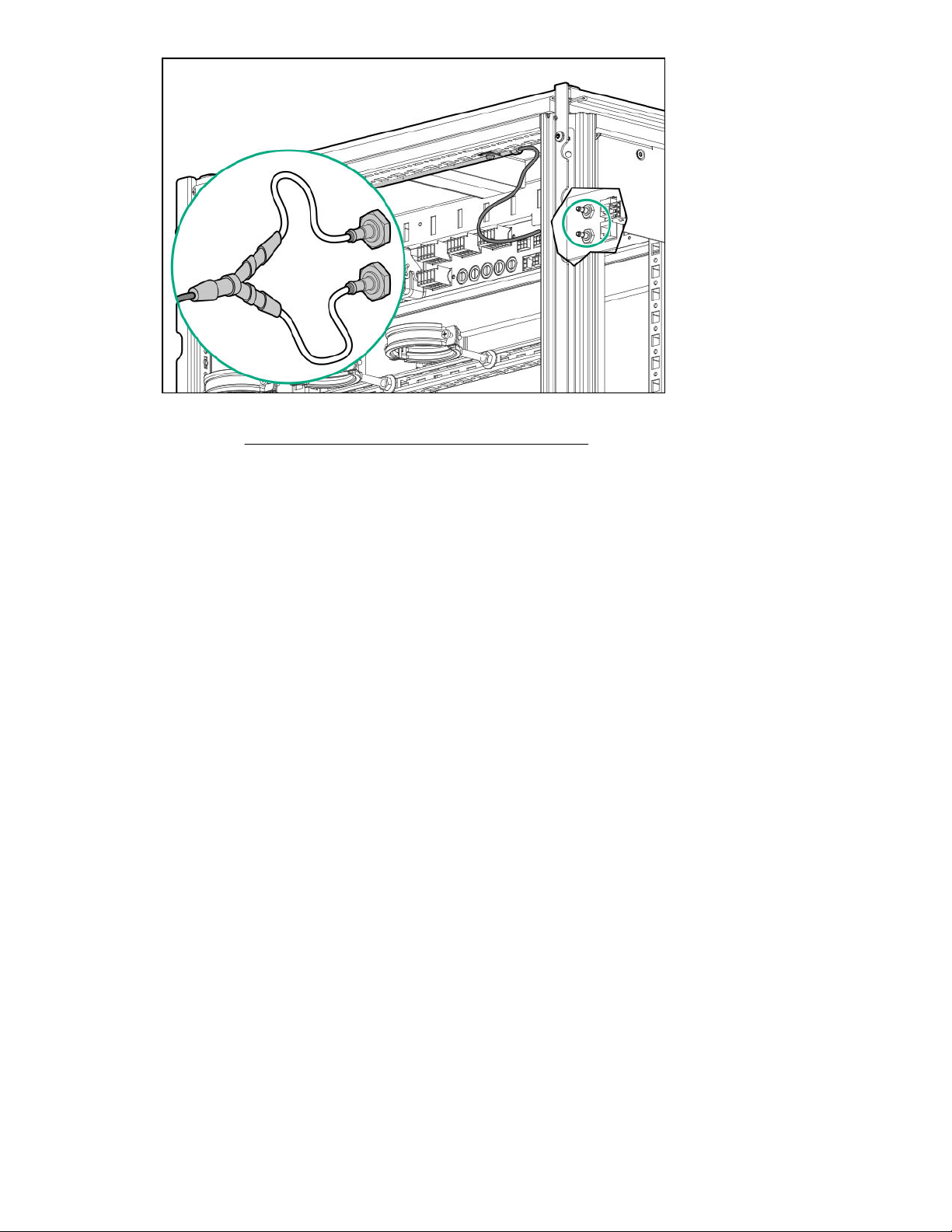

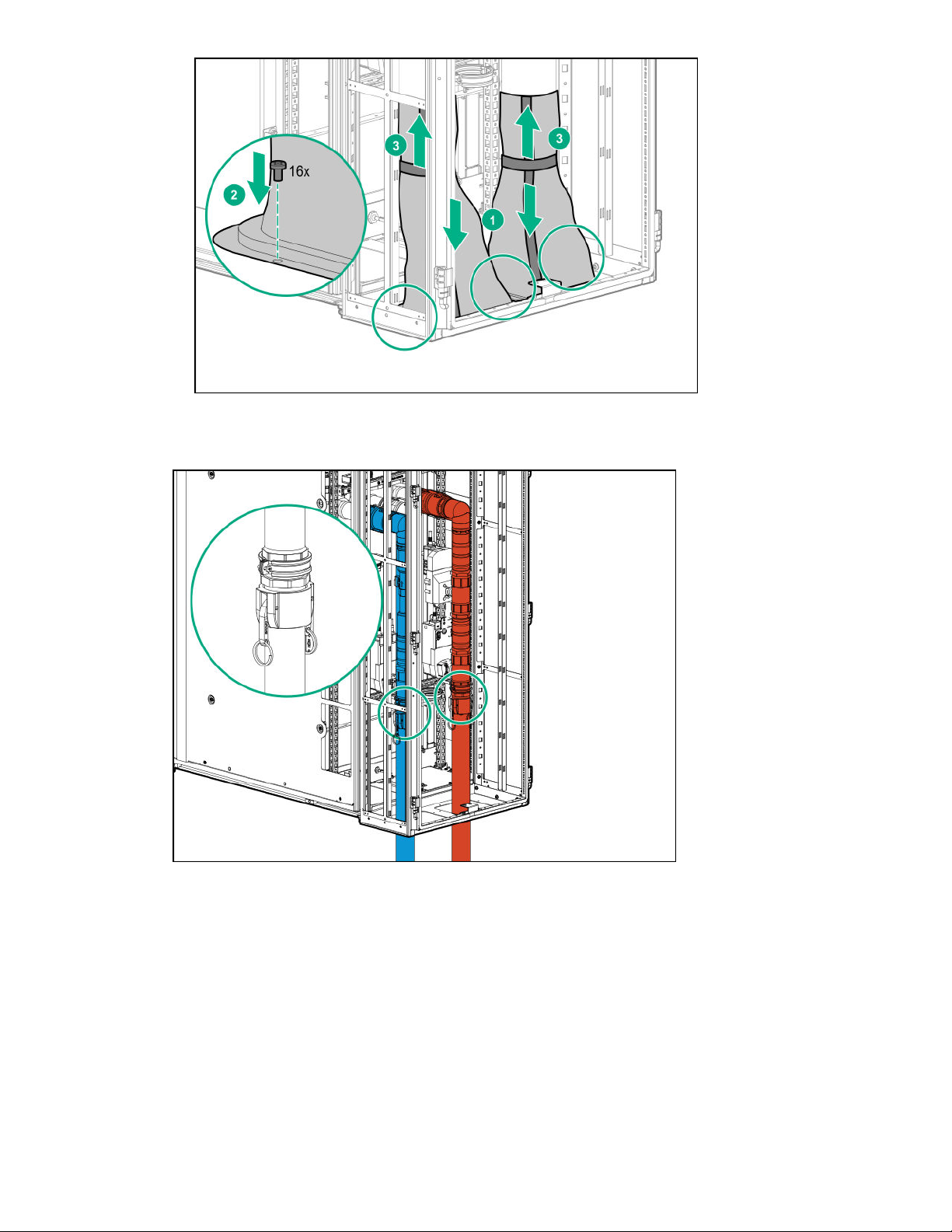

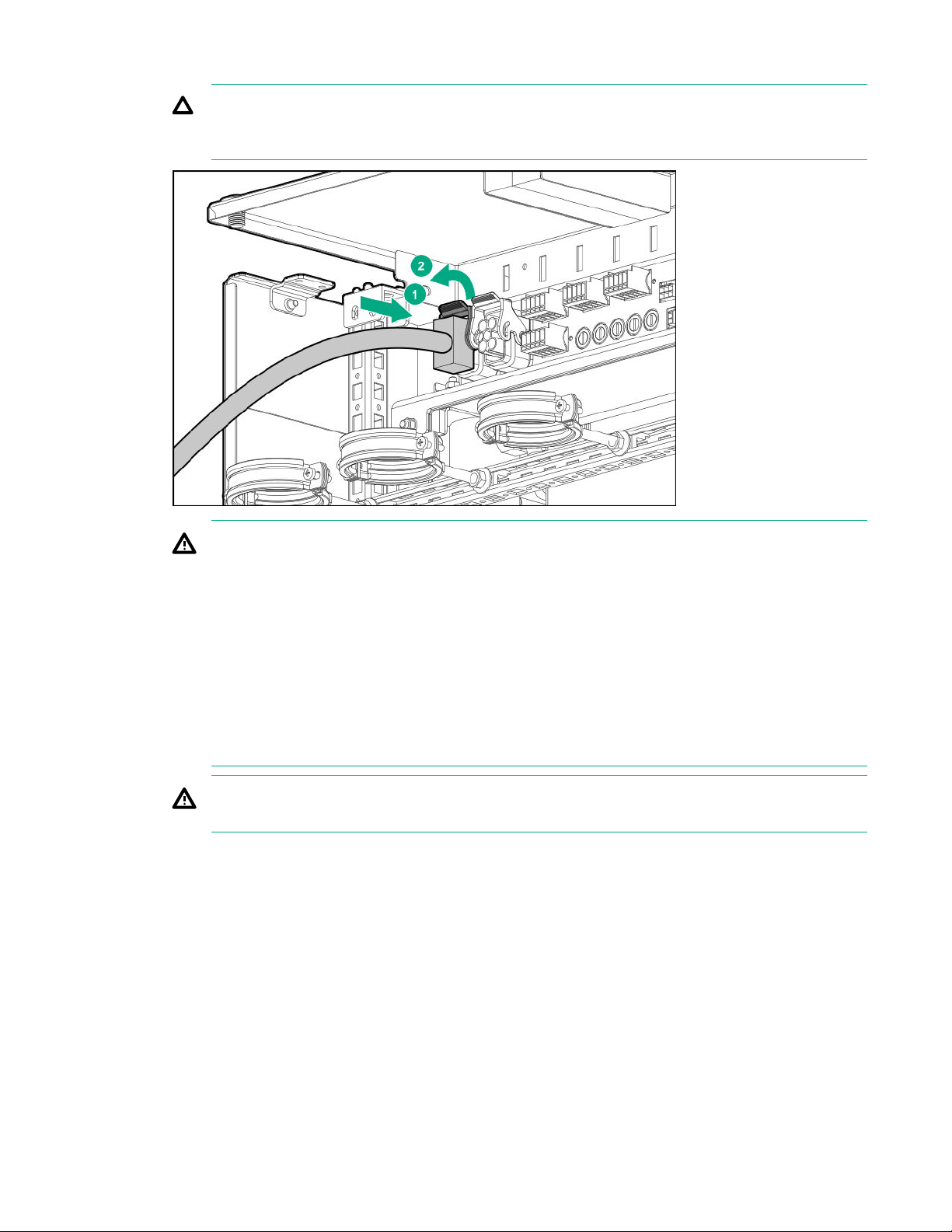

4. Install the hoses, differential pressure tube, and Panduit boots.

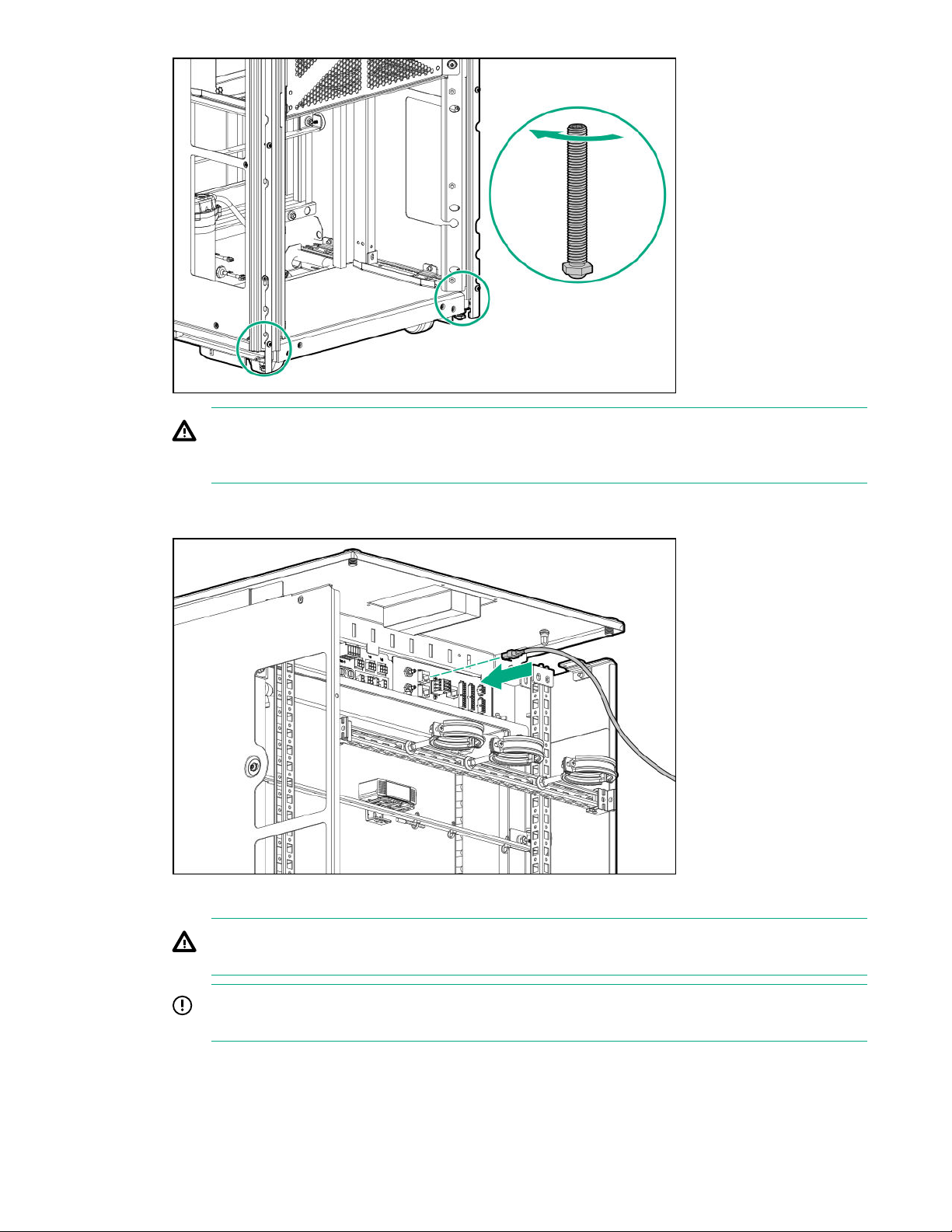

5. To level the HPE Adaptive Rack Cooling System:
a. Remove the screws from the fan housing.
b. Unplug the fan communication and power cables.
c. Remove the lower fan from the rack.
CAUTION: Use a minimum of two people to manually move the fan.
d. Adjust the leveling feet using a bubble level.
Installation 23
Loading...
