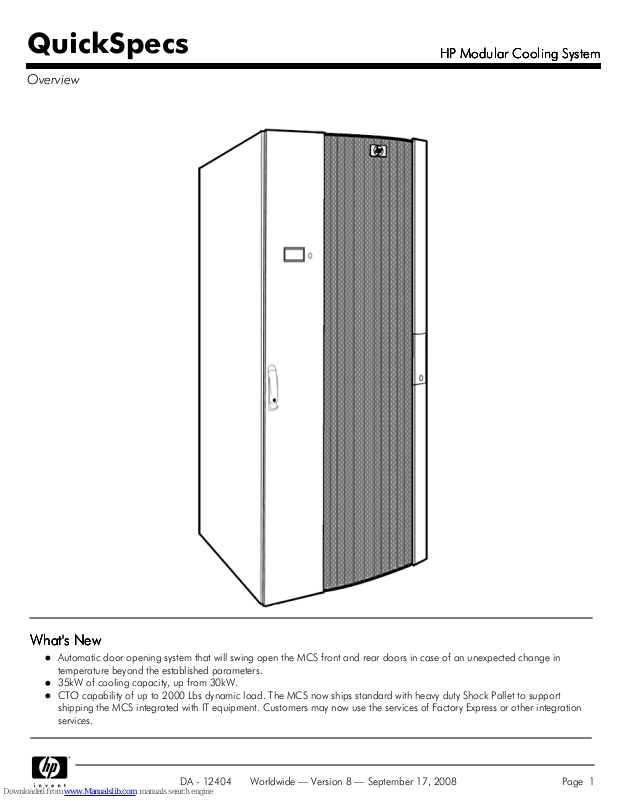

HP AF079A, AF098A, AF058A Overview

What's New

What's NewWhat's New

What's New

Automatic door opening system that will swing open the MCS front and rear doors in case of an unexpected change in
temperature beyond the established parameters.
35kW of cooling capacity, up from 30kW.
CTO capability of up to 2000 Lbs dynamic load. The MCS now ships standard with heavy duty Shock Pallet to support
shipping the MCS integrated with IT equipment. Customers may now use the services of Factory Express or other integration
services.

QuickSpecs

HP Modular Cooling System

HP Modular Cooling SystemHP Modular Cooling System

HP Modular Cooling System

Overview

DA - 12404 Worldwide — Version 8 — September 17, 2008

Page 1

At a Glance

At a GlanceAt a Glance

At a Glance

CTO capable with 2000 Lbs dynamic load capacity
Automatic door opening system ships standard with every MCS. Theautomatic door opening mechanism is not CTO capable
and therefore ships in the accessories box and is to be installed onsite.
35KW of cooling capacity for high density deployment of servers and blades.
42U rack height and 1.5 racks wide to maintain datacenter tiling configuration
Ships pre-attached to HP 10642 G2 Series Rack,
Environmental Monitor and control with SNMP integration to Systems Insight Manager (SIM)
Hot swappable heat exchangers and fans.
Power Input Redundancy for dual power source.
Condensate Evacuation system to prevent condensation from entering air stream.
2750 CFM of chilled air placed in front of the servers and/or blades
Site Preparation Guide available at

http://www.hp.com/go/MCS

QuickSpecs

HP Modular Cooling System

HP Modular Cooling SystemHP Modular Cooling System

HP Modular Cooling System

Overview

DA - 12404 Worldwide — Version 8 — September 17, 2008

Page 2

Site Preparation

Site PreparationSite Preparation

Site Preparation
HP Modular Cooling System Water Hook-up Kit

AF079A

HP MCS Site Preparation Service

NOTE:

NOTE: NOTE:

NOTE:

Use Per Event Support and Consulting Service

http://h20219.www2.hp.com/services/cache/11077-0-0-225-121.aspx.

NOTE:

NOTE:NOTE:

NOTE:

The Modular Cooling System Water Hook-up kit can be ordered ahead of the MCS for site preparation
purposes. The kit contains set of 1.25 inches (31.8mm) Quick-disconnect couplings, non-rust, Parallel and
Parallel-to-Tapered adapter included to address regional differences.

Modular Cooling System (MCS)

Modular Cooling System (MCS)Modular Cooling System (MCS)

Modular Cooling System (MCS)
HP Modular Cooling System (WW) CTO ready

AF098A

HP 10642 G2 Rack Rear Extension Kit

NOTE:

NOTE: NOTE:

NOTE:

Extension kit is required when racking p-Class Blade enclosure combined with Monitored PDU's.

AF058A

MCS Onsite Installation

NOTE:

NOTE: NOTE:

NOTE:

Install MCS per the product user installation manual. All MCS units ship with shock pallet for CTO.

UE005E

NOTE:

NOTE: NOTE:

NOTE:

The Rack Rear Extension kit is required when racking the HP c7000 Enclosure in conjunction with an HP

Monitored PDU.
NOTE:

NOTE: NOTE:

NOTE:

The purchase of HP Modular Cooling System (P/N AF098A) includes 10642 G2 rack and MCS unit

attached.
NOTE:

NOTE: NOTE:

NOTE:

A loaded MCS unit should only be moved by professional movers.

QuickSpecs

HP Modular Cooling System

HP Modular Cooling SystemHP Modular Cooling System

HP Modular Cooling System

Models

DA - 12404 Worldwide — Version 8 — September 17, 2008

Page 3

NOTE:

NOTE: NOTE:

NOTE:

For a brief, printer friendly data sheet that describes this product and informs you of the essential capabilities and

specifications, please visit:

http://h71028.www7.hp.com/ERC/downloads/4AA0-3604ENW.pdf

.

Product Description

Product DescriptionProduct Description

Product Description

HP Modular Cooling System or MCS is designed for high density server and blade deployments. It re­circulates and cools the hot server exhaust air through heat exchangers residing in the MCS unit. The air
is then expelled in front of the enclosed rack at a much lower temperature providing sufficient cool air for
a load of 35kW of servers or blades.
The MCS unit contains three fans and three heat exchangers deployed along the full height of the rack to
ensure that all the equipment installed receives sufficient cooled air. All fans and heat exchangers are
swappable while the unit is online, providing great servicing flexibility. Redundant power is ensured
through a failover power switch that can be connected to two power sources. The environmental monitor
controls the air temperature to the servers and adjusts automatically to meet the pre-established air
temperature goal. The environmental monitor interacts with HP SIM (Systems Insight Manager) via SNMP
traps.
The Water Hookup kit is made available as a separate kit to prepare the water hookup ahead of the
arrival of the MCS.
A Site Preparation Guide is available for download at

http://www.hp.com/go/MCS

. This guide provides
details on how to prepare the datacenter for the successful deployment of the MCS. It may be advisable
to contact HP Professional Services for a Site Datacenter Thermal Quick Assessment Service, reference
HB691A1 and HB691AE. Visit

http://www.hp.com/hps/support

for additional information.
The MCS unit mounted next to a HP 10000 G2 Series rack is designed to occupy 1.5 tiles in the
datacenter maintaining tile count for cable routing and access to the plenum.

The MCS is now CTO capable with a dynamic load capacity of 2000 Lbs. For HP CTO services go to

http://h20219.www2.hp.com/services/cache/119416-0-0-225-121.html?jumpid=reg_R1002_USEN]

NOTE:

NOTE: NOTE:

NOTE:

A loaded MCS unit should only be moved by professional movers.

HP 10000 G2 Series

HP 10000 G2 SeriesHP 10000 G2 Series

HP 10000 G2 Series
Rack

RackRack

Rack

All HP rack-mountable products are designed to fit our industry-standard 19-inch wide racks. Racks and
rack-mountable components are typically described using "U" measurements. One "U" is 1.75" (44.45
mm) high.

The MCS ships attached to a specially adapted 42U 10000 Series G2 rack 600mm wide (10642). This
sturdy, industrial-strength rack series offers the following features:

Universal

UniversalUniversal

Universal

- Accommodates all HP equipment (ProLiant, Integrity, Integrity NonStop, HP 9000,
Alpha, StorageWorks,) in addition to select third party equipment.
Design

DesignDesign

Design

- The doors on the HP 10000 G2 Series rack bayed to the MCS unit will be fitted with
Plexiglas mounted inside the front door and solid split rear doors to prevent air from escaping to
the environment.
Load Capacity

Load CapacityLoad Capacity

Load Capacity

- The 10642 G2 will accommodate up to 2000 lb. of equipment in a static or
dynamic environment. A static environment is one where the rack is positioned into place and the
leveling feet are extended prior to equipment being installed. A dynamic environment is one where
the rack is shipped on a shock pallet with equipment installed or rolling racks with equipment
installed to new locations within the data center.
Unique Frame and Rail Design

Unique Frame and Rail DesignUnique Frame and Rail Design

Unique Frame and Rail Design

- Enables fast assembly, easy mounting and outstanding structural
integrity. Equipment installation effort is dramatically reduced because the vertical mounting
system was specifically designed to minimize the time required to install HP products, and can be
used with many other non-HP products as well. U markings on the front and sides of rails make it
easy to align parts when installing equipment. Cut outs in the rails also allow for cabling between
racks.
Security Provisions

Security ProvisionsSecurity Provisions

Security Provisions

- Front and rear doors are lockable, which provides the necessary level of

QuickSpecs

HP Modular Cooling System

HP Modular Cooling SystemHP Modular Cooling System

HP Modular Cooling System

Standard Features

DA - 12404 Worldwide — Version 8 — September 17, 2008

Page 4

security to prevent unauthorized entry. Side panels are also lockable* allowing for your entire rack
row to be secure

HP MCS Key Features

HP MCS Key FeaturesHP MCS Key Features

HP MCS Key Features

Cooling Capacity of up to 35kW

Cooling Capacity of up to 35kWCooling Capacity of up to 35kW

Cooling Capacity of up to 35kW

- MCS has been designed to support a full load of blade
servers, which, at their maximum configuration require a power load of 35kW. The MCS unit will
provide over 2700 CFM of cool air distributed along the full height of the rack.
Power Input Redundancy

Power Input RedundancyPower Input Redundancy

Power Input Redundancy

- Automatically detects power failure and switches to alternate source.

Environmental Control and Safety

Environmental Control and SafetyEnvironmental Control and Safety

Environmental Control and Safety

- The MCS features full environmental control of the cooled air
temperature being placed in front of the servers. The heat exchanger unit features safety quick
disconnect valves that prevent accidental chilled water leakage during service. A water leak
detector ships standard with the MCS. Alarms can be sent via SNMP traps to Systems Insight
Manager (SIM).
Hot-swappable components

Hot-swappable componentsHot-swappable components

Hot-swappable components

- Fans and heat exchangers can be replaced while the unit is

operating allowing for great flexibility in servicing the MCS.

Industry Standard Support

Industry Standard SupportIndustry Standard Support

Industry Standard Support

All rack products are 19 inch RETMA standard and will support select third-party equipment. For
additional rack information, please refer to the HP 10000 G2 Series rack QuickSpecs at:

http://h18004.www1.hp.com/products/servers/proliantstorage/racks/10000series.html

Components

ComponentsComponents

Components

The following brick level options/components do not have individual HP Care Pack Services. These items
will be included in product HP Care Pack Services into which they are installed.

Disk Drives

Tape Drives

CD/DVD ROM

SCSI Hubs in SBBs

Adapters

Bus Converters

Backplane RAID
Controllers

Power Supplies

Cabling

Fans

Service and Support

Service and SupportService and Support

Service and Support
Offerings

OfferingsOfferings

Offerings

(HP Care Pack

Services)

HP Modular Cooling System: One year warranty, parts only (1-0-0)
HP 10642 G2 Series Rack: Three year warranty, parts only (3-0-0)

NOTE:

NOTE:NOTE:

NOTE:

Certain restrictions and exclusions apply. Consult the HP Customer Support Center for details.

Care Pack services provide a range of life cycle support options that let you choose the service levels that
meet your business requirements, from basic to mission-critical.
A full range of HP Care Pack hardware and software services are available including:

Installation and start up
Education courses
Extended onsite hardware coverage hours from same business day 13 hours, 5 day to 24 hours, 7
days call window with options including 4-hour response or 6-hour Call To Repair
Comprehensive range of software technical support for Microsoft, Linux, ProLiant Essentials and
VMware-base d IT solutions helping to deliver high level of application availability. Response times
range from 30 mins for critical problems to 2 hours.
System Management, Performance Services and Mission Critical Support Solution

NOTE:

NOTE:NOTE:

NOTE:

For more information on HP Care Pack services, contact any of our worldwide sales offices or

resellers or visit our worldwide Web site on the internet at:

http://www.hp.com/hps/carepack

NOTE:

NOTE:NOTE:

NOTE:

For more complete information on HP Services offerings, customers and resellers, please visit us

at:

http://www.hp.com/hps

NOTE:

NOTE:NOTE:

NOTE:

Additional information regarding worldwide limited warranty and technical support is available

at:

http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html

NOTE:

NOTE:NOTE:

NOTE:

For additional information on Server Services, Rack and Power Options, please visit:

http://h20219.www2.hp.com/services/cache/111072-0-0-225-121.html

QuickSpecs

HP Modular Cooling System

HP Modular Cooling SystemHP Modular Cooling System

HP Modular Cooling System

Standard Features

DA - 12404 Worldwide — Version 8 — September 17, 2008

Page 5

NOTE:

NOTE:NOTE:

NOTE:

The information contained herein is subject to change without notice and is provided "as is"
without warranty of any kind.
NOTE:

NOTE:NOTE:

NOTE:

The warranties for HP products and services are set forth in the express limited warranty
statements accompanying such products and services.
NOTE:

NOTE:NOTE:

NOTE:

Nothing herein should be construed as constituting an additional warranty. HP shall not be liable
for technical or editorial errors or omissions contained herein.

QuickSpecs

HP Modular Cooling System

HP Modular Cooling SystemHP Modular Cooling System

HP Modular Cooling System

Standard Features

DA - 12404 Worldwide — Version 8 — September 17, 2008

Page 6

NOTE:

NOTE:NOTE:

NOTE:

This is a list of supported options. Some may be discontinued.

Rack Light Kit

Rack Light KitRack Light Kit

Rack Light Kit

110V/220V Rack Light Kit (supports 10000 Series racks)

NOTE:

NOTE:NOTE:

NOTE:

This neon light kit is mounted inside the rack and used to provide light to the
rear section of the rack.

361589-B21

9000/10000 Grounding

9000/10000 Grounding9000/10000 Grounding

9000/10000 Grounding
Kit

KitKit

Kit

10000 G2 Rack Grounding Kit

AF074A

Cable Management

Cable ManagementCable Management

Cable Management

Cable Management "D" Rings Kit

168233-B21

Hook and loop strips (50 pk)

379820-B21

Universal 1U Filler Panels

Universal 1U Filler PanelsUniversal 1U Filler Panels

Universal 1U Filler Panels
(Carbon Graphite)

HP 10pk Carbonite 1U Universal Filler Panel

AF070A

HP 100pk Carbonite 1U Universal Filler Panel

AF071A

Rack Drawer

Rack DrawerRack Drawer

Rack Drawer

2U Universal Drawer

361591-B21

Rack Shelves

Rack ShelvesRack Shelves

Rack Shelves

150 lbs (68 kg) Fixed Utility Shelf

253449-B21

220 lbs (100 kg) Sliding Shelf

234672-B21

Cable Trays Kits

Cable Trays KitsCable Trays Kits

Cable Trays Kits

Rack Top Cable Tray, 600W, 8-Pack

383982-B21

Rack to Rack Adjustable Cable Tray, Aisle Transfer Bridge

383984-B21

Rear Extension Kits

Rear Extension KitsRear Extension Kits

Rear Extension Kits

10642 G2 Rear Extension Kit (155mm)

NOTE:

NOTE:NOTE:

NOTE:

The 10642 G2 extension kit is required when using HP monitored PDU's.

AF058A

Service and Support

Service and SupportService and Support

Service and Support
Offerings

OfferingsOfferings

Offerings

(HP Care Pack

Services)

Hardware Services On-site Service

Hardware Services On-site ServiceHardware Services On-site Service

Hardware Services On-site Service
Next Business Day On-site Service, 5-Day x 9-Hour Coverage,

3 Years, Electronic

UE001E

4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic

UE002E

4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic

UE003E

6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years,
Electronic

UE004E

Installation Services

Installation ServicesInstallation Services

Installation Services
MCS Onsite Installation, (Install MCS per the product user installation manual, BTO

MCS units only, no CTO units)

UE005E

QuickSpecs

HP Modular Cooling System

HP Modular Cooling SystemHP Modular Cooling System

HP Modular Cooling System

Related Options

DA - 12404 Worldwide — Version 8 — September 17, 2008

Page 7

MCS Specifications

MCS SpecificationsMCS Specifications

MCS Specifications

Dimensions

DimensionsDimensions

Dimensions

Height in U

Height in UHeight in U

Height in U

42U

Maximum Height

Maximum HeightMaximum Height

Maximum Height

78.7 in (1,999 mm)

Maximum Width

Maximum WidthMaximum Width

Maximum Width

35.8 in (909 mm)

Maximum Depth

Maximum DepthMaximum Depth

Maximum Depth

51 in (1,270 mm)

Shipping Height (on skid)

Shipping Height (on skid)Shipping Height (on skid)

Shipping Height (on skid)

88.5 in (2248mm)

Shipping Width (on skid)

Shipping Width (on skid)Shipping Width (on skid)

Shipping Width (on skid)

48 in (1220 mm)

Shipping Depth (on skid)

Shipping Depth (on skid)Shipping Depth (on skid)

Shipping Depth (on skid)

70 in (1778mm)

Ramp length

Ramp lengthRamp length

Ramp length

103 in (2616mm)

Total length required for

Total length required forTotal length required for

Total length required for
offloading MCS

offloading MCSoffloading MCS

offloading MCS

20.25 ft (6.17m)

Weight

WeightWeight

Weight

Net (including rack)

Net (including rack)Net (including rack)

Net (including rack)

1190 lbs (540 kg)

Shipping

ShippingShipping

Shipping

1370 lbs (621.4 kg)

Load

LoadLoad

Load

Static

StaticStatic

Static

2000 lbs (908 kg)

Dynamic (CTO) weight

Dynamic (CTO) weightDynamic (CTO) weight

Dynamic (CTO) weight
allowed

allowedallowed

allowed

2000 lbs (0 kg)

Color

ColorColor

Color

Graphite Metallic

Graphite MetallicGraphite Metallic

Graphite Metallic

Doors

Carbon

CarbonCarbon

Carbon

Frame

Hot Swap Components

Hot Swap ComponentsHot Swap Components

Hot Swap Components

Heat exchangers

Heat exchangersHeat exchangers

Heat exchangers

Yes

Fans

FansFans

Fans

Yes

Cooling

CoolingCooling

Cooling

Cooling agent

Cooling agentCooling agent

Cooling agent

Primary or auxiliary chilled water supply

Condensate evacuation

Condensate evacuationCondensate evacuation

Condensate evacuation
tube

tubetube

tube

Yes

Air temperature

Air temperatureAir temperature

Air temperature
regulation

regulationregulation

regulation

Yes

Heat exchangers

Heat exchangersHeat exchangers

Heat exchangers

3

Fans

FansFans

Fans

3

Rack Front door

Rack Front doorRack Front door

Rack Front door

Transparent polycarbonate insert behind mesh

Rack Rear doors (split)

Rack Rear doors (split)Rack Rear doors (split)

Rack Rear doors (split)

Solid, no mesh

Chilled water connections

Chilled water connectionsChilled water connections

Chilled water connections

Bottom rear

MCS mounting location

MCS mounting locationMCS mounting location

MCS mounting location

Left hand side

Side panels included

Side panels includedSide panels included

Side panels included

Yes

Max Cooling capacity

Max Cooling capacityMax Cooling capacity

Max Cooling capacity

35kW

Air Temperature to

Air Temperature toAir Temperature to

Air Temperature to
servers

serversservers

servers

Settable, suggested at 68-77 °F ( 20-25°C)

Air Flow to servers

Air Flow to serversAir Flow to servers

Air Flow to servers

2750 CFM Max

Recommended Chilled

Recommended ChilledRecommended Chilled

Recommended Chilled
Water inlet temperature

Water inlet temperatureWater inlet temperature

Water inlet temperature

45.0 °F ( 7.00 °C)

Maximum Chilled Water

Maximum Chilled WaterMaximum Chilled Water

Maximum Chilled Water
Flow Rate

Flow RateFlow Rate

Flow Rate

20 gpm (1.27 lps)

Chilled Water Pressure

Chilled Water PressureChilled Water Pressure

Chilled Water Pressure
Drop

DropDrop

Drop

25 psid

QuickSpecs

HP Modular Cooling System

HP Modular Cooling SystemHP Modular Cooling System

HP Modular Cooling System

Technical Specifications

DA - 12404 Worldwide — Version 8 — September 17, 2008

Page 8

Water connections

Water connectionsWater connections

Water connections

1.25 in (31.8mm)

Coupling type

Coupling typeCoupling type

Coupling type

1.25 in (31.8mm) Quick-disconnect coupling, Parallel (parallel-to-tapered
adapter included in AF079A)

Flexible hose length (pre-

Flexible hose length (pre-Flexible hose length (pre-

Flexible hose length (pre­installed)

installed)installed)

installed)

36 in (914mm)

Pipe thread

Pipe threadPipe thread

Pipe thread

Parallel (parallel-to-tapered adapter included)

Power Input

Power InputPower Input

Power Input

Nominal Input Voltage

Nominal Input VoltageNominal Input Voltage

Nominal Input Voltage

208-240 VAC + - 10%

Frequency range (min-

Frequency range (min-Frequency range (min-

Frequency range (min­max)

max)max)

max)

50/60 Hz

Input Power

Input PowerInput Power

Input Power

2000 Watts Max

Single phase

Single phaseSingle phase

Single phase

Yes

Rated line current

Rated line currentRated line current

Rated line current

15 A per line cord

Max inrush current

Max inrush currentMax inrush current

Max inrush current

54 A peak for 20 ms per line cord

Dropout carry through

Dropout carry throughDropout carry through

Dropout carry through
time at min voltage

time at min voltagetime at min voltage

time at min voltage

20 ms

Circuit breaker rating

Circuit breaker ratingCircuit breaker rating

Circuit breaker rating

20A per line cord

Power factor correction

Power factor correctionPower factor correction

Power factor correction

>0.98 at all loads

Ground leakage current

Ground leakage currentGround leakage current

Ground leakage current
(mA)

(mA)(mA)

(mA)

<3.0 (mA) per line cord

Input Connections USA,

Input Connections USA,Input Connections USA,

Input Connections USA,
Japan

JapanJapan

Japan

NEMA L6-20P

Input Connections

Input ConnectionsInput Connections

Input Connections
International

InternationalInternational

International

IEC309 (16 Amps)

Power Cords

Power CordsPower Cords

Power Cords

2 (for redundancy)

Power input redundancy

Power input redundancyPower input redundancy

Power input redundancy

Yes, with auto failover switch

Environment

EnvironmentEnvironment

Environment

Room temperature

Room temperatureRoom temperature

Room temperature
requirements

requirementsrequirements

requirements

41.0 °F (5°C) Min to 95.0 °F (35.00 °C) Max

Humidity Range

Humidity RangeHumidity Range

Humidity Range

Allowable 20%-80%
Recommended 40%-55%

Environmental Monitoring

Environmental MonitoringEnvironmental Monitoring

Environmental Monitoring

Air temperature to servers

Air temperature to serversAir temperature to servers

Air temperature to servers
control

controlcontrol

control

Yes

Water-In temperature

Water-In temperatureWater-In temperature

Water-In temperature
monitor

monitormonitor

monitor

Yes

Communications &

Communications &Communications &

Communications &
Management

ManagementManagement

Management

Control panel

Control panelControl panel

Control panel

Multi-function LCD status and control console

SIM 5.0 Integration

SIM 5.0 IntegrationSIM 5.0 Integration

SIM 5.0 Integration

Yes, via SNMP traps

RJ 45 Plug

RJ 45 PlugRJ 45 Plug

RJ 45 Plug

1

Certifications

CertificationsCertifications

Certifications

Regulatory Approvals

Regulatory ApprovalsRegulatory Approvals

Regulatory Approvals

UL Listing 484,
CUL Canadian std. 22.2 No.236
EN61000-3-2
EN61000-3-3 Flicker
EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
EN61000-4-6
EN61000-4-8

QuickSpecs

HP Modular Cooling System

HP Modular Cooling SystemHP Modular Cooling System

HP Modular Cooling System

Technical Specifications

DA - 12404 Worldwide — Version 8 — September 17, 2008

Page 9

EN61000-4-11
CB report to IEC 60950-1
TÜV / GS EN 60335-1 (according to 60335-2-40)

Warranty

WarrantyWarranty

Warranty

Standard MCS Warranty

Standard MCS WarrantyStandard MCS Warranty

Standard MCS Warranty

1-0-0

Standard Rack Warranty

Standard Rack WarrantyStandard Rack Warranty

Standard Rack Warranty

3-0-0

Environment-friendly

Environment-friendlyEnvironment-friendly

Environment-friendly
Products and Approach

Products and ApproachProducts and Approach

Products and Approach

End-of-life Management

End-of-life ManagementEnd-of-life Management

End-of-life Management
and Recycling

and Recyclingand Recycling

and Recycling

Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling
programs in many geographic areas. For trade-in information, please go to

http://www.hp.com/go/green

. To recycle your product, please go to:

http://www.hp.com/go/green

or contact your nearest HP sales office.
Products returned to HP will be recycled, recovered or disposed of in a
responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide
treatment information for each product type for use by treatment facilities.
This information (product disassembly instructions) is posted on the Hewlett
Packard web site at:

http://www.hp.com/go/green

. These instructions may
be used by recyclers and other WEEE treatment facilities as well as HP OEM
customers who integrate and re-sell HP equipment.

© Copyright 2008 Hewlett-Packard Development Company, L.P.

The information contained herein is subject to change without notice.

The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.

QuickSpecs

HP Modular Cooling System

HP Modular Cooling SystemHP Modular Cooling System

HP Modular Cooling System

Technical Specifications

DA - 12404 Worldwide — Version 8 — September 17, 2008

Page 10
