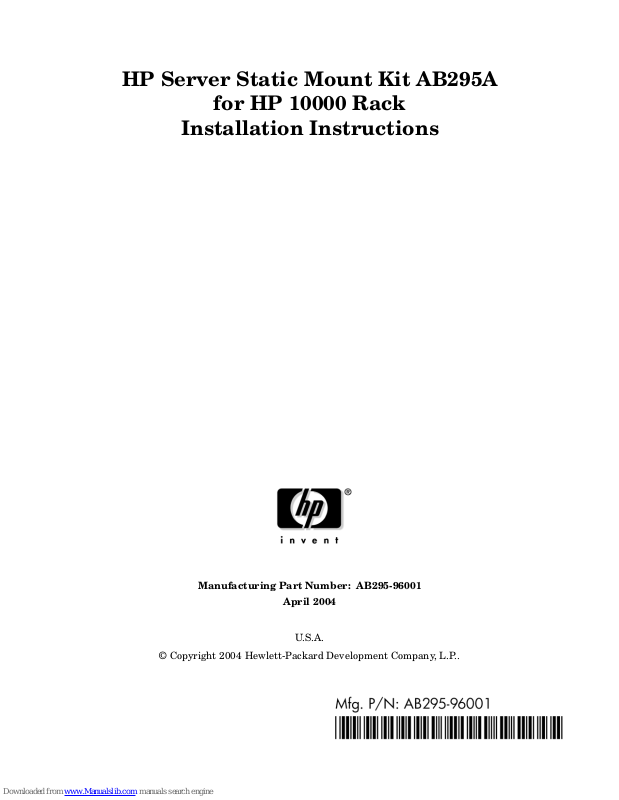

HP Server Static Mount Kit AB295A
for HP 10000 Rack
Installation Instructions
Manufacturing Part Number: AB295-96001
April 2004
U.S.A.
© Copyright 2004 Hewlett-Packard Development Company, L.P..
Page 2
2
Legal Notices
Copyright Notices. © Copyright 2004 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice. The only warranties for HP products
and services are set forth in the express warranty statements accompanying such products and services.
Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for
technical or editorial errors or omissions contained herein.
Printed in the U.S.A.
Reproduction, adaptation, or translation of this document without prior written permission is prohibited,
except as allowed under the copyright laws.
Related Documents. The latest versions of server documents, and any updates to these documents are
posted under the appropriate server at http://docs.hp.com. For online access to technical support information,
self-solve tools, online assistance, community forums of IT experts, broad multi vendor knowledge base, and
monitoring and diagnostic tools, go to http://www.hp.com/support.
Page 3
Chapter 1
3
1 HP Server Static Mount Kit for HP 10000
Rack – Installation Instructions
Introduction
This manual provides instructions for static mounting the hp Integrity cx2600 server chassis in a HP 10000
rack.
Cabinet Safety Precautions
WARNING Ensure that the rack is level and stable before working on the rack. Be sure the
leveling jacks (feet) extend to the floor and that the full weight of the rack rests
firmly on the floor.
WARNING Ensure that the rack has anti-tip measures in place. Such measures may include
floor-bolting, anti-tip feet, ballast, or a combination of these measures as specified by
the rack manufacturer and applicable codes.
WARNING Be sure that adequate personnel are on hand to support the product(s) during the
installation process. Use of the appropriate lifting device is recommended as an
installation aid.
WARNING Always load the rack from the bottom up. Load the heaviest items in the rack first.
This makes the rack bottom-heavy and helps prevent the rack from becoming
unstable.
WARNING Do not overload the branch circuit that provides power to the rack. The total rack
load should not exceed 80% of the branch circuit rating.
Mounting Kit Contents
This manual provides installation instructions for server mount kit AB295A. This kit is intended for use with
the hp Integrity cx2600 server, and includes the following:
• Two Mounting Rails (left and right)
• Two Rear Rack Ears
• Two Rear Cable Routing Brackets
• One Cable Management Strain Relief Bar
• Mounting Hardware (screws and nuts)
Page 4
HP Server Static Mount Kit for HP 10000 Rack – Installation Instructions
Installation Procedure
Chapter 1
4
Installation Procedure
Figure 1-1 HP Integrity cx2600 Servers Mounted in a HP 10000 Rack
Mounting Kit
Before mounting your server in the HP 10000 rack, inspect the mounting kit hardware. Check that all
required mounting hardware is available. A mounting kit parts list is provided at the rear of this manual.
Mount the Server
Mount a server in the HP 10000 rack as follows:
Step 1. Attach the rear cable routing brackets to the server chassis using T15 flathead screws.
2600inrack2
Page 5
HP Server Static Mount Kit for HP 10000 Rack – Installation Instructions
Installation Procedure
Chapter 1
5
Figure 1-2Attach the Brackets and Rack Ears to the Server Chassis
Step 2. Attach the rear rack ears to the server chassis using T15 flathead screws.
Step 3. Install left and right HP 10000 rack rails at desired position in rack as shown in Figure 1-3. Insert
M5 cagenuts into the rack columns and secure rails to the rack columns using T25 M5 screws.
Tighten the front screws before tightening the rear screws.
Figure 1-3Attach the Rails to the Rack Columns
Step 4. Install four M5 cagenuts in front rack columns, above the rails. Then slide the server into position
on the rails and secure it to the front columns with T25 M5 screws threaded into the cagenuts, as
shown in Figure 1-4.
chasbrkt2
Rear Cable
Routing Bracket
T15 Flathead
Screws
Rear Rack Ear
rckrail3
T25 M5 Screws
Page 6
HP Server Static Mount Kit for HP 10000 Rack – Installation Instructions
Installation Procedure
Chapter 1
6
Figure 1-4Insert the Server into the Rack
Step 5. From the rear of the rack, secure the server rack ears to the rails using four T25 M5 screws as
shown in Figure 1-5.
Figure 1-5Secure the Server Chassis at the Rear of the Rack
Step 6. Hold the cable management strain relief bar to the cable routing brackets and secure it in place
with four T25 10X32 screws.
chasmnt2
Cage Nuts
T25 Screws
cmbar4
Cable
Management
Bar
T25
10x32
Screws
T25 M5
Screws
T25 10x32
Screws
Page 7
HP Server Static Mount Kit for HP 10000 Rack – Installation Instructions
AB295A Rack Mount Kit
Chapter 1
7
AB295A Rack Mount Kit
The HP Server Mounting Kit, part number AB295A includes the items listed below.
Table 1-1 Mounting Kit Parts List
Item Quantity HP Part Number
Left HP 10000 rack rail 1 AB295-00001
Right HP 10000 rack rail 1 AB295-00002
Cable management
strain relief bar
1 AB292-00011
Rear rack ear 2 AB295-00003
Rear cable routing
bracket
2 AB293-00001
Screw, T25, M5 x 16 mm,
w/ crestcup washer,
15 mm O.D.
16 0515-2990
Screw, T15, M4 x 0.7 mm
6 mm, flathead,
w/ patchlock
14 0515-2042
Screw, T25, 10-32 x 0.625,
panhead, w/ CC washer
4 2680-0323
Cagenut, M5 12 0535-1032
HP Server Static Mount
Kit for HP 10000 rack –
installation instructions
1 AB295-96001
