HP 878968-B21 Product Data Sheet

QuickSpecs

HPE ProLiant DL160 Gen10 Server

Overview

1

HPE ProLiant DL160 Gen10 Server

The secure 2P 1U HPE ProLiant DL160 Gen10 server delivers the right balance of performance, storage, reliability, manageability
and efficiency in a

from SMB to

Service Providers running wide range of workloads - at a compelling price point.

8 SFF chassis - Front View

1.

Quick removal access panel

6.

iLO Service Port

2.

Serial no. label pull tab

7.

UID button/LED

3.

Health LED

8.

NIC Status LED

4.

Power On/Standby button and system power LED

9.

Standard 8 SAS/SATA drive bays

5.

USB 3.0 port

dense and compact chassis, to meet the needs of growing businesses of a diverse set of customers –

Page

QuickSpecs

HPE ProLiant DL160 Gen10 Server

Overview

2

4 LFF chassis - Front View

1.

Quick removal access panel

6.

NIC status LED

2.

Serial no. label pull tab

7.

Health LED

3.

iLO Service Port

8.

Power On/Standby button and system power LED

4.

USB 3.0 Port

9.

4 SAS/SATA drive bays

5.

UID button/LED

Rear View

1.

Slot 1 PCIe 3.0

5.

Embedded 2x 1GbE Adapter

2.

Slot 2 PCIe 3.0

6.

VGA Port

3.

Optional: Slot 3 PCIe 3.0 (Requires 2nd processor)

7.

iLO Management Port

4.

Power Supply (Redundant hot-plug shown)

8.

USB 3.0 Ports

Page

QuickSpecs

HPE ProLiant DL160 Gen10 Server

Overview

3

8SFF chassis – with optional 2nd CPU - Internal View

1.

Standard single rotor hot swap fans
1 CPU
Optional

:

11.

MicroSD card slot

2.

Optional: Smart Storage Battery (No battery shown)

12.

iLO Service Port Connector

3.

DDR4 DIMM slots (Fully populated 16 DIMMs shown)

13.

Primary (CPU1) PCIe 3.0 riser

4.

Up to 2 processors (shown with standard heat sinks)

14.

Mini-SAS port 1

5.

Hard Drive backplane power connector

15.

Mini-SAS port 2

6.

System Battery

16.

Mini-SAS port 3

7.

Internal USB 3.0 connector

17.

SATA port 4

8.

Secondary (CPU2) PCIe 3.0 riser*

18.

SATA port 5

9.

Power supply (non-redundant power supply shown)

19.

Front Power USB 3.0 connector

10.

Flexible Smart Array Controller Connector

– 3 standard fans

2 CPUs – 6 standard fans (redundant fan shown)

Page

QuickSpecs

HPE ProLiant DL160 Gen10 Server

Overview

4

What's New

Additional options available to add as “ad

• 1Gb/10Gb/25Gb PCIe stand-up network adapaters

Platform Information
Form Factor

1U rack

Chassis Types

8 SFF
4 LFF

System Fans

Standard – fan types included

Non-Redundant

1P Model

3 fans

2P Model

6 fans

NOTE: The second processor option kit contains 3 additional fans

-hoc” in OCA

• HPE 32GB 2Rx4 PC4-2666V-R Smart Kit

• 2TB/4TB SATA LFF HDDs

• 1TB/2TB SATA SFF HDDs

• 300GB/600GB & 1.8TB/2TB SAS SFF HDDs

• 240GB/960GB SATA SFF SSDs

• 800GB/960GB SFF SAS SSDs

• SATA M.2 options

Page

QuickSpecs

HPE ProLiant DL160 Gen10 Server

Standard Features

5

Processors – Up to 2 of the following depending on model.

following: https://www.intel.com/content/www/us/en/products/processors/xeon.html

Intel Xeon Models

CPU

Frequency

Cores

L3 Cache

Power

UPI

DDR4

Memory per

socket

Silver Processors

Silver 4110 Processor

2.1 GHz

8

11.00 MB

85W

2 @ 9.6 GT/s

2400 MT/s

768 GB

Bronze Processors

Bronze 3106 Processor

1.7 GHz

8

11.00 MB

85W

2 @ 9.6 GT/s

2133 MT/s

768 GB

NOTE: Silver – 4100 Series - 2 Socket supports 2UPI @ 9.6 GT/s, 6-Channel DDR4 @ 2400 MT/s providing up to 768 GB memory

bit FMA), 48 lanes PCIe 3.0,

Channel DDR4 @ 2133 MT/s providing up to

768GB memory capacity. Intel AVX-512(1x 512-bit FMA), 48 lanes PCIe 3.0, standard RAS supported.

Chipset

URL: https://www.intel.com/content/www/us/en/products/chipsets/server-chipsets.html

On System Management Chipset
Memory

Type:

Registered (RDIMM)

DIMM Slots Available

16

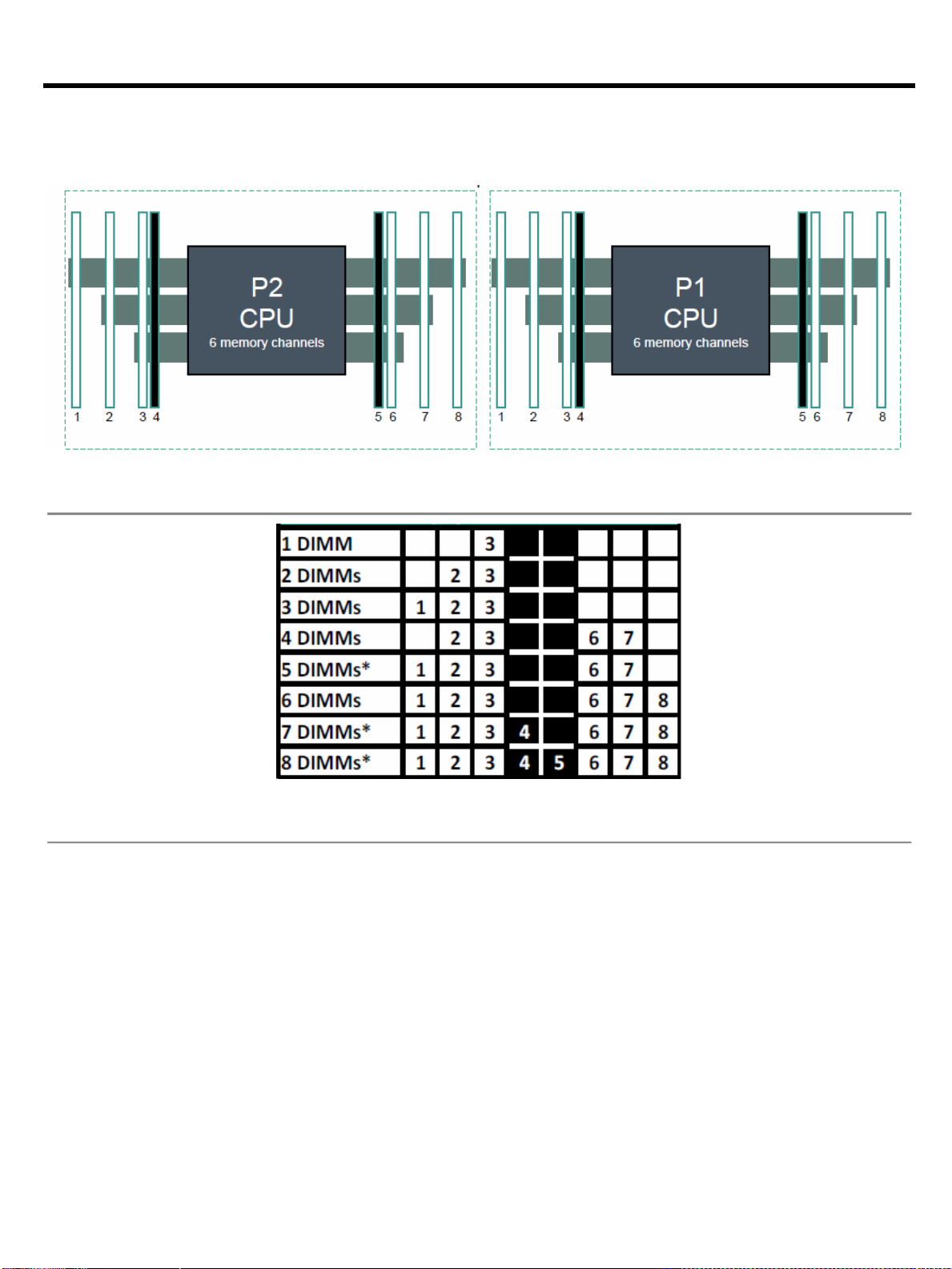

8 DIMM slots per processor, 6 channels per processor, 2 channels @ 2

Maximum capacity (RDIMM)

512 GB

16 x 32 GB RDIMM @ 2400 MT/s

NOTE: The maximum memory by socket is limited by the processor selection.

Memory Protection

http://www.hpe.com/docs/memory-ras-feature.

NOTE: For more information regarding Intel Xeon processors, please see the

capacity. Intel Turbo Boost Technology, Intel Hyper-Threading Technology, Intel AVX-512(1x 512­standard RAS supported.
NOTE: Bronze – 3100 Series - 2 Socket supports 2UPI @ 9.6 GT/s, supports 6-

Intel C622 Chipset

NOTE: For more information regarding Intel® chipsets, please see the following

HPE iLO 5 ASIC

NOTE: Read and learn more in the iLO QuickSpecs.

One of the following depending on model

HPE DDR4 SmartMemory,

DIMMs per channel, 4 channels @ 1 DIMM per channel

For details on the HPE Server Memory Options RAS feature, visit:

Page

QuickSpecs

HPE ProLiant DL160 Gen10 Server

Standard Features

6

Expansion Slots

Slots #

Technology

Bus

Width

Connector Width

Slot Form Factor

Notes

1

PCIe 3.0

X8

X8

Flexible LOM

Proc 1

2

PCIe 3.0

X8

X8

Half-height,

half-length slot

Proc 1

NOTE: Bus Width Indicates the number of physical electrical lanes running to the connector.

NOTE:

CPU2 Riser

Slots #

Technology

Bus

Width

Connector Width

Slot Form Factor

Notes

1

PCIe 3.0

X16

X16

Half-height,

half-length slot

Proc 2

NOTE: Bus Width Indicates the number of physical electrical lanes running to the connector.

Storage Controllers

kout

.One of the following

depending on model

Software RAID

Gen10 SW RAID will operate in UEFI mode only. For legacy support an additional controller will

and does not support Linux. For Linux users, HPE

disk RAID 1 boot volume. For more information

Essential RAID Controller

HPE Smart Array E208e-p SR Gen10 Controller

Performance RAID Controller

NOTE: Performance RAID Controllers require the HPE Smart Storage Battery (P01366-B21) which is sold separately.

Internal Storage Devices

None ship standard

FlexibleLOM Riser

NOTE: This riser is mandatory for installing FlexibleLOMs.

FlexibleLOM riser will replace standard CPU1 X16/X8 riser.

NOTE: When populating the second optional riser slot, the second processor must be installed.
NOTE: Cannot be installed if type-a modular smart array controller is installed.
NOTE: Max 3-PCIe slots are available on the DL160-Gen10.

The Gen10 controller naming framework has been updated to simplify identification as depicted below. For a more detailed brea
of the available Gen10 Smart Array controllers visit the HPE Smart Array Gen10 Controllers Data Sheet

HPE Smart Array S100i SR Gen10 SW RAID

NOTE: HPE Smart Array S100i SR
be needed.

NOTE: HPE Smart Array S100i SR Gen10 SW RAID is off by default and must be enabled.
NOTE: HPE Smart Array S100i SR Gen10 SW RAID only supports Windows

offers a solution that uses in-distro open-source software to create a two­visit: https://downloads.linux.hpe.com/SDR/project/lsrrb/

HPE Smart Array E208i-a SR G10 LH Controller
HPE Smart Array E208i-p SR Gen10 Controller

HPE Smart Array P408i-a SR G10 LH Controller

Hard Drives

Page

QuickSpecs

HPE ProLiant DL160 Gen10 Server

Standard Features

7

Maximum Internal Storage

Capacity

Configuration

Hot Plug SFF SAS HDD

16 TB

8 X 2 TB

Hot Plug LFF SAS HDD

8 TB

4 X 2 TB

Hot Plug SFF SATA HDD

16 TB

8 X 2 TB

Hot Plug LFF SATA HDD

16 TB

4 X 4 TB

Hot Plug SFF SAS SSD

7.6 TB

8 X 960GB

Hot Plug SFF SATA SSD

7.6 TB

8 X 960GB

Power Supply

less

d

size" a power supply for specific server configurations. This flexibility

14 jumper cord (A0K02A). This jumper cord is also included with

Interfaces

Video

1 rear – VGA Port (standard )

Network Ports

2 x 1 GbE ports embedded on board with optional FlexibleLOM

HPE iLO Remote Management Network Port

1 Gb Dedicated

Front iLO Service Port

1 standard

Micro SD Slot

1 Micro SD

pluggable device.
Customers should not attempt to plug an SD card into the SD
slot while the server is powered.

USB 3.0

Up to 4 total: 1 front, 2 rear, 1 internal

Operating Systems and Virtualization Software Support for ProLiant Servers

NOTE:

HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

NOTE: Available in 94% efficiency.

HPE Flexible Slot (Flex Slot) Power Supplies share a common electrical and physical design that allows for hot plug, tool­installation into HPE ProLiant Gen10 Performance Servers. Flex Slot power supplies are certified for high-efficiency operation an
offer multiple power output options, allowing users to "right­helps to reduce power waste, lower overall energy costs, and avoid "trapped" power capacity in the data center.

All pre-configured servers ship with a standard 6-foot IEC C-13/C­each standard AC power supply option kit. If a different power cord is required, please check the ProLiant Power Cables web page.
For information on power specifications and technical content visit HPE Server power supplies.

NOTE: The Micro SD slot is not a hot-

• Windows Server 2012 R2**

• Windows Server 2016**

• Windows Server 2019**

• VMware ESXi 6.0 U3**

• VMware ESXi 6.0 U3, 6.5 U1/U2/U3**

• VMware ESXi 6.7 U1

• Red Hat Enterprise Linux (RHEL) 7.6 (with Kbase)**

• Red Hat Enterprise Linux (RHEL) 8.0

• SUSE Linux Enterprise Server (SLES) 12 SP4**

• SUSE Linux Enterprise Server (SLES) 15

**Certified

Page

QuickSpecs

HPE ProLiant DL160 Gen10 Server

Standard Features

8

Industry Standard Compliance

NOTE:

Graphics

− 4 Gbit DDR 3 with ECC protection

• ACPI 6.1 Compliant

• PCIe 3.0 Compliant

• WOL Support

• Microsoft® Logo certifications

• PXE Support

• USB 3.0 Compliant (internal)

• SMBIOS 3.1

• UEFI 2.6

• Redfish API

• IPMI 2.0

• Secure Digital 2.0

• Advanced Encryption Standard (AES)

• Triple Data Encrytion Standard (3DES)

• SNMP v3

• TLS 1.2

• DMTF Systems Management Architecture for Server Hardware Command Line Protocol (SMASH CLP)

• Active Directory v1.0

• ASHRAE A3/A4

NOTE: For additional technical thermal details regarding ambient temperatures, humidity and features support please

visit: http://www.hpe.com/servers/ashrae.

• UEFI (Unified Extensible Firmware Interface Forum)

UEFI is the default for the HPE ProLiant DL160 Gen10. Legacy mode can be selected in the field.

• Integrated Video Standard

− Video modes up to 1920 x 1200@60Hz (32 bpp)

− 16MB Video Memory

• HPE iLO 5 on system management memory

− 32 MB Flash

Page

QuickSpecs

HPE ProLiant DL160 Gen10 Server

Standard Features

9

HPE Server UEFI/Legacy ROM

Unified Extensible Firmware Interface (UEFI) is an industry standard that provides better manageability and more secured

ss 2

Based Setup Utility (RBSU) of legacy BIOS. For more

NOTE: For UEFI Boot Mode, boot environment and OS image installations should be configured properly to support UEFI.

Embedded Management

UEFI

Intelligent Provisioning

http://www.hpe.com/servers/intelligentprovisioning

iLO RESTful API

RESTful API is Redfish API conformance and offers simplified server management automation such as configuration and

Server Utilities

ive

Active Health System Viewer

repair

recommendations, to learn more visit: http://www.hpe.com/servers/ahsv.

configuration than the legacy ROM while interacting with your server at boot time. HPE ProLiant Gen10 servers have a UEFI Cla
implementation and support both UEFI Mode (default) and Legacy BIOS Mode.

NOTE: The UEFI System Utilities tool is analogous to the HPE ROM-

information, please visit http://www.hpe.com/servers/uefi.

• UEFI enables numerous new capabilities specific to HPE ProLiant servers such as:

• Secure Boot and Secure Start enable for enhanced security

• Operating system specific functionality

• Support for > 2.2 TB (using GPT) boot drives

• USB 3.0 Stack

• Embedded UEFI Shell

• Mass Configuration Deployment Tool using iLO RESTful API that is Redfish API Conformant

• PXE boot support for IPv6 networks

• Workload Profiles for simple performance optimization

• UEFI Boot Mode only:

• NVMe Boot Support

• iSCSI Software Initiator Support.

• HTTP/HTTPs Boot support as a PXE alternative.

• Boot support for option cards that only support a UEFI option ROM

HPE Integrated Lights-Out (HPE iLO)
Monitor your servers for ongoing management, service alerting, reporting and remote management with HPE iLO.
Learn more at http://www.hpe.com/info/ilo.

Configure and boot your servers securely with industry standard Unified Extensible Firmware Interface (UEFI).
Learn more at http://www.hpe.com/servers/uefi.

Hassle free server and OS provisioning for 1 or more servers with Intelligent Provisioning.
Learn more at

.

iLO
maintenance tasks based on modern industry standards. Learn more at http://www.hpe.com/info/restfulapi.

Active Health System

The HPE Active Health System (AHS) is an essential component of the iLO management portfolio that provides continuous, proact
health monitoring of HPE servers. Learn more at http://www.hpe.com/servers/ahs.

Use the Active Health System Viewer, a web-based portal, to easily read AHS logs and speed problem resolution with HPE self-

Page

QuickSpecs

HPE ProLiant DL160 Gen10 Server

Standard Features

10

Service Pack for ProLiant (SPP)

a single

solution stack, which is delivered as a single ISO image. Learn more at http://www.hpe.com/servers/spp

iLO Amplifier Pack

e,

plication (OVA) that delivers the power to discover, inventory and update Gen8, Gen9 and Gen10 HPE

HPE iLO Mobile Application

s.

For additional information please visit: http://www.hpe.com/info/ilo/mobileapp.

RESTful Interface Tool

RESTful API to discover and deploy servers at scale.

http://www.hpe.com/info/resttool

Scripting Tools

pting Tool (STK) for Windows and Linux or

Scripting Tools for Windows PowerShell. Learn more at or http://www.hpe.com/servers/powershell.

HPE Systems Insight Manager (HPE SIM)

ity

HPE servers. HPE SIM also integrates with Smart Update Manager to provide

Security

• Secure erase of NAND/User data

The Service Pack for ProLiant (SPP) is a comprehensive collection of server firmware, drivers, and system software tested as

Designed for large enterprise and service provider environments with hundreds of HPE servers, the iLO Amplifier Pack is a fre
downloadable open virtual ap
servers at unmatched speed and scale. Use with an iLO Advanced License to unlock full capabilities.
Learn more at http://www.hpe.com/servers/iLOamplifierpack.

Enables the ability to access, deploy, and manage your server anytime from anywhere from select smartphones and mobile device

RESTful Interface tool (iLOREST) is a single scripting tool to provision using iLO
Learn more at

.

Provision one to many servers using your own scripts to discover and deploy with Scri

Ideal for environments already using HPE SIM, it allows you to monitor the health of your HPE ProLiant Servers and HPE Integr
Servers. Also provides you with basic support for non­quick and seamless firmware updates. Learn more at http://www.hpe.com/info/hpesim.

• UEFI Secure Boot and Secure Start support

• Immutable Silicon Root of Trust

• FIPS 140-2 validation

• Common Criteria certification

• Configurable for PCI DSS compliance

• Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser

• Support for Commercial National Security Algorithms (CNSA)

• Tamper-free updates – components digitally signed and verified

• Secure Recovery – recover critical firmware to known good state on detection of compromised firmware

• Ability to rollback firmware

Page

QuickSpecs

HPE ProLiant DL160 Gen10 Server

Standard Features

11

Warranty

Services and a worldwide network

hree

nts to

s have

Year Onsite support with next business day response. Warranty

accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1)

e

2) Optional CSR parts are also designed for easy replacement but may involve added complexity.
replace Optional CSR parts at no charge. Additional information

http://h17007.www1.hpe.com/us/en/enterprise/servers/warranty/.

This product is covered by a global limited warranty and supported by Hewlett Packard Enterprise
of Hewlett Packard Enterprise Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for t
years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhanceme
warranty services are available through HPE Pointnext operational services or customized service agreements. Hard drive
either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.

NOTE: Server Warranty includes 3-Year Parts, 3-Year Labor, 3-

repairs may be
Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replac
a Mandatory CSR part;
Customers may choose to have Hewlett Packard Enterprise
regarding worldwide limited warranty and technical support is available at:

Page

QuickSpecs

HPE ProLiant DL160 Gen10 Server

Optional Features

12

Server Management

Advanced licenses offer smart remote functionality without compromise, for all HPE ProLiant servers. The license includes

d

based and scripted virtual media and virtual folders. You can also activate the enhanced security and power management

HPE Insight Cluster Management Utility (CMU)

management framework that includes software for the centralized

Rack and Power Infrastructure

and business grow. We’ve reinvented our

r words,

ry leader,

management and system

HPE G2 Advanced and Enterprise Racks are perfect for the server room or today’s modern data center with enhanced airflow and

coded outlets and

effective power protection for any type workload. Some UPSs include options for remote

to

Learn more about HPE Racks, KVM, PDUs and UPSs at HPE Rack and Power Infrastructure.

One Config Simple (SCE)

provide customers with initial configurations in 3 to 5 minutes.

stom" rack

le in SCE, please contact Hewlett Packard Enterprise Customer Business Center

HPE iLO Advanced

HPE iLO
the full integrated remote console, virtual keyboard, video, and mouse (KVM), multi-user collaboration, console record and replay, an
GUI­functionality. Learn more about HPE iLO Advanced at http://www.hpe.com/servers/iloadvanced..

HPE Insight Cluster Management Utility is a HyperScale
provisioning, management and monitoring of nodes and infrastructure. Learn more at http://www.hpe.com/info/cmu.

The story may end with servers, but it starts with the foundation that makes compute go –
entire portfolio of rack and power products to make IT infrastructure more secure, more practical, and more efficient. In othe
we’ve created a stronger, smarter, and simpler infrastructure to help you get the most out of your IT equipment. As an indust
Hewlett Packard Enterprise is uniquely positioned to address the key concerns of power, cooling, cable
access.

thermal management, flexible cable management, and a 10 year Warranty to support higher density computing.

HPE G2 PDUs offer reliable power in flexible form factors that operate at temperatures up to 60°, include color­load segments and a low-profile design for optimal access to the rack and support for dense rack environments.

HPE Uninterruptible Power Systems are cost­management and extended runtime modules so you’re critical dense data center is covered in power outages.

HPE KVM Solutions include a console and switches designed to work with your server and IT equipment reliably. We’ve got a cost­effective KVM switch for your first rack and multiple connection IP switches with remote management and security capabilities
keep your data center rack up and running.

SCE is a guided self-service tool to help sales and non-technical people
You may then send the configuration on for configuration help, or use in your existing ordering processes. If you require "cu
configuration or configuration for products not availab
or an Authorized Partner for assistance. https://h22174.www2.hpe.com/SimplifiedConfig/Welcome#

Page

QuickSpecs

HPE ProLiant DL160 Gen10 Server

Service and Support

13

HPE Pointnext - Service and Support
Protect your

HPE Pointnext provides a comprehensive portfolio including Advisory and Transformational, Professional, and Operational Services
to help accelerate your digital transformation. From the onset of your transformation journey, Advisory and Transformational Services
focus on designing the transformation and creating a solution roadmap. Professional Services specializes in creative configurations
with flawless and on

aches
like Flexible Capacity and Datacenter Care, to keep your business at peak performance. Hewlett Packard Enterprise is ready to bring
together all the pieces of the puzzle for you, with an eye on the future, and make the complex simple.

Connect your devices:

wn

eive

failure alerts, automatic call logging, and automatic parts dispatch. HPE Proactive Care Service and HPE

. All of

Learn more about getting connected at http://www.hpe.com/services/getconnected

Other related Services

bringing

https://www.hpe.com/h20195/V2/GetPDF.aspx/5981-9356EN.pdf

HPE Education Services

Book on a class today and

learn how to get the most from your technology investment. http://www.hpe.com/ww/learn

HPE Support Center

usiness

e with

allows you to resolve issues yourself or quickly connect to an agent for live support. Now, you

warranty, HPE Support Service

http://www.hpe.com/services

Parts and Materials

supported replacement parts and materials necessary to maintain the covered hardware

and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the

specs, or the technical product data sheet will not be provided, repaired, or replaced

ckard

Enterprise due to malfunction.

business beyond warranty with HPE Support Services

-time implementation, and on-budget execution. Finally, operational services provides innovative new appro

Unlock all of the benefits of your technology investment by connecting your products to Hewlett Packard Enterprise. Reduce do
time and improve diagnostic accuracy with a single consolidated view of your environment. By connecting, you will rec
24x7monitoring, pre­Datacenter Care Service customers will also benefit from proactive activities to help prevent issues and increase optimization
these benefits are already available to you with your server storage and networking products, securely connected to HPE support.

HPE Server Hardware Installation

Provides for the basic hardware installation of HPE branded servers, storage devices and networking options to assist you in
your new hardware into operation in a timely and professional manner.

Keep your IT staff trained making sure they have the right skills to deliver on your business outcomes.

The HPE Support Center is a personalized online support portal with access to information, tools and experts to support HPE b
products. Submit support cases online, chat with Hewlett Packard Enterprise experts, access support resources or collaborat
peers. Learn more http://www.hpe.com/support/hpesc
The HPE Support Center Mobile App*
can get access to personalized IT support anywhere, anytime.
HPE Insight Remote Support and HPE Support Center are available at no additional cost with a HPE
or HPE contractual support agreement.

NOTE:*HPE Support Center Mobile App is subject to local availability.

For more information:

Hewlett Packard Enterprise will provide HPE­product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts
manufacturer's operating manual, product quick­as part of these services.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Pa

Page

QuickSpecs

HPE ProLiant DL160 Gen10 Server

Pre

-configured Models

14

1. Pre-configured models ship with the configurations below. Options can be selected from the Core or Additional options section of

y additional options

purchased will be shipped separately.

Entry Model

Base Model

SKU Number

**878968-B21

**878970-B21

Model Name

HPE ProLiant DL160 Gen10 3106 1.7GHz 8-core

1P 16GB-R S100i 4LFF 1x500W PS Server

HPE ProLiant DL160 Gen10 4110 2.1GHz 8-

core 1P 16GB-R S100i 8SFF 1x500W PS Server

Chassis

4LFF

8SFF

Processor

3106 (1.7GHz/8-core/85W)

4110 (2.1GHz/8-core/85W)

Number of Processors

One processor

With standard heatsink

One processor

With standard heatsink

Memory

16 GB RDIMM 1R 2666 MT/s

limitation

16 GB RDIMM 1R 2666 MT/s

limitation.

Network Controller

Embedded 2-port 1GbE

Embedded 2-port 1GbE

Storage Controller

Embedded 14-port S100i

NOTE:

Embedded 14-port S100i

NOTE:

SATA only.

Hard Drive

None included

None included

Optical Drive

None included

None included

PCIe Slots

2 PCIe: 1 x16 FH / 1 x8 LP

2 PCIe: 1 x16 FH / 1 x8 LP

Power Supply

1x 500W Hot Plug; RPS ready

1x 500W Hot Plug; RPS ready

Fans

3 - Standard

3 - Standard

Management

HPE iLO 5

HPE iLO 5

Rail Kit

1U Easy Install

1U Easy Install

Energy Star

Energy Star 2.1

Form Factor

1U Rack

Warranty

3-year parts, 3-year labor, 3-year onsite support with next business day response.

NOTE: UEFI is the standard default for all Pre-configured models.

this QuickSpecs.

2. Hewlett Packard Enterprise does not allow factory integration of options into pre-configured models. An

(1x 16 GB)

NOTE: Runs at 2133 MT/s due to processor

SATA only.

(1x 16 GB)

NOTE: Runs at 2400 MT/s due to processor

Page

QuickSpecs

HPE ProLiant DL160 Gen10 Server

Core Options

15

HPE Processors
Processor Option Kits

HPE DL160 Gen10 Intel Xeon-Silver 4110 (2.1GHz/8-core/85W) Processor Kit

878947-B21

HPE DL160 Gen10 Intel Xeon-Bronze 3106 (1.7GHz/8-core/85W) Processor Kit

878945-B21

NOTE: Up to two processors supported.
NOTE: Turbo2: Intel® Turbo Boost Technology 2.0 provides more computing power when you need it with performance that

adapts to spikes in your workload and delivers more performance upside than then previous generation turbo technology.

NOTE:

aximum memory speed of the processor. Actual memory speed may depend on the quantity and type

of DIMMs installed.

NOTE:
NOTE:

Memory Selection

To streamline the configuration process for HPE ProLiant Gen10 servers and to provide the best product availability, Hewlett Packard
Enterprise

http://www.hpe.com/products/recommend

HPE Memory

HPE 16GB (1x16GB) Single Rank x4 DDR4-2666 CAS-19-19-19 Registered Smart Memory Kit

815098-B21

NOTE: Memory DIMM availability with a server platform is dependent upon completion of certification testing.
NOTE:

HPE Drives

Enterprise - 12G SAS - SFF Drives

HPE 300GB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD

872475-B21

HPE 600GB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD

872477-B21

HPE 1.2TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD

872479-B21

Midline - 12G SAS - LFF Drives

HPE 2TB SAS 12G Midline 7.2K LFF (3.5in) LP 1yr Wty Digitally Signed Firmware HDD

833926-B21

Midline - 6G SATA - LFF Drives

HPE 1TB SATA 6G Midline 7.2K LFF (3.5in) LP 1yr Wty Digitally Signed Firmware HDD

861686-B21

SSD Selection
To streamline the configuration process for HPE ProLiant Gen10 servers and to provide the best product availability, Hewlett Packard
Enterprise
To further assist with configuration, HPE also offers an SSD Selector Tool located here: http://ssd.hpe.com.

SAS - Mixed Use - SFF - Solid State Drives

HPE 400GB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

P04525-B21

SATA - Mixed Use - SFF - Solid State Drives

HPE 480GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

P07922-B21

HPE Networking
FlexibleLOM adapters

HPE Ethernet 10/25Gb 2-port 640FLR-SFP28 Adapter

817749-B21

NOTE: The HPE ProLiant DL160 Gen10 chassis ships with 2x 1 Gb embedded.
NOTE:

can be added to the server. These options are upgradeable and can be changed from the original
configuration after the server is shipped.
NOTE: FlexibleLOM Riser Kit (875748-B21) is required to install these adapters

DDR4 speed is the m

The xxxxxx-B21 is the 2nd processor and ships with 3 additional fans
Maximum memory per socket depends on the processor.

recommends memory from the list located here:

.

The maximum memory speed is a function of the memory type, memory configuration, and processor model.

recommends SSDs from the list located here: http://www.hpe.com/products/recommend.

Only one FlexibleLOM

Page

QuickSpecs

HPE ProLiant DL160 Gen10 Server

Core Options

16

HPE I/O Expansion Options

HPE DL160 Gen10 FlexibleLOM/NVMe Riser Kit

875748-B21

NOTE: Supported on CPU1
NOTE: This riser is required to use FlexibleLOM adapters

HPE DL160 Gen10 CPU2 x16 PCIe Riser Kit

866436-B21

NOTE: Requires second processor to be installed

HPE Power Supplies

HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

865408-B21

NOTE: Flex Slot Platinum power supplies support power efficiency of up to 94% and include a standard C-14 power inlet
connector.

Page

QuickSpecs

HPE ProLiant DL160 Gen10 Server

Additional Options

17

Embedded Management
HPE iLO Advanced

HPE iLO Advanced Electronic License with 1yr Support on iLO Licensed Features

E6U59ABE

HPE iLO Advanced 1-server License with 1yr Support on iLO Licensed Features

512485-B21

HPE iLO Advanced Flexible Quantity License with 1yr Support on iLO Licensed Features

512486-B21

HPE iLO Advanced AKA Tracking License with 1yr Support on iLO Licensed Features

512487-B21

HPE iLO Advanced Electronic License with 3yr Support on iLO Licensed Features

E6U64ABE

HPE iLO Advanced 1-server License with 3yr Support on iLO Licensed Features

BD505A

HPE iLO Advanced Flexible Quantity License with 3yr Support on iLO Licensed Features

BD506A

HPE iLO Advanced AKA Tracking License with 3yr Support on iLO Licensed Features

BD507A

NOTE: There is no Oneview support on the HPE ProLiant DL160 Gen10

HPE Smart Array Controllers

kout

Performance RAID Controllers

), which supports

multiple devices and Is sold separately.

HPE Smart Array P408i-a SR Gen10 (8 Internal Lanes/2GB Cache) 12G SAS Modular LH Controller

869081-B21

NOTE: Must also select either 4LFF or 8SFF Smart Array SAS Cable Kit (866452-B21; 866448-B21), depending
on chassis

NOTE: Does not occupy a PCIe expansion slot.

Essential RAID Controllers

HPE Smart Array E208i-a SR Gen10 (8 Internal Lanes/No Cache) 12G SAS Modular LH Controller

869079-B21

NOTE: Must also select either 4LFF or 8SFF Smart Array SAS Cable Kit (866452-B21; 866448-B21), depending
on chassis

NOTE: Does not occupy a PCIe expansion slot.

HPE Smart Array E208i-p SR Gen10 (8 Internal Lanes/No Cache) 12G SAS PCIe Plug-in Controller

804394-B21

HPE Smart Array E208e-p SR Gen10 (8 External Lanes/No Cache) 12G SAS PCIe Plug-in Controller

804398-B21

HPE Cable Options

HPE 1U Gen10 4LFF Smart Array SAS Cable Kit

866452-B21

HPE 1U Gen10 8SFF Smart Array SAS Cable Kit

866448-B21

NOTE: Required when any Perforamance RAID Controller or Flexible Smart Array –a (i.e. P408i-a) controller is selected

The Gen10 controller naming framework has been updated to simplify identification as depicted below. For a more detailed brea
of the available Gen10 Smart Array controllers visit the HPE Smart Array Gen10 Controllers Data Sheet.

NOTE: All performance RAID controllers are supported by the HPE Smart Storage Battery (P01366-B21

Page

QuickSpecs

HPE ProLiant DL160 Gen10 Server

Additional Options

18

Optional Software

HPE Smart Array SR Secure Encryption (Data at Rest Encryption/per Server Entitlement) E-LTU

Q2F26AAE

HPE Smart Array SR SmartCache (Single Key/Single Server) LTU

D7S26A

HPE Smart Array SR SmartCache (Single Key/Multiple Servers) LTU

D7S27A

HPE Smart Array SR SmartCache (Single Key/Multiple Servers) E-LTU

D7S27AAE

NOTE: SmartCache is offered on HPE Smart Array performance RAID controllers

Optional Upgrades

HPE 96W Smart Storage Battery (up to 20 Devices) with 145mm Cable Kit

P01366-B21

NOTE: Provides backup power for multiple HPE Smart Array controllers or other devices. Is required with performance RAID
controllers.

HPE Tape Backup

http://www.hpe.com/storage/BURAcompatibility.

HPE Racks

HPE Power Distribution Units (PDUs)

for information on these products and their

ormation on these products and

their specifications.

HPE Uninterruptible Power Systems (UPS)

for information on these products and

HPE Rack Options

For the complete range of tape drives, autoloaders, libraries and media see:

https://www.hpe.com/us/en/storage/storeever-tape-storage.html.

For hardware and software compatibility of Hewlett Packard Enterprise tape backup products

Please see the HPE Advanced Series Racks QuickSpecs for information on additional racks options and rack specifications.
Please see the HPE Enterprise Series Racks QuickSpecs for information on additional racks options and rack specifications.

Please see the HPE Basic Power Distribution Units (PDU) QuickSpecs for information on these products and their specifications.
Please see the HPE Metered Power Distribution Units (PDU) QuickSpecs for information on these products and their specifications.
Please see the HPE Intelligent Power Distribution Unit (PDU) QuickSpecs
specifications.
Please see the HPE Metered and Switched Power Distribution Units (PDU) QuickSpecs for inf

To learn more, please visit the HPE Uninterruptible Power Systems (UPS) web page.
Please see the HPE DirectFlow Three Phase Uninterruptible Power System QuickSpecs
their specifications.
Please see the HPE Line Interactive Single Phase UPS QuickSpecs for information on these products and their specifications.

Please see the HPE IT Access and Control for information on these products and their specifications.

Page

QuickSpecs

HPE ProLiant DL160 Gen10 Server

Additional Options

19

Additional options available to add as “ad-hoc” in OCA

NOTE:*These options will not be visible in OCA and must be added manually via the ad-hoc section

HPE Memory

HPE 32GB (1x32GB) Dual Rank x4 DDR4-2666 CAS-19-19-19 Registered Smart Memory Kit

815100-B21

NOTE: The maximum memory speed is a function of the memory type, memory configuration, and processor
model.

HPE Drives
Enterprise - 12G SAS - SFF Drives

HPE 1.8TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty 512e Digitally Signed Firmware HDD

872481-B21

HPE 600GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD

870757-B21

HPE 300GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD

870753-B21

Midline - 12G SAS - SFF Drives

HPE 2TB SAS 12G Midline 7.2K SFF (2.5in) SC 1yr Wty 512e HDD

765466-B21

Midline 6G SATA - SFF Drives

HPE 2TB SATA 6G Midline 7.2K SFF (2.5in) SC 1yr Wty 512e Digitally Signed Firmware HDD

765455-B21

HPE 1TB SATA 6G Midline 7.2K SFF (2.5in) SC 1yr Wty Digitally Signed Firmware HDD

655710-B21

Midline - 6G SATA - LFF Drives

HPE 2TB SATA 6G Midline 7.2K LFF (3.5in) LP 1yr Wty Digitally Signed Firmware HDD

861681-B21

HPE 4TB SATA 6G Midline 7.2K LFF (3.5in) LP 1yr Wty Digitally Signed Firmware HDD

861683-B21

SSD Selection
Mixed Use - 12G SAS - SFF - Solid State Drives

HPE 800GB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

P04527-B21

Read Intensive - 12G SAS - SFF - Solid State Drives

HPE 960GB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

P04517-B21

Read Intensive - SATA - SFF - Solid State Drives

HPE 240GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

P05924-B21

Mixed Use - SATA - SFF - Solid State Drives

HPE 960GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

P07926-B21

Internal Dual M.2 Kit

HPE Universal SATA HHHL 3yr Wty M.2 Kit

878783-B21

NOTE: The Universal SATA M.2 Kit above will require a PCIe slot and support up to two of the same M.2 cards
below.

Read Intensive - M.2 - Solid State Drives (2280 type)

HPE 480GB SATA 6G Read Intensive M.2 2280 3yr Wty Digitally Signed Firmware SSD

875498-B21

NOTE: Must also select “HPE Universal SATA HHHL 3yr Wty M.2 Kit- 878783-B21” and “HPE DL160/120
Gen10 M.2 SATA Cable Kit-866456-B21” with M.2.

Mixed Use - M.2 - Solid State Drives (2280 type)

HPE 240GB SATA 6G Mixed Use M.2 2280 3yr Wty Digitally Signed Firmware SSD

875488-B21

NOTE: Must also select “HPE Universal SATA HHHL 3yr Wty M.2 Kit- 878783-B21” and “HPE DL160/120
Gen10 M.2 SATA Cable Kit-866456-B21” with M.2.

M.2 Cable Kit

HPE DL160/120 Gen10 M.2 SATA Cable Kit

866456-B21

NOTE: Must be selected along with “HPE Universal SATA HHHL 3yr Wty M.2 Kit- 878783-B21”

Page

QuickSpecs

HPE ProLiant DL160 Gen10 Server

Additional Options

20

HPE Networking
10 Gigabit Ethernet adapters

HPE Ethernet 10Gb 2-port 530SFP Adapter

652503-B21

HPE Ethernet 10Gb 2-port 521T Adapter

867707-B21

NOTE: Max 1 per system

HPE Ethernet 10Gb 2-port 530T Adapter

656596-B21

25 Gigabit Ethernet adapters

HPE Ethernet 10/25Gb 2-port 631SFP28 Adapter

817718-B21

1 Gigabit Ethernet adapters

HPE Ethernet 1Gb 4-port 366T Adapter

811546-B21

NOTE: Max 1 per system. Can only be installed in Slot 1

Page

QuickSpecs

HPE ProLiant DL160 Gen10 Server

Memory

21

Memory Population guidelines

HPE DL160/DL180 Gen 10 Servers Front Server

(2+1+1 slots per channel)

HPE ProLiant Gen10 8 slot per CPU DIMM population order

NOTE:*Unbalanced, not recommended

Page

QuickSpecs

HPE ProLiant DL160 Gen10 Server

Memory

22

General Memory Population Rules and Guidelines:

The maximum memory capacity is a function of the number of DIMM slots on the platform, the largest DIMM capacity

abilities listed in this document, HPE DDR4 SmartMemory is required. For additional

HPE DDR4 SmartMemory QuickSpecs.

HPE DDR4 SmartMemory

DIMM Type

Register DIMM (RDIMM)

815098-B21

815100-B21

SKU Description

HPE 16GB (1x16GB) Single Rank x4

HPE 32GB (1x32GB) Dual Rank x4

DIMM Rank ->

Single Rank (1R)

Single Rank (1R)

DIMM Capacity ->

16GB

32GB

DRAM Width [bit]

x4

X4

DRAM Density

8Gb

8Gb

CAS Latency

19-19-19

19-19-19

DIMM Native Speed (MT/s)

2666 MT/s

2666 MT/s

HPE Server Memory Speed (MT/s): Intel Xeon®Platinum 41xx Processors *

1 DIMM Per Channel

2400 MT/s

2400 MT/s

2 DIMM Per Channel

2400 MT/s

2400 MT/s

HPE Server Memory Speed (MT/s): Intel Xeon®Platinum 31xx Processors *

1 DIMM Per Channel

2133 MT/s

2133 MT/s

2 DIMM Per Channel

2133 MT/s

2133 MT/s

NOTE: The maximum memory speed is a function of the memory type, memory configuration, and processor model.

Standard and Maximum Memory Capacity (Pre-configured Models)

Pre Configured

Models

3106 Entry LFF

16GB (1x16 GB RDIMM)

512 GB (16x 32 GB)

4110 Base SFF

16GB (1x16 GB RDIMM)

512 GB (16x 32 GB)

DDR4 memory options part number decoder

• Install DIMMs only if the corresponding processor is installed.

• If only one processor is installed in a two-processor system, only half of the DIMM slots are available.

• To maximize performance, it is recommended to balance the total memory capacity between all installed processors.

• When two processors are installed, balance the DIMMs across the two processors.

• White DIMM slots denote the first slot to be populated in a channel.

• The maximum memory speed is a function of the memory type, memory configuration, and processor model.

•

qualified on the platform, the number and model of installed processors qualified on the platform.

• To realize the performance memory cap

information, please see the

DDR4-2666 CAS-19-19-19
Registered Smart Memory Kit

Standard Memory Maximum Memory

DDR4-2666 CAS-19-19-19
Registered Smart Memory Kit

NOTE: Capacity references are rounded to the common gigabyte (GB) values.

• 16GB = 16,384 MB

For more information on memory, please see the Memory Quickspecs: HPE DDR4 SmartMemory

Page

QuickSpecs

HPE ProLiant DL160 Gen10 Server

Technical Specifications

23

System Unit

Dimensions

4.29 x 43.46 x 61.49 cm

1.69 x 17.11 x 24.21 in

Weight (approximate)

24.19lb

SFF Minimum: 8 SFF chassis with 1x SFF HDD, 1 X Memory DIMM, 3 Fans,

SFF Maximum: 8SFF chassis with 8 SFF HDD, 1 X Memory DIMM, 6 Fans,

assis with 1X LFF Hard Drive, 1X Memory DIMM,

LFF Maximum: 4 LFF chassis with 4X LFF Hard Drive, 1X Memory DIMM,

Input Requirements
(per power supply)

Rated Line Voltage

100 to 120 VAC

BTU Rating

Maximum

For 500W Power Supply: 1979 BTU/hr (at 100 VAC), 1911 BTU/hr (at
200 VAC), 1965 BTU/hr (at 240 VAC) for China Only

Power Supply Output

Rated Steady-State Power

For 500W Power Supply: 500W (at 100 VAC), 500W (at 240 VAC),
500W (at 240 VAC) input for China only

Maximum Peak Power

For 500W Power Supply: 500W (at 100 to 127 VAC), 500W (at 200 to
240 VAC), 500W (at 240 VAC) input for China only

System Inlet Temperature

StandardOperating

10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C
per every 305 m (1.8°F per every 1000 ft) above sea level to a maximum
of 3050 m (10,000 ft), no direct sustained sunlight. Maximum rate of

20°C/hr (36°F/hr). The upper limit and rate of change may be

System performance during standard operating support may be reduced

Extended Ambient

For approved hardware configurations, the supported system inlet range
is extended to be: 5° to 10°C (41° to 50°F) and 35° to 40°C (95° to
104°F) at sea level with an altitude derating of 1.0°C per every 175 m

above 900 m (2953 ft) to a maximum of 3050

m (10,000 ft). The approved hardware configurations for this system are

the supported system inlet range
is extended to be: 40° to 45°C (104° to 113°F) at sea level with an altitude
derating of 1.0°C per every 125 m (1.8°F per every 410 ft) above 900 m
(2953 ft) to a maximum of 3050 m (10,000 ft). The approved hardware

System performance may be reduced if operating in the extended
ambient operating range or with a fan fault.

Non-operating

-30° to 60°C (-22° to 140°F). Maximum rate of change is 20°C/hr
(36°F/hr).

(per power supply)

10.97kg

30.69 lb

13.92 kg

25.69 lb

11.65 kg

34.69 lb

15.74kg

Temperature

1 Processor with heatsink, 1 power supply ,

2 Processors with heatsink, 2 power supplies
LFF Minimum: 4 LFF ch
3 Fans, 1 Processor with heatsink, 1 power supply

6 Fans, 2 Processors with heatsink, 2 power supplies

200 to 240 VAC

change is
limited by the type and number of options installed.

if operating with a fan fault or above 30°C (86°F).

Operating Temperature

(1.8°F per every 574 ft)

listed at the URL:http://www.hpe.com/servers/ashrae

For approved hardware configurations,

configurations for this system are listed at the URL:
http://www.hpe.com/servers/ashrae

Page

QuickSpecs

HPE ProLiant DL160 Gen10 Server

Technical Specifications

24

Relative Humidity

Operating

8% to 90% - Relative humidity (Rh), 28°C maximum wet bulb temperature,
non-condensing.

(non-condensing)

Non-operating

5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb
temperature, non-condensing..

Altitude

Operating

3050 m (10,000 ft). This value may be limited by the type and number
of options installed. Maximum allowable altitude change rate is 457
m/min (1500 ft/min).

Non-operating

9144 m (30,000 ft). Maximum allowable altitude change rate is 457
m/min (1500 ft/min).

Acoustic Noise

Listed are the declared A-Weighted sound power levels (LWAd) and declared average bystander

Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient

ISO 7779 (ECMA 74) and declared
in accordance with ISO 9296 (ECMA 109). The listed sound levels apply to standard shipping
configurations. Additional options may result in increased sound levels. Please have your HPE

om the HPE EMESC website for further technical details

regarding the configurations listed below.

Configuration SKU

LFF Config

SFF Config

Idle

LWAd

4.5 B

4.5 B

LpAm

28.1 dBA

27.8 dBA

Operating

LWAd

5.1 B

5.1 B

LpAm

34.0 dBA

33.0 dBA

NOTE: Acoustics levels will vary depending on system configuration. Values are based on below

Product conformance to cited product specifications is based on sample (type) testing,

evaluation, or assessment. This product or family of products is eligible to bear the appropriate

B 3104 processor, two HP 4TB SATA

S 4108 processor, two HP 500GB 6G

R, three system fans, one 1U 500W 12V HTPLG RED

HE-P-A, one Smart Array E208i-a SR Gen10 Ctrlr.

Emissions Classification (EMC) – Regulatory Information

Information for Server, Storage, Power,

http://www.hpe.com/support/Safety-Compliance-EnterpriseProducts

position A­environment. Noise emissions were measured in accordance with

representative provide information fr

configurations and are for reference only.

NOTE: Additional options may result in increased sound levels.
NOTE:

compliance logos and statements.
NOTE: LFF configuration included one Intel SKL-SP Xeon-

7.2K LFF HDD, two 8GB PC4-2666V-R, three system fans and one 500W 12V no AUX Pwr Sply.
NOTE:SFF configuration included one Intel SKL-SP Xeon­SATA 7.2K SFF HDD, two 16GB PC4-2666V-

To view the regulatory information for your product, view the Safety and Compliance
Networking, and Rack Products, available at the Hewlett Packard Enterprise Support Center:

Page

QuickSpecs

HPE ProLiant DL160 Gen10 Server

Technical Specifications

25

HPE Smart Array

https://h20195.www2.hpe.com/v2/getdocument.aspx?docname=a00047736enw

Environment-friendly Products and Approach - End-of-life Management and Recycling

, in many geographic areas, for our

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by

is information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site. These

who

integrate and re-sell Hewlett Packard Enterprise equipment.

For latest information on HPE Smart Array Gen10 Controllers for HPE ProLiant DL, ML and Apollo Servers please refer to their
QuickSpecs. (E208i-a,E208i-p,E208e-p,P408i-a,P408i-p,P408e-p,P816i-a)

Hewlett Packard Enterprise offers end-of-life product return, trade-in, and recycling programs
products. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.

treatment facilities. Th
instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers

Page

QuickSpecs

HPE ProLiant DL160 Gen10 Server

Summary of Changes

26

Date

Version History

Action

Description of Change

12-Aug-2019

Version 5

Changed

Overview, Standard Features, Additional Options and Memory sections were
updated.

05-Aug-2019

Version 4

Changed

Overview, Standard Features, Optional Features,Additional Options and Memory
sections were updated.

03-Jun-2019

Version 3

Changed

Overview, Additional Options and Pre-configured Models sections were updated.

15-Apr-2019

Version 2

Changed

Overview, Standard Features, Optional Features and Pre-configured Models
sections were updated.

04-Feb-2019

Version 1

New

New QuickSpecs

Sign up for updates

© Copyright 2019 Hewlett Packard Enterprise Development LP. The information contained herein is subject
to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set
forth in the express warranty statements accompanying such pr
be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for
technical or editorial errors or omissions contained herein.

Intel and Xeon are registered trademarks of In
Microsoft, Windows, and Windows Server are U.S. registered trademarks of the Microsoft group of companies.
For hard drives, 1GB = 1 billion bytes. Actual formatted capacity is less

a00021860enw - 16057 - Worldwide - V5 - 12-August-2019

oducts and services. Nothing herein should

tel Corporation in the U.S. and other countries.

Page
