Page 1

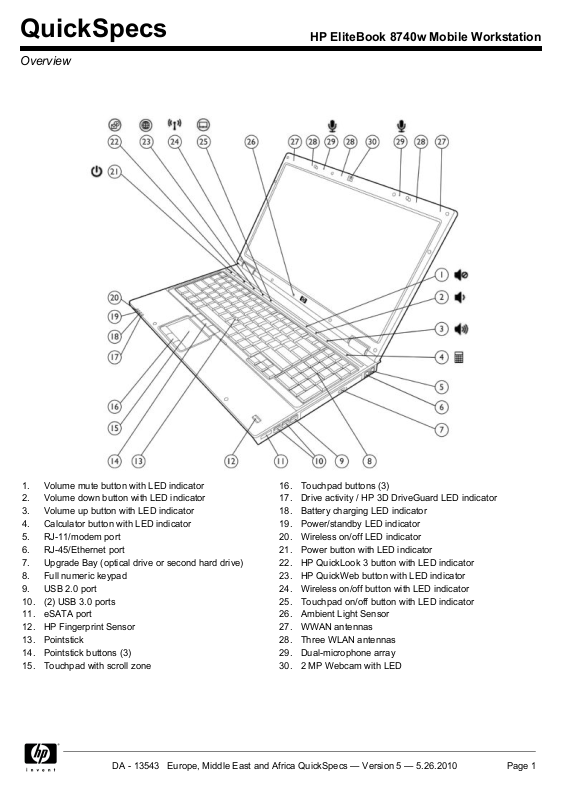

QuickSpecs

Overview

HP EliteBook 8740w Mobile Workstation

Volume mute button with LED indicator

Volume down button with LED indicator

Volume up button with LED indicator

Calculator button with LED indicator

RJ-11/modem port

RJ-45/Ethernet port

Upgrade Bay (optical drive or second hard drive)

Full numeric keypad

USB 2.0 port

10.

(2) USB 3.0 ports

11.

eSATA port

12.

HP Fingerprint Sensor

13.

Pointstick

14.

Pointstick buttons (3)

15.

Touchpad with scroll zone

16.

Touchpad buttons (3)

17.

Drive activity / HP 3D DriveGuard LED indicator

18.

Battery charging LED indicator

19.

Power/standby LED indicator

20.

Wireless on/off LED indicator

21.

Power button with LED indicator

22.

HP QuickLook 3 button with LED indicator

23.

HP QuickWeb button with LED indicator

24.

Wireless on/off button with LED indicator

25.

Touchpad on/off button with LED indicator

26.

Ambient Light Sensor

27.

WWAN antennas

28.

Three WLAN antennas

29.

Dual-microphone array

30.

2 MP Webcam with LED

DA - 13543 Europe, Middle East and Africa QuickSpecs — Version 5 — 5.26.2010

Page 1

Page 2

QuickSpecs

Overview

Kensington Lock slot

Power connector

DisplayPort

VGA/external monitor connector

USB 2.0 port

1394a port

Integrated Smart Card Reader

ExpressCard/54 slot

Wireless on/off LED indicator

HP EliteBook 8740w Mobile Workstation

10.

Power/standby LED indicator

11.

Battery charging LED indicator

12.

Dive activity / HP 3D DriveGuard LED indicator

13.

Integrated stereo speakers

14.

Stereo headphone/line out

15.

Stereo microphone in

16.

Media Card Reader

17.

Business Card Reader slot

18.

Display release latch

DA - 13543 Europe, Middle East and Africa QuickSpecs — Version 5 — 5.26.2010

Page 2

Page 3

QuickSpecs

HP EliteBook 8740w Mobile Workstation

Overview

Battery release latch

Battery bay

Docking connector

Memory module and WWAN/WLAN module compartment

Bluetooth compartment

Hard drive bay

Secondary battery connector

SIM slot for WWAN (select models) - inside battery bay under the battery

At A Glance

Genuine Windows 7 versions, Genuine Windows Vista versions, Genuine Windows XP Professional available through downgrade rights from Windows 7 Professional, or FreeDOS Widescreen 43.2 cm (17.0-inch) diagonal LED-backlit WXGA+, WSXGA+ WVA, or WUXGA WVA display with optional HP DreamColor; Ambient Light Sensor Intel® Core™ i7 or Core i5 processor with Intel Turbo Boost Technology ATI FirePro M7820 graphics with 1 GB dedicated GDDR5 memory, NVIDIA Quadro FX 3800M or FX2800 graphics with 1 GB dedicated GDDR3 memory Industrial, business rugged construction features a full magnesium alloy chassis, magnesium/aluminum display enclosure, metal alloy hinges, gun metal finish; designed to meet the military standard Mil-Std-810G for vibration, dust, humidity, altitude, and high and low temperature operation* DisplayPort for external monitors, eSATA port for external storage, two USB 3.0 ports for faster transfer speeds to USB 3.0 peripherals and compatibility with USB 2.0 peripherals, two USB 2.0 ports Choice of 7200 rpm user-removable hard drive up to 500 GB with HP 3D DriveGuard protection, or 256 GB Solid State Drive Flexible wireless connectivity options:

Integrated HP un2420 EV-DO/HSPA Mobile Broadband Module provides worldwide Gobi mobile Internet technology with GPS Integrated Intel Centrino® Ultimate-N / Advanced-N 6000 Series 802.11 a/b/g/n wireless LAN module

Bluetooth® v2.1 Choice of standard 8-cell primary battery or HP Long Life battery, plus optional external batteries - HP UltraCapacity Battery, HP Extended Life Battery Touch-sensitive controls for HP QuickLook 3 (instant access to email, calendar, contacts and tasks), HP QuickWeb, wireless on/off, touchpad on/off, mute, volume down, volume up, and calculator Optional backlit keyboard Optional 2 MP Webcam with Business Card Reader Software Dual pointing devices (touchpad with scroll zone and gesture support; pointstick) Upgrade Bay for easy optical drive upgrade or optional second hard drive for RAID 1 Mirroring or RAID 0 Striping ExpressCard/54 slot, Media Card Reader Fully ISV certified for workstation reliability and graphics-intense applications HP Performance Advisor for optimal configuration, compatibility and performance HP Power Tuning Framework to conserve power, increase battery run-time, monitor power needs, report workforce power consumption Enhanced security features including integrated Smart Card Reader, HP ProtectTools, Computrace LoJack Pro ready, HP SpareKey, HP Disk Sanitizer, TPM 1.2 ;** HP Fingerprint Sensor New central management software for HP ProtectTools to manage the secutiry of multiple notebooks from a single point HP SkyRoom full version for professional quality visual collaboration built on HP Video and Image processing engines for hi-fi audio, hi-def video, and hi-performance 3D application sharing

* Testing was not intended to demonstrate fitness for DOD contracts requirements or for military use. Test results are not a guarantee of future performance under these test conditions. ** TPM module disabled where not permitted by law (for example, Russia and China).

DA - 13543 Europe, Middle East and Africa QuickSpecs — Version 5 — 5.26.2010

Page 3

Page 4

QuickSpecs

Standard Features

HP EliteBook 8740w Mobile Workstation

Processors

Operating System

Intel Quad-Core Processors

Intel Core i7-920XM Processor (2.00 GHz, 8 MB L3 cache) Up to 3.20 GHz with Intel Turbo Boost Technology

Intel Core i7-820QM Processor (1.73 GHz, 8 MB L3 cache) Up to 3.06 GHz with Intel Turbo Boost Technology

Intel Core i7-720QM Processor (1.60 GHz, 6 MB L3 cache) Up to 2.8 GHz with Intel Turbo Boost Technology

Intel Dual-Core Processors

Intel Core i7-620M Processor (2.66 GHz, 4 MB L3 cache) Up to 3.33 GHz with Intel Turbo Boost Technology

Intel Core i5-540M Processor (2.53 GHz, 3 MB L3 cache) Up to 3.06 GHz with Intel Turbo Boost Technology

Intel Core i5-520M Processor (2.4 GHz, 3 MB L3 cache) Up to 2.93 GHz with Intel Turbo Boost Technology

* Intel's numbering is not a measurement of higher performance.

NOTE:

Processor speed denotes maximum performance mode; processors will run at lower

speeds in battery optimization mode.

Preinstalled

Supported

Certified

* System may require upgraded and/or separately purchased hardware and/or a DVD drive to install the Windows 7 software and take full advantage of Windows 7 functionality. See:

http://www.microsoft.com/windows/windows-7/

Genuine Windows 7 Professional Edition 32 Genuine Windows 7 Professional Edition 64 Genuine Windows XP Professional available through downgrade rights from Windows 7 Professional Genuine Windows Vista Business 32 Genuine Windows Vista Home Basic 32 FreeDOS

Genuine Windows Vista Enterprise 32 Genuine Windows Vista Enterprise 64 Genuine Windows Vista Business 64 Genuine Windows XP Professional 64

SuSE Linux Enterprise Desktop 11

for details.

* *

*†

** **

Chipset

** Certain Windows Vista product features require advanced or additional hardware. See:

http://www.microsoft.com/windowsvista/getready/hardwarereqs.mspx http://www.microsoft.com/windowsvista/getready/capable.mspx

Upgrade Advisor can help you determine which features of Windows Vista will run on your computer. To download the tool, visit:

† Windows XP Professional is preinstalled on this system and includes end user rights and media for Windows 7 Professional. You may only use one version at a time. You must back up all data (files, photos, etc.) before uninstalling and installing operating systems to avoid loss of your data.

Mobile Intel QM57 Express Chipset

DA - 13543 Europe, Middle East and Africa QuickSpecs — Version 5 — 5.26.2010

http://www.windowsvista.com/upgradeadvisor

and

for details. Windows Vista

Page 4

Page 5

QuickSpecs

Standard Features

HP EliteBook 8740w Mobile Workstation

Intel Core i5 with vPro/Core i7 with vPro technology capable

Graphics

Intel Core i5 with vPro and Core i7 with vPro technology is a selectable feature that is available on units configured with an Intel Centrino® Ultimate-N/Advanced-N 6000 series WLAN module and a preinstalled Windows operating system. It provides advances in remote manageability, security, energy efficient performance, and wireless connectivity. Intel Active Management Technology (AMT) offers built-in manageability and proactive security for networked notebook PCs, even when they are powered off* or when the operating system is inoperable. It can help identify threats before they reach the network, isolate infected systems, and update PCs regardless of their power state.

*Requires a Windows operating system, network hardware and software, connection with a power source, and a direct (non-VPN) corporate network connection which is either cable or wireless LAN.

NOTE:

Some functionality of Intel Core i5 with vPro/Core i7 with vPro technology, such as Intel Active Management technology and Intel Virtualization technology, requires additional 3rd party software in order to run. Availability of future "virtual appliances" applications for Intel Core i5 with vPro/Core i7 with vPro technology is dependent on 3rd party software providers. Compatibility with future "virtual appliances" is yet to be determined.

ATI FirePro M7820 graphics with 1 GB dedicated GDDR5 video memory Microsoft DirectX 11 (Shader Model 4.1) and OpenGL 3.2 capable

NVIDIA Quadro FX 3800M graphics with 1 GB dedicated GDDR3 video memory NVIDIA Quadro FX 2800M graphics with 1 GB dedicated GDDR3 video memory Microsoft DirectX 10.1 (Shader Model 4.1) and OpenGL 3.1 capable

Display

Internal

External

43.2 cm (17.0-inch) diagonal LED-backlit WXGA+ anti-glare (1440 x 900 resolution)

43.2 cm (17.0-inch) diagonal LED-backlit WSXGA+ wide-viewing angle anti-glare (1680 x 1050 resolution)

43.2 cm (17.0-inch) diagonal LED-backlit WUXGA wide-viewing angle anti-glare (1920x1200 resolution) (optional HP DreamColor* available May 2010) Ambient Light Sensor Integrated lid switch Optional HP Privacy Filter

* HP EliteBook 8740w Mobile Workstations with DreamColor technology are not available with HP Mobile Broadband.

Up to 32-bit per pixel color depth

DisplayPort

at 60 Hz, and full HD (1920 x 1080) monitors, 24-bit color depth at 120 Hz

VGA

port supports resolutions up to 2048 x 1536 at 75 Hz, and lower

resolutions at up to 100 Hz

DVI-D

Docking Station (sold separately) supports resolutions up to 1600 x 1200 at both full and reduced blanking, and 1920 x 1200 at reduced blanking

NOTE:

resolution and color depth settings.

supports resolutions up to 2560 x 1600, 30-bit color depth

(single link) video signal available through DVI port in optional HP

Resolutions are dependent upon monitor capability, and

DA - 13543 Europe, Middle East and Africa QuickSpecs — Version 5 — 5.26.2010

Page 5

Page 6

QuickSpecs

Standard Features

HP EliteBook 8740w Mobile Workstation

Memory

Communications

Standard

Maximum

Dual-channel

* With some processors, memory bus runs at a maximum of 1066 MHz.

NOTE:

Due to the non-industry standard nature of some third-party memory modules, we recommend HP branded memory to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed. Full availability of 4 GB or more of memory requires a Windows 64-bit operating system or Linux. With Windows 32-bit operating systems, the amount of usable memory is dependent upon your configuration, so that above 3 GB all memory may not be available due to system resource requirements.

Integrated Intel Gigabit Ethernet (10/100/1000 NIC)

56K V.92 modem

* The term "10/100/1000" or "Gigabit" Ethernet indicates compliance with IEEE standard 802.3ab for Gigabit Ethernet, and does not connote actual operating speed of 1 Gb/s. For high-speed transmission, connection to a Gigabit Ethernet server and network infrastructure is required.

** Designed for downloads from 56K modem compliant sources. Maximum achievable download transmission rates currently do not reach 56 KB/s, and will vary with line conditions. Modem availability is subject to country regulatory approval.

DDR3 PC3-10600 SDRAM (1333 MHz) Two or four SODIMM slots supporting dual-channel memory 2048 MB and 4096 MB SODIMMs

NOTE:

Four memory slots only on models with quad-core processor.

Upgradeable to 16384 MB with Intel quad-core processor configuration with four memory slots – (4) 4096 MB SODIMMs. Maximum memory is 8192 MB with Intel dual-core processor configuration with two memory slots – (2) 4096 SODIMMs.

Maximized dual-channel performance requires SODIMMs of the same size and speed in both memory channels.

Wireless Devices

Support for a broad range of secure, integrated wireless LAN and wireless WAN options featuring support for the latest industry standards. Mobile Broadband (WWAN) requires a Windows operating system and is available in select countries as a standard, factory configurable feature or as an option to be added later. Integrated Bluetooth is also available (factory configurable only) and can be combined with any of the supported wireless LAN and wireless WAN options.

HP un2420 EVDO/HSPA Mobile Broadband Module*

All 802.11 integrated wireless LAN options

Intel Centrino UltimateN 6300 (3x3)

Integrated mobile broadband module with Gobi global mobile Internet technology that provides connectivity to both CDMA (EVDO) and UMTS (HSPA) networks. It also provides GPS functionality for various mapping applications and security applications such as Computrace LoJack Pro Premium for HP ProtectTools.

NOTE:

Separately purchased mobile network operator service is required.

Two 850/900/1575/1800/1900/2100 MHz antennas integrated in the top of the display panel support current and future WWAN technologies.

Wi-Fi Certified Cisco Compatible Extensions support Wired Equivalent Privacy (WEP) support up to 128-bit keys Wi-Fi Protected Access (WPA) and WPA2 support

802.1x authentication support, including EAP-TLS, EAP-TTLS, PEAPGTC, PEAP-MSCHAPv2, and LEAP Advanced Encryption Standard (AES) support Three antennas integrated in the display enclosure

Integrated support for 802.11a, b, g, and n 3 transmit, 3 receive antennas Up to 450 mbps data rate

DA - 13543 Europe, Middle East and Africa QuickSpecs — Version 5 — 5.26.2010

Page 6

Page 7

QuickSpecs

Standard Features

HP EliteBook 8740w Mobile Workstation

Keyboard

Intel Centrino Advanced-N 6200 (2x2)

HP Integrated Module with Bluetooth Wireless Technology

* HP EliteBook 8740w Mobile Workstations with DreamColor technology are not available with HP Mobile Broadband. ** In countries where 802.11n is not allowed, this capability is not enabled (802.11a/b/g only).

The HP spill-resistant keyboard is designed using a thin layer of Mylar film under the keyboard and a drain system that funnels fluid through a hole in the bottom of the notebook. This minimizes the risk of damage to sensitive components underneath. The 101/102-key compatible keyboard features an industry standard, full-pitch key layout with desktop keyboard features, such as the isolated inverted-T cursor control keys, editing keys, both left and right control and alt keys, and 12 function keys. U.S. and International key layouts are available. Includes a full numeric keypad, hotkeys for instant access to power conservation, brightness, and other features. It has 19.05 x

19.05 mm key pitch (center-to-center spacing) and 3.0 mm stroke.

HP DuraKeys is a clear coating applied over the notebook keyboard that helps protect the finish and the printed characters on the keys. HP DuraFinish helps protect the finish on the keyboard deck, graphics, and icons from normal wear and tear.

Integrated support for 802.11a, b, g, and n 2 transmit, 2 receive antennas Up to 300 mbps data rate

Bluetooth Specification v2.1 compliant Works with a wide range of Bluetooth devices

Touch-sensitive controls

Dual Pointing devices

Expansion card slots

Optional backlit keyboard available May 2010.

Touch-sensitive controls provide easy access to the following features: HP QuickLook 3, HP QuickWeb, wireless on/off, touchpad on/off, volume mute, volume down, volume up, and calculator button.

Touchpad with scroll zone and gesture support, three pick buttons Pointstick with three additional pointstick buttons

ExpressCard/54 slot

Integrated Smart Card Reader

Media Card Reader

* Memory Stick Duo Adapters are required and sold separately. Inserting a Memory Stick Duo Card directly into your notebook could damage the memory card and/or notebook.

Supports ExpressCard/54

Compatible with ISO 7816 compliant Smart Cards PC/SC interface support

Supports SD (Secure Digital), MMC (MultiMedia Card), Memory Stick, Memory Stick Pro, Memory Stick Duo*, xD-Picture card

DA - 13543 Europe, Middle East and Africa QuickSpecs — Version 5 — 5.26.2010

Page 7

Page 8

QuickSpecs

Standard Features

HP EliteBook 8740w Mobile Workstation

Internal Storage

Upgrade Bay

Interfaces

Hard Drives

NOTE:

These hard drives are customer removable and will withstand multiple insertion/removal

cycles. Up to 15 GB is reserved for the system recovery software.

HP 3D DriveGuard

(Windows only)

Solid State Drives

Fixed 12.7 mm SATA optical drive

Second hard drive

* For RAID configurations, both hard drive capacities must be equal.

ExpressCard/54 slot

Smart Card Reader

External monitor

Media Card Reader

1394a

Stereo microphone in

Stereo headphone/line out

Power connector

RJ-11/modem

RJ-45/Ethernet

USB 2.0

USB 3.0

eSATA

Docking connector

Secondary battery connector

250/320/500 GB 7200 rpm SMART SATA II

The hard drive is mounted directly to the notebook frame, reducing the transmission of shock to the hard drive. Uses three-axis digital motion detection with intelligent sensitivity to help protect the hard drive during normal use from shock and vibration. The digital accelerometer temporarily halts all data transfer and parks the hard drive when abrupt motion is detected.

256 GB Solid State Drive

Blu-ray R/RE DVD+/-RW SuperMulti DL Drive Blu-ray ROM DVD+/-RW SuperMulti DL LightScribe Drive DVD+/-RW SuperMulti DL LightScribe Drive DVD-ROM Drive

500 GB 7200 rpm SMART SATA II Hard Drive

One

Two – (1) DisplayPort, (1) VGA

One

Two

Two (for USB 2.0 and USB 3.0 peripherals)

One

DA - 13543 Europe, Middle East and Africa QuickSpecs — Version 5 — 5.26.2010

Page 8

Page 9

QuickSpecs

Standard Features

HP EliteBook 8740w Mobile Workstation

Audio/Visual

Software

High definition audio Integrated stereo speakers Integrated dual-microphone array Touch-sensitive controls for volume up, volume down, and mute Stereo headphone/line out Stereo microphone/line in

Optional 2 MP webcam with Business Card Reader software

Supports videoconferencing and still image capture Large image sensor for excellent color matching and good low light sensitivity Up to 30 frames/sec AutoMacro focus lens Video capture at VGA, 1.3 Mpixel, and 2 Mpixel resolutions 16-bit true color (camera sensors output YCrCb format among others)

HP SkyRoom full version for professional quality visual collaboration built on HP Video and Image processing engines for hi-fi audio, hi-def video, and hi-performance 3D application sharing

Preinstalled software with Windows operating system

Additional software available from the web

* 60 day trial period for McAfee Total Protection for Small Business software. Internet access required to receive updates. First update included. Subscription required for updates thereafter.

HP Recovery Manager (available with Windows 7 or Vista only) HP Support Assistant (available with Windows 7 or Vista only) HP ProtectTools Security Manager HP QuickLaunch Buttons Software HP QuickLook 3 HP QuickWeb HP Power Assistant HP Connection Manager HP Wireless Assistant HP SkyRoom Microsoft Office Professional 2007 60-day Convertible Trial McAfee Total Protection PDF Complete SE Roxio Creator Business 10 (select models) InterVideo WinDVD (select models) Synaptics Touchpad Driver HP Webcam Software WinZip 12

HP SoftPaq Download Manager HP Client Manager Software HP Client Management Solutions

DA - 13543 Europe, Middle East and Africa QuickSpecs — Version 5 — 5.26.2010

Page 9

Page 10

QuickSpecs

Standard Features

HP EliteBook 8740w Mobile Workstation

Planned Workstation ISV Certifications

MCAD

(Mechanical CAD/Architectural Engineering and Construction)

DCC

(Digital Content Creation)

GIS

(Geographic Information Systems)

Oil and Gas

AutoDesk AutoCAD AutoDesk Inventor AutoDesk Revit AutoDesk AliasStudio AutoDesk Map 3D AutoDesk Civil 3D Bentley InRoads XM Bentley Microstation Bentley Navigator CEI CoCreate OneSpace Dassault Systemes CATIA V5 ICEM Surf Intelligent Light MSC Software MSC.Patran MSC Software SimXpert PTC Pro/ENGINEER Wildfire SensAble Siemans PLMS NX Siemans PLMS NX I-deas Siemans PLMS Solid Edge Siemans PLMS TeamCenter Visualization Solidworks

Adobe Premiere Adobe After effects Adobe Encore Adobe Photoshop AutoDesk 3DS MAX/Combustion AutoDesk Maya Avid Xpress Pro Avid Media Composer SoftImage XSI

ESRI ArcGIS

Landmark R5000 Paradigm EPOS, GoCAD Schlumberger / GeoFrame Schlumberger Petrel SeismicMicro Technology

HP Performance Tuning Framework

HP Recovery Manager

DA - 13543 Europe, Middle East and Africa QuickSpecs — Version 5 — 5.26.2010

HP Performance Tuning Framework (PTF) enables optimal configuration of HP Mobile Workstations delivering stability and best performance. HP PTF will guide your system setup allowing a "custom" configuration that best matches the workstation to user requirements.

Models shipped with Windows 7 or Windows Vista include HP Recovery Manager. HP Recovery Manager enables fast recovery of the factory preinstalled image if the system becomes corrupted or if important system files are accidentally deleted. Up to 15 GB of the hard drive is reserved for the system recovery software.

Page 10

Page 11

QuickSpecs

Standard Features

HP EliteBook 8740w Mobile Workstation

Security

Standard Features

Optional Features

* TPM module disabled where use is restricted by law; for example, Russia and China. ** The Computrace agent is shipped turned off, and must be activated by customers when they purchase a subscription with terms ranging from one to five years. For more information on HP security solutions refer to:

HP ProtectTools Security Manager HP Fingerprint Sensor Integrated Smart Card Reader Enhanced Pre-Boot Security HP SpareKey One-Step Logon Setup Password DriveLock Password TPM 1.2 Embedded Security Chip TPM Enhanced DriveLock HP Disk Sanitizer Kensington Lock slot Support for Computrace** LoJack Pro for HP ProtectTools

HP Privacy Filter

Computrace** LoJack Pro Premium for HP ProtectTools with GPS Tracking

Narrows viewing area so that screen data is visible only to persons directly in front of the monitor.

Subscription based security solution providing the ability to track, initiate physical recovery, conduct asset management, and perform remote data delete by utilizing GPS technology. GPS functionality requires HP un2420 EV-DO/HSPA Mobile Broadband Module.

http://www.hp.com/go/security

HP ProtectTools Security Manager with Central Management

HP ProtectTools Security Manager is the security platform for business notebooks and desktops. The HP ProtectTools Security Manager is an extensible client security console that delivers enhanced security capabilities through add-on software modules. The following modules are available on the hard drive (also downloadable from the web) and can be configured in Software Setup:

Credential Manager for HP ProtectTools Device Access Manager for HP ProtectTools Drive Encryption for HP ProtectTools File Sanitizer for HP ProtectTools Privacy Manager for HP ProtectTools (Chat & Sign) Embedded Security for HP ProtectTools Computrace LoJack Pro for HP ProtectTools

HP ProtectTools is now centrally manageable with the capability to manage notebooks from a single point. On the HP EliteBook 8740w, Security is management ready out of the box, in partnership with Digital Persona. New features address requirements that customers expect from a centrally managed security solution such as user provisioning, credential reset, and credential revocation.

HP ProtectTools provides two separate management solutions, targeted at the enterprise and the SMB:

Digital Persona Pro AD: Designed for the enterprise customer. A fee-based solution that integrates with Active Directory and gives IT Managers the ability to provision users, create login policies based on passwords, biometrics or smartcards. Management features also include remote credential recovery in case the user forgets the password, loses the smartcard or cannot use the fingerprint reader for any reason. In addition, advanced

DA - 13543 Europe, Middle East and Africa QuickSpecs — Version 5 — 5.26.2010

Page 11

Page 12

QuickSpecs

Standard Features

auditing capabilities are also built in. Digital Persona Pro AD is available now. Digital Persona Pro Workgroup: Designed for the small business customer. Provides features similar to the Active Directory version, but for workgroups. Workgroup activation is built into HP ProtectTools, and activation of up to 5 seats is completely free.

HP EliteBook 8740w Mobile Workstation

Power Supply

Battery

Battery Life

External 200-watt Slim Smart AC adapter External 230-watt Slim Smart AC adapter (available only with Intel Core XM Processor, NVIDIA Quadro FX 3800M graphics, and HP DreamColor display option)

Power cord included is 1.8 meter (6-foot). Total length including external AC adapter is 3.66 meter (12 feet). HP Fast Charge

*HP Fast Charge recharges your battery up to 90% within 90 minutes when the system is off. HP Fast Charge does not apply to the HP Ultra-Capacity Battery.

Primary battery

Optional secondary battery

Primary battery only

Primary battery and optional HP Extended Life Battery

Primary battery and optional HP UltraCapacity Battery

NOTE:

Battery life will vary depending on the product model, configuration, loaded applications, features, use, wireless functionality and power management settings. The maximum capacity of the battery will naturally decrease with time and usage. See MobileMark07 battery benchmark

www.bapco.com/products/mobilemark2007

HP 8-cell 73 WHr Li-Ion Primary Battery

HP Long Life 8-cell 68 WHr Li-Ion Primary Battery

HP Extended Life Battery (8-cell 52 WHr)

HP Ultra-Capacity Battery (12-cell 95 WHr)

HP 8-cell 73 WHr Primary

Up to 3 hours and 30 minutes Up to 3 hours and 15 minutes

Up to 6 hours

Up to 8 hours

for additional details.

HP Long Life 8-cell 68 WHr Primary

System Standby Time

Power Conservation

DA - 13543 Europe, Middle East and Africa QuickSpecs — Version 5 — 5.26.2010

** This configuration not tested for battery life.

Up to 2 weeks

Supports enhanced Intel SpeedStep technology (allows Battery Optimized Mode, Maximum Performance Mode, or Automatic mode)

NVIDIA PowerMizer 7.0 technology

ATI PowerXpress technology

Hibernation

Standby

ACPI compliance

Page 12

Page 13

QuickSpecs

Standard Features

HP EliteBook 8740w Mobile Workstation

Docking and Stands

Service and Support

HP Docking Station HP Advanced Docking Station HP USB 2.0 Docking Station HP Essential USB 2.0 Port Replicator HP Dual Hinge Notebook Stand HP Display and Notebook Stand HP Adjustable Display Stand HP Adjustable Dual Display Stand

3 years carry-in; pick-up and return in some countries (upgrades available, sold separately) 1-year limited warranty on primary battery. On-site service and warranty upgrades are also available. HP Care Pack Services extend service contracts beyond the standard warranties. To choose the right level of service for your HP product, use the HP Care Pack Services Lookup Tool at:

http://www.hp.com/go/lookuptool

product is available at:

NOTE:

Certain restrictions and exclusions apply. Consult the HP Customer Support Center for details.

http://h20000.www2.hp.com/bizsupport/TechSupport/ProductRoot.jsp

http://www.hp.com/hps/carepack

. Additional HP Care Pack Services information by

DA - 13543 Europe, Middle East and Africa QuickSpecs — Version 5 — 5.26.2010

Page 13

Page 14

QuickSpecs

Options

HP EliteBook 8740w Mobile Workstation

Memory

Storage

Expansion Solutions

Communications

HP 2 GB (DDR3 1333 MHz) SODIMM

HP 4 GB (DDR3 1333 MHz) SODIMM

HP Upgrade Bay SATA DVD+/-RW SuperMulti DL LightScribe Drive

HP External USB Drive CD/DVD R/RW

HP Upgrade Bay SATA 500 GB 7200 rpm Hard Drive

HP Primary SATA 500 GB 7200 rpm Hard Drive

HP Primary SATA 320 GB 7200 rpm Hard Drive

HP Docking Station

HP Advanced Workstation Docking Station

HP Dual Hinge Notebook Stand

HP Display and Notebook Stand

HP Adjustable Display Stand

HP Adjustable Dual Display Stand

HP un2420 EVDO/HSPA Mobile Broadband Module

AT912AA

AT913AA

AK869AA

FS943AA

AU097AA

AU098AA

AS282AA

VB043AA

NZ223AA

AW661AA

AW662AA

AW663AA

AW664AA

WD301AA

Power

Carrying Cases

HP 230W Smart Adapter

90W Smart AC/Auto/Air Combo Adapter

HP Smart 65W Travel AC Adapter

90W Smart AC Adapter

HP 8500/8700 Series 8-Cell Primary Battery

HP Extended Life Battery

HP Deluxe Roller Case

HP Basic Backpack

HP Basic Messenger

HP Basic Carrying Case

HP Professional Series Carrying Case

HP Professional Series Backpack

HP Executive Learther Case

HP Professional Series Designer Tote

HP Professional Series Slip Case

HP Elite Series Designer Tote

HP Elite Leather Messenger

HP Elite Slim Top Load Case

HP Professional Slim Top Load Case

AT895AA

AJ652AA

AU155AA

ED495AA

KU533AA

AJ359AA

GD405AA

AM863AA

AP355AA

AJ078AA

AT886AA

AT887AA

RR316AA

AT889AA

AT890AA

AT891AA

AX676AA

AX680AA

AY530AA

Security

HP/Kensington MicroSaver Security Lock

HP ExpressCard Smart Card Reader

HP Compaq Notebook Cable Lock

DA - 13543 Europe, Middle East and Africa QuickSpecs — Version 5 — 5.26.2010

PC766A

AJ451AA

AY475AA

Page 14

Page 15

QuickSpecs

Options

HP EliteBook 8740w Mobile Workstation

Input/Output Devices

HP USB Optical Travel Mouse

HP Mobile Audio Speakers

HP Mobile Bluetooth Presenter Mouse

HP Notebook Companion Projector

HP DreamColor Advanced Profiling Solution

RH304AA

FS944AA

GK872AA

AX325AA

KZ300AA

DA - 13543 Europe, Middle East and Africa QuickSpecs — Version 5 — 5.26.2010

Page 15

Page 16

QuickSpecs

Memory

HP EliteBook 8740w Mobile Workstation

DDR3 PC3-10600 SDRAM (1333 MHz) Two or four SODIMM slots supporting dual-channel memory SODIMM sizes supported: 2048 MB and 4096 MB

NOTE:

Four memory slots only on models with quad-core processor.

Standard Memory

Optional Memory Upgrades

2048 MB (2048 MB x 1) 4096 MB (4096 MB x 1) 4096 MB (2048 MB x 2) 8192 MB (4096 MB x 2) 8192 MB (2048 MB x 4) 12288 MB (4096 MB x 2 + 2048 MB x 2) 16384 MB (4096 MB x 4)

Support for up to 16384 MB** of memory with the installation of optional DDR3 SDRAM memory kits. All memory slots are user-accessible. Please refer to the Hardware and Software Guide for installation procedures. Maximized dual-channel performance requires SODIMMs of the same size and speed in both memory channels.

Up to

2048 MB 2048 MB 4096 MB 4096 MB 4096 MB 2048 MB 8192 MB 4096 MB

8192 MB 12288 MB 16384 MB

** **

Slot 1 Slot 2 Slot 3 Slot 4

2048 MB 2048 MB 2048 MB 2048 MB 4096 MB 2048 MB 4096 MB 2048 MB 4096 MB 4096 MB 4096 MB 4096 MB

* With some processors, memory bus runs at a maximum of 1066 MHz. ** Requires quad-core processor configuration with four memory slots.

Channel A Channel B

Empty

Empty 2048 MB 4096 MB

Memory Upgrades

NOTE:

This chart does not represent all possible memory configurations. Due to the nonindustry standard nature of some third-party memory modules, we strongly recommend using only HP- branded memory modules to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed. Full availability of 4 GB or more of memory requires a Windows 64-bit operating system or Linux. With Windows 32-bit operating systems, the amount of usable memory is dependent upon your configuration, so that above 3 GB all memory may not be available due to system resource requirements.

HP 2 GB (DDR3 1333 MHz) SODIMM

HP 4 GB (DDR3 1333 MHz) SODIMM

AT912AA

AT913AA

DA - 13543 Europe, Middle East and Africa QuickSpecs — Version 5 — 5.26.2010

Page 16

Page 17

QuickSpecs

Storage

Upgrade Bay Drive Support

HP EliteBook 8740w Mobile Workstation

Blu-ray R/RE DVD+/-RW SuperMulti DL Drive

Blu-ray ROM DVD+/-RW SuperMulti DL LightScribe Drive

DVD+/-RW SuperMulti DL LightScribe Drive

DVD-ROM Drive

500 GB 7200 rpm SMART SATA II Hard Drive

Internal Storage Device

Hard Drives

500 GB 7200 rpm SMART SATA II Hard Drive

320 GB 7200 rpm SMART SATA II Hard Drive

250 GB 7200 rpm SMART SATA II Hard Drive

Solid State Drive

256 GB Solid State Drive

Quantity Supported

One

Quantity Supported

One

Drive Bay

Upgrade Bay

Drive Bay

Dedicated hard drive bay

DA - 13543 Europe, Middle East and Africa QuickSpecs — Version 5 — 5.26.2010

Page 17

Page 18

QuickSpecs

Technical Specifications

HP EliteBook 8740w Mobile Workstation

System Unit

Dimensions

Weight

NOTE:

varies by configuration and components. Weight includes hard drive, optical drive, and wireless.

Stand-Alone Power Requirements

Power)

Temperature

Relative Humidity

Shock

Random Vibration

Altitude

(unpressurized)

Industry Standard Certifications

* Configurations of the HP EliteBook 8740w that are ENERGY STAR qualified are identified as

(HxWxD)

Height varies depending upon where on the notebook the measurement is made. Weight

(AC

36.5 mm (at front) x 397.5 mm x 285.5 mm

1.4 in (at front) x 15.6 in x 11.2 in

Starting at 3.57 kg (7.8 lb)

Nominal Operating Voltage

Average Operating Power

Max Operating Power

Operating

Non-operating

Operating

Non-operating

Operating

Non-operating

Operating

Non-operating

Operating

Non-operating

CSA

FCC Compliance

ENERGY STAR®

EPEAT

ICES

Australia / NZ A-Tick Compliance

CCC

Japan VCCI Compliance

KCC

BSMI

CE Marking Compliance

BNCI or BELUS

CIT

GOST

Saudi Arabian Compliance (ICCP)

SABS

UKRSERTCOMPUTER

18.5 V

35.5 W

< 90 W or < 120 W or < 150 W

0° to 35° C (32° to 95° F) (not writing optical)

5° to 35° C (41° to 95° F) (writing optical)

–20° to 60° C (–4° to 140° F)

10% to 90%, non-condensing

5% to 95%, 38.7° C (101.6° F) maximum wet bulb temperature

125 G, 2 ms, half-sine

200 G, 2 ms, half-sine

0.75 grms

1.50 grms

–15.24 to 3,048 m (–50 to 10,000 ft)

–15.24 to 12,192 m (–50 to 40,000 ft)

Yes

Select models

Registered TBD in United States

Yes

DA - 13543 Europe, Middle East and Africa QuickSpecs — Version 5 — 5.26.2010

Page 18

Page 19

QuickSpecs

Technical Specifications

HP EliteBook 8740w Mobile Workstation

HP 230W Slim Smart AC Adapter

HP EliteBook 8740w ENERGY STAR on HP websites and on

** EPEAT TBD Registered in U.S. EPEAT registration varies by country. See registration status by country.

NOTE:

For accessibility information on HP products, please visit:

Dimensions

Weight

Input

Output

Connector

Environmental Design

EMI and Safety Certifications

20.0 x 10.0 x 4.0 cm (7.87 x 3.94 x 1.57 in)

1300 g (2.87 lb)

100 to 240 VAC

Input Efficiency

Input frequency range

Input AC current

Output power

DC output

Hold-up time

Output current limit

3 pin/grounded, mates with interchangeable cords

Operating temperature

Non-operating (storage) temperature

Altitude

Humidity

Storage Humidity

CE Mark- full compliance with LVD and EMC directives; Worldwide safety standards- IEC950, EN60950, UL1950, Class 1, SELV; Agency approvals- C-UL-US, NORDICS, DENAN, EN55022 Class B, FCC Class B, CISPR22 Class B, CCIB, NOM-1 NYCE; MTBF- over 200,000 hours at 25°C ambient condition.

87% min at 115 VAC

47 to 63 Hz

3.5 A at 90 VAC, 1.75 A at 180 VAC

230W

19.5V

5 msec at 115 VAC input

<18A, Over voltage protection- 29V max automatic shutdown

0° to 35° C (32° to 104° F)

-20° to 65° C (-4° to 149° F)

0 to 3,048 m (0 to 10,000 ft)

20% to 80%

10% to 90%

www.energystar.gov

http://www.hp.com/accessibility

www.epeat.net

for

HP 200W Slim Smart AC Adapter

Dimensions

Weight

Input

Output

Connector

Environmental Design

DA - 13543 Europe, Middle East and Africa QuickSpecs — Version 5 — 5.26.2010

17.0 x 8.5 x 3.5 cm (6.69 x 3.35 x 1.38 in)

920 g (2.03 lb)

100 to 240 VAC

Input Efficiency

Input frequency range

Input AC current

Output power

DC output

Hold-up time

Output current limit

3 pin/grounded, mates with interchangeable cords

Operating temperature

Non-operating (storage) temperature

Altitude

Humidity

87% min at 115 VAC

47 to 63 Hz

2.9 A at 90 VAC, 1.45 A at 180 VAC

200W

19.5V

5 msec at 115 VAC input

<16A, Over voltage protection- 29V max automatic shutdown

0° to 35° C (32° to 104° F)

-20° to 65° C (-4° to 149° F)

0 to 3,048 m (0 to 10,000 ft)

20% to 80%

Page 19

Page 20

QuickSpecs

Technical Specifications

HP EliteBook 8740w Mobile Workstation

Displays

43.2 cm (17.0-inch) WXGA+ anti-glare

EMI and Safety Certifications

Active Area

Diagonal Size

Surface Treatment

Contrast Ratio

Refresh Rate

Brightness

Pixel Resolution

Backlight

PPI

Viewing Angle

(W x H)

Storage Humidity

36.7 x 22.9 cm (14.5 x 9.0 in)

43.2 cm (17.0 in)

Anti-glare

400:1 typical

60 Hz

200 nit typical

Pitch

Format

Configuration

LED

100

±60° Horizontal, ±50° Vertical (minimum) or ±70° Horizontal, ±60° Vertical (typical)

10% to 90%

0.255 mm

1440 x 900

RGB Stripe

43.2 cm (17.0-inch) WSXGA+ wide-viewing angle, anti-glare

Active Area

Diagonal Size

Surface Treatment

Contrast Ratio

Refresh Rate

Brightness

Pixel Resolution

Backlight

PPI

Viewing Angle

(W x H)

36.7 x 22.9 cm (14.5 x 9.0 in)

43.2 cm (17.0 in)

Anti-glare

400:1 (typical)

60 Hz

200 nit typical

Pitch

Format

Configuration

LED

117

±60° Horizontal, ±50° Vertical (minimum) or ±70° Horizontal, ±60° Vertical (typical)

0.21825 mm

1680 x 1050

RGB Stripe

DA - 13543 Europe, Middle East and Africa QuickSpecs — Version 5 — 5.26.2010

Page 20

Page 21

QuickSpecs

Technical Specifications

HP EliteBook 8740w Mobile Workstation

43.2 cm (17.0-inch) WUXGA wide-viewing angle, anti-glare

Internal Storage

500 GB 7200 rpm SATA Hard Drive

Active Area

Diagonal Size

Surface Treatment

Contrast Ratio

Refresh Rate

Brightness

Pixel Resolution

Backlight

PPI

Viewing Angle

Drive Weight

Capacity

Height

Width

Interface

Transfer Rate

Seek Time

(typical reads, including settling)

Rotational Speed

Logical Blocks

Operating Temperature

Features

(W x H)

36.7 x 22.9 cm (14.5 x 9.0 in)

43.2 cm (17.0 in)

Anti-glare

400:1 typical

60 Hz

200 nit typical

Pitch

Format

Configuration

LED

133

±65° Horizontal, ±55° Vertical (typical)

115g (0.25 lbs)

500 GB

9.5 mm (0.37 in)

70 mm (2.75 in)

ATA-8, SATA 2.6, 3.0 Gb/s, NCQ

Synchronous

(maximum)

Single Track

Average

Maximum

7200 rpm

976,773,168

0° to 60° C (32° to 140° F) [case temp]

ATA Security

0.191 mm

1920 x 1200

RGB Stripe

150 MB/s (Drive Capability)

1.5ms

11ms

22ms

320 GB 7200 rpm SATA Hard Drive

DA - 13543 Europe, Middle East and Africa QuickSpecs — Version 5 — 5.26.2010

Drive Weight

Capacity

Height

Width

Interface

Transfer Rate

Seek Time

(typical reads, including settling)

Rotational Speed

Logical Blocks

Operating Temperature

Features

115g (0.25 lbs)

250 GB

9.5 mm (0.37 in)

70 mm (2.75 in)

ATA-8, SATA 2.6, 3.0 Gb/s, NCQ

Synchronous

(maximum)

Single Track

Average

Maximum

7200 rpm

625,142,448

0° to 60° C (32° to 140° F) [case temp]

ATA Security

150 MB/s (Drive Capability)

1.5ms

11ms

22ms

Page 21

Page 22

QuickSpecs

Technical Specifications

HP EliteBook 8740w Mobile Workstation

250 GB 7200 rpm SATA Hard Drive

256 GB

2.5-Inch SATA Solid State Drive

Drive Weight

Capacity

Height

Width

Interface

Transfer Rate

Seek Time

(typical reads, including settling)

Rotational Speed

Logical Blocks

Operating Temperature

Features

Weight

Capacity

Height

Width

Interface

Performance

Logical Blocks

Operating Temperature

Features

115g (0.25 lbs)

250 GB

9.5 mm (0.37 in)

70 mm (2.75 in)

ATA-8, SATA 2.6, 3.0 Gb/s, NCQ

Synchronous

(maximum)

Single Track

Average

Maximum

7200 rpm

488,397,168

0° to 60° C (32° to 140° F) [case temp]

ATA Security

80.1 Grams

256 GB

9.5 mm (0.37 in)

70 mm (2.75 in)

SATA

Maximum Sequential Read

220 MB/s 200 MB/s

500,118,192

0° to 70°C (32° to 158°F) [case temp]

ATA Security; ATA-7;SATA 2.6; DIPM

100 MB/s (Drive Capability)

1.5 ms

11 ms

22 ms

Maximum Sequential Write

Optical Drives

DVD-ROM Drive

Access Times

Max Data Transfer Rate

Transfer Mode

Interface

Supported Media

Max Media Capacity

(read)

Transport

(read)

(write)

Random

24X CD-ROM

8X-DVD

UDMA Mode 5

Gen 1 SATA

CD-DA, CD+(E)G, CD-MIDI, CD-TEXT, CD-ROM, CD-ROM XA, MIXED MODE CD, CD-I, CD-I Bridge (Photo-CD, Video CD), Multisession CD (Photo-CD, CD-EXTRA, Portfolio, CD-R, CD-RW), CD-R, CD-RW, DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD-R, DVD-RW, DVD+R, DVD+RW, DVD-RAM

None

8.5GB

Tray Loading

< 140 ms CD (typical)

< 160 ms DVD (typical)

Up to 3,600 KB/s

Up to 10,800 KB/s

DA - 13543 Europe, Middle East and Africa QuickSpecs — Version 5 — 5.26.2010

Page 22

Page 23

QuickSpecs

Technical Specifications

HP EliteBook 8740w Mobile Workstation

DVD+/-RW SuperMulti DL LightScribe Drive

Access Times

Max Data Transfer Rate

Transfer Mode

Interface

Supported Media

Max Media Capacity

(read)

Max Media Capacity

(write)

Transport

(read)

(write)

Random

24X CD-ROM

8X DVD

24X CD-R

16X CD-RW

8X DVD+R

8X DVD+RW

8X DVD-R

6X DVD-RW

4X - DVD+R Dual Layer

4X - DVD-R Dual Layer

5X DVD-RAM

UDMA Mode 5

Gen 1 SATA

CD-R, CD-RW, DVD+R, DVD+RW, DVD-R, DVD-RW, DVD-RAM, LightScribe

8.5 GB

Tray Loading

< 150ms CD (typical)

< 160 ms DVD (typical)

Up to 3,600 KB/s

Up to 10,800 KB/s

Up to 3,600 KB/s

Up to 2,400 KB/s

Up to 10,800 KB/s

Up to 8100KB/s

Up to 5,400 KB/s

Up to 6,750 KB/s

Blu-ray R/RE DVD+/RW SuperMulti DL Drive

Access Times

Max Data Transfer Rate

Transfer Mode

Interface

Random

24X CD-ROM

8X DVD-ROM

24X CD-R

16X CD-RW

8X DVD+R

6X DVD+RW

8X DVD-R

6X DVD-RW

4X DVD+R Dual Layer

4X DVD-R Dual Layer

5X DVD-RAM

2X BD-ROM

2X BD-R

2X BD-RE

UDMA Mode 5

Gen 1 SATA

<180 ms CD-ROM (typical)

<180 ms DVD-ROM (typical)

<230 ms BD-ROM (typical)

Up to 3,600 KB/s

Up to 10,800 KB/s

Up to 3,600 KB/s

Up to 2,400 KB/s

Up to 10,800 KB/s

Up to 8,100 KB/s

Up to 10,800 KB/s

Up to 8,100 KB/s

Up to 5,400 KB/s

Up to 6,750 KB/s

Up to 9,000 KB/s

DA - 13543 Europe, Middle East and Africa QuickSpecs — Version 5 — 5.26.2010

Page 23

Page 24

QuickSpecs

Technical Specifications

HP EliteBook 8740w Mobile Workstation

Blu-ray ROM DVD+/-RW SuperMulti DL LightScribe Drive

Supported Media

Max Media Capacity

(read)

Max Media Capacity

(write)

Transport

Access Times

Max Data Transfer Rate

Transfer Mode

Interface

Supported Media

Max Media Capacity

(read)

Max Media Capacity

(write)

Transport

(read)

(write)

(read)

(write)

CD-R, CD-RW, DVD+R, DVD+R(9), DVD+RW, DVD-R, DVD-R(9), DVD-RW, DVD-RAM, BD-R, BD-RE

50.0 GB

Tray Loading

Random

24X CD-ROM

8X DVD-ROM

16X CD-R

10X CD-RW

8X DVD+R

8X DVD+RW

8X DVD-R

6X DVD-RW

4X - DVD+R Dual Layer

4X - DVD-R Dual Layer

5X DVD-RAM

4X BD-ROM

UDMA Mode 5

Gen 1 SATA

CD-R, CD-RW, DVD+R, DVD+R(9), DVD+RW, DVD-R, DVD-R(9), DVD-RW, DVD-RAM, LightScribe

50.0 GB

8.5GB

Tray Loading

<190 ms CD-ROM (typical)

< 190ms DVD-ROM (typical)

<230 ms BD-ROM (typical)

Up to 3600KB/s

Up to 10800 KB/s

Up to 1,200KB/s

Up to 1500 KB/s

Up to 10800 KB/s

Up to 10,800KB/s

Up to 10800 KB/s

Up to 8,100 KB/s

Up to 5400 KB/s

Up to 6750 KB/s

Up to 18,000KB/s

Security

DA - 13543 Europe, Middle East and Africa QuickSpecs — Version 5 — 5.26.2010

Page 24

Page 25

QuickSpecs

Technical Specifications

HP EliteBook 8740w Mobile Workstation

HP Fingerprint Sensor

Audio

Hardware

Mobile Voltage Operation

Operating Temperature

Current Consumption @ 3.3V

High-Rate Image Capture

ESD Resistance

Detection Matrix

Implementation

Touch-Sensitive Volume Controls

Full Duplex

Microphone In

Headphone/Line Out

Integrated Microphone

3.0V-3.6V Single Supply

0° - 70°C (32° - 158°F)

Less than 70 mA peak imaging and scrolling Less than 25 mA hardware finger detection Advanced Power Management

Up to 240 image frames /sec

IEC 61000-4-2 Level 4 (±15KV)

192 x 16 Pixels

9.7 mm x 0.81 mm 500 ppi High-Resolution Images

IDT 92HD75B High Definition CODEC

Volume up, volume down, and mute

Yes

Stereo

Yes, dual-microphone array when equipped with optional webcam

Audio Output Quality

Integrated Stereo Speakers

Communications

Frequency Response

Signal to Noise Ratio

Total Harmonic Distortion

Noise Floor

Play/Record Sampling Rate

(s)

DAC

ADC

Power Rating

Impedance

20 Hz - 20 kHz

>85 dB

0.01%

-110 dB

8 kHz - 48kHz

16, 20 or 24-bit

16 or 20-bit

2 Watts

4 Ohms

DA - 13543 Europe, Middle East and Africa QuickSpecs — Version 5 — 5.26.2010

Page 25

Page 26

QuickSpecs

Technical Specifications

HP EliteBook 8740w Mobile Workstation

Integrated Intel Gigabit Network Connection

(10/100/1000 NIC)

Ethernet Features

Power Management

Performance Features

Manageability

Interface

NIC Device Driver Name

10 Mbit/s operation (10BASE-T; IEEE 802.3i; IEEE 802.3 clauses 13-

14) 100 Mbit/s operation (100BASE-TX; IEEE 802.3u; IEEE 802.3 clauses 21-30) 1000 Mbit/s operation (1000BASE-T; IEEE 802.3z and 802.3ab; IEEE

802.3 clauses 34-42) Auto-Negotiation (Automatic Speed Selection) Full Duplex Operation at all Speeds, Half Duplex operation at 10 and 100 Mbit/s IEEE 802.1p QoS (Quality of Service) Support IEEE 802.3x Flow Control (IEEE 802.3 clauses 31-32; configurable)

ACPI compliant -- multiple power modes Situation-sensitive features reduce power consumption

TCP/IP/UDP Checksum Offload (configurable)

Wake-on-LAN from standby and hibernation (Magic Packet and Microsoft Wake-Up Frame); Wake-on-LAN from off (Magic Packet only) PXE 2.1 Remote Boot Statistics Gathering (SNMP MIB II, Ethernet-like MIB, Ethernet MIB (802.3x, clause 30)) Comprehensive diagnostic and configuration software suite Intel Advanced Management Technology 6.0 (iAMT)

PCI Express x1 based, SMBUS dedicated connection with Intel® 5 Series Chipset

Intel 82577 Gigabit Network Connection

V.92 56K Data/Fax Modem

Form Factor

Power Management Support

Approvals/ Certifications

Data Mode Capabilities

MDC 1.5 Daughtercard

APM Revision 1.2, ACPI

UL, CSA, NEMKO, CCIB, Industry Canada, FCC Part 68, CTR21, FCC Part 15 Class B, Canadian ICES-003 Class B, C.I.S.P.R.22, Australian ACA, CE Mark, Other Countries

V.92 data

V.8bis

V.80

V44, V.42bis, MNP5 (Compression)

V.42 (LAPM, MNP2-4) (Error Correction)

Optional symbol rates

2800, 3429 Asymmetric Symbol rates

Synchronous primary channel data signaling rates

3600, 31200 Automatic rate re-negotiation V.34 V.32bis V.32 V.23 V.22bis V.22 V.21 Bell 212A Bell 103J

DA - 13543 Europe, Middle East and Africa QuickSpecs — Version 5 — 5.26.2010

Page 26

Page 27

QuickSpecs

Technical Specifications

HP EliteBook 8740w Mobile Workstation

HP un2420 EV-DO/HSPA Mobile Broadband Module

Fax Mode Capabilities

Command Set

Technology/Operating Bands

Wireless Protocol Standards

Wireless Parametric Standards

Maximum Data Rates

GPS

GPS Bands

Maximum Output Power

Maximum Power Consumption

Power Consumption, Sleep Mode

Power Management

Antenna Type

Form Factor

Weight

Dimensions

Width x Thickness)

Voltage, Operating

Temperature, Operating

TIA/EIA/IS-98-D)

(Length x

(from

TIA/EIA-578-B (Class 1) T.30, T.4 (Group 3) V.17 V.29 V.27ter V.21 Channel 2

V.250 (Partial) TIA-602 Identification: +GMI, +GMM, +GMR Port control: +IPR, +ICF, +IFC, +ILRR Modulation: +MS, +MR, +MA Error control: +ES, +ER, +EB, +ESR, +ETBM Data compression: +DS, +DR V.251

GSM/GPRS/EDGE: 850MHz(Cell), 900MHz(EGSM), 1800MHz(DCS), 1900MHz (PCS) UMTS/WCDMA with receive diversity: 2100MHz (UTRA FDD Band I), 1900MHz (UTRA FDD Band II), 900Mhz (UTRA FDD Band VIII), 850MHz (UTRA FDD Band V) 1xEVDO/1xRTT with receive diversity: 850MHz (Band Class0-Cell), 1900MHz (Band Class1-PCS)

GSM/GPRS/EDGE: Class B, Multi-slot operation, coding schemes CS1

- CS4 and MSC1 - MSC9. UMTS/WCDMA: Release 99 and Release 6 CDMA: 1xEVDO Release 0 and Release A, IS-95A, IS-95B, IS-2000

Meets or exceeds TIA/EIA IS-98-D

UMTS (HSPA) - 7.2 Mbps (Download ), 2.0Mbps (Upload) CDMA (EVDO Release A) - 3.1 Mbps (Download), 1.8Mbps (Upload)

Standalone GPS enabled

L1 - 1575.42 MHz

GSM/GPRS/EDGE: 32dBm (+/-1) WCDMA: 24dBm (+/-1) CDMA: 24dBm (+/-1)

2500mA (peak); 1000mA (average)

5 mA

USB selective suspend Integrated notebook wireless button

Dual high efficiency 5 band antennae with spatial diversity, mounted in the display enclosure

PCI-Express MiniCard, USB 2.0 interface

11.5 g

51 x 30 x 5 mm (2.01 x 1.18 x 0.18 in)

3.3v +/- 10%

-30° to 60° C (-22° to 140° F) (full RF performance)

-30° to 75° C (-22° to 167° F) (reduced RF performance)

DA - 13543 Europe, Middle East and Africa QuickSpecs — Version 5 — 5.26.2010

Page 27

Page 28

QuickSpecs

Technical Specifications

HP EliteBook 8740w Mobile Workstation

Intel Centrino UltimateN 6300

Temperature, Nonoperating, 96 hours

(from MIL-STD 202 Method 108)

Humidity, Nonoperating

Configuration Utilities

LED Activity

Wireless LAN Standards

Interoperability

Frequency Band

Antenna Structure

Data Rates

Modulation

Security

-40° to 85° C (-40° to 185° F)

85% relative humidity for 48 hours @ 85° C (185° F) (non-condensing)

HP Connection Manager

LED Off - Radio Off; Solid LED On - Radio On

IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11n

* In countries where 802.11n is not allowed, this capability is not enabled.

Wi-Fi certified (802.11bgn only) Cisco Compatible Extensions Program compliant (802.11bgn only) with Microsoft Windows Vista and XP (details at:

http://www.hp.com/go/notebooks/WLAN

2.4 GHz and 5GHz

3 transmit; 3 receive (3x3)

802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b: 1, 2, 5.5, 11 Mbps

802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n: many possible data rates, ranging from 6 Mbps to 450 Mbps, depending on the combination of Bandwidth, Modulation Coding Scheme, and Guard Interval used, as defined in IEEE 802.11n specification

Direct Sequence Spread Spectrum DBPSK, DQPSK, CCK, OFDM, BPSK, QPSK, 16-QAM, 64-QAM

Authentication: WPA and WPA2, 802.1x (EAP_TLS, TTLS, PEAP, LEAP, EAP-FAST)

)

Authentication Protocols: PAP, CHAP, TLS, GTC, MS-CHAP, MSCHAPv2

Encryption: 64 and 128-bit WEP, AES-CCMP, CKIP, TKIP

Support for Cisco Security Features (proven compatibility with Cisco Aironet infrastructure products through the Cisco Compatible Extensions Program Version 4) with Microsoft Windows Vista and XP only.

Sub-channels

Media Access Protocol

Network Architecture Models

Roaming

Output Power

and OFDM)

DA - 13543 Europe, Middle East and Africa QuickSpecs — Version 5 — 5.26.2010

(for CCK

Multinational support with frequency bands and channels compliant to local regulations.

CSMA/CA (Collision Avoidance) with ACK

Ad-hoc (Peer to Peer) Infrastructure (Access Point Required)

IEEE 802.11 compliant roaming between Access Points

17 dBm max

Page 28

Page 29

QuickSpecs

Technical Specifications

HP EliteBook 8740w Mobile Workstation

Power Consumption

Power Management

Receiver Sensitivity454 Mbps: -76 dBm, 6 Mbps: -92 dBm

Antenna Connections

Form Factor

Weight

Dimensions

Operating Voltage

Temperature

Humidity

Altitude

LED Activity

Check latest software/driver release for updates on supported security features.

1. Maximum output power may vary by country according to local regulations.

2. In Power Save Polling mode and on battery power.

3. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CCK modulation)

4. and a packet error rate of 10% for 802.11a/g (OFDM modulation). WLAN supplier's client utility is required for Cisco Compatible Extensions support with

5. Microsoft Windows XP. WLAN may also be compatible with certain third-party software supplicants. WLAN supplier IHV extensions required for Cisco Compatible Extensions support for Microsoft Windows Vista.

Transmit: 2.4 Watts (max, with three spatial streams) Receive: 1.4 Watts (max with three spatial streams) Idle mode3: 35 mW (average) Radio off: 20 mW (max)

ACPI compliant power management

802.11 compliant power saving mode

3 U.FL type connectors, 50 ohm nominal impedance

PCI-Express Half-MiniCard

3.4 g (0.0075 lb)

3.1 x 26.8 x 30.0 mm (0.12 x 1.06 x 1.18 in)

3.3V +/- 9%

Operating Non-operating

LED Off - Radio OFF; Solid LED On - Radio ON

0° to 80° C (32° to 176° F)

-40° to 80° C (-40° to 176° F)

10% to 90% (non-condensing) 5% to 90% (non-condensing)

3,048 m (0 to 10,000 ft) 15,240 m (0 to 50,000 ft)

Intel Centrino Advanced-N 6200

Wireless LAN Standards

Interoperability

Frequency Band

Antenna Structure

Data Rates

Modulation

Security

IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11n

* In countries where 802.11n is not allowed, this capability is not enabled.

Wi-Fi certified Cisco Compatible Extensions Program compliant with Microsoft Windows Vista and XP (details at:

http://www.hp.com/go/notebooks/WLAN

2.4 GHz and 5GHz

2 transmit; 2 receive (2x2)

802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b: 1, 2, 5.5, 11 Mbps

802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n: 66 possible data rates, ranging from 6 Mbps to 300 Mbps, depending on the combination of Bandwidth, Modulation Coding Scheme, and Guard Interval used, as defined in IEEE 802.11n specification

Direct Sequence Spread Spectrum DBPSK, DQPSK, CCK, OFDM, BPSK, QPSK, 16-QAM, 64-QAM

Authentication: WPA and WPA2, 802.1x (EAP_TLS, TTLS, PEAP, LEAP, EAP-FAST)

)

DA - 13543 Europe, Middle East and Africa QuickSpecs — Version 5 — 5.26.2010

Page 29

Page 30

QuickSpecs

Technical Specifications

Sub-channels

Media Access Protocol

Network Architecture Models

Roaming

Output Power

and OFDM)

Power Consumption

Power Management

Receiver Sensitivity454 Mbps: -76 dBm, 6 Mbps: -92 dBm

Antenna Connections

Form Factor

Weight

Dimensions

Operating Voltage

Temperature

Humidity

Altitude

LED Activity

Check latest software/driver release for updates on supported security features.

1. Maximum output power may vary by country according to local regulations.

2. In Power Save Polling mode and on battery power.

3. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CCK modulation)

4. and a packet error rate of 10% for 802.11a/g (OFDM modulation). WLAN supplier's client utility is required for Cisco Compatible Extensions support with

(for CCK

HP EliteBook 8740w Mobile Workstation

Authentication Protocols: PAP, CHAP, TLS, GTC, MS-CHAP, MSCHAPv2

Encryption: 64 and 128-bit WEP, AES-CCMP, CKIP, TKIP

Multinational support with frequency bands and channels compliant to local regulations.

CSMA/CA (Collision Avoidance) with ACK

Ad-hoc (Peer to Peer) Infrastructure (Access Point Required)

IEEE 802.11 compliant roaming between 2.4GHz band Access Points

17 dBm max

Transmit: 2.3 Watts (max, with two spatial streams) Receive: 1 Watt (max with two spatial streams) Idle mode3: 35 mW (average) Radio off: 20 mW (max)

ACPI compliant power management

802.11 compliant power saving mode

2 U.FL type connectors, 50 ohm nominal impedance

PCI-Express Half-MiniCard

0.0075 lb (3.4 g)

0.12 x 1.06 x 1.18 in (3.1 x 26.8 x 30.0 mm)

3.3V +/- 9%

Operating Non-operating

LED Off - Radio OFF; Solid LED On - Radio ON

32° to 176° F (0° to 80° C)

-40° to 176° F (-40° to 80° C)

10% to 90% (non-condensing) 5% to 90% (non-condensing)

0 to 10,000 ft (3,048 m) 0 to 50,000 ft (15,240 m)

HP Integrated Module with Bluetooth 2.1 Wireless Technology

DA - 13543 Europe, Middle East and Africa QuickSpecs — Version 5 — 5.26.2010

Bluetooth Specification

Dimensions

Frequency Band

Number of Available Channels

2.1 Compliant

30 x 6.5 x 3.25 mm (1.18 x 0.26 x 0.13 in)

2402 to 2480 MHz

79 (1 MHz) available channels

Page 30

Page 31

QuickSpecs

Technical Specifications

HP EliteBook 8740w Mobile Workstation

Data Rates and Throughput

Transmit Power

Receiver Sensitivity

Power Consumption

Antenna

Range

Electrical Interface

Bluetooth Software Supported

Link Topology

Security

Power Management

Certifications

Temperature

Humidity

Altitude

Bluetooth Profiles Supported

3 Mbps data rate; throughput up to 2.17 Mbps

Synchronous Connection Oriented links up to 3, 64 kbps, voice channels

Asynchronous Connection Less links 2178.1 kbps/177.1 kbps asymmetric or 1306.9 kbps symmetric

-6 dBm to 4 dBm (Bluetooth Class II)

Better than -80 dBM at 0.1 % raw bit error rate

Peak (Tx) 264 mW

Peak (Rx) 231 mW

Sleep <1 mW

Internally integrated within module

Up 10 m (33 ft)

USB 2.0 compliant

Microsoft Windows Plug and Play compliant

Broadcom Bluetooth for Windows

Microsoft Windows Bluetooth Software

Point to Point, Multipoint Pico Nets up to 7 slaves

Full support of Bluetooth Security Provisions

Microsoft Windows ACPI, and USB Bus Support

Self configurable to optimize power conservation in all operating modes, including Standby, Hold, Park, and Sniff

All necessary regulatory approvals for supported countries, including:

FCC (47 CFR) Part 15C, Section 15.247 & 15.249

ETS 300 328, ETS 300 826

Low Voltage Directive IEC950

UL, CSA, and CE Mark

Operating

Non-operating

Operating

Non-operating

Operating

Non-operating

Serial Port Profile (SPP)

Service Discovery Applicaton Profile (SDAP)

Dial-Up Networking (DUN)

Generic Object Exchange Profile (GOEP)

Object Push Profile (OPP)

File Transfer Profile (FTP)

Synchronization Profile (SYNC)

Hard Copy Cable Replacement (HCRP)

Personal Area Networking Profile (PAN)

Human Interface Device Profile (HID)

FAX Profile (FAX)

Basic Imaging Profile (BIP)

Headset Profile (HSP)

Hands Free Profile (HFP)

Advanced Audio Distribution Profile (A2DP)

-20° to 70° C (-4° to 158° F)

-40° to 80° C (-40° to 176° F)

10% to 90%

5% to 95%

4,572 m (15,000 ft)

12,192 m (40,000 ft)

1,2

1,2,3

DA - 13543 Europe, Middle East and Africa QuickSpecs — Version 5 — 5.26.2010

Page 31

Page 32

QuickSpecs

Technical Specifications

indicates the profile is supported by Microsoft Windows XP SP2

1. indicates the profile is part of Windows Vista

HP EliteBook 8740w Mobile Workstation

Environmental Data

Eco-Label Certifications

Energy Consumption

Normal Operation

Sleep (Energy Star low power mode)

Off

Heat Dissipation

Normal Operation

Sleep

Off

Declared Noise Emissions (in accordance with ISO 7779 and ISO 9296)

System Fan Off

Idle

Fixed Disk (random writes)

System fan is usually off except when charging the battery

Batteries

This product has received or is in the process of being certified to the following approvals and may be labeled with one or more of these marks:

US Energy Star IT ECO declaration EPEAT - Gold where HP registers commercial desktop products. See

http://www.epeat.net

115 VAC 230 VAC 100 VAC

28.16 W 29.19 W 28.19 W

1.08 W 1.15 W 1.09 W

0.80 W 0.84 W 0.80 W

115 VAC 230 VAC 100 VAC

96 BTU/hr

4 BTU/hr 4 BTU/hr 4 BTU/hr

3 BTU/hr 3 BTU/hr 3 BTU/hr

* Heat dissipation is calculated based on the measured watts, assuming the service level is attained for one hour.

Sound Power

(LWAd, bels)

3.5

This battery(s) in this product comply with EU Directive 2006/66/EC

for registration status in your country.

100 BTU/hr

Sound Pressure

(LpAm, decibels)

96 BTU/hr

32.2

32.3

Batteries used in the product do not contain:

Mercury greater the 5ppm by weight Cadmium greater than 10ppm by weight

The battery type and chemistry used in the product is: CR2032 (coin cell), Li-ion 6-cell high capacity Lithium-Ion battery (optional 8 cell available)

Additional information

DA - 13543 Europe, Middle East and Africa QuickSpecs — Version 5 — 5.26.2010

This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive - 2002/95/EC.

This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE) Directive - 2002/96/EC.

This product is in compliance with California Proposition 65 (State of California; Safe Drinking Water and Toxic Enforcement Act of 1986).

This product is in compliance with the IEEE 1680 (EPEAT) standard at

Page 32

Page 33

QuickSpecs

Technical Specifications

HP EliteBook 8740w Mobile Workstation

the Gold level, see:

Plastics parts weighing over 25 grams used in the product are marked per ISO 11469 and ISO1043.

This product contains 0% post consumer recycled plastic (by wt.)

This product is greater than 95% recycle-able when properly disposed of at end of life.

Packaging Materials

External:

Corrugated carton 745 g Cardboard & misc 120 g

Internal:

Polyethylene low density foam 15 g

EPE-Expanded Polyethylene 75 g The Corrugated carton packaging material is made from 70~80% recycled content. The Cardboard & misc packaging material is made from 70~80% recycled content. The Polyethylene low density foam packaging material is made from 0% recycled content. The EPE-Expanded Polyethylene packaging material is made from 0% recycled content.

www.epeat.net

Material Usage

HP follows these guidelines to decrease the environmental impact of product packaging:

Eliminate the use of heavy metals such as lead, chromium, mercury and cadmium in packaging materials. Eliminate the use of ozone-depleting substances (ODS) in packaging materials. Design packaging materials for ease of disassembly. Maximize the use of post-consumer recycled content materials in packaging materials. Use readily recyclable packaging materials such as paper and corrugated materials. Reduce size and weight of packages to improve transportation fuel efficiency. Plastic packaging materials are marked according to ISO 11469 and DIN 6120 standards.

This product does not contain any of the following substances in excess of regulatory limits (for reference of these limits please refer to the HP General Specification of the Environment: (

http://www.hp.com/hpinfo/globalcitizenship/environment/supplychain/

gen_specifications.html

Asbestos Certain Azo Colorants Certain Brominated Flame Retardants - may not be used as flame retardants in plastics Cadmium Chlorinated Hydrocarbons Chlorinated Paraffins Formaldehyde Halogenated Diphenyl Methanes

DA - 13543 Europe, Middle East and Africa QuickSpecs — Version 5 — 5.26.2010

Page 33

Page 34

QuickSpecs

Technical Specifications

End-of-life Management and Recycling

HP EliteBook 8740w Mobile Workstation

Lead carbonates and sulfates Lead and Lead compounds Mercuric Oxide Batteries Nickel - finishes must not be used on the external surface designed to be frequently handled or carried by the user. Ozone Depleting Substances Polybrominated Biphenyls (PBBs) Polybrominated Biphenyl Ethers (PBBEs) Polybrominated Biphenyl Oxides (PBBOs) Polychlorinated Biphenyl (PCB) Polychlorinated Terphenyls (PCT) Polyvinyl Chloride (PVC) - except for wires and cables, and certain retail packaging has been voluntarily removed from most applications. Radioactive Substances Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide (TBTO)

Hewlett-Packard offers end-of-life HP product return and recycling programs in many geographic areas. To recycle your product, please go to:

http://www.hp.com/go/reuse-recycle

office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner.

or contact your nearest HP sales

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard web site at: These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment.

Hewlett-Packard Corporate Environmental Information

All rights reserved. Microsoft, Windows, Windows 7, Windows Vista and Windows XP are registered trademarks or trademarks of Microsoft Corporation in the U.S. and/or other countries. Intel, Centrino and Core are registered trademarks or trademarks of Intel Corporation in the U.S. and/or other countries. Bluetooth is a registered trademark of Bluetooth SIG, Inc., in the U.S. and other countries. All other product names mentioned herein may be trademarks of their respective companies.

For more information about HP's commitment to the environment: Global Citizenship Report

http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html

Environment website

http://www.hp.com/environment

Eco-label certifications

http://www.hp.com/hpinfo/globalcitizenship/environment/productdesign/ ecolabels.html

ISO 14001 certificates:

http://www.hp.com/hpinfo/globalcitizenship/environment/operations/ envmanagement.html

http://www.hp.com/go/recyclers

The information contained herein is subject to change without notice and is provided "as is" without warranty of any kind. The warranties for HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

DA - 13543 Europe, Middle East and Africa QuickSpecs — Version 5 — 5.26.2010

Page 34
