Hp 800 G2, 705 G2, 600 G2, 400 G2 User Manual

Hardware Reference Guide

HP EliteOne 800 G2 23 inch All-in-One Business PC HP EliteOne 705 G2 23 inch All-in-One Business PC HP ProOne 600 G2 21 inch All-in-One Business PC HP ProOne 400 G2 20 inch All-in-One Business PC

Windows is either a trademark or registered trademark of Microsoft Corporation in the United States and/or other countries.

The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

This document contains proprietary information that is protected by copyright. No part of this document may be photocopied, reproduced, or translated to another language without the prior written consent of HP Development Company.

First Edition: June 2015

Document part number: 822874-001

About This Book

This guide provides basic information for upgrading this computer model.

WARNING! Text set off in this manner indicates that failure to follow directions could result in bodily harm

or loss of life.

CAUTION: Text set off in this manner indicates that failure to follow directions could result in damage to

equipment or loss of information.

NOTE: Text set off in this manner provides important supplemental information.

iii

iv About This Book

Table of contents

1 Product features ........................................................................................................................................... 1

Overview ................................................................................................................................................................ 1

EliteOne 800 .......................................................................................................................................................... 2

Front components ............................................................................................................................... 2

Side components ................................................................................................................................. 3

Rear components ................................................................................................................................ 4

Internal components ........................................................................................................................... 5

EliteOne 705 .......................................................................................................................................................... 5

Front components ............................................................................................................................... 5

Side components ................................................................................................................................. 6

Rear components ................................................................................................................................ 7

Internal components ........................................................................................................................... 8

ProOne 600 ............................................................................................................................................................ 8

Front components ............................................................................................................................... 8

Side components ................................................................................................................................. 9

Rear components .............................................................................................................................. 10

Internal components ......................................................................................................................... 11

ProOne 400 .......................................................................................................................................................... 11

Front components ............................................................................................................................. 11

Side components ............................................................................................................................... 12

Rear components .............................................................................................................................. 13

Internal components ......................................................................................................................... 14

Keyboard features ............................................................................................................................................... 15

Labels ................................................................................................................................................................... 16

2 Setup .......................................................................................................................................................... 17

Overview .............................................................................................................................................................. 17

Attaching and removing a stand ......................................................................................................................... 18

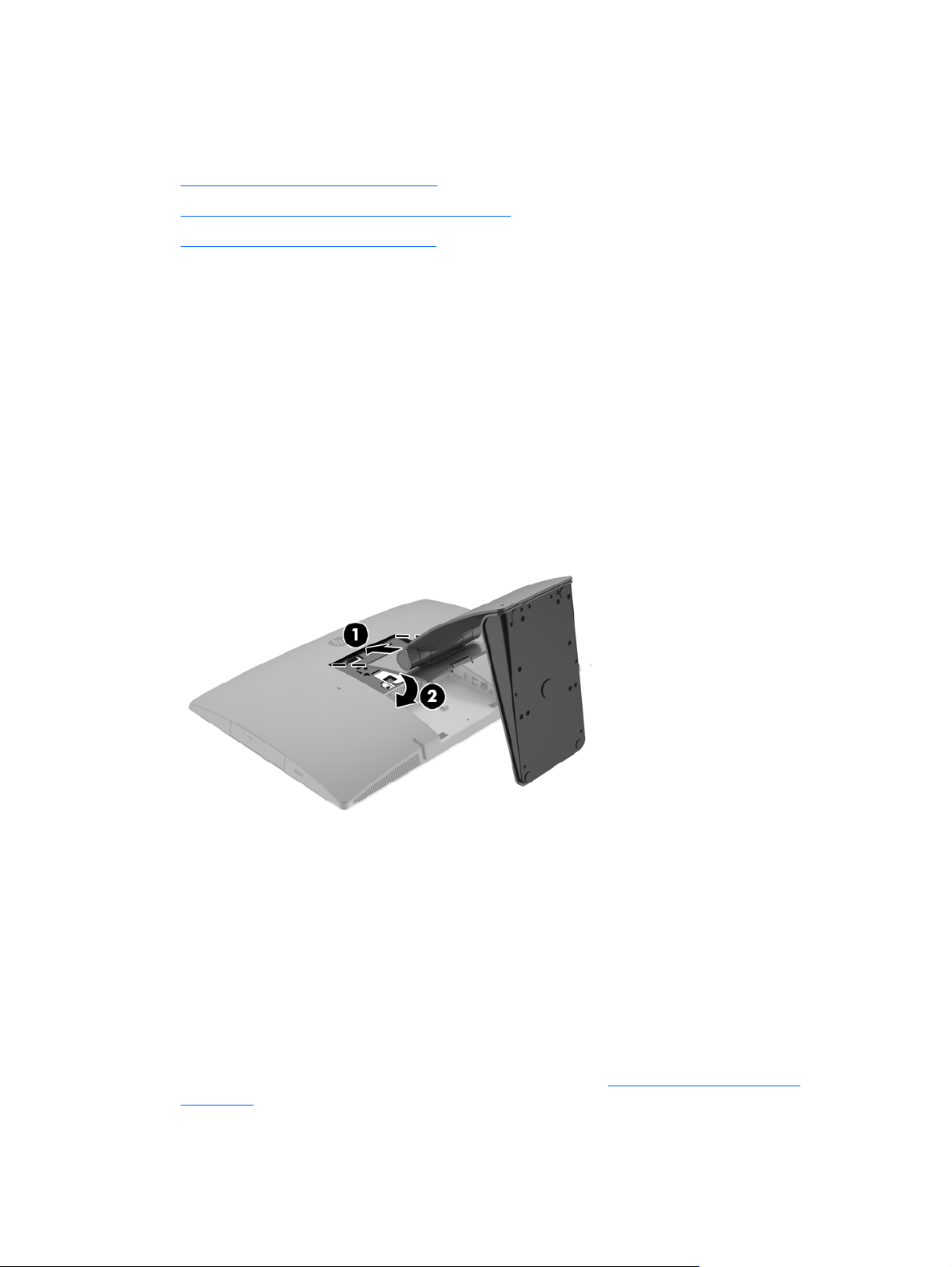

Attaching and removing a recline stand ........................................................................................... 18

Attaching a recline stand ................................................................................................ 18

Removing a recline stand ............................................................................................... 18

Attaching and removing a adjustable-height stand ......................................................................... 19

Attaching a adjustable-height stand .............................................................................. 19

Removing a adjustable-height stand ............................................................................. 20

Attaching and removing an easel stand ........................................................................................... 20

Attaching an easel stand ................................................................................................ 20

Removing an easel stand ................................................................................................ 21

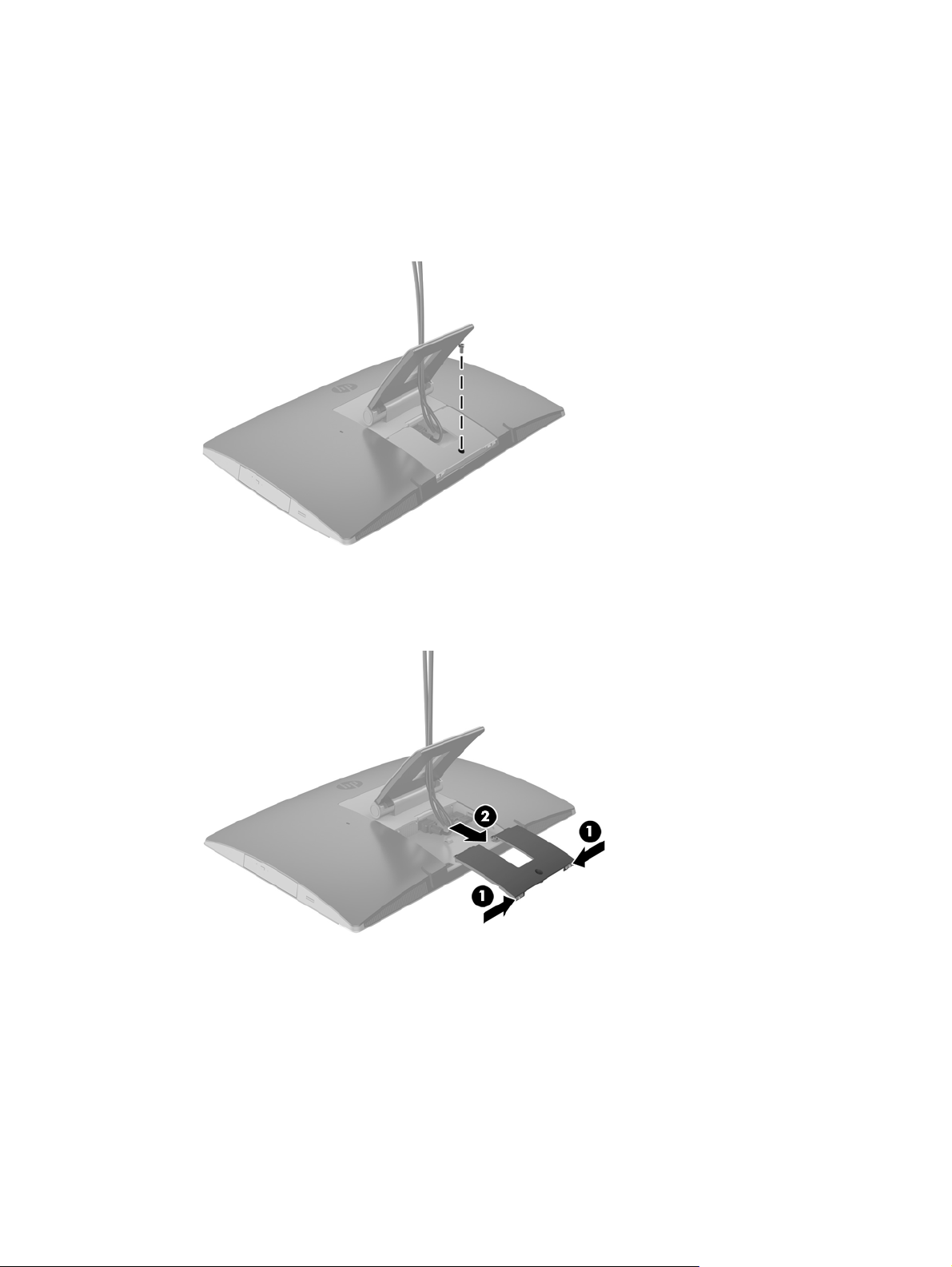

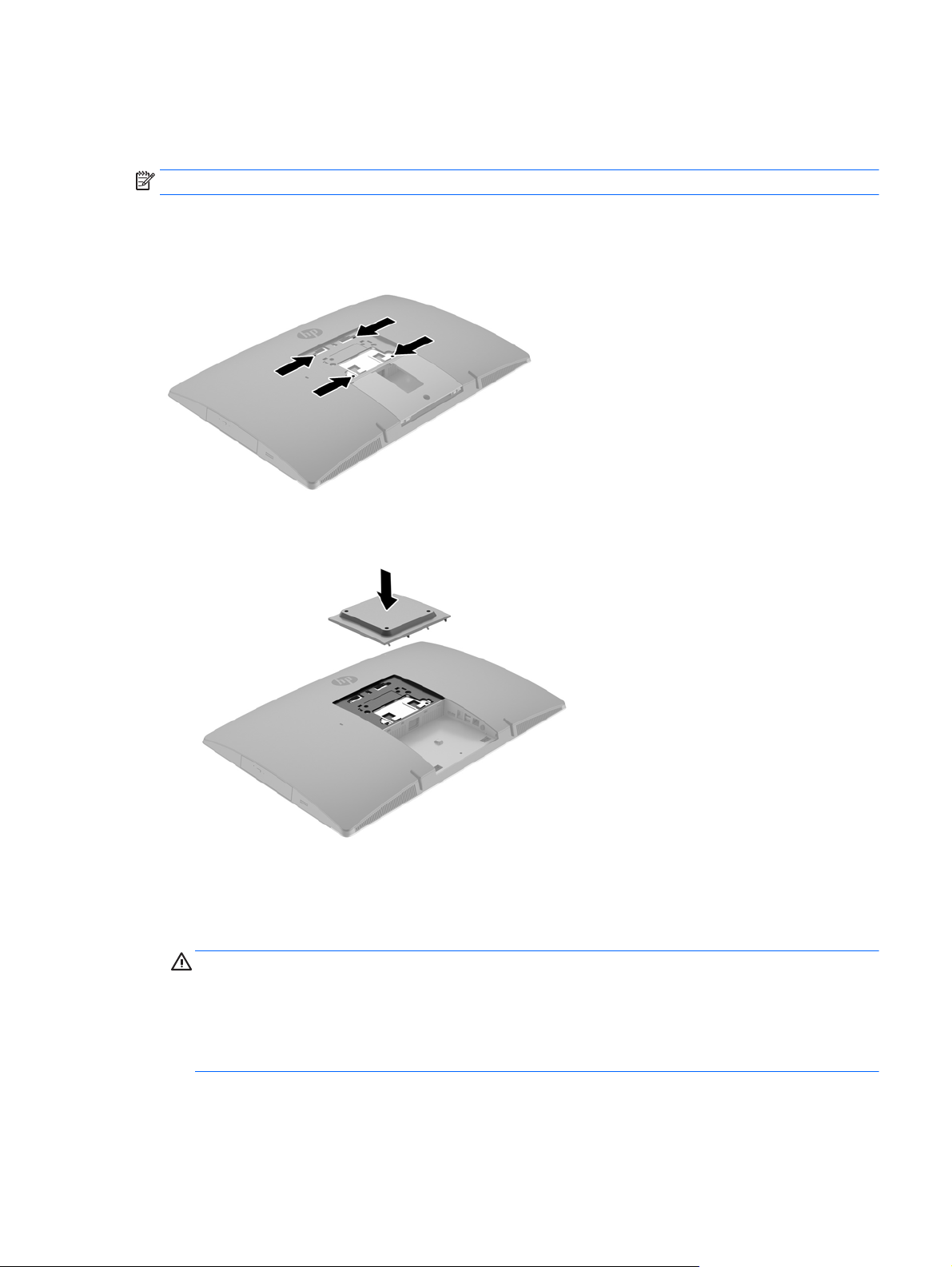

Attaching the computer to a mounting fixture ................................................................................................... 23

Connecting and disconnecting cables ................................................................................................................. 24

Connecting cables ............................................................................................................................. 24

Connecting a display ......................................................................................................................... 25

Disconnecting cables ........................................................................................................................ 26

Removing and installing the rear port cover ...................................................................................................... 27

Removing the rear port cover ........................................................................................................... 27

Installing the rear port cover ............................................................................................................ 27

Positioning the computer .................................................................................................................................... 29

Adjusting the recline stand ............................................................................................................... 29

Adjusting the adjustable-height stand ............................................................................................. 30

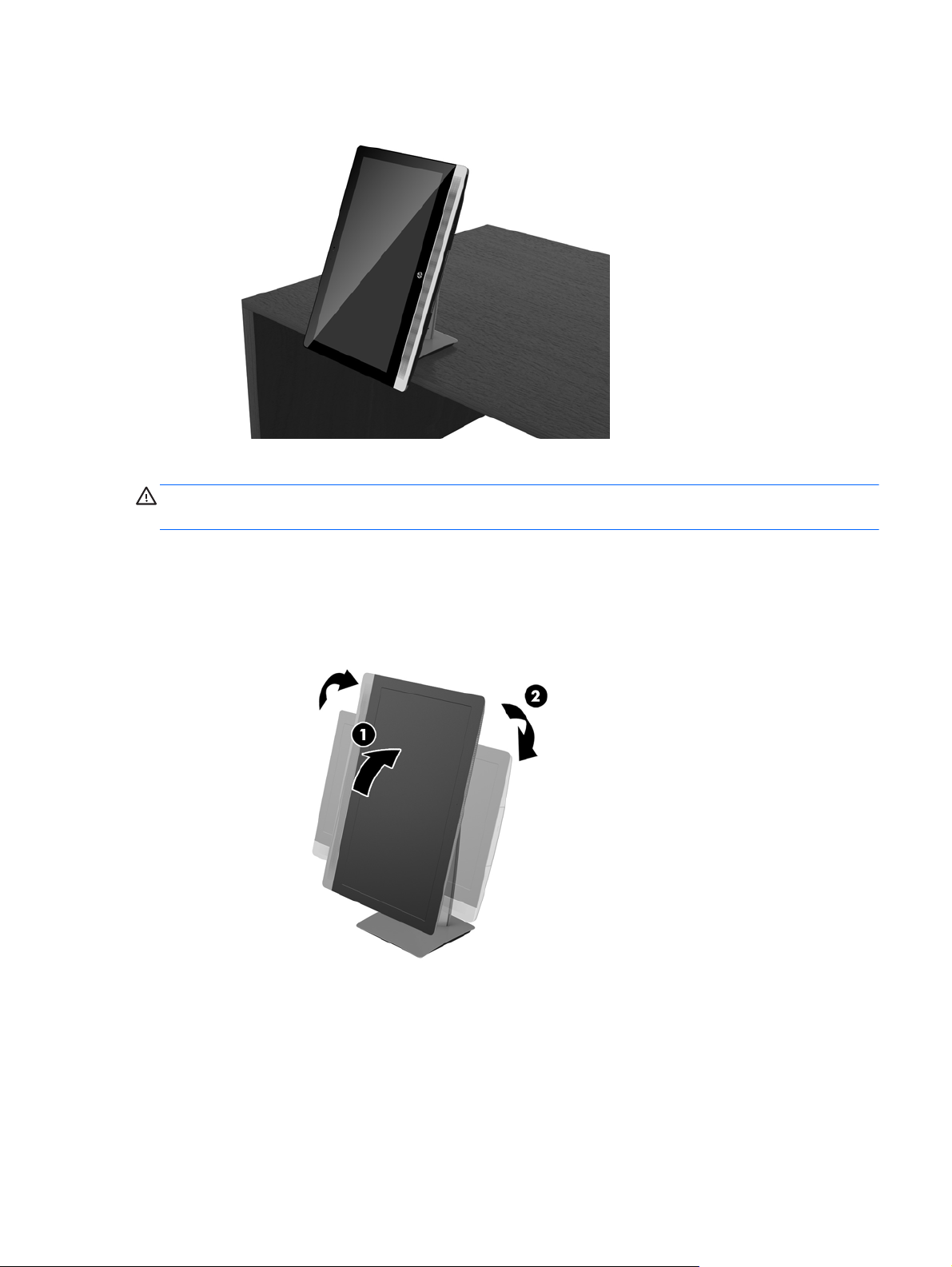

Adjusting the easel stand .................................................................................................................. 32

Installing a cable lock .......................................................................................................................................... 32

Connecting and disconnecting power ................................................................................................................. 33

Connecting power ............................................................................................................................. 33

Disconnecting power ......................................................................................................................... 33

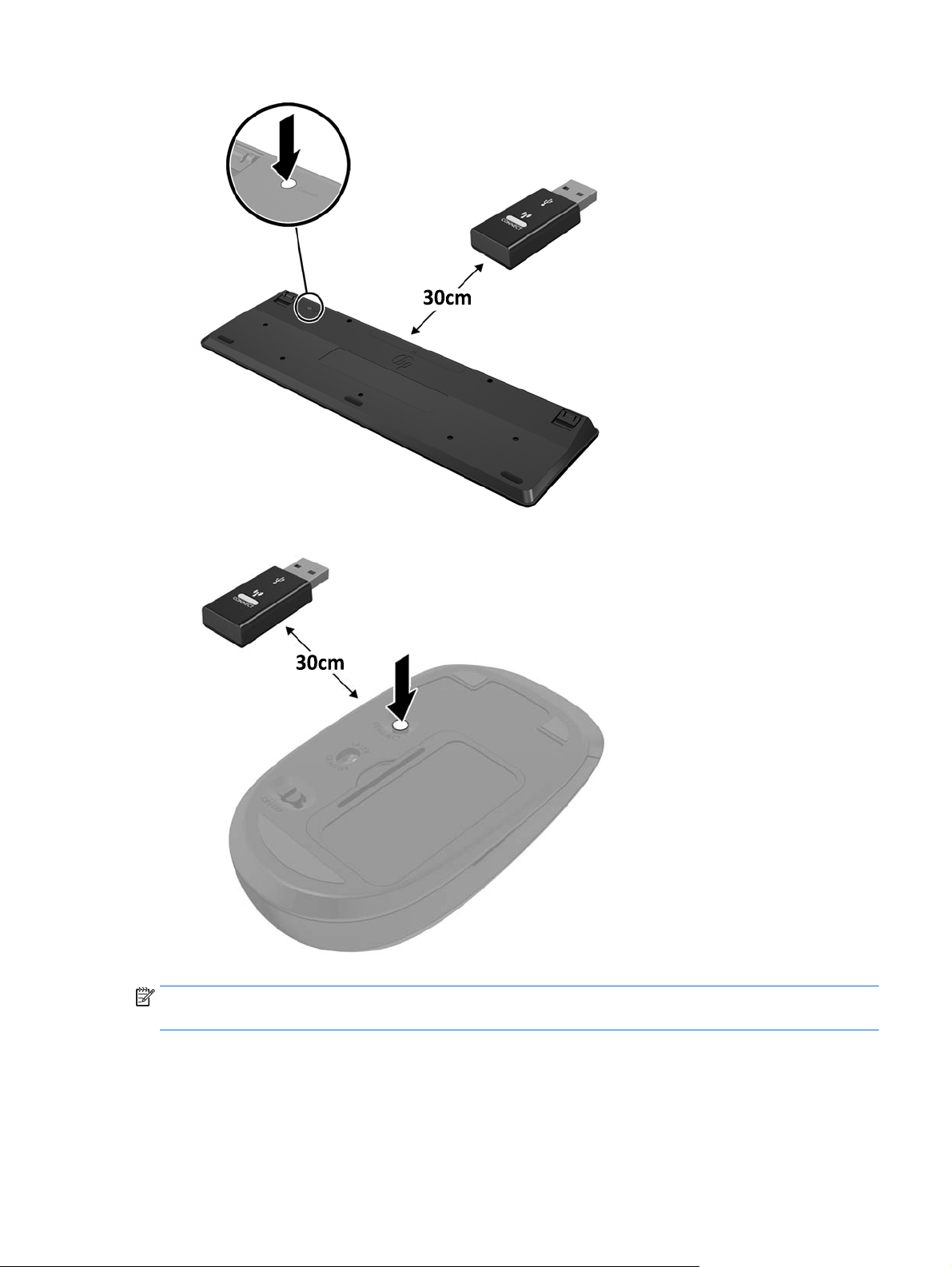

Synchronizing the optional wireless keyboard and mouse ................................................................................ 34

3 Hardware repair and upgrade ....................................................................................................................... 36

Warnings and cautions ........................................................................................................................................ 36

Additional information ........................................................................................................................................ 36

Removing batteries from the optional wireless keyboard or mouse ................................................................ 37

Removing and installing memory ....................................................................................................................... 38

SODIMMs ............................................................................................................................................ 38

SODIMM specifications ...................................................................................................................... 38

Populating SODIMM sockets ............................................................................................................. 39

Installing SODIMMs ........................................................................................................................... 39

Replacing the RTC Battery ................................................................................................................................... 46

Replacing drives .................................................................................................................................................. 52

Replacing a hard disk drive ............................................................................................................... 52

Removing a 2.5 inch hard disk drive ............................................................................... 52

Installing a 2.5 inch hard disk drive ................................................................................ 55

Replacing the optical disc drive ........................................................................................................ 57

Appendix A Electrostatic discharge ................................................................................................................. 61

Preventing electrostatic damage ........................................................................................................................ 61

Grounding methods ............................................................................................................................................. 61

Appendix B Computer operating guidelines, routine care, and shipping preparation ........................................... 62

Computer operating guidelines and routine care ............................................................................................... 62

Optical disc drive precautions ............................................................................................................................. 63

Shipping preparation ........................................................................................................................................... 63

Appendix C Accessibility ................................................................................................................................. 64

Supported assistive technologies ....................................................................................................................... 64

Contacting support .............................................................................................................................................. 64

Index ............................................................................................................................................................. 65

vii

viii

1 Product features

Overview

NOTE: For the latest specifications or additional specifications on this product, go to http://www.hp.com/

go/ quickspecs/ and search for your specific display model to find the model-specific QuickSpecs.

Overview 1

EliteOne 800

Front components

Component Component

1 Dual microphone array (optional) 4 Webcam (optional)

2 Webcam activity LED (with optional webcam) 5 16:9 widescreen LED-backlit LCD display

3 Webcam privacy shutter slide switch 6 High-performance stereo speakers

2 Chapter 1 Product features

Side components

Component Component

1 Power button 7 Microphone/line in jack

2 hard disk drive activity LED 8 HP SD media card reader (optional)

3 USB 3.0 port, fast-charging 9 Optical disc drive eject button

4 USB 3.0 port 10 Optical disc drive activity LED

5 USB 3.0 Type C port 11 Tray-load optical disc drive

6 Headset/line out jack 12 Fingerprint reader (Touch model only)

EliteOne 800 3

Rear components

Component Component

1 Power cable retention loop 7 DisplayPort connector

2 Port cover security screw hole 8 (2) USB 3.0 ports

3 Serial port (optional) 9 (2) USB 3.0 ports with wake-up functionality

4 PS/2 keyboard connector (optional) 10 RJ-45 Gigabit Ethernet port

5 PS/2 mouse connector (optional) 11 Stereo audio line out

6 Power connector

4 Chapter 1 Product features

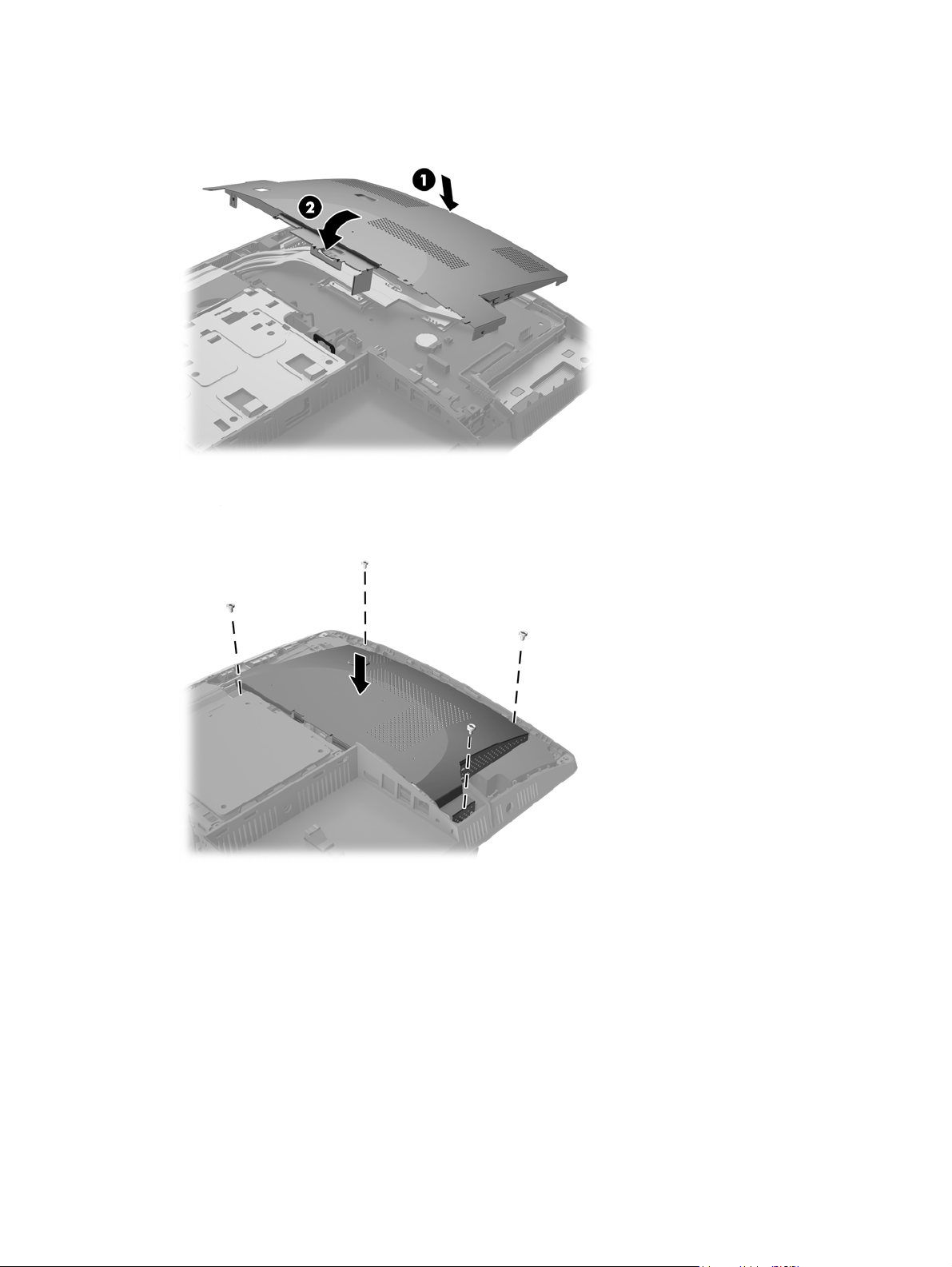

Internal components

Component Component

1 Optical disc drive 4 Hood sensor

2 Secondary hard disk drive 5 Memory

3 Primary hard disk drive 6 RTC Battery
