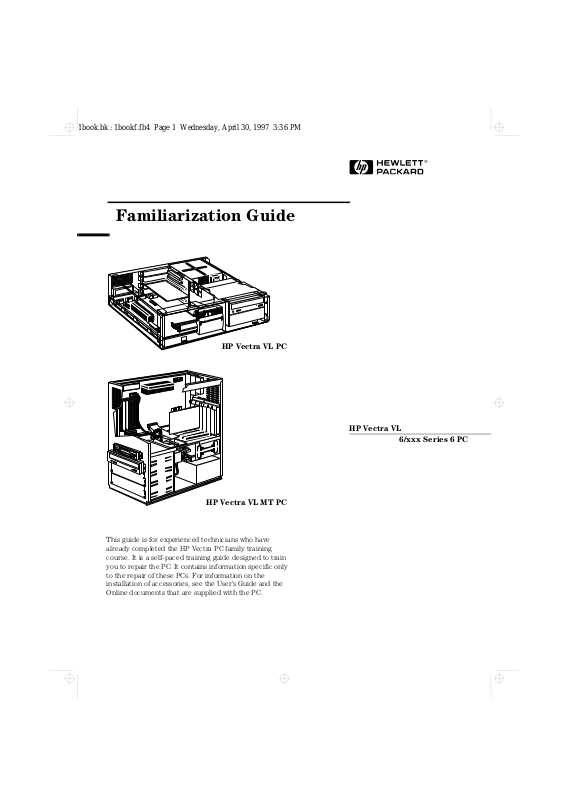

Familiarization Guide

HP Vectra VL PC

HP Vectra VL MT PC

This guide is for experienced technicians who have already completed the HP Vectra PC family training course. It is a self-paced training guide designed to train you to repair the PC. It contains information specific only to the repair of these PCs. For information on the installation of accessories, see the User’s Guide and the Online documents that are supplied with the PC.

HP Vectra VL

6/xxx Series 6 PC

Notice

The information contained in this document is subject to change without notice.

Hewlett-Packard makes no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose.

Hewlett-Packard shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.

Hewlett-Packard assumes no responsibility for the use or reliability of its software on equipment that is not furnished by Hewlett-Packard.

This document contains proprietary information that is protected by copyright. All rights are reserved. No part of this document may be photocopied, reproduced, or translated to another language without the prior written consent of Hewlett-Packard Company.

Centronics® is a registered trademark of Centronics Data Computer Corporation. Microsoft®, Windows® and MS-DOS® are registered trademarks of the Microsoft Corporation. Pentium SoundBlaster

is a trademark of the Intel Corporation.

is a trademark of Creative Technology Limited.

Hewlett-Packard France Performance Desktop Computing Division 38053 Grenoble Cedex 9 France



1997 Hewlett-Packard Company

Vectra Products Comparison

Component

Microprocessor

VRM Main memory

Graphics controller

Communications ports

Mass storage

Accessory board slots

HP Vectra VL 6/xxx PC HP Vectra VL 6/xxx MT PC

Pentium II

, 233 MHz or 266 MHz, 32 KB of level-1 cache memory, 256 KB

or 512 KB of level-2 cache memory

2.8 Volt Voltage Regulator Module 32 MB or 64 MB (standard), 192 MB(maximum), non-ECC EDO 60 ns DRAM,

Six SIMM sockets (organized as three pairs) Cirrus 5446 integrated on the system board, with 2 MB video memory not

upgradeable

Matrox MGA Millennium II

on a PCI accessory board, with 4 MB

video memory upgradeable to 12 MB

2 USB connectors

4.0 GB

IDE or 2.5 GB IDE 5 shelves (3 front access, 2 internal) 5 slots

(2 PCI, 1 ISA, 2 combination PCI/ISA)

, 2 serial ports, parallel port, keyboard, mouse

4.0 GB

IDE or 2.5 GB IDE 6 shelves (4 front access, 2 internal) 6 slots

(2 ISA, 2 PCI, 2 combination PCI/ISA)

Audio board CD-ROM drive Flexible disk drive Power supply

Power saving

New ISA Plug-and-Play audio board on multimedia models

24✕

speed

New version without bezel

Auto-ranging 100/240 VAC, 150 W

input, 120 W output

IDE on multimedia models

Standard version with bezel Manually switched 115/230 VAC,

200 W input, 160 W output

115 V, 60 Hz: 21 W in suspend mode, 27 W in standby mode 230 V, 50 Hz: 25 W in suspend mode, 30 W in standby mode

Front view

Front view with cover removed

New Package for the Desktop Models

activity light status light

(Multimedia models only)

Hard disk drive 24✕ CD-ROM drive Flexible disk drive

Rear view

System board switches

Video memory

Processor

VRM

Main memory

Security lock hole

Display

Key boa rd

USB

Mouse

Par al lel

Retaining brackets

Serial A

Serial B

Minitower Package

Front view with cover removed

Rear view

System board switches

Processor

VRM

Video memory

Main memory

Serial B

Voltage selection switch

Serial A

Par al lel

Mouse

USB

Key boa rd

Display

System Board and Backplanes

Most desktop and minitower models are supplied with a Matrox graphics controller on a PCI board, and do not have the integrated graphics controller loaded on the system board.

Status Panel

A A B

Not Used

Power Connector

Memory Slots

C C

Voltage Regulator Module

3.3 V Connector

CD-ROM Connector

Flexible Disk Connector

Display

Hard Disk Connector

(Items shown in grey are present only on models with integrated graphics controller)

Graphics Controller Chip

VESA Connector

USB

Kbd

Mou

Video Memory

Parallel Port

External Speaker

Internal Speaker Connector

External Start

Serial Port A

Processor Slot

System Board Switches

External Battery Connector

Serial Port B

Desktop (front view)

Desktop (rear view)

System Board and Backplanes

2 ✕ PCI slot (shown in white)

2 ✕ ISA/PCI combination slot

(shown in light grey)

1 ✕ system board slot (shown

in dark grey)

Minitower (top view)

1 ✕ ISA slot (shown in grey)

2 ✕ PCI slot (shown in white)

2 ✕ ISA slot (shown in grey)

2 ✕ ISA/PCI combination slot

(shown in light grey)

1 ✕ system board slot (shown

in dark grey)

Removing the Cover

Installing Accessories in the New Desktop Package

The new package for the desktop models involves a number of new procedures.

3. Unlock with the key

1. Press the latch down

Removing the Power Supply

2. Press the two tabs down, pivot the panel downward, and lift it off

1. Remove all external cables

2. Lift the front of the power supply to free the two side catches

3. Slide it horizontally out

4. Push the cover away from you and lift off

4. Lift the power supply clear and lay it upside down on the front drive unit

Installing an Accessory Board

Installing Accessories in the New Desktop Package

1. Unscrew the retaining bracket

2. Remove the slot cover

Installing an ISA board on the rear of the backplane

1. Unscrew the retaining bracket at the rear of the computer

3. Slide the board into the slot

4. Slide it horizontally out

5. Replace the retaining bracket.

2. Remove the rear tray by sliding it forward about

1.5 cm (1/2 inch), and lifting it up and out.

Access is then clear for installing a short ISA board in the slot on the rear side of the backplane.

Installing a Hard Disk Drive in the Top Rear Shelf

Installing Accessories in the New Desktop Package

1. Unscrew the retaining bracket at the rear of the computer

2. Remove the rear tray by sliding it forward about 1.5 cm (1/2 inch), and lifting it up and out

Installing a Hard Disk Drive in the Bottom Rear Shelf

1. Unclip the metal plate at the rear of the computer, and remove it

2. Remove the tray by pushing it from the inside, and sliding it out the back of the computer

3. Align the disk drive with the holes in the tray, and secure using the screws provided

3. Secure the 3.5-inch drive (shown above) or 5.25-inch drive (shown below) on to the tray with the screws provided

4. Connect the data cable and power cable to the rear of the drive

4. Slide the tray back into the rear of the computer

5. Replace the metal plate. Insert the flat end first then push it until it clicks into place.

Installing a CD-ROM Drive or Zip Drive in a Front Shelf

Installing Accessories in the New Desktop Package

1. Press the two retaining clips of the front drive unit inward, and slide the unit forward about half way

2. Push the two catches on the front drive unit down, and then slide the unit out, holding it with both hands

3. Carefully place the unit on its side, and remove the top mounting bracket. Remove the metal filler plate from the empty shelf, if there is one

5. Lower the drive into the free grove of the mounting bracket. Use the two pins on the mounting bracket to slot the drive into place.

6. Position the other mounting bracket on top, aligning it properly so that it clicks into place

7. Draw the computer’s cables through the front drive bay area and connect the data cable to the rear of each drive

8. Using both hands, lift the drive unit and slide it back into the computer about half way. Connect the power cable to the rear of each drive

9. Retrieve the universal front bezel from the PC’s chassis by opening the two clips.

4. If the drive has a tray, attach the drive on to the tray. (CD-ROM drives do not need a tray. Many zip drives require an HP-supplied tray)

10. Remove the filler bezel from the PC’s front panel and replace it with the universal front bezel.

Installing Accessories in the New Desktop Package

Replacing the Pentium II Processor

The Pentium II processor is contained on a module which is installed in a socket on the system board. It is held in place by a bracket. There are two plastic clips, one on the top of each pillar of the bracket, to prevent the processor module from slipping out.

Plastic clips

Bracket pillars

Heat-sink

To remove the old processor module:

1 Press the two plastic clips towards each other. 2 Carefully pull the processor module away from its connector on the

system board.

The heat-sink is supplied with the processor, and is bolted to it by the manufacturer.

Installing Accessories in the New Desktop Package

Replacing the Flexible Disk Drive

Replacing the System Board

The flexible disk drive is mounted vertically in the front, right-hand edge of the computer. It is held in place by two plastic clips, one visible from above, and the other visible through a square hole in the right-hand bottom panel of the computer.

Flexible disk drive

Plastic clips

To remove the flexible disk drive, press both plastic clips leftward, and pull the drive out through the front of the computer.

To install the new processor module, reverse the above procedure.

The system board is secured in place by the familiar system board handle mechanism. However, before the system board can be removed, it is necessary first to remove the left-hand bottom panel of the computer. This is held in place by a metal clip at the front end, and can be released by levering it at this end with a screw-driver, or similar implement.

Once the replacement system board has been installed, reverse the above procedure. Insert the back end of the left-hand bottom panel into its slots in the back panel of the computer, and then push the front end until it clips into place.

Accessories that are Supplied with the PC

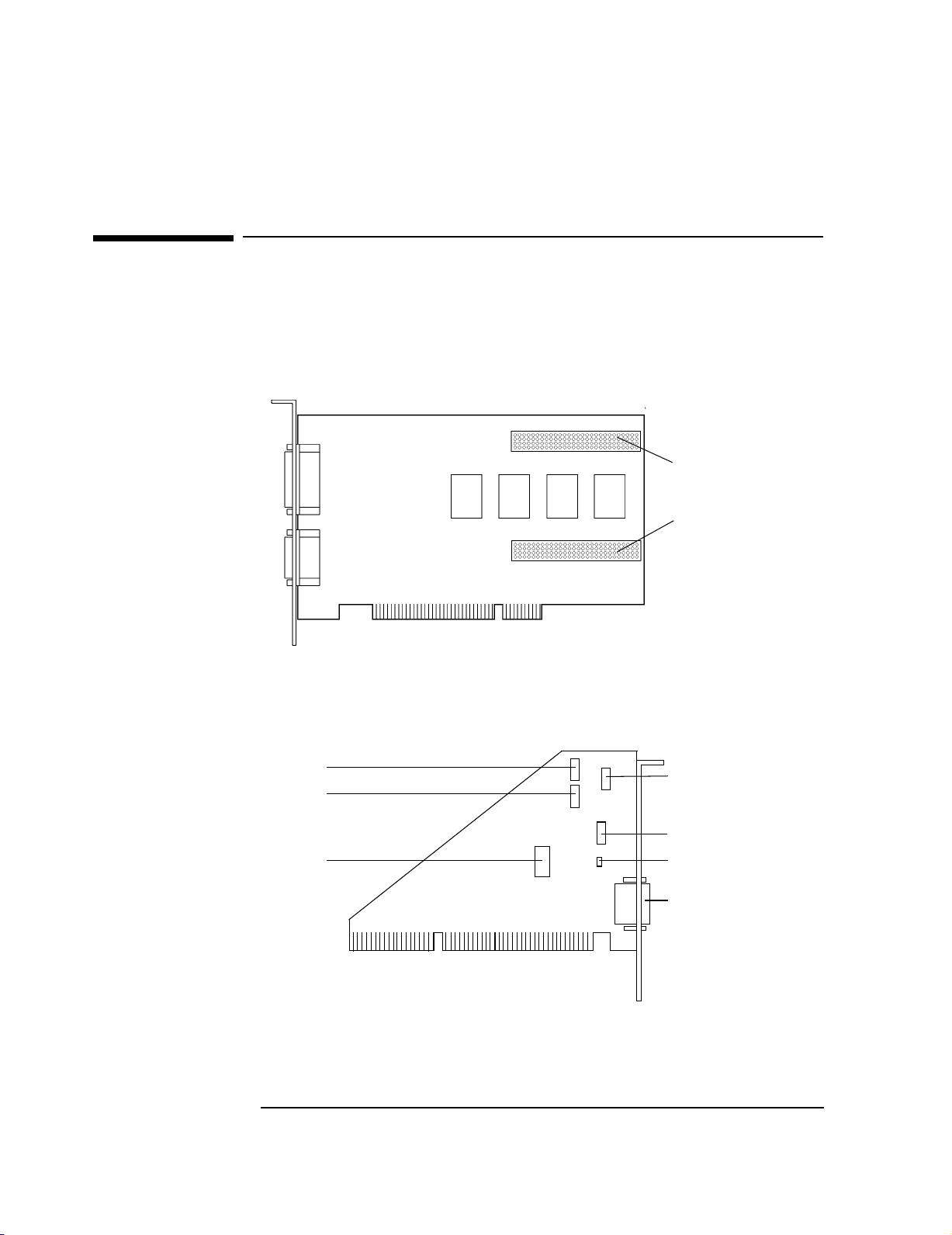

Matrox Millennium II Graphics Controller Board

Audio Controller Board

This PCI board is Plug-and-Play. It is supplied with the correct drivers, and does not require specific configuration when installed in this PC.

4 MB memory chips

Display connector

Top and bottom halves of the upgrade socket. (For the installation of a video memory upgrade module or the Matrox MPEG module).

This new Plug-and-Play ISA board is supplied with the correct drivers, and does not require specific configuration when installed in this PC.

Telephone answering device connector

AUX-IN connector

Multimedia control panel connector

CD audio connector

Multimedia control panel microphone connector

Internal speaker connector

Joystick connector

Access HP World Wide Web Site

Flashing the Latest Version of the System BIOS

BIOS upgrades can be downloaded, on to flexible diskette, from the HP World Wide Web site. Following the instructions which you are given, you will obtain the flash utility programs,

PHLASH.EXE pfmhd106.bin

programs, the BIOS file,

, on a bootable flexible diskette.

FLASH.BAT, AUTOEXEC.BAT

HD07xx.FUL

, and a file called

Insert the flexible diskette into drive A. Re-boot the system. Enter the command of the form

FLASH HD07xx.FUL

(where xx is replaced by the

version number of the BIOS that you have downloaded).

World-Wide Web URL http://www.hp.com/go/vectrasupport

and

Complete the Questionnaire to Check Your Understanding

Draw a circle around each letter that corresponds with a correct answer. (There may be more than one correct answer to each question).

The following PC, supplied with a 4 GB hard disk, CD-ROM drive and

audio board, has had components added by the user, and now no longer works. Which of the following could be the source of its failure to operate properly?

An 1 GB IDE hard disk drive has been fitted in the second internal

shelf, and has been connected to the spare grey IDE connector.

A non-HP tape drive has been fitted in the lower front access shelf, and

has been connected to the spare FDD connector.

There is an HP 32 MB memory module in memory socket C1, but

socket C2 is empty.

Memory sockets B1 and B2 are empty.

There is a pair of non-HP 4 MB memory modules in bank A.

A non-HP network-board has been installed as a PCI accessory.

The client wishes to accelerate the processing throughput of the PC.

Which of the following options are viable:

Replacing the current 233 MHz processor by a 266 MHz processor.

Replacing the current processor by an overdrive processor

(when available).

Installing more level-2 cache memory modules.

Installing more main memory modules.

Which of the following statements is correct (when installing a device in

the lower 5.25-inch front-access drive shelf of the desktop model)?

The new drive will already have the correct front bezel.

The filler bezel on the front panel needs to be modified with a knife.

The PC is supplied with the correct replacement bezel for the drive.

A kit of bezels (PN 5064-2667) needs to be ordered from HP.

No bezel is necessary.

Complete the Questionnaire to Check Your Understanding

4 The client is unable to obtain the performance that is expected from a

hard disk drive. What would you suggest might be the problem? a The drive has been installed in the slave position of the primary IDE

cable.

b The drive has been installed on the secondary IDE cable. c The jumpers on the drive have not been set correctly. d The drive has not been correctly detected by the Setup program, and

needs to be configured manually.

5 The client is unable to start the PC from the keyboard. What would you

suggest might be the problem?

a The PC is not plugged in. b The Keyboard-Power-On function has not be enabled in the Setup

program.

c The Keyboard-Power-On function has not be enabled on the system

board switches.

d The Keyboard-Power-On function has not be enabled in

Properties

menu of the operating system.

Display

e The PC is running the wrong operating system for this function.

Answers and Explanations

The following PC, supplied with a 4 GB hard disk, CD-ROM drive and

audio board, has had components added by the user, and now no longer works. Which of the following could be the source of its failure to operate properly?

c There is an HP 32 MB memory module in memory socket C1, but socket C2 is empty.

d Memory sockets B1 and B2 are empty.

e There is a pair of non-HP 4 MB memory modules in bank A.

Installing non-HP accessory boards and drives does not infringe the specification of the PC (though the non-HP products are not supported by HP, and the customer pays for the visit, the HP PC remains supported). However, installing non-HP memory modules is not within the specification of the PC, and would cause the PC to be unsupported by HP.

The client wishes to accelerate the processing throughput of the PC.

Which of the following options are viable:

b Replacing the current processor by an overdrive processor (when available).

d Installing more main memory modules.

HP does not support the replacement of a processor by a faster one, unless it is an official overdrive equivalent for the original processor, even when models exist that use the faster processor. It is not possible to install modules into the processor module. Installing more main memory increases the performance of the virtual memory system.

Which of the following statements is correct (when installing a device in

the lower 5.25-inch front-access drive shelf of the desktop model)?

c The PC is supplied with the correct replacement bezel for the drive.

The Universal Front Bezel is supplied in the side of the PC (see page 9) and should fit most designs of 5.25-inch drive. The kit of bezels can be ordered if the client has lost this bezel. The PC risks accumulating dust and dirt, and will not look attractive, if the drive is fitted without a bezel.

Answers and Explanations

4 The client is unable to obtain the performance that is expected from a

hard disk drive. What would you suggest might be the problem?

a The drive has been installed in the slave position of the primary IDE cable.

b The drive has been installed on the secondary IDE cable.

c The jumpers on the drive have not been set correctly.

d The drive has not been correctly detected by the Setup program, and needs to be configured manually.

The correct answer to this question is, “all of the above”. Response (d) is unlikely to be the case, but is worth checking for the information that it can yield.

5 The client is unable to start the PC from the keyboard. What would you

suggest might be the problem?

a The PC is not plugged in.

b The Keyboard-Power-On function has not be enabled in the Setup program.

c The Keyboard-Power-On function has not be enabled on the system board switches.

The function works with any operating system, and is not configured on any particular Windows menu.

50%

Paper not bleached with chlorine. Manual Part Number D5040-90901 Printed in France - 05/97

HP (Hewlett-Packard) 6 PC User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
