1 Product description

Category Description

Product Name HP 6360t Mobile Thin Client

Processors Intel® Celeron® B810 1.60-GHz processor (2.0-MB L3 cache, 2 threads, 35 W)

Chipset Mobile Intel HM65 chipset

Graphics Intel high-definition (HD) unified memory architecture (UMA) graphics

Supports dual-display ports through the dock

Panel 13.3-in, HD, AntiGlare, light-emitting diode (LED), SVA (1366×768) display;

16:9 aspect ratio

All display assemblies include 2 wireless local area network (WLAN) antenna cables

Supports privacy filter and low-voltage differential signalling

Memory 2 customer-accessible/upgradable memory module slots

Supports dual-channel memory

Supports up to 16,384 GB of system RAM

DDR3/1333-MHz

Supports the following configurations:

●

16384-MB total system memory (8192×2, select models only)

●

8192-MB total system memory (4096×2 + 8192×1, select models only)

●

4096-MB total system memory (2048×2 or 4096×1)

●

2048-MB total system memory (2048×1)

Solid-state module 2.0-GB solid-state module using a 2.5-in bracket

Customer-accessible

Serial ATA

Optical drive Fixed

Serial ATA

12.7-mm tray load

DVD-ROM drive

Category Description

Supports “no optical drive” option

Audio and video HD audio

Integrated mono microphone on computer models equipped with a webcam

720p HD webcam (select models only)

Stereo speakers (2)

Modem 56K v.92 MDC data/fax modem

Support for "no modem" option

Ethernet Intel 82579V 10/100/1000 Ethernet Gigabit Network Connection

NIC Power-down technology

S3/S4/S5 wake on LAN

Wireless Integrated wireless local area network (WLAN) options by way of wireless module

Two WLAN antennas built into display assembly

Support for the following WLAN formats:

●

Broadcom 4313 802.11b/g/n 1×1 WiFi Adapter

●

Broadcom 43224AGN 802.11a/b/g/n 2×2 WiFi Adapter

External media card 54-mm ExpressCard

Integrated SD flash media slot supporting MultiMediaCard and Secure Digital (SD) Memory Card

Ports

●

3-pin AC power

●

Accessory battery connector

●

Audio-in (mono microphone)

●

Audio-out (stereo headphone)

●

DisplayPort v.1.1

●

Docking connector

●

eSATA/USB 2.0 Combo port

●

RJ-11 (modem)

●

RJ-45 (Ethernet, includes link and activity lights)

●

USB 2.0 (3 ports)

●

VGA (Dsub 15 pin) supporting: 1920×1200 external resolution @ 75 Hz hot plug and unplug and auto-detection for correct output to wide-aspect vs. standard aspect video

Docking Support for the HP APR Docking Station and the HP PR Docking Station

2 Chapter 1 Product description

Category Description

Keyboard/pointing devices Keyboard requirements:

●

Spill-resistant with drain

●

Full chiclet-style keyboard

Fn key functionality:

●

F3 – Sleep

●

F4 – Display Switching

●

F6 – Volume Down

●

F7 – Volume Up

●

F8 – MS Native Power Control

●

F9 – Brightness Down

●

F10 – Brightness Up

Touchpad requirements:

●

Touchpad only

●

On/off button

●

Supports 2-way scroll with legend

●

Taps enabled as default

●

Gestures disabled by default

Power requirements Support for 9-cell 100-WHr LI-ion battery (3.00-AHr)

Support for 6-cell 62-WHr LI-ion battery (2.80-AHr)

Support for 6-cell 55-WHr LI-ion battery (2.55-AHr)

Support for 9-cell Lithium Polymer Extended Life Battery

Support for 9-cell Ultra Extended Life Battery

Support for HP Fast Charge Technology

65W HP Smart AC adapter with localized cable plug support (3-wire plug with

ground pin, supports 3-pin DC connector)

Security Support Security Lock

Optional Integrated Smart Card Reader (Active)

Operating system Preinstalled:

●

Windows® Embedded Standard 2009

●

Windows Embedded Standard 7

Category Description

Web-only support:

●

Windows Embedded Standard 2009

●

Windows Embedded Standard 7

Serviceability End-user replaceable parts:

●

AC adapter

●

Battery

●

Solid-state module

●

Memory modules (2)

●

Optical drive

●

WLAN module

4 Chapter 1 Product description

2 External component identification

Identifying the hardware

Components included with the computer may vary by region and model. The illustrations in this chapter identify the standard features on most computer models.

Display

Item Component Description

(1) Internal display switch Turns off the display or initiates Sleep if the display is

closed while the power is on.

NOTE: The display switch is not visible from the outside

of the computer.

(2) WLAN antennas (2)* Send and receive wireless signals to communicate

with WLANs.

(3) Webcam light (select models only) On: The webcam is in use.

Identifying the hardware

Item Component Description

(4) Internal microphone(s) (1 without webcam/

(5) Webcam (select models only) Records video and captures still photographs.

*The antennas are not visible from the outside of the computer. For optimal transmission, keep the areas immediately around the antennas free from obstructions. To see wireless regulatory notices, refer to the section of the Regulatory, Safety, and Environmental Notices that applies to your country or region. These notices are located in the Getting Started guide.

Buttons

Records sound.

2 with webcam)

Item Component Description

(1) TouchPad on/off button Turns the TouchPad on and off.

(2) Power button

(3) Wireless button Turns the wireless feature on or off but does not establish

●

When the computer is off, press the button to turn on the computer.

●

When the computer is on, press the button briefly to initiate Sleep.

●

When the computer is in the Sleep state, press the button briefly to exit Sleep.

If the computer has stopped responding and operating system shutdown procedures are ineffective, press and hold the power button for at least 5 seconds to turn off the computer.

a wireless connection.

NOTE: A wireless connection may be established if

one has been previously configured.

6 Chapter 2 External component identification

Item Component Description

(4) QuickWeb button (select models only)

(5) Volume mute button Mutes and restores speaker sound.

TouchPad

●

When the computer is on, press the button to open Internet Explorer.

●

When the computer is off or in the Sleep state the button does not perform any action or function.

Item Component Description

(1) TouchPad on/off button Turns the TouchPad on and off.

(2) TouchPad zone Moves the pointer and selects or activates items on

the screen.

(3) Left TouchPad button Functions like the left button on an external mouse.

(4) Right TouchPad button Functions like the right button on an external mouse.

NOTE: This table describes factory settings. To view or change pointing device preferences, select Start >

Control Panel > Mouse.

TouchPad

Front

Item Component Description

(1) Display release latch Opens the computer.

(2) Wireless light

(3) Power light

(4) Battery light

(5) Drive light

●

White: An integrated wireless device, such as a WLAN device is on.

●

Amber: All wireless devices are off.

●

On: The computer is on.

●

Blinking: The computer is in the Sleep state.

●

Off: The computer is off.

●

Amber: The computer is connected to external power and the battery is charged from 0 to 90 percent.

●

White: The computer is connected to external power and the battery is charged from 90 to 99 percent.

●

Blinking amber: A battery that is the only available power source has reached a low battery level. When the battery reaches a critical battery level, the battery light begins blinking rapidly.

●

Off: The battery is fully charged.

●

Blinking white: The flash drive or optional optical drive is being accessed.

●

Amber: HP 3D DriveGuard has been activated.

(6) Speakers (2) Produce sound.

(7) Media Card Reader Supports the following digital card formats:

8 Chapter 2 External component identification

●

MultiMediaCard

●

Secure Digital (SD) Memory Card

Left side

Item Component Description

(1) Security cable slot Attaches an optional security cable to the computer.

(2) RJ-45 (network) jack Connects a network cable.

(3) USB 2.0 port (2) Connect optional USB devices.

NOTE: The security cable is designed to act as a

deterrent, but it may not prevent the computer from being mishandled or stolen.

Rear

(4) ExpressCard slot or smart card reader

(depending on the configuration)

(5) Optical drive (select models only) Reads and writes (select models only) to an optical disc.

(6) Optical drive eject button

(select models only)

Component Description

Vent Enables airflow to cool internal components.

Supports optional ExpressCards or smart cards.

Releases the optical drive disc tray.

NOTE: The computer fan starts up automatically to cool

internal components and prevent overheating. It is normal for the internal fan to cycle on and off during routine operation.

Left side

Right side

Item Component Description

(1) Audio-out (headphone) jack Produces sound when connected to optional powered

(2) Audio-in (microphone) jack Connects an optional computer headset microphone,

stereo speakers, headphones, earbuds, a headset, or television audio.

WARNING! To reduce the risk of personal injury,

adjust the volume before putting on headphones, earbuds, or a headset. For additional safety information, refer to the Getting Started guide.

NOTE: When a device is connected to the jack,

the computer speakers are disabled.

stereo array microphone, or monaural microphone.

(3) eSATA/USB 2.0 combo port Connects a high-performance eSATA component, such as

an eSATA external hard drive, or connects an optional USB device.

(4) USB 2.0 port Connect an optional USB device.

(5) DisplayPort Connects an optional digital display device, such as a

high-performance monitor or projector.

(6) External monitor port Connects an external VGA monitor or projector.

(7) RJ-11 (modem) jack Connects a modem cable.

(8) Power connector Connects an AC adapter.

10 Chapter 2 External component identification

Bottom

Item Component Description

(1) Vents (2) Enable airflow to cool internal components.

NOTE: The computer fan starts up automatically to cool

internal components and prevent overheating. It is normal for the internal fan to cycle on and off during routine operation.

(2) Battery release latch Releases the battery from the battery bay.

(3) Docking connector Connects an optional docking device.

(4) Service cover release latch Releases the service cover from the computer.

(5) Battery bay Holds the battery.

(6) Accessory battery connector Connects an optional accessory battery.

(7) Wireless and memory module

compartments and flash drive bay

Holds the flash drive, and also contains the WLAN module slot, and the memory module slots.

CAUTION: To prevent an unresponsive system, replace

the wireless module only with a wireless module authorized for use in the computer by the governmental agency that regulates wireless devices in your country or region. If you replace the module and then receive a warning message, remove the module to restore computer functionality, and then contact technical support.

Bottom

3 Illustrated parts catalog

12 Chapter 3 Illustrated parts catalog

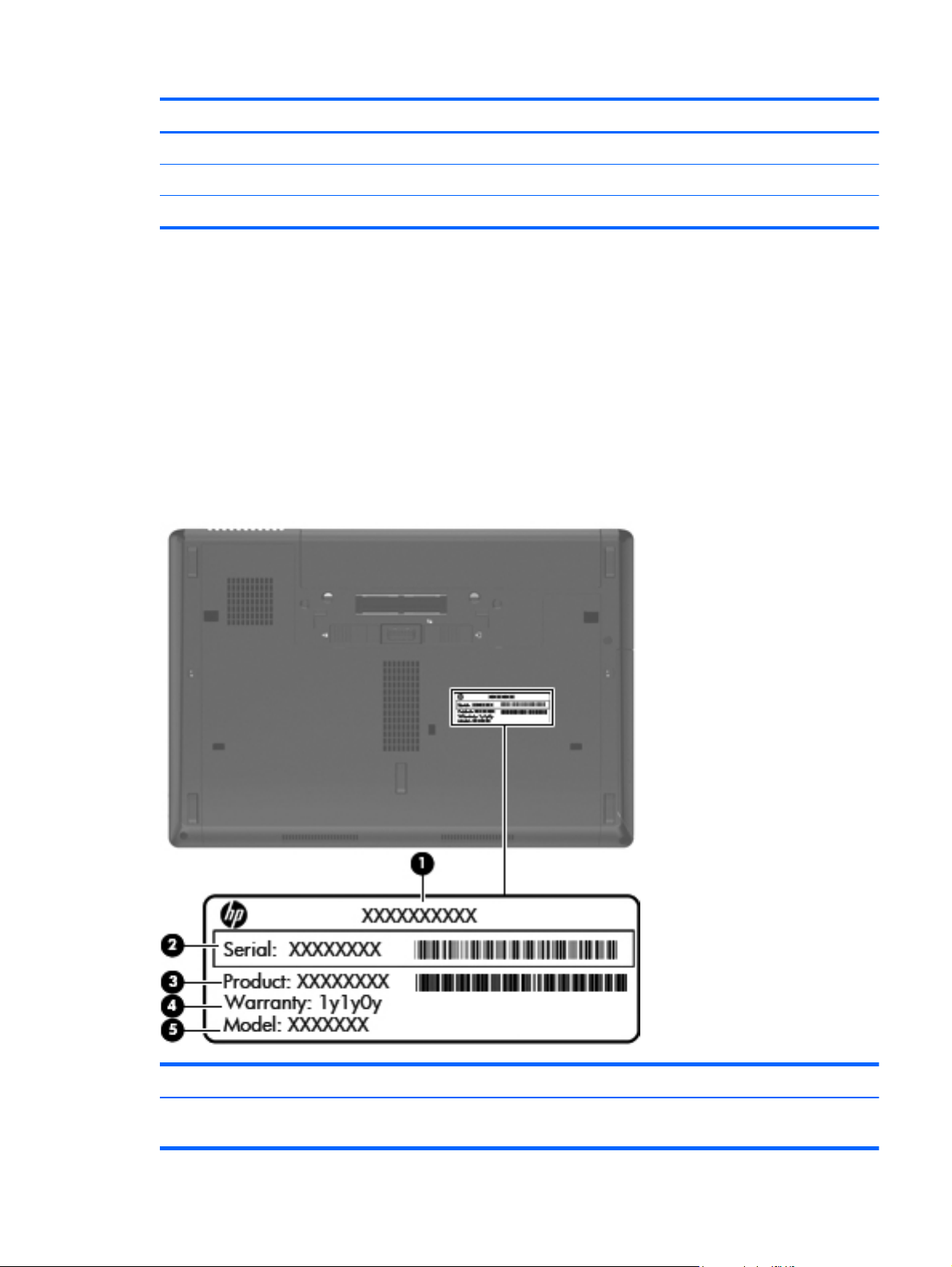

Service tag

When ordering parts or requesting information, provide the computer serial number and model description provided on the service tag.

Item Description Function

(1) Product name This is the product name affixed to the front of

the computer.

(2) Serial number (s/n) This is an alphanumeric identifier that is unique to

each product.

(3) Part number/Product number (p/n) This number provides specific information about the

product's hardware components. The part number helps a service technician to determine what components and parts are needed.

(4) Warranty period This number describes the duration of the warranty

period for the computer.

(5) Model description This is the alphanumeric identifier used to locate

documents, drivers, and support for the computer.

Service tag

Computer major components

Item Component Spare part number

(1) Display assembly: The display assembly is spared at the subcomponent level only. For display assembly spare

part information, see

(2) Keyboard (includes keyboard cable):

For use in Belgium 639477-A41

Display assembly subcomponents on page 19.

14 Chapter 3 Illustrated parts catalog

Item Component Spare part number

For use in Bulgaria 639477-261

For use in the Denmark 639477-081

For use in Denmark, Finland, and Norway 639477-DH1

For use in the Netherlands 639477-B31

For use in Europe 639477-DW1

For use in French Canada 639477-121

For use in France 639477-051

For use in Germany 639477-041

For use in Greece 639477-DJ1

For use in Hungary 639477-211

For use in Iceland 639477-DD1

For use in Israel 639477-BB1

For use in Italy 639477-061

For use in Norway 639477-091

For use in Portugal 639477-131

For use in Russia 639477-251

For use in Saudi Arabia 639477-171

For use in Slovenia 639477-A81

For use in Spain 639477-071

For use in Sweden and Finland 639477-B71

For use in Switzerland 639477-BG1

For use in Turkey 639477-141

For use in the United Kingdom 639477-031

For use in the United States 639477-001

(3) RTC battery 651038-001

(4) Expansion memory module (PC3, 10600, 1333-MHz):

8 GB 634091-001

4 GB 621569-001

2 GB 581096-001

(5) Top cover (includes TouchPad button and bracket) 658547-001

(6) Power button board (includes cable) 639481-001

(7) Function board (includes cable) 639480-001

Computer major components

Item Component Spare part number

Plastics Kit, includes: 639482-001

(8a) ExpressCard slot bezel

(8b) Service cover

NOTE: See

(9) Power connector cable (included in the Cable Kit, spare part number 639473-001)

NOTE: See

(10) ExpressCard assembly

NOTE: The ExpressCard assembly spare part kit does not include the ExpressCard

assembly cable. The ExpressCard assembly cable is included in the Cable Kit, spare part number 639473-001.

(11) System board with HM65 chipset and graphics subsystem with UMA memory

(includes replacement thermal material)

(12) Speaker Kit (includes left and right speakers and cable) 639484-001

(13) DVD-ROM drive (includes bezel and bracket) 647672-001

(14) Battery:

9-cell, 100-Whr, 3.00-Ah Li-ion battery 634087-001

9-cell, 100-Whr, 3.00-Ah Li-ion battery 631243-001

6-cell, 62-Whr, 2.80-Ah Li-ion battery 628668-001

6-cell, 55-Whr, 2.55-Ah Li-ion battery 628666-001

(15) Base enclosure (includes battery release latch and 4 rubber feet) 639468-001

Plastics Kit on page 22 for more Plastics Kit spare part information.

Cable Kit on page 18 for more Cable Kit spare part information.

639479-001

655561-001

Rubber Kit (not illustrated, includes 7 base enclosure rubber feet and 4 base

enclosure screw covers)

(16) WLAN module:

Broadcom 4313 802.11b/g/n 1×1 WiFi Adapter 593836-001

Broadcom 43224AGN 802.11a/b/g/n 2×2 WiFi Adapter for use in

Antigua and Barbuda, Barbados, Belize, Canada, the Cayman Islands, Guam, Puerto Rico, Trinidad and Tobago, the U.S. Virgin Islands, and the United States

639483-001

582564-001

16 Chapter 3 Illustrated parts catalog

Item Component Spare part number

Broadcom 43224AGN 802.11a/b/g/n 2×2 WiFi Adapter for use in Afghanistan,

Albania, Algeria, Andorra, Angola, Antigua and Barbuda, Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia, Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cameroon, Cape Verde, the Central African Republic, Chad, Chile, the People's Republic of China, Colombia, Comoros, the Congo, Costa Rica, Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala, Guinea, Guinea-Bissau, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Ireland, Israel, Italy, the Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, Malaysia, the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Nether Antilles, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Pakistan, Palau, Panama, Papua New Guinea, Paraguay, Peru, the Philippines, Poland, Portugal, the Republic of Moldova, Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome and Principe, Saudi Arabia, Senegal, Serbia, the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia, South Africa, South Korea, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia, St. Vincent and the Grenadines, Suriname, Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates, the United Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe

582564-002

(17) Primary memory module (PC3, 10600, 1333-MHz):

8 GB 634091-001

4 GB 621569-001

2 GB 581096-001

(18) 2.0 GB solid-state module (2.5-in, 7.0-mm, SATA; does not include solid-state

module bracket or screws)

Solid-state Module Hardware Kit (not illustrated, includes solid-state module

bracket and screws)

(19) Intel Celeron B810 1.60-GHz processor (1-MB L2 cache, 800-MHz FSB,

includes replacement thermal material)

(20) Heat sink (includes replacement thermal material) 639475-001

(21) Fan 639474-001

656837-001

651649-001

646760-001

Computer major components

Cable Kit

Item Component Spare part number

Cable Kit, includes: 639473-001

(1) TouchPad cable

(2) ExpressCard assembly cable

(3) Power connector cable

(4) Wireless antenna

18 Chapter 3 Illustrated parts catalog

Display assembly subcomponents

Item Component Spare part number

(1) Display hinge covers (2, included in the Plastics Kit, spare part number 639482-001)

NOTE: See

(2) Display bezel 655562-001

(3) Microphone module 647675-001

(4) Display Hinge Kit (includes left and right display hinges and brackets) 639476-001

(5) 13.3-in, HD, AG, LED, display panel 647671-001

(6) WLAN antenna cables (included in the Cable Kit, spare part number 639473-001; includes

WLAN cables and transceivers)

NOTE: See

(7) Display Cable Kit (includes display panel cable and microphone module cable) 639472-001

(8) Display enclosure 639467-001

Plastics Kit on page 22 for more Plastics Kit spare part information.

Cable Kit on page 18 for more Cable Kit spare part information.

Display assembly subcomponents

Mass storage devices

Item Component Spare part number

(1) 2.0-GB solid-state module (2.5-in, 7.0-mm, SATA; does not include solid-state

module bracket or screws)

Solid-state Module Hardware Kit, includes: 651649-001

(2) Solid-state module bracket

Screws (not illustrated)

(3) DVD-ROM drive (includes bezel and bracket) 647672-001

656837-001

20 Chapter 3 Illustrated parts catalog

Miscellaneous parts

Component Spare part number

HP Smart AC adapter:

65-W RC V HP Smart AC adapter 609939-001

65-W RC V EM HP Smart AC adapter 609948-001

Power cord (3-pin, black, 1.83-m):

For use in Australia 490371-011

For use in Europe 490371-021

For use in India 490371-D61

For use in Israel 490371-BB1

For use in Italy 490371-061

For use in Japan 490371-291

For use in North America 490371-001

For use in the People's Republic of China 490371-AA1

For use in South Africa 490371-AR1

For use in South Korea 490371-AD1

For use in Switzerland 490371-111

For use in Taiwan 490371-AB1

For use in Thailand 490371-201

For use in the United Kingdom and Singapore 490371-031

Screw Kit 647676-001

Miscellaneous parts

Plastics Kit

Item Component Spare part number

Plastics Kit, includes: 639482-001

(1) Display hinge covers (2)

(2) ExpressCard slot space saver

(3) Service cover

22 Chapter 3 Illustrated parts catalog

Sequential part number listing

Spare part number Description

490371-001 Power cord for use in North America (3-pin, black, 1.83-m)

490371-011 Power cord for use in Australia (3-pin, black, 1.83-m)

490371-021 Power cord for use in Europe (3-pin, black, 1.83-m)

490371-031 Power cord for use in the United Kingdom and Singapore (3-pin, black, 1.83-m)

490371-061 Power cord for use in Italy (3-pin, black, 1.83-m)

490371-111 Power cord for use in Switzerland (3-pin, black, 1.83-m)

490371-201 Power cord for use in Thailand (3-pin, black, 1.83-m)

490371-291 Power cord for use in Japan (3-pin, black, 1.83-m)

490371-AA1 Power cord for use in the People's Republic of China (3-pin, black, 1.83-m)

490371-AB1 Power cord for use in Taiwan (3-pin, black, 1.83-m)

490371-AD1 Power cord for use in South Korea (3-pin, black, 1.83-m)

490371-AR1 Power cord for use in South Africa (3-pin, black, 1.83-m)

490371-BB1 Power cord for use Israel (3-pin, black, 1.83-m)

490371-D61 Power cord for use in India (3-pin, black, 1.83-m)

581096-001 2-MB memory module (PC3, 10600, 1333-MHz)

582564-001 Broadcom 43224AGN 802.11a/b/g/n 2×2 WiFi Adapter for use in Antigua and Barbuda,

Barbados, Belize, Canada, the Cayman Islands, Guam, Puerto Rico, Trinidad and Tobago, the U.S. Virgin Islands, and the United States

Sequential part number listing

Spare part number Description

582564-002 Broadcom 43224AGN 802.11a/b/g/n 2×2 WiFi Adapter for use in Afghanistan, Albania,

Algeria, Andorra, Angola, Antigua and Barbuda, Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia, Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cameroon, Cape Verde, the Central African Republic, Chad, Chile, the People's Republic of China, Colombia, Comoros, the Congo, Costa Rica, Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala, Guinea, Guinea-Bissau, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Ireland, Israel, Italy, the Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, Malaysia, the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Nether Antilles, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Pakistan, Palau, Panama, Papua New Guinea, Paraguay, Peru, the Philippines, Poland, Portugal, the Republic of Moldova, Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome and Principe, Saudi Arabia, Senegal, Serbia, the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia, South Africa, South Korea, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia, St. Vincent and the Grenadines, Suriname, Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates, the United Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe

593836-001 Broadcom 4313 802.11b/g/n 1×1 WiFi Adapter

609939-001 65-W RC V HP Smart AC adapter

609948-001 65-W RC V EM HP Smart AC adapter

621569-001 4-MB memory module (PC3, 10600, 1333-MHz)

628666-001 6-cell, 55-Whr, 2.55-Ah Li-ion battery

628668-001 6-cell, 62-Whr, 2.80-Ah Li-ion battery

631243-001 9-cell, 100-Whr, 3.00-Ah Li-ion battery

634087-001 9-cell, 100-Whr, 3.00-Ah Li-ion battery

634091-001 8-MB memory module (PC3, 10600, 1333-MHz)

639467-001 Display enclosure

639468-001 Base enclosure (includes battery release latch and 4 rubber feet)

639472-001 Display Cable Kit (includes display panel cable and webcam/microphone module cable)

639473-001 Cable Kit (includes the ExpressCard assembly cable, power connector cable, TouchPad cable,

WLAN antenna cable, and WWAN antenna cable)

NOTE: See

639474-001 Fan

Cable Kit on page 18 for more Cable Kit spare part information.

639475-001 Heat sink (includes replacement thermal material)

639476-001 Display Hinge Kit (includes left and right display hinges and brackets)

639477-001 Keyboard for use in the United States (includes keyboard cable)

24 Chapter 3 Illustrated parts catalog

Spare part number Description

639477-031 Keyboard for use in the United Kingdom and Singapore (includes keyboard cable)

639477-041 Keyboard for use in Germany (includes keyboard cable)

639477-051 Keyboard for use in France (includes keyboard cable)

639477-061 Keyboard for use in Italy (includes keyboard cable)

639477-071 Keyboard for use in Spain (includes keyboard cable)

639477-081 Keyboard for use in Denmark Norway (includes keyboard cable)

639477-091 Keyboard for use in Norway (includes keyboard cable)

639477-121 Keyboard for use in French Canada (includes keyboard cable)

639477-131 Keyboard for use in Portugal (includes keyboard cable)

639477-141 Keyboard for use in Turkey (includes keyboard cable)

639477-171 Keyboard for use in Saudi Arabia (includes keyboard cable)

639477-211 Keyboard for use in Hungary (includes keyboard cable)

639477-251 Keyboard for use in Russia (includes keyboard cable)

639477-261 Keyboard for use in Bulgaria (includes keyboard cable)

639477-A41 Keyboard for use in Belgium (includes keyboard cable)

639477-A81 Keyboard for use in Slovenia (includes keyboard cable)

639477-B31 Keyboard for use in the Netherlands (includes keyboard cable)

639477-B71 Keyboard for use in Slovenia (includes keyboard cable)

639477-BB1 Keyboard for use in Israel (includes keyboard cable)

639477-BG1 Keyboard for use in Switzerland (includes keyboard cable)

639477-DD1 Keyboard for use in Iceland (includes keyboard cable)

639477-DH1 Keyboard for use in Denmark, Finland, and Norway (includes keyboard cable)

639477-DJ1 Keyboard for use in Greece (includes keyboard cable)

639477-DW1 Keyboard for use in Europe (includes keyboard cable)

639479-001 ExpressCard assembly

639480-001 Function board (includes cable)

639481-001 Power button board (includes cable)

639482-001 Plastics Kit (includes 2 display hinge covers, ExpressCard slot space saver, and service cover)

NOTE: See

Plastics Kit on page 22 for more Plastics Kit spare part information.

639483-001 Rubber Kit (includes 7 base enclosure rubber feet and 4 base enclosure screw covers)

639484-001 Speaker Kit (includes left and right speakers and cable)

641735-001 Webcam/microphone module

Sequential part number listing

Spare part number Description

646760-001 Intel Celeron B810 1.60-GHz processor (1-MB L2 cache, 800-MHz FSB)

(includes replacement thermal material)

647671-001 13.3-in, HD, AG, LED, display panel

647672-001 DVD-ROM drive (includes bezel and bracket)

647675-001 Microphone module

647676-001 Screw Kit

651038-001 RTC battery

651649-001 Solid-state Module Hardware Kit (includes solid-state module bracket and screws)

655561-001 System board with HM65 chipset and graphics subsystem with UMA memory

(includes replacement thermal material)

655562-001 Display bezel

656837-001 2.0-GB solid-state module (2.5-in, 7.0-mm, SATA; does not include solid-state module

bracket or screws)

658547-001 Top cover (includes TouchPad button and bracket)

26 Chapter 3 Illustrated parts catalog

4 Removal and replacement

procedures

Preliminary replacement requirements

Tools required

You will need the following tools to complete the removal and replacement procedures:

●

Flat-bladed screwdriver

●

Magnetic screwdriver

●

Phillips P0 and P1 screwdrivers

Service considerations

The following sections include some of the considerations that you must keep in mind during disassembly and assembly procedures.

NOTE: As you remove each subassembly from the computer, place the subassembly (and all

accompanying screws) away from the work area to prevent damage.

Plastic parts

CAUTION: Using excessive force during disassembly and reassembly can damage plastic parts. Use

care when handling the plastic parts. Apply pressure only at the points designated in the maintenance instructions.

Cables and connectors

CAUTION: When servicing the computer, be sure that cables are placed in their proper locations

during the reassembly process. Improper cable placement can damage the computer.

Cables must be handled with extreme care to avoid damage. Apply only the tension required to unseat or seat the cables during removal and insertion. Handle cables by the connector whenever possible. In all cases, avoid bending, twisting, or tearing cables. Be sure that cables are routed in such a way that they cannot be caught or snagged by parts being removed or replaced. Handle flex cables with extreme care; these cables tear easily.

Preliminary replacement requirements

Drive handling

CAUTION: Drives are fragile components that must be handled with care. To prevent damage to

the computer, damage to a drive, or loss of information, observe these precautions:

Before removing or inserting a hard drive, shut down the computer.

Before handling a drive, be sure that you are discharged of static electricity. While handling a drive, avoid touching the connector.

Before removing a diskette drive or optical drive, be sure that a diskette or disc is not in the drive and be sure that the optical drive tray is closed.

Handle drives on surfaces covered with at least one inch of shock-proof foam.

Avoid dropping drives from any height onto any surface.

After removing a hard drive, an optical drive, or a diskette drive, place it in a static-proof bag.

Avoid exposing an internal hard drive to products that have magnetic fields, such as monitors or speakers.

Avoid exposing a drive to temperature extremes or liquids.

If a drive must be mailed, place the drive in a bubble pack mailer or other suitable form of protective packaging and label the package “FRAGILE.”

Grounding guidelines

Electrostatic discharge damage

Electronic components are sensitive to electrostatic discharge (ESD). Circuitry design and structure determine the degree of sensitivity. Networks built into many integrated circuits provide some protection, but in many cases, ESD contains enough power to alter device parameters or melt silicon junctions.

A discharge of static electricity from a finger or other conductor can destroy static-sensitive devices or microcircuitry. Even if the spark is neither felt nor heard, damage may have occurred.

An electronic device exposed to ESD may not be affected at all and can work perfectly throughout a normal cycle. Or the device may function normally for a while, then degrade in the internal layers, reducing its life expectancy.

CAUTION: To prevent damage to the computer when you are removing or installing internal

components, observe these precautions:

Keep components in their electrostatic-safe containers until you are ready to install them.

Before touching an electronic component, discharge static electricity by using the guidelines described in this section.

Avoid touching pins, leads, and circuitry. Handle electronic components as little as possible.

If you remove a component, place it in an electrostatic-safe container.

28 Chapter 4 Removal and replacement procedures

The following table shows how humidity affects the electrostatic voltage levels generated by different activities.

CAUTION: A product can be degraded by as little as 700 V.

Typical electrostatic voltage levels

Relative humidity

Event 10% 40% 55%

Walking across carpet 35,000 V 15,000 V 7,500 V

Walking across vinyl floor 12,000 V 5,000 V 3,000 V

Motions of bench worker 6,000 V 800 V 400 V

Removing DIPS from plastic tube 2,000 V 700 V 400 V

Removing DIPS from vinyl tray 11,500 V 4,000 V 2,000 V

Removing DIPS from Styrofoam 14,500 V 5,000 V 3,500 V

Removing bubble pack from PCB 26,500 V 20,000 V 7,000 V

Packing PCBs in foam-lined box 21,000 V 11,000 V 5,000 V

Packaging and transporting guidelines

Follow these grounding guidelines when packaging and transporting equipment:

●

To avoid hand contact, transport products in static-safe tubes, bags, or boxes.

●

Protect ESD-sensitive parts and assemblies with conductive or approved containers or packaging.

●

Keep ESD-sensitive parts in their containers until the parts arrive at static-free workstations.

●

Place items on a grounded surface before removing items from their containers.

●

Always be properly grounded when touching a component or assembly.

●

Store reusable ESD-sensitive parts from assemblies in protective packaging or nonconductive foam.

●

Use transporters and conveyors made of antistatic belts and roller bushings. Be sure that mechanized equipment used for moving materials is wired to ground and that proper materials are selected to avoid static charging. When grounding is not possible, use an ionizer to dissipate electric charges.

Workstation guidelines

Follow these grounding workstation guidelines:

●

Cover the workstation with approved static-shielding material.

●

Use a wrist strap connected to a properly grounded work surface and use properly grounded tools and equipment.

Preliminary replacement requirements

●

Use conductive field service tools, such as cutters, screwdrivers, and vacuums.

●

When fixtures must directly contact dissipative surfaces, use fixtures made only of staticsafe materials.

●

Keep the work area free of nonconductive materials, such as ordinary plastic assembly aids and Styrofoam.

●

Handle ESD-sensitive components, parts, and assemblies by the case or PCM laminate. Handle these items only at static-free workstations.

●

Avoid contact with pins, leads, or circuitry.

●

Turn off power and input signals before inserting or removing connectors or test equipment.

Equipment guidelines

Grounding equipment must include either a wrist strap or a foot strap at a grounded workstation.

●

When seated, wear a wrist strap connected to a grounded system. Wrist straps are flexible straps with a minimum of one megohm ±10% resistance in the ground cords. To provide proper ground, wear a strap snugly against the skin at all times. On grounded mats with banana-plug connectors, use alligator clips to connect a wrist strap.

●

When standing, use foot straps and a grounded floor mat. Foot straps (heel, toe, or boot straps) can be used at standing workstations and are compatible with most types of shoes or boots. On conductive floors or dissipative floor mats, use foot straps on both feet with a minimum of one megohm resistance between the operator and ground. To be effective, the conductive must be worn in contact with the skin.

The following grounding equipment is recommended to prevent electrostatic damage:

●

Antistatic tape

●

Antistatic smocks, aprons, and sleeve protectors

●

Conductive bins and other assembly or soldering aids

●

Nonconductive foam

●

Conductive tabletop workstations with ground cords of one megohm resistance

●

Static-dissipative tables or floor mats with hard ties to the ground

●

Field service kits

●

Static awareness labels

●

Material-handling packages

●

Nonconductive plastic bags, tubes, or boxes

●

Metal tote boxes

●

Electrostatic voltage levels and protective materials

The following table lists the shielding protection provided by antistatic bags and floor mats.

30 Chapter 4 Removal and replacement procedures

Material Use Voltage protection level

Antistatic plastics Bags 1,500 V

Carbon-loaded plastic Floor mats 7,500 V

Metallized laminate Floor mats 5,000 V

Component replacement procedures

This chapter provides removal and replacement procedures.

There are as many as 75 screws that must be removed, replaced, or loosened when servicing the computer. Make special note of each screw size and location during removal and replacement.

Service tag

When ordering parts or requesting information, provide the computer serial number and model number provided on the service tag.

Item Description Function

(1) Product name This is the product name affixed to the front of

the computer.

Component replacement procedures

Item Description Function

(2) Serial number (s/n) This is an alphanumeric identifier that is unique to

(3) Part number/Product number (p/n) This number provides specific information about

(4) Warranty period This number describes the duration of the warranty

(5) Model description This is the alphanumeric identifier used to locate

Computer feet

The computer feet are adhesive-backed rubber pads. There are 7 rubber feet, in two different sizes, large (1) and small (2), that attach to the base enclosure in the locations illustrated below. The computer feet are available in the Rubber Kit, spare part number 639483-001.

each product.

the product's hardware components. The part number helps a service technician to determine what components and parts are needed.

period for the computer.

documents, drivers, and support for the computer.

32 Chapter 4 Removal and replacement procedures

Battery

Description Spare part number

9-cell, 100-Whr, 3.00-Ah Li-ion battery 634087-001

9-cell, 100-Whr, 3.00-Ah Li-ion battery 631243-001

6-cell, 62-Whr, 2.80-Ah Li-ion battery 628668-001

6-cell, 55-Whr, 2.55-Ah Li-ion battery 628666-001

Before disassembling the computer, follow these steps:

1. Shut down the computer.

Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

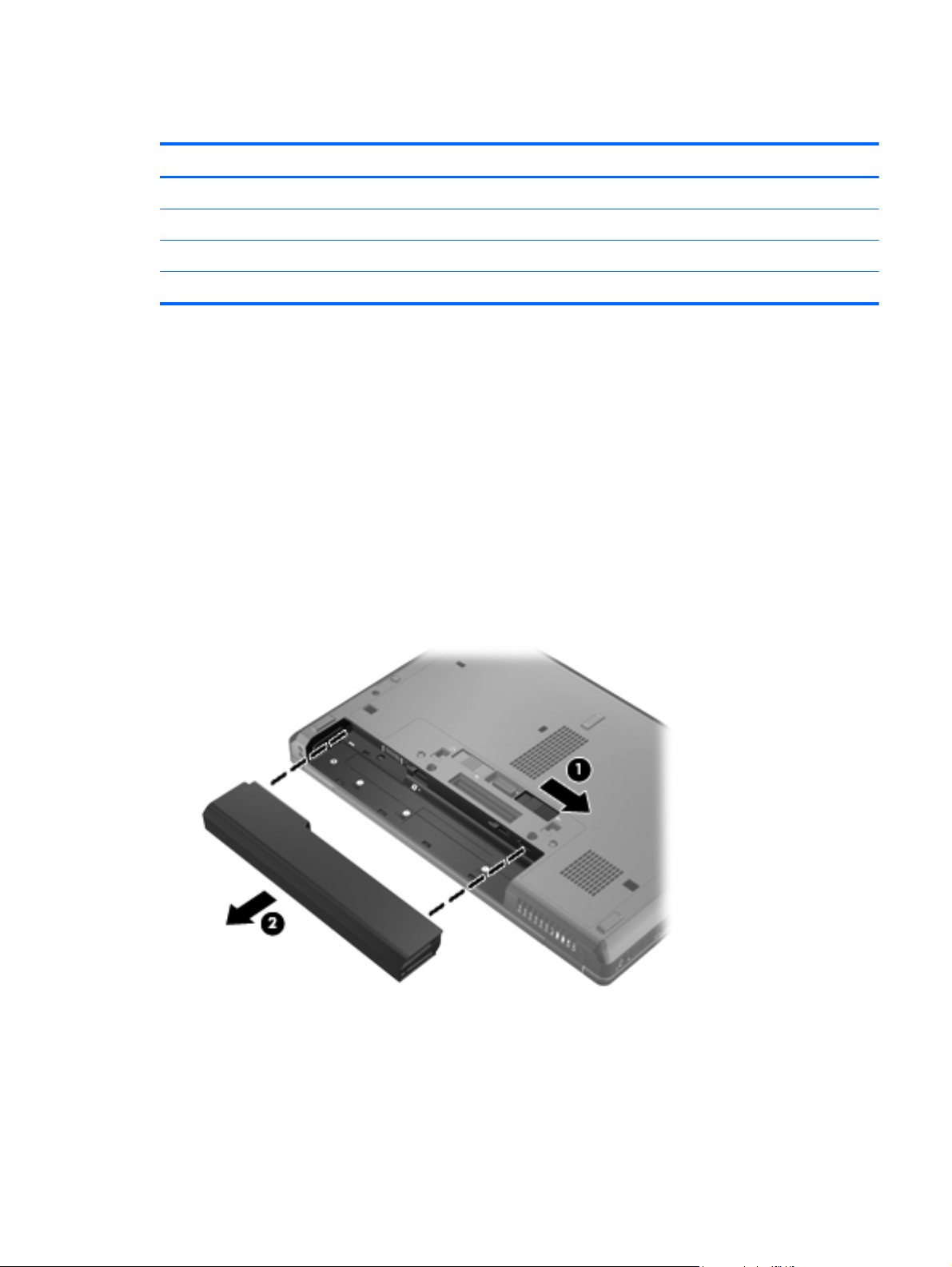

Remove the battery:

1. Turn the computer upside down on a flat surface, with the battery bay toward you.

2. Slide the battery release latch (1) to release the battery.

3. Remove the battery (2) from the computer.

Install the battery by inserting it into the battery bay until you hear a click.

Component replacement procedures

Solid-state module

NOTE: The solid-state module spare part kit does not include the solid-state module bracket or screws.

The solid-state module bracket and screws are included in the Solid-state Module Hardware Kit, spare part number 651649-001.

Description Spare part number

2.0-GB solid-state module (2.5-in, 7.0-mm, SATA) 656837-001

Before removing the solid-state module, follow these steps:

Shut down the computer.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

Battery on page 33).

Remove the solid-state module:

Slide the service cover release latch (1) to the left.

If the optional security screw (2) is being used, remove the screw, and then slide the release latch again (3) to release the service cover.

NOTE: If you want to use the optional screw, it is stored inside the service cover.

3. Slide the service cover forward (4) until it disengages from the computer.

34 Chapter 4 Removal and replacement procedures

Remove the service cover (5). The service cover is available in the Plastics Kit, spare part number 639482-001.

5. Loosen the three Phillips PM2.5×9.0 screws (1) that secure the solid-state module to the computer.

6. Use the plastic tab on the solid-state module (2) to slide the drive to the left to disconnect it from

the system board.

7. Use the plastic tab to lift the right side of the solid-state module (3) until it is clear of

the base enclosure.

Component replacement procedures

Remove the solid-state module (4) by sliding it up and away from the computer at an angle.

9. If it is necessary to replace the solid-state module screws (1) and bracket (2), remove and replace

the components.

Reverse this procedure to reassemble and install the solid-state module.

36 Chapter 4 Removal and replacement procedures

Primary memory module

Description Spare part number

8 GB 634091-001

4 GB 621569-001

2 GB 581096-001

Before removing the primary memory module, follow these steps:

1. Shut down the computer.

Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

5. Remove the service cover (see

Battery on page 33).

Solid-state module on page 34).

Remove the primary memory module:

1. Pull away the retention clips (1) on each side of the memory module. (The memory

module tilts up.)

Grasp the edge of the memory module, and then gently pull the memory module (2) out of the memory module slot.

CAUTION: To prevent damage to the memory module, hold the memory module by the edges

only. Do not touch the components on the memory module.

To protect a memory module after removal, place it in an electrostatic-safe container.

Reverse this procedure to install the primary memory module.

Component replacement procedures

Optical drive

NOTE: The optical drive spare part kit includes a bezel and bracket.

Description Spare part number

DVD-ROM drive 647672-001

Before removing the optical drive, follow these steps:

Shut down the computer.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

Remove the service cover (see

Battery on page 33).

Solid-state module on page 34).

Remove the optical drive:

1. Remove the four screws that secure the optical drive to the computer.

2. Loosen the optical drive captive screw (1).

3. Using a flat-bladed screwdriver, gently push the tab (2) to release the optical drive.

38 Chapter 4 Removal and replacement procedures

Remove the optical drive (3) from the optical drive bay.

5. If the optical drive space saver is installed, loosen the optical drive captive screw (1).

6. Using a flat-bladed screwdriver, gently push the tab (2) to release the optical drive space saver.

7. Remove the optical drive space saver (3) from the optical drive bay.

8. If it is necessary to replace the optical drive bracket, position the optical drive with the rear panel

toward you.

Remove the two Phillips PM2.0×3.0 screws (1) that secure the bracket to the optical drive.

Component replacement procedures

Fan

10.

Remove the optical drive bracket (2).

Reverse this procedure to reassemble and install the optical drive.

Description Spare part number

Fan 639474-001

NOTE: To properly ventilate the computer, allow at least 7.6 cm (3 in) of clearance on the left side of

the computer. The computer uses an electric fan for ventilation. The fan is controlled by a temperature sensor and is designed to turn on automatically when high temperature conditions exist. These conditions are affected by high external temperatures, system power consumption, power management/battery conservation configurations, battery fast charging, and software requirements. Exhaust air is displaced through the ventilation grill located on the left side of the computer.

Before removing the fan, follow these steps:

1. Shut down the computer.

2. Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then unplugging the AC adapter from the computer.

4. Remove the battery (see

5. Remove the service cover (see

Battery on page 33).

Solid-state module on page 34).

Remove the fan:

1. Disconnect the fan cable (1) from the system board.

2. Loosen the two Phillips PM2.5×7.0 captive screws (2) that secure the fan to the system board.

40 Chapter 4 Removal and replacement procedures

Remove the fan (3).

Reverse this procedure to install the fan.

Heat sink

Description Spare part number

Heat sink (includes replacement thermal material) 639475-001

Before removing the heat sink, follow these steps:

1. Shut down the computer.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

4. Remove the battery (see

5. Remove the service cover (see

6. Remove the fan (see

and then unplugging the AC adapter from the computer.

Battery on page 33).

Solid-state module on page 34).

Fan on page 40).

Component replacement procedures

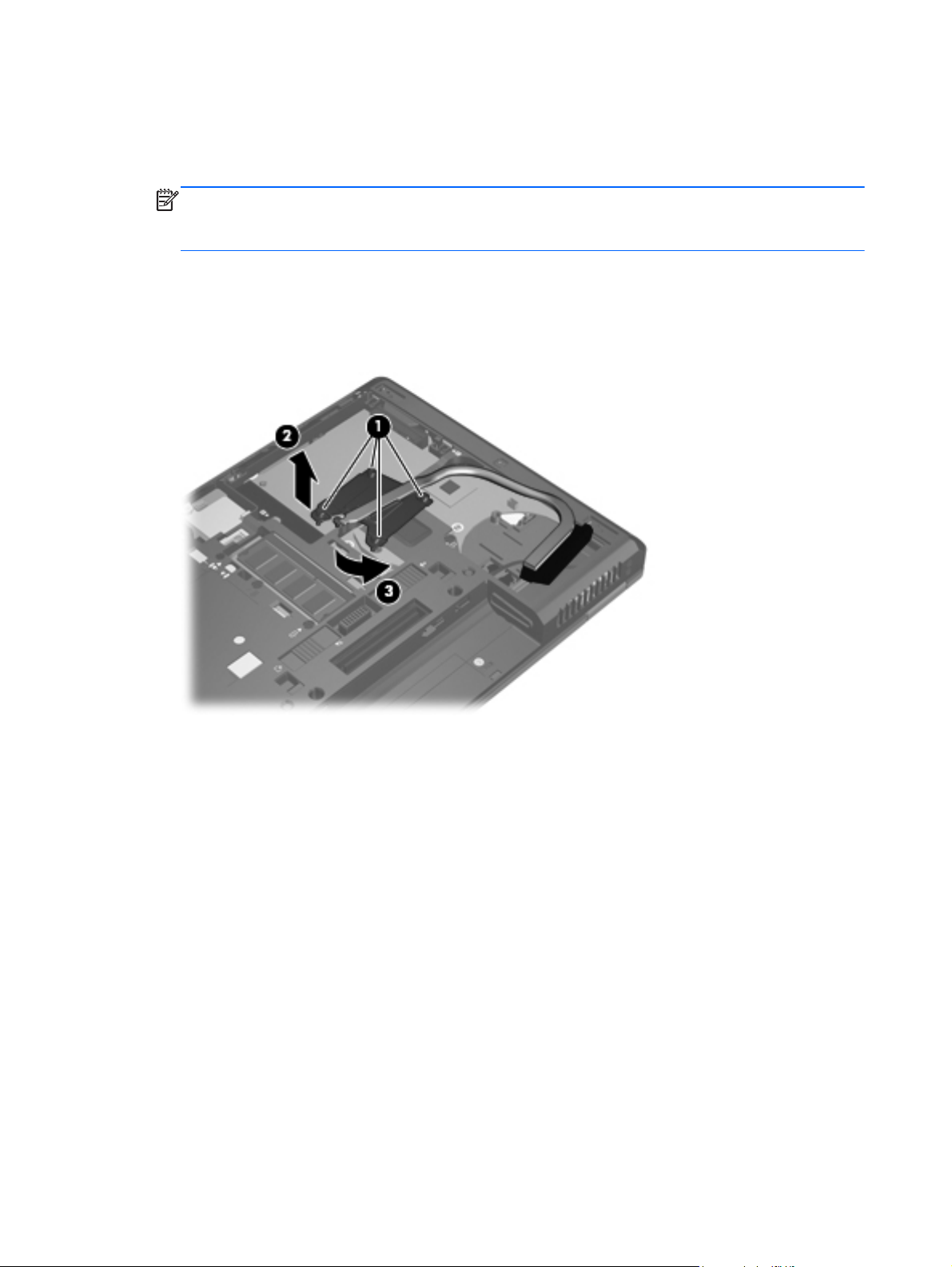

Remove the heat sink:

1. Loosen the four captive Phillips PM2.5×10.0 screws (1) that secure the heat sink to

the system board.

NOTE: Due to the adhesive quality of the thermal material located between the heat sink and

system board components, it may be necessary to move the heat sink from side to side to detach it.

2. Lift the left side (2) of the heat sink until it disengages from the system board.

3. Rotate the heat sink (3) counterclockwise until it is clear of the rear right corner of

the base enclosure.

4. Remove the heat sink.

The thermal material must be thoroughly cleaned from the surfaces of the heat sink and the system board components each time the heat sink is removed. Replacement thermal material is included with the heat sink, processor, and system board spare part kits. Thermal paste is used on the processor (1) and the heat sink section (2) that services it.

42 Chapter 4 Removal and replacement procedures

Reverse this procedure to reassemble and install the heat sink.

Processor

Description Spare part number

Intel Celeron B810 1.60-GHz processor (1-MB L2 cache, 800-MHz FSB, includes replacement thermal material)

646760-001

Before removing the processor, follow these steps:

Shut down the computer.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

●

Service cover (see

●

Fan (see

●

Heat sink (see

Fan on page 40)

Battery on page 33), and then remove the following components:

Solid-state module on page 34)

Heat sink on page 41)

Remove the processor:

1. Use a flat-bladed screw driver to turn the processor locking screw one-half turn

counterclockwise (1), until you hear a click.

Component replacement procedures

Lift the processor (2) straight up, and then remove it.

NOTE: The gold triangle (3) on the processor must be aligned with the triangle icon (4)

embossed on the processor socket when you install the processor.

Reverse this procedure to install the processor.

44 Chapter 4 Removal and replacement procedures

WLAN module

Description Spare part number

Broadcom 4313 802.11b/g/n 1×1 WiFi Adapter 593836-001

Broadcom 43224AGN 802.11a/b/g/n 2×2 WiFi Adapter for use in Antigua and Barbuda, Barbados, Belize, Canada, the Cayman Islands, Guam, Puerto Rico, Trinidad and Tobago, the U.S. Virgin Islands, and the United States

Broadcom 43224AGN 802.11a/b/g/n 2×2 WiFi Adapter for use in Afghanistan, Albania, Algeria, Andorra, Angola, Antigua and Barbuda, Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia, Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cameroon, Cape Verde, the Central African Republic, Chad, Chile, the People's Republic of China, Colombia, Comoros, the Congo, Costa Rica, Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala, Guinea, Guinea-Bissau, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Ireland, Israel, Italy, the Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, Malaysia, the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Nether Antilles, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Pakistan, Palau, Panama, Papua New Guinea, Paraguay, Peru, the Philippines, Poland, Portugal, the Republic of Moldova, Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome and Principe, Saudi Arabia, Senegal, Serbia, the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia, South Africa, South Korea, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia, St. Vincent and the Grenadines, Suriname, Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates, the United Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe

582564-001

582564-002

CAUTION: To prevent an unresponsive system, replace the wireless module only with a wireless

module authorized for use in the computer by the governmental agency that regulates wireless devices in your country or region. If you replace the module and then receive a warning message, remove the module to restore device functionality, and then contact technical support.

Before removing the WLAN module, follow these steps:

1. Shut down the computer.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

5. Remove the service cover (see

Battery on page 33).

Solid-state module on page 34).

Component replacement procedures

Remove the WLAN module:

1. Disconnect the WLAN antenna cables (1) from the terminals on the WLAN module.

NOTE: The #1 WLAN antenna cable is connected to the WLAN module #1/Main terminal. The

#2 WLAN antenna cable is connected to the WLAN module #2/Aux terminal.

2. Remove the two Phillips PM2.5×4.0 screws (2) that secure the WLAN module to

the system board. (The WLAN module tilts up.)

3. Remove the WLAN module by pulling the module away from the slot at an angle (3).

NOTE: The WLAN module is designed with a notch (4) to prevent incorrect installation into

the WLAN module socket.

NOTE: If the WLAN antennas are not connected to the terminals on a WLAN module, the protective

sleeves must be installed on the antenna connectors, as shown in the following illustration.

Reverse this procedure to install the WLAN module.

46 Chapter 4 Removal and replacement procedures

Keyboard

NOTE: The keyboard spare part kit includes a keyboard cable.

Description Spare part number Description Spare part number

For use in Belgium 639477-A41 For use in Italy 639477-061

For use in Bulgaria 639477-261 For use in Norway 639477-091

For use in the Denmark 639477-081 For use in Portugal 639477-131

For use in Denmark, Finland, and Norway

For use in the Netherlands 639477-B31 For use in Saudi Arabia 639477-171

For use in Europe 639477-DW1 For use in Slovenia 639477-A81

For use in French Canada 639477-121 For use in Spain 639477-071

For use in France 639477-051 For use in Sweden and Finland 639477-B71

For use in Germany 639477-041 For use in Switzerland 639477-BG1

For use in Greece 639477-DJ1 For use in Turkey 639477-141

For use in Hungary 639477-211 For use in the United Kingdom 639477-031

For use in Iceland 639477-DD1 For use in the United States 639477-001

For use in Israel 639477-BB1

639477-DH1 For use in Russia 639477-251

Before removing the keyboard, follow these steps:

Shut down the computer.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

Remove the battery (see

5. Remove the service cover (see

Battery on page 33).

Solid-state module on page 34).

Remove the keyboard:

1. Partially open the computer.

2. Rest and secure the computer on the top edge of the display.

3. Loosen the four captive screws (1) that secure the keyboard to the computer.

Component replacement procedures

Insert a screwdriver or similar thin tool into the keyboard release area (2), and then press on the back of the keyboard until the keyboard disengages from the computer.

Turn the computer right-side up with the front toward you.

6. Lift the rear edge of the keyboard, and then swing the keyboard up and forward until it rests

upside down on the palm rest.

7. Release the zero insertion force (ZIF) connector (1) to which the keyboard cable is attached, and

then disconnect the keyboard cable (2) from the system board.

48 Chapter 4 Removal and replacement procedures

Remove the keyboard (3).

9. Remove the keyboard.

Reverse this procedure to install the keyboard.

Component replacement procedures

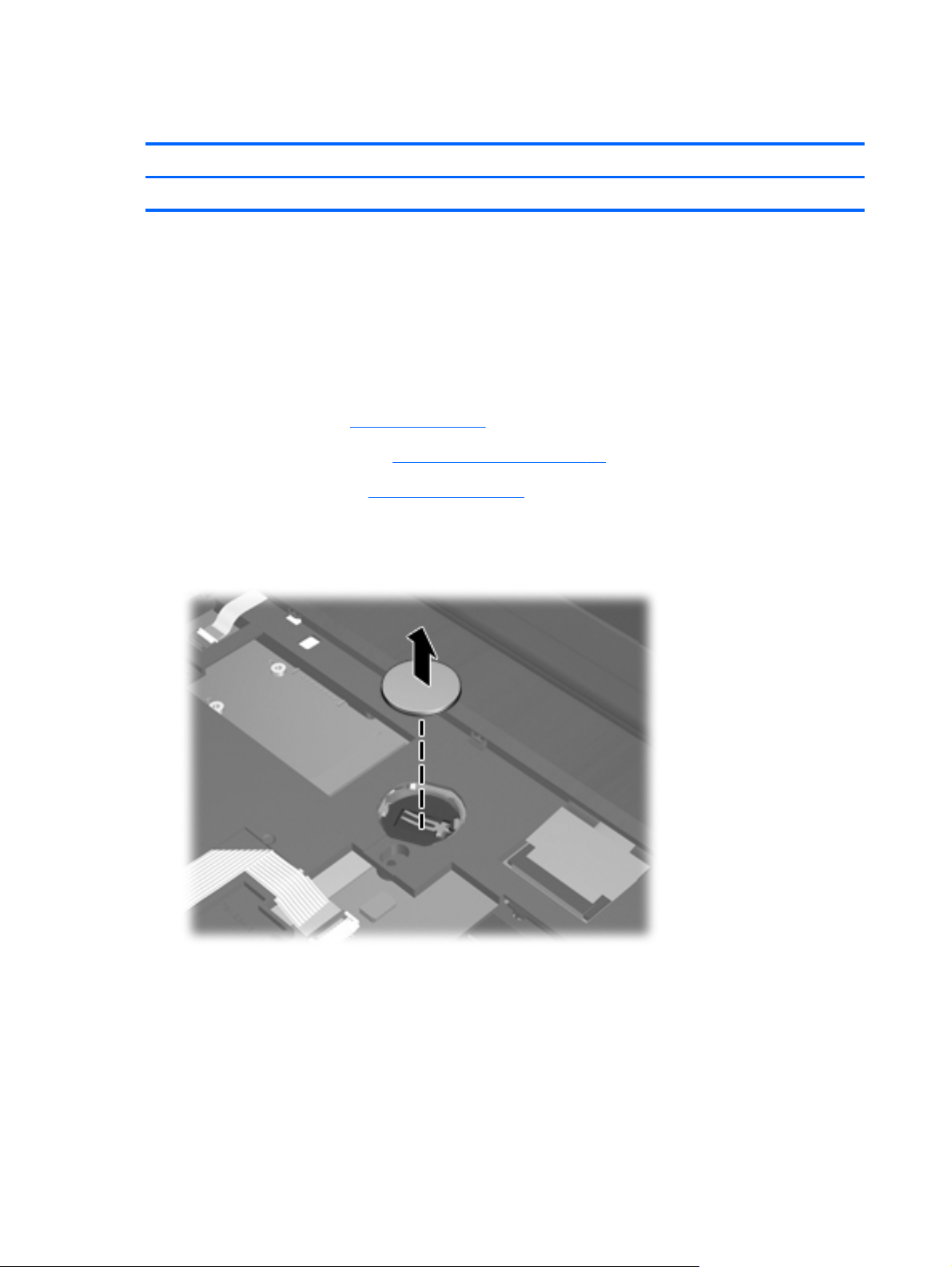

RTC battery

Description Spare part number

RTC battery 651038-001

Before removing the RTC battery, follow these steps:

1. Shut down the computer.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

Remove the battery (see

Battery on page 33).

5. Remove the service cover (see

6. Remove the keyboard (see

Solid-state module on page 34).

Keyboard on page 47).

Remove the RTC battery:

▲

Use a thin, non-conductive tool to remove the RTC battery from the socket on the system board.

Reverse this procedure to install the RTC battery. When installing the RTC battery, make sure the “+” sign faces up.

50 Chapter 4 Removal and replacement procedures

Expansion memory module

Description Spare part number

8 GB 634091-001

4 GB 621569-001

2 GB 581096-001

Before removing the expansion memory module, follow these steps:

1. Shut down the computer.

Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

5. Remove the service cover (see

6. Remove the keyboard (see

Battery on page 33).

Solid-state module on page 34).

Keyboard on page 47).

Remove the expansion memory module:

1. Pull away the retention clips (1) on each side of the memory module. (The memory module

tilts up.)

Component replacement procedures

Grasp the edge of the memory module, and then gently pull the memory module (2) out of the memory module slot.

CAUTION: To prevent damage to the memory module, hold the memory module by the edges

only. Do not touch the components on the memory module.

To protect a memory module after removal, place it in an electrostatic-safe container.

Reverse this procedure to install the expansion memory module.

Base enclosure

Description Spare part number

Base enclosure (includes battery release latch and 4 rubber feet) 639468-001

Rubber Kit (includes 7 base enclosure rubber feet and 4 base enclosure screw covers) 639483-001

Before removing the base enclosure, follow these steps:

1. Shut down the computer.

Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

a. Service cover (see

Battery on page 33), and then remove the following components:

Solid-state module on page 34)

Solid-state module (see

Solid-state module on page 34)

52 Chapter 4 Removal and replacement procedures

Optical drive (see

Optical drive on page 38)

d. Keyboard (see

Remove the base enclosure:

1. Remove the Torx8 TM2.5×9.0 screw that secures the base enclosure to the computer.

Keyboard on page 47)

2. Close the computer.

3. Turn the computer upside down, with the rear panel toward you.

4. Remove the following:

●

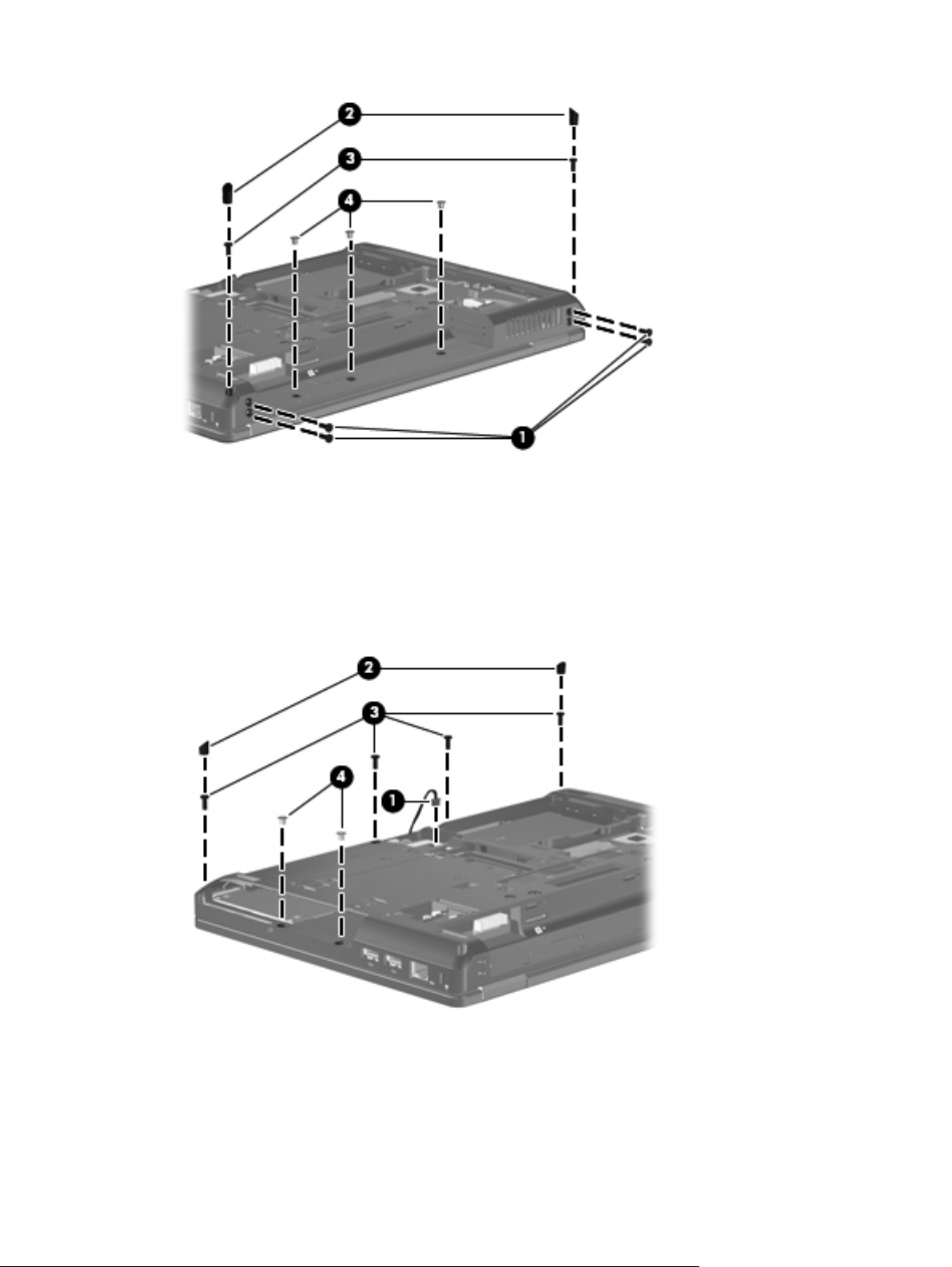

Four Torx8 TM2.5×9.0 screws (1) from the computer rear panel

●

Two rubber screw covers (2) (available in the Rubber Kit, spare part number 639483-001)

●

Two Torx8 TM2.5×9.0 screws (3) from the surface of the base enclosure

●

Three Phillips PM2.0×3.0 (4) screws from the battery bay

Component replacement procedures

5. Disconnect the speaker cable (1) from the system board

6. Remove the following:

●

Two rubber screw covers (2) (available in the Rubber Kit, spare part number 639483-001)

●

Four Torx8 TM2.5×9.0 screws (3) from the surface of the base enclosure

●

Two Torx8 TM2.5×5.0 (4) screws from the optical drive bay

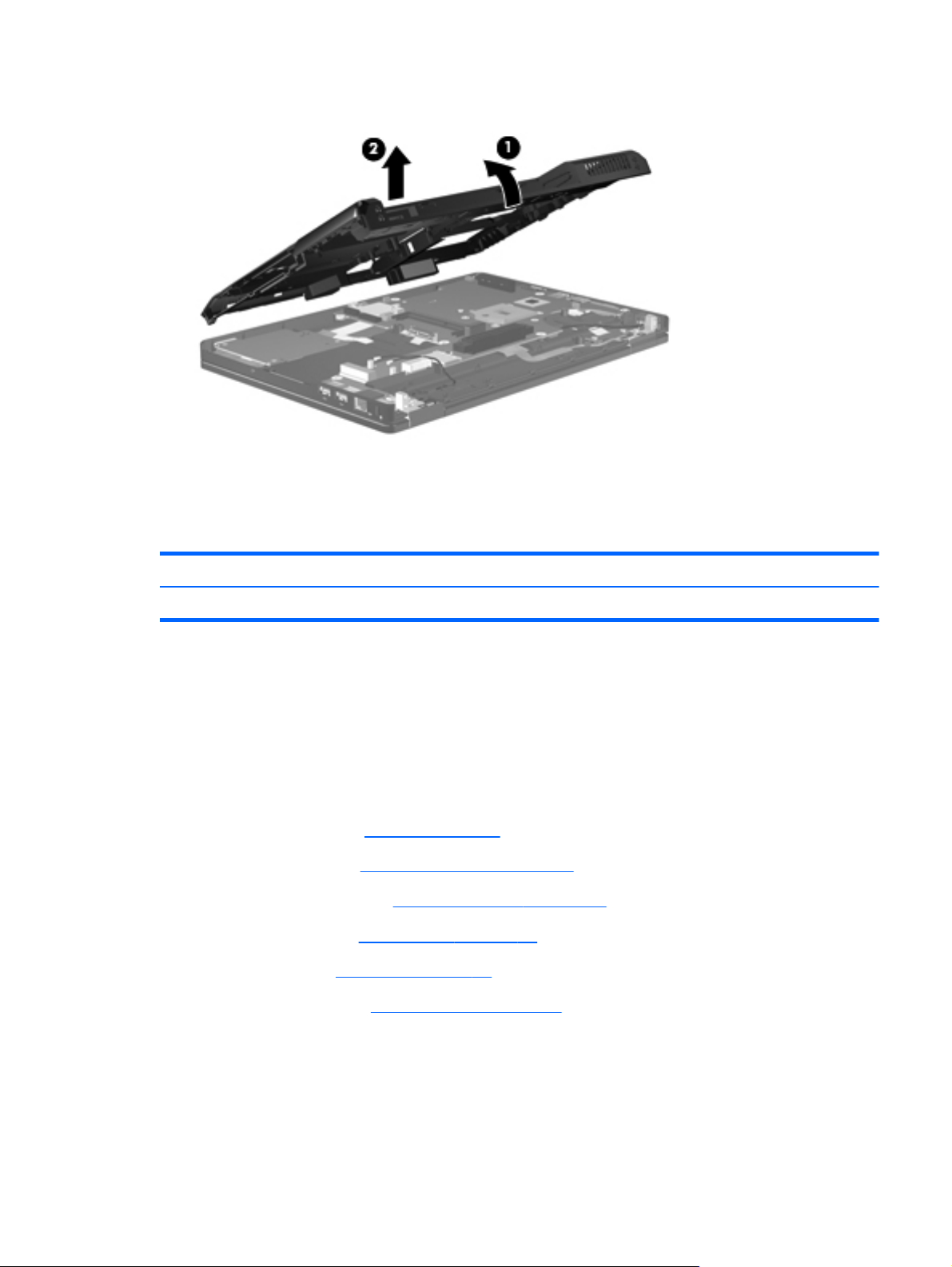

Lift the front edge (1) of the base enclosure until it disengages from the computer.

54 Chapter 4 Removal and replacement procedures

Reverse this procedure to install the base enclosure.

Speakers

Description Spare part number

Remove the base enclosure (2).

Speaker Kit (includes left and right speakers and cable) 639484-001

Before removing the speakers, follow these steps:

1. Shut down the computer.

Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

a. Service cover (see

Solid-state module (see

c. Optical drive (see

d. Keyboard (see

e. Base enclosure (see

Battery on page 33), and then remove the following components:

Solid-state module on page 34)

Optical drive on page 38)

Keyboard on page 47)

Base enclosure on page 52)

Remove the speakers:

1. Turn the base enclosure right side up, with the rear panel toward you.

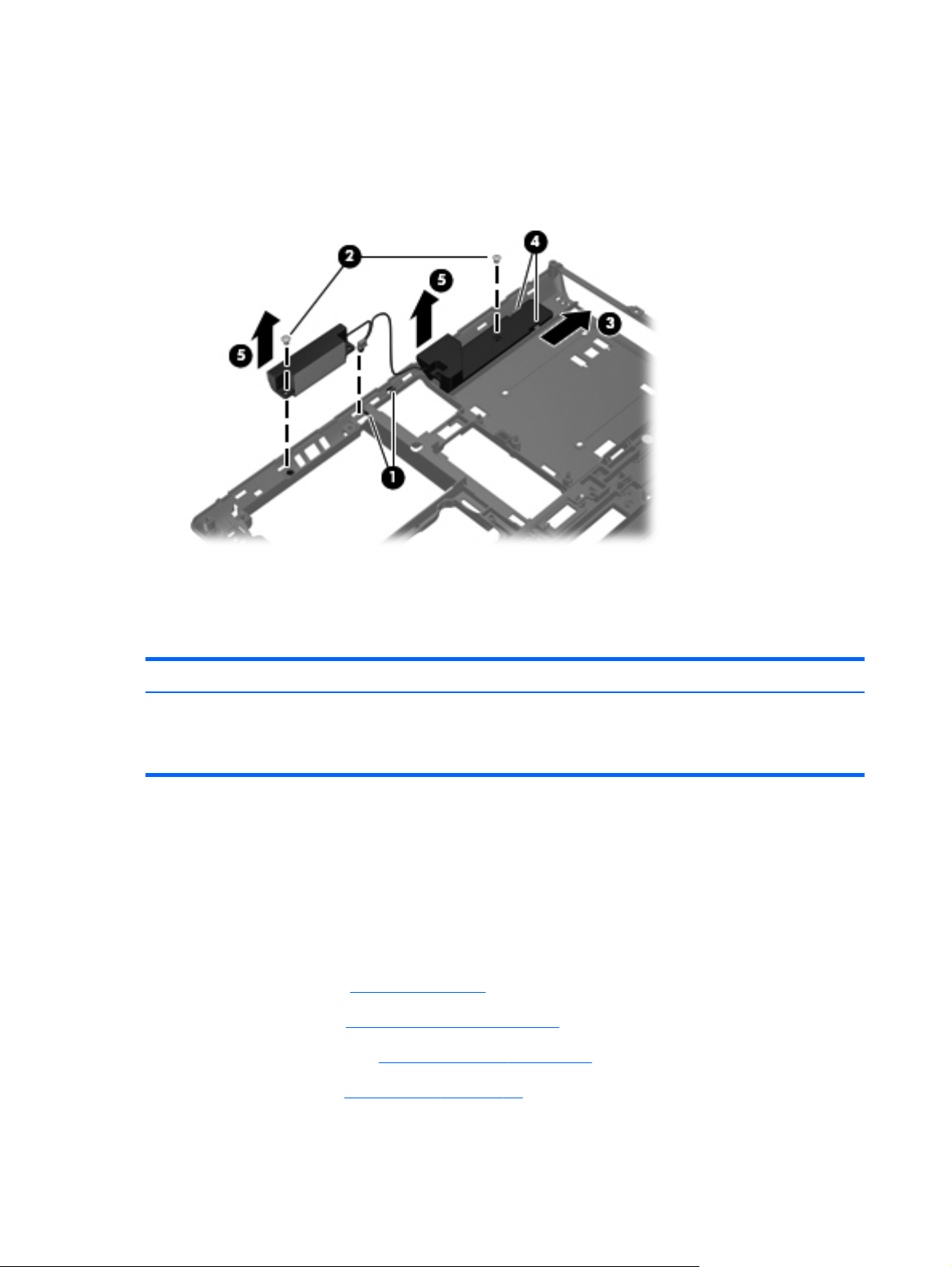

2. Release the speaker cable from the clips (1) built into the base enclosure.

Component replacement procedures

Remove the two Phillips PM2.5×4.0 screws (2) that secure the speakers to the computer.

Slide the right speaker (3) to the right to disengage it from the tabs (4) built into the base enclosure.

5. Remove the speakers (5).

Reverse this procedure to install the speakers.

ExpressCard assembly

Description Spare part number

ExpressCard assembly

NOTE: The ExpressCard assembly spare part kit does not include the ExpressCard assembly cable.

The ExpressCard assembly cable is included in the Cable Kit, spare part number 639473-001.

Before removing the ExpressCard assembly, follow these steps:

1. Shut down the computer.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

a. Service cover (see

639479-001

Battery on page 33).

Solid-state module on page 34)

b. Solid-state module (see

c. Optical drive (see

Solid-state module on page 34)

Optical drive on page 38)

56 Chapter 4 Removal and replacement procedures

Keyboard (see

Keyboard on page 47)

e. Base enclosure (see

Remove the ExpressCard assembly:

1. Position the computer with the right side toward you.

2. Remove the three Phillips PM2.5×4.0 screws that secure the ExpressCard assembly to

the system board.

Base enclosure on page 52)

3. Lift the left side of the ExpressCard assembly, and then swing it up and to the right (1) until it rests

upside down on the system board.

Release the ZIF connector to which the ExpressCard assembly cable is attached, and then disconnect the cable (2) from the connector.

5. Remove the ExpressCard assembly.

Reverse this procedure to install the ExpressCard assembly.

Component replacement procedures

Display assembly

Description Spare part number

The display assembly is spared at the subcomponent level only

Before removing the display assembly, follow these steps:

1. Shut down the computer.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

Remove the battery (see

Battery on page 33), and then remove the following components:

a. Service cover (see

b. Solid-state module (see

c. Optical drive (see

d. Keyboard (see

e. Base enclosure (see

Solid-state module on page 34)

Optical drive on page 38)

Keyboard on page 47)

Base enclosure on page 52)

Remove the display assembly:

1. Turn the computer right side up, with the front toward you.

2. Open the computer.

Disconnect the display panel cable (1) from the system board.

58 Chapter 4 Removal and replacement procedures

Release the display panel cable through the opening (2) in the top cover.

5. Close the computer.

Turn the computer upside down, with the rear panel toward you.

7. Release the wireless antenna cables from the clips (1) built into the base enclosure.

Release the display panel cable (2) from the top cover. (The display panel cable is attached to the top cover with double-sided tape.)

9. Release the display panel cable from the clips (3) built into the top cover.

CAUTION: Support the display assembly when removing the following screws. Failure to

support the display assembly can result in damage to the display assembly and other computer components.

Component replacement procedures

10.

Remove the two Phillips PM2.5×3.3 screws (1) that secure the display assembly to the computer.

11.

Remove the display assembly (2).

12. If it is necessary to replace the display bezel or any of the display assembly subcomponents:

Remove the two screw covers (1) and the two Phillips PM2.0×5.0 screws (2) that secure the display bezel to the display assembly. The screw covers are available in the Rubber Kit, spare part number 639483-001.

Flex the inside edges of the bottom edge (1) and the left and right sides (2) of the display bezel until the bezel disengages from the display enclosure.

c. Slide and hold the display release hook (3) to the right.

d. Flex the inside edge of the top edge (4) of the display bezel until the bezel disengages from

the display enclosure.

60 Chapter 4 Removal and replacement procedures

Remove the display bezel (5). The display bezel is available using spare part number 655562-001.

13.

If it is necessary to replace the microphone module:

a. Detach the microphone module (1) as far as the microphone module cable allows.

(The module is attached to the display enclosure with double-sided tape.)

b. Disconnect the microphone module cable (2) from the module.

c. Remove the microphone module (3). The microphone module is available using spare part

number 647675-001.

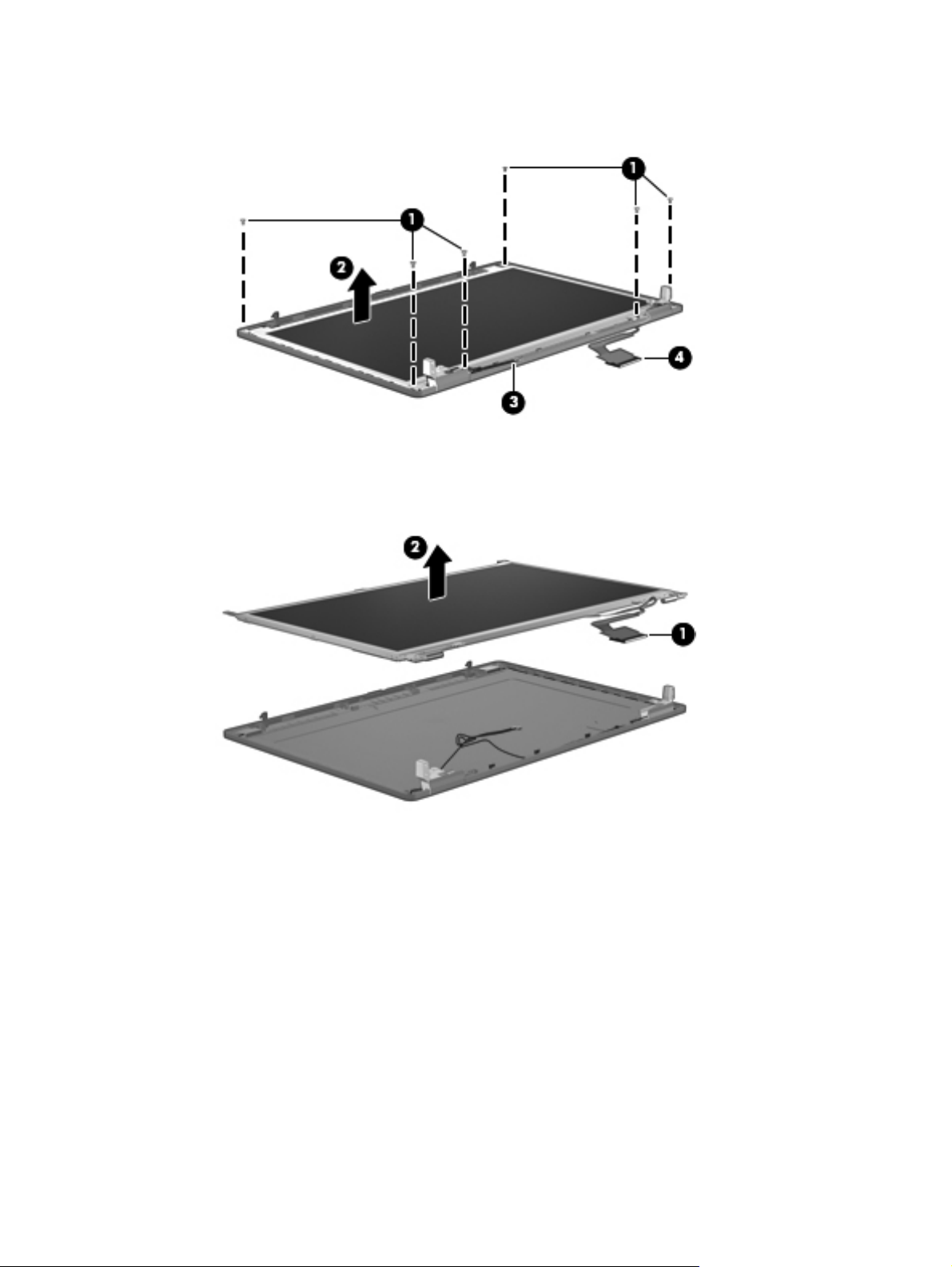

14. If it is necessary to replace the display panel:

a. Remove the six Phillips PM2.0×4.0 screws (1) that secure the display panel to

the display enclosure.

Lift the display panel (2) to release it from the display enclosure.

Component replacement procedures

Release the wireless antenna cables (3) from the left hinge and the display panel cable (4) from the right hinge.

d. Detach the display panel cable (1) from the display enclosure. (The display panel cable is

attached to the display enclosure with double-sided tape.)

e. Remove the display panel (2).

15. If it is necessary to replace the hinges:

a. Remove the six Phillips PM2.0×3.0 (1) screws that secure the hinges to the display panel.

62 Chapter 4 Removal and replacement procedures

Remove the hinges (2). The hinges are available using spare part number 639476-001.

c. If it is necessary to replace the hinge covers, remove the Phillips PM2.5×4.3 screw that

secures the hinge cover to the hinge, and then remove the hinge cover. The hinge covers are available in the Plastics Kit, spare part number 639482-001.

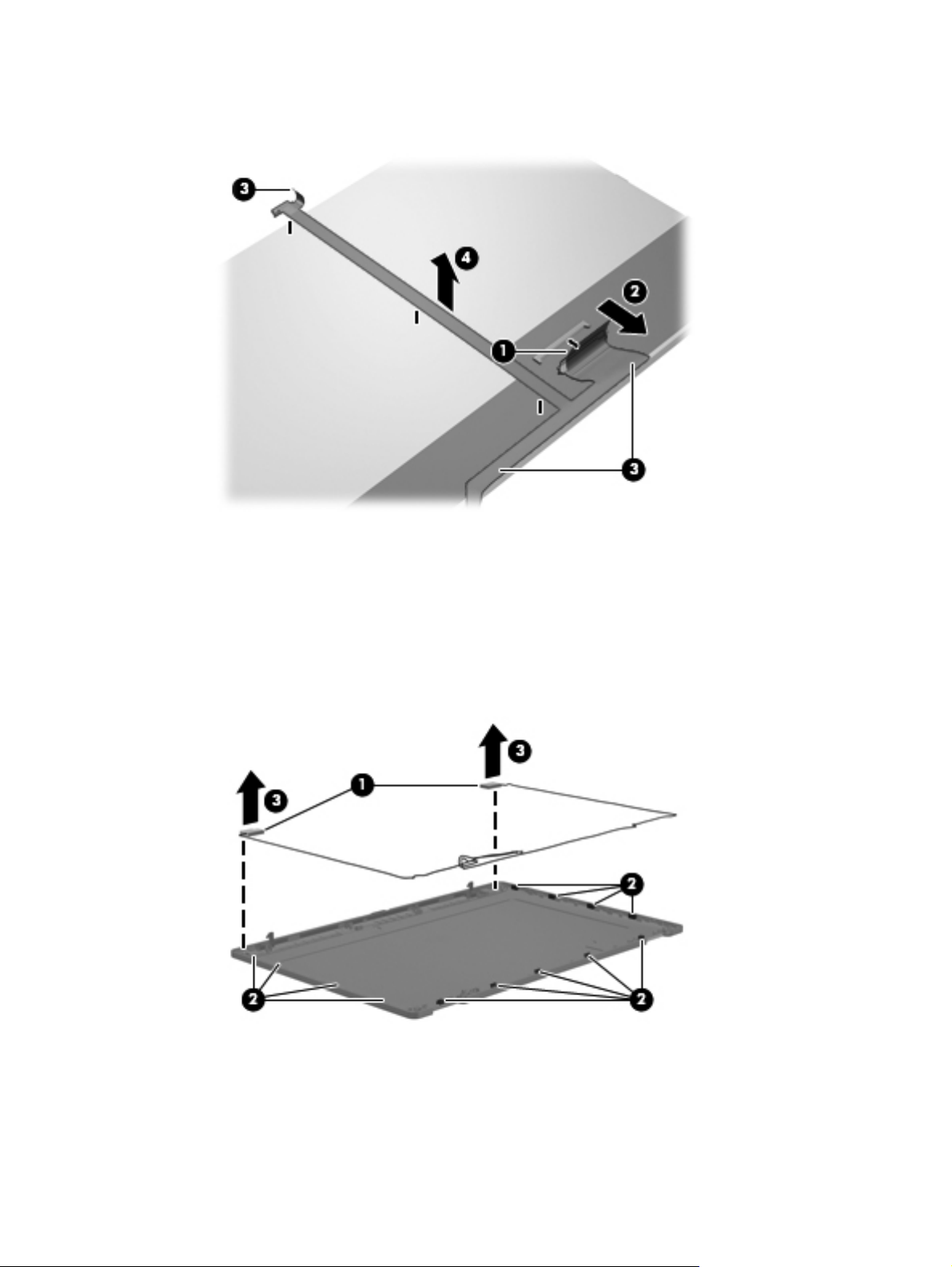

16. If it is necessary to replace the display panel cable:

a. Release the adhesive support strip (1) that secures the display panel cable to

the display panel.

Disconnect the display panel cable (2) from the display panel.

Release the display panel cable (3) from the display panel. (The display panel cable is attached to the display panel with double-sided tape.)

Component replacement procedures

Remove the display panel cable (4). The display panel cable includes the microphone module cable and is available in the Display Cable Kit, spare part number 639472-001.

17. If it is necessary to replace the wireless antenna cables and transceivers:

a. Release the wireless antenna transceivers (1) from the display enclosure. (The wireless

antenna transceivers are attached to the display enclosure with double-sided tape.)

b. Release the wireless antenna cables from the clips (2) built into the display enclosure.

c. Remove the wireless antenna cables and transceivers (3). The wireless antenna cables and

transceivers are available in the Cable Kit, spare part number 639473-001.

Reverse this procedure to reassemble and install the display assembly.

64 Chapter 4 Removal and replacement procedures

System board

Description Spare part number

System board with HM65 chipset and graphics subsystem with UMA memory (includes replacement thermal material)

655561-001

Before removing the system board, follow these steps:

1. Shut down the computer.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

a. Service cover (see

b. Solid-state module (see

c. Optical drive (see

d. Fan (see

Fan on page 40)

e. Heat sink (see

f. WLAN module (see

Battery on page 33), and then remove the following components:

Solid-state module on page 34)

Optical drive on page 38)

Heat sink on page 41)

WLAN module on page 45)

g. Keyboard (see

h. Base enclosure (see

i. ExpressCard assembly (see

j. Display assembly (see

Keyboard on page 47)

Base enclosure on page 52)

ExpressCard assembly on page 56)

Display assembly on page 58)

When replacing the system board, be sure that the following components are removed from the defective system board and installed on the replacement system board:

●

Memory modules (see

Primary memory module on page 37 and Expansion memory module

on page 51)

●

Processor (see

●

RTC battery (see

Processor on page 43)

RTC battery on page 50)

Remove the system board:

1. Turn the top cover right side up, with the front toward you.

Component replacement procedures

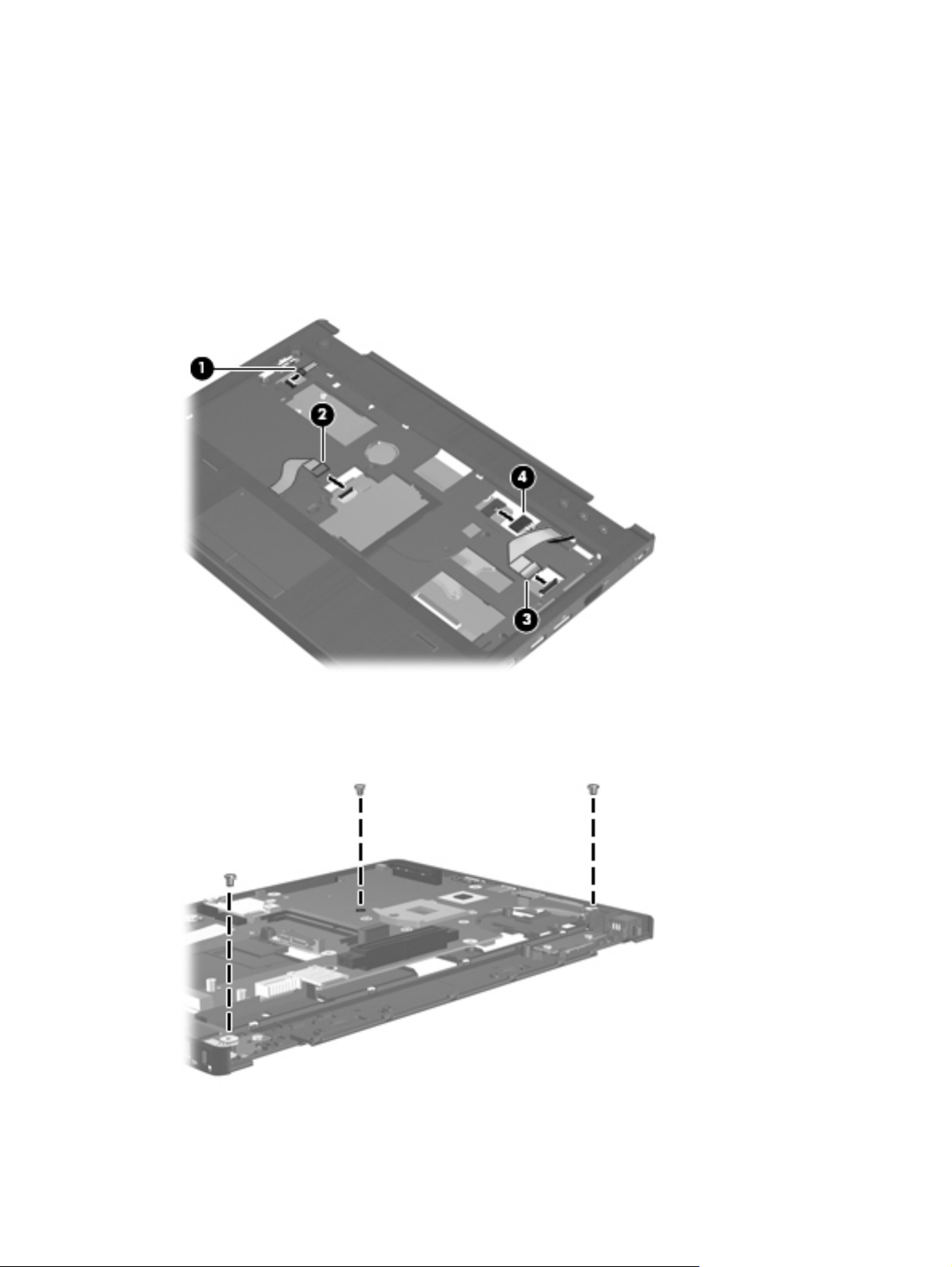

Disconnect the following the cables from the system board:

●

Power button board cable (included in the power button board spare part kit, spare part number 639481-001)

●

TouchPad cable (included in the Cable Kit, spare part number 639473-001)

●

Function board cable (included in the function board spare part kit, spare part number 639480-001)

●

Power connector cable (included in the Cable Kit, spare part number 639473-001)

3. Turn the top cover upside down, with the rear panel toward you.

4. Remove the three Phillips PM2.5×4.2 screws that secure the system board to the top cover.

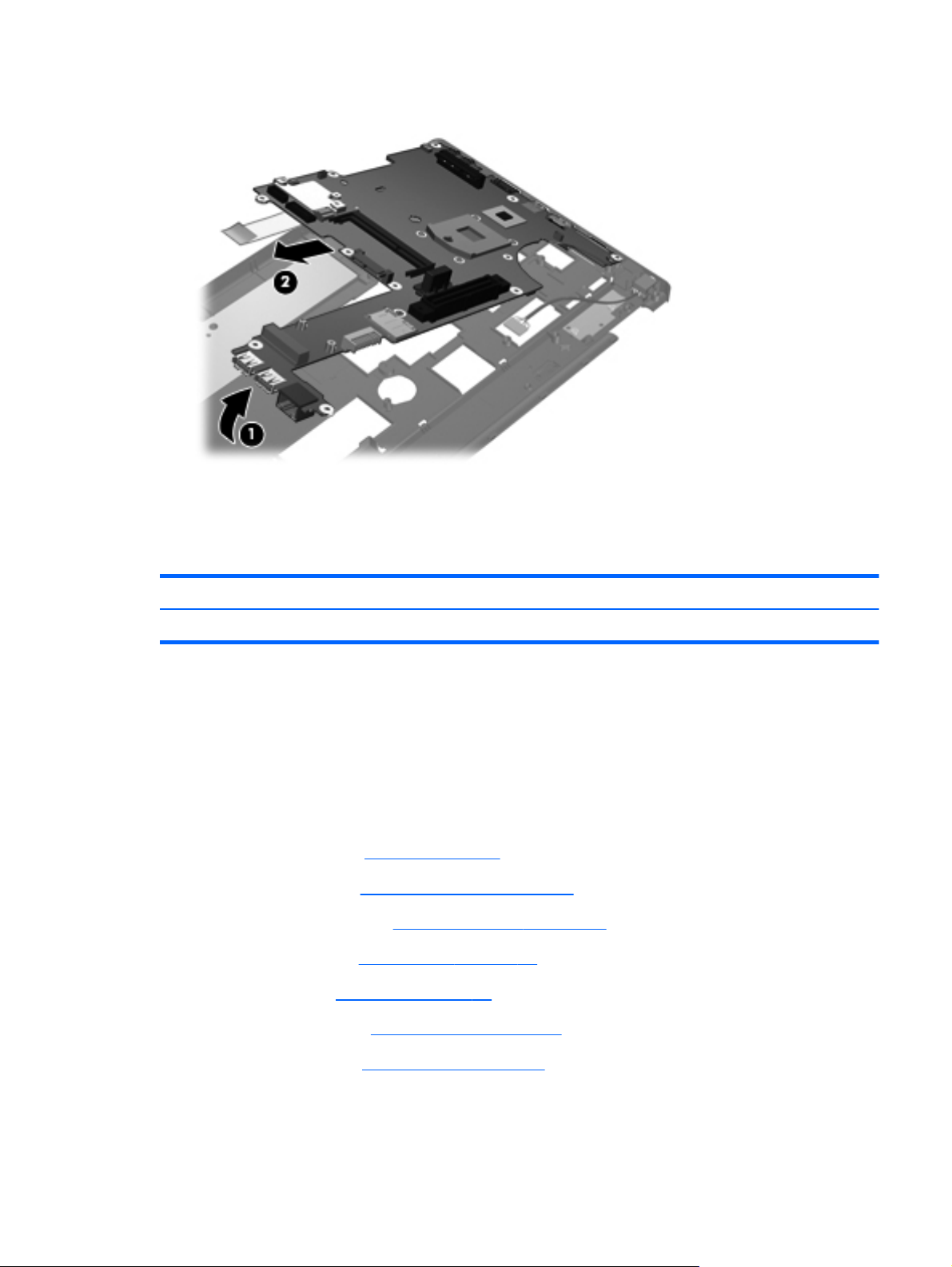

5. Lift the left side of the system board (1) until it rests at an angle.

66 Chapter 4 Removal and replacement procedures

Remove the system board (2) by sliding it up and to the left at an angle.

Reverse this procedure to install the system board.

Power button board

Description Spare part number

Power button board (includes cable) 639481-001

Before removing the power button board, follow these steps:

1. Shut down the computer.

2. Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then unplugging the AC adapter from the computer.

4. Remove the battery (see

a. Service cover (see

b. Solid-state module (see

Optical drive (see

d. Keyboard (see

e. Base enclosure (see

Battery on page 33), and then remove the following components:

Solid-state module on page 34)

Optical drive on page 38)

Keyboard on page 47)

Base enclosure on page 52)

f. System board (see

System board on page 65)

Component replacement procedures

Remove the power button board:

1. Turn the top cover upside down, with the rear panel toward you.

Remove the Phillips PM2.0×3.0 screw (1) that secures the power button board to the top cover.

3. Release the power button board cable (2) from the opening in the top cover (3).

4. Remove the power button board and cable (4).

Reverse this procedure to install the power button board and cable.

Function board

Description Spare part number

Function board (includes cable) 639480-001

Before removing the function board, follow these steps:

1. Shut down the computer.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

a. Service cover (see

b. Solid-state module (see

Optical drive (see

Battery on page 33), and then remove the following components:

Solid-state module on page 34)

Optical drive on page 38)

68 Chapter 4 Removal and replacement procedures

Keyboard (see

Keyboard on page 47)

e. Base enclosure (see

System board (see

Remove the function board:

1. Turn the top cover upside down, with the rear panel toward you.

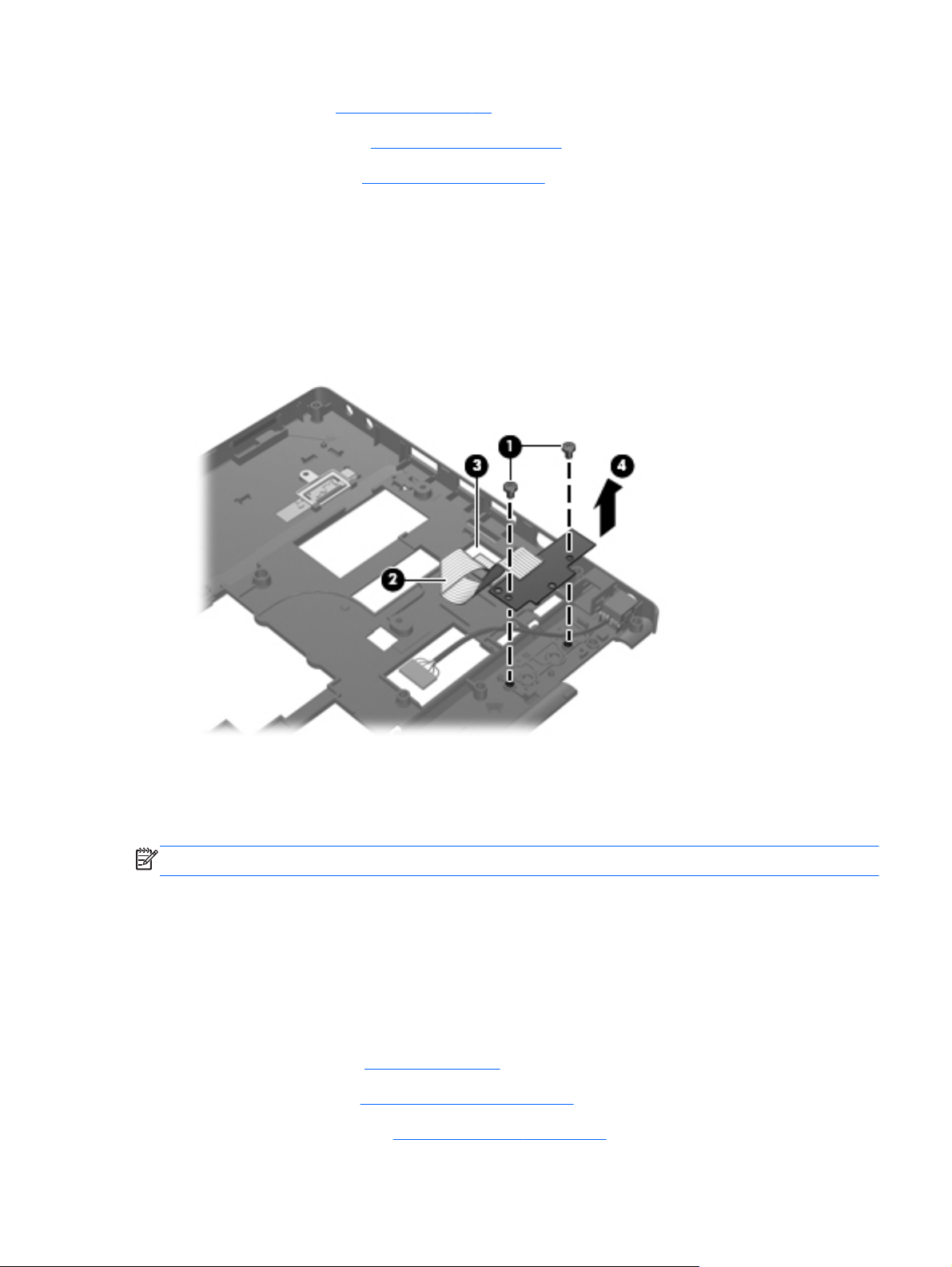

2. Remove the two Phillips PM2.0×3.0 screws (1) that secure the function board to the top cover.

3. Release the function board cable (2) from the opening in the top cover (3).

4. Remove the function board and cable (4).

Base enclosure on page 52)

System board on page 65)

Reverse this procedure to install the function board and cable.

Power connector cable

NOTE: The power connector cable is included in the Cable Kit, spare part number 639473-001.

Before removing the power connector cable, follow these steps:

1. Shut down the computer.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

a. Service cover (see

Solid-state module (see

Battery on page 33), and then remove the following components:

Solid-state module on page 34)

Component replacement procedures

Optical drive (see

Optical drive on page 38)

d. Keyboard (see

Base enclosure (see

f. System board (see

Keyboard on page 47)

Base enclosure on page 52)

System board on page 65)

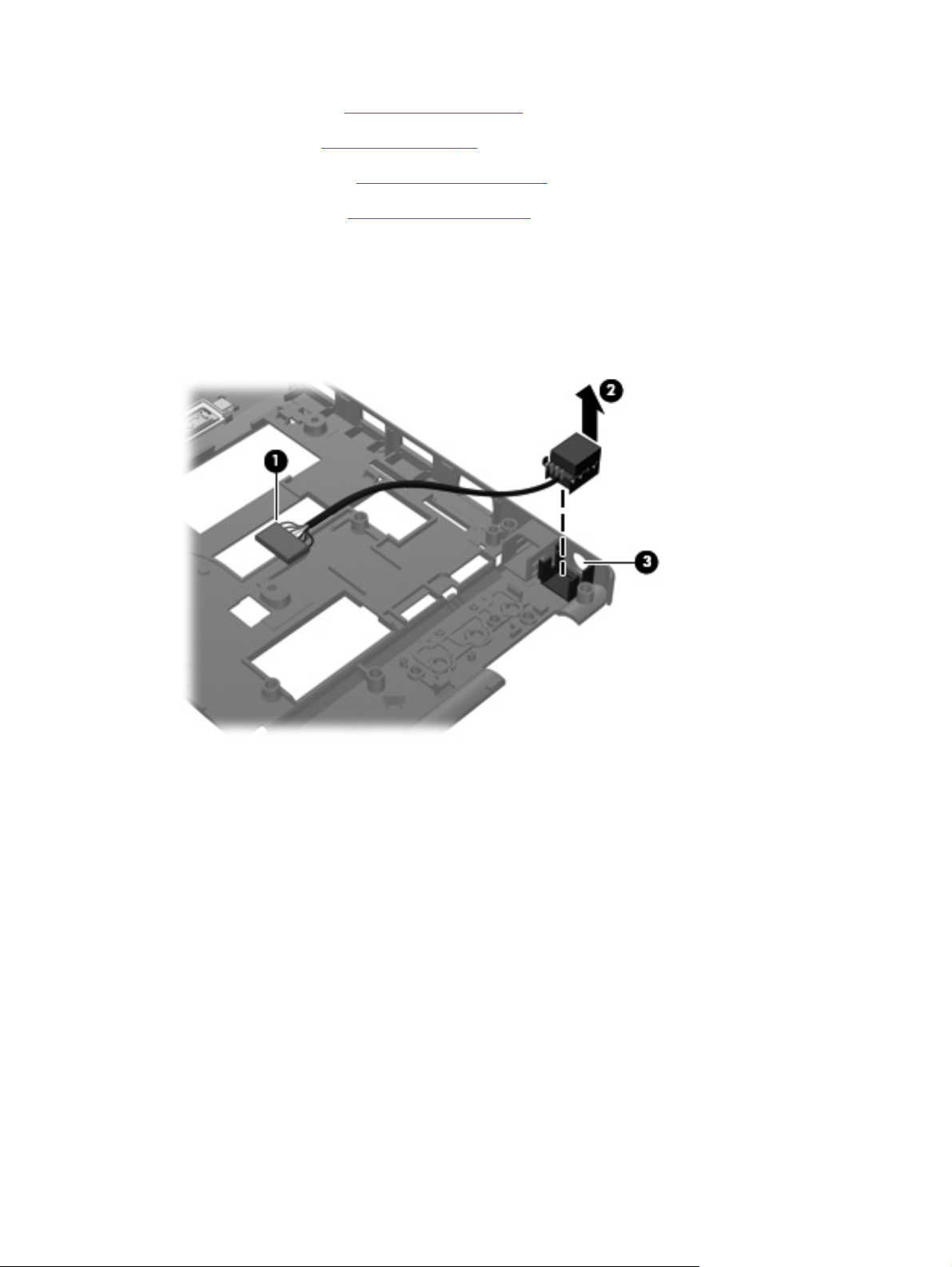

Remove the power connector cable:

1. Turn the top cover upside down, with the rear panel toward you.

2. Release the power connector cable (1) from the opening in the top cover.

3. Remove the power connector (2) from the clip (3) built into the top cover.

Reverse this procedure to install the power connector cable.

70 Chapter 4 Removal and replacement procedures

5 Computer Setup

Starting Computer Setup

Computer Setup is a preinstalled, ROM-based utility that can be used even when the operating system is not working or will not load.

NOTE: Some of the Computer Setup menu items listed in this guide may not be supported by

your computer.

NOTE: An external keyboard or mouse connected to a USB port can be used with Computer Setup

only if USB legacy support is enabled.

To start Computer Setup, follow these steps:

Turn on or restart the computer, and then press esc while the “Press the ESC key for Startup Menu” message is displayed at the bottom of the screen.

2. Press f10 to enter Computer Setup.

Using Computer Setup

Navigating and selecting in Computer Setup

The information and settings in Computer Setup are accessed from the File, Security, Diagnostics, and System Configuration menus.

To navigate and select in Computer Setup, follow these steps:

Turn on or restart the computer, and then press esc while the “Press the ESC key for Startup Menu” message is displayed at the bottom of the screen.

To select a menu or a menu item, use the function key and the keyboard arrow keys and then press enter.

NOTE: You can use either a pointing device (TouchPad or USB mouse) or the keyboard to

navigate and make selections in Computer Setup.

2. Press f10 to enter Computer Setup.

3. Select the File, Security, or System Configuration menu.

Starting Computer Setup

To exit Computer Setup menus, choose one of the following methods:

●

To exit Computer Setup menus without saving your changes, click the Exit icon in the lower-left corner of the screen, and then follow the on-screen instructions.

– or –

Use the tab key and the arrow keys to select File > Ignore changes and exit, and then press enter.

– or –

●

To save your changes and exit Computer Setup menus, click the Save icon in the lower-left corner of the screen, and then follow the on-screen instructions.

– or –

Use the tab key and the arrow keys to select File > Save changes and exit, and then press enter.

Your changes go into effect when the computer restarts.

Restoring factory settings in Computer Setup

NOTE: Restoring defaults will not change the hard drive mode.

To return all settings in Computer Setup to the values that were set at the factory, follow these steps:

1. Turn on or restart the computer, and then press esc while the “Press the ESC key for Startup Menu”

message is displayed at the bottom of the screen.

2. Press f10 to enter Computer Setup.

3. Use a pointing device or the arrow keys to select File > Restore defaults.

4. Follow the on-screen instructions.

5. To save your changes and exit, click the Save icon in the lower-left corner of the screen, and then

follow the on-screen instructions.

Your changes go into effect when the computer restarts.

NOTE: Your password settings and security settings are not changed when you restore the

factory settings.

72 Chapter 5 Computer Setup

Computer Setup menus

The menu tables in this section provide an overview of Computer Setup options.

NOTE: Some of the Computer Setup menu items listed in this chapter may not be supported by

your computer.

File menu

Select To do this

System information

Set System Date and Time Set or change the date and time on the computer.

Restore defaults Replace the configuration settings in Computer Setup with the

Reset BIOS security to factory default

Ignore changes and exit Cancel any changes entered during the current session. Then

Save changes and exit Save any changes entered during the current session. Then

Security menu

NOTE: Some of the menu items listed in this section may not be supported by your computer.

●

View identification information for the computer and the batteries in the system.

●

View specification information for the processor, cache and memory size, system ROM, video revision, and keyboard controller version.

original factory settings. (Hard drive mode, password settings, and security settings are not changed when you restore the factory settings.)

exit and restart the computer.

exit and restart the computer. Your changes go into effect when the computer restarts.

Select To do this

Setup BIOS Administrator Password Set up a BIOS administrator password.

System IDs Enter a user-defined computer asset tracking number and

ownership tag.

Computer Setup menus

System Configuration menu

NOTE: Some of the menu items listed in this section may not be supported by your computer.

Select To do this

Language Change the Computer Setup language.

Boot Options

Device Configurations

●

Set a Startup Menu delay (in seconds).

●

Set the Express Boot Popup delay in seconds.

●

Enable/disable CD-ROM boot (enabled by default).

●

Enable/disable PXE Internal NIC boot (disabled by default).

●

Set the boot order.

●

Enable/disable USB legacy support (enabled by default). When enabled, USB legacy support allows the following:

◦

Use of a USB keyboard in Computer Setup even when a Windows operating system is not running.

◦

Startup from bootable USB devices, including a hard drive, diskette drive, or optical drive connected by a USB port to the computer.

●

Enable/disable fan always on while connected to an AC outlet (enabled by default).

●

Enable/disable Data Execution Prevention (select models only; enabled by default). When enabled, the processor can disable some virus code execution, which helps to improve computer security.

74 Chapter 5 Computer Setup

NOTE: Availability of the options above varies by

computer model.

●

Enable/disable LAN Power Save (disabled by default)

●

Enable/disable Virtualization Technology (select models only; disabled by default).

●

Enable/disable Wake on USB (disabled by default).

●

Enable/disable Num lk on at boot (disabled by default).

Select To do this

Built-In Device Options

●

Enable/disable the wireless button state (enabled by default).

●

Enable/disable the embedded WLAN device (enabled by default).

●

Enable/disable LAN/WLAN switching (disabled by default).

●

Enable/disable the Network Interface Controller (LAN) (enabled by default).

●

Set the wake on LAN state. Options include the following:

◦

Disabled

◦

Boot to Network (set by default)

◦

Follow Boot Order

●

Enable/disable the optical disc drive (enabled by default).

●

Enable/disable an audio device (enabled by default).

●

Enable/disable a modem device (enabled by default).

●

Enable/disable the microphone (enabled by default).

Port Options (all are enabled by default) NOTE: All port options are enabled by default.

●

Enable/disable the flash media reader.

●

Enable/disable the USB port.

CAUTION: Disabling the USB port also disables

MultiBay devices and ExpressCard devices on the advanced port replicator.

●

Enable/disable the ExpressCard slot.

●

Enable/disable the eSATA port.

Computer Setup menus

6 Specifications

Computer specifications

Metric U.S.

Dimensions

Depth 22.0 cm 8.66 in

Width 32.2 cm 12.68 in

Height (front to back) 3.37 to 3.57 cm 1.33 to 1.41 in

Weight (without optical drive) 1.96 kg 4.31 lb

Input power

Operating voltage and current 18.5 V dc @ 3.5 A - 65 W

Temperature

Operating 5°C to 35°C 41°F to 95°F

Nonoperating -20°C to 60°C -4°F to 140°F

Relative humidity (noncondensing)

Operating 10% to 90%

Nonoperating 5% to 95%

Maximum altitude (unpressurized)

Operating -15 m to 3,048 m -50 ft to 10,000 ft

Nonoperating -15 m to 12,192 m -50 ft to 40,000 ft

NOTE: Applicable product safety standards specify thermal limits for plastic surfaces. The device operates well within this

range of temperatures.

76 Chapter 6 Specifications

13.3-in display specifications

Metric U.S.

Dimensions

Height 17.8 cm 7.0 in

Width 28.4 cm 11.2 in

Diagonal 33.6 cm 13.3 in

Number of colors Up to 16.8 million

Contrast ratio 250:1 (typical)

Brightness 200 nits (typical)

Pixel resolution

Pitch 0.279×0.279 mm

Format 1366×768

Configuration RGB vertical stripe

Backlight LED

Character display 80 × 25

Total power consumption 4.0 W

Viewing angle ±40° horizontal, +120°/-40° vertical (typical)

13.3-in display specifications

7 Power cord set requirements

The wide-range input feature of the computer permits it to operate from any line voltage from 100 to 120 volts AC, or from 220 to 240 volts AC.

The 3-conductor power cord set included with the computer meets the requirements for use in the country or region where the equipment is purchased.

Power cord sets for use in other countries and regions must meet the requirements of the country or region where the computer is used.

Requirements for all countries

The following requirements are applicable to all countries and regions:

●

The length of the power cord set must be at least 1.5 m (5.0 ft) and no more than 2.0 m (6.5 ft).

●

All power cord sets must be approved by an acceptable accredited agency responsible for evaluation in the country or region where the power cord set will be used.

●

The power cord sets must have a minimum current capacity of 10 amps and a nominal voltage rating of 125 or 250 V AC, as required by the power system of each country or region.

●

The appliance coupler must meet the mechanical configuration of an EN 60 320/IEC 320 Standard Sheet C13 connector for mating with the appliance inlet on the back of the computer.

78 Chapter 7 Power cord set requirements

Requirements for specific countries and regions

Country/region Accredited agency Applicable note number

Australia EANSW 1

Austria OVE 1

Belgium CEBC 1

Canada CSA 2

Denmark DEMKO 1

Finland FIMKO 1

France UTE 1

Germany VDE 1

Italy IMQ 1

Japan METI 3

The Netherlands KEMA 1

Norway NEMKO 1

The People's Republic of China COC 5

South Korea EK 4

Sweden SEMKO 1

Switzerland SEV 1

Taiwan BSMI 4

The United Kingdom BSI 1

The United States UL 2

1. The flexible cord must be Type HO5VV-F, 3-conductor, 1.0-mm² conductor size. Power cord set fittings (appliance coupler

and wall plug) must bear the certification mark of the agency responsible for evaluation in the country or region where it will be used.

2. The flexible cord must be Type SPT-3 or equivalent, No. 18 AWG, 3-conductor. The wall plug must be a two-pole

grounding type with a NEMA 5-15P (15 A, 125 V) or NEMA 6-15P (15 A, 250 V) configuration.

3. The appliance coupler, flexible cord, and wall plug must bear a “T” mark and registration number in accordance with the

Japanese Dentori Law. The flexible cord must be Type VCT or VCTF, 3-conductor, 1.00-mm² conductor size. The wall plug must be a two-pole grounding type with a Japanese Industrial Standard C8303 (7 A, 125 V) configuration.

4. The flexible cord must be Type RVV, 3-conductor, 0.75-mm² conductor size. Power cord set fittings (appliance coupler

and wall plug) must bear the certification mark of the agency responsible for evaluation in the country or region where it will be used.

5. The flexible cord must be Type VCTF, 3-conductor, 0.75-mm² conductor size. Power cord set fittings (appliance coupler

and wall plug) must bear the certification mark of the agency responsible for evaluation in the country or region where it will be used.

Requirements for specific countries and regions

8 Recycling

Battery

When a battery has reached the end of its useful life, do not dispose of the battery in general household waste. Follow the local laws and regulations in your area for computer battery disposal.

Display

WARNING! The backlight contains mercury. Caution must be exercised when removing and

handling the backlight to avoid damaging this component and causing exposure to the mercury.

CAUTION: The procedures in this chapter can result in damage to display components. The only

components intended for recycling purposes are the liquid crystal display (LCD) panel and the backlight. When you remove these components, handle them carefully.

NOTE: Materials Disposal. This HP product contains mercury in the backlight in the display assembly

that might require special handling at end-of-life. Disposal of mercury may be regulated because of environmental considerations. For disposal or recycling information, contact your local authorities, or see the Electronic Industries Alliance (EIA) Web site at

This section provides disassembly instructions for the display assembly. The display assembly must be disassembled to gain access to the backlight (1) and the liquid crystal display (LCD) panel (2).

NOTE: The procedures provided in this chapter are general disassembly instructions. Specific details,

such as screw sizes, quantities, and locations, and component shapes and sizes, can vary from one computer model to another.

http://www.eiai.org.

80 Chapter 8 Recycling

Perform the following steps:

1. Remove all screw covers (1) and screws (2) that secure the display bezel to the display assembly.

2. Lift up and out on the left and right inside edges (1) and the top and bottom inside edges (2) of

the display bezel until the bezel disengages from the display assembly.

3. Remove the display bezel (3).

Display

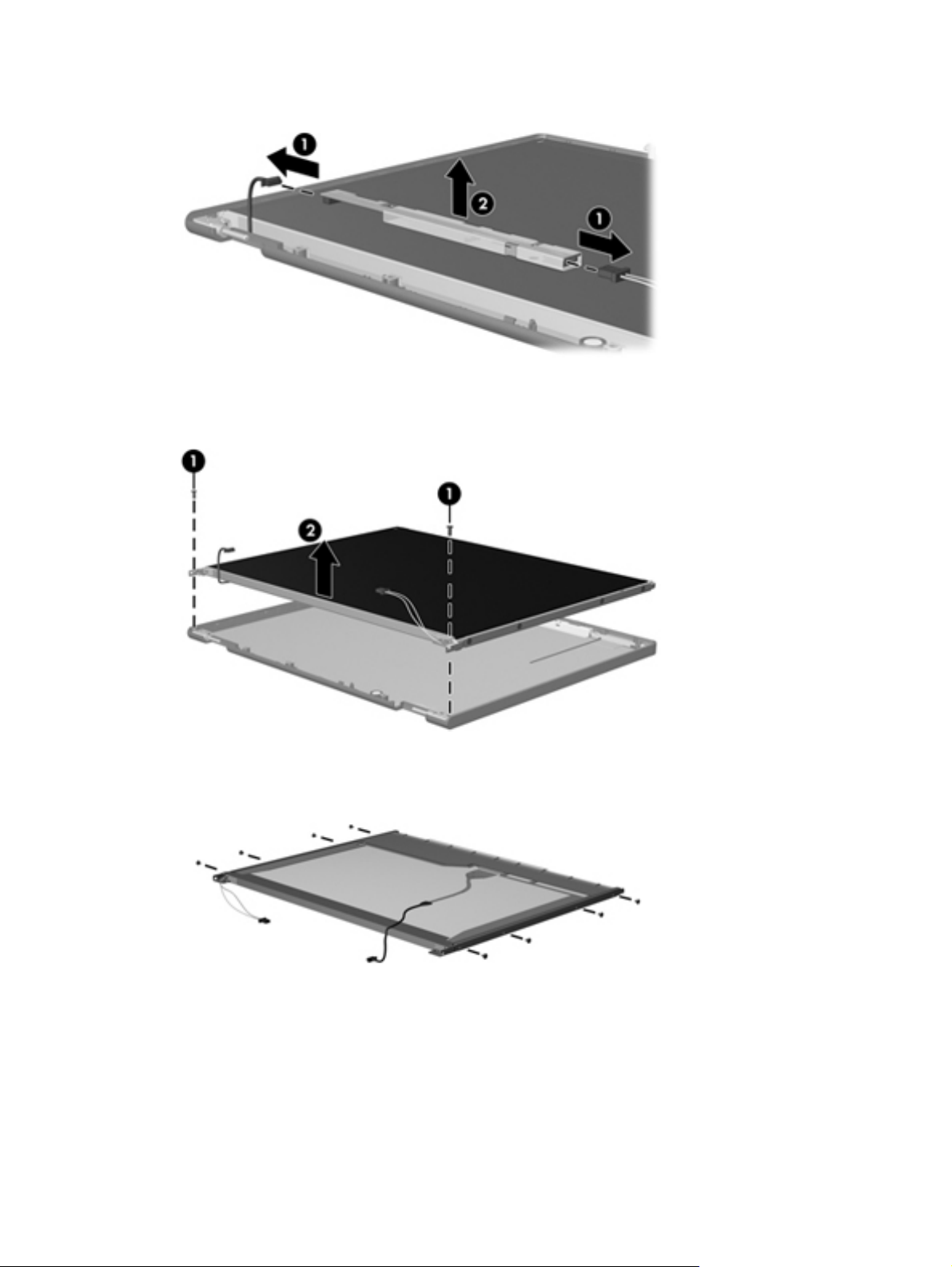

Disconnect all display panel cables (1) from the display inverter and remove the inverter (2).

5. Remove all screws (1) that secure the display panel assembly to the display enclosure.

6. Remove the display panel assembly (2) from the display enclosure.

7. Turn the display panel assembly upside down.

Remove all screws that secure the display panel frame to the display panel.

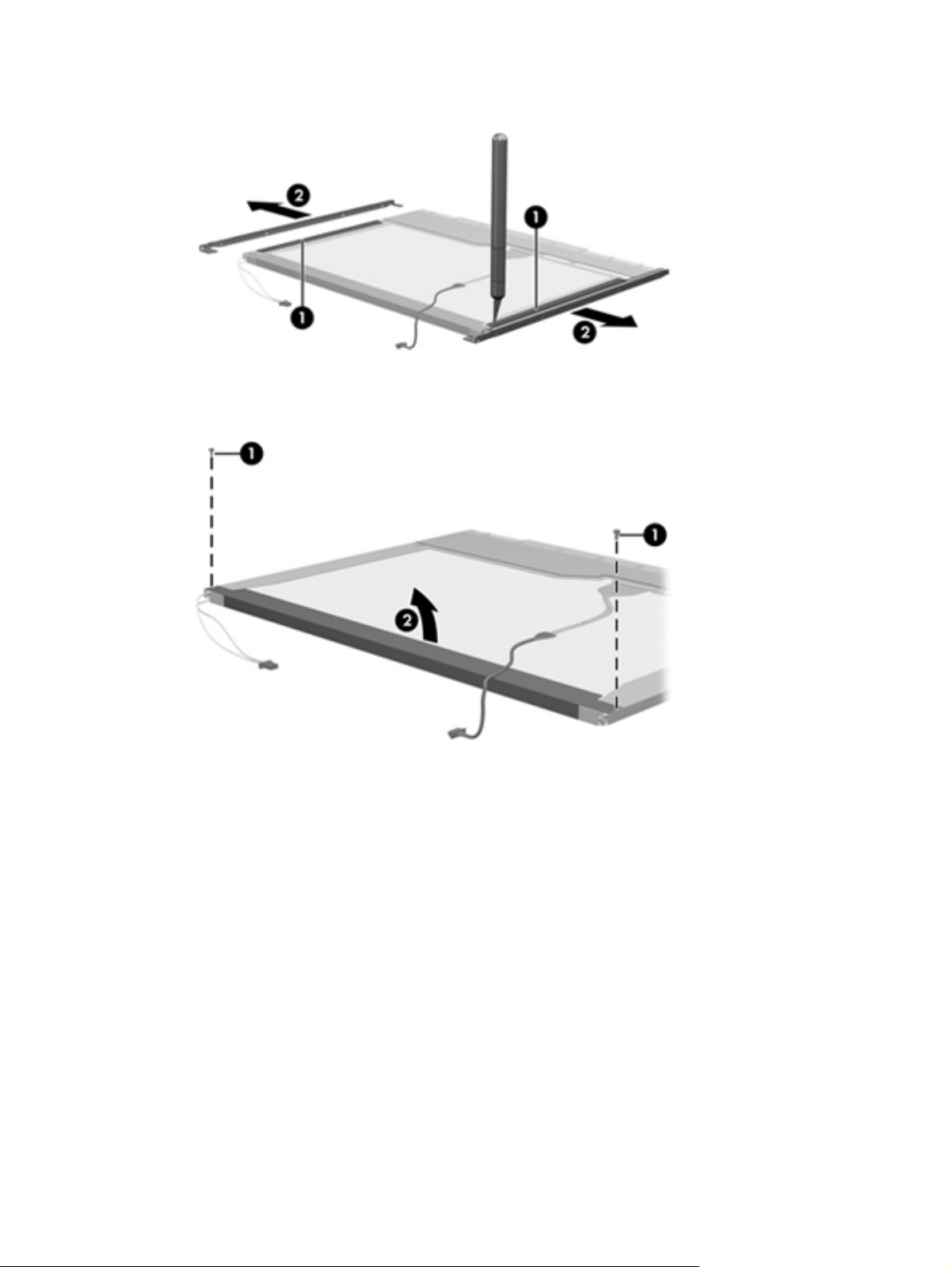

9. Use a sharp-edged tool to cut the tape (1) that secures the sides of the display panel to the display

panel frame.

82 Chapter 8 Recycling

10.

Remove the display panel frame (2) from the display panel.

11.

Remove the screws (1) that secure the backlight cover to the display panel.

12.

Lift the top edge of the backlight cover (2) and swing it outward.

13. Remove the backlight cover.

14. Turn the display panel right-side up.

Display

15.

Remove the backlight cables (1) from the clip (2) in the display panel.

16. Turn the display panel upside down.

17. Remove the backlight frame from the display panel.

WARNING! The backlight contains mercury. Exercise caution when removing and handling the

backlight to avoid damaging this component and causing exposure to the mercury.

84 Chapter 8 Recycling

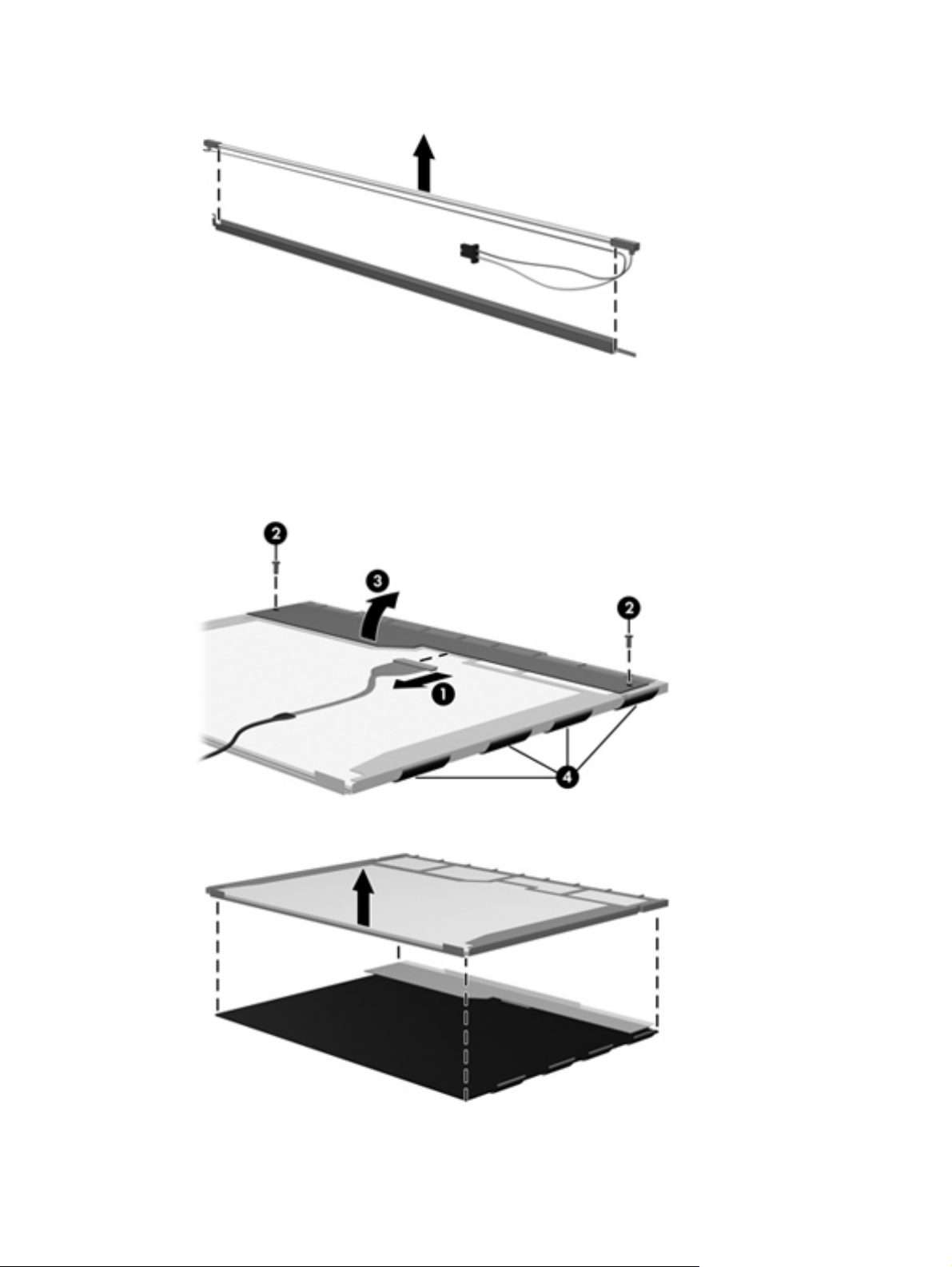

18.

Remove the backlight from the backlight frame.

19. Disconnect the display cable (1) from the LCD panel.

20.

Remove the screws (2) that secure the LCD panel to the display rear panel.

21.

Release the LCD panel (3) from the display rear panel.

22.

Release the tape (4) that secures the LCD panel to the display rear panel.

23.

Remove the LCD panel.

24. Recycle the LCD panel and backlight.

Display

Index

AC adapter, spare part numbers

21, 24 accessory battery connector 11 antenna

illustrated 18 locations 5 removal 64

spare part number 19, 64 audio, product description 2 audio-in jack 10 audio-out jack 10

base enclosure

removal 52

spare part number 16, 24, 52 battery

removal 33

spare part numbers 16, 24,

33 battery bay 11 battery light 8 battery release latch 11 bottom components 11 button components 6 buttons

power 6 QuickWeb 7 TouchPad 7 TouchPad on/off 6, 7 volume mute 7 wireless 6

Cable Kit

contents 18 spare part number 16, 18, 24

cables, service considerations 27

chipset, product description 1 components

bottom 11 buttons 6 display 5 front 8 left-side 9 rear 9 right-side 10 TouchPad 7

computer

model description 13, 32 part number 13, 32 product name 13, 31 product number 13, 32 serial number 13, 32 warranty period 13, 32

computer feet

locations 32

spare part number 32 computer major components 14 computer specifications 76 connectors, service

considerations 27

display assembly

removal 58

subcomponents 19 display bezel

removal 60

spare part number 19, 26, 61 Display Cable Kit, spare part

number 19, 24, 64 display components 5 display enclosure, spare part

number 19, 24 Display Hinge Kit, spare part

number 19, 24

display panel

product description 1 removal 61 spare part number 19, 26

display panel cable

removal 63

spare part number 19, 24, 64 display release latch 8 display specifications 77 display switch 5 DisplayPort 10 docking connector 11 docking, product description 2 drive light 8 drives, preventing damage 28 DVD-ROM drive

location 9

precautions 28

removal 38

spare part number 16, 20,

26, 38

electrostatic discharge 28 equipment guidelines 30 eSATA port 10 eSATA/USB 2.0 combo port 10 Ethernet, product description 2 ExpressCard assembly

removal 56

spare part number 16, 25, 56 ExpressCard assembly cable,

illustrated 18 ExpressCard slot 9 ExpressCard slot space saver,

illustrated 22 external media cards, product

description 2 external monitor port 10

86 Index

fan

removal 40 spare part number 17, 24, 40

feet

locations 32

spare part number 32 flash drive bay 11 front components 8 function board

removal 68

spare part number 15, 25, 68

graphics, product description 1 grounding guidelines 28 guidelines

equipment 30

grounding 28

packaging 29

transporting 29

workstation 29

headphone jack 10 heat sink

removal 41

spare part number 17, 24, 41 hinge

removal 62

spare part number 19, 24, 63 hinge cover

illustrated 22

removal 63

jacks

audio-in 10

audio-out 10

headphone 10

microphone 10

modem 10

network 9

RJ-11 10

RJ-45 9

keyboard

product description 3

removal 47 spare part numbers 14, 24,

25, 47

left-side components 9 lights

battery 8 drive 8 power 8 webcam 5 wireless 8

mass storage device

precautions 28 removal 34

spare part numbers 20, 34 Media Card Reader 8 memory module

product description 1

removal 37, 51

spare part numbers 15, 17,

23, 24, 37, 51 memory module compartment 11 microphone

location 6

product description 2 microphone jack 10 microphone module

removal 61

spare part number 19, 26, 61 model description 13, 32 model name 1 modem jack 10 modem, product description 2 monitor port 10

network jack 9

operating system, product

description 3

optical drive

location 9

precautions 28

product description 1

removal 38

spare part number 16, 20,

26, 38

optical drive bracket, removal 39 optical drive eject button 9

packaging guidelines 29 part number 13, 32 plastic parts, service

considerations 27

Plastics Kit

contents 22 spare part number 16, 22, 25

pointing device, product

description 3

ports

DisplayPort 10 eSATA 10 eSATA/USB 2.0 combo 10 external monitor 10 monitor port 10 product description 2

USB 9, 10 power button 6 power button board

removal 67

spare part number 15, 25, 67 power connector 10 power connector cable

illustrated 18

removal 69

spare part number 16 power cord

set requirements 78

spare part numbers 21, 23 power light 8 power requirements, product

description 3

processor

product description 1

removal 43

spare part number 17, 26,

product description

audio 2

chipset 1

display panel 1

docking 2

Ethernet 2

external media cards 2

graphics 1

keyboard 3

Index

memory module 1 microphone 2 modem 2 operating system 3 optical drive 1 pointing device 3 ports 2 power requirements 3 processors 1 product name 1 security 3 serviceability 4 solid-state modules 1 video 2

wireless 2 product name 1, 13, 31 product number 13, 32

QuickWeb button 7

rear component 9 removal/replacement

preliminaries 27

procedures 31 right-side components 10 RJ-11 jack 10 RJ-45 jack 9 RTC battery

removal 50

spare part number 15, 26, 50 Rubber Kit, spare part number

16, 25, 52

Screw Kit, spare part number 21,

26 security cable slot 9 security, product description 3 serial number 13, 32 service considerations

cables 27 connectors 27 plastic parts 27

service cover

illustrated 22

removal 35 service cover release latch 11 service tag 13, 31

serviceability, product description

4 smart card reader 9 solid-state module

precautions 28 product description 1 removal 34 spare part number 17, 20,

26, 34

solid-state module bracket

illustrated 20 removal 36

Solid-state Module Hardware Kit,

spare part number 17, 20, 26,

34 Speaker Kit, spare part number

16, 25, 55 speakers

location 8 removal 55 spare part number 16, 25, 55

specifications

computer 76 display 77

system board

removal 65 spare part number 16, 26,

tools required 27 top cover, spare part number 15,

26 TouchPad button 7 TouchPad cable, illustrated 18 TouchPad components 7 TouchPad on/off button 6, 7 TouchPad zone 7 transporting guidelines 29

USB port 9, 10

vents 9, 11 video, product description 2 volume mute button 7

warranty period 13, 32 webcam 6

webcam light 5 webcam/microphone module

spare part number 25

wireless antenna

illustrated 18 locations 5 removal 64

spare part number 19, 64 wireless button 6 wireless light 8 wireless module compartent 11 wireless, product description 2 WLAN module

removal 45

spare part numbers 16, 23,

24, 45

workstation guidelines 29

88 Index

HP 6360t Maintenance and Service Guide

Specifications and Main Features

Frequently Asked Questions

User Manual

1 Product description

2 External component identification

Identifying the hardware

Display

Buttons

TouchPad

Front

Left side

Rear

Right side

Bottom

3 Illustrated parts catalog

Service tag

Computer major components

Cable Kit

Display assembly subcomponents

Mass storage devices

Miscellaneous parts

Plastics Kit

Sequential part number listing

Preliminary replacement requirements

Tools required

Service considerations

Plastic parts

Cables and connectors

Drive handling

Grounding guidelines

Electrostatic discharge damage

Packaging and transporting guidelines

Workstation guidelines

Equipment guidelines

Component replacement procedures

Service tag

Computer feet

Battery

Solid-state module

Primary memory module

Optical drive

Heat sink

Processor

WLAN module

Keyboard

RTC battery

Expansion memory module

Base enclosure

Speakers

ExpressCard assembly

Display assembly

System board

Power button board

Function board

Power connector cable

5 Computer Setup

Starting Computer Setup

Using Computer Setup

Navigating and selecting in Computer Setup

Restoring factory settings in Computer Setup

Computer Setup menus

File menu

Security menu

System Configuration menu

6 Specifications

Computer specifications

13.3-in display specifications

7 Power cord set requirements

Requirements for all countries

Requirements for specific countries and regions

8 Recycling

Battery

Display

Index
