Page 1
Maintenance and Service Guide
8200 Elite Series Convertible Minitower
8200 Elite Series Microtower
8200 Elite Series Small Form Factor
8200 Elite Series Ultra-Slim Desktop
6200 Pro Series Microtower
6200 Pro Series Small Form Factor
Page 2
© Copyright 2011 Hewlett-Packard
Development Company, L.P. The
information contained herein is subject to
change without notice.
Microsoft and Windows are trademarks of
Microsoft Corporation in the U.S. and other
countries.
The only warranties for HP products and
services are set forth in the express
warranty statements accompanying such
products and services. Nothing herein
should be construed as constituting an
additional warranty. HP shall not be liable
for technical or editorial errors or omissions
contained herein.
This document contains proprietary
information that is protected by copyright.
No part of this document may be
photocopied, reproduced, or translated to
another language without the prior written
consent of Hewlett-Packard Company.
HP Compaq Business PC Maintenance
and Guide
8200 Elite Series Convertible Minitower
8200 Elite Series Microtower
8200 Elite Series Small Form Factor
8200 Elite Series Ultra-Slim Desktop
6200 Pro Series Microtower
6200 Pro Series Small Form Factor
First Edition (March 2011)
Document Part Number: 649701-001
Page 3
About This Book
WARNING! Text set off in this manner indicates that failure to follow directions could result in bodily
harm or loss of life.
CAUTION: Text set off in this manner indicates that failure to follow directions could result in
damage to equipment or loss of information.
NOTE: Text set off in this manner provides important supplemental information.
iii
Page 4
iv About This Book
Page 5
Table of contents
1 Installing and Customizing the Software ...................................................................................................... 1
Installing the Windows Operating System ............................................................................................ 1
Downloading Microsoft Windows Updates ........................................................................................... 1
Installing or Upgrading Device Drivers (Windows systems) ................................................................. 2
Customizing the Monitor Display (Windows systems) .......................................................................... 2
Launching Windows XP from Windows 7 ............................................................................................. 2
Accessing Disk Image (ISO) Files ........................................................................................................ 2
2 Computer Setup (F10) Utility ......................................................................................................................... 4
Computer Setup (F10) Utilities ............................................................................................................. 4
Using Computer Setup (F10) Utilities .................................................................................. 5
Computer Setup—File ......................................................................................................... 6
Computer Setup—Storage .................................................................................................. 7
Computer Setup—Security .................................................................................................. 9
Computer Setup—Power ................................................................................................... 13
Computer Setup—Advanced ............................................................................................. 14
Recovering the Configuration Settings ............................................................................................... 16
3 Illustrated parts catalog ............................................................................................................................... 17
Convertible minitower (CMT) chassis spare parts .............................................................................. 17
Computer system components .......................................................................................... 17
Cables ................................................................................................................................ 18
Misc parts .......................................................................................................................... 19
Drives ................................................................................................................................. 20
Misc boards ....................................................................................................................... 21
Sequential part number listing ........................................................................................... 21
Microtower (MT) chassis spare parts ................................................................................................. 27
Computer major components ............................................................................................ 27
Cables ................................................................................................................................ 29
Misc parts .......................................................................................................................... 30
Drives ................................................................................................................................. 31
v
Page 6
Misc boards ....................................................................................................................... 31
Sequential part number listing ........................................................................................... 32
Ultra-Slim Desktop (USDT) chassis spare parts ................................................................................ 38
Computer major components ............................................................................................ 38
Cables ................................................................................................................................ 39
Misc parts .......................................................................................................................... 40
Drives ................................................................................................................................. 41
Misc boards ....................................................................................................................... 42
Sequential part number listing ........................................................................................... 42
Small Form Factor (SFF) chassis spare parts .................................................................................... 47
Computer major components ............................................................................................ 47
Cables ................................................................................................................................ 49
Misc parts .......................................................................................................................... 50
Drives ................................................................................................................................. 51
Misc boards ....................................................................................................................... 52
Sequential part number listing ........................................................................................... 53
4 Routine Care, SATA Drive Guidelines, and Disassembly Preparation .................................................... 59
Electrostatic Discharge Information .................................................................................................... 60
Generating Static ............................................................................................................... 60
Preventing Electrostatic Damage to Equipment ................................................................ 60
Personal Grounding Methods and Equipment ................................................................... 61
Grounding the Work Area .................................................................................................. 61
Recommended Materials and Equipment .......................................................................... 61
Operating Guidelines .......................................................................................................................... 62
Routine Care ...................................................................................................................................... 63
General Cleaning Safety Precautions ................................................................................ 63
Cleaning the Computer Case ............................................................................................ 63
Cleaning the Keyboard ...................................................................................................... 63
Cleaning the Monitor .......................................................................................................... 64
Cleaning the Mouse ........................................................................................................... 64
Service Considerations ...................................................................................................................... 64
Power Supply Fan ............................................................................................................. 64
Tools and Software Requirements .................................................................................... 65
Screws ............................................................................................................................... 65
Cables and Connectors ..................................................................................................... 65
Hard Drives ........................................................................................................................ 65
Lithium Coin Cell Battery ................................................................................................... 66
SATA Hard Drives .............................................................................................................................. 67
SATA Hard Drive Cables .................................................................................................................... 67
SATA Data Cable .............................................................................................................. 67
vi
Page 7
SMART ATA Drives ............................................................................................................................ 67
Cable Management ............................................................................................................................ 67
Hard Drive Capacities ........................................................................................................................ 68
5 Configurations and Serial Number .............................................................................................................. 69
Standard Configuration Features ....................................................................................................... 69

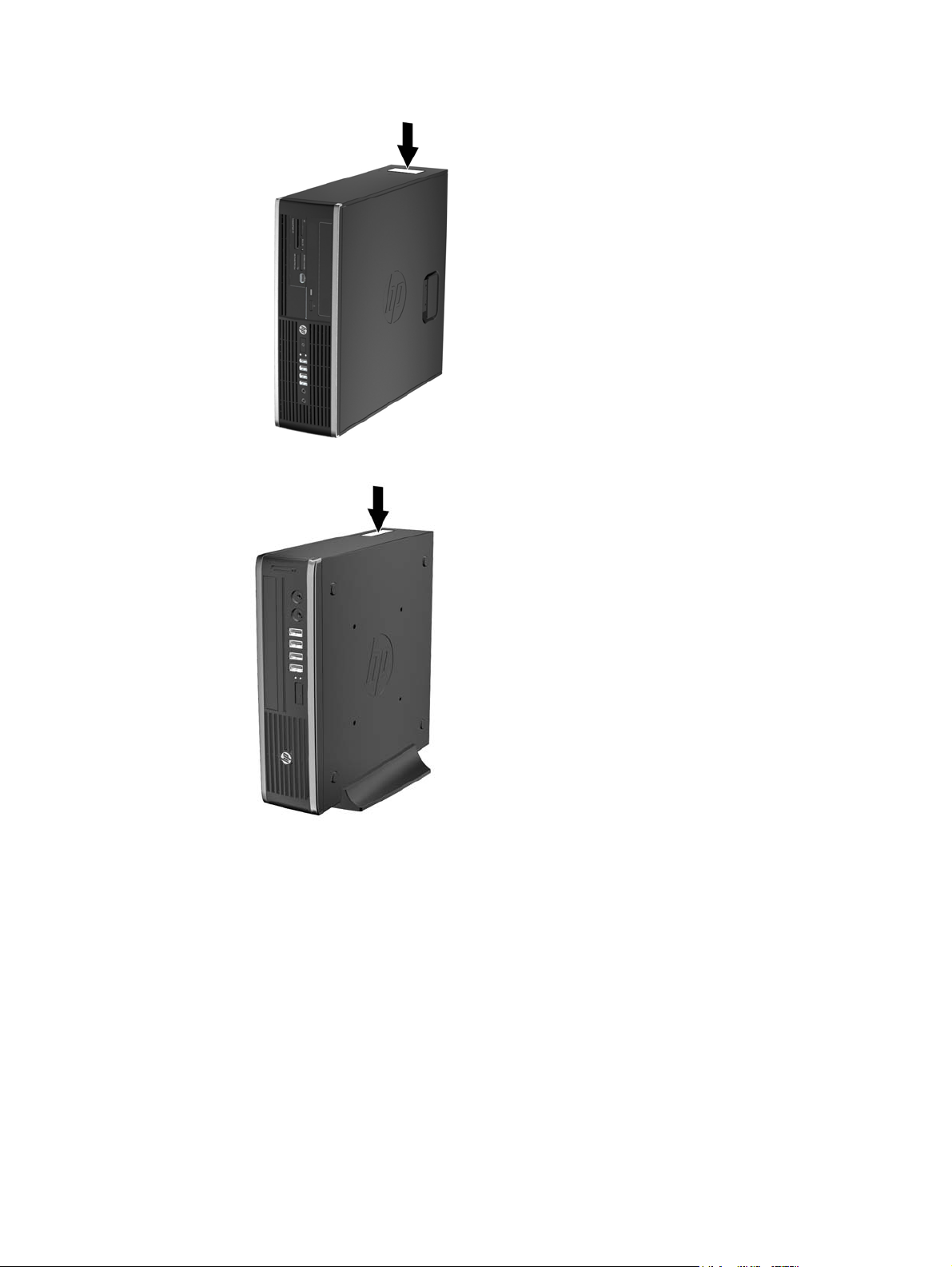

Serial Number Location ...................................................................................................................... 71
6 Removal and Replacement Procedures – Convertible Minitower (CMT) Chassis .................................. 73
Preparation for Disassembly .............................................................................................................. 73
Computer Access Panel ..................................................................................................................... 74

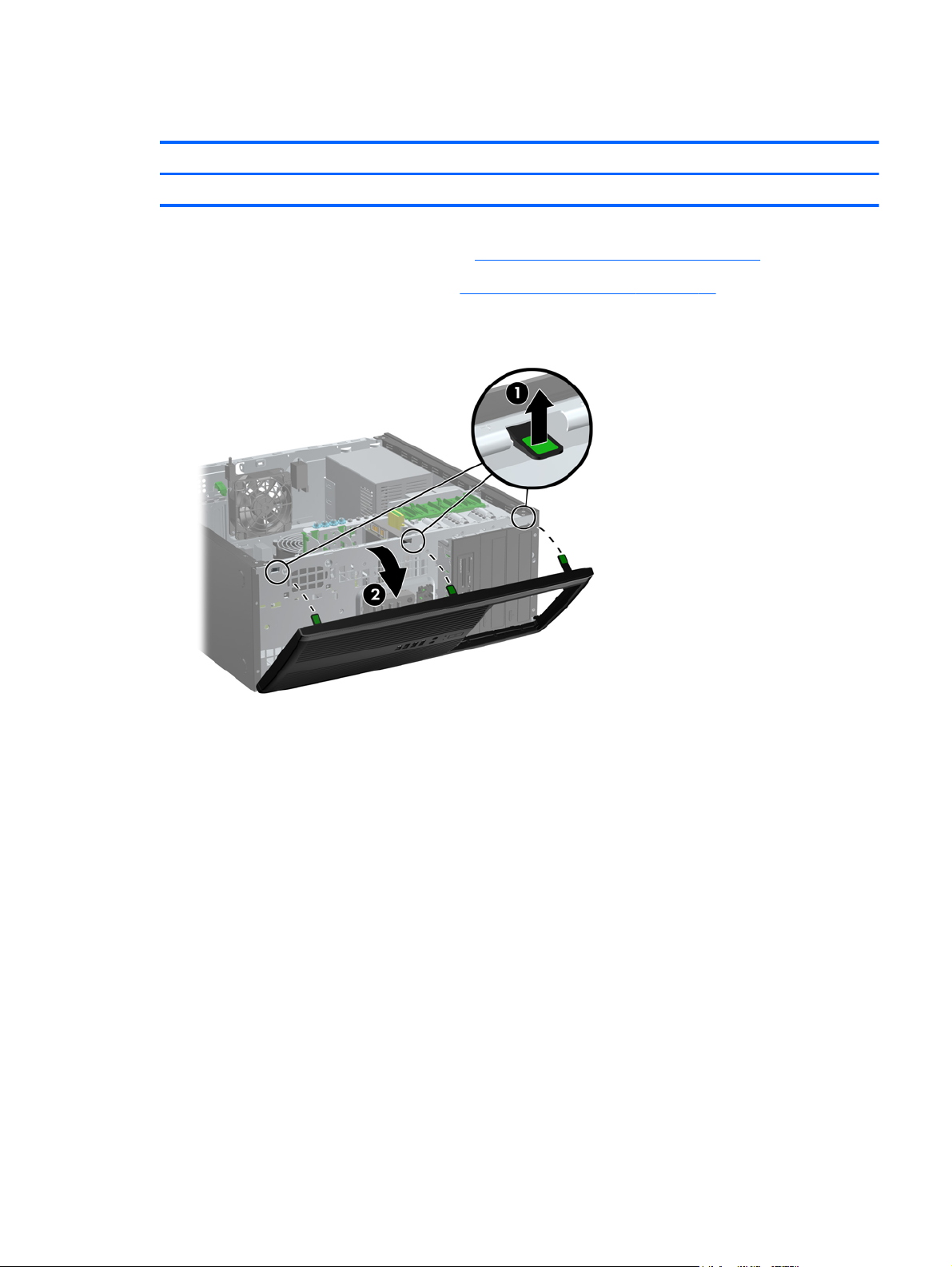

Front Bezel ......................................................................................................................................... 75
Front Bezel Security ........................................................................................................................... 76

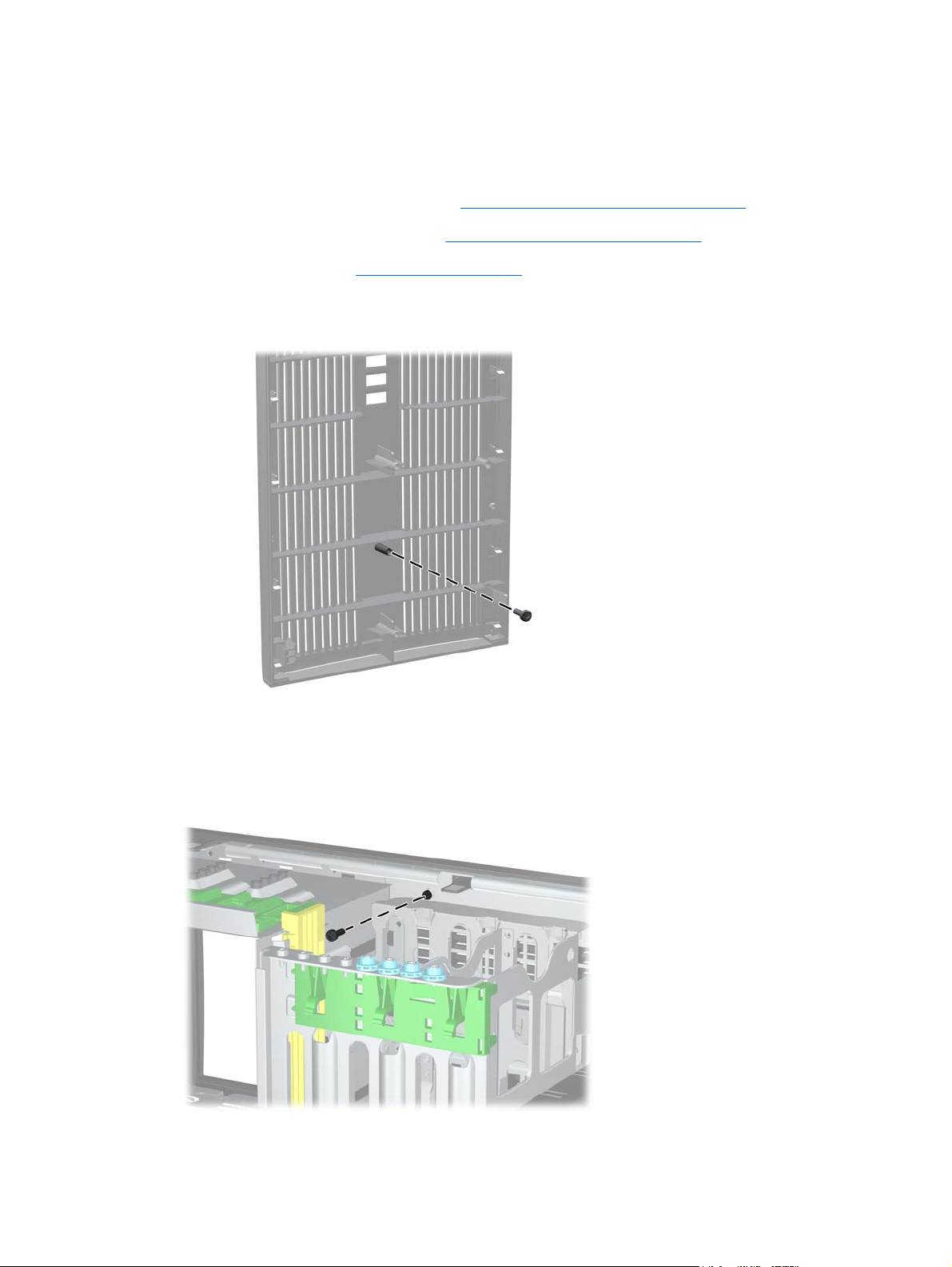

Bezel Blanks ....................................................................................................................................... 77
System Board Connections ................................................................................................................ 78
Memory .............................................................................................................................................. 79
DIMMs ............................................................................................................................... 79
DDR3-SDRAM DIMMs ...................................................................................................... 79
Populating DIMM Sockets ................................................................................................. 80
Installing DIMMs ................................................................................................................ 81

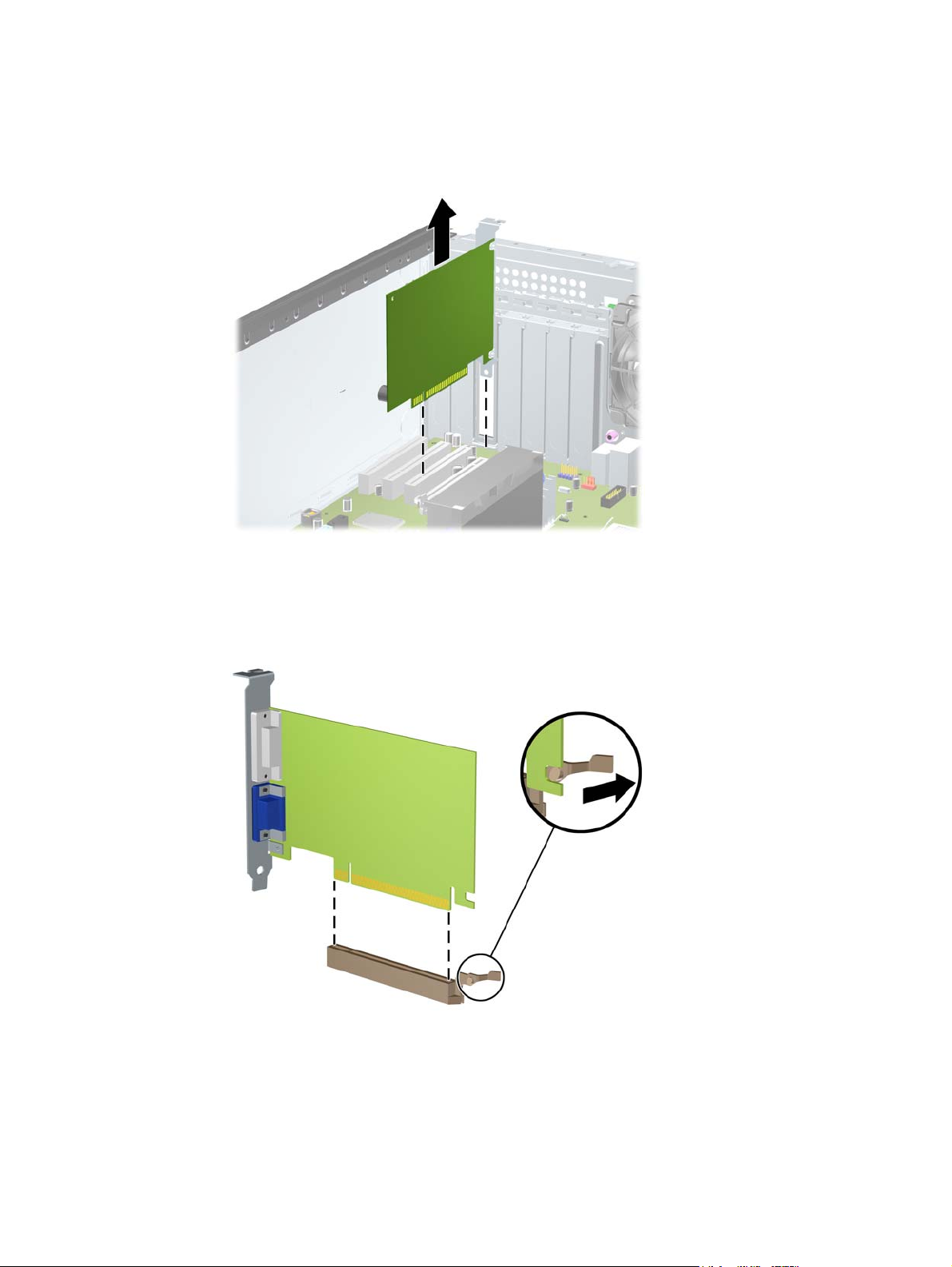

Expansion Card .................................................................................................................................. 83
Drives ................................................................................................................................................. 87
Drive Positions ................................................................................................................... 88
Removing a Drive from a Drive Bay .................................................................................. 89
Installing Drives ................................................................................................................. 92
Installing a 5.25-inch Drive into a Drive Bay ..................................................... 93
Installing a Hard Drive into an Internal Drive Bay ............................................. 95
Installing a 3.5-inch SATA Hard Drive into an Internal Drive Bay .................................... 100
Removing and Replacing a Removable 3.5-inch SATA Hard Drive ................................ 101
Hood Sensor .................................................................................................................................... 106
Front I/O, USB Assembly ................................................................................................................. 107
Power Switch Assembly ................................................................................................................... 109
Speaker ............................................................................................................................................ 110
Rear Chassis Fan ............................................................................................................................. 111
Fan sink ............................................................................................................................................ 112
Processor ......................................................................................................................................... 114
Power Supply ................................................................................................................................... 117
System Board ................................................................................................................................... 118
Changing from a Minitower to a Desktop Configuration ................................................................... 120
Changing from a Desktop to a Minitower Configuration ................................................................... 122
vii
Page 8
7 Removal and Replacement Procedures – Microtower (MT) Chassis ..................................................... 125
Preparation for Disassembly ............................................................................................................ 125
Computer Access Panel ................................................................................................................... 126
Front Bezel ....................................................................................................................................... 127
Bezel Blanks ..................................................................................................................................... 128
System Board Connections .............................................................................................................. 128
Memory ............................................................................................................................................ 131
DIMMs ............................................................................................................................. 131
DDR3-SDRAM DIMMs .................................................................................................... 131
Populating DIMM Sockets ............................................................................................... 132
Installing DIMMs .............................................................................................................. 132
Expansion Cards .............................................................................................................................. 134
Drive Positions ................................................................................................................................. 138
Drives ............................................................................................................................................... 139
Removing a 5.25-inch or 3.5-inch Drive from a Drive Bay ............................................... 141
Installing a 5.25-inch or 3.5-inch Drive into a Drive Bay .................................................. 142
Removing a Hard Drive from a Drive Bay ........................................................................ 144
Installing a Hard Drive into an Internal Drive Bay ............................................................ 145
Front Fan Assembly ......................................................................................................................... 149
Front I/O Assembly ........................................................................................................................... 151
Power Switch/LED Assembly ........................................................................................................... 152
Heat sink .......................................................................................................................................... 153
Processor ......................................................................................................................................... 155
Speaker ............................................................................................................................................ 158
Rear Chassis Fan ............................................................................................................................. 159
Power Supply ................................................................................................................................... 161
System Board ................................................................................................................................... 163
8 Removal and Replacement Procedures – Small Form Factor (SFF) Chassis ....................................... 165
Preparation for Disassembly ............................................................................................................ 165
Access Panel .................................................................................................................................... 166
Front Bezel ....................................................................................................................................... 167
Bezel Blanks ..................................................................................................................................... 168
Memory ............................................................................................................................................ 168
DIMMs ............................................................................................................................. 168
DDR3-SDRAM DIMMs .................................................................................................... 169
Populating DIMM Sockets ............................................................................................... 169
Installing DIMMs .............................................................................................................. 170
Expansion Card ................................................................................................................................ 172
System Board Connections .............................................................................................................. 176
Drives ............................................................................................................................................... 178
viii
Page 9
Drive Positions ................................................................................................................. 179
Installing and Removing Drives ....................................................................................... 180
Removing a 5.25-inch Drive from a Drive Bay ................................................ 181
Installing a 5.25-inch Drive into a Drive Bay ................................................... 182
Removing a 3.5-inch Drive from a Drive Bay .................................................. 183
Installing a 3.5-inch Drive into a Drive Bay ..................................................... 184
Removing and Replacing the Primary 3.5-inch Internal Hard Drive ................ 186
Fan duct ........................................................................................................................................... 189
Front Fan Assembly ......................................................................................................................... 190
Hood Sensor .................................................................................................................................... 192
Front I/O, Power Switch Assembly ................................................................................................... 193
Speaker ............................................................................................................................................ 195
Heat sink .......................................................................................................................................... 196
Processor ......................................................................................................................................... 198
Power Supply ................................................................................................................................... 201
System Board ................................................................................................................................... 203
Using the Small Form Factor Computer in a Tower Orientation ...................................................... 205
9 Removal and Replacement Procedures – Ultra-Slim Desktop (USDT) Chassis ................................... 206
Preparation for Disassembly ............................................................................................................ 206
Access Panel .................................................................................................................................... 207
Front Bezel ....................................................................................................................................... 208
Bezel Blank ...................................................................................................................................... 209
System Board Connections .............................................................................................................. 210
Memory ............................................................................................................................................ 211
SODIMMs ........................................................................................................................ 211
DDR3-SDRAM SODIMMs ............................................................................................... 211
Populating SODIMM Sockets .......................................................................................... 212
Installing SODIMMs ......................................................................................................... 213
Front Fan .......................................................................................................................................... 215
Optical Drive ..................................................................................................................................... 216
Removing the Optical Drive ............................................................................................. 216
Preparing the New Optical Drive ..................................................................................... 217
Installing the New Optical Drive ....................................................................................... 218
Hard Drive ........................................................................................................................................ 219
Optical Drive Rail .............................................................................................................................. 223
Card Reader ..................................................................................................................................... 224
Speaker ............................................................................................................................................ 226
Heat sink .......................................................................................................................................... 227
Processor ......................................................................................................................................... 229
TV Tuner or WLAN Module .............................................................................................................. 232
ix
Page 10
Hood Sensor .................................................................................................................................... 233
System Board ................................................................................................................................... 234
Rear Fan .......................................................................................................................................... 236
Changing from Desktop to Tower Configuration .............................................................................. 238
Port Cover ........................................................................................................................................ 239
Power Supply, External .................................................................................................................... 240
Appendix A Battery Replacement ................................................................................................................ 241
Appendix B Power Cord Set Requirements ................................................................................................ 244
General Requirements ..................................................................................................................... 244
Japanese Power Cord Requirements .............................................................................................. 244
Country-Specific Requirements ........................................................................................................ 245
Appendix C POST Error Messages .............................................................................................................. 246
POST Numeric Codes and Text Messages ..................................................................................... 247
Interpreting POST Diagnostic Front Panel LEDs and Audible Codes .............................................. 255
Appendix D Troubleshooting Without Diagnostics .................................................................................... 259
Safety and Comfort .......................................................................................................................... 259
Before You Call for Technical Support ............................................................................................. 259
Helpful Hints ..................................................................................................................................... 260
Solving General Problems ................................................................................................................ 262
Solving Power Problems .................................................................................................................. 266
Solving Diskette Problems ............................................................................................................... 268
Solving Hard Drive Problems ........................................................................................................... 271
Solving Media Card Reader Problems ............................................................................................. 274
Solving Display Problems ................................................................................................................. 276
Solving Audio Problems ................................................................................................................... 280
Solving Printer Problems .................................................................................................................. 282
Solving Keyboard and Mouse Problems .......................................................................................... 284
Solving Hardware Installation Problems ........................................................................................... 286
Solving Network Problems ............................................................................................................... 287
Solving Memory Problems ............................................................................................................... 291
Solving Processor Problems ............................................................................................................ 292
Solving CD-ROM and DVD Problems .............................................................................................. 293
Solving USB Flash Drive Problems .................................................................................................. 295
Solving Front Panel Component Problems ...................................................................................... 297
Solving Internet Access Problems .................................................................................................... 297
Solving Software Problems .............................................................................................................. 300
x
Page 11
Contacting Customer Support .......................................................................................................... 301
Appendix E Password Security and Resetting CMOS ............................................................................... 302
Resetting the Password Jumper ...................................................................................................... 303
Clearing and Resetting the CMOS ................................................................................................... 304
Appendix F Drive Protection System (DPS) ................................................................................................ 306
Accessing DPS Through Computer Setup ....................................................................................... 307
Appendix G Computer Diagnostic Features ............................................................................................... 308
Hewlett-Packard Vision Diagnostics ................................................................................................. 308
Accessing HP Vision Diagnostics .................................................................................... 308
Survey Tab ...................................................................................................................... 309
Test Tab ........................................................................................................................... 310
Status Tab ....................................................................................................................... 310
History Tab ...................................................................................................................... 311
Errors Tab ........................................................................................................................ 311
Help Tab .......................................................................................................................... 312
Saving and Printing Information in HP Vision Diagnostics .............................................. 312
Downloading the Latest Version of HP Vision Diagnostics .............................................. 312
Protecting the Software .................................................................................................................... 313
Appendix H Backup and Recovery .............................................................................................................. 314
Windows 7 – Backup and Recovery ................................................................................................. 314
Backing up your information ............................................................................................ 314
Performing a recovery ..................................................................................................... 316
Using the Windows recovery tools .................................................................. 316
Using F11 ........................................................................................................ 317
Using a Windows 7 operating system DVD (purchased separately) ............... 317
Windows Vista – Backup and Recovery ........................................................................................... 318
Backing up your information ............................................................................................ 318
Performing a recovery ..................................................................................................... 319
Using the Windows recovery tools .................................................................. 320
Using F11 ........................................................................................................ 320
Using a Windows Vista operating system DVD (purchased separately) ......... 321
Appendix I Specifications ............................................................................................................................. 322
CMT Specifications .......................................................................................................................... 322
MT Specifications ............................................................................................................................. 323
SFF Specifications ........................................................................................................................... 325
xi
Page 12
USDT Specifications ........................................................................................................................ 326
Index ................................................................................................................................................................. 327
xii
Page 13
1 Installing and Customizing the
Software
If your computer was not shipped with a Microsoft operating system, some portions of this
documentation do not apply. Additional information is available in online help after you install the
operating system.
NOTE: If the computer was shipped with Windows Vista or Windows 7 loaded, you will be prompted
to register the computer with HP Total Care before installing the operating system. You will see a
brief movie followed by an online registration form. Fill out the form, click the Begin button, and follow
the instructions on the screen.
CAUTION: Do not add optional hardware or third-party devices to the computer until the operating
system is successfully installed. Doing so may cause errors and prevent the operating system from
installing properly.
NOTE: Be sure there is a 10.2-cm (4-inch) clearance at the back of the unit and above the monitor
to permit the required airflow.
Installing the Windows Operating System
The first time you turn on the computer, the operating system is installed automatically. This process
takes about 5 to 10 minutes, depending on which operating system is being installed. Carefully read
and follow the instructions on the screen to complete the installation.
CAUTION: Once the automatic installation has begun, DO NOT TURN OFF THE COMPUTER
UNTIL THE PROCESS IS COMPLETE. Turning off the computer during the installation process may
damage the software that runs the computer or prevent its proper installation.
NOTE: If the computer shipped with more than one operating system language on the hard drive,
the installation process could take up to 60 minutes.
If your computer was not shipped with a Microsoft operating system, some portions of this
documentation do not apply. Additional information is available in online help after you install the
operating system.
Downloading Microsoft Windows Updates
1. To set up your Internet connection, click Start > Internet Explorer and follow the instructions on
the screen.
2. Once an Internet connection has been established, click the Start button.
Installing the Windows Operating System 1
Page 14
3. Select the All Programs menu.
4. Click on the Windows Update link.
In Windows Vista and Windows 7, the Windows Update screen appears. Click view available
updates and make sure all critical updates are selected. Click the Install button and follow the
instructions on the screen.
In Windows XP, you will be directed to the Microsoft Windows Update Web site. If you see
one or more pop-up windows that ask you to install a program from
click Yes to install the program. Follow the instructions on the Microsoft Web site to scan for
updates and install critical updates and service packs.
It is recommended that you install all of the critical updates and service packs.
5. After the updates have been installed, Windows will prompt you to reboot the machine. Be sure
to save any files or documents that you may have open before rebooting. Then select Yes to
reboot the machine.
http://www.microsoft.com,
Installing or Upgrading Device Drivers (Windows systems)
When installing optional hardware devices after the operating system installation is complete, you
must also install the drivers for each of the devices.
If prompted for the i386 directory, replace the path specification with C:\i386, or use the Browse
button in the dialog box to locate the i386 folder. This action points the operating system to the
appropriate drivers.
Obtain the latest support software, including support software for the operating system from
http://www.hp.com/support. Select your country and language, select Download drivers and
software (and firmware), enter the model number of the computer, and press Enter.
Customizing the Monitor Display (Windows systems)
If you wish, you can select or change the monitor model, refresh rates, screen resolution, color
settings, font sizes, and power management settings. To do so, right-click on the Windows Desktop,
then click Personalize in Windows Vista and Windows 7 or Properties in Windows XP to change
display settings. For more information, refer to the online documentation provided with the graphics
controller utility or the documentation that came with your monitor.
Launching Windows XP from Windows 7
Windows XP Mode for Windows 7 allows you to install and launch Windows XP applications from the
Windows 7 taskbar. This feature is available on some computer models only.
To set up from a pre-installed Windows 7 desktop, click Start > Windows Virtual PC > Virtual
Windows XP and follow the instructions on the screen.
Accessing Disk Image (ISO) Files
There are disk image files (ISO files) included on your PC that contain the installation software for
additional software. These CD image files are located in the folder C:\SWSetup\ISOs. Each .iso file
2 Chapter 1 Installing and Customizing the Software
Page 15
can be burned to CD media to create an installation CD. It is recommended that these disks be
created and the software installed in order to get the most from your PC. The software and image file
names are:
Corel WinDVD SD and BD – installation software for WinDVD – used to play DVD movies
●
HP Insight Diagnostics OR Vision Diagnostics – software to perform diagnostic activities on your
●
PC
Accessing Disk Image (ISO) Files 3
Page 16
2 Computer Setup (F10) Utility
Computer Setup (F10) Utilities
Use Computer Setup (F10) Utility to do the following:
Change factory default settings.
●
Set the system date and time.
●
● Set, view, change, or verify the system configuration, including settings for processor, graphics,
memory, audio, storage, communications, and input devices.
Modify the boot order of bootable devices such as hard drives, optical drives, or USB flash
●
media devices.
Enable Quick Boot, which is faster than Full Boot but does not run all of the diagnostic tests run
●
during a Full Boot. You can set the system to:
always Quick Boot (default);
❑
periodically Full Boot (from every 1 to 30 days); or
❑
always Full Boot.
❑
● Select Post Messages Enabled or Disabled to change the display status of Power-On Self-Test
(POST) messages. Post Messages Disabled suppresses most POST messages, such as
memory count, product name, and other non-error text messages. If a POST error occurs, the
error is displayed regardless of the mode selected. To manually switch to Post Messages
Enabled during POST, press any key (except F1 through F12).
Establish an Ownership Tag, the text of which is displayed each time the system is turned on or
●
restarted.
Enter the Asset Tag or property identification number assigned by the company to this computer.
●
Enable the power-on password prompt during system restarts (warm boots) as well as during
●
power-on.
Establish a setup password that controls access to the Computer Setup (F10) Utility and the
●
settings described in this section.
Secure integrated I/O functionality, including the serial, USB, or parallel ports, audio, or
●
embedded NIC, so that they cannot be used until they are unsecured.
Enable or disable removable media boot ability.
●
4 Chapter 2 Computer Setup (F10) Utility
Page 17
Solve system configuration errors detected but not automatically fixed during the Power-On Self-
●
Test (POST).
Replicate the system setup by saving system configuration information on a USB device and
●
restoring it on one or more computers.
Execute self-tests on a specified ATA hard drive (when supported by drive).
●
Enable or disable DriveLock security (when supported by drive).
●
Using Computer Setup (F10) Utilities
Computer Setup can be accessed only by turning the computer on or restarting the system.
To access the Computer Setup Utilities menu, complete the following steps:
1. Turn on or restart the computer. If you are in Microsoft Windows, click Start > Shut Down >
Restart.
2. Press either Esc or F10 while the “Press the ESC key for Startup Menu” message is displayed at
the bottom of the screen.
Pressing Esc displays a menu that allows you to access different options available at startup.
NOTE: If you do not press Esc or F10 at the appropriate time, you must restart the computer
and again press Esc or F10 when the monitor light turns green to access the utility.
3. If you pressed Esc, press F10 to enter Computer Setup.
4. A choice of five headings appears in the Computer Setup Utilities menu: File, Storage, Security,
Power, and Advanced.
5. Use the arrow (left and right) keys to select the appropriate heading. Use the arrow (up and
down) keys to select the option you want, then press Enter. To return to the Computer Setup
Utilities menu, press Esc.
6. To apply and save changes, select File > Save Changes and Exit.
If you have made changes that you do not want applied, select Ignore Changes and Exit.
●
To reset to factory settings or previously saved default settings (some models), select
●
Apply Defaults and Exit. This option will restore the original factory system defaults.
CAUTION: Do NOT turn the computer power OFF while the BIOS is saving the Computer Setup
(F10) changes because the CMOS could become corrupted. It is safe to turn off the computer only
after exiting the F10 Setup screen.
Table 2-1 Computer Setup (F10) Utility
Heading Table
File
Storage
Security
Computer Setup—File on page 6
Computer Setup—Storage on page 7
Computer Setup—Security on page 9
Power
Advanced
Computer Setup—Power on page 13
Computer Setup—Advanced on page 14
Computer Setup (F10) Utilities 5
Page 18
Computer Setup—File
NOTE: Support for specific Computer Setup options may vary depending on the hardware
configuration.
Table 2-2 Computer Setup—File
Option Description
System Information Lists:
Product name
●
SKU number (some models)
●
● Processor type/speed/stepping
● Cache size (L1/L2/L3) (dual core processors have this listed twice)
Installed memory size/speed, number of channels (single or dual) (if applicable)
●
Integrated MAC address for embedded, enabled NIC (if applicable)
●
● System BIOS (includes family name and version)
Chassis serial number
●
Asset tracking number
●
ME firmware version
●
ME Management mode
●
About Displays copyright notice.
Set Time and Date Allows you to set system time and date.
Flash System ROM Allows you to update the system ROM with a BIOS image file located on removable media.
Replicated Setup Save to Removable Media
Saves system configuration, including CMOS, to a formatted USB flash media device.
Restore from Removable Media
Restores system configuration from a USB flash media device.
Default Setup Save Current Settings as Default
Saves the current system configuration settings as the default.
Restore Factory Settings as Default
Restores the factory system configuration settings as the default.
Apply Defaults and
Exit
Ignore Changes
and Exit
Save Changes and
Exit
Applies the currently selected default settings and clears any established passwords.
Exits Computer Setup without applying or saving any changes.
Saves changes to system configuration or default settings and exits Computer Setup.
6 Chapter 2 Computer Setup (F10) Utility
Page 19
Computer Setup—Storage
NOTE: Support for specific Computer Setup options may vary depending on the hardware
configuration.
Table 2-3 Computer Setup—Storage
Option Description
Device Configuration Lists all installed BIOS-controlled storage devices.
When a device is selected, detailed information and options are displayed. The following options
may be presented:
CD-ROM: Size, model, firmware version, serial number, connector color (not included for USB
CD-ROM).
Hard Disk: Size, model, firmware version, serial number, connector color.
SMART (ATA disks only)
●
● Translation mode (ATA disks only)
Connector color(ATA disks only)
●
Lets you select the translation mode to be used for the device. This enables the BIOS to
access disks partitioned and formatted on other systems and may be necessary for users of
older versions of UNIX (e.g., SCO UNIX version 3.2). Options are Automatic, Bit-Shift,
LBA Assisted, User, and Off.
Available only when the drive translation mode is set to User, allows you to specify the
parameters (logical cylinders, heads, and sectors per track) used by the BIOS to translate
disk I/O requests (from the operating system or an application) into terms the hard drive can
accept. Logical cylinders may not exceed 1024. The number of heads may not exceed 256.
The number of sectors per track may not exceed 63.
CAUTION: Ordinarily, the translation mode selected automatically by the BIOS should not
be changed. If the selected translation mode is not compatible with the translation mode that
was active when the disk was partitioned and formatted, the data on the disk will be
inaccessible.
Diskette: Model and firmware version.
NOTE: Displays for USB diskette drives.
Default Values (ATA disks only)
SATA Defaults
See Translation Mode above for details.
Computer Setup (F10) Utilities 7
Page 20
Table 2-3 Computer Setup—Storage (continued)
Storage Options eSATA Port (some models)
Allows you to set a SATA port as an eSATA port for use with an external drive. Default is enabled.
This setting affects only the port with the black connector, labeled as eSATA on the system board.
This port should have the eSATA back panel connector attached to use eSATA drives. For more
information, see the eSATA white paper at
SATA Emulation
Allows you to choose how the SATA controller and devices are accessed by the operating
system. There are three supported options: IDE, RAID, and AHCI (default).
IDE - This is the most backwards-compatible setting of the three options. Operating systems
usually do not require additional driver support in IDE mode.
RAID - Allows DOS and boot access to RAID volumes. Use this mode with the RAID device driver
loaded in the operating system to take advantage of RAID features.
AHCI (default option) - Allows operating systems with AHCI device drivers loaded to take
advantage of more advanced features of the SATA controller.
NOTE: The RAID/AHCI device driver must be installed prior to attempting to boot from a RAID/
AHCI volume. If you attempt to boot from a RAID/AHCI volume without the required device driver
installed, the system will crash (blue screen). RAID volumes may become corrupted if they are
booted to after disabling RAID.
NOTE: RAID is not available on USDT systems.
www.hp.com.
Removable Media Boot
Enables/disables ability to boot the system from removable media. Default is enabled.
Max eSATA Speed (some models)
Allows you to choose 1.5 Gbps or 3.0 Gpbs as the maximum eSATA speed. By default, the speed
is limited to 1.5 Gbps for maximum reliability.
CAUTION: Consult your eSATA drive and cable manufacturer before enabling 3.0 Gpbs speed.
Some drive and cable combinations may not run reliably at 3.0 Gpbs.
NOTE: eSATA is not available on USDT systems.
8 Chapter 2 Computer Setup (F10) Utility
Page 21
Table 2-3 Computer Setup—Storage (continued)
DPS Self-Test Allows you to execute self-tests on ATA hard drives capable of performing the Drive Protection
Boot Order Allows you to:
System (DPS) self-tests.
NOTE: This selection will only appear when at least one drive capable of performing the DPS
self-tests is attached to the system.
Specify the order in which EFI boot sources (such as a internal hard drive, USB hard drive,
●
USB optical drive, or internal optical drive) are checked for a bootable operating system
image. Each device on the list may be individually excluded from or included for
consideration as a bootable operating system source.
EFI boot sources always have precedence over legacy boot sources.
● Specify the order in which legacy boot sources (such as a network interface card, internal
hard drive, USB optical drive, or internal optical drive) are checked for a bootable operating
system image. Each device on the list may be individually excluded from or included for
consideration as a bootable operating system source.
Specify the order of attached hard drives. The first hard drive in the order will have priority in
●
the boot sequence and will be recognized as drive C (if any devices are attached).
NOTE: You can use F5 to disable individual boot items, as well as disable EFI boot and/or
legacy boot.
NOTE: MS-DOS drive lettering assignments may not apply after a non-MS-DOS operating
system has started.
Shortcut to Temporarily Override Boot Order
To boot one time from a device other than the default device specified in Boot Order, restart the
computer and press Esc (to access the boot menu) and then F9 (Boot Order), or only F9 (skipping
the boot menu) when the monitor light turns green. After POST is completed, a list of bootable
devices is displayed. Use the arrow keys to select the preferred bootable device and press Enter.
The computer then boots from the selected non-default device for this one time.
Computer Setup—Security
NOTE: Support for specific Computer Setup options may vary depending on the hardware
configuration.
Table 2-4 Computer Setup—Security
Option Description
Setup Password Allows you to set and enable a setup (administrator) password.
NOTE: If the setup password is set, it is required to change Computer Setup options, flash the
ROM, and make changes to certain plug and play settings under Windows.
NOTE: This selection will only appear when at least one drive that supports the DriveLock
feature is attached to the system.
See the Desktop Management Guide for more information.
Computer Setup (F10) Utilities 9
Page 22
Table 2-4 Computer Setup—Security (continued)
Power-On Password Allows you to set and enable a power-on password. The power-on password prompt appears
after a power cycle. If the user does not enter the correct power-on password, the unit will not
boot.
NOTE: This selection will only appear when at least one drive that supports the DriveLock
feature is attached to the system.
See the Desktop Management Guide for more information.
Password Options
(This selection appears
only if a power-on
password or setup
password is set.)
Smart Cover (some
models)
Device Security Allows you to set Device Available/Device Hidden (default is Device Available) for:
Allows you to enable/disable:
● Lock Legacy Resources (appears if a setup password is set). Default is enabled.
Setup Browse Mode (appears if a setup password is set) (allows viewing, but not changing,
●
the F10 Setup Options without entering setup password). Default is enabled.
● Password prompt on F9, F11, & F12 (allows access to menus without entering setup
password). Default is enabled.
Network Server Mode (appears if a power-on password is set). Default is disabled.
●
See the Desktop Management Guide for more information.
Allows you to:
● Lock/unlock the Cover Lock.
Set the Cover Removal Sensor to Disable/Notify User/Setup Password.
●
NOTE: Notify User alerts the user that the sensor has detected that the cover has been
removed. Setup Password requires that the setup password be entered to boot the computer if
the sensor detects that the cover has been removed.
This feature is supported on some models only. See the Desktop Management Guide for more
information.
● Embedded security device (some models)
System audio
●
Serial ports (some models)
●
● Parallel port (some models)
Network controller
●
NOTE: You must disable AMT before trying to hide the network controller.
● SATA0
SATA1
●
SATA2 (some models)
●
SATA3 (some models)
●
SATA4 (some models)
●
10 Chapter 2 Computer Setup (F10) Utility
Page 23
Table 2-4 Computer Setup—Security (continued)
USB Security Allows you to set Enabled/Disabled (default is Enabled) for:
● Front USB Ports
◦ USB Port 1
◦ USB Port 2
USB Port 3
◦
USB Port 4
◦
Rear USB Ports
●
USB Port 1
◦
◦ USB Port 2
USB Port 3
◦
USB Port 4
◦
◦ USB Port 5
USB Port 6
◦
Accessory USB Ports
●
◦ USB Port 1
USB Port 2 (some models)
◦
USB Port 3 (some models)
◦
USB Port 4 (some models)
◦
Slot Security Allows you to disable any PCI or PCI Express slot. Default is enabled.
Network Boot Enables/disables the computer’s ability to boot from an operating system installed on a network
server. (Feature available on NIC models only; the network controller must be either a PCI
expansion card or embedded on the system board.) Default is enabled.
System IDs Allows you to set:
● Asset tag (18-byte identifier), a property identification number assigned by the company to
the computer.
Ownership tag (80-byte identifier) displayed during POST.
●
● Chassis serial number or Universal Unique Identifier (UUID) number. The UUID can only be
updated if the current chassis serial number is invalid. (These ID numbers are normally set in
the factory and are used to uniquely identify the system.)
Keyboard locale setting for System ID entry.
●
Computer Setup (F10) Utilities 11
Page 24
Table 2-4 Computer Setup—Security (continued)
System Security
(some models: these
options are hardware
dependent)
Data Execution Prevention (enable/disable) - Helps prevent operating system security breaches.
Default is enabled.
Virtualization Technology (VTx)(some models) (enable/disable) - Controls the virtualization
features of the processor. Changing this setting requires turning the computer off and then back
on. Default is disabled.
Virtualization Technology Directed I/O (VTd) (some models) (enable/disable) - Controls
virtualization DMA remapping features of the chipset. Changing this setting requires turning the
computer off and then back on. Default is disabled.
Intel TXT (LT) Support (some models) (enable/disable) - Controls the underlying processor and
chipset features needed to support a virtual appliance. Changing this setting requires turning the
computer off and then back on. Default is disabled. To enable this feature you must enable the
following features:
Embedded Security Device Support
●
● Virtualization Technology
● Virtualization Technology Directed I/O
Embedded Security Device Support (some models) (enable/disable) - Permits activation and
deactivation of the Embedded Security Device. Changing this setting requires turning the
computer off and then back on.
NOTE: To configure the Embedded Security Device, a Setup password must be set.
● Reset to Factory Settings (some models) (Do not reset/Reset) - Resetting to factory defaults
will erase all security keys. Changing this setting requires turning the computer off and then
back on. Default is Do not reset.
CAUTION: The embedded security device is a critical component of many security
schemes. Erasing the security keys will prevent access to data protected by the Embedded
Security Device. Choosing Reset to Factory Settings may result in significant data loss.
OS management of Embedded Security Device (some models) (enable/disable) - This option
allows the user to limit operating system control of the Embedded Security Device. Changing this
setting requires turning the computer off and then back on. This option allows the user to limit OS
control of the Embedded Security Device. Default is enabled.
Reset of Embedded Security Device through OS (some models) (enable/disable) - This option
allows the user to limit the operating system ability to request a Reset to Factory Settings of the
Embedded Security Device. Changing this setting requires turning the computer off and then back
on. Default is disabled.
NOTE: To enable this option, a Setup password must be set.
DriveLock Security Allows you to assign or modify a master or user password for hard drives. When this feature is
enabled, the user is prompted to provide one of the DriveLock passwords during POST. If neither
is successfully entered, the hard drive will remain inaccessible until one of the passwords is
successfully provided during a subsequent cold-boot sequence.
NOTE: This selection will only appear when at least one drive that supports the DriveLock
feature is attached to the system.
See the Desktop Management Guide for more information.
12 Chapter 2 Computer Setup (F10) Utility
Page 25
Computer Setup—Power
NOTE: Support for specific Computer Setup options may vary depending on the hardware
configuration.
Table 2-5 Computer Setup—Power
Option Description
OS Power
Management
Hardware Power
Management
Thermal Fan idle mode—This bar graph controls the minimum permitted fan speed.
● Runtime Power Management— Enable/Disable. Allows certain operating systems to reduce
processor voltage and frequency when the current software load does not require the full
capabilities of the processor. Default is enabled.
● Idle Power Savings—Extended/Normal. Allows certain operating systems to decrease the
processors power consumption when the processor is idle. Default is extended.
Unique Sleep State Blink Rates—Enable/Disable. This feature is designed to provide a
●
visual indication of what sleep state the system is in. Each sleep state has a unique blink
pattern. Default is disabled.
S0 (On) = Solid green LED.
◦
◦ S3 (Stand By)= 3 blinks at 1Hz (50% duty cycle) followed by a pause of 2 seconds
(green LED) — repeated cycles of 3 blinks and a pause.
S4 (Hibernation)= 4 blinks at 1Hz (50% duty cycle) followed by a pause of 2 seconds
◦
(green LED) — repeated cycles of 4 blinks and a pause.
◦ S5 (Soft Off) = LED is off.
NOTE: If this feature is disabled, S4 and S5 both have the LED off. S1 (no longer
supported) and S3 use 1 blink per second.
SATA Power Management – Enables or disables SATA bus and/or device power management.
Default is enabled.
S5 Maximum Power Savings—Turns off power to all nonessential hardware when system is off to
meet EUP Lot 6 requirement of less than 1 Watt power usage. Default is disabled.
NOTE: This setting only changes the minimum fan speed. The fans are still automatically
controlled.
Computer Setup (F10) Utilities 13
Page 26
Computer Setup—Advanced
NOTE: Support for specific Computer Setup options may vary depending on the hardware
configuration.
Table 2-6 Computer Setup—Advanced (for advanced users)
Option Heading
Power-On Options Allows you to set:
● POST mode (QuickBoot, Clear Memory, FullBoot, or FullBoot Every x Days).
QuickBoot (default) = Do not clear memory or perform a memory test.
◦
FullBoot = Memory test (count) on cold boot. Clears memory on all boots.
◦
◦ Clear Memory = No memory count on cold boot. Clears memory on all boots.
FullBoot Every x Days = Memory count on 1st cold boot on or after the xth day. No
◦
more memory counts until 1st cold boot on or after x days. Clears memory on all boots.
POST messages (enable/disable). Default is disabled.
●
Press the ESC key for Startup Menu (Enable/Disable). Default is enabled.
●
Option ROM Prompt (enable/disable). Enabling this feature will cause the system to display
●
a message before loading option ROMs. Default is enabled.
● After Power Loss (off/on/previous state). Default is Power off. Setting this option to:
Power off—causes the computer to remain powered off when power is restored.
◦
Power on—causes the computer to power on automatically as soon as power is
◦
restored.
Previous state—causes the computer to power on automatically as soon as power is
◦
restored, if it was on when power was lost.
NOTE: If you turn off power to the computer using the switch on a power strip, you will not be
able to use the suspend/sleep feature or the Remote Management features.
● POST Delay (in seconds). Enabling this feature will add a user-specified delay to the POST
process. This delay is sometimes needed for hard disks on some PCI cards that spin up very
slowly, so slowly that they are not ready to boot by the time POST is finished. The POST
delay also gives you more time to select F10 to enter Computer (F10) Setup. Default is
None.
Remote Wakeup Boot Source (remote server/local hard drive). Default is Local hard drive.
●
System Recovery Boot Support (Enable/Disable). Provides the ability for the BIOS to redirect
●
the boot to the recovery partition on the user hard drive, if present. Some versions of the
recovery software honor the F11 key press even when this feature is disabled by the BIOS.
Default is disabled.
● Bypass F1 Prompt on Configuration Changes (Enable/Disable). Allows you to set the
computer not to confirm when changes were made. Default is disabled.
BIOS Power-On Allows you to set the computer to turn on automatically at a time you specify.
Onboard Devices Allows you to set resources for or disable Legacy devices.
14 Chapter 2 Computer Setup (F10) Utility
Page 27
Table 2-6 Computer Setup—Advanced (for advanced users) (continued)
Bus Options On some models, allows you to enable or disable:
● PCI SERR# Generation. Default is enabled.
PCI VGA Palette Snooping, which sets the VGA palette snooping bit in PCI configuration
●
space; only needed when more than one graphics controller is installed. Default is disabled.
Device Options Allows you to set:
● Turbo Mode (enable/disable). Allows you to enable and disable the Intel Turbo Mode feature,
which allows one core of the system to run at a higher than standard frequency and power if
other cores are idle. Default is enabled.
Printer mode (Bi-Directional, EPP + ECP, Output Only). Default is EPP+ECP.
●
Num Lock State at Power-On (off/on). Default is off.
●
Integrated Video (enable/disable). Use this option to disable the integrated video controller
●
when another video controller is present in the system. Default is enabled.
Internal Speaker (some models) (does not affect external speakers). Default is enabled.
●
NIC Option ROM Download (PXE, iSCSI, disabled). The BIOS contains an embedded NIC
●
option ROM to allow the unit to boot through the network to a PXE server. This is typically
used to download a corporate image to a hard drive. The NIC option ROM takes up memory
space below 1MB commonly referred to as DOS Compatibility Hole (DCH) space. This
space is limited. This F10 option will allow users to disable the downloading of this
embedded NIC option ROM thus giving more DCH space for additional PCI cards which may
need option ROM space. The default will be to have the NIC option-ROM-enabled. Default is
PXE.
Multi-Processor (enable/disable). Use this option to disable multi-processor support under
●
the OS. Default is enabled.
Hyper-threading (enable/disable) (some models). Use this option to disable processor hyper-
●
threading.
VGA Configuration Displayed only if there is an add-in video card in the system. Allows you to specify which VGA
AMT Configuration Allows you to set:
controller will be the “boot” or primary VGA controller.
● AMT (enable/disable). Allows you to enable or disable functions of the embedded
Management Engine (ME) such as Active Management Technology (AMT). If set to disable,
the Management Engine is set to a temporarily disabled state and will not provide functions
beyond necessary system configuration. Default is enabled.
● Unconfigure AMT/ME (enable/disable). Allows you to unconfigure any provisioned
management settings for AMT. The AMT settings are restored to factory defaults. This
feature should be used with caution as AMT will not be able to provide any set AMT
management functions once unconfigured. Default is disabled.
Watchdog Timer (enable/disable). Allows you to set amount of time for a operating system
●
and BIOS watchdog alert to be sent if the timers are not deactivated. BIOS watchdog is
deactivated by BIOS and would indicate that a halt occurred during execution if the alert is
sent to the management console. An operating system alert is deactivated by the operating
system image and would indicate that a hang occurred during its initialization. Default is
enabled.
Computer Setup (F10) Utilities 15
Page 28
Recovering the Configuration Settings
This method of recovery requires that you first perform the Save to Removable Media command
with the Computer Setup (F10) Utility before Restore is needed. (See
on page 6 in the Computer Setup—File table.)
NOTE: It is recommended that you save any modified computer configuration settings to a USB
flash media device and save the device for possible future use.
To restore the configuration, insert the USB flash media device with the saved configuration and
perform the Restore from Removable Media command with the Computer Setup (F10) Utility. (See
Restore from Removable Media on page 6 in the Computer Setup—File table.)
Save to Removable Media
16 Chapter 2 Computer Setup (F10) Utility
Page 29
3 Illustrated parts catalog
This chapter provides spare part information for all chassis.
Convertible minitower (CMT) chassis spare parts
Computer system components
Item Description Spare part number
(1) Front bezel 646822-001
(2) Access panel 646819-001
(3) Power supply
320W, 90% efficient 613764-001
320W, standard 613765-001
(4) System board (includes replacement thermal material)
Convertible minitower (CMT) chassis spare parts 17
Page 30
Cables
Item Description Spare part number
Includes Trusted Platform Module (TPM) 611835-001
Does not include TPM 649742-001
Memory modules (PC3-10600, 1333-MHz; not illustrated)
4-GB 585157-001
2-GB 635803-001
1-GB 635802-001
Processors (include replacement thermal material; not illustrated)
Intel Core i7 2600 (3.4-GHz, 8-MB L3 cache) 638632-001
Intel Core i5 2500 (3.3-GHz, 6-MB L3 cache) 638631-001
Intel Core i5 2400 (3.1-GHz, 6-MB L3 cache) 638630-001
Intel Core i3 2120 (3.3-GHz, 3-MB L3 cache) 638629-001
Intel Core i3 2100 (3.1-GHz, 3-MB L3 cache) 638628-001
Item Description Spare part number
(1) Power switch/LED assembly 646820-001
(2) SATA optical drive power cable 646832-001
(3) Front I/O assembly 646821-001
(4) SATA hard drive power cable 646831-001
18 Chapter 3 Illustrated parts catalog
Page 31
Item Description Spare part number
SATA cable, 18 inch, 1 straight end, 1 angled end (unlabeled; not illustrated) 639958-001
SATA cable, 17.7 inch, 2 straight ends (not illustrated) 639959-001
SATA cable, 18 inch, 1 straight end, 1 angled end (labeled; not illustrated) 646830-001
DMS-59 to dual VGA cable 463023-001
Adapter, DisplayPort to VGA 603250-001
Adapter, DisplayPort to DVI 484156-001
Adapter, DisplayPort to HDMI 617450-001
DisplayPort cable 487562-001
Misc parts
Item Description Spare part number
(1) Fan sink (includes replacement thermal material) 643907-001
(2) Chassis fan, (92 mm x 92 mm) 643908-001
(3) Speaker 645330-001
(4) Solenoid lock 641498-001
(5) Hood sensor 638816-001
USB powered speakers (not illustrated) 636917-001
Hard drive conversion bracket (not illustrated) 397117-001
Clamp lock, includes universal cable (plate not included; not illustrated) 508987-001
Antenna for use with 538048-001 (not illustrated) 583345-001
Convertible minitower (CMT) chassis spare parts 19
Page 32
Item Description Spare part number
Drives
Keyboard (not illustrated)
NOTE: For a list of supported countries and associated dash numbers, see
part number listing on page 21.
PS/2, basic 537745-xxx
USB, basic 537746-xx1
USB, mini 535873-xx1
Washable 613125-xx1
Smartcard 631411-xx4
Mouse (not illustrated)
PS2, optical, jack black 537748-001
USB, BFR-PVC 590270-001
Washable 619580-001
Optical, jack black 444740-001
Laser, jack black 570580-001
Sequential
Description Spare part number
Hard drive
1-TB, 7200-rpm 636930-001
750-GB, 7200-rpm 632938-001
500-GB, 7200-rpm 636929-001
320-GB, 7200-rpm, 2.5-inch 634824-001
300-GB, 10000-rpm, SATA3 639695-001
300-GB, 10000-rpm, SATA2 648963-001
250-GB, 7200-rpm 636927-001
160-GB, 10000-rpm 639694-001
160-GB, 10000-rpm, 2.5-inch 508312-001
160-GB Solid-state drive 646809-001
80-GB Solid-state drive 607817-001
Optical drive
Blu-ray BD-RW SuperMulti DL Drive with LightScribe 617030-001
16X SATA DVD±RW drive with LightScribe 581600-001
16X SATA DVD-ROM drive 581599-001
Grommet, hard drive isolation, blue 594220-001
20 Chapter 3 Illustrated parts catalog
Page 33
Misc boards
Description Spare part number
Graphics cards
nVidia Quadro NVS295 PCIe x16 graphics card, 256 MB 641462-001
nVidia Quadro NVS300 PCIe x16 graphics card, 512 MB 632486-001
nVidia GF405, DVI/VGA PCIe x16 graphics card, 512 MB 641732-001
ATI Radeon HD6350 PCIe x16 graphics card, 512 MB 637995-001
ATI Radeon HD6450 PCIe x16 graphics card, 512 MB 637996-001
ATI Radeon HD6570 PCIe x16 graphics card, 1 GB 637997-001
AMD FirePro 2270 PCIe x16 graphics card, 512 MB 637213-001
Intel PRO/1000CT NIC, includes bracket 635523-001
HP FireWire / IEEE 1394a PCIe x1 card 637591-001
Ports
eSATA port assembly, PCI card 645558-001
USB 3.0 port, PCIe x1 card 616610-001
Serial port, PCI card 638815-001
Printer port, PCI card 638817-001
Other boards/cards
HP WLAN 802.11b/g/n card 538048-001
Intel PRO/1000CT NIC, includes bracket 635523-001
Sequential part number listing
Spare part
number
397117-001 Hard drive conversion bracket
444740-001 Mouse, optical, jack black
463023-001 DMS-59 to dual VGA cable
484156-001 Adapter, DisplayPort to DVI
487562-001 DisplayPort cable
508312-001 160-GB, 10000-rpm, 2.5-inch hard drive
508987-001 Clamp lock, includes universal cable (plate not included)
535873-001 USB mini keyboard for use in the United States
Description
535873-121 USB mini keyboard for use in the French Canada
537745-001 PS/2 basic keyboard for use in the United States
Convertible minitower (CMT) chassis spare parts 21
Page 34
Spare part
number
537745-031 PS/2 basic keyboard for use in the United Kingdom
537745-041 PS/2 basic keyboard for use in Germany
537745-051 PS/2 basic keyboard for use in France
537745-061 PS/2 basic keyboard for use in Italy
537745-071 PS/2 basic keyboard for use in Spain
537745-081 PS/2 basic keyboard for use in Denmark
537745-091 PS/2 basic keyboard for use in Norway
537745-101 PS/2 basic keyboard for use in Sweden
537745-111 PS/2 basic keyboard for use in Switzerland
537745-121 PS/2 basic keyboard for use in French Canada
537745-131 PS/2 basic keyboard for use in Portugal
537745-141 PS/2 basic keyboard for use in Turkey
537745-151 PS/2 basic keyboard for use in Greece
537745-161 PS/2 basic keyboard for use in Latin America (Spanish)
537745-171 PS/2 basic keyboard for use in Saudi Arabia
Description
537745-181 PS/2 basic keyboard for use in Belgium
537745-201 PS/2 basic keyboard for use in Brazil (Portuguese)
537745-211 PS/2 basic keyboard for use in Hungary
537745-221 PS/2 basic keyboard for use in the Czech Republic
537745-231 PS/2 basic keyboard for use in Slovakia
537745-251 PS/2 basic keyboard for use in Russia
537745-261 PS/2 basic keyboard for use in Bulgaria
537745-271 PS/2 basic keyboard for use in Romania
537745-281 PS/2 basic keyboard for use in Thailand
537745-291 PS/2 basic keyboard for use in Japan
537745-371 PS/2 basic keyboard for use with International English
537745-AA1 PS/2 basic keyboard for use in the People's Republic of China
537745-AB1 PS/2 basic keyboard for use in Taiwan
537745-BB1 PS/2 basic keyboard for use in Israel (Hebrew)
537745-DE1 PS/2 basic keyboard for use in Saudi Arabia
537745-KD1 PS/2 basic keyboard for use in South Korea
537745-L31 PS/2 basic keyboard for use with international English
537746-001 PS/2 basic keyboard for use in the United States
537746-031 PS/2 basic keyboard for use in the United Kingdom
22 Chapter 3 Illustrated parts catalog
Page 35
Spare part
number
537746-041 PS/2 basic keyboard for use in Germany
537746-051 PS/2 basic keyboard for use in France
537746-061 PS/2 basic keyboard for use in Italy
537746-071 PS/2 basic keyboard for use in Spain
537746-081 PS/2 basic keyboard for use in Denmark
537746-091 PS/2 basic keyboard for use in Norway
537746-101 PS/2 basic keyboard for use in Sweden
537746-111 PS/2 basic keyboard for use in Switzerland
537746-121 PS/2 basic keyboard for use in French Canada
537746-131 PS/2 basic keyboard for use in Portugal
537746-141 PS/2 basic keyboard for use in Turkey
537746-151 PS/2 basic keyboard for use in Greece
537746-161 PS/2 basic keyboard for use in Latin America (Spanish)
537746-171 PS/2 basic keyboard for use in Saudi Arabia
537746-181 PS/2 basic keyboard for use in Belgium
Description
537746-201 PS/2 basic keyboard for use in Brazil (Portuguese)
537746-211 PS/2 basic keyboard for use in Hungary
537746-221 PS/2 basic keyboard for use in the Czech Republic
537746-231 PS/2 basic keyboard for use in Slovakia
537746-251 PS/2 basic keyboard for use in Russia
537746-261 PS/2 basic keyboard for use in Bulgaria
537746-271 PS/2 basic keyboard for use in Romania
537746-281 PS/2 basic keyboard for use in Thailand
537746-291 PS/2 basic keyboard for use in Japan
537746-351 PS/2 basic keyboard for use in Finland
537746-371 PS/2 basic keyboard for use with International English
537746-AA1 PS/2 basic keyboard for use in the People's Republic of China
537746-AB1 PS/2 basic keyboard for use in Taiwan
537746-BB1 PS/2 basic keyboard for use in Israel (Hebrew)
537746-DE1 PS/2 basic keyboard for use in Saudi Arabia
537746-KD1 PS/2 basic keyboard for use in South Korea
537746-L31 PS/2 basic keyboard for use with international English
537748-001 Mouse, PS2, optical, jack black
538048-001 HP WLAN 802.11b/g/n card
Convertible minitower (CMT) chassis spare parts 23
Page 36
Spare part
number
570580-001 Mouse, laser, jack black
581599-001 16X SATA DVD-ROM drive
581600-001 16X SATA DVD±RW drive with LightScribe
583345-001 Antenna for use with 538048-001
585157-001 Memory module, 4-GB, PC3 10600, 1333-MH
590270-001 Mouse, USB, BFR-PVC
594220-001 Grommet, hard drive isolation, blue
603250-001 Adapter, DisplayPort to VGA
607817-001 80-GB Solid-state drive
611835-001 System board, TPM (includes replacement thermal material)
613125-001 Washable keyboard for use in the United States
613125-111 Washable keyboard for use in Switzerland
613125-121 Washable keyboard for use in French Canada
613125-131 Washable keyboard for use in Portugal
613125-141 Washable keyboard for use in Turkey
Description
613125-171 Washable keyboard for use in Saudi Arabia
613125-201 Washable keyboard for use in Brazil (Portuguese)
613125-211 Washable keyboard for use in Hungary
613125-221 Washable keyboard for use in the Czech Republic
613125-231 Washable keyboard for use in Slovakia
613125-251 Washable keyboard for use in Russia
613125-261 Washable keyboard for use in Bulgaria
613125-271 Washable keyboard for use in Romania
613125-351 Washable keyboard for use in Finland
613125-AA1 Washable keyboard for use in the People's Republic of China
613125-BB1 Washable keyboard for use in Israel (Hebrew)
613125-DE1 Washable keyboard for use in Saudi Arabia
613125-L31 Washable keyboard for use with international English
613764-001 320W, 90% efficient
613765-001 320W, standard
616610-001 USB 3.0 port, PCIe x1 card
617030-001 Blu-ray BD-RW SuperMulti DL Drive with LightScribe
617450-001 Adapter, DisplayPort to HDMI
619580-001 Mouse, washable
24 Chapter 3 Illustrated parts catalog
Page 37
Spare part
number
631411-001 Smartcard keyboard for use in the United States
631411-031 Smartcard keyboard for use in the United Kingdom
631411-041 Smartcard keyboard for use in Germany
631411-051 Smartcard keyboard for use in France
631411-061 Smartcard keyboard for use in Italy
631411-071 Smartcard keyboard for use in Spain
631411-081 Smartcard keyboard for use in Denmark
631411-091 Smartcard keyboard for use in Norway
631411-101 Smartcard keyboard for use in Sweden
631411-111 Smartcard keyboard for use in Switzerland
631411-121 Smartcard keyboard for use in French Canada
631411-131 Smartcard keyboard for use in Portugal
631411-141 Smartcard keyboard for use in Turkey
631411-151 Smartcard keyboard for use in Greece
631411-161 Smartcard keyboard for use in Latin America (Spanish)
Description
631411-171 Smartcard keyboard for use in Saudi Arabia
631411-181 Smartcard keyboard for use in Belgium
631411-201 Smartcard keyboard for use in Brazil (Portuguese)
631411-211 Smartcard keyboard for use in Hungary
631411-221 Smartcard keyboard for use in the Czech Republic
631411-231 Smartcard keyboard for use in Slovakia
631411-251 Smartcard keyboard for use in Russia
631411-281 Smartcard keyboard for use in Thailand
631411-291 Smartcard keyboard for use in Japan
631411-351 Smartcard keyboard for use in Finland
631411-371 Smartcard keyboard for use with International English
631411-AA1 Smartcard keyboard for use in the People's Republic of China
631411-AB1 Smartcard keyboard for use in Taiwan
631411-BB1 Smartcard keyboard for use in Israel (Hebrew)
631411-DE1 Smartcard keyboard for use in Saudi Arabia
631411-KD1 Smartcard keyboard for use in South Korea
631411-L31 Smartcard keyboard for use with international English
632486-001 nVidia Quadro NVS300 PCIe x16 graphics card, 512 MB
632938-001 750-GB, 7200 RPM hard drive
Convertible minitower (CMT) chassis spare parts 25
Page 38
Spare part
number
634824-001 320-GB, 7200 RPM hard drive, 2.5-inch
635523-001 Intel PRO/1000CT NIC, includes bracket
635802-001 Memory module, 1-GB, PC3 10600, 1333-MHz
635803-001 Memory module, 2-GB, PC3 10600, 1333-MHz
636917-001 USB powered speakers
636927-001 250-GB, 7200 RPM hard drive
636929-001 500-GB, 7200 RPM hard drive
636930-001 1-TB hard drive
637213-001 AMD FirePro 2270 PCIe x16 graphics card, 512 MB
637591-001 HP FireWire / IEEE 1394a PCIe x1 card
637995-001 ATI Radeon HD6350 PCIe x16 graphics card, 512 MB
637996-001 ATI Radeon HD6450 PCIe x16 graphics card, 512 MB
637997-001 ATI Radeon HD6570 PCIe x16 graphics card, 1 GB
638628-001 Intel Core i3 2100 (3.1-GHz, 3-MB L3 cache)
638629-001 Intel Core i3 2120 (3.3-GHz, 3-MB L3 cache)
Description
638630-001 Intel Core i5 2400 (3.1-GHz, 6-MB L3 cache)
638631-001 Intel Core i5 2500 (3.3-GHz, 6-MB L3 cache)
638632-001 Intel Core i7 2600 (3.4-GHz, 8-MB L3 cache)
638806-001 Hood sensor
638815-001 Serial port PCI card
638816-001 Hood sensor
638817-001 Printer port, PCI card
639694-001 160-GB, 10000 RPM hard drive
639695-001 300-GB, 10000 RPM, SATA3 hard drive
639958-001 SATA cable, 18 inch, 1 straight end, 1 angled end (unlabeled)
639959-001 SATA cable, 17.7 inch, 2 straight ends
641462-001 nVidia Quadro NVS295 PCIe x16 graphics card, 256 MB
641732-001 nVidia GF405, DVI/VGA PCIe x16 graphics card, 512 MB
641498-001 Solenoid lock
643907-001 Heat sink (includes replacement thermal material)
643908-001 Chassis fan
645330-001 Speaker
645558-001 eSATA port assembly, PCI card
646809-001 160-GB Solid-state drive
26 Chapter 3 Illustrated parts catalog
Page 39
Spare part
number
646819-001 Access panel
646820-001 Power switch/LED with holder
646821-001 Front I/O assembly
646822-001 Front bezel
646830-001 SATA cable, 18 inch, 1 straight end, 1 angled end (labeled)
646831-001 Hard drive power cable
646832-001 SATA optical drive power cable
648963-001 300-GB, 10000 RPM, SATA2 hard drive
649742-001 System board, no TPM (includes replacement thermal material)
Description
Microtower (MT) chassis spare parts
Computer major components
Item Description Spare part number
(1) Front bezel 646826-001
(2) Access panel 646825-001
Microtower (MT) chassis spare parts 27
Page 40
Item Description Spare part number
(3) Power supply
320W, 90% efficient 613764-001
320W, standard 613765-001
(4) System board (includes replacement thermal material)
For use in 8200 Elite Series models:
● Includes Trusted Platform Module (TPM) 611834-001
For use in 6200 Pro Series models:
● Includes Trusted Platform Module (TPM) 615114-001
Memory modules (PC3-10600, 1333-MHz; not illustrated)
4-GB 585157-001
2-GB 635803-001
1-GB 635802-001
Processors (include replacement thermal material; not illustrated)
Intel Core i7 2600 (3.4-GHz, 8-MB L3 cache) 638632-001
Intel Core i5 2500 (3.3-GHz, 6-MB L3 cache) 638631-001
Intel Core i5 2400 (3.1-GHz, 6-MB L3 cache) 638630-001
Intel Core i3 2120 (3.3-GHz, 3-MB L3 cache) 638629-001
Intel Core i3 2100 (3.1-GHz, 3-MB L3 cache) 638628-001
Does not include TPM 649741-001
●
Does not include TPM 649515-001
●
28 Chapter 3 Illustrated parts catalog
Page 41
Cables
Item Description Spare part number
(1) Front I/O assembly 646827-001
(2) SATA optical drive power cable 646834-001
(3) SATA hard drive power cable 646833-001
(4) Power switch/LED assembly 646828-001
(5) SATA cable, 18 inch, 1 straight end, 1 angled end (unlabeled) 639958-001
(6) SATA cable, 17.7 inch, 2 straight ends 639959-001
SATA cable, 18 inch, 1 straight end, 1 angled end (labeled; not illustrated) 646830-001
DMS-59 to dual VGA cable 463023-001
Adapter, DisplayPort to VGA 603250-001
Adapter, DisplayPort to DVI 484156-001
Adapter, DisplayPort to HDMI 617450-001
DisplayPort cable 487562-001
Microtower (MT) chassis spare parts 29
Page 42
Misc parts
Item Description Spare part number
(1) Heat sink (includes replacement thermal material) 645326-001
(2) Fan with chassis with guard 585884-001
(3) Hood sensor 638816-001
(4) Speaker 645330-001
(5) Solenoid lock 641498-001
(6) Chassis fan, (92 mm x 92 mm) 636922-001
Fan duct assembly (not illustrated) 646824-001
Card reader, 22-in-1 (not illustrated) 636166-001
USB powered speakers (not illustrated) 636917-001
Hard drive conversion bracket (not illustrated) 397117-001
Clamp lock, includes universal cable (plate not included; not illustrated) 508987-001
Antenna for use with 538048-001 (not illustrated) 583345-001
Keyboard (not illustrated)
NOTE: For a list of supported countries and associated dash numbers, see
part number listing on page 32.
PS/2, basic 537745-xxx
USB, basic 537746-xx1
Washable 613125-xx1
Smartcard 631411-xx1
Sequential
Mouse (not illustrated)
PS2, optical, jack black 537748-001
USB, BFR-PVC 590270-001
30 Chapter 3 Illustrated parts catalog
Page 43
Drives
Item Description Spare part number
Washable 619580-001
Optical, jack black 444740-001
Laser, jack black 570580-001
Bezel blank (not illustrated)
5.25-inch 570838-001
3.5-inch 583653-001
Description Spare part number
Hard drive
1-TB, 7200-rpm 636930-001
750-GB, 7200-rpm 632938-001
500-GB, 7200-rpm 636929-001
320-GB, 7200-rpm, 2.5-inch 634824-001
300-GB, 10000-rpm, SATA3 639695-001
300-GB, 10000-rpm, SATA2 648963-001
250-GB, 7200-rpm 636927-001
160-GB, 10000-rpm 639694-001
160-GB, 10000-rpm, 2.5-inch 508312-001
160-GB Solid-state drive 646809-001
80-GB Solid-state drive 607817-001
Optical drive
Blu-ray BD-RW SuperMulti DL Drive with LightScribe 617030-001
16X SATA DVD±RW drive with LightScribe 581600-001
16X SATA DVD-ROM drive 581599-001
Grommet, hard drive isolation, blue 594220-001
Misc boards
Description Spare part number
Graphics cards
nVidia Quadro NVS295 PCIe x16 graphics card, 256 MB 641462-001
nVidia Quadro NVS300 PCIe x16 graphics card, 512 MB 632486-001
nVidia GF405, DVI/VGA PCIe x16 graphics card, 512 MB 641732-001
Microtower (MT) chassis spare parts 31
Page 44
Description Spare part number
ATI Radeon HD6350 PCIe x16 graphics card, 512 MB 637995-001
ATI Radeon HD6450 PCIe x16 graphics card, 512 MB 637996-001
ATI Radeon HD6570 PCIe x16 graphics card, 1 GB 637997-001
AMD FirePro 2270 PCIe x16 graphics card, 512 MB 637213-001
HP FireWire / IEEE 1394a PCIe x1 card 637591-001
Ports
eSATA port assembly, PCI card 645558-001
USB 3.0 port, PCIe x1 card 616610-001
Serial port, PCI card 638815-001
Printer port, PCI card 638817-001
Other boards/cards
HP WLAN 802.11b/g/n 538048-001
Intel PRO/1000CT NIC, includes bracket 635523-001
Sequential part number listing
Spare part
number
397117-001 Hard drive conversion bracket
444740-001 Mouse, optical, jack black
463023-001 DMS-59 to dual VGA cable
484156-001 Adapter, DisplayPort to DVI
487562-001 DisplayPort cable
508312-001 160-GB, 10000-rpm, 2.5-inch hard drive
508987-001 Clamp lock, includes universal cable (plate not included)
537745-001 PS/2 basic keyboard for use in the United States
537745-031 PS/2 basic keyboard for use in the United Kingdom
537745-041 PS/2 basic keyboard for use in Germany
537745-051 PS/2 basic keyboard for use in France
537745-061 PS/2 basic keyboard for use in Italy
537745-071 PS/2 basic keyboard for use in Spain
537745-081 PS/2 basic keyboard for use in Denmark
537745-091 PS/2 basic keyboard for use in Norway
Description
537745-101 PS/2 basic keyboard for use in Sweden
537745-111 PS/2 basic keyboard for use in Switzerland
32 Chapter 3 Illustrated parts catalog
Page 45
Spare part
number
537745-121 PS/2 basic keyboard for use in French Canada
537745-131 PS/2 basic keyboard for use in Portugal
537745-141 PS/2 basic keyboard for use in Turkey
537745-151 PS/2 basic keyboard for use in Greece
537745-161 PS/2 basic keyboard for use in Latin America (Spanish)
537745-171 PS/2 basic keyboard for use in Saudi Arabia
537745-181 PS/2 basic keyboard for use in Belgium
537745-201 PS/2 basic keyboard for use in Brazil (Portuguese)
537745-211 PS/2 basic keyboard for use in Hungary
537745-221 PS/2 basic keyboard for use in the Czech Republic
537745-231 PS/2 basic keyboard for use in Slovakia
537745-251 PS/2 basic keyboard for use in Russia
537745-261 PS/2 basic keyboard for use in Bulgaria
537745-271 PS/2 basic keyboard for use in Romania
537745-281 PS/2 basic keyboard for use in Thailand
Description
537745-291 PS/2 basic keyboard for use in Japan
537745-371 PS/2 basic keyboard for use with International English
537745-AA1 PS/2 basic keyboard for use in the People's Republic of China
537745-AB1 PS/2 basic keyboard for use in Taiwan
537745-BB1 PS/2 basic keyboard for use in Israel (Hebrew)
537745-DE1 PS/2 basic keyboard for use in Saudi Arabia
537745-KD1 PS/2 basic keyboard for use in South Korea
537745-L31 PS/2 basic keyboard for use with international English
537746-001 PS/2 basic keyboard for use in the United States
537746-031 PS/2 basic keyboard for use in the United Kingdom
537746-041 PS/2 basic keyboard for use in Germany
537746-051 PS/2 basic keyboard for use in France
537746-061 PS/2 basic keyboard for use in Italy
537746-071 PS/2 basic keyboard for use in Spain
537746-081 PS/2 basic keyboard for use in Denmark
537746-091 PS/2 basic keyboard for use in Norway
537746-101 PS/2 basic keyboard for use in Sweden
537746-111 PS/2 basic keyboard for use in Switzerland
537746-121 PS/2 basic keyboard for use in French Canada
Microtower (MT) chassis spare parts 33
Page 46
Spare part
number
537746-131 PS/2 basic keyboard for use in Portugal
537746-141 PS/2 basic keyboard for use in Turkey
537746-151 PS/2 basic keyboard for use in Greece
537746-161 PS/2 basic keyboard for use in Latin America (Spanish)
537746-171 PS/2 basic keyboard for use in Saudi Arabia
537746-181 PS/2 basic keyboard for use in Belgium
537746-201 PS/2 basic keyboard for use in Brazil (Portuguese)
537746-211 PS/2 basic keyboard for use in Hungary
537746-221 PS/2 basic keyboard for use in the Czech Republic
537746-231 PS/2 basic keyboard for use in Slovakia
537746-251 PS/2 basic keyboard for use in Russia
537746-261 PS/2 basic keyboard for use in Bulgaria
537746-271 PS/2 basic keyboard for use in Romania
537746-281 PS/2 basic keyboard for use in Thailand
537746-291 PS/2 basic keyboard for use in Japan
Description
537746-351 PS/2 basic keyboard for use in Finland
537746-371 PS/2 basic keyboard for use with International English
537746-AA1 PS/2 basic keyboard for use in the People's Republic of China
537746-AB1 PS/2 basic keyboard for use in Taiwan
537746-BB1 PS/2 basic keyboard for use in Israel (Hebrew)
537746-DE1 PS/2 basic keyboard for use in Saudi Arabia
537746-KD1 PS/2 basic keyboard for use in South Korea
537746-L31 PS/2 basic keyboard for use with international English
537748-001 Mouse, PS2, optical, jack black
538048-001 HP WLAN 802.11b/g/n card
570580-001 Mouse, laser, jack black
570838-001 Bezel blank, 5.25-inch
581599-001 16X SATA DVD-ROM drive
581600-001 16X SATA DVD±RW drive with LightScribe
583345-001 Antenna for use with 538048-001
583653-001 Bezel blank, 3.5-inch
585157-001 Memory module, 4-GB, PC3 10600, 1333-MH
585884-001 Fan with chassis and guard
590270-001 Mouse, USB, BFR-PVC
34 Chapter 3 Illustrated parts catalog
Page 47
Spare part
number
594220-001 Grommet, hard drive isolation, blue
603250-001 Adapter, DisplayPort to VGA
607817-001 80-GB Solid-state drive
611834-001 System board, TPM (includes replacement thermal material)
613125-001 Washable keyboard for use in the United States
613125-111 Washable keyboard for use in Switzerland
613125-121 Washable keyboard for use in French Canada
613125-131 Washable keyboard for use in Portugal
613125-141 Washable keyboard for use in Turkey
613125-171 Washable keyboard for use in Saudi Arabia
613125-201 Washable keyboard for use in Brazil (Portuguese)
613125-211 Washable keyboard for use in Hungary
613125-221 Washable keyboard for use in the Czech Republic
613125-231 Washable keyboard for use in Slovakia
613125-251 Washable keyboard for use in Russia
Description
613125-261 Washable keyboard for use in Bulgaria
613125-271 Washable keyboard for use in Romania
613125-351 Washable keyboard for use in Finland
613125-AA1 Washable keyboard for use in the People's Republic of China
613125-BB1 Washable keyboard for use in Israel (Hebrew)
613125-DE1 Washable keyboard for use in Saudi Arabia
613125-L31 Washable keyboard for use with international English
613764-001 Power supply, 320W, 90% efficient
613765-001 Power supply, 320W, standard
615114-001 System board, includes TPM for use in 8200 Elite Series models (includes replacement thermal material)
616610-001 USB 3.0 port, PCIe x1 card
617030-001 Blu-ray BD-RW SuperMulti DL Drive with LightScribe
617450-001 Adapter, DisplayPort to HDMI
619580-001 Mouse, washable
631411-001 Smartcard keyboard for use in the United States
631411-031 Smartcard keyboard for use in the United Kingdom
631411-041 Smartcard keyboard for use in Germany
631411-051 Smartcard keyboard for use in France
631411-061 Smartcard keyboard for use in Italy
Microtower (MT) chassis spare parts 35
Page 48
Spare part
number
631411-071 Smartcard keyboard for use in Spain
631411-081 Smartcard keyboard for use in Denmark
631411-091 Smartcard keyboard for use in Norway
631411-101 Smartcard keyboard for use in Sweden
631411-111 Smartcard keyboard for use in Switzerland
631411-121 Smartcard keyboard for use in French Canada
631411-131 Smartcard keyboard for use in Portugal
631411-141 Smartcard keyboard for use in Turkey
631411-151 Smartcard keyboard for use in Greece
631411-161 Smartcard keyboard for use in Latin America (Spanish)
631411-171 Smartcard keyboard for use in Saudi Arabia
631411-181 Smartcard keyboard for use in Belgium
631411-201 Smartcard keyboard for use in Brazil (Portuguese)
631411-211 Smartcard keyboard for use in Hungary
631411-221 Smartcard keyboard for use in the Czech Republic
Description
631411-231 Smartcard keyboard for use in Slovakia
631411-251 Smartcard keyboard for use in Russia
631411-281 Smartcard keyboard for use in Thailand
631411-291 Smartcard keyboard for use in Japan
631411-351 Smartcard keyboard for use in Finland
631411-371 Smartcard keyboard for use with International English
631411-AA1 Smartcard keyboard for use in the People's Republic of China
631411-AB1 Smartcard keyboard for use in Taiwan
631411-BB1 Smartcard keyboard for use in Israel (Hebrew)
631411-DE1 Smartcard keyboard for use in Saudi Arabia
631411-KD1 Smartcard keyboard for use in South Korea
631411-L31 Smartcard keyboard for use with international English
632486-001 nVidia Quadro NVS300 PCIe x16 graphics card, 512 MB
632938-001 750-GB, 7200 RPM hard drive
634824-001 320-GB, 7200 RPM hard drive, 2.5-inch
635523-001 Intel PRO/1000CT NIC, includes bracket
635802-001 Memory module, 1-GB, PC3 10600, 1333-MHz
635803-001 Memory module, 2-GB, PC3 10600, 1333-MHz
636166-001 Card reader, 22-in-1
36 Chapter 3 Illustrated parts catalog
Page 49
Spare part
number
636917-001 USB powered speakers
636922-001 Chassis fan
636927-001 250-GB, 7200 RPM hard drive
636929-001 500-GB, 7200 RPM hard drive
636930-001 1-TB hard drive
637213-001 AMD FirePro 2270 PCIe x16 graphics card, 512 MB
637591-001 HP FireWire / IEEE 1394a PCIe x1 card
637995-001 ATI Radeon HD6350 PCIe x16 graphics card, 512 MB
637996-001 ATI Radeon HD6450 PCIe x16 graphics card, 512 MB
637997-001 ATI Radeon HD6570 PCIe x16 graphics card, 1 GB
638628-001 Intel Core i3 2100 (3.1-GHz, 3-MB L3 cache)
638629-001 Intel Core i3 2120 (3.3-GHz, 3-MB L3 cache)
638630-001 Intel Core i5 2400 (3.1-GHz, 6-MB L3 cache)
638631-001 Intel Core i5 2500 (3.3-GHz, 6-MB L3 cache)
638632-001 Intel Core i7 2600 (3.4-GHz, 8-MB L3 cache)
Description
638806-001 Hood sensor
638815-001 Serial port PCI card
638816-001 Hood sensor
638817-001 Printer port, PCI card
639694-001 160-GB, 10000 RPM hard drive
639695-001 300-GB, 10000 RPM, SATA3 hard drive
639958-001 SATA cable, 18 inch, 1 straight end, 1 angled end (unlabeled)
639959-001 SATA cable, 17.7 inch, 2 straight ends
641462-001 nVidia Quadro NVS295 PCIe x16 graphics card, 256 MB
641498-001 Solenoid lock
641732-001 nVidia GF405, DVI/VGA PCIe x16 graphics card, 512 MB
645326-001 Heat sink (includes replacement thermal material)
645330-001 Speaker
645558-001 eSATA port assembly, PCI card
646809-001 160-GB Solid-state drive
646824-001 Fan duct assembly
646825-001 Access panel
646826-001 Front bezel
646827-001 Front I/O assembly
Microtower (MT) chassis spare parts 37
Page 50
Spare part
number
646828-001 Power switch/LED with holder
646830-001 SATA cable, 18 inch, 1 straight end, 1 angled end (labeled)
646833-001 Hard drive power cable
646834-001 SATA optical drive power cable
648963-001 300-GB, 10000 RPM, SATA2 hard drive
649515-001 System board, without TPM for use in 8200 Elite Series models (includes replacement thermal material)
649741-001 System board, without TPM for use in 8200 Elite Series models (includes replacement thermal material)
Description
Ultra-Slim Desktop (USDT) chassis spare parts
Computer major components
Item Description Spare part number
(1) Access panel 646816-001
AC adapter
180W 613766-001
135W 648964-001
(2) System board (includes replacement thermal material)
Includes Trusted Platform Module (TPM) 611836-001
Does not include TPM 649743-001
38 Chapter 3 Illustrated parts catalog
Page 51
Cables
Item Description Spare part number
(3) Front bezel 646817-001
Memory modules (PC3-10600, 1333-MHz; not illustrated)
4-GB 646801-001
2-GB 646800-001
1-GB 646808-001
Processors (include replacement thermal material; not illustrated)
Intel Core i7 2600S (2.8-GHz, 8-MB L3 cache) 638419-001
Intel Core i5 2500S (2.7-GHz, 6-MB L3 cache) 638420-001
Intel Core i5 2400S (2.5-GHz, 6-MB L3 cache) 640953-001
Intel Core i3 2120 (3.3-GHz, 3-MB L3 cache) 638629-001
Intel Core i3 2100 (3.1-GHz, 3-MB L3 cache) 638628-001
Item Description Spare part number
(1) Optical drive cable/connector 605163-001
Adapter, DisplayPort to VGA 603250-001
Adapter, DisplayPort to DVI 484156-001
Adapter, DisplayPort to HDMI 617450-001
DisplayPort cable 487562-001
Ultra-Slim Desktop (USDT) chassis spare parts 39
Page 52
Misc parts
Item Description Spare part number
Heat sink (includes replacement thermal material)
(1) For the processor 587456-001
(2) For the MXM graphics card 646807-001
For UMA graphics (not illustrated) 625256-001
(3) Fan, rear 605155-001
(4) Card reader 593235-001
(5) Speaker 647447-001
(6) Front I/O panel 587458-001
40 Chapter 3 Illustrated parts catalog
Page 53
Item Description Spare part number
(7) Rear port cover 646818-001
(8) Chassis fan, front 646813-001
Optical drive rail (green plastic piece on drive; not illustrated) 594219-001
USB powered speakers (not illustrated) 636917-001
Clamp lock, includes universal cable (plate not included; not illustrated) 508987-001
Hood sensor 638816-001
WLAN Antenna Hardware Kit 646811-001
Keyboard (not illustrated)
NOTE: For a list of supported countries and associated dash numbers, see
part number listing on page 53.
PS/2, basic 537745-xxx
USB, basic 537746-xx1
Washable 613125-xx1
Smartcard 631411-xx1
Mouse (not illustrated)
PS2, optical, jack black 537748-001
USB, BFR-PVC 590270-001
Washable 619580-001
Optical, jack black 444740-001
Laser, jack black 570580-001
Bezel blank (not illustrated) 593230-001
Stand 612496-001
Sequential
Drives
Description Spare part number
Hard drive
320-GB, 7200-rpm, 2.5-inch 634824-001
320-GB, 7200-rpm 639135-001
250-GB, 7200-rpm 608746-001
160-GB, 7200-rpm 608745-001
160-GB Solid-state drive 646809-001
80-GB Solid-state drive 607817-001
Optical drive
Blu-ray BD-RW SuperMulti DL Drive with LightScribe 646810-001
Ultra-Slim Desktop (USDT) chassis spare parts 41
Page 54
Description Spare part number
DVD±RW and CD-RW Super Multi Double-Layer Combo Drive with LightScribe. 595115-001
DVD-ROM drive 608394-001
Grommet, hard drive isolation, blue 594220-001
Misc boards
Description Spare part number
ATI Radeon HD5450M graphics card, 512 MB (without plate) 646812-001
WLAN 802.11a/b/g/n card 631954-001
HP TV Tuner Kit (includes hardware) 613990-001
Sequential part number listing
Spare part
number
444740-001 Mouse, optical, jack black
484156-001 Adapter, DisplayPort to DVI
487562-001 DisplayPort cable
508987-001 Clamp lock, includes universal cable (plate not included)
537745-001 PS/2 basic keyboard for use in the United States
537745-031 PS/2 basic keyboard for use in the United Kingdom
537745-041 PS/2 basic keyboard for use in Germany
537745-051 PS/2 basic keyboard for use in France
537745-061 PS/2 basic keyboard for use in Italy
537745-071 PS/2 basic keyboard for use in Spain
537745-081 PS/2 basic keyboard for use in Denmark
537745-091 PS/2 basic keyboard for use in Norway
537745-101 PS/2 basic keyboard for use in Sweden
537745-111 PS/2 basic keyboard for use in Switzerland
537745-121 PS/2 basic keyboard for use in French Canada
Description
537745-131 PS/2 basic keyboard for use in Portugal
537745-141 PS/2 basic keyboard for use in Turkey
537745-151 PS/2 basic keyboard for use in Greece
537745-161 PS/2 basic keyboard for use in Latin America (Spanish)
537745-171 PS/2 basic keyboard for use in Saudi Arabia
42 Chapter 3 Illustrated parts catalog
Page 55
Spare part
number
537745-181 PS/2 basic keyboard for use in Belgium
537745-201 PS/2 basic keyboard for use in Brazil (Portuguese)
537745-211 PS/2 basic keyboard for use in Hungary
537745-221 PS/2 basic keyboard for use in the Czech Republic
537745-231 PS/2 basic keyboard for use in Slovakia
537745-251 PS/2 basic keyboard for use in Russia
537745-261 PS/2 basic keyboard for use in Bulgaria
537745-271 PS/2 basic keyboard for use in Romania
537745-281 PS/2 basic keyboard for use in Thailand
537745-291 PS/2 basic keyboard for use in Japan
537745-371 PS/2 basic keyboard for use with International English
537745-AA1 PS/2 basic keyboard for use in the People's Republic of China
537745-AB1 PS/2 basic keyboard for use in Taiwan
537745-BB1 PS/2 basic keyboard for use in Israel (Hebrew)
537745-DE1 PS/2 basic keyboard for use in Saudi Arabia
Description
537745-KD1 PS/2 basic keyboard for use in South Korea
537745-L31 PS/2 basic keyboard for use with international English
537746-001 PS/2 basic keyboard for use in the United States
537746-031 PS/2 basic keyboard for use in the United Kingdom
537746-041 PS/2 basic keyboard for use in Germany
537746-051 PS/2 basic keyboard for use in France
537746-061 PS/2 basic keyboard for use in Italy
537746-071 PS/2 basic keyboard for use in Spain
537746-081 PS/2 basic keyboard for use in Denmark
537746-091 PS/2 basic keyboard for use in Norway
537746-101 PS/2 basic keyboard for use in Sweden
537746-111 PS/2 basic keyboard for use in Switzerland
537746-121 PS/2 basic keyboard for use in French Canada
537746-131 PS/2 basic keyboard for use in Portugal
537746-141 PS/2 basic keyboard for use in Turkey
537746-151 PS/2 basic keyboard for use in Greece
537746-161 PS/2 basic keyboard for use in Latin America (Spanish)
537746-171 PS/2 basic keyboard for use in Saudi Arabia
537746-181 PS/2 basic keyboard for use in Belgium
Ultra-Slim Desktop (USDT) chassis spare parts 43
Page 56
Spare part
number
537746-201 PS/2 basic keyboard for use in Brazil (Portuguese)
537746-211 PS/2 basic keyboard for use in Hungary
537746-221 PS/2 basic keyboard for use in the Czech Republic
537746-231 PS/2 basic keyboard for use in Slovakia
537746-251 PS/2 basic keyboard for use in Russia
537746-261 PS/2 basic keyboard for use in Bulgaria
537746-271 PS/2 basic keyboard for use in Romania
537746-281 PS/2 basic keyboard for use in Thailand
537746-291 PS/2 basic keyboard for use in Japan
537746-351 PS/2 basic keyboard for use in Finland
537746-371 PS/2 basic keyboard for use with International English
537746-AA1 PS/2 basic keyboard for use in the People's Republic of China
537746-AB1 PS/2 basic keyboard for use in Taiwan
537746-BB1 PS/2 basic keyboard for use in Israel (Hebrew)
537746-DE1 PS/2 basic keyboard for use in Saudi Arabia
Description
537746-KD1 PS/2 basic keyboard for use in South Korea
537746-L31 PS/2 basic keyboard for use with international English
537748-001 Mouse, PS2, optical, jack black
570580-001 Mouse, laser, jack black
587456-001 Heat sink – processor (includes replacement thermal material)
587458-001 Front I/O panel
590270-001 Mouse, USB, BFR-PVC
593230-001 Bezel blank
593235-001 Card reader
594219-001 Optical drive rail and cable kit
594220-001 Grommet, hard drive isolation, blue
595115-001 DVD±RW and CD-RW Super Multi Double-Layer Combo Drive with LightScribe.
603250-001 Adapter, DisplayPort to VGA
605155-001 Fan, rear
605163-001 Optical drive cable/connector
607817-001 80-GB Solid-state drive
608394-001 DVD-ROM drive
608745-001 160-GB, 7200-rpm hard drive
608746-001 250-GB, 7200 RPM hard drive
44 Chapter 3 Illustrated parts catalog
Page 57
Spare part
number
611836-001 System board, TPM (includes replacement thermal material)
612496-001 Stand
613125-001 Washable keyboard for use in the United States
613125-111 Washable keyboard for use in Switzerland
613125-121 Washable keyboard for use in French Canada
613125-131 Washable keyboard for use in Portugal
613125-141 Washable keyboard for use in Turkey
613125-171 Washable keyboard for use in Saudi Arabia
613125-201 Washable keyboard for use in Brazil (Portuguese)
613125-211 Washable keyboard for use in Hungary
613125-221 Washable keyboard for use in the Czech Republic
613125-231 Washable keyboard for use in Slovakia
613125-251 Washable keyboard for use in Russia
613125-261 Washable keyboard for use in Bulgaria
613125-271 Washable keyboard for use in Romania
Description
613125-351 Washable keyboard for use in Finland
613125-AA1 Washable keyboard for use in the People's Republic of China
613125-BB1 Washable keyboard for use in Israel (Hebrew)
613125-DE1 Washable keyboard for use in Saudi Arabia
613125-L31 Washable keyboard for use with international English
613766-001 AC adapter, 180W
613990-001 HP TV Tuner Kit (includes hardware)
617450-001 Adapter, DisplayPort to HDMI
619580-001 Mouse, washable
625256-001 Heat sink for use with UMA graphics
631411-001 Smartcard keyboard for use in the United States
631411-031 Smartcard keyboard for use in the United Kingdom
631411-041 Smartcard keyboard for use in Germany
631411-051 Smartcard keyboard for use in France
631411-061 Smartcard keyboard for use in Italy
631411-071 Smartcard keyboard for use in Spain
631411-081 Smartcard keyboard for use in Denmark
631411-091 Smartcard keyboard for use in Norway
631411-101 Smartcard keyboard for use in Sweden
Ultra-Slim Desktop (USDT) chassis spare parts 45
Page 58
Spare part
number
631411-111 Smartcard keyboard for use in Switzerland
631411-121 Smartcard keyboard for use in French Canada
631411-131 Smartcard keyboard for use in Portugal
631411-141 Smartcard keyboard for use in Turkey
631411-151 Smartcard keyboard for use in Greece
631411-161 Smartcard keyboard for use in Latin America (Spanish)
631411-171 Smartcard keyboard for use in Saudi Arabia
631411-181 Smartcard keyboard for use in Belgium
631411-201 Smartcard keyboard for use in Brazil (Portuguese)
631411-211 Smartcard keyboard for use in Hungary
631411-221 Smartcard keyboard for use in the Czech Republic
631411-231 Smartcard keyboard for use in Slovakia
631411-251 Smartcard keyboard for use in Russia
631411-281 Smartcard keyboard for use in Thailand
631411-291 Smartcard keyboard for use in Japan
Description
631411-351 Smartcard keyboard for use in Finland
631411-371 Smartcard keyboard for use with International English
631411-AA1 Smartcard keyboard for use in the People's Republic of China
631411-AB1 Smartcard keyboard for use in Taiwan
631411-BB1 Smartcard keyboard for use in Israel (Hebrew)
631411-DE1 Smartcard keyboard for use in Saudi Arabia
631411-KD1 Smartcard keyboard for use in South Korea
631411-L31 Smartcard keyboard for use with international English
631954-001 WLAN 802.11a/b/g/n card
634824-001 320-GB, 7200 RPM hard drive, 2.5-inch
636917-001 USB powered speakers
638419-001 Intel Core i7 2600S (2.8-GHz, 8-MB L3 cache)
638420-001 Intel Core i5 2500S (2.5-GHz, 6-MB L3 cache)
638628-001 Intel Core i3 2100 (3.1-GHz, 3-MB L3 cache)
638629-001 Intel Core i3 2120 (3.3-GHz, 3-MB L3 cache)
638816-001 Hood sensor
639135-001 320-GB, 7200 RPM
640953-001 Intel Core i5 2400S (2.5-GHz, 6-MB L3 cache)
646800-001 Memory module, 2-GB, PC3 10600, 1333-MHz
46 Chapter 3 Illustrated parts catalog
Page 59
Spare part
number
646801-001 Memory module, 4-GB, PC3 10600, 1333-MH
646807-001 Heat sink for use on the MXM graphics card
646808-001 Memory module, 1-GB, PC3 10600, 1333-MHz
646809-001 160-GB Solid-state drive
646810-001 Blu-ray BD-RW SuperMulti DL Drive with LightScribe
646811-001 Antenna for use with 538048-001
646812-001 ATI Radeon HD5450M graphics card, 512 MB (without plate)
646813-001 Fan, front
646816-001 Access panel
646817-001 Front bezel
646818-001 Rear port cover
647447-001 Speaker
648964-001 AC adapter, 135W
649743-001 System board, no TPM (includes replacement thermal material)
Description
Small Form Factor (SFF) chassis spare parts
Computer major components
Small Form Factor (SFF) chassis spare parts 47
Page 60
Item Description Spare part number
(1) Front bezel 646814-001
(2) Power supply
90% efficient 613762-001
Standard 613763-001
(3) System board (includes replacement thermal material)
For use in 8200 Pro Series models:
● Does not include TPM 649741-001
For use in 6200 Pro Series models:
● Does not include TPM 649515-001
(4) Access panel 646815-001
Memory modules (PC3-10600, 1333-MHz; not illustrated)
4-GB 585157-001
2-GB 635803-001
1-GB 635802-001
Processors (include replacement thermal material; not illustrated)
Intel Core i7 2600 (3.4-GHz, 8-MB L3 cache) 638632-001
Intel Core i5 2500 (3.3-GHz, 6-MB L3 cache) 638631-001
Intel Core i5 2400 (3.1-GHz, 6-MB L3 cache) 638630-001
Intel Core i3 2120 (3.3-GHz, 3-MB L3 cache) 638629-001
Intel Core i3 2100 (3.1-GHz, 3-MB L3 cache) 638628-001
Includes Trusted Platform Module (TPM) 611834-001
●
Includes Trusted Platform Module (TPM) 615114-001
●
48 Chapter 3 Illustrated parts catalog
Page 61
Cables
Item Description Spare part number
(1) Front I/O and power switch assembly 636926-001
(2) SATA cable, 19.5 inch, 2 straight ends 638813-001
(3) SATA drive power cable 636923-001
SATA cable, 25.2 inch, 1 straight end, 1 angled end (not illustrated) 638814-001
DMS-59 to dual VGA cable 463023-001
Adapter, DisplayPort to VGA 603250-001
Adapter, DisplayPort to DVI 484156-001
Adapter, DisplayPort to HDMI 617450-001
DisplayPort cable 487562-001
Small Form Factor (SFF) chassis spare parts 49
Page 62
Misc parts
Item Description Spare part number
(1) Chassis fan 645327-001
(2) Fan duct (not illustrated) 636921-001
(3) Heat sink (includes replacement thermal material) 645326-001
(4) Speaker 636925-001
(5) Solenoid lock 641498-001
(6) Hood sensor 638816-001
Card reader, 22-in-1 (not illustrated) 636166-001
USB powered speakers (not illustrated) 636917-001
Clamp lock, includes universal cable (plate not included; not illustrated) 508987-001
Keyboard (not illustrated)
NOTE: For a list of supported countries and associated dash numbers, see
part number listing on page 42.
PS/2, basic 537745-xxx
USB, basic 537746-xx1
Sequential
50 Chapter 3 Illustrated parts catalog
Page 63
Drives
Item Description Spare part number
USB mini 611375x-xx1
Washable 613125-xx1
Smartcard 631411-xx4
Mouse (not illustrated)
PS2, optical, jack black 537748-001
USB, BFR-PVC 590270-001
Washable 619580-001
Optical, jack black 444740-001
Laser, jack black 570580-001
Description Spare part number
Hard drive
1-TB, 7200-rpm 636930-001
750-GB, 7200-rpm 632938-001
500-GB, 7200-rpm 636929-001
320-GB, 7200-rpm, 2.5-inch 634824-001
300-GB, 10000-rpm, SATA3 639695-001
300-GB, 10000-rpm, SATA2 648963-001
250-GB, 7200-rpm 636927-001
160-GB, 10000-rpm 639694-001
160-GB, 10000-rpm, 2.5-inch 508312-001
160-GB Solid-state drive 646809-001
80-GB Solid-state drive 607817-001
Optical drive
Blu-ray BD-RW SuperMulti DL Drive with LightScribe 617030-001
16X SATA DVD±RW drive with LightScribe 581600-001
16X SATA DVD-ROM drive 581599-001
Grommet, hard drive isolation, blue 594220-001
Small Form Factor (SFF) chassis spare parts 51
Page 64
Misc boards
Description Spare part number
Graphics cards
nVidia Quadro NVS295 PCIe x16 graphics card, 256 MB 641462-001
nVidia Quadro NVS300 PCIe x16 graphics card, 512 MB 632486-001
ATI Radeon HD6350 PCIe x16 graphics card, 512 MB 637995-001
ATI Radeon HD6450 PCIe x16 graphics card, 512 MB 637996-001
AMD FirePro 2270 PCIe x16 graphics card, 512 MB 637213-001
HP FireWire / IEEE 1394a PCIe x1 card 637591-001
Ports
eSATA port assembly, PCI card 645558-001
USB 3.0 port, PCIe x1 card 616610-001
Serial port, PCI card 638815-001
Printer port, PCI card 638817-001
Other boards/cards
HP WLAN 802.11b/g/n 538048-001
Antenna for use with 538048-001 583345-001
Intel PRO/1000CT NIC, includes bracket 635523-001
52 Chapter 3 Illustrated parts catalog
Page 65
Sequential part number listing
Spare part
number
444740-001 Mouse, optical, jack black
463023-001 DMS-59 to dual VGA cable
484156-001 Adapter, DisplayPort to DVI
487562-001 DisplayPort cable
508312-001 160-GB, 10000-rpm, 2.5-inch hard drive
508987-001 Clamp lock, includes universal cable (plate not included)
537745-001 PS/2 basic keyboard for use in the United States
537745-031 PS/2 basic keyboard for use in the United Kingdom
537745-041 PS/2 basic keyboard for use in Germany
537745-051 PS/2 basic keyboard for use in France
537745-061 PS/2 basic keyboard for use in Italy
537745-071 PS/2 basic keyboard for use in Spain
537745-081 PS/2 basic keyboard for use in Denmark
537745-091 PS/2 basic keyboard for use in Norway
537745-101 PS/2 basic keyboard for use in Sweden
Description
537745-111 PS/2 basic keyboard for use in Switzerland
537745-121 PS/2 basic keyboard for use in French Canada
537745-131 PS/2 basic keyboard for use in Portugal
537745-141 PS/2 basic keyboard for use in Turkey
537745-151 PS/2 basic keyboard for use in Greece
537745-161 PS/2 basic keyboard for use in Latin America (Spanish)
537745-171 PS/2 basic keyboard for use in Saudi Arabia
537745-181 PS/2 basic keyboard for use in Belgium
537745-201 PS/2 basic keyboard for use in Brazil (Portuguese)
537745-211 PS/2 basic keyboard for use in Hungary
537745-221 PS/2 basic keyboard for use in the Czech Republic
537745-231 PS/2 basic keyboard for use in Slovakia
537745-251 PS/2 basic keyboard for use in Russia
537745-261 PS/2 basic keyboard for use in Bulgaria
537745-271 PS/2 basic keyboard for use in Romania
537745-281 PS/2 basic keyboard for use in Thailand
537745-291 PS/2 basic keyboard for use in Japan
Small Form Factor (SFF) chassis spare parts 53
Page 66
Spare part
number
537745-371 PS/2 basic keyboard for use with International English
537745-AA1 PS/2 basic keyboard for use in the People's Republic of China
537745-AB1 PS/2 basic keyboard for use in Taiwan
537745-BB1 PS/2 basic keyboard for use in Israel (Hebrew)
537745-DE1 PS/2 basic keyboard for use in Saudi Arabia
537745-KD1 PS/2 basic keyboard for use in South Korea
537745-L31 PS/2 basic keyboard for use with international English
537746-001 PS/2 basic keyboard for use in the United States
537746-031 PS/2 basic keyboard for use in the United Kingdom
537746-041 PS/2 basic keyboard for use in Germany
537746-051 PS/2 basic keyboard for use in France
537746-061 PS/2 basic keyboard for use in Italy
537746-071 PS/2 basic keyboard for use in Spain
537746-081 PS/2 basic keyboard for use in Denmark
537746-091 PS/2 basic keyboard for use in Norway
Description
537746-101 PS/2 basic keyboard for use in Sweden
537746-111 PS/2 basic keyboard for use in Switzerland
537746-121 PS/2 basic keyboard for use in French Canada
537746-131 PS/2 basic keyboard for use in Portugal
537746-141 PS/2 basic keyboard for use in Turkey
537746-151 PS/2 basic keyboard for use in Greece
537746-161 PS/2 basic keyboard for use in Latin America (Spanish)
537746-171 PS/2 basic keyboard for use in Saudi Arabia
537746-181 PS/2 basic keyboard for use in Belgium
537746-201 PS/2 basic keyboard for use in Brazil (Portuguese)
537746-211 PS/2 basic keyboard for use in Hungary
537746-221 PS/2 basic keyboard for use in the Czech Republic
537746-231 PS/2 basic keyboard for use in Slovakia
537746-251 PS/2 basic keyboard for use in Russia
537746-261 PS/2 basic keyboard for use in Bulgaria
537746-271 PS/2 basic keyboard for use in Romania
537746-281 PS/2 basic keyboard for use in Thailand
537746-291 PS/2 basic keyboard for use in Japan
537746-351 PS/2 basic keyboard for use in Finland
54 Chapter 3 Illustrated parts catalog
Page 67
Spare part
number
537746-371 PS/2 basic keyboard for use with International English
537746-AA1 PS/2 basic keyboard for use in the People's Republic of China
537746-AB1 PS/2 basic keyboard for use in Taiwan
537746-BB1 PS/2 basic keyboard for use in Israel (Hebrew)
537746-DE1 PS/2 basic keyboard for use in Saudi Arabia
537746-KD1 PS/2 basic keyboard for use in South Korea
537746-L31 PS/2 basic keyboard for use with international English
537748-001 Mouse, PS2, optical, jack black
538048-001 HP WLAN 802.11b/g/n card
570580-001 Mouse, laser, jack black
581599-001 16X SATA DVD-ROM drive
581600-001 16X SATA DVD±RW drive with LightScribe
583345-001 Antenna for use with 538048-001
585157-001 Memory module, 4-GB, PC3 10600, 1333-MH
590270-001 Mouse, USB, BFR-PVC
Description
594220-001 Grommet, hard drive isolation, blue
603250-001 Adapter, DisplayPort to VGA
607817-001 80-GB Solid-state drive
611375-001 USB mini keyboard for use in the United States
611375-121 USB mini keyboard for use in the French Canada
611834-001 System board, includes TPM for use in 8200 Elite Series models (includes replacement thermal material)
613125-001 Washable keyboard for use in the United States
613125-111 Washable keyboard for use in Switzerland
613125-121 Washable keyboard for use in French Canada
613125-131 Washable keyboard for use in Portugal
613125-141 Washable keyboard for use in Turkey
613125-171 Washable keyboard for use in Saudi Arabia
613125-201 Washable keyboard for use in Brazil (Portuguese)
613125-211 Washable keyboard for use in Hungary
613125-221 Washable keyboard for use in the Czech Republic
613125-231 Washable keyboard for use in Slovakia
613125-251 Washable keyboard for use in Russia
613125-261 Washable keyboard for use in Bulgaria
613125-271 Washable keyboard for use in Romania
Small Form Factor (SFF) chassis spare parts 55
Page 68
Spare part
number
613125-351 Washable keyboard for use in Finland
613125-AA1 Washable keyboard for use in the People's Republic of China
613125-BB1 Washable keyboard for use in Israel (Hebrew)
613125-DE1 Washable keyboard for use in Saudi Arabia
613125-L31 Washable keyboard for use with international English
613762-001 Power supply, 90% efficient
613763-001 Power supply, standard
615114-001 System board, includes TPM for use in 6200 Pro Series models (includes replacement thermal material)
616610-001 USB 3.0 port, PCIe x1 card
617030-001 Blu-ray BD-RW SuperMulti DL Drive with LightScribe
617450-001 Adapter, DisplayPort to HDMI
619580-001 Mouse, washable
631411-001 Smartcard keyboard for use in the United States
631411-031 Smartcard keyboard for use in the United Kingdom
631411-041 Smartcard keyboard for use in Germany
Description
631411-051 Smartcard keyboard for use in France
631411-061 Smartcard keyboard for use in Italy
631411-071 Smartcard keyboard for use in Spain
631411-081 Smartcard keyboard for use in Denmark
631411-091 Smartcard keyboard for use in Norway
631411-101 Smartcard keyboard for use in Sweden
631411-111 Smartcard keyboard for use in Switzerland
631411-121 Smartcard keyboard for use in French Canada
631411-131 Smartcard keyboard for use in Portugal
631411-141 Smartcard keyboard for use in Turkey
631411-151 Smartcard keyboard for use in Greece
631411-161 Smartcard keyboard for use in Latin America (Spanish)
631411-171 Smartcard keyboard for use in Saudi Arabia
631411-181 Smartcard keyboard for use in Belgium
631411-201 Smartcard keyboard for use in Brazil (Portuguese)
631411-211 Smartcard keyboard for use in Hungary
631411-221 Smartcard keyboard for use in the Czech Republic
631411-231 Smartcard keyboard for use in Slovakia
631411-251 Smartcard keyboard for use in Russia
56 Chapter 3 Illustrated parts catalog
Page 69
Spare part
number
631411-281 Smartcard keyboard for use in Thailand
631411-291 Smartcard keyboard for use in Japan
631411-351 Smartcard keyboard for use in Finland
631411-371 Smartcard keyboard for use with International English
631411-AA1 Smartcard keyboard for use in the People's Republic of China
631411-AB1 Smartcard keyboard for use in Taiwan
631411-BB1 Smartcard keyboard for use in Israel (Hebrew)
631411-DE1 Smartcard keyboard for use in Saudi Arabia
631411-KD1 Smartcard keyboard for use in South Korea
631411-L31 Smartcard keyboard for use with international English
632486-001 nVidia Quadro NVS300 PCIe x16 graphics card, 512 MB
632938-001 750-GB, 7200 RPM hard drive
634824-001 320-GB, 7200 RPM hard drive, 2.5-inch
635523-001 Intel PRO/1000CT NIC, includes bracket
635802-001 Memory module, 1-GB, PC3 10600, 1333-MHz
Description
635803-001 Memory module, 2-GB, PC3 10600, 1333-MHz
636166-001 Card reader, 22-in-1
636917-001 USB powered speakers
636921-001 Fan duct
636923-001 SATA drive power cable
636925-001 Speaker
636926-001 Front I/O assembly
636927-001 250-GB, 7200 RPM hard drive
636929-001 500-GB, 7200 RPM hard drive
636930-001 1-TB hard drive
637213-001 AMD FirePro 2270 PCIe x16 graphics card, 512 MB
637591-001 HP FireWire / IEEE 1394a PCIe x1 card
637995-001 ATI Radeon HD6350 PCIe x16 graphics card, 512 MB
637996-001 ATI Radeon HD6450 PCIe x16 graphics card, 512 MB
638628-001 Intel Core i3 2100 (3.1-GHz, 3-MB L3 cache)
638629-001 Intel Core i3 2120 (3.3-GHz, 3-MB L3 cache)
638630-001 Intel Core i5 2400 (3.1-GHz, 6-MB L3 cache)
638631-001 Intel Core i5 2500 (3.3-GHz, 6-MB L3 cache)
638632-001 Intel Core i7 2600 (3.4-GHz, 8-MB L3 cache)
Small Form Factor (SFF) chassis spare parts 57
Page 70
Spare part
number
638806-001 Hood sensor
638813-001 SATA cable, 19.5 inch, 2 straight ends
638814-001 SATA cable, 25.2 inch, 1 straight end, 1 angled end
638815-001 Serial port PCI card
638816-001 Hood sensor
638817-001 Printer port, PCI card
639694-001 160-GB, 10000 RPM hard drive
639695-001 300-GB, 10000 RPM, SATA3 hard drive
641462-001 nVidia Quadro NVS295 PCIe x16 graphics card, 256 MB
641498-001 Solenoid lock
645326-001 Heat sink (includes replacement thermal material)
645327-001 Chassis fan
645558-001 eSATA port assembly, PCI card
646809-001 160-GB Solid-state drive
646815-001 Access panel
Description
646814-001 Front bezel
648963-001 300-GB, 10000 RPM, SATA2 hard drive
649515-001 System board, without TPM for use in 6200 Pro Series models (includes replacement thermal material)
649741-001 System board, without TPM for use in 8200 Elite Series models (includes replacement thermal material)
58 Chapter 3 Illustrated parts catalog
Page 71
4 Routine Care, SATA Drive Guidelines,
and Disassembly Preparation
This chapter provides general service information for the computer. Adherence to the procedures and
precautions described in this chapter is essential for proper service.
CAUTION: When the computer is plugged into an AC power source, voltage is always applied to
the system board. You must disconnect the power cord from the power source before opening the
computer to prevent system board or component damage.
59
Page 72
Electrostatic Discharge Information
A sudden discharge of static electricity from your finger or other conductor can destroy static-sensitive
devices or microcircuitry. Often the spark is neither felt nor heard, but damage occurs. An electronic
device exposed to electrostatic discharge (ESD) may not appear to be affected at all and can work
perfectly throughout a normal cycle. The device may function normally for a while, but it has been
degraded in the internal layers, reducing its life expectancy.
Networks built into many integrated circuits provide some protection, but in many cases, the
discharge contains enough power to alter device parameters or melt silicon junctions.
Generating Static
The following table shows that:
Different activities generate different amounts of static electricity.
●
● Static electricity increases as humidity decreases.
Relative Humidity
Event 55% 40% 10%
Walking across carpet
Walking across vinyl floor
Motions of bench worker
Removing DIPs from plastic tube
Removing DIPs from vinyl tray
Removing DIPs from Styrofoam
Removing bubble pack from PCB
Packing PCBs in foam-lined box
These are then multi-packaged inside plastic tubes, trays, or Styrofoam.
7,500 V
3,000 V
400 V
400 V
2,000 V
3,500 V
7,000 V
5,000 V
NOTE: 700 volts can degrade a product.
Preventing Electrostatic Damage to Equipment
Many electronic components are sensitive to ESD. Circuitry design and structure determine the
degree of sensitivity. The following packaging and grounding precautions are necessary to prevent
damage to electric components and accessories.
15,000 V
5,000 V
800 V
700 V
4,000 V
5,000 V
20,000 V
11,000 V
35,000 V
12,000 V
6,000 V
2,000 V
11,500 V
14,500 V
26,500 V
21,000 V
To avoid hand contact, transport products in static-safe containers such as tubes, bags, or
●
boxes.
Protect all electrostatic parts and assemblies with conductive or approved containers or
●
packaging.
Keep electrostatic sensitive parts in their containers until they arrive at static-free stations.
●
Place items on a grounded surface before removing them from their container.
●
60 Chapter 4 Routine Care, SATA Drive Guidelines, and Disassembly Preparation
Page 73
Always be properly grounded when touching a sensitive component or assembly.
●
Avoid contact with pins, leads, or circuitry.
●
Place reusable electrostatic-sensitive parts from assemblies in protective packaging or
●
conductive foam.
Personal Grounding Methods and Equipment
Use the following equipment to prevent static electricity damage to equipment:
Wrist straps are flexible straps with a maximum of one-megohm ± 10% resistance in the ground
●
cords. To provide proper ground, a strap must be worn snug against bare skin. The ground cord
must be connected and fit snugly into the banana plug connector on the grounding mat or
workstation.
● Heel straps/Toe straps/Boot straps can be used at standing workstations and are compatible
with most types of shoes or boots. On conductive floors or dissipative floor mats, use them on
both feet with a maximum of one-megohm ± 10% resistance between the operator and ground.
Static Shielding Protection Levels
Method Voltage
Antistatic plastic
Carbon-loaded plastic
Metallized laminate
Grounding the Work Area
To prevent static damage at the work area, use the following precautions:
Cover the work surface with approved static-dissipative material. Provide a wrist strap connected
●
to the work surface and properly grounded tools and equipment.
Use static-dissipative mats, foot straps, or air ionizers to give added protection.
●
Handle electrostatic sensitive components, parts, and assemblies by the case or PCB laminate.
●
Handle them only at static-free work areas.
Turn off power and input signals before inserting and removing connectors or test equipment.
●
Use fixtures made of static-safe materials when fixtures must directly contact dissipative
●
surfaces.
Keep work area free of nonconductive materials such as ordinary plastic assembly aids and
●
Styrofoam.
Use field service tools, such as cutters, screwdrivers, and vacuums, that are conductive.
●
1,500
7,500
15,000
Recommended Materials and Equipment
Materials and equipment that are recommended for use in preventing static electricity include:
Antistatic tape
●
Antistatic smocks, aprons, or sleeve protectors
●
Electrostatic Discharge Information 61
Page 74
Conductive bins and other assembly or soldering aids
●
Conductive foam
●
Conductive tabletop workstations with ground cord of one-megohm +/- 10% resistance
●
Static-dissipative table or floor mats with hard tie to ground
●
Field service kits
●
Static awareness labels
●
Wrist straps and footwear straps providing one-megohm +/- 10% resistance
●
Material handling packages
●
Conductive plastic bags
●
Conductive plastic tubes
●
Conductive tote boxes
●
Opaque shielding bags
●
Transparent metallized shielding bags
●
Transparent shielding tubes
●
Operating Guidelines
To prevent overheating and to help prolong the life of the computer:
Keep the computer away from excessive moisture, direct sunlight, and extremes of heat and
●
cold.
Operate the computer on a sturdy, level surface. Leave a 10.2-cm (4-inch) clearance on all
●
vented sides of the computer and above the monitor to permit the required airflow.
Never restrict the airflow into the computer by blocking any vents or air intakes. Do not place the
●
keyboard, with the keyboard feet down, directly against the front of the desktop unit as this also
restricts airflow.
Occasionally clean the air vents on all vented sides of the computer. Lint, dust, and other foreign
●
matter can block the vents and limit the airflow. Be sure to unplug the computer before cleaning
the air vents.
Never operate the computer with the cover or side panel removed.
●
Do not stack computers on top of each other or place computers so near each other that they
●
are subject to each other’s re-circulated or preheated air.
If the computer is to be operated within a separate enclosure, intake and exhaust ventilation
●
must be provided on the enclosure, and the same operating guidelines listed above will still
apply.
Keep liquids away from the computer and keyboard.
●
62 Chapter 4 Routine Care, SATA Drive Guidelines, and Disassembly Preparation
Page 75
Never cover the ventilation slots on the monitor with any type of material.
●
Install or enable power management functions of the operating system or other software,
●
including sleep states.
Routine Care
General Cleaning Safety Precautions
1. Never use solvents or flammable solutions to clean the computer.
2. Never immerse any parts in water or cleaning solutions; apply any liquids to a clean cloth and
then use the cloth on the component.
3. Always unplug the computer when cleaning with liquids or damp cloths.
4. Always unplug the computer before cleaning the keyboard, mouse, or air vents.
5. Disconnect the keyboard before cleaning it.
6. Wear safety glasses equipped with side shields when cleaning the keyboard.
Cleaning the Computer Case
Follow all safety precautions in General Cleaning Safety Precautions on page 63 before cleaning the
computer.
To clean the computer case, follow the procedures described below:
● To remove light stains or dirt, use plain water with a clean, lint-free cloth or swab.
● For stronger stains, use a mild dishwashing liquid diluted with water. Rinse well by wiping it with
a cloth or swab dampened with clear water.
● For stubborn stains, use isopropyl (rubbing) alcohol. No rinsing is needed as the alcohol will
evaporate quickly and not leave a residue.
After cleaning, always wipe the unit with a clean, lint-free cloth.
●
● Occasionally clean the air vents on the computer. Lint and other foreign matter can block the
vents and limit the airflow.
Cleaning the Keyboard
Follow all safety precautions in General Cleaning Safety Precautions on page 63 before cleaning the
keyboard.
To clean the tops of the keys or the keyboard body, follow the procedures described in
Computer Case on page 63.
When cleaning debris from under the keys, review all rules in
on page 63 before following these procedures:
Cleaning the
General Cleaning Safety Precautions
Routine Care 63
Page 76
CAUTION: Use safety glasses equipped with side shields before attempting to clean debris from
under the keys.
Visible debris underneath or between the keys may be removed by vacuuming or shaking.
●
Canned, pressurized air may be used to clean debris from under the keys. Caution should be
●
used as too much air pressure can dislodge lubricants applied under the wide keys.
If you remove a key, use a specially designed key puller to prevent damage to the keys. This
●
tool is available through many electronic supply outlets.
CAUTION: Never remove a wide leveled key (like the space bar) from the keyboard. If these
keys are improperly removed or installed, the keyboard may not function properly.
Cleaning under a key may be done with a swab moistened with isopropyl alcohol and squeezed
●
out. Be careful not to wipe away lubricants necessary for proper key functions. Use tweezers to
remove any fibers or dirt in confined areas. Allow the parts to air dry before reassembly.
Cleaning the Monitor
Wipe the monitor screen with a clean cloth moistened with water or with a towelette designed for
●
cleaning monitors. Do not use sprays or aerosols directly on the screen; the liquid may seep into
the housing and damage a component. Never use solvents or flammable liquids on the monitor.
To clean the monitor body follow the procedures in
●
Cleaning the Mouse
Before cleaning the mouse, ensure that the power to the computer is turned off.
Clean the mouse ball by first removing the retaining plate and the ball from the housing. Pull out
●
any debris from the ball socket and wipe the ball with a clean, dry cloth before reassembly.
To clean the mouse body, follow the procedures in
●
Service Considerations
Listed below are some of the considerations that you should keep in mind during the disassembly and
assembly of the computer.
Power Supply Fan
The power supply fan is a variable-speed fan based on the temperature in the power supply.
CAUTION: The cooling fan is always on when the computer is in the “On” mode. The cooling fan is
off when the computer is in “Standby,” “Suspend,” or “Off” modes.
You must disconnect the power cord from the power source before opening the computer to prevent
system board or component damage.
Cleaning the Computer Case on page 63.
Cleaning the Computer Case on page 63.
64 Chapter 4 Routine Care, SATA Drive Guidelines, and Disassembly Preparation
Page 77
Tools and Software Requirements
To service the computer, you need the following:
● Torx T-15 screwdriver (HP screwdriver with bits, PN 161946-001)
Torx T-15 screwdriver with small diameter shank (for certain front bezel removal)
●
Flat-bladed screwdriver (may sometimes be used in place of the Torx screwdriver)
●
Phillips #2 screwdriver
●
Diagnostics software
●
● HP tamper-resistant T-15 wrench (Smart Cover FailSafe Key, PN 166527-001) or HP tamper-
resistant bits (Smart Cover FailSafe Key, PN 166527-002)
Screws
The screws used in the computer are not interchangeable. They may have standard or metric threads
and may be of different lengths. If an incorrect screw is used during the reassembly process, it can
damage the unit. HP strongly recommends that all screws removed during disassembly be kept with
the part that was removed, then returned to their proper locations.
CAUTION: Metric screws have a black finish. U.S. screws have a silver finish and are used on hard
drives only.
CAUTION: As each subassembly is removed from the computer, it should be placed away from the
work area to prevent damage.
Cables and Connectors
Most cables used throughout the unit are flat, flexible cables. These cables must be handled with
care to avoid damage. Apply only the tension required to seat or unseat the cables during insertion or
removal from the connector. Handle cables by the connector whenever possible. In all cases, avoid
bending or twisting the cables, and ensure that the cables are routed in such a way that they cannot
be caught or snagged by parts being removed or replaced.
CAUTION: When servicing this computer, ensure that cables are placed in their proper location
during the reassembly process. Improper cable placement can damage the computer.
Hard Drives
Handle hard drives as delicate, precision components, avoiding all physical shock and vibration. This
applies to failed drives as well as replacement spares.
If a drive must be mailed, place the drive in a bubble-pack mailer or other suitable protective
●
packaging and label the package “Fragile: Handle With Care.”
Do not remove hard drives from the shipping package for storage. Keep hard drives in their
●
protective packaging until they are actually mounted in the CPU.
Avoid dropping drives from any height onto any surface.
●
If you are inserting or removing a hard drive, turn off the computer. Do not remove a hard drive
●
while the computer is on or in standby mode.
Service Considerations 65
Page 78
Before handling a drive, ensure that you are discharged of static electricity. While handling a
●
drive, avoid touching the connector. For more information about preventing electrostatic
damage, refer to
Do not use excessive force when inserting a drive.
●
Avoid exposing a hard drive to liquids, temperature extremes, or products that have magnetic
●
fields such as monitors or speakers.
Electrostatic Discharge Information on page 60
Lithium Coin Cell Battery
The battery that comes with the computer provides power to the real-time clock and has a minimum
lifetime of about three years.
See the appropriate removal and replacement chapter for the chassis you are working on in this
guide for instructions on the replacement procedures.
WARNING! This computer contains a lithium battery. There is a risk of fire and chemical burn if the
battery is handled improperly. Do not disassemble, crush, puncture, short external contacts, dispose
in water or fire, or expose it to temperatures higher than 140ºF (60ºC). Do not attempt to recharge the
battery.
NOTE: Batteries, battery packs, and accumulators should not be disposed of together with the
general household waste. In order to forward them to recycling or proper disposal, please use the
public collection system or return them to HP, their authorized partners, or their agents.
66 Chapter 4 Routine Care, SATA Drive Guidelines, and Disassembly Preparation
Page 79
SATA Hard Drives
Serial ATA Hard Drive Characteristics
Number of pins/conductors in data cable 7/7
Number of pins in power cable 15
Maximum data cable length 39.37 in (100 cm)
Data interface voltage differential 400-700 mV
Drive voltages 3.3 V, 5 V, 12 V
Jumpers for configuring drive N/A
Data transfer rate 3.0 Gb/s
SATA Hard Drive Cables
SATA Data Cable
Always use an HP approved SATA 3.0 Gb/s cable as it is fully backwards compatible with the SATA
1.5 Gb/s drives.
Current HP desktop products ship with SATA 3.0 Gb/s hard drives.
SATA data cables are susceptible to damage if overflexed. Never crease a SATA data cable and
never bend it tighter than a 30 mm (1.18 in) radius.
The SATA data cable is a thin, 7-pin cable designed to transmit data for only a single drive.
SMART ATA Drives
The Self Monitoring Analysis and Recording Technology (SMART) ATA drives for the HP Personal
Computers have built-in drive failure prediction that warns the user or network administrator of an
impending failure or crash of the hard drive. The SMART drive tracks fault prediction and failure
indication parameters such as reallocated sector count, spin retry count, and calibration retry count. If
the drive determines that a failure is imminent, it generates a fault alert.
Cable Management
Always follow good cable management practices when working inside the computer.
Keep cables away from major heat sources like the heat sink.
●
● Do not jam cables on top of expansion cards or memory modules. Printed circuit cards like these
are not designed to take excessive pressure on them.
Keep cables clear of sliding or moveable parts to prevent them from being cut or crimped when
●
the parts are moved.
When folding a flat ribbon cable, never fold to a sharp crease. Sharp creases may damage the
●
wires.
SATA Hard Drives 67
Page 80
Some flat ribbon cables come prefolded. Never change the folds on these cables.
●
Do not bend any cable sharply. A sharp bend can break the internal wires.
●
Never bend a SATA data cable tighter than a 30 mm (1.18 in) radius.
●
Never crease a SATA data cable.
●
Do not rely on components like the drive cage, power supply, or computer cover to push cables
●
down into the chassis. Always position the cables to lay properly by themselves.
Hard Drive Capacities
The combination of the file system and the operating system used in the computer determines the
maximum usable size of a drive partition. A drive partition is the largest segment of a drive that may
be properly accessed by the operating system. A single hard drive may therefore be subdivided into a
number of unique drive partitions in order to make use of all of its space.
Because of the differences in the way that drive sizes are calculated, the size reported by the
operating system may differ from that marked on the hard drive or listed in the computer specification.
Drive size calculations by drive manufacturers are bytes to the base 10 while calculations by
Microsoft are bytes to the base 2.
Drive/Partition Capacity Limits
Maximum Size
File System Controller Type Operating System Partition Drive
FAT 32 ATA Windows XP/Windows Vista/Windows 7 32 GB 2 TB
NTFS ATA Windows XP/Windows Vista/Windows 7 2 TB 2 TB
68 Chapter 4 Routine Care, SATA Drive Guidelines, and Disassembly Preparation
Page 81
5 Configurations and Serial Number
Standard Configuration Features
Features may vary depending on the model. For a complete listing of the hardware and software
installed in the computer, run the diagnostic utility (included on some computer models only).
Figure 5-1 Convertible Minitower Configuration
NOTE: The HP Compaq Convertible Minitower computer can be easily converted to a desktop. For
more information, see
guide.
Figure 5-2 Microtower Configuration
Changing from a Minitower to a Desktop Configuration on page 120 in this
Standard Configuration Features 69
Page 82
Figure 5-3 Small Form Factor Configuration
NOTE: The Small Form Factor computer can also be used in a tower orientation. For more
information, see
Using the Small Form Factor Computer in a Tower Orientation on page 205 in this
guide.
Figure 5-4 Ultra-Slim Desktop Configuration
70 Chapter 5 Configurations and Serial Number
Page 83
Serial Number Location
Each computer has a unique serial number and a product ID number that are located on the top
cover of the computer. Keep these numbers available for use when contacting customer service for
assistance.
Figure 5-5 Convertible Minitower Serial Number and Product ID Location
Figure 5-6 Microtower Serial Number and Product ID Location
Serial Number Location 71
Page 84
Figure 5-7 Small Form Factor Serial Number and Product ID Location
Figure 5-8 Ultra-Slim Desktop (USDT) Serial Number and Product ID Location
72 Chapter 5 Configurations and Serial Number
Page 85
6 Removal and Replacement Procedures
– Convertible Minitower (CMT) Chassis
Adherence to the procedures and precautions described in this chapter is essential for proper service.
After completing all necessary removal and replacement procedures, run the Diagnostics utility to
verify that all components operate properly.
NOTE: Not all features listed in this guide are available on all computers.
Preparation for Disassembly
See Routine Care, SATA Drive Guidelines, and Disassembly Preparation on page 59 for initial safety
procedures.
1. Remove/disengage any security devices that prohibit opening the computer.
2. Close any open software applications.
3. Exit the operating system.
4. Remove any diskette, compact disc, or media card from the computer.
5. Turn off the computer and any peripheral devices that are connected to it.
CAUTION: Turn off the computer before disconnecting any cables.
Regardless of the power-on state, voltage is always present on the system board as long as the
system is plugged into an active AC outlet. In some systems the cooling fan is on even when the
computer is in the “Standby,” or “Suspend” modes. The power cord should always be
disconnected before servicing a unit.
6. Disconnect the power cord from the electrical outlet and then from the computer.
7. Disconnect all peripheral device cables from the computer.
8. As applicable, lay the computer down on its side to achieve a safe working position.
NOTE: During disassembly, label each cable as you remove it, noting its position and routing.
Keep all screws with the units removed.
CAUTION: The screws used in the computer are of different thread sizes and lengths; using the
wrong screw in an application may damage the unit.
Preparation for Disassembly 73
Page 86
Computer Access Panel
Description Spare part number
Access panel 646819-001
1. Prepare the computer for disassembly (Preparation for Disassembly on page 73)
2. Lay the computer down on its large base for greater stability.
3. Lift up on the access panel handle (1) then lift the access panel off the computer (2).
Figure 6-1 Removing the Computer Access Panel
To install the access panel, reverse the removal procedure.
74 Chapter 6 Removal and Replacement Procedures – Convertible Minitower (CMT) Chassis
Page 87
Front Bezel
Description Spare part number
Front bezel 646822-001
1. Prepare the computer for disassembly (Preparation for Disassembly on page 73).
2. Remove the computer access panel (
3. Lift up the three tabs on the side of the bezel (1), then rotate the bezel off the chassis (2).
Figure 6-2 Removing the Front Bezel
To install the front bezel, reverse the removal procedure.
Computer Access Panel on page 74).
Front Bezel 75
Page 88
Front Bezel Security
The front bezel can be locked in place by installing a security screw provided by HP. To install the
security screw:
1. Prepare the computer for disassembly (
2. Remove the computer access panel (
3. Remove the front bezel (
4. Remove the security screw from the inside of the front bezel.
Figure 6-3 Retrieving the Front Bezel Security Screw
Front Bezel on page 75).
Preparation for Disassembly on page 73).
Computer Access Panel on page 74).
5. Replace the front bezel.
6. Install the screw through the interior of the front of the chassis into the front bezel. The screw
hole is located on the left edge of the chassis next to the top hard drive bay.
Figure 6-4 Installing the Front Bezel Security Screw
76 Chapter 6 Removal and Replacement Procedures – Convertible Minitower (CMT) Chassis
Page 89
7. Replace the access panel.
8. Reconnect the power cord and turn on the computer.
9. Lock any security devices that were disengaged when the access panel was removed.
Bezel Blanks
1. Prepare the computer for disassembly (Preparation for Disassembly on page 73).
2. Remove the computer access panel (
3. Remove the front bezel (
4. Gently pull the subpanel, with the bezel blanks secured in it, away from the front bezel, then
remove the desired bezel blank.
CAUTION: Hold the subpanel straight when you pull it away from the front bezel. Pulling the
subpanel away at an angle could damage the pins that align it within the front bezel.
Figure 6-5 Removing Bezel Blanks from the Subpanel (Desktop Shown)
NOTE: When replacing the subpanel, ensure that the aligning pins and any remaining bezel blanks
are in their proper orientation. The logo on the subpanel should be located at the bottom of the
subpanel when properly oriented.
Front Bezel on page 75).
Computer Access Panel on page 74).
Bezel Blanks 77
Page 90
System Board Connections
Refer to the following illustration and table to identify the system board connectors.
Figure 6-6 System Board Connections
Table 6-1 System Board Connections
No. System Board Connector System Board Label Color Component
1 PCI PCI3 white Expansion Card
2 PCI PCI2 white Expansion Card
3 PCI PCI1 white Expansion Card
4 Parallel Port PAR black Parallel Port
5 PCI Express x16 downshifted
to a x4
6 PCI Express x16 X16PCIEXP black Expansion Card
7 PCI Express x1 X1PCIEXP1 black Expansion Card
8 Hood Lock HLCK black Hood Lock
9 Hood Sensor HSENSE white Hood Sensor
10 DIMM4 (Channel A) DIMM4 white Memory Module
11 DIMM3 (Channel A) DIMM3 black Memory Module
12 DIMM2 (Channel B) DIMM2 white Memory Module
13 DIMM1 (Channel B) DIMM1 black Memory Module
14 Power SATA PWR1 black SATA Optical Drives
15 Power SATA PWR0 black SATA Hard Drives
X4PCIEXP white Expansion Card
16 USB MEDIA black USB Device, such as a Media Card
Reader
78 Chapter 6 Removal and Replacement Procedures – Convertible Minitower (CMT) Chassis
Page 91
Table 6-1 System Board Connections (continued)
No. System Board Connector System Board Label Color Component
17 USB MEDIA2 black USB Device, such as a Media Card
18 SATA 2.0 SATA2 white 3rd Hard Drive, or 1st Optical Drive if
19 SATA 3.0 SATA0 dark blue 1st Hard Drive
20 SATA 3.0 SATA1 light blue 2nd Hard Drive
21 SATA 2.0 SATA3 white 2nd Optical Drive, or 1st Optical
22 eSATA ESATA black eSATA Adapter Cable, or 2nd
23 Serial Port COMB black Serial Port
Memory
Description Spare part number
4-GB, PC3-10600 585157-001
2-GB, PC3-10600 635803-001
Reader
no 3rd Hard Drive
Drive if a 3rd Hard Drive exists
Optical Drive if a 3rd Hard Drive
exists
1-GB, PC3-10600 635802-001
The computer comes with double data rate 3 synchronous dynamic random access memory (DDR3SDRAM) dual inline memory modules (DIMMs).
DIMMs
The memory sockets on the system board can be populated with up to four industry-standard DIMMs.
These memory sockets are populated with at least one preinstalled DIMM. To achieve the maximum
memory support, you can populate the system board with up to 16-GB of memory configured in a
high-performing dual channel mode.
DDR3-SDRAM DIMMs
CAUTION: This product DOES NOT support DDR3 Ultra Low Voltage (DDR3U) memory. The
processor is not compatible with DDR3U memory and if you plug DDR3U memory into the system
board, it can cause the physical damage to the DIMM or invoke system malfunction.
For proper system operation, the DDR3-SDRAM DIMMs must be:
● industry-standard 240-pin
unbuffered non-ECC PC3-8500 DDR3-1066 MHz-compliant or PC3-10600 DDR3-1333 MHz-
●
compliant
● 1.5 volt DDR3-SDRAM DIMMs
Memory 79
Page 92
The DDR3-SDRAM DIMMs must also:
support CAS latency 7 DDR3 1066 MHz (7-7-7 timing) and CAS latency 9 DDR3 1333 MHz
●
(9-9-9 timing)
contain the mandatory JEDEC SPD information
●
In addition, the computer supports:
512-Mbit, 1-Gbit, and 2-Gbit non-ECC memory technologies
●
single-sided and double-sided DIMMs
●
DIMMs constructed with x8 and x16 DDR devices; DIMMs constructed with x4 SDRAM are not
●
supported
NOTE: The system will not operate properly if you install unsupported DIMMs.
Populating DIMM Sockets
There are four DIMM sockets on the system board, with two sockets per channel. The sockets are
labeled DIMM1, DIMM2, DIMM3, and DIMM4. Sockets DIMM1 and DIMM2 operate in memory
channel B. Sockets DIMM3 and DIMM4 operate in memory channel A.
The system will automatically operate in single channel mode, dual channel mode, or flex mode,
depending on how the DIMMs are installed.
The system will operate in single channel mode if the DIMM sockets are populated in one
●
channel only.
The system will operate in a higher-performing dual channel mode if the total memory capacity
●
of the DIMMs in Channel A is equal to the total memory capacity of the DIMMs in Channel B.
The technology and device width can vary between the channels. For example, if Channel A is
populated with two 1-GB DIMMs and Channel B is populated with one 2-GB DIMM, the system
will operate in dual channel mode.
The system will operate in flex mode if the total memory capacity of the DIMMs in Channel A is
●
not equal to the total memory capacity of the DIMMs in Channel B. In flex mode, the channel
populated with the least amount of memory describes the total amount of memory assigned to
dual channel and the remainder is assigned to single channel. For optimal speed, the channels
should be balanced so that the largest amount of memory is spread between the two channels.
If one channel will have more memory than the other, the larger amount should be assigned to
Channel A. For example, if you are populating the sockets with one 2-GB DIMM, and three 1-GB
DIMMs, Channel A should be populated with the 2-GB DIMM and one 1-GB DIMM, and Channel
B should be populated with the other two 1-GB DIMMs. With this configuration, 4-GB will run as
dual channel and 1-GB will run as single channel.
In any mode, the maximum operational speed is determined by the slowest DIMM in the system.
●
80 Chapter 6 Removal and Replacement Procedures – Convertible Minitower (CMT) Chassis
Page 93
Installing DIMMs
CAUTION: You must disconnect the power cord and wait approximately 30 seconds for the power
to drain before adding or removing memory modules. Regardless of the power-on state, voltage is
always supplied to the memory modules as long as the computer is plugged into an active AC outlet.
Adding or removing memory modules while voltage is present may cause irreparable damage to the
memory modules or system board.
The memory module sockets have gold-plated metal contacts. When upgrading the memory, it is
important to use memory modules with gold-plated metal contacts to prevent corrosion and/or
oxidation resulting from having incompatible metals in contact with each other.
Static electricity can damage the electronic components of the computer or optional cards. Before
beginning these procedures, ensure that you are discharged of static electricity by briefly touching a
grounded metal object. For more information, refer to
When handling a memory module, be careful not to touch any of the contacts. Doing so may damage
the module.
1. Prepare the computer for disassembly (Preparation for Disassembly on page 73).
Electrostatic Discharge Information on page 60.
2. Remove the computer access panel (
3. Open both latches of the memory module socket (1), and insert the memory module into the
socket (2).
Figure 6-7 Installing a DIMM
NOTE: A memory module can be installed in only one way. Match the notch on the module
with the tab on the memory socket.
Computer Access Panel on page 74).
Populate the black DIMM sockets before the white DIMM sockets.
For maximum performance, populate the sockets so that the memory capacity is spread as
equally as possible between Channel A and Channel B. Refer to
on page 80 for more information.
4. Push the module down into the socket, ensuring that the module is fully inserted and properly
seated. Make sure the latches are in the closed position (3).
Populating DIMM Sockets
Memory 81
Page 94
5. Repeat steps 3 and 4 to install any additional modules.
6. Replace the computer access panel.
7. Reconnect the power cord and turn on the computer.
8. Lock any security devices that were disengaged when the access panel was removed.
The computer should automatically recognize the additional memory the next time you turn on the
computer.
82 Chapter 6 Removal and Replacement Procedures – Convertible Minitower (CMT) Chassis
Page 95
Expansion Card
Description Spare part number
nVidia Quadro NVS295 PCIe x16 graphics card, 256 MB 641462-001
nVidia Quadro NVS300 PCIe x16 graphics card, 512 MB 632486-001
nVidia GF405, DVI/VGA PCIe x16 graphics card, 512 MB 641732-001
ATI Radeon HD6350 PCIe x16 graphics card, 512 MB 637995-001
ATI Radeon HD6450 PCIe x16 graphics card, 512 MB 637996-001
ATI Radeon HD6570 PCIe x16 graphics card, 1 GB 637997-001
AMD FirePro 2270 PCIe x16 graphics card, 512 MB 637213-001
Intel PRO/1000CT NIC, includes bracket 635523-001
HP FireWire / IEEE 1394a PCIe x1 Card 637591-001
Serial port, PCI card 638815-001
Printer port, PCI card 638817-001
USB 3.0 port, PCIe x1 card 616610-001
eSATA port assembly, PCI card 645558-001
The computer has three standard full-height PCI expansion slots, one PCI Express x1 expansion slot,
one PCI Express x16 expansion slot, and one PCI Express x16 expansion slot that is downshifted to
a x4 slot.
NOTE: You can install a PCI Express x1, x8, or x16 expansion card in the PCI Express x16 slots.
For dual graphics card configurations, the first (primary) card must be installed in the PCI Express
x16 slot that is NOT downshifted to a x4 slot.
To remove, replace, or add an expansion card:
1. Prepare the computer for disassembly (
2. Remove the computer access panel (
Preparation for Disassembly on page 73).
Computer Access Panel on page 74).
3. Locate the correct vacant expansion socket on the system board and the corresponding
expansion slot on the back of the computer chassis.
Expansion Card 83
Page 96
4. Press straight down on the two green thumb tabs inside the chassis (1) and rotate the expansion
card retention latch up (2).
Figure 6-8 Opening the Expansion Slot Retainer
5. Before installing an expansion card, remove the expansion slot cover or the existing expansion
card.
NOTE: Before removing an installed expansion card, disconnect any cables that may be
attached to the expansion card.
a. If you are installing an expansion card in a vacant socket, remove the appropriate
expansion slot cover on the back of the chassis. Lift the expansion slot cover from the
expansion slot.
Figure 6-9 Removing an Expansion Slot Cover
84 Chapter 6 Removal and Replacement Procedures – Convertible Minitower (CMT) Chassis
Page 97
b. If you are removing a standard PCI card or PCI Express x1 card, hold the card at each end
and carefully rock it back and forth until the connectors pull free from the socket. Lift the
card straight up to remove it. Be sure not to scrape the card against other components.
Figure 6-10 Removing a Standard PCI Expansion Card
c. If you are removing a PCI Express x16 card, pull the retention arm on the back of the
expansion socket away from the card and carefully rock the card back and forth until the
connectors pull free from the socket. Lift the card straight up to remove it. Be sure not to
scrape the card against other components.
Figure 6-11 Removing a PCI Express x16 Expansion Card
6. Store the removed card in anti-static packaging.
Expansion Card 85
Page 98
7. If you are not installing a new expansion card, install an expansion slot cover to close the open
slot.
CAUTION: After removing an expansion card, you must replace it with a new card or
expansion slot cover for proper cooling of internal components during operation.
8. To install a new expansion card, slide the bracket on the end of the card down into the slot on
the back of the chassis and press the card down firmly into the socket on the system board.
Figure 6-12 Installing an Expansion Card
NOTE: When installing an expansion card, press firmly on the card so that the whole
connector seats properly in the expansion card slot.
9. Close the expansion card retention latch, making sure that it snaps firmly into place.
10. Connect external cables to the installed card, if needed. Connect internal cables to the system
board, if needed.
11. Replace the computer access panel.
12. Reconnect the power cord and turn on the computer.
13. Lock any security devices that were disengaged when the computer access panel was removed.
14. Reconfigure the computer, if necessary.
86 Chapter 6 Removal and Replacement Procedures – Convertible Minitower (CMT) Chassis
Page 99
Drives
Description Spare part number
16X SATA DVD±RW drive with LightScribe 581600-001
16X SATA DVD-ROM drive 581599-001
Blu-ray BD-RW SuperMulti DL Drive with LightScribe 617030-001
1 TB, 7200 rpm SATA hard drive 636930-001
750 GB, 7200 rpm SATA hard drive 632938-001
500 GB, 7200 rpm SATA hard drive 636929-001
320 GB, 7200 rpm SATA hard drive, 2.5-inch 634824-001
300 GB, 10000-RPM SATA3 hard drive 639695-001
300 GB, 10000-RPM SATA2 hard drive 648963-001
250 GB, 7200 rpm SATA hard drive 636927-001
160 GB, 10000-RPM SATA hard drive 639694-001
160 GB, 10000-RPM SATA hard drive, 2.5-inch 508312-001
160 GB Solid State Drive (SSD) 646809-001
80 GB Solid State Drive (SSD) 607817-001
Drives 87
Page 100
Drive Positions
Figure 6-13 Drive Positions (Minitower Configuration Shown)
Table 6-2 Drive Positions
1 Three 5.25-inch drive bays for optional drives (optical drives and media card reader shown)
2 Three 3.5-inch internal hard drive bays
NOTE: The drive configuration on your computer may be different than the drive configuration shown above.
The bottom 5.25-inch drive bay has a shorter depth than the upper two bays. The bottom bay
supports a half-height drive or other device that is no more than 14.5 cm (5.7 inches) in depth. Do not
try to force a larger drive, such as an optical drive, into the bottom bay. This could cause damage to
the drive and the system board. The use of unnecessary force when installing any drive into the drive
bay may result in damage to the drive.
To verify the type and size of the storage devices installed in the computer, run Computer Setup.
88 Chapter 6 Removal and Replacement Procedures – Convertible Minitower (CMT) Chassis
Loading...
