HP 3ZD99EA Product Data Sheet

Page 1

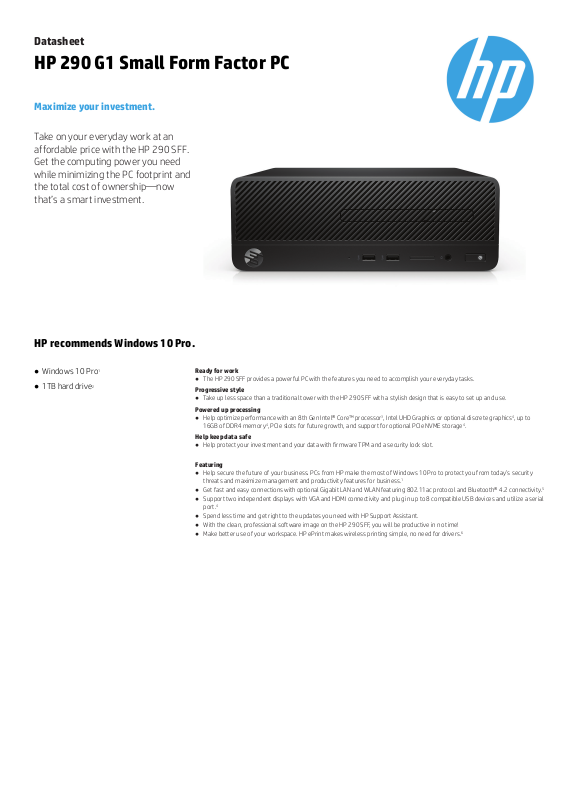

Datasheet

HP 290 G1 Small Form Factor PC

Maximize your investment.

Take on your everyday work at an affordable price with the HP 290 SFF. Get the computing power you need while minimizing the PC footprint and the total cost of ownership—now that’s a smart investment.

HP recommends Windows 10 Pro.

Windows 10 Pro

●

1TB hard drive

●

Ready for work

The HP 290 SFF provides a powerful PC with the features you need to accomplish your everyday tasks.

●

Progressive style

Take up less space than a traditional tower with the HP 290 SFF with a stylish design that is easy to set up and use.

●

Powered up processing

Help optimize performance with an 8th Gen Intel® Core™ processor3, Intel UHD Graphics or optional discrete graphics4, up to

●

16GB of DDR4 memory4, PCIe slots for future growth, and support for optional PCIe NVME storage4.

Help keep data safe

Help protect your investment and your data with firmware TPM and a security lock slot.

●

Featuring

Help secure the future of your business. PCs from HP make the most of Windows 10 Pro to protect you from today’s security

●

threats and maximize management and productivity features for business. Get fast and easy connections with optional Gigabit LAN and WLAN featuring 802.11ac protocol and Bluetooth® 4.2 connectivity.

●

Support two independent displays with VGA and HDMI connectivity and plug in up to 8 compatible USB devices and utilize a serial

●

port. Spend less time and get right to the updates you need with HP Support Assistant.

●

With the clean, professional software image on the HP 290 SFF,you will be productive in no time!

●

Make better use of your workspace. HP ePrint makes wireless printing simple, no need for drivers.

●

Page 2

Datasheet

HP 290 G1 Small Form Factor PC Specifications Table

HP recommends Windows 10 Pro.

Form Factor

Available Operating System

Available Processors

Maximum Memory

Memory slots

Internal Storage

Optical Storage

Available Graphics

Audio

Communications

Expansion Slots

Ports and Connectors

Internal Drive Bays

Input Device

Available Software

Security Management

Power

Dimensions

Weight

Energy Efficiency Compliance

Warranty

Small form factor

Windows 10 Pro 64 – HP recommends Windows 10 Pro. Windows 10 Home 64 FreeDOS 2.0

Intel® Core™ i7-8700 with Intel® UHD Graphics 630 (3.2 GHz base frequency, up to 4.6GHz with Intel® Turbo Boost Technology, 12 MB cache,6 cores); Intel® Core™ i3-8100 with Intel® UHD Graphics 630 (3.6 GHz, 6 MB cache, 4 cores); Intel® Celeron® G4900 with Intel® UHD Graphics 610 (3.1 GHz, 2 MBcache, 2 cores); Intel® Core™ i5-8500 with Intel® UHD Graphics 630 (3 GHz base frequency, up to 4.1 GHz with Intel® Turbo Boost Technology, 9 MB cache, 6 cores); Intel® Pentium® Gold G5400 with Intel® UHD Graphics 610 (3.7 GHz, 4 MB cache, 2 cores)

Up to 16 GB DDR4-2666 SDRAM Standard memory note: Transfer rates up to 2666 MT/s.

2 DIMM

500 GB up to 1 TB 7200 rpm SATA HDD 128 GB up to 256 GB M.2 SSD

HP 9.5 mm Slim DVD-Writer

Integrated: Intel® UHD Graphics 630; Intel® UHD Graphics 610

Realtek ALC3601 codec, internal speaker, combo microphone/headphone jack, HD audio

LAN: Integrated 10/100/1000M GbE WLAN: Realtek 802.11a/b/g/n/ac (1x1) and Bluetooth® 4.2 Combo

1 PCIe x1; 1 PCIe x16; 2 M.2; One 3-in-1 SD card reader (1 M.2 slot for WLAN and 1 M.2 2230/2280 slot for storage.)

Front: 1 headphone/microphone combo; 2 USB 3.1 Gen 1 Rear: 1 HDMI; 1 line in; 1 line out; 1 microphone-in; 1 power connector; 1RJ-45; 1 serial; 1 VGA; 2 USB 3.1; 4USB 2.0 Optional: 1 parallel

One 3.5" HDD; One 3.5" (2.5") HDD

HP USB Keyboard HP USB Optical Mouse

Bing search for IE11; HP Audio Switch; HP Documentation; HP ePrint Driver + JetAdvantage; HPJumpstart; HP Recovery Manager; HP Setup Integrated OOBE Win10;HP Support Assistant; HP System Event Utility; McAfee LiveSafe™; Buy Office (sold separately)

Lock slot; Trusted Platform Module (TPM) 2.0

180 W internal power supply, up to 90% efficiency, active PFC

9.5 x 29.6 x 27 cm (System dimensions may fluctuate due to configuration and manufacturingvariances.)

4.2 kg (Configured with 1 HDD and 1 ODD. Weight will vary by configuration.)

ENERGY STAR® certified and EPEAT® Silver registered configurations available

1 year (1-1-1) limited warranty and service offering includes 1 year of parts, labor andon-site repair. Terms and conditions vary by country. Certainrestrictions and exclusions apply.

17,18

14,15,18

3,4

7,10

11,12

Page 3

Datasheet

HP 290 G1 Small Form Factor PC

Accessories and services (not included)

HP recommends Windows 10 Pro.

HP USB Slim Business Keyboard

HP TLC 256 GB SATA SSD

HP USB Optical Scroll Mouse

NVIDIA GT 730 2GB DP Card

Get fast data entry and quick USB connectivity with the HP USB Business Slim Keyboard, designed to complement the 2015 class of HP Business PCs.

Product number: N3R87AA

Expand the storage capabilities of your desktop with the HP TLC 256 GB SATA SSD1, which includes TLC flash and the same reliability you already get from current from SSD drives.

Product number: P1N68AA

Utilizing the latest optical sensing technology, the HP USB Optical Scroll Mouse records precise motion over a variety of surfaces without a mouse pad.

Product number: QY777AA

Get impressive graphics and high resolution quad-display performance from the NVIDIA® GT 730 2GB DP Card.

Product number: Z9H51AA

HP 3 year Next business day Onsite Desktop Only Hardware Support

Receive 3 years of next business day onsite HW Support from an HP-qualified technician for your computing device, if the issue cannot be solved remotely.

Product number: U6578E

Page 4

Datasheet

HP recommends Windows 10 Pro.

HP 290 G1 Small Form Factor PC

Messaging Footnotes

Not all featuresare available in all editionsor versions of Windows. Systems mayrequire upgraded and/or separately purchased hardware, drivers and/orsoftware to take fulladvantage of Windows functionality. Windows 10 is automatically updated, which is

always enabled.ISP fees mayapply and additional requirements mayapply over time for updates. Seehttp://windows.microsoft.com.

For hard drives,GB = 1 billion bytes. TB =1 trillionbytes. Actual formatted capacity isless. Up to 36GB of systemdisk (for Windows 10) is reservedfor system recovery software.

Multi-Core isdesigned to improve performance of certain softwareproducts. Not all customers or softwareapplications will necessarily benefit fromuse of thistechnology. Performance and clockfrequency will varydepending on application workload and your

hardware andsoftware configurations. Intel’s numbering, branding and/or naming is not a measurement ofhigher performance.

Sold separatelyor as an optional feature.

Sold separatelyor as an optional feature. Wireless access point and internet servicerequired. Availability of public wirelessaccess points limited. The specificationsfor the802.11ac WLAN are draft specifications andare not final. If the final specifications differ

from the draft specifications,it may affect the ability of thenotebook to communicate with other 802.11acWLAN devices.

Requires an Internetconnection to HP web-enabled printer andHP ePrintaccount registration (fora list ofeligible printers, supported documents and imagetypes and other HP ePrint details, see www.hpconnected.com).May require wireless accesspoint.

Separately purchaseddata plans or usage fees may apply.Print times and connection speeds may vary.Some HP LaserJet printers may requirefirmware upgrades.

Technical specifications disclaimers

Not all featuresare available in all editionsor versions of Windows. Systems mayrequire upgraded and/or separately purchased hardware, drivers, software orBIOS update to take fulladvantage of Windows functionality. Windows 10 is automatically updated,

which is alwaysenabled. ISP fees may apply and additionalrequirements may apply over timefor updates. See http://www.microsoft.com.

hardware andsoftware configurations. Intel’s numbering, branding and/or naming is not a measurement ofhigher performance.

HD content requiredto view HD images.

Integrated IntelWi-Di sof twareis available on select modelsonly and requires separatelypurchased projector,tv orcomputer monitor with an integratedor external Wi-Di receiver. ExternalWi-Di receivers connect to the projector, tv or computer monitorvia a

standardVGA,HDMI cable,also sold separately.

For systems configuredwith more than 3 GB of memoryand a32-bit operating system, all memory maynot be available due to systemresource requirements. Addressingmemory above 4GB requires a 64-bit operatingsystem. Memory modules support data

transfer ratesup to 2666MT/s; actualdata rate is determined by the system'sconfigured processor. See processorspecifications for supported memory data rate.

For hard drivesand solid state drives, GB = 1billion bytes. TB = 1 trillion bytes.Actual formatted capacity is less.Up to 36GB (for Windows 10) of systemdisk is reserved for the systemrecovery software.

Card sold separately.

Optical drives areoptional or add on features. Duplicationof copyrighted material is strictlyprohibited. Actual speeds may vary. DoubleLayer media compatibility will widely varywith somehome DVD players and DVD-ROM drives.

Wireless cardsare optional or add-on featuresand requires separately purchased wirelessaccess point and internet service.Availability of public wireless accesspoints limited.

(1) PCI Expressx16 graphicsconnector; (1) PCI Express x1accessory connector.

McAfee LiveSafe™:1 year subscription.

HP ePrint Driver +JetAdvantage: Requires an Internet connectionto HPweb-enabled printer and HP ePrint accountregistration (for a listof eligible printers, supported documents and image typesand otherHP ePrint details, see

http://www.hp.com/go/businessmobileprinting.

EPEAT® registered where applicable. EPEATregistration varies by country. See www.epeat.netfor registration status by country.See HP’s3rd party option store forsolar energy accessory at www.hp.com/go/options.

Antimicrobial USB Mouse:Only China.

USB Hardened Mouse:Only India.

Your productdoes not support Windows 8 or Windows7, Inaccordance with Microsoft’s supportpolic y, HPdoes not support the Windows 8 orWindows 7 operating system on productsconfigured with Intel® 8th generation and forward processors or provide

any Windows 8 orWindows 7drivers on http://www.support.hp.com

USB Wired BusinessSlim Antimicrobial Keyboard: China only.

Keyboards and miceare optional or add-on features.

Security cable locksupported (sold separately).

HDMI Port: port willbe covered up when discretegraphic card isconfigured on shipped machine; VGAPort: portwill be covered up whendiscrete graphic card is configuredon shippedmachine.

Optional ParallelPort: optional via PCIe x1 slot.

www.hp.com/go/getupdated

© Copyright 2018 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. Microsoft and Windows are registered trademarks or trademarks of Microsoft Corporation in the U.S. and/or other countries. Intel, Celeron®, Core, Pentium are registered trademarks or trademarks of Intel Corporation in the U.S. and/or other countries. Bluetooth is a trademark of its proprietor, used by HP Inc. under license. NVIDIA, GeForce, Kepler and NVS are trademarks and/or registered trademarks of NVIDIA Corporation in the U.S. and other countries. AMD and Radeon are trademarks of Advanced Micro Devices, Inc. ENERGY STAR is a registered trademark owned by the U.S. Environmental Protection Agency.

4AA7-2593EEE, May 2018
