Page 1

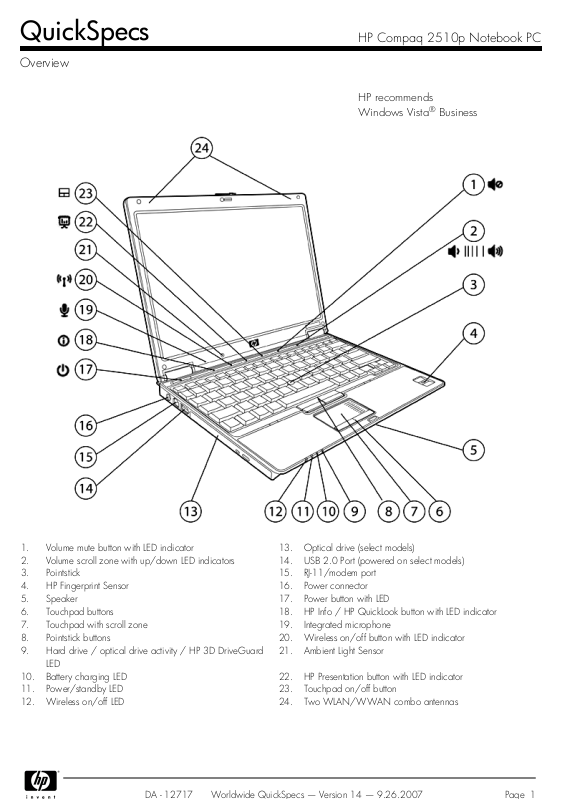

QuickSpecs

Overview

HP Compaq 2510p Notebook PC

HP recommends Windows Vista® Business

Volume mute button with LED indicator

Volume scroll zone with up/down LED indicators

Pointstick

HP Fingerprint Sensor

Speaker

Touchpad buttons

Touchpad with scroll zone

Pointstick buttons

Hard drive / optical drive activity / HP 3D DriveGuard LED

10.

Battery charging LED

11.

Power/standby LED

12.

Wireless on/off LED

DA - 12717 Worldwide QuickSpecs — Version 14 — 9.26.2007

13.

14.

15.

16.

17.

18.

19.

20.

21.

22.

23.

24.

Optical drive (select models) USB 2.0 Port (powered on select models) RJ-11/modem port Power connector Power button with LED HP Info / HP QuickLook button with LED indicator Integrated microphone Wireless on/off button with LED indicator Ambient Light Sensor

HP Presentation button with LED indicator Touchpad on/off button Two WLAN/WWAN combo antennas

Page 1

Page 2

QuickSpecs

Overview

PC Card eject button

PC Card slot (or smart card reader on select models)

Secure Digital (SD) slot

IEEE 1394 port

Stereo headphone/line out

11.

10.

HP Compaq 2510p Notebook PC

Stereo microphone in USB 2.0 port VGA/external monitor connector Docking connector Kensington Lock slot RJ-45/Ethernet port

At A Glance

Genuine Windows Vista Business*, Genuine Windows Vista Home Basic, Genuine Windows XP Professional, or FreeDOS Starting at 2.8 lb/1.29 kg and less than 1 inch thin Integrated optical drive support on select models Flexible wireless connectivity options:

Integrated HP ev2210 1xEVDO-A or HP hs2300 HSDPA Broadband Wireless module Integrated 802.11 a/b/g/draft-n, a/b/g, or b/g wireless LAN module Bluetooth®

12.1-inch Illumi-LiteWXGA display with Ambient Light Sensor and HP Privacy Filter support 3-, 6-, and 9-cell battery options Intel® Centrino® Pro processor technology capable, with Intel Core™2 Duo ULV processors Full magnesium alloy enclosure, magnesium alloy support structure, and HP DuraFinish Enhanced security features including HP Fingerprint Sensor, TPM 1.2**, optional Smart Card Reader, and Drive Encryption for HP ProtectTools HP QuickLook on Windows Vista models for instant access to email, calendar, and contact information Up to 100-GB 4200 rpm, user-removable hard drive protected by HP 3D DriveGuard or 64-GB Solid State Drive Up to 2 GB of 667-MHz DDR2 SDRAM (runs at 533-MHz); one memory slot Full-size keyboard with HP DuraKeys Touch-sensitive controls Dual pointing devices (touchpad with scroll zone and pointstick) Connector for HP 2400/2500 Ultra-Light Docking Station Integrated Intel Gigabit Network Connection (10/100/1000 NIC) Secure Digital (SD) slot

* At initial boot, either 32- or 64-bit can be selected. This is a one time selection and the other version will be deleted. ** TPM module disabled where use is restricted by law; for example, Russia and China.

DA - 12717 Worldwide QuickSpecs — Version 14 — 9.26.2007

Page 2

Page 3

QuickSpecs

Standard Features

HP Compaq 2510p Notebook PC

Processors

Operating System

Chipset

Intel Core 2 Duo ULV Processor U7500 (1.06-GHz, 533-MHz, 2-MB L2 cache) Intel Core 2 Duo ULV Processor U7600 (1.20-GHz, 533-MHz, 2-MB L2 cache)

Preinstalled

Supported

Certified

†

At initial boot, either 32- or 64-bit can be selected. This is a one time selection and the other version will be deleted. * Certain Windows Vista product features require advanced or additional hardware. See

http://www.microsoft.com/windowsvista/getready/hardwarereqs.mspx http://www.microsoft.com/windowsvista/getready/capable.mspx

Upgrade Advisor can help you determine which features of Windows Vista will run on your computer. To download the tool, visit

Mobile Intel GM965

Genuine Windows Vista Business†* Genuine Windows Vista Home Basic* Genuine Windows XP Professional FreeDOS

Genuine Windows Vista Enterprise* Genuine Windows 2000

SuSE Linux Enterprise Desktop 10

and

for details. Windows Vista

http://www.windowsvista.com/upgradeadvisor

Intel Centrino Pro processor technology capable

Graphics

Display

Intel Centrino Pro processor technology is a selectable feature that is available on units configured with an Intel Wireless WiFi Link 4965AGN or 4965AG. It provides advances in remote manageability, security, energy efficient performance, and wireless connectivity. Intel Active Management Technology (AMT) offers built-in manageability and proactive security for networked notebook PCs, even when they are powered off* or when the operating system is inoperable. It can help identify threats before they reach the operating system, isolate infected systems, and update PCs regardless of their power state.

*Requires a Windows operating system, network hardware and software, connection with a power source, and a direct (non-VPN) corporate network connection which is either cable or wireless LAN.

NOTE: requires additional 3rd party software in order to run. Availability of future "virtual appliances" applications for Centrino Pro processor technology is dependant on 3rd party software providers. Compatibility of this generation of Centrino Pro technology-based hardware with future "virtual appliances" and Microsoft Windows Vista operating system is to be determined.

Mobile Intel GMA X3100, up to 384 MB of shared system memory Microsoft DirectX9 capable

Internal

External

Some functionality of Intel Centrino Pro, such as Intel AMT and Intel Virtualization technology,

12.1-inch diagonal Illumi-Lite WXGA anti-glare (1280 × 800 resolution) Ambient light sensor HP Privacy Filter support

Up to 32-bit per pixel color depth VGA

port supports resolutions up to 2048 x 1536 at 75 Hz, and lower resolutions at up to 100 Hz

NOTE: and color depth settings.

Resolutions are dependent upon monitor capability, and resolution

DA - 12717 Worldwide QuickSpecs — Version 14 — 9.26.2007

Page 3

Page 4

QuickSpecs

Standard Features

HP Compaq 2510p Notebook PC

Memory

Communications

Wireless Devices

Standard

* Operates at a maximum of 533-MHz with 667-MHz memory. NOTE:

HP branded memory to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed.

Integrated Intel Gigabit Network Connection (10/100/1000 NIC)* 56K V.92 modem**

* The term "10/100/1000" or "Gigabit" Ethernet indicates compliance with IEEE standard 802.3ab for Gigabit Ethernet, and does not connote actual operating speed of 1 Gb/s. For high-speed transmission, connection to a Gigabit Ethernet server and network infrastructure is required.

** Designed for downloads from 56K modem compliant sources. Maximum achievable download transmission rates currently do not reach 56 KB/s, and will vary with line conditions. Modem availability is subject to country regulatory approval.

Support for a broad range of secure, integrated wireless LAN and wireless WAN options featuring support for the latest industry standards. Wireless LAN is factory configurable or available as an option to be added later. Broadband Wireless (WWAN) requires Windows Vista Business or Windows XP Professional and is available in select countries as a standard, factory configurable feature or as an option to be added later. Integrated Bluetooth is also available (factory configurable only) and can be combined with any of the supported wireless LAN and wireless WAN options.

HP ev2210 1xEVDO-A Broadband Wireless Module

HP hs2300 HSDPA Broadband Wireless Module

All 802.11a/b/g integrated wireless LAN options

Due to the non-industry standard nature of some third-party memory modules, we recommend

512-MB, 1024-MB, or 2048-MB 667-MHz* DDR2 SDRAM; one SODIMM slot

Integrated WWAN module connects to the Verizon Wireless BroadbandAccess and NationalAccess networks (US only) Supports CDMA 1xEVDO-A, 1xRTT connections at 800 and 1900 MHz.

NOTE: details, go to

Upgradeable design and two 850/900/1800/1900/2100-MHz antennas integrated in the top of the display panel support current and future WWAN technologies

Integrated WWAN module that provides connection to GSM, GPRS, EDGE, UMTS, and HSDPA mobile networks in many countries. Currently supported networks are the Cingular network in the U.S., Vodafone networks in select countries, and roaming on Cingular and Vodafone partner networks in more than 100 countries.

NOTE:

Upgradeable design and two 850/900/1800/1900/2100-MHz antennas integrated in the top of the display panel support current and future WWAN technologies.

Wi-Fi certified Cisco Compatible Extensions support (Version 4.0) with Microsoft Windows XP Wired Equivalent Privacy (WEP) support up to 128-bit keys Wi-Fi Protected Access (WPA) and WPA2 support

802.1x authentication support, including EAP-TLS, EAP-TTLS, PEAP-GTC, PEAP-MSCHAPv2, and LEAP Advanced Encryption Standard (AES) support WiFi certified for WPA2, WMM Three antennas integrated in the display enclosure

Separately purchased Verizon Wireless service is required. For

http://www.hp.com/go/broadbandwireless

Separately purchased mobile network operator service is required.

DA - 12717 Worldwide QuickSpecs — Version 14 — 9.26.2007

Page 4

Page 5

QuickSpecs

Standard Features

HP Compaq 2510p Notebook PC

Intel Wireless WiFi Link 4965ABGN

Intel Wireless WiFi Link 4965ABG

Intel PRO/Wireless 3945BG Network Connection

Broadcom 4321AGN

802.11a/b/g/draft-n Wi-Fi Adapter

Broadcom 4311AG

802.11a/b/g WiFi Adapter

Broadcom 4311BG

802.11b/g WiFi Adapter

HP Integrated Module with Bluetooth Wireless Technology

Integrated support for 802.11a, b, g, and draft-n Up to 300-mbps data rate

Integrated support for 802.11 a, b and g Up to 54-mbps data rate

Integrated support for 802.11 b and g Up to 54-mbps data rate

Integrated support for 802.11a, b, g, and draft-n Up to 300-mbps data rate

Integrated support for 802.11 a, b and g Up to 54-mbps data rate

Integrated support for 802.11 b and g Up to 54-mbps data rate

Bluetooth Specification v2.0 compliant Works with a wide range of Bluetooth devices

Keyboard

Touch-sensitive controls

Pointing device

The 101/102-key compatible keyboard features an industry standard, full-pitch key layout with desktop keyboard features, such as the isolated inverted-T cursor control keys, editing keys, both left and right control and alt keys, and 12 function keys. US and International key layouts are available. Other features include an integrated numeric keypad, hotkeys for instant access to power conservation, brightness, and other features, 19-mm x 19-mm key pitch (center-to-center spacing), 2.0-mm stroke, and comfort-dished keycaps.

HP DuraKeys is a clear coating applied over the notebook keyboard that helps protect the finish and the printed characters on the keys.

HP DuraFinish helps protect the finish on the keyboard deck, graphics, and icons from normal wear and tear.

Touch-sensitive controls provide easy access to the following features: HP Info Center, HP QuickLook, wireless on/off, HP Presentation button, touchpad on/off, volume up, volume down, and mute

Enhanced dual pointing devices: Touchpad with scroll zone, two pick buttons and Pointstick, two pick buttons

Expansion card slots

1 Type I/II PC Card slot or Optional Integrated

Smart Card Reader (replaces PC Card slot)

Secure Digital slot

DA - 12717 Worldwide QuickSpecs — Version 14 — 9.26.2007

Supports 32-bit CardBus and 16-bit PC Cards

Compatible with ISO 7816 compliant Smart Cards PC/SC interface support

Supports SD (Secure Digital), MMC (MultiMedia Card)

Page 5

Page 6

QuickSpecs

Standard Features

HP Compaq 2510p Notebook PC

Storage

Interfaces

Primary Storage Device

NOTE: 10 GB is reserved for the system recovery software.

HP 3D DriveGuard

Optical drives (9.5mm PATA)

PC Card slot Smart Card Reader External monitor 1394a Stereo microphone in Stereo headphone/line

out Power connector RJ-11/modem RJ-45/Ethernet USB 2.0

Docking connector LED status indicators

Hard drives are customer removable and will withstand multiple insertion/removal cycles. Up to

60/80/100-GB 4200 rpm 1.8” PATA Hard Drive 64-GB Solid State Drive

The hard drive is mounted to the notebook frame, reducing the transmission of shock away from the hard drive. Uses three-axis digital motion detection with intelligent sensitivity to help protect the hard drive during normal use from shock and vibration. The digital accelerometer temporarily halts all data transfer and parks the hard drive when abrupt motion is detected.

DVD-ROM Drive DVD/CD-RW Combo Drive DVD+/-RW SuperMulti DL Drive

One Type I/II PC Card slot Optional (replaces PC Card slot) One – VGA One One One

One One One Two (including one powered USB 2.0 port to support HP External MultiBay

II on units without an integrated optical drive) For HP 2400/2500 Ultra-Light Docking Station Seventeen

Audio

High Definition Audio support w/24-bit DAC Integrated mono speaker Integrated microphone Touch-sensitive controls for volume up, volume down, and mute Stereo headphone/line out Stereo microphone in

DA - 12717 Worldwide QuickSpecs — Version 14 — 9.26.2007

Page 6

Page 7

QuickSpecs

Standard Features

HP Compaq 2510p Notebook PC

Software

Preinstalled software with Windows Vista or Windows XP

Additional software available from the web

PDF Complete HP Backup and Recovery Manager HP Help and Support Center HP QuickLook (Windows Vista only) HP OpenView Radia Management Agent HP Universal Print Driver HP ProtectTools Security Manager: BIOS Configuration for HP ProtectTools Credential Manager for HP ProtectTools Device Access Manager for HP ProtectTools Drive Encryption for HP ProtectTools Embedded Security for HP ProtectTools HP Quick Launch Buttons HP Wireless Assistant Microsoft Office Ready with 60-day Office Professional 2007 Trial Edition (select models) Roxio Creator 9 (for optional DVD+/-RW and DVD/CDRW drives) Symantec Norton Internet Security with complimentary 60-day live update Intervideo WinDVD – DVD Player

HP Client Manager Java Card Security for HP ProtectTools

HP Backup and Recovery Manager

SMBIOS Version 2.4

HP ProtectTools Security Manager

Each unit is shipped with HP Backup and Recovery Manager. HP Backup and Recovery Manager can provide data and system file protection for HP business PCs to enable fast recovery if the system becomes corrupted or if important information is accidentally deleted. HP Backup and Recovery Manager can perform scheduled or manual backups of the entire drive or individual files and folders. Up to 10 GB of the hard drive is reserved for the system recovery software. HP Backup and Recovery Manager can also create software recovery CDs or DVDs (requires optional CD-RW or DVD+/-RW hardware).

System Management BIOS, previously known as DMI BIOS, is used to store system management information.

HP ProtectTools Security Manager is the security platform for business notebooks and desktops. The HP ProtectTools Security Manager is an extensible client security console that delivers enhanced security capabilities through add-on software modules. Modules currently available are:

BIOS Configuration for HP ProtectTools Credential Manager for HP ProtectTools Device Access Manager for HP ProtectTools Drive Encryption for HP ProtectTools Embedded Security for HP ProtectTools Java Card Security for HP ProtectTools

DA - 12717 Worldwide QuickSpecs — Version 14 — 9.26.2007

Page 7

Page 8

QuickSpecs

Standard Features

HP Compaq 2510p Notebook PC

Security

Standard Features

Optional Features

*TPM module disabled where use is restricted by law; for example, Russia and China. For more information on HP security solutions refer to

HP ProtectTools Security Manager HP Fingerprint Sensor Configuration Control Hardware Memory Change Alert Ownership Tag Setup Password Power-On Password TPM 1.2 Embedded Security Chip* TPM Enhanced DriveLock* HP Disk Sanitizer HP 3D DriveGuard Kensington Lock Slot Support for Computrace / LoJack for Laptops (must be purchased separately)

Smart Card Reader (replaces Type I/II PC Card slot)

HP Privacy Filter

Compatible with ISO 7816 compliant Smart Cards PC/SC interface support

Narrows viewing area so that screen data is visible only to persons directly in front of the monitor

http://www.hp.com/go/security

Power Supply

Battery

Battery Life

System Standby Time

External 65-watt Smart AC adapter, 6-foot (1.8-meter) power cord included. Total length including external AC adapter is 12 feet (3.66 meter). HP Fast Charge*

*HP Fast Charge recharges your battery up to 90% within 90 minutes when the system is off. Fast Charge Technology does not apply to 9 cell primary batteries.

Primary Battery

Battery Fuel Gauge LEDs

3-cell Primary Battery 6-cell Primary Battery 9-cell Primary Battery

NOTE: Professional. Battery life will vary depending on the product configuration, product model, applications loaded on the product, power management settings of the product, and the product features used by the customer. As with all batteries, the maximum capacity of this battery will decrease with time and usage.

Up to 1 week

The listed battery life measurements were taken on models running Microsoft Windows XP

3-cell (28 WHr) high capacity Lithium-Ion 6-cell (55 WHr) high capacity Lithium-Ion 9-cell (83 WHr) high capacity Lithium-Ion

6-cell high capacity and 9-cell high capacity

Up to 4 hours Up to 8 hours Up to 12 hours

DA - 12717 Worldwide QuickSpecs — Version 14 — 9.26.2007

Page 8

Page 9

QuickSpecs

Standard Features

HP Compaq 2510p Notebook PC

Power Conservation

Docking

Service and Support

Select Model(s)

2510p GM651AW#xxx (may vary based on local regulatory requirements)

(optional)

Supports enhanced Intel SpeedStep technology with Intel Core 2 Duo ULV processors (allows Battery Optimized Mode, Maximum Performance Mode, or Automatic mode)

Intel Display Power Saving technology Hibernation Standby ACPI compliance

HP 2400/2500 Ultra-Light Docking Station

HP Services offers limited 3- year, 1-year and 90-day warranty options depending on country; 1-year limited warranty on primary battery. On-site service and warranty upgrades are also available. For HP Care Pack services see

NOTE:

http://h20000.www2.hp.com/bizsupport/TechSupport/ProductRoot.jsp

Processor

Intel Centrino Pro processor technology

Operating System System Memory Hard Drive Display Graphics Audio

Optical Drive Communications

Integrated Wireless Integrated Security

Pointing Device Battery Power Warranty

* At initial boot, either 32- or 64-bit can be selected. This is a one time selection and the other version will be deleted. ** System runs at a maximum of 533-MHz. *** TPM module disabled where use is restricted by law; for example, Russia.

Certain restrictions and exclusions apply. Consult the HP Customer Support Center for details.

http://www.hp.com/go/lookuptool

Intel Core 2 Duo ULV Processor U7600 (1.20-GHz, 533-MHz, 2-MB L2 cache)

Enabled

Genuine Windows Vista Business* 1024 MB 667-MHz** DDR2 (1 DIMM) 80-GB 4200rpm 1.8" SMART PATA

12.1-inch diagonal Illumi-Lite WXGA anti-glare Mobile Intel GMA X3100 ADI High Definition CODEC

Stereo headphone/line out and microphone in Integrated microphone

DVD+/-RW SuperMulti DL Drive Integrated Intel Gigabit Network Connection (10/100/1000 NIC)

56K V.92 modem Intel Wireless WiFi Link 4965AG Drive Encryption for HP ProtectTools

HP Fingerprint Sensor TPM 1.2***

Enhanced dual pointing devices (touchpad with scroll zone and pointstick) 6-cell (44 WHr) Lithium-Ion External 65W adapter 3/3/0

DA - 12717 Worldwide QuickSpecs — Version 14 — 9.26.2007

Page 9

Page 10

QuickSpecs

Options

HP Compaq 2510p Notebook PC

Memory

MultiBay II Storage (9.5-mm)

NOTE: External MultiBay II

Other Storage

Communications

Requires HP

HP 512-MB (DDR2 667 MHz) SODIMM HP 1-GB (DDR2 667 MHz) SODIMM HP 2-GB (DDR2 667 MHz) SODIMM

HP MultiBay II DVD-ROM Drive HP MultiBay II DVD/CD-RW Combo Drive HP MultiBay II DVD+/-RW SuperMulti DL Drive HP 80-GB 5400rpm MultiBay II Hard Drive

HP Notebooks USB Diskette Drive

Intel Wireless WiFi Link 4965AGN option kit HP ev2210 1xEVDO-A Broadband Wireless Module (Verizon) (available Sept.

2007) HP ev2210 1xEVDO-A Broadband Wireless Module (Sprint) (available Oct. 2007) HP hs2300 HSDPA Broadband Wireless Module (AT&T) (available Sept. 2007) HP hs2300 HSDPA Broadband Wireless Module (Generic) (available Oct. 2007)

EM993AA EM994AA EM995AA

PA849A PA850A PA851A

PH357A

DC361B

RT081AA#xxx

GM763AA#ABA

GM764AA#ABA

GG589AA#ABA

GG590AA#xxx

Expansion Solutions

Power

Carrying Cases

HP 2400/2500 Ultra-Light Docking Station HP Standard Monitor Stand HP Adjustable Notebook Stand HP External MultiBay II

HP 2-Bay Battery Charging Station (North America only) HP 2-Bay Battery Charging Station (rest of world) HP 10-Bay Battery Charging Station (North America only) HP HP 2400/2500 Battery Adapter Kit HP 65W Smart AC Adapter HP 90W Smart Auto Adapter HP 65W AC/Auto/Air Combo Smart Adapter HP 3-Cell Li-Ion Primary Battery HP 6-Cell Li-Ion Primary Battery HP 9-Cell Li-Ion Primary Battery

HP Value Nylon Case HP Universal Nylon Case HP Executive Leather Case HP Deluxe Nylon Backpack HP Universal Messenger Bag HP Deluxe Roller Case

EQ773AA#xxx

PA507A PA508A

PA509A#xxx

DT533A#xxx

EW424AA#xxx

DT534A#ABA

EH769AA

ED494AA#xxx

ED493AA

ED993AA#xxx

RW556AA

EH767AA EH768AA

RR314AA RR315AA RR316AA

RR317AA GD404AA GD405AA

DA - 12717 Worldwide QuickSpecs — Version 14 — 9.26.2007

Page 10

Page 11

QuickSpecs

Options

HP Compaq 2510p Notebook PC

Security

Input/Output Devices

HP PC Card Smart Card Reader with Java Card HP ProtectTools Java Card – 10 units HP/Kensington MicroSaver Security Lock HP Notebook Productivity Bundle

HP USB Keyboard & Mouse Bundle HP USB/PS2 Optical 2-Button Scroll Mouse HP USB Optical Travel Mouse HP USB Optical Travel Mouse

EL347AA EL348AA

PC766A

GC832AA

RC465AA#xxx

DC369A

RH304AA

RJ316AA

DA - 12717 Worldwide QuickSpecs — Version 14 — 9.26.2007

Page 11

Page 12

QuickSpecs

Memory

667-MHz* DDR2 SDRAM One DIMM slot DIMM sizes supported: 512 MB, 1024 MB, 2048 MB

Standard Memory

512 MB (512 MB x 1) 1024 MB (1024 MB x 1) 2048 MB (2048 MB x 1)

HP Compaq 2510p Notebook PC

Optional Memory Upgrades

Support for up to 2048 MB of memory with the installation of optional DDR2 SDRAM memory kits. Please refer to the Hardware and Software Guide for installation procedures. Memory slot is useraccessible.

HP 512-MB (DDR2 667 MHz) SODIMM* HP 1024-MB (DDR2 667 MHz) SODIMM* HP 2048-MB (DDR2 667 MHz) SODIMM*

* System runs at a maximum of 533-MHz.

EM993AA EM994AA EM995AA

DA - 12717 Worldwide QuickSpecs — Version 14 — 9.26.2007

Page 12

Page 13

QuickSpecs

Storage

Optical Drive Support

Fixed optical drives DVD-ROM Drive DVD/CD-RW Combo Drive DVD+/-RW SuperMulti DL Drive

Primary Storage Device

Hard Drives 60-GB 4200 rpm 80-GB 4200 rpm 100-GB 4200 rpm Solid State Drive 64-GB Solid State Drive

(1.8” SMART PATA)

(95mm PATA)

HP Compaq 2510p Notebook PC

Quantity Supported One One One

One

Drive Bay Fixed optical drive bay Fixed optical drive bay Fixed optical drive bay

Drive Bay Dedicated hard drive bay Dedicated hard drive bay Dedicated hard drive bay

Dedicated hard drive bay

DA - 12717 Worldwide QuickSpecs — Version 14 — 9.26.2007

Page 13

Page 14

QuickSpecs

Technical Specifications

HP Compaq 2510p Notebook PC

System Unit

Dimensions

Weight

NOTE: weight includes 3-cell battery, hard drive, 512-MB memory, 802.11 wireless communications module. Weight varies by configuration and components.

Stand-Alone Power Requirements (AC Power)

Temperature

Relative Humidity

Shock

Random Vibration

Altitude (unpressurized)

Industry Standard Certifications

For accessibility information on HP products, please visit

(HxWxD)

Height varies depending upon where on the notebook the measurement is made. Starting

0.97 in (at front) x 11.11 in x 8.38 in

24.7 mm (at front) x 282.3 mm x 212.8 mm Starting from 2.8 lb (1.29 kg)

Nominal Operating Voltage

Average Operating Power Max Operating Power Operating

Non-operating Operating Non-operating

Operating Non-operating Operating Non-operating Operating Non-operating UL CSA FCC Compliance ENERGY STAR® 4.0 ICES GS Yes Australia / NZ A-Tick

Compliance CCC Japan VCCI Compliance MIC BSMI CE Marking Compliance BNCI or BELLIS CIT GOST Saudi Arabian

Compliance (ICCP) SABS UKRSERTCOMPUTER

18.5 V

12.5 W < 65 W 32° to 95° F (0° to 35° C) (not writing optical) 41° to 95° F (5° to 35° C) (writing optical)

-4° to 140° F (-20° to 60° C) 10% to 90%, non-condensing 5% to 95%, 101.6° F (38.7° C) maximum wet

bulb temperature 125 G, 2 ms, half-sine 200 G, 2 ms, half-sine

0.75 grms

1.50 grms –50 to 10,000 ft (–15.24 to 3,048 m) –50 to 40,000 ft (–15.24 to 12,192 m) Yes Yes Yes Yes Yes

Yes

Yes Yes Yes Yes Yes Yes Yes Yes Yes

Yes Yes

http://www.hp.com/accessibility

DA - 12717 Worldwide QuickSpecs — Version 14 — 9.26.2007

Page 14

Page 15

QuickSpecs

Technical Specifications

HP Compaq 2510p Notebook PC

HP 65W Smart AC Adapter

Dimensions Weight Input

Output

Connector Environmental Design

EMI and Safety Certifications

4.17 x 1.85 x 1.1 in (10.6 x 4.7 x 2.8 cm)

0.62 lb (280 g) 100 to 240 VAC Input Efficiency Input frequency range Input AC current Output power 65W DC output Hold-up time Output current limit

3 pin/grounded, mates with interchangeable cords Operating temperature Non-operating (storage)

temperature Altitude Humidity Storage Humidity CE Mark – full compliance with LVD and EMC directives; Worldwide safety

standards – IEC60950, EN60950, UL60950, Class1, SELV; Agency approvals – C-UL-US, NORDICS, DENAN, EN55022 Class B, FCC Class B, CISPR22 Class B, CCC, NOM-1 NYCE; MTBF – over 200,000 hours at 25°C ambient condition.

83% min at 115 VAC 47 to 63 Hz

1.7 A at 90 VAC, 0.85 A at 180 VAC 65W

18.5V 5 msec at 115 VAC input <11A, Over voltage protection- 29V max

automatic shutdown

32° to 104° F (0° to 40° C) –4° to 149° F (–20° to 65° C)

0 to 10,000 ft (0 to 3,048 m) 20% to 80% 10% to 90%

9-Cell (83WHr) LithiumIon battery

Dimensions Weight Cells/Type Energy Temperature

Battery Re-Charge Time

Fuel Gauge

(H x W x L)

1.6 x 2.3 x 8.1 in (4.1 x 5.9 x 20.6 cm)

1.07 lb (0.488 kg) 9-cell Lithium-Ion Watt-hour Capacity Operating (Charging) Operating (Discharging) Non-operating System in OFF mode or

Standby System ON

When pressed, LEDs light indicating level of charge remaining on battery

83Wh 32° to 113° F (0° to 45° C) 14° to 140° F (–10° to 60° C) –4° to 140° F (–20° to 60° C) 3 to 4 hours

4 to 5 hours (depending on system power consumption)

DA - 12717 Worldwide QuickSpecs — Version 14 — 9.26.2007

Page 15

Page 16

QuickSpecs

Technical Specifications

HP Compaq 2510p Notebook PC

6-Cell (55WHr) LithiumIon battery

3-Cell (28WHr) Lithiumon battery

Dimensions Weight Cells/Type Energy Temperature

Battery Re-Charge Time

Fuel Gauge

Dimensions Weight Cells/Type Energy Temperature

Battery Re-Charge Time

(H x W x L)

0.8 x 2.3 x 8.1 in (2.1 x 5.9 x 20.6 cm)

0.73 lb (0.332 kg) 6-cell Lithium-Ion Watt-hour Capacity Operating (Charging) Operating (Discharging) Non-operating System in OFF Mode or

Standby System ON

HP Fast Charge

When pressed, LEDs light indicating level of charge remaining on battery

0.8 x 1.5 x 8.1 in (2.1 x 3.9 x 20.6 cm)

0.39 lb (0.176 kg) 3-cell Lithium-Ion Watt-hour Capacity Operating (Charging) Operating (Discharging) Non-operating System in OFF Mode or

Standby System ON

HP Fast Charge

55Wh 32° to 113° F (0° to 45° C) 14° to 140° F (–10° to 60° C) –4° to 140° F (–20° to 60° C)

2.5 hours

3 to 5 hours (depending on system power consumption)

Charges the battery up to 90% within 90 minutes when system is OFF

28.8Wh 32° to 113° F (0° to 45° C) 14° to 140° F (–10° to 60° C) –4° to 140° F (–20° to 60° C)

2.5 hours

3 to 5 hours (depending on system power consumption)

Charges the battery up to 90% within 90 minutes when system is OFF

12.1-inch Illumi-Lite WXGA anti-glare

Hard Drives

Active Area Diagonal Size Surface Treatment Contrast Ratio Refresh Rate Brightness Pixel Resolution

Backlight PPI Viewing Angle

DA - 12717 Worldwide QuickSpecs — Version 14 — 9.26.2007

(W x H)

10.3 x 6.4 in (26.1 x 16.3 cm)

12.1 in (30.7 cm) Anti-glare 300:1 (typical) 60 Hz 200 nit (typical) Pitch Format Configuration LED 125 ±30° Horizontal, ±10° Vertical (minimum)

0.204 mm 1280 x 800 RGB Stripe

Page 16

Page 17

QuickSpecs

Technical Specifications

HP Compaq 2510p Notebook PC

100-GB 4200 rpm

1.8" PATA

80-GB 4200 rpm

1.8" PATA

Drive Weight Capacity Height Width Interface Transfer Rate Seek Time

(typical reads, including settling)

Rotational Speed Logical Blocks Operating Temperature Features

Drive Weight Capacity Height Width Interface Transfer Rate Seek Time

(typical reads, including settling)

Rotational Speed Logical Blocks Operating Temperature Features

0.13 lb (59 g) 100 GB

0.31 in (8 mm)

2.12 in (54 mm) ATA-6 Synchronous Single Track Average Maximum 4200 rpm 195,371,568 41° to 140° F (5° to 60° C) [case temp] ATA Security

0.13 lb (59 g) 80 GB

0.31 in (8 mm)

2.12 in (54 mm) ATA-6 Synchronous Single Track Average Maximum 4200 rpm 156,301,488 41° to 140° F (5° to 60° C) [case temp] ATA Security

(maximum)

100 MB/s (Drive Capability) 3 ms 15 ms 26 ms

60-GB 4200 rpm

1.8" PATA

Drive Weight Capacity Height Width Interface Transfer Rate Seek Time

(typical reads, including settling)

Rotational Speed Logical Blocks Operating Temperature Features

DA - 12717 Worldwide QuickSpecs — Version 14 — 9.26.2007

0.13 lb (59 g) 60 GB

0.31 in (8 mm)

2.12 in (54 mm) ATA-6 Synchronous Single Track Average Maximum 4200 rpm 117,210,240 41° to 140° F (5° to 60° C) [case temp] ATA Security

(maximum)

100 MB/s (Drive Capability) 3 ms 15ms 26 ms

Page 17

Page 18

QuickSpecs

Technical Specifications

Optical Drives – Fixed

HP Compaq 2510p Notebook PC

DVD-ROM Drive

DVD/CD-RW Combo Drive

Dimensions Weight Access Times

Max Data Transfer Rate

Transfer Mode Interface Supported Media

Supported Media Max Media Capacity

(read) Transport

Dimensions Weight Access Times

Max Data Transfer Rate

Transfer Mode Interface Supported Media

Supported Media Max Media Capacity

(read) Max Media Capacity

(write) Transport

(read)

(write)

(read)

(write)

0.37 x 5.51 x 5.04 in (0.95 x 14.0 x 12.8 cm)

0.34 lb (155 g) Random

24X-CD-ROM 8X-DVD Multiword DMA Mode 2 EIDE CD-DA, CD+(E)G, CD-MIDI, CD-TEXT, CD-ROM, CD-ROM XA, MIXED

MODE CD, CD-I, CD-I Bridge (Photo-CD, Video CD), Multisession CD (Photo-CD, CD-EXTRA, Portfolio, CD-R, CD-RW), CD-R, CD-RW, DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD-R, DVD-RW, DVD+R, DVD+RW

None

8.5 GB

Tray Loading

0.37 x 5.51 x 5.04 in (0.95 x 14.0 x 12.8 cm)

0.45 lb (205 g) Random

24X CD-ROM 8X DVD 24X CD-R 24X CD-RW Multiword DMA Mode 2 EIDE CD-DA, CD+(E)G, CD-MIDI, CD-TEXT, CD-ROM, CD-ROM XA, MIXED

MODE CD, CD-I, CD-I Bridge (Photo-CD, Video CD), Multisession CD (Photo-CD, CD-EXTRA, Portfolio, CD-R, CD-RW), CD-R, CD-RW, DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD-R, DVD-RW, DVD+R, DVD+RW

CD-R, CD-RW

8.5 GB

700 MB

Tray loading

<120 ms CD <200 ms DVD 3,600 KB/s 10,800 KB/s

<120 ms CD <155 ms DVD 3,600 KB/s 10,800 KB/s 3,600 KB/s 3,600 KB/s

DA - 12717 Worldwide QuickSpecs — Version 14 — 9.26.2007

Page 18

Page 19

QuickSpecs

Technical Specifications

HP Compaq 2510p Notebook PC

DVD+/-RW SuperMulti DL Drive

Dimensions Weight Access Times

Max Data Transfer Rate

Transfer Mode Interface Supported Media

Supported Media Max Media Capacity

(read) Max Media Capacity

(write) Transport

(read)

(write)

0.37 x 5.51 x 5.04 in (0.95 x 14.0 x 12.8 cm)

0.45 lb (205 g) Random

24X CD-ROM 8X DVD 24X CD-R 10X CD-RW 4X DVD+R

2.4X DVD+RW 4X DVD-R 2X DVD-RW 2X DVD-RAM Multiword DMA Mode 2 EIDE CD-DA, CD+(E)G, CD-MIDI, CD-TEXT, CD-ROM, CD-ROM XA, MIXED

MODE CD, CD-I, CD-I Bridge (Photo-CD, Video CD), Multisession CD (Photo-CD, CD-EXTRA, Portfolio, CD-R, CD-RW), CD-R, CD-RW, DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD-R, DVD-RW, DVD+R, DVD+RW, DVD-RAM

CD-R, CD-RW, DVD+R, DVD+RW, DVD-R, DVD-RW, DVD-RAM

8.5 GB

Tray Loading

<150 ms CD <125 ms DVD 3,600 KB/s 10,800 KB/s 3,600 KB/s 1,500 KB/s 5,400 KB/s 3,240 KB/s 5,400 KB/s 2,700 KB/s 2,700 KB/s

Security

HP Fingerprint Sensor

Audio

Mobile Voltage Operation

Operating Temperature Current Consumption @

3.3V

High-Rate Image Capture ESD Resistance Detection Matrix

3.0V–3.6V Single Supply

32° – 158°F (0° – 70°C) Less than 70 mA peak imaging and scrolling

Less than 25 mA hardware finger detection Advanced Power Management

Up to 240 image frames /sec IEC 61000-4-2 Level 4 (±15KV) 192 x 16 Pixels

9.7 mm x 0.81 mm 500 ppi High-Resolution Images

DA - 12717 Worldwide QuickSpecs — Version 14 — 9.26.2007

Page 19

Page 20

QuickSpecs

Technical Specifications

HP Compaq 2510p Notebook PC

Hardware

Integrated Mono Speaker

Communications

Integrated Intel Gigabit Network Connection (10/100/1000 NIC)

Implementation Touch-Sensitive Volume

Controls Full Duplex Sound Blaster Pro

compatible Microphone In Headphone/Line Out

Power Rating Impedance

Ethernet Features

Power Management

Performance Features Manageability

Interface NIC Device Driver

Name Drivers Available

ADI1981HD High Definition CODEC Volume up, volume down, and mute

Yes Yes

Stereo Stereo

2 Watts 4 Ohms

10 Mbit/s operation (10BASE-T; IEEE 802.3i; IEEE 802.3 clauses 13-14) 100 Mbit/s operation (100BASE-TX; IEEE 802.3u; IEEE 802.3 clauses 21-

30) 1000 Mbit/s operation (1000BASE-T; IEEE 802.3z and 802.3ab; IEEE

802.3 clauses 34-42) Auto-Negotiation (Automatic Speed Selection) Full Duplex Operation at all Speeds, Half Duplex operation at 10 and 100 Mbit/s IEEE 802.1p QoS (Quality of Service) Support IEEE 802.3x Flow Control (IEEE 802.3 clauses 31-32; configurable)

ACPI compliant -- multiple power modes Situation-sensitive features reduce power consumption

TCP/IP/UDP Checksum Offload (configurable) Wake-on-LAN from standby and hibernation (Magic Packet and Microsoft

Wake-Up Frame); Wake-on-LAN from off (Magic Packet only) PXE 2.1 Remote Boot Statistics Gathering (SNMP MIB II, Ethernet-like MIB, Ethernet MIB (802.3x, clause 30)) Comprehensive diagnostic and configuration software suite Intel Advanced Management Technology (iAMT)

PCI Express x1 Intel 82566MM Gigabit Network Connection

Microsoft Windows Vista Microsoft Windows XP

DA - 12717 Worldwide QuickSpecs — Version 14 — 9.26.2007

Page 20

Page 21

QuickSpecs

Technical Specifications

HP Compaq 2510p Notebook PC

V.92 56K Data/Fax Modem

Form Factor Power Management

Support Approvals/

Certifications

Data Mode Capabilities

Fax Mode Capabilities

Command Set

MDC 1.5 Daughtercard APM Revision 1.2, ACPI

UL, CSA, NEMKO, CCIB, Industry Canada, FCC Part 68, CTR21, FCC Part 15 Class B, Canadian ICES-003 Class B, C.I.S.P.R.22, Australian ACA, CE Mark, Other Countries

V.92 data V.8bis V.80 V44, V.42bis, MNP5 (Compression) V.42 (LAPM, MNP2-4) (Error Correction) Optional symbol rates:

2800, 3429 Asymmetric Symbol rates

Synchronous primary channel data signaling rates: 3600, 31200 Automatic rate re-negotiation V.34 V.32bis V.32 V.23 V.22bis V.22 V.21 Bell 212A Bell 103J

TIA/EIA-578-B (Class 1) T.30, T.4 (Group 3) V.17 V.29 V.27ter V.21 Channel 2

V.250 (Partial) TIA-602 Identification: +GMI, +GMM, +GMR Port control: +IPR, +ICF, +IFC, +ILRR Modulation: +MS, +MR, +MA Error control: +ES, +ER, +EB, +ESR, +ETBM Data compression: +DS, +DR V.251

DA - 12717 Worldwide QuickSpecs — Version 14 — 9.26.2007

Page 21

Page 22

QuickSpecs

Technical Specifications

HP Compaq 2510p Notebook PC

HP ev2210 1xEVDO-A Broadband Wireless Module

Band and Power Class

Wireless Protocol Standards

Wireless Parametric Standards

Interoperability

Frequency Band Data Rates

Maximum Output Power Power Consumption

(maximum) Power Consumption,

Sleep Mode Power Management

Antenna Type

Form Factor Weight Dimensions

Width x Thickness) Voltage, Operating Temperature, Operating

(from TIA/EIA/IS-98-D) Temperature, Non-

operating, 96 hours MIL-STD 202 Method

108) Humidity, Non-operating Configuration Utilities LED Activity

(Packet Mode)

(Length x

(from

0 (North American Cellular) – Class III; 1 (North American PCS) – Class II

CDMA 1x Release A; IS-95A, IS-95B, IS-2000

Meets or exceeds TIA/EIA IS-98-D

CDG 22 (TIA/EIA/IS-95-A) CDG 53(TIA/EIA/IS-95-B) C.S0031 (TIA/EIA/IS-2000) CDG 64 (TIA/EIA/IS-2000) C.S0032 (TIA/EIA/IS-866)

Dual Band: 800 MHz (Cellular) and 1900 MHz (PCS) IS-856 rates up to 3.1 Mbps

IS-2000 data rates up to 1.8 Mbps 24dBm (+/-1) 500mA

1.7mA – 3.5mA

USB selective suspend CDMA slotted mode sleep and dormant modes

High efficiency dual band antennae with spatial diversity, mounted in the display enclosure

PCI-Express MiniCard

0.35 oz (10 g)

2.01 x 1.18 x 0.18 in (51 x 30 x 4.5 mm)

3.3v +/- 10% –22° to 140° F (–30° to 60° C) (full RF performance)

–22° to 167° F (–30° to 75° C) (reduced RF performance) –40° to 185° F (–40° to 85° C)

85% relative humidity for 48 hours @ 185° F (85° C) (non-condensing) Verizon Wireless VZAccess Manager LED Off – Radio Off;

Solid LED On – Radio On

HP hs2300 HSDPA Broadband Wireless Module

Frequency Bands and Power Class

DA - 12717 Worldwide QuickSpecs — Version 14 — 9.26.2007

850/1900/2100MHz WCDMA Power class 3 (+24dBm) 850MHz GSM/GPRS/EDGE 900MHz GSM/GPRS/EDGE, 1800MHz GSM/GPRS/EDGE 1900MHz GSM/GPRS/EDGE EDGE E2 power GPRS/EDGE Multislot Class 12 GPRS PCS/DCS power class 1

Page 22

Page 23

QuickSpecs

Technical Specifications

Wireless Protocol Standards

Wireless Parametric Standards

Additional Standards Compliance

Data Rates (Packet Mode)

Chipset and Module Maximum Output Power Power Consumption

(maximum) Power Consumption,

Sleep Mode Power Management

Antenna Type Form Factor Weight Dimensions

Width x Thickness) Voltage, Operating Temperature, Operating

Temperature, Nonoperating, 96 hours MIL-STD 202 Method

108) Humidity, Non-operating LED Activity

Configuration Utilities

(Length x

HP Compaq 2510p Notebook PC

GSM power class 4 GPRS/EDGE: 3GPP R99 GERAN P1

WCDMA Release 5 (R5) High-Speed Downlink Packet Access (HSDPA) 3.6Mbps GSM Phase 2+

Complies with 3GPP specifications

FCC parts 15/22/24, CE, Microsoft WHQL, R&TTE directive 1999/5/EC (health, safety, EMC, spectrum), GCF-CC (Module), European Union Directive 2002/95/EC (restrictions of the use of certain Hazardous Substances (RoHS) in electronic equipment), Infrastructure Interoperability Testing (IOT)

Designed maximum data rate: EDGE 118 kbps UL / 236 kbps DL UMTS 384 kbps UL / 384 kbps DL HSDPA 384 kbps UL / 3.6 Mbps DL

Qualcomm MSM6280 chipset; Sierra Wireless MC8775 module 32 dBm (+/-2) GSM/EDGE GMSK mode 800mA

4 – 8mA

USB Selective Suspend sleep and standby mode

High efficiency 5- band antennae, mounted in the display enclosure PCI-Express MiniCard

0.35 oz (10 g)

2.01 x 1.18 x 0.18 in (51 x 30 x 4.5 mm)

3.3v +/- 10% –22° to 140° F (–30° to 60° C) (full RF performance)

–22° to 167° F (–30° to 75° C) (reduced RF performance) –40° to 185° F (–40° to 85° C)

(from

85% relative humidity for 48 hours @ 185° F (85° C) (non-condensing) LED Off – Radio Off;

Solid LED On – Radio On Varies per country and mobile network operator

Intel PRO/Wireless 3945BG Network Connection

Wireless LAN Standards

Interoperability

Frequency Band

DA - 12717 Worldwide QuickSpecs — Version 14 — 9.26.2007

IEEE 802.11b IEEE 802.11g

Wi-Fi certified Cisco Compatible Extensions Program compliant with Microsoft Windows 2000 and XP (details at

2.4 GHz

http://www.hp.com/go/notebooks/WLAN

)

Page 23

Page 24

QuickSpecs

Technical Specifications

HP Compaq 2510p Notebook PC

Data Rates

Modulation

Security

Sub-channels

Media Access Protocol Network Architecture

Models Roaming Output Power Output Power

power varies by data rate)

Power Consumption

Power Management

Receiver Sensitivity Antenna Connections Range

Form Factor Weight Dimensions Operating Voltage Temperature

Humidity

Altitude

(for CKK)215 dBm (for OFDM;

802.11b: 1, 2, 5.5, 11 Mbps

802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps Direct Sequence Spread Spectrum

DBPSK, DQPSK, CCK, OFDM Supports 64- and 128-bit WEP, WPA, WPA2, hardware-accelerated AES,

802.1x authentication types EAP-TLS, EAP-TTLS, PEAP-GTC, PEAPMSCHAPv2, LEAP, EAP-FAST, EAP-SIM.

Support for Cisco Security Features (proven compatibility with Cisco Aironet infrastructure products through the Cisco Compatible Extensions Program Version 4).

Multinational support with frequency bands and channels compliant to local regulations.

CSMA/CA (Collision Avoidance) with ACK Ad-hoc (Peer to Peer)

Infrastructure (Access Point Required) IEEE 802.11 compliant roaming between access points

15 dBm

Transmit: 1.8 Watts (max) Receive: 1.4 Watts (max) Idle mode3: 150 mW (nominal) Sleep mode: 30 mW (max)

ACPI compliant power management

802.11 compliant power saving mode

54 Mbps: -72 dBm, 11 Mbps: -88 dBm , 1 Mbps: -97 dBm 2 U.FL type connectors, 50 ohm nominal impedance

802.11 b – Typical (@1 Mbps)

802.11 g – Typical (@1 Mbps)

PCI-Express MiniCard

0.013 lb (6 g)

0.19 x 1.2 x 2.0 in (4.75 x 29.85 x 50.8 mm)

3.3V +/- 9%, 1.5V +/- 5% Operating

Non-operating Operating

Non-operating

1200 feet – Outdoor Open Area 300 feet – Indoor, Office environment

32° to 176° F (0° to 80° C) –40° to 176° F (–40° to 80° C)

10% to 90% (non-condensing) 5% to 95% (non-condensing)

0 to 10,000 ft (3,048 m) 0 to 50,000 ft (15,240 m)

DA - 12717 Worldwide QuickSpecs — Version 14 — 9.26.2007

Page 24

Page 25

QuickSpecs

Technical Specifications

HP Compaq 2510p Notebook PC

Intel Wireless WiFi Link 4965AG

Configuration Utility

LED Activity

Check latest software/driver release for updates on supported security features.

1. Maximum output power may vary by country according to local regulations.

2. In Power Save Polling mode.

3. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation) and

4. a packet error rate of 10% for 802.11a/g (OFDM modulation). WLAN supplier's client utility is required for Cisco Compatible Extensions support with Microsoft

5. Windows 2000 or XP. WLAN may also be compatible with certain third-party software supplicants.

Wireless LAN Standards

Interoperability

Frequency Band Data Rates

Modulation

Security

Microsoft Windows 2000 or XP Choice of Configuration Utility:

Microsoft Windows XP Wireless Network Connection Manager Intel PROSet for Microsoft Windows 2000 or XP (required for Cisco Compatible Extensions support)

Microsoft Windows Vista

Microsoft Windows Vista Wireless Network Connection Manager

LED Off – Radio OFF; Solid LED On – Radio ON

IEEE 802.11a IEEE 802.11b IEEE 802.11g

Wi-Fi certified Cisco Compatible Extensions Program compliant with Microsoft Windows 2000 and XP (details at

2.4 GHz and 5 GHz

802.11b: 1, 2, 5.5, 11 Mbps

802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps Direct Sequence Spread Spectrum

DBPSK, DQPSK, CCK, OFDM Supports 64- and 128-bit WEP, WPA, WPA2, hardware-accelerated AES

(support for key sizes of 128, 192, and 256 bits), 802.1x authentication types EAP-TLS, EAP-TTLS, PEAP-GTC, PEAP-MSCHAPv2, LEAP, EAP-FAST.

http://www.hp.com/go/notebooks/WLAN

)

Support for Cisco Security Features (proven compatibility with Cisco Aironet infrastructure products through the Cisco Compatible Extensions Program Version 4) with Microsoft Windows 2000 and XP only.

Sub-channels

Media Access Protocol Network Architecture

Models Roaming Output Power Output Power

power varies by data

rate)

DA - 12717 Worldwide QuickSpecs — Version 14 — 9.26.2007

(for CKK)215 dBm (for OFDM;

Multinational support with frequency bands and channels compliant to local regulations.

CSMA/CA (Collision Avoidance) with ACK Ad-hoc (Peer to Peer)

Infrastructure (Access Point Required) IEEE 802.11 compliant roaming between access points

15 dBm

Page 25

Page 26

QuickSpecs

Technical Specifications

HP Compaq 2510p Notebook PC

Power Consumption

Power Management

Receiver Sensitivity Antenna Connections Range

Form Factor Weight Dimensions Operating Voltage Temperature

Humidity

Altitude

Configuration Utility

Transmit: 1.6 Watts (average) Receive: 1.1 Watts (average) Idle mode3: 30 mW (average) Radio off: 20 mW (max)

ACPI compliant power management

802.11 compliant power saving mode

54 Mbps: -74 dBm, 6 Mbps: -90 dBm 2 U.FL type connectors, 50 ohm nominal impedance

802.11 a – Typical (@6 Mbps)

802.11 b – Typical (@1 Mbps)

802.11 g – Typical (@1 Mbps)

PCI-Express MiniCard

0.013 lb (6 g)

0.19 x 1.2 x 2.0 in (4.75 x 29.85 x 50.8 mm)

3.3V +/- 9%, 1.5V +/- 5% Operating

Non-operating Operating

Non-operating

Microsoft Windows 2000 or XP Choice of Configuration Utility:

600 feet – Outdoor Open Area 150 feet – Indoor, Office environment

1200 feet – Outdoor Open Area 300 feet – Indoor, Office environment

32° to 176° F (0° to 80° C) –40° to 176° F (–40° to 80° C)

10% to 90% (non-condensing) 5% to 90% (non-condensing)

0 to 10,000 ft (3,048 m) 0 to 50,000 ft (15,240 m)

Intel Wireless WiFi Link 4965AGN

Microsoft Windows XP Wireless Network Connection Manager Intel PROSet for Microsoft Windows 2000 or XP (required for Cisco Compatible Extensions support)

Microsoft Windows Vista

Microsoft Windows Vista Wireless Network Connection Manager

LED Activity

Check latest software/driver release for updates on supported security features.

1. Maximum output power may vary by country according to local regulations.

2. In Power Save Polling mode and on battery power.

3. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation) and

4. a packet error rate of 10% for 802.11a/g (OFDM modulation). WLAN supplier's client utility is required for Cisco Compatible Extensions support with Microsoft

5. Windows 2000 or XP. WLAN may also be compatible with certain third-party software supplicants.

Wireless LAN Standards

Interoperability

LED Off – Radio OFF; Solid LED On – Radio ON

IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11n (draft 1.02)

Wi-Fi certified (802.11abg only)

DA - 12717 Worldwide QuickSpecs — Version 14 — 9.26.2007

Page 26

Page 27

QuickSpecs

Technical Specifications

Frequency Band Data Rates

Modulation

Security

HP Compaq 2510p Notebook PC

Cisco Compatible Extensions Program compliant (802.11abg only) with Microsoft Windows 2000 and XP (details at

http://www.hp.com/go/notebooks/WLAN

Tested with wireless access points from several major manufacturers (details at

2.4 GHz and 5 GHz

802.11b: 1, 2, 5.5, 11 Mbps

802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n (draft): 66 possible data rates, ranging from 6 Mbps to 300 Mbps, depending on the combination of Bandwidth, Modulation Coding Scheme, and Guard Interval used, as defined in IEEE 802.11n (draft) specification

Direct Sequence Spread Spectrum DBPSK, DQPSK, CCK, OFDM, BPSK, QPSK, 16-QAM, 64-QAM

Supports 64- and 128-bit WEP, WPA, WPA2, hardware-accelerated AES (support for key sizes of 128, 192, and 256 bits), 802.1x authentication types EAP-TLS, EAP-TTLS, PEAP-GTC, PEAP-MSCHAPv2, LEAP, EAP-FAST.

http://www.hp.com/go/notebooks/WLAN/

)

draft-n)

Sub-channels

Media Access Protocol Network Architecture

Models Roaming Output Power Output Power

power varies by data

rate) Power Consumption

Power Management

Receiver Sensitivity Antenna Connections Range

Form Factor Weight Dimensions Operating Voltage

(for CKK)215 dBm (for OFDM;

Multinational support with frequency bands and channels compliant to local regulations.

CSMA/CA (Collision Avoidance) with ACK Ad-hoc (Peer to Peer)

Infrastructure (Access Point Required) IEEE 802.11 compliant roaming between access points

15 dBm

Transmit: 2.3 Watts (average, with two spatial streams) Receive: 1.9 Watts (average with three receive chains) Idle mode3: 30 mW (average) Radio off: 20 mW (max)

ACPI compliant power management

802.11 compliant power saving mode

300 Mbps: -68 dBm, 54 Mbps: -74 dBm, 6 Mbps: -90 dBm 3 U.FL type connectors, 50 ohm nominal impedance

802.11 a – Typical (@6 Mbps)

802.11 b – Typical (@1 Mbps)

802.11 g – Typical (@1 Mbps)

PCI-Express MiniCard

0.013 lb (6 g)

0.19 x 1.2 x 2.0 in (4.75 x 29.85 x 50.8 mm)

3.3V +/- 9%, 1.5V +/- 5%

600 feet – Outdoor Open Area 150 feet – Indoor, Office environment

1200 feet – Outdoor Open Area 300 feet – Indoor, Office environment

DA - 12717 Worldwide QuickSpecs — Version 14 — 9.26.2007

Page 27

Page 28

QuickSpecs

Technical Specifications

HP Compaq 2510p Notebook PC

Temperature

Humidity

Altitude

Configuration Utility

LED Activity

Check latest software/driver release for updates on supported security features.

1. Maximum output power may vary by country according to local regulations.

2. In Power Save Polling mode and on battery power.

3. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation) and

4. a packet error rate of 10% for 802.11a/g (OFDM modulation). WLAN supplier's client utility is required for Cisco Compatible Extensions support with Microsoft

5. Windows 2000 or XP. WLAN may also be compatible with certain third-party software supplicants.

Operating Non-operating

Microsoft Windows 2000 or XP Choice of Configuration Utility:

Microsoft Windows XP Wireless Network Connection Manager Intel PROSet for Microsoft Windows 2000 or XP (required for Cisco Compatible Extensions support)

Microsoft Windows Vista

Microsoft Windows Vista Wireless Network Connection Manager

LED Off – Radio OFF; Solid LED On – Radio ON

32° to 176° F (0° to 80° C) –40° to 176° F (–40° to 80° C)

10% to 90% (non-condensing) 5% to 90% (non-condensing)

0 to 10,000 ft (3,048 m) 0 to 50,000 ft (15,240 m)

Broadcom 4311BG

802.11b/g WiFi Adapter

Wireless LAN Standards

Interoperability

Frequency Band Data Rates

Modulation

Security

Sub-channels

Media Access Protocol Network Architecture

Models Roaming Output Power

(for CKK)217.5 dBm

IEEE 802.11b IEEE 802.11g

Wi-Fi certified Cisco Compatible Extensions Program compliant with Microsoft Windows 2000 and XP (details at

2.4 GHz

802.11b: 1, 2, 5.5, 11 Mbps

802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps Direct Sequence Spread Spectrum

DBPSK, DQPSK, CCK, OFDM Supports 64- and 128-bit WEP, WPA, WPA2, hardware-accelerated AES,

802.1x authentication types EAP-TLS, EAP-TTLS, PEAP-GTC, PEAPMSCHAPv2, LEAP, EAP-FAST.

Support for Cisco Security Features (proven compatibility with Cisco Aironet infrastructure products through the Cisco Compatible Extensions Program Version 4).

Multinational support with frequency bands and channels compliant to local regulations.

CSMA/CA (Collision Avoidance) with ACK Ad-hoc (Peer to Peer)

Infrastructure (Access Point Required) IEEE 802.11 compliant roaming between access points

http://www.hp.com/go/notebooks/WLAN

)

DA - 12717 Worldwide QuickSpecs — Version 14 — 9.26.2007

Page 28

Page 29

QuickSpecs

Technical Specifications

HP Compaq 2510p Notebook PC

Output Power power varies by data

rate) Power Consumption

Power Management

Receiver Sensitivity Antenna type

Range

Form Factor Weight Dimensions Operating Voltage Temperature

Humidity

Altitude

Configuration Utility

(for OFDM;

15 dBm

Transmit: 2.0 W (max) Receive: 1.5 W (max) Idle mode3: 390 mW (nominal) Sleep mode: 20 mW (max)

ACPI compliant power management

802.11 compliant power saving mode 54 Mbps: -72 dBm, 11 Mbps: -88 dBm , 1 Mbps: -97 dBm High efficiency dual band antenna with spatial diversity, mounted in the

display enclosure

802.11 b – Typical (@1 Mbps)

802.11 g – Typical (@1 Mbps)

PCI-Express MiniCard

0.026 lb (12 g)

0.19 x 1.2 x 2.0 in (4.75 x 29.85 x 50.8 mm)

3.3v +/- 10% Operating

Non-operating Operating

Non-operating

Microsoft Windows 2000 or XP Choice of Configuration Utility:

1200 feet – Outdoor Open Area 300 feet – Indoor, Office environment

32° to 176° F (0° to 80° C) –40° to 176° F (–40° to 80° C)

10% to 90% (non-condensing) 5% to 95% (non-condensing)

0 to 10,000 ft (3,048 m) 0 to 50,000 ft (15,240 m)

Broadcom 4311AG

802.11a/b/g WiFi Adapter

Microsoft Windows XP Wireless Network Connection Manager Broadcom Wireless Configuration Utility (required for Cisco Compatible Extensions support)

Microsoft Windows Vista

Microsoft Windows Vista Wireless Network Connection Manager

LED Activity

Check latest software/driver release for updates on supported security features.

1. Maximum output power may vary by country according to local regulations.

2. In Power Save Polling mode.

3. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation) and

4. a packet error rate of 10% for 802.11a/g (OFDM modulation). WLAN supplier's client utility is required for Cisco Compatible Extensions support with Microsoft

5. Windows 2000 or XP. WLAN may also be compatible with certain third-party software supplicants.

Wireless LAN Standards

LED Off – Radio OFF; Solid LED On – Radio ON

IEEE 802.11a IEEE 802.11b IEEE 802.11g

DA - 12717 Worldwide QuickSpecs — Version 14 — 9.26.2007

Page 29

Page 30

QuickSpecs

Technical Specifications

HP Compaq 2510p Notebook PC

Interoperability

Frequency Band Data Rates

Modulation

Security

Sub-channels

Media Access Protocol Network Architecture

Models Roaming Output Power Output Power

power varies by data rate)

Power Consumption

Power Management

Receiver Sensitivity Antenna type

Range

Form Factor Weight Dimensions Operating Voltage Temperature

Humidity

(for CKK)217.5 dBm (for OFDM;

Wi-Fi certified Cisco Compatible Extensions Program compliant with Microsoft Windows 2000 and XP (details at

2.4 GHz and 5 GHz

802.11b: 1, 2, 5.5, 11 Mbps

802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps Direct Sequence Spread Spectrum

DBPSK, DQPSK, CCK, OFDM Supports 64- and 128-bit WEP, WPA, WPA2, hardware-accelerated AES,

802.1x authentication types EAP-TLS, EAP-TTLS, PEAP-GTC, PEAPMSCHAPv2, LEAP, EAP-FAST.

Support for Cisco Security Features (proven compatibility with Cisco Aironet infrastructure products through the Cisco Compatible Extensions Program Version 4).

Multinational support with frequency bands and channels compliant to local regulations.

CSMA/CA (Collision Avoidance) with ACK Ad-hoc (Peer to Peer)

Infrastructure (Access Point Required) IEEE 802.11 compliant roaming between access points

15 dBm

Transmit: 2.0 W (max) Receive: 1.5 W (max) Idle mode3: 390 mW (nominal) Sleep mode: 20 mW (max)

ACPI compliant power management

802.11 compliant power saving mode

54 Mbps: -72 dBm, 11 Mbps: -88 dBm , 1 Mbps: -97 dBm High efficiency dual band antenna with spatial diversity, mounted in the

display enclosure

802.11 a – Typical (@6 Mbps)

802.11 b – Typical (@1 Mbps)

802.11 g – Typical (@1 Mbps)

PCI-Express MiniCard

0.026 lb (12 g)

0.19 x 1.2 x 2.0 in (4.75 x 29.85 x 50.8 mm)

3.3v +/- 10% Operating

Non-operating Operating

Non-operating

http://www.hp.com/go/notebooks/WLAN

600 feet – Outdoor Open Area 150 feet – Indoor, Office environment

1200 feet – Outdoor Open Area 300 feet – Indoor, Office environment

32° to 176° F (0° to 80° C)

-40° to 176° F (-40° to 80° C) 10% to 90% (non-condensing)

5% to 95% (non-condensing)

)

DA - 12717 Worldwide QuickSpecs — Version 14 — 9.26.2007

Page 30

Page 31

QuickSpecs

Technical Specifications

HP Compaq 2510p Notebook PC

Altitude

Configuration Utility

LED Activity

Check latest software/driver release for updates on supported security features.

1. Maximum output power may vary by country according to local regulations.

2. In Power Save Polling mode.

3. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation) and

4. a packet error rate of 10% for 802.11a/g (OFDM modulation). WLAN supplier's client utility is required for Cisco Compatible Extensions support with Microsoft

5. Windows 2000 or XP. WLAN may also be compatible with certain third-party software supplicants.

Operating Non-operating

Microsoft Windows 2000 or XP Choice of Configuration Utility:

Microsoft Windows XP Wireless Network Connection Manager Broadcom Wireless Configuration Utility (required for Cisco Compatible Extensions support)

Microsoft Windows Vista

Microsoft Windows Vista Wireless Network Connection Manager

LED Off – Radio OFF; Solid LED On – Radio ON

0 to 10,000 ft (3,048 m) 0 to 50,000 ft (15,240 m)

Broadcom 4321AGN

802.11a/b/g/draft-n WiFi Adapter

Wireless LAN Standards

Interoperability

Frequency Band Data Rates

Frequency Support

Modulation

Security

IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11n (draft)

Wi-Fi certified (802.11abg only) Cisco Compatible Extensions Program compliant (802.11abg only) with Microsoft Windows 2000 and XP (details at

http://www.hp.com/go/notebooks/WLAN

Tested with wireless access points from several major manufacturers (details at

2.4 GHz and 5 GHz

802.11b: 1, 2, 5.5, 11 Mbps

802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n (draft): 6, 6.5, 9, 12, 13, 13.5, 18, 19.5, 24, 26, 27, 36, 39, 40.5, 48, 52, 54, 58.5, 65, 78, 81, 104, 108, 117, 121.5, 130, 135, 162, 216, 243, 270 Mbps

20 MHz: 2.4 GHz and 5 GHz bands 40 MHz: 5 GHz band only

Direct Sequence Spread Spectrum DBPSK, DQPSK, CCK, OFDM, BPSK, QPSK, 16-QAM, 64-QAM

Supports 64- and 128-bit WEP, WPA, WPA2, hardware-accelerated AES,

802.1x authentication types EAP-TLS, EAP-TTLS, PEAP-GTC, PEAPMSCHAPv2, LEAP, EAP-FAST.

http://www.hp.com/go/notebooks/WLAN/draft-n

)

Sub-channels

DA - 12717 Worldwide QuickSpecs — Version 14 — 9.26.2007

Multinational support with frequency bands and channels compliant to local regulations.

Page 31

Page 32

QuickSpecs

Technical Specifications

HP Compaq 2510p Notebook PC

Media Access Protocol Network Architecture

Models Roaming Output Power Output Power

power varies by data

rate) Power Consumption

Power Management

Receiver Sensitivity

Antenna type

Range

Form Factor Weight Dimensions Operating Voltage Temperature

Humidity

Altitude

(for CKK)217 dBm (for OFDM;

CSMA/CA (Collision Avoidance) with ACK Ad-hoc (Peer to Peer)

Infrastructure (Access Point Required) IEEE 802.11 compliant roaming between access points

15 dBm

Idle associated: 300 mW Idle unassociated: 150 mW Transmit/Receive 20 MHz channel: 2.6 W (max) Transmit/Receive 40 MHz channel: 3.3 W (max)

ACPI compliant power management

802.11 compliant power saving mode

270 Mbps: -66dBm, 162 Mbps: -72 dBm, 54 Mbps: -72 dBm, 11 Mbps:

-85 dBm , 1 Mbps: -94 dBm High efficiency dual band antenna with spatial diversity, mounted in the

display enclosure

802.11 a – Typical (@6 Mbps)

802.11 b – Typical (@1 Mbps)

802.11 g – Typical (@1 Mbps)

PCI-Express MiniCard

0.026 lb (12 g)

0.19 x 1.2 x 2.0 in (4.75 x 29.85 x 50.8 mm)

3.3v +/- 10% Operating

Non-operating Operating

Non-operating

600 feet – Outdoor Open Area 150 feet – Indoor, Office environment

1200 feet – Outdoor Open Area 300 feet – Indoor, Office environment

14° to 149° F (–10° to 65° C) –40° to 176° F (–40° to 80° C)

10% to 90% (non-condensing) 5% to 95% (non-condensing)

0 to 10,000 ft (3,048 m) 0 to 50,000 ft (15,240 m)

DA - 12717 Worldwide QuickSpecs — Version 14 — 9.26.2007

Page 32

Page 33

QuickSpecs

Technical Specifications

HP Compaq 2510p Notebook PC

HP Integrated Module with Bluetooth Wireless Technology

Configuration Utility

LED Activity

Check latest software/driver release for updates on supported security features.

1. Maximum output power may vary by country according to local regulations.

2. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation) and

3. a packet error rate of 10% for 802.11a/g (OFDM modulation). WLAN supplier's client utility is required for Cisco Compatible Extensions support with Microsoft

4. Windows 2000 or XP. WLAN may also be compatible with certain third-party software supplicants.

Bluetooth Specification Dimensions Frequency Band Number of Available

Channels Data Rates and

Throughput

Transmit Power Receiver Sensitivity Power Consumption

Antenna Range Electrical Interface

OS Support

Bluetooth Software Supported

Link Topology Security Power Management

Microsoft Windows 2000 or XP Choice of Configuration Utility:

Microsoft Windows XP Wireless Network Connection Manager Broadcom Wireless Configuration Utility (required for Cisco Compatible Extensions support)

Microsoft Windows Vista

Microsoft Windows Vista Wireless Network Connection Manager

LED Off – Radio OFF; Solid LED On – Radio ON

2.0 Compliant

1.02 x 0.55 x 0.22 in (26 x 14 x 5.7 mm) 2402 to 2480 MHz 79 (1 MHz) available channels

3 Mbps data rate; throughput up to 2.17 Mbps Synchronous Connection Oriented links up to 3, 64 kbps, voice channels Asynchronous Connection Less links 2178.1 kbps/177.1 kbps asymmetric

or 1306.9 kbps symmetric

-6 dBm to 4 dBm (Bluetooth Class II) Better than -80 dBM at 0.1 % raw bit error rate Peak (Tx) 264 mW Peak (Rx) 231 mW Sleep <1 mW Internally integrated within module Up 33 ft (10 m) USB 2.0 compliant Microsoft Windows Plug and Play compliant Genuine Windows Vista Genuine Windows XP Genuine Windows 2000 Broadcom Bluetooth for Windows Microsoft Windows XP Bluetooth Software Point to Point, Multipoint Pico Nets up to 7 slaves Full support of Bluetooth Security Provisions Microsoft Windows ACPI, and USB Bus Support Self configurable to optimize power conservation in all operating modes,

including Standby, Hold, Park, and Sniff

DA - 12717 Worldwide QuickSpecs — Version 14 — 9.26.2007

Page 33

Page 34

QuickSpecs

Technical Specifications

HP Compaq 2510p Notebook PC

Certifications

Temperature

Humidity

Altitude

Bluetooth Profiles Supported

indicates the profile is also supported by Microsoft Windows XP SP2

All necessary regulatory approvals for supported countries, including: FCC (47 CFR) Part 15C, Section 15.247 & 15.249 ETS 300 328, ETS 300 826 Low Voltage Directive IEC950 UL, CSA, and CE Mark Operating Non-operating Operating Non-operating Operating Non-operating (with Bluetooth for Windows 4.0 software) Serial Port Profile (SPP)* Dial-Up Networking (DUN)* Generic Object Exchange Profile (GOEP) Object Push Profile (OPP)* File Transfer Profile (FTP) Synchronization Profile (SYNC) Hard Copy Cable Replacement (HCRP)* Personal Area Networking Profile (PAN)* Human Interface Device Profile (HID)* FAX Profile (FAX) Basic Imaging Profile (BIP) Headset Profile (HSP) Hands Free Profile (HFP) Advanced Audio Distribution Profile (A2DP)

-4° to 158° F (-20° to 70° C)

-40° to 176° F (-40° to 80° C) 10% to 90% 5% to 95% 15,000 ft (4,572 m) 40,000 ft (12,192 m)

Environmental Data

Eco-Label Certifications

System Configuration

Energy Consumption Normal Operation Sleep (Energy Star low

power mode) Off Heat Dissipation*

DA - 12717 Worldwide QuickSpecs — Version 14 — 9.26.2007

This product has received or is in the process of being certified to the following approvals and may be labeled with one or more of these marks:

ENERGY STAR 4.0 US Federal Energy Management Program (FEMP) Taiwan Green Mark China Energy Conservation Program (CECP) ECO declaration Korean Eco Label EPEAT Silver Rating

The configuration used for the Energy Consumption and Declared Noise Emissions data is based on a “Typically Configured Notebook”

115 VAC 230 VAC 100 VAC

8.8 W 8.7 W 9.4 W

1.1 W

1 W

115 VAC 230 VAC 100 VAC

0.67 W

0.56 W

1 W

Page 34

Page 35

QuickSpecs

Technical Specifications

HP Compaq 2510p Notebook PC

Normal Operation Sleep Off

Declared Noise Emissions (in accordance with ISO 7779 and ISO 9296)

Idle Operating mode (HDD)

Batteries

30.025 BTU/hr 29.684 BTU/hr 32.072 BTU/hr

3.753 BTU/hr 2.286 BTU/hr 3.412 BTU/hr

3.412 BTU/hr

* Heat dissipation is calculated based on the measured watts, assuming the service level is attained for one hour.

This product is in compliance with US executive order 13221, WOL (wake on LAN) disabled.

Sound Power

(LWAd, bels)

2.43 17.8

2.96 22.4

This product complies with ISO standards:

EU Directive 91/ 157/ EEC EU Directive 93/ 86/ EEC EU Directive 98/ 101/ EEC

Batteries used in the product do not contain:

1.91 BTU/hr

3.412 BTU/hr

Sound Pressure

(LpAm, decibels)

Mercury greater the 5ppm by weight Cadmium greater than 10ppm by weight Lead greater than 4000 ppm by weight.

The battery type and chemistry used in the product is: CR2032 (coin cell), Lithium 3, 6, or 9 cell rechargeable Lithium-Ion battery

Additional information:

This product is in compliance with the EU Restrictions of Hazardous Substances (RoHS) Directive – 2002/95/EC.

This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE) Directive – 2002/96/EC.

Keyboard complies with ISO standard: ISO 9995, EN 29241-4, and ISO/IEC 15412

Input devices of this product comply with ISO 9241, part 9.

Plastics parts weighing over 25 grams used in the product are marked per ISO 11469 and ISO1043.

This product contains 0% recycled materials (by wt.)

This product is greater than 92% recyclable when properly disposed of at end of life.

Packaging Materials

External:

Corrugated / Paper – 1.0 lb (453 g)

Internal:

EPE Foam – 0.15 lb (70 g)

DA - 12717 Worldwide QuickSpecs — Version 14 — 9.26.2007

Page 35

Page 36

QuickSpecs

Technical Specifications

Material Usage

HP Compaq 2510p Notebook PC

LDPE Bag – 0.01 lb (5 g) The corrugated paper packaging materials contains at least 40% recycled content.

HP follows these guidelines to decrease the environmental impact of product packaging:

Eliminate the use of heavy metals such as lead, chromium, mercury and cadmium in packaging materials. Eliminate the use of ozone-depleting substances (ODS) in packaging materials. Design packaging materials for ease of disassembly. Maximize the use of post-consumer recycled content materials in packaging materials. Use readily recyclable packaging materials such as paper and corrugated materials. Reduce size and weight of packages to improve transportation fuel efficiency. Plastic packaging materials are marked according to ISO 11469 and DIN 6120 standards.

This product does not contain any of the following substances in excess of regulatory limits (for reference of these limits please refer to the HP General Specification of the Environment (

http://www.hp.com/hpinfo/globalcitizenship/

environment/supplychain/gen_specifications.html

Asbestos Certain Azo Colorants Certain Brominated Flame Retardants – may not be used as flame retardants in plastics Cadmium Chlorinated Hydrocarbons Chlorinated Paraffins Formaldehyde Halogenated Diphenyl Methanes Lead carbonates and sulfates Lead and Lead compounds Mercuric Oxide Batteries Nickel – finishes must not be used on the external surface designed to be frequently handled or carried by the user. Ozone Depleting Substances Polybrominated Biphenyls (PBBs) Polybrominated Biphenyl Ethers (PBBEs) Polybrominated Biphenyl Oxides (PBBOs) Polychlorinated Biphenyl (PCB) Polychlorinated Terphenyls (PCT) Polyvinyl Chloride (PVC) – except for wires and cables, and certain retail packaging has been voluntarily removed from most applications. Radioactive Substances Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide (TBTO)

End-of-life Management and Recycling

HP offers our customers several other options for handling their aging computers while also minimizing the impact on the environment—including product trade-in and leasing services-in addition to recycling services.

DA - 12717 Worldwide QuickSpecs — Version 14 — 9.26.2007

Page 36

Page 37

QuickSpecs

Technical Specifications

HP Compaq 2510p Notebook PC

Please go to: or contact your nearest HP sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner.

All rights reserved. Microsoft, Windows, Windows Vista and Windows XP are registered trademarks or trademarks of Microsoft Corporation in the U.S. and/or other countries. Core 2 Duo and Celeron are registered trademarks or trademarks of Intel Corporation in the U.S. and/or other countries. Bluetooth is a registered trademark of Bluetooth SIG, Inc., in the U.S. and other countries. All other product names mentioned herein may be trademarks of their respective companies.

Hewlett-Packard Corporate Environmental Information

For more information about HP's commitment to the environment: Global Citizenship Report

http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html

Environment website

http://www.hp.com/environment

Eco-label certifications

http://www.hp.com/hpinfo/globalcitizenship/ environment/productdesign/ecolabels.html

ISO 14001 certificates:

http://www.hp.com/hpinfo/globalcitizenship/ environment/operations/envmanagement.html

http://www.hp.com/recycle

The information contained herein is subject to change without notice and is provided "as is" without warranty of any kind. The warranties for HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

DA - 12717 Worldwide QuickSpecs — Version 14 — 9.26.2007

Page 37
