HP 2040, 2070N User Manual

Download

Brother Laser Printer

HL-2030 HL-2040

HL-2070N

User's Guide

For visually-impaired users

You can read this User’s Guide with Screen Reader ‘text-to-speech’ software.

You must set up the hardware and install the driver before you can use the printer. Please use the Quick Setup Guide to set up the printer. You can find a printed copy in the box. Please read this User’s Guide thoroughly before you use the printer. Keep the CD-ROM in a

convenient place so you can use it quickly if you need to. You can also read the User’s Guide with HTML format by visiting our web site at http://solutions.brother.com directly.

Please visit our web site at http://solutions.brother.com Asked Questions (FAQs), Product Support and Technical Questions, and the latest Driver Updates and Utilities.

where you can get answers to Frequently

or accessing it from the CD-ROM

Version 4

Laser printer

HL-2000 series

User's Guide

Safety precautions

We use the following icons throughout this User’s Guide:

Warnings tell you what to do to prevent possible personal injury.

Electrical Hazard icons alert you to a possible electrical shock.

Hot Surface icons warn you not to touch machine parts that are hot.

Cautions specify procedures you must follow or avoid to prevent possible damage to the printer or other objects.

Improper Setup icons alert you to devices and operations that are not compatible with the printer.

Notes tell you how you should respond to a situation that may arise or give tips about how the current operation works with other features.

To use the printer safely

There are high voltage electrodes inside the printer. Before you clean the inside of the printer, make sure you have turned off the power switch and unplugged the printer from the AC power outlet.

Do not handle the plug with wet hands. Doing this might cause an electrical shock.

After you have just used the printer, some internal parts of the printer are extremely hot. When you open the front or back cover of the printer, never touch the shaded parts shown in the illustration.

Inside the printer

(Front View)

Open the back cover

(Back View)

The fuser unit is marked a caution label. Please do not remove or damage the label.

Do not use a vacuum cleaner to clean up scattered toner. Doing this might cause the toner dust to ignite inside the vacuum cleaner, potentially starting a fire. Please carefully clean the toner dust with a dry, lint-free cloth and dispose of it according to local regulations.

DO not use flammable substances near the printer. Doing this might cause a fire or electrical shock.

CAUTION

Cleaning the outside of the printer:

■ Make sure you have turned off the power switch and unplugged the printer from the AC power outlet.

■ Use neutral detergents. Cleaning with volatile liquids such as thinner or benzine will damage the outside

surface of the printer.

■ Do not use cleaning materials that contain ammonia.

Trademarks

The Brother logo is a registered trademark of Brother Industries, Ltd. Apple, the Apple Logo, Macintosh and TrueType are registered trademarks of Apple Computer, Inc in the

United States and other countries. Epson is a registered trademark and FX-80 and FX-850 are trademarks of Seiko Epson Corporation. Hewlett Packard is a registered trademark and HP LaserJet 6P, 6L, 5P, 5L, 4, 4L 4P, III, IIIP, II, and IIP are

trademarks of Hewlett-Packard Company. IBM, IBM PC, and Proprinter are registered trademarks of International Business Machines Corporation. Microsoft, MS-DOS, Windows and Windows NT are registered trademarks of Microsoft Corporation in the

U.S. and other countries. Citrix and MetaFrame are registered trademarks of Citrix Systems, Inc. in the United State. All other terms and brand and product names mentioned in this User’s Guide are registered trademarks of

their respective companies.

Compilation and Publication Notice

Under the supervision of Brother Industries Ltd., this manual has been compiled and published, covering the latest product’s descriptions and specifications.

The contents of this manual and the specifications of this product are subject to change without notice. Brother reserves the right to make changes without notice in the specifications and materials contained

herein and shall not be responsible for any damages (including consequential) caused by reliance on the materials presented, including but not limited to typographical and other errors relating to the publication.

Shipment of the Printer

If for any reason you must ship your Printer, carefully package the Printer to avoid any damage during transit. We recommend that you save and use the original packaging. The Printer should also be adequately insured with the carrier.

III

Table of Contents

1 About this printer ......................................................................................................1-1

What is in the box? ............................................................................................................................ 1-1

Interface cable ............................................................................................................................. 1-1

Front view .................................................................................................................................... 1-2

Back view .................................................................................................................................... 1-2

Positioning the printer ........................................................................................................................ 1-3

Power supply ............................................................................................................................... 1-3

Environment ................................................................................................................................ 1-3

What kind of paper can I use?........................................................................................................... 1-4

Type and size of paper ................................................................................................................ 1-4

Recommended paper.................................................................................................................. 1-5

Printable area .............................................................................................................................. 1-6

Portrait..................................................................................................................................... 1-6

Landscape............................................................................................................................... 1-6

Printing methods................................................................................................................................ 1-7

Printing on plain paper, bond paper and transparencies............................................................. 1-7

Printing on plain paper, bond paper or transparencies from the paper tray ............................ 1-7

Printing on plain paper, bond paper or transparencies from the manual feed slot ................ 1-10

Printing on thick paper, labels and envelopes........................................................................... 1-13

Printing on thick paper, labels and envelopes from the manual feed slot ............................. 1-13

Types of envelopes to avoid.................................................................................................. 1-16

Duplex Printing ................................................................................................................................ 1-17

Guidelines for printing on both sides of the paper..................................................................... 1-17

Printing on both sides of the paper (manual duplex printing) .................................................... 1-17

Manual duplex printing from the paper tray ........................................................................... 1-17

Manual duplex printing from the manual feed slot................................................................. 1-18

Paper orientation for manual duplex printing......................................................................... 1-19

2 Driver and software ...................................................................................................2-1

Printer driver ...................................................................................................................................... 2-1

For Windows

Features in the printer driver ................................................................................................... 2-3

For Macintosh

Uninstalling the printer driver..................................................................................................... 2-14

Printer driver for Windows

Brother Laser driver for Macintosh

Software .......................................................................................................................................... 2-16

Software for Networks ............................................................................................................... 2-16

BRAdmin Professional........................................................................................................... 2-16

Driver Deployment Wizard..................................................................................................... 2-16

Network Print Software..........................................................................................................2-16

Web BRAdmin....................................................................................................................... 2-16

Automatic Emulation Selection.................................................................................................. 2-17

Remote Printer Console ............................................................................................................ 2-17

How to use and install the Remote Printer Console software ............................................... 2-17

.............................................................................................................................. 2-3

.......................................................................................................................... 2-12

................................................................................................... 2-14

...................................................................................... 2-15

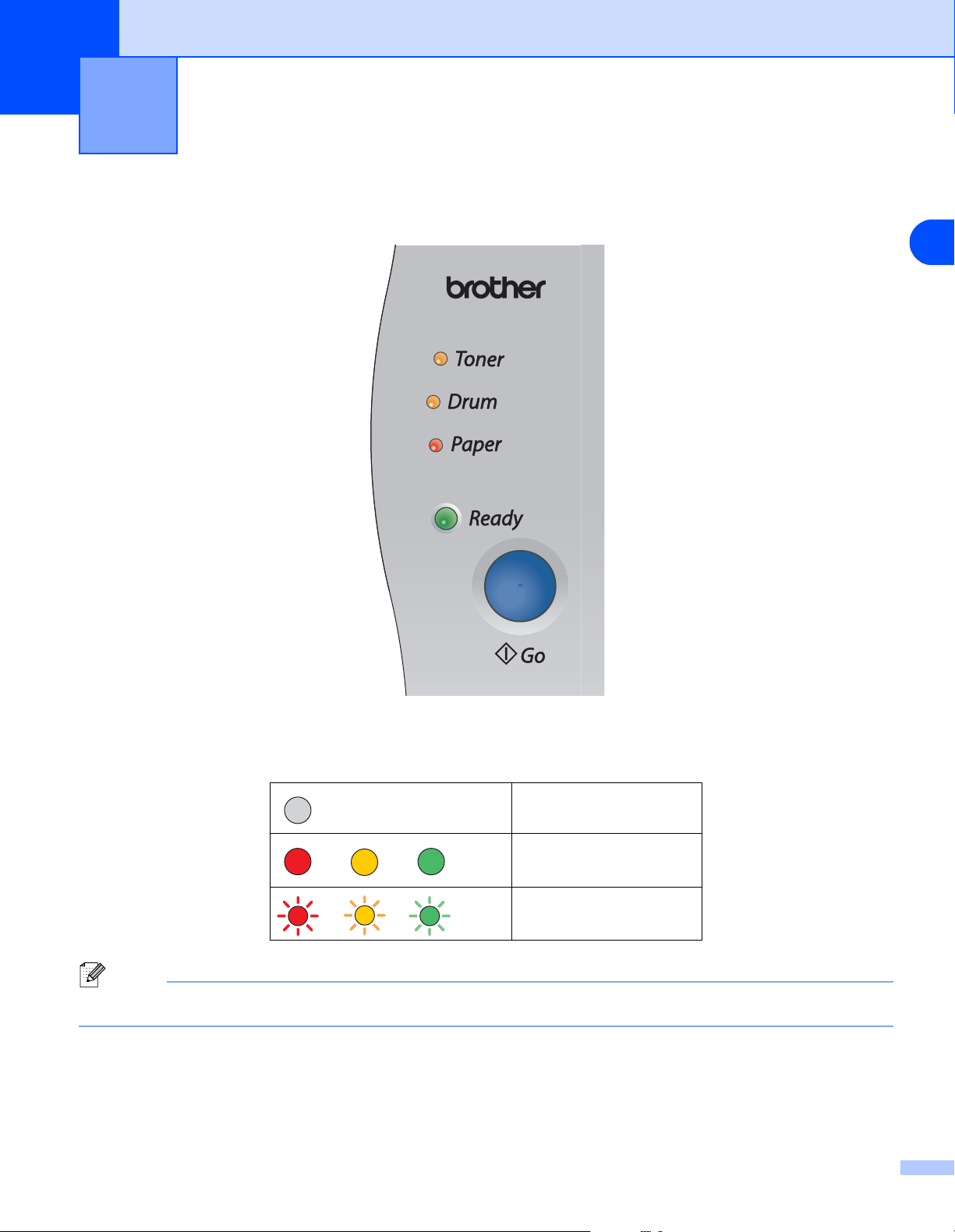

3 Control panel .............................................................................................................3-1

Service call indications ...................................................................................................................... 3-5

Control panel button (Go button) ....................................................................................................... 3-7

Print a test page .......................................................................................................................... 3-8

Using control panel button....................................................................................................... 3-8

Using the printer driver ............................................................................................................ 3-8

Print a Printer Settings page........................................................................................................ 3-9

Using the control panel button................................................................................................. 3-9

Using the printer driver ............................................................................................................ 3-9

Print Fonts (For HL-2070N)....................................................................................................... 3-10

Using the control panel button............................................................................................... 3-10

Using the printer driver .......................................................................................................... 3-10

Network factory default setting (For HL-2070N) ........................................................................ 3-11

Network factory default setting with APIPA protocol disabled (For HL-2070N)......................... 3-11

4 Options .......................................................................................................................4-1

Wireless print server (NC-2200w)...................................................................................................... 4-1

Print server (NC-2100p) (For HL-2040) ............................................................................................. 4-2

5 Routine maintenance ................................................................................................5-1

Replacing the consumable items....................................................................................................... 5-1

Toner cartridge ............................................................................................................................ 5-2

Toner Low message................................................................................................................ 5-2

Toner Life End message ......................................................................................................... 5-3

Replacing the toner cartridge .................................................................................................. 5-3

Drum unit ..................................................................................................................................... 5-7

Change Drum message........................................................................................................... 5-7

Replacing the drum unit........................................................................................................... 5-8

Cleaning .......................................................................................................................................... 5-11

Cleaning the outside of the printer.............................................................................................5-11

Cleaning the inside of the printer............................................................................................... 5-12

Cleaning the corona wire........................................................................................................... 5-14

6 Troubleshooting ........................................................................................................6-1

Identifying your problem .................................................................................................................... 6-1

Error messages in the Status Monitor ............................................................................................... 6-2

Error message printout ...................................................................................................................... 6-3

Paper handling .................................................................................................................................. 6-4

Paper jams and how to clear them .................................................................................................... 6-5

Other problems ................................................................................................................................ 6-10

For Macintosh

Improving the print quality ......................................................................................................... 6-10

Solving print problems ..................................................................................................................... 6-15

with USB .......................................................................................................... 6-10

A Appendix ................................................................................................................... A-1

Printer specifications..........................................................................................................................A-1

Symbol and character sets (For HL-2070N) ......................................................................................A-9

How to use the Web browser ......................................................................................................A-9

How to use the Remote Printer Console ..................................................................................... A-9

For Windows

For Macintosh

Symbol and character sets list.....................................................................................................A-9

OCR symbol sets..................................................................................................................... A-9

HP LaserJet mode.................................................................................................................A-10

IBM mode .............................................................................................................................. A-11

Epson mode ..........................................................................................................................A-11

..........................................................................................................................A-9

........................................................................................................................A-9

B Appendix (For Europe and Other Countries) .........................................................B-1

Brother Numbers ...............................................................................................................................B-1

Important information: Regulations.................................................................................................... B-2

Radio interference (220 to 240 volt model only)..........................................................................B-2

IEC 60825-1 specification (220 to 240 volt model only) ..............................................................B-3

IMPORTANT - For Your Safety .........................................................................................................B-4

C Appendix (For USA and Canada) ............................................................................C-1

Brother Numbers ...............................................................................................................................C-1

Register your product ..................................................................................................................C-1

Frequently asked questions (FAQs) ............................................................................................C-1

Customer Service ........................................................................................................................C-1

Service center locator (USA only) ...............................................................................................C-2

Service center locations (Canada only) .......................................................................................C-2

Brother fax back system (USA only)............................................................................................C-2

Important information: Regulations....................................................................................................C-3

Federal Communications Commission (FCC) Declaration of Conformity (For USA) ..................C-3

Industry Canada Compliance Statement (For Canada) ..............................................................C-3

Laser Notices.....................................................................................................................................C-4

Laser Safety (100 to 120 volt model only) ...................................................................................C-4

FDA Regulations (100 to 120 volt model only) ............................................................................C-4

IMPORTANT - For Your Safety .........................................................................................................C-5

I Index ............................................................................................................................I-1

About this printer

What is in the box?

When you unpack the printer, check that you have all of the following parts.

Printer

Drum unit and toner cartridge

assembly

Quick Setup Guide

CD-ROM

AC power cord

Parts may vary from one country to another.

Note

The AC power cord may be slightly different than the one in the illustration above, depending on which country you bought the printer in.

Interface cable

The interface cable is not a standard accessory. Please purchase the appropriate interface cable for the interface

you intend to use (USB, Parallel or Network).

■ USB cable

Do not use a USB interface cable that is longer than 6 feet (2.0 meters). Do not connect the USB cable to a non-powered hub or a Mac When you use a USB cable, make sure you connect it to the USB connector of your PC. USB is not supported under Windows

■ Parallel interface (For HL-2040 and HL-2070N)

Do not use a Parallel interface cable that is longer than 6 feet (2.0 meters). Use a shielded interface cable that is IEEE 1284-compliant.

■ Network cable (For HL-2070N)

Use a straight-through Category5 (or greater) twisted-pair cable for 10BASE-T or 100BASE-TX Fast Ethernet Network.

95 or Windows NT®4.0.

keyboard.

1 - 1

Front view

About this printer

Back view

Face-down Output Tray Support

Flap (Support Flap)

Control Panel

Manual Feed slot

Manual Feed Paper Guides

Paper Tray

Power Switch

Front Cover

Face-down Output Tray

Back Cover

AC Power Connector

10/100BASE-TX Port (HL-2070N)

Parallel Interface Connector

(HL-2040 and HL-2070N)

Side Cover

LED (Light-emitting Diode)

(HL-2070N)

USB Interface Connector

The printer illustration is based on HL-2070N.

1 - 2

Positioning the printer

Please read the following before you use the printer.

About this printer

Power supply

Use the printer within the recommended power range. Power source: USA and Canada: AC 110 to 120 V, 50/60 Hz

Europe and Australia: AC 220 to 240 V, 50/60 Hz

The power cord, including extensions, should not be longer than 5 meters (16.5 feet).

Do not share the same power circuit with other high-power appliances, such as an air conditioner, copier, shredder and so on. If you cannot avoid using the printer with these appliances, we recommend that you use a voltage transformer or a high-frequency noise filter.

Use a voltage regulator if the power source is not stable.

Environment

■ You should setup the printer near a power outlet that you can easily reach, so that it can be easily

unplugged from the power outlet if there is an emergency.

■ Only use the printer within the following ranges of temperature and humidity:

Temperature: 10 °C to 32.5 °C (50 °F to 90.5 °F) Humidity: 20% to 80% (without condensation)

■ You should use the printer in a well-ventilated room.

■ Put the printer on a flat, horizontal surface.

■ Keep the printer clean. Do not put the printer in a dusty place.

■ Do not put the printer where the ventilation hole of the printer is blocked. Keep a gap of approximately 100

mm (4 in.) between the ventilation hole and the wall.

■ Do not put the printer in direct sunlight. If you have to put it near a window, use a blind or a heavy curtain

to protect the printer from direct sunlight.

■ Do not put the printer near devices that contain magnets or generate magnetic fields.

■ Do not subject the printer to strong physical shocks or vibrations.

■ Do not expose the printer to open flames, salty or corrosive gasses.

■ Do not put objects on top of the printer.

■ Do not put the printer near an air conditioner.

■ Keep the printer horizontal when you carry it.

1 - 3

What kind of paper can I use?

Type and size of paper

About this printer

The printer loads paper from the installed paper tray, or the manual feed slot. The names for the paper trays in the printer driver and this guide are as follows:

Paper tray Tray 1

Manual feed slot Manual

While looking at this page on the CD-ROM, you can jump to the page for each printing method by clicking L in the table.

Media type Tray 1 Manual Select the Media type from the printer driver

Plain paper

60 g/m2 to 105 g/m2 (16 to 28 lb)

Recycled paper

Bond paper

Thick paper

105 g/m2 to 161 g/m2 (28 to 43 lb)

Transparency L

LLRecycled Paper

LLBond Paper

Up to 10 sheets

A4 or Letter

Labels L

A4 or Letter

Envelopes

Plain Paper

Thick Paper or Thicker Paper

Transparencies

Thicker Paper

Envelopes Env. Thin Env. Thick

Tray 1 Manual

Paper size A4, Letter, Legal*, B5(JIS), B5(ISO),

Executive, A5, A6, B6(ISO)

Number of sheets 250 sheets (80 g/m

or 21 lb) Single sheet

* Legal paper is not available in some regions.

Width: 69.9 to 215.9 mm (2.75 to 8.5 in.) Length: 116 to 406.4 mm (4.57 to 16 in.)

1 - 4

About this printer

Recommended paper

Europe USA

Plain paper Xerox Premier 80 g/m

Xerox Business 80 g/m2 Modo DATACOPY 80 g/m2 IGEPA X-Press 80 g/m

Recycled paper Xerox Recycled Supreme 80 g/m Transparency 3M CG3300 3M CG3300 Labels Avery laser label L7163 Avery laser label #5160

■ Before you buy a lot of paper, please test a small quantity to make sure that the paper is suitable.

■ Use paper that is made for plain-paper copying.

■ Use paper that is 75 to 90 g/m

(20 to 24 lb).

■ Use neutral paper. Do not use acidic or alkaline paper.

■ Use long-grain paper.

■ Use paper with a moisture content of approximately 5%.

■ This printer can use recycled paper that meets DIN 19309 specification.

Xerox 4200DP 20 lb Hammermill Laser Paper 24 lb

N/A

CAUTION

Do not use ink jet paper, because it might cause a paper jam or damage your printer.

Note

If you use paper other than the ones recommended, a paper jam or misfeeding may occur in the printer.

To help you choose which paper to use with this printer, see Important information for choosing your paper on page A-6.

1 - 5

Printable area

The edges of the paper that cannot be printed on are shown below.

Portrait

About this printer

A4 Letter Legal B5 (ISO) Executive A5 A6 B6

4.23 mm (0.16 in.)

6.01 mm (0.24 in.)

4.23 mm (0.16 in.)

6.01 mm (0.24 in.)

4.23 mm (0.16 in.)

6.35 mm (0.25 in.)

4.23 mm (0.16 in.)

6.35 mm (0.25 in.)

4.23 mm (0.16 in.)

6.35 mm (0.25 in.)

4.23 mm (0.16 in.)

6.35 mm (0.25 in.)

4.23 mm (0.16 in.)

6.01 mm (0.24 in.)

4.23 mm (0.16 in.)

6.01 mm (0.24 in.)

4.23 mm (0.16 in.)

6.35 mm (0.25 in.)

4.23 mm (0.16 in.)

6.35 mm (0.25 in.)

4.23 mm (0.16 in.)

6.01 mm (0.24 in.)

4.23 mm (0.16 in.)

6.01 mm (0.24 in.)

4.23 mm (0.16 in.)

6.01 mm (0.24 in.)

4.23 mm (0.16 in.)

6.01 mm (0.24 in.)

Landscape

4.23 mm (0.16 in.)

6.01 mm (0.24 in.)

4.23 mm (0.16 in.)

6.01 mm (0.24 in.)

A4 Letter Legal B5 (ISO) Executive A5 A6 B6

4.23 mm (0.16 in.)

5.0 mm (0.19 in.)

4.23 mm (0.16 in.)

5.0 mm (0.19 in.)

4.23 mm (0.16 in.)

5.08 mm (0.2 in.)

4.23 mm (0.16 in.)

5.08 mm (0.2 in.)

4.23 mm (0.16 in.)

5.08 mm (0.2 in.)

4.23 mm (0.16 in.)

5.08 mm (0.2 in.)

4.23 mm (0.16 in.)

5.0 mm (0.19 in.)

4.23 mm (0.16 in.)

5.0 mm (0.19 in.)

4.23 mm (0.16 in.)

5.08 mm (0.2 in.)

4.23 mm (0.16 in.)

5.08 mm (0.2 in.)

4.23 mm (0.16 in.)

5.0 mm (0.19 in.)

4.23 mm (0.16 in.)

5.0 mm (0.19 in.)

4.23 mm (0.16 in.)

5.0 mm (0.19 in.)

4.23 mm (0.16 in.)

5.0 mm (0.19 in.)

4.23 mm (0.16 in.)

5.0 mm (0.19 in.)

4.23 mm (0.16 in.)

5.0 mm (0.19 in.)

1 - 6

Printing methods

Printing on plain paper, bond paper and transparencies

About this printer

You can print on plain paper, bond paper or transparencies from the paper tray or manual feed slot. For the paper you want to use, see What kind of paper can I use? on page 1-4.

Printing on plain paper, bond paper or transparencies from the paper tray

Note

Do not put more than 10 transparencies in the paper tray, if you print on transparencies.

1 Select the Paper Size, Media Type, Paper Source and other settings in the printer driver.

Select Plain Paper, Bond Paper or Transparencies.

2 Pull the paper tray completely out of the printer.

Select Tray1.

1 - 7

3 While pressing the blue paper-guide release lever, slide

the paper guides to fit the paper size. Check that the guides are firmly in the slots.

4 Put paper in the tray.

About this printer

5 Check that the paper is below the maximum paper mark

(▼).

Note

• Paper jams may occur if you put more than 250 sheets (80 g/m tray at any one time.

• Paper jams may occur if you put more than 10 transparencies in the paper tray at any one time.

• When you use pre-printed paper, put the side that is going to be printed on (blank side) face down, with the top of the paper at the front of the tray.

or 21 lb) of plain or bond paper in the paper

6 Put the paper tray firmly back in the printer. Check that it is completely in the printer.

1 - 8

7 Lift up the support flap to prevent paper from sliding off

the face-down output tray.

Note

If you choose not to lift up the output tray support flap, we recommend that you remove printed pages immediately after they come out of the printer.

8 Send the print data to the printer.

Note

If you print on transparencies, remove each transparency immediately. Stacking the printed transparencies may cause a paper jam or the transparency to curl.

About this printer

1 - 9

About this printer

Printing on plain paper, bond paper or transparencies from the manual feed slot

Note

The printer automatically turns on the Manual Feed mode when you put paper in the manual feed slot.

1 Select the Paper Size, Media Type, Paper Source and other settings in the printer driver.

Select Plain Paper, Bond Paper or Transparencies.

2 Send the print data to the printer.

Note

A No paper fed manual feed slot status is shown by the control panel LEDs until you put a sheet of paper or a transparency in the manual feed slot.

Select Manual.

1 - 10

3 Lift up the support flap to prevent paper from sliding off

the face-down output tray.

Note

If you choose not to lift up the output tray support flap, we recommend that you remove printed pages as soon as they come out of the printer.

4 Using both hands, slide the manual feed slot paper

guides to the width of the paper that you are going to use.

About this printer

5 Using both hands, put one piece of paper or one

envelope in the manual feed slot until the front edge of the paper or envelope touches the paper feed roller. When you feel the machine pull in the paper, let go.

Note

• Put the paper into the manual feed slot with the side to be printed face up.

• Make sure that the paper or transparency is straight and in the proper position on the manual feed slot. If it is not, the paper or the transparency may not be fed properly, resulting in a skewed printout or a paper jam.

• Do not put more than one piece of paper in the manual feed slot at any one time, as it may cause a jam.

• If you put any Media (paper, transparency and so on) in the manual feed slot before the printer is in the Ready state, the media may be ejected without being printed on.

1 - 11

About this printer

6 After the printed page comes out of the printer, put in the next sheet of paper or the transparency as in

Step 5 above. Repeat for each page that you want to print.

Note

If you print on transparencies, remove each transparency immediately after printing. Stacking the printed transparencies may cause a paper jam or the transparency to curl.

1 - 12

About this printer

Printing on thick paper, labels and envelopes

Note

The printer automatically turns on the Manual Feed mode when you put paper in the manual feed slot.

When you select the paper you want to use, see What kind of paper can I use? on page 1-4. If you print on envelopes, see Types of envelopes to avoid on page 1-16.

Printing on thick paper, labels and envelopes from the manual feed slot

1 Select the Paper Size, Media Type, Paper Source and other settings in the printer driver.

Select Thick paper, Thicker paper, or Envelopes.

Select Manual.

Note

For envelope users

• When you use Envelope #10, select Com-10 from Paper Size in the printer driver.

• For other envelopes which are not in the selection of the printer driver, such as Envelope #9 or Envelope C6, use User Defined... Size. For more information on the envelope size, see Paper size on page A-8.

1 - 13

2 Send the print data to the printer.

Note

A No paper fed manual feed slot status is shown by the control panel LEDs until you put a sheet of paper or an envelope in the manual feed slot.

3 Lift up the support flap to prevent paper from sliding off

the face-down output tray.

Note

If you choose not to lift up the output tray support flap, we recommend that you remove printed pages as soon as they come out of the printer.

About this printer

4 Using both hands, slide the manual feed slot paper

guides to the width of the paper that you are going to use.

1 - 14

About this printer

5 Using both hands, put one piece of paper or one

envelope in the manual feed slot until the front edge of the paper or envelope touches the paper feed roller. When you feel the machine pull in the paper, let go.

Note

• Put the paper into the manual feed slot with the side to be printed face up.

• Make sure that the paper or the envelope is straight and in the proper position in the manual feed slot. If it is not, the paper or envelope may not be fed properly, resulting in a skewed printout or a paper jam.

• Do not put more than one piece of paper or one envelope in the manual feed slot at any one time, as it may cause a jam.

• If you put any Media (paper, envelope and so on) in the manual feed slot before the printer is in the Ready state, the media may be ejected without being printed on.

6 After the printed page comes out of the printer, put in the next sheet of paper or the envelope as in Step

5 above. Repeat for each page that you want to print.

Note

• Envelope joints that are sealed by the manufacturer should be secure.

• All sides of the envelope should be properly folded without wrinkles or creases.

• Remove each sheet or envelope immediately after printing. Stacking the sheets or envelopes may cause the paper to jam or curl.

1 - 15

Types of envelopes to avoid

Do not use envelopes:

■ that are damaged, curled, wrinkled, or unusual shape

■ that are extremely shiny or textured

■ with clasps, snaps or tie strings

■ with self-adhesive closures

■ that are of a baggy construction

■ that are not sharply creased

■ that are embossed (have raised writing on them)

■ that were previously printed by a laser printer

■ that are pre-printed on the inside

■ that cannot be arranged when put in a pile

■ that are made of paper that weighs more than the paper weight specifications for the printer

■ that have been badly made, with edges that are not straight or consistently square

■ with windows, holes, cutouts or perforations

About this printer

IF YOU USE ANY OF THE TYPES OF ENVELOPES LISTED ABOVE, THEY MAY DAMAGE YOUR PRINTER. THIS DAMAGE IS NOT COVERED UNDER ANY BROTHER WARRANTY OR SERVICE AGREEMENT.

Note

• Do not put different types of paper in the paper tray at the same time because it may cause paper jams or misfeeds.

• Do not print envelopes using duplex printing.

• For proper printing, you must choose the same paper size from your software application as the paper in the tray.

•See What kind of paper can I use? on page 1-4.

Most envelopes will be suitable for your printer. However, some envelopes will have feed and print-quality problems because of the way they have been made. A suitable envelope should have edges with straight, well-creased folds and the leading edge should not be thicker than two pieces of paper. The envelope should lie flat and not be of baggy or flimsy construction. You should buy quality envelopes from a supplier who understands that you will be using the envelopes in a laser printer. Before you print a lot of envelopes, test one to make sure that the print results are what you want.

Note

Brother will not recommend a particular envelope because envelope manufacturers may change the envelope specifications. You are responsible for the quality and performance of the envelopes you use.

1 - 16

About this printer

Duplex Printing

The supplied printer drivers for Windows® 95/98/Me, Windows NT® 4.0 and Windows® 2000/XP all allow manual duplex printing. For more information about how to choose the settings, see the Help text in the printer driver.

Guidelines for printing on both sides of the paper

■ If the paper is thin, it may wrinkle.

■ If paper is curled, straighten it and then put it back in the paper tray or the manual feed slot.

■ If the paper is not feeding properly, it may be curled. Remove the paper and straighten it.

■ When you use the manual duplex function, it is possible that there may be paper jams or poor print quality.

If there is a paper jam, see Paper jams and how to clear them on page 6-5.

Printing on both sides of the paper (manual duplex printing)

Note

You should use plain paper and recycled paper. Do not use bond paper.

Manual duplex printing from the paper tray

1 From the Advanced tab choose the Manual Duplex printing mode, and from the Basic tab choose the

Paper Source to be Auto Select or Tray1.

2 The printer will automatically print all the even-numbered pages on one side of the paper first. 3 Remove the printed even-numbered pages from the output tray and put them back in the paper tray,

placing the paper with the side that is going to be printed on (blank side) face down. Follow the instructions on the computer screen.

1 - 17

About this printer

4 The printer will now automatically print all the odd-numbered pages on the other side of the paper.

Note

When you put paper in the paper tray, first empty the tray then put the printed pages in the tray, with the printed side face up. (Do not add the printed pages to the top of a stack of unprinted paper.)

Manual duplex printing from the manual feed slot

Note

You should not use very thin or very thick paper.

1 From the Advanced tab choose the Manual Duplex printing mode, and from the Basic tab choose the

Paper Source to be Manual feed.

2 Using both hands put the paper in the manual feed slot with the side that is going to be printed on first

facing up. Follow the instructions on the computer screen. Repeat this step until you have printed all the even-numbered pages.

3 Remove the printed even-numbered pages from the output tray and put them back into the manual feed

slot in the same order one by one. Place the paper with the side that is going to be printed on (the blank side) face up. Follow the instructions on the computer screen.

4 Repeat Step 3 until you have printed all the odd-numbered pages on the other side of the paper.

1 - 18

About this printer

Paper orientation for manual duplex printing

The printer prints the second page first. If you print 10 pages on 5 sheets of paper, it will print page 2 then page 1 on the first sheet of paper. It will print page 4 then page 3 on the second sheet of paper. It will print page 6 then page 5 on the third sheet of paper, and so on.

When doing manual duplex printing, the paper must be put in the paper tray in the following way:

■ For the manual feed slot:

Put the side to be printed on first, face-up, with the leading edge (top) of the paper in first. To print the second side, put the paper face down, with the leading edge (top) of the paper in first. If letterhead paper is used, this would be put in with the heading face down, and in first. To print the second side, put the heading face up and in first.

■ For the paper tray:

Put the side to be printed on first, face down, with the leading edge (top) of the paper at the front of the tray.

To print the second side, put the paper face up, with the leading edge (top) of the paper at the front of the tray.

If letterhead paper is used, this would be put in the paper tray with the heading face up, and at the front of the tray.

To print the second page, put the heading face down and at the front of the tray.

1 - 19

Driver and software

Printer driver

A printer driver is software that translates data from the format used by a computer to the format that a particular printer needs. Typically, this format is a printer command language or page description language.

The printer drivers for the following version of Windows

and Macintosh® are on the CD-ROM that we have supplied. You can also download the latest printer driver for all of the following operating systems from the Brother Solutions Center at http://solutions.brother.com

The installation instructions for installing the printer driver for Windows® and Macintosh® are in the Quick Setup Guide.

If you want to uninstall the printer driver, see Uninstalling the printer driver on page 2-14.

For Windows® 95/98/Me, Windows NT® 4.0 and Windows® 2000/XP

• Windows printer driver (Hewlett-Packard LaserJet laser printer compatible driver) (For HL-2070N)

• Brother GDI printer driver for Windows

• Generic PCL Driver (For users of Citrix Windows NT 4.0 PCL Driver. This driver only supports basic printing functions.) (For HL-2070N: For Windows Windows

For Macintosh

• Brother Laser driver for Macintosh

and Windows® 2000/XP network shared environments, we recommend the use of our Generic

2000/XP.)

(For HL-2030 and HL-2040)

MetaFrame®, Windows® Terminal Server environments and other

NT®

4.0 and

For Linux

• GDI printer driver

Note

For more infomation about Generic PCL Driver and Linux printer driver, please visit our web site at http://solutions.brother.com

Windows

Windows NT® 4.0 L

Windows® 98/Me

Windows® 2000 Windows® XP

Mac OS® 9.1 to 9.2 Mac OS® X 10.2.4 or greater

Linux (Mandrake 9.1, Red Hat 9.0, SuSE Linux 8.2, Debian 3.0r1)

Windows printer

driver

(For HL-2070N)

GDI driver

(For HL-2040)

(For HL-2030 and HL-2040)

Generic PCL

Driver

(For HL-2070N)

Brother Laser

driver

2 - 1

You can change the following printer settings when you print from your computer.

■ Paper Size

■ Multiple Page

■ Orientation

■ Copies

■ Media Type

■ Paper Source

■ Resolution

■ Toner Save Mode

■ Manual Duplex printing

■ Watermark

■ Job Spooling

■ Quick Print Setup

■ Sleep Time

■ Status Monitor

■ Macro

■ Administrator

*1*3

*1*2

■ Insert Command/File

■ Page Protection

■ Print Date & Time

■ Density adjustment

■ True Type Mode

*1*3

■ Error Message Printout

*1*2*3

Driver and software

These settings are not available with Brother Laser driver for Macintosh®.

These settings are not available with Windows NT® 4.0 and Windows® 2000/XP.

These settings are not available for HL-2030 and HL-2040.

2 - 2

For Windows®

Features in the printer driver

Driver and software

You can download the latest printer driver or get other information by accessing the Brother Solutions Center at http://solutions.brother.com

You can also change settings by clicking the illustration on the left side of the Basic tab in the Properties dialog box.

For more information, please see the Help text in the printer driver.

Note

The screens in this section are from Windows® XP. The screens on your PC will vary depending on your Operating System.

Basic tab

Note

If you are using Windows® 2000 or XP, you can access the Basic tab by clicking Printing Preferences... in the General tab of the Printer Properties screen.

If you are using Windows NT menu of the Printers folder.

4.0, you can access the Basic tab by clicking Document Defaults... in the file

Select the Paper Size, Multiple Page, Orientation and other settings.

Select the Paper Source and other settings.

2 - 3

Driver and software

Advanced tab

Note

If you are using Windows® 2000 or XP, you can access the Advanced tab by clicking Printing Preferences... in the General tab of the Printer Properties screen.

If you are using Windows NT file menu of the Printers and Faxes folder.

4.0, you can access the Advanced tab by clicking Document Defaults in the

12 34 5

Change the tab settings by clicking the following icons:

Print Quality

Duplex Printing

Watermark

Page Setting

Device Options

Print Quality

Select the resolution, toner save mode and print settings or gray printing setting.

Resolution

You can change the resolution as follows:

• HQ 1200

• 600 dpi

• 300 dpi

2 - 4

Driver and software

Toner Save Mode

You can save running costs by turning on the toner save mode, which reduces the print density.

Print Setting

You can manually change the Print setting.

•Auto

Selecting the Auto button will allow automatic printing with the most suitable print settings for your print job.

• Manual

You can change the settings manually by selecting the Manual button and clicking the Setting... button.

For Windows For Windows NT

95/98/Me users: brightness, contrast and other settings.

4.0, Windows® 2000/XP users: Printer Halftone, System Halftone, Improve gray

printing.

Duplex Printing

• Manual Duplex

If you select Manual Duplex, the dialog box for the manual duplex settings will appear. There are six types of manual duplex binding directions available for each orientation.

• Binding Offset

If you check the Binding Offset option, you can also specify the offset for binding in inches or millimeters.

Watermark

You can put a watermarked logo or text into your documents. When you use a bitmap file as a watermark, you can change the size of the watermark and put it anywhere

you like on the page. When you use text as a watermark, you can change the font, darkness and angle settings.

Page Setting You can change the print image scaling and select Mirror / Reverse print options.

2 - 5

Device Options

Driver and software

You can set the following Printer Function modes in this tab: (You can jump to the page for each Printer Function by clicking the function name in the list below.)

• Job Spooling

• Quick Print Setup

• Sleep Time

• Status Monitor

• Macro (For HL-2070N)

• Administrator (For Windows

• Insert Command/File (For HL-2070N: For Windows

95/98/Me users only)

• Page Protection

• Print Date & Time

• Density adjustment

• Error Message Printout

Note

The Printer Function list may differ depending on the model.

2 - 6

Driver and software

Job Spooling

The printer saves data that you want to reprint. You can reprint a document without sending the data again from your PC. To reprint press and hold down the

Go button for about 4 seconds until all the LEDs light up in order (Toner, Drum, Paper, Ready).

Note

• Reprint function is not available for multiple copies.

• If you want to prevent other people from printing your data using the Reprint function, clear the Use

Reprint check box in the job spooling settings.

Quick Print Setup

You can turn the Quick Print Setup function ON or OFF. A small selection window appears on your computer. This will then let you make changes to the settings of the following functions:

• Multiple Page

• Manual Duplex Printing

• Toner Save Mode

• Paper Source

• Media Type

Sleep Time

When the printer does not receive data for a certain period of time (timeout), it enters sleep mode. Sleep mode acts as though the printer was turned off. The default time-out is 5 minutes. When Intelligent Sleep Mode is selected, it is automatically adjusted to the most suitable time-out setting depending on how often you use your printer. While the printer is in sleep mode, all the LEDs are off, but the printer can still receive data from the computer. Receiving a print file or document automatically wakes up the printer to start printing. Pressing the Go button will also wake up the printer.

Sleep mode can be turned off. To turn sleep mode off, go to the Advanced tab, select Device Options and then select Sleep Time. Double click the word Sleep Time in the Sleep Time screen, this will allow the Sleep

Time Off function to appear, click Sleep Time Off to stop the printer from going into sleep mode. The Sleep Time Off function can be hidden by double clicking the word Sleep Time in the Sleep Time screen again.

We recommend that you keep Sleep mode on for power saving.

Status Monitor

This reports the printer status (any errors that may happen with the printer) when printing. The default setting for the Status Monitor is off. If you would like to turn the status monitor on, go to the Advanced tab, select

Device options and then select Status monitor.

2 - 7

Driver and software

Macro (For HL-2070N)

You can save a page of a document as a macro to the printer memory. Moreover, you can execute the saved macro - in other words, you can use the saved macro as an overlay on any document. This will save time and increase printing speed for often used information such as forms, company logos, letterhead formats or invoices.

Administrator (For Windows

95/98/Me users only)

Administrators have the authority to limit the Number of copies, Scaling setting and Watermark setting functions.

• Password Enter the password into this box.

• Set Password Click here to change the password.

• COPY LOCK Lock the copy pages selection to prevent multiple copy printing.

• WATERMARK LOCK Lock the current settings of the Watermark option to prevent changes being made.

• SCALING LOCK Lock the scaling setting as shown below. 1 in 1 100%

Insert Command/File (For HL-2070N: For Windows

95/98/Me users only)

This option allows data to be inserted into a print job. Using this function allows you to do the following.

• Insert a print file or tiff format file into a print job.

• Insert a text string into a print job.

• Insert a macro, which is saved in printer memory, into a print job.

Page Protection

Page Protection refers to a setting that reserves additional memory for the creation of full page images. Selections are AUTO, OFF and Printer Default. The page protection feature allows the printer to create the full page image to be printed in memory before

physically moving the paper through the printer. When the image is very complicated and the printer has to wait to process the image before printing, use this function.

Print Date & Time

Date: Specifies the format of the date. Time: Specifies the format of the time.

2 - 8

Density adjustment

Increase or decrease the print density.

Driver and software

Error Message Printout

You can choose whether the printer reports problem by printing error page or not. About the errors, see Error message printout on page 6-3.

Selections are Printer Default (ON), ON and OFF.

2 - 9

Tray Settings tab

Driver and software

Paper Source Setting

This feature recognizes the paper size in each paper tray.

2 - 10

Driver and software

Support tab

Note

If you are using Windows® 2000 or XP, you can access the Support tab by clicking Printing Preferences... in the General tab of the Printer Properties screen.

If you are using Windows NT file menu of the Printers folder.

■ You can download the latest driver or get other product information by accessing the Brother Solutions

Center at http://solutions.brother.com

■ You can see the printer driver version.

■ You can check the current driver settings.

■ You can print the printer settings page and the internal fonts list. (The internal fonts list is available for

HL-2070N only.)

4.0, you can access the Support tab by clicking Document Defaults... in the

2 - 11

For Macintosh®

This printer supports Mac OS® 9.1 to 9.2 and Mac OS® X 10.2.4 or greater. You can download the latest printer driver by accessing the Brother Solutions Center at

http://solutions.brother.com

Note

The screens in this section are from Mac OS® X 10.3.

The screens on your Macintosh

Page setup

You can set the Paper size, Orientation and Scale.

will vary depending on your Operating System.

Driver and software

Layout Set the Pages per Sheet, Layout direction and Border.

Pages per sheet: Select how many pages will appear on each side of the paper. Layout direction: When you specify the Pages per sheet, you can also specify the direction of the layout. Border: If you want to add a border, use this function.

2 - 12

Print settings

Set the Resolution, Media Type, Toner Save and other settings.

You can change settings by selecting the setting in the Printer Settings list:

■ Quality

■ Media Type

■ Toner Save Mode

Driver and software

Quality

You can change the resolution as follows:

• 300 dpi

• 600 dpi

• HQ 1200

Media Type

You can change the media type as follows:

• Plain Paper

• Recycled Paper

• Thick Paper

• Transparencies

• Thicker Paper

• Thin Paper

• Bond Paper

• Envelopes

• Env.Thin

• Env.Thick

Toner Save Mode You can save running costs by turning on the Toner Save setting, which reduces the print density.

2 - 13

Uninstalling the printer driver

You can uninstall the printer driver that you installed with the following steps.

Driver and software

Note

• This instruction is not available if you installed the printer driver from Windows Add Printer function.

• After uninstalling, we recommend that you restart your PC to remove files that were in use during uninstall.

Printer driver for Windows

For Windows® 95/98/Me, Windows NT® 4.0 and Windows® 2000

1 Click Start and select your appropriate printer from Programs. 2 Select UnInstall. 3 Follow the instructions on the screen.

For Windows® XP

1 Click Start and select your appropriate printer from ALL Programs. 2 Select UnInstall.

3 Follow the instructions on the screen.

2 - 14

Driver and software

Brother Laser driver for Macintosh

For Mac OS® 9.1 to 9.2

1 Open the Extensions folder located in the System Folder on the Macintosh HD. 2 Drag all these following files in the Extensions folder to the trash.

• BR_PrintMonitor(laser)

• Brother Laser

• Brother Laser(IP)

Note

There may be several of the USB Print Driver(BRXXX)* and BR_PrintMonitor(BXX)* extensions with different endings.

*The 'x' refers to the model of your machine.

3 Restart the Macintosh

4 Once the computer has restarted you can then dump the trash.

For Mac OS® X 10.2.4 or greater

1 Disconnect the USB cable between the Macintosh and your printer. 2 Restart the Mac. 3 Log on as an "Administrator". 4 Run the Print Center (from the Go menu > Applications > Utilities > Print Center folder), then choose

the printer you want to remove and remove it by clicking the Delete button.

5 Click on the name of your printer in the printer list. From the Finder menu, delete the Printer. 6 Drag the HL-MFLPro folder (from the Mac OS X 10.X > Library > Printers > Brother) into the Trash

bin and then empty the trash bin.

7 Restart the Macintosh

2 - 15

Software

Note

This section is for Windows®.

Software for Networks

Note

This section is for HL-2070N.

BRAdmin Professional

Driver and software

The BRAdmin Professional software is a utility for managing your Brother network enabled printers that are running under Windows

95/98/Me, Windows NT® 4.0 and Windows® 2000/XP.

It allows you to easily configure and check the status of your printer on the network.

Driver Deployment Wizard

This installer includes the Windows® printer driver and Brother network port driver (LPR and NetBIOS). If the administrator installs the printer driver and port driver using this software, the administrator can save

the file to the file server or send the file by E-mail to users. Then, each user just clicks that file to have the printer driver, port driver, IP address, and so on, automatically copied to their PC.

Network Print Software

This installer includes the port monitors (Peer-to-Peer Printing software).

They allow you to print through the Network (LAN) under Windows

Web BRAdmin

The Web BRAdmin software is designed to manage all LAN/WAN Brother network connected devices. By installing the Web BRAdmin server software on a computer running IIS*, Administrators with a Web browser can connect to the Web BRAdmin server, which then communicates with the device itself. Unlike the BRAdmin Professional software - which is designed for Windows software can be accessed from any client computer with a web browser that supports Java 2.

You can download the Web BRAdmin software from our web site at http://solutions.brother.com/

systems only - the Web BRAdmin server

IIS* = Internet Information Server 4.0 or 5.0 Web BRAdmin and Internet Information Server 4.0 is supported on the following operating systems:

■ Windows NT

4.0 Server

Web BRAdmin and Internet Information Server 5.0 is supported on the following operating systems:

■ Windows

2000 Server

2000 Advanced Server

XP Professional

2000 Professional

2 - 16

Driver and software

Automatic Emulation Selection

Note

This section is for HL-2070N.

This printer has an Automatic Emulation Selection feature. When the printer receives data from the computer, it automatically chooses the emulation mode. This feature has been set at the factory to ON.

You can change the setting using Remote Printer Console or Web browser.

Note

For more information about Remote Printer Console, see the following section.

The printer can choose from the following combinations:

Setting 1 (default) Setting 2

HP LaserJet HP LaserJet EPSON FX-850 IBM ProPrinter XL

Remote Printer Console

Remote Printer Console is software to change many of the printer settings independently of your software application. For example, you can change the settings for printer margin, sleep mode, character set and so on. These settings are then remembered and used by the printer.

How to use and install the Remote Printer Console software

To use the Remote Printer Console software, follow the steps below.

For Windows

Insert the CD-ROM into your CD-ROM drive and close the opening screen when it appears.

Open Windows® Explore and select the CD-ROM drive.

Double-click the RPC folder.

Refer to the RPC_User’s_Guide.pdf for how to install and use the Remote Printer Console.

For Macintosh

Insert the CD-ROM into your CD-ROM drive. Double-click the HL2000 icon on the desktop.

Double-click the RPC folder.

Refer to the RPC_User’s_Guide.pdf for how to install and use the Remote Printer Console.

2 - 17

This section refers to the four Light Emitting Diodes (LEDs) (Toner, Drum, Paper, Ready) and a control panel button (Go) on the control panel.

Control panel

The LED indications shown in the table below are used in the illustrations in this chapter.

LED is off

or or

Note

When the power switch is off or the printer is in Sleep mode, all the LEDs are off.

LED is on

LED is blinking

3 - 1

LED Printer status

Sleep mode

The power switch is off or the printer is in Sleep mode. Pressing the Go button wakes up the printer from Sleep mode to Ready mode.

Ready to print

The printer is ready to print.

Control panel

Warming up

The printer is warming up.

Receiving data

The printer is either receiving data from the computer, processing data in memory or printing the data.

Data remaining in memory

Print data is left in the printer memory. If the Ready LED blinks for a long time and nothing has printed, press the Go button to print the data that is still in memory.

Toner low

Indicates that the toner cartridge is nearly empty. Purchase a new toner cartridge and have it ready for when Toner Life End is indicated.

The Toner LED alternates turning on for 2 seconds and off for 3 seconds.

3 - 2

LED Printer status

Toner life end

Replace the toner cartridge with a new one. See Replacing the toner cartridge on page 5-3.

Cartridge position error

The toner cartridge is not installed correctly. Take out the toner cartridge and put it back into the printer again.

Drum life end soon

The drum unit is near the end of its life. We recommend that you get a new drum unit to replace the current one. See Replacing the drum unit on page 5-8.

The Drum LED alternates turning on for 2 seconds and off for 3 seconds.

Control panel

No paper fed tray 1

Put paper in the tray. See Printing on plain paper, bond paper or transparencies from the paper tray on page 1-7. Then press the Go button.

3 - 3

LED Printer status

Front cover is open

Close the front cover of the printer.

Back cover is open

Close the back cover of the printer.

Paper jam

Clear the paper jam. See Paper jams and how to clear them on page 6-5. If the printer does not start printing, press the Go button.

No paper fed manual feed slot

Put the paper in the manual feed slot. See Printing on plain paper, bond paper or transparencies from the manual feed slot on page 1-10 or Printing on thick paper, labels and envelopes from the manual feed slot on page 1-13.

Memory full

The printer memory is full and the printer cannot print full pages of a document. See Solving print problems on page 6-15.

Print overrun

A print overrun occurred and the printer cannot print full pages of a document. See Solving print problems on page 6-15.

Drum Error

The corona wire needs to be cleaned. See Cleaning the corona wire on page 5-14.

Control panel

3 - 4

Control panel

Service call indications

If there is an error that cannot be cleared by the user, the printer will show that a service call is needed by lighting up all the LEDs as shown below.

If you see the service call indication above, turn off the power switch, wait a few seconds, and then turn it back on and try to print again.

If you cannot clear the error and see the same service call indication after turning the printer back on, call your dealer or a Brother authorized service representative.

When you press the Go button, the LEDs will light up as shown in Table 1. See Table 1: LED indications while pressing Go button on page 3-6 to identify the error.

For example, the LED indication below shows a fuser unit failure.

3 - 5

Table 1: LED indications while pressing Go button

Control panel

LEDs

Toner

Drum

Paper

Ready

fuser unit

failure*

Laser unit

failure

Main motor

failure

Main PCB

failure

Make a note of the indication and report the error status to your dealer or a Brother authorized service representative by referring to the above table.

Note

Make sure that the front cover is fully closed before you report a service call.

If this error occurs, turn the power switch off, wait a few seconds, and then turn it on again. Leave the printer for 10 minutes with the power on. If the error occurs again, consult your dealer or Brother authorized service representative.

3 - 6

Control panel button (Go button)

The control panel button has the following functions:

Control panel

Wake-up If the printer is in Sleep mode, press the Go button to wake the printer up and go to the Ready state.

Error recovery

If there is an error, the printer will recover automatically from some errors. If an error is not automatically cleared, press the Go button to clear the error, and then continue to use the printer.

Form feed

If the green Ready LED blinks for a long time, press the Go button. The printer will print any data that is left in the printer memory.

Cancel printing

While printing press the Go button for about 4 seconds until all the LEDs light up. The Ready and Paper LEDs will flash as the job is being cancelled.

Reprint To reprint the last document, press the Go button for about 4 seconds until all the LEDs light up.

3 - 7

Print a test page

You can use the Go button or the printer driver to print a test page.

Control panel

Using control panel button

1 Turn off the printer. 2 Make sure that the front cover is closed and the power cord is plugged in. 3 Hold down the Go button as you turn on the power switch. Keep the Go button pressed down until the

Toner, Drum and Paper LEDs light up. Release the Go button. Make sure that the Toner, Drum and Paper LEDs are off.

4 Press the Go button again. The printer will print a test page.

Using the printer driver

If you are using Brother’s Windows® printer driver, click the Print Test Page button. It is in the General tab of the Windows

printer driver.

3 - 8

Print a Printer Settings page

You can print the current settings using the control panel button or printer driver.

Control panel

Using the control panel button

1 Make sure that the front cover is closed and the power cord is plugged in. 2 Turn on the printer and wait until the printer is in the Ready state. 3 Press the Go button three times within 2 seconds. The printer will print the current printer settings page.

Using the printer driver

If you are using Brother’s Windows® printer driver, you can print the current printer settings page by clicking the Print Settings button in the Support tab.

3 - 9

Print Fonts (For HL-2070N)

You can print a list of the internal fonts using the control panel button or printer driver.

Control panel

Using the control panel button

Toner, Drum and Paper LEDs light up. Release the Go button. Make sure that the Toner, Drum and Paper LEDs are off.

4 Press the Go button twice. The printer will print a list of the internal fonts.

Using the printer driver

If you are using Brother’s Windows® printer driver, you can print a list of the internal fonts by clicking the Print Fonts button in the Support tab.

3 - 10

Control panel

Network factory default setting (For HL-2070N)

If you wish to reset the print server back to its default factory settings (resetting all information such as the password and IP address information), please follow these steps:

Toner, Drum and Paper LEDs light up. Release the Go button. Make sure that the Toner, Drum and Paper LEDs are off.

4 Press the Go button six times. Make sure that all the LEDs light up to indicate the print server has been

reset to its default factory settings.

Network factory default setting with APIPA protocol disabled (For HL-2070N)

If you wish to reset the print server back to its factory default settings with APIPA protocol disabled, please follow these steps:

Toner, Drum and Paper LEDs light up. Release the Go button. Make sure that the Toner, Drum and Paper LEDs are off.

4 Press the Go button seven times. Make sure that all the LEDs light up to indicate the print server has

been reset to its default factory settings.

Note

• For more information of APIPA, see the Network User’s Guide or visit http://solutions.brother.com

• You can also disable the APIPA protocol using Web browser, BRAdmin Professional or Web BRAdmin.

3 - 11

This printer has the following optional print servers. Click the symbol L in the table to see the information for each item.

Options

Model NC-2200w NC-2100p HL-2030 L N/A

HL-2040 LL HL-2070N L N/A

Wireless print server (NC-2200w)

An optional network print server (NC-2200w) allows you to print in a wireless environment through the USB interface. The NC-2200w is compatible with Windows

The Brother NC-2200w wireless print server supports the IEEE 802.11b wireless networking standard and can work in Infrastructure or Ad-hoc mode using common wireless security methods.

For more infomation, please visit our web site at http://solutions.brother.com

Network interface Communication Mode Security

Printer Interface USB 1.0

Support Protocol Management Features

IEEE 802.11b wireless Infrastructure / Ad-hoc 802.11 SSID, WEP (64/128bit)

TCP/IP Embedded web server support SNMP / MIB support TELNET remote console BRAdmin Professional compatible Flash memory for easy updating of firmware

98/Me, Windows NT® 4.0 and Windows® 2000/XP.

4 - 1

Options

Print server (NC-2100p) (For HL-2040)

An optional network print server (NC-2100p) allows you to connect to your network through the parallel interface.

Network interface

Printer Interface Parallel

Support Protocol Management Features

10/100BASE-TX Ethernet

TCP/IP, NetBEUI Embedded web server support

SNMP / MIB support TELNET remote console BRAdmin Professional compatible Flash memory for easy updating of firmware

Note

HL-2070N already has a built-in 10/100BASE-TX Ethernet Print Server.

4 - 2

You will need to replace certain parts and clean the printer regularly.

Routine maintenance

WARNINGWARNING

When you replace certain parts or clean the printer regularly, pay attention to the following:

■ If your clothes are smeared with toner, wipe off the toner

with a dry cloth and immediately wash the clothes in cold water to avoid stains.

■ Be careful not to inhale the toner.

■ After you have just used the printer, some parts inside the

printer are extremely hot. When you open the front cover or back cover of the printer, never touch the shaded parts shown in the illustrations.

Replacing the consumable items

You will need to replace the consumable items regularly.

Note

These instructions are also included in Improving the print quality on page 6-10.

Consumables

Toner Cartridge Drum Unit

See Toner cartridge on page 5-2. See Drum unit on page 5-7.

5 - 1

Routine maintenance

Toner cartridge

The life of the original toner cartridge that came with the printer may be either a starter*1 or standard*2 toner cartridge, and depends on the model and country you bought the printer in.

The starter toner cartridge will print up to 1,500 A4 or Letter-size single-sided pages at 5% coverage.

Standard and replacement toner cartridges print up to 2,500 A4 or Letter-size single-sided pages at 5% coverage.

Note

• The amount of toner used varies according to what is printed on the page and the print density setting.

• If you change the print density setting for lighter or darker printing, the amount of toner that is used will change.

• Wait to unpack the toner cartridge until immediately before you install it in the printer.

Toner Low message

The Toner LED alternates turning on for 2 seconds and off for 3 seconds.

If the LED shows this message, the toner cartridge has nearly run out of toner. Buy a new toner cartridge and have it ready before you get a Toner Life End message. To put in the toner cartridge, see Replacing the toner cartridge on page 5-3.

Note

The Toner LED will blink continuously if the toner cartridge is nearly empty.

5 - 2

Routine maintenance

Toner Life End message

If the LED shows the message below, the printer has run out of toner or the toner is not evenly distributed inside the cartridge.

Replacing the toner cartridge

Note

• To ensure high quality printing, make sure you use quality Brother toner cartridges. When you want to buy toner cartridges, call the dealer you bought the printer from or Brother Customer Service.

• We recommend that you clean the printer when you replace the toner cartridge. See Cleaning on page 5-11.

1 Open the front cover of the printer.

2 Pull out the drum unit and toner cartridge assembly.

5 - 3

CAUTION

• We recommend that you place the drum unit and toner cartridge assembly on a piece of disposable paper or cloth in case you accidentally spill or scatter toner.

• To prevent damage to the printer from static electricity, do not touch the electrodes shown in the illustrations.

3 Push down the blue lock lever and take the toner

cartridge out of the drum unit.

CAUTION

Handle the toner cartridge carefully. If toner scatters on your hands or clothes, immediately wipe or wash it off with cold water.

Routine maintenance

Note

• Be sure to seal up the toner cartridge tightly in a bag so that toner powder does not spill out of the cartridge.

• Discard the used toner cartridge according to local regulations, keeping it separate from domestic waste. If you have questions, call your local waste disposal office.

4 Unpack the new toner cartridge. Hold the cartridge level

with both hands and gently rock it from side to side five or six times to spread the toner evenly inside the cartridge.

5 - 4

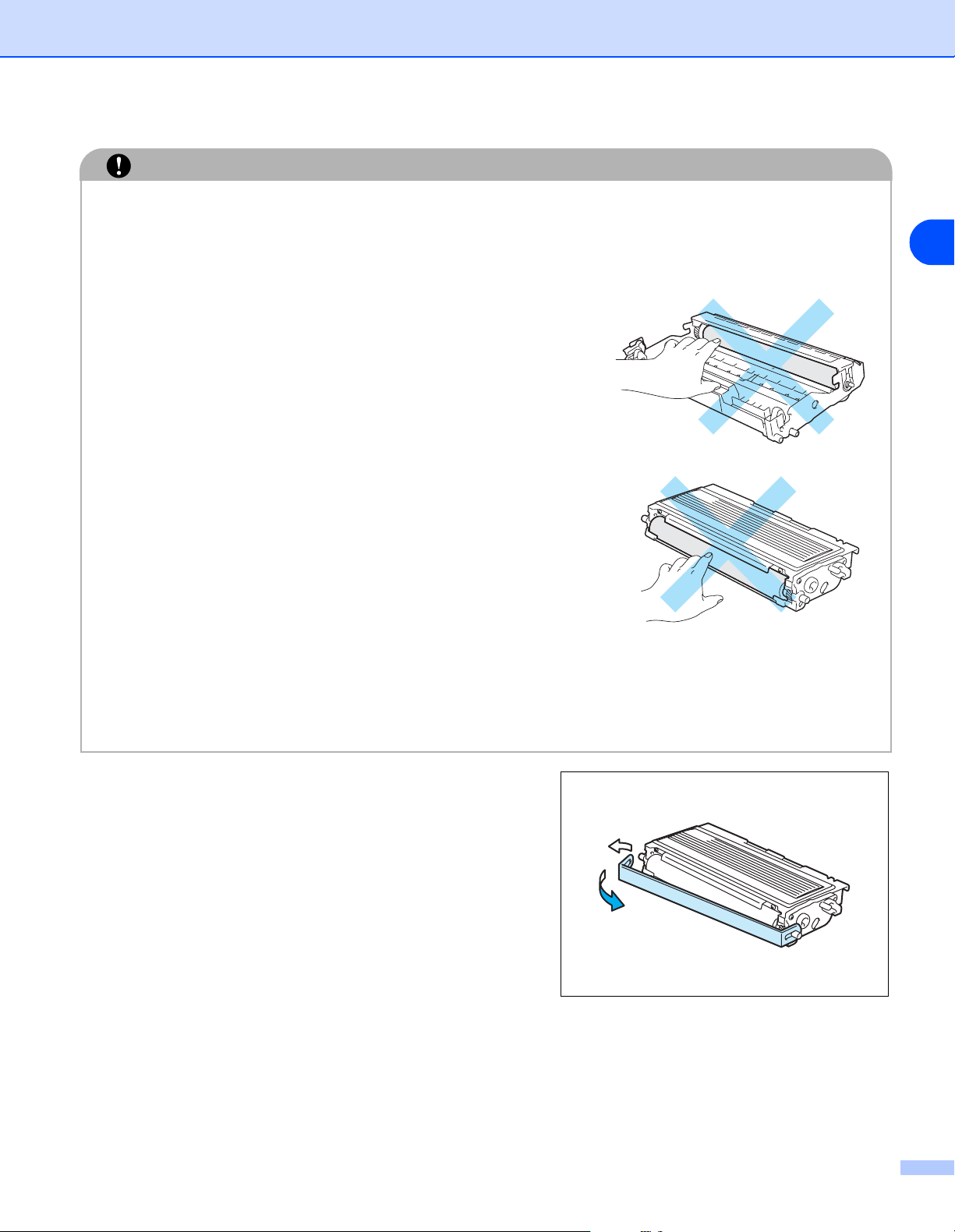

CAUTION

• Wait to unpack the toner cartridge until immediately before you put it in the printer. If toner cartridges are left unpacked for a long time the toner life will be shortened.

• If an unpacked drum unit is put in direct sunlight or room light, the unit may be damaged.

• Brother strongly recommends that you do not refill the toner cartridge provided with your printer. We also strongly recommend that you continue to use only Genuine Brother Brand replacement toner cartridges. Using or attempting to use potentially incompatible toner and/or toner cartridges in your printer may cause damage to the printer itself and/or it may result in unsatisfactory print quality. Our warranty coverage does not apply to any problem that was caused by the use of unauthorized third party toner and toner cartridges. To protect your investment and guarantee your print quality please continue to replace consumed toner cartridges with only Genuine Brother Branded Supplies.

• Printing with a third-party toner or third-party toner cartridge may reduce not only the print quality but also the quality and life of the printer itself. It may also cause serious damage to the performance and life of a drum unit. Warranty coverage does not apply to problems caused by the use of third-party toner or third-party toner cartridges.

• Put the toner cartridge in the drum unit immediately after you have removed the protective cover. Do not touch the shaded parts shown in the illustrations to prevent any degradation to the print quality.

Routine maintenance

5 Pull off the protective cover.

5 - 5

6 Put the new toner cartridge firmly into the drum unit until

you hear it lock into place. If you put it in properly, the lock lever will lift automatically.

Routine maintenance

CAUTION

Make sure you insert the toner cartridge properly or it may separate from the drum unit.

7 Clean the primary corona wire inside the drum unit by

gently sliding the blue tab from right to left and left to right several times. Return the tab to the home position (▲) before you put the drum unit back in the printer. If you do not, printed pages may have a vertical stripe.

Home position (▲)

8 Put the drum unit and toner cartridge assembly back in

the printer. Close the front cover of the printer.

5 - 6

Drum unit

This printer can print up to 12,000 pages* with one drum unit.

Routine maintenance

At 5% print coverage (A4 or Letter size). The actual number of printed pages will vary depending on the average type

of print job and paper.

Note

• There are many factors that determine the actual drum life, such as the temperature, humidity, type of paper, type of toner used, number of pages per print job and so on. Under ideal conditions, the average drum life is estimated at up to 12,000 pages. The actual number of pages that your drum will print may be significantly less than this estimate. Because we have no control over the many factors that determine the actual drum life, we cannot guarantee a minimum number of pages that will be printed by your drum.

• For best performance, use only genuine Brother toner. The printer should be used only in a clean, dust-free environment with adequate ventilation.

• Printing with a third-party drum unit may reduce not only the print quality but also the quality and life of the printer itself. Warranty coverage does not apply to problems caused by the use of third-party drum unit.

Change Drum message

If the LED shows the message below, it means the drum unit is near the end of its life. We recommend that you replace the drum unit with a new one before there is a noticeable deterioration in the print quality.

CAUTION

• While removing the drum unit, handle it carefully because it may contain toner.

• Every time you replace the drum unit, you should clean the inside of the printer. See Cleaning on page 5-11.

5 - 7

Routine maintenance

Replacing the drum unit

Note

We recommend that you clean the printer when you replace the drum unit. See Cleaning on page 5-11.

Follow these steps to replace the drum unit.

1 Make sure that the printer is turned on and the Drum LED

is blinking. Open the front cover of the printer.

2 Press and hold down the Go button for about 4 seconds

until all the LEDs light up. Once all four LEDs are lit, release the Go button.

IMPROPER SETUP

Do not reset the drum counter when you replace only the toner cartridge.

3 Pull out the drum unit and toner cartridge assembly.

5 - 8

CAUTION

• We recommend that you place the drum unit and toner cartridge assembly on a piece of disposable paper or cloth in case you accidentally spill or scatter toner.

• To prevent damage to the printer from static electricity, do not touch the electrodes shown in the illustrations.

4 Push down the blue lock lever and take the toner

cartridge out of the drum unit.

CAUTION

Handle the toner cartridge carefully. If toner scatters on your hands or clothes, immediately wipe or wash it off with cold water.

Routine maintenance

Note

• Be sure to seal up the drum unit tightly in a bag so that toner powder does not spill out of the unit.

• Discard the used drum unit according to local regulations, keeping it separate from domestic waste. If you have questions, call your local waste disposal office.

5 Unpack the new drum unit.

CAUTION

Wait to unpack a drum unit until immediately before you put it in the printer. Exposure to direct sunlight or room light may damage the drum unit.

6 Put the toner cartridge firmly into the new drum unit until

you hear it lock into place. If you put the cartridge in properly, the blue lock lever will lift automatically.

CAUTION

Make sure you insert the toner cartridge properly, or it may separate from the drum unit.

5 - 9

7 Put the drum unit and toner cartridge assembly in the

printer.

8 Close the front cover. 9 Make sure that the Drum LED is now off.

Routine maintenance

5 - 10

Routine maintenance

Cleaning

Clean the outside and inside of the printer regularly with a dry, lint-free cloth. When you replace the toner cartridge or the drum unit, make sure you clean the inside of the printer. If printed pages are stained with toner, clean the inside of the printer with a dry, lint-free cloth.

Cleaning the outside of the printer

CAUTION

• Use neutral detergents. Cleaning with volatile liquids such as thinner or benzine will damage the surface of the printer.

• Do not use cleaning materials that contain ammonia.

Clean the outside of the printer as follows:

1 Turn off the printer power switch and unplug the printer

from the AC power outlet.

2 Pull the paper tray completely out of the printer.

5 - 11

3 Wipe the outside of the printer with a soft cloth to remove

dust.

4 Remove anything that is stuck inside the paper tray.

5 Wipe the inside of the paper tray with a soft cloth to

remove dust.

6 Put the paper tray firmly back in the printer. 7 Plug the printer back in and turn on the printer power

switch.

Routine maintenance

Cleaning the inside of the printer

Clean the inside of the printer as follows:

1 Turn off the printer power switch and unplug the printer

from the AC power outlet.

5 - 12

2 Open the front cover of the printer.

3 Pull out the drum unit and toner cartridge assembly.

Routine maintenance

HOT SURFACE

After you have just used the printer, some internal parts of the printer are extremely hot! Wait for the printer to cool down before you touch the internal parts of the printer.

4 Wipe the scanner window with a dry, lint-free cloth. 5 Put the drum unit and toner cartridge assembly back in

the printer.

6 Close the front cover. 7 Plug the printer back in and turn on the printer power

switch.

5 - 13

Cleaning the corona wire

If you are experiencing print quality problems, please clean the corona wire as follows:

1 Open the front cover of the printer.

2 Pull out the drum unit and toner cartridge assembly.

Routine maintenance

CAUTION

• We recommend that you place the drum unit and toner cartridge assembly on a piece of disposable paper or cloth in case you accidentally spill or scatter toner.

• To prevent damage to the printer from static electricity, do not touch the electrodes shown in the illustrations.

5 - 14

3 Clean the primary corona wire inside the drum unit by

4 Put the drum unit and toner cartridge assembly back in

the printer. Close the front cover of the printer.

Routine maintenance

Home position (▲)

5 - 15

You can correct most problems by yourself. If you need additional help, the Brother Solutions Center offers latest FAQs and troubleshooting tips. Visit us at http://solutions.brother.com

Troubleshooting

Identifying your problem

First, check the following:

■ The AC power cord is connected properly and the printer is turned on.

■ All of the protective parts have been removed.

■ The toner cartridge and drum unit are installed properly.

■ The front cover is fully closed.

■ Paper is inserted properly in the paper tray.

■ The interface cable is securely connected to the printer and the computer.

■ The correct driver for the printer is installed and selected.

■ The PC is set up to connect to the correct printer port.

Printer does not print:

If you did not solve your problem with the above checks, please identify your problem and then go to the section listed:

Printer LED is blinking

See LED is blinking on page 3-1.

Status Monitor Error Message appears

See Error messages in the Status Monitor on page 6-2.

Printer printed an Error Message

See Error message printout on page 6-3.

Paper handling

See Paper handling on page 6-4 and Paper jams and how to clear them on page 6-5.

Error messages in the Status Monitor

The Status Monitor will report problems with the printer. Take the corrective actions listed in the following table for the error message that the Status Monitor reports.

The default setting for the Status Monitor is off. If you would like to turn the status monitor on, you can change the setting of the Status Monitor in the Device Options of the Advanced tab. See Device Options on page 2-6.

Error message Action Cover is open ■ Close the front cover of the printer. Back Cover is open ■ Close the back cover of the printer. Memory Full ■ Press the Go button to print the data remaining in the printer. Cancel the print

job if you want to delete the data remaining in the printer, see Cancel printing on page 3-7.

■ Reduce the print resolution or reduce the complexity of your document.

Print Overrun ■ Press the Go button to print the data left in the printer. Cancel the print job if you

want to delete the data remaining in the printer, see Cancel printing on page 3-7.

■ If this does not clear the error, reduce the complexity of your document or reduce

the print resolution.

■ Set page protection to AUTO by using the supplied Windows

Printer Console program.

■ Change the following settings in the supplied Windows

best combination of these settings will vary depending on your document:

• Graphics mode

•TrueType

• Use Printer TrueType

No Paper Fed Tray 1 No Paper Fed Manual slot

Paper Jam Tray 1 Paper Jam Inside Paper Jam Rear

Toner Life End ■ See Replacing the toner cartridge on page 5-3. Toner Low ■ Purchase a new toner cartridge and have it ready for when the Toner Life End

Cartridge Position Error ■ Take out the toner cartridge and put it back into the printer again. Drum Life End Soon ■ The drum is near the end of it's life. Purchase a new drum unit to replace the

Drum Error ■ See Cleaning the corona wire on page 5-14. Service Call ■ Check the LED indication to identify the error. See Service call indications on

■ The paper tray may be out of paper or not properly installed. If it is empty, put a

new stack of paper in the paper tray and then press the Go button.

■ If there is paper in the paper tray, make sure it is straight. If the paper is curled,

straighten it before printing. Sometimes it is helpful to remove the paper, turn the stack over and put it back in the paper tray.

■ Reduce the amount of paper in the paper tray, and then try again.

■ Make sure you use paper that meets Brother’s recommended paper

specifications. See What kind of paper can I use? on page 1-4.

■ Take out the jammed paper from the indicated area.

See Paper jams and how to clear them on page 6-5.

status is indicated.

current one. See Replacing the drum unit on page 5-8.

page 3-5.

mode

Fonts

driver and try again. The

driver or Remote

6 - 2

Troubleshooting

Error message printout

The printer will report problems by printing an error message as defined in the following table. Take the corrective actions for the error message.

Error message Action

MEMORY FULL ■ Press the Go button to print the data left in the printer. Cancel the print job if

you want to delete the data remaining in the printer, see Cancel printing on page 3-7.

■ Reduce the print resolution or reduce the complexity of your document.

PRINT OVERRUN ■ Press the Go button to print the data left in the printer. Cancel the print job if

you want to delete the data remaining in the printer, see Cancel printing on page 3-7.

■ If this does not clear the error, reduce the complexity of your document or

reduce the print resolution.

driver or

driver and try again.

RESOLUTION REDUCED TO ENABLE PRINTING

(The printer has printed the document at a reduced resolution)

■ Set page protection to AUTO by using the supplied Windows

Remote Printer Console program.

■ Change the following settings in the supplied Windows

The best combination of these settings will vary depending on your document:

• Graphics mode

• TrueType mode

• Use Printer TrueType

■ Reduce the complexity of your document before you print to prevent

automatic reduction in the resolution.

Fonts

6 - 3

Troubleshooting

Paper handling

First, make sure that you are using paper that meets Brother recommended paper specifications. See What kind of paper can I use? on page 1-4.

Problem Recommendation

The printer does not feed paper.

The printer does not feed paper from the manual feed slot.

The printer will not feed envelopes.

A paper jam has occurred. ■ Clear the jammed paper. See Paper jams and how to clear them on page

■ If there is paper in the paper tray, make sure it is straight. If the paper is

curled, you should straighten it before printing. Sometimes it is helpful to remove the paper, turn the stack over and put it back in the paper tray.

■ Reduce the amount of paper in the paper tray, and then try again.

■ Check that manual feed mode is not selected in the printer driver.

■ Re-insert the paper firmly, one sheet at a time.

■ Make sure that manual feed mode is selected in the printer driver.

■ The printer can feed envelopes from the manual feed slot. Your application

software must be set up correctly to print on the envelope size you are using. This is usually done in the page setup or document setup menu of your software. Please see your software application manual.

6-5.

6 - 4

Paper jams and how to clear them

If a paper jam occurs, the printer will tell you by flashing the paper LED as shown below.

HOT SURFACE

After you have just used the printer, some parts inside the printer are extremely hot! When you open the front cover or back cover of the printer, never touch the shaded parts shown in the illustrations.

Troubleshooting

Clear the jammed paper as follows. If the jammed paper is removed completely by following the steps below, you can install the paper tray first,

and then close the front cover and the printer will resume printing automatically. If the printer does not start printing automatically, press the Go button. If the printer still does not start printing,

please check that all the remaining jammed paper has been removed from the printer. Then try printing again.

Note

Always remove all paper from the paper tray and straighten the stack when you add new paper. This helps prevent multiple sheets of paper from feeding through the printer at one time and reduces paper jams.

1 Pull the paper tray completely out of the printer.

6 - 5

2 Pull the jammed paper up and out of the printer.

3 Open the front cover.

Troubleshooting

4 Pull out the drum unit and toner cartridge assembly

slowly. The jammed paper will be pulled out with the drum unit and toner cartridge assembly.

CAUTION

To prevent damage to the printer caused by static electricity, do not touch the electrodes shown in the illustrations.

6 - 6

5 Open the back cover.

6 Pull the tab toward you to open the rear chute cover.

Troubleshooting

Rear Chute Cover

7 Pull the jammed paper out of the fuser unit. If the jammed paper cannot be pulled out easily, push down

the tab with one hand as you gently pull the paper out with other.

6 - 7

HOT SURFACE

After you have just used the printer, some internal parts of the printer are extremely hot! Wait for the printer to cool down before you touch the internal parts of the printer.

8 Close the back cover. 9 Push the lock lever down and take the toner cartridge out

of the drum unit. Take out the jammed paper if there is any inside the drum unit.

Troubleshooting

0 Put the toner cartridge back into the drum unit until you

hear it lock into place. If you put it in properly, the lock lever will lift automatically.

6 - 8

A Put the drum unit and toner cartridge assembly back in

the printer.

B Put the paper tray firmly back in the printer. C Close the front cover. D Make sure that the Paper LED is now off and the printer is ready.

Troubleshooting

6 - 9

Solving print problems

Problem Recommendation

The printer prints unexpectedly or it prints garbage data.

The printer cannot print full pages of a document. An error message MEMORY FULL is printed out.

The printer cannot print full pages of a document. An error message PRINT OVERRUN is printed out.

My headers or footers appear when I view my document on the screen but they do not show up when I print it.

■ Make sure the printer cable is not too long. We recommend you use a parallel

or USB cable that is less than 2 meters (6.5 feet) in length.

■ Make sure that the printer cable is not damaged or broken.

■ If you are using an interface-switching device, remove it. Connect your computer

directly to your printer, and then try again.

■ Check that you have chosen the appropriate printer driver with ‘Set as Default’.

■ Make sure that the printer is not connected to the same port that is also

connected to a storage device or scanner. Take away all other devices and connect the port only to the printer.

■ Turn off Printer Status Monitor in the Device Options tab in the printer driver.

■ Press the Go button to print the data left in the printer. Cancel the print job if you

want to delete the data remaining in the printer, see Cancel printing on page 3-7.

■ Reduce the print resolution or reduce the complexity of your document.

■ Press the Go button to print the data left in the printer. Cancel the print job if you

want to delete the data remaining in the printer, see Cancel printing on page 3-7.

■ If this does not clear the error, reduce the complexity of your document or reduce

the print resolution.

■ Set page protection to AUTO by using the supplied Windows

Printer Console program.

■ Change the following settings in the supplied Windows

again. The best combination of the settings below will vary depending on your document:

• Graphics mode

• TrueType mode

• Use printer TrueType

■ Adjust the top and bottom margins of your document.

fonts

Troubleshooting

driver or Remote

driver, and then try

6 - 15

Appendix

Printer specifications

Engine

Model HL-2030 HL-2040 HL-2070N Technology Electrophotographic Print speed Up to 17 ppm (Letter

First print time Less than 10 sec Resolution Windows

Windows NT® 4.0

Windows Windows® 2000/XP

DOS N/A 600 dpi Mac OS

Linux 600 dpi

*1 From paper tray

95 and

98/Me,

size) Up to 16 ppm (A4 size)

N/A HQ1200

HQ1200 600 dpi 300 dpi

300 dpi

Up to 20 ppm (Letter size) Up to 20 ppm (A4 size)

600 dpi 300 dpi

A - 1

Appendix

Controller

Model HL-2030 HL-2040 HL-2070N Processor Fujitsu SPARClite 96MHz Fujitsu SPARClite

133MHz

Memory Standard 8 MB 16 MB

Option N/A

Interface Standard Full-Speed USB 2.0

Option IEEE 802.11b

wireless (NC-2200w)

Network

Protocols 10/100BASE-TXN/A TCP/IP

Connectivity

NC-2200w TCP/IP NC-2100p N/A TCP/IP, NetBEUI N/A

Managem

N/A BRAdmin Professional

ent tool

Emulation GDI PCL6, Epson FX-850,

Resident fonts N/A 49 scalable fonts, 12

Full-Speed USB 2.0*2, IEEE 1284 Parallel

IEEE 802.11b wireless (NC-2200w) 10/100BASE-TX (NC-2100p)

Full-Speed USB 2.0*2, IEEE 1284 Parallel, 10/100BASE-TX

IEEE 802.11b wireless (NC-2200w)

Web Based Management

IBM ProPrinter XL

bitmap fonts, 11 bar

codes

*2 USB is not supported under Windows® 95 or Windows NT®4.0. *3 Brother original Windows

management utility *4 Use a standard web browser to manage the device. *5 Code39, Interleaved 2 of 5, EAN-8, EAN-13, UPC-A, UPC-E, EAN-128, Codabar, FIM (US-PostNet), ISBN,

Code128

A - 2

Software

Model HL-2030 HL-2040 HL-2070N Printer driver GDI Driver for Windows

98/Me, Windows® 2000/XP

N/A Generic PCL Driver for

GDI Driver for Windows 95/98/Me, Windows NT® 4.0, Windows® 2000/XP

PCL Driver for Windows 95/98/Me, Windows NT® 4.0, Windows® 2000/XP

Windows

NT®

4.0, Windows®

2000/XP

Brother Laser Driver for Mac

OS®

9.1 to 9.2 and Mac OS® X 10.2.4 or greater

GDI Printer Driver for Linux

Utilities Interactive Help

Interactive Help*6 Driver Deployment Wizard

Control panel

Model HL-2030 HL-2040 HL-2070N LED 4 LEDs Button 1 button

Appendix

Paper handling

Model HL-2030 HL-2040 HL-2070N

Paper Input*

Paper Output* Duplex Manual Duplex

*6 Instructional animations for problem solving *7 The Driver Deployment Wizard automates the installation of a printer in a peer-to-peer network. *8 Calculated with 80 g/m

Manual feed slot 1 Sheet Paper tray 250 Sheets

Face-down 100 Sheets

(21 lb) paper

A - 3

Appendix

Media specifications

Model HL-2030 HL-2040 HL-2070N Media types Manual feed slot Plain paper, Bond paper, Recycled paper, Envelope, Labels, and

Transparencies

Paper tray Plain paper, Bond paper, Recycled paper, and Transparencies

Media weights Manual feed slot 60 to 161 g/m2 (16 to 43 lb)

Paper tray 60 to 105 g/m

(16 to 28 lb)

Media sizes Manual feed slot Width: 69.9 to 215.9 mm (2.75 to 8.5 in.)

Length: 116 to 406.4 mm (4.57 to 16 in.)

*10

Paper tray A4, Letter, Legal

, B5(JIS), B5(ISO), Executive, A5, A6, B6(ISO)

Supplies

Model HL-2030 HL-2040 HL-2070N Toner Starter

Standard 2,500 pages A4/Letter pages @5% coverage

Drum 12,000 A4/Letter pages (1 page / job)

*11

1,500 pages A4/Letter pages @5% coverage

Dimensions / Weights

Model HL-2030 HL-2040 HL-2070N Dimensions (W × D × H) 371 × 361 × 165.5 mm

Weights Approx.5.4 kg (12.0 lb) not including the drum unit and toner cartridge

*9 Up to 10 sheets *10 Legal paper is not available in some regions. *11 Depends on the model and country you bought the printer in.

(14.6 × 14.2 × 6.5 in.)

Approx.6.5 kg (14.3 lb) including the drum unit and toner cartridge

A - 4

Appendix

Other

Model HL-2030 HL-2040 HL-2070N Power consumption Printing Average 450 W at 25 °C (77 °F)

Standby Average 70 W at 25 °C (77 °F) Sleep Average 5 W Average 7 W

Noise level Sound pressure Printing Less than 51 dB (A)

Standby Less than 30 dB (A)

Sound power Printing 6.2 Bell (A)

(Office equipment with LWAd > 6.3 Bell (A) is not suitable for operation in rooms where predominantly intellectual work is done. Due to their noise emissions, these devices should be set up in separate rooms.)

Standby 4.3 Bell (A)

Ecology Power save Yes

Toner save Yes

System Requirements

Computer Platform & Operating System Version

Windows

*12

, 98, 98SE 486/66 MHz 8 MB 16 MB 40 MB

Workstation 4.0

Processor Speed Minimum

RAM

*12

Pentium 75 MHz 16 MB 32 MB 50 MB 2000 Professional Pentium 133 MHz 64 MB 128 MB 50 MB Me Pentium 150 MHz 32 MB 64 MB 50 MB XP Pentium 300 MHz 128 MB 128 MB 50 MB

Apple Macintosh

®*13

OS® 9.1 - 9.2 All base models Mac OS

greater

X 10.2.4 or

meet minimum

requirements

32 MB 64 MB 50 MB 128 MB 160 MB

*12 USB is not supported under Windows® 95 or Windows NT®4.0. *13 Power Macintosh with an Apple original pre-installed USB port.

Recommended RAM

Available Hard Disk Space

A - 5

Appendix

Important information for choosing your paper

This section provides information to help you choose paper to use with this printer.

Note

If you use paper other than the ones recommended, a paper jam or misfeeding may occur in the printer. See Recommended paper on page 1-5.

Before you purchase a large quantity of paper

Make sure the paper is suitable for the printer.

Paper for plain paper copies

Paper is divided by usage, such as paper for printing and paper for copying. The usage is usually specified on the paper’s package. Check the package to see whether it is suitable for laser printers. Use paper that is suitable for laser printers.

Basis weight

The basis weight of the paper in general use varies in different countries. We recommend that you use paper

that weighs between 75 and 90 g/m

(20 and 24 lb), although this printer is able to cope with thinner or thicker

paper than these weights.

Unit Europe USA

g/m

80 to 90 75 to 90

lb 20 to 24

Long grain and short grain

The pulp fiber of the paper is aligned during paper manufacturing. What we call long grain paper is paper where the fiber is parallel to the paper carriage direction of the paper.

Paper can be classified into two types, long grain and short grain. Long grain paper’s fiber direction is parallel to the carriage direction of the paper in the printer. Short grain paper’s fiber direction is vertical to the carriage direction of the paper in the printer. Though most plain paper for copying is long grain, some is short grain. We recommend that you use long grain paper for this printer. Short grain paper is too weak for the paper carriage of the printer.

Acid paper and neutralized paper

Paper can be classified as either acid paper or neutralized paper. Though modern paper manufacture methods started with acid paper, recently neutralized paper is taking the

place of acid paper because of environment or preservation issues. However, many forms of acid paper can be found in recycled paper. We recommend that you use neutralized

paper for this printer. You can use an acid paper check pen to distinguish acid paper from neutral paper.

A - 6

Appendix

Print surface

The characteristics may differ a little between the face side and reverse side of a sheet of paper. Usually, the opening side of the ream of paper package is the print side. Follow any indication of the print side

on the paper package. Typically, the print side is indicated by an arrow.

Moisture content

Moisture content is the amount of water left in the paper after manufacture. It is one of the important characteristics of the paper. This can change greatly depending on the storage environment, although usually paper contains about 5% water by weight. Because paper often absorbs water, the amount of water can sometimes be about 10% in a high humidity environment. When the amount of water increases, the characteristic of the paper changes greatly. The fixing of the toner may become worse. For storage of the paper and during use, we recommend that the humidity of the surrounding environment is between 50% and 60%.

Rough estimate of basis weight

g/m2 lb

Bond Index

60 16 64 17 75 20 90 24 105 28 120 32 135 36 161 43 90 200 53 110

A - 7

Paper size

Paper size mm in. Letter 8.5 × 11 in. Legal 8.5 × 14 in. Executive 7.25 × 10.5 in. A4 210 × 297 mm A5 148 × 210 mm A6 105 × 148 mm Envelope Monarch 3.875 × 7.5 in. Envelope #9 3.875 × 8.9 in. Envelope #10 4.12 × 9.5 in. Envelope #11 4.5 × 10.375 in. Envelope DL 110 × 220 mm Envelope C5 162 × 229 mm Envelope C6 114 × 162 mm B5 (JIS) 182 × 257 mm B5 (ISO) 176 × 250 mm B6 125 × 176 mm Folio 8.5 × 13 in.

Appendix

A - 8

Appendix

Symbol and character sets (For HL-2070N)

For the HP LaserJet, IBM Proprinter XL, and EPSON FX-850 emulation modes, you can select the symbol and character sets using a Web browser or the Remote Printer Console software.

How to use the Web browser

To use the Web browser, follow the steps below.

Type http://printer’s IP address/ into your browser. For example: http://192.168.1.2/ (if the printer’s IP address is 192.168.1.2)

Click Printer Settings.

Enter a user name and a password. The default User Name is admin and the default Password is access.

Click OK.

Select the HP LaserJet, IBM Proprinter XL or EPSON FX-850 tab and click Font Setup.

Select a symbol set you want to use from the Symbol Set list box.

How to use the Remote Printer Console

To use the Remote Printer Console software, follow the steps below.

For Windows

Insert the CD-ROM into your CD-ROM drive and close the opening screen when it appears.

Open Windows® Explore and select the CD-ROM drive.

Double-click the RPC folder.

Refer to the RPC_User’s_Guide.pdf for how to install and use the Remote Printer Console.

For Macintosh

Insert the CD-ROM into your CD-ROM drive. Double-click the HL2000 icon on the desktop.

Double-click the RPC folder.

Refer to the RPC_User’s_Guide.pdf for how to install and use the Remote Printer Console.

Symbol and character sets list

OCR symbol sets

When you choose the OCR-A or OCR-B font, the matching symbol set is always used. OCR A (0O) OCR B (1O)

A - 9

HP LaserJet mode

ABICOMP Brazil / Portugal (13P) ABICOMP International (14P) Desktop (7J) Greek8 (8G) HP German (0G) HP Spanish (1S) ISO Latin1 (0N) ISO Latin2 (2N) ISO Latin5 (5N) ISO Latin6 (6N) ISO2 IRV (2U) ISO4 UK (1E) ISO5 ASCII (0U) ISO10 Swedish (3S) ISO11 Swedish (0S) ISO14 JIS ASCII (0K) ISO15 Italian (0I) ISO16 Portuguese (4S) ISO17 Spanish (2S) ISO21 German (1G) ISO25 French (0F) ISO57 Chinese (2K) ISO60 Norwegian1 (0D) ISO61 Norwegian2 (1D) ISO69 French (1F) ISO84 Portuguese (5S) ISO85 Spanish (6S) ISO8859 / 7 Latin / Greek (12N)

Appendix

ISO8859 / 15 Latin (9N) ISO8859 / 15 Latin / Cyrillic (10N) Legal (1U) Math-8 (8M) MC Text (12J) MS Publishing (6J) PC8 (10U) PC8 Bulgarian (13R) PC8 D/N (11U) PC8 Greek Alternate (437G) (14G) PC8 Latin / Greek (12G) PC8 PC Nova (27Q) PC8 Turkish (9T) PC775 (26U) PC850 Multilingual (12U) PC851 Greece (10G) PC852 East Europe (17U) PC853 Latin3 (Turkish) (18U) PC855 Cyrillic (10R) PC857 Latin5 (Turkish) (16U) PC858 Multilingual Euro (13U) PC860 Portugal (20U) PC861 Iceland (21U) PC863 Canadian French (23U) PC865 Nordic (25U) PC866 Cyrillic (3R) PC869 Greece (11G) PC1004 (9J) Pi Font (15U) PS Math (5M) PS Text (10J) Roman8 (8U) Roman9 (4U) Roman Extension (0E) Russian-GOST (12R) Symbol (19M) Turkish8 (8T) Ukrainian (14R) Ventura Math (6M) Ventura Intl (13J) Ventura US (14J) Windows 3.0 (9U)

A - 10

Windows Baltic (19L) Windows Cyrillic (9R) Windows Greek (9G) Windows Latin1 (19U) Windows Latin2 (9E) Windows Latin5 (5T)

Appendix

Wingdings (579L)

IBM mode

PC8 PC8 D/N PC8 Turkish PC850 Multilingual PC852 East Europe PC860 Portugal PC863 Canadian French PC865 Nordic

Epson mode

Danish I Danish II Dutch French I French II German Italian Norwegian Japanese PC8 PC8 D/N PC8 Turkish PC850 Multilingual PC852 East Europe

PC860 Portugal PC863 Canadian French PC865 Nordic South African Spanish Swedish UK ASCII I UK ASCII II US ASCII

A - 11

Appendix (For Europe and Other Countries)

Brother Numbers

IMPORTANT: For technical and operational help, you must call the country where you bought the printer. Calls must be made from within that country.

By registering your Brother product, you will be recorded as the original owner of the product. Your registration with Brother:

■ may serve as a confirmation of the purchase date of your product should you lose your receipt;

■ may support an insurance claim by you in the event of product loss covered by insurance; and,

■ will help us to notify you of enhancements to your product and special offers.

Please complete the Brother Warranty Registration or, for your convenience and most efficient way to register your new product, register on-line at

http://www.brother.com/registration/

Frequently asked questions (FAQs)

The Brother Solutions Center is our one-stop resource for all your Printer needs. You can download the latest drivers, software and utilities, read FAQs and troubleshooting tips to learn how to get the most from your Brother product.

http://solutions.brother.com

You can check here for the Brother driver updates.

Customer Service

Visit http://www.brother.com

Service center locations

For service centres in Europe, contact your local Brother Office. Address and telephone contact information for European offices can be found at http://www.brother.com

Internet Addresses

Brother Global Web Site: http://www.brother.com For Frequently Asked Questions (FAQs), Product Support and Technical Questions, and Driver

Updates and Utilities: http://solutions.brother.com

for contact information on your local Brother office.

and select your country.

B - 1

Important information: Regulations

Radio interference (220 to 240 volt model only)

Appendix (For Europe and Other Countries)

This printer follows EN55022 (CISPR Publication 22)/Class B.

Before you use this product, make sure that you use the following interface cables.

1. A shielded parallel interface cable with twisted-pair conductors and that it is marked "IEEE 1284 compliant".

2. A USB cable.

The cable must not be more than 2 meters long.

B - 2

Appendix (For Europe and Other Countries)

IEC 60825-1 specification (220 to 240 volt model only)

This printer is a Class 1 laser product as defined in IEC 60825-1 specifications. The label shown below is attached in countries where it is needed.

CLASS 1 LASER PRODUCT APPAREIL À LASER DE CLASSE 1 LASER KLASSE 1 PRODUKT

This printer has a Class 3B laser diode which produces invisible laser radiation in the scanner unit. You should not open the scanner unit under any circumstances.

Caution: Use of controls or adjustments or performance of procedures other than those specified in this User’s Guide

may result in hazardous radiation exposure.

For Finland and Sweden LUOKAN 1 LASERLAITE KLASS 1 LASER APPARAT

Varoitus! Laitteen käyttäminen muulla kuin tässä käyttöohjeessa mainitulla tavalla saattaa altistaa käyttäjän

turvallisuusluokan 1 ylittävälle näkymättömälle lasersäteilylle.

Varning Om apparaten används på annat sätt än i denna Bruksanvisning specificerats, kan användaren utsättas för

osynlig laserstrålning, som överskrider gränsen för laserklass 1.

Internal laser radiation

Maximum radiation power:5 mW Wave length:770 - 810 nm Laser class:Class 3B

B - 3

HP 2040, 2070N User Manual
