Maintenance and Service Guide
HP 14 Laptop PC
IMPORTANT! This document is intended for HP authorized service
providers only.
© Copyright 2019 HP Development Company,
L.P.
AMD, Athlon, Ryzen, and Radeon are
trademarks of Advanced Micro Devices, Inc.
Bluetooth is a trademark owned by its
proprietor and used by HP Inc. under license.
Intel is a trademark of Intel Corporation or its
subsidiaries in the U.S. and/or other countries.
Windows is a U.S. registered trademark of the
Microsoft group of companies.
The information contained herein is subject to
change without notice. The only warranties for
HP products and services are set forth in the
express warranty statements accompanying
such products and services. Nothing herein
should be construed as constituting an
additional warranty. HP shall not be liable for
technical or editorial errors or omissions
contained herein.
First Edition: February 2019
Document Part Number: L47657-001
Product notice
This guide describes features that are common
to most models. Some features may not be
available on your computer.
Not all features are available in all editions of
Windows. This computer may require upgraded
and/or separately purchased hardware, drivers
and/or software to take full advantage of
Windows functionality. Go to
http://www.microsoft.com for details.
Software terms
By installing, copying, downloading, or
otherwise using any software product
preinstalled on this computer, you agree to be
bound by the terms of the HP End User License
Agreement (EULA). If you do not accept these
license terms, your sole remedy is to return the
entire unused product (hardware and software)
within 14 days for a refund subject to the
refund policy of your place of purchase.
For any further information or to request a full
refund of the computer, please contact your
local point of sale (the seller).
Safety warning notice
WARNING! To reduce the possibility of heat-related injuries or of overheating the device, do not place the
device directly on your lap or obstruct the device air vents. Use the device only on a hard, at surface. Do not
allow another hard surface, such as an adjoining optional printer, or a soft surface, such as pillows or rugs or
clothing, to block airow. Also, do not allow the AC adapter to contact the skin or a soft surface, such as
pillows or rugs or clothing, during operation. The device and the AC adapter comply with the user-accessible
surface temperature limits dened by the International Standard for Safety of Information Technology
Equipment (IEC 60950-1).
iii
iv Safety warning notice
Table of contents
1 Product description ....................................................................................................................................... 1
2 Getting to know your computer ...................................................................................................................... 7
Right side ............................................................................................................................................................... 7
Left side ................................................................................................................................................................. 8
Display .................................................................................................................................................................... 9
Keyboard area ...................................................................................................................................................... 10
TouchPad ........................................................................................................................................... 10
Lights ................................................................................................................................................. 11
Button, vent, and speakers ............................................................................................................... 12
Special keys ....................................................................................................................................... 13
Action keys ........................................................................................................................................ 14
Bottom ................................................................................................................................................................. 15
Labels ................................................................................................................................................................... 15
3 Illustrated parts catalog .............................................................................................................................. 17
Computer major components .............................................................................................................................. 17
Display assembly subcomponents ...................................................................................................................... 21
Miscellaneous parts ............................................................................................................................................. 22
4 Removal and replacement procedures preliminary requirements .................................................................... 25
Tools required ...................................................................................................................................................... 25
Service considerations ......................................................................................................................................... 25
Plastic parts ....................................................................................................................................... 25
Cables and connectors ...................................................................................................................... 25
Drive handling ................................................................................................................................... 26
Workstation guidelines ..................................................................................................................... 26
Electrostatic discharge information .................................................................................................................... 26
Generating static electricity .............................................................................................................. 27
Preventing electrostatic damage to equipment ............................................................................... 27
Personal grounding methods and equipment .................................................................................. 28
Grounding the work area ................................................................................................................... 28
Recommended materials and equipment ........................................................................................ 28
Packaging and transporting guidelines .............................................................................................................. 29
v
5 Removal and replacement procedures for authorized service provider parts .................................................... 31
Preparation for disassembly ............................................................................................................................... 31
Component replacement procedures .................................................................................................................. 31
Computer feet ................................................................................................................................... 31
Bottom cover ..................................................................................................................................... 33
Battery ............................................................................................................................................... 35
Hard drive .......................................................................................................................................... 36
eMMC board ....................................................................................................................................... 38
WLAN module .................................................................................................................................... 40
Memory module ................................................................................................................................ 42
Solid-state drive ................................................................................................................................ 43
Speakers ............................................................................................................................................ 44
Power connector ............................................................................................................................... 45
TouchPad click board ......................................................................................................................... 46
TouchPad ........................................................................................................................................... 47
USB board .......................................................................................................................................... 48
Fan ..................................................................................................................................................... 49
System board .................................................................................................................................... 50
Heat sink assembly ........................................................................................................................... 53
Display assembly ............................................................................................................................... 56
Top cover/keyboard ........................................................................................................................... 63
6 Using Setup Utility (BIOS) ............................................................................................................................. 65
Starting Setup Utility (BIOS) ................................................................................................................................ 65
Updating Setup Utility (BIOS) .............................................................................................................................. 65
Determining the BIOS version ........................................................................................................... 65
Downloading a BIOS update .............................................................................................................. 66
7 Using HP PC Hardware Diagnostics ................................................................................................................ 67
Using HP PC Hardware Diagnostics Windows (select products only) ................................................................. 67
Downloading HP PC Hardware Diagnostics Windows ....................................................................... 67
Downloading the latest HP PC Hardware Diagnostics Windows version ....................... 68
Downloading HP Hardware Diagnostics Windows by product name or number
(select products only) ..................................................................................................... 68
Installing HP PC Hardware Diagnostics Windows ............................................................................. 68
Using HP PC Hardware Diagnostics UEFI ............................................................................................................. 68
Starting HP PC Hardware Diagnostics UEFI ....................................................................................... 69
Downloading HP PC Hardware Diagnostics UEFI to a USB ash drive .............................................. 69
Downloading the latest HP PC Hardware Diagnostics UEFI version .............................. 69
Downloading HP PC Hardware Diagnostics UEFI by product name or number
(select products only) ..................................................................................................... 69
vi
Using Remote HP PC Hardware Diagnostics UEFI settings (select products only) ............................................. 70
Downloading Remote HP PC Hardware Diagnostics UEFI ................................................................. 70
Downloading the latest Remote HP PC Hardware Diagnostics UEFI version ................. 70
Downloading Remote HP PC Hardware Diagnostics UEFI by product name or
number ............................................................................................................................ 70
Customizing Remote HP PC Hardware Diagnostics UEFI settings .................................................... 70
8 Backing up, restoring, and recovering ........................................................................................................... 73
Backing up information and creating recovery media ........................................................................................ 73
Using Windows tools ......................................................................................................................... 73
Using the HP Cloud Recovery Download Tool to create recovery media (select products only) ..... 73
Restoring and recovery ........................................................................................................................................ 74
Restoring, resetting, and refreshing using Windows tools .............................................................. 74
Recovering using HP Recovery media ............................................................................................... 74
Changing the computer boot order ................................................................................................... 74
9 Specications .............................................................................................................................................. 75
Computer specications ...................................................................................................................................... 75
35.6 cm (14.0 in) display specications .............................................................................................................. 76
Hard drive specications ..................................................................................................................................... 77
Solid-state drive specications ........................................................................................................................... 78
10 Power cord set requirements ...................................................................................................................... 79
Requirements for all countries ............................................................................................................................ 79
Requirements for specic countries and regions ................................................................................................ 80
11 Recycling .................................................................................................................................................. 83
Index ............................................................................................................................................................. 85
vii
viii
1 Product description
Table 1-1 Product components and their descriptions
Category Description
Product Name HP 14 Laptop PC
Model numbers:
World Wide 14-dk0xxx
APJ LFR: 14s-dk0xxx
APJ IT Mall: 14s-dm0xxx
APJ OLS: 14s-dp0xxx
CTO model number: 14z-dk000
Processor AMD Dual-Core Athlon™ Series Processor
Athlon 300U (2.4 GHz, turbo up to 3.3 GHz), 2400 MHz/3 MB L3 cache, dual core, 15 W
AMD Dual-Core A9-Series Processor
A9-9425 (3.1 GHz, turbo up to 3.7 GHz), 2133 MHz/1 MB L2 cache, dual core, 15 W
AMD Dual-Core A6-Series Processor
A6-9225 (2.6 GHz, turbo up to 3.0 GHz), 2133 MHz/1 MB L2 cache, dual core, 15 W
AMD Dual-Core A4-Series Processor
A4-9125 (2.3 GHz, turbo up to 2.6 GHz), 2133 MHz/1 MB L2 cache, dual core, 15 W
AMD Quad-Core R7-Series Accelerated Processor
Ryzen™ 7-3700U (2.3 GHz, turbo up to 4.0 GHz), 6 MB L3 cache, DDR4-2400 MHz, quad core, 15 W
AMD Quad-Core R5-Series Accelerated Processor
Ryzen 5-3500U (2.1 GHz, turbo up to 3.7 GHz), 2 MB L2 cache, DDR4-2400 MHz, quad core, 15 W
AMD Dual-Core R3-Series Accelerated Processor
Ryzen 3-3200U (2.6 GHz, turbo up to 3.5 GHz), 2 MB L2 cache, DDR4-2400 MHz, dual core, 15 W
Graphics Supports HD decode, DX12, HDMI, and PX7 (UMA graphics)
Internal graphics
AMD Radeon™ RX Vega 10 Mobile Graphics (Ryzen 7 processor)
AMD Radeon Vega 8 Mobile Graphics (Ryzen 5 processor)
AMD Radeon Vega 3 Mobile Graphics (Ryzen 3, Athlon 300U processors)
AMD Radeon R5 Graphics (A9 processor)
AMD Radeon R4 Graphics (A6 processor)
AMD Radeon R3 Graphics (E2 processor)
1
Table 1-1 Product components and their descriptions (continued)
Category Description
Switchable discrete graphics (Ryzen processors)
AMD Radeon 530 with up to 2 GB of dedicated video memory
Supports MR Ready (Ryzen processors, UMA graphics)
Panel 35.6-cm (14.0-in), WLED, eDP, slim-at (3.0 mm), 16:9 ultra wide aspect ratio, narrow bezel, non-touch
High denition (HD) (1366 × 768), BrightView, SVA
HD (1366 × 768), anti glare, SVA
HD (1366 × 768), BrightView, SVA, TOP (Touch-On Panel)
Full high-denition (FHD) (1920 × 1080), anti glare, UWVA
FHD (1920 × 1080), BrightView, UWVA
Memory Two memory module slots
Memory is non-customer accessible/non-upgradeable
DDR4-2400 dual channel support (Ryzen, Athlon processors)
DDR4-1866 dual channel support (A9/A6/A4 processors)
Supports up to 16 GB of system RAM in the following congurations:
● 16384 MB (8192 MB × 2)
● 12288 MB (8192 MB × 1 + 4096 MB × 1)
● 8192 MB (8192 MB × 1 or 4096 × 2)
● 4096 MB (4096 MB × 1)
One memory module slot (A9/A6/A4 processors)
Memory is non-customer accessible/non-upgradeable
DDR4-1866 single channel support
Supports up to 8 GB of system RAM in the following congurations:
● 8192 MB (8192 MB × 1)
● 4096 MB (4096 MB × 1)
Primary storage Single hard drive congurations, 6.35 cm (2.5 in), 7.0/7.2 mm, SATA hard drives
1 TB, 5400 rpm, 7.2 mm
500 GB, 5400 rpm, 7.0 mm
M.2, SATA-3, TLC, solid-state drives
512 GB
256 GB
128 GB
PCIe, NVMe, M.2 solid-state drives
512 GB
2 Chapter 1 Product description
Table 1-1 Product components and their descriptions (continued)
Category Description
256 GB
Dual storage congurations
256 GB, PCIe, solid-state drive + 1 TB, 5400 rpm hard drive
128 GB, SATA-3, TLC, solid-state drive + 1 TB, 5400 rpm hard drive
eMMC congurations (A9/A6/A4 processors)
64 GB
Camera HP TrueVision HD Camera - indicator LED, USB2.0, HD BSI sensor, f2.0
720p by 30 frames per second
Single digital microphone
Audio Audio Application Name: HP Audio Control
Dual speakers
Ethernet Ethernet Integrated 10/100/1000 NIC
Wireless networking Compatible with Miracast-certied devices
Integrated Wireless options with dual antennas (M.2/PCIe)
Realtek RTL8822BE 802.11ac 2 × 2 Wi-Fi + Bluetooth® 4.2 Combo Adapter (MU-MIMO supported)
Integrated Wireless options with single antenna (M.2/PCIe)
Realtek RTL8821CE 802.11ac 1 × 1 Wi-Fi + Bluetooth 4.2 Combo Adapter (MU-MIMO supported)
Realtek RTL8723DE 802.11bgn 1 × 1 Wi-Fi + Bluetooth 4.2 Combo Adapter
Media card reader Supports SD/SDHC/SDXC
Push-pull insertion/removal
Internal card
expansion
Ports Hot plug/unplug and auto detect for correct output to wide-aspect vs. standard aspect video (auto adjust
Keyboard/pointing
devices
One M.2 slot for solid-state drive
One M.2 slot for WLAN
panel resolution to t embedded panel and external monitor connected)
HDMI v1.4 supporting: up to 1920 × 1080 @ 60Hz
USB Type-C 3.1 Gen1 port (left side)
(2) USB Type-A 3.1 Gen 1 ports (right side)
RJ-45/Ethernet
Audio-out (headphone)/audio-in (microphone) combo jack
AC Smart Pin adapter plug
Keyboard
Full-size, textured, island-style keyboard (snow white, ash silver)
Full-size, two coat paint, backlit, island-style keyboard (ash silver)
Full-size, two coat paint, island-style keyboard (natural silver)
3
Table 1-1 Product components and their descriptions (continued)
Category Description
Full-size, four coat paint, backlit, island-style keyboard (snow white)
Full-size, three coat paint, backlit, island-style keyboard (natural silver)
TouchPad with image sensor
Multitouch gestures enabled
Support Modern Trackpad Gestures
Taps enabled by default
Power requirements Battery
3-cell, 41 Whr, Li-ion
Battery life enhancement
Supports battery fast charge, 45 mins/50% charge
AC adapter, standard barrel
65 W Smart, nPFC, right angle, 4.5 mm (models with discrete graphics)
65 W Smart, nPFC, 4.5 mm, EM
45 W Smart, nPFC, right angle, 4.5 mm (models with UMA graphics)
Power cord (C5)
1 m, conventional
Security Kensington Mini Security Slot
Supports Trusted Platform Module (TPM) 2.0
Operating system FreeDOS 2.0
Windows® 10 Home 64
Windows 10 Home 64 Web/Kiosk
Windows 10 Home 64 Chinese Market CPPP
Windows 10 Home 64 Entry Single Language
Windows 10 Home 64 Entry Single Language Compact
Windows 10 Home 64 High-end Chinese Market CPPP
Windows 10 Home 64 Plus
Windows 10 Home 64 Plus Single Language
Windows 10 Home 64 Plus Single Language Africa Market PPP
Windows 10 Home 64 Plus Single Language APAC EM PPP
Windows 10 Home 64 Plus Single Language India Market PPP
4 Chapter 1 Product description
Windows 10 Home 64 Plus Single Language Indonesia Market PPP
Windows 10 Home 64 Single Language
Windows 10 Home 64 Single Language Africa Market PPP
Table 1-1 Product components and their descriptions (continued)
Category Description
Windows 10 Home 64 Single Language APAC EM PPP
Windows 10 Home 64 Single Language Entry Africa Market PPP
Windows 10 Home 64 Single Language India Market PPP
Windows 10 Home 64 Single Language Indonesia Market PPP
Windows 10 Home 64 Single Language Value Africa Market PPP
Windows 10 Home 64 Single Language Value Africa Market PPP Compact
Windows 10 Home 64 Single Language Value APAC EM PPP
Windows 10 Home 64 Single Language Value India Market PPP
Windows 10 Home 64 Single Language Value Indonesia Market PPP
Windows 10 Home 64 Value Notebook Compact
Windows 10 Home 64 Value Notebook Single Language
Windows 10 Home 64 Value Notebook Single Language Compact
Windows 10 Home 64 Value Notebook Single Language SEAP
Windows 10 Home 64 Value Notebook Single Language select GEO
Windows 10 Home 64 Value Notebook Single Language select GEO Compact
Windows 10 Home S 64
Windows 10 Home S 64 Web/Kiosk
Windows 10 Home S 64 Single Language
Windows 10 Home S 64 Value Compact
Windows 10 Home S 64 Value Compact 1C19 Web/Kiosk
Windows 10 Pro 64
Serviceability End user replaceable parts
AC adapter
5
6 Chapter 1 Product description
2 Getting to know your computer
Your computer features top-rated components. This chapter provides details about your components, where
they are located, and how they work.
Right side
Table 2-1 Right-side components and their descriptions
Component Description
(1) Audio-out (headphone)/
Audio-in (microphone)
combo jack
(2) USB SuperSpeed ports
(2)
(3) HDMI port Connects an optional video or audio device, such as a high-denition television, any
(4) RJ-45 (network) jack/
status lights
(5) AC adapter and battery
light
Connects optional powered stereo speakers, headphones, earbuds, a headset, or a
television audio cable. Also connects an optional headset microphone. This jack does not
support optional standalone microphones.
WARNING! To reduce the risk of personal injury, adjust the volume before putting on
headphones, earbuds, or a headset. For additional safety information, refer to the
Regulatory, Safety, and Environmental Notices.
To access this guide:
▲ Select the Start button, select HP Help and Support, and then select HP
Documentation.
NOTE: When a device is connected to the jack, the computer speakers are disabled.
Connect a USB device, such as a cell phone, camera, activity tracker, or smartwatch, and
provide high-speed data transfer.
NOTE: Cables and/or adapters (purchased separately) may be required.
compatible digital or audio component, or a high-speed High-Denition Multimedia
Interface (HDMI) device.
Connects a network cable.
● White: The network is connected.
● Amber: Activity is occurring on the network.
● White: The AC adapter is connected and the battery is fully charged.
● Blinking white: The AC adapter is disconnected and the battery has reached a low
battery level.
● Amber: The AC adapter is connected and the battery is charging.
Right side 7
Table 2-1 Right-side components and their descriptions (continued)
Component Description
(6) Power connector Connects an AC adapter.
Left side
Table 2-2 Left-side components and their descriptions
Component Description
● O: The battery is not charging.
(1) Security cable slot Attaches an optional security cable to the computer.
NOTE: The security cable is designed to act as a deterrent, but it may not prevent
the computer from being mishandled or stolen.
(2) USB Type-C port Connects a USB device, such as a cell phone, camera, activity tracker, or
smartwatch, and provides data transfer.
NOTE: Cables and/or adapters (purchased separately) may be required.
(3) Memory card reader Reads optional memory cards that enable you to store, manage, share, or access
information.
To insert a card:
1. Hold the card label-side up, with connectors facing the computer.
2. Insert the card into the memory card reader, and then press in on the card
until it is rmly seated.
To remove a card:
▲ Press in on the card, and then remove it from the memory card reader.
(4) Drive light Blinking white: The hard drive is being accessed.
(5) Power light ● On: The computer is on.
● Blinking: The computer is in the Sleep state, a power-saving state. The
computer shuts o power to the display and other unneeded components.
● O: The computer is o or in Hibernation. Hibernation is a power-saving state
that uses the least amount of power.
8 Chapter 2 Getting to know your computer
Display
Table 2-3 Display components and their descriptions
Component Description
(1) WLAN antennas* Send and receive wireless signals to communicate with wireless local area networks
(WLANs).
(2) Camera light On: The camera is in use.
(3) Camera Allows you to video chat, record video, and record still images. Some cameras also
allow a facial recognition logon to Windows, instead of a password logon.
NOTE: Camera functions vary depending on the camera hardware and software
installed on your product.
(4) Internal microphone Records sound.
*The antennas are not visible from the outside of the computer. For optimal transmission, keep the areas immediately around the
antennas free from obstructions.
For wireless regulatory notices, see the section of the Regulatory, Safety, and Environmental Notices that applies to your country or
region.
To access this guide:
▲ Select the Start button, select HP Help and Support, and then select HP Documentation.
Display 9
Keyboard area
TouchPad
Table 2-4 TouchPad components and their descriptions
Component Description
(1) TouchPad zone Reads your nger gestures to move the pointer or activate items on the screen.
(2) Left TouchPad button Functions like the left button on an external mouse.
(3) Right TouchPad button Functions like the right button on an external mouse.
10 Chapter 2 Getting to know your computer
Lights
Table 2-5 Lights and their descriptions
Component Description
(1) Caps lock light On: Caps lock is on, which switches the key input to all capital letters.
(2) Mute light ● On: Computer sound is o.
● O: Computer sound is on.
Keyboard area 11
Button, vent, and speakers
Table 2-6 Button, vent, and speakers and their descriptions
Component Description
(1) Power button ● When the computer is o, press the button to turn on the computer.
● When the computer is on, press the button briey to initiate Sleep.
● When the computer is in the Sleep state, press the button briey to exit
Sleep (select products only).
● When the computer is in Hibernation, press the button briey to exit
Hibernation.
CAUTION: Pressing and holding down the power button results in the loss of
unsaved information.
If the computer has stopped responding and shutdown procedures are
ineective, press and hold the power button down for at least 5 seconds to turn
o the computer.
To learn more about your power settings, see your power options:
▲ Right-click the Power icon , and then select Power Options.
(2) Vent Enables airow to cool internal components.
NOTE: The computer fan starts up automatically to cool internal components
and prevent overheating. It is normal for the internal fan to cycle on and o
during routine operation.
(3) Speakers (2) Produce sound.
12 Chapter 2 Getting to know your computer
Special keys
Table 2-7 Special keys and their descriptions
Component Description
(1) esc key Displays system information when pressed in combination with the fn key.
(2) fn key Executes specic functions when pressed in combination with another key.
(3) Windows key Opens the Start menu.
NOTE: Pressing the Windows key again will close the Start menu.
(4) Action keys Execute frequently used system functions.
NOTE: On select products, the f5 action key turns the keyboard backlight
feature o or on.
Keyboard area 13
Action keys
An action key performs the function indicated by the icon on the key. To determine which keys are on your
product, see Special keys on page 13.
▲ To use an action key, press and hold the key.
Table 2-8 Action keys and their descriptions
Icon Description
Helps prevent side-angle viewing from onlookers. If needed, decrease or increase brightness for well-lit or
darker environments. Press the key again to turn o the privacy screen.
Decreases the screen brightness incrementally as long as you hold down the key.
Increases the screen brightness incrementally as long as you hold down the key.
Opens the “How to get help in Windows 10” webpage.
Switches the screen image between display devices connected to the system. For example, if a monitor is
connected to the computer, repeatedly pressing this key alternates the screen image from the computer
display to the monitor display to a simultaneous display on both the computer and the monitor.
Turns the keyboard backlight o or on. On select products, you can adjust the brightness of the keyboard
backlight. Press the key repeatedly to adjust the brightness from high (when you rst start up the computer),
to low, to o. After you adjust the keyboard backlight setting, the backlight will revert to your previous
setting each time you turn on the computer. The keyboard backlight will turn o after 30 seconds of
inactivity. To turn the keyboard backlight back on, press any key or tap the TouchPad (select products only).
To conserve battery power, turn o this feature.
Plays the previous track of an audio CD or the previous section of a DVD or a Blu-ray Disc (BD).
Starts, pauses, or resumes playback of an audio CD, a DVD, or a BD.
Plays the next track of an audio CD or the next section of a DVD or a BD.
Stops audio or video playback of a CD, a DVD, or a BD.
Decreases speaker volume incrementally while you hold down the key.
Increases speaker volume incrementally while you hold down the key.
14 Chapter 2 Getting to know your computer
Table 2-8 Action keys and their descriptions (continued)
Icon Description
Bottom
Mutes or restores speaker sound.
Turns the airplane mode and wireless feature on or o.
NOTE: The airplane mode key is also referred to as the wireless button.
NOTE: A wireless network must be set up before a wireless connection is possible.
Labels
Table 2-9 Bottom components and their descriptions
Component Description
Vent Enables airow to cool internal components.
NOTE: The computer fan starts up automatically to cool internal components
and prevent overheating. It is normal for the internal fan to cycle on and o
during routine operation.
The labels axed to the computer provide information you may need when you troubleshoot system
problems or travel internationally with the computer. Labels may be in paper form or imprinted on the
product.
IMPORTANT: Check the following locations for the labels described in this section: the bottom of the
computer, inside the battery bay, under the service door, on the back of the display, or on the bottom of a
tablet kickstand.
Bottom 15
● Service label—Provides important information to identify your computer. When contacting support, you
may be asked for the serial number, the product number, or the model number. Locate this information
before you contact support.
Your service label will resemble one of the examples shown below. Refer to the illustration that most
closely matches the service label on your computer.
Table 2-10 Service label components
Component
(1) HP product name
(2) Model number
(3) Product ID
(4) Serial number
(5) Warranty period
Table 2-11 Service label components
Component
(1) HP product name
(2) Product ID
(3) Serial number
(4) Warranty period
● Regulatory label(s)—Provide(s) regulatory information about the computer.
● Wireless certication label(s)—Provide(s) information about optional wireless devices and the approval
markings for the countries or regions in which the devices have been approved for use.
16 Chapter 2 Getting to know your computer
3 Illustrated parts catalog
Computer major components
NOTE: HP continually improves and changes product parts. For complete and current information on
supported parts for your computer, go to http://partsurfer.hp.com, select your country or region, and then
follow the on-screen instructions.
Computer major components 17
Table 3-1 Computer major components and their descriptions
Item Component Spare part
number
(1) Display assembly (14 inch)
NOTE: Displays are only spared at the subcomponent level. For display assembly spare part information, see Display
assembly subcomponents on page 21.
(2) Hinge cover
NOTE: For hinge cover spare part information, see Display assembly subcomponents on page 21.
Natural silver L24474-001
Pale gold L24471-001
Snow ake white L24472-001
(3) Top cover/keyboard (includes TouchPad and TouchPad top mylar; does not include TouchPad board
or TouchPad click board)
NOTE: For a detailed list of keyboard country codes, see Top cover/keyboard on page 63.
Ash silver, not backlit L24818-xx1
Ash silver, backlit L24817-xx1
Snow ake white, backlit L24819-xx1
Snow ake white, not backlit L24820-xx1
Natural silver, backlit L48647-xx1
Natural silver, not backlit L48648-xx1
(4) TouchPad board cable L23184-001
(5) TouchPad board L24484-001
(6) TouchPad click board
NOTE: The TouchPad click board cable is available using spare part number L24485-001.
L24486-001
(7) Power connector L23188-001
(8) Hard drive (does not include bracket)
1 TB, 5400 rpm, 7 mm 762990-005
500 GB, 5400 rpm, 7 mm 778186-005
(9) Hard drive cable L23187-001
(10) Hard drive bracket L24490-001
(11) eMMC board, 64 GB
NOTE: The eMMC board cable is available using spare part number L23397-001.
(12) eMMC bracket L23387-001
(13) Battery
3-cell, 41 Whr, 3.6 Ahr Li-ion L11119-855
3-cell, 45 Whr, 3.9 Ahr Li-ion L56424-005
(14) USB board L24483-001
18 Chapter 3 Illustrated parts catalog
L23398-001
Table 3-1 Computer major components and their descriptions (continued)
Item Component Spare part
number
USB board cable (not illustrated) L23186-001
(15) Speakers L24489-001
(16) System board hook L23206-001
(17) System board (includes replacement thermal materials)
All system boards use the following part numbers:
xxxxxx-001: non-Windows operating system
xxxxxx-601: Windows operating system
For use in models with discrete graphics:
● AMD Ryzen 3 3200U processor and 2 GB of dedicated video memory L51930-xxx
● AMD A9-9425 processor and 2 GB of dedicated video memory L57725-xxx
For use in models with UMA graphics:
● AMD Athlon 300U processor L56249-xxx
● AMD Ryzen 7 3700U processor L53464-xxx
● AMD Ryzen 5 3500U processor L51929-xxx
● AMD Ryzen 5 3500U processor (models with a TOP (Touch-On Panel) display) L53482-xxx
● AMD Ryzen 3 3200U processor L51928-xxx
● AMD A9-9425 processor L46705-xxx
● AMD A6-9225 processor L46704-xxx
● AMD A4-9125 processor L46703-xxx
(18) WLAN module
Dual antennas:
● Realtek RTL8822BE 802.11ac 2 × 2 Wi-Fi + BT 4.2 Combo Adapter (MU-MIMO supported) 924813-855
Single antenna:
● Realtek RTL8821CE 802.11ac 1 × 1 Wi-Fi + BT 4.2 Combo Adapter (MU-MIMO supported) L17365-005
● Realtek RTL8723DE 802.11bgn 1 × 1 Wi-Fi + BT 4.2 Combo Adapter L21480-005
(19) Solid-state drive
PCIe:
● 512 GB L53824-001
● 512 GB, TLC L56925-001
● 256 GB L53823-001
SATA-3, TLC:
● 256 GB L53822-001
● 128 GB L53821-001
Computer major components 19
Table 3-1 Computer major components and their descriptions (continued)
Item Component Spare part
number
(20) Memory module
4 GB 820569-005
8 GB 820570-005
(21) Fan L23189-001

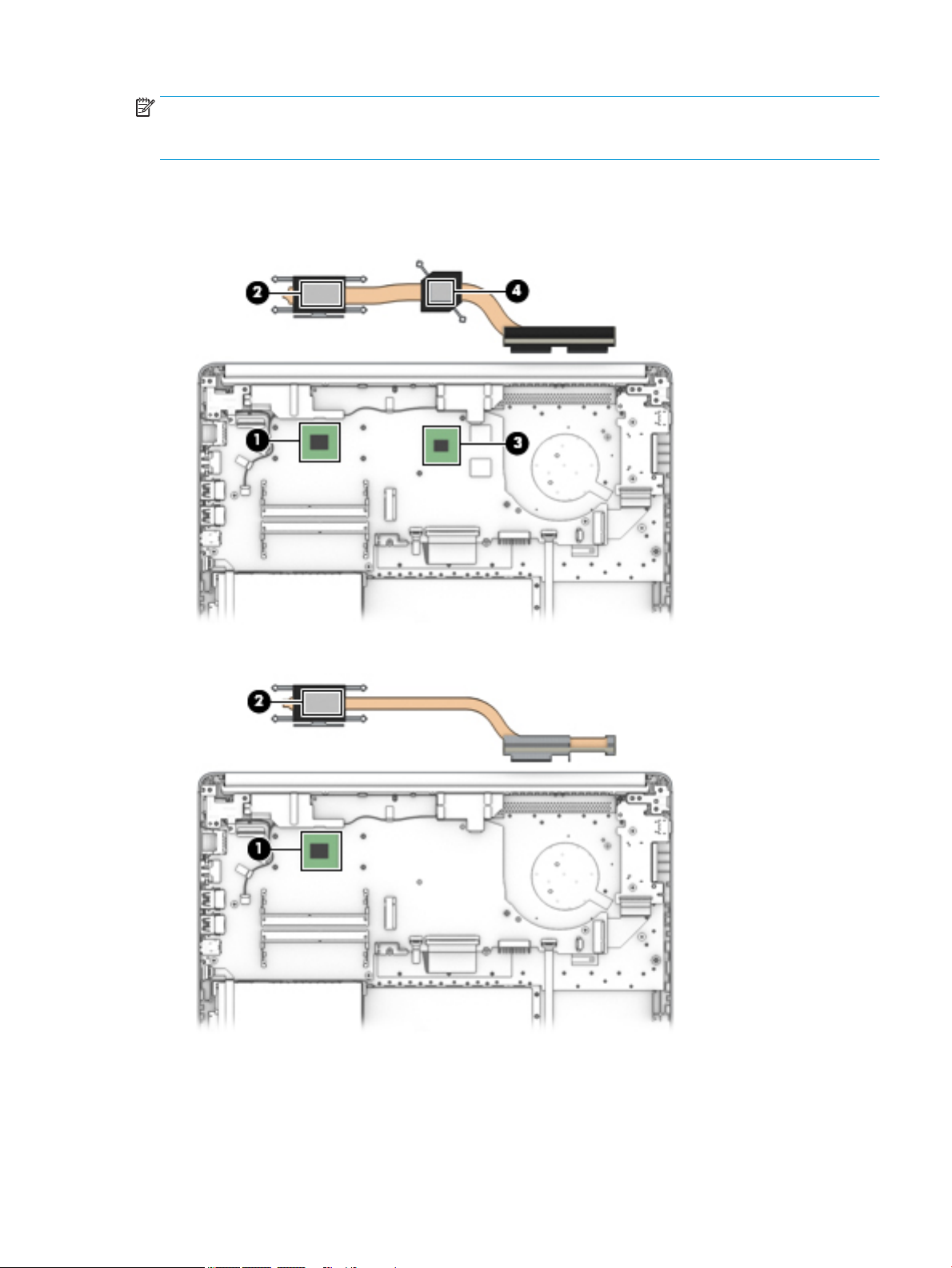

(22) Heat sink assembly, discrete, (includes replacement thermal materials)
For use in models with the following processors: A9-9425, A6-9225, A4-9125 L23386-001
For use in models with the following processors: Ryzen7-3700U, Ryzen5-3500U, Ryzen3-3200U,
Athlon 300U
(23) Heat sink assembly, UMA (includes replacement thermal materials)
For use in models with the following processors: A9-9425, A6-9225, A4-9125 L23385-001
For use in models with the following processors: Ryzen7-3700U, Ryzen5-3500U, Ryzen3-3200U,
Athlon 300U
(24) Rubber Feet (includes front and rear feet)
Natural silver L24482-001
Pale gold L24479-001
Snow ake white L24480-001
(25) Bottom cover
Natural silver L24478-001
Pale gold L24475-001
Snow ake white L24476-001
L23192-001
L23191-001
20 Chapter 3 Illustrated parts catalog
Display assembly subcomponents
Table 3-2 Display major components and their descriptions
Item Component Spare part number
(1) Hinge cover
Natural silver L24474-001
Pale gold L24471-001
Snow ake white L24472-001
(2) Display bezel L24465-001
(3) Raw display panel (14 inch)
FHD, anti-glare, UWVA L53825-001
FHD, BrightView, UWVA L53826-001
Display assembly subcomponents 21
Table 3-2 Display major components and their descriptions (continued)
Item Component Spare part number
HD, anti-glare, SVA L53829-001
HD, BrightView, SVA L53828-001
HD, BrightView, SVA, TOP (Touch-On Panel) L53827-001
(4) Hinges (left and right) L24470-001
(5) Webcam/microphone module L23237-001
(6) Display cable
HD display L24492-001
FHD display L24493-001
(7) Antennas
Dual L24640-001
Single L29012-001
(8) Display enclosure
Natural silver L24469-001
Pale gold L24466-001
Snow ake white L24467-001
Miscellaneous parts
Table
3-3 Miscellaneous parts and their descriptions
Component Spare part number
Adhesive tape kit L24491-001
HP Smart AC adapter
45 W, RC 4.5 mm, NPFC, non-slim 741727-001
65 W, NPFC, S-3P 4.5 mm 710412-001
65 W, NPFC, RC 4.5 mm, EM 913691-850
Power cord (3-pin, black, 1.0 m) for use in:
For use in Argentina L19357-001
For use in Australia L19358-001
For use in Denmark L19360-001
For use in Europe L19361-001
For use in India L19363-001
For use in Israel L19362-001
For use in Italy L19364-001
For use in Japan L19365-001
22 Chapter 3 Illustrated parts catalog
Table 3-3 Miscellaneous parts and their descriptions (continued)
Component Spare part number
For use in North America L19367-001
For use in the People’s Republic of China L19368-001
For use in South America L19369-001
For use in South Korea L19366-001
For use in Switzerland L19370-001
For use in Thailand L19371-001
For use in Taiwan L19372-001
For use in the United Kingdom L19373-001
Screw Kit L24494-001
Miscellaneous parts 23
24 Chapter 3 Illustrated parts catalog
4 Removal and replacement procedures
preliminary requirements
Tools required
You will need the following tools to complete the removal and replacement procedures:
● Flat-bladed screwdriver
● Magnetic screwdriver
● Phillips P0 and P1 screwdrivers
● Pick
● Tweezers
Service considerations
The following sections include some of the considerations that you must keep in mind during disassembly
and assembly procedures.
NOTE: As you remove each subassembly from the computer, place the subassembly (and all accompanying
screws) away from the work area to prevent damage.
Plastic parts
IMPORTANT: Using excessive force during disassembly and reassembly can damage plastic parts.
Cables and connectors
IMPORTANT: When servicing the computer, be sure that cables are placed in their proper locations during
the reassembly process. Improper cable placement can damage the computer.
Cables must be handled with extreme care to avoid damage. Apply only the tension required to unseat or seat
the cables during removal and insertion. Handle cables by the connector whenever possible. In all cases, avoid
bending, twisting, or tearing cables. Be sure that cables are routed in such a way that they cannot be caught
or snagged by parts being removed or replaced. Handle ex cables with extreme care; these cables tear
easily.
Tools required 25
Drive handling
IMPORTANT: Drives are fragile components that must be handled with care. To prevent damage to the
computer, damage to a drive, or loss of information, observe these precautions:
Before removing or inserting a hard drive, shut down the computer. If you are unsure whether the computer is
o or in Hibernation, turn the computer on, and then shut it down through the operating system.
Before handling a drive, be sure that you are discharged of static electricity. While handling a drive, avoid
touching the connector.
Before removing an optical drive, be sure that a disc is not in the drive and be sure that the optical drive tray is
closed.
Handle drives on surfaces covered with at least one inch of shock-proof foam.
Avoid dropping drives from any height onto any surface.
After removing a hard drive or an optical drive, place it in a static-proof bag.
Avoid exposing an internal hard drive to products that have magnetic elds, such as monitors or speakers.
Avoid exposing a drive to temperature extremes or liquids.
If a drive must be mailed, place the drive in a bubble pack mailer or other suitable form of protective
packaging and label the package “FRAGILE.”
Workstation guidelines
Follow these grounding workstation guidelines:
● Cover the workstation with approved static-shielding material.
● Use a wrist strap connected to a properly grounded work surface and use properly grounded tools and
equipment.
● Use conductive eld service tools, such as cutters, screw drivers, and vacuums.
● When xtures must directly contact dissipative surfaces, use xtures made only of static-safe materials.
● Keep the work area free of nonconductive materials, such as ordinary plastic assembly aids
and Styrofoam.
● Handle ESD-sensitive components, parts, and assemblies by the case or PCM laminate. Handle these
items only at static-free workstations.
● Avoid contact with pins, leads, or circuitry.
● Turn o power and input signals before inserting or removing connectors or test equipment.
Electrostatic discharge information
A sudden discharge of static electricity from your nger or other conductor can destroy static-sensitive
devices or microcircuitry. Often the spark is neither felt nor heard, but damage occurs. An electronic device
exposed to electrostatic discharge (ESD) may not appear to be aected at all and can work perfectly
throughout a normal cycle. The device may function normally for a while, but it has been degraded in the
internal layers, reducing its life expectancy.
Networks built into many integrated circuits provide some protection, but in many cases, the discharge
contains enough power to alter device parameters or melt silicon junctions.
26 Chapter 4 Removal and replacement procedures preliminary requirements
IMPORTANT: To prevent damage to the device when you are removing or installing internal components,
observe these precautions:
Keep components in their electrostatic-safe containers until you are ready to install them.
Before touching an electronic component, discharge static electricity by using the guidelines described in this
section.
Avoid touching pins, leads, and circuitry. Handle electronic components as little as possible.
If you remove a component, place it in an electrostatic-safe container.
Generating static electricity
Note the following:
● Dierent activities generate dierent amounts of static electricity.
● Static electricity increases as humidity decreases.
Table 4-1 Static electricity occurrence based on activity and humidity
Relative humidity
Event 55% 40% 10%
Walking across carpet
Walking across vinyl oor
Motions of bench worker
Removing DIPs from plastic tube
Removing DIPs from vinyl tray
Removing DIPs from Styrofoam
Removing bubble pack from PCB
Packing PCBs in foam-lined box
Electronic components are then multi-packaged inside plastic tubes, trays, or Styrofoam.
NOTE: As little as 700 volts can degrade a product.
Preventing electrostatic damage to equipment
Many electronic components are sensitive to ESD. Circuitry design and structure determine the degree of
sensitivity. The following packaging and grounding precautions are necessary to prevent static electricity
damage to electronic components.
● To avoid hand contact, transport products in static-safe containers such as tubes, bags, or boxes.
7,500 V
3,000 V
400 V
400 V
2,000 V
3,500 V
7,000 V
5,000 V
15,000 V
5,000 V
800 V
700 V
4,000 V
5,000 V
20,000 V
11,000 V
35,000 V
12,000 V
6,000 V
2,000 V
11,500 V
14,500 V
26,500 V
21,000 V
● Protect all electrostatic parts and assemblies with conductive or approved containers or packaging.
● Keep electrostatic-sensitive parts in their containers until they arrive at static-free stations.
● Place items on a grounded surface before removing them from their container.
● Always be properly grounded when touching a sensitive component or assembly.
Electrostatic discharge information 27
● Avoid contact with pins, leads, or circuitry.
● Place reusable electrostatic-sensitive parts from assemblies in protective packaging or conductive
foam.
Personal grounding methods and equipment
Use the following equipment to prevent static electricity damage to electronic components:
● Wrist straps are exible straps with a maximum of one-megohm ± 10% resistance in the ground cords.
To provide proper ground, a strap must be worn snug against bare skin. The ground cord must be
connected and t snugly into the banana plug connector on the grounding mat or workstation.
● Heel straps/Toe straps/Boot straps can be used at standing workstations and are compatible with
most types of shoes or boots. On conductive oors or dissipative oor mats, use them on both feet with
a maximum of one-megohm ± 10% resistance between the operator and ground.
Table 4-2 Static shielding protection levels
Static shielding protection levels
Method Voltage
Antistatic plastic
Carbon-loaded plastic
Metallized laminate
Grounding the work area
To prevent static damage at the work area, use the following precautions:
● Cover the work surface with approved static-dissipative material. Provide a wrist strap connected to the
work surface and properly grounded tools and equipment.
● Use static-dissipative mats, foot straps, or air ionizers to give added protection.
● Handle electrostatic sensitive components, parts, and assemblies by the case or PCB laminate. Handle
them only at static-free work areas.
● Turn o power and input signals before inserting and removing connectors or test equipment.
● Use xtures made of static-safe materials when xtures must directly contact dissipative surfaces.
● Keep work area free of nonconductive materials such as ordinary plastic assembly aids and Styrofoam.
● Use eld service tools, such as cutters, screwdrivers, and vacuums, that are conductive.
Recommended materials and equipment
1,500
7,500
15,000
Materials and equipment that are recommended for use in preventing static electricity include:
● Antistatic tape
● Antistatic smocks, aprons, or sleeve protectors
● Conductive bins and other assembly or soldering aids
● Conductive foam
● Conductive tabletop workstations with ground cord of one-megohm +/- 10% resistance
● Static-dissipative table or oor mats with hard tie to ground
28 Chapter 4 Removal and replacement procedures preliminary requirements
● Field service kits
● Static awareness labels
● Wrist straps and footwear straps providing one-megohm +/- 10% resistance
● Material handling packages
● Conductive plastic bags
● Conductive plastic tubes
● Conductive tote boxes
● Opaque shielding bags
● Transparent metallized shielding bags
● Transparent shielding tubes
Packaging and transporting guidelines
Follow these grounding guidelines when packaging and transporting equipment:
● To avoid hand contact, transport products in static-safe tubes, bags, or boxes.
● Protect ESD-sensitive parts and assemblies with conductive or approved containers or packaging.
● Keep ESD-sensitive parts in their containers until the parts arrive at static-free workstations.
● Place items on a grounded surface before removing items from their containers.
● Always be properly grounded when touching a component or assembly.
● Store reusable ESD-sensitive parts from assemblies in protective packaging or nonconductive foam.
● Use transporters and conveyors made of antistatic belts and roller bushings. Be sure that mechanized
equipment used for moving materials is wired to ground and that proper materials are selected to avoid
static charging. When grounding is not possible, use an ionizer to dissipate electric charges.
Packaging and transporting guidelines 29
30 Chapter 4 Removal and replacement procedures preliminary requirements
5 Removal and replacement procedures for
authorized service provider parts
IMPORTANT: Components described in this chapter should only be accessed by an authorized service
provider. Accessing these parts can damage the computer or void the warranty.
NOTE: HP continually improves and changes product parts. For complete and current information on
supported parts for your computer, go to http://partsurfer.hp.com, select your country or region, and then
follow the on-screen instructions.
Preparation for disassembly
See Removal and replacement procedures preliminary requirements on page 25 for initial safety procedures.
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
Component replacement procedures
NOTE: Details about your computer, including model, serial number, product key, and length of warranty,
are on the service tag at the bottom of your computer.
This chapter provides removal and replacement procedures for Authorized Service Provider only parts.
There are as many as 58 screws that must be removed, replaced, or loosened when servicing Authorized
Service Provider only parts. Make special note of each screw size and location during removal and
replacement.
Computer feet
Table
5-1 Computer feet descriptions and part numbers
Description Spare part number
Computer feet (included in the rubber kit)
Natural silver L24482-001
Pale gold L24479-001
Snow ake white L24480-001
Before replacing the computer feet, follow these steps:
▲ Prepare the computer for disassembly (Preparation for disassembly on page 31).
Remove the computer feet:
Preparation for disassembly 31
1. Close the computer and position it upside down, with the front toward you.
2. Insert a tool with no sharp edges between the base enclosure and one end of the rubber feet.
3. Pull up the rubber feet lightly and quickly.
To install the rubber feet, ret them on the adhesive backing.
NOTE: The bottoms of the computer feet are ribbed. These ribs are designed to t only one way in the
grooves that are in the enclosure. Make sure the feet are positioned in those grooves when reinstalling the
feet.
32 Chapter 5 Removal and replacement procedures for authorized service provider parts
Bottom cover
Table 5-2 Bottom cover descriptions and part numbers
Description Spare part number
Bottom cover for use in models of the following colors:
Natural silver L24478-001
Pale gold L24475-001
Snow ake white L24476-001
Before removing the bottom cover, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 31).
2. Position the computer upside down with the front toward you.
3. Remove the rubber feet (see Computer feet on page 31).
To remove the bottom cover:
1. Remove the four Phillips M2.5 × 6.0 screws (1) in the feet area, and the two Phillips M2.5 × 4.0 screws
(2) in the front part of the bottom cover.
Component replacement procedures 33
2. Use a thin plastic tool (1) to release the back cover. Work your way around prying to disengage the
bottom cover from the computer, and then remove the cover (2).
Reverse this procedure to install the bottom cover.
34 Chapter 5 Removal and replacement procedures for authorized service provider parts
Battery
Table 5-3 Battery and system board hook descriptions and part numbers
Description Spare part number
Battery, 3-cell, 41 Whr, 3.6 Ah Li-ion L11119-855
Battery, 3-cell, 45 Whr, 3.9 Ah Li-ion L56424-005
System board hook L23206-001
Before removing the battery, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 31).
2. Position the computer upside down with the front toward you.
3. Remove the rubber feet (see Computer feet on page 31).
4. Remove the bottom cover (see Bottom cover on page 33).

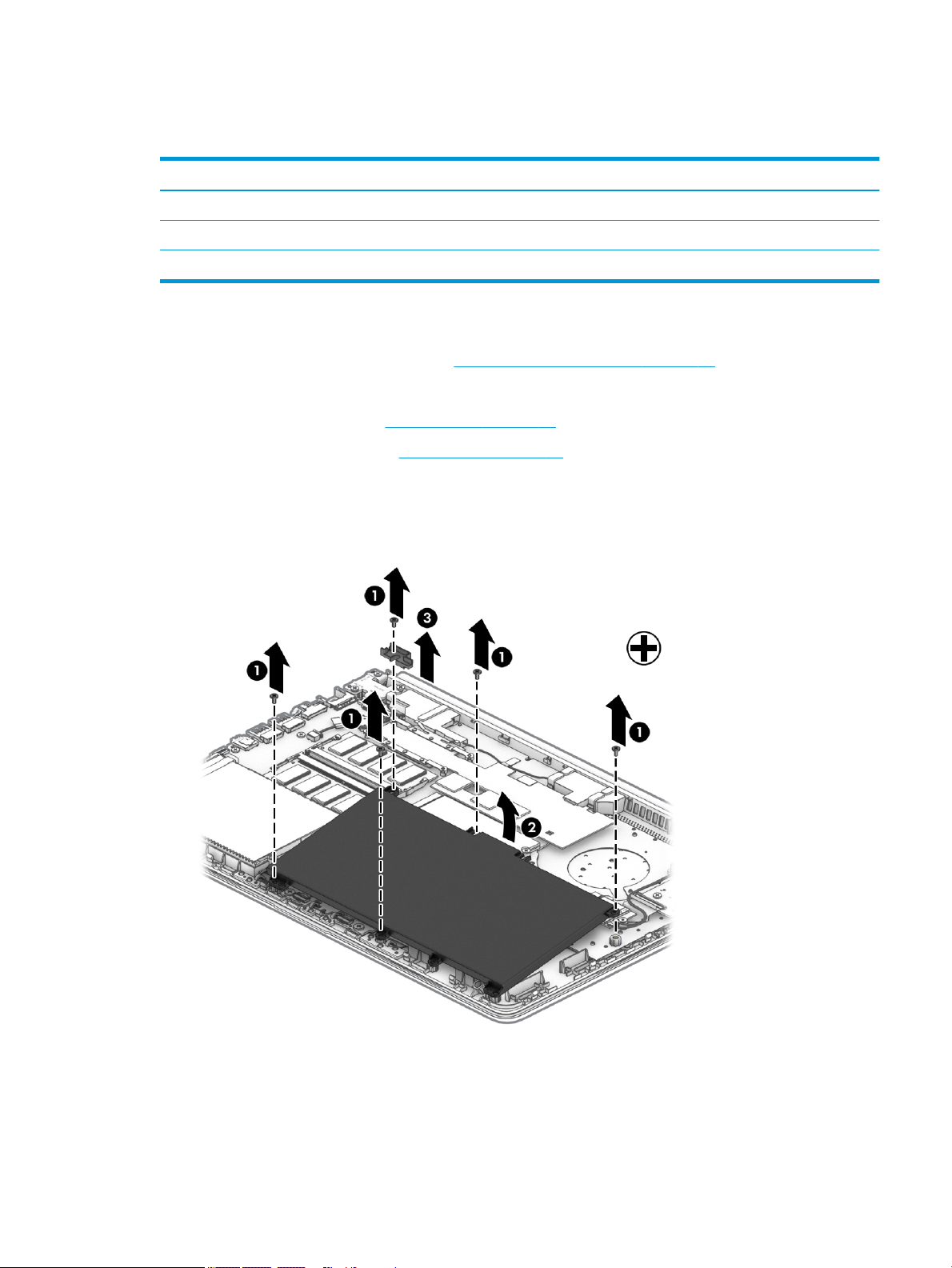

To remove the battery:
1. Remove the ve screws (1) securing the battery.
2. Lift the top of the battery (2), and then remove the system board hook (3).
Reverse this procedure to install the battery.
Component replacement procedures 35
Hard drive
NOTE: The hard drive spare part kit does not include the hard drive bracket.
Table 5-4 Hard drive descriptions and part numbers
Description Spare part number
Hard drive, 1 TB, 5400 rpm, 7 mm 762990-005
Hard drive, 500 GB, 5400 rpm, 7 mm 778186-005
Hard drive cable L23187-001
Hard drive bracket L24490-001
Before removing the hard drive, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 31).
2. Remove the rubber feet (see Computer feet on page 31).
3. Remove the bottom cover (see Bottom cover on page 33).
4. Remove the battery (see Battery on page 35).
To remove the hard drive:
1. Disconnect the cable (1) from the system board and remove the cable (2).
2. Lift the hard drive (3), and then remove it (4) from the computer.
3. To remove the hard drive bracket, pull the holder sides (1) up and away from the hard drive, and then
remove the bracket cover (2) from the hard drive.
36 Chapter 5 Removal and replacement procedures for authorized service provider parts
4. To remove the hard drive connector, pull the connector (3) away from the hard drive.
Reverse this procedure to reassemble and install the hard drive.
Component replacement procedures 37
eMMC board
Table 5-5 eMMC board descriptions and part numbers
Description Spare part number
eMMC board, 64 GB L23398-001
eMMC bracket L23387-001
eMMC cable L23397-001
Before removing the eMMC board, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 31).
2. Remove the rubber feet (see Computer feet on page 31).
3. Remove the bottom cover (see Bottom cover on page 33).
4. Remove the battery (see Battery on page 35).
To remove the eMMC board:
1. Lift the ZIF connector (1), and then disconnect the cable (2) from the eMMC board.
2. Lift the assembly from the computer (3).
38 Chapter 5 Removal and replacement procedures for authorized service provider parts
3. To remove the eMMC board from the bracket, remove the three Phillips M2.0 × 3.0 screws (1) that secure
the board to the bracket, and then remove the board from the bracket (2).
Reverse this procedure to reassemble and install the eMMC board.
Component replacement procedures 39
WLAN module
Table 5-6 WLAN module descriptions and part numbers
Description Spare part number
Dual antenna
Realtek RTL8822BE 802.11ac 2 × 2 Wi-Fi + BT 4.2 Combo Adapter (MU-MIMO supported) 924813-855
Single antenna
Realtek RTL8821CE 802.11ac 1 × 1 Wi-Fi + BT 4.2 Combo Adapter (MU-MIMO supported) L17365-005
Realtek RTL8723DE 802.11bgn 1 × 1 Wi-Fi + BT 4.2 Combo Adapter L21480-005
CAUTION: To prevent an unresponsive system, replace the wireless module only with a wireless module
authorized for use in the computer by the governmental agency that regulates wireless devices in your
country or region. If you replace the module and then receive a warning message, remove the module to
restore device functionality, and then contact support.
Before removing the WLAN module, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 31).
2. Remove the rubber feet (see Computer feet on page 31).
3. Remove the bottom cover (see Bottom cover on page 33).
4. Remove the battery (see Battery on page 35).
To remove the WLAN module:
1. Disconnect the WLAN antenna cables (1) from the terminals on the WLAN module.
NOTE: The #1 WLAN antenna cable is connected to the WLAN module Main terminal. The #2 WLAN
antenna cable is connected to the WLAN module Aux terminal.
2. Remove the Phillips M2.0 × 3.0 screw (2) that secures the WLAN module to the system board. (The WLAN
module tilts up.)
40 Chapter 5 Removal and replacement procedures for authorized service provider parts
3. Remove the WLAN module by pulling the module away from the slot at an angle (3).
NOTE: If the WLAN antennas are not connected to the terminals on the WLAN module, the protective
sleeves must be installed on the antenna connectors, as shown in the following illustration.
Reverse this procedure to install the WLAN module.
Component replacement procedures 41
Memory module
Table 5-7 Memory module descriptions and part numbers
Description Spare part number
SODIMM, 4 GB, 2400 MHz, 1.2 v, DDR4 820569-005
SODIMM, 8 GB, 2400 MHz, 1.2 v, DDR4 820570-005
Before removing a memory module, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 31).
2. Remove the rubber feet (see Computer feet on page 31).
3. Remove the bottom cover (see Bottom cover on page 33).
4. Remove the battery (see Battery on page 35).
To remove a memory module:
1. Spread the retaining tabs (1) on each side of the memory module slot to release the memory module.
(The memory module tilts up.)
2. Remove the memory module (2) by pulling it away from the slot at an angle.
Reverse this procedure to install a memory module.
42 Chapter 5 Removal and replacement procedures for authorized service provider parts
Solid-state drive
Table 5-8 Solid-state drive descriptions and part numbers
Description Spare part number
Solid-state drive, PCIe:
● 512 GB, value L53824-001
● 512 GB, TLC L56925-001
● 256 GB L53823-001
Solid-state drive, SATA-3, TLC:
● 256 GB L53822-001
● 128 GB L53821-001
Solid-state drive bracket L24488-001
Solid-state drive board L24487-001
Before removing the solid-state drive, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 31).
2. Remove the rubber feet (see Computer feet on page 31).
3. Remove the bottom cover (see Bottom cover on page 33).
4. Remove the battery (see Battery on page 35).
Remove the solid-state drive:
1. Remove the Phillips M2.0 × 2.0 screw (1) that secures the drive to the system board.
2. Remove the drive (2) by pulling it away from the connector.
NOTE: Solid-state drives are designed with notches to prevent incorrect insertion.
Reverse this procedure to install the solid-state drive.
Component replacement procedures 43
Speakers
Table 5-9 Speaker description and part number
Before removing the speakers, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 31).
2. Remove the rubber feet (see Computer feet on page 31).
3. Remove the bottom cover (see Bottom cover on page 33).
4. Remove the battery (see Battery on page 35).
To remove the speakers:
1. Disconnect the speaker cable from the system board (1).
2. Remove the tape (2) securing the cable.
3. Lift the speakers out of the computer (3).
Description Spare part number
Speakers (includes left and right speakers and cable) 926558-001
Reverse this procedure to install the speakers.
44 Chapter 5 Removal and replacement procedures for authorized service provider parts
Power connector
Table 5-10 Power connector description and part number
Description Spare part number
Power connector L23188-001
Before removing the power connector cable, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 31).
2. Remove the rubber feet (see Computer feet on page 31).
3. Remove the bottom cover (see Bottom cover on page 33).
4. Remove the battery (see Battery on page 35).
5. Remove the right hinge screw and lift the right hinge (see Display assembly on page 56).
To remove the power connector:
1. Disconnect the power connector cable (1) from the system board.
2. Lift the power connector (2) to remove it.
Reverse this procedure to install the power connector.
Component replacement procedures 45
TouchPad click board
Table 5-11 TouchPad click board part descriptions and part numbers
Description Spare part number
TouchPad click board L24486-001
TouchPad board cable L23184-001
TouchPad click board cable L24485-001
Before removing the TouchPad click board, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 31).
2. Remove the rubber feet (see Computer feet on page 31).
3. Remove the bottom cover (see Bottom cover on page 33).
4. Remove the battery (see Battery on page 35).
To remove the TouchPad click board:
1. Disconnect the TouchPad cable (1) from the system board, and then disconnect from the TouchPad click
board cable (2) TouchPad.
2. Remove the two Phillips M2.0 × 2.0 screws (3) that secure the TouchPad click board to the computer.
3. Lift the board (4), and then slide it outward from under the clips that hold it on place to remove it (5).
TIP: The edge of the board sits under clips. Be sure to slide the board out from under the clips to
prevent damage to the board or clips.
Reverse this procedure to install the TouchPad click board.
46 Chapter 5 Removal and replacement procedures for authorized service provider parts
TouchPad
Table 5-12 TouchPad description and part number
Before removing the TouchPad, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 31).
2. Remove the rubber feet (see Computer feet on page 31).
3. Remove the bottom cover (see Bottom cover on page 33).
4. Remove the battery (see Battery on page 35).
5. Remove the TouchPad click board (see TouchPad click board on page 46).
To remove the TouchPad:
1. Peel the conductive tape o the keyboard (1).
2. Lift the TouchPad to remove it from the computer (2).
Description Spare part number
TouchPad L24484-001
Reverse this procedure to install the TouchPad click board.
Component replacement procedures 47
USB board
Table 5-13 USB board and cable descriptions and part numbers
Description Spare part number
USB board L24483-001
USB board cable L23186-001
Before removing the USB board, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 31).
2. Remove the rubber feet (see Computer feet on page 31).
3. Remove the bottom cover (see Bottom cover on page 33).
4. Remove the battery (see Battery on page 35).
To remove the USB board:
1. Disconnect the cable from the USB board (1)
2. Remove the two Phillips M2.0 × 3.0 screws (2) that secure the USB board to the computer.
3. Remove the USB board from the computer (3).
Reverse this procedure to install the USB board.
48 Chapter 5 Removal and replacement procedures for authorized service provider parts
Fan
Table 5-14 Fan description and part number
Description Spare part number
Fan L23189-001
Before removing the fan, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 31).
2. Remove the rubber feet (see Computer feet on page 31).
3. Remove the bottom cover (see Bottom cover on page 33).
4. Remove the battery (see Battery on page 35).
To remove the fan:
1. Disconnect the fan cable from the system board (1).
2. Remove the two Phillips M2.5 × 5.0 screws (2) that secure the fan to the computer.
3. Lift the fan out of the computer (3).
Reverse this procedure to install the fan.
Component replacement procedures 49
System board
NOTE: The system board spare part kit includes replacement thermal materials.
Table 5-15 System board descriptions and part numbers
Description Spare part number
System board (includes replacement thermal materials):
All system boards use the following part numbers:
xxxxxx-001: Non-Windows operating system
xxxxxx-601: Windows operating system
For use in models with discrete graphics:
● AMD Ryzen 3 3200U processor and 2 GB of dedicated video memory L51930-xxx
● AMD A9-9425 processor and 2 GB of dedicated video memory L57725-xxx
For use in models with UMA graphics:
● AMD Athlon 300U processor L56249-xxx
● AMD Ryzen 7 3700U processor L53464-xxx
● AMD Ryzen 5 3500U processor L51929-xxx
● AMD Ryzen 5 3500U processor (models with a TOP (Touch-On Panel) display) L53482-xxx
● AMD Ryzen 3 3200U processor L51928-xxx
● AMD A9-9425 processor L46705-xxx
● AMD A6-9225 processor L46704-xxx
● AMD A4-9125 processor L46703-xxx
System board hook L23206-001
Before removing the system board, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 31).
2. Remove the rubber feet (see Computer feet on page 31).
3. Remove the bottom cover (see Bottom cover on page 33).
4. Remove the battery (see Battery on page 35).
5. Remove the fan (see Fan on page 49).
NOTE: When replacing the system board, be sure that the following components are removed from the
defective system board and installed on the replacement system board:
● WLAN module (see WLAN module on page 40)
● Memory modules (see Memory module on page 42)
● Solid-state drive (if installed) (see Solid-state drive on page 43)
● Heat sink assembly (see Heat sink assembly on page 53)
To remove the system board:
50 Chapter 5 Removal and replacement procedures for authorized service provider parts
1. Position the computer upright, and then disconnect the following cables from the system board:
(1) USB board cable
(2) WLAN antenna cables
(3) TouchPad button board cable
(4) Keyboard cable
(5) Backlight cable
(6) Hard drive cable
(7) Speaker cable
(8) Power connector cable
(9) Display cable
2. Remove the three Phillips M2.0 × 2.0 screws (1) that secure the system board to the computer.
3. Remove the Phillips M2.0 × 3.5 screw (2) that secures the system board to the computer.
Component replacement procedures 51

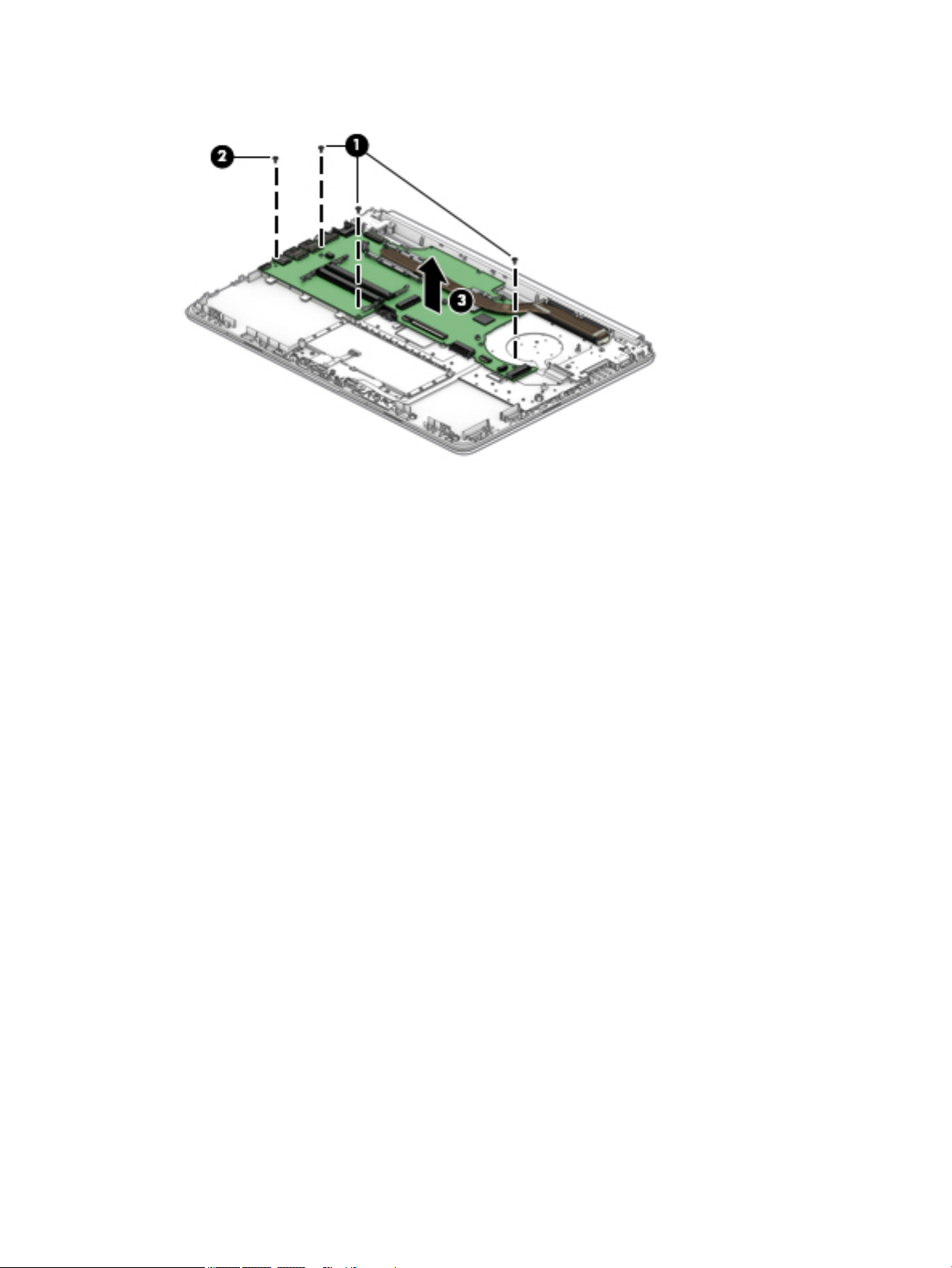

4. Lift the system board out of the computer (3).
Reverse this procedure to install the system board.
52 Chapter 5 Removal and replacement procedures for authorized service provider parts
Heat sink assembly
NOTE: The heat sink assembly spare part kit includes replacement thermal materials.
Table 5-16 Heat sink assembly description and part number
Description Spare part number
Heat sink assembly, discrete (includes replacement thermal materials)
For use in models with the following processors: A9-9425, A6-9225, A4-9125 L23386-001
For use in models with the following processors: Ryzen7-3700U, Ryzen5-3500U, Ryzen3-3200U, Athlon
300U
Heat sink assembly, UMA (includes replacement thermal materials)
For use in models with the following processors: A9-9425, A6-9225, A4-9125 L23385-001
For use in models with the following processors: Ryzen7-3700U, Ryzen5-3500U, Ryzen3-3200U, Athlon
300U
L23192-001
L23191-001
Before removing the heat sink assembly, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 31).
2. Remove the rubber feet (see Computer feet on page 31).
3. Remove the bottom cover (see Bottom cover on page 33).
4. Remove the battery (see Battery on page 35).
To remove the heat sink assembly:
1. If you have a model with discrete graphics:
a. In the order indicated on the heat sink, remove the six Phillips M2.0 × 4.0 screws (1) that secure the
heat sink to the system board.
Component replacement procedures 53
b. Remove the heat sink (2) from the system board.
2. If you have a model with UMA graphics:
a. In the order indicated on the heat sink, remove the four Phillips M2.0 × 4.0 screws (1) that secure
the heat sink to the system board.
b. Remove the heat sink (2) from the system board.
54 Chapter 5 Removal and replacement procedures for authorized service provider parts
NOTE: The thermal material must be thoroughly cleaned from the surfaces of the heat sink and the system
board components each time the heat sink is removed. Replacement thermal material is included with the
heat sink, processor, and system board spare part kits.
The following illustrations show the replacement thermal material locations.
● Discrete graphics: Thermal paste is used on the heat sink (2) (4) and associated system board
components (1) (3).
● UMA graphics: Thermal paste is used on the heat sink (2) and associated system board component (1).
Reverse this procedure to reassemble and install the heat sink assembly.
Component replacement procedures 55
Display assembly
Table 5-17 Display assembly part descriptions and part numbers
Description Spare part number
Hinge covers
Natural silver L24474-001
Pale gold L24471-001
Snow ake white L24472-001
Display bezel L24465-001
Webcam/microphone module L23237-001
Raw display panel (14 in)
FHD, anti-glare, WLED UWVA L53825-001
FHD, BrightView, WLED UWVA L53826-001
HD, anti-glare, WLED SVA L53829-001
HD, BrightView, WLED SVA L53828-001
HD, BrightView, SVA, TOP (Touch-On Panel) L53827-001
Hinges (left and right) L24470-001
Display cable
HD display L24492-001
FHD display L24493-001
Antennas
Dual L24640-001
Single L29012-001
Display enclosure
Natural silver L24469-001
Pale gold L24466-001
Snow ake white L24467-001
Before removing the display assembly, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 31).
2. Remove the rubber feet (see Computer feet on page 31).
3. Remove the bottom cover (see Bottom cover on page 33).
4. Remove the battery (see Battery on page 35).
To remove the display assembly:
1. Disconnect the display cable from the system board (1).
56 Chapter 5 Removal and replacement procedures for authorized service provider parts
2. Disconnect the wireless antenna cables from the WLAN module (2).
3. Position the computer so it is open with the display hanging o the table (1).
4. Remove the ve Phillips M2.5 × 6.0 screws (2) and the Phillips 2.0 × 3.0 screw (3) from the display
hinges.
Component replacement procedures 57
5. Rotate the hinges upward to an angle (4), and then remove the display (5).
If it is necessary to replace any of the display assembly subcomponents:
1. Lift the hinge cap to remove it from display.
58 Chapter 5 Removal and replacement procedures for authorized service provider parts
2. Flex the inside of the top edge (1), left and right sides (2), and the inside of the bottom edge (3) of the
display bezel until the bezel disengages from the display enclosure.
3. Remove the display bezel (4).
4. To remove the webcam/microphone module:
a. Position the display assembly with the top edge toward you.
b. Lift the webcam module to disengage the adhesive that secures the module to the display (1).
Component replacement procedures 59
c. Disconnect the cable (2) from the module.
5. To remove the display panel:
a. Use a tweezer to grasp the adhesive tape (1) near the bottom corners of the display panel. Pull the
tape out from under the right (2) and left (3) corners of the display panel until it is completely
removed. Lift the top of the panel (4).
TIP: You must pull the tape several times to remove it.
b. Rotate the display panel onto the keyboard (1) to gain access to the display cable connection on
the back of the panel.
60 Chapter 5 Removal and replacement procedures for authorized service provider parts
c. On the back of the display panel, release the adhesive strip that secures the display panel cable to
the display panel, and then disconnect the cable (2).
d. Lift the display panel (3) to remove it.
6. To remove the display hinges:
a. Remove the three Phillips M2.5 × 2.5 screw (1) from the bottom of each hinge.
b. Remove the display hinges from the enclosure (2).
Component replacement procedures 61
7. To remove the display/webcam cable, lift the tape from atop the connector on the webcam module (1),
and then disconnect the cable from the webcam module (2). Lift the cable from the display enclosure to
disengage the adhesive that secures it (3).
8. To remove the wireless antennas and cables, release the wireless antenna cables from the clips (1) built
into the side of the display enclosure, and then peel the antennas of the display enclosure (2) to remove
the antennas and cables.
NOTE: Number of antennas and transceivers may vary.
9. If replacing the display enclosure, be sure that the subcomponents (including the webcam/microphone
module, the antenna receivers, and all associated cables and hardware) are transferred to the new
enclosure.
62 Chapter 5 Removal and replacement procedures for authorized service provider parts
Reverse this procedure to reassemble and install the display assembly.
Top cover/keyboard
In this section, the rst table provides the main spare part number for the keyboard. The second table
provides the country codes.
NOTE: All top cover/keyboard spare part kits include TouchPad and TouchPad top mylar. Kits do not include
TouchPad board or TouchPad click board.
Table 5-18 Top cover/keyboard descriptions and part numbers
Description Spare part number
Ash silver, not backlit L24818-xx1
Ash silver. backlit L24817-xx1
Snow ake white, backlit L24819-xx1
Snow ake white, not backlit L24820-xx1
Table 5-19 Keyboard country codes
For use in country
or region
Belgium -A41 Israel -BB1 Slovenia -BA1
Bulgaria -261 Italy -061 South Korea -AD1
Canada -DB1 Japan -291 Spain -071
Czech Republic
and Slovakia
Denmark, Finland, and
Norway
France -051 Portugal -131 Thailand -281
Germany -041 Romania -271 Turkey -141
Greece -151 Russia -251 United Kingdom -031
Hungary -211 Saudi Arabia -171 United States -001
India -002
Spare
part
number
-FL1 Latin America -161 Switzerland -BG1
-DH1 The Netherlands -B31 Taiwan -AB1
For use in country
or region
Spare
part
number
For use in country
or region
Spare
part
number
The top cover/keyboard spare part kit includes the keyboard, keyboard cable and the keyboard backlight
cable.
The top cover/keyboard spare part remains after all other spare parts have been removed.
Component replacement procedures 63
64 Chapter 5 Removal and replacement procedures for authorized service provider parts
6 Using Setup Utility (BIOS)
Setup Utility, or Basic Input/Output System (BIOS), controls communication between all the input and output
devices on the system (such as disk drives, display, keyboard, mouse, and printer). Setup Utility (BIOS)
includes settings for the types of devices installed, the startup sequence of the computer, and the amount of
system and extended memory.
NOTE: To start Setup Utility on convertible computers, your computer must be in notebook mode and you
must use the keyboard attached to your notebook.
Starting Setup Utility (BIOS)
CAUTION: Use extreme care when making changes in Setup Utility (BIOS). Errors can prevent the computer
from operating properly.
▲ Turn on or restart the computer and quickly press f10.
– or –
Turn on or restart the computer, quickly press esc, and then press f10 when the Start menu is displayed.
Updating Setup Utility (BIOS)
Updated versions of Setup Utility (BIOS) may be available on the HP website.
Most BIOS updates on the HP website are packaged in compressed les called SoftPaqs.
Some download packages contain a le named Readme.txt, which contains information regarding installing
and troubleshooting the le.
Determining the BIOS version
To decide whether you need to update Setup Utility (BIOS), rst determine the BIOS version on your computer.
To reveal the BIOS version information (also known as ROM date and System BIOS), use one of these options.
● HP Support Assistant
1. Type support in the taskbar search box, and then select the HP Support Assistant app.
– or –
Select the question mark icon in the taskbar.
2. Select My notebook, and then select Specications.
● Setup Utility (BIOS)
1. Start Setup Utility (BIOS) (see Starting Setup Utility (BIOS) on page 65).
2. Select Main, and then make note of the BIOS version.
3. Select Exit, select one of the options, and then follow the on-screen instructions.
● In Windows, press CTRL+Alt+S.
Starting Setup Utility (BIOS) 65
To check for later BIOS versions, see Downloading a BIOS update on page 66.
Downloading a BIOS update
CAUTION: To reduce the risk of damage to the computer or an unsuccessful installation, download and
install a BIOS update only when the computer is connected to reliable external power using the AC adapter. Do
not download or install a BIOS update while the computer is running on battery power, docked in an optional
docking device, or connected to an optional power source. During the download and installation, follow these
instructions:
● Do not disconnect power from the computer by unplugging the power cord from the AC outlet.
● Do not shut down the computer or initiate Sleep.
● Do not insert, remove, connect, or disconnect any device, cable, or cord.
NOTE: If your computer is connected to a network, consult the network administrator before installing any
software updates, especially system BIOS updates.
1. Type support in the taskbar search box, and then select the HP Support Assistant app.
– or –
Select the question mark icon in the taskbar.
2. Select Updates, and then select Check for updates and messages.
3. Follow the on-screen instructions.
4. At the download area, follow these steps:
a. Identify the most recent BIOS update and compare it to the BIOS version currently installed on your
computer. If the update is more recent than your BIOS version, make a note of the date, name, or
other identier. You may need this information to locate the update later, after it has been
downloaded to your hard drive.
b. Follow the on-screen instructions to download your selection to the hard drive.
Make a note of the path to the location on your hard drive where the BIOS update is downloaded.
You will need to access this path when you are ready to install the update.
BIOS installation procedures vary. Follow any instructions that appear on the screen after the download is
complete. If no instructions appear, follow these steps:
1. Type file in the taskbar search box, and then select File Explorer.
2. Select your hard drive designation. The hard drive designation is typically Local Disk (C:).
3. Using the hard drive path you recorded earlier, open the folder that contains the update.
4. Double-click the le that has an .exe extension (for example, lename.exe).
The BIOS installation begins.
5. Complete the installation by following the on-screen instructions.
NOTE: After a message on the screen reports a successful installation, you can delete the downloaded le
from your hard drive.
66 Chapter 6 Using Setup Utility (BIOS)
7 Using HP PC Hardware Diagnostics
Using HP PC Hardware Diagnostics Windows (select products only)
HP PC Hardware Diagnostics Windows is a Windows-based utility that allows you to run diagnostic tests to
determine whether the computer hardware is functioning properly. The tool runs within the Windows
operating system in order to diagnose hardware failures.
If HP PC Hardware Diagnostics Windows is not installed on your computer, rst you must download and install
it. To download HP PC Hardware Diagnostics Windows, see Downloading HP PC Hardware Diagnostics
Windows on page 67.
After HP PC Hardware Diagnostics Windows is installed, follow these steps to access it from HP Help and
Support or HP Support Assistant.
1. To access HP PC Hardware Diagnostics Windows from HP Help and Support:
a. Select the Start button, and then select HP Help and Support.
b. Right-click HP PC Hardware Diagnostics Windows, select More, and then select Run as
administrator.
– or –
To access HP PC Hardware Diagnostics Windows from HP Support Assistant:
a. Type support in the taskbar search box, and then select the HP Support Assistant app.
– or –
Select the question mark icon in the taskbar.
b. Select Troubleshooting and xes.
c. Select Diagnostics, and then select HP PC Hardware Diagnostics Windows.
2. When the tool opens, select the type of diagnostic test you want to run, and then follow the on-screen
instructions.
NOTE: If you need to stop a diagnostic test at any time, select Cancel.
When HP PC Hardware Diagnostics Windows detects a failure that requires hardware replacement, a 24-digit
Failure ID code is generated. The screen displays one of the following options:
● A Failure ID link is displayed. Select the link and follow the on-screen instructions.
● A Quick Response (QR) code is displayed. With a mobile device, scan the code and then follow the on-
screen instructions.
● Instructions for calling support are displayed. Follow those instructions.
Downloading HP PC Hardware Diagnostics Windows
● The HP PC Hardware Diagnostics Windows download instructions are provided in English only.
● You must use a Windows computer to download this tool because only .exe les are provided.
Using HP PC Hardware Diagnostics Windows (select products only) 67
Downloading the latest HP PC Hardware Diagnostics Windows version
To download HP PC Hardware Diagnostics Windows, follow these steps:
1. Go to http://www.hp.com/go/techcenter/pcdiags. The HP PC Diagnostics home page is displayed.
2. Select Download HP Diagnostics Windows, and then select a location on your computer or a USB ash
drive.
The tool is downloaded to the selected location.
Downloading HP Hardware Diagnostics Windows by product name or number (select products only)
NOTE: For some products, it may be necessary to download the software to a USB ash drive by using the
product name or number.
To download HP PC Hardware Diagnostics Windows by product name or number, follow these steps:
1. Go to http://www.hp.com/support.
2. Select Get software and drivers, select your type of product, and then enter the product name or
number in the search box that is displayed.
3. In the Diagnostics section, select Download, and then follow the on-screen instructions to select the
specic Windows diagnostics version to be downloaded to your computer or USB ash drive.
The tool is downloaded to the selected location.
Installing HP PC Hardware Diagnostics Windows
To install HP PC Hardware Diagnostics Windows, follow these steps:
▲ Navigate to the folder on your computer or the USB ash drive where the .exe le was downloaded,
double-click the .exe le, and then follow the on-screen instructions.
Using HP PC Hardware Diagnostics UEFI
NOTE: For Windows 10 S computers, you must use a Windows computer and a USB ash drive to download
and create the HP UEFI support environment because only .exe les are provided. For more information, see
Downloading HP PC Hardware Diagnostics UEFI to a USB ash drive on page 69.
HP PC Hardware Diagnostics UEFI (Unied Extensible Firmware Interface) allows you to run diagnostic tests to
determine whether the computer hardware is functioning properly. The tool runs outside the operating
system so that it can isolate hardware failures from issues that are caused by the operating system or other
software components.
If your PC will not boot into Windows, you can use HP PC Hardware Diagnostics UEFI to diagnose hardware
issues.
When HP PC Hardware Diagnostics Windows detects a failure that requires hardware replacement, a 24-digit
Failure ID code is generated. For assistance in solving the problem:
▲ Select Get Support, and then use a mobile device to scan the QR code that displays on the next screen.
The HP Customer Support - Service Center page displays, with your Failure ID and product number
automatically lled in. Follow the on-screen instructions.
– or –
Contact support, and provide the Failure ID code.
68 Chapter 7 Using HP PC Hardware Diagnostics
NOTE: To start diagnostics on a convertible computer, your computer must be in notebook mode, and you
must use the attached keyboard.
NOTE: If you need to stop a diagnostic test, press esc.
Starting HP PC Hardware Diagnostics UEFI
To start HP PC Hardware Diagnostics UEFI, follow these steps:
1. Turn on or restart the computer, and quickly press esc.
2. Press f2.
The BIOS searches three places for the diagnostic tools, in the following order:
a. Connected USB ash drive
NOTE: To download the HP PC Hardware Diagnostics UEFI tool to a USB ash drive, see
Downloading the latest HP PC Hardware Diagnostics UEFI version on page 69.
b. Hard drive
c. BIOS
3. When the diagnostic tool opens, select a language, select the type of diagnostic test you want to run,
and then follow the on-screen instructions.
Downloading HP PC Hardware Diagnostics UEFI to a USB ash drive
Downloading HP PC Hardware Diagnostics UEFI to a USB ash drive can be useful in the following situations:
● HP PC Hardware Diagnostics UEFI is not included in the preinstall image.
● HP PC Hardware Diagnostics UEFI is not included in the HP Tool partition.
● The hard drive is damaged.
NOTE: The HP PC Hardware Diagnostics UEFI download instructions are provided in English only, and you
must use a Windows computer to download and create the HP UEFI support environment because only .exe
les are provided.
Downloading the latest HP PC Hardware Diagnostics UEFI version
To download the latest HP PC Hardware Diagnostics UEFI version to a USB ash drive:
1. Go to http://www.hp.com/go/techcenter/pcdiags. The HP PC Diagnostics home page is displayed.
2. Select Download HP Diagnostics UEFI, and then select Run.
Downloading HP PC Hardware Diagnostics UEFI by product name or number (select products only)
NOTE: For some products, it may be necessary to download the software to a USB ash drive by using the
product name or number.
To download HP PC Hardware Diagnostics UEFI by product name or number (select products only) to a USB
ash drive:
Using HP PC Hardware Diagnostics UEFI 69
1. Go to http://www.hp.com/support.
2. Enter the product name or number, select your computer, and then select your operating system.
3. In the Diagnostics section, follow the on-screen instructions to select and download the specic UEFI
Diagnostics version for your computer.
Using Remote HP PC Hardware Diagnostics UEFI settings (select products only)
Remote HP PC Hardware Diagnostics UEFI is a rmware (BIOS) feature that downloads HP PC Hardware
Diagnostics UEFI to your computer. It can then execute the diagnostics on your computer, and it may upload
results to a precongured server. For more information about Remote HP PC Hardware Diagnostics UEFI, go to
http://www.hp.com/go/techcenter/pcdiags, and then select Find out more.
Downloading Remote HP PC Hardware Diagnostics UEFI
NOTE: HP Remote PC Hardware Diagnostics UEFI is also available as a Softpaq that can be downloaded to a
server.
Downloading the latest Remote HP PC Hardware Diagnostics UEFI version
To download the latest Remote HP PC Hardware Diagnostics UEFI version, follow these steps:
1. Go to http://www.hp.com/go/techcenter/pcdiags. The HP PC Diagnostics home page is displayed.
2. Select Download Remote Diagnostics, and then select Run.
Downloading Remote HP PC Hardware Diagnostics UEFI by product name or number
NOTE: For some products, it may be necessary to download the software by using the product name or
number.
To download HP Remote PC Hardware Diagnostics UEFI by product name or number, follow these steps:
1. Go to http://www.hp.com/support.
2. Select Get software and drivers, select your type of product, enter the product name or number in the
search box that is displayed, select your computer, and then select your operating system.
3. In the Diagnostics section, follow the on-screen instructions to select and download the Remote UEFI
version for the product.
Customizing Remote HP PC Hardware Diagnostics UEFI settings
Using the Remote HP PC Hardware Diagnostics setting in Computer Setup (BIOS), you can perform the
following customizations:
● Set a schedule for running diagnostics unattended. You can also start diagnostics immediately in
interactive mode by selecting Execute Remote HP PC Hardware Diagnostics.
● Set the location for downloading the diagnostic tools. This feature provides access to the tools from the
HP website or from a server that has been precongured for use. Your computer does not require the
traditional local storage (such as a disk drive or USB ash drive) to run remote diagnostics.
70 Chapter 7 Using HP PC Hardware Diagnostics
● Set a location for storing the test results. You can also set the user name and password settings used for
uploads.
● Display status information about the diagnostics run previously.
To customize Remote HP PC Hardware Diagnostics UEFI settings, follow these steps:
1. Turn on or restart the computer, and when the HP logo appears, press f10 to enter Computer Setup.
2. Select Advanced, and then select Settings.
3. Make your customization selections.
4. Select Main, and then Save Changes and Exit to save your settings.
Your changes take eect when the computer restarts.
Using Remote HP PC Hardware Diagnostics UEFI settings (select products only) 71
72 Chapter 7 Using HP PC Hardware Diagnostics
8 Backing up, restoring, and recovering
This chapter provides information about the following processes, which are standard procedure for most
products:
● Backing up your personal information—You can use Windows tools to back up your personal
information (see Using Windows tools on page 73).
● Creating a restore point—You can use Windows tools to create a restore point (see Using Windows
tools on page 73).
● Creating recovery media (select products only)—You can use the HP Cloud Recovery Download Tool
(select products only) to create recovery media (see Using the HP Cloud Recovery Download Tool to
create recovery media (select products only) on page 73).
● Restoring and recovery—Windows oers several options for restoring from backup, refreshing the
computer, and resetting the computer to its original state (see Using Windows tools on page 73).
IMPORTANT: If you will be performing recovery procedures on a tablet, the tablet battery must be at least
70% charged before you start the recovery process.
IMPORTANT: For a tablet with a detachable keyboard, connect the tablet to the keyboard base before
beginning any recovery process.
Backing up information and creating recovery media
Using Windows tools
IMPORTANT: Windows is the only option that allows you to back up your personal information. Schedule
regular backups to avoid information loss.
You can use Windows tools to back up personal information and create system restore points and recovery
media.
NOTE: If computer storage is 32 GB or less, Microsoft System Restore is disabled by default.
For more information and steps, see the Get Help app.
1. Select the Start button, and then select the Get Help app.
2. Enter the task you want to perform.
NOTE: You must be connected to the Internet to access the Get Help app.
Using the HP Cloud Recovery Download Tool to create recovery media (select products only)
You can use the HP Cloud Recovery Download Tool to create HP Recovery media on a bootable USB ash drive.
To download the tool:
▲ Go to the Microsoft Store and search for HP Cloud Recovery.
For details, go to http://www.hp.com/support, search for HP Cloud Recovery, and then select "HP PCs – Using
the Cloud Recovery Tool (Windows 10, 7)."
Backing up information and creating recovery media 73
NOTE: If you cannot create recovery media yourself, contact support to obtain recovery discs. Go to
http://www.hp.com/support, select your country or region, and then follow the on-screen instructions.
Restoring and recovery
Restoring, resetting, and refreshing using Windows tools
Windows oers several options for restoring, resetting, and refreshing the computer. For details, see Using
Windows tools on page 73.
Recovering using HP Recovery media
HP Recovery media is used to recover the original operating system and software programs that were
installed at the factory. On select products, it can be created on a bootable USB ash drive using the HP Cloud
Recovery Download Tool. For details, see Using the HP Cloud Recovery Download Tool to create recovery
media (select products only) on page 73.
NOTE: If you cannot create recovery media yourself, contact support to obtain recovery discs. Go to
http://www.hp.com/support, select your country or region, and then follow the on-screen instructions.
To recover your system:
▲ Insert the HP Recovery media, and then restart the computer.
Changing the computer boot order
If your computer does not restart using the HP Recovery media, you can change the computer boot order. This
is the order of devices listed in BIOS where the computer looks for startup information. You can change the
selection to an optical drive or a USB ash drive, depending on the location of your HP Recovery media.
To change the boot order:
IMPORTANT: For a tablet with a detachable keyboard, connect the tablet to the keyboard base before
beginning these steps.
1. Insert the HP Recovery media.
2. Access the system Startup menu.
For computers or tablets with keyboards attached:
▲ Turn on or restart the computer or tablet, quickly press esc, and then press f9 for boot options.
For tablets without keyboards:
▲ Turn on or restart the tablet, quickly hold down the volume up button, and then select f9.
‒ or –
Turn on or restart the tablet, quickly hold down the volume down button, and then select f9.
3. Select the optical drive or USB ash drive from which you want to boot, and then follow the on-screen
instructions.
74 Chapter 8 Backing up, restoring, and recovering
9 Specications
Computer specications
Table 9-1 Computer specications
Metric U.S.
Dimensions
Depth 324 mm 12.76 in
Width 226 mm 8.9 in
Height (rear) 19.9 mm 0.78 in
Weight
SSD/eMMC 1474 g 3.33 lb
Hard drive 1511 g 3.35 lb
SSD+HDD 1519 g 5.67 lb
Input power
Operating voltage and current 19.5 V dc @ 2.31 A – 45 W
19.5 V dc @ 3.33 A – 65 W
Temperature
Operating 5°C to 35°C 41°F to 95°F
Nonoperating ‑20°C to 60°C ‑4°F to 140°F
Relative humidity (noncondensing)
Operating 10% to 90%
Nonoperating 5% to 95%
Maximum altitude (unpressurized)
Operating ‑15 m to 3,048 m ‑50 ft to 10,000 ft
Nonoperating ‑15 m to 12,192 m ‑50 ft to 40,000 ft
NOTE: Applicable product safety standards specify thermal limits for plastic surfaces. The device operates well within this range of
temperatures.
Computer specications 75
35.6 cm (14.0 in) display specications
Table 9-2 Display specications
Metric U.S.
Active diagonal size 35.6 cm 14.0 n
Thickness 3.0 mm 0.118 inch
Resolution 1920 × 1080 FHD
1366 × 768 HD
Surface treatment AntiGlare or BrightView
Brightness 220 nits
Viewing angle SVA (HD)
UWVA (FHD)
Backlight WLED
Graphics adapter eDP
76 Chapter 9 Specications
Hard drive specications
Table 9-3 Hard drive specications
1 TB* 500 GB*
Dimensions
Height 7.2 mm or 9.5 mm 7.2 mm
Length 100.4 mm 100.6 mm
Width 69.9 mm 70.1 mm
Weight 115.0 g 92.0 g
Interface type SATA SATA
Transfer rate
Synchronous (maximum) 300 MB/sec 300 MB/sec
Security ATA security ATA security
Seek times (typical read, including setting)
Single track 1.4 ms 3 ms
Average (read/write) 10 ms 13 ms
Maximum 12 ms 24 ms
Logical blocks 1,938,921,461 1,048,576,000
Disk rotational speed 5400 rpm 5400 rpm
Operating temperature 0°C to 60°C (32°F to 140°F)
*1 GB = 1 billion bytes when referring to hard drive storage capacity. Actual accessible capacity is less.
NOTE: Certain restrictions and exclusions apply. Contact technical support for details.
Hard drive specications 77
Solid-state drive specications
Table 9-4 Solid-state drive specications
128-GB* 256-GB*
Dimensions
Height 1 mm 1 mm
Length 50.8 mm 50.8 mm
Width 28.9 mm 28.9 mm
Weight < 10 g < 10 g
Interface type SATA-3 (6 Gbps) SATA-3 (6 Gbps)
Transfer rate
Sequential Read
Random Read
Sequential Write
Random Write
Ready time, Maximum (to not busy) 1.0 s 1.0 s
Access times
Logical 0.1 ms 0.1
Total logical sectors 250,069,680 500,118,192
Operating temperature
Operating
Non-operating
*1 GB = 1 billion bytes when referring to hard drive storage capacity. Actual accessible capacity is less.
NOTE: Certain restrictions and exclusions apply. Contact technical support for details.
Up to 520 MB/s
Up to 60K IOPs
Up to 160 MB/s
Up to 34K IOPs
0° to 70°C (32°F to 158°F)
-40° to 95°C (-40°F to 203°F)
Up to 540 MB/s
Up to 85K IOPs
Up to 280 MB/s
Up to 67K IOPs
0° to 70°C (32°F to 158°F)
-55° to 90°C (-67°F to 194°F)
78 Chapter 9 Specications
10 Power cord set requirements
The wide-range input feature of the computer permits it to operate from any line voltage from 100 to 120 V
ac, or from 220 to 240 V ac.
The 3-conductor power cord set included with the computer meets the requirements for use in the country or
region where the equipment is purchased.
Power cord sets for use in other countries or regions must meet the requirements of the country and region
where the computer is used.
Requirements for all countries
The following requirements are applicable to all countries and regions:
● The length of the power cord set must be at least 1.0 m (3.3 ft) and no more than 2.0 m (6.5 ft).
● All power cord sets must be approved by an acceptable accredited agency responsible for evaluation in
the country or region where the power cord set will be used.
● The power cord sets must have a minimum current capacity of 10 A and a nominal voltage rating of 125
or 250 V ac, as required by the power system of each country or region.
● The appliance coupler must meet the mechanical conguration of an EN 60 320/IEC 320 Standard Sheet
C13 connector for mating with the appliance inlet on the back of the computer.
Requirements for all countries 79
Requirements for specic countries and regions
Table 10-1 Power cord requirements for specic countries and regions
Country/region Accredited agency Applicable note number
Argentina IRAM 1
Australia SAA 1
Austria OVE 1
Belgium CEBEC 1
Brazil ABNT 1
Canada CSA 2
Chile IMQ 1
Denmark DEMKO 1
Finland FIMKO 1
France UTE 1
Germany VDE 1
India BIS 1
Israel SII 1
Italy IMQ 1
Japan JIS 3
The Netherlands KEMA 1
New Zealand SANZ 1
Norway NEMKO 1
The People's Republic of China CCC 4
Saudi Arabia SASO 7
Singapore PSB 1
South Africa SABS 1
South Korea KTL 5
Sweden SEMKO 1
Switzerland SEV 1
Taiwan BSMI 6
Thailand TISI 1
The United Kingdom ASTA 1
The United States UL 2
1. The exible cord must be Type HO5VV-F, 3-conductor, 0.75 mm² conductor size. Power cord set ttings (appliance coupler and
wall plug) must bear the certication mark of the agency responsible for evaluation in the country or region where it will be used.
80 Chapter 10 Power cord set requirements
Table 10-1 Power cord requirements for specic countries and regions (continued)
Country/region Accredited agency Applicable note number
2. The exible cord must be Type SVT/SJT or equivalent, No. 18 AWG, 3-conductor. The wall plug must be a two-pole grounding type
with a NEMA 5-15P (15 A, 125 V ac) or NEMA 6-15P (15 A, 250 V ac) conguration. CSA or C-UL mark. UL le number must be on
each element.
3. The appliance coupler, exible cord, and wall plug must bear a “T” mark and registration number in accordance with the Japanese
Dentori Law. The exible cord must be Type VCTF, 3-conductor, 0.75 mm² or 1.25 mm² conductor size. The wall plug must be a
two-pole grounding type with a Japanese Industrial Standard C8303 (7 A, 125 V ac) conguration.
4. The exible cord must be Type RVV, 3-conductor, 0.75 mm² conductor size. Power cord set ttings (appliance coupler and wall
plug) must bear the CCC certication mark.
5. The exible cord must be Type H05VV-F 3-conductor, 0.75 mm² conductor size. KTL logo and individual approval number must
be on each element. Corset approval number and logo must be printed on a ag label.
6. The exible cord must be Type HVCTF 3-conductor, 1.25 mm² conductor size. Power cord set ttings (appliance coupler, cable,
and wall plug) must bear the BSMI certication mark.
7. For 127 V ac, the exible cord must be Type SVT or SJT 3-conductor, 18 AWG, with plug NEMA 5-15P (15 A, 125 V ac), with UL and
CSA or C-UL marks. For 240 V ac, the exible cord must be Type H05VV-F 3-conductor, 0.75 mm² or 1.00 mm2 conductor size,
with plug BS 1363/A with BSI or ASTA marks.
Requirements for specic countries and regions 81
82 Chapter 10 Power cord set requirements
11 Recycling
When a non-rechargeable or rechargeable battery has reached the end of its useful life, do not dispose of the
battery in general household waste. Follow the local laws and regulations in your area for battery disposal.
HP encourages customers to recycle used electronic hardware, HP original print cartridges, and rechargeable
batteries. For more information about recycling programs, see the HP Web site at http://www.hp.com/recycle.
83
84 Chapter 11 Recycling
Index
A
AC adapter 22
AC adapter and battery light,
identifying 7
action keys
airplane mode 15
help 14
identifying 13, 14
keyboard backlight 14
mute 15
next track 14
pause 14
play 14
privacy screen 14
screen brightness 14
speaker volume 14
stop 14
switch screen image 14
using 14
Adhesive tape kit 22
airplane mode key 15
antennas
illustrated 22, 56
removing 62
audio
adjusting volume 14
audio-out (headphone)/audio-in
(microphone) combo jack,
identifying 7
B
backup, creating 73
backups 73
battery
illustrated 18
removing 35
spare part number 35
BIOS
determining version 65
downloading an update 66
starting the Setup Utility 65
updating 65
Bluetooth label 16
boot order, changing 74
bottom components 15
bottom cover
illustrated 20
removing 33
buttons
left TouchPad 10
power 12
right TouchPad 10
C
camera
identifying 9
product description 3
camera light, identifying 9
caps lock light, identifying 11
cautions
electrostatic discharge 26
chipset, product description 1
components
bottom 15
display 9
keyboard area 10
left side 8
right side 7
computer major components,
illustrated 17
computer specications 75
connector, power 8
D
display assembly
illustrated 18
removing 56
spare part numbers 18
display assembly subcomponents
illustrated 21
removing 56
display bezel
illustrated 21, 56
removing 58
display cable
illustrated 22, 56
removing 62
display components 9
display enclosure
illustrated 22, 56
removing 62
display panel
illustrated 21, 56
product description 2
removing 60
display specications 76
drive light, identifying 8
E
electrostatic discharge (ESD) 26
preventing damage 27
eMMC board
illustrated 18
removing 38
eMMC bracket
illustrated 18
esc key, identifying 13
ethernet
product description 3
F
fan
illustrated 20
removing 49
fan/heat sink assembly
removing 53
feet
removal 31
spare part numbers 31
fn key, identifying 13
G
Get Help in Windows 10 action key
14
grounding methods 28
guidelines
packaging 29
transporting 29
workstation 26
H
hard drive
illustrated 18
Index 85
product description 2
removing 36
specications 77
hard drive bracket
illustrated 18, 36
hard drive cable
illustrated 18, 36
hard drive connector
removing 37
hard drive cover
removing 36
HDMI port
identifying 7
heat sink assembly
illustrated 20, 53
hinge cover
illustrated 18
hinges
illustrated 22, 56
removing 60, 61
HP PC Hardware Diagnostics UEFI
downloading 69
starting 69
using 68
HP PC Hardware Diagnostics Windows
downloading 67
installing 68
using 67
HP Recovery Manager
correcting boot problems 74
HP Recovery media
recovery 74
I
internal microphone, identifying 9
J
jacks
audio-out (headphone)/audio-in
(microphone) 7
network 7
RJ-45 (network) 7
K
keyboard
illustrated 18
product description 3
keyboard backlight action key 14
keys
action 13
airplane mode 15
esc 13
fn 13
Windows 13
L
labels
Bluetooth 16
regulatory 16
serial number 16
service 15
wireless certication 16
WLAN 16
left side components 8
lights
AC adapter and battery 7
camera 9
caps lock 11
drive 8
mute 11
power 8
RJ-45 (network) status 7
M
memory
illustrated 20
product description 2
memory module
removing 42
microphone
illustrated 22, 56
model name 1
mute light, identifying 11
mute volume action key 15
N
network jack, identifying 7
next track action key 14
O
operating system, product
description 4
P
packaging guidelines 29
pause action key 14
play action key 14
pointing device, product
description 3
ports
HDMI 7
product description 3
USB SuperSpeed 7
USB Type-C 8
power button, identifying 12
power connector
identifying 8
illustrated 18
power connector cable
removing 45
power cord
requirements for all countries
79
requirements for specic
countries and regions 80
set requirements 79
power lights, identifying 8
power requirements, product
description 4
privacy screen action key 14
privacy screen action key,
identifying 14
processor 1
product description
camera 3
chipset 1
display panel 2
ethernet 3
hard drive 2
keyboard 3
media card reader 3
memory 2
operating system 4
pointing device 3
ports 3
power requirements 4
processor 1
product name 1
security 4
serviceability 5
wireless networking 3
product name 1
product name and number,
computer 16
R
recovery 73
discs 74
HP Recovery partition 74
media 74
USB ash drive 74
86 Index
recovery media
creating using HP Cloud Recovery
Download Tool 73
creating using Windows tools 73
regulatory information
regulatory label 16
wireless certication labels 16
Remote HP PC Hardware Diagnostics
UEFI settings
customizing 70
using 70
removal/replacement
procedures 31
restoring 73
right side components 7
RJ-45 (network) jack, identifying 7
RJ-45 (network) status lights,
identifying 7
S
screen brightness action keys 14
Screw Kit 23
security cable slot, identifying 8
security, product description 4
serial number, computer 16
service labels, locating 15
serviceability, product description 5
slots
memory card reader 8
security cable 8
solid-state drive
illustrated 19
removal 43
spare part numbers 43
specications 78
solid-state drive board 43
solid-state drive bracket
illustrated 43
speaker volume action keys 14
speakers
identifying 12
illustrated 19
removing 44
special keys, using 13
specications
computer 75
display 76
hard drive 77
solid-state drive 78
static electricity 27
stop action key 14
switch screen image action key 14
system board
removing 50
spare part number 19, 50
system board hook 19, 50
removing 35
system restore point, creating 73
T
tools required 25
top cover
illustrated 18
top cover/keyboard 63
TouchPad
removing 46, 47
spare part number 46, 47
TouchPad board
illustrated 18, 47
TouchPad buttons
identifying 10
TouchPad click board
illustrated 18, 46
removing 46, 47
spare part number 46, 47
TouchPad click board cable
illustrated 18, 46
TouchPad zone, identifying 10
transporting guidelines 29
traveling with the computer 16
U
USB board
illustrated 18
removing 48
USB board cable
illustrated 19
USB SuperSpeed ports, identifying
7
USB Type-C port, identifying 8
V
vent, identifying 15
volume
adjusting 14
mute 15
W
webcam
illustrated 22, 56
webcam cable
removing 62
webcam/microphone cable
removing 60
webcam/microphone module
removing 59
Windows
backup 73
recovery media 73
system restore point 73
Windows key, identifying 13
Windows tools, using 73
wireless antennas
illustrated 22, 56
removing 62
wireless certication label 16
wireless networking
product description 3
WLAN
illustrated 19
WLAN antennas, identifying 9
WLAN device 16
WLAN label 16
WLAN module
removing 40
workstation guidelines 26
Index 87
88 Index
Loading...
