DeskJet 1200C
© 2004 Hewlett-Packard 1
HP Parts Reference Guide™
www.hp.com/go/hpparts
Electronic Accessories
Cable (Interface)
24540-80010 Centronics (parallel) cable - 36 pin (M) to 25 pin (M) - 2.0m (6.6ft) long
5063-1256 IEEE-1284 Bi-Tronics parallel cable - DB-25 (M) connector (type A) to 36 pin Centronics (M) connector (type B) - 2.0m
(6.6ft) long
5063-1257 IEEE-1284 Bi-Tronics parallel cable - DB-25 (M) connector (type A) to 36 pin Centronics (M) connector (type B) - 3.0m
(9.8ft) long
C2950A IEEE-1284 Bi-Tronics parallel cable - DB-25 (M) connector (type A) to 36 pin Centronics (M) connector (type B) - 2.0m
(6.6ft) long
5063-1256 New Part for C2950A
C2951A IEEE-1284 Bi-Tronics parallel cable - DB-25 (M) connector (type A) to 36 pin Centronics (M) connector (type B) - 3.0m
(9.8ft) long
C2990A IEEE-1284 Bi-Tronics parallel cable - DB-25 (M) (type A) to 36 pin (M) Centronics (type B) - 1.8m (6ft) long
NO LONGER SUPPLIED
C2991A IEEE-1284 Bi-Tronics parallel cable - DB-25 (M) (type A) to 36 pin (M) Centronics (type B) - 3.0m (10ft) long
NO LONGER SUPPLIED
Memory (Product)
C2065A 4MB, 80nS, 36-bit SIMM memory module - For HP LaserJet IIISi, 4/4M, 4Si/MX
NO LONGER SUPPLIED
C2066A 8MB, 80nS, 36-bit SIMM memory module - For HP LaserJet IIISi, 4/4M, 4Si/MX
Memory (SIMM)
D2150-69001 1MB, 80nS, 36-bit SIMM memory module
NO LONGER SUPPLIED
D2152-69001 8MB, 80nS, 36-bit SIMM memory module
REQUIRES RETURN OF DEFECTIVE PART
D2152-63001 New Part for D2152-69001
D2156-69001 4MB, 80nS, 36-bit SIMM memory module
REQUIRES RETURN OF DEFECTIVE PART
D2156-63001 New Part for D2156-69001
D2381-63001 2MB, 80nS, 36-bit SIMM memory module
PostScript
C2865A Postscript level 2 module - Includes SIMM module - Includes driver disks and installation guide
NO LONGER SUPPLIED
Electronics/Power Supply
Control Panel
15
C1676-60090 Control panel assembly - Includes PC board, switches and cable
NO LONGER SUPPLIED
Fan
3160-0831 Tubeaxial fan (Matsushita FBA-09A12H1A-MOD) - 12VDC, 250mA, 3.0 watts, 2750RPM, 35dB, 80cfm - Housing
dimensions 92mm x 92mm x 25.5mm - Mounting hole center spacing 82.5mm - Plastic housing and impeller, plug-in
type termination
NO LONGER SUPPLIED
PC Board
17
C1676-60163 Controller board - Provides control logic for the printer mechanical functions
NO LONGER SUPPLIED
18
C1676-69102 Main logic board assembly
NO LONGER SUPPLIED
19
C1676-60162 Main logic board assembly
NO LONGER SUPPLIED
DeskJet 1200C
© 2004 Hewlett-Packard 2
HP Parts Reference Guide™
www.hp.com/go/hpparts
Electronics/Power Supply
Power Cord
8120-1351 Power cord (Mint Gray) - 17 AWG, 2.3m (7.5ft) long - Has straight (F) receptacle (For 240V in the UK, Hong Kong,
Singapore, Malaysia, and Brunei)
8120-1369 Power cord (Mint Gray) - 17 AWG, 2.0m (6.6ft) long - Has straight (F) receptacle (For 240V in Australia, New Zealand,
and China)
8120-1378 Power cord (Jade Gray) - 18 AWG, 2.3m (7.5ft) long - Has straight (F) receptacle (For 120V in USA, Canada, Latin
America, Korea, Taiwan, Thailand, Spain, Brazil, and Vietnam)
8120-1689 Power cord (Mint Gray) - 17 AWG, 2.0m (6.6ft) long - Has straight (F) receptacle (For 220V in Europe, Bangladesh,
Indonesia, Pakistan, Burma, Sri Lanka, and Vietnam)
8120-2104 Power cord (Mint Gray) - 2.0m (6.6ft) long - Has straight (F) receptacle (For 220V in Switzerland)
8120-2956 Power cord (Mint Gray) - 2.0m (6.6ft) long - Has straight (F) receptacle (For 220V in Denmark)
8120-4211 Power cord (Mint Gray) - 17 AWG, 2.0m (6.6ft) long - Has straight (F) receptacle (For 240V in South Africa and India)
Power Supply
27
0950-2426R Power supply/motor controller assembly (Delta DPS-130FP) - 100-254VAC input, 47-63Hz - 5V/35VDC output, 130
watts
NO LONGER SUPPLIED
28
0950-2524 Power supply assembly analog board - 147 watts, Three DC outputs (5V, 16V, 35V)
NO LONGER SUPPLIED
External Case Parts
Case
29
C1676-40124 Front half of top case - Available for trade sales in Europe and Asia/Pacific - Available for authorized service centers
only in USA
NO LONGER SUPPLIED
30
C1676-40125 Rear half of top case - Available for trade sales in Europe and Asia/Pacific - Available for authorized service centers only
in USA
NO LONGER SUPPLIED
Cover
31
C1676-40152 Front/top lift-up access cover - Does NOT include nameplate - Available for trade sales in Europe and Asia/Pacific -
Available for authorized service centers only in USA
NO LONGER SUPPLIED
32
C1676-40192 Inner rear cover - Half moon shaped cover that attaches to fold down center rear cover - Available for trade sales in
Europe and Asia/Pacific - Available for authorized service centers only in USA
NO LONGER SUPPLIED
C1676-40252 Fold down center rear cover - Does NOT include inner rear cover or envelope adjust lever
NO LONGER SUPPLIED
C1676-60148 Top cover assembly - All plastic top cover pieces
NO LONGER SUPPLIED
Deflector
35
C1676-60168 Paper deflector - Black, curved, ribbed plastic piece with a green pull ring (Called a 'Media plug' in the users manual)
NO LONGER SUPPLIED
Hardware
36
0515-2296 Knurled head machine thumbscrew - M3.0 x 0.5, 7mm long, Torx T15 recess with slot - Steel, zinc/bake clear chromate
finish
NO LONGER SUPPLIED
Hinge
37
C1676-40206 Hinge - Holds top cover to top case
NO LONGER SUPPLIED
Label
C1676-00003 Label - FGI serial label
NO LONGER SUPPLIED
C1676-00006 Warning label (Bright Yellow) - With universal 'HOT' symbol
NO LONGER SUPPLIED
DeskJet 1200C
© 2004 Hewlett-Packard 3
HP Parts Reference Guide™
www.hp.com/go/hpparts
External Case Parts
Nameplate/Logo
40
C1676-00001 Nameplate - C1676A DeskJet 1200C printer
NO LONGER SUPPLIED
Overlay
41
C1676-60041 Overlay - 'Snap on' cover for the control panel function keys and indicator lights (English)
NO LONGER SUPPLIED
42
C1676-60042 Overlay - 'Snap on' cover for the control panel function keys and indicator lights (Danish)
NO LONGER SUPPLIED
43
C1676-60043 Overlay - 'Snap on' cover for the control panel function keys and indicator lights (Swedish)
NO LONGER SUPPLIED
44
C1676-60044 Overlay - 'Snap on' cover for the control panel function keys and indicator lights (German)
NO LONGER SUPPLIED
45
C1676-60045 Overlay - 'Snap on' cover for the control panel function keys and indicator lights (French)
NO LONGER SUPPLIED
46
C1676-60046 Overlay - 'Snap on' cover for the control panel function keys and indicator lights (Spanish)
NO LONGER SUPPLIED
47
C1676-60047 Overlay - 'Snap on' cover for the control panel function keys and indicator lights (Italian)
NO LONGER SUPPLIED
48
C1676-60048 Overlay - 'Snap on' cover for the control panel function keys and indicator lights (Japanese)
NO LONGER SUPPLIED
49
C1676-60049 Overlay - 'Snap on' cover for the control panel function keys and indicator lights (Dutch)
NO LONGER SUPPLIED
50
C1676-60050 Overlay - 'Snap on' cover for the control panel function keys and indicator lights (Norwegian)
NO LONGER SUPPLIED
51
C1676-60051 Overlay - 'Snap on' cover for the control panel function keys and indicator lights (Finnish)
NO LONGER SUPPLIED
Plate
52
C1676-00076 Cover Plate - For optional MIO interface board slot
NO LONGER SUPPLIED
Tray Kit
53
C1676-60122 Tray kit - Includes lower input and upper output trays
NO LONGER SUPPLIED
Optional Interfaces
Interface (Product)
J2550B EtherTwist (10Base-T) LAN interface board
NO LONGER SUPPLIED
J2552B LAN & LocalTalk interface - Has EtherTwist (10Base-T) , ThinLAN (10Base-2) , and LocalTalk (DIN-8) connectors
NO LONGER SUPPLIED
J2555B Token ring LAN interface board - DB-9 and RJ-45 connectors
NO LONGER SUPPLIED
PC Board (Interface)
J2371-69001 EtherTwist 10Base-T interface board
NO LONGER SUPPLIED
J2372-69001 LAN interface board with EtherTwist 10Base-T and ThinLAN 10Base-2 connectors
J4100-69001 New Part for J2372-69001
J2373-60001 Token ring interface board - Has DB-9 connector
NO LONGER SUPPLIED
J2550-69013 EtherTwist 10Base-T LAN interface board
J2552-69013 LAN and LocalTalk interface - EtherTwist (10Base-T), ThinLAN (10Base-2), and LocalTalk (DIN-8) connectors
J2555-69013 Token ring LAN interface board - DB-9 and RJ-45 connectors
DeskJet 1200C
© 2004 Hewlett-Packard 4
HP Parts Reference Guide™
www.hp.com/go/hpparts
Other Accessories
Cartridge
63
51640A Black print cartridge (w/ level indicator) - Prints approx.1120 pages based on 5% density on a 8 inch by 10 inch print
area (for USA)
64
51640AA Black print cartridge (with level indicator) - Prints approx.1120 pages based on 5% density on a 8 inch by 10 inch print
area (for Asia/Pacific)
65
51640AE Black print cartridge (with level indicator) - Prints approx.1120 pages based on 5% density on a 8 inch by 10 inch print
area (for Europe)
66
51640AL Black print cartridge (with level indicator) - Prints approx.1120 pages based on 5% density on a 8 inch by 10 inch print
area (for Latin America)
67
51640C Cyan (Blue) ink cartridge - (with level indicator) - Prints approximately 700 pages at 15% density (for USA)
68
51640CA Cyan (Blue) ink cartridge - (with level indicator) - Prints approximately 700 pages at 15% density (for Asia/Pacific)
69
51640CE Cyan (Blue) ink cartridge - (with level indicator) - Prints approximately 700 pages at 15% density (for Europe)
70
51640CL Cyan (Blue) ink cartridge - (with level indicator) - Prints approximately 700 pages at 15% density (for Latin America)
71
51640M Magenta (Red) ink cartridge (with level indicator) - Prints approximately 700 pages at 15% density (for USA)
72
51640MA Magenta (Red) ink cartridge (with level indicator) - Prints approximately 700 pages at 15% density (for Asia/Pacific)
73
51640ME Magenta (Red) ink cartridge (with level indicator) - Prints approximately 700 pages at 15% density (for Europe)
74
51640ML Magenta (Red) ink cartridge (with level indicator) - Prints approximately 700 pages at 15% density (for Latin America)
75
51640Y Yellow ink cartridge (with level indicator) - Prints approximately 700 pages at 15% density (for USA)
76
51640YA Yellow ink cartridge (with level indicator) - Prints approximately 700 pages at 15% density (for Asia/Pacific)
77
51640YE Yellow ink cartridge (with level indicator) - Prints approximately 700 pages at 15% density (for Europe)
78
51640YL Yellow ink cartridge (with level indicator) - Prints approximately 700 pages at 15% density (for Latin America)
Label
C1686-00001 Postscript upgrade label
NO LONGER SUPPLIED
Manual
5962-9923 Printer family TSSG (Technical Support Solutions Guide - English)
NO LONGER SUPPLIED
C1676-90041 C1676A/C1786A DeskJet 1200C/PS - User's guide (English)
NO LONGER SUPPLIED
C1676-90042 C1676A/C1786A DeskJet 1200C/PS - User's guide (Spanish/French)
NO LONGER SUPPLIED
C1676-90044 C1676A/C1786A DeskJet 1200C/PS - User's guide (German)
NO LONGER SUPPLIED
C1676-90045 C1676A/C1786A DeskJet 1200C/PS - User's guide (French)
NO LONGER SUPPLIED
Manual Kit
C1676-60171 DeskJet 1200C manual kit - Includes manuals, paper, software that is shipped with printer
NO LONGER SUPPLIED
Return Kit
5183-5268 Return kit with box and instructions - For returning defective Thermal InkJet (TIJ) 2.5 InkJet cartridges covered under the
CREW program - For USA
5184-2833 Return kit with box and instructions - For returning defective Thermal InkJet (TIJ) 2.5 InkJet cartridges covered under the
CREW program - For use outside of the USA
Paper and Other Media
Film (Transparency)
C3835A Premium InkJet transparency film - A4 size (21.0cm x 29.7cm) - 50 sheets per package
C6053A Premium InkJet rapid-dry tranparencies - A4 size (21.0cm x 29.7cm) - 50 sheets per package
NO LONGER SUPPLIED
C3834A Premium InkJet transparency film - A size (8.5 x 11-inches) - 50 sheets per package
DeskJet 1200C
© 2004 Hewlett-Packard 5
HP Parts Reference Guide™
www.hp.com/go/hpparts
Paper and Other Media
Film (Transparency)
C6051A Premium InkJet rapid-dry tranparencies - A size (8.5 x 11-inches) - 50 sheets per package
NO LONGER SUPPLIED
Greeting Card Kit
C6587AN Printable Expressions all occasions card kit - Includes 20 greeting cards and envelopes, and a CD-ROM with 24 original
pieces of art
NO LONGER SUPPLIED
Paper
C1812A Greeting card paper pack (White) - A size (8.5 x 11-inches) - Includes 20 sheets and 20 envelopes
C6828A Greeting card paper pack (White) - A size (8.5 x 11-inches) - Felt textured - Includes 20 sheets and 20 envelopes
Paper (Glossy)
C3837A Premium glossy InkJet paper - A4 size (21.0cm x 29.7cm) - 50 sheets per package
C3836A Premium glossy InkJet paper - A size (8.5 x 11-inches) - 50 sheets per package
C6817A Professional glossy InkJet brochure and flyer paper - Glossy on both sides - A size (8.5 x 11-inches) - 50 sheets per box
Paper (InkJet Photo)
C6983A Photo quality InkJet paper - With two sided semi-gloss finish - A size (8.5 x 11-inches) - 25 sheets per package
C7007A Photo quality InkJet paper - With two sided matte finish - A size (8.5 x 11-inches) - 100 sheets per package
Paper (InkJet)
C1824A Bright white InkJet paper - A size (8.5 x 11-inches) - 500 sheets per package
51630Z Color InkJet CX cut sheet paper - A4 size (21.0cm x 29.7cm) - 200 sheets per package
NO LONGER SUPPLIED
51634Z InkJet non-glossy LX paper - A4 size (21.0cm x 29.7cm) - 200 sheets per package
51630Y Color InkJet CX cut sheet paper - A size (8.5 x 11-inches) - 200 sheets per package
NO LONGER SUPPLIED
51634Y InkJet non-glossy LX paper - A size (8.5 x 11-inches) - 200 sheets per package
C5976A Bright white InkJet paper - A size (8.5 x 11-inches) - 200 sheets per package
C5976B Bright white InkJet paper - A size (8.5 x 11-inches) - 250 sheets per package
Paper (Matte)
C6955A Professional and flyer paper (Matte) - A size (8.5 x 11-inches) - 50 sheets
C7018A Matte greeting cards (White) - Half fold - A size (8.5 x 11-inches)
Paper (Photo)
C1846A Photo paper - A size (8.5 x 11-inches) - 20 sheets per package
C6039A Premium glossy photo paper (Fast dry time) - A size (8.5 x 11-inches) - 15 sheets per package
C6979A Premium glossy photo paper (fast dry time) - A size (8.5 x 11-inches) - 50 sheets per package
Paper (Textured)
C7019A Textured greeting card - White half fold - A size (8.5 inches x 11 inches)
Print Mechanism Parts
Absorber
113
C1676-00090 Service station absorber - Available for trade sales in Europe and Asia/Pacific - Available for authorized service centers
only in USA
NO LONGER SUPPLIED
114
C1676-40175 Sled filter - Available for trade sales in Europe and Asia/Pacific - Available for authorized service centers only in USA
NO LONGER SUPPLIED
115
C1676-40209 Base absorber - Available for trade sales in Europe and Asia/Pacific - Available for authorized service centers only in
USA
NO LONGER SUPPLIED
DeskJet 1200C
© 2004 Hewlett-Packard 6
HP Parts Reference Guide™
www.hp.com/go/hpparts
Print Mechanism Parts
Arm
116
C1676-40133 Clutch arm (Rocker shim) - Arm in left chassis assembly that engages gears in the pick motor gear assembly
NO LONGER SUPPLIED
Belt
117
C1676-40256 Carriage belt
NO LONGER SUPPLIED
Bracket
C1676-60146 Bracket (for ink cartridge wipers) - For printers with a serial number prefix of USB and USC ONLY
Cable
119
C1676-60092 Carriage assembly trailing cable
NO LONGER SUPPLIED
Cap
120
C1676-40245 Cartridge cap - Keeps cartridges from drying out when carriage is parked in the service station - Only for printers with a
serial number prefix of USB, USC, or SGC
C3190-40076 Cartridge cap - Keeps cartridges from drying out when carriage is parked in service station
NO LONGER SUPPLIED
Drive Assembly
122
C1676-60356 Center drive assembly - Includes paper drive motor, drive rollers and starwheels
NO LONGER SUPPLIED
Encoder
C1676-20014 Encoder strip (clear strip with position marks) - Used by the sensor in the carriage assembly to determine position
NO LONGER SUPPLIED
Filter
124
C1676-00028 Air filter - Available for trade sales in Europe and Asia Pacific - Available for authorized service centers only in USA
NO LONGER SUPPLIED
Gear
125
C1676-40145 Idler gear
NO LONGER SUPPLIED
Gear Assembly
126
C1676-60026 Cluster gear assembly
NO LONGER SUPPLIED
Hardware
127
C3540-00065 Left shim (metal) - On left side of heater grill
NO LONGER SUPPLIED
Heater
128
C1676-60120 Heater and lower guide assembly
NO LONGER SUPPLIED
Holder
129
C1676-40248 Holder - For platten lock clip
Lock
130
C1676-40247 Platen lock clip
NO LONGER SUPPLIED
Motor
131
C1676-60059 Paper pick-up motor
NO LONGER SUPPLIED
132
C1676-60265 Paper pick-up motor
NO LONGER SUPPLIED
DeskJet 1200C
© 2004 Hewlett-Packard 7
HP Parts Reference Guide™
www.hp.com/go/hpparts
Print Mechanism Parts
Platen
133
C1676-60012 Platen Assembly - Plate that lifts paper to the pickup roller assembly - Available for trade sales in Europe and
Asia/Pacific - For authorized service centers only in USA
Roller
134
C3540-60234 Pickup roller assembly - Shaft with 2 rollers - Picks paper from paper input tray
NO LONGER SUPPLIED
Spring
C1676-80005 Spring assembly on left end of encoder strip
NO LONGER SUPPLIED
Support
136
C1676-60174 Front carriage support - Includes the four star wheels
NO LONGER SUPPLIED
Switch
137
C1676-60088 Interlock switch - Disables printer when access door is open
NO LONGER SUPPLIED
Wiper
C1676-40169 Cartridge wiper assembly - For the three color cartridges
NO LONGER SUPPLIED
C1676-40220 Cartridge wiper - For the black cartridge
NO LONGER SUPPLIED
Replacement Printers
DeskJet
C1676-69100 Replacement DeskJet 1200C (for serial number prefix of USA ONLY) - For HP repair use ONLY
NO LONGER SUPPLIED
C1676-69150 Replacement DeskJet 1200C (for serial number prefix of USA, USB, USC, or SGC) - For sale in Europe ONLY
C1676-69300 Replacement DeskJet 1200C (for serial number prefix of USB, USC, or SGC) - For HP repair use ONLY
NO LONGER SUPPLIED
DeskJet 1200C
© 2004 Hewlett-Packard 8
HP Parts Reference Guide™
Base Assembly Parts
www.hp.com/go/hpparts
115
/
113
\
27, 28
\
/
17
\
18, 19
36
/
52
/
36
/
DeskJet 1200C
© 2004 Hewlett-Packard 9
Carriage Belt
17
\
HP Parts Reference Guide™
www.hp.com/go/hpparts
DeskJet 1200C
© 2004 Hewlett-Packard 10
HP Parts Reference Guide™
External Case Parts
www.hp.com/go/hpparts
/
40
37
32
/
31
/
35
\
30
/
\
41, 42, 43, 44, 45,
46, 47, 48, 49, 50, 51
\
15
\
/
53
37
\
29
37
/
\
/
53
DeskJet 1200C
© 2004 Hewlett-Packard 11
HP Parts Reference Guide™

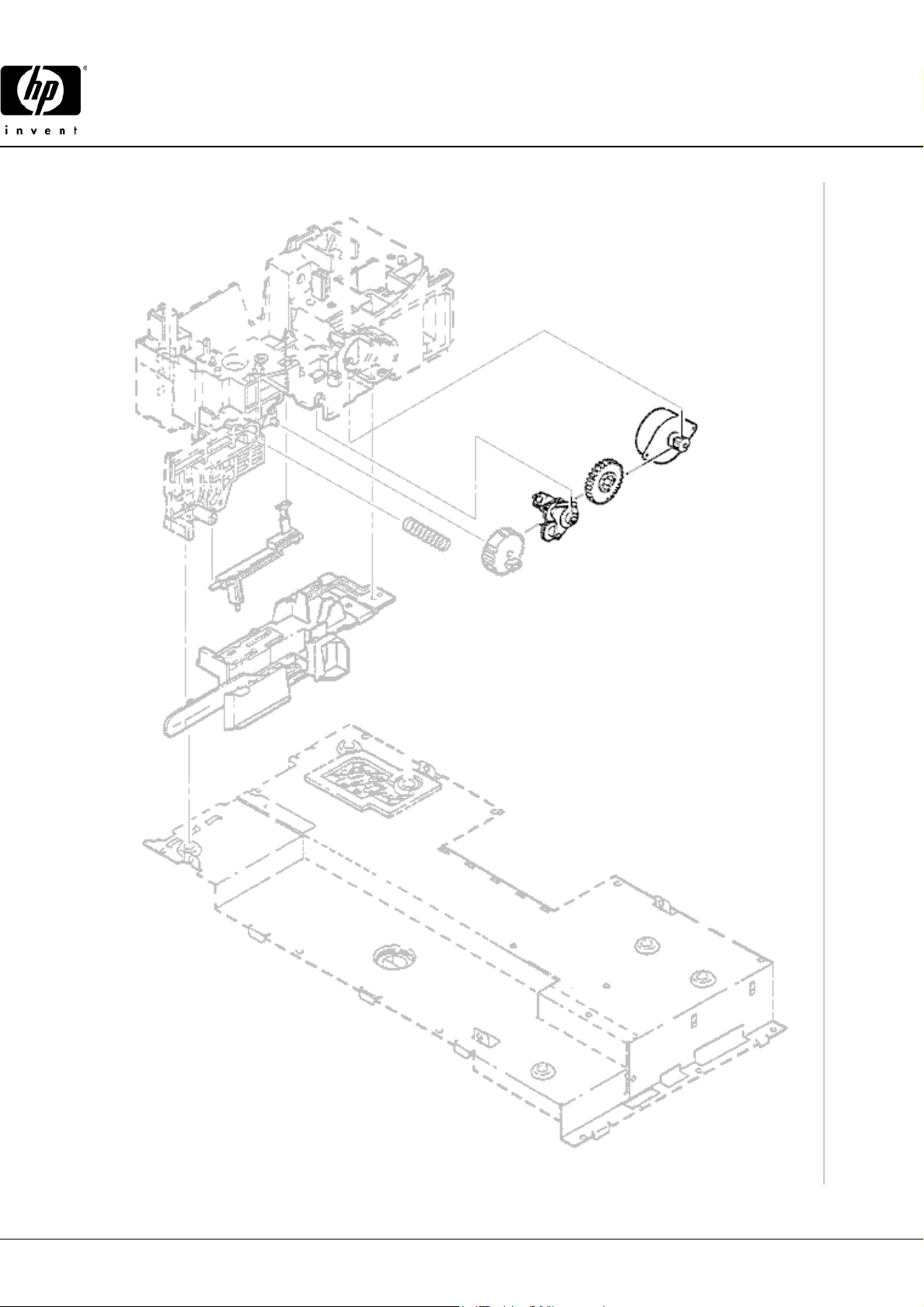

Left Chassis Parts
www.hp.com/go/hpparts
126
\
131, 132
\
125
\
DeskJet 1200C
© 2004 Hewlett-Packard 12
HP Parts Reference Guide™
www.hp.com/go/hpparts
Print Mechanism Assembly
63, 64, 65, 66, 67,
63, 64, 65, 66, 67,
68, 69, 70, 71, 72,
63, 64, 65, 66, 67,
68, 69, 70, 71, 72,
73, 74, 75, 76, 77, 78
63, 64, 65, 66, 67,
68, 69, 70, 71, 72,
/
73, 74, 75, 76, 77, 78
68, 69, 70, 71, 72,
73, 74, 75, 76, 77, 78
73, 74, 75, 76, 77, 78
117
|
/
/
/
119
/
116
_
137
127
\
122
/
/
136
_
133
129
\
/
|
130
128
\
134
/
124
/
DeskJet 1200C
© 2004 Hewlett-Packard 13
HP Parts Reference Guide™
Right Chassis Parts
www.hp.com/go/hpparts
120
/
/
114
/
114
/
114
/
114
DeskJet 1200C
© 2004 Hewlett-Packard 14
HP Parts Reference Guide™
www.hp.com/go/hpparts
HP Parts Reference Guide
http://www.hp.com/go/parts
HP PartSurfer
http://partsurfer.hp.com
HP Parts Ordering Information
http://www.hp.com/go/hpparts
HP Parts Questions/Comments
http://partsurfer.hp.com/contactus.htm
Loading...
